Page 1
Internal Use Only
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

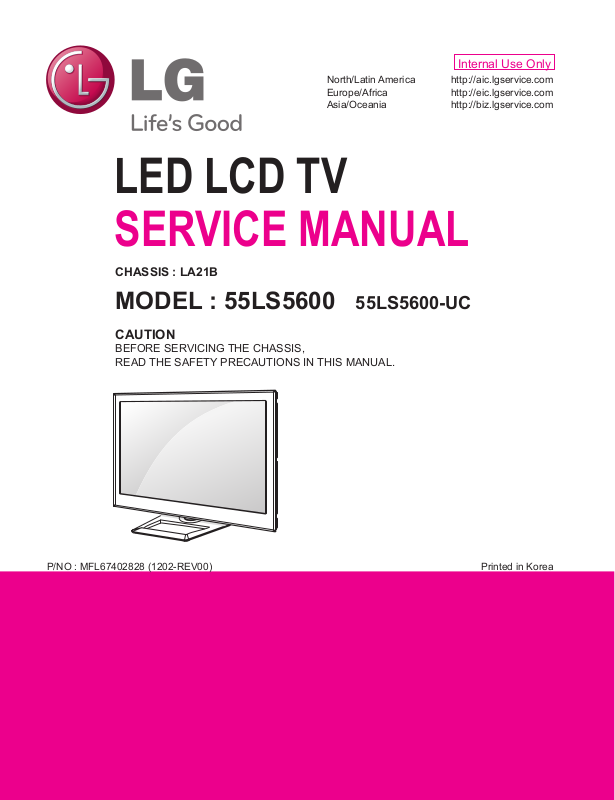

LED LCD TV
SERVICE MANUAL
CHASSIS : LA21B
MODEL : 55LS5600 55LS5600-UC
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Printed in KoreaP/NO : MFL67402828 (1202-REV00)
Page 2
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 4
ADJUSTMENT INSTRUCTION ................................................................ 9
TROUBLE SHOOTING ............................................................................ 15
BLOCK DIAGRAM .................................................................................. 23
EXPLODED VIEW .................................................................................. 24
SCHEMATIC CIRCUIT DIAGRAM ..............................................................
Only for training and service purposes
- 2 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 3
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of th e cir cuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
Only for training and service purposes
- 3 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 4
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
1. Application range
This spec sheet is applied LCD TV with LA21B/C chassis
2. Test condition
Each part is tested as below without special notice.
1) Temperature : 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC±5 ºC
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 110-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
ea ch drawing and s pe cificatio n b y p art number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, IEC specification
- EMC: FCC, ICES, IEC specification
.
4. General Specification
No Item Specication Remark
1 Receiving System 1) ATSC / NTSC-M
2 Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3 Input Voltage 1) AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)
4 Market NORTH AMERICA
5 Screen Size 47/55 inch Wide (1920 × 1080) FHD + 60Hz
6 Aspect Ratio 16:9
7 Tuning System FS
8 Module Edge LED LC550EUE-SEM1 (T120) LGD 47LS4600-UA
LC470EUE-SEM1 (T120) LGD 55LS4600-UA
.9 Operating
Environment
10 Storage
Environment
1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
1) Temp : -20 ~ 60 deg
2) Humidity : ~ 85 %
Only for training and service purposes
- 4 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 5
5. Component Video Input (Y, Cb/Pb, Cr/Pr)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
1 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I
2 720*480 15.73 59.94 13.50 SDTV ,DVD 480I
3 720*480 31.50 60.00 27.027 SDTV 480P
4 720*480 31.47 59.94 27.00 SDTV 480P
5 1280*720 45.00 60.00 74.25 HDTV 720P
6 1280*720 44.96 59.94 74.176 HDTV 720P
7 1920*1080 33.75 60.00 74.25 HDTV 1080I
8 1920*1080 33.72 59.94 74.176 HDTV 1080I
9 1920*1080 67.50 60.00 148.50 HDTV 1080P
10 1920*1080 67.432 59.94 148.352 HDTV 1080P
11 1920*1080 27.00 24.00 74.25 HDTV 1080P
12 1920*1080 26.97 23.94 74.176 HDTV 1080P
13 1920*1080 33.75 30.00 74.25 HDTV 1080P
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
6. RGB (PC)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed DDC Remark
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 VESA O
7 1360*768 47.712 60.015 85.50 VESA (WXGA) O
8 1920*1080 66.587 59.934 138.5 WUXGA O Full HD model Only
Only for training and service purposes
- 5 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 6
7. HDMI Input
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
PC (DVI) DDC
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 VESA O
7 1280*1024 63.981 60.020 108.0 VESA (SXGA) O Full HD model Only
8 1360*768 47.712 60.015 85.50 VESA (WXGA) O
9 1920*1080 67.50 60.00 148.5 HDTV 1080P O Full HD model Only
DTV
1 720*480 31.47 60.00 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.50 60.00 148.50 HDTV 1080P
8 1920*1080 67.432 59.94 148.352 HDTV 1080P
9 1920*1080 27.00 24.00 74.25 HDTV 1080P
10 1920*1080 26.97 23.976 74.176 HDTV 1080P
11 1920*1080 33.75 30.00 74.25 HDTV 1080P
12 1920*1080 33.71 29.97 74.176 HDTV 1080P
Only for training and service purposes
- 6 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 7
8. 3D Mode (LM5800//LM4600/ CM565 models)
8.1. RF 3D Input(DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.5 50 74.25 HDTV 720P Side by Side, Top & Bottom
2 1920*1080 28.125 50 74.25 HDTV 1080I Side by Side, Top & Bottom
8.2. HDMI Input (V1.4a)
- When connect the cable on TV or change the input mode, 3D display on automatically
- Display OSD information -> 1920x2205 [1080p 24], 1280x1470 [720p 60]
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing (720 60p)
2 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top & Bottom
3 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing (1080 24p)
4 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top & bottom
5 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top & Bottom
6 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top & Bottom
7 1920*1080 33.7 30 74.25 HDTV 1080P Side by Side(half), Top &Bottom
8.3. HDMI Input(1.3)
- Connect the HDMI cable & receiving the HDMI signal
- Press “3D” key of remote control & select 3D format below.
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom
2 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom
3 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom
4 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom
5 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom,
Single Frame Sequential
Only for training and service purposes
- 7 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 8
8.4. USB Input
R
L
R
L
(1) Movie
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1920*1080 33.75 30 74.25
Side by Side
Top & Bottom
HDTV 1080P
(2) MPO Picture 3D : when selecting the MPO file, Automatically 3D on
(3) 3D Demo in store mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side
8.5. RGB-PC Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 66.587 59.93 138.625 HDTV 1080P Side by Side, Top & Bottom
8.6. 3D Input mode
No. Side by Side Top & Bottom Single Frame Sequential Frame Packing
1
8.7. DLNA
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1 1920*1080 33.75 30 74.25 HDTV 1080P Side by Side, Top & Bottom
Only for training and service purposes
- 8 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 9
ADJUSTMENT INSTRUCTION
1. Application Range
This spec. sheet applies to LA21B/C Chassis applied LCD TV
all models manufactured in TV factory.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 ±5 °C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz.
(5) At first Worker must turn on the SET by using Power Only
key.
(6) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15 °C
In case of keeping module is in the circumstance of 0°C, it
should be placed in the circumstance of above 15°C for 2
hours
In case of keeping module is in the circumstance of below
-20°C, it should be placed in the circumstance of above
15°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch), there
can some afterimage in the black level area
3. Adjustment items
3.1. Main PCBA Adjustments
(1) ADC adjustment: Component 480i , 1080p / RGB-PC
1080p
(2) EDID download: HDMI and RGB-PC
● Above adjustment items can be also performed in Final
Assembly if needed. Both Board-level and Final assembly
adjustment items can be check using In-Start Menu (1.
Adjust Check). Component 1080p and RGB-PC Adjust will
be calculated by 480i adjust value.
4. MAIN PCBA Adjustments
4.1. ADC Adjustment
4.1.1. Overview
▪ ADC adjustment is needed to find the optimum black level
and gain in Analog-to-Digital device and to compensate RGB
deviation.
4.1.2. Equipment & Condition
(1) Protocol: RS-232C
(2) Inner Pattern
- Resolution : 1080p(Comp) / 1024*768(RGB)
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7±0.1 Vp-p
4.1.3. Adjustment
4.1.3.1. Adjustment method
- Connect to Jig by using RS-232, adjust Component and
RGB
● Manual adj (If needed in Final Assembly)
- Required equipment : Adjustment R/C
- Enter Service Mode by pushing “ADJ” key,
- Enter Internal ADC mode by pushing ‘►’ key at [6. ADC
Calibration]
4.1.3.2. Adj. protocol
- Connect to Jig by using RS-232, adjust Component and
RGB
Protocol CMD 1 CMD 2 Data 1 Data 2 Remark
Enter
adj
mode
Start
ADC adj
a a 00 00 When
transfer
the ‘Mode
In’,Carry the
command.
a d 00 10 Automatically
adjustment
(Use internal
pattern)
3.2. Final assembly adjustment
(1) White Balance adjustment
(2) RS-232C functionality check
(3) Factory Option setting per destination
(4) Shipment mode setting (In-Stop)
(5) GND and HI-POT test
3.3. Appendix
(1) Shipment conditions
(2) Tool option menu
(3) USB Download (S/W Update, Option and Service only)
(4) Preset CH Information
Only for training and service purposes
- 9 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 10
4.2. EDID Download
4.2.1. Overview
- It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
4.2.2. Equipment
(1) Since EDID data is embedded, EDID download JIG, HDMI
cable and D-sub cable are not need.
(2) Adjust by using remote controller.
4.2.3. Download method
(1) Press Adj. key on the Adj. R/C.
(2) Select EDID D/L menu.
(3) By pressing Enter key, EDID download will begin
(4) If Download is successful, OK is display, but If Download is
failure, NG is displayed.
(5) If Download is failure, Re-try downloads.
[Caution] : When EDID Download, must remove RGB/HDMI
Cable.
4.2.4. EDID DATA
4.2.4.1. North America (PCM)
(1) FHD Model - 8Bit
■ HDMI 1-FHD-8BIT (C/S : E9CF)
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
-----------------------------------------------------------------------------------
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E9
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
------------------------------------------------------------------------------ 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57
10 | 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 71 38 2D
20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71
30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00
40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C
50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00
60 | 18 26 36 80 A0 70 38 1F 40 30 20 25 00 40 84 63
70 | 00 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 CF
■ HDMI 2-FHD-8BIT (C/S : E9BF)
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
----------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E9
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
--------------------------------------------------------------------------------
0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57
10 | 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 71 38 2D
20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71
30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00
40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C
50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00
60 | 18 26 36 80 A0 70 38 1F 40 30 20 25 00 40 84 63
70 | 00 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 BF
■ HDMI 3-FHD-8BIT (C/S : E9AF)
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
-------------------------------------------------------------------------------
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 16 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E9
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
------------------------------------------------------------------------------ 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57
10 | 07 67 03 0C 00 30 00 80 1E 02 3A 80 18 71 38 2D
20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71
30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00
40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C
50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00
60 | 18 26 36 80 A0 70 38 1F 40 30 20 25 00 40 84 63
70 | 00 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 AF
■ RGB-FHD (C/S : 02)
EDID Block 0, Bytes 0-127 [00H-7FH]
Only for training and service purposes
- 10 -
0 1 2 3 4 5 6 7 8 9 A B C D E F
-------------------------------------------------------------------------------------
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 01 16 01 03 68 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 02
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 11
5. Final Assembly Adjustment
If TV internal pattern is used, not needed
5.1. White Balance Adjustment
5.1.1. Overview
5.1.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.
(3) Adj. condition: normal temperature
- Surrounding Temperature: 25±5 ºC
- Warm-up time: About 5 Min
- Surrounding Humidity: 20% ~ 80%
- Before White balance adjustment, Keep power on status,
don’t power off
5.1.1.2. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
- After Aging Start, Keep the Power ON sta tus during 5
Minutes.
- In case of LCD, Back-light on should be checked using no
signal or Full-white pattern.
5.1.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) Adj. Computer(D uring auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) Vi deo Signal Generat or MS PG-925F 720p/ 204-Gray
(Model:217, Pattern:49)
→ Only when internal pattern is not available
※ Color Anal yzer Ma trix sh ould be calibrate d using
CS-1000
5.1.4. Adjustment Command (Protocol)
(1) RS-232C Command used during auto-adj
RS-232C COMMAND
CMD DATA ID
Wb 00 00 Begin White Balance adj.
Wb 00 ff End White Balance adj.
(internal pattern disappears )
(2) Adjustment Map
Command
Adj. item
(lower case ASCII)
CMD1 CMD2 MIN MAX
Cool R Gain j g 00 C0
G Gain j h 00 C0
B Gain j i 00 C0
R Cut
G Cut
B Cut
Medium R Gain j a 00 C0
G Gain j b 00 C0
B Gain j c 00 C0
R Cut
G Cut
B Cut
Warm R Gain j d 00 C0
G Gain j e 00 C0
B Gain j f 00 C0
R Cut
G Cut
Explanation
Data Range
(Hex.)
Default
(Decimal)
5.1.3. Equipment connection
Probe
RS-232C
Signal Source
※
Only for training and service purposes
※
Color Analyzer
RS-232C
Computer
RS-232C
Pattern Generator
- 11 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 12
5.1.5. Adjustment method
5.1.5.1. Auto WB calibration
(1) Set TV in ADJ mode using P-ONLY key (or POWER ON
key)
(2) Place optical probe on the center of the display
- It need to check probe condition of zero calibration before
adjustment.
(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment.
(5) When WB adjustment is completed with OK message,
check adjustment status of pre-set mode (Cool, Medium,
Warm)
(6) Remove probe and RS-232C cable.
※ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need.
5.1.5.2. Manual adj. method
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface..
(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-
Balance then press the cursor to the right (KEY►).
(When KEY(►) is pressed 204 Gray(80IRE) internal
pattern will be displayed)
(4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
5.1.6. Reference (White Balance Adj. coordinate and
color temperature)
▪ Luminance: 204 Gray, 80IRE
** Lamp Module
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Mode
Cool 0.269 0.273 13,000K 0.0000
Medium 0.285 0.293 9,300K 0.0000
Warm 0.313 0.329 6,500K 0.0000
Coordinate
X Y
Temp △uv
** Only Edge-LED OS(AUO,CMI,IPS,Sharp) Module except
AUO 65”
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Mode
Cool 0.271 0.276 13,000K 0.0000
Medium 0.287 0.296 9,300K 0.0000
Warm 0.315 0.332 6,500K 0.0000
▪ S ta ndard color coord in ate a nd t em per at ure u sing
CA-210(CH 14)
Mode
Cool 0.271±0.002 0.276±0.002 13,000K 0.0000
Medium 0.287±0.002 0.296±0.002 9,300K 0.0000
Warm 0.315±0.002 0.332±0.002 6,500K 0.0000
** Only Edge-LED LGD Module
▪ S ta ndard color coord in ate a nd t em per at ure u sing
CA-210(CH-14) – by aging time
GP3
Aging time
1 0-2 280 287 296 307 320 337
2 3-5 279 286 295 305 319 335
3 6-9 277 284 292 304 317 334
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-149 270 274 286 294 310 324
9 Over 150 269 273 285 293 309 323
Coordinate
X Y
X Y
(Min)
Temp △uv
Coordinate
Cool Medium Warm
X Y X Y X Y
269 273 285 293 313 329
Temp △uv
▪ S ta ndard color coord in ate a nd t em per at ure u sing
CA-210(CH 14)
Mode
Cool 0.269±0.002 0.273±0.002 13,000K 0.0000
Medium 0.285±0.002 0.293±0.002 9,300K 0.0000
Warm 0.313±0.002 0.329±0.002 6,500K 0.0000
Only for training and service purposes
Coordinate
X Y
Temp △uv
- 12 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 13
5.2. Option selection per country
5.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA02D and LA02E Chassis applied to
CANADA and MEXICO
7. AUDIO output check
7.1. Audio input condition
(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
(3) RGB PC: 1KHz sine wave signal (0.7Vrms)
5.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX.
Selection is done using +, - KEY
5.2.3. Tool Option inspection
▪ Press Adj. key on the Adj. R/C, then select Tool option.
Model
Module
Tool 1 Tool 2 Tool 3 Tool 4 Tool 5
47LM4600-UA LGD 32855 2423 10523 29612 7170
55LM4600-UA LGD 32857 2423 11547 29612 7170
32LS5600-UA LGD 16725 2423 10523 29612 7202
37LS5600-UC LGD 16725 2423 9499 29612 7202
47LS5600-UC AUO 20823 2423 9499 29612 7218
55LS5600-UC LGD 20825 2423 9499 29612 7170
55LS5600-UC AUO 20825 2423 9499 29612 7218
6. GND and HI-POT Test
6.1. GND & HI-POT auto-check preparation
(1) Check the POWER CABLE and SIGNAL CABE insertion
condition
7.2. Specification
No Item Min Typ Max Unit Remark
1 Audio
practical
max Output,
L/R
9.0
8.5
10.0
8.9
12.0
9.9WVrms
(1) Measurement
condition
- EQ/AVL/Clear
Voice: Off
(2) Speaker (8Ω
Impedance)
8. EYE-Q Check
Step 1) Turn on the TV..
Step 2) Press ' EY E button' o n t he adjustm en t remote -
controller.
Step 3) Cover 'Eye Q sensor' on the front of set with your
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10. If Data isn’t below 10 in 6
seconds, Eye Q sensor would be bad. You should
change Eye Q sensor.
Step 5) Uncover your hands from Eye Q sensor, hold it for 6
seconds.
Step 6) Check "Back Light(xxx)" on the screen, check data
increase . You should change Eye Q sensor.
6.2. GND & HI-POT auto-check
(1) Pallet moves in the station. (POWER CORD / AV CORD is
tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next process
automatically.
6.3. Checkpoint
(1) Test voltage
- GND: 1.5KV/min at 100mA
- SIGNAL: 3KV/min at 100mA
(2) TEST time: 1 second
(3) TEST POINT
- GND Test = POWER CORD GND and SIGNAL CABLE GND.
- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms
Only for training and service purposes
- 13 -
<Step 2>
<Step 4>
<Step 3>
<Step 5>
<Step 6>
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 14

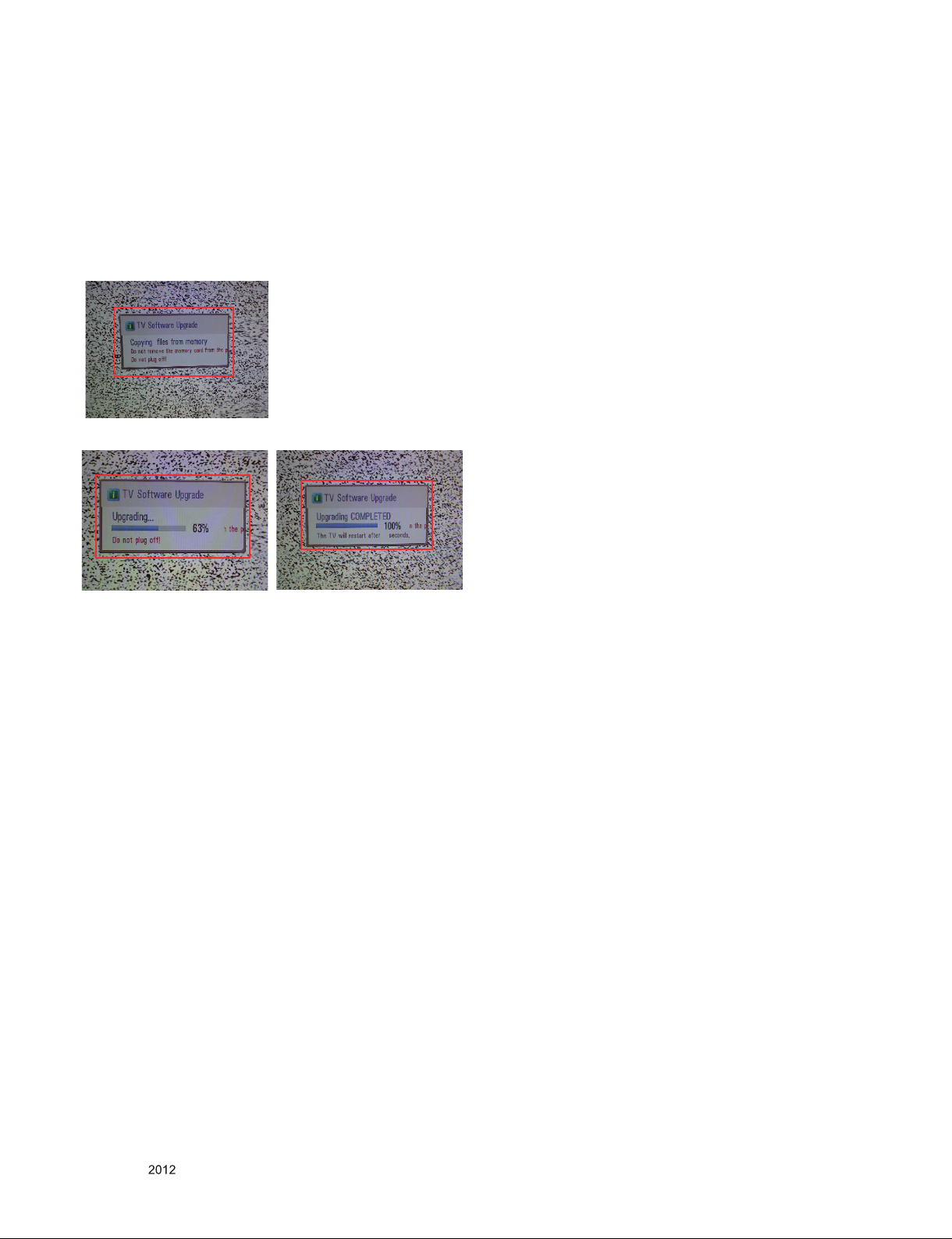

9. USB S/W Download
(optional, Service only)
(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is lower
than that of TV set, it didn’t work. Otherwise USB data is
automatically detected.
(3) Show the message “Copying files from memory”
(4) Updating is staring.
(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option.
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. If all channel data is cleared, you didn’t have a DTV/
ATV test on production line.
* After downloading, TOOL OPTION setting is needed again.
(1) Push "IN-START" key in service remote controller.
(2) Select "Tool Option 1" and Push “OK” button.
(3) Punch in the number. (Each model has their number.)
Only for training and service purposes
- 14 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 15
1. Power-up boot check
Check stand-by Voltage.
P403 9~12pin : +3.5V_ST
Check Power connector
Main B/D 3.5V Line
Short Check
Check X201 clock
24 MHz
Replace X201
Check P403 PWR_ON.
1pin : 3.3V
Replace Mstar(IC101) or Main board
Check Multi Voltage
P403 2pin:24V ,17pin:12V
Replace Power Board
Check Inverter Control & Error Out
P403 18 pin : High
P403 24 pin : low
Check Power Board or Module
Check IC402/3/7 Output Voltage
IC402 : 2.5V
IC403 : 1.1V
IC407 : 1.5V
Q403 : 3.3V
Replace IC402/3/7, Q403
Re-download software.
Check Micom Voltage
L404 : +3.5V
Replace L404
Check LVDS Power Voltage
Q409 : 12V
Replace Q409
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board
Change Module
ok
ok
ok
ok
ok
ok
ok
ok
okNo
No
ok
Replace Power board.
ok
No
No
No
No
No
No
No
No
TROUBLE SHOOTING
Only for training and service purposes
- 15 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 16
2. Digital TV Video
Check RF Cable & Signal
Check Tuner 3.3V Power
L3703
Replace L3703
Check Tuner 1.8V Power
IC3703 2 pin : 1.8V
Check IF_P/N Signal
TU3704 10/11 Pin
Replace IC3703
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
ok
ok
ok
ok
No
No
No
No
Bad Tuner. Replace Tuner.
Check RF Cable & Signal
Check Tuner 3.3V Power
L3703
Replace L3703
Check Tuner 1.8V Power
IC3703 2 pin : 1.8V
Check CVBS Signal
TU3704 8 Pin
Replace IC3703 .
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
ok
ok
ok
ok
No
No
No
No
Bad Tuner. Replace Tuner.
3. Analog TV Video
Only for training and service purposes
- 16 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 17
4. AV Video
Check input signal format.
Is it supported?
Check AV Cable for damage
for damage or open conductor
Check JK1601, CVBS Signal Line
L1603
ok
ok
ok
No
Replace Jack
ok
Check CVBS_DET Signal
Replace R1600
No
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
No
Check input signal format.
Is it supported?
Check Component Cable
for damage or open conductor.
Check JK1603 or JK1602 or JK1601
Y/PB/PR signal Line
ok
ok
ok
No
Replace Jack
Check COMP_DET Signal
Replace R1612 or R1613
No
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
ok
No
5. Component Video
Only for training and service purposes
- 17 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 18
6. RGB Video
Check input signal format.
Is it supported?
Check RGB Cable conductors
for damage or open conductor
Check EDID
I2C Signal
R1138, R1139(SDA,SCL)
Check JK1104
H/V_Sync/R/G/B Signal Line
ok
ok
ok
No
No
re-download EDID data ,Replace Mstar(IC101) or Main Board
ok
Replace Jack
Check DSUB_DET
Replace R1146 or R1147
No
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
ok
No
Only for training and service purposes
- 18 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 19
7. HDMI Video
Check input signal format.
Is it supported?
Check HDMI Cable conductors
for damage or open conductor.
Check EDID
R884,R8 I2C Signal
Check JK801, JK802, JK803
ok
ok
ok
No
No
Replace the defective IC or re-download EDID data
Check HDCP EEPROM(IC103)
Power & I2C Signal
Replace the defective IC.
ok
No
Replace Jack
Check HDMI Signal
Check other set
If no problem, check signal line
ok
No
Check Mstar LVDS Output
Replace Mstar(IC101) or Main Board.
ok
No
Replace Main Board
No
Check HDMI_DET(HPD)
No
ok
Replace R830,R828,R862
Only for training and service purposes
- 19 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 20
8. All Source Audio
Check the TV Speaker Menu
(Menu -> Sound -> TV Speaker)
On
ok
ok
Check Output Signal P501
1, 2, 3, 4 pin.
Replace Audio AMP IC(IC501)
ok
No
Check Connector & P501
Replace connector
if found to be damaged.
ok
No
Check speaker resistance
and connector damage.
Replace speaker.
ok
No
Off
Toggle the Menu
Check AMP IC(IC501) Power
24V, 3.3V
No
Replace Amp IC(IC501)
Check Mstar I2S Output
IC501 9,10,11 Pin
No
Check signal line. Or replace Mstar(IC101)
Check Mstar AUDIO_MASTER_CLK
R148
No
Replace Mstar(IC101) or Main Board.
ok
Check AMP I2C Line
R140, R141
No
Check signal line. Or replace Mstar(IC101)
Only for training and service purposes
- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 21
9. Digital TV Audio
Check RF Cable & Signal
Follow procedure
‘8. All source audio’
trouble shooting guide.
ok
Check Tuner 3.3V Power
L3703
Replace L3703
Check Tuner 1.8V Power
IC3703 2 pin : 1.8V
Check IF_P/N Signal
TU3700 10/11 Pin
Replace IC3703
ok
ok
ok
No
No
No
Bad Tuner. Replace Tuner.
Check RF Cable & Signal
Follow procedure
‘8. All source audio’
trouble shooting guide.
ok
Check Tuner 3.3V Power
L3703
Replace L3703
Check Tuner 1.8V Power
IC3703 2 pin : 1.8V
Check CVBS Signal
TU3700 8 Pin
Replace IC3703 .
ok
ok
ok
No
No
No
Bad Tuner. Replace Tuner.
10. Analog TV Audio
Only for training and service purposes
- 21 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 22
11. AV Audio
Check AV Cable for damage
for damage or open conductor
Check JK1601 Signal Line
R1632,R1633
ok
ok
No
Replace Jack
Follow procedure
‘8. All source audio’
trouble shooting guide.
Check Component Cable
for damage or open conductor.
Check JK1601 Signal Line
R1618, R1617
ok
ok
No
Replace Jack
Follow procedure
‘8. All source audio’
trouble shooting guide.
Check Cable conductors
for damage or open conductor
Check JK1102 & Signal Line
ok
No
ok
Replace Jack
Follow procedure
‘8. All source audio’
trouble shooting guide.
12. Component Audio
13. RGB Audio
Only for training and service purposes
- 22 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 23

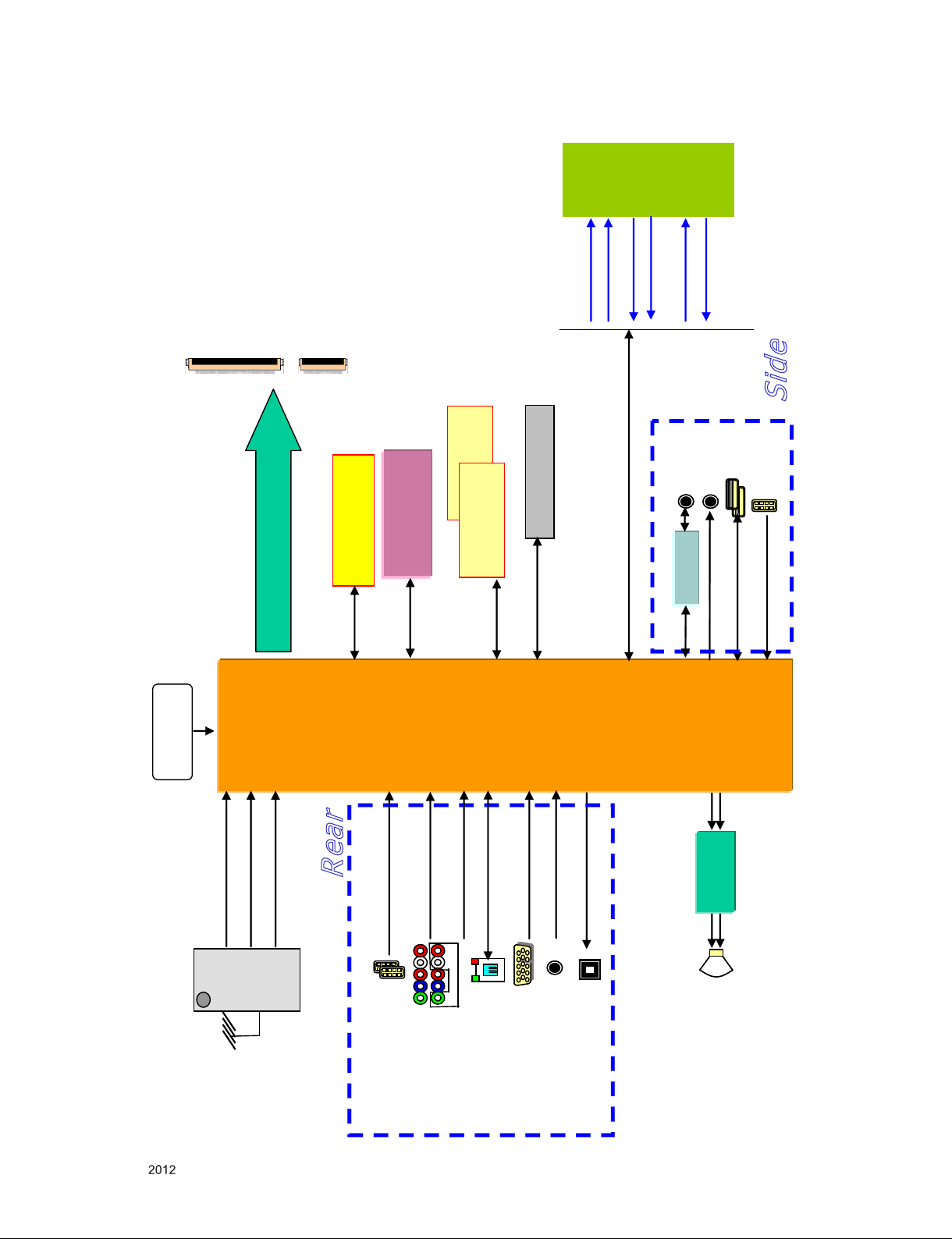

BLOCK DIAGRAM
RGB PC
SPDIF
Component 2
1
H/P OUT
HDMI(DVI)
Half
Half
NIM
NIM
(SI21
(SI21
76_AT
76_AT
SC_1I
SC_1I
NPUT)
NPUT)
PC Audio In
IF +/-
TU_CVBS
SIF
L/R
S7LR
SERIAL FLASH
MXIC (8M bit)
MX25L8006EM2I
LVDS
(FHD/HD 60z)
A. AMP
NTP7500
USB2.0
DP/DM
SPK L/R
X-tal
24MHz
FPC(51P/FHD)
I2S
SPDIF
H/P L/R
L/R
CVBS, Y/Pb/Pr, L/R
RGB/H/V
Rear
TMDS
DDR2 Add.
DDR2 Data
SPI
AV
Side
NAND Flash
(1Gbit)
NAND01GW3B2CN6E
PCM_A[0:7]
TMDS
HDMI
CVBS, L/R
DDR3 256MB 1Gb
Hynic
H5TQ1G63DFR
DDR3 256MB(1Gb)
Hynic
H5TQ1G63DFR
CONTROL
IR & LED /
(SOFT TOUCH)
KEY1
KEY2
IR
LED_B/LG LOGO
AT24C1024BN-SH-T
1Mbit
I2C
RS-232C
FPC(30P/HD)
MAX3232
RS232C
SENSOR_SCL
SENSOR_SDA
LAN
ET_RX/TX
Only for training and service purposes
- 23 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 24
400
800
521
540

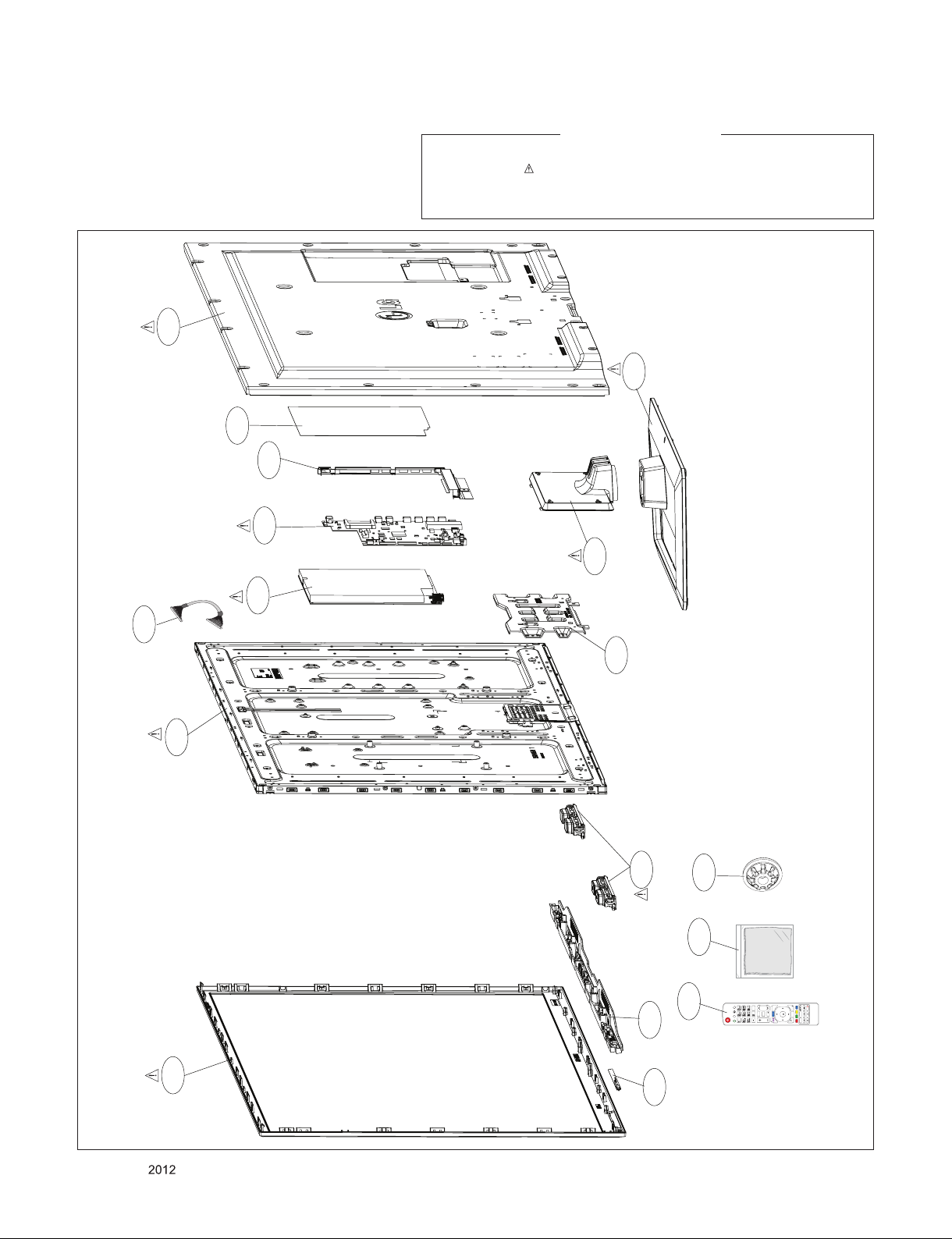

EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essenti al that these spec ial safety parts s hould be replaced with the same compone nts as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
900
910
530
LV1
810
200
120
WM1
A5
A2
310
300
Only for training and service purposes
- 24 -
510
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Page 25

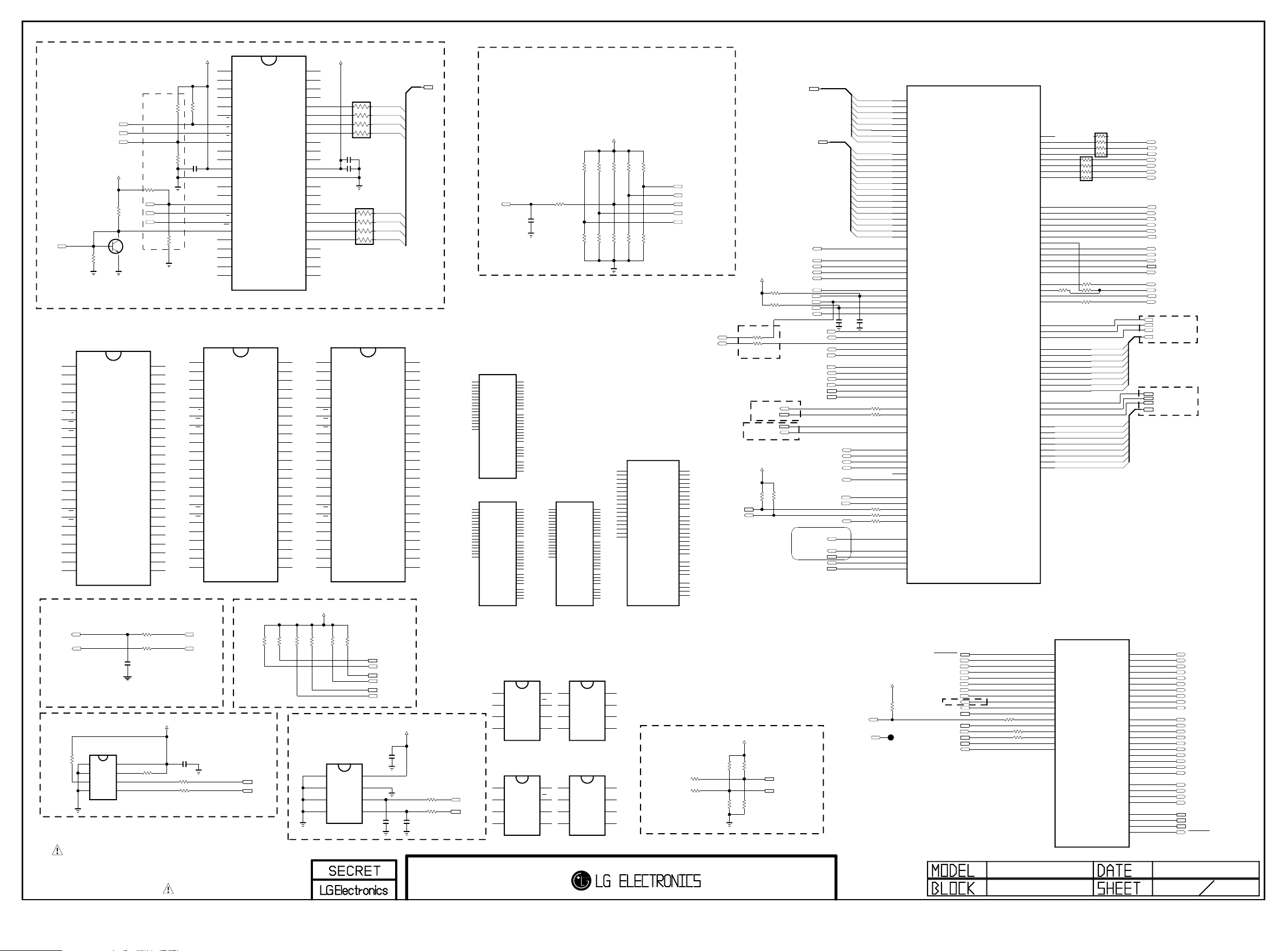

IC102
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
NC_1
1
NAND_FLASH_1G_NUMONYX
NC_2
2
NC_3
3
NC_4
4
NC_5
5
NC_6
6
RB
7
R
8
E
9
NC_7
10
NC_8
11
12
13
NC_9
14
15
CL
16
AL
17
W
18
WP
19
20
21
22
23
24
NAND_FLASH_1G_SS
EAN61857001
IC102-*2
K9F1G08U0D-SCB0
I2C
Addr:10101--
I2C_SCL
I2C_SDA
NAND01GW3B2CN6E
EAN60762401
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
R141
R140
1K
1K
NC_29
NC_28
NC_27
NC_26
I/O7
I/O6
I/O5
I/O4
NC_25
NC_24
NC_23
VCC_2
VSS_2
NC_22
NC_21
NC_20
I/O3
I/O2
I/O1
I/O0
NC_19
NC_18
NC_17
NC_16
R160
1K
NC_29
48
NC_28
47
NC_27
46
NC_26
45
I/O7
44
I/O6
43
I/O5
42
I/O4
41
NC_25
40
NC_24
39
NC_23
38
VDD_2
37
VSS_2
36
NC_22
35
NC_21
34
NC_20
33
I/O3
32
I/O2
31
I/O1
30
I/O0
29
NC_19
28
NC_18
27
NC_17
26
NC_16
25
+3.3V_Normal
R161
1K
EEPROM
+3.3V_Normal
OS
C102
10uF
C103
0.1uF
OS
NAND_FLASH_1G_TOSHIBA
TC58NVG0S3ETA0BBBH
NC_1
1
NC_2
2
NC_3
3
NC_4
4
NC_5
5
NC_6
6
RY/BY
7
RE
8
CE
9
NC_7
10
NC_8
11
VCC_1
12
VSS_1
13
NC_9
14
NC_10
15
CLE
16
ALE
17
WE
18
WP
19
NC_11
20
NC_12
21
NC_13
22
NC_14
23
NC_15
24
R144
R145
2.2K
2.2K
IC104
AT24C256C-SSHL-T
NVRAM_ATMEL
A0
1
A1
2
A0’h
A2
3
GND
4
EAN61133501
OS
22
AR101
OS
AR102
EAN61508001
IC102-*3
VCC
8
WP
7
SCL
6
SDA
5
PCM_A[7]
PCM_A[6]
PCM_A[5]
PCM_A[4]
PCM_A[3]
PCM_A[2]
PCM_A[1]
PCM_A[0]
22
AMP_SDA
AMP_SCL
I2C_SDA
I2C_SCL
SENSOR_SDA
SENSOR_SCL
C105
0.1uF
PCM_A[0-7]
NC_29
48
NC_28
47
NC_27
46
NC_26
45
I/O8
44
I/O7
43
I/O6
42
I/O5
41
NC_25
40
NC_24
39
NC_23
38
VCC_2
37
VSS_2
36
NC_22
35
NC_21
34
NC_20
33
I/O4
32
I/O3
31
I/O2
30
I/O1
29
NC_19
28
NC_18
27
NC_17
26
NC_16
25
+3.3V_Normal
C104
C106
8pF
8pF
OPT
OPT
R111 22
R112 22
/PF_WP
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
R/B
RE
CE
NC_7
NC_8
VCC_1
VSS_1
NC_9
NC_10
CLE
ALE
WE
WP
NC_11
NC_12
NC_13
NC_14
NC_15
DIMMING
A_DIM
PWM_DIM
HDCP EEPROM
HDCP_EEPROM
R113
4.7K
NAND FLASH MEMORY
/F_RB
/PF_OE
/PF_CE0
+3.3V_Normal
/PF_CE1
OPT
R104
PF_ALE
10K
/PF_WE
C
B
OPT
EAN35669102
IC102-*1
A_DIM
C111
2.2uF
IC103
8
7
6
5
Q101
E
MMBT3904(NXP)
VCC
WP
SCL
SDA
OS
R102
3.3K
NAND_FLASH_1G_HYNIX
H27U1G8F2BTR-BC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
HDCP_EEPROM
CAT24WC08W-T
A0
1
A1
2
A2
3
VSS
4
OPT
R105
1K
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A_DIM
R156
R157
R127 4.7K
HDCP_EEPROM
OS
R107
1K
OPT
R108
1K
OS
R106
1K
NC_29
NC_28
NC_27
NC_26
I/O7
I/O6
I/O5
I/O4
NC_25
NC_24
NC_23
VCC_2
VSS_2
NC_22
NC_21
NC_20
I/O3
I/O2
I/O1
I/O0
NC_19
NC_18
NC_17
NC_16
10K
100
+3.3V_Normal
HDCP_EEPROM
HDCP_EEPROM
R128
C101
0.1uF
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
VCC_1
VSS_1
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
C107
0.1uF
22
R129 22
HDCP_EEPROM
+3.3V_Normal
OS
R109
3.9K
OS
1
2
3
4
5
6
R/B
7
RE
8
CE
9
10
11
12
13
14
15
CLE
16
ALE
17
WE
18
WP
19
20
21
22
23
24
PWM0
PWM2
VDD_1
VSS_1
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
<CHIP Config(LED_R/BUZZ)>
Boot from SPI CS1N(EXT_FLASH) 1’b0
Boot from SPI_CS0N(INT_FLASH) 1’b1
<CHIP Config>
(I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)
B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash
SB51_WOS : 4’b0001 Secure B51 without scramble
SB51_WS : 4’b0010 Secure B51 with scramble
MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash
MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash
MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash
MIPS_WOS : 4’b1001 Secure MIPS without scramble
MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE
R148
56
OPT
C112
100pF
50V
S7LR2_DIVX_AT_SPIL
IC101-*2
LGE2111A-TE SPIL
C7
GPIO36
E6
GPIO37
F5
GPIO38
B6
GPIO39
E5
GPIO40
D5
GPIO41
B7
GPIO42
E7
GPIO45
F7
GPIO46
AB5
GPIO49
AB3
GPIO50
A9
GPIO51
F4
GPIO52
AB1
I2C_SCKM0/GPIO53
N6
I2C_SDAM0/GPIO54
AB2
GPIO73
AC2
GPIO74
NON_OS_512k_ATMEL
AT24C512C-SSHD-T
VCC
A0
8
A1
WC
7
A2
SCL
6
GND
SDA
5
NVRAM_RENESAS
R1EX24256BSAS0A
VCC
A0
8
A1
WC
7
A2
SCL
6
VSS
SDA
5
EAN62389501
IC104-*4
1
2
3
4
EAN43349004
IC104-*2
1
2
3
4
I2C_SCL
I2C_SDA
AUD_MASTER_CLK
S7LR2_DIVX_CN
IC101-*4
LGE2111A-VD
C7
GPIO36
E6
GPIO37
F5
GPIO38
B6
GPIO39
E5
GPIO40
D5
GPIO41
B7
GPIO42
E7
GPIO45
F7
GPIO46
AB5
GPIO49
AB3
GPIO50
A9
GPIO51
F4
GPIO52
AB1
I2C_SCKM0/GPIO53
N6
I2C_SDAM0/GPIO54
AB2
GPIO73
AC2
GPIO74
S7LR2_DIVX_DTS_AT
IC101-*3
LGE2111A-W1
C7
GPIO36
E6
GPIO37
F5
GPIO38
B6
GPIO39
E5
GPIO40
D5
GPIO41
B7
GPIO42
E7
GPIO45
F7
GPIO46
AB5
GPIO49
AB3
GPIO50
A9
GPIO51
F4
GPIO52
AB1
I2C_SCKM0/GPIO53
N6
I2C_SDAM0/GPIO54
AB2
GPIO73
AC2
GPIO74
AB25
LVA0P
AB23
LVA0N
AC25
LVA1P
AB24
LVA1N
AD25
LVA2P
AC24
LVA2N
AE23
LVA3P
AC23
LVA3N
AC22
LVA4P
AD23
LVA4N
V23
LVB0P
U24
LVB0N
V25
LVB1P
V24
LVB1N
W25
LVB2P
W23
LVB2N
AA23
LVB3P
Y24
LVB3N
AA25
LVB4P
AA24
LVB4N
AE24
LVACKP
AD24
LVACKN
Y23
LVBCKP
W24
LVBCKN
T25
GPIO196
U23
GPIO193
T24
GPIO194
T23
GPIO195
AB25
LVA0P
AB23
LVA0N
AC25
LVA1P
AB24
LVA1N
AD25
LVA2P
AC24
LVA2N
AE23
LVA3P
AC23
LVA3N
AC22
LVA4P
AD23
LVA4N
V23
LVB0P
U24
LVB0N
V25
LVB1P
V24
LVB1N
W25
LVB2P
W23
LVB2N
AA23
LVB3P
Y24
LVB3N
AA25
LVB4P
AA24
LVB4N
AE24
LVACKP
AD24
LVACKN
Y23
LVBCKP
W24
LVBCKN
T25
GPIO196
U23
GPIO193
T24
GPIO194
T23
GPIO195
NON_OS_512k_ST
IC104-*3
M24512-RMN6TP
E0
1
E1
2
E2
3
VSS
4
EAN43349003
NVRAM_ST
IC104-*1
M24256-BRMN6TP
E0
1
E1
2
E2
3
VSS
4
EAN61548301
GPIO196
GPIO193
GPIO194
GPIO195
OPT
R115 1K
R116 1K
LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N
LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N
LVACKP
LVACKN
LVBCKP
LVBCKN
+3.3V_Normal
OPT
R165 1K
R117 1K
R118 1K
R121 1K
AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23
V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24
AE24
AD24
Y23
W24
T25
U23
T24
T23
VCC
8
WP
7
SCL
6
SDA
5
VCC
8
WP
7
SCL
6
SDA
5
OS
OPT
R123 1K
NON_OS
R124 1K
S7LR2_DIVX_AT_ASE
LGE2111A-TE
C7
GPIO36
E6
GPIO37
F5
GPIO38
B6
GPIO39
E5
GPIO40
D5
GPIO41
B7
GPIO42
E7
GPIO45
F7
GPIO46
AB5
GPIO49
AB3
GPIO50
A9
GPIO51
F4
GPIO52
AB1
I2C_SCKM0/GPIO53
N6
I2C_SDAM0/GPIO54
AB2
GPIO73
AC2
GPIO74
OPT
R152 1K
R153 1K
IC101-*1
LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N
LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N
LVACKP
LVACKN
LVBCKP
LVBCKN
GPIO196
GPIO193
GPIO194
GPIO195
PM MODEL OPTION
LED_R/BUZZ
AUD_SCK
AUD_MASTER_CLK_0
PWM1
PWM0
+5V_Normal
OPT
/CI_CD1
/CI_CD2
R120 22
R122 22
OPT
to delete CI or gate for
for SYSTEM EEPROM
(IC104)
AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23
V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24
AE24
AD24
Y23
W24
T25
U23
T24
T23
R174
10K
TOUCH_KEY
R178 100 OPT
R179 100 OPT
R175
10K
TACT_KEY
S/T_SDA
S/T_SCL
R149
4.7K
11_SUB
+3.5V_ST
RGB_DDC_SDA
RGB_DDC_SCL
R177
10K
11_SUB
R176
10K
12_SUB
I2C_SCL
I2C_SDA
+3.5V_ST
PCM_D[0-7]
PCM_A[0-14]
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD
/PCM_IOWR
R132
10K
/PCM_CE
/PCM_IRQA
R133
10K
/PCM_CD
/PCM_WAIT
PCM_RST
R143
4.7K
11_SUB
PM_MODEL_OPT_0
PM_MODEL_OPT_1
USB1_OCD
USB1_CTL
PCM_5V_CTL
ERROR_OUT
USB2_OCD
USB2_CTL
PM_TXD
PM_RXD
MODEL_OPT_6
MODEL_OPT_7
PWM0
PWM1
PWM2
LED_B/LG_LOGO
LED_R/BUZZ
KEY1
KEY2
SCART1_MUTE
LOCAL DIMMING
L/DIM_VS
L/DIM_SCLK
L/DIM_MOSI
SENSOR_SCL
SENSOR_SDA
C108
0.1uF
OPT
R101 22
R163 22
R164 22
URSA5_RESET
URSA5_RESET
PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]
C109
0.1uF
R136 22
R137 22
11_SUB
11_SUB
EU_OPT
W21
AA18
AB22
AE20
AA15
AE21
AB21
Y15
W20
V20
W22
AB18
AA20
AA21
Y19
AB17
Y16
AB19
AB20
AA16
AA19
AC21
AA17
Y20
AB15
AA22
AD22
AD20
AD21
AC20
Y18
Y21
Y22
U21
V21
R20
T20
U22
N25
N24
P23
P24
P21
N23
P22
R21
P20
R23
R24
R25
T21
T22
+3.3V_Normal
4.7K
PCMDATA[0]/GPIO126
PCMDATA[1]/GPIO127
PCMDATA[2]/GPIO128
PCMDATA[3]/GPIO120
PCMDATA[4]/GPIO119
PCMDATA[5]/GPIO118
PCMDATA[6]/GPIO117
PCMDATA[7]/GPIO116
PCMADR[0]/GPIO125
PCMADR[1]/GPIO124
PCMADR[2]/GPIO122
PCMADR[3]/GPIO121
PCMADR[4]/GPIO99
PCMADR[5]/GPIO101
PCMADR[6]/GPIO102
PCMADR[7]/GPIO103
PCMADR[8]/GPIO108
PCMADR[9]/GPIO110
PCMADR[10]/GPIO114
PCMADR[11]/GPIO112
PCMADR[12]/GPIO104
PCMADR[13]/GPIO107
PCMADR[14]/GPIO106
PCMREG_N/GPIO123
PCMOE_N/GPIO113
PCMWE_N/GPIO197
PCMIORD_N/GPIO111
PCMIOWR_N/GPIO109
PCMCE_N/GPIO115
PCMIRQA_N/GPIO105
PCMCD_N/GPIO130
PCMWAIT_N/GPIO100
PCM_RESET/GPIO129
PCM2_CE_N/GPIO131
PCM2_IRQA_N/GPIO132
PCM2_CD_N/GPIO135
PCM2_WAIT_N/GPIO133
PCM2_RESET/GPIO134
D4
UART1_TX/GPIO43
E4
UART1_RX/GPIO44
UART2_TX/GPIO65
UART2_RX/GPIO64
B8
UART3_TX/GPIO47
A8
UART3_RX/GPIO48
I2C_SCKM2/DDCR_CK/GPIO72
I2C_SDAM2/DDCR_DA/GPIO71
D2
DDCA_DA/UART0_TX
D1
DDCA_CK/UART0_RX
PWM0/GPIO66
PWM1/GPIO67
PWM2/GPIO68
PWM3/GPIO69
PWM4/GPIO70
F6
PWM_PM/GPIO199
H6
SAR0/GPIO31
G5
SAR1/GPIO32
G4
SAR2/GPIO33
J5
SAR3/GPIO34
J4
SAR4/GPIO35
VSYNC_LIKE/GPIO145
SPI1_CK/GPIO201
SPI1_DI/GPIO202
SPI2_CK/GPIO203
SPI2_DI/GPIO204
AMP_RESET
5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4
AV_CVBS_DET
DSUB_DET
SC1/COMP1_DET
HP_DET
TUNER_RESET
R182
MODEL_OPT_0
URSA5_RESET
MODEL_OPT_1
AMP_SCL
AMP_SDA
MODEL_OPT_2
DEMOD_RESET
IC101
LGE2111A-T8
S7LR2_DIVX_MS10
GPIO_PM[0]/GPIO6
PM_UART_TX/GPIO_PM[1]/GPIO7
GPIO_PM[2]/GPIO8
GPIO_PM[3]/GPIO9
GPIO_PM[4]/GPIO10
PM_UART_RX/GPIO_PM[5]/GPIO11
PM_SPI_SCZ1/GPIO_PM[6]/GPIO12
PM_SPI_SCZ2/GPIO_PM[10]/GPIO16
OLP
GPIO_PM[7]/GPIO13
GPIO_PM[8]/GPIO14
GPIO_PM[9]/GPIO15
GPIO_PM[11]/GPIO17
PM_SPI_SCK/GPIO1
PM_SPI_CZ0/GPIO_PM[12]/GPIO0
PM_SPI_SDI/GPIO2
PM_SPI_SDO/GPIO3
TS0DATA_[0]/GPIO77
TS0DATA_[1]/GPIO78
TS0DATA_[2]/GPIO79
TS0DATA_[3]/GPIO80
TS0DATA_[4]/GPIO81
TS0DATA_[5]/GPIO82
TS0DATA_[6]/GPIO83
TS0DATA_[7]/GPIO84
TS1DATA_[0]/GPIO88
TS1DATA_[1]/GPIO89
TS1DATA_[2]/GPIO90
TS1DATA_[3]/GPIO91
TS1DATA_[4]/GPIO92
TS1DATA_[5]/GPIO93
TS1DATA_[6]/GPIO94
TS1DATA_[7]/GPIO95
applied on only SMALL PCB
R171 100
NF_CE1Z/GPIO138
NF_WPZ/GPIO198
NF_CEZ/GPIO137
NF_CLE/GPIO136
NF_REZ/GPIO139
NF_WEZ/GPIO140
NF_ALE/GPIO141
NF_RBZ/GPIO142
TS0CLK/GPIO87
TS0VALID/GPIO85
TS0SYNC/GPIO86
TS1CLK/GPIO98
TS1VALID/GPI96
TS1SYNC/GPIO97
URSA5_RESET
R172 0
R173 0
AE18
AC17
AD18
AC18
AC19
AD17
AE17
AD19
H5
K6
K5
J6
K4
L6
C2
L5
M6
M5
C1
M4
A2
D3
R154 22
B2
B1
Y14
AA10
Y12
Y13
Y11
AA12
AB12
AA14
AB14
AA13
AB11
AC15
AD15
AC16
AD16
AE15
AE14
AC13
AC14
AD12
AD13
AD14
C7
E6
F5
B6
E5
D5
B7
E7
F7
AB5
AB3
A9
F4
AB1
OPT
OPT
N6
AB2
AC2
GP4L_S7LR2
FLASH/EEPROM/GPIO
OS
AR103
22
AR104
22
OS
R147 33
R146 33
OPT
R151 33
for SERIAL FLASH
CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
S7LR2_DIVX_MS10
IC101
LGE2111A-T8
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO45
GPIO46
GPIO49
GPIO50
GPIO51
GPIO52
I2C_SCKM0/GPIO53
I2C_SDAM0/GPIO54
GPIO73
GPIO74
LVA0P
LVA0N
LVA1P
LVA1N
LVA2P
LVA2N
LVA3P
LVA3N
LVA4P
LVA4N
LVB0P
LVB0N
LVB1P
LVB1N
LVB2P
LVB2N
LVB3P
LVB3N
LVB4P
LVB4N
LVACKP
LVACKN
LVBCKP
LVBCKN
GPIO196
GPIO193
GPIO194
GPIO195
AB25
AB23
AC25
AB24
AD25
AC24
AE23
AC23
AC22
AD23
V23
U24
V25
V24
W25
W23
AA23
Y24
AA25
AA24
AE24
AD24
Y23
W24
T25
U23
T24
T23
/PF_WP
/PF_CE0
/PF_CE1
/PF_OE
/PF_WE
PF_ALE
/F_RB
POWER_DET
PM_TXD
INV_CTL
RL_ON
POWER_ON/OFF_1
PM_RXD
/FLASH_WP
SIDE_HP_MUTE
PANEL_CTL
PM_MODEL_OPT_0
AMP_MUTE
SPI_SCK
/SPI_CS
SPI_SDI
SPI_SDO
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[0-7]
from CI SLOT
FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC
FE_TS_DATA[0-7]
Internal demod out
RXA0+
RXA0RXA1+
RXA1RXA2+
RXA2RXA3+
RXA3RXA4+
RXA4-
RXB0+
RXB0RXB1+
RXB1RXB2+
RXB2RXB3+
RXB3RXB4+
RXB4-
RXACK+
RXACKRXBCK+
RXBCK-
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
S2_RESET
2011.11.16
1

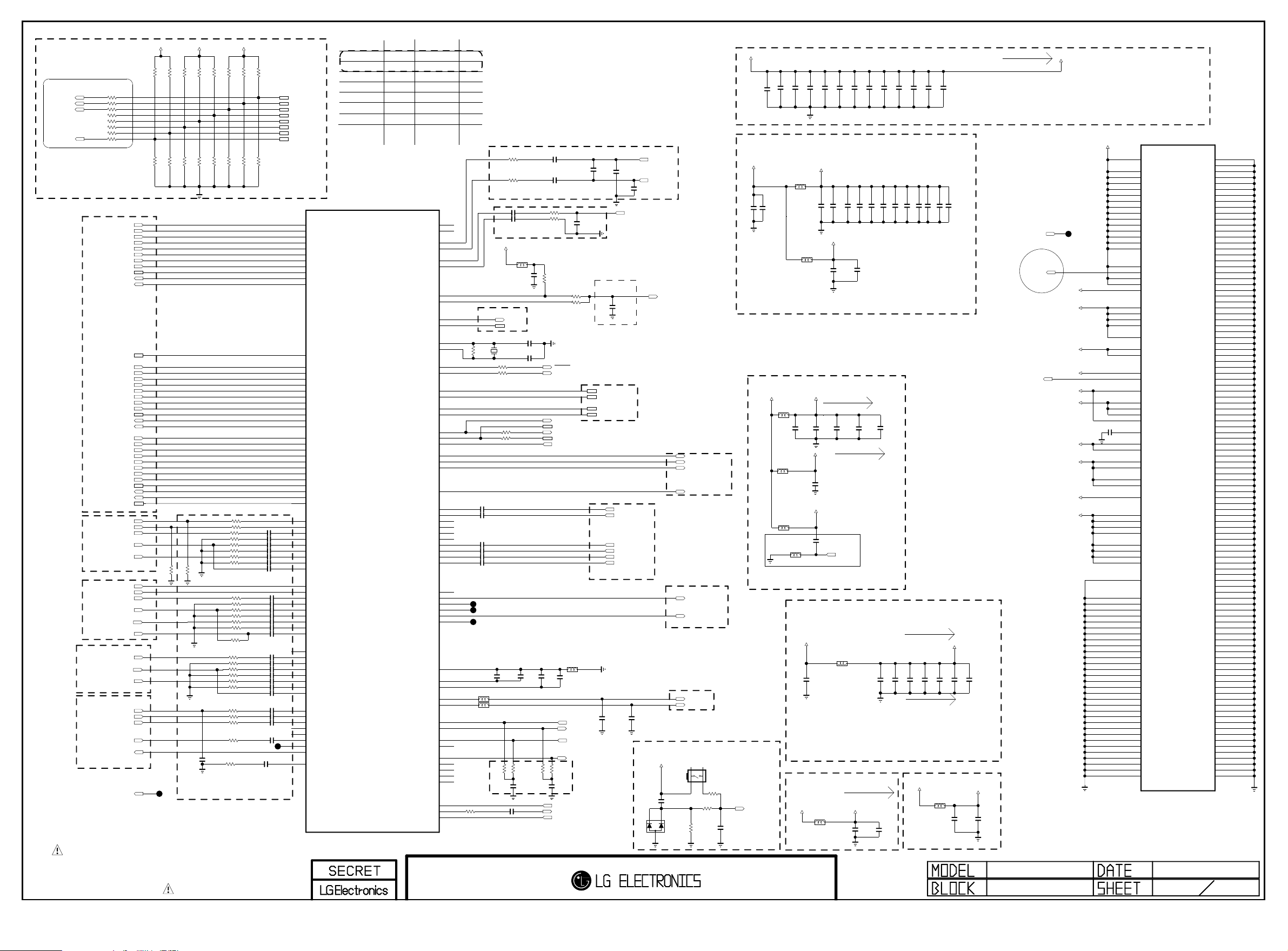

Page 26
MODEL OPTION
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
IF_AGC_SEL
LNA2_CTL
RF_SWITCH_CTL
OPC&SCANNING_CTRL
OPT
R201 100
BOOSTER_OPT
R202
RF_SW_OPT
R203
OPT
R204 100
OPT
R4031 100
OPT
R4032 100
OPT
R4040 100
R4039 100
OPT
CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1
PM_MODEL_OPT_1
CK+_HDMI4
HDMI
CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4
CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2
CEC_REMOTE_S7
DSUB_HSYNC
DSUB_VSYNC
DSUB_R+
DSUB_G+
DSUB
DSUB_B+
SCART1_RGB/COMP1
SC1_ID
SC1_FB
SC1_R+/COMP1_Pr+
SC1_G+/COMP1_Y+
SC1_B+/COMP1_Pb+
SC1_SOG_IN
COMP2
COMP2_Pr+
COMP2_Y+/AV_CVBS_IN
COMP2_Pb+
CVBS In/OUT
TU_CVBS
SC1_CVBS_IN
COMP2_Y+/AV_CVBS_IN
AV_CVBS_IN2
DTV/MNT_VOUT
AV_CVBS_IN2
+3.3V_Normal +2.5V_Normal
OPT
R291 1K
R290 1K
100
100
R294 1K
R293 1K
R4026
RGB_PC
120HZ
DVB_S
R4028 1K
NON_DVB_S
NON_120HZ
R4030 1K
10K
R4023
RGB_PC
C203
1000pF
OPT
3D
OLED
R4027 1K
R206 1K
NON_3D
NON_OLED
R207 1K
R4029 1K
R4024 510RGB_PC
R4025 510RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
2.4K
COMP2
COMP2
COMP2
COMP2
COMP2
COMP2
R237 33
R238 68
R239
R240
R241 33
R242 68
R244 33
R245 33
R246 33
R249 33
R252 68
Close to MSTAR
+3.3V_Normal
DVB_T2
R208 1K
NON_DVB_T2
R209 1K
R228 33
R229 68
R230 33
R231 68
R232 33
R233 68
R253 33
R254 68
R255
R256
R257 33
R258 68
R236 0
NON_EU
OPT
33
68
R211 1K
R212 1K
33
68
PHM_ON
PHM_OFF
RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
RGB_PC
HD
R226 1K
FHD
R227 1K
C204 0.047uF
C205 0.047uF
C206 0.047uF
C207 0.047uF
C208 0.047uF
C209 0.047uF
C210 1000pF
C211 0.047uF
C212 0.047uF
COMP2
C213
0.047uF
COMP2
C214
0.047uF
COMP2
0.047uF
C215
COMP2
0.047uF
C216
COMP2
C217 1000pF
COMP2
COMP2
C218 0.047uF
C219 0.047uF
C220 0.047uF
C221 0.047uF
C222 0.047uF
C223 0.047uF
C224 1000pF
C225 0.047uF
C226 0.047uF
C227 0.047uF
C230 0.047uF
OPT
C233 0.047uF
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
MODEL_OPT_7
J2
RXACKP
J3
RXACKN
K3
RXA0P
J1
RXA0N
K2
RXA1P
K1
RXA1N
L2
RXA2P
L3
RXA2N
T5
DDCDA_DA/GPIO24
T4
DDCDA_CK/GPIO23
V5
HOTPLUGA/GPIO19
R5
HOTPLUGB/GPIO20
AE9
RXCCKP
AC9
RXCCKN
AC10
RXC0P
AD9
RXC0N
AC11
RXC1P
AD10
RXC1N
AE11
RXC2P
AD11
RXC2N
AE8
DDCDC_DA/GPIO28
AD8
DDCDC_CK/GPIO27
AC8
HOTPLUGC/GPIO21
F2
RXDCKP
F3
RXDCKN
G3
RXD0P
F1
RXD0N
G2
RXD1P
G1
RXD1N
H2
RXD2P
H3
RXD2N
R6
DDCDD_DA/GPIO30
U6
DDCDD_CK/GPIO29
P5
HOTPLUGD/GPIO22
R4
CEC/GPIO5
P2
HSYNC0
R3
VSYNC0
N2
RIN0P
P3
RIN0M
N3
GIN0P
N1
GIN0M
M3
BIN0P
M2
BIN0M
M1
SOGIN0
V2
HSYNC1
V3
VSYNC1
U3
RIN1P
U2
RIN1M
T1
GIN1P
T2
GIN1M
R2
BIN1P
R1
BIN1M
T3
SOGIN1
AA2
HSYNC2
Y2
RIN2P
AA3
RIN2M
W2
GIN2P
Y3
GIN2M
V1
BIN2P
W3
BIN2M
W1
SOGIN2
AA8
CVBS0
Y4
CVBS1
W4
CVBS2
AA5
CVBS3
Y5
CVBS4
AA4
CVBS5
Y6
CVBSOUT0
AA1
CVBSOUT1
AB4
VCOM
MODEL OPTION
PIN NAME
MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6
MODEL_OPT_7 READY
LGE2111A-T8
S7LR2_DIVX_MS10
PIN NO.
IC101
I2S_IN_BCK/GPIO150
I2S_OUT_BCK/GPIO156
I2S_OUT_MCK/GPIO154
I2S_OUT_SD/GPIO157
I2S_OUT_WS/GPIO155
ET_RXD[0]/RP/GPIO60
ET_TXD[0]/TP/GPIO57
ET_RXD[1]/RN/GPIO63
ET_TXD[1]/LED1/GPIO56
ET_TX_CLK/TN/GPIO59
ET_COL/LED0/GPIO55
AB3
PHM_OFF
F4
AB2
NON_DVB_T2
NON_3D
T25
NON_OLED
U23
NON_DVB_S
T24
B8
NON_120HZ
A8
VIFP
VIFM
SIFP
SIFM
IF_AGC
RF_AGC
I2C_SCKM1/GPIO75
I2C_SDAM1/GPIO76
XOUT
SPDIF_IN/GPIO152
SPDIF_OUT/GPIO153
USB0_DM
USB0_DP
USB1_DM
USB1_DP
I2S_IN_SD/GPIO151
I2S_IN_WS/GPIO149
AUL0
AUR0
AUL1
AUR1
AUL2
AUR2
AUL3
AUR3
AUL4
AUR4
AUOUTL0
AUOUTL2
AUOUTL3
AUOUTR0
AUOUTR2
AUOUTR3
AUVRM
AUVAG
AUVRP
EARPHONE_OUTL
EARPHONE_OUTR
ET_TX_EN/GPIO58
ET_MDC/GPIO61
ET_MDIO/GPIO62
IRIN/GPIO4
ARC0
HWRESET
LOW
FHD
HIGH
HD
PHM_ON
DVB_T2
3D
OLED
DVB_S
+1.10V_VDDC
10uFC228
10uFC275
10uFC276
VDDC 1.05V
OPT
C4013 0.1uF
OPT
C4019 0.1uF
OPT
C4024 0.1uF
OPT
OPT
OPT
OPT
C280 1uF
C277 1uF
C283 0.1uF
C292 0.1uF
C299 0.1uF
C4006 0.1uF
OPT
C4011 0.1uF
VDDC : 2026mA
+1.10V_VDDC
120HZ
READY
MIUVDDC
AVDD2P5
VDD33
AVDD_AU33
VDD33
VDD33
AVDD_MIU
+1.10V_VDDC
C4045 1uF
K12
G9
H9
K10
K11
L10
M12
M13
N12
P14
P15
R10
R14
R15
T10
P10
P19
R16
L11
M14
W9
W10
W11
W12
Y17
V18
U19
W14
W15
U7
L7
M7
P7
R7
M19
V7
W7
R19
T19
W18
W19
V19
J17
K15
K16
L15
K17
L17
M17
L16
E9
A23
B17
C23
A5
C11
C19
C22
D14
D18
D19
E17
E18
E19
E22
F8
F17
F18
F19
G8
H8
N22
N21
N20
M22
M21
M20
F10
V15
W16
V8
T18
Close to MSTAR
R288 100
HALF_NIM/EU_NON_T2
R289 100
HALF_NIM/EU_NON_T2
C250 0.1uF
HALF_NIM/EU_NON_T2
TUNER_I2C
1M
R287
R297 0OPT
R296 100
SPDIF_OPTIC
R213 22 DVB_S
R214 22 DVB_S
C236 2.2uF
C237
2.2uF
C242
2.2uF
C243 2.2uF
C244 2.2uF
C245 2.2uF
C251 0.1uF
ANALOG SIF
Close to MSTAR
+3.3V_Normal
X201
24MHz
COMP2
COMP2
AC4
AD3
AC3
IP
AE3
IM
AD4
AC5
AD2
AE2
AE6
AD6
AD1
XIN
AC1
D7
D6
E3
E2
AC12
AE12
C8
D8
D9
B10
C9
B9
C10
AB9
AA11
Y9
AA9
AA7
AB8
Y8
Y10
AC7
AD7
R4002 47
R4003 47
L227
BLM18PG121SN1D
HALF_NIM/EU_NON_T2
C4064
0.1uF
TU_SCL
TU_SDA
C261 22pF
C262 22pF
PC_AUDIO
PC_AUDIO
C257 0.1uF
HALF_NIM/EU_NON_T2
C258 0.1uF
HALF_NIM/EU_NON_T2
HALF_NIM/EU_NON_T2
R4019
10K
HALF_NIM/EU_NON_T2
R4004
0
OPT
R4001
0
CI_DET
SPDIF_OUT
AMP_SCL
AMP_SDA
DEMOD_SCL
DEMOD_SDA
COMP2_DET
C4067
OPT
C264
1000pF
OPT
Close to MSTAR
SIDE USB
SIDE_USB2_DM
SIDE_USB2_DP
SIDE_USB1_DM
SIDE_USB1_DP
HALF_NIM/EU_NON_T2
C4068
100pF
C4065
0.047uF
25V
HALF_NIM/EU_NON_T2
SC1/COMP1_L_IN
SC1/COMP1_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN
AUDIO IN
W6
V6
V4
Y7
W5
U5
AD5
AE5
AC6
AA6
AB6
C6
C5
A6
C4
B5
C3
A3
B3
B4
N4
T6
N5
L203 HEAD_PHONE5.6uH
L205 HEAD_PHONE5.6uH
R210 33
HDMI1_ARC
TP207
TP208
TP209
C249
4.7uF
C253
1uF
R264
49.9
C231 0.047uF
HDMI1_ARC
R265
49.9
C294
0.1uF
C256
0.1uF
R262
49.9
L202
BLM18SG121TN1D
C263
10uF
R263
49.9
C295
0.1uF
IR
HDMI_ARC
SOC_RESET
EPHY_RP
EPHY_TP
EPHY_RN
EPHY_TN
*H/W opt :
ETHERNET
C268
4.7uF
10V
HEAD_PHONE
IF_P_MSTAR
IF_N_MSTAR
HALF_NIM/EU_NON_T2
C4069
100pF
TU_SIF
C272
4.7uF
10V
HEAD_PHONE
SOC_RESET
+3.5V_ST
C200
4.7uF
10V
D200
BAW56 GEANDE
DTV_IF
IF_AGC_MAIN
AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH
I2S_I/F
AUD_LRCK
AUDIO OUT
SCART1_Lout
SCART1_Rout
H/P OUT
HP_LOUT
HP_ROUT
SWICH
SW200
JTP-1127WEM
1 2
R200
62K
43
R217
SWICH
R205
100
10
C201
0.1uF
+3.3V_Normal
0.1uF
C4043
C4044 0.1uF
Normal 2.5V
+2.5V_Normal
L211
BLM18PG121SN1D
L229
BLM18PG121SN1D
L219
BLM18PG121SN1D
BLM18SG121TN1D
Close to IC with width trace
SOC_RESET
VDD33
L204
BLM18PG121SN1D
10uFC284
AVDD_AU33
L208
BLM18PG121SN1D
AVDD2P5
OPT
C269
C270
10uF
0.1uF
AVDD2P5_MOD
C4070
0.1uF
16V
AVDD25_PGA
C4027
0.1uF
L223
+1.5V_DDR
C4046
0.1uF
STby 3.5V
+3.5V_ST
L206
BLM18PG121SN1D
Normal Power 3.3V
OPT
C4007 0.1uF
C241
0.1uF
C273
0.1uF
C4012 0.1uF
OPT
C4014 0.1uF
C274
0.1uF
C4020 0.1uF
C4025 0.1uF
10uFC293
10uFC4001
OPT
C240
0.1uF
AVDD2P5:172mA
OPT
C271
0.1uF
AVDD25_PGA:13mA
AVSS_PGA
DDR3 1.5V
AVDD_DDR0:55mA
L209
BLM18PG121SN1D
C278
10uF
C281
10uF OPT
AVDD_NODIE:7.362mA
AVDD_NODIE
C286
C252
0.1uF
0.1uF
OPT
OPT
C265 0.1uF
C4031 0.1uF
C290
C4036
0.1uF
OPT
0.1uF OPT
AVDD_DDR1:55mA
+1.10V_VDDC
BLM18PG121SN1D
OPT
C267 0.1uF
AVDD_MIU
C4038
L228
OPT
C232 0.1uF
0.1uF
C4009
0.1uF
C4071
10uF
C4042
MIUVDDC
FB_CORE
FB_CORE
AVDD2P5_MOD
AVDD25_PGA
AVSS_PGA
AVDD_NODIE
1uF
C4062
0.1uF
IC101
LGE2111A-T8
S7LR2_DIVX_MS10
AVDDLV_USB
VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
AVDD1P0
FB_CORE
AVDDL_MOD
AVDD10_LAN
DVDD_DDR
AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD2P5_ADC_3
AVDD25_REF
AVDD25_LAN
AVDD_MOD_1
AVDD_MOD_2
AVDD25_PGA
AVSS_PGA
AVDD_NODIE
AVDD_DVI_USB_1
AVDD_DVI_USB_2
AVDD3P3_MPLL
AVDD_DMPLL
DVDD_NODIE
AVDD_AU33
AVDD_EAR33
VDDP_1
VDDP_2
AVDD_LPLL_1
AVDD_LPLL_2
VDDP_NAND
AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_C
AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_C
GND_EFUSE
GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111
GND_112
GND_113
GND_114
GND_115
GND_116
GND_117
GND_118
GND_119
GND_120
GND_121
GND_122
GND_123
GND_124
GND_125
GND_126
GND_127
GND_128
GND_129
GND_130
GND_131
GND_132
GND_133
GND_134
GND_135
GND_136
G10
G11
G12
G13
G14
G17
G18
G19
G24
H11
H12
H13
H14
H15
H16
H17
H18
H19
J9
J10
J11
J12
J13
J14
J15
J16
J18
J19
J25
K9
K13
K14
H10
K18
K19
K22
L8
L9
J8
L12
L13
L18
L19
M8
K8
M10
M11
L14
M15
M16
M18
M25
N10
N11
N13
N14
N15
N16
N17
N19
K7
P8
P9
M9
P11
P13
P16
P17
P18
P12
R8
R9
R11
R12
R13
R17
T8
T9
N7
T11
T12
T13
T14
T15
T16
T17
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
R18
V9
V10
V11
V12
V14
V17
T7
E8
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
POWER,IN/OUT,H/W OPT
2011.07.12
2
Page 27
TP for NON-EU models(except EU and China)
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
TP for CI slot
/PCM_REG
/PCM_OE
/PCM_WE
/PCM_IORD PCM_A[11]
/PCM_IOWR CI_TS_DATA[1]
/PCM_CE
/PCM_IRQA
/PCM_CD
/PCM_WAIT
PCM_RST
/CI_CD1
/CI_CD2
PCM_5V_CTL
CI_DET
PCM_D[0]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[12]
PCM_A[13]
PCM_A[14]
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]
TP for S2
TP for SCART
SCART1_MUTE
SC1_IDPCM_D[1]
SC1_FB
SC1_SOG_INCI_TS_DATA[0]
DTV/MNT_VOUT
SCART1_Lout
SCART1_Rout
SC1_CVBS_IN
TP for Headphone
HP_LOUT
HP_ROUT
SIDE_HP_MUTE
HP_DET
S2_RESET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4_S7LR2
TP_NON_EN
2011.07.07
3
Page 28

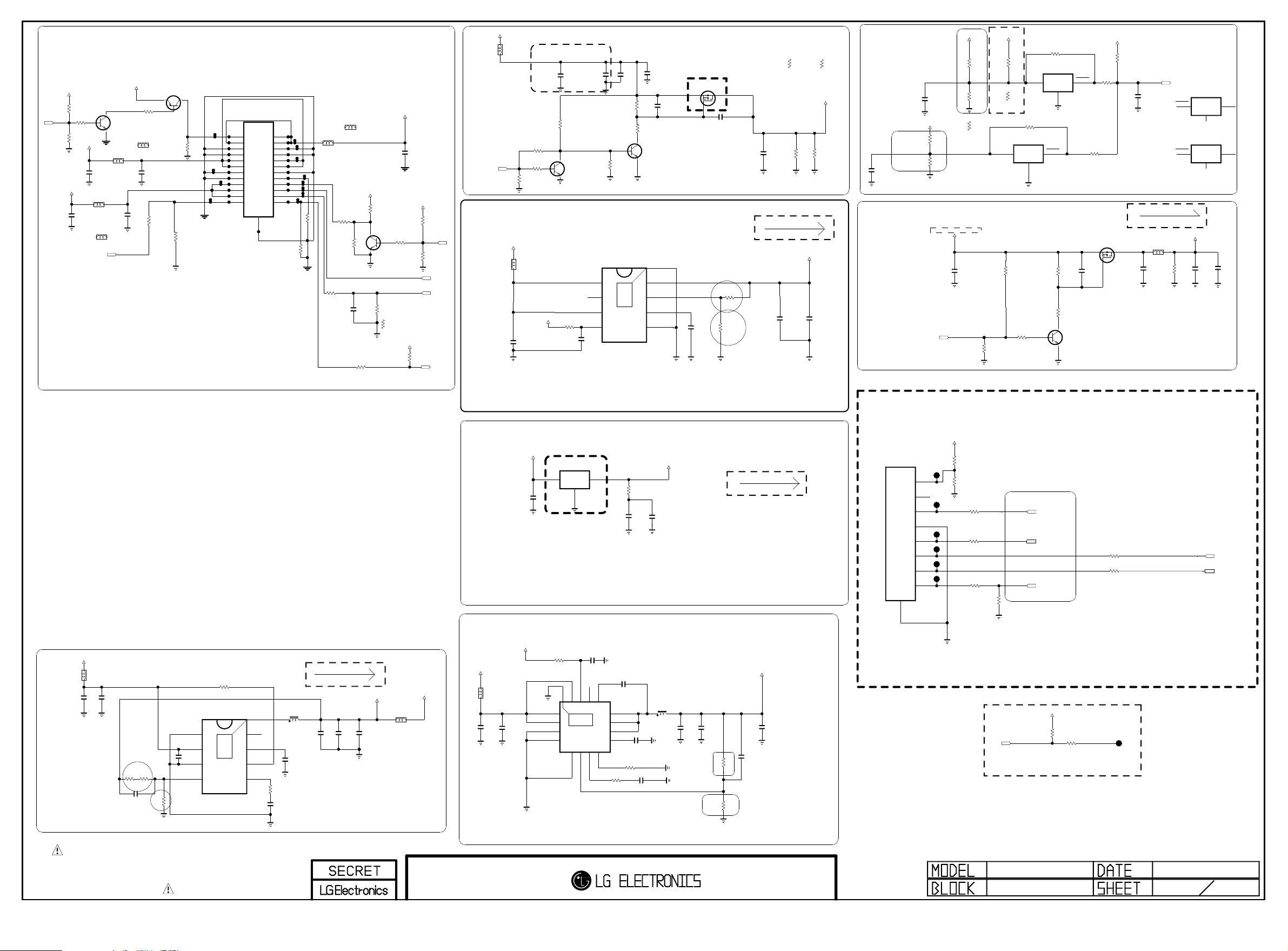

FROM LIPS & POWER B/D
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
+3.5V_ST
L404-*1
OPT
C407
0.1uF
16V
R406
4.7K
OPT
MMBT3906(NXP)
Q402
1
C408
0.1uF
16V
R408
OPT
100
R476
0
FOR 200HZ PWM_DIM2
2
R610
OPT
33K
3
NORMAL_EXPEPT_32
+3.5V_ST
R461
OPT
RL_ON
10K
+12V/+15V
C404
0.1uF
16V
10K
R401
10K
R462
C
Q401
B
MMBT3904(NXP)
E
+3.5V_ST
MLB-201209-0120P-N2
C406
0.1uF
16V
L402
CIS21J121
L402-*1
PWM1
L404
CIS21J121
MLB-201209-0120P-N2
’ERROR_OUT’ is used for
lamp(CCFL/EEFL) models.
In other words,
LED models need not use.
P403
FW20020-24S
PWR ON
3.5V
3.5V
GND/P.DIM2
SLIM_32~52
P401
SMAW200-H24S2
24V
GND
GND
GND
GND
12V
12V
12V
1
1
1
3
3
3
5
5
5
7
7
7
9
9
9
11
11
11
13
13
13
15
15
15
17
17
17
19
19
19
21
21 22
21 22
23
23 24
23 24
25
25
NORMAL_32
P404
FM20020-24
2
2
2
4
4
4
6
6
6
8
8
8
10
10
10
12
12
12
14
14
14
16
16
16
18
18
18
20
20
20
22
24
24V
24V
GND
GND
3.5V
3.5V
GND
GND/V-sync
INV ON
A.DIM
P.DIM1
Err OUT
OPT
R412
0
OPT
R475
0
L407-*1
MLB-201209-0120P-N2
L407
CIS21J121
R415
100
OPT
R418
6.8K
NON_PSU_T120_LGD
R611
0
OPT
C416
0.1uF
16V
+3.3V_Normal
R419
1K
ERROR_OUT
R420
100
0.1uF
C
B
E
Q405
MMBT3904(NXP)
R606
3.9K
PWM_PULL-DOWN_3.9K
R606-*1
1K
PWM_PULL-DOWN_1K
+24V
C418
50V
R426
10K
R421
10K
OPT
R427
10K
+3.3V_Normal
OPT
R486
4.7K
+3.5V_ST
INV_CTL
A_DIM
PWM_DIM
ERROR_OUT
CIS21J121
PANEL_CTL
1:AK10
L412
120
+12V/+15V
R489
10K
+3.5V_ST
C461
10uF
10V
0.015uF
C409
0.015uF
50V
R430
10K
OPT
R429
47K
B
L420
BLM18PG121SN1D
+3.3V_Normal
0.01uF
C436
0.01uF
50V
OPT
R431
22K
C
OPT
Q406
MMBT3904(NXP)
E
OPT
R435
22K
+1.5V_DDR
AP7173-SPG-13 HF(DIODES)
IN
1
PG
2
VCC
3
R433
10K
NON_CI_CAP
C475
0.1uF
16V
1.5A
EN
4
IC407
C438
0.1uF
25V
R439
33K
R440
5.6K
B
9
THERMAL
OPT
C442
10uF
25V
C
Q407
MMBT3904(NXP)
E
[EP]
OUT
8
FB
7
SS
6
GND
5
C443
10uF
25V
Q409
AO3407A
S
C467
560pF
50V
ST_3.5V--> 3.375V --> 3.46V
20V-->3.51V --> 3.76V (3.59V)
PANEL_POWER
R405-*1
R407-*1
3K
R405
2.2K
3K
PANEL_VCC
R407
2.2K
New item
D
G
OPT
C451
0.1uF
25V
PANEL_DISCHARGE_RES_3K
PANEL_DISCHARGE_RES_3K
NON_CI_CAP
C455
0.1uF
25V
PANEL_DISCHARGE_RES_2.2K
PANEL_DISCHARGE_RES_2.2K
24V-->3.78V --> 3.92V (3.79V)
12V -->3.58V --> 3.82V (3.68V)
18.5V-->3.5V --> 3.75V (3.59V)
POWER_+24V
R482
POWER_+24V
PD_+12V
C412
0.1uF
16V
R403
Max 1000mA
+1.5V_DDR
R457
R1
4.3K
1/16W
1%
R2
R456
4.7K
1/16W
1%
C472
22uF
10V
C476
0.1uF
16V
POWER_ON/OFF_1
C411
0.1uF
16V
+24V
8.2K
1.5K
+12V/+15V
R448
2.7K
1%
PD_+12V
R447
1.2K
1/16W
1%
PD_+12V
R447-*1
5.1K
1/16W
1%
1%
PD_KR_42_LIPS
1%
+3.3V_Normal
+3.5V_ST
NON_CI_CAP
C435
0.1uF
16V
OPT
R490
10K
+3.5V_ST -> 3.375V
+3.5V_ST
PD_+3.5V
5%
PD_+12V
PD_KR_42_LIPS
R404
100K
IC409
NCP803SN293
3
1
GND
R434
10K
R443
10K
PWR_DET_ON_SEMI
NCP803SN293
VCC
3
2
B
R45005%
R450-*1
100
PD_+12V_PWR_DET_ON_SEMI
VCC
R488
100K
GND
RESET
IC408
2
1
R438
22K
R445
100
C
Q400
MMBT3904(NXP)
E
RESET
+3.5V_ST
OPT
R463
10K
R402
100
PD_+12V
R480
100
Power_DET
Q403
AO3407A
D
S
G
C423
4.7uF
16V
POWER_DET
C474
0.1uF
780 mA
L403
BLM18SG700TN1D
C425
0.1uF
16V
IC408-*1
APX803D29
RESET
PWR_DET_ON_DIODES
RESET
PD_+12V_PWR_DET_DIODES
+3.3V_Normal
OPT
R446
10K
2
1
IC409-*1
APX803D29
2
1
OPT
C445
0.1uF
16V
3
GND
3
GND
C437
22uF
16V
VCC
VCC
+12V/+15V
L401
C405
C4075
10uF
10uF
25V
25V
OPT
R1
R609
R416
11K
56K
1%
1%
OPT
C4072
100pF
Vout=0.8*(1+R1/R2)
+5V_USB
PGND
VIN
OPT
C4073
R423
12K
1%
0.1uF
16V
AGND
FB
R2
R410
10K
IC401
AOZ1051PI
1
2
THERMAL
3
4
3A
Vout=0.8*(1+R1/R2)=1.5319
FOR LPB Download
[To LED DRIVER]
+3.3V_Normal
OPT
R615
10K
OPT
1
2
3
4
5
6
7
8
R616
10K
FOR LPB MODEL_L/DIM
R612
33
FOR LPB MODEL_L/DIM
R613
33
FOR LPB MODEL_L/DIM
R614
33
FOR LPB MODEL_L/DIM
R617
4.7K
LOCAL DIMMING
L/DIM_SCLK
L/DIM_MOSI
L/DIM_VS
FOR LPB MODEL
R183
33
FOR LPB MODEL
R184
33
I2C_SCL
I2C_SDA
+3.3V_Normal
NON_CI_CAP
C432
0.1uF
16V
IC402
TJ3940S-2.5V-3L
VIN
3
Vd=550mV
+2.5V/+1.8V
FOR LPB MODEL
+2.5V_Normal
VOUT
2
1
GND
R473
1
C403
C440
10uF
0.1uF
10V
16V
300 mA
P407
12507WR-08L
9
S7LR core 1.2V volt
VIN_3
EP[GND]
1
2
3
TPS54319TRE
4
AGND
15EN16
THERMAL
17
IC403
5
6
VSENSE
3A
C447
0.33uF
16V
7
COMP
BOOT14PWRGD
13
12
11
10
9
8
RT/CLK
$ 0.165
PH_3
PH_2
PH_1
SS/TR
R436
15K
C441
0.1uF
16V
R432
C488
3300pF
330K1/16W 5%
C448
3300pF
50V
L415
3.6uH
NR8040T3R6N
C453
22uF
10V
C456
22uF
10V
+1.10V_VDDC
C444
0.1uF
16V
R1
C439
50V
100pF
1%
27K
R44 2
1/1 6W
OLP
Not used :
only for small(ready)
+3.3V_Normal
OPT
R180
10K
OPT
R181
1K
R2
1%
56K
R44 1
1/1 6W
+3.3V_Normal
2000 mA
+5V_Normal
+5V_USB
OPT
C492
22uF
16V
L425
BLM18PG121SN1D
L406
R608
12K
C494
2200pF
50V
3.6uH
C493
0.01uF
50V
C420
22uF
16V
OPT
C4074
0.1uF
16V
[EP]LX
NC
8
SS
9
7
EN
6
COMP
5
+3.5V_ST
L413
C430
10uF
10V
NON_CI_CAP
C431
0.1uF
16V
VIN_1
VIN_2
GND_1
GND_2
R428
10K
Vout=0.827*(1+R1/R2)=1.225V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
POWER_LARGE
2011/11.14
4
Page 29

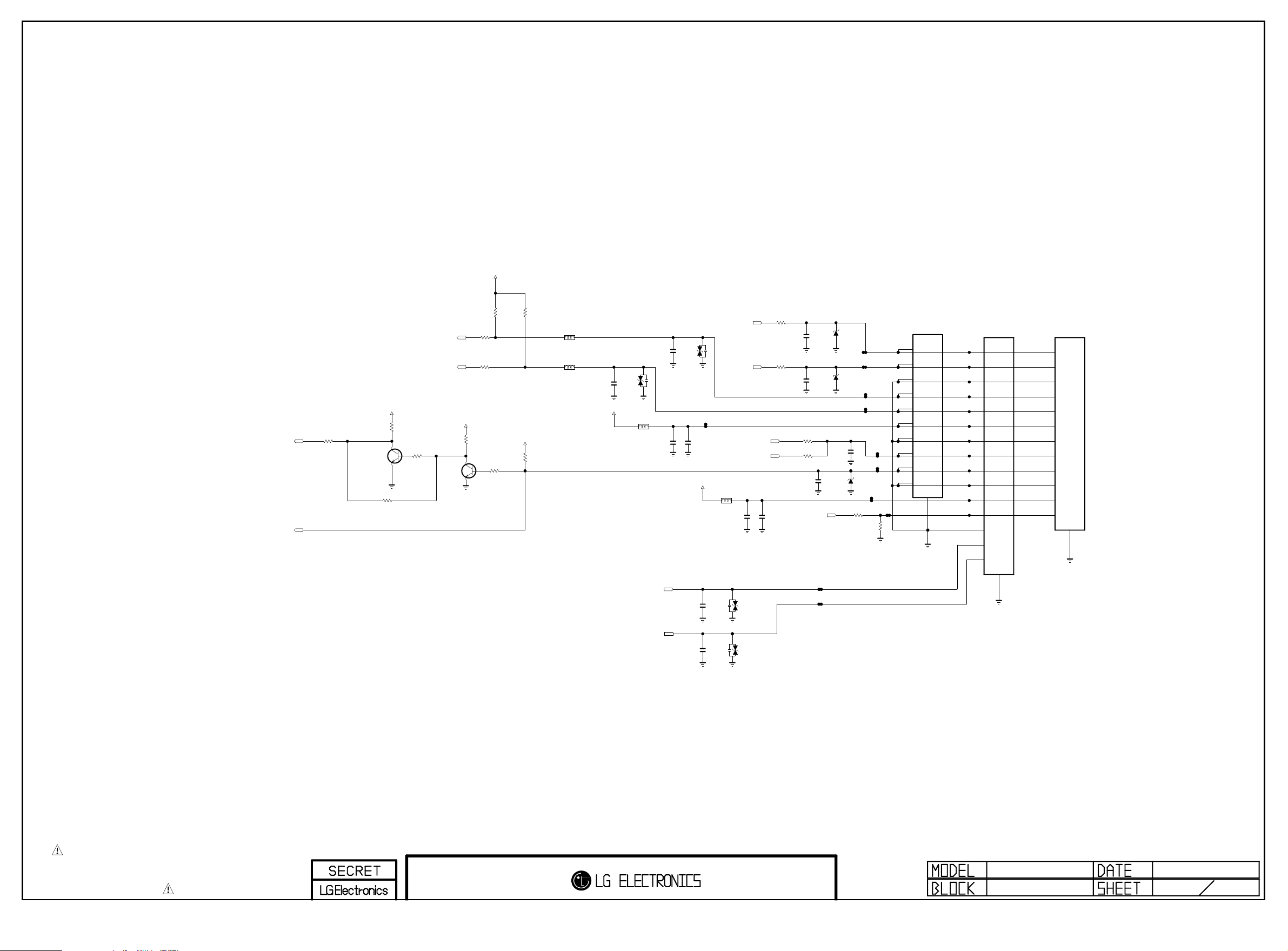

IR/LED and control for normal models.
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
+3.5V_ST
R2405
IR_OUT
R2404
R2401
IR_OUT
R2429
Q2405
+3.5V_ST
3.3K
100
R2402
100
C
B
E
KEY1
KEY2
+3.5V_ST
IR_OUT_EU
IR_OUT
R2410
22
IR
R2425
IR_OUT_EU
Q2406
MMBT3904(NXP)
IR_OUT_US
1K
R2409
IR_OUT_EU
R2430
C
10K
B
E
IR_OUT
MMBT3904(NXP)
0
10K
1%
IR_OUT
R2431
10K
1%
+3.5V_ST
R2426
3.3K
47K
L2401
BLM18PG121SN1D
L2402
BLM18PG121SN1D
C2402
0.1uF
AMOTECH CO., LTD.
+3.5V_ST
OPT
D2401
5.6V
L2403
BLM18PG121SN1D
C2401
0.1uF
AMOTECH CO., LTD.
C2403
0.1uF
16V
OPT
D2402
5.6V
C2404
1000pF
50V
+3.3V_Normal
BLM18PG121SN1D
SENSOR_SCL
SENSOR_SDA
11_SUB
L2404
11_SUB
C2405
0.1uF
16V
LED_B/LG_LOGO
LED_R/BUZZ
11_SUB
C2406
1000pF
50V
R2411
100
R2412
100
OPT
C2408
18pF
50V
OPT
C2409
18pF
50V
OPT
R2413
1.5K
12_SUB
R2432
1.5K
C2407
100pF
50V
LED_R/BUZZ
OPT
D2403
5.48VTO5.76V
OPT
D2404
5.48VTO5.76V
OPT
C2410
0.1uF
16V
JP2407
JP2408
OPT
D2405
5.48VTO5.76V
OPT
R2414
1.5K
OPT
R2416
10K
12_SUB
P2401
12507WR-10L
1
2
3
4
5
6
7
8
JP2409
9
JP2410
10
JP2411
11
11_SUB
P2402
12507WR-15L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OPT
P2403
12507WR-12L
1
2
3
4
5
6
7
8
9
10
11
12
13
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
S/T_SCL
S/T_SDA
OPT
C906
18pF
50V
OPT
C907
18pF
50V
OPT
D902
ADUC 5S 02 0R5L
5.5V
OPT
D903
ADUC 5S 02 0R5L
5.5V
GP4L_S7LR2
IR/CONTROL
2011/11/16
6
Page 30

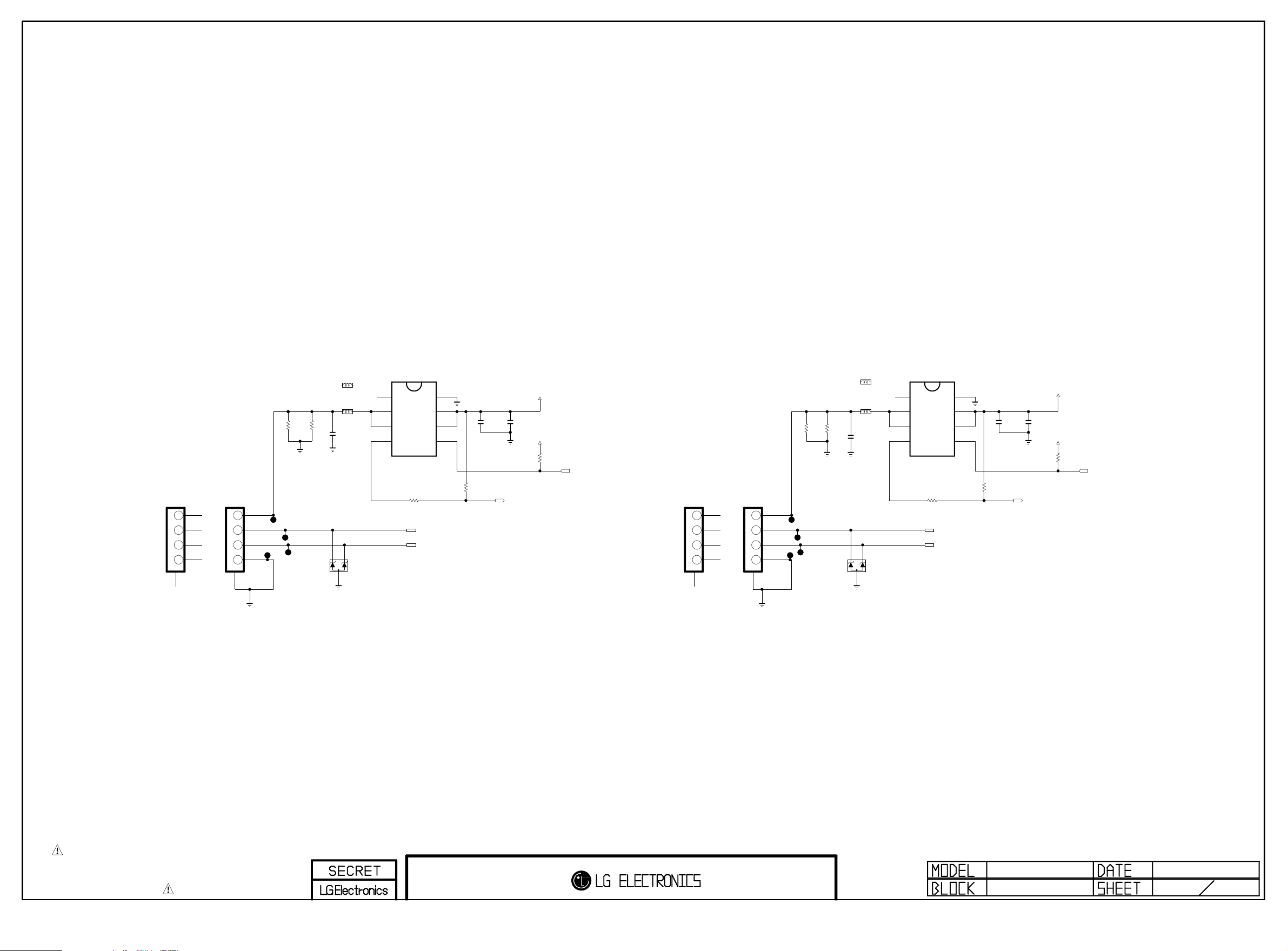

USB (SIDE)
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
JK1450-*1
USB_1_32LS3500
1234
USB DOWN STREAM
3AU04S-345-ZC-H-LG
5
JK1450
USB_1_NORMAL
1234
USB DOWN STR EAM
3AU 04S-3 05-Z C-(LG )
5
OPT
R1458
2K
1/8W
5%
L1451-*1
MLB-201209-0120P-N2
120-ohm
L1451
CIS21J121
OPT
R1459
2K
C1451
1/8W
5%
22uF
16V
D1451
RCLAMP0502BA
OPT
EAN61849601
IC1450
AP2191DSG
GND
1
$0.077 $0.077
IN_1
2
IN_2
3
EN
4
SIDE_USB1_DM
SIDE_USB1_DP
R1454
10K
C1452
10uF
10V
C1453
0.1uF
USB1_OCD
+3.3V_Normal
R1455
4.7K
OPT
USB1_CTL
JK1451-*1
USB_2_32LS3500
1234
USB DOWN STREAM
3AU04S-345-ZC-H-LG
5
OUT_2
OUT_1
NC
8
7
6
FLG
5
R1451 47
USB2_DIODESUSB1_DIODES
JK1451
USB_2_NORMAL
1234
USB DOWN STR EAM
3AU 04S-3 05-Z C-(LG )
5
OPT
R1450
2K
1/8W
5%
L1450-*1
MLB-201209-0120P-N2
120-ohm
USB_2_BEAD_MAG
CIS21J121
USB_2_BEAD_SS
OPT
R1452
2K
1/8W
C1450
5%
22uF
16V
USB_2
L1450
D1450
RCLAMP0502BA
OPT
OUT_2
OUT_1
NC+5V_USB
FLG
USB_2
EAN61849601
IC1451
AP2191DSG
8
7
6
5
R1453 47
USB_2
GND
1
IN_1
2
IN_2
3
EN
4
SIDE_USB2_DM
SIDE_USB2_DP
USB_2
R1456
10K
USB_2
C1454
10uF
10V
USB_2
C1455
0.1uF
USB2_OCD
+5V_USB
+3.3V_Normal
OPT
R1457
4.7K
USB2_CTL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4_S7LR2
USB_OCP_DIODE
10/08/13
7
Page 31

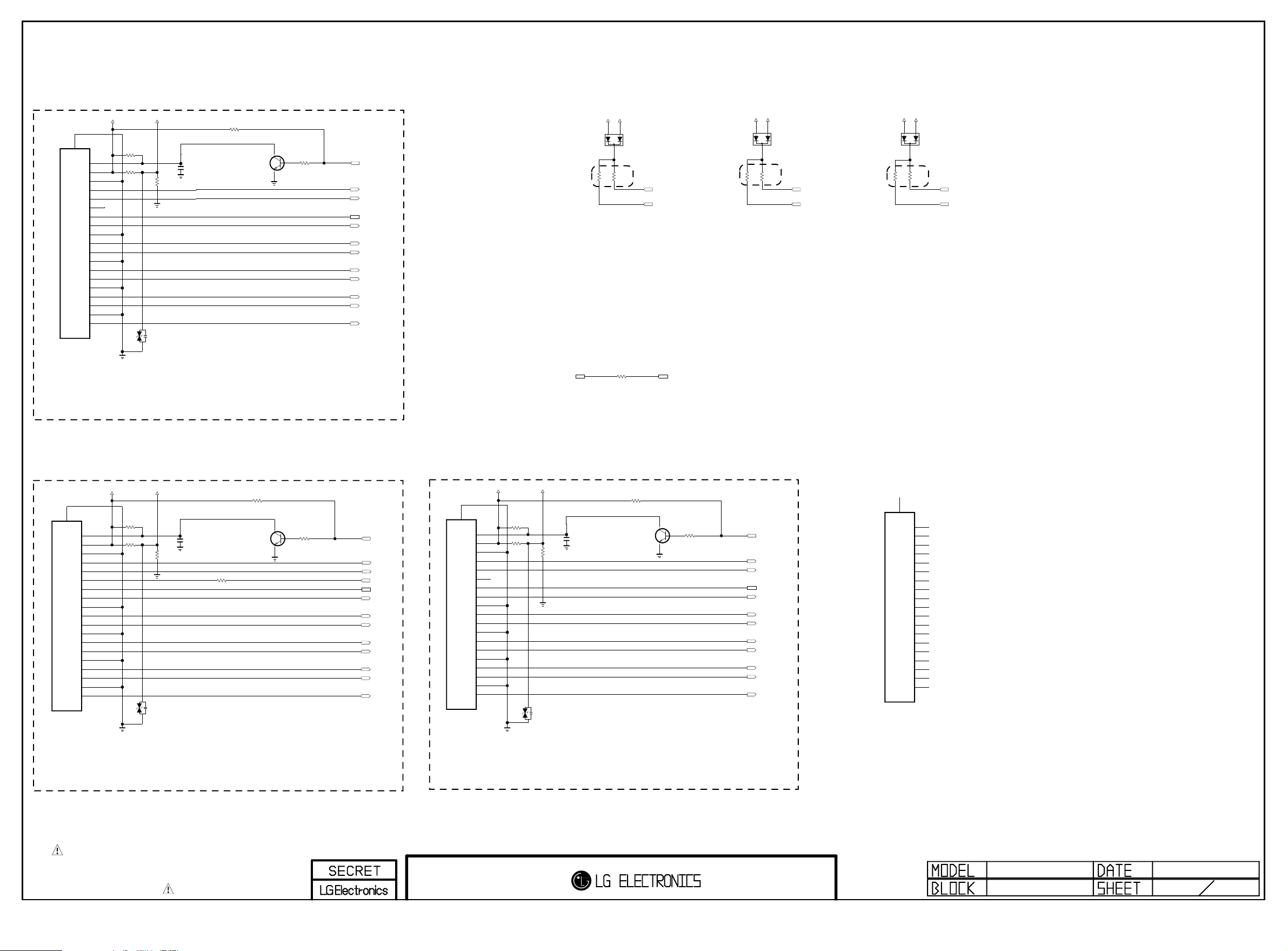

HDMI
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
HDMI_1
SHIELD
EAG59023302
JK802
5V_HDMI_1
R884
2.7K
+5V_Normal
A1
C
R888
2.7K
R855
100
A2
MMBD6100
D821
DDC_SDA_1
DDC_SCL_1
CEC_REMOTE_S7
5V_HDMI_1
20
19
18
17
16
15
14
13
12
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
R896
1K
R804
1.8K
5V_DET_HDMI_1
3.3K
R802
OPT
D802
NON_CI_CAP
C802
0.1uF
16V
R806
10K
MMBT3904(NXP)
Q802
C
R830
B
10K
E
HPD1
DDC_SDA_1
DDC_SCL_1
HDMI_CEC
CK-_HDMI1
CK+_HDMI1
D0-_HDMI1
D0+_HDMI1
D1-_HDMI1
D1+_HDMI1
D2-_HDMI1
D2+_HDMI1
For CEC
HDMI_CEC
5V_HDMI_2
R885
2.7K
HDMI_2
HDMI_2
+5V_Normal
A1
C
R889
2.7K
A2
MMBD6100
D822
HDMI_2
DDC_SDA_2
DDC_SCL_2
5V_HDMI_4
R887
2.7K
HDMI_SIDE
+5V_Normal
A1
HDMI_SIDE
R891
2.7K
C
A2
MMBD6100
D824
HDMI_SIDE
DDC_SDA_4
DDC_SCL_4
HDMI_2
SHIELD
20
HDMI_2
EAG59023302
JK801
5V_HDMI_2
HDMI_2
R895
19
18
17
16
15
14
13
12
11
CK+
10
D0-
9
D0_GND
8
D0+
7
D1-
6
D1_GND
5
D1+
4
D2-
3
D2_GND
2
D2+
1
1K
R803
1.8K
HDMI_2
5V_DET_HDMI_2
R801
3.3K
HDMI_2
OPT
D801
NON_CI_CAP_HDMI_2
C801
0.1uF
16V
R805 0
HDMI1_ARC
HDMI_2
R807
10K
HDMI_2
Q801
MMBT3904(NXP)
HDMI_2
C
R828
10K
B
E
HPD2
DDC_SDA_2
DDC_SCL_2
HDMI_ARC
HDMI_CEC
CK-_HDMI2
CK+_HDMI2
D0-_HDMI2
D0+_HDMI2
D1-_HDMI2
D1+_HDMI2
D2-_HDMI2
D2+_HDMI2
SIDE_HDMI
BODY_SHIELD
20
19
18
17
16
15
14
13
12
11
10
EAG62611201
9
HDMI_SIDE
8
7
6
5
4
3
2
1
JK803
CK+
D0-
D0_GND
D0+
D1-
D1_GND
D1+
D2-
D2_GND
D2+
5V_HDMI_4
HDMI_SIDE
R897
1K
R837
1.8K
HDMI_SIDE
5V_DET_HDMI_4
R835
3.3K
HDMI_SIDE
OPT
D811
NON_CI_CAP_HDMI_SIDE
C803
0.1uF
16V
HDMI_SIDE
R808
10K
HDMI_SIDE
Q803
MMBT3904(NXP)
BODY_SHIELD
C
HDMI_SIDE
R862
B
10K
E
HPD4
DDC_SDA_4
DDC_SCL_4
HDMI_CEC
CK-_HDMI4
CK+_HDMI4
D0-_HDMI4
D0+_HDMI4
D1-_HDMI4
D1+_HDMI4
D2-_HDMI4
D2+_HDMI4
20
19
HOT_PLUG_DETECT
18
VDD[+5V]
17
DDC/CEC_GND
16
SDA
15
SCL
14
RESERVED
13
CEC
12
TMDS_CLK-
11
TMDS_CLK_SHIELD
10
TMDS_CLK+
9
TMDS_DATA0-
8
TMDS_DATA0_SHIELD
7
TMDS_DATA0+
6
TMDS_DATA1-
5
TMDS_DATA1_SHIELD
4
TMDS_DATA1+
3
TMDS_DATA2-
2
TMDS_DATA2_SHIELD
1
TMDS_DATA2+
SIDE_HDMI_32LS3500
51U019S-312HFN-E-R-E-LG
JK803-*1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
HDMI 8
2011.10.04
Page 32

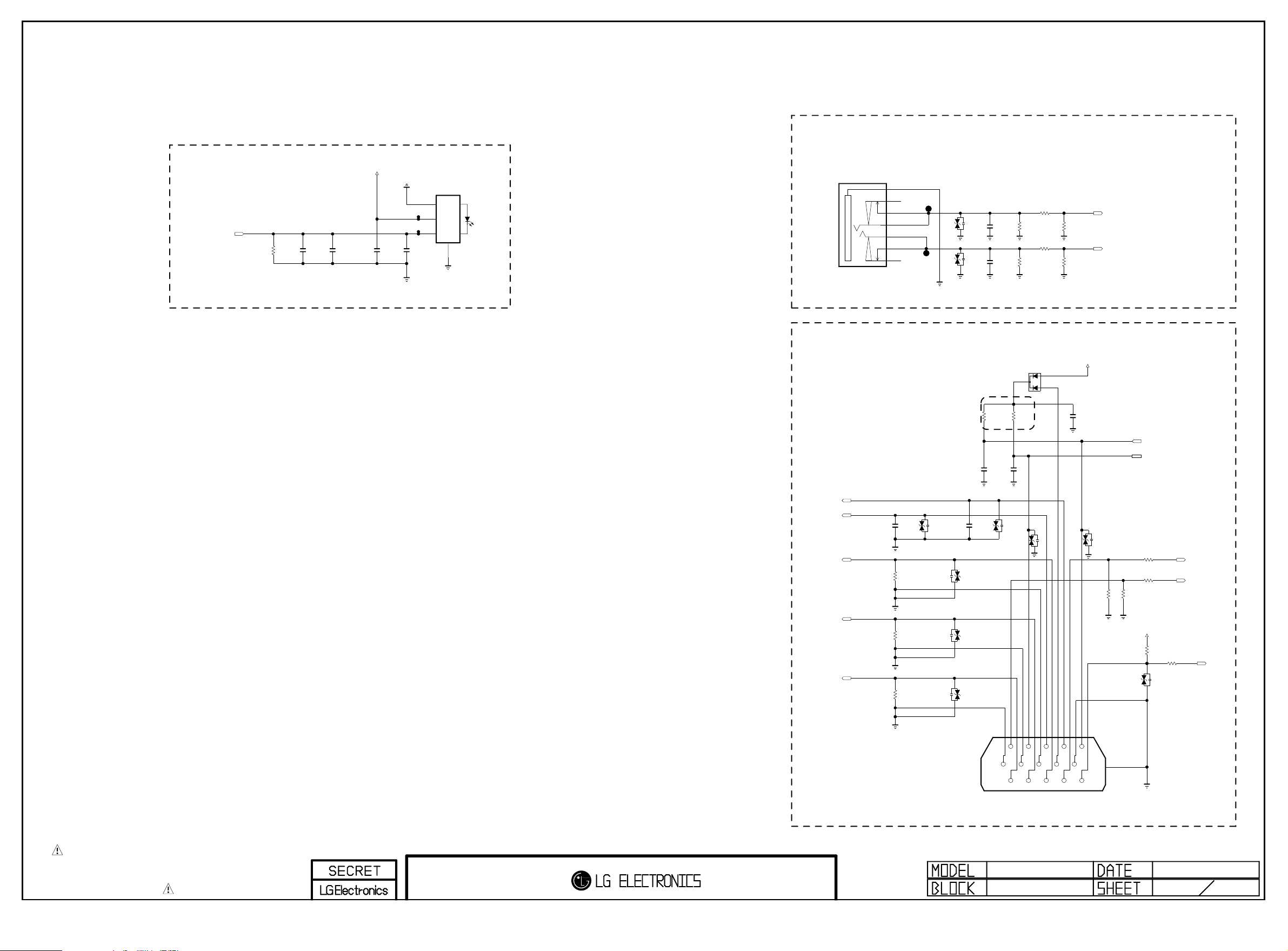

RGB-PC / SPDIF
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
PC AUDIO
SPDIF OPTIC JACK
5.15 Mstar Circuit Application
SPDIF_OUT
OPT
R1104
10K
OPT
C1109
22uF
16V
OPT
C1110
10uF
16V
+3.3V_Normal
SPDIF_OPTIC
C1131
0.1uF
16V
2F01TC1-CLM97-4F
GND
VCC
VIN
SPDIF_OPTIC
C1121
100pF
50V
SPDIF_OPTIC
JK1103
1
2
3
Fib er Op tic
4
SHI ELD
RGB PC
PC_AUDIO
JK1102
PEJ027-04
E_SPRING
3
T_TERMINAL1
6A
B_TERMINAL1
7A
R_SPRING
4
T_SPRING
5
B_TERMINAL2
7B
T_TERMINAL2
6B
AMOTECH CO., LTD.
OPT
D1101
5.6V
AMOTECH CO., LTD.
OPT
D1102
5.6V
NON_CI_CAP_RGB_PC
C1127
18pF
50V
NON_CI_CAP_PC_AUDIO
C1107
100pF
50V
NON_CI_CAP_PC_AUDIO
C1108
100pF
50V
RGB_PC
RGB_PC
R1140
R1139
2.2K
2.2K
NON_CI_CAP_RGB_PC
C1128
18pF
50V
PC_AUDIO
PC_AUDIO
R1102
470K
PC_AUDIO
PC_AUDIO
R1103
470K
RGB_PC
D1115
MMBD6100
C
R1107
15K
R1108
15K
A2
A1
PC_AUDIO
R1110
10K
PC_AUDIO
R1111
10K
+5V_Normal
NON_CI_CAP_RGB_PC
C1129
0.1uF
16V
PC_R_IN
PC_L_IN
RGB_DDC_SCL
RGB_DDC_SDA
DSUB_VSYNC
DSUB_HSYNC
DSUB_B+
DSUB_G+
DSUB_R+
OPT
C1122
68pF
50V
RGB_PC
R1133
75
RGB_PC
R1135
75
RGB_PC
R1137
75
OPT
D1109
20V
ADUC 20S 02 010L
ADUC 20S 02 010L
OPT
D1110
20V
ADUC 20S 02 010L
OPT
D1111
20V
ADUC 20S 02 010L
OPT
D1112
20V
OPT
C1126
68pF
50V
OPT
OPT
D1113
20V
ADUC 20S 02 010L
D1114
5.6V
RED2GREEN3BLUE4GND_15DDC_GND
RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND
GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK
11
6
1
JK1104
SPG09-DB-010
RGB_PC
OPT
D1116
5.6V
R11500R1151
RGB_PC
SHILED
16
OPT
R1148
0
OPT
R1149
0
0
+3.3V_Normal
R1146
10K
OPT
D1117
5.6V
ADMC 5M 02 200L
RGB_PC
R1147
1K
PM_RXD
PM_TXD
DSUB_DET
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
RGB-PC/SPDIF
2011/09/27
9
Page 33

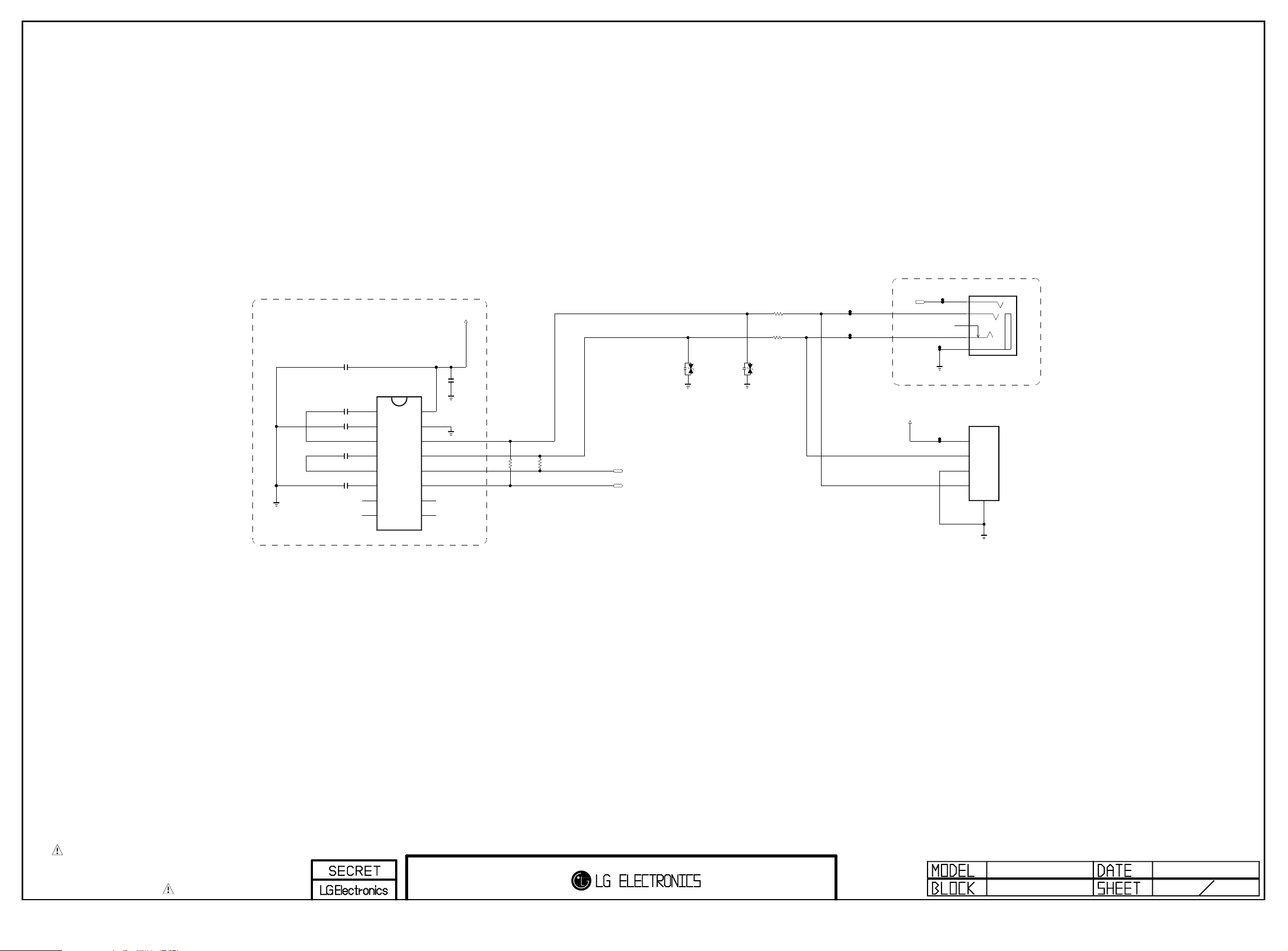

RS-232C
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
COMMERCIAL MODEL OPTION
C1000
0.33uF
COMMERCIAL
COMMERCIAL
COMMERCIAL
COMMERCIAL
COMMERCIAL
C1001
0.1uF
C1002
0.1uF
C1003
0.1uF
C1004
0.1uF
DOUT2
RIN2
C1+
C1-
C2+
C2-
V+
V-
COMMERCIAL
IC1000
MAX3232CDR
1
2
3
4
5
6
7
8
EAN41348201
16
15
14
13
12
11
10
9
VCC
GND
DOUT1
RIN1
ROUT1
DIN1
DIN2
ROUT2
+3.5V_ST
COMMERCIAL
C1005
0.1uF
RS-232C_IC_Bypass
R1001
R1000
0
0
RS-232C_IC_Bypass
PM_RXD
PM_TXD
OPT
D1000
ADUC 20S 02 010L
20V
R1003
100
R1002
100
OPT
D1001
ADUC 20S 02 010L
20V
COMMERCIAL MODEL OPTION
PM_RXD
RM_TXD
12507WR-04L
VCC
GND
COMMERCIAL
6M6
1M1
3M3_DETECT
4M4
5M5_GND
KJA-PH-1-0177
JK1001
P1000
1
2
3
4
5
GND
JP1000
JP1001
IR_OUT
+3.5V_ST
JP1002
JP1004
JP1003
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
For Comsumer model,
use 4PIN Wafer.
GP4L_S7LR2
RS232C_PHONE
2011/08/13
10
Page 34

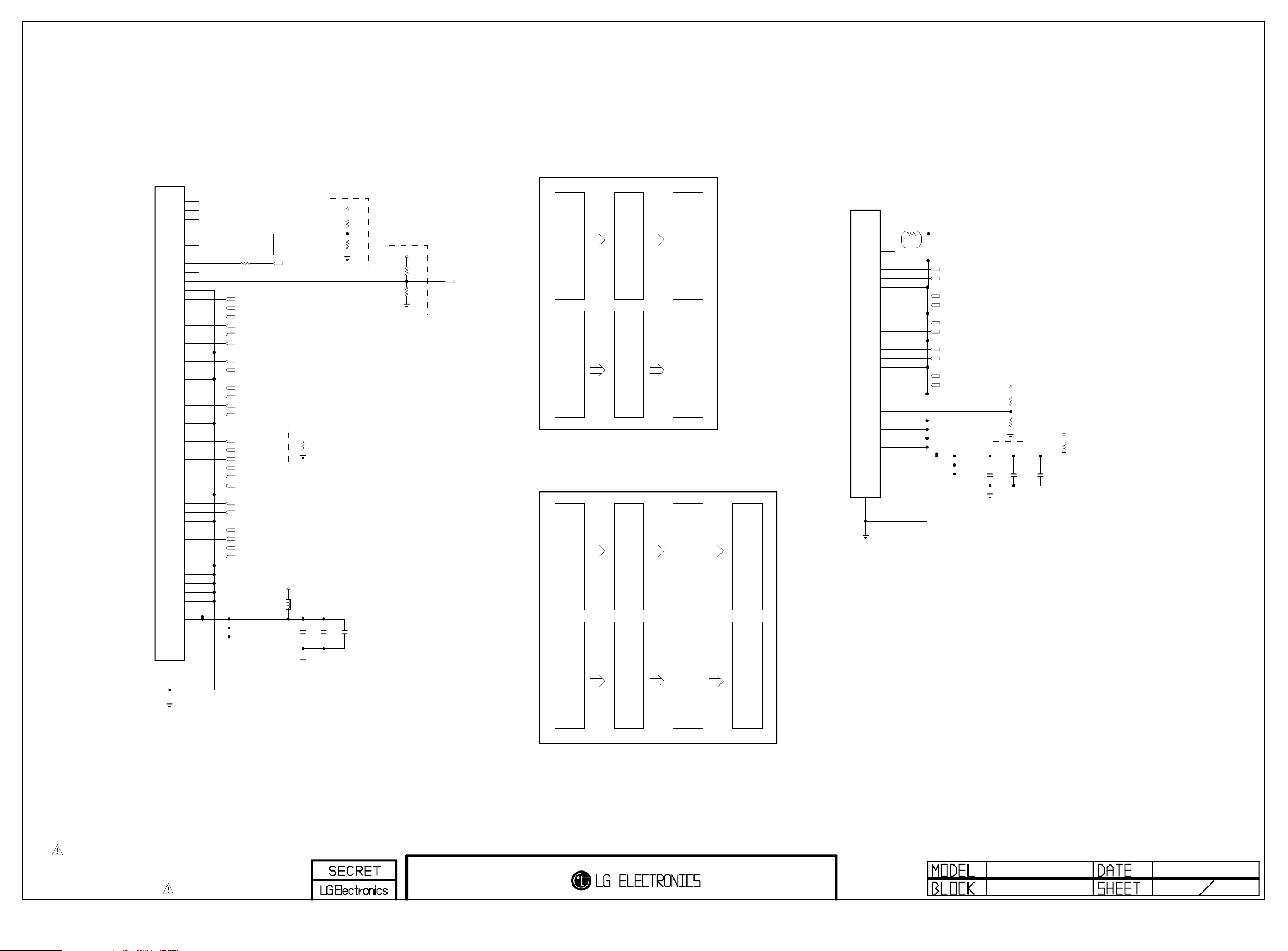

LVDS for large inch
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
[51Pin LVDS Connector]
(For FHD 60Hz)
FHD
P703
FI-RE51S-HF-J-R1500
R709
10K
OPT
C700
10uF
16V
AUO_GND
LVDS_SEL
+3.3V_Normal
OPT
C709
1000pF
50V
OPT
R705
3.3K
OPT
R710
10K
FHD
C710
0.1uF
16V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
PSU_T120_LGD
R706
0
RXA4+
RXA4-
RXA3+
RXA3-
RXACK+
RXACK-
RXA2+
RXA2-
RXA1+
RXA1-
RXA0+
RXA0-
RXB4+
RXB4-
RXB3+
RXB3-
RXBCK+
RXBCK-
RXB2+
RXB2-
RXB1+
RXB1-
RXB0+
RXB0-
PWM_DIM
AUO_GND/LGD_NC
PANEL_VCC
L702
70-ohm
FHD
SCANNING_EN
+3.3V_Normal
OPT
R703
3.3K
OPT
R704
10K
OPC&SCANNING_CTRL
FOR FHD REVERSE(10bit)
Change in S7LR
MIRROR
RXA4+
RXA4-
RXA3+
RXA3-
RXACK+ RXA2+
RXACK-
RXA2+
RXA2-
RXA1+
RXA1-
RXA0+
RXA0-
RXB4+
RXB4-
RXB3+
RXB3-
RXBCK+
RXBCK-
RXB2+
RXB2-
RXB1+
RXB1-
RXB0+
RXB0-
Pol-change
RXA0+
RXA0-
RXA1+
RXA1-
RXA2-
RXACK+
RXACK-
RXA3+
RXA3-
RXA4+
RXA4-
RXB0+
RXB0-
RXB1+
RXB1-
RXB2+
RXB2-
RXBCK+
RXBCK-
RXB3+
RXB3-
RXB4+
RXB4-
FOR FHD REVERSE(8bit)
Change in S7LR
MIRROR
RXA4+
RXA4-
RXA3+
RXA3- RXA0-
RXACK+
RXACK-
RXA2+
RXA2-
RXA1+
RXA1-
RXA0+
RXA0-
RXB4+
RXB4-
RXB3+
RXB3- RXB0+
RXBCK+
RXBCK-
RXB2+
RXB2-
RXB1+
RXB1-
RXB0+
RXB0-
Pol-change Shift
RXA4+
RXA4-
RXA0+
RXA1+
RXA1-
RXA2+
RXA2-
RXACK+
RXACK-
RXA3+
RXA3-
RXB4+
RXB4-
RXB0+
RXB0-
RXB1+
RXB1-
RXB2+
RXB2-
RXBCK+
RXBCK- RXBCK+
RXB3+
RXB3-
RXA0-
RXA0+
RXA1-
RXA1+
RXA2-
RXA2+
RXACK-
RXACK+
RXA3-
RXA3+
RXA4-
RXA4+
RXB0-
RXB0+
RXB1-
RXB1+
RXB2-
RXB2+
RXBCK-
RXBCK+
RXB3-
RXB3+
RXB4-
RXB4+
RXA4-
RXA4+
RXA0-
RXA0+
RXA1-
RXA1+
RXA2-
RXA2+
RXACK-
RXACK+
RXA3-
RXA3+
RXB4-
RXB4+
RXB0-
RXB1-
RXB1+
RXB2-
RXB2+
RXBCK-
RXB3-
RXB3+
RXA0-
RXA0+
RXA1-
RXA1+
RXA2-
RXA2+
RXACK-
RXACK+
RXA3-
RXA3+
RXA4-
RXA4+
RXB0-
RXB0+
RXB1-
RXB1+
RXB2-
RXB2+
RXBCK-
RXBCK+
RXB3-
RXB3+
RXB4-
RXB4+
[30Pin LVDS Connector]
(For HD 60Hz_Normal)
HD
P705
FF10001-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
OPT
R713
0
RXA3+
RXA3-
RXACK+
RXACK-
RXA2+
RXA2-
RXA1+
RXA1-
RXA0+
RXA0-
LVDS_SEL
+3.3V_Normal
OPT
R712
3.3K
OPT
R711
10K
OPT
C701
10uF
16V
OPT
C702
1000pF
50V
PANEL_VCC
HD
C703
0.1uF
16V
HD
L701
70-ohm
BLM18SG700TN1D
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
LVDS_LARGE
2011/11/14
11
Page 35

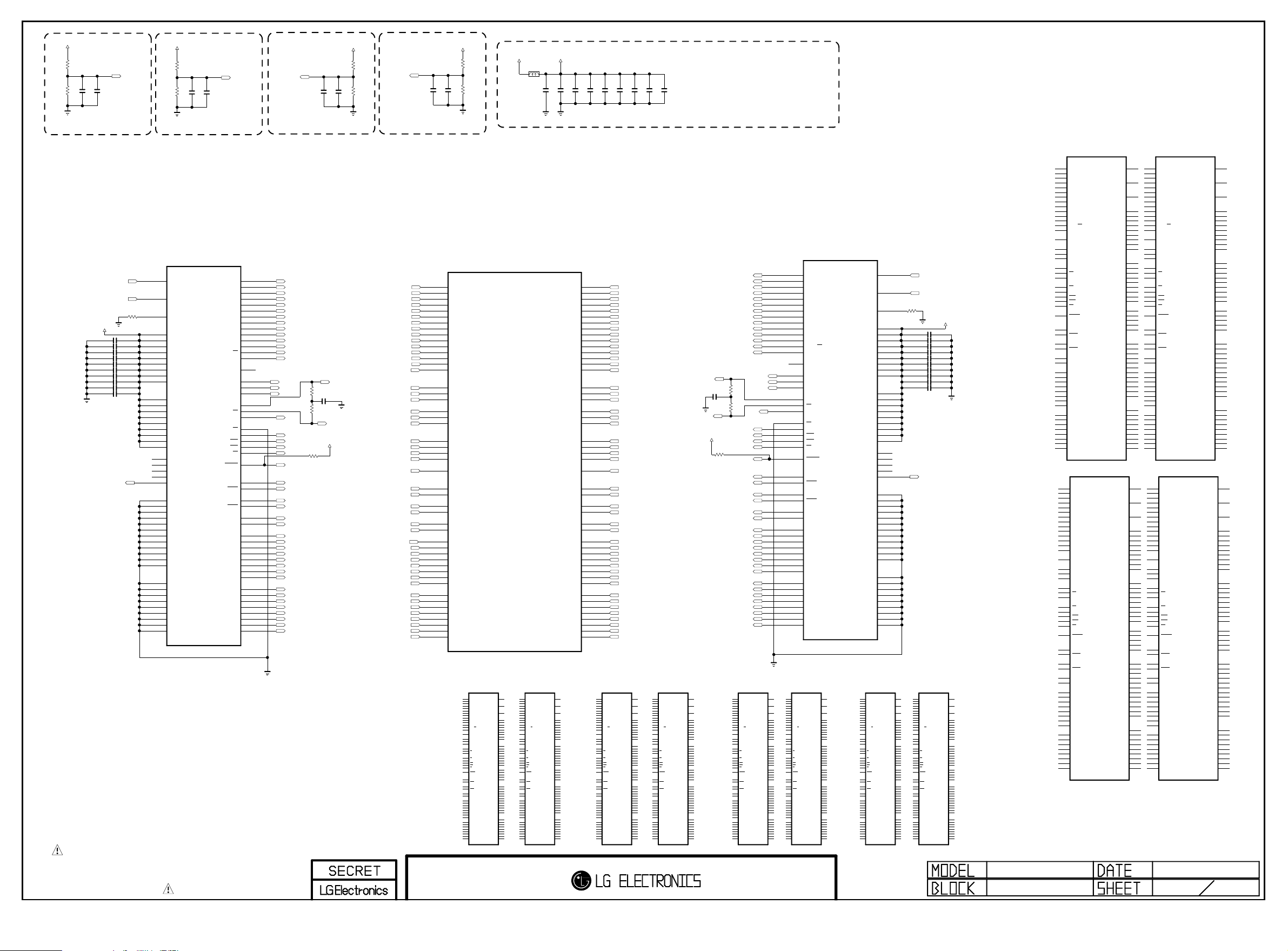

AVDD_DDR0
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
R1201
R1202
AVDD_DDR0
1K 1%
0.1uF
1K 1%
C1201
A-MVREFDQ
1000pF
C1202
R1204
R1205
1K 1%
0.1uF
1K 1%
C1203
A-MVREFCA
1000pF
C1204
B-MVREFCA
1000pF
OS
C1247
AVDD_DDR0
OS
0.1uF
C1248
OS
R1224
1K 1%
B-MVREFDQ
OS
R1225
1K 1%
1000pF
OS
C1249
AVDD_DDR0
0.1uF
OS
OS
C1250
L1202
CIC21J501NE
AVDD_DDR0
+1.5V_DDR
R1227
1K 1%
OPT
OS
R1228
1K 1%
C1251
10uF
C1206
0.1uF
C1239
0.1uF
C1217
1uF
1uF
C1218
C1219
1uF
1uF
1uF
C1241
C1238
C1220
0.1uF
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7
M2
N8
M3
J7
K7
K9
L2
K1
J3
K3
L3
T2
F3
G3
C7
B7
E7
D3
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
CLose to Saturn7M IC
A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13
A-MBA0
A-MBA1
A-MBA2
A-MCKE
A-MODT
A-MRASB
A-MCASB
A-MWEB
A-MRESETB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDML
A-MDMU
A-MDQL0 B-MDQL1
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7
R1235
56
R1236
56
R1231
10K
1%
C1209
0.01uF
50V
1%
A-MCKB
AVDD_DDR0
A-MCK
CLose to DDR3
A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13
A-MA14
A-MBA0
A-MBA1
A-MBA2
A-MCK
A-MCKB
A-MCKE
A-MODT
A-MRASB
A-MCASB
A-MWEB
A-MRESETB
A-MDQSL
A-MDQSLB
A-MDQSU
A-MDQSUB
A-MDML
A-MDMU
A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7
A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7
CLose to DDR3
A-MVREFCA
A-MVREFDQ
AVDD_DDR0
C1205 10uF
C1207 0.1uF
C1208 0.1uF
C1210 0.1uF
C1211 0.1uF
C1212 0.1uF
C1213 0.1uF
C1214 0.1uF
C1215 0.1uF
C1216 0.1uF
OS
A-MA14
R1203
240
1%
CLose to Saturn7M IC
EAN61828901
IC1201
H5TQ1G63DFR-H9C
DDR_1333_HYNIX
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
A10/AP
A12/BC
NC_5
RESET
DQSL
DQSL
DQSU
DQSU
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A11
A13
BA0
BA1
BA2
CK
CK
CKE
CS
ODT
RAS
CAS
WE
DML
DMU
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
LGE2111A-T8
S7LR2_DIVX_MS10
A11
A_DDR3_A[0]
C14
A_DDR3_A[1]
B11
A_DDR3_A[2]
F12
A_DDR3_A[3]
C15
A_DDR3_A[4]
E12
A_DDR3_A[5]
A14
A_DDR3_A[6]
D11
A_DDR3_A[7]
B14
A_DDR3_A[8]
D12
A_DDR3_A[9]
C16
A_DDR3_A[10]
C13
A_DDR3_A[11]
A15
A_DDR3_A[12]
E11
A_DDR3_A[13]
B13
A_DDR3_A[14]
F13
A_DDR3_BA[0]
B15
A_DDR3_BA[1]
E13
A_DDR3_BA[2]
C17
A_DDR3_MCLK
A17
A_DDR3_MCLKZ
B16
A_DDR3_MCLKE
E14
A_DDR3_ODT
B12
A_DDR3_RASZ
A12
A_DDR3_CASZ
C12
A_DDR3_WEZ
F11
A_DDR3_RESET
B19
A_DDR3_DQSL
C18
A_DDR3_DQSLB
B18
A_DDR3_DQSU
A18
A_DDR3_DQSUB
E15
A_DDR3_DQML
A21
A_DDR3_DQMU
D17
A_DDR3_DQL[0]
G15
A_DDR3_DQL[1]
B21
A_DDR3_DQL[2]
F15
A_DDR3_DQL[3]
B22
A_DDR3_DQL[4]
F14
A_DDR3_DQL[5]
A22
A_DDR3_DQL[6]
D15
A_DDR3_DQL[7]
G16
A_DDR3_DQU[0]
B20
A_DDR3_DQU[1]
F16
A_DDR3_DQU[2]
C21
A_DDR3_DQU[3]
E16
A_DDR3_DQU[4]
A20
A_DDR3_DQU[5]
D16
A_DDR3_DQU[6]
C20
A_DDR3_DQU[7]
DDR_1600_SS
IC1201-*5
K4B1G1646G-BCK0
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
M7
M2
N8
M3
J7
K7
K9
L2
K1
J3
K3
L3
T2
F3
G3
C7
B7
E7
D3
E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3
M8
A0
VREFCA
A1
A2
H1
A3
VREFDQ
A4
A5
L8
A6
ZQ
A7
A8
B2
A9
VDD_1
D9
A10/AP
VDD_2
G7
A11
VDD_3
K2
A12/BC
VDD_4
K8
A13
VDD_5
N1
VDD_6
N9
NC_5
VDD_7
R1
VDD_8
R9
BA0
VDD_9
BA1
BA2
A1
VDDQ_1
A8
CK
VDDQ_2
C1
CK
VDDQ_3
C9
CKE
VDDQ_4
D2
VDDQ_5
E9
CS
VDDQ_6
F1
ODT
VDDQ_7
H2
RAS
VDDQ_8
H9
CAS
VDDQ_9
WE
J1
NC_1
J9
RESET
NC_2
L1
NC_3
L9
NC_4
T7
DQSL
NC_6
DQSL
A9
DQSU
VSS_1
B3
DQSU
VSS_2
E1
VSS_3
G8
DML
VSS_4
J2
DMU
VSS_5
J8
VSS_6
M1
DQL0
VSS_7
M9
DQL1
VSS_8
P1
DQL2
VSS_9
P9
DQL3
VSS_10
T1
DQL4
VSS_11
T9
DQL5
VSS_12
DQL6
DQL7
B1
VSSQ_1
B9
DQU0
VSSQ_2
D1
DQU1
VSSQ_3
D8
DQU2
VSSQ_4
E2
DQU3
VSSQ_5
E8
DQU4
VSSQ_6
F9
DQU5
VSSQ_7
G1
DQU6
VSSQ_8
G9
DQU7
VSSQ_9
IC101
DDR_1600_SS
IC1202-*5
K4B1G1646G-BCK0
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
B_DDR3_A[0]
B_DDR3_A[1]
B_DDR3_A[2]
B_DDR3_A[3]
B_DDR3_A[4]
B_DDR3_A[5]
B_DDR3_A[6]
B_DDR3_A[7]
B_DDR3_A[8]
B_DDR3_A[9]
B_DDR3_A[10]
B_DDR3_A[11]
B_DDR3_A[12]
B_DDR3_A[13]
B_DDR3_A[14]
B_DDR3_BA[0]
B_DDR3_BA[1]
B_DDR3_BA[2]
B_DDR3_MCLK
B_DDR3_MCLKZ
B_DDR3_MCLKE
B_DDR3_ODT
B_DDR3_RASZ
B_DDR3_CASZ
B_DDR3_WEZ
B_DDR3_RESET
B_DDR3_DQSL
B_DDR3_DQSLB
B_DDR3_DQSU
B_DDR3_DQSUB
B_DDR3_DQML
B_DDR3_DQMU
B_DDR3_DQL[0]
B_DDR3_DQL[1]
B_DDR3_DQL[2]
B_DDR3_DQL[3]
B_DDR3_DQL[4]
B_DDR3_DQL[5]
B_DDR3_DQL[6]
B_DDR3_DQL[7]
B_DDR3_DQU[0]
B_DDR3_DQU[1]
B_DDR3_DQU[2]
B_DDR3_DQU[3]
B_DDR3_DQU[4]
B_DDR3_DQU[5]
B_DDR3_DQU[6]
B_DDR3_DQU[7]
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
B23
D25
F22
G22
E24
F21
E23
D22
D24
D21
C24
C25
F23
E21
D23
G20
F24
F20
G25
G23
F25
D20
B25
B24
A24
E20
K24
K25
J21
J20
H24
L20
L23
J24
L24
J23
M24
H23
M23
K23
G21
L22
H22
K20
H20
L21
H21
K21
B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
B-MA14
B-MBA0
B-MBA1
B-MBA2
B-MCK
B-MCKB
B-MCKE
B-MODT
B-MRASB
B-MCASB
B-MWEB
B-MRESETB
B-MDQSL
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDML
B-MDMU
B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7
B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7
DDR_1600_HYNIX
IC1201-*4
H5TQ1G63DFR-PBC
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC1201-*1
K4B1G1646G-BCH9
DDR_1333_SS_NEW
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
EAN61828901
IC1202
H5TQ1G63DFR-H9C
DDR_1333_HYNIX
ZQ
M8
H1
L8
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
DDR_DVB_T2_2G
IC1202-*3
K4B2G1646C
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8
B-MA9
B-MA10
B-MA11
B-MA12
B-MA13
OS
56
1%
56
1%
OS
B-MODT
B-MRASB
B-MCASB
B-MWEB
B-MRESETB
B-MDQSL
B-MDQSLB
B-MDQSU
B-MDQSUB
B-MDML
B-MDMU
R1237
B-MCKE
R1238
B-MBA0
B-MBA1
B-MBA2
B-MCK
OS
B-MCKB
AVDD_DDR0
C1240
0.01uF
50V
R1232
10K
OS
B-MDQL0
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7
B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7
DDR_1600_HYNIX
IC1202-*4
H5TQ1G63DFR-PBC
N3
M8
VREFCA
P7
P3
N2
H1
VREFDQ
P8
P2
R8
L8
ZQ
R2
T8
R3
B2
VDD_1
L7
D9
VDD_2
R7
G7
VDD_3
N7
K2
VDD_4
T3
K8
VDD_5
N1
VDD_6
M7
N9
VDD_7
R1
VDD_8
M2
R9
VDD_9
N8
M3
A1
VDDQ_1
J7
A8
VDDQ_2
K7
C1
VDDQ_3
K9
C9
VDDQ_4
D2
VDDQ_5
L2
E9
VDDQ_6
K1
F1
VDDQ_7
J3
H2
VDDQ_8
K3
H9
VDDQ_9
L3
J1
NC_1
T2
J9
NC_2
L1
NC_3
L9
NC_4
F3
T7
NC_6
G3
C7
A9
VSS_1
B7
B3
VSS_2
E1
VSS_3
E7
G8
VSS_4
D3
J2
VSS_5
J8
VSS_6
E3
M1
VSS_7
F7
M9
VSS_8
F2
P1
VSS_9
F8
P9
VSS_10
H3
T1
VSS_11
H8
T9
VSS_12
G2
H7
B1
VSSQ_1
D7
B9
VSSQ_2
C3
D1
VSSQ_3
C8
D8
VSSQ_4
C2
E2
VSSQ_5
A7
E8
VSSQ_6
A2
F9
VSSQ_7
B8
G1
VSSQ_8
A3
G9
VSSQ_9
M8
A0
VREFCA
A1
A2
H1
A3
VREFDQ
A4
A5
L8
A6
ZQ
A7
A8
B2
A9
VDD_1
D9
A10/AP
VDD_2
G7
A11
VDD_3
K2
A12/BC
VDD_4
K8
A13
VDD_5
N1
VDD_6
N9
A15
VDD_7
R1
VDD_8
R9
BA0
VDD_9
BA1
BA2
A1
VDDQ_1
A8
CK
VDDQ_2
C1
CK
VDDQ_3
C9
CKE
VDDQ_4
D2
VDDQ_5
E9
CS
VDDQ_6
F1
ODT
VDDQ_7
H2
RAS
VDDQ_8
H9
CAS
VDDQ_9
WE
J1
NC_1
J9
RESET
NC_2
L1
NC_3
L9
NC_4
T7
DQSL
NC_6
DQSL
A9
DQSU
VSS_1
B3
DQSU
VSS_2
E1
VSS_3
G8
DML
VSS_4
J2
DMU
VSS_5
J8
VSS_6
M1
DQL0
VSS_7
M9
DQL1
VSS_8
P1
DQL2
VSS_9
P9
DQL3
VSS_10
T1
DQL4
VSS_11
T9
DQL5
VSS_12
DQL6
DQL7
B1
VSSQ_1
B9
DQU0
VSSQ_2
D1
DQU1
VSSQ_3
D8
DQU2
VSSQ_4
E2
DQU3
VSSQ_5
E8
DQU4
VSSQ_6
F9
DQU5
VSSQ_7
G1
DQU6
VSSQ_8
G9
DQU7
VSSQ_9
DDR_DVB_T2_2G
IC1201-*3
K4B2G1646C
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M8
VREFCA
H1
VREFDQ
L8
ZQ
B2
VDD_1
D9
VDD_2
G7
VDD_3
K2
VDD_4
K8
VDD_5
N1
VDD_6
N9
VDD_7
R1
VDD_8
R9
VDD_9
A1
VDDQ_1
A8
VDDQ_2
C1
VDDQ_3
C9
VDDQ_4
D2
VDDQ_5
E9
VDDQ_6
F1
VDDQ_7
H2
VDDQ_8
H9
VDDQ_9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_6
A9
VSS_1
B3
VSS_2
E1
VSS_3
G8
VSS_4
J2
VSS_5
J8
VSS_6
M1
VSS_7
M9
VSS_8
P1
VSS_9
P9
VSS_10
T1
VSS_11
T9
VSS_12
B1
VSSQ_1
B9
VSSQ_2
D1
VSSQ_3
D8
VSSQ_4
E2
VSSQ_5
E8
VSSQ_6
F9
VSSQ_7
G1
VSSQ_8
G9
VSSQ_9
DDR_1600_MICRON
IC1201-*6
MT41J64M16JT-125:G
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
NC_6
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_5
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
R1226
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
B-MVREFCA
B-MVREFDQ
OS
240
1%
C1227 10uF
C1228 0.1uF
OS
C1229 0.1uF
OS
C1230 0.1uF
OS
C1231 0.1uF
OS
C1232 0.1uF
OS
C1233 0.1uF
OS
C1234 0.1uF
OS
C1235 0.1uF
OS
C1236 0.1uF
OS
B-MA14
DDR_1600_MICRON
IC1202-*6
MT41J64M16JT-125:G
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
NC_6
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQ0
F7
DQ1
F2
DQ2
F8
DQ3
H3
DQ4
H8
DQ5
G2
DQ6
H7
DQ7
D7
DQ8
C3
DQ9
C8
DQ10
C2
DQ11
A7
DQ12
A2
DQ13
B8
DQ14
A3
DQ15
AVDD_DDR0
VREFCA
VREFDQ
ZQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
NC_1
NC_2
NC_3
NC_4
NC_5
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
M8
H1
L8
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC1201-*2
NT5CB64M16DP-CF
DDR_1333_NANYA_NEW
N3
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
NC_6
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
EAN61857201A0
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
VREFCA
VREFDQ
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
GP4L_S7LR2
DDR_256
IC1202-*1
K4B1G1646G-BCH9
DDR_1333_SS_NEW
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
IC1202-*2
NT5CB64M16DP-CF
DDR_1333_NANYA_NEW
N3
EAN61857201A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12
T3
NC_6
M7
NC_5
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
L2
CS
K1
ODT
J3
RAS
K3
CAS
L3
WE
T2
RESET
F3
DQSL
G3
DQSL
C7
DQSU
B7
DQSU
E7
DML
D3
DMU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
2011/06/03
12
VREFCA
VREFDQ
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
VREFCA
VREFDQ
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VSS_10
VSS_11
VSS_12
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9
NC_1
NC_2
NC_3
NC_4
NC_6
VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
J9
L1
L9
T7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
M8
H1
L8
ZQ
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
J1
NC_1
J9
NC_2
L1
NC_3
L9
NC_4
T7
NC_7
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9

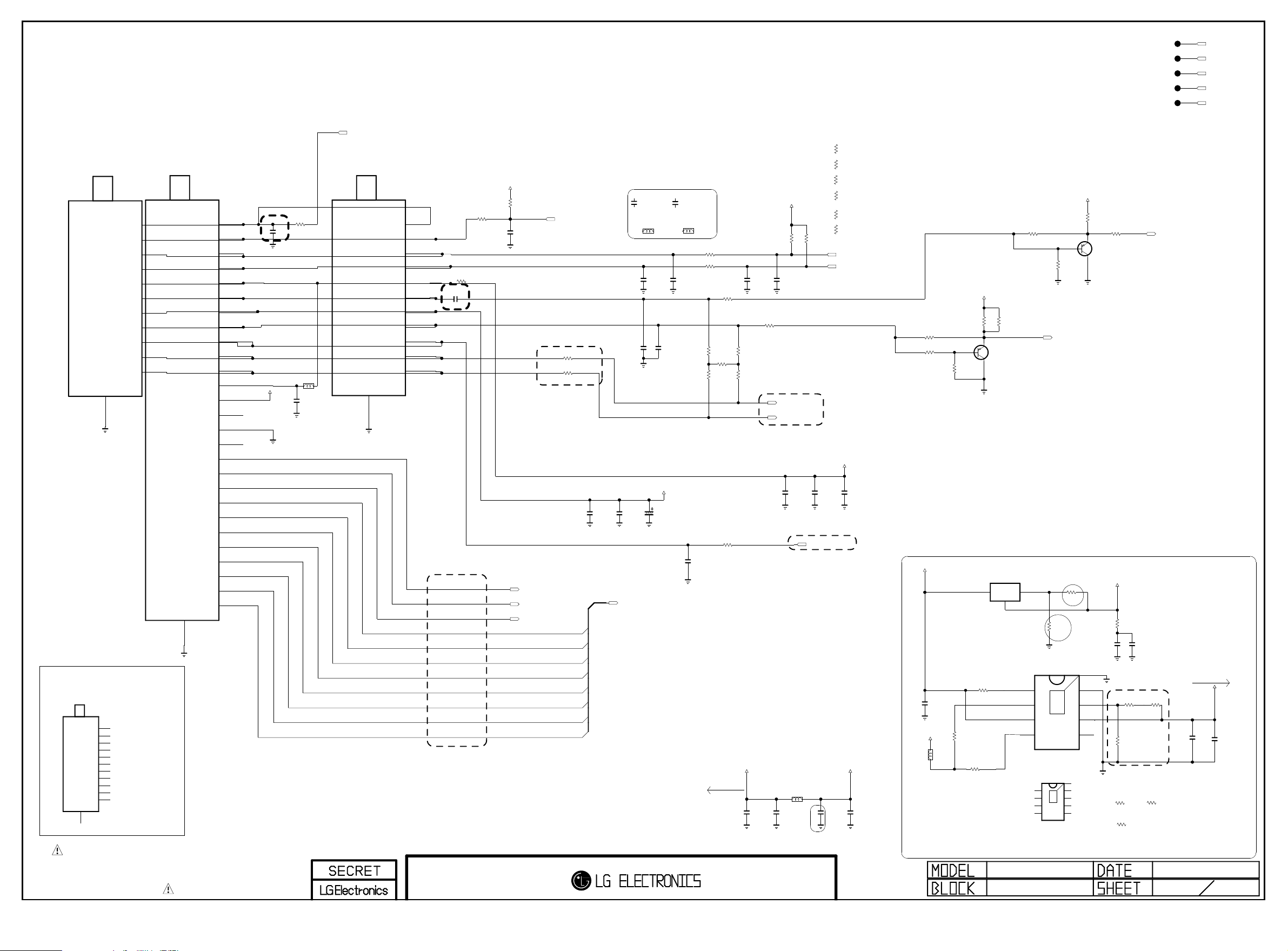

Page 36
GLOBAL tuner block except EU and China
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
RF_SWITCH_CTL
Pull-up can’t be applied
because of MODEL_OPT_2
L3706
120
FULL_NIM
C3718
0.1uF
16V
FULL_NIM
TU3700
TDSS-G201D
SI2156_DVB_1INPUT_H
1
2
3
4
5
6
7
8
9
10
11
12
SHIELD
NC_1
RESET
SCL
SDA
+B1[3.3V]
NC_2
0.1uF 16V
+B2[1.8V]
NC_3
IF_AGC
DIF[P]
DIF[N]
Close to the CI Slot
C3702-*1
0
ASIA
C3702
NON_ASIA
+3.3V_TU
R3733
R3732
100
100K
C3710
0.1uF
16V
close to TUNER
Close to the tuner
FE_TS_SYNC
FE_TS_VAL_ERR
FE_TS_CLK
TUNER_RESET
R3761 0
HALF_NIM
R3760 0
HALF_NIM
FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]
C3737
100pF
50V
C3711-*1
20pF
50V
TU_I2C_FILTER
TU_I2C_FILTER
R3735-*1
TU_I2C_NON_FILTER
C3711
18pF
50V
C3750
10pF
50V
ASIA
+1.8V_TU
C3738
0.1uF
16V
FE_TS_DATA[0-7]
C3705
100uF
16V
C3751
10pF
50V
ASIA
OPT
C3713-*1
20pF
50V
TU_I2C_FILTER
TU_I2C_FILTER
R3736-*1
TU_I2C_NON_FILTER
R3735
R3736
TU_I2C_NON_FILTER
C3713
18pF
50V
TU_I2C_NON_FILTER
R3780
390
ASIA
R3785
0
ASIA
C3716
0.1uF
16V
HALF_NIM
60mA
TU3704
TDSH-T101F
SI2176_TW_2INPUT_H
12
SHIELD
TU3703
TDSN_B001F
SI2176_BR_2INPUT_H
RF_S/W_CTL
1
RESET
2
SCL
3
SDA
4
+B1[3.3V]
5
SIF
6
+B2[1.8V]
7
CVBS
8
IF_AGC
9
DIF[P]
10
DIF[N]
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
close to TUNER
RF_S/W_CTL
RESET
SCL
SDA
+B1[3.3V]
SIF
+B2[1.8V]
CVBS
NC_1
NC_2
NC_3
+B3[3.3V]
+B4[1.23V]
+1.23V_TU
NC_4
GND
ERROR
SYNC
VALID
MCLK
D0
D1
D2
D3
D4
D5
D6
D7
R3705 0
C3701
0.1uF
16V
RF_SW_OPT
28
SHIELD
TUNER MULTI-OPTION
TU3700-*1
TDSS-H101F
SI2176_ATSC_1INPUT_H
NC
1
RESET
2
SCL
3
SDA
4
+B1[3.3V]
5
SIF
6
+B2[1.8V]
7
CVBS
8
IF_AGC
9
DIF[P]
10
DIF[N]
11
12
SHIELD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
33
33
R3783 0
NON_ASIA
R3782
2K
ASIA
R3704 100
HALF_NIM
+3.3V_TU
R3740
1.8K
TU_IIC_ATSC_1.8K
TU_I2C_FILTER
C3743
C3742
20pF
20pF
50V
50V
TU_I2C_FILTER
R3784 0
NON_ASIA
R3781
390
ASIA
R3786
0
ASIA
IF_P_MSTAR
IF_N_MSTAR
1. should be guarded by ground
2. No via on both of them
3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils
close to the tuner pin, add,09029
should be guarded by ground
+3.3V_TU
Size change,0929
CIS21J121
C3725
C3723
0.1uF
22uF
16V
10V
C3739
10uF
6.3V
OPT
L3703
R3741
1.8K
TU_IIC_ATSC_1.8K
+3.3V_TU
C3707
100pF
50V
IF_AGC_MAIN
+3.3V_Normal
C3715
22uF
10V
Add,0929
R3741-*3
2.2K
TU_IIC_BR_2.2K
R3740-*3
2.2K
TU_IIC_BR_2.2K
R3741-*2
1.2K
TU_IIC_ATSC_1.2K
R3740-*2
1.2K
TU_IIC_ATSC_1.2K
R3740-*1
1K
TU_IIC_NON_ATSC_1K
R3741-*1
1K
TU_IIC_NON_ATSC_1K
TU_SCL
TU_SDA
C3708
0.1uF
16V
C3727
0.1uF
16V
R3756 0
TU_NON_BUFFER
R3749 0
TU_BUFFER
+3.3V_TU
C3717
0.1uF
16V
+5V_Normal
FULL_NIM
TU_BUFFER
R3750
1K
OPT
Vo=VREF*(1+R2/R1)
VREF = 1.25V
FULL_NIM
R3769 10K
L3704
FULL_NIM_BCD
+3.3V_TU
R3774
470
B
TU_BUFFER
E
Q3705
MMBT3906(NXP)
TU_BUFFER
C
R3758
82
R3775
0
TU_NON_BUFFER
R3753
4.7K
TU_BUFFER
+3.3V_TU
B
R3713
0
R3752
220
TU_BUFFER
E
Q3703
MMBT3906(NXP)
TU_BUFFER
C
IC3703
AP1117E18G-13
3
IN1ADJ/GND
OUT
2
TU_CVBS
R3711
0
R2
IC3701
AP2132MP-2.5TRG1
PG
1
FULL_NIM_BCD
EN
2
THERMAL
VIN
3
VCTRL
4
FULL_NIM_TJ
IC3701-*1
TJ4220GDP-ADJ
NC_1
1
EN2
9
2
THERMAL
VIN3
3
NC4
4
+1.8V_TU
R1
OPT
R3710
200
1%
R3766
1
C3740
0.1uF
16V
[EP]
GND
8
ADJ
9
7
VOUT
6
NC
5
[EP]GND
GND
8
ADJ/SENSE
7
VOUT
6
NC_2
5
C3741
10uF
10V
FULL_NIM_BCD
FULL_NIM
R3748-*1
5.1K
FULL_NIM_TJ
FULL_NIM_BCD
R3748
11K
R1
FULL_NIM_BCD
R3747
20K
1005
R2
BCD Vo=0.6*(1+R1/R2)
TJ Vo=0.8*(1+R1/R2)
FULL_NIM_TJ
R3776-*1
0
R3747-*1
9.1K
R3776
10K
R3751
220
R3771 10K
FULL_NIM_OPT
GP4L_S7LR2 2011.10.11
TUNER_NON_EU
TU_SIF
C3729
0.1uF
16V
FULL_NIM
14
FE_AGC_SPEED_CTL
IF_AGC_SEL
DEMOD_RESET
FE_BOOSTER_CTL
LNA2_CTL
DEMOD_SCL
DEMOD_SDA
+1.23V_TU
C3730
10uF
10V
FULL_NIM
380mA

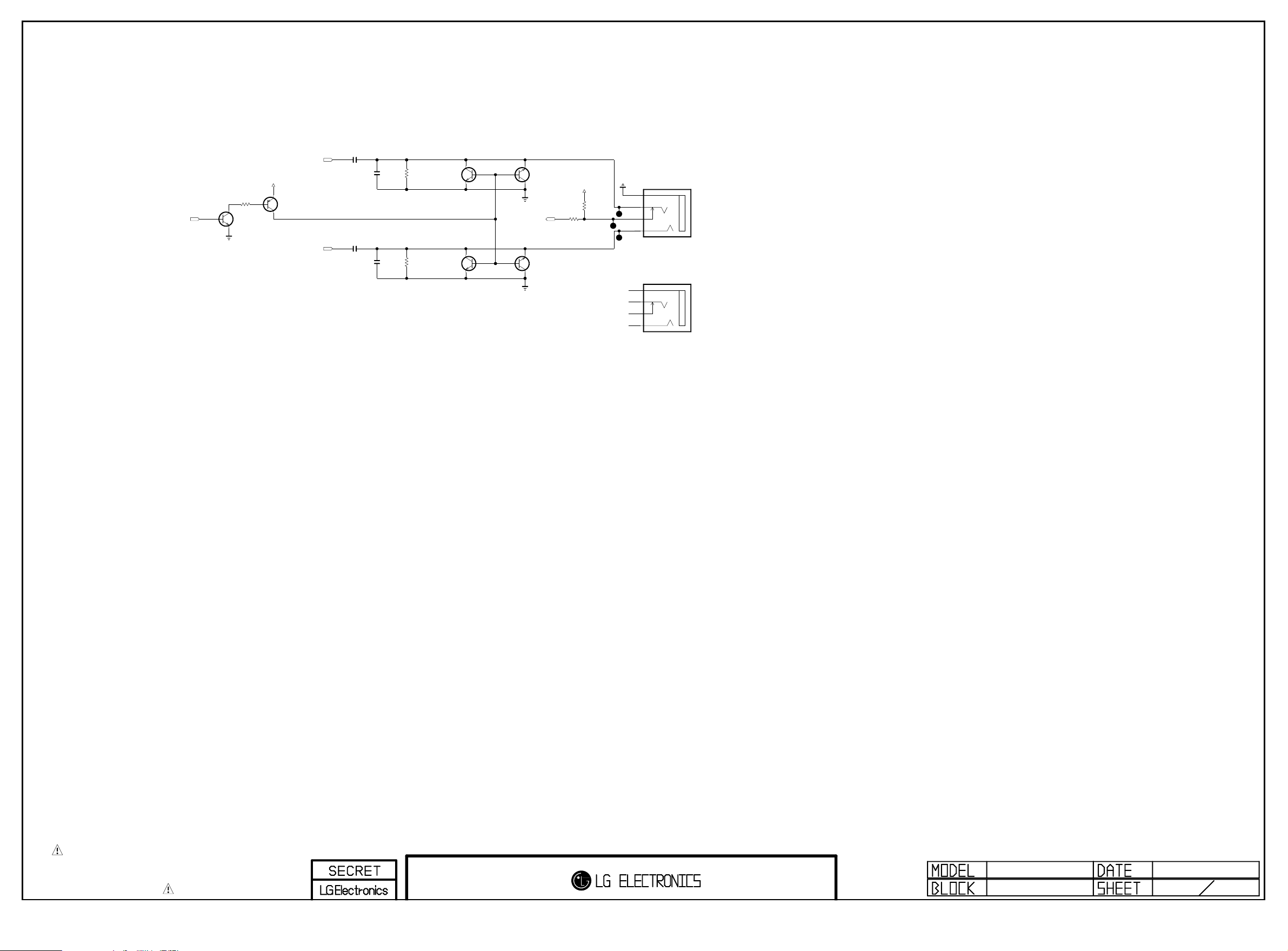

Page 37
Headphone *Option : HEAD_PHONE
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
SIDE_HP_MUTE
B
Q1500
MMBT3904(NXP)
HEAD_PHONE_POP
R1500
C
3.3K
HEAD_PHONE_POP
E
+3.5V_ST
B
HP_LOUT
E
HEAD_PHONE_POP
Q1501
MMBT3906(NXP)
C
HP_ROUT
HEAD_PHONE
C1500
10uF
16V
HEAD_PHONE
C1501
10uF
16V
OPT
C1502
1000pF
50V
OPT
C1503
1000pF
50V
HEAD_PHONE
R1501
1K
HEAD_PHONE_POP
HEAD_PHONE
R1502
1K
HEAD_PHONE_POP
Q1502
MMBT3904(NXP)
Q1503
MMBT3904(NXP)
C
B
E
C
B
E
B
B
E
Q1504
MMBT3904(NXP)
HEAD_PHONE_POP
C
HP_DET
E
Q1505
MMBT3904(NXP)
HEAD_PHONE_POP
C
+3.3V_Normal
R1504
10K
R1503
1K
HEAD_PHONE
HEAD_PHONE
HEAD_PHONE
JK1500
KJA-PH-0-0177
5GND
4L
3DETECT
1R
HEAD_PHONE_32LS3500
JK1500-*1
PEJ031-01
5GND
4L
3DETECT
1R
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
HEADPHONE 15
2011/10/04

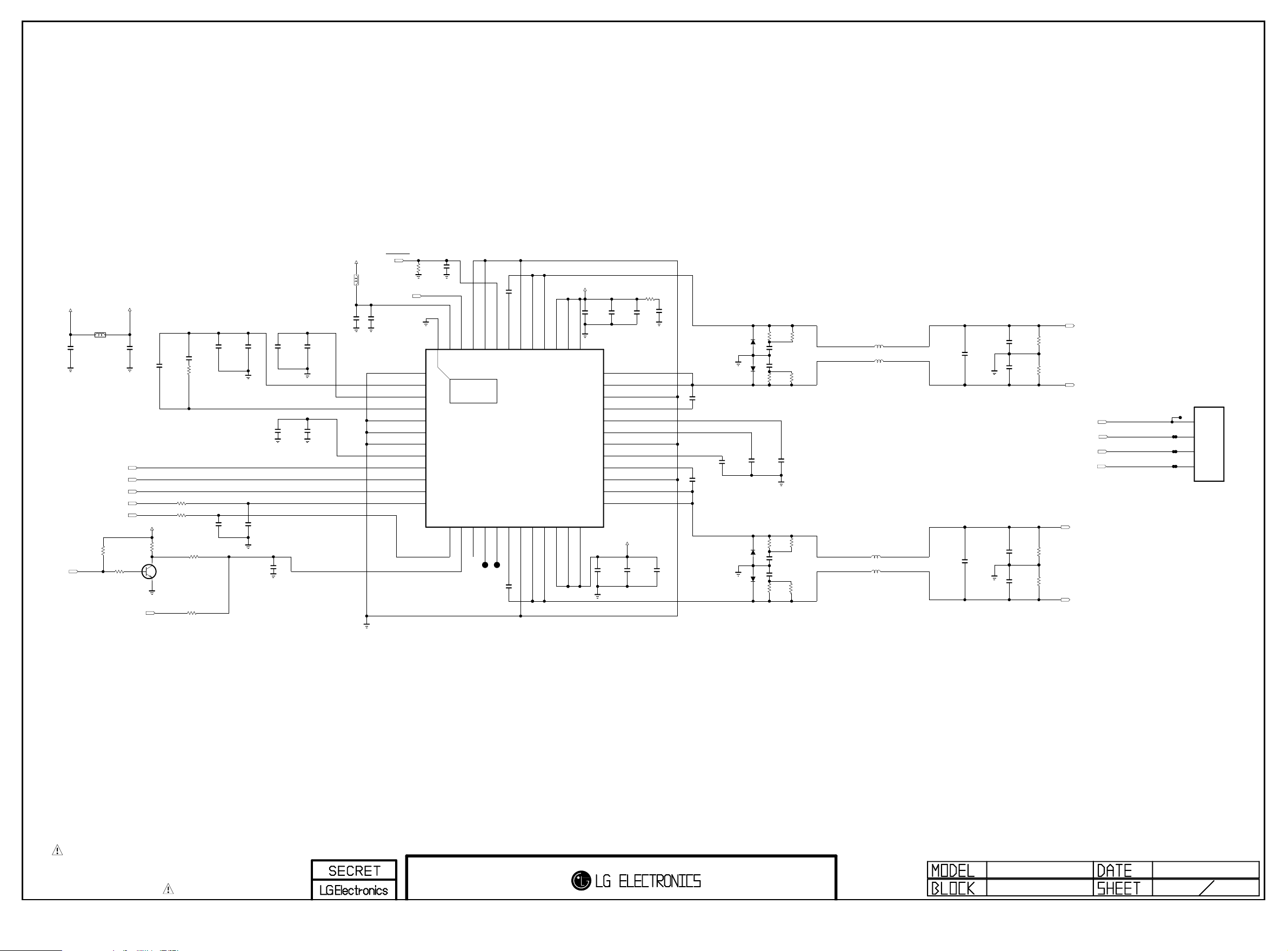

Page 38
Audio amp(NTP-7500)
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
+24V
AMP_MUTE
C501
0.1uF
50V
L501
CIS21J121
+24V_AMP
AUD_LRCH
AUD_LRCK
AUD_SCK
AMP_SDA
AMP_SCL
R520
10K
NON_LIPS
R501
10K
NON_LIPS
C502
0.1uF
50V
POWER_DET
+3.5V_ST
B
C503
100pF
50V
R503 100
R504 100
R502
10K
NON_LIPS
C
Q501
MMBT3904(NXP)
NON_LIPS
E
C504
1000pF
50V
R505
3.3K
NON_LIPS
R506
100
R522
0
LIPS_ONLY
OPT
C506
4.7uF
16V
C507
33pF
50V
C508
0.1uF
16V
C509
33pF
50V
1000pF
C505
+3.3V_Normal
L502
BLM18PG121SN1D
C514
0.1uF
16V
OPT
C510
C512
10uF
0.1uF
10V
16V
OPT
C511
10uF
C513
10V
0.1uF
16V
50V
AMP_RESET
AUD_MASTER_CLK
C515
10uF
10V
AGND_PLL
AVDD_PLL
DVDD_PLL
DGND_PLL
GND_1
DGND
DVDD
SDATA
WCK
BCK
SDA
R521
10K
LF
C516
1000pF
50V
[EP]
1
2
3
4
5
6
7
8
9
10
11
12
GND_IO
CLK_I
VDD_IO
46
47
48
THERMAL
49
NTP-7500L
13
14
15
SCL
/FAULT
MONITOR0
50V
C517
BST1A
/RESET
AD
43
44
45
IC501
16
17
18
BST2B
MONITOR1
MONITOR2
C518
22000pF
50V
22000pF
OUT1A_2
PGND1A
41
42
19
20
PGND2B
OUT2B_1
PVDD1_2
PVDD1_3
OUT1A_1
38
39
40
21
22
23
OUT2B_2
PVDD2_1
PVDD2_2
+24V_AMP
C519
0.1uF
50V
PVDD1_1
37
36
35
34
33
32
31
30
29
28
27
26
25
24
PVDD2_3
C521
0.1uF
50V
OUT1B_2
OUT1B_1
PGND1B
BST1B
VDR1
VCC_5
AGND
VDR2
BST2A
PGND2A
OUT2A_2
OUT2A_1
+24V_AMP
C520
0.1uF
50V
C522
0.1uF
50V
C523
10uF
35V
OPT
R507
3.3
C525
0.01uF
50V
C524
10uF
35V
OPT
SPK_L+
SPEAKER_L
SPK_L-
SPK_L+
SPK_L-
SPK_R+
SPK_R-
SPK_R+
SPEAKER_R
SPK_R-
WAFER-ANGLE
4
3
2
1
P501
C526
22000pF
50V
C527
22000pF
50V
C52 8
1uF
25V
D501
1N4148W
100V
OPT
D502
1N4148W
100V
D503
1N4148W
100V
OPT
D504
1N4148W
100V
R508
R515
12
12
C530
390pF
50V
C531
390pF
50V
R509
R513
12
OPT
C52 9
1uF
25V
OPT
12
C534
1uF
25V
R514
R510
12
12
C532
390pF
50V
C533
390pF
50V
R51112R512
12
L505
10.0uH
L506
10.0uH
L503
10.0uH
L504
10.0uH
C535
0.47uF
50V
C536
0.47uF
50V
C537
0.1uF
50V
C538
0.1uF
50V
C539
0.1uF
50V
C540
0.1uF
50V
R516
4.7K
R517
4.7K
R518
4.7K
R519
4.7K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
NTP-7500
2011.10.04
16
Page 39

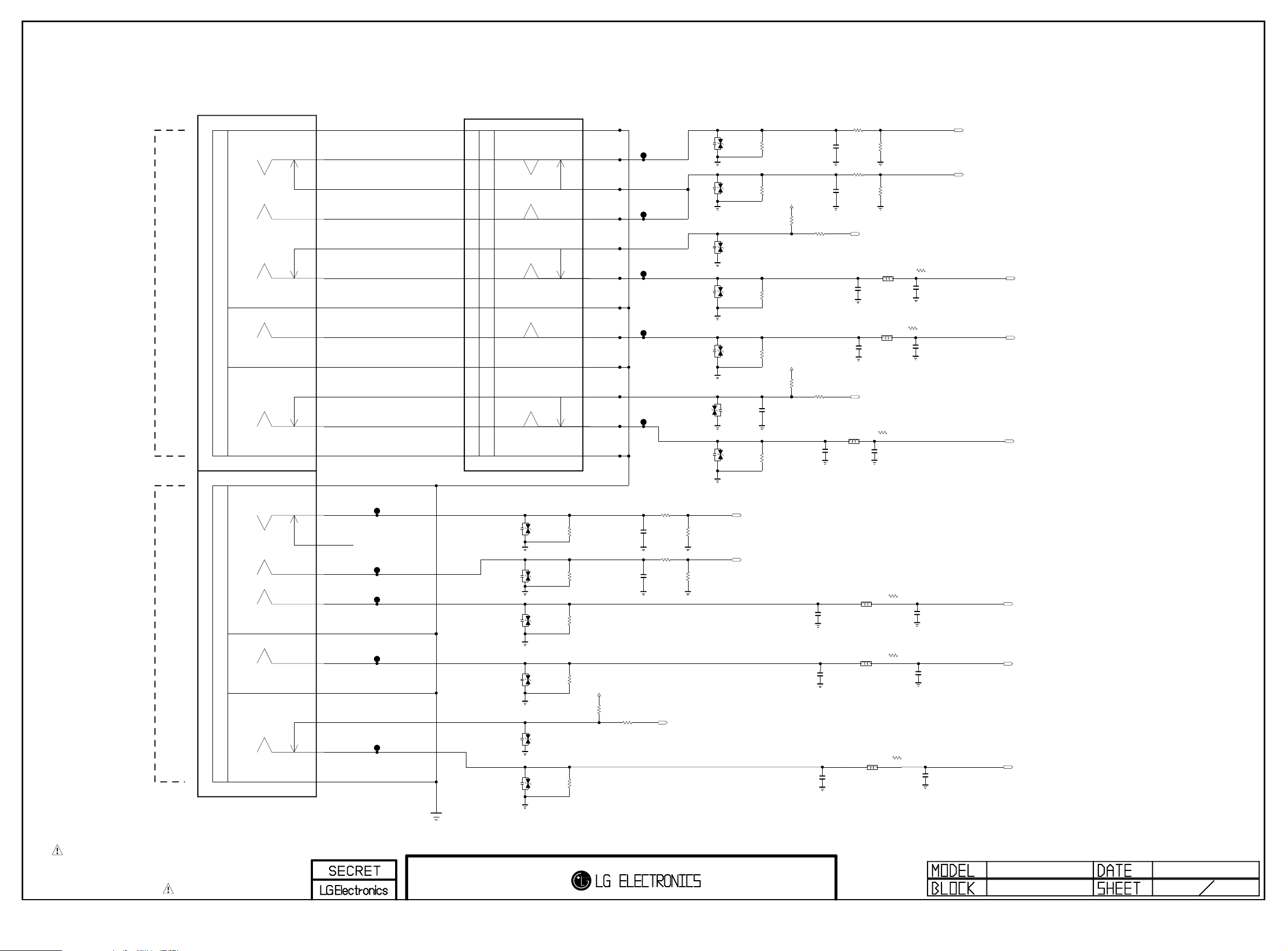

COMPONENT1 & AV(COMMON), COMPONENT2
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
COMPONENT1
&
AV
JK1601
PPJ239-01
COMP2
[RD1]E-LUG
6H
[RD1]O-SPRING_2
5H
[RD1]CONTACT_2
4H
[WH1]O-SPRING
5G
[RD1]CONTACT_1
4F
[RD1]O-SPRING_1
5F
[RD1]E-LUG-S
7F
[BL1]O-SPRING
5E
[BL1]E-LUG-S
7E
[GN1]CONTACT
4D
[GN1]O-SPRING
5D
[GN1]E-LUG
6D
[RD2]E-LUG
6N
JK1602
PPJ234-02
COMP1
[RD]E-LUG
6E
[RD]O-SPRING_2
5E
[RD]CONTACT_2
4E
[WH]O-SPRING
5D
[RD]CONTACT_1
4C
[RD]O-SPRING_1
5C
[RD]E-LUG-S
7C
[BL]O-SPRING
5B
[BL]E-LUG-S
7B
[GN]CONTACT
4A
[GN]O-SPRING
5A
[GN]E-LUG
6A
D1617
5.6V
OPT
D1616
5.6V
OPT
D1613
5.6V
OPT
D1615
20V
OPT
D1614
20V
OPT
D1624
5.6V
OPT
D1612
20V
OPT
R1626
470K
R1625
470K
R1621
75
R1620
75
C1646
0.1uF
16V
R1619
75
+3.3V_Normal
R1612
10K
+3.3V_Normal
R1660
10K
R1615
1K
R1666
1K
COMP1_ADC_FILTER_L
C1624
47pF
COMP1_ADC_FILTER
50V
R1632
10K
C1617
1000pF
50V
OPT
R1633
10K
C1616
1000pF
50V
OPT
COMP2_DET
C1620
47pF
50V
C1622
47pF
50V
COMP1_NON_ADC_FILTER
L1603
CM2012FR10KT
R1634
12K
R1636
12K
COMP1_NON_ADC_FILTER
L1601
CM2012FR10KT
COMP1_ADC_FILTER_L
COMP1_ADC_FILTER
COMP1_NON_ADC_FILTER
L1602
CM2012FR10KT
COMP1_ADC_FILTER_L
COMP1_ADC_FILTER
AV_CVBS_DET
L1603-*1
0
C1625
47pF
COMP1_ADC_FILTER
50V
L1601-*1
0
L1602-*1
0
C1621
47pF
50V
C1623
47pF
50V
COMP2_R_IN
COMP2_L_IN
COMP2_Pr+
COMP1_ADC_FILTER
COMP2_Pb+
COMP1_ADC_FILTER
COMP2_Y+/AV_CVBS_IN
COMPONENT2
[RD2]O-SPRING_2
5N
[RD2]CONTACT
4N
[WH2]O-SPRING
5M
[RD2]O-SPRING_1
5L
[RD2]E-LUG-S
7L
[BL2]O-SPRING
5K
[BL2]E-LUG-S
7K
[GN2]CONTACT
4J
[GN2]O-SPRING
5J
[GN2]E-LUG
6J
D1609
5.6V
OPT
D1607
5.6V
OPT
D1604
20V
OPT
D1606
20V
OPT
D1611
5.6V
OPT
D1605
20V
OPT
R1607
470K
COMP2
R1606
470K
COMP2
R1608
75
COMP2
R1605
75
COMP2
R1604
75
COMP2
R1613
10K
COMP2
+3.3V_Normal
R1614 1K
COMP2
C1612
1000pF
50V
OPT
C1611
1000pF
50V
OPT
R1618
10K
COMP2
R1617
10K
COMP2
SC1/COMP1_DET
R1631
12K
COMP2
R1630
12K
COMP2
SC1/COMP1_R_IN
SC1/COMP1_L_IN
COMP2_ADC_FILTER_L
C1626
47pF
COMP2_ADC_FILTER
50V
CM2012FR10KT
COMP2_ADC_FILTER_L
C1628
47pF
COMP2_ADC_FILTER
50V
C1630
47pF
COMP2_ADC_FILTER
50V
COMP2_NON_ADC_FILTER
L1604
CM2012FR10KT
COMP2_NON_ADC_FILTER
L1605
COMP2_NON_ADC_FILTER
L1606
CM2012FR10KT
COMP2_ADC_FILTER_L
L1604-*1
0
L1605-*1
0
L1606-*1
0
C1627
47pF
COMP2_ADC_FILTER
50V
C1629
47pF
COMP2_ADC_FILTER
50V
C1631
47pF
COMP2_ADC_FILTER
50V
SC1_R+/COMP1_Pr+
SC1_B+/COMP1_Pb+
SC1_G+/COMP1_Y+
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
REAR_NON_EU_L
2011.11.02
17
Page 40

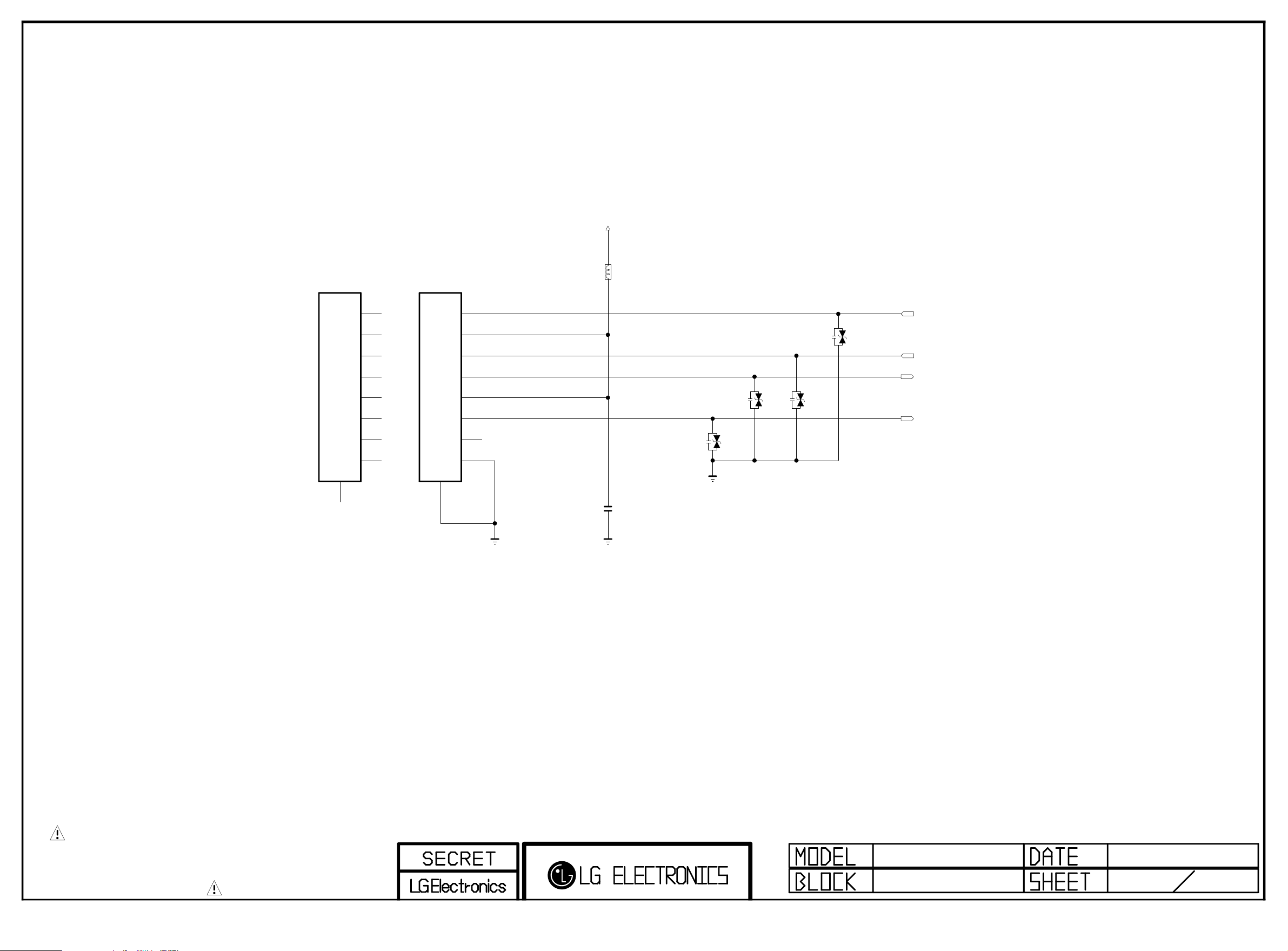

ETHERNET
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
* H/W option : ETHERNET
JK2100-*1
BS-R430051
JK2100
XRJV-01V-0-D12-080
+2.5V_Normal
ETHERNET
L3707
BLM18PG121SN1D
1
1
2
2
3
3
ETHERNET_UDE
4
4
5
5
6
6
7
7
8
8
9
9
1
2
3
ETHERNET_XMULTIPLE
4
5
6
7
8
9
9
ETHERNET
C2104
0.01uF
50V
OPT
D2103
5.5V
ADLC 5S 02 015
OPT
D2101
5.5V
ADLC 5S 02 015
OPT
D2105
5.5V
ADLC 5S 02 015
OPT
D2104
5.5V
ADLC 5S 02 015
EPHY_TP
EPHY_TN
EPHY_RP
EPHY_RN
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
ETHERNET
2011/06/14
21
Page 41

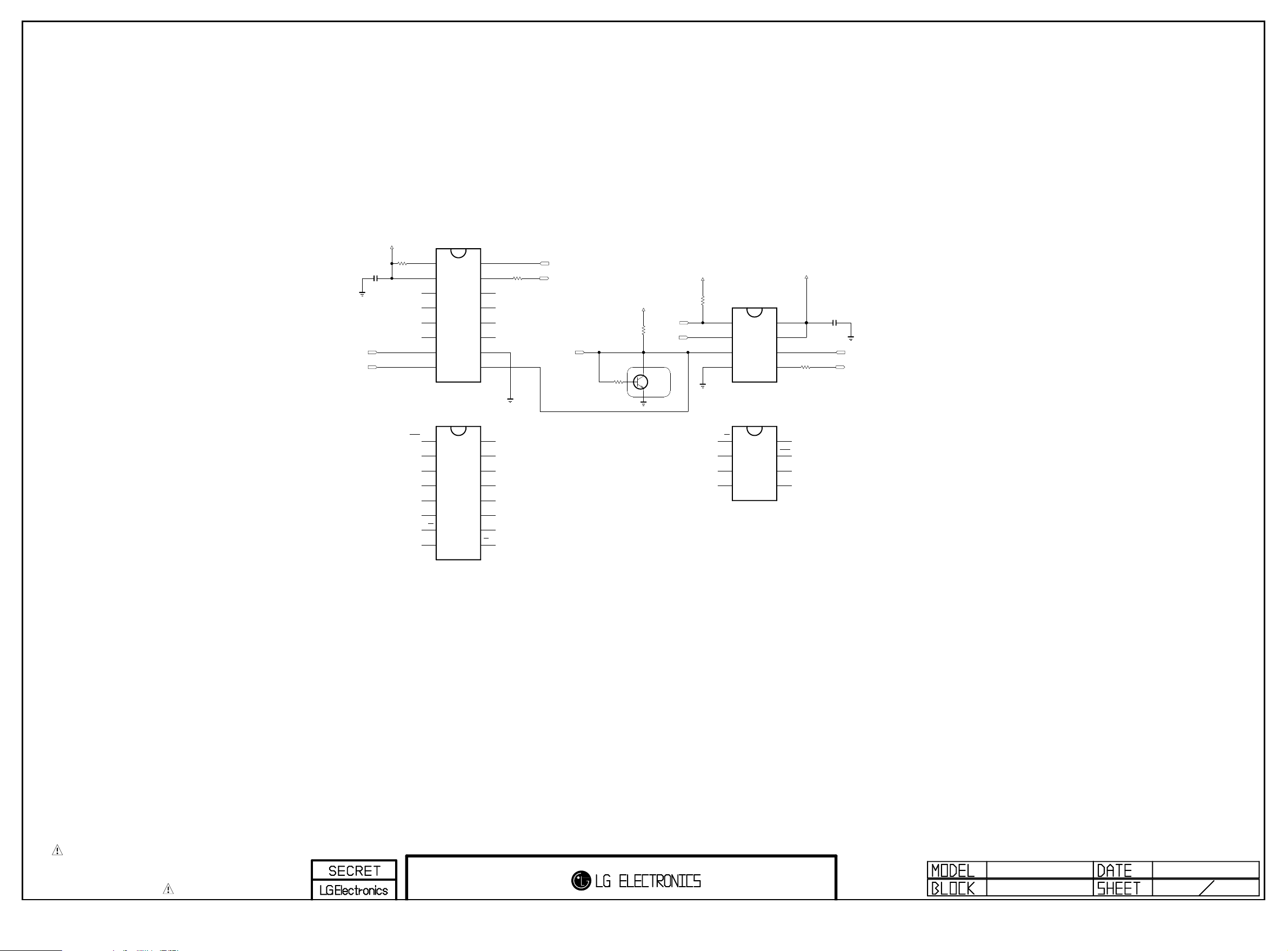

Serial Flash for SPI boot_NON_OS and OS
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
S_FLASH_NON_OS
0.1uF
/SPI_CS
SPI_SDO
+3.5V_ST
S_FLASH_NON_OS
C5601
S_FLASH_NON_OS_MACRONIX
R5603
10K
HOLD[IO3]
IC5601
MX25L6406EMI-12G
HOLD#
1
VCC
2
NC_1
3
NC_2
4
NC_3
5
NC_4
6
CS#
7
SO/SIO1
8
S_FLASH_NON_OS_WINBOND
IC5601-*1
W25Q64BVSFIG
1
VCC
2
NC_1
3
NC_2
4
NC_3
5
NC_4
6
CS
7
DO[IO1]
8
16
15
14
13
12
11
10
16
15
14
13
12
11
10
9
9
SCLK
SI/SIO0
NC_8
NC_7
NC_6
NC_5
GND
WP#
CLK
DIO[IO0]
NC_8
NC_7
NC_6
NC_5
GND
WP[IO2]
R5602
33
S_FLASH_NON_OS
SPI_SCK
SPI_SDI
/FLASH_WP
OPT
R1401
8
7
6
5
8
7
6
5
VCC
HOLD#
SCLK
SI/SIO0
S_FLASH_OS
VCC
HOLD[IO3]
CLK
DI[IO0]
+3.5V_ST
R1405
33
S_FLASH_OS
C1401
0.1uF
SPI_SCK
SPI_SDI
+3.5V_ST
S_FLASH_OS_MACRONIX
OPT
R1404
+3.5V_ST
OPT
R1403
10K
C
B
OPT
Q1401
MMBT3904(NXP)
E
0
4.7K
/SPI_CS
SPI_SDO
%WP[IO2]
IC1401
MX25L8006EM2I-12G
CS#
1
SO/SIO1
2
WP#
3
GND
4
S_FLASH_OS_WINBOND
IC1401-*1
W25Q80BVSSIG
CS
1
DO[IO1]
2
3
GND
4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR
Serial FLASH
2011.08.29
56
Page 42

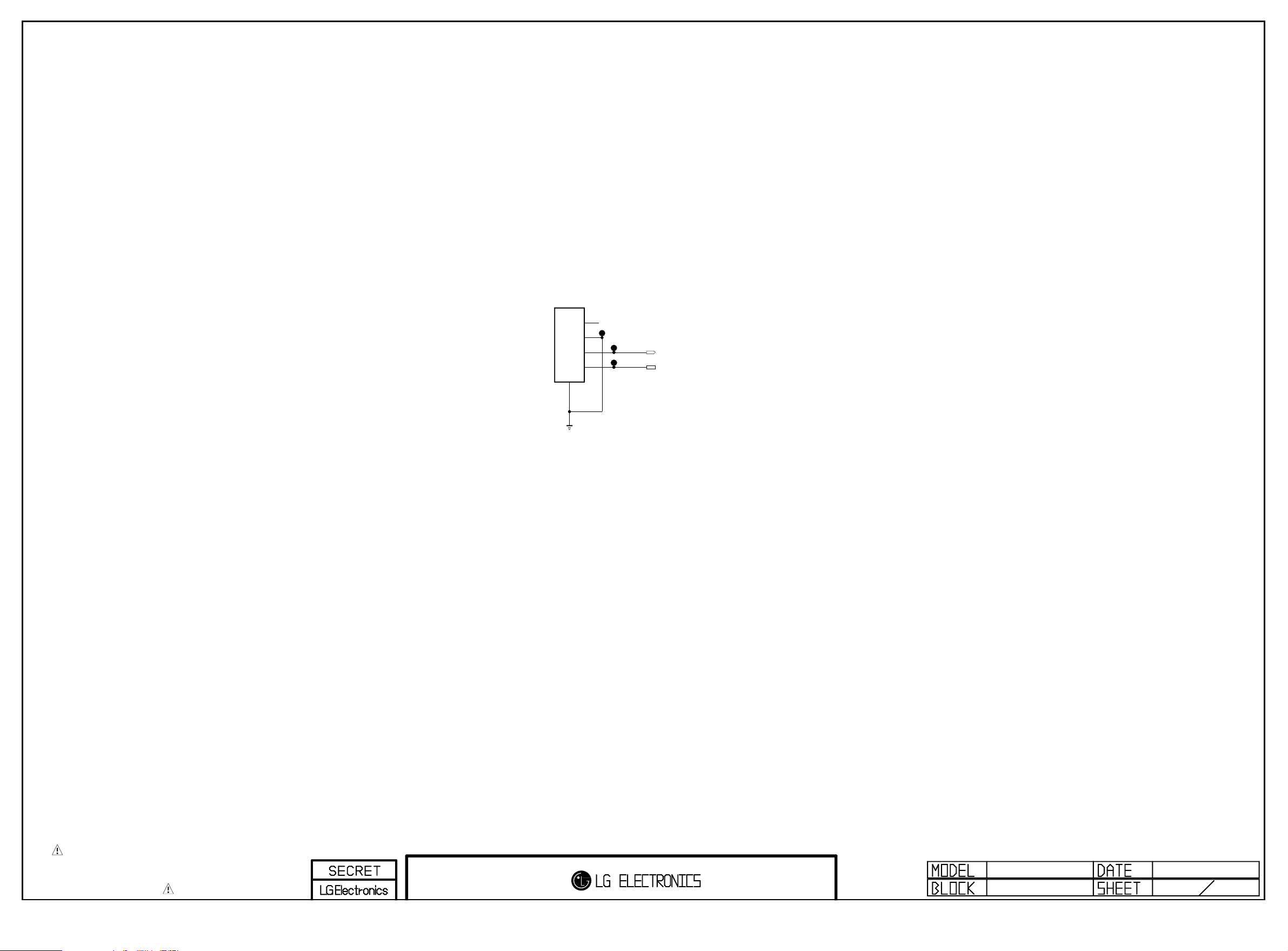

MSTART DEBUG_4PIN
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
P1
12505WS-04A00
5
MSTAR_DEBUG_4P
1
2
3
4
RGB_DDC_SCL
RGB_DDC_SDA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GP4L_S7LR2
2011/09/05
MSTAR DEBUG_4PIN 58
Page 43
Loading...
