LG 43UF67**-T Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LB54H

MODEL : 43UF67** 43UF67**-T*

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68741205 (1503-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................... 9

TROUBLE SHOOTING GUIDE .............................................................. 15

BLOCK DIAGRAM ................................................................................. 22

EXPLODED VIEW .................................................................................. 23

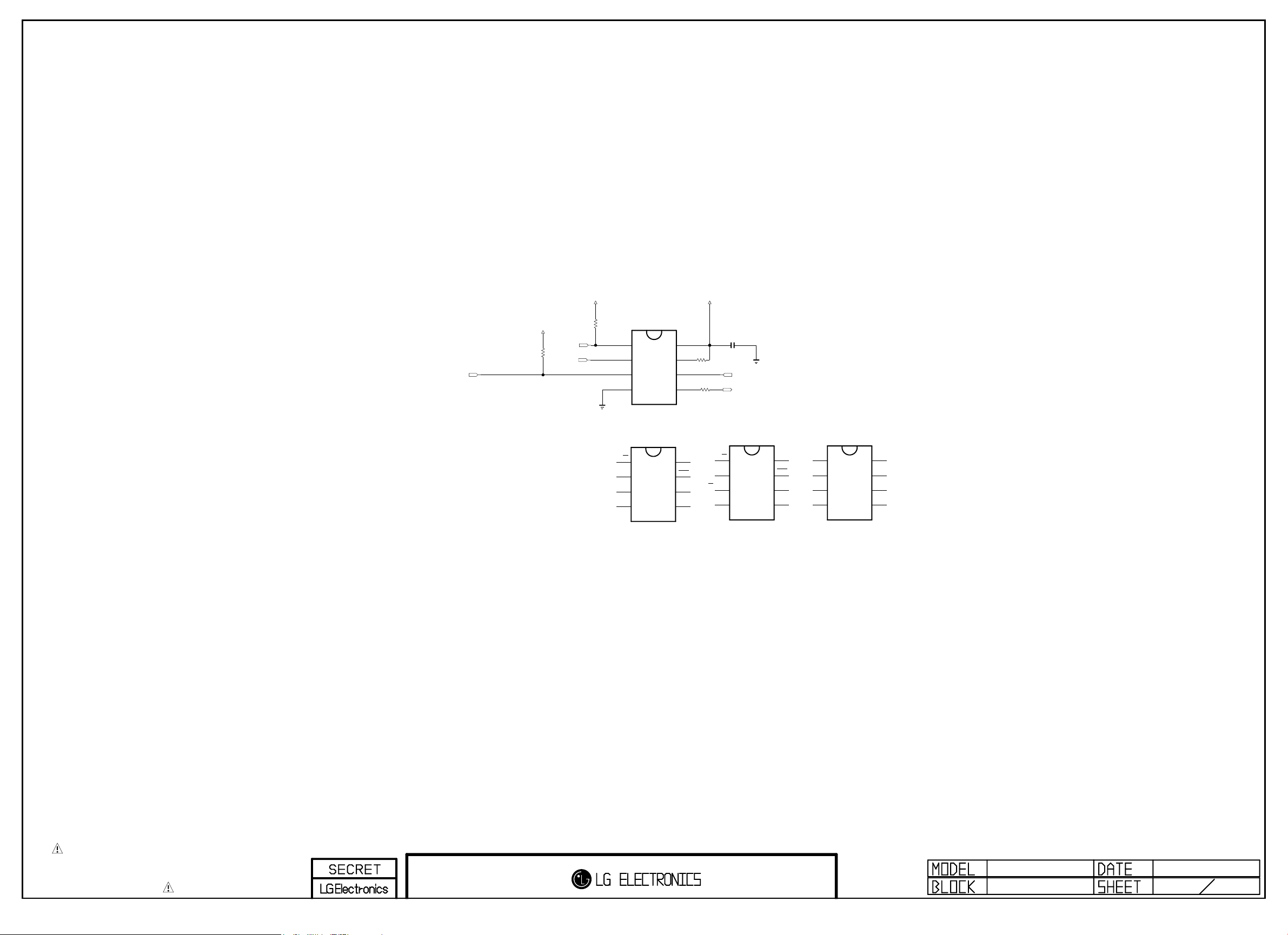

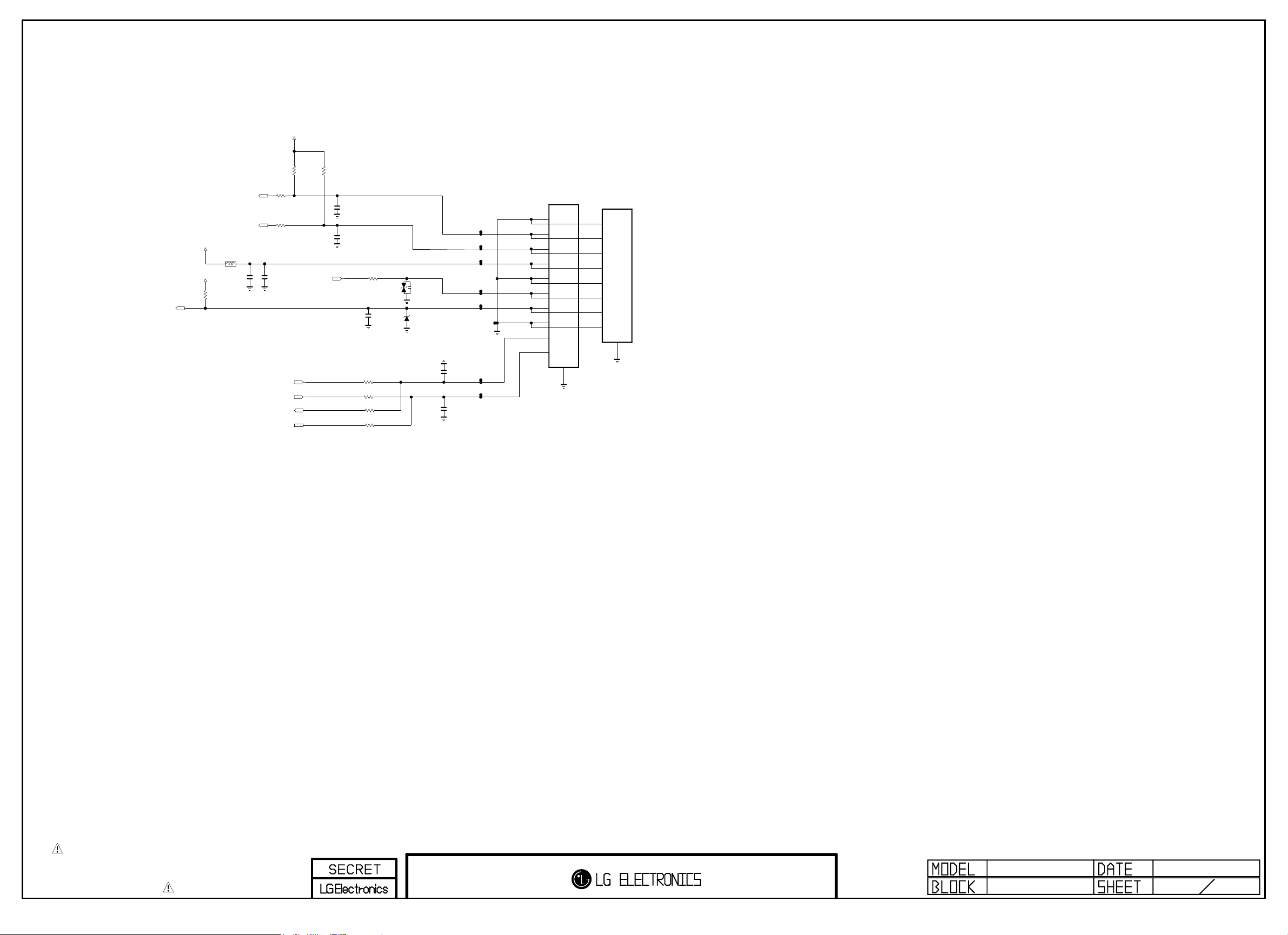

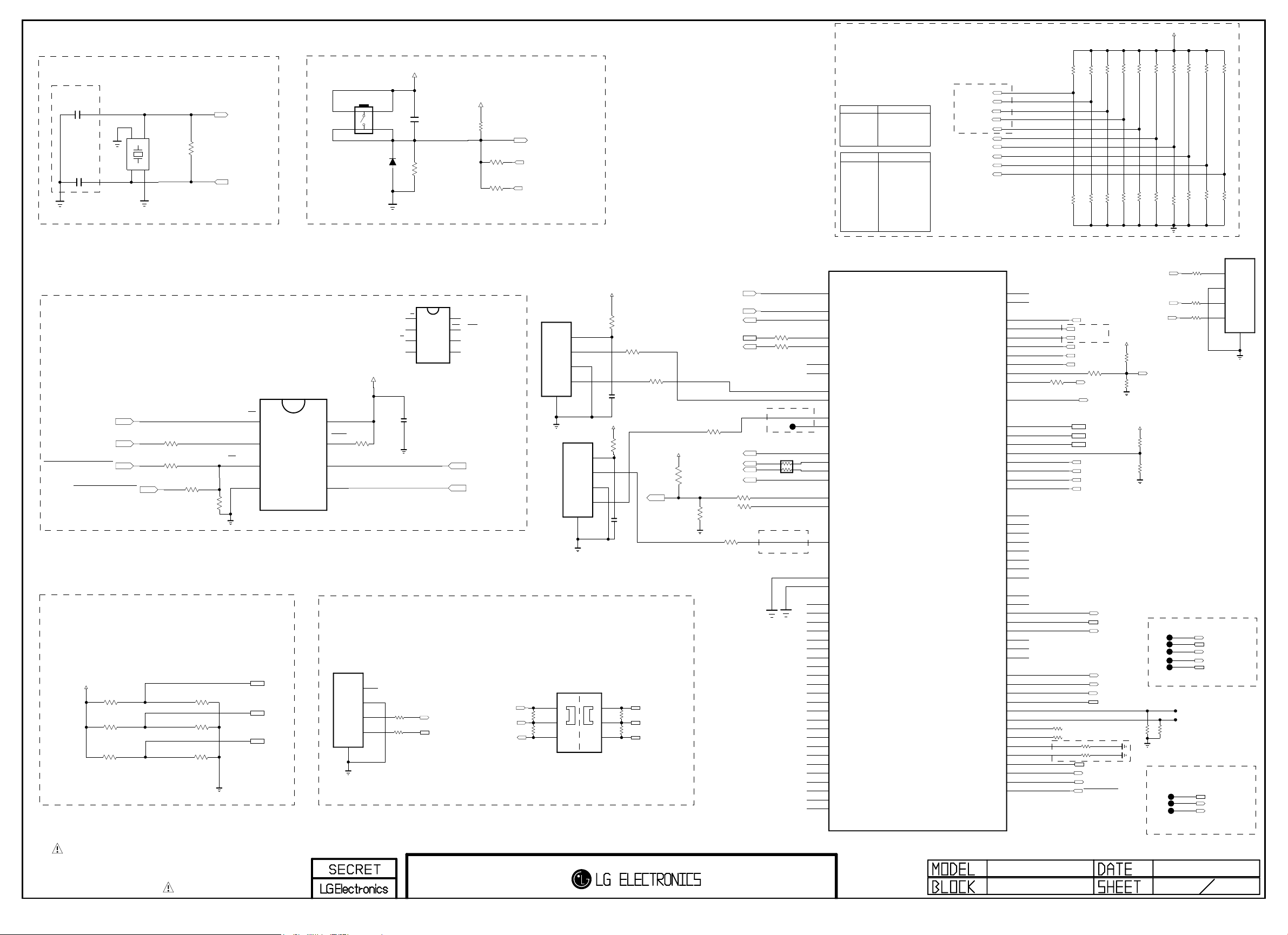

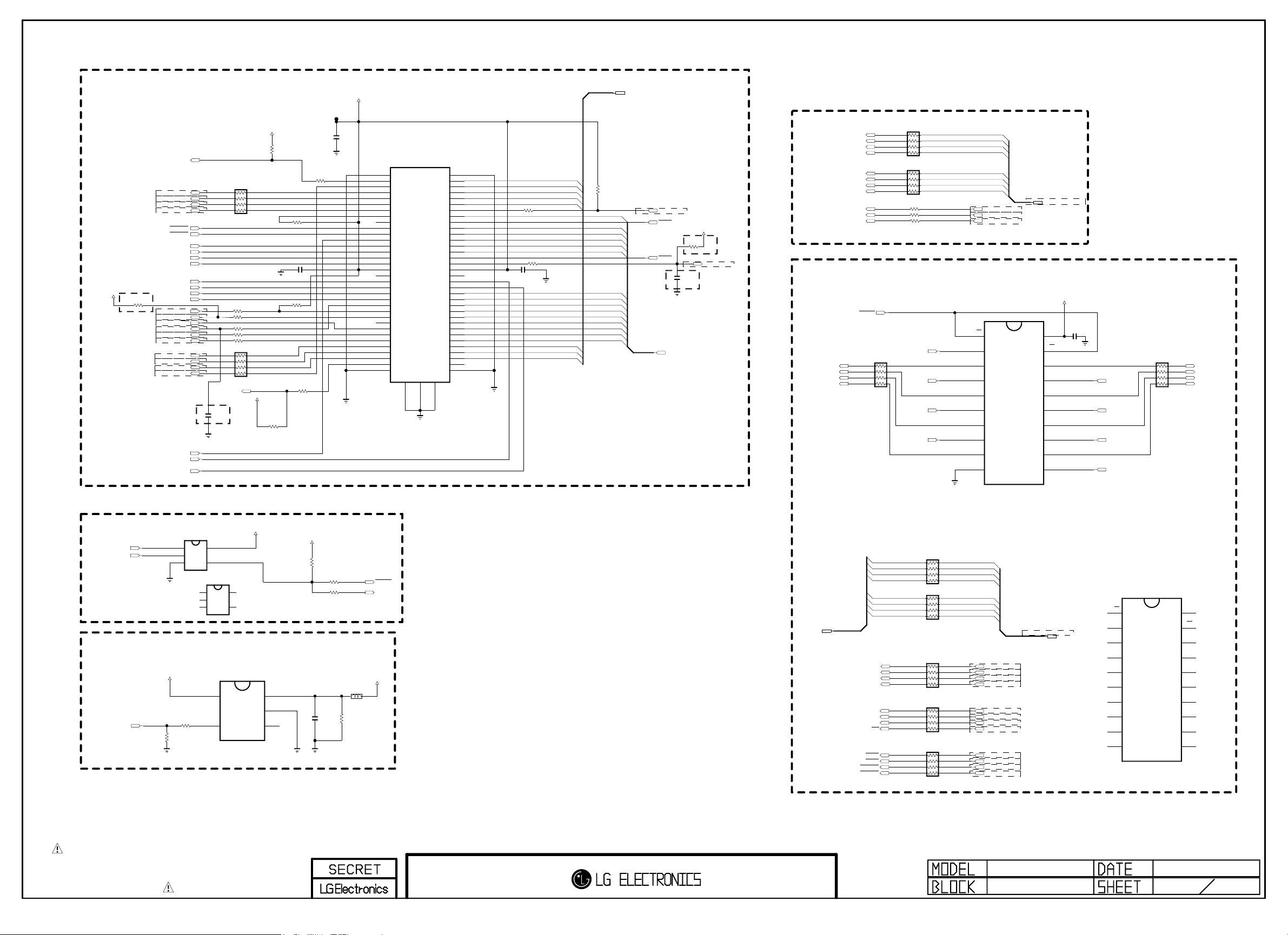

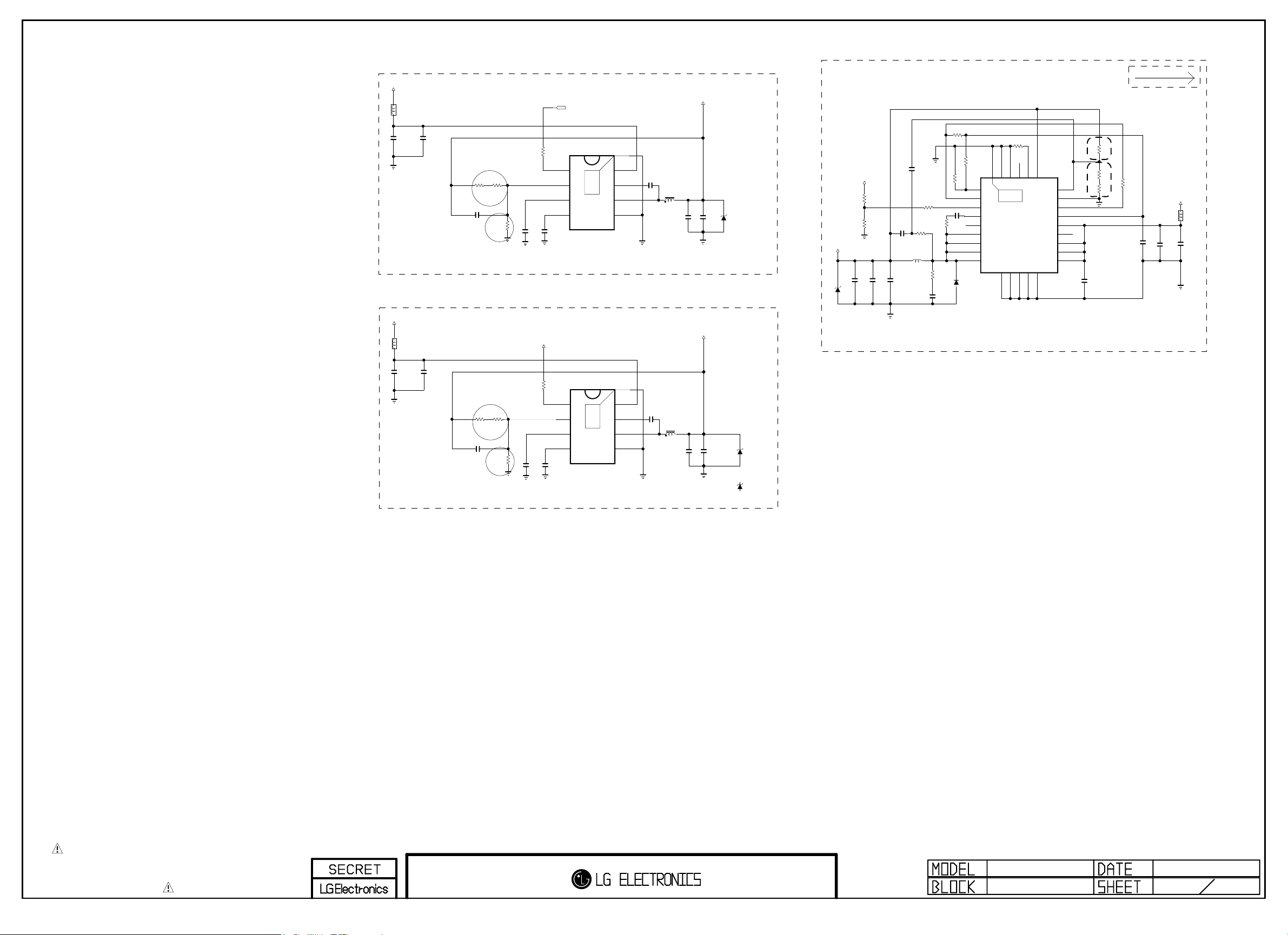

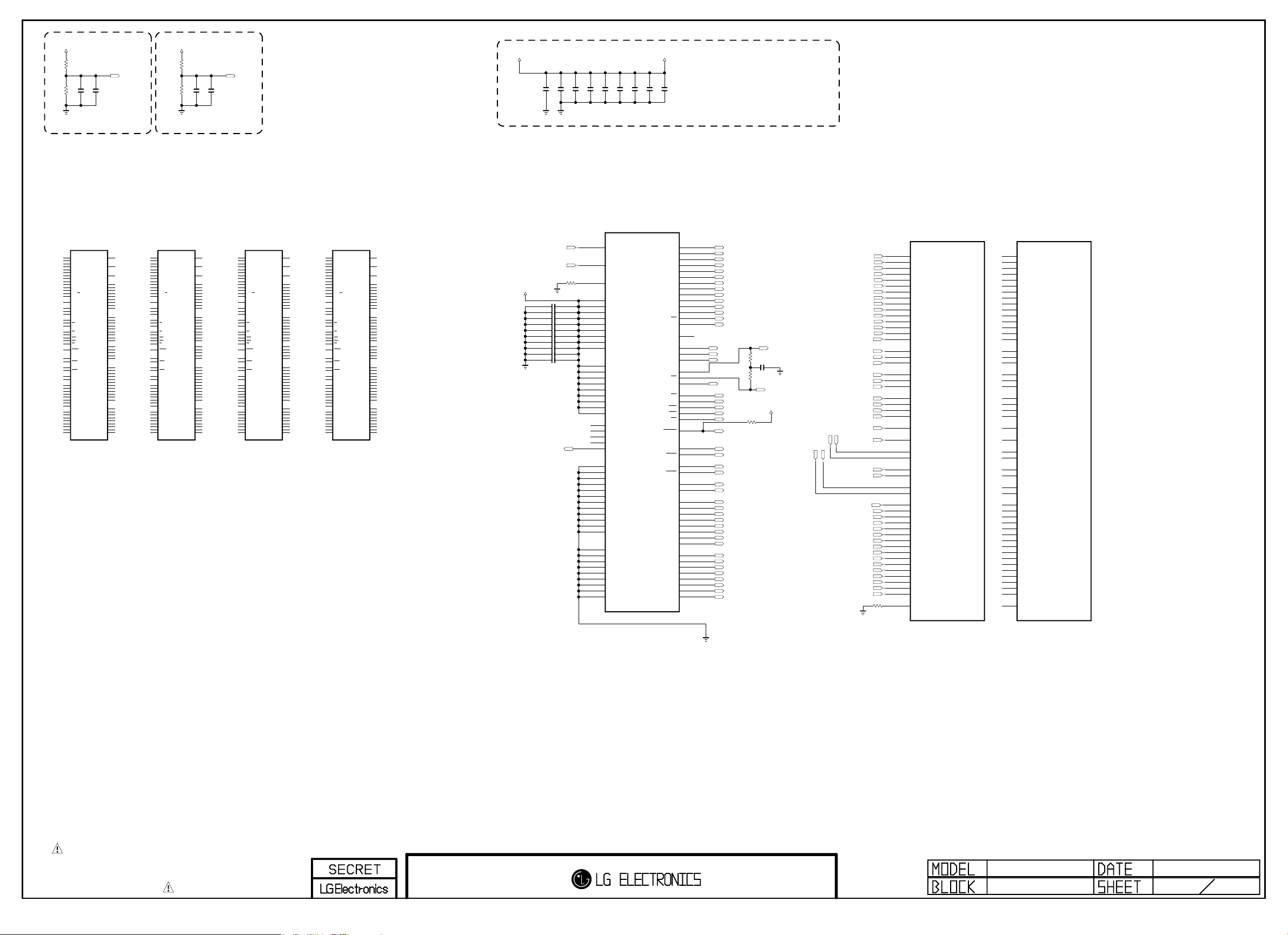

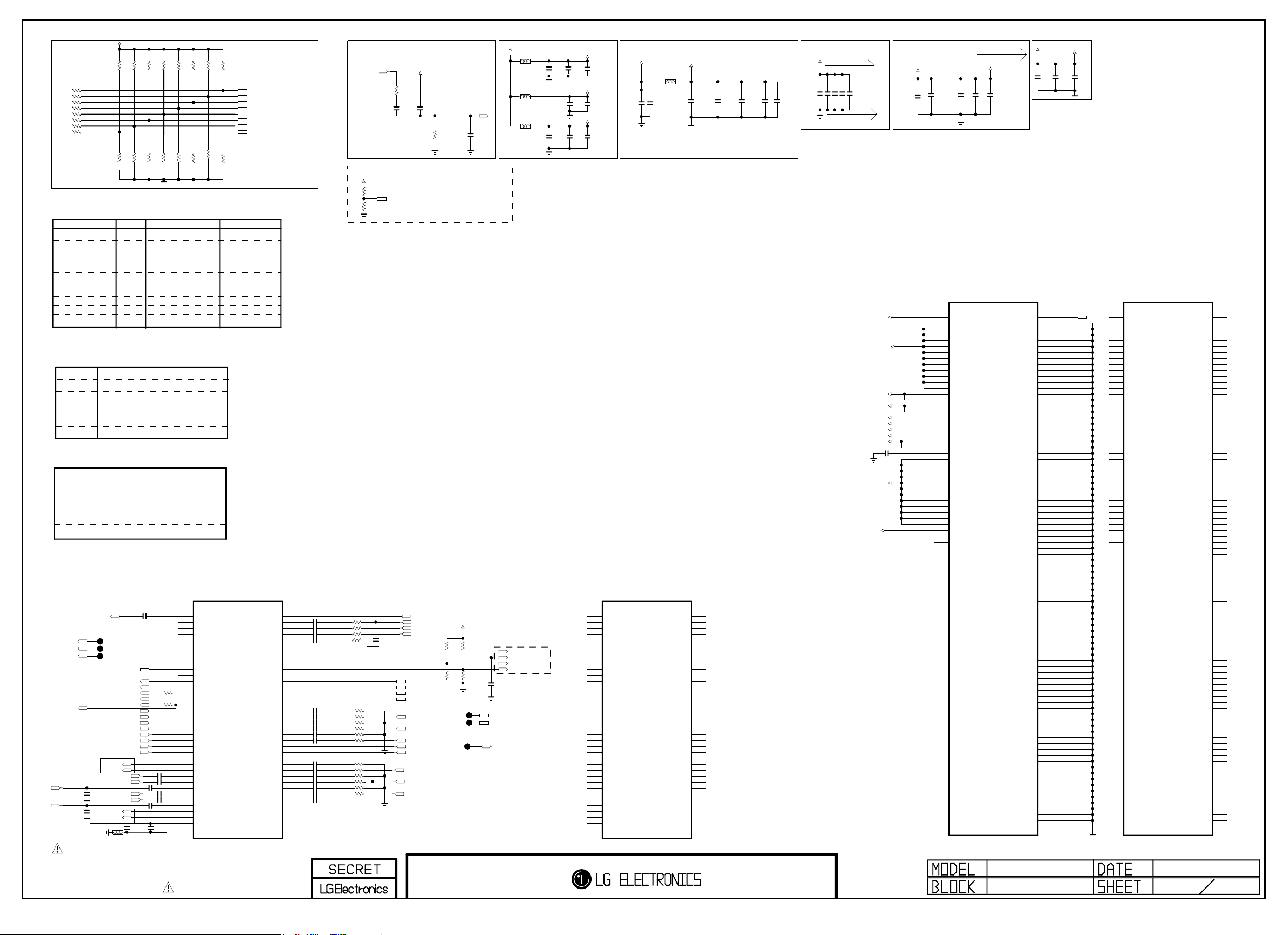

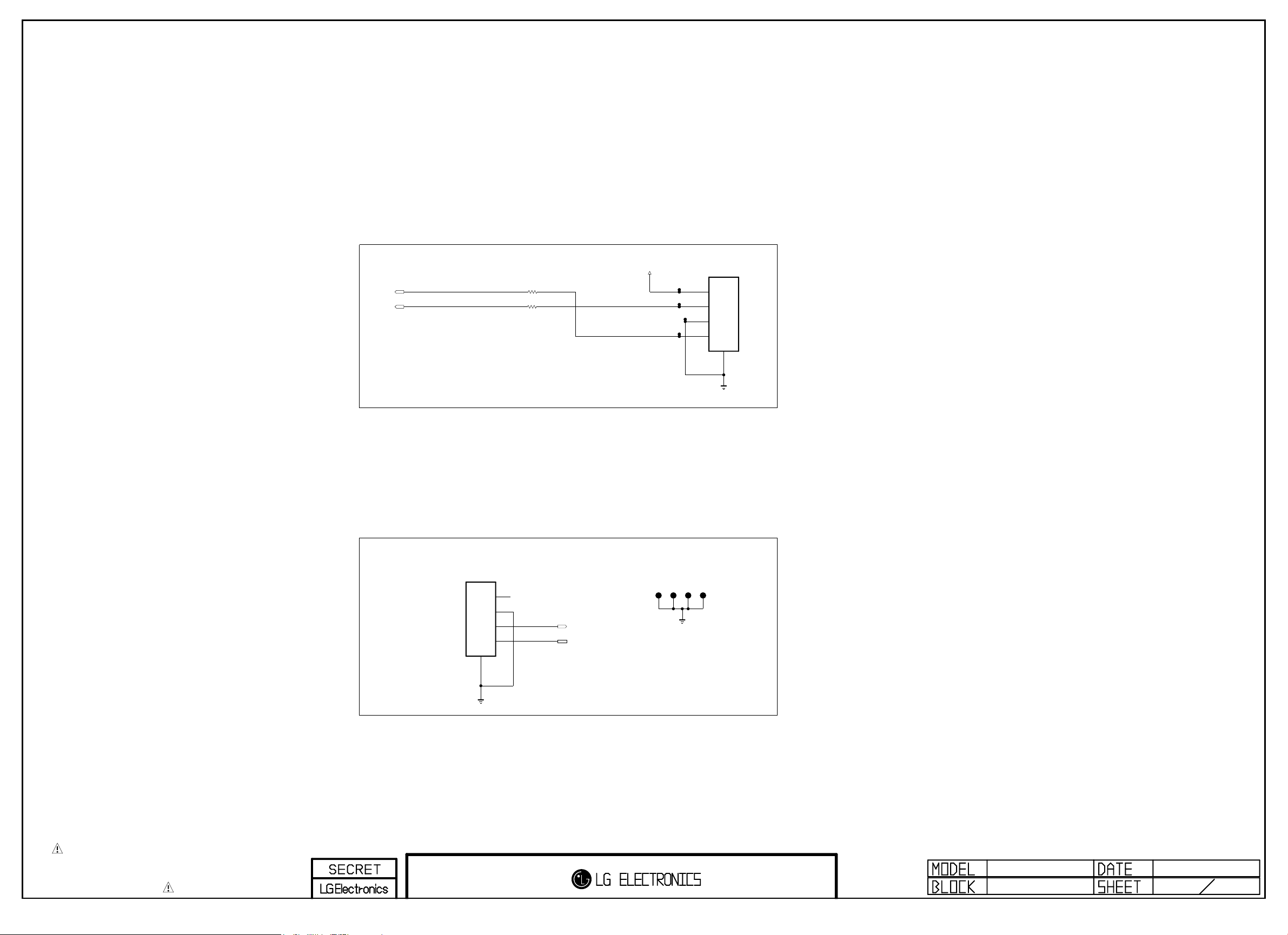

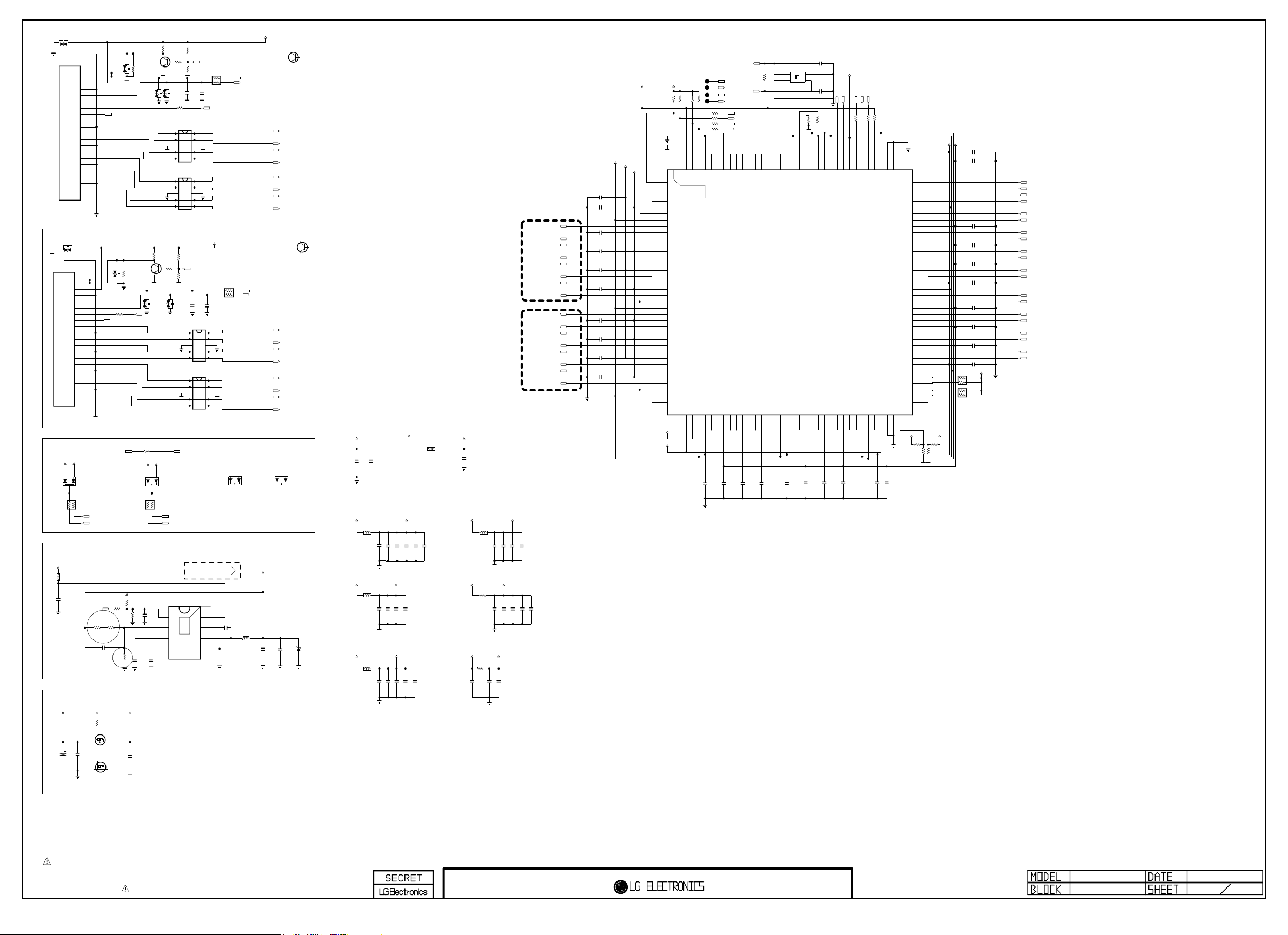

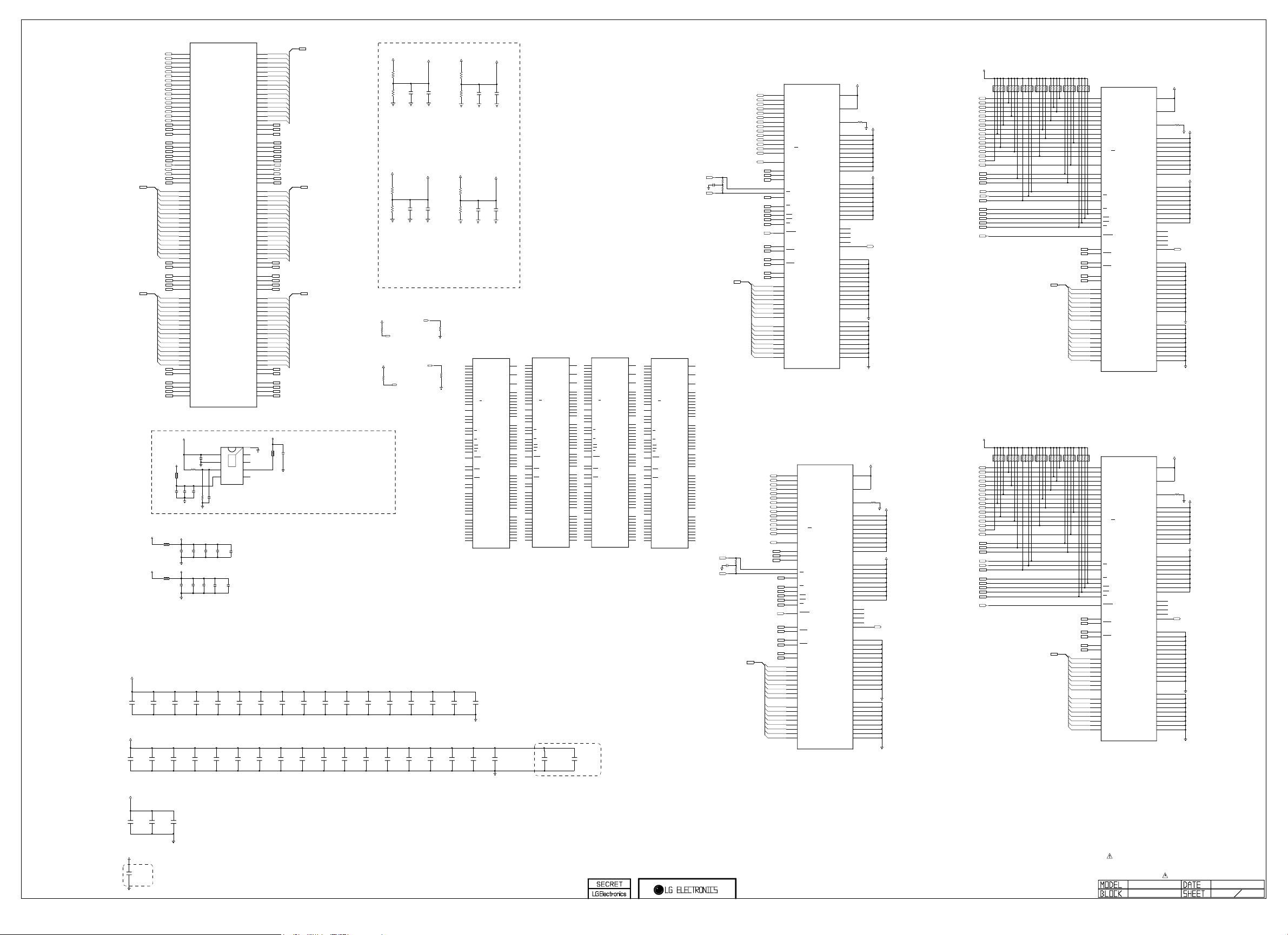

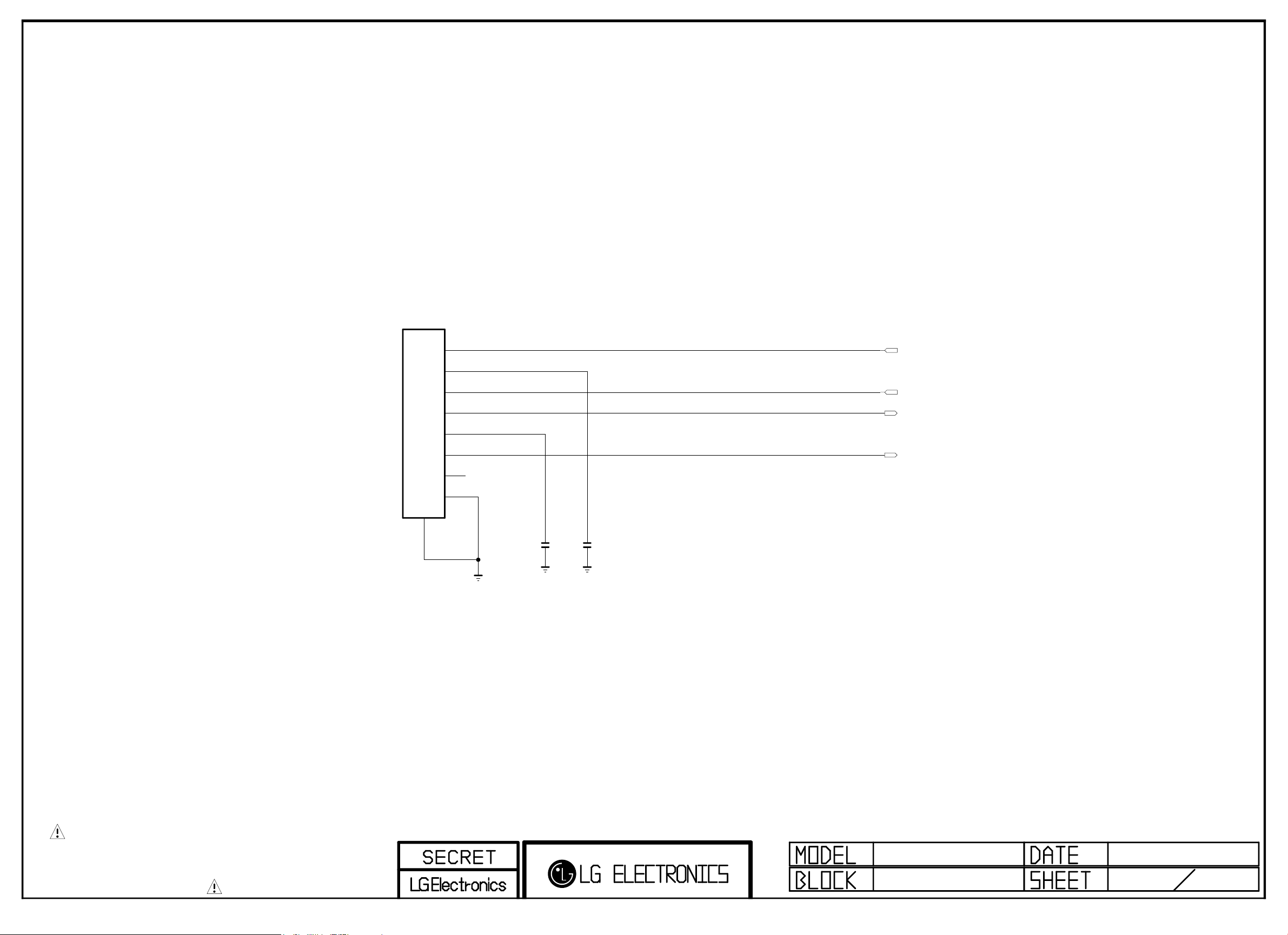

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication

of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some sol-

der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LB54H chassis.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

2. Requirement for Test

- EMC : CE, IEC

Each part is tested as below without special appointment.

(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about5 minutes prior to

the adjustment.

4. Model General Specification

No. Item Specication Remarks

1. Market

2. Broadcasting system

3. Channel Storage

4. Receiving system

5. Video(Composite Input) PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

6. Component Input Y/Cb/Cr, Y/Pb/Pr

HDMI Input HD/FHD

7.

HDMI Input UHD

8. SPDIF out SPDIF out Depend on model

9. USB Input For My Media(Movie/Photo/Music List) and SVC

10. Headphone

Asia, Oceania, Africa, Middle East (PAL/DVB Market)

(1) PAL B/G/D/K/I, SECAM B/G/D/K (2) NTSC-M (3) DVB-T (4) DVB-T//T2 (5) DVB-T/T2/S2

1) DVB-T & Analog TV : 1500EA

2) DVB-T/T2 & Analog TV : 1500EA

3) DVB-T/T2/S2 & Analog TV : 6000EA

Analog : VHF,UHF,CATV Digital : DVB

HDMI1-DTV/DVI HDMI2-DTV/MHL

HDMI1 DTV/PC HDMI2 DTV/PC

(1) : Support all model (2) : Support all model (3) : depend on model (4) : depend on model (5) : depend on model

Satellite Digital TV : VHF, UHF, C-Band, Ku-Band Digital TV : VHF, UHF Analogue TV : VHF, UHF, CATV

► DVB-T

- Guard Interval (Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

► DVB-T2

- Guard Interval (Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

- Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6

► DVB-S

- symbol rate DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s

- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

Support HDCP 1.4 LF54 can’t support MHL

Support 6Gbps & HDCP2.2

Only for training and service purposes

- 6 -

5. Component Video Input (Y, Cb/Pb, Cr/Pr)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remark

1 720*576 15.625 50.00 13.5 SDTV ,DVD 576I

2 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

3 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

4 720*576 31.25 50.00 27.00 SDTV 576P

5 720*480 31.50 60.00 27.027 SDTV 480P

6 720*480 31.47 59.94 27.00 SDTV 480P

7 1280*720 37.50 50.00 74.25 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 44.96 59.94 74.176 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I Except HD Model

11 1920*1080 33.75 60.00 74.25 HDTV 1080I Except HD Model

12 1920*1080 33.72 59.94 74.176 HDTV 1080I Except HD Model

13 1920*1080 56.25 50.00 148.50 HDTV 1080P Except HD Model

14 1920*1080 67.50 60.00 148.50 HDTV 1080P Except HD Model

15 1920*1080 67.432 59.94 148.352 HDTV 1080P Except HD Model

16 1920*1080 27.00 24.00 74.25 HDTV 1080P Except HD Model

17 1920*1080 26.97 23.94 74.176 HDTV 1080P Except HD Model

18 1920*1080 33.75 30.00 74.25 HDTV 1080P Except HD Model

19 1920*1080 33.71 29.97 74.176 HDTV 1080P Except HD Model

Only for training and service purposes

- 7 -

6. HDMI Input(PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remark

PC(DVI) DDC

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 80.00 VESA O

7 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O Except HD Model

9 1920*1080 67.50 60.00 148.5 HDTV 1080P O Except HD Model

10 3840*2160 54 24.00 297.00 UDTV 2160P O Only UD Model

11 3840*2160 56.25 25.00 297.00 UDTV 2160P O Only UD Model

12 3840*2160 67.5 30.00 297.00 UDTV 2160P O Only UD Model

13 4096*2160 53.95 23.97 296.703 UDTV 2160P O Only UD Model

14 4096*2160 54 24 297 UDTV 2160P O Only UD Model

DTV

1 640*480 31.469 59.94 27.00 SDTV 480P

2 640*480 31.5 60.00 27.027 SDTV 480P

3 720*480 31.469 59.94 27.00 SDTV 480P

4 720*480 31.50 60.00 27.027 SDTV 480P

5 720*576 31.250 50.00 27.00 SDTV 576P

6 1280*720 37.50 50.00 74.25 HDTV 720P

7 1280*720 45.00 60.00 74.25 HDTV 720P

8 1280*720 44.96 59.94 74.176 HDTV 720P

9 1920*1080 28.125 50.00 74.25 HDTV 1080I

10 1920*1080 33.75 60.00 74.25 HDTV 1080I

11 1920*1080 33.72 59.94 74.176 HDTV 1080I

12 1920*1080 56.250 50.00 148.50 HDTV 1080P

13 1920*1080 67.50 60.00 148.50 HDTV 1080P

14 1920*1080 67.432 59.94 148.35 HDTV 1080P

15 1920*1080 27.00 24.00 74.25 HDTV 1080P

16 1920*1080 26.973 23.976 74.175 HDTV 1080P

17 1920*1080 33.75 30.00 74.25 HDTV 1080P

18 1920*1080 33.716 29.97 74.175 HDTV 1080P

19 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only

20 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only

21 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only

22 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only

23 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only

24 3840*2160 112.50 50.00 594.00 UDTV 2160P UHD only

25 3840*2160 135.00 59.94 593.41 UDTV 2160P UHD only

26 3840*2160 135.00 60.00 594.00 UDTV 2160P UHD only

27 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only

28 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only

29 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only

30 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only

31 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only

32 4096*2160 112.50 50.00 594.00 UDTV 2160P UHD only

33 4096*2160 135.00 59.94 593.41 UDTV 2160P UHD only

34 4096*2160 135.00 60.00 594.00 UDTV 2160P UHD only

Only for training and service purposes

- 8 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with LB54H chassis.

2. Designation

(1) The adjustment is according to the order which is

designated and which must be followed, according to the

plan which can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 100-220 V~, 50/60 Hz

(6) Adjustment equipments

: Color Analyzer(CA-210 or CA-110), Service remote control.

(7) Push the “IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push

“In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read"

(1)

filexxx.bin

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If version of update file in USB Stick is lower, it will not work. But version of update file is higher, USB data will be detected automatically.

Only for training and service purposes

- 9 -

(3) Show the message "Copying files from memory".

(4) Updating is starting.

4. ADC Process

4.1. ADC

- Enter Service Mode by pushing "ADJ" key,

- Enter Internal ADC mode by pushing "►" key at "8. ADC

Calibration".

<Caution> Using "P-ONLY" key of the Adjustment remote

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration ►

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L

13. Sub B/C

14. Ext. Input Adjust

15. SPK Lipsync Adjust

16. SPDIF Lipsync Adjust

control, power on TV.

ADC Calibration

ADC Comp 480i

ADC Comp 1080p

ADC Type ◄ ►

Start

Reset

OTP

NG

(5) Updating Completed, the TV will restart automatically. (6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If updated version is newer than what TV has, the TV can

lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number) (4) Completed selecting Tool option.

*

RS-232C Connection Method.

Connection : PCBA (USB Port) → USB to Serial Adapter (UC-232A) → RS-232C cable → PC(RS-232C port)

● Product name of USB to Serial Adapter is UC-232A.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust

Adjust ‘Mode In’

ADC Adjust

A A 0 0

A D 1 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

Adjust Sequence

▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component1 Input (480i)] ▪ ad 00 10 [Adjust 480i Comp1] ▪ aa 00 90 End Adjust mode

* Required equipment : Adjustment remote control.

4.2. Function Check

4.2.1. Check display and sound

■ Check Input and Signal items.

(1) TV (2) AV (CVBS) (3) COMPONENT (480i) (4) HDMI * Display and Sound check is executed by Remote control.

<Caution> Not to push the "INSTOP" key after completion if

the function inspection.

Only for training and service purposes

- 10 -

5. Total Assembly line process

5.1. Adjustment Preparation

▪ W/B Equipment condition

CA210: CH14, Test signal: Inner pattern(80IRE)-LED Module

▪ Above 5 minutes H/run in the inner pattern. ("power on" key

of Adjustment remote control)

* Connecting picture of the measuring instrument

(On Automatic control) Inside Pattern is used when W/B is controlled. Connect to auto controller or push Adjustment Remote control POWER

ON → Enter the mode of White-Balance, the pattern will

come out.

* The spec of color temperature and coordinate.

Mode Color Temp Color coordinate Remark

Cool (C50) 13,000 K

Medium(0) 9,300 K

Warm(W50) 6,500 K

X=0.271 (±0.002) Y=0.270 (±0.002)

X=0.286 (±0.002) Y=0.289 (±0.002)

X=0.313 (±0.002) Y=0.329 (±0.002)

- Inner pattern for W/B adjust

- External white pattern

(80IRE, 204gray)

* W/B Table in process of aging time

- LGD Module

(normal line) March ~ December

Aging time(Min) Cool Medium Warm color coordinate x y x y x y

Target 271 270 286 289 313 329 1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

(normal line) January ~ Feburary

Aging time Cool Medium Warm

color coordinate x y x y x y

Target 271 270 286 289 313 329 1 0-2 286 295 301 314 328 354 2 3-5 284 290 299 309 326 349 3 6-9 282 287 297 306 324 346 4 10-19 279 283 294 302 321 342 5 20-35 276 278 291 297 318 337 6 36-49 274 275 289 294 316 334 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329

- AUO/INX/COST/SHARP/BOE Module which cool spec is 13000 K

Cool Medium Warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

Full White Pattern

RS-232C Communication

CA-210

COLOR ANALYZER TYPE : CA-210

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically.(80° ~ 100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

▪ Auto adjustment Map(RS-232C)

RS-232C COMMAND

[CMD ID DATA]

Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

CENTER

(DEFAULT)

MAX

Only for training and service purposes

- 11 -

* Manual W/B process using adjust Remote control.

■ Color analyzer(CA100+, CA210) should be used in the

calibrated ch by CS-1000.

■ Operate the zero-calibration of the CA100+ or CA-210,

then stick sensor to the module when adjusting.

■ After enter Service Mode by pushing “ADJ” key,

■ Enter White Balance by pushing “►” key at “9. White

Balance”.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance ►

10. 10 Point WB

11. Test Pattern

12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

15. SPK Lipsync Adjust

16. SPDIF Lipsync Adjust

■ For manual adjustment, it is also possible by the following

sequence.

(1) Set TV in Adj. mode using “P-ONLY” key on remote

controller and then operate heat run longer than 15 minutes.(If not executed this step, the condition for W/B

may be different.) (2) Push “Exit” key. (3) Enter White Balance mode by pushing the ADJ key and

select “9. White Balance”. When KEY (►) is pressed,

206 Gray internal pattern will be displayed. (4) Zero Calibrate the probe of Color Analyzer, then place it

on the center of LCD module within 10 cm of the surface

(5) Select each items (Red/Green/Blue Gain) using ▲/▼

(CH +/-) key on Remote control.

(6) Adjust R/ G/ B Gain using ◄/►(VOL +/-) key on R/C.

(7) Adjust three modes all (Cool / Medium / Warm)

- For All model w/o LS345 Fix the one of R/G/B gain and change the others

- For G-FIX model Cool Mode

1) Fix the one of R/G/B gain to 192 (default data) and

decrease the others. (If G gain is adjusted over 172 and R and B gain less than 192 , Adjust is O.K.)

2) If G gain is less than 172, Increase G gain by up to

172, and then increase R gain and G gain same amount of increasing G gain.

3) If R gain or B gain is over 255, readjust G gain less

than 172, Conform to R gain is 255 or B gain is 255

Medium / Warm Mode - Fix the one of R/G/B gain to 192 (default data) and decrease the others.

(8) When adjustment is completed, exit adjustment mode

using EXIT key on Remote control.

Whit Balance

Color Temp. ◄ ►

R-Gain

G-Gain

B-Gain

R-Cut

G-Cut

B-Cut

Test-Pattern

Backlight

Reset To Set

Cool

172

192

64

ON

100

* CASE Cool

First adjust the coordinate far away from the target value(x, y).

1) x, y > target i) Decrease the R, G.

2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others.

3) x > target, y < target i) First decrease B, so make y a little more than the

target.

ii) Adjust x value by decreasing the R.

4) x < target, y > target i) First decrease B, so make x a little more than the

target.

ii) Adjust x value by decreasing the G.

* After You finish all adjustments, Press “In-start” button

and compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC cable. For correct it to the model’s module from factory JIG model.

* Push the “IN STOP" key after completing the function

inspection.

5.2. DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B

protocol.

■ Check whether written EDID data is correct or not.

* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

5.3. EDID DATA

1) All Data : HEXA Value

2) Changeable Data : *: Serial No : Controlled / Data:01 **: Month : Controlled / Data:00 ***: Year : Controlled ****: Check sum

- Auto Download

■ After enter Service Mode by pushing “ADJ” key,

■ Enter EDID D/L mode.

■ Enter “START” by pushing “OK” key.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option6

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L ►

13. Sub B/C

14. Ext. Input Adjust

15. SPK Lipsync Adjust

16. SPDIF Lipsync Adjust

EDID D/L

HDMI1 NG

HDMI2 NG

Reset

Start

EDID D/L

HDMI1 OK

HDMI2 OK

Reset

Start

Only for training and service purposes

- 12 -

[Caution]

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

* Edid data and Model option download (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter download Mode

EDID data and Model option download

No. Item Condition Hex Data

Download ‘Mode In’

ADC Adjust

A A 0 0

A E 00 10

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

e. Checksum UHD Model: Changeable by total EDID data.

1) DTS If HDMI UHD Deep Colour is “On” each HDMI port in Picture Menu, HDMI1 and HDMI2 have 6G checksum.

UHD

Check

Sum

(Hex)

EDID C/S data

UDH Deep color “on” 6G

UDH Deep color “off” 3G

Block 0 Block 1

HDMI 1 HDMI 2 A0 (HDMI1, 6G) A0 (HDMI2, 6G) C7 (HDMI1, 6G) B7 (HDMI2, 6G)

E6 (HDMI1, 3G) E6 (HDMI2, 3G)

71 (HDMI1, 3G) 61 (HDMI2, 3G)

5.4. Outgoing condition Configuration

■ When pressing IN-STOP key by Service remote control,

Red LED are blinked alternatively. And then automatically turn off. (Must not AC power OFF during blinking)

(1) UHD HDMI1 EDID data(2D, DTS, 6G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 04 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 05 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 88 3C 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 47 F1 58 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 29 3D 06 0A C0 15 07 50 f 0B f 02 03 04 67 D8 5D C4 01 78 88 03 E3 05 0C C0 00 E4 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40 0D 70 36 00 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E 0E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(2) UHD HDMI2 EDID data(2D, DTS, 3G)

0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D a b 01 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 02 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 06 3E 1E 53 10 00 0A 20 20 20 20 20 20 d 07 d 01 e 08 02 03 3C F1 54 10 9F 04 13 05 14 03 02 12 20 21 09 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50 0A C0 02 0B 03 04 E3 05 C0 00 E5 0E 60 61 65 66 01 1D 80 18 0C 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 0D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e

(3) Detail EDID Options are below

a. Product ID

Model Name HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line.

c. Month, Year: Week : '01' → '01', Year : '2014' → '18' fix

d. Model Name(Hex): Refer to the ASCII Code Table. Cf) model name in EDID data is below.

MODEL NAME MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

5.5. GND and HI-POT Test

5.5.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition.

(2) You can’t use Tuner Ground & Tuner signal line at all

models. (applied Isolator inner tuner)

5.5.2. GND & HI-POT auto-check

(1) Pallet moves in the station.(POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process(Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

5.5.3. Checkpoint

(1) Test voltage

1) 3 Poles

- GND: 1.5 KV/min at 100 mA

- SIGNAL: 3 KV/min at 100 mA

2) 2 Poles

- SIGNAL: 3 KV/min at 100 mA (2) TEST time: 1 second (3) TEST POINT

1) 3 Poles

- GND Test = POWER CORD GND and SIGNAL

CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE &

NEUTRAL.

2) 2 Poles

- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5 mArms

Only for training and service purposes

- 13 -

6. Local Dimming Function Check

Step1) Turn on TV. Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key Step3) Press “Tilt” key, entrance to Local Dimming mode. Step4) At the Local Dimming mode full black ground, set the

local dimming Off/High. Step5) Yon can see the A when the local dimming Off, you can

see the B when the local dimming High. Step6) After confirm, Press “Exit” key

Only for training and service purposes

- 14 -

TROUBLE SHOOTING GUIDE

1. No video (Main IC Block)

Audio

Check Audio. (Speaker out)

Audio NG

Check stand-by voltage 3.5 V. P401/P402 5, 7, 8 pin

OK

Check stand-by voltage 3.5V. L400, L401, ZD400, C400, C407

OK

Check X-TAL X101.

OK

Check POWER ON signal. P401/P402 1 pin

High

Check multi voltage 12V, 24V. P401/P402 11, 12, 13, 14, 15p : 12 V P401/P402 18, 19, 20, 21p : 24 V

OK

Check Main IC power block. IC404 : 1.5 V, Q406 : 3.3 V IC403 : 1.1 V

OK

NG

Low

NG

Next page(Back-end block)

Check Power connector. (24pin/28pin)

Replace L400, L401, ZD400, C400, C407.

Replace X101.

Download software.(Main)

Check Power connector. (24pin/28pin)

Replace IC404, Q406, IC403.

NG

Short check stand-by voltage 3.5 V

NG

Replace IC101 or Main Board.

NG

Short check multi voltage 12 V, 24 V

NG

Replace Power board.

NG

Replace Power board.

2. No video (Back-end Block)

Check Audio. (Speaker out)

Audio OK

Check X-TAL X13201.

OK

Check URSA9 IC power block. IC13403 : 1.5V , IC13401 : 3.3V IC13402 : 1.15V

OK

Vx1 power voltage Q405 : 12V

OK

Vx1 output signal

OK

Check DRV ON signal. P401/P402 2 pin

High

Check Vx1 cable.

OK

Check LCD Module.

Audio NG

NG

Low

NG

Previous page (Main IC block)

Replace X13201.

Replace IC13403, IC13401, IC13402.

Replace Q405.

Download software. (URSA9)

Replace Main Board.

Replace Vx1 cable.

NG

Replace IC2500 or Main Board.

Check Power Board.

Only for training and service purposes

- 15 -

3. Digital / Analog TV Video No signal

Check RF cable & signal.

OK

Check Tuner power. L3701, L3704 : 3.3V

OK

Check Tuner I2C. R3716, R3717, R3738, R3739

OK

Check IF signal. TU3700 6,7 pin

OK

Replace IC101 or Main Board.

NG

Replace L3701, L3704.

Replace R3716, R3717, R3738, R3739.

Replace Tuner.

4. AV Video No signal

Check input signal format. Is it supported?

OK

NG

Replace Tuner or IC101 or Main Board.

Check AV cable.

OK

Check AV Jack CVBS signal. ZD2802

OK

Check CVBS signal. ZD2802, ZD2803, R2859, R246, C238

OK

Replace IC101 or Main Board.

NG

Replace AV Jack JK2802.

Replace ZD2802, ZD2803, R2859, R246, C238.

Only for training and service purposes

- 16 -

5. Component Video No signal

Check input signal format. Is it supported?

OK

Check Component cable.

OK

Check AV Jack CVBS signal. ZD2802, ZD2804, ZD2806

OK

Check Component signal Y. ZD2802, ZD2803, R2859, R241, C231

OK

Check Component signal Pb. ZD2804, ZD2805, R2800, R239, C229

OK

NG

Replace AV Jack JK2802.

Replace ZD2802, ZD2803, R2859, R241, C231.

Replace ZD2804, ZD2805, R2800, R239, C229.

Check Component signal Pr. ZD2806, ZD2807, R2801, R243, C233

OK

Replace IC101 or Main Board.

NG

Replace ZD2806, ZD2807, R2801, R243, C233.

6. HDMI Video No signal (HDMI S/W Block)

Check input signal format. Is it supported?

OK

Check HDMI cable.

OK

Check X-TAL X3200.

OK

Check HDMI S/W IC power block.

1.1V : IC3205, L3205, L3200, L3203,

3.3V : Q3204 , L3201, R3214, L3204, R3221

OK

Check DDC in-start menu.

OK

NG

Replace X3200.

NG

Replace IC3205, Q3204.

Check DDC component.

NG

HDMI1 : AR3207, AR3201, D3218 HDMI2 : AR3204, AR3200, D3208

Replace IC3200 or Main Board or HDMI Jack. HDMI1 : JK3203 HDMI2 : JK3200

NG

Replace DDC component.

NG

HDMI1 : AR3207, AR3201, D3218 HDMI2 : AR3204, AR3200, D3208

Check TMDS signal. HDMI1 : JK3203 HDMI2 : JK3200 1,3,4,6,7,9,10,12 pin

OK

Next page (URSA9, M1A Block )

Only for training and service purposes

Replace HDMI Jack.

NG

HDMI1 : JK3203 HDMI2 : JK3200

- 17 -

NG

Replace IC3200 or Main Board.

7. HDMI Video No signal (URSA9, M1A Block)

Check HPD. HDMI1 : JK3203 19 pin HDMI2 : JK3200 19 pin

OK

Check URSA9 I2C. R216, R217, R146, R147 R13235, R13237, R13204, R13219

OK

Check HDMI pattern. IC3200 ׳ IC2500 ׳

Replace URSA9 IC (IC2500) or Main IC (IC101) or Main Board.

IC2500 HDMI pattern IC101 HDMI pattern

OK

8. USB No storage

Check USB device.

OK

NG

Replace HPD component. HDMI1 : VA3216, R3204, Q3201,

R3215, R3213, R3216

HDMI2 : VA3205, R3202, Q3200,

R3205, R3233, R3218

Replace URSA9 I2C component. R216, R217, R146, R147 R13235, R13237, R13204, R13219

Replace Main Board.

NG

Replace IC101 or Main Board or HDMI Jack. HDMI1 : JK3203 HDMI2 : JK3200

Replace URSA9 IC (IC2500) or Main IC (IC101) or Main Board.

Check USB 5V DCDC IC. IC405 output voltage : 5V

OK

Check USB 5V OCP IC. IC406 output voltage : 5V

OK

Check USB signal. R700, R701

OK

Replace Main IC (IC101) or Main Board.

NG

Replace USB 5V DCDC IC. IC405

Replace USB 5V OCP IC. IC406

Replace R700, R701.

NG

Replace USB Jack (JK700) or Main IC (IC101).

Only for training and service purposes

- 18 -

9. All source Audio

Check the TV Speaker Menu. (Menu→Audio→Sound Out) : TV Speaker

OK

Check AMP IC(IC5600) Power. L5600 : 24V L5601 : 3.3V

OK

Check AMP I2C. R141, R144, R5604, R5605 C5607, C5608

OK

Check I2S signal. IC5600 7, 8, 38 pin

OK

Check amp output signal. P5600 1, 2, 3, 4 pin

OK

Check speaker connector.

OK

Check speaker.

NG

Select “TV Speaker”.

NG

Replace AMP power component. L5600 : 24V L5601 : 3.3V

Replace AMP I2C component.

NG

R141, R144, R5604, R5605 C5607, C5608

NG

Replace Main IC (IC101) or Main Board.

Replace amp output component.

NG

L5602, L5603, L5604, L5605 C5622, C5623, C5627, C5628

NG

Replace speaker connector.

NG

Replace speaker.

NG

Check Power connector. (24pin/28pin)

Replace AMP IC (IC5600)

NG

or Main IC (IC101) or Main Board.

NG

Replace amp out wafer. P5600

NG

Replace Power board.

NG

Replace AMP IC(IC5600) or Main Board.

10. Digital / Analog TV No sound

Check RF cable & signal.

OK

Check Tuner power. L3701, L3704 : 3.3V

OK

Check Tuner I2C. R3716, R3717, R3738, R3739

OK

Check IF signal. TU3700 6,7 pin

OK

Follow procedure

“9. All source audio”.

Only for training and service purposes

NG

Replace L3701, L3704.

Replace R3716, R3717, R3738, R3739.

Replace Tuner.

- 19 -

NG

Replace Tuner or IC101 or Main Board.

11. AV No sound

Check AV cable.

OK

Check Jack Audio signal. L : R2802 R : R2803

OK

NG

Replace Jack JK2802.

Check audio signal. L : R2802, C2803, R2810

R2815, C216

R : R2803, C2802, R2811

R2816, C219

OK

Follow procedure

“9. All source audio”.

NG

12. Component No sound

Check Component cable.

OK

Check Jack Audio signal. L : R2802 R : R2803

OK

Check audio signal. L : R2802, C2803, R2810

R2815, C216

R : R2803, C2802, R2811

R2816, C219

OK

Follow procedure

“9. All source audio”.

NG

Replace audio signal component. L : R2802, C2803, R2810

R2815, C216

R : R2803, C2802, R2811

R2816, C219

Replace Jack JK2802.

Replace audio signal component. L : R2802, C2803, R2810

R2815, C216

R : R2803, C2802, R2811

R2816, C219

Only for training and service purposes

- 20 -

13. HDMI No sound

Check input signal format. Is it supported?

OK

Check DDC in-start menu.

OK

Check HDMI pattern. IC2500 ׳

Replace URSA9 IC (IC2500) or Main IC (IC101) or Main Board.

IC101 HDMI pattern

OK

Check DDC component.

NG

HDMI1 : AR3207, AR3201, D3218 HDMI2 : AR3204, AR3200, D3208

NG

Replace Main Board.

Replace DDC component.

NG

HDMI1 : AR3207, AR3201, D3218 HDMI2 : AR3204, AR3200, D3208

Replace IC3200 or Main Board or HDMI Jack. HDMI1 : JK3203 HDMI2 : JK3200

NG

Only for training and service purposes

- 21 -

BLOCK DIAGRAM

Nand Flash

(1Gb )

SUB

ASSY

NTP7515

I2C

IR / Joystick

IR/KEY

LVDS

SPDIF OUT

(60Hz)

Vx1

HDMI1.4

1920x2160P

DDR3 1Gb x4

(8lane for 60Hz)

(16lane for 120Hz)

URSA9

HDMI

Tx

4K@60P(3G,even)

Rx

4K@60P(3G,odd)

(256Kb)

I2C

MAIN Audio

I2S Out

SPI Flash

(1MB)

SPI

Embeded

DDR3 2Gb

System eeprom

Boot

AMP(2ch)

M1A

X-tal

24MHz

Digital / Analog Demod

IF (+/-)

TUNER

(Half Nim)

USB

OCP

1.5A

HDMI

Rx

UART

CVBS/YPbPr

Air/

Cable

E

R

Only for training and service purposes

HDMI S/W

MN864788

OPTIC

USB1(2.0)

Headphone out

A

R

(H)

I

E

S

D

(V)

- 22 -

AV/COMP

4K@60P(6G) / HDCP2.2

HDMI1(HDMI2.0)

HDMI2(HDMI2.0)

A

E

R

(H)

400

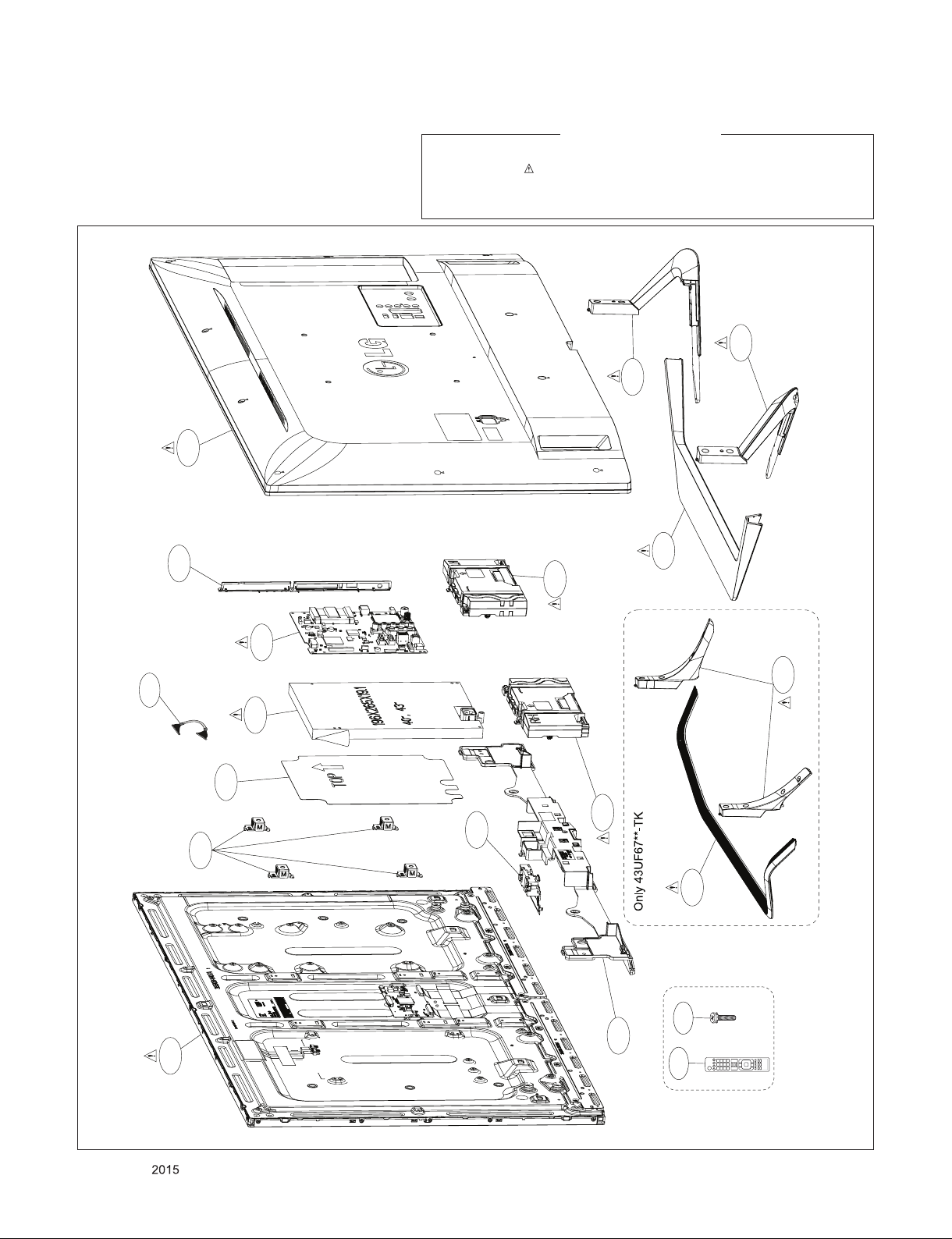

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

911

910

521

900

120

540

910

LV1

530

820

121

500

800

900

200

Only for training and service purposes

- 23 -

401

A10

A2

Stand screw

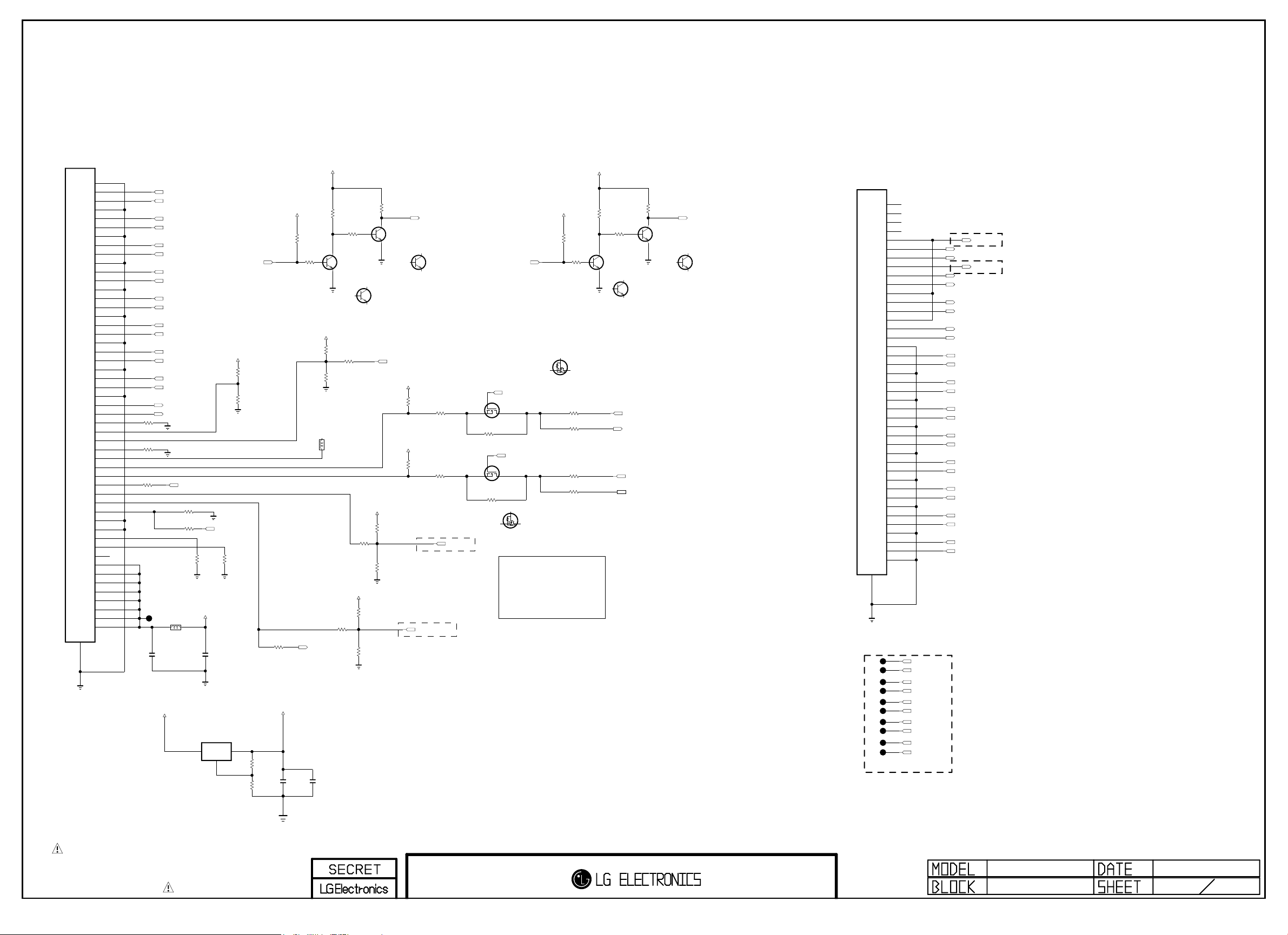

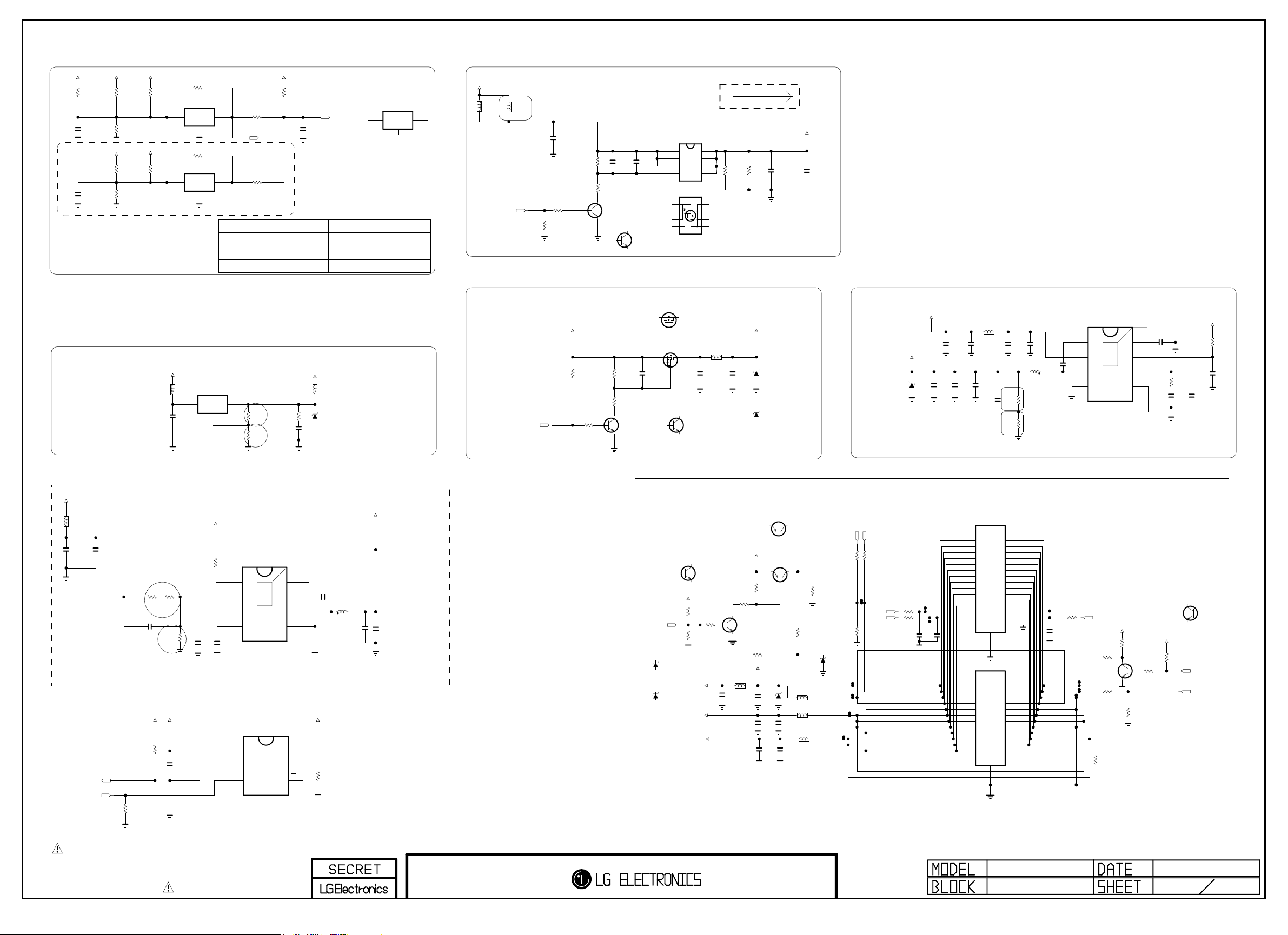

L14 POWER BLOCK (POWER DETECT 2)

LGE Internal Use Only

+24V

OPT

R457

8.2K 1%

C415

0.1uF 16V C425

OPT

C413

0.1uF 16V

Ready - Dual Power Det

* Notice

- Applying all inch models for LCD L14

- Dual Power Det is used for detecting two kinds of voltage

R427

R428

5.1K

R430

2.7K

R431

1.2K

OPT

27K

1%

OPT

1%

+12V

+24V

+3.5V_POWER_DET

OPT

R432

0

5%

+3.5V_POWER_DET

OPT

R458

0

5%

R435 100K

RESET_IC_DIODES(MULTI)

IC401

APX803E29

3

1

GND

OPT

R436

100K

OPT

IC402

APX803E29

3

1

GND

RESET

2

RESET

2

VCC

+3.5V_ST

R454

100 5%

POWER_DET_RESET

OPT

R437

100 5%

Detect Valtage

Power Detect +3.5V

Power Detect +12V

Power Detect +24V

OPT

Power_DET

R438

4.7K

C422

0.1uF

Now is

POWER_DET

Use Circuit Designator

O R430, R431, R454

RESET_IC_KEC(MULTI)

IC401-*1

KIC7529M2

VCC

3

Power Detect activity

R432, R454-*1, R438

R457, R454

+12V

OUT

2

1

GND

MLB-201209-0120P-N2

L408

PANEL_CTL

OPT

Upper 79"

L412

R417

10K

+3.3V_Normal

+1.5V_DDR

+3.3V_NORMAL

L409

BLM18PG121SN1D

C426 10uF

10V

Vout=1.25*(1+R2/R1)+Iadj*R2

+1.5V_DDR

IC404

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

1.3A

R449

1K 1/16W 1%

R450 200 1/16W 1%

R1

R2

L411

CB2012PK501T

R453

0

C431 10uF

10V

ZD403

2.5V POWER_ON/OFF_1

PANEL_POWER

0.1uF 25V

C427 10uF

16V

C

Q403-*1

B

MMBT3904(NXP)

E

C428

2.2uF 10V

C

Q404 2N3904S

NPN_KEC(MULTI)

E

C438 10uF

16V

NPN_NXP(MULTI)

R442 10K

+3.5V_ST

R443

10K

R445

R446

1.8K

B

R444 10K

10K

C

Q403 2N3904S

NPN_KEC(MULTI)

E

R447 22K

R448

2.2K

B

PANEL_FET_AOS(MULTI)

Q405

AO4447A

S_1

1

S_2

2

S_3

3

G

4

PANEL_FET_ROHM(MULTI)

Q405-*1

RRH140P03TB

1S_1

2S_2

3S_3

4G

3.3V_FET_AOS(MULTI) Q406-*1

AO3435

D

S

G

3.3V_FET_TOSHIBA(MULTI)

Q406

SSM3J332R

D

S

C429

G

0.1uF 16V

C

Q404-*1

B

MMBT3904(NXP)

NPN_NXP(MULTI)

E

D_4

8

D_3

7

D_2

6

D_1

5

D_48

7 D_3

6 D_2

5 D_1

L410

BLM18PG121SN1D

C430 22uF 10V

TYP 6000mA

R452

R451

2K

OPT

+3.3V_NORMAL

ZD402

5V

TVS_SEMTECH(MULTI)

ZD402-*1

TVS_KEC(MULTI)

C439 10uF 16V

PANEL_VCC

C440 10uF 16V

+1.10V_VDDC

ZD401

2.5V

+3.5V_ST

OPT

C424

0.1uF 16V

C437

0.1uF 16V

C421 22uF 10V

C436 10uF

10V

OPT

C420 22uF 10V

L406

CB2012PK501T

C414 10uF

10V

C423

50V

270pF

R43 9

R44 0

IC403

TPS5432DDAR

C417

0.1uF 16V

BOOT

1

VIN

2

PH

3

GND

4

C435

0.1uF 16V

L407

3.6uH

20K

R1

1%

R2

47K

1%

3A

9

THERMAL

8

7

6

5

[EP]GND

SS

EN

COMP

VSENSE

C418

0.01uF

R433

2.7K

C419

0.039uF 50V

1%

C434

390pF

50V

+3.3V_NORMAL

R429

10K

C416

0.33uF 16V

Vout=0.808*(1+R1/R2)

+12V

L404

BLM18PG121SN1D

C403 10uF 16V

USB1_OCD

USB1_CTL

C404

0.1uF

+5V_Normal

R409

R408

R1

120K 1%

C405

100pF

50V

R2

+3.3V_NORMAL

R405

4.7K

R403

10K

+3.3V_NORMAL

6.8K 1%

R410 22K 1%

+5V_NORMAL

C406

0.1uF 16V

R415

C409 1uF 10V

FROM LIPS or POWER B/D

+5V_NORMAL

IC405

C410 2200pF 50V

EN

FB

VREG

SS

VIN

GND

EN

BD9D321EFJ

1

2

3

4

3A

BD2242G

1

2

3

10K

IC406

9

THERMAL

[EP]

VIN

8

7

6

5

6

5

4

BOOT

SW

GND

VOUT

ILIM

OC

16V

0.1uF C411

LPH6050T-3R6N-R

+5V_USB

1%

14K

R41 8

L405

3.6uH

1458mA

C412

22uF

C443

22uF

10V

RL_ON

ZD404-*1

TVS_KEC(MULTI)

ZD400-*1

TVS_KEC(MULTI)

B

+3.5V_ST

OPT

R400

10K

+3.5V_ST

C

Q400-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

E

R402

10K

C407 10uF

10V

2012

+12V

+24V

B

CB2012PK501T

+3.5V_ST

R406 10K

R404

4.7K

C

Q400 2N3904S

NPN_KEC(MULTI)

E

OPT

R456

0

+3.5V_POWER_DET

L400

C400

1uF 10V

1005

OPT

C433

4.7uF 16V

3216

C442

4.7uF 50V

3216

Q401-*1

PNP_NXP(MULTI)

MMBT3906(NXP)

3

1

2

Q401

PNP_KEC(MULTI)

2N3906S-RTK

3

1

2

R455

0

CB2012PK501T

ZD400

5V

TVS_SEMTECH(MULTI)

MLB-201209-0120P-N2

C402

0.1uF 16V

MLB-201209-0120P-N2

C401

0.1uF 50V

PWM_from_MAIN

OPT

R412

33K

ZD404

5V

TVS_SEMTECH(MULTI)

L401

L403

L402

R414

R424

3.9KR401

PWM_DIM

0

PWM_DIM_SYNC

R416 0

PWM_from_TCON

URSA_OPT_5

URSA_OPT_6

POWER_28P R407

R411 33

POWER_28P

C408 18pF

OPT

POWER_28P

PWR ON

PDIM1

3.5V

3.5V GND 12V 12V 12V GND 24V 24V GND

33

C432 18pF

OPT

SCLK

PWR ON

PDIM1

3.5V

SIN

P402

GND 12V 12V 12V GND 24V 24V GND

1 3 5 7 9 11 13 15 17 19 21 23 25 27

POWER_24P

1 3 5 7 9 11 13 15 17 19 21 23

P401

DRV ON

2

PDIM2

4

GND

6

3.5V

8

GND

10

12V

12

12V

14

GND

16

24V

18

24V

20

GND

22

NC

24

GND

26

V_SYNC

28

29

.

DRV ON

2

PDIM2

4

GND

6

3.5V

8

GND

10

12V

12

12V

14

GND

16

24V

18

24V

20

GND

22

NC

24

25

POWER_28P C441 18pF OPT

R41333

URSA_L/D_VSYNC

+3.3V_NORMAL

R420

1K

R419 100

C

E

R423

100

R470 0

B

Q402 2N3904S

OPT R467 1K

R425 10K

+3.5V_ST

R426

10K

NPN_KEC(MULTI)

C

B

E

Q402-*1

MMBT3904(NXP)

NPN_NXP(MULTI)

INV_CTL

PWM1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Power_PD2

2014.04.24M1A_URSA9_UD 04

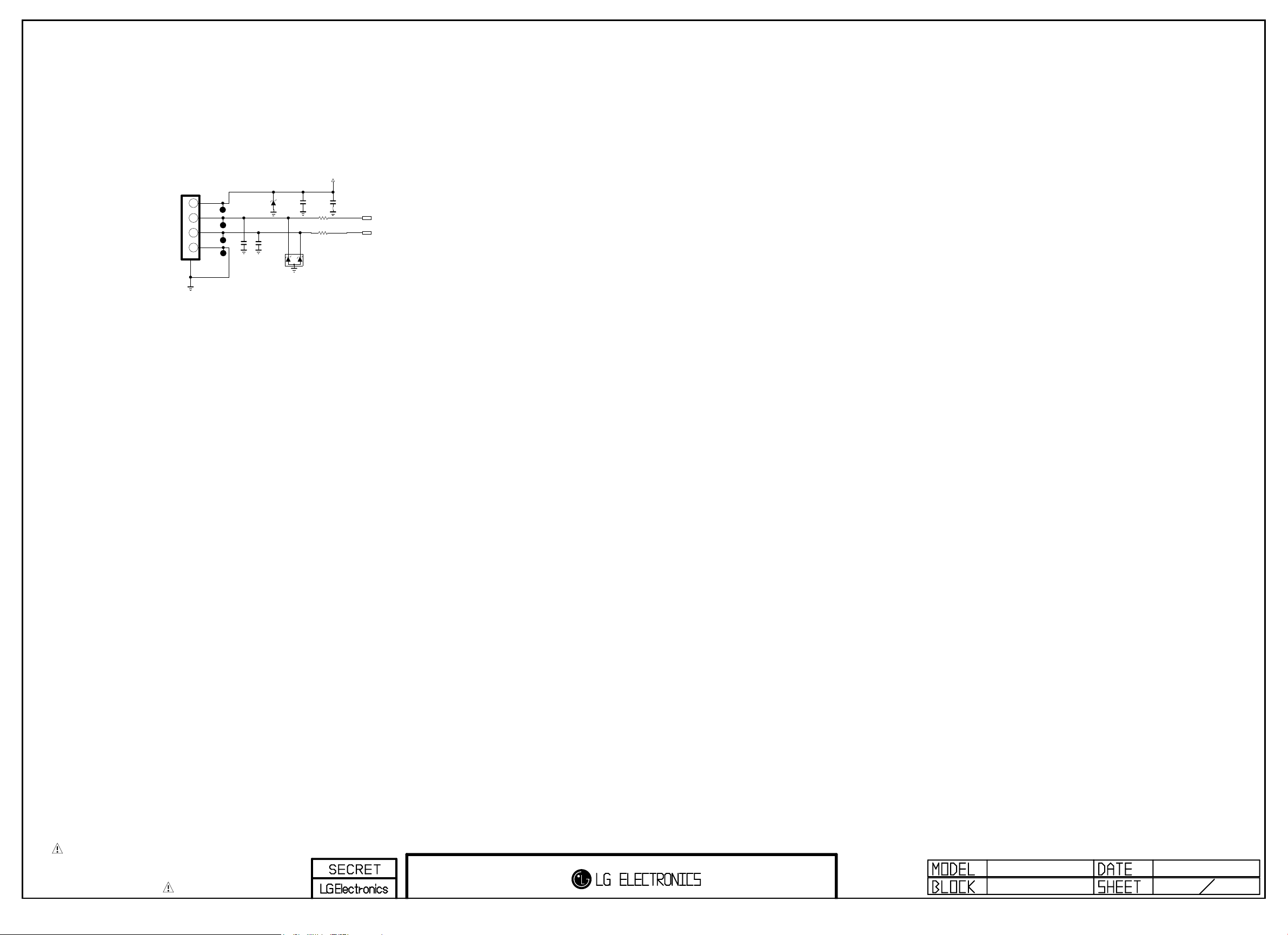

USB 3216 CAP(SIDE)

LGE Internal Use Only

+5V_USB

JK700

1234

USB DOW N ST REAM

3AU 04S- 305- ZC-( LG)

5

OPT C701

5pF 50V

OPT C702

5pF 50V

ZD700 SD05 5V OPT

C700 10uF 10V

R700

2.2

R701

2.2

OPT D700 RCLAMP0502BA

C703

10uF 10V OPT

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

USB_S1

2014.04.24

07

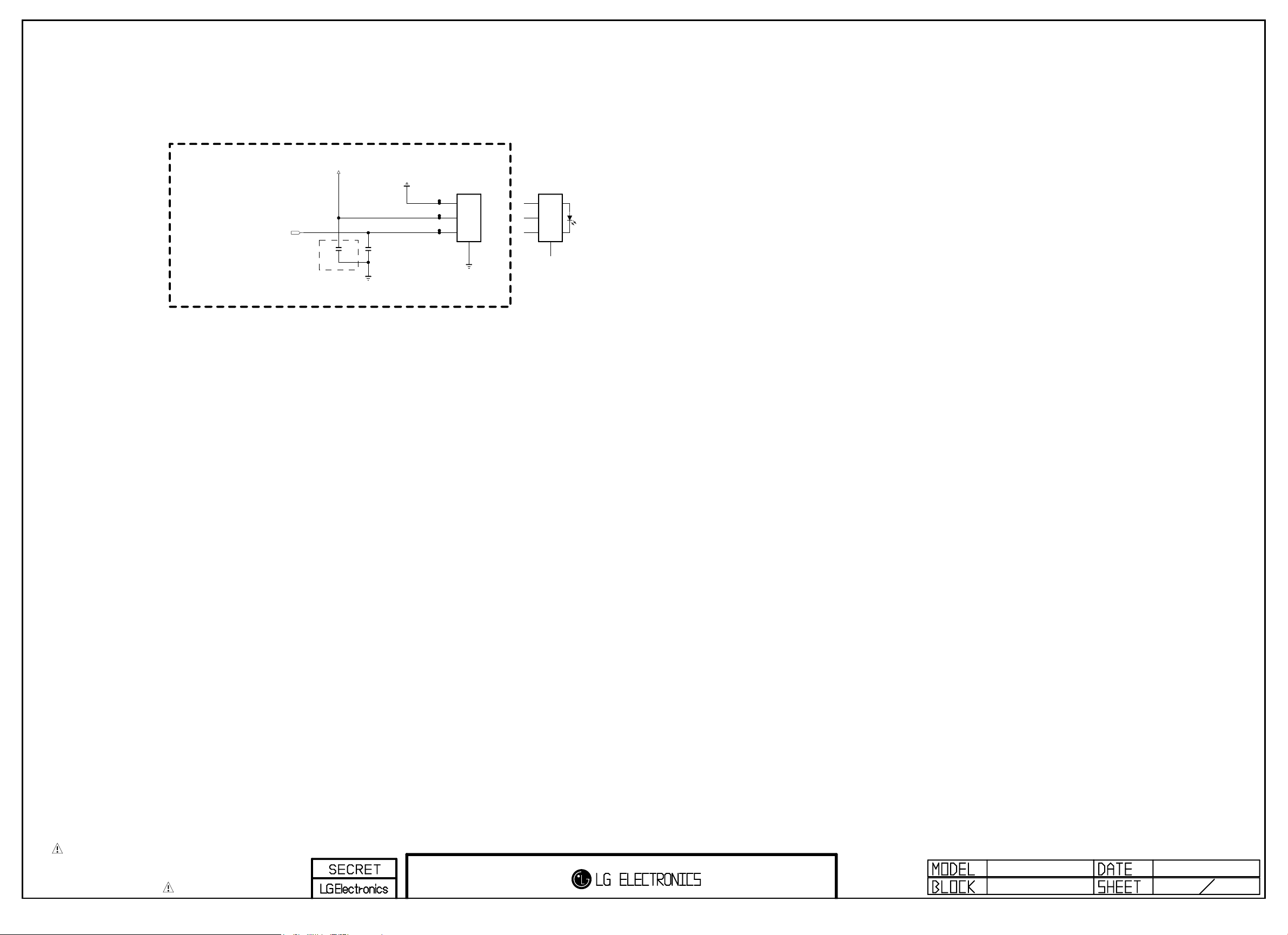

SPDIF

LGE Internal Use Only

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_NORMAL

C1001

1uF

OPT

10V

ESD Ready

C1002 18pF 50V

SPDIF_OPTIC

SPDIF_OPTIC_SOLTEAM

JK1001

JST1223-001

GND

1

VCC

2

VINPUT

3

4

Fib er O ptic

FIX_POLE

SPDIF_OPTIC_FOXCONN

JK1001-*1

2F01TC1-CLM97-4F

GND

1

VCC

2

VIN

3

Fiber Optic

4

SHIELD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPDIF

2014.04.24M1A_URSA9_UD

10

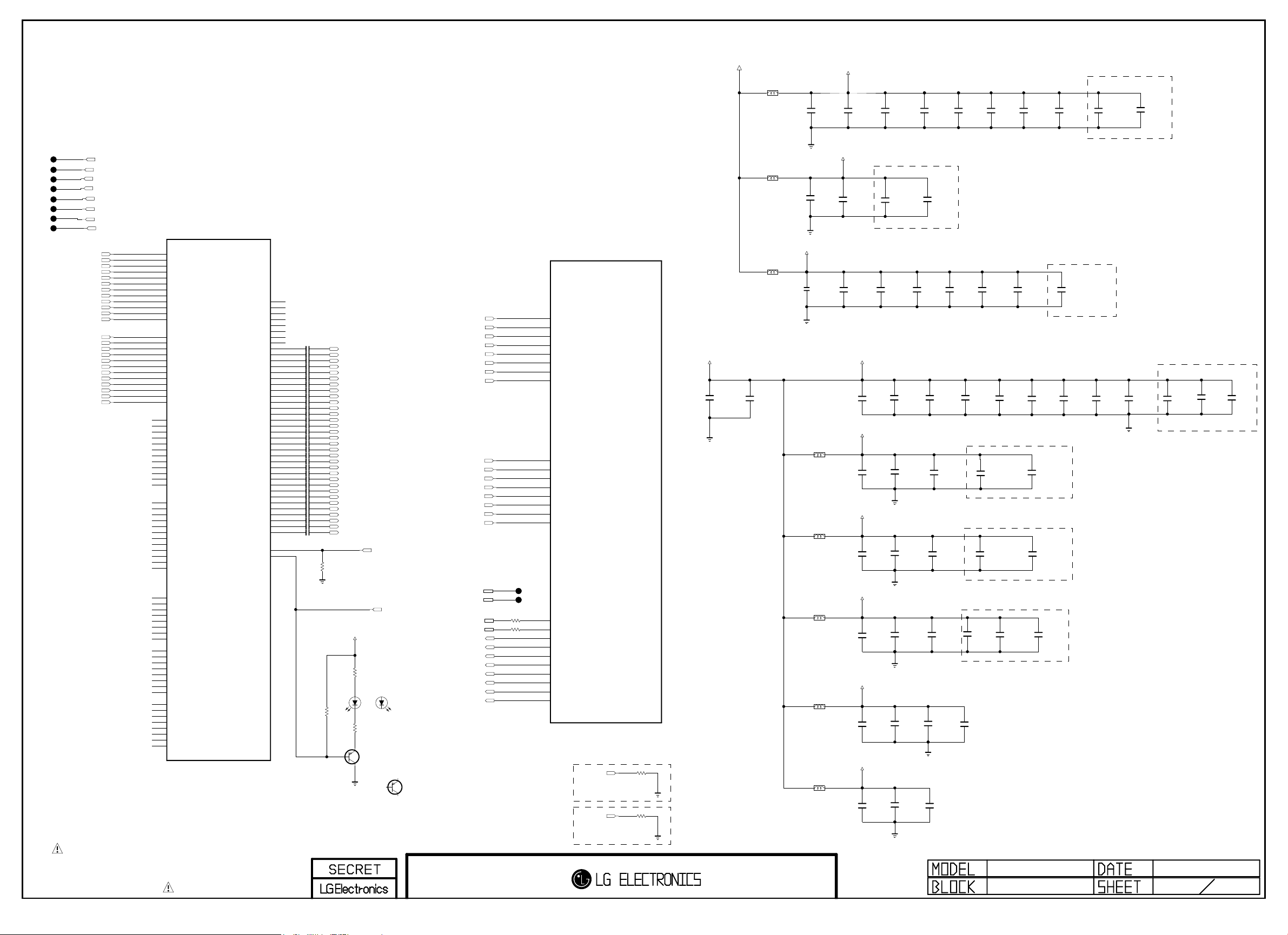

+1.5V_DDR

LGE Internal Use Only

DDR_EXT

R12011K1%

R1202 1K1%

DDR_EXT

C1201 0.1uF

DDR_EXT

C1202 1000pF

A-MVREFDQ

+1.5V_DDR

DDR_EXT

R1204 1K 1%

R1205 1K 1%

DDR_EXT

C1213 0.1uF

1000pF

DDR_EXT

C1214

A-MVREFCA

Option : Ripple Check !!!

+1.5V_DDR

C1217

C1216

10uF 10V

OPT

0.1uF

C1218

OPT

0.1uF

C1219

OPT

+1.5V_DDR

1uF

C1222

OPT

C1223

OPT

1uF

0.1uF

C1224

OPT

C1220

OPT

C1221

OPT

CLose to DDR3

DDR_1600_1G_SS

IC1201-*1

K4B1G1646G-BCK0

EAN61836301

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

CLose to Saturn7M IC

DDR_1600_1G_HYNIX

IC1201

H5TQ1G63EFR-PBC

EAN61829003

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

NC_7

NC_5

RESET

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

A-MA0A-MVREFCA A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A/B_DDR3_CS

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1207

DDR_EXT

R1208

DDR_EXT

DDR_EXT R1206

10K

DDR_EXT

56 1%

C1215

0.01uF 50V

56 1%

+1.5V_DDR

A-MCK

A-MCKB

A-MDQSLB

A-MDQSUB

A-MDQSL

A-MDQSU

A/B_DDR3_CS

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA9 A-MA10 A-MA11 A-MA12 A-MA13

A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7 A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

R1209

240

1%

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_2G_HYNIX_NEW

IC1201-*3

H5TQ2G63FFR-PBC

EAN61829204

N3

VREFCA

A0

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

VDD_1

A10/AP

VDD_2

A11

VDD_3

A12/BC

VDD_4 VDD_5

A13

VDD_6 VDD_7

NC_5

VDD_8 VDD_9

BA0 BA1 BA2

VDDQ_1 VDDQ_2

CK

VDDQ_3

CK

VDDQ_4

CKE

VDDQ_5 VDDQ_6

CS

VDDQ_7

ODT

VDDQ_8

RAS

VDDQ_9

CAS WE

NC_1 NC_2

RESET

NC_3 NC_4 NC_6

DQSL DQSL

VSS_1

DQSU

VSS_2

DQSU

VSS_3 VSS_4

DML

VSS_5

DMU

VSS_6 VSS_7

DQL0

VSS_8

DQL1

VSS_9

DQL2

VSS_10

DQL3

VSS_11

DQL4

VSS_12

DQL5 DQL6 DQL7

VSSQ_1 VSSQ_2

DQU0

VSSQ_3

DQU1

VSSQ_4

DQU2

VSSQ_5

DQU3

VSSQ_6

DQU4

VSSQ_7

DQU5

VSSQ_8

DQU6

VSSQ_9

DQU7

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_2G_HYNIX_OLD

IC1201-*2

H5TQ2G63DFR-PBC

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

EAN61829203

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

DDR_1600_2G_SS

IC1201-*4

K4B2G1646Q-BCK0

EAN61848803

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT

+1.5V_DDR

10V

A-MVREFDQ

DDR_EXT

C1203 10uF C1204 0.1uF C1205 0.1uF C1206 0.1uF C1207 0.1uF C1208 0.1uF C1209 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF

R1203

240

1%

A-MA14

M1A_256M

LGE2134(256M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

IC101

M1A_128M IC101-*1

LGE2133(128M)

E11

B_DDR3_A[0]

F12

B_DDR3_A[1]

D10

B_DDR3_A[2]

B10

B_DDR3_A[3]

E15

B_DDR3_A[4]

B11

B_DDR3_A[5]

F14

B_DDR3_A[6]

C11

B_DDR3_A[7]

D14

B_DDR3_A[8]

A12

B_DDR3_A[9]

F16

B_DDR3_A[10]

D13

B_DDR3_A[11]

D15

B_DDR3_A[12]

C12

B_DDR3_A[13]

E13

B_DDR3_A[14]

A9

B_DDR3_BA[0]

D16

B_DDR3_BA[1]

A10

B_DDR3_BA[2]

C13

B_DDR3_MCLK

B13

B_DDR3_MCLKZ

E17

B_DDR3_MCLKE

B8

B_DDR3_ODT

C8

B_DDR3_RASZ

B9

B_DDR3_CASZ

D11

B_DDR3_WEZ

F10

B_RESET

D12

B_DDR3_CS0

A19

B_DDR3_DQSL

B18

B_DDR3_DQSU

C16

B_DDR3_DQML

D21

B_DDR3_DQMU

C18

B_DDR3_DQSBL

C17

B_DDR3_DQSBU

A20

B_DDR3_DQL[0]

A16

B_DDR3_DQL[1]

C19

B_DDR3_DQL[2]

C15

B_DDR3_DQL[3]

C20

B_DDR3_DQL[4]

C14

B_DDR3_DQL[5]

B21

B_DDR3_DQL[6]

B15

B_DDR3_DQL[7]

F18

B_DDR3_DQU[0]

D19

B_DDR3_DQU[1]

D17

B_DDR3_DQU[2]

E21

B_DDR3_DQU[3]

E19

B_DDR3_DQU[4]

D20

B_DDR3_DQU[5]

D18

B_DDR3_DQU[6]

F20

B_DDR3_DQU[7]

E9

ZQ

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA_UD

1_DDR

2014.04.24 12

Serial Flash for SPI boot

LGE Internal Use Only

/FLASH_WP

OPT R1300 10K

+3.5V_ST

/SPI_CS

SPI_SDO

+3.5V_ST

OPT R1301

4.7K

SPI_FLASH_MACRONIX

IC1300

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

SPI_FLASH_WINBOND

IC1300-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

8

7

6

5

8

7

6

5

VCC

HOLD#

R1303 0

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

+3.5V_ST

C1300

0.1uF

R1302

33

SPI_SCK

SPI_SDI

SPI_FLAHS_WINBOND_NEW

IC1300-*2

W25Q80DVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

8

7

6

5

SPI_FHASH_MACRONIX_NEW

VCC

HOLD[IO3]

SO/SIO1

CLK

WP#/SIO2

DI[IO0]

IC1300-*3

MX25L8035EM2I-10G

CS#

1

2

3

GND

4

8

7

6

5

VCC

NC/SIO3

SCLK

SI/SIO0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

S_FLASH

2014.04.24

13

CI Region

LGE Internal Use Only

CI SLOT

+5V_CI_ON

CI_DATA[0-7]

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI TS INPUT

+5V_NORMAL

CLOSE TO MSTAR

R1900 10K

/CI_CD1

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

CI_IORD CI_IOWR

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5] CI_MDI[6] CI_MDI[7]

PCM_RST

/PCM_WAIT

CI_TS_CLK CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3]

CLOSE TO MSTAR

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

+5V_NORMAL

R1908

10K

AR1900

33

R1910 10K

GND

R1909

10K

R1911

R1903

47

R1904

REG

R1905 100

R1906 R1907 33

/CI_CD2

C1900 2pF 50V

47

33

AR1901 33

+5V_NORMAL

C1901

0.1uF

R1912

C1903

10uF

10V

CI_SLOT

P1900

R1914

100

10K

100

GND

10125901-115LF

35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

65 66 67 68

GND

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2660 2761 2862 2963 3064 31 32 33 34

G1G2

69

R1917

47

R1918

100

C1904

0.1uF GND

GND

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_DATA[0-7]

R1919

CI_ADDR[10]

CI_DATA[0-7]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

10K

/PCM_CE

CI_OE

+5V_NORMAL

R1920 10K

CI_WE

GND

CI_ADDR[0-14]

/PCM_IRQA

C1905

0.1uF 16V

CLOSE TO MSTAR

CI HOST I/F

CI_ADDR[7] CI_ADDR[6] CI_ADDR[5] CI_ADDR[4]

CI_MDI[7] CI_MDI[6] CI_MDI[5] CI_MDI[4]

CI_MDI[3] CI_MDI[2] CI_MDI[1] CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI_DET

AR1902 100

AR1903 33

AR1904 33

R1921 33 R1922 33 R1923 100

PCM_A[0]

PCM_A[1]

PCM_A[2]

PCM_A[3]

FE_TS_DATA[7] FE_TS_DATA[6] FE_TS_DATA[5] FE_TS_DATA[4]

FE_TS_DATA[3] FE_TS_DATA[2] FE_TS_DATA[1] FE_TS_DATA[0]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_CLK

1OE

CI_BUFFER_NXP(MULTI) 1

1A1

2

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

7

1A4

8

2Y1

9

GND

10

FE_TS_DATA[0-7]

IC1902

TC74LCX244FT

FE_TS_DATA[0-7]

+3.3V_NORMAL

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

C1906

0.1uF 16V

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

AR1910 100

CI_ADDR[0] CI_ADDR[1] CI_ADDR[2] CI_ADDR[3]

CI DETECT

/CI_CD2

/CI_CD1

OR_GATE_CI_NXP(MULTI)

IC1900

74LVC1G32GW

1B 5 VCC

3GND2A4 Y

TOSHIBA ELECTRONICS KOREA CORPORATION

OR_GATE_CI_TOSHIBA(MULTI)

IC1900-*1

IN_B

1

IN_A

2

GND

3

+3.3V_NORMAL

VCC

5

OUT_Y

4

CI POWER ENABLE CONTROL

IN

EN

IC1901

AP2151WG-7

5

4

PCM_5V_CTL

+5V_NORMAL

R1901 10K

R1902 100

1

2

3

OUT

GND

FLG

+3.3V_NORMAL

R1913

10K

C1902 1uF 10V

R1924 0

R1915

47

BLM18PG121SN1D

L1900

R1916 100K

CI_DET

/PCM_CD

+5V_CI_ON

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11]

CI_ADDR[12] CI_ADDR[13] CI_ADDR[14]

CI_OE

CI_WE CI_IORD CI_IOWR

CI_DATA[0] CI_DATA[1] CI_DATA[2] CI_DATA[3]

CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

REG

AR1905 33

AR1906 33

AR1908 33

AR1909 33

AR1907 33

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3]

PCM_D[4] PCM_D[5] PCM_D[6] PCM_D[7]

PCM_A[8] PCM_A[9]

/PCM_OE /PCM_WE /PCM_IORD /PCM_IOWR

PCM_A[10] PCM_A[11]

PCM_A[12] PCM_A[13] PCM_A[14] /PCM_REG

PCM_D[0-7]

IC1902-*1

74LCX244FT

1OE

CI_BUFFER_TOSHIBA(MULTI)

1

1A1

2

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

7

1A4

8

2Y1

9

GND

10

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

PCMCI

2014.04.24 19

ETHERNET

LGE Internal Use Only

* H/W option : ETHERNET

JK2100

RJ45VT-01SN002

1

2

ETHERNET

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

ETHERNET

C2105

0.01uF 50V

ETHERNET

C2104

0.01uF 50V

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

LAN

2014.04.24 21

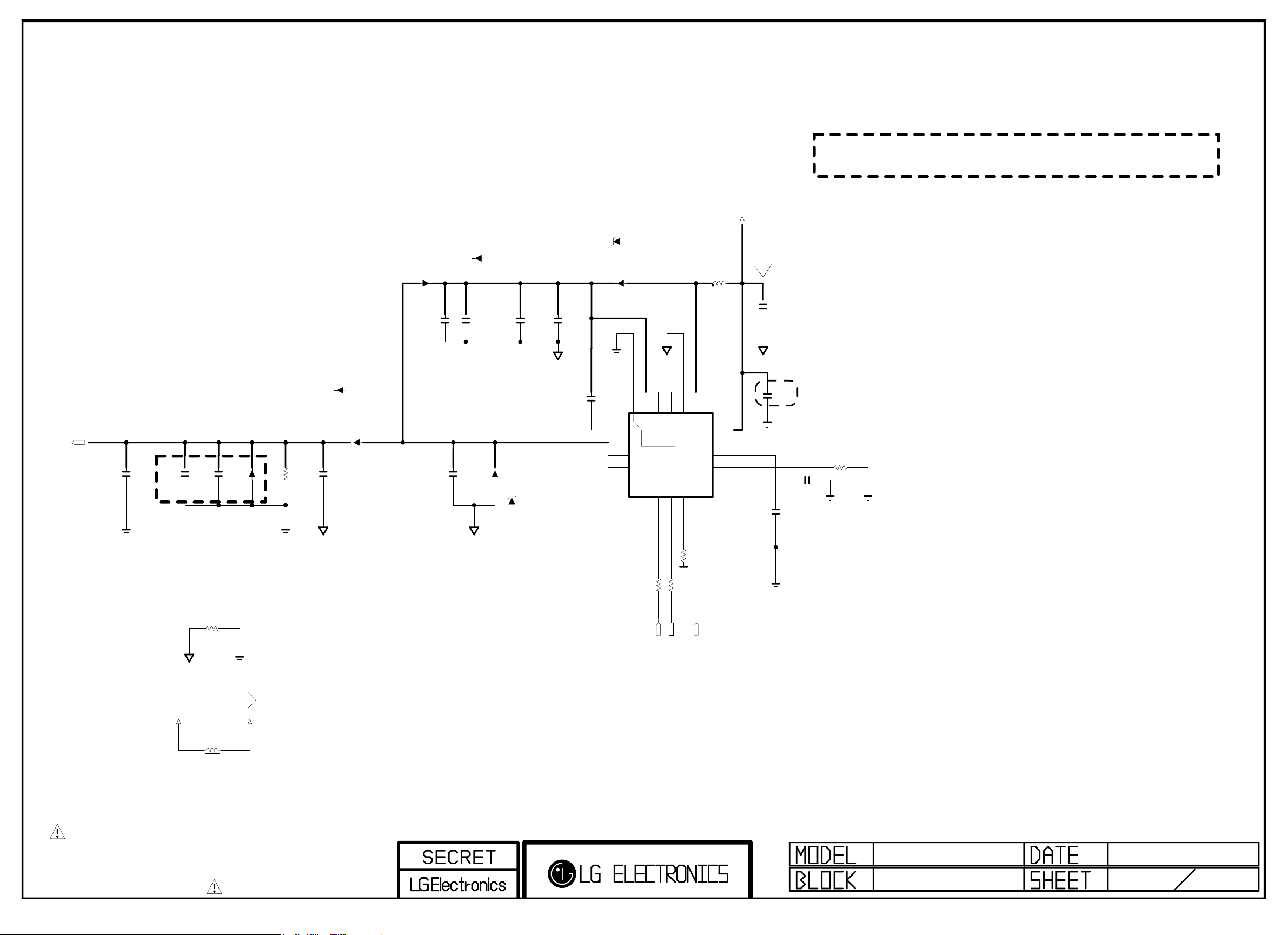

DVB-S2 LNB Part Allegro

LGE Internal Use Only

(Option:LNB)

2A

LNB_DIODE_ONSEMI(MULTI)

LNB_DIODE_SUZHOU(MILTI)

D2703-*1

SS2040LL-LG

D2703

30V

LNB

C2703

0.01uF 50V

40V

LNB C2704

10uF 25V

LNB C2705

10uF 25V

LNB_DIODE_SUZHOU(MULTI)

D2705-*1

40V

D2705

LNB_DIODE_KEC(MULTI)

40V

SMAB34

LNB

C2706 10uF 25V

3A

+12V_LNB

LNB

L2702

LPH6050T-150M-R

15uH

3.5A

Max 1.3A

LNB C2708 10uF 25V

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

LNB_OUT

LNB C2714 18pF

close to TUNER

LNB C2701 18pF

LNB C2702 33pF

Close to Tuner Surge protectioin

Caution!! need isolated GND

A_GND

R2701

0

LNB

D2701

LNB_DIODE_SUZHOU(MILTI)

D2702-*1

SS2040LL-LG

40V

LNB_DIODE_ONSEMI(MULTI)

LNB

R2702

2.2K 1W

A_GND

LNB C2713

0.22uF 25V

D2702

MBR230LSFT1G

30V

close to Boost pin(#1)

LNB C2712

0.1uF 50V

A_GND

LNB_DIODE_KEC(MULTI) D2704

SMAB34

40V

LNB_DIODE_SUZHOU(MULTI)

D2704-*1

40V

A_GND

LNB

C2707

0.1uF

A_GND

NC_3

BOOST

[EP]GND

19

20

VCP

1

THERMAL

LNB

2

NC_1

TDI

TDO

21

3

LNB

IC2701

4

A8303SESTR-T(4M)

5

7

6

SCL9ADD

IRQ

LNB

R2704

33

DEMOD_SCL

GNDLX

NC_2

18

8

SDA

R2706 0

LNB

R2705

33

DEMOD_SDA

16LX17

15

14

13

12

11

10

TONECTRL

LNB_TX

VIN

GND

VREG

ISET

TCAP

A_GND

close to VIN pin(#15)

LNB

C2709

0.1uF 50V

LNB

C2710

0.1uF

LNB

C2711

0.22uF

LNB

R2703

36K

1/16W 1%

Max 1.3A

+12V

BLM18PG121SN1D

L2701

+12V_LNB

LNB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

LNB 27

2014.04.24

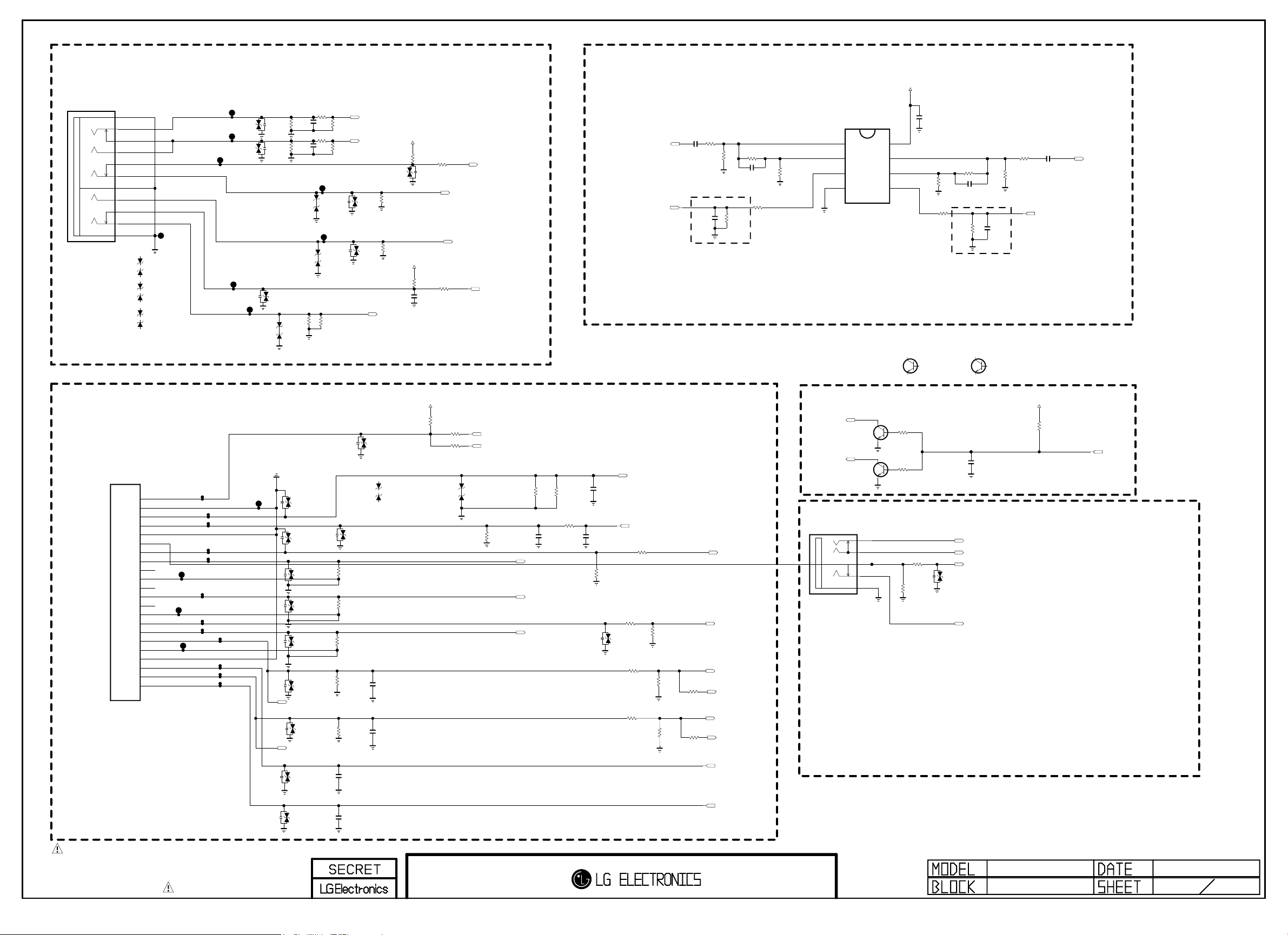

SCART_COMPONENT

LGE Internal Use Only

COMPONENT

JK2802

PPJ245N2-01

COMP_ZENER_ROHM(MULTI)

[RD2]E-LUG

6E

[RD2]O-SPRING

5E

[RD2]CONTACT

4E

[WH]O-SPRING

5D

[RD1]CONTACT

4C

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

ZD2806-*1

ZD2807-*1

ZD2804-*1

ZD2805-*1

ZD2802-*1

ZD2803-*1

VA2804

5.6V OPT

VA2803

5.6V OPT

COMP_ZENER_KEC(MULTI)

VA2800

5.6V OPT

COMP_ZENER_KEC(MULTI)

ZD2802

ZD2803

R2803

470K

R2802 470K

330pF C2802

330pF C2803

R2804

1608

ZD2806

ZD2807

ZD2804

ZD2805

75

OPT

R2811 10K

R2810 10K

R2859 75

3216

R2816

12K

R2815

12K

VA2802

5.5V

OPT

VA2801

OPT

5.5V

COMP2_R_IN

COMP2_L_IN

R28 01

75

R28 00

75

+3.3V_NORMAL

R2817

10K

VA2816

5.6V OPT

+3.3V_NORMAL

R2812

10K

C2800

0.1uF

COMP2_Y+/AV_CVBS_IN

16V

SCART AMP

+12V

EU

C2808

VCC

OUT2

IN2-

IN2+

0.1uF 50V

EU

R2841

EU

R2840

5.6K

EU

C2810

33pF

EU

R2842

220K

33K

EU

R2839

10K

CLOSE TO MSTAR

SCART_MUTE_NPN_NXP(MULTI)

Q2803-*1

MMBT3904(NXP)

R2843

470K

OPT

EU C2811 330pF

EU

R2844

2.2K

EU

C2812

10uF

16V

SCART1_Rout

DTV/MNT_R_OUT

IC2801

AZ4580MTR-E1

OUT1

1

IN1-

2

IN1+

3

VEE

4

8

EU

7

6

5

R2818

1K

COMP2_Pr+

COMP2_Pb+

COMP2_DET

DTV/MNT_L_OUT

SCART1_Lout

C2804 10uF 16V

EU

330pF C2806

EU

R2831

2.2K

OPT R2832 470K

EU

220K

R2833

EU

EU R2834 33K

C2807 33pF

EU

R2835

5.6K

EU R2836 10K

EU

CLOSE TO MSTAR

R2814

1K

OPT

AV_CVBS_DET

SCART_MUTE_NPN_NXP(MULTI)

Q2802-*1

MMBT3904(NXP)

FULL SCART

EU

JK2801

PSC008-01

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

VA2807

5.5V

ESD_SCART

VA2808 20V ESD_SCART

ESD_SCART VA2810 20V

VA2811 20V ESD_SCART

VA2812 20V ESD_SCART

VA2813

5.6V

ESD_SCART/AV2

AV2_L_IN_A

VA2809

5.6V

ESD_SCART/AV2

AV2_R_IN_A

VA2806

5.6V OPT

VA2815

5.6V OPT

VA2814

R2807 75

R2808 75

R2805

75

R2806

470K

SCART/AV2

R2809 470K

SCART/AV2

EU C2813 1000pF 50V

5.6V

+3.3V_NORMAL

R2819

10K

ZD2800-*1 AV2_CVBS_ZENER_ROHM(MULTI)

ZD2801-*1 AV2_CVBS_ZENER_ROHM(MULTI)

C2818 1000pF 50V OPT

C2817 1000pF 50V OPT

R2820 1K

EU

R2850 1K

AV2

ZD2800

AV2_CVBS_ZENER_KEC(MULTI)

ZD2801

AV2_CVBS_ZENER_KEC(MULTI)

SC1/COMP1_DET

AV2_CVBS_DET

EU R2821 75

SCART/AV2 R2857

R2860

75

1608

OPT

1%

OPT

C2815 68pF 50V

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

3216

EU

R2861

10

OPT

C2816 68pF 50V

AV2 C2801 47pF 50V

R2822 75

EU

SC1/AV2_CVBS_IN

EU

R2824

15K

VA2817 20V ESD_SCART

SCART/AV2

R2826 10K

SCART/AV2

R2825 10K

DTV/MNT_VOUT

EU

R2827

22

EU

R2828

3.9K

R2829 12K

SCART/AV2

R2830 12K

SCART/AV2

R2846 0

AV2

R2849 0

AV2

SC1_FB

SC1_ID

SC1/COMP1_L_IN

AV2_L_IN

SC1/COMP1_R_IN

AV2_R_IN

DTV/MNT_L_OUT

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

SCART_MUTE_NPN_KEC(MULTI)

DTV/MNT_R_OUT

SCART_MUTE_NPN_KEC(MULTI)

AV2

JK2803

PPJ231-02

Q2802 2N3904S

Q2803 2N3904S

4

5

7

8

6

SCART_MUTE

R2837

2K

SCART_MUTE

R2838

2K

R2848 0 EU

R2847 0

AV2

VA2820

5.6V OPT

SCART_MUTE

C2809

0.1uF

AV2_R_IN_A

AV2_L_IN_A

AV2_CVBS_DET

SC1/AV2_CVBS_IN

SCART_MUTE

R2845

10K

+3.5V_ST

SCART1_MUTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

VA2805

5.6V OPT

EU C2814 1000pF 50V

DTV/MNT_R_OUT

M1A_URSA9_UD

SCART_ COMPONENT

2014.04.24 28

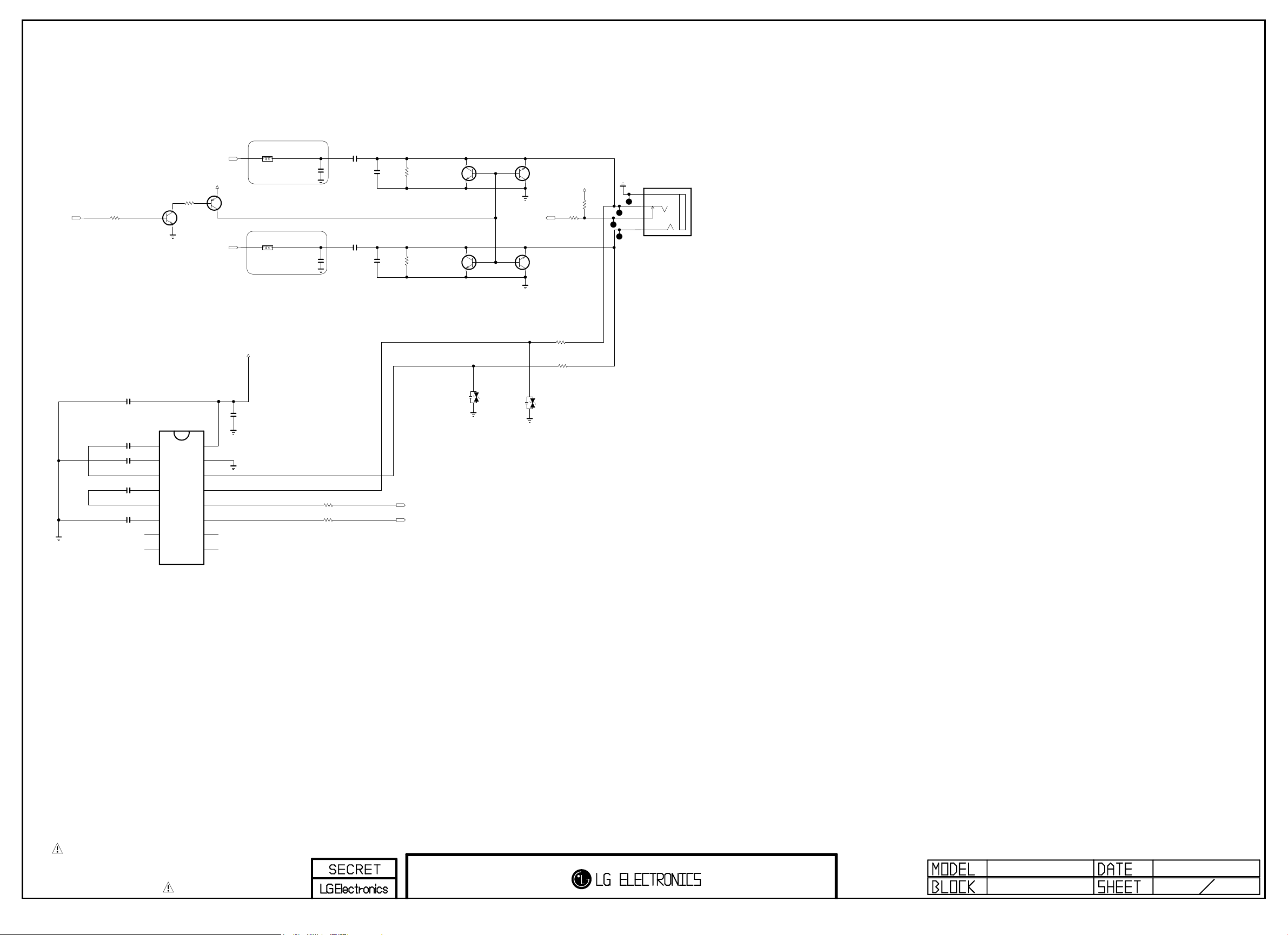

Headphone

LGE Internal Use Only

RS-232C Control INTERFACE

SIDE_HP_MUTE

OPT R3000 1K

RS232C_PHONE

MMBT3904(NXP)

C3006

0.33uF

RS232C_PHONE

C3008

0.1uF

C3009

0.1uF

C3010

0.1uF

C3011

0.1uF DOUT2

RIN2

Q3000

C1+

V+

C1-

C2+

C2-

V-

B

OPT

1

2

3

4

5

6

7

8

OPT

R3001

C

3.3K

E

RS232C_PHONE

IC3001 MAX3232CDR

EAN41348201

Close to the Main IC

HEAD_PHONE

L3000

HP_LOUT

+3.5V_ST

B

HP_ROUT

E

OPT Q3001

MMBT3906(NXP)

C

5.6uH

HEAD_PHONE

L3001

5.6uH

Close to the Main IC

+3.5V_ST

RS232C_PHONE

C3007

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

HEAD_PHONE

C3004

4.7uF

HEAD_PHONE

C3005

4.7uF

10V

RS232C_PHONE

R3008

0

RS232C_PHONE

R3009

0

HEAD_PHONE

C3000 10uF 16V

HEAD_PHONE

C3001 10uF 16V

OPT

C3002 1000pF 50V

OPT

C3003 1000pF 50V

HEAD_PHONE

R3002 1K

HEAD_PHONE

R3003

1K

PM_RXD

PM_TXD

Q3002 MMBT3904(NXP) OPT

Q3003 MMBT3904(NXP)

OPT

C

B

E

C

B

E

B

OPT ZD3001 ADUC 20S 02 010L 20V

E

Q3004 MMBT3904(NXP)

OPT

C

HP_DET

E

Q3005 MMBT3904(NXP)

OPT

C

RS232C_PHONE

OPT ZD3002 ADUC 20S 02 010L 20V

+3.3V_NORMAL

HEAD_PHONE

R3004

HEAD_PHONE

R3006 100

R3007 100

R3005 10K

1K

JK3000

PEJ038-3B6

5GND

4L

3DETECT

1R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

2014.04.24

HEAD_PHONE_EU 30

VA3216

LGE Internal Use Only

SHIELD

+5V_NORMAL

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

YKF45-7058V

JK3203

VA3205

20

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

YKF45-7058V

JK3200

DDC pull-up

5V_HDMI_2

A2CA1

D3218

DDC_DIODE_KEC(MULTI)

AR3201

47K

1/16W

HPD

+5V_POWER

DDC/CEC_GND

SDA

SCL

NC

CEC

CLK-

CLK_SHIELD

CLK+

DATA0-

DATA0_SHIELD

DATA0+

DATA1-

DATA1_SHIELD

DATA1+

DATA2-

DATA2_SHIELD

DATA2+

KDS184

OPT

VA3203

CEC_REMOTE

OPT

VA3201

R3219 0

HDMI1_ARC

CEC_REMOTE

DDC_SDA_HDMI2_MN864788

DDC_SCL_HDMI2_MN864788

+1.10V_VDDC_MN864778

+12V

L3216 BLM18PG121SN1D

C3308 10uF 16V

POWER_ON/OFF_1

OPT

R3301

10K

R1

R3305

R3304

2.7K

3.9K 1%

1%

C3301

100pF

50V

R2

1%

Switching freq: 700K

3.3V Power Separation

+3.3V_U_NORMAL

+5V_NORMAL

C3269

C3268

22uF

100uF

10V

6.3V

HDMI3.3_FET_ONSEMI(MULTI)

R3208

10K

HDMI3.3_FET_AOS(MULTI) G

D

S AO3438 Q3204

G

D

S

NTR4501NT1G

Q3204-*1

HDMI_3.3V

Q3201

2N3904S

R3204 100K

NPN_KEC(MULTI)

VA3204

OPT

R3205 1K

C

Q3200

2N3904S R3202 100K

E

NPN_KEC(MULTI)

VA3209 OPT

HDMI_ARC

R3914 100

5V_HDMI_1 +5V_NORMAL

DDC_DIODE_KEC(MULTI)

AR3200

47K

1/16W

+12V

10K R3302

C3300 R3303 330K

0.1uF

OPT

16V

C3302

C3303

14K

1uF

3300pF

R330 6

10V

50V

C3235 10uF 10V

R3215 1K

R3216

R3213 1K

B

VA3207 OPT

R3220 0

HDMI2_ARC

D3202 IP4294CZ10-TBR

1 2 3

OPT

4 5

D3203 IP4294CZ10-TBR

1 2 3

OPT

4 5

R3218

4.7K

R3233 1K

B

R3247

4.7K OPT

VA3214 OPT

CEC_REMOTE_S7

DDC_SDA_HDMI1_MN864788

DDC_SCL_HDMI1_MN864788

4.7K

HDMI2_HPD_MN864788

AR3207

R3217

33

4.7K 1/16W

OPT

C3201

C3209

0.1uF

OPT

HDMI_ARC

10 9 8 7 6

5V_HDMI_1

HDMI1_HPD_MN864788

C3203

C3210

0.1uF

OPT

D3204

IP4294CZ10-TBR

1

10

2

9 8

3

OPT

7

4

6

5

D3205 IP4294CZ10-TBR

1

10

2

9 8

3

OPT

7

4

6

5

DDC_DIODE_SUZHOU(MULTI)

C

E

A2CA1 KDS184 D3208

TYPICAL 1100mA

IC3205

TPS54327DDAR

EN

VFB

VREG5

SS

[EP]GND

VIN

1

8

C3304

VBST

9

2

7

THERMAL

SW

3

6

GND

4

5

3A

Vout=0.765*(1+R1/R2)

0.1uF 16V

AR3204 33 1/16W

LPH6050T-3R6N-R

5V_HDMI_2

Q3201-*1

MMBT3904(NXP)

NPN_NXP(MULTI)

DDC_SDA_HDMI2_MN864788

DDC_SCL_HDMI2_MN864788

MMBT3904(NXP)

NPN_NXP(MULTI)

DDC_SDA_HDMI1_MN864788 DDC_SCL_HDMI1_MN864788

A2CA1 MMBD6100 D3218-*1

DDC_DIODE_SUZHOU(MULTI)

+1.10V_VDDC_MN864778

L3217

3.6uH

C3307 22uF 10V

C

B

E

CK-_HDMI2_MN864788

CK+_HDMI2_MN864788

D0-_HDMI2_MN864788

D0+_HDMI2_MN864788

D1-_HDMI2_MN864788

D1+_HDMI2_MN864788

D2-_HDMI2_MN864788

D2+_HDMI2_MN864788

HDMI2

C

Q3200-*1

E

CK-_HDMI1_MN864788

CK+_HDMI1_MN864788

D0-_HDMI1_MN864788

D0+_HDMI1_MN864788

D1-_HDMI1_MN864788

D1+_HDMI1_MN864788

D2-_HDMI1_MN864788

D2+_HDMI1_MN864788

HDMI1

A2CA1 MMBD6100 D3208-*1

C3306

ZD3203

22uF

2.5V

10V

B

C3202

0.33uF

C3204 1000pF

C3205 0.33uF

C3221 0.33uF

OPT

C3228 1000pF

C3206 0.1uF

P_AVDDH33

C3223 0.1uF

P_VDD33

+1.10V_VDDC_MN864778

P_VDD11

OPT

C3229 1000pF

C3248 1000pF

C3207 0.1uF

C3216 4.7uF

C3260 4.7uF

C3225 0.1uF

L3205 BLM18PG121SN1D

0.1uF C3263

4.7uF 10V

OPT

C3208

C3261 0.33uF

+1.10V_VDDC_MN864778

C3272 22uF 10V

+1.10V_VDDC_MN864778

L3200 BLM18PG121SN1D

HDMI_3.3V HDMI_3.3V

L3201 BLM18PG121SN1D

HDMI_3.3V HDMI_3.3V

L3204 BLM18PG121SN1D

P_AVDDH11

C3264

4.7uF 10V

+1.10V_VDDC_MN864778

C3230 0.33uF

L3203 BLM18PG121SN1D

R3214 0

P_PVDD33

R3221 0

C3231 0.33uF

1000pF

C3250

C3212 0.33uF

1000pF

OPT

C3251

P_AVDD33

C3215 0.33uF

0.1uF

C3232

P_AVDD11

OPT

C3252 1000pF

C3217 0.33uF

OPT

C3259 4.7uF

C3258 0.33uF

HDMI_1_RX2+

HDMI_1_RX2-

HDMI_1_RX1+

HDMI_1_RX1-

HDMI_1_RX0+

HDMI_1_RX0-

HDMI_1_CLK+

HDMI TX port 1

HDMI_1_CLK-

HDMI_0_RX2+

HDMI_0_RX2-

HDMI_0_RX1+

HDMI_0_RX1-

HDMI_0_RX0+

HDMI_0_RX0-

HDMI_0_CLK+

HDMI TX port 0

HDMI_0_CLK-

C3265 4.7uF

C3211 10uF10V

C3213 10uF10V

C3214 0.1uF

C3218 0.1uF

C3219 0.1uF

C3220 0.1uF

C3222 0.1uF

C3224 0.1uF

C3226 0.1uF

C3227 0.1uF

P_VDD11

P_AVDD33

P_VDD33

P_AVDD11

AVDD11TX_1

AVDD11TX_2

AVDD33TX_1

AVDD11TX_3

AVDD11TX_4

AVDD11TX_5

AVDD33TX_2

AVDD11TX_6

TX0SDA TX0HPD

CH1ASD0

CH1ALRCLK

CH1ABCLK

VSS_1

VDD11_1

P1TX2P

P1TX2M P1TX1P

P1TX1M P1TX0P

P1TX0M P1TXCP

P1TXCM

VSS_2

VDD11_2

P0TX2P

P0TX2M P0TX1P

P0TX1M P0TX0P

P0TX0M P0TXCP

P0TXCM

VSS_3

VDD11_3

NIRQA1

+5V_NORMAL

P_PVDD33

P_VDD33

R326 5

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

1.8K

[EP]

R326 6

1.8K

TX0SCL

144

THERMAL

37

NIRQA0

R326 7

1.8K

R326 8

TX1SDA

TX1HPD

142

143

145

38

39

PVDD33

VDD33_1

1.8K

R3269 0 R3270 0 R3271 0 R3272 0

VSS_12

TX1SCL

141

40

41

VSS_4

AVDD33RX3

C3233 0.1uF

OPT OPT OPT OPT

VDD11_9

VDD33_4

137

138

139NC140

42

44

P3RXCM43P3RXCP

AVDD11RX3_1

C3234 0.1uF

P_XOUT

TX0SDA

TX0SCL TX1SDA

TX1SCL

CH0ASD1

CH0ASD0

135

136

P_XIN

CH0ASD3

CH0ASD2

133

134

R3241

CH0ABCLK

CH0ALRCLK

131

132

TX0SDA

TX0SCL

TX1SDA

TX1SCL

IC3200

MN864788

45

47

48

50

P3RX0M46P3RX0P

P3RX1M49P3RX1P

AVDD11RX3_2

AVDD11RX3_3

C3236 0.1uF

C3237 0.1uF

2.2M

CH0AMCLK

VDD33IO

130

51

P3RX2M52P3RX2P

X-TAL_1

129

X3200 27MHz

GND_2

4

1

GND_13X-TAL_2

2

SCLK/LPSA1

MOSI/LPSA0

VSS_11

MISO

NCS

124

125

126

127

128

53

54

55

57

VSS_5

P2RXCM56P2RXCP

AVDD33RX2

AVDD11RX2_1

C3239 0.1uF

C3238 0.1uF

C3240

20pF

C3241

20pF

10K

R3243

R3244

VDD11_7

VSS_10

VDD11_8

121

122

123

58

60

P2RX0M59P2RX0P

AVDD11RX2_2

C3242 0.1uF

P_VDD33

P_XOUT

SYSCLK/XI

NC/XO

VSS_9

119

120

61

P2RX1M62P2RX1P

AVDD11RX2_3

C3243 0.1uF

P_XIN

VDD33_3

117

118

63

64

P2RX2M65P2RX2P

HDMI_SW_SDA

R3222 0

NRESET

HSDA0

115

116

66

VSS_6

MN864778_RESET

HDMI_SW_SCL

R3223 0

R3231 10K

VDD11_6

NTEST

HSCL0

113

114

67

68

NIRQ1

VDD11_4

VDD33_2

C3244 10uF10V

TX1ARCIN

TX0ARCIN

110

111

112

69

70

RX3P5V71RX2P5V72RX1P5V

C3245 10uF10V

CEC

109

108 107 106 105 104 103 102 101 100

5V_HDMI_2

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73

R3236 10

R3237

P_AVDDH33

RX0SCL RX0SDA RX1SCL RX1SDA VSS_8 P0RX2P P0RX2M AVDD11RX0_3 P0RX1P P0RX1M AVDD11RX0_2 P0RX0P P0RX0M AVDD11RX0_1 P0RXCP P0RXCM AVDD33RX0 VSS_7 P1RX2P P1RX2M AVDD11RX1_3 P1RX1P P1RX1M AVDD11RX1_2 P1RX0P P1RX0M AVDD11RX1_1 P1RXCP P1RXCM AVDD33RX1 VDD11_5 RX2SCL RX2SDA RX3SCL RX3SDA RX0P5V

5V_HDMI_1

R3234

10

R3235 47K

47K

P_AVDDH11

C3246 10uF10V

C3247 10uF10V

C3249 0.1uF

C3253 0.1uF

C3254 0.1uF

C3255 0.1uF

C3256 0.1uF

C3257 0.1uF

C3262 0.1uF

C3266 0.1uF

AR3209 47K 1/16W

AR3210 47K 1/16W

P_VDD33

DDC_SCL_HDMI1_MN864788

DDC_SDA_HDMI1_MN864788

DDC_SCL_HDMI2_MN864788

DDC_SDA_HDMI2_MN864788

D2+_HDMI1_MN864788

D2-_HDMI1_MN864788

D1+_HDMI1_MN864788

D1-_HDMI1_MN864788

D0+_HDMI1_MN864788

D0-_HDMI1_MN864788

CK+_HDMI1_MN864788

CK-_HDMI1_MN864788

D2+_HDMI2_MN864788

D2-_HDMI2_MN864788

D1+_HDMI2_MN864788

D1-_HDMI2_MN864788

D0+_HDMI2_MN864788

D0-_HDMI2_MN864788

CK+_HDMI2_MN864788

CK-_HDMI2_MN864788

HDMI1

HDMI2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

HDMI 32

2014.04.24

RS-232C 4PIN & MSTAR DEBUG 4PIN

LGE Internal Use Only

RS-232C 4PIN

PM_TXD

PM_RXD

MSTAR DEBUG 4PIN

12507WS-04L

P4001

+3.5V_ST

R4001 100

R4000 100

JP_GND2

1

2

3

4

5

RGB_DDC_SCL

RGB_DDC_SDA

JP_GND1

VCC

PM_RXD

GND

RM_TXD

JP_GND3

P4000

12507WS-04L

1

2

3

4

GND

JP_GND4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

RS232C_MSTAR_DEBUG_4P

2014.04.24 40

TP for EU

LGE Internal Use Only

SPDIF_OUT

AV2_CVBS_DET

HDMI_ARC DDC_SDA_2

DDC_SCL_2

HP_ROUT HP_LOUT

SIDE_HP_MUTE

HP_DET

CI_DET /CI_CD1 /CI_CD2

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

URSA_RESET

DEMOD_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

TP_EU 41

2014.04.24

IR/LED + Digital Eye + Control

LGE Internal Use Only

+3.5V_ST

R4604

R4603

R4601 100

KEY1

R4602 100

KEY2

+3.5V_ST

L4600

BLM18PG121SN1D

+3.5V_ST

R4600

3.3K

IR

C4600

0.1uF

C4601 1000pF

16V

50V

HDMI_SW_SCL

HDMI_SW_SDA

IR_SCL

IR_SDA

10K

1%

P4600

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

LED_R/BUZZ

C4602

0.1uF 16V

C4603

0.1uF 16V

R4608 100

R4609 100

R4606

1.8K

C4604 100pF

50V

OPT

R4605 100

EYE_SENSOR

R4607 100

EYE_SENSOR

VA4600

OPT

ZD4601

OPT

5V

EYE_SENSOR C4605 18pF 50V

EYE_SENSOR C4606 18pF 50V

OPT

P4601

12507WR-08L

1

2

3

4

5

6

7

8

9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

IR_EYE_SENSOR

2014.04.24 46

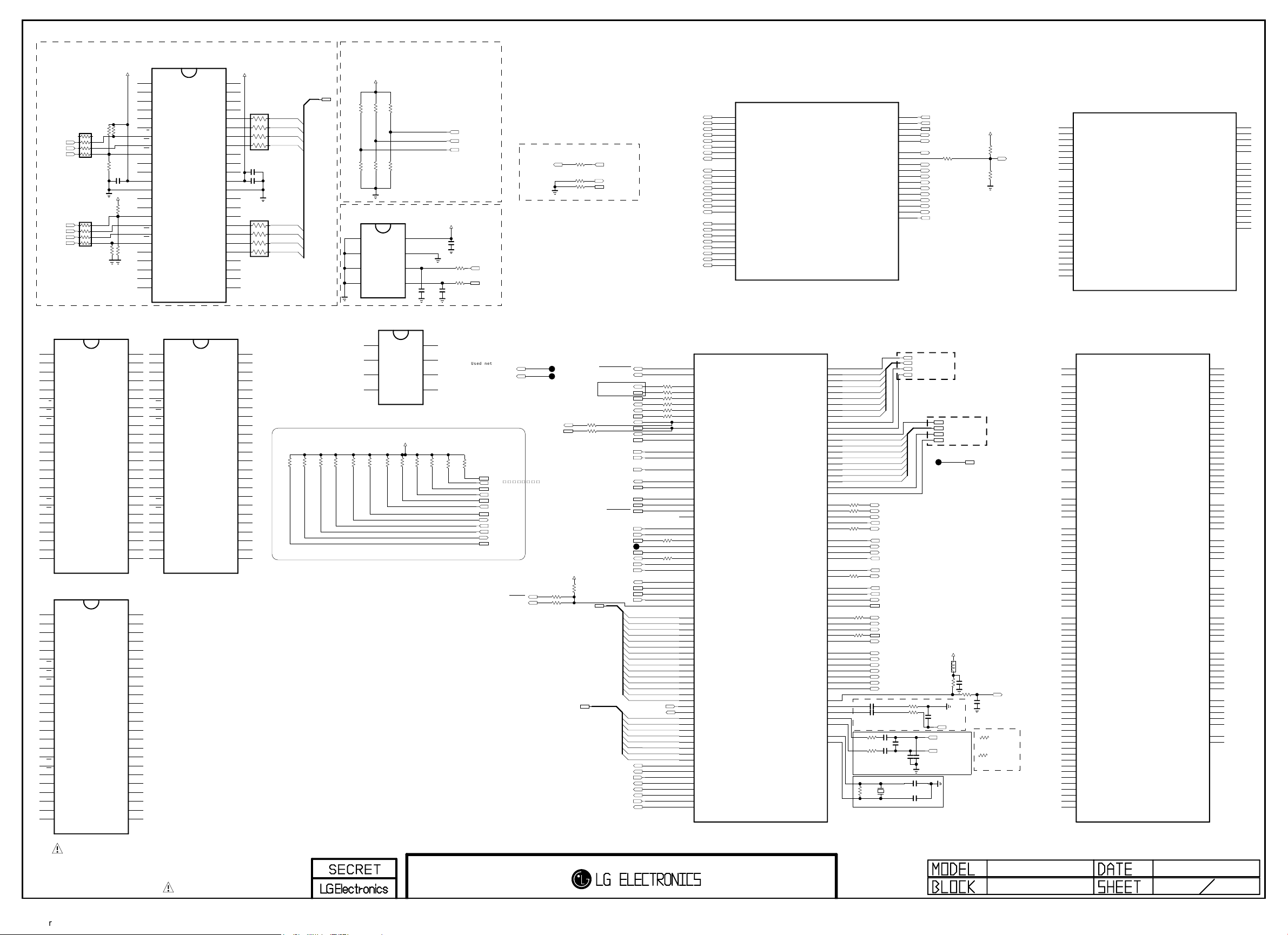

/F_RB

LGE Internal Use Only

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE /PF_WE /PF_WP

NAND_2G_HYNIX(MULTI)

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NAND_2G_TOSHIBA(MULTI)

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

+3.3V_NORMAL

AR103

R107

22

1K

R108 1K

OPT

+3.3V_NORMAL

AR104

22

R102

3.3K

EAN60708703

IC102-*1

H27U2G8F2DTR-BD

EAN60991001

IC102-*3

TC58NVG1S3ETA00

R109

3.9K

C101

0.1uF

R105 1K OPT

R106 1K

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

H27U1G8F2CTR-BC

1

NAND_1G_HYNIX(MULTI)

EAN35669103

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NAND_1G_TOSHIBA(MULTI)

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

IC102

EAN61508002

IC102-*2

TC58NVG0S3HTA00

NAND FLASH MEMORY

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

C103

VSS_2

0.1uF

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

+3.3V_NORMAL

22

AR101

C102 10uF

10V

AR102

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

R1011KR104

1K

PCM_A[0-7]

R110

1.8K

<CHIP Config> (SPI_SDI, PM_LED, PWM_PM)

LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI

+3.5V_ST

OPT

R165 2.7K

R117 4.7K

R115 4.7K

OPT

R121 2.7K

R116 4.7K

R118 4.7K

NVRAM_ATMEL(MULTI)

IC104

AT24C256C-SSHL-T

A0

1

A1

2

A2

A0’h

3

GND

4

EAN61133501

NVRAM_RHOM(MULTI)

IC104-*1

BR24G256FJ-3

A0

1

A1

2

A2

3

GND

4

8

7

6

5

+3.3V_NORMAL

VCC

WP

SCL

SDA

C104 8pF OPT

VCC

8

WP

7

SCL

6

SDA

5

EAN62389502

+3.3V_NORMAL

R119

1.8K

R120

1.8K

R125

1.8K

R140 1K

R141 1K

R144

2.2K

R145

2.2K

R146

3.3K

LED_R/BUZZ

PM_LED

SPI_SDI

EEPROM

C105

0.1uF

R111 22

R112

C106 8pF

OPT

I2C_SCL

22

I2C_SDA

Used net when HDMI Switch not used

5V_DET_HDMI_4 5V_DET_HDMI_2

I2C

R147

3.3K

URSA_SDA URSA_SCL

I2C_SDA I2C_SCL AMP_SDA AMP_SCL

R9531_SDA

R9531_SCL

HDMI_SW_SCL HDMI_SW_SDA IR_SCL IR_SDA



CI_DET

/PCM_CD

PWM_DIM

DEMOD_SCL DEMOD_SDA



+3.3V_NORMAL

R197 0 R178 22

R157 100

R156 10K R103 10K

R180

10K

PCM_A[0-14]

PCM_D[0-7]

DIMMING

OPT

T2_OR_CHINA

R113 22 R114 22

T2_OR_CHINA

PWM2

R9531_SCL

R9531_SDA

FRC_FLASH_WP

5V_DET_HDMI_4

I2C_SCL

I2C_SDA URSA_SDA URSA_SCL

HDMI_SW_SCL HDMI_SW_SDA

AMP_SCL AMP_SDA

TU_SCL TU_SDA

AV_CVBS_DET

AV2_CVBS_DET

COMP2_DET

DEMOD_RESET

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2

AMP_RESET

HP_DET

SC1/COMP1_DET

IR_SDA

MODEL_OPT_4

IR_SCL /CI_CD1 /CI_CD2

USB1_CTL MODEL_OPT_5 MODEL_OPT_6

USB1_OCD

/PCM_IORD /PCM_IOWR /PCM_IRQA

/PCM_OE

/PCM_REG

PCM_RST

/PCM_WAIT

/PCM_WE

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12] PCM_A[13] PCM_A[14]

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4] PCM_D[5]

PCM_D[6] PCM_D[7]

R184 22 R183

R126 0 R127 0 R128 0 R129 0

R130 0

R131 0

/PCM_CD /PCM_CE

RXA4+ RXA4RXA3+

RXA3RXACK+ RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+ RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

22

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

M1A_256M

IC101

LGE2134(256M)

TS1DATA[7]/GPIO100

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

M1A_256M

IC101

LGE2134(256M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

HWRESET

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

IF_AGC

SIFM SIFP

XIN

XOUT

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

V10

CI_TS_DATA[0]

T14

CI_TS_DATA[1]

T13

CI_TS_DATA[2]

U13

CI_TS_DATA[3]

V15

CI_TS_DATA[4]

U12

CI_TS_DATA[5]

V13

CI_TS_DATA[6]

U14

CI_TS_DATA[7]

T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3

R189 33

A3

R188 33 A4 C3 A2

R190 33

B1 C2 C1 B2

D2 D1

R192 100

SPDIF_OPTIC D8 E5 G4 G5

R132 0

J18 K18 K16

R133 0

L18 L17

T8 T9 U9 U11 V9 U10 T10

W2 W1 W3 V2 V1

AA2 Y2

TUNER_IF_0_ohm

PWM_PM/GPIO200

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

RGB_DDC_SCL RGB_DDC_SDA

R9531_SCL

TU_SIF

C115 0.1uF C116 0.1uF

TU_SIF

ANALOG SIF

Close to MSTAR

R194 0

IF

C117

0.1uF

R195 0

IF

C118

0.1uF NON_ATSC

Close to MSTAR

1M

R187

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

RP TN TP RN

IM IP

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

from CI SLOT

/SPI_CS SPI_SCK SIDE_HP_MUTE SPI_SDI SPI_SDO

EPHY_RP EPHY_TN EPHY_TP EPHY_RN

5V_DET_HDMI_2 SPDIF_OUT

SOC_RESET IR

PWM1 PWM2

R9531_SDA

PCM_5V_CTL

PF_ALE /PF_CE0 /PF_CE1

/F_RB

/PF_OE

/PF_WE

/PF_WP

R198 47 R199 47

OPT C121

100pF

C122 33pF

X101

C113 22pF

24MHz

C114 22pF

TU_SIF

KEY1 KEY2 PM_MODEL_OPT_0 PANEL_CTL SCART1_MUTE

URSA_RESET_SoC R122 22

PM_LED POWER_DET AMP_MUTE INV_CTL POWER_ON/OFF_1 RL_ON /FLASH_WP LED_R/BUZZ PM_TXD PM_RXD

CI_TS_CLK CI_TS_DATA[0-7] CI_TS_SYNC CI_TS_VAL

Internal demod out

FE_TS_CLK FE_TS_DATA[0-7]

FE_TS_SYNC FE_TS_VAL_ERR

FE_TS_DATA[0]

+3.3V_NORMAL

IF_AGC

L101 BLM18PG121SN1D

IF_AGC

R193

C119

10K

0.1uF IF_AGC R196 0

C123 1000pF TU_SIF

TU_SIF

IF_N_MSTAR

DTV_IF

IF_P_MSTAR C124 33pF NON_ATSC

+3.3V_NORMAL

R123

10K

OPT

R124 10K

FE_TS_DATA[0]

IF_AGC_MAIN

C120

0.047uF 25V IF_AGC

R194-*1

TUNER_IF_100_ohm

100 R195-*1

TUNER_IF_100_ohm 100

For KR/US models

TCON_I2C_EN

U19

LVA4P/TTL_B[0]/HCONV/GPIO170

T20

LVA4M/TTL_B[1]/E_O/GPIO171

T21

LVA3P/TTL_B[2]/FB/GPIO172

T19

LVA3M/TTL_B[3]/OPT_P/GPIO173

R21

LVACKP/TTL_B[4]/MCLK/GPIO174

R20

LVACKM/TTL_B[5]/GCLK/GPIO175

R19

LVA2P/TTL_B[6]/GST/GPIO176

P20

LVA2M/TTL_B[7]/POL/GPIO177

P19

LVA1P/TTL_G[0]/EPI0+/GPIO178

N20

LVA1M/TTL_G[1]/EPI0-/GPIO179

N21

LVA0P/TTL_G[2]/EPI1+/GPIO180

N19

LVA0M/TTL_G[3]/EPI1-/GPIO181

M21

LVB4P/TTL_G[4]/EPI2+/GPIO182

M20

LVB4M/TTL_G[5]/EPI2-/GPIO183

M19

LVB3P/TTL_G[6]/EPI3+/GPIO184

L20

LVB3M/TTL_G[7]/EPI3-/GPIO185

L19

LVBCKP/TTL_R[0]/EPI4+/GPIO186

K20

LVBCKM/TTL_R[1]/EPI4-/GPIO187

K21

LVB2P/TTL_R[2]/EPI5+/GPIO188

K19

LVB2M/TTL_R[3]/EPI5-/GPIO189

J21

LVB1P/TTL_R[4]/EPI6+/GPIO190

J20

LVB1M/TTL_R[5]/EPI6-/GPIO191

J19

LVB0P/TTL_R[6]/EPI7+/GPIO192

H20

LVB0M/TTL_R[7]/EPI7-/GPIO193

LGE2133(128M)

Y1

GPIO78

W4

GPIO79

K17

I2C_SCKM3/I2C_DDCR_CK/GPIO77

J15

I2C_SDAM3/I2C_DDCR_DA/GPIO76

U8

SDAM2/GPIO55

T7

SCKM2/GPIO56

U7

SCKM0/GPIO58

V7

SDAM0/GPIO59

F6

I2S_IN_BCK/GPIO159

G6

I2S_IN_SD/GPIO160

AA4

I2C_SCKM1/GPIO80

Y4

I2C_SDAM1/GPIO81

J6

ET_TXD[0]/GPIO62

K6

EXT_TX_CLK/GPIO64

G7

I2S_IN_WS/GPIO158

J4

ET_COL/GPIO60

J5

ET_TXD[1]/GPIO61

H19

LCK/GPIO194

G20

LDE/GPIO195

G19

LHSYNC/GPIO196

G21

LVSYNC/GPIO197

J17

UART2_RX/GPIO69

J16

UART2_TX/GPIO70

E8

UART3_TX/GPIO52

D7

UART3_RX/GPIO53

U6

GPIO46[CTS]

V6

GPIO47[RTS]

K15

UART1_TX/GPIO48

L16

UART1_RX/GPIO49

H5

ET_TX_EN/GPIO63

K5

ET_RXD[0]/GPIO65

K4

ET_MDC/GPIO66

H6

ET_MDIO/GPIO67

L5

ET_RXD[1]/GPIO68

U17

PCMADR[0]/NF_AD[0]/GPIO130

R18

PCMADR[1]/NF_AD[1]/GPIO129

V17

PCMADR[2]/NF_AD[2]/GPIO127

R16

PCMADR[3]/NF_AD[3]/GPIO126

U16

PCMADR[4]/NF_AD[4]/GPIO104

T17

PCMADR[5]/NF_AD[5]/GPIO106

W18

PCMADR[6]/NF_AD[6]/GPIO107

U20

PCMADR[7]/NF_AD[7]/GPIO108

Y19

PCMADR[8]/GPIO113

AA19

PCMADR[9]/GPIO115

AA20

PCMADR[10]/GPIO119

W21

PCMADR[11]/GPIO117

V20

PCMADR[12]/GPIO109

Y17

PCMADR[13]/GPIO112

V18

PCMADR[14]/GPIO111

V19

PCMCD_N/GPIO135

W19

PCMCE_N/GPIO120

U18

PCMDATA[0]/GPIO131

V16

PCMDATA[1]/GPIO132

W17

PCMDATA[2]/GPIO133

Y20

PCMDATA[3]/GPIO125

R15

PCMDATA[4]/GPIO124

AA18

PCMDATA[5]/GPIO123

T15

PCMDATA[6]/GPIO122

Y21

PCMDATA[7]/GPIO121

W20

PCMIORD_N/GPIO116

V21

PCMIOWR_N/GPIO114

Y18

PCMIRQA_N/GPIO110

T16

PCMOE_N/GPIO118

R17

PCMREG_N/GPIO128

T18

PCM_RESET/GPIO134

W16

PCMWAIT_N/GPIO105

U15

PCMWE_N/GPIO198

M1A_128M

IC101-*1

LGE2133(128M)

PM_SPI_SCZ2/GPIO_PM[10]/GPIO17

PM_UART_TX/GPIO_PM[1]/GPIO8

PM_UART_RX/GPIO_PM[5]/GPIO12

M1A_128M

IC101-*1

TS0CLK/GPIO92 TS0DATA[0]/GPIO82 TS0DATA[1]/GPIO83 TS0DATA[2]/GPIO84 TS0DATA[3]/GPIO85 TS0DATA[4]/GPIO86 TS0DATA[5]/GPIO87 TS0DATA[6]/GPIO88 TS0DATA[7]/GPIO89

TS0SYNC/GPIO91

TS0VALID/GPIO90

TS1CLK/GPIO103 TS1DATA[0]/GPIO93 TS1DATA[1]/GPIO94 TS1DATA[2]/GPIO95 TS1DATA[3]/GPIO96 TS1DATA[4]/GPIO97 TS1DATA[5]/GPIO98 TS1DATA[6]/GPIO99

TS1DATA[7]/GPIO100

TS1SYNC/GPIO102

TS1VALID/GPIO101

PM_SPI_SCZ1/GPIO_PM[6]/GPIO13

PM_SPI_SCK/GPIO1

PM_SPI_SCZ0/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

SPDIF_IN/GPIO161

SPDIF_OUT/GPIO162

IRIN/GPIO5 DDCA_CK/UART0_RX DDCA_DA/UART0_TX

PWM0/GPIO71 PWM1/GPIO72 PWM2/GPIO73 PWM3/GPIO74 PWM4/GPIO75

NF_ALE/GPIO146 NF_CEZ/GPIO142 NF_CLE/GPIO141 NF_RBZ/GPIO147 NF_REZ/GPIO144 NF_WEZ/GPIO145 NF_WPZ/GPIO199

SAR0/GPIO35 SAR1/GPIO36 SAR2/GPIO37 SAR3/GPIO38 SAR4/GPIO39

GPIO_PM[13]/GPIO20 GPIO_PM[14]/GPIO21

PM_LED/GPIO4

GPIO_PM[0]/GPIO7

GPIO_PM[15]/GPIO22

GPIO_PM[4]/GPIO11 GPIO_PM[7]/GPIO14 GPIO_PM[8]/GPIO15

PWM_PM/GPIO200

V10 T14 T13 U13 V15 U12 V13 U14 T11 T12 V12 Y14 Y16 AA15 Y13 AA16 W12 AA13 W14 W13 Y15 W15

B3 A3 A4 C3 A2

B1

RP

C2

TN

C1

TP

B2

RN

D2 D1

D8

HWRESET

E5 G4 G5

J18 K18 K16 L18 L17

T8 T9 U9 U11 V9 U10 T10

W2

IF_AGC

W1

SIFM

W3

SIFP

V2

IM

V1

IP

AA2

XIN

Y2

XOUT

D5 F8 E7 E6 D6

W10 Y10 P3 Y3 Y5 W11 D3 AA3 W5 D4 L15 Y11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

MAIN1_EU 51

2014.04.24

MODEL OPTION

LGE Internal Use Only

R201

OPT

100

R202

OPT

100

R203

OPT

100

OPT

R204 100

OPT

R225 100

OPT

R228 100

OPT

R230 100

OPT

R229 100

MODEL OPTION

PIN NAME

PM_model_opt_0 MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

(AUD_LRCH) MODEL_OPT_4

MODEL_OPT_5 MODEL_OPT_6

MODEL_OPT_7 (AUD_LRCK)

Memory OPTION

Memory Auto

INT+EXT

256M Only

128M+128M 1

128M+256M

256M+256M

+3.3V_NORMAL

1K

URSA11

DDR_EXT:256

DDR_EXT:128

MO_S/W_EU/AJ

R222 1K

R291 1K

R290

1K

URSA9

R294 1K

R293

DDR_EXT:128 or NON

PIN NO.

E7

J5

H19

G20

G19

U6 K5 MO_S/W_EU/AJ

K4

L5

MODEL_OPT_4

Det

0 0128M Only

1

0

1

R206 1K

R208 1K

R221 1K

MO_M120(UHD120)

MO_S/W_TW/CN

DDR_EXT:256 or NON

R224 1K

R207 1K

R223 1K

R209 1K

MO_M120_NON(UHD60)

LOW UHD MO_FHD MO_S/W_NON_AJ MO_DVB_T/C

MO_M120_NON(UDH60)

DDR_EXT:256 or NON

MO_S/W_TW/CN

DDR_EXT:128 or NON

URSA9

MODEL_OPT_6

0

MO_DVB_T2/C/S2

MO_DVB_T/C

0

1

10

OPT

MO_S/W_AJ

R211 1K

R226 1K

MO_S/W_NON_AJ

R212 1K

R227 1K

Non_UHD

MO_HD MO_S/W_AJ

MO_DVB_T2/C/S2

MO_M120(UHD120)

DDR_EXT : 128

DDR_EXT : 256 URSA11

HIGH

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2

AUD_LRCH MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 AUD_LRCK

SOC_RESET

POWER_DET_RESET

OPT

R266 470

OPT

C202

4.7uF 10V

+3.5V_ST

R177 10K OPT

PM_MODEL_OPT_0 R176 10K

Country Option

R295 0

OPT

R296 0

C2142.2uF C2032.2uF

C2162.2uF

C2172.2uF C2062.2uF

C2192.2uF

C220

4.7uF

MODEL_OPT_5

0

1

0

1

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

EU

R2

AUL2

AV2

T1

AUL3

R3

AUR1

EU

R1

AUR2

AV2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

AUVRM

M1A_256M

IC101

LGE2134(256M)

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

CVBSOUT1

CVBS0 CVBS1 CVBS2

VCOM

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

TU_CVBS

C2360.047uF C2370.047uF

SCART/AV2 C2380.047uF C2390.047uF

C221 0.047uF C222 0.047uF C223 0.047uF C224 0.047uF C225 0.047uF C226 0.047uF

C227 0.047uF C229 0.047uF C230 0.047uF C231 0.047uF C232 0.047uFC211 C233 0.047uF C234 1000pF

OPT

R24433

R232 68

EU

R233 33

EU

R234 68

EU

R235 33

EU

R236 68

EU

R237 33

EU

R238 68 R239 33 R240 68 R241 33 R242 68 R243 33

R24533

EU EU EU EU EU EU

TU_CVBS

R24633 R24768

SCART/AV2

C242 1000pF 50V

Close to MSTAR

OPT

MODEL_OPT_1

CEC_REMOTE_S7

MN864778_RESET

URSA_RESET_READY

L_DIM_EN

HDMI_RX0HDMI_RX0+ HDMI_RX1HDMI_RX1+ HDMI_RX2HDMI_RX2+ HDMI_CLKHDMI_CLK+

H/P OUT

HP_LOUT HP_ROUT

SC1/COMP1_L_IN

AV2_L_IN

SC1/COMP1_R_IN

AV2_R_IN

AUDIO OUT

L214

BLM18PG121SN1D

0

1

C212 1uF

3D_EN

C213 1uF

HDMI1_ARC

TW

EU

CN

AJ

HDMI_ARC

Used net when HDMI Switch used

MN864778_RESET HDMI1_HPD_MN864788 HDMI2_HPD_MN864788

HDMI2_HPD_MN864788

COMP2_L_IN

COMP2_R_IN

1000pF

ATV_1000P

C215

1000pF

ATV_1000P

50V

HDMI1_HPD_MN864788

SCART1_Lout SCART1_Rout

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.5V_ST

C200

4.7uF 10V

R200 470K

PM MODEL OPTION

PM_MODEL_OPT_0

- HIGH : Non_UHD

- LOW :: UHD PM_MODEL_OPT_1

- Not Use (Ready)

DTV/MNT_VOUT

TU_CVBS SC1/AV2_CVBS_IN

COMP2_Y+/AV_CVBS_IN

WIFI_DM SIDE_USB1_DM WIFI_DP SIDE_USB1_DP

SC1_B+/COMP1_Pb+

SC1_G+/COMP1_Y+

SC1_R+/COMP1_Pr+ SC1_ID SC1_FB

COMP2_Pb+

COMP2_Y+/AV_CVBS_IN

COMP2_Pr+

SOC_RESET

C201

0.1uF

+3.3V_NORMAL

R210

R213

10K

OPT

R218

R216

10K

OPT

Used net when WIFI used

WIFI_DM WIFI_DP

Used net when TI Amp used

+3.5V_ST

L206 BLM18PG121SN1D

L207 BLM18PG121SN1D

L208 BLM18PG121SN1D

I2S_I/F

AUD_SCK AUD_MASTER_CLK AUD_LRCH AUD_LRCK

C208 15pF 50V OPT

AUD_MASTER_CLK

STby 3.5V

C286

C289

0.1uF

10uF

C288 10uF

C240

C287

0.1uF

10uF

Normal Power 3.3V DDR3 1.5V

AVDD_NODIE

C252

0.1uF

AVDD_DMPLL

C205

0.1uF

AVDD_AU33

C241

0.1uF

M4

ARC0

W7

RXC0N

Y8

RXC0P

W8

RXC1N

Y9

RXC1P

AA9

RXC2N

W9

RXC2P

AA7

RXCCKN

Y7

RXCCKP

N2

CEC/GPIO6

E3

DDCDA_CK/GPIO27

E2

DDCDA_DA/GPIO28

W6

DDCDC_CK/GPIO31

AA6

DDCDC_DA/GPIO32

L4

HOTPLUGA/GPIO23

Y6

HOTPLUGC/GPIO25

F1

RXA0N

G3

RXA0P

G1

RXA1N

G2

RXA1P

H3

RXA2N

H2

RXA2P

F3

RXACKN

F2

RXACKP

U4

EAR_OUTL

T4

EAR_OUTR

P2

AUL1

R2

AUL2

T1

AUL3

R3

AUR1

R1

AUR2

T3

AUR3

U2

AUOUTL0

V3

AUOUTR0

T2

AUVAG

+3.3V_NORMAL

0.1uF

C255

M1A_128M

IC101-*1

LGE2133(128M)

I2S_OUT_BCK/GPIO165 I2S_OUT_MCK/GPIO163

I2S_OUT_SD/GPIO166 I2S_OUT_WS/GPIO164

L204

BLM18PG121SN1D

C259 0.1uF

CVBSOUT1

CVBS0 CVBS1 CVBS2

USB0_DM USB1_DM USB0_DP USB1_DP

BIN0M BIN0P GIN0M GIN0P RIN0M

RIN0P HSYNC0 VSYNC0

BIN1M

BIN1P

GIN1M

GIN1P

RIN1M

RIN1P SOGIN1

VCOM

VDD33

C284

10uF 10V

T6 V5 U5 T5 V4

E4 F4 F7 F5

C4 Y12 B4 AA12

J2 J3 K3 J1 K2 K1 M6 L6

L2 L3 M1 M2 N1 N3 M3

C204

10uF 10V

C209 0.1uF

C235 0.1uF

C245 0.1uF

+1.5V_DDR

AVDD_DDR0:55mA

C266 0.1uF

10uF

10V

C207 0.1uF

C248 0.1uF

C254 1uF

C278

AVDD_DDR1:55mA

AVDD_AU33

+1.5V_DDR

AVDD_NODIE

VDD33

AVDD_NODIE

VDD33

AVDD_DMPLL

+1.10V_VDDC

VDD33

VDDC 1.05V

+1.10V_VDDC

C275

C228

10uF 10V

C2601uF

C277 1uF

LGE2134(256M)

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

VDDC : 2026mA

+1.10V_VDDC

C280 1uF

C283 0.1uF

M1A_256M

IC101

GND_EFUSE

M1A_URSA9_UD

MAIN2_NON_EU

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

+1.10V_VDDC

C296 10uF 10V

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

+1.10V_VDDC

C210

0.1uF

C279

0.1uF

AUVRM

R4

AVDD_AU33

L11

AVDD_DDR0_CLK

L13

AVDD_DDR1_CLK

M11

AVDD_DDR0_CMD

K13

AVDD_DDR1_CMD

C5

AVDD_DDR0_D_1

K12

AVDD_DDR0_D_2

L12

AVDD_DDR0_D_3

C6

AVDD_DDR1_D_1

K14

AVDD_DDR1_D_2

L14

AVDD_DDR1_D_3

B5

AVDD_DRAM_1

B6

AVDD_DRAM_2

R8

AVDD_DVI_USB_MPLL_1

R9

AVDD_DVI_USB_MPLL_2

L7

AVDD_MOD_1

L8

AVDD_MOD_2

P8

AVDD_NODIE

K9

AVDD_PLL

R5

AVDD3P3_DMPLL

P11

AVDDL_MOD

C7

DVDD_DDR_1

M13

DVDD_DDR_2

R6

DVDD_NODIE

A7

DVDD_RX_1_1

M12

DVDD_RX_1_2

B7

DVDD_RX_2_1

M14

DVDD_RX_2_2

N11

VDDC_1

N12

VDDC_2

N13

VDDC_3

N14

VDDC_4

N15

VDDC_5

P12

VDDC_6

P13

VDDC_7

P14

VDDC_8

L9

VDDP

AA10

AVDD5V_MHL

M1A_128M

IC101-*1

LGE2133(128M)

2014.04.24

GND_EFUSE

52

AUVRM GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8

GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31 GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84

U3 A6 A13 A15 A18 B12 B14 B16 B17 B19 B20 C9 C10 C21 D9 E20 F9 F11 F13 F15 F17 F19 F21 G8 G9 G10 G11 G12 G13 G14 G15 G16 G17 G18 H7 H8 H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 J7 J8 J9 J10 J11 J12 J13 J14 K8 K10 K11 L10 M5 M7 M8 M9 M10 N4 N5 N6 N7 N8 N9 N10 P4 P5 P6 P7 P9 P10 P15 P16 P17 P18 R10 R11 R12 R13 R14 K7

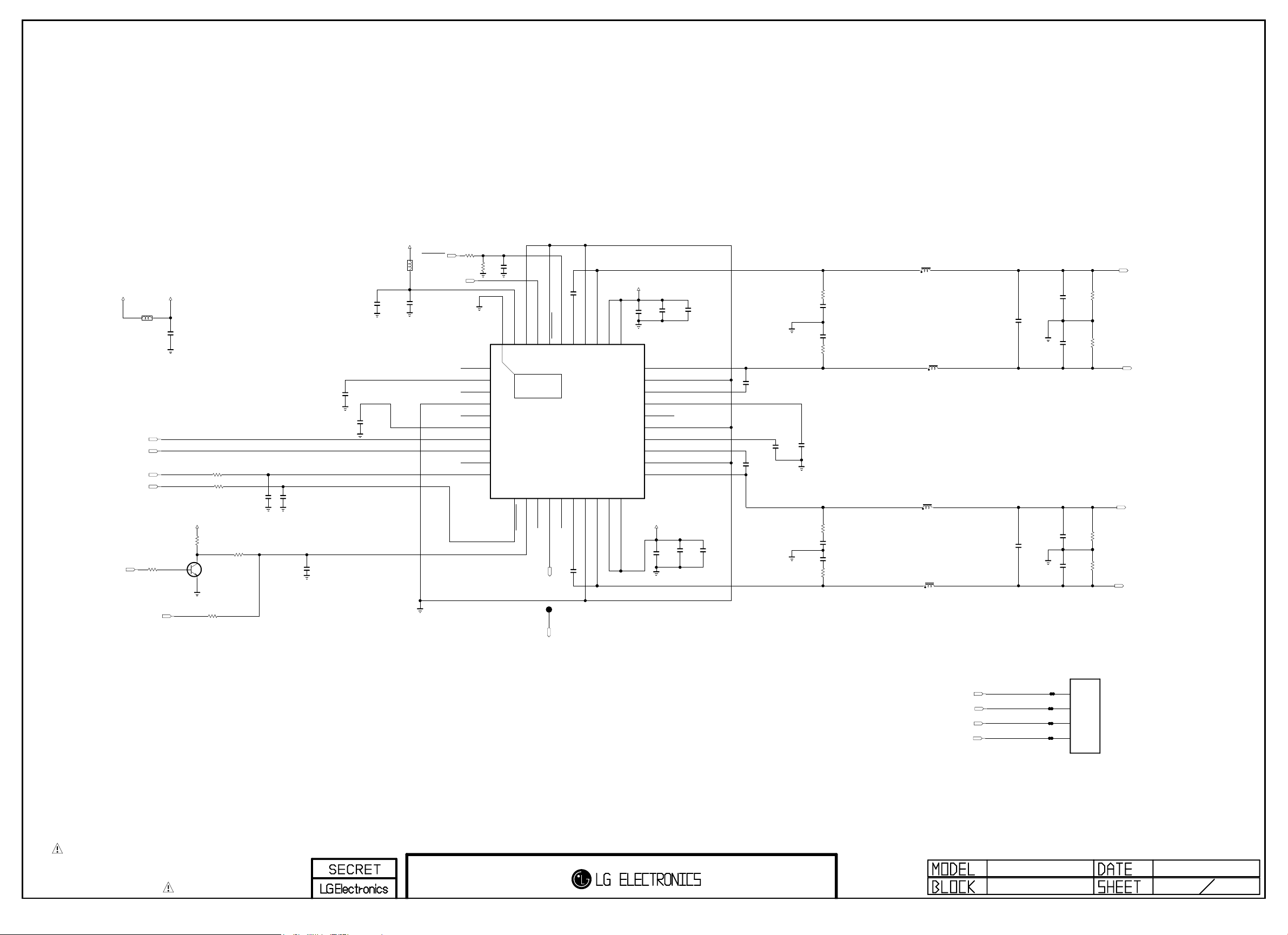

Main AMP

LGE Internal Use Only

AMP_MUTE

+24V

AUD_LRCH

AUD_LRCK

L5600

UBW2012-121F

AMP_SDA

AMP_SCL

R5600

10K

OPT

POWER_DET

+24V_AMP

C5601

0.1uF 50V

+3.3V_NORMAL

B

R5604 100

R5605 100

R5601

10K

C

Q5600

MMBT3904(NXP)

OPT

E

OPT R5602

0

R5603

+3.3V_NORMAL

AMP_RESET

L5601

BLM18PG121SN1D

C5604

10uF 10V

C5605

1uF

10V

C5607 33pF 50V

100

C5608 33pF 50V

C5602

1000pF

50V

C5606 1uF 10V

C5603

0.1uF 16V

R5606 100

1/16W

AUD_SCK

NC_1

VDD_PLL

NC_2

NC_3 DVDD

SDATA

NC_4

GND

WCK

SDA

R5615

4.7K

[EP]GND

1 2 3 4 5 6 7 8 9 10

C5629 1000pF 50V

GND_IO

VDD_IO

40

THERMAL

11

SCL

FAULT

RESET

AD

CLK_I

36

37

38

39

41

IC5600

NTP7515

EAN62886102

0x54

DEV_NTP7515

12

13

14

15

MONITOR_0

MONITOR_1

MONITOR_2

C5612

22000pF

50V

I2S_AMP

50V

C5609

22000pF

PGND1A

BST1A

35

16

BST2B

PGND2B

OUT1A

34

17

OUT2B

PVDD1B

PVDD1A

31

32

33

18

19

PVDD2B20PVDD2A

+24V_AMP

30 29 28 27 26 25 24 23 22 21

C5610 10uF 35V

OUT1B PGND1B BST1B VDR1 NC_5 AGND VDR2 BST2A PGND2A OUT2A

+24V_AMP

C5613 10uF 35V

C5611

0.1uF 50V

C5614

0.1uF 50V

C5630

4.7uF 50V

3216

C5631

4.7uF 50V

3216

C5617 22000pF 50V

C5620 22000pF 50V

C56 18 1uF 10V

C5619 1uF 10V

R5607

5.6 1/10W

C5615 390pF

50V

C5616 390pF

50V

R5608

5.6 1/10W

R5611

5.6

1/10W

C5624 390pF 50V

C5625 390pF 50V

R5612

5.6

1/10W

L5602

10uH

SP-7850_10

L5603

10uH

SP-7850_10

L5604

10uH

SP-7850_10

L5605

10uH

SP-7850_10

C5621

0.47uF 50V

C5626

0.47uF

50V

C5622

0.1uF 50V

C5623

0.1uF 50V

C5627

0.1uF 50V

C5628

0.1uF

50V

R5609

4.7K

R5610

4.7K

R5613

4.7K

R5614

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

I2S_AMP

SPK_L+

SPK_L-

SPK_R+

SPK_R-

M1A_URSA9_UD

AUDIO[NTP]

WAFER-ANGLE

4

3

2

1

P5600

2014.04.24

56

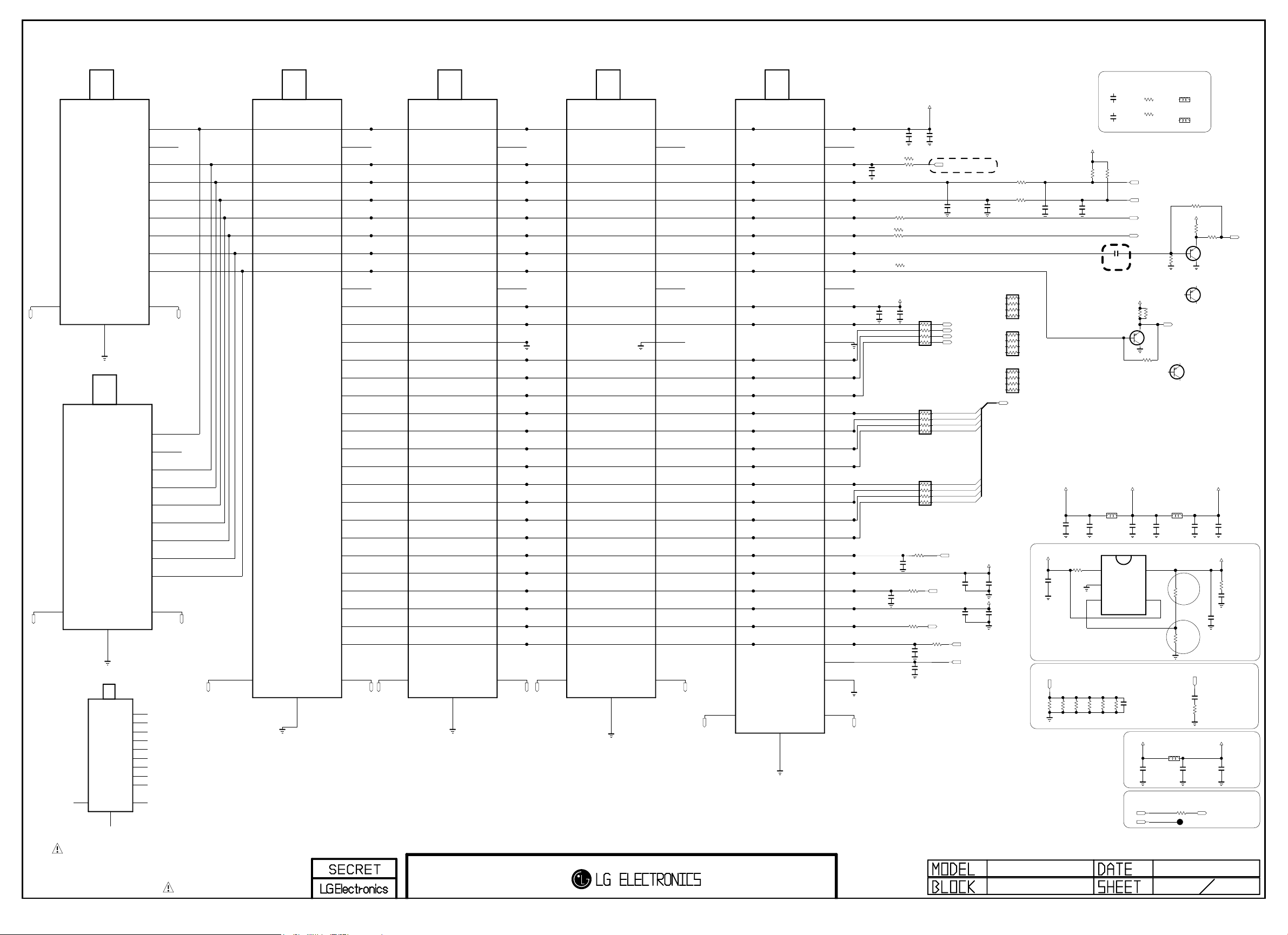

L14 TUNER_EU T/C_T2/C/S2_CHINA

LGE Internal Use Only

TUNER_CSA_H/NIM

A1

TU_GND_A

A1

TU_GND_A

47

SHIELD

TUNER_T/C

47

SHIELD

TUNER_NTSC

A1

47

SHIELD

TU3705 TDJK-T301F

+3.3V

1

NC

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

TU_GND_B

TU3700

TDJH-G301D

+3.3V

1

NC_1

2

IF_AGC

3

SCL_RF

4

SDA_RF

5

IF[P]

6

IF[N]

7

SIF

8

CVBS

9

B1

TU_GND_B

TU3700-*1 TDJH-H301F

+3.3V

1

NC_1

2

DIF_AGC

3

SCL_RF

4

SDA_RF

5

DIF[P]

6

DIF[N]

7

SIF

8

CVBS

9

B1

TU_GND_A

TUNER_CSA_T2

A1

TU3704 TDJM-K301F

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

B1

47

SHIELD

+3.3V

NC_1

NC_2

SCL_RF

SDA_RF

NC_3

NC_4

SIF

CVBS

NC_5

+3.3V_RF

ERROR

GND_1

MCLK

SYNC

VAILD

D0

D1

D2

D3

D4

D5

D6

D7

RESET_DEMOD

+3.3V_DEMOD

SCL_DEMOD

+1.2V_DEMOD

NC_6

SDA_DEMOD

B1

TU_GND_A

TU_GND_B

A1

TUNER_AJ/JA_T2

A1

47

SHIELD

TU3706 TDJM-G305D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

TU_GND_B

TU_GND_A

A1

B1

TUNER_CHINA

A1

47

TU3703 TDJM-C401D

+3.3V

1

NC_1

2

NC_2

3

SCL_RF

4

SDA_RF

5

NC_3

6

NC_4

7

SIF

8

CVBS

9

NC_5

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VAILD

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_6

29

SDA_DEMOD

30

B1

SHIELD

TU_GND_B

A1

TU_GND_A

TUNER_T2/C/S2

A1

47

SHIELD

TU3701 TDJM-G301D

+3.3V

1

NC_1

2

AIF_AGC

3

SCL_RF

4

SDA_RF

5

AIF[P]

6

AIF[N]

7

SIF

8

CVBS

9

NC_2

10

+3.3V_RF

11

ERROR

12

GND_1

13

MCLK

14

SYNC

15

VALID

16

D0

17

D1

18

D2

19

D3

20

D4

21

D5

22

D6

23

D7

24

RESET_DEMOD

25

+3.3V_DEMOD

26

SCL_DEMOD

27

+1.2V_DEMOD

28

NC_3

29

SDA_DEMOD

30

LNB

31

GND

32

B1

TU_NON_ATSC_NON_CHINA

T2_OR_CHINA

TU_GND_B

C3703

0.1uF 16V IF_AGC

C3718 100pF 50V

T2_OR_CHINA

C3716

0.1uF 16V

+3.3V_LNA

C3708 100pF 50V

IF_AGC_CSA R3714-*1 100

R3714 0

IF_AGC_NON_CSA

R3709

10

TU_ATSC

R3709-*1

0

R3710

10

TU_ATSC

R3710-*1

0

+3.3V_TU

T2_OR_CHINA

C3722

0.1uF 16V

T2_OR_CHINA

R3719

10

T2_OR_CHINA

R3711 C3702 20pF 50V

T2_OR_CHINA

T2

R3707

0

T2_OR_CHINA

C3714

0.1uF

16V

should be guarded by ground

IF_AGC_MAIN

C3705 20pF TU_NON_ATSC

AR3700 0 1/16W

AR3701 0 1/16W

AR3702 0 1/16W

22

C3704 20pF 50V

C3709

0.1uF 50V

T2_OR_CHINA

T2

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3]

T2

FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

T2

DEMOD_SCL

LNB_TX

T2_OR_CHINA R3712

22

FE_TS_ERR FE_TS_CLK FE_TS_SYNC FE_TS_VAL

DEMOD_RESET

+3.3V_DEMOD

T2_OR_CHINA

C3721 100pF 50V

+1.2V_DEMOD

C3713 100pF 50V

T2_OR_CHINA

DEMOD_SDA

LNB_OUT

TU_I2C_NON_FILTER

R3738

TU_I2C_NON_FILTER

R3739 C3707 20pF

TU_NON_ATSC

CHINA

AR3700-*1 47

CHINA

AR3701-*1 47

CHINA

AR3702-*1 47

T2_OR_CHINA

C3723

0.1uF 16V

C3729

0.1uF 16V

T2_OR_CHINA

33

FE_TS_DATA[0-7]

+3.3V_TU

TU_NON_ATSC

C3710 20pF

TU_NON_ATSC

+3.3V_LNA

T2_OR_CHINA

C3725 1uF 10V

T2_OR_CHINA

TU_GND_A

0

R3708

R3713

TU_KR/US/EU/AJ

TU_I2C Multi option

+3.3V_TU

R3716

1K

C3711 20pF TU_NON_ATSC

close to TUNER

UBW2012-121F

C3706

C3739

0.1uF

22uF

16V

10V

R3723

3.3K

EN

GND

ADJ/NC

Vo=0.8*(1+R1/R2)

0

R3720

R3718

R3715

TU_KR/US/EU/AJ

TU_ATSC

TU_SIF

L3701

AP7361-Y-13

1

2

3

TU_ATSC

R3716-*1

C3705-*1

1.8K

18pF

TU_ATSC

R3717-*1

1.8K

C3707-*1 18pF

TU_NON_ATSC

R3717

1K

TU_SCL

TU_SDA

IF_P_MSTAR

IF_N_MSTAR

C3726

0.1uF 16V

TU_CVBS

+3.3V_TU

IC3701

T2_OR_CHINA

0

R3721

TU_KR/US/EU/AJ

R3724

4.7K

TU_SIF

+3.3V_TU

TU_CVBS

R3732

R3735

220

E

Q3701

2N3906S-RTK

B

TU_CVBS_TR_KEC(MULTI)

C

OPT

R3731 0

B

UBW2012-121F

C3730

C3731

22uF

0.1uF

10V

16V

OUT

5

IN

4

GND seperation for CHINA tuner

C3712 1000pF 630V

CHINA

+3.3V_TU

T2_OR_CHINA

BLM18PG121SN1D

T2_OR_CHINA

C3724

0.1uF 16V

ERROR & VALID PIN

FE_TS_VAL

FE_TS_ERR

TU_I2C_FILTER

R3738-*1

MLG1005SR27JT

TU_I2C_FILTER

R3739-*1

MLG1005SR27JT

OPT

R3726 0

+3.3V_TU

TU_SIF

R3725

470

B

TU_CVBS

E

TU_CVBS_TR_NXP(MULTI) Q3701-*1

MMBT3906(NXP)

C

L3704

T2_OR_CHINA R3733 12K 1%

R1

T2_OR_CHINA

C3732

T2_OR_CHINA R3734 22K 1%

R2

TU_GND_B

R3740

0

+3.3V_DEMOD

L3702

T2_OR_CHINA

C3734 10uF 10V

T2_OR_CHINA

R3736

0

TU_SIF

R3728 82

E

Q3700 2N3906S-RTK

TU_SIF_TR_KEC(MULTI)

C

E

Q3700-*1 MMBT3906(NXP)

TU_SIF_TR_NXP(MULTI)

C

+3.3V_NORMAL

C3738

C3733

0.1uF

22uF

16V

10V

+1.2V_DEMOD

T2_OR_CHINA R3737 1

T2_OR_CHINA

C3737

10uF

10V

0.1uF 16V

TU_GND_B

C3701 1000pF 630V

T2_OR_CHINA

C3727

0.1uF 16V

FE_TS_VAL_ERR

GPIO must be added.

TU_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

TUNER_EU 67

2014.04.24

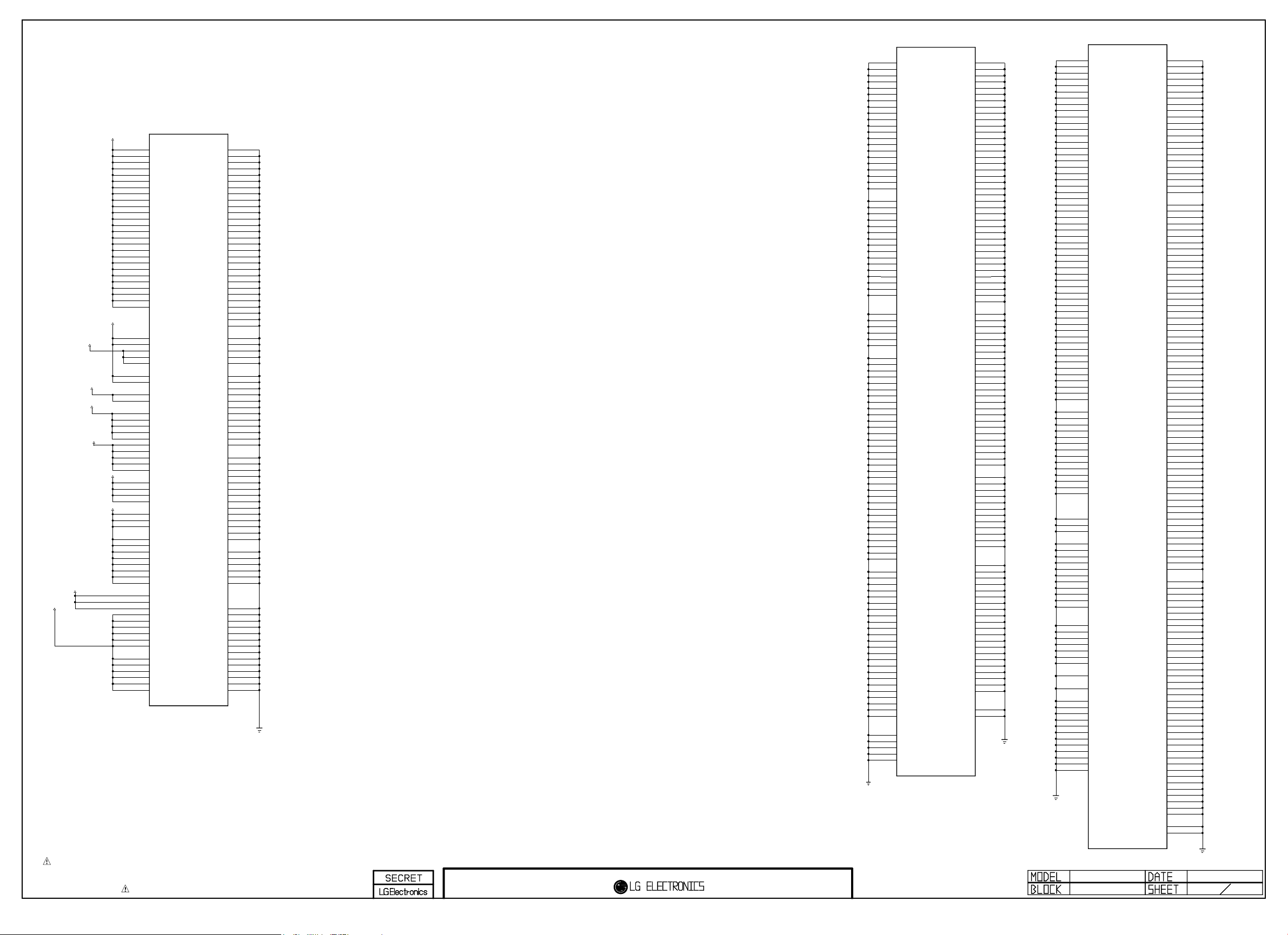

+3.3V_U_NORMAL

LGE Internal Use Only

BLM18PG121SN1D

L2100

C2106 10uF 10V

VDDP

C2111 10uF 10V

C2120 10uF 10V

C2128 1uF 10V

C2134

0.1uF 16V

C2139

0.1uF 16V

C2143

0.1uF 16V

C2145

0.1uF 16V

4st Layer

C13314

0.1uF 16V

C13315 10uF 10V

RXB0RXB0+ RXB1RXB1+ RXB2RXB2+

RXBCK-

RXBCK+

RXB3RXB3+ RXB4RXB4+

RXA0-

RXA0+

RXA1RXA1+ RXA2-

RXA2+ RXACKRXACK+

RXA3RXA3+ RXA4RXA4+

RXB2-

RXB2+

RXB4-

RXB4+

RXA2-

RXA2+

RXA4-

RXA4+

AK10 AL10 AM10 AK11 AM11 AL11

AK12 AL12 AK13 AL13 AM13 AK14 AM14 AL14 AK15 AL15 AK16 AL16

AG2

RB0N

AG1

RB0P

AH3

RB1N

AH1

RB1P

AH2

RB2N

AJ3

RB2P

AJ2

RBCKN

AK2

RBCKP

AK1

RB3N

AL1

RB3P

AM2

RB4N

AL2

RB4P

AK3

RC0N

AL3

RC0P

AK4

RC1N

AL4

RC1P

AM4

RC2N

AK5

RC2P

AM5

RCCKN

AL5

RCCKP

AK6

RC3N

AL6

RC3P

AK7

RC4N

AL7

RC4P

AM7

RD0N

AK8

RD0P

AM8

RD1N

AL8

RD1P

AK9

RD2N

AL9

RD2P RDCKN RDCKP RD3N RD3P RD4N RD4P

RE0N RE0P RE1N RE1P RE2N RE2P RECKN RECKP RE3N RE3P RE4N RE4P

IC2500

LGE7411(URSA9)

VX1_0VX1_0+ VX1_1VX1_1+ VX1_2VX1_2+ VX1_3VX1_3+ VX1_4VX1_4+ VX1_5VX1_5+ VX1_6VX1_6+ VX1_7VX1_7+ VX1_8VX1_8+ VX1_9-

VX1_9+ VX1_10VX1_10+ VX1_11VX1_11+ VX1_12VX1_12+ VX1_13VX1_13+ VX1_14VX1_14+ VX1_15VX1_15+ VX1_16VX1_16+ VX1_17VX1_17+ VX1_18VX1_18+ VX1_19VX1_19+

VX1_HTDPN VX1_LOCKN

AM17 AK17 AL18 AK18 AM19 AL19 AL20 AM20 AK22 AL21 AK23 AM22 AK24 AL23 AL25 AK25 AM26 AK26 AL27 AK27 AM28 AL28 AL29 AM29 AM31 AL30 AL32 AL31 AK31 AK32 AJ30 AJ31 AH30 AH32 AG30 AG31 AE31 AF30 AD32 AE30

AH29 AG29

C130080.1uF C130090.1uF C130100.1uF C130110.1uF C130120.1uF C130130.1uF C130140.1uF C130150.1uF C130160.1uF C130170.1uF C130180.1uF C130190.1uF C130200.1uF C130210.1uF C130220.1uF C130230.1uF C130240.1uF C130250.1uF C130260.1uF C130270.1uF C130280.1uF C130290.1uF C130300.1uF C130310.1uF C130640.1uF C130650.1uF C130660.1uF C130670.1uF C130680.1uF C130690.1uF C130700.1uF C130710.1uF

R1938 10K

URSA_TX_HTPD_pulldown

TXDBN7_L TXDBP7_L TXDBN6_L TXDBP6_L TXDBN5_L TXDBP5_L TXDBN4_L TXDBP4_L TXDBN3_L TXDBP3_L TXDBN2_L TXDBP2_L TXDBN1_L TXDBP1_L TXDBN0_L TXDBP0_L TXDAN7_L TXDAP7_L TXDAN6_L TXDAP6_L TXDAN5_L TXDAP5_L TXDAN4_L TXDAP4_L TXDAN3_L TXDAP3_L TXDAN2_L TXDAP2_L TXDAN1_L TXDAP1_L TXDAN0_L TXDAP0_L

HTPDAn

HDMI_0_CLK+

HDMI_0_CLK-

HDMI_0_RX0+

HDMI_0_RX0-

HDMI_0_RX1+

HDMI_0_RX1-

HDMI_0_RX2+

HDMI_0_RX2-

HDMI_1_CLK+

HDMI_1_CLK-

HDMI_1_RX0+

HDMI_1_RX0-

HDMI_1_RX1+

HDMI_1_RX1-

HDMI_1_RX2+

HDMI_1_RX2-

LGE7411(URSA9)

IC2500

D1

HDMI_RXCP_0

D3

HDMI_RXCN_0

E3

HDMI_RX0P_0

D2

HDMI_RX0N_0

F3

HDMI_RX1P_0

E2

HDMI_RX1N_0

F1

HDMI_RX2P_0

F2

HDMI_RX2N_0

G1

HDMI_RXCP_1

G3

HDMI_RXCN_1

H3

HDMI_RX0P_1

G2

HDMI_RX0N_1

J3

HDMI_RX1P_1

H2

HDMI_RX1N_1

J1

HDMI_RX2P_1

J2

HDMI_RX2N_1

VDDC

C2100 10uF 10V

L2101

BLM18PG121SN1D

AVDD_MOD

L2102

BLM18PG121SN1D

C2101 10uF 10V

AVDD_PLL

C13317 10uF 10V

C13316 10uF 10V

L2104 BLM18PG121SN1D

L2105 BLM18PG121SN1D

4st Layer

C2109

0.1uF 16V

C13302

0.1uF 16V

C2151 10uF 10V

Close to Chip side

C2122 10uF 10V

C2123

0.1uF 16V

C2124

0.1uF 16V

C2127

0.1uF 16V

C2132 10uF 10V

C13311 10uF 10V

C13310 10uF 10V

C2110 10uF 10V

VDDC

AVDDL_MOD

AVDDL_DRV

C2114 10uF 10V

C2115

0.1uF 16V

C2116

0.1uF 16V

C2119 10uF 10V

Close to Chip side

4th Layer

C2133

0.1uF 16V

C2138

0.1uF 16V

C2142

0.1uF 16V

Close to Chip side

C2137 1uF 10V

4th Layer

C13305

0.1uF 16V

C2144

0.1uF 16V

C2146

0.1uF 16V

Close to Chip side

C2154 10uF 10V

Close to Chip side

4th Layer

C13304

0.1uF 16V

C2153 10uF 10V

C13306

0.1uF 16V

C2147

0.1uF 16V

C2148

0.1uF 16V

C2149

0.1uF 16V

4th Layer

C13307

0.1uF 16V

C2150 10uF 10V

C2107 10uF 10V

AE2

VBY1_RXM[0]

AE1

VBY1_RXP[0]

AD2 AE3 AC2 AD3 AC3 AC1

AB2 AB1 AA2 AB3

Y2

AA3

Y3 Y1

W2 W1 V2 W3 U2 V3 U3 U1

VBY1_RXM[1] VBY1_RXP[1] VBY1_RXM[2] VBY1_RXP[2] VBY1_RXM[3] VBY1_RXP[3]

VBY1_RXM[4] VBY1_RXP[4] VBY1_RXM[5] VBY1_RXP[5] VBY1_RXM[6] VBY1_RXP[6] VBY1_RXM[7] VBY1_RXP[7]

VBY1_RXM[8] VBY1_RXP[8] VBY1_RXM[9] VBY1_RXP[9] VBY1_RXM[10] VBY1_RXP[10] VBY1_RXM[11] VBY1_RXP[11]

+3.3V_U_NORMAL

R1939 10K

OPT

B

22

R1952

LD1 900

LED_RHOM

SML -512 UW

R1943

220

E

Q1901

2N3906S-RTK

PNP_KEC(MULTI)

C

LOCKAn

LD1900-*1

LED_EVERLIGHT

19-21/R6C-FR1S1L/3T

E

Q1901-*1 MMBT3906(NXP)

PNP_NXP(MULTI)

B

C

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI_TX_DDC_CLK

HDMI_TX_DDC_SDA

HDMI_TX_DDC_CLK

HDMI_TX_DDC_SDA

HDMI_CLK+

HDMI_CLK-

HDMI_RX0+

HDMI_RX0-

HDMI_RX1+

HDMI_RX1-

HDMI_RX2+

HDMI_RX2-

HDMI OUTPUT to L14

TP1901

TP1902

R1996

22

N4

R1997

22

M4 N1 P1 N3 N2 M3 M2 L1 L2

HDMITX_SCL HDMITX_SDA HDMI_TXCP HDMI_TXCN HDMI_TX0P HDMI_TX0N HDMI_TX1P HDMI_TX1N HDMI_TX2P HDMI_TX2N

GND Connection at Vx1 41pin wafer

GND_Vx1_2

(pin 8)

GND_Vx1

(pin 5,11,14)

R12900 0

OPT

R12901

OPT

DVDD_DDR

L2106 BLM18PG121SN1D

C2125

C2117

0.1uF

0.1uF 16V

16V

AVDDL_HDMI_TX_RX

L2107 BLM18PG121SN1D

C2126

C2118

0.1uF

0.1uF 16V

16V

AVDDL_LVDSRX

L13300

BLM18PG121SN1D

C13301

C13300

0.1uF

0

16V

C13312

4.7uF 10V

C2131

0.1uF 16V

C13308 10uF 10V

Close to Chip side

4th Layer

C2152 10uF 10V

C13303

0.1uF 16V

C13313

4.7uF 10V

Close to Chip side

C13309 10uF 10V

M1A_URSA9_UD

U_LVDS INPUT

2014.04.24 129

[51P Vx1

LGE Internal Use Only

output wafer]

DEV_51pin_Wafer

P13000

SP14-11592-01-51Pin

51

1

50

2

49

3

48

4

47

5

46

6

45

7

44

8

43

9

42

10

41

11

40

12

39

13

38

14

37

15

36

16

35

17

34

18

33

19

32

20

31

21

30

22

29

23

28

24

27

25

26

25

27

24

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

.

R13011 0

Non_INX_Module

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R13033 10K

R13006 0

TXDAP7_L

TXDAN7_L

TXDAP6_L

TXDAN6_L

TXDAP5_L

TXDAN5_L

TXDAP4_L

TXDAN4_L

TXDAP3_L

TXDAN3_L

TXDAP2_L

TXDAN2_L

TXDAP1_L

TXDAN1_L

TXDAP0_L

TXDAN0_L

LOCKn_IN

HTPDn_IN

OPT

L13000

MLB-201209-0120P-N2

TCON_PWR_Vx1_Wafer C13032

10uF 16V

+3.3V_U_NORMAL

*Pin31(BIT_SEL) HIGH or NC : 10Bit LOW : 8Bit

*Pin35(PCID) High:PCID enable

3D_EN

Low or NC : PCID diable

R13005 0

LGD_120Hz

R1501 0

LGD_60Hz

PWM_DIM

R13009 0

PANEL_VCC

C13033 10uF 16V

IC13000

AZ1117EH-ADJTRG1

OUTIN

ADJ/GND

R13010 0

LOCKn_IN

R13003 10K OPT

R13004 10K LGD_Module

75

33

R1502 0

LGD_60Hz

R13036

R13042

+1.8V

+3.3V_U_NORMAL

+1.8V R13008

R13025

C13034 10uF 10V

10K

R13002 100

B

+3.3V_U_NORMAL

PWM_DIM_SYNC

C13035 10uF 10V

C

E

R13034 10K

OPT

Non_AUO_Module

R13007

10K

L13001 OPT

R13015 0

LGD_120Hz

10K

R13014

10K

Q13001 2N3904S NPN_KEC(MULTI)

B

R13037 0

Non_AUO_Module

+3.3V_U_NORMAL

R13016 0

LGD_120Hz

+3.3V_U_NORMAL

R13040 10K

OPT

R13041 10K

LGD_120Hz

R13017 10K

C

B

Q13002 2N3904S

NPN_KEC(MULTI)

E

C

Q13001-*1 MMBT3904(NXP) NPN_NXP(MULTI)

E

L_DIM_EN

R13044 10K

OPT

R13045 10K

LGD_120Hz

LOCKAn

C

Q13002-*1

B

MMBT3904(NXP)

NPN_NXP(MULTI)

E

L/D_EN(Pin30)

- T-Con L/D Function HIGH : Enable LOW or NC : Disable *LGD_120Hz: T240 module (UB98/95,D9)

+3.3V_U_NORMAL

R13018

4.7K OPT

R13013 0

2N7002KA

TCON_FET_KEC(MULTI)

+3.3V_U_NORMAL

R13019

4.7K OPT

R13012 0

2N7002KA

TCON_FET_KEC(MULTI)

Data_Format_1

Data_Format_0

HTPDn_IN

TCON_I2C_EN

G

D

S

Q13004

R13055

OPT

33

TCON_I2C_EN

G

D

S

Q13005

R13059

OPT

33

G

S

D

Q13005-*1

2N7002K

TCON_FET_DIODES(MULTI)

Data Input Format[1:0]

*Mode 3 (4 Division)

- Data Format 0(Pin37) = Low Data Format 1(Pin36) = High

*Mode 2 (2 Division)

- Data Format 0(Pin37) = High Data Format 1(Pin36) = Low

+1.8V

R13020 10K

R13021 100

G

S

D

Q13004-*1

2N7002K

TCON_FET_DIODES(MULTI)

R13061 0

OPT

R1503 0

Non_AUO_Module

R13062 0

OPT

R1506 0

Non_AUO_Module

+3.3V_U_NORMAL

R13022 10K

C

Q13003

B

2N3904S

NPN_KEC(MULTI)

E

B

R13023

10K

C

E

URSA_SCL

IR_SCL

C

B

E

Q13003-*1 MMBT3904(NXP)

NPN_NXP(MULTI)

URSA_SDA

IR_SDA

R13024 10K

Q13006 2N3904S

NPN_KEC(MULTI)

B

HTPDAn

C

Q13006-*1 MMBT3904(NXP) NPN_NXP(MULTI)

E

[41P Vx1 output wafer]

DEV_41pin_Wafer

P13001

SP14-11592-01-41Pin

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

Not Used Net (UB85/95/UC89)

1

2

3

4

5

6

7

8

9

TXDBP11_L

TXDBN11_L

TXDBP10_L

TXDBN10_L

TXDBP9_L

TXDBN9_L

TXDBP8_L

TXDBN8_L

GND_Vx1

GND_Vx1_2

GND_Vx1

TXDBP11_L

TXDBN11_L

GND_Vx1_2

TXDBP10_L

TXDBN10_L

TXDBP9_L

TXDBN9_L

TXDBP8_L

TXDBN8_L

TXDBP7_L

TXDBN7_L

TXDBP6_L

TXDBN6_L

TXDBP5_L

TXDBN5_L

TXDBP4_L

TXDBN4_L

TXDBP3_L

TXDBN3_L

TXDBP2_L

TXDBN2_L

TXDBP1_L

TXDBN1_L

TXDBP0_L

TXDBN0_L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

U_Output_wafer

2014.04.24 130

A_DDR3_DQ[0-15]

LGE Internal Use Only

A_DDR3_DQ[16-31]

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14] A_DDR3_A[15]

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ A_DDR3_ODT A_DDR3_CKE

A_DDR3_RESET

A_DDR3_MCLK A_DDR3_MCLKZ

A_DDR3_CSB1 A_DDR3_CSB2

A_DDR3_DM0 A_DDR3_DM1

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM2 A_DDR3_DM3

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

DDR_VTT_URSA

+1.5V_U_DDR

C13104

0.1uF 16V

+1.5V_U_DDR

C13102

0.1uF 16V

F14 B13 E13 D13 C14 F13 C13 B10 A12 C10 A14 B12 F15 C11 C12 D17 E14 B14 E15

E17 C17 C16 F17 C15 B11 B16 A16

C9 A9

A_DDR3_DQ[0]

D23

A_DDR3_DQ[1]

A19

A_DDR3_DQ[2]

E22

A_DDR3_DQ[3]

B18

A_DDR3_DQ[4]

C23

A_DDR3_DQ[5]

C18

A_DDR3_DQ[6]

B22

A_DDR3_DQ[7]

A18

A_DDR3_DQ[8]

E19

A_DDR3_DQ[9]

B21

A_DDR3_DQ[10]

F18

A_DDR3_DQ[11]

C22

A_DDR3_DQ[12]

D20

A_DDR3_DQ[13]

F22

A_DDR3_DQ[14]

E18

A_DDR3_DQ[15]

D22 B19 E21

A21 B20 C20 C19

A_DDR3_DQ[16]

B27

A_DDR3_DQ[17]

A24

A_DDR3_DQ[18]

C27

A_DDR3_DQ[19]

C24 A28

A_DDR3_DQ[21]

E24

A_DDR3_DQ[22]

B28

A_DDR3_DQ[23]

B23

A_DDR3_DQ[24]

D25

A_DDR3_DQ[25]

E27

A_DDR3_DQ[26]

C25

A_DDR3_DQ[27]

D28

A_DDR3_DQ[28]

E26

A_DDR3_DQ[29]

E28

A_DDR3_DQ[30]

E25

A_DDR3_DQ[31]

C28 B24 B26

B25 A25 D26 C26

* DDR_VTT

+1.5V_U_DDR

DDR_VTT_URSA

L1310 1

CIS21 J121

C13110 10uF 10V

DDR_VTT_URSA_0

L13102

BLM18PG121SN1D

C13181 1uF 10V

DDR_VTT_URSA_1

L13103

BLM18PG121SN1D

C13112 1uF 10V

Decap removed

Close to DDR Power pin

C13117

C13109

0.1uF

0.1uF 16V

16V

Close to DDR Power pin

C13115

C13107

1uF

0.1uF 10V

16V

LGE7411(URSA9)

A_DDR3_A0 A_DDR3_A1 A_DDR3_A2 A_DDR3_A3 A_DDR3_A4 A_DDR3_A5 A_DDR3_A6 A_DDR3_A7 A_DDR3_A8 A_DDR3_A9 A_DDR3_A10 A_DDR3_A11 A_DDR3_A12 A_DDR3_A13 A_DDR3_A14 A_DDR3_A15 A_DDR3_BA0 A_DDR3_BA1 A_DDR3_BA2

A_DDR3_RASZ A_DDR3_CASZ A_DDR3_WEZ A_DDR3_ODT A_DDR3_CKE A_DDR3_RESETB A_DDR3_MCLK A_DDR3_MCLKZ A_DDR3_CSB1 A_DDR3_CSB2

A_DDR3_DQ0 A_DDR3_DQ1 A_DDR3_DQ2 A_DDR3_DQ3 A_DDR3_DQ4 A_DDR3_DQ5 A_DDR3_DQ6 A_DDR3_DQ7 A_DDR3_DQ8 A_DDR3_DQ9 A_DDR3_DQ10 A_DDR3_DQ11 A_DDR3_DQ12 A_DDR3_DQ13 A_DDR3_DQ14 A_DDR3_DQ15 A_DDR3_DM0 A_DDR3_DM1

A_DDR3_DQS0 A_DDR3_DQS0B A_DDR3_DQS1 A_DDR3_DQS1B

A_DDR3_DQ16 A_DDR3_DQ17 A_DDR3_DQ18 A_DDR3_DQ19 A_DDR3_DQ20 A_DDR3_DQ21 A_DDR3_DQ22 A_DDR3_DQ23 A_DDR3_DQ24 A_DDR3_DQ25 A_DDR3_DQ26 A_DDR3_DQ27 A_DDR3_DQ28 A_DDR3_DQ29 A_DDR3_DQ30 A_DDR3_DQ31 A_DDR3_DM2 A_DDR3_DM3

A_DDR3_DQS2 A_DDR3_DQS2B A_DDR3_DQS3 A_DDR3_DQS3B

C13114 10uF 10V

R13101 10K

1/16W 1%

C13111

C13113

10uF

10V

1%

10K

R13104

1/16W

C13189

C13179

0.1uF

0.1uF 16V

16V

C13158

C13132

0.1uF

16V

C13128

0.1uF 16V

C13126

0.1uF 16V

IC2500

AP2303MPTR-G1

VIN

GND

VREFEN

VOUT

C13118

0.1uF 16V

C13174

0.1uF 16V

IC13101

1

2

3

4

C13151

0.1uF 16V

C13137

0.1uF 16V

C13135

0.1uF 16V

B_DDR3_A0 B_DDR3_A1 B_DDR3_A2 B_DDR3_A3 B_DDR3_A4 B_DDR3_A5 B_DDR3_A6 B_DDR3_A7 B_DDR3_A8

B_DDR3_A9 B_DDR3_A10 B_DDR3_A11 B_DDR3_A12 B_DDR3_A13 B_DDR3_A14 B_DDR3_A15 B_DDR3_BA0 B_DDR3_BA1 B_DDR3_BA2

B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ B_DDR3_ODT B_DDR3_CKE

B_DDR3_RESETB

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CSB1 B_DDR3_CSB2

B_DDR3_DQ0 B_DDR3_DQ1 B_DDR3_DQ2 B_DDR3_DQ3 B_DDR3_DQ4 B_DDR3_DQ5 B_DDR3_DQ6 B_DDR3_DQ7 B_DDR3_DQ8 B_DDR3_DQ9

B_DDR3_DQ10 B_DDR3_DQ11 B_DDR3_DQ12 B_DDR3_DQ13 B_DDR3_DQ14 B_DDR3_DQ15

B_DDR3_DM0 B_DDR3_DM1

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DQ16 B_DDR3_DQ17 B_DDR3_DQ18 B_DDR3_DQ19 B_DDR3_DQ20 B_DDR3_DQ21 B_DDR3_DQ22 B_DDR3_DQ23 B_DDR3_DQ24 B_DDR3_DQ25 B_DDR3_DQ26 B_DDR3_DQ27 B_DDR3_DQ28 B_DDR3_DQ29 B_DDR3_DQ30 B_DDR3_DQ31

B_DDR3_DM2 B_DDR3_DM3

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

[EP]

NC_3

8

NC_2

9

7

THERMAL

VCNTL

6

NC_1

5

C13105

0.1uF 16V

C13106

0.1uF 16V

C13146

0.1uF 16V

C13144

0.1uF 16V

H27 G31 G28 G29 H30 G27 G30 D31 F32 D30 H32 F31 J27 E30 F30 L29 H28 H31 J28

L28 L30 K30 L27 J30 E31 K31 K32 C30 C32

U29 N32 T28 M31 U30 M30 T31 M32 N28 R31 M27 T30 P29 T27 M28 T29 N31 R28

R32 P31 P30 N30

AA31 V32 AA30 V30 AB32 V28 AB31 U31 W29 AA28 W30 AB29 Y28 AB28 W28 AB30 V31 Y31

W31 W32 Y29 Y30

+3.3V_U_NORMAL

C13156

0.1uF 16V

C13154

0.1uF 16V

B_DDR3_A[0]

B_DDR3_A[1]

B_DDR3_A[2]

B_DDR3_A[3]

B_DDR3_A[4]

B_DDR3_A[5]

B_DDR3_A[6]

B_DDR3_A[7]

B_DDR3_A[8]

B_DDR3_A[9]

B_DDR3_A[10]

B_DDR3_A[11]

B_DDR3_A[12]

B_DDR3_A[13]

B_DDR3_A[14]

B_DDR3_A[15]

B_DDR3_DQ[0]

B_DDR3_DQ[1]

B_DDR3_DQ[2]

B_DDR3_DQ[3]

B_DDR3_DQ[4]

B_DDR3_DQ[5]

B_DDR3_DQ[6]

B_DDR3_DQ[7]

B_DDR3_DQ[8]

B_DDR3_DQ[9]

B_DDR3_DQ[10]

B_DDR3_DQ[11]

B_DDR3_DQ[12]

B_DDR3_DQ[13]

B_DDR3_DQ[14]

B_DDR3_DQ[15]

B_DDR3_DQ[16]

B_DDR3_DQ[17]

B_DDR3_DQ[18]

B_DDR3_DQ[19]

B_DDR3_DQ[20]

B_DDR3_DQ[21]

B_DDR3_DQ[22]

B_DDR3_DQ[23]

B_DDR3_DQ[24]

B_DDR3_DQ[25]

B_DDR3_DQ[26]

B_DDR3_DQ[27]

B_DDR3_DQ[28]

B_DDR3_DQ[29]

B_DDR3_DQ[30]

B_DDR3_DQ[31]

CIS21 J121

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_RASZ B_DDR3_CASZ B_DDR3_WEZ B_DDR3_ODT B_DDR3_CKE B_DDR3_RESET B_DDR3_MCLK B_DDR3_MCLKZ B_DDR3_CSB1 B_DDR3_CSB2

B_DDR3_DM0 B_DDR3_DM1

B_DDR3_DQS0 B_DDR3_DQS0B B_DDR3_DQS1 B_DDR3_DQS1B

B_DDR3_DM2 B_DDR3_DM3

B_DDR3_DQS2 B_DDR3_DQS2B B_DDR3_DQS3 B_DDR3_DQS3B

C13119 10uF 10V

L1310 4

C13164

0.1uF 16V

C13162 10uF 10V

B_DDR3_A[0-15]

B_DDR3_DQ[0-15]

B_DDR3_DQ[16-31]

C13172 1uF 10V

C13170

0.1uF 16V

C13178

0.1uF 16V

C13176

0.1uF 16V

C13186

0.1uF 16V

C13184

0.1uF 16V

DDR PHY VREF

+1.5V_U_DDR

R13102 1K

+1.5V_U_DDR

R13103 1K

C13194 10uF 10V

C13192

0.1uF 16V

R13110 1K 1%

R13111 1K 1%

+1.5V_U_DDR

R13108 1K 1%

R13109 1K 1%

A_DDR3_RESET

B_DDR3_RESET

C13198

0.1uF 16V

C13196

0.1uF 16V

U_MVREFCA_A0

C13202

0.1uF

U_MVREFCA_B0

C13201

0.1uF

A_DDR3_CKE

B_DDR3_CKE

C13206

0.1uF 16V

C13204

0.1uF 16V

C13210 1000pF

C13209

1000pF

C13212 1uF 10V

R13112 1K

R13113 1K

C13214

0.1uF 16V

+1.5V_U_DDR

R13120 1K 1%

R13121 1K 1%

+1.5V_U_DDR

R13118 1K 1%

R13119 1K 1%

C13218

0.1uF 16V

C13216

0.1uF 16V

C13222

0.1uF

U_MVREFCA_B1

C13221

0.1uF

URSA9_DDR_NANYA

IC2600-*1

NT5CB64M16FP-EK

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C13226 1uF 10V

C13224

0.1uF 16V

U_MVREFCA_A1

1000pF

C13232

0.1uF 16V

C13230

1000pF

C13229

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14] A_DDR3_A[15]

A_DDR3_BA[0]

A_DDR3_BA[1]

A_DDR3_BA[2]

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_CKE

A_DDR3_CSB2

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13]

B_DDR3_A[14]

B_DDR3_A[15]

B_DDR3_BA[0] B_DDR3_BA[1]

B_DDR3_BA[2]

B_DDR3_MCLK

B_DDR3_MCLKZ

B_DDR3_CKE

B_DDR3_CSB2

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

DDR_VTT_URSA_1

DDR_VTT_URSA_0

AR13100

AR13101

URSA9_DDR_SAMSUNG

AR13106

AR13104

100

A_DDR3_DQ[16-31]

AR13107

AR13105

100

B_DDR3_DQ[16-31]

AR13108 100

AR13109 100

AR13110 100

A_DDR3_DQS2

A_DDR3_DQS2B

A_DDR3_DQS3

A_DDR3_DQS3B

A_DDR3_DM2 A_DDR3_DM3

A_DDR3_DQ[16]

A_DDR3_DQ[17]

A_DDR3_DQ[18]

A_DDR3_DQ[19]

A_DDR3_DQ[20]

A_DDR3_DQ[21]

A_DDR3_DQ[22]A_DDR3_DQ[20]

A_DDR3_DQ[23]

A_DDR3_DQ[24]

A_DDR3_DQ[25]

A_DDR3_DQ[26]

A_DDR3_DQ[27]

A_DDR3_DQ[28]

A_DDR3_DQ[29]

A_DDR3_DQ[30]

A_DDR3_DQ[31]

AR13111 100

B_DDR3_DQS2

B_DDR3_DQS2B

B_DDR3_DQS3

B_DDR3_DQS3B

B_DDR3_DM2 B_DDR3_DM3

B_DDR3_DQ[16]

B_DDR3_DQ[17]

B_DDR3_DQ[18]

B_DDR3_DQ[19]

B_DDR3_DQ[20]

B_DDR3_DQ[21]

B_DDR3_DQ[22]

B_DDR3_DQ[23]

B_DDR3_DQ[24]

B_DDR3_DQ[25]

B_DDR3_DQ[26]

B_DDR3_DQ[27]

B_DDR3_DQ[28]

B_DDR3_DQ[29]

B_DDR3_DQ[30]

B_DDR3_DQ[31]

AR13112 100

AR13113 100

AR13102 100

100

AR13103

100

IC2700

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

URSA9_DDR_SAMSUNG

IC2900

K4B1G1646G-BCMA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_A1

M8

H1

R13134 240

L8

ZQ

1%

+1.5V_U_DDR

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_U_DDR

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A_DDR3_A[14]

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

U_MVREFCA_B1

M8

H1

R13135 240

L8

ZQ

1%

+1.5V_U_DDR

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_U_DDR

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

B_DDR3_A[14]

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

URSA9_DDR_SAMSUNG

IC2600

K4B1G1646G-BCMA

A_DDR3_DQ[0]

A_DDR3_DQ[1]

A_DDR3_DQ[2]

A_DDR3_DQ[3]

A_DDR3_DQ[4]

A_DDR3_DQ[5]

A_DDR3_DQ[6]

A_DDR3_DQ[7]

A_DDR3_DQ[8]

A_DDR3_DQ[9]

A_DDR3_DQ[10]

A_DDR3_DQ[11]

A_DDR3_DQ[12]

A_DDR3_DQ[13]

A_DDR3_DQ[14]

A_DDR3_DQ[15]

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8] B_DDR3_A[9]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_CKE

B_DDR3_CSB1

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQS0

B_DDR3_DQS0B

B_DDR3_DQS1

B_DDR3_DQS1B

B_DDR3_DM0

B_DDR3_DM1

B_DDR3_DQ[0]

B_DDR3_DQ[1]

B_DDR3_DQ[2]

B_DDR3_DQ[3]

B_DDR3_DQ[4]

B_DDR3_DQ[5]

B_DDR3_DQ[6]

B_DDR3_DQ[7]

B_DDR3_DQ[8]

B_DDR3_DQ[9]

B_DDR3_DQ[10]

B_DDR3_DQ[11]

B_DDR3_DQ[12]

B_DDR3_DQ[13]

B_DDR3_DQ[14]

B_DDR3_DQ[15]

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

URSA9_DDR_SAMSUNG

K4B1G1646G-BCMA

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8]

A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13]

A_DDR3_A[15]

A_DDR3_BA[0]

A_DDR3_MCLK

A_DDR3_MCLKZ

A_DDR3_BA[1] A_DDR3_BA[2]

56

C13233

R13122

0.01uF 56

R13123

A_DDR3_CKE

A_DDR3_CSB1

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ

A_DDR3_WEZ

A_DDR3_RESET

A_DDR3_DQS0

A_DDR3_DQS0B

A_DDR3_DQS1

A_DDR3_DQS1B

A_DDR3_DM0

A_DDR3_DQ[0-15]

URSA9_DDR_NANYA

IC2700-*1

NT5CB64M16FP-EK

N3

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

VREFCA

A0

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

ZQ A7 A8 A9

VDD_1

A10/AP

VDD_2

A11

VDD_3

A12/BC

VDD_4 VDD_5

NC_6

VDD_6 VDD_7

NC_5

VDD_8 VDD_9

BA0 BA1 BA2

VDDQ_1 VDDQ_2

CK

VDDQ_3

CK

VDDQ_4

CKE

VDDQ_5 VDDQ_6

CS

VDDQ_7

ODT

VDDQ_8

RAS

VDDQ_9

CAS WE

NC_1 NC_2

RESET

NC_3 NC_4 NC_7

DQSL DQSL

VSS_1

DQSU

VSS_2

DQSU

VSS_3 VSS_4

DML

VSS_5

DMU

VSS_6 VSS_7

DQL0

VSS_8

DQL1

VSS_9

DQL2

VSS_10

DQL3

VSS_11

DQL4

VSS_12

DQL5 DQL6 DQL7

VSSQ_1 VSSQ_2

DQU0

VSSQ_3

DQU1

VSSQ_4

DQU2

VSSQ_5

DQU3

VSSQ_6

DQU4

VSSQ_7

DQU5

VSSQ_8

DQU6

VSSQ_9

DQU7

URSA9_DDR_NANYA

IC2800-*1

NT5CB64M16FP-EK

M8

N3

VREFCA

A0

P7

A1

P3

A2

H1

N2

A3

VREFDQ

P8

A4

P2

A5

R8

L8

A6

R2 T8 R3

B2

L7

D9

R7

G7 K2

N7

K8

T3 N1 N9

M7 R1 R9

M2

N8

M3 A1 A8

J7 C1

K7 C9

K9 D2 E9

L2 F1

K1 H2

J3 H9

K3

L3 J1 J9

T2 L1 L9 T7

F3

G3

A9

C7 B3

B7 E1 G8

E7 J2

D3 J8 M1

E3 M9

F7 P1

F2 P9

F8 T1

H3 T9

H8

G2

H7 B1 B9

D7 D1

C3 D8

C8 E2

C2 E8

A7 F9

A2 G1

B8 G9

A3

ZQ A7 A8 A9

VDD_1

A10/AP

VDD_2

A11

VDD_3

A12/BC

VDD_4 VDD_5

NC_6

VDD_6 VDD_7

NC_5

VDD_8 VDD_9

BA0 BA1 BA2

VDDQ_1 VDDQ_2

CK

VDDQ_3

CK

VDDQ_4

CKE

VDDQ_5 VDDQ_6

CS

VDDQ_7

ODT

VDDQ_8

RAS

VDDQ_9

CAS WE

NC_1 NC_2

RESET

NC_3 NC_4 NC_7

DQSL DQSL

VSS_1

DQSU

VSS_2

DQSU

VSS_3 VSS_4

DML

VSS_5

DMU

VSS_6 VSS_7

DQL0

VSS_8

DQL1

VSS_9

DQL2

VSS_10

DQL3

VSS_11

DQL4

VSS_12

DQL5 DQL6 DQL7

VSSQ_1 VSSQ_2

DQU0

VSSQ_3

DQU1

VSSQ_4

DQU2

VSSQ_5

DQU3

VSSQ_6

DQU4

VSSQ_7

DQU5

VSSQ_8

DQU6

VSSQ_9

DQU7

URSA9_DDR_NANYA

IC2900-*1

NT5CB64M16FP-EK

M8

N3

A0

P7

A1

P3

A2

H1

N2

A3

P8

A4

P2

A5

L8

R8

A6

R2

A7

T8

A8

B2

R3

A9

D9

L7

A10/AP

G7

R7

A11

K2

N7

A12/BC

K8

T3

NC_6

N1 N9

M7

NC_5

R1 R9

M2

BA0

N8

BA1

M3

BA2

A1 A8

J7

CK

C1

K7

CK

C9

K9

CKE

D2 E9

L2

CS

F1

K1

ODT

H2

J3

RAS

H9

K3

CAS

L3

WE

J1 J9

T2

RESET

L1 L9 T7

F3

DQSL

G3

DQSL

A9

C7

DQSU

B3

B7

DQSU

E1 G8

E7

DML

J2

D3

DMU

J8 M1

E3

DQL0

M9

F7

DQL1

P1

F2

DQL2

P9

F8

DQL3

T1

H3

DQL4

T9

H8

DQL5

G2

DQL6

H7

DQL7

B1 B9

D7

DQU0

D1

C3

DQU1

D8

C8

DQU2

E2

C2

DQU3

E8

A7

DQU4

F9

A2

DQU5

G1

B8

DQU6

G9

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

B_DDR3_MCLK

B_DDR3_MCLKZ

A_DDR3_DM1

B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13]

B_DDR3_A[15]

56

C13234

R13124

0.01uF 56

R13125

B_DDR3_DQ[0-15]

C13101

C13100

10uF

10V

IC2800

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

U_MVREFCA_A0

M8

H1

R13126 240

L8

ZQ

1%

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_U_DDR

A_DDR3_A[14]

U_MVREFCA_B0

M8

VREFCA

H1

VREFDQ

R13127 240

L8

ZQ

1%

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_U_DDR

B_DDR3_A[14]

4th layer

+1.5V_U_DDR

C13103

0.1uF 16V

+1.5V_U_DDR

C13195

0.1uF 16V

Close to DDR Power pin Decap removed

C13116

C13108

0.1uF

0.1uF 16V

16V

Close to DDR Power pin Decap removed

4th layer

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

URSA9_DDR

2014.04.24

131

Clock for URSA9

LGE Internal Use Only

C13236

8pF

50V

GND_1

1

2

3

C13237

8pF

50V

4

X-TAL_2

SPI Flash

SPI_CZ

SPI_DO

FLASH_WP_URSA

R13246

R13205

FRC_FLASH_WP

Chip Config

Debug/ISP ADDR Slave (Debug Port:0XB4,ISP:0X98) CHIP_CONF:{DIM2,DIM1,DIM0} CHIP_CONF=3’d7:111:boot from SPI Flash

+3.3V_U_NORMAL

10K

R13203

10K

R13202

10K

R13201

X-TAL_1

24MHz

X13201

GND_2

OPT

R13222

R13220

1M

33

1K

OPT

R13206

OPT

R13248

1K

R13001

10K

OPT

R13207

10K

XIN_URSA

XO_URSA

MX25L3235E

CS

1

URSA_FLASH_MX(MULTI)

SO/SIO1

WP/SIO2

GND

2

3

4

DIM0

DIM1

DIM2

IC13201

+3.3V_U_NORMAL

SW13201

1

VCC

8

HOLD/SIO3

7

SCLK

6

SI/SIO0

5

2

43

OPT

D13201

100V

1N4148W

+3.3V_U_NORMAL

R1345010K

C13238 1uF 10V

OPT

R13218 470K OPT

IC13201-*1

W25Q32FVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

URSA_FLASH_WINDBOND(MULTI)

C13235

0.1uF 16V

Debugging for URSA9

I2C_S Port

P13201

12507WS-04L

URSA_DEBUG

5

WAFER-STRAIGHT

1

2

3

4

R13 217 URSA_DEBUG

R13 216

URSA_DEBUG

33

SCL2_+3.3V_DB

33

SDA2_+3.3V_DB

+3.3V_U_NORMAL

VCC

8

HOLD_OR_RESET[IO3]

7

CLK

6

DI[IO0]

5

SPI_CK

SPI_DI

NON_URSA_SLIDE_SW(MP)

SCL2_+3.3V_URSA

SCL2_+3.3V_DB

URSA Reset

R13215 10K

URSA_RESET

URSA_RESET_SoC

0

R13221

URSA_RESET_READY

0

R13242

OPT

URSA9_PQ_DEBUG

P13202

12507WS-04L

URSA_SCL

R13235 0

R13238 0 OPT

+3.3V_U_NORMAL

1

2

3

4

5

P13203

12507WS-04L

5

SW13002 JS2235S

+3.3V_U_NORMAL

1

2

3

4

URSA9_SYS_DEBUG

1

2

URSA_SLIDE_SW(DEBUG)

3

R13250

10K

R13251

33

URSA9_PQ_DEBUG

C13240

0.1uF 16V

URSA9_PQ_DEBUG

10K

URSA9_SYS_DEBUG

C13239

0.1uF 16V

6

R13237 0

5

R13240 0 OPT

4

URSA9_PQ_DEBUG

R13252

33

R13253

+3.3V_U_NORMAL

1K

URSA9_SYS_DEBUG

R13231

TCON_I2C_EN

URSA_SDA

NON_URSA_SLIDE_SW(MP)

SDA2_+3.3V_URSA

SDA2_+3.3V_DB

URSA_RESET

XIN_URSA

XO_URSA

SDA2_+3.3V_URSA SCL2_+3.3V_URSA

R13255

33

URSA9_SYS_DEBUG

SPI_CZ SPI_CK

SPI_DI

OPT

SPI_DO

OPT

10K R13232 OPT

R13254

33

URSA9_SYS_DEBUG

OPT

33

R13204

33

R13219

Change pin from A5 to C4

AR13200

33

R1324333

R13223

URSA9 UART1_RX

URSA Option

BIT [1/0]

BIT [2/1/0]

0/0/0 0/0/1 0/1/0 0/1/1 1/0/0

1/0/1

1/1/0

1/1/1

AF29

RESET

R3

XTALO

R4

XTALI

AJ24

I2CS_SDA

AH24

I2CS_SCL

AH26

I2CM_SDA

AG24

I2CM_SCL/VSYNC_LIKE1

B4

GPIO[0][UART2_TX]

A4

GPIO[1][UART2_RX]

B5

GPIO[2][UART1_TX]

A5

GPIO[3][UART1_RX]

AD28

SPI_CZ

AD30

SPI_CK

AC31

SPI_DI

AD29

SPI_DO

AE28

INT_R21/GPIO[41]

AE27

INT_R20/GPIO[42]

C4

IRE

AC27

GND_1

AD27

GND_2

A7

NC_1

B6

NC_2

B7

NC_3

C5

NC_4

C6

NC_5

C7

NC_6

D4

NC_7

D5

NC_8

D6

NC_9

D7

NC_10

E4

NC_11

E5

NC_12

E6

NC_13

E7

NC_14

F4

NC_15

F5

NC_16

M5

NC_17

M6

NC_18

M7

NC_19

N5

NC_20

R7

NC_21

P7

NC_22

N7

NC_23

N6

NC_24

Module Division

0/0 0/1 1/0 4 Division 1/1

Non Division

2 Division

8 Division

Tx Lane

4K@120 (16lane)

4k@60 (8lane)

5k@120 (20lane)

OLED ULTRA HD

FHD@120 (4lane)

FHD@60 (2lane)

Reserved

IC2500

LGE7411(URSA9)

I2C_HSC_SDA/VSYNC_LIKE2 I2C_HSC_SCL/VSYNC_LIKE3

SPI3_CK/DIM10/GPIO54 SPI3_DI/DIM11/GPIO55

VSYNC_LIKE/PWM5/GPIO40

GPIO[10]/PWM_DIM_IN[0] GPIO[11]/PWM_DIM_IN[1]

URSA_OPT_6

URSA_OPT_5

URSA_OPT_4

Div_BIT0

Div_BIT1

URSA_OPT_0

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

SPI1_CK/PWM2/GPIO58 SPI1_DI/PWM3/GPIO59 SPI2_CK/PWM0/GPIO56 SPI2_DI/PWM1/GPIO57

SPI4_CK/DIM8/GPIO52 SPI4_DI/DIM9/GPIO53

DIM0/GPIO[32] DIM1/GPIO[33] DIM2/GPIO[34] DIM3/GPIO[35] DIM4/GPIO[36] DIM5/GPIO[37] DIM6/GPIO[38] DIM7/GPIO[39]

GPIO43/TCON0 GPIO44/TCON1 GPIO45/TCON2 GPIO46/TCON3 GPIO47/TCON4 GPIO48/TCON5 GPIO49/TCON6 GPIO50/TCON7

GPIO[18]/TCON8

GPIO[19]/TCON9 GPIO[20]/TCON10 GPIO[21]/TCON11 GPIO[22]/TCON12 GPIO[23]/TCON13

GPIO24/TCON14 GPIO25/TCON15

GPIO[4] GPIO[5] GPIO[6] GPIO[7] GPIO[8] GPIO[9]

GPIO[12] GPIO[13] GPIO[14] GPIO[15] GPIO[16] GPIO[17]

Division Type

Rx Interface

Module Type

Tx Lane

AG25 AH25

AH28 AJ27 AJ29 AF27 AG28 AH27 AG27 AG26

AF28

AG23 AG20 AH23 AH20 AG21 AH22 AG22 AH21

A3 B3 A2 C3 B2 B1 C2 C1

AG4 AG5 AH4 AH5 AH6 AJ4 AJ5 AJ6

AH16 AG16 Y5 Y4 AB4 AB5 AG17 AH17 AG18 AJ20 AH18 AG19 AH19 AJ21

R13224

OPT

R13239 33

OPT

R13241 33

10K

OPT

R13457

R13459 10K

Reserved

R1345810K

Reserved

R1346010K

URSA_OPT_0

Div_BIT0

Div_BIT1

URSA_OPT_4

URSA_OPT_5

URSA_OPT_6

R13225

33

OPT

L_DIM_EN

URSA_L/D_VSYNC

DIM0 DIM1 DIM2

URSA_OPT_1

URSA_BIT0

URSA_BIT1

URSA_BIT2

DDC_SCL_4

R1322710K

URSA_RX_Vx1_HTPDn

R13244

10K

URSA_RX_Vx1_HTPDn

URSA9_CONNECT

URSA_LOCK_O

URSA_LOCK_V

FLASH_WP_URSA

Release

Div_BIT0_1

R13453 10K

R1345510K

10K

Debug

R13454

Div_BIT0_0

R13456

Module Division OPT

+3.3V_U_NORMAL

OPT R13226 10K

33

R13228 10K

+3.3V_U_NORMAL

DDC_SCL_2

DDC_SDA_2

HPD2

Data_Format_1

Data_Format_0

DDC_SDA_4

R13229

+3.3V_U_NORMAL

10K

LGD_Module

R1345110K

Div_BIT1_1

10K

Div_BIT1_0

R13452

URSA_L/D_VSYNC

100K

URSA9_Vx1_RX_HTPD_GPIO

R13210

R13212 10K

URSA_BIT0_1

R13208 10K

URSA_RX_LVDS

10K

URSA_RX_Vx1

OPT

URSA_OPT_6

URSA_OPT_5

3D_EN

OPT R13233 10K

R13234 10K

URSA_BIT0_0

OS_Module

R13209 10K

Used net when HDMI SWITCH not used

R13247 10K

R13211

OPT

R13230 33

OPT

R13461

OPT

R13462 33

R13236 100K

Not Used Net (UB85/95/UC89)

OPT

R13213 10K

URSA_BIT2_1

URSA_BIT1_0 URSA_BIT1_1

URSA_BIT2_0

R13249 10K

33

DDC_SCL_2 DDC_SDA_2 HPD2

DDC_SCL_4 DDC_SDA_4

URSA9_CONNECT URSA_LOCK_O URSA_LOCK_V

R13245 10K

R13214 10K

OPT

P13204

12507WS-04L

1

2

3

4

5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

U_UART_GPITO

2014.04.24

132

+1.5V_U_DDR

LGE Internal Use Only

AVDD_PLL

AVDDL_LVDSRX

DVDD_DDR

AVDDL_MOD

AVDDL_DRV

VDDC

AVDDL_HDMI_TX_RX

AVDD_MOD

VDDP

LGE7411(URSA9)

A6

VDDC_1

M9

VDDC_2

M10

VDDC_3

M11

VDDC_4

N9

VDDC_5

N10

VDDC_6

N11

VDDC_7

P9

VDDC_8

P10

VDDC_9

P11

VDDC_10

R9

VDDC_11

R10

VDDC_12

R11

VDDC_13

T9

VDDC_14

T10

VDDC_15

T11

VDDC_16

U9

VDDC_17

U10

VDDC_18

U11

VDDC_19

V9

VDDC_20

V10

VDDC_21

V11

VDDC_22

W9

VDDC_23

W10

VDDC_24

W11

VDDC_25

Y9

VDDC_26

L3

AVDDL_HDMITX_1

L4

AVDDL_HDMITX_2

AA9

AVDDL_RX_1

AA10

AVDDL_RX_2

AB9

AVDDL_RX_3

Y10

AVDDL_DVI_1

Y11

AVDDL_DVI_2

M14

DVDD_DDR_1

N14

DVDD_DDR_2

Y20

AVDDL_MOD_1

Y21

AVDDL_MOD_2

Y22

AVDDL_MOD_3

AA19

AVDDL_MOD_4

AA20

AVDDL_MOD_5

AA21

AVDDL_DRV_1

AA22

AVDDL_DRV_2

AB20

AVDDL_DRV_3

AB21

AVDDL_DRV_4

AB22

AVDDL_DRV_5

AC20

AVDD_MOD_1

AC21

AVDD_MOD_2

AD21

AVDD_MOD_3

AD20

AVDD_MOD_LDO

AC18

VDDP_1

AD17

VDDP_2

AD18

VDDP_3

AD11

AVDD_DVI_1

AD12

AVDD_DVI_2

AC12

AVDD_HDMITX_1

AC13

AVDD_HDMITX_2

AD15

AVDD_RX_1

AC16

AVDD_RX_2

AC17

AVDD_RX_3

AD16

AVDD_RX_4

AD14

AVDD_XTAL

AC14

AVDD_PLL_1

AC15

AVDD_PLL_2

M18

AVDD_DDR0_1

M19

AVDD_DDR0_2

M20

AVDD_DDR0_3

M21

AVDD_DDR0_4

M16

AVDD_DDR0_5

M17

AVDD_DDR0_6

P21

AVDD_DDR1_1

R21

AVDD_DDR1_2

P22

AVDD_DDR1_3

R22

AVDD_DDR1_4

N21

AVDD_DDR1_5

N22

AVDD_DDR1_6

IC2500

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_14 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25 VSS_26 VSS_27 VSS_28 VSS_29

VSS_30 VSS_31 VSS_32 VSS_33 VSS_34

VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46

VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60

VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66

VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80

IC2500

LGE7411(URSA9)

AA18 AB18 AE18 AF18 AJ18

AB19 AC19 AD19 AE19 AF19 AK19

AE20 AF20 AK20

AE21 AF21 AK21

AC22 AD22 AE22 AF22 AL22

AA23 AB23 AC23 AD23 AE23 AF23 AJ23 AM23

D18 G18 H18 J18 L18 N18 P18 R18 T18 U18 V18 W18 Y18

F19 G19 H19 J19 K19 L19 N19 P19 R19 T19 U19 V19 W19 Y19

A20 E20 F20 G20 H20 J20 L20 N20 P20 R20 T20 U20 V20 W20

D21 F21 G21 H21 J21 K21 L21 T21 U21 V21 W21

G22 H22 J22

L22 M22 T22 U22 V22 W22

A23 E23 F23 G23 H23 J23 K23

M23

P23

T23 V23 W23 Y23

A8

VSS_81

B8

VSS_82

C8

VSS_83

D8

VSS_84

E8

VSS_85

F8

VSS_86

G8

VSS_87

H8

VSS_88

J8

VSS_89

K8

VSS_90

L8

VSS_91

M8

VSS_92

N8

VSS_93

P8

AB10 AC10 AD10 AE10 AF10 AG10 AH10 AJ10

AA11 AB11 AC11 AE11 AF11 AG11 AH11 AJ11

AA12 AB12 AE12 AF12 AG12 AH12 AJ12

VSS_94

R8

VSS_95

T8

VSS_96

U8

VSS_97

V8

VSS_98

W8

VSS_99

Y8

VSS_100

AA8

VSS_101

AC8

VSS_102

AD8

VSS_103

AE8

VSS_104

AF8

VSS_105

AG8

VSS_106

AH8

VSS_107

AJ8

VSS_108

B9

VSS_109

D9

VSS_110

E9

VSS_111

F9

VSS_112

G9

VSS_113

H9

VSS_114

J9

VSS_115

K9

VSS_116

L9

VSS_117

AD9

VSS_118

AE9

VSS_119

AF9

VSS_120

AG9

VSS_121

AH9

VSS_122

AJ9

VSS_123

D10

VSS_124

E10

VSS_125

F10

VSS_126

G10

VSS_127

H10

VSS_128

J10

VSS_129

K10

VSS_130

L10

VSS_131 VSS_132 VSS_133 VSS_134 VSS_135 VSS_136 VSS_137 VSS_138 VSS_139

A11

VSS_140

D11

VSS_141

E11

VSS_142

F11

VSS_143

G11

VSS_144

H11

VSS_145

J11

VSS_146

K11

VSS_147

L11

VSS_148 VSS_149 VSS_150 VSS_151 VSS_152 VSS_153 VSS_154 VSS_155 VSS_156

D12

VSS_157

E12

VSS_158

F12

VSS_159

G12

VSS_160

H12

VSS_161

J12

VSS_162

K12

VSS_163

L12

VSS_164

M12

VSS_165

N12

VSS_166

P12

VSS_167

R12

VSS_168

T12

VSS_169

U12

VSS_170

V12

VSS_171

W12

VSS_172

Y12

VSS_173 VSS_174 VSS_175 VSS_176 VSS_177 VSS_178 VSS_179 VSS_180

G13

VSS_181

H13

VSS_182

J13

VSS_183

K13

VSS_184

L13

VSS_185

K1 T1 K2 P2 T2 AF2 K3 T3 AF3 AG3 G4 H4 J4 K4 P4 T4 U4 V4 W4 AA4 AC4 AD4 AE4 AF4 G5 H5 J5 K5 L5

P5 R5 T5 U5 V5

W5 AA5 AC5 AD5 AE5 AF5 F6 G6 H6 J6 K6 L6

P6 R6 T6 U6 V6 W6 Y6 AA6 AB6 AC6 AD6 AE6 AF6 AG6

F7 G7 H7 J7 K7 L7

T7 U7 V7 W7 Y7 AA7 AB7 AC7 AD7 AE7 AF7 AG7 AH7 AJ7

VSS_186 VSS_187 VSS_188 VSS_189 VSS_190 VSS_191 VSS_192 VSS_193 VSS_194 VSS_195 VSS_196 VSS_197 VSS_198 VSS_199 VSS_200 VSS_201 VSS_202 VSS_203 VSS_204 VSS_205 VSS_206 VSS_207 VSS_208 VSS_209 VSS_210 VSS_211 VSS_212 VSS_213 VSS_214 VSS_215 VSS_216 VSS_217 VSS_218 VSS_219 VSS_220 VSS_221 VSS_222 VSS_223 VSS_224

VSS_225 VSS_226 VSS_227 VSS_228 VSS_229 VSS_230 VSS_231 VSS_232 VSS_233 VSS_234 VSS_235 VSS_236 VSS_237 VSS_238 VSS_239 VSS_240 VSS_241 VSS_242 VSS_243 VSS_244 VSS_245 VSS_246 VSS_247 VSS_248 VSS_249

VSS_250 VSS_251 VSS_252 VSS_253 VSS_254 VSS_255 VSS_256 VSS_257 VSS_258 VSS_259 VSS_260 VSS_261

VSS_262 VSS_263 VSS_264 VSS_265 VSS_266 VSS_267 VSS_268 VSS_269 VSS_270 VSS_271 VSS_272 VSS_273 VSS_274 VSS_275 VSS_276 VSS_277 VSS_278 VSS_279 VSS_280 VSS_281 VSS_282

VSS_283 VSS_284

T13 R13 P13 N13 M13 U13 V13 W13 Y13 AA13 AB13 AD13 AE13 AF13 AG13 AH13 AJ13 G14 H14 J14 K14 L14 P14 R14 T14 U14 V14 W14 Y14 AA14 AB14 AE14 AF14 AG14 AH14 AJ14 A15 B15 D15

G15 H15 J15 K15 L15 M15 N15 P15 R15 T15 U15 V15 W15 Y15 AA15 AE15 AF15 AG15 AH15 AJ15 E16 F16 G16 H16 J16

L16 N16 P16 R16 T16 U16 V16 W16 Y16 AA16 AE16 AF16

AJ16 AM16 A17 B17 G17 H17 J17 K17 L17 N17 P17 R17 T17 U17 V17 W17 Y17 AA17 AB17 AE17 AF17

AJ17 AL17

IC2500

LGE7411(URSA9)

VSS_285 VSS_286 VSS_287 VSS_288 VSS_289 VSS_290 VSS_291 VSS_292 VSS_293 VSS_294 VSS_295 VSS_296 VSS_297 VSS_298 VSS_299 VSS_300 VSS_301 VSS_302 VSS_303 VSS_304 VSS_305 VSS_306 VSS_307 VSS_308 VSS_309 VSS_310 VSS_311 VSS_312 VSS_313 VSS_314 VSS_315 VSS_316 VSS_317 VSS_318 VSS_319 VSS_320 VSS_321 VSS_322 VSS_323 VSS_324 VSS_325 VSS_326 VSS_327 VSS_328 VSS_329 VSS_330 VSS_331 VSS_332 VSS_333 VSS_334 VSS_335 VSS_336 VSS_337 VSS_338 VSS_339

VSS_340 VSS_341 VSS_342 VSS_343 VSS_344 VSS_345 VSS_346 VSS_347 VSS_348 VSS_349 VSS_350 VSS_351 VSS_352 VSS_353

VSS_354 VSS_355 VSS_356

VSS_357 VSS_358 VSS_359 VSS_360 VSS_361 VSS_362 VSS_363 VSS_364 VSS_365 VSS_366 VSS_367

VSS_368 VSS_369 VSS_370 VSS_371 VSS_372 VSS_373 VSS_374

VSS_375

VSS_376

VSS_377 VSS_378 VSS_379 VSS_380 VSS_381 VSS_382 VSS_383 VSS_384 VSS_385 VSS_386 VSS_387 VSS_388

VSS_389 VSS_390 VSS_391 VSS_392 VSS_393 VSS_394 VSS_395 VSS_396 VSS_397 VSS_398 VSS_399 VSS_400 VSS_401 VSS_402 VSS_403 VSS_404 VSS_405 VSS_406 VSS_407 VSS_408 VSS_409 VSS_410

VSS_411 VSS_412 VSS_413 VSS_414 VSS_415 VSS_416 VSS_417 VSS_418 VSS_419 VSS_420 VSS_421 VSS_422 VSS_423 VSS_424 VSS_425 VSS_426 VSS_427 VSS_428 VSS_429 VSS_430 VSS_431 VSS_432 VSS_433 VSS_434 VSS_435 VSS_436 VSS_437 VSS_438 VSS_439 VSS_440 VSS_441 VSS_442 VSS_443 VSS_444 VSS_445 VSS_446 VSS_447 VSS_448 VSS_449 VSS_450 VSS_451 VSS_452 VSS_453 VSS_454 VSS_455 VSS_456 VSS_457 VSS_458 VSS_459 VSS_460 VSS_461 VSS_462 VSS_463 VSS_464 VSS_465 VSS_466 VSS_467 VSS_468 VSS_469

VSS_470 VSS_471 VSS_472 VSS_473 VSS_474 VSS_475 VSS_476 VSS_477 VSS_478 VSS_479 VSS_480 VSS_481 VSS_482 VSS_483 VSS_484 VSS_485 VSS_486 VSS_487 VSS_488 VSS_489 VSS_490 VSS_491 VSS_492 VSS_493 VSS_494 VSS_495 VSS_496 VSS_497 VSS_498 VSS_499 VSS_500 VSS_501 VSS_502 VSS_503 VSS_504 VSS_505 VSS_506 VSS_507

VSS_508 VSS_509

D24 F24 G24 H24 J24 K24 L24 M24 N24 P24 R24 T24 U24 V24 W24 Y24 AA24 AB24 AC24 AD24 AE24 AF24

AL24 F25 G25 H25 J25 K25 L25 M25 N25 P25 R25 T25 U25 V25 W25 Y25 AA25 AB25 AC25 AD25 AE25 AF25 AM25 A26 F26 G26 H26 J26 K26 L26 M26 N26 P26 R26 T26 U26 V26 W26 Y26 AA26 AB26 AC26 AD26 AE26 AF26 AJ26 AL26 D27 F27 K27 N27 P27 R27 U27 V27 W27 Y27 AA27 AB27

F28 K28 P28 U28 AC28 AK28 A29 C29 D29 E29 F29 J29 M29 R29 V29 AA29 AC29 AK29 A30 B30 AC30 AK30 AM30 A31 B31 C31 J31 L31 AD31 AF31 AH31 B32 E32 J32 L32 P32 U32 Y32

AE32 AG32

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

U_Power

2014.04.24 133

+12V

LGE Internal Use Only

L13411

BLM18PG121SN1D

C13443 10uF 16V

+12V

L13401

BLM18PG121SN1D

C13412 10uF 16V

C13410

0.1uF

C13413

0.1uF

+1.5V URSA DDR

R13424

10K

EN

R13422

R13421

3.6K

18K

R1

C13444

100pF

50V

1%

R13423 22K

1/1 6W

1%

R2

C13445 1uF 10V

C13446 2200pF 50V

FB

VREG

SS

Vout=0.765*(1+R1/R2)=1.516V

+3.3V URSA

+3.3V_NORMAL

R13415

10K

EN

R13412

R13413

R1

68K

6.8K

1%

C13414

100pF

50V

R13414 22K 1%

R2

C13415

1/1 6W

1uF 10V

C13416 2200pF 50V

FB

VREG

SS

POWER_ON/OFF_1

IC13403

BD9D321EFJ

1

9

2

THERMAL

3

4

3A

IC13401

BD9D321EFJ

1

9

2

THERMAL

3

4

3A

MAX 4.7A

+1.5V_U_DDR

[EP]

VIN

8

7

6

5

8

7

6

5

BOOT

SW

GND

[EP]

VIN

BOOT

SW

GND

16V

0.1uF C13447

L13412

2.2uH

VLS5045EXT-2R2N

C13448

16V

0.1uF C13417

L13404

2.2uH

VLS5045EXT-2R2N

C13418

22uF

10V

+3.3V_U_NORMAL

22uF

10V

C13449

22uF 10V

C13419

22uF 10V

D13401

ZD13401

2.5V

OPT

5V

TVS_SEMTECH(MULTI)

D13401-*1

TVS_KEC(MULTI)

+3.3V_U_NORMAL

VDDC

ZD13400

+1.15V URSA9 Core

R13404 10K

3.3

R13403

1/10W

C13404 470pF 50V

5%

1%

16V

0.1uF

C13405

4.7

1%

27K

1/1 6W

30V

R13425

10K

R13426

OPT

2.5V

10K

C13400

22uF

C13401

22uF

C13403 1000pF 50V

R134010

R13400

C13402

2K

1/16W

0.1uF 5%

16V

L13403

1.0uH

C13411

R13402

22uF

Vout=0.6*(1+R1/R2)

1/1 6W

R13 405

PGOOD

VBST

NC_1

SW_1

SW_2

SW_3

SW_4

D13400

OPT

91K

R13 406

RF

1

2

EN

3

4

5

6

7

8

9

R13407 39K

1/16W 5%

[EP]

THERMAL

29

IC13402

TPS53513RVER

8A

10

PGND_111PGND_212PGND_313PGND_414PGND_5

R1

R13408

4.87K

1/16W

1%

TRIP26NC_327GND128GND2

24VO25

R2

R13409

5.1K

1/16W

1%

FB

23

GND

22

MODE

21

VREG

20

VDD

19

NC_2

18

VIN_3

17

VIN_2

16

VIN_1

15

R13411

C13406 2200pF 50V

240

1/16W

1%

1/16W

20K

R13410

C13407 1uF 10V

L13402

C13408 10uF 16V

+12V

C13409 10uF 16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M1A_URSA9_UD

URSA_DCDC

2014.04.24

134

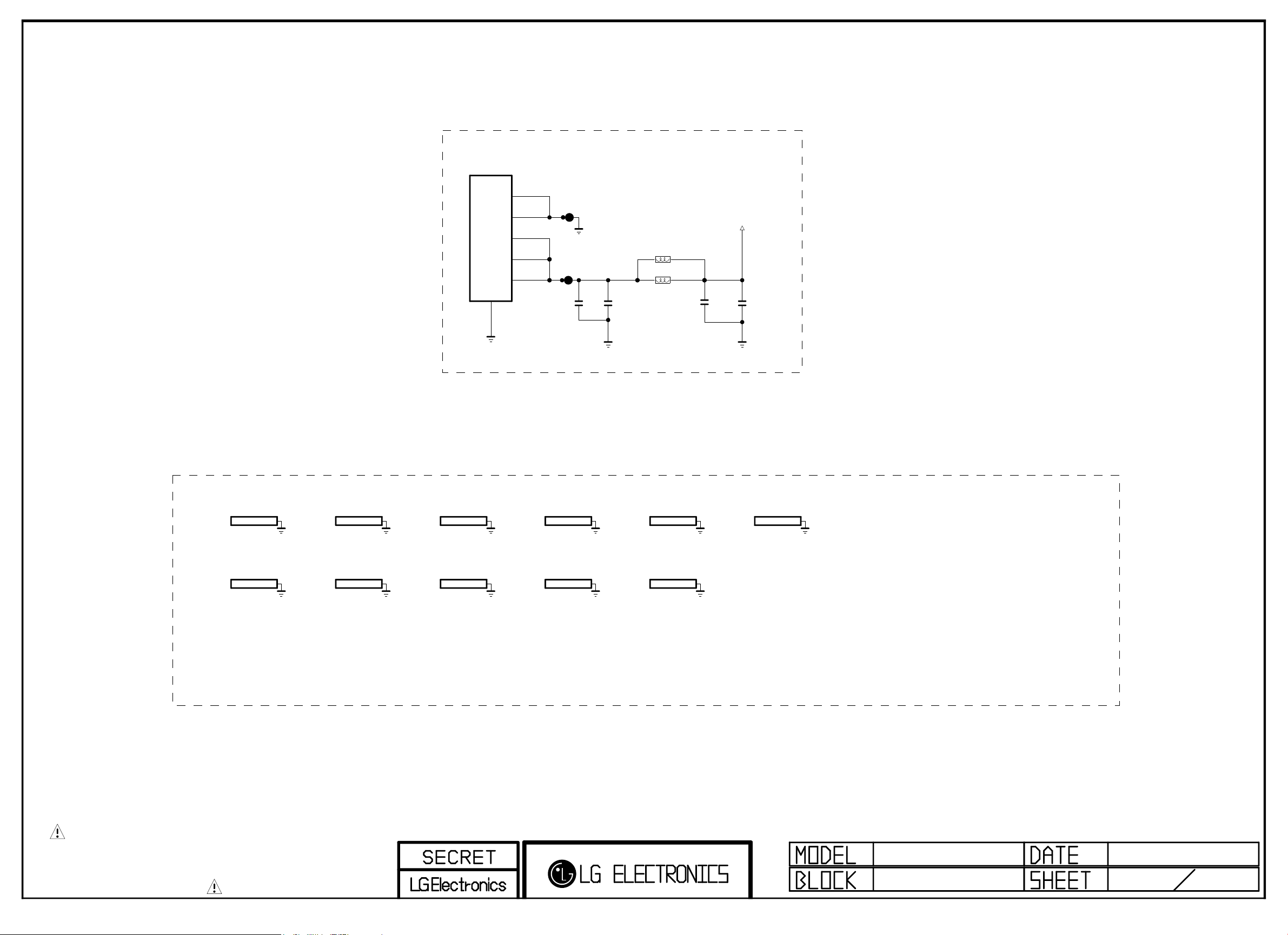

TCON_PWR_5pin_Wafer

LGE Internal Use Only

P13401

20037WR-05A00

1

T-con power

GASKET_8.0X6.0X10.5H

OPT

M13000

MDS62110225

GASKET_8.0X6.0X10.5H

OPT

M13001

MDS62110225

6

GASKET_8.0X6.0X10.5H

OPT

M13002

MDS62110225

2

3

4

5

GASKET_8.0X6.0X10.5H

OPT

M13003

MDS62110225

C13434 10uF 16V

L13409

MLB-201209-0120P-N2

L13410

MLB-201209-0120P-N2

C13435

0.1uF 25V

GASKET_8.0X6.0X10.5H

MDS62110225

10.5TSMD bottom Gasket

OPT

M13004

PANEL_VCC

C13440 10uF 16V

OPT

GASKET_8.0X6.0X10.5H

C13442

0.1uF 25V

M13005

MDS62110225

OPT

GASKET_8.0X6.0X10.5H

OPT

M13006

MDS62110225

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13007

MDS62110225

GASKET_8.0X6.0X10.5H

OPT

M13008

MDS62110225

GASKET_8.0X6.0X10.5H

OPT

M13009

MDS62110225

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD_GASKET

GASKET_8.0X6.0X10.5H

M13010

MDS62110225

M1A_URSA9_UD

T-CON POWER

2014.04.24

141

LG 43UF67**-T Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
