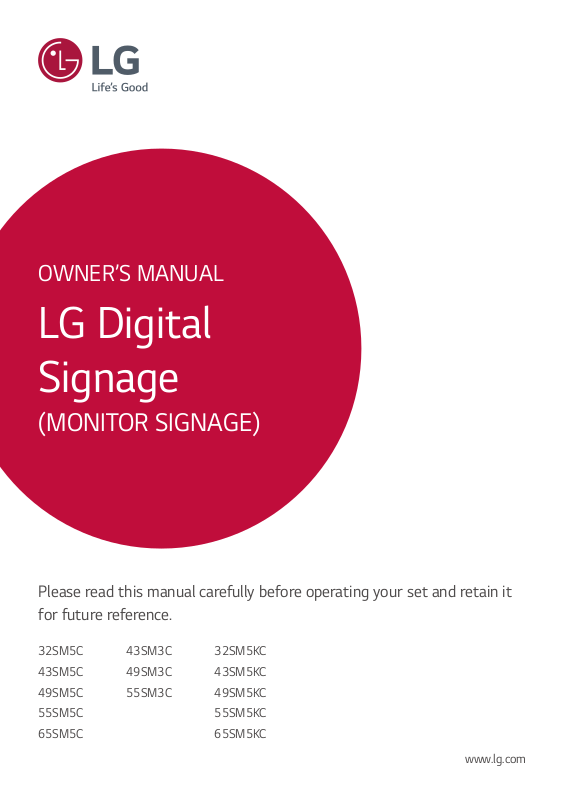

OWNER’S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
32SM5C
43SM5C
49SM5C
55SM5C
65SM5C
43SM3C
49SM3C
55SM3C
32SM5KC
43SM5KC
49SM5KC
55SM5KC
65SM5KC
www.lg.com
2
TABLE OF CONTENTS
ENGLISH
SAFETY PRECAUTIONS ................3
- Precautions In Installing the Product .....................3
- Precautions to the AC Adapter and Electrical
Power ......................................................................................5
- Precautions In Moving the Product ........................7
- Precautions In Using the Product ............................8
- Mounting on a Wall .........................................................9
LICENSES .................................... 10
ASSEMBLY AND PREPARATION ...11
- Optional Accessories ....................................................12
- Parts and Buttons .........................................................14
- Assembling the Memory Cover..............................15
- Connecting the Stand ................................................. 16
- Connecting the Speakers ..........................................18
- Connecting the IR Sensor .........................................21
- Portrait Layout ................................................................22
- Attaching and removing
the LG Logo Bracket ....................................................23
- Installing on a Wall ........................................................25
REMOTE CONTROL .................... 28
MAKING CONNECTIONS ........... 30
- Connecting to a PC.......................................................30
- External Device Connection .....................................30
- Using the Input List ......................................................32
TROUBLESHOOTING .................. 33
PRODUCT SPECIFICATIONS ...... 36
3
WARNING - This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
SAFETY PRECAUTIONS
Please read these safety precautions carefully before using the product.
WARNING
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
WARNING
• Indoor Use Only.
Precautions In Installing the Product
WARNING
• Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction, or deformation may occur.
• Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
• Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
• Do not leave the power or signal cable unattended on the pathway.
- The passerby can trip or fall, which can cause electrical shock, fire, product breakdown, or injury.
• Install the product in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
• If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
• If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.
ENGLISH
4
• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
ENGLISH
- It can cause injury to human, problem to product and damage the display.
• Do not let the product fall or drop when connecting it with an external device.
- This may cause injury and/or damage to the product.
• When connecting it to a game device, keep a distance of four times the diagonal measurement of the screen from the
device.
- If the product falls because of the short cable, this may cause injury and/or damage to the product.
• Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. To use
the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function
on the product, and when the product is not used, turn off the power. Burn-in and related problems are not covered
by the warranty on this product.
• Do NOT install this product on a wall where there is high risk of exposure to oil fumes or mist.
- This may damage product and cause it to fail.
CAUTION
• Make sure the product ventilation holes are not blocked. Install the product in a suitably wide place (more than
100 mm from the wall).
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.
• Do not block the ventilation hole of the product by a tablecloth or curtain.
- The product can be deformed or fire can break out due to overheating inside the product.
• Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
• Install the product where no EMI occurs.
• Keep the product away from direct sunlight.
- The product can be damaged.
• If you install the product in a place that does not meet the recommended conditions, this may cause serious damage
to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before
installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are
used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a
long period of time (airport and train station), failure to do so will invalidate the warranty.
• Do not install the product in an area with poor ventilation (e.g.on a bookshelf, in a closet) or outside and avoid placing
on cushions or carpets.
• In addition, do not install it where there are heating objects such as lighting equipment.
5
Precautions to the AC Adapter and Electrical Power
WARNING
• If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the
power cord immediately and contact the service center.
- Otherwise, this may cause a fire or electric shock due to damage to the product.
• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry
them before use.
- Otherwise, this may cause a fire or electric shock.
• Make sure to completely insert the power cord into the AC adapter.
- If loosely connected, the poor connection may cause a fire or electric shock.
• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.
- The use of non-approved products may cause a fire or electric shock.
• When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.
- The power line can be damaged, which may cause electric shock or fire.
• Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter.
Be careful not to damage the power cord or AC adapter with sharp objects.
- Damaged power cords may cause a fire or electric shock.
• Never disassemble, repair or modify the power cord or AC adapter.
- This may cause a fire or electric shock.
• Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
• Use the rated voltage only.
- The product can be damaged, or you may be electrocuted.
• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
- It can cause electric shock.
• Do not connect several extension cords, electrical appliances, or electrical heaters to a single outlet. Use a power strip
with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power
plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
ENGLISH
6
• If you don’t intend to use the product for a long time, unplug the power cable from the product.
ENGLISH
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
• Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
• Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected
to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input
terminal.
- You may be electrocuted.
• The appliance coupler is used as the disconnect device.
• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily
accessible.
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.
CAUTION
• Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.
- This may cause a fire.
• Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
• Use only the power cord supplied with the unit. If you use another power cord, make sure that it is certified by the
applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact
the manufacturer or the nearest authorized repair service provider for a replacement.
7
Precautions In Moving the Product
WARNING
• Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
• Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
• Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged
product can cause electric shock or fire. Contact an authorized the service center for repair.
• Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to
carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.
CAUTION
• Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
• Do not dispose the product-packing box. Use it when you move.
ENGLISH
8
Precautions In Using the Product
ENGLISH
WARNING
• Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
• Keep the product away from water.
- Fire or electric shock accident can occur.
• Do not shock or scratch the front and sides of the screen with metallic objects.
- Otherwise, it may cause damage to the screen.
• Avoid high temperatures and humidity.
CAUTION
• Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
• When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not
clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not
use chemicals such as benzene, paint thinners, or alcohol.)
• Take a rest from time to time to protect your vision.
• Keep the product clean at all times.
• Take a comfortable and natural position when working with a product to relax the muscles.
• Take a regular break when working with a product for a long time.
• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil, or pen, or make a scratch on it.
• Keep the proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
• Set the appropriate resolution and clock by referring to the User’s Guide.
- Your vision can be impaired.
• Use authorized detergent only when cleaning the product. (Do not use benzene, thinner, or alcohol.)
- Product can be deformed.
• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over
the apparatus (e.g. on shelves above the unit).
• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace, and
electric heaters.
• Do NOT place non-rechargeable batteries in charging device.
• Using headsets (earphones) for a long time or listening loudly can cause damage to your hearing.
9
• Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much
moisture may cause staining.
WATER
CHEMICALS
• Do not use products using high voltage around the Monitor. (e.g., a bug zapper)
- Monitor may have malfunction as its electrical shock.
Mounting on a Wall
• Do NOT install this product by yourself as you may injure yourself or cause damage to product. Please contact service
personnel authorised by manufacturer.
ENGLISH
10
LICENSES
ENGLISH
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD,
the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights
Reserved.
11
ASSEMBLY AND PREPARATION
CAUTION
• Always use genuine components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
• The accessories provided with your product may vary depending on the model or region.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
• SuperSign Software & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest software for your
model.
• The warranty will not cover any damage caused by using the product in an excessively dusty environment.
ENGLISH
12
Optional Accessories
ENGLISH
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Stand kit
Screws
Diameter 4.0 mm x Pitch 0.7 mm
Stand
ST-322T 32SM5*
ST-432T 43SM5*/43SM3C
ST-492T
ST-652T 65SM5*
49SM5*/55SM5*
49SM3C/55SM3C
Stand Spacers
32SM5* -
43SM5*
43SM3C
49SM5*
49SM3C
55SM5*
55SM3C
65SM5*
2 EA
Model
32SM5* 10 mm 6 EA
43SM5*
43SM3C
49SM5*
49SM3C
55SM5*
55SM3C
65SM5* 16 mm 8 EA
Length
(including
spring washer)
14 mm 8 EA
Quantity
Speakers
SP-5000
Speaker kit
(Only for **SM5C/**SM3C model)
Cable holder/
Cable Tie
Diameter 4.0 mm x
Pitch 0.7 mm x Length 8 mm
(including spring washer)
Screws
Screws
Diameter 4.0 mm x
Pitch 1.6 mm x Length 10 mm
13
Media Player kit
(It may not be supported depending on the model.)
Media Player
MP500/ MP700
KT-OPSA Screws Connecting Cable
Card (Easy Setup Guide) Power Cord
Screws CD (Owner's Manual)/ Cards
OPS kit
ENGLISH
Pixel sensor kit
KT-SP0
NOTE
• Cable holder/cable tie may not be available in some areas or for some models.
• Optional accessories are available for some models. If necessary, please purchase them separately.
• Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.
• Before you attach the OPS kit or Media Player, connect the cable to the port.
14
Parts and Buttons
ENGLISH
The image may be different according to the model.
• INPUT: Changes the input source.
• MENU: Accesses the main menus, or saves your input and exits the menus.
• : Adjust the up and down.
• : Moves left and right.
• AUTO/SET: Displays the current signal and mode.
• /I: Turns the power on or off.
Buttons
15
Assembling the Memory Cover
Assemble the cover with a screw as illustrated to prevent the USB memory from theft.
1
2
ENGLISH
16
Connecting the Stand
ENGLISH
- For certain models only.
- The image may be different according to the model.
32SM5*
1
2
17
43/49/55/65SM5*, 43/49/55SM3C
1
2
ENGLISH
3
18
Connecting the Speakers
ENGLISH
- For certain models only.
- The image may be different according to the model.
32SM5C
1 Connect an input signal cable before installing the speakers.
2 Mount the speakers by using screws as shown below. Make sure the power cable is disconnected before making a
connection.
Basic installation
Installation with OPS connected
19
3 Then connect the speaker cable. After installing your speakers, use holders and cable ties to organize the speaker
cables.
Basic installation
Installation with OPS connected
ENGLISH
20
43/49/55/65SM5C, 43/49/55SM3C
ENGLISH
1 Connect an input signal cable before installing the speakers.
2 Mount the speakers by using screws as shown below. Make sure the power cable is disconnected before making a
connection.
3 Then connect the speaker cable. After installing your speakers, use holders and cable ties to organize the speaker
cables.
NOTE
• Please turn off the power before removing the cable. Connecting or removing the speaker cable while turned on may
result in no sound.
21

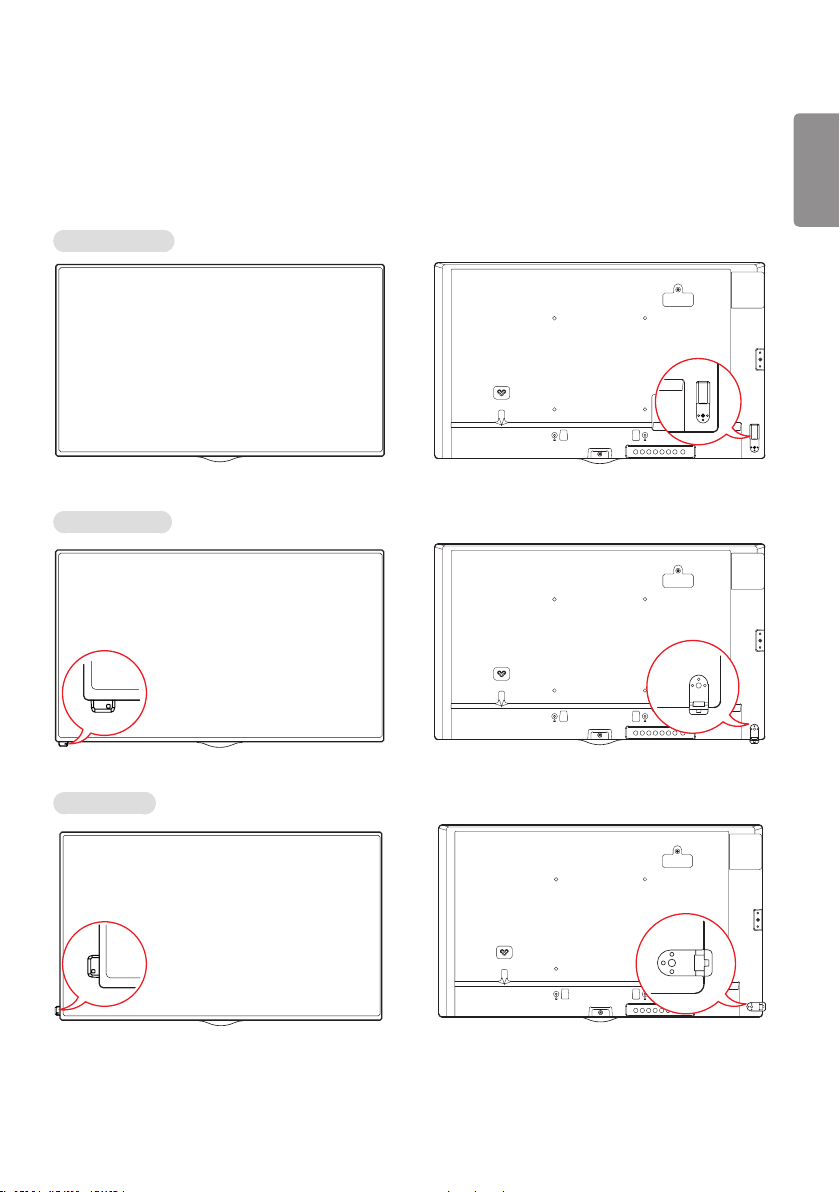

Connecting the IR Sensor
When you connect the cable to the product, the feature for receiving remote control signals is activated. Rotate the IR
sensor according to the screen orientation (Landscape/Portrait).
- The image may be different according to the model.
Basic installation
[Front] [Rear]
Landscape scene
ENGLISH
Portrait scene
[Front] [Rear]
[Front] [Rear]
22
Portrait Layout
ENGLISH
When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).
Using Kensington Lock
(This is not available for all models.)
The Kensington security system connector is located at the back of the monitor. For more information on installation
and use of this system, refer to the manual provided with the Kensington security system or visit
http://www.kensington.com.
Connect the Kensington security system cable between the monitor and a table.
NOTE
• The Kensington security system is optional. You can obtain additional accessories from most electronics retail stores.
• The illustration shows a general example of installation and may look different from the actual product.
23
Attaching and removing the LG Logo Bracket
- For certain models only.
- The image may be different according to the model.
Removing the LG Logo Bracket
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Using a screwdriver,
remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.
LG Logo Bracket
ENGLISH
2 After removing the screw, remove the LG Logo Bracket. When re-attaching the LG Logo Bracket, repeat the process
in reverse order.
24
Attaching the LG Logo Bracket on the right side
ENGLISH
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Using a screwdriver,
remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.
2 After removing the screw, remove the LG Logo Bracket. Attach the LG Logo Bracket with a screw, aligning it with
the hole on the right side.
25
Installing on a Wall
For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed installation instructions
are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm
100 mm
100 mm
100 mm
To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1 Use only screws and wall mounting brackets that conform to VESA standards.
2 Screws which are longer than standard length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for
any accidents related to the use of non-standard screws.
4 Please use VESA standard as below.
• 785 mm and above
* Fixing screws: Diameter 6.0 mm x Pitch 1.0 mm x Length 12 mm
100 mm
ENGLISH
785 mm
26
ENGLISH
CAUTION
• Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
• If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount
and contact your local dealer or qualified personnel to assist with the installation.
• Do not over tighten the screws as this may damage the monitor and void your warranty.
• Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse
or use of improper accessories are not covered by the warranty.
• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.
(This pertains only to Australia and New Zealand.)
NOTE
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws required may differ depending on the wall mount. Be sure to use the correct length.
• For more information, please refer to the guide provided with the wall mount.
27
Securing the monitor to a wall (optional)
(Procedure may differ depending on the model.)
1 Insert and tighten the eyebolts, or brackets and bolts on the back of the monitor.
- If there are already bolts inserted in the eyebolts’ position, remove the other bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eyebolts on the
rear of the monitor.
3 Connect the eyebolts and wall brackets tightly with a sturdy cord.
Make sure the securing cord is horizontal with the flat surface.
ENGLISH
WARNING
• If the monitor is not positioned in a sufficiently stable location, there is a danger that it will fall. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer.
- Only using furniture that can safely support the monitor.
- Ensuring the monitor is not overhanging the edge of the supporting furniture.
- Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the
furniture and the monitor to a suitable support.
- Not placing cloth or other materials between the monitor and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
CAUTION
• Make sure that children do not climb on or hang from the monitor.
NOTE
• Use a platform or cabinet that is large and strong enough to support the monitor securely.
• Brackets, bolts, and cords are sold separately. You can obtain additional accessories from your local retail store.
• The illustration shows a general example of installation and may look different from the actual product.
28
REMOTE CONTROL
ENGLISH
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to
use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and
terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the
installation actions in reverse. The illustrations may differ from the actual accessories.
CAUTION
• Do not mix old and new batteries, as this may damage the remote control.
• Be sure to point the remote control toward the remote control sensor on the monitor.
• Some features of the remote control may not be supported in certain models.
or
(POWER) Turns the monitor on or off.
Turns the monitor on.
Turns the monitor off.
Adjusts the
brightness of the picture to reduce energy
consumption.
Selects the input mode.
Used for viewing 3D videos.
Toggles between numerical and
alphabetical.
Number and Alphabet buttons
Enters numerical or alphabetical characters
depending upon the setting.
Deletes the entered numerical or
alphabetical character.
Volume Up/Down Button Adjusts the
volume.
Selects the Aspect Ratio mode.
Automatically adjusts picture position
and minimizes image instability (available for
RGB input only).
Mutes all sounds.
Adjusts the brightness of the
display. PAGE function is not supported in
this model.
29
Selects the Picture Mode.
Activates the Launcher.
Enters the White Balance menu.
Accesses the main menus
or saves your input and exit menus.
SuperSign menu key.
Navigation Buttons Scrolls through menus
or options.
or
Selects menus or options and
confirms your input.
Allows you to move back one step
in the user interaction function.
Quit all OSD tasks and applications.
Allows you to control
various multimedia devices to enjoy
multimedia simply by using the remote
control through the SimpLink menu.
Selects the TILE Mode.
When the Picture ID
number matches the Set ID number, you
can control whichever monitor you want in
multi-display format.
USB Menu Control Buttons Controls
media playback.
ENGLISH
30
MAKING CONNECTIONS
ENGLISH
You can connect various external devices to your monitor. Change the input mode and select the external device you
want to connect. For more information about external device connections, see the user manual provided with each
device.
Connecting to a PC
Some of the cables are not provided.
This monitor supports the Plug and Play* feature.
* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or
user intervention when powering up.
External Device Connection
Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.
Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your
monitor using HDMI cables is recommended.
31
NOTE
• For the best image quality, using the monitor with HDMI connection is recommended.
• To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a D-sub
15-pin cable and DVI-D/HDMI cable.
• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
• Use a High Speed HDMI®/TM cable.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI Cable Types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change
the default audio output to HDMI.
• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
• You may experience compatibility issues if you use HDMI-PC mode.
• Make sure the power cable is disconnected.
• If you connect a gaming device to the monitor, use the cable provided with the gaming device.
• It is recommended to use the speakers that are provided as optional accessories.
• High Speed HDMI®/TM cables transmit a HD signal up to 1080p and higher.
CAUTION
• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the
screen.
• Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a screensaver if
possible.
• A wireless communication device near your monitor can affect the image.
ENGLISH
32
Using the Input List
ENGLISH
→
• RGB → HDMI → DVI-D → DISPLAYPORT → OPS
33
TROUBLESHOOTING
No image is displayed.
Problem Action
Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet.
Does the “Invalid Format” message
appear?
Does the “No Signal” message appear? • The signal cable between PC and product is not connected. Check the
The Unknown Product message appears when the product is connected.
Problem Action
Did you install the driver? • Check if the Plug and Play function is supported by referring to the
The screen image looks abnormal.
Problem Action
Is the screen position wrong? • Check if the graphics card resolution and frequency are supported by
The screen is displayed abnormally. • The proper input signal is not connected to the signal port. Connect the
• The signal from the PC (Graphics card) is out of the vertical or
horizontal frequency range of the product. Adjust the frequency range
by referring to the Specifications in this manual.
signal cable.
• Press the INPUT menu in the remote control to check the input signal.
graphics card user manual.
the product. If the frequency is out of range, set to the recommended
resolution in the [Control Panel] → [Display] → [Setting] menu. (The
settings may differ depending on your operating system.)
signal cable that matches with the source input signal.
ENGLISH
34
After-image appears on the product.
ENGLISH
Problem Action
After-image appears when the product is
turned off.
The audio function does not work.
Problem Action
No sound? • See if the audio cable is connected properly.
Sound is too dull. • Select the appropriate equalizer sound.
Sound is too low. • Adjust the volume.
Screen color is abnormal.
Problem Action
Screen has poor color resolution (16
colors).
Screen color is unstable or mono-colored. • Check the connection status of the signal cable. Or, re-insert the PC
Do black spots appear on the screen? • Several pixels (red, green, blue, white, or black color) may appear on the
• If you use a fixed image for a long time, the pixels may be damaged.
Use the screen-saver function.
• When a dark image is displayed on the screen after an image with high
contrast (black and white or gray), this may cause image sticking. This
is normal for LCD screen products.
• Adjust the volume.
• See if the sound is set properly.
• Set the number of colors to more than 24 bits (true color). Select
[Control Panel] → [Display] → [Settings] → [Color Table] in Windows.
(The settings may differ depending on your operating system.)
graphics card.
screen, which can be attributable to the unique characteristics of the
LCD panel. This is not a malfunction of the LCD.
The operation does not work normally.
Problem Action
The power suddenly turned off. • Is the Timer set?
• Check the power control settings. Power interrupted.
35
CAUTION
• Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an
extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood
of image sticking occurring when using a fixed image. It is recommended that you change the screen at least once
every 12 hours at the very minimum; if done more frequently, the prevention of image sticking is more effective.
Recommended operating conditions
1 Change the background and the character colors using the same time interval.
ID: UPM 123
PW: ****
When changing colors, using complementary colors helps to prevent image sticking.
BM BM BM
CF
ITO or MoTi Pixel Layer
2 Change the image using the same time interval.
Glass
OC
PI
LC
PI
TFT Layers
Glass
ID: UPM 123
PW: ****
CFCFCF
ENGLISH
Make sure that the characters or images before changing the image remain in the same location after changing the
image.
What is image sticking?
When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between
the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over
time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed image
remains visible. This phenomenon is referred to as image sticking.
36
ENGLISH
PRODUCT SPECIFICATIONS
The product specifications below may be changed without prior notice due to upgrade of product functions.
“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).
LCD screen Screen type Thin Film Transistor (TFT)
Liquid Crystal Display (LCD) Screen
Video signal Maximum resolution 1920 x 1080 @ 60 Hz
- This may not be supported on some OS or graphics card
types.
Recommended resolution 1920 x 1080 @ 60 Hz
- This may not be supported on some OS or graphics card
types.
Horizontal frequency RGB: 30 kHz to 83 kHz
HDMI/ DVI-D/ DisplayPort: 30 kHz to 83 kHz
Vertical frequency RGB: 56 Hz to 75 Hz
HDMI/ DVI-D/ DisplayPort: 56 Hz to 60 Hz
Synchronization Separate Sync, Digital
Input/output ports
Embedded battery Applied
Environmental
Conditions
**SM5C/ **SM3C SPEAKER OUT, AUDIO IN/OUT, RS-232C IN /OUT,
PIXEL SENSOR, IR & LIGHT SENSOR, HDMI, DVI-D IN,
DP IN/OUT, RGB IN, LAN, USB 3.0 IN, SD
**SM5KC AUDIO IN/OUT, RS-232C IN/OUT, PIXEL SENSOR,
IR & LIGHT SENSOR, HDMI, DVI-D IN, DP IN/OUT, RGB IN, LAN,
USB 3.0 IN, SD
Operating Temperature 0 °C to 40 °C
Operating Humidity 10 % to 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity 5 % to 85 %
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 6 Ω
37
32SM5C
LCD screen Pixel pitch
Power Rated power
Power consumption
Dimensions (Width
x Height x Depth) /
Weight
Head
Head + Stand
Head + Speaker
Head + Speaker + Stand
32SM5KC
LCD screen Pixel pitch
Power Rated power
Power consumption
Dimensions (Width
x Height x Depth) /
Weight
Head
Head + Stand
0.36375 mm (H) x 0.36375 mm (V)
ENGLISH
AC 100-240 V ~ 50/60 Hz 1.4 A
On Mode: 60 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
729.4 mm x 428.9 mm x 55.5 mm / 5.2 kg
729.4 mm x 481 mm x 154.2 mm / 6 kg
729.4 mm x 428.9 mm x 95.7 mm / 5.7 kg
729.4 mm x 481 mm x 154.2 mm / 6.5 kg
0.36375 mm (H) x 0.36375 mm (V)
AC 100-240 V ~ 50/60 Hz 1.4 A
On Mode: 60 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
729.4 mm x 428.9 mm x 55.5 mm / 5.4 kg
729.4 mm x 481 mm x 154.2 mm / 6.2 kg
38
43SM5C, 43SM3C
ENGLISH
LCD screen Pixel pitch 0.4902 mm (H) X 0.4902 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 0.9 A
Dimensions (Width
x Height x Depth) /
Weight
Power
consumption
Head 969.6 mm x 563.9 mm x 38.6 mm / 9.8 kg
Head + Stand 969.6 mm x 622.2 mm x 193 mm / 12.3 kg
Head + Speaker 969.6 mm x 563.9 mm x 67.9 mm / 10.3 kg
Head + Speaker + Stand 969.6 mm x 622.2 mm x 193 mm / 12.8 kg
43SM5C On Mode: 75 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
43SM3C On Mode: 70 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
43SM5KC
LCD screen Pixel pitch 0.4902 mm (H) X 0.4902 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 0.9 A
Power consumption On Mode: 75 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 969.6 mm x 563.9 mm x 54 mm / 10.0 kg
Head + Stand 969.6 mm x 622.2 mm x 193 mm / 12.5 kg
39
49SM5C, 49SM3C
LCD screen Pixel pitch 0.55926 mm (H) X 0.55926 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.0 A
Dimensions (Width
x Height x Depth) /
Weight
Power
consumption
Head 1102.2 mm x 638.5 mm x 38.6 mm / 14.1 kg
Head + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.4 kg
Head + Speaker 1102.2 mm x 638.5 mm x 67.9 mm / 14.6 kg
Head + Speaker + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.9 kg
49SM5C On Mode: 85 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
49SM3C On Mode: 80 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
49SM5KC
LCD screen Pixel pitch 0.55926 mm (H) X 0.55926 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.0 A
Power consumption On Mode: 85 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1102.2 mm x 638.5 mm x 54 mm / 14.3 kg
Head + Stand 1102.2 mm x 696.8 mm x 219.6 mm / 17.6 kg
ENGLISH
40
55SM5C, 55SM3C
ENGLISH
LCD screen Pixel pitch 0.630 mm (H) x 0.630 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.1 A
Dimensions (Width
x Height x Depth) /
Weight
Power
consumption
Head 1238 mm x 714.9 mm x 38.6 mm / 17.3 kg
Head + Stand 1238 mm x 773.4 mm x 219.6 mm / 20.6 kg
Head + Speaker 1238 mm x 714.9 mm x 67.9 mm / 17.8 kg
Head + Speaker + Stand 1238 mm x 773.4 mm x 219.6 mm / 21.1 kg
55SM5C On Mode: 100 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
55SM3C On Mode: 95 W (Typ.)
Sleep Mode (RGB, DVI-D, HDMI): ≤ 1.0 W
Sleep Mode (DisplayPort): ≤ 0.5 W
Off Mode: ≤ 0.5 W
55SM5KC
LCD screen Pixel pitch 0.630 mm (H) x 0.630 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.1 A
Power consumption On Mode: 100 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1238 mm x 714.9 mm x 54 mm / 17.5 kg
Head + Stand 1238 mm x 773.4 mm x 219.6 mm / 20.8 kg
41
65SM5C
LCD screen Pixel pitch 0.744 mm (H) x 0.744 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.4 A
Power consumption On Mode: 120 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1456.9 mm x 838 mm x 41.1 mm / 27.7 kg
Head + Stand 1456.9 mm x 898.1 mm x 293.7 mm / 32.9 kg
Head + Speaker 1456.9 mm x 838 mm x 70.4 mm / 28.2 kg
Head + Speaker +
Stand
1456.9 mm x 898.1 mm x 293.7 mm / 33.4 kg
65SM5KC
LCD screen Pixel pitch 0.744 mm (H) x 0.744 mm (V)
Power Rated power AC 100-240 V ~ 50/60 Hz 1.4 A
Power consumption On Mode: 120 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
Dimensions (Width
x Height x Depth) /
Weight
Head 1456.9 mm x 838 mm x 56.5 mm / 27.9 kg
Head + Stand 1456.9 mm x 898.1 mm x 293.7 mm / 33.1 kg
ENGLISH
42
ENGLISH
Frequency range (MHz) Output power (Max.)
2400 to 2483.5 16 dBm
5150 to 5250 16 dBm
5725 to 5850 (Not for EU) 11.5 dBm
Frequency range (MHz) Output power (Max.)
2400 to 2483.5 10 dBm
• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm
between the device and the body.
(Only HongKong)
Wireless LAN Bluetooth
Standard IEEE 802.11a/b/g/n Standard Bluetooth
Frequency range (MHz)
Output power (Max.)
• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm
between the device and the body.
Wireless module(LGSBW41)Specifications
Wireless LAN (IEEE 802.11a/b/g/n)
Bluetooth
Wireless module(LGSBW41)Specifications
2400 to 2483.5
5150 to 5250
5725 to 5850
802.11a: 13 dBm
802.11b: 15 dBm
802.11g: 14 dBm
802.11n - 2.4GHz: 16 dBm
802.11n - 5GHz: 16 dBm
Frequency range (MHz) 2400 to 2483.5
Output power (Max.) 10 dBm or Lower
43
RGB (PC) Support Mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz)
720 x 400 31.468 70.8
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60.0
1280 x 720 44.772 59.855
1600 x 900 60 60
1280 x 1024 63.981 60.02
1680 x 1050 65.29 59.954
1920 x 1080 67.5 60
HDMI/ DVI-D/ DisplayPort/ OPS (PC) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz)
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1366 x 768 47.712 60
1280 x 1024 63.981 60.02
1680 x 1050 65.290 59.954
1920 x 1080 67.5 60
ENGLISH
44
HDMI/ DisplayPort/ OPS (DTV) Support Mode
ENGLISH
Resolution Horizontal frequency (kHz) Vertical frequency (Hz)
480/60p 31.5 60
576/50p 31.25 50
720/50p 37.5 50
720/60p 45 60
1080/50i 28.1 50
1080/60i 33.75 60
1080/50p 56.25 50
1080/60p 67.5 60
NOTE
• PC resolutions available for the Input Label option in RGB / HDMI / DVI-D / DisplayPort input modes:
640 x 480/60 Hz, 1280 x 720/60 Hz, 1920 x 1080/60 Hz; 480p, 720p, and 1080p DTV resolutions.
• Vertical frequency: The product display functions by the screen image changing dozens of times every second like a
fluorescent lamp.
The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.
• Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by
the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
S. A.,
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE U.
Inc. has determined that this product
meets the ENERGY STAR® guidelines for
Refer to ENERGYSTAR.gov for more information on the
ENERGY STAR® program.
energy efficiency.
Make sure to read the Safety Precautions before using
the product.
The model and serial numbers of the SET are located on
the back and one side of the SET. Record it below should
you ever need service.
MODEL
SERIAL
NOTE
• 32SM5C and 32SM5KC are not certified with EPA’s
ENERGY STAR.
Temporary noise is normal when powering ON or OFF
this device.
