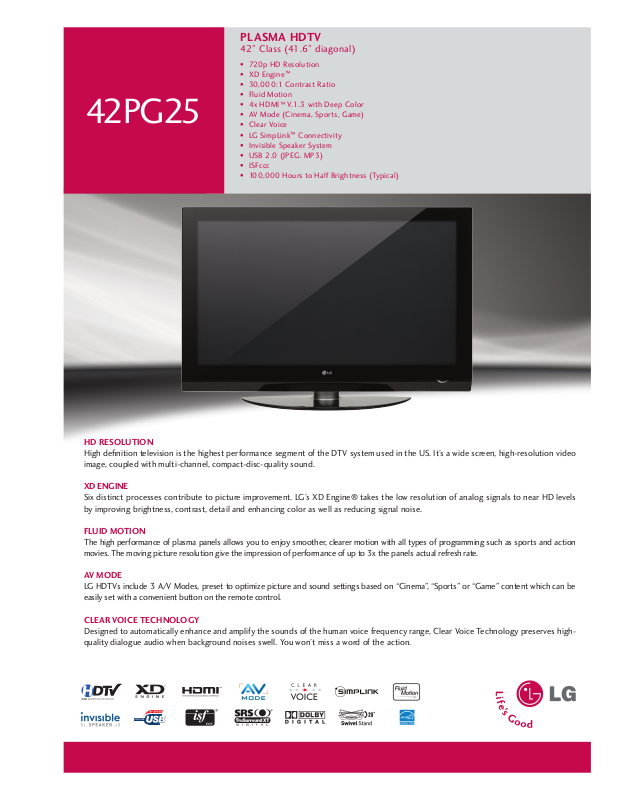

LG 42PL25 User Manual

42PG25

PLASMA HDTV

42” Class (41.6” diagonal)

• 720p HD Resolution

• XD Engine

• 30,000:1 Contrast Ratio

• Fluid Motion

• 4x HDMI™ V.1.3 with Deep Color

• AV Mode (Cinema, Sports, Game)

• Clear Voice

• LG SimpLink™ Connectivity

• Invisible Speaker System

• USB 2.0 (JPEG. MP3)

• ISFccc

• 100,000 Hours to Half Brightness (Typical)

™

HD ReSoLuTion

High denition television is the highest performance segment of the DTV system used in the US. It’s a wide screen, high-resolution video
image, coupled with multi-channel, compact-disc-quality sound.

XD enGine

Six distinct processes contribute to picture improvement. LG’s XD Engine® takes the low resolution of analog signals to near HD levels
by improving brightness, contrast, detail and enhancing color as well as reducing signal noise.

FLuiD MoTion

The high performance of plasma panels allows you to enjoy smoother, clearer motion with all types of programming such as sports and action
movies. The moving picture resolution give the impression of performance of up to 3x the panels actual refresh rate.

AV MoDe

LG HDTVs include 3 A/V Modes, preset to optimize picture and sound settings based on “Cinema”, “Sports” or “Game” content which can be
easily set with a convenient button on the remote control.

CLeAR VoiCe TeCHnoLoGy

Designed to automatically enhance and amplify the sounds of the human voice frequency range, Clear Voice Technology preserves high­quality dialogue audio when background noises swell. You won’t miss a word of the action.

42PG25

TeCHniCAL SPeCiFiCATionS

PLASMA DiSPLAy PAneL

Native Display Resolution 1024 x 768p
Brightness (cd/m2) 1,500
Dynamic Contrast Ratio 30,000:1
ISM (Image Sticking Minimization) 3 Modes
Non-Reective Black Matrix Structure •
Fluid Motion •
Pure Black Level •
Altitude 2,900 m / 9,514 ft
Life Span (Typical) 100,000 hours

BRoADCASTinG SySTeM

Analog •
ATSC/NTSC/Clear QAM •

ViDeo

XD Engine™ •
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes
Just Scan (1:1 Pixel Matching)

- HDMI™ 1080p/1080i/720p

- Component 1080p/1080i/720p

- RF 1080i/720p
Enhanced Line Doubler •
Enhanced Noise Reduction (Video Noise Filter) • (3D & MPEG)
Color Temperature Control 4 Modes
Black Stretcher (Black Level Enhancer) •
3:2 Pulldown •
Picture Reset •
AV Mode (Picture & Sound) 3 Modes
ISFccc •
Picture Selection Mode 7 Modes
DTV Signal Strength Indicator •

AuDio

Mono/Stereo/Dual (MTS/SAP) •
Audio Outout Power (Watts - THD 10%) 10W + 10W
Speaker System Details 2 Way 4 System (Invisible Speaker)
Dolby® Digital Decoder •
Surround System Type SRS TruSurround XT™
Bass/Treble/Balance Controls •
Auto Volume Leveler •
Sound Mode 5 Modes
Mute •

SPeCiAL FeATuReS

1080P Source Input

- HDMI 60p/30p/24p

- Component 60p/30p/24p

- RGB 60p
A/V Input Navigation •
Auto Navigation •
Input Labeling •
Quick View (Previous Channel) •
Clear Voice (On/Off) •
Quick Setup Guide •
Parental Control w/V-Chip •
Key Lock •
Closed Caption •
LG SimpLink™ (HDMI CEC) •
Trilingual Menus English/French/Spanish
EZ Menus (High Performance Interface) •
Channel Add/Delete •
Favorite Channel •
Auto Clock •
Manual Clock •
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •

SiDe AuDio/ViDeo inPuTS/ouTPuTS

L/R Audio/Composite Video In 1
HDMI/HDCP In 1 (V.1.3 with Deep Color)
USB 2.0 1 (JPG, MP3)

ReAR AuDio/ViDeo inPuTS/ouTPuTS

RF In (Antenna/Cable) 1
L/R Audio/Composite Video In 1
L/R Audio Out 1

PLASMA HDTV

42” Class (41.6” diagonal)

ReAR AuDio/ViDeo inPuTS/ouTPuTS (ConTinueD)

S-Video In 1
HD Component Video In (Y,Pb,Pr) + L/R Audio 2
Digital Audio Out 2 (1 Coaxial / 1 Optical)
HDMI/HDCP Input 3 (V.1.3 with Deep Color)
RGB In (D-Sub 15pin) - PC 1
PC Audio Input 1
RS-232c In (Control/Service) 1
Remote Control In (IR) 1

CABineT/ACCeSSoRieS

Cabinet Style One Layer
Cabinet Color Glass
Remote Control Type Universal
Stand Swivel (degrees) 20º / 20º
VESA® Compatible (W x H) 400mm x 400mm

PoWeR

Consumption (Typical) 334W
Stand-by Consumption >1W
Energy Star Compliant •

SPeCiFiCATionS

Dimensions w/out stand (W x H x D) 41.1” x 26.8” x 3.1”
Weight w/out stand 55.1 lbs
Dimensions w/stand (W x H x D) 41.1” x 29.0” x 12.1”
Weight w/stand 61.3 lbs
Dimensions w/packaging (W x H x D) 44.1” x 34.3” x 15.2”
Weight in package 73.9 lbs
UPC 719192173859
Limited Warranty 1 Year Parts & Labor / 2 Year Panel

DiMenSionS/ReMoTe/inPuTS/ouTPuTS

12.1”

SIDE

3.1”

26.8” 29.0”

15.8”

(400mm)

BACK

41.1”

27.8”

15.8”

(400mm)

LG Electronics U.S.A., Inc. • 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

)

Customer Service and Technical Support: (800

© 2008 LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
All other trademarks are the property of their respective owners. Design, features and specifications subject to change without notice. 04/22 /08

243-0000 • LGusa.com
