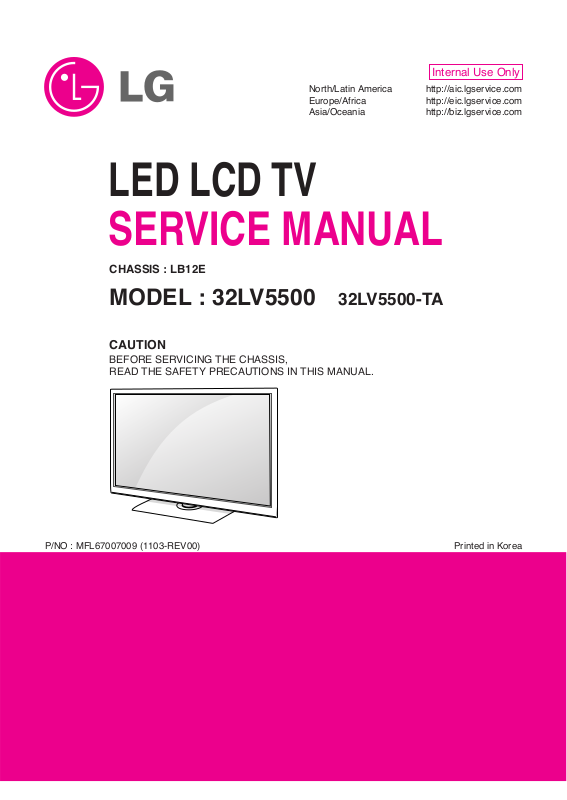

LG 32LV5500-TA Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LB12E

MODEL : 32LV5500 32LV5500-TA

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL67007009 (1103-REV00)

- 2 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 8

DISASSEMBLY ...................................................................................... 15

EXPLODED VIEW .................................................................................. 17

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

- 4 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LCD TV used LB12E
chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50 / 60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC :CE, IEC

4. Model General Specification

No. Item Specification Remarks

1. Market ASIA, Oceania, Africa, DTV & Analog

Middle East(PAL/DVB Market) * DTV Region : Australia/New Zealand(AU), Singapore(SG), Indonesia(ID),

Malaysia(MY), Vietnam(VN), South Africa(ZA), Iran(IR)

2. Broadcasting system 1) PAL-B/G * Australia/India : only PAL

2) PAL-D/K

3) PAL-I/I’

3) SECAM-DK, BG, I

4) DVB-T

3. Receiving system Analog : Upper Heterodyne G DVB-T

Digital : COFDM, QAM - Guard Interval(Bitrate_Mbit/s)

1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate

QPSK : 1/2, 2/3, 3/4, 5/6, 7/8

16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

4. Video Input RCA (2EA) PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

Rear 1EA, AV gender jack 1EA

5. Head phone out Antena, AV1, AV3, Component1,

Component2,RGB, HDMI1, HDMI2,

HDMI3, HDMI4, USB1, USB2

6. Component Input (2EA) Y/Cb/Cr, Y/Pb/Pr Rear 1EA, Gender 1EA

7. RGB Input (1EA) RGB-PC Analog(D-SUB 15PIN)

8. HDMI Input (4EA) HDMI1-ARC PC(HDMI version 1.3) Support HDCP

HDMI2

HDMI3

HDMI4

9. Audio Input (5EA) RGB/DVI Audio L/R Input

Component1,2

AV1,2

10. SDPIF out (1EA) SPDIF out

11. USB (2EA) EMF, DivX HD, For SVC(download) JPEG, MP3, DivX HD Plus

- 5 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

5. Component Video Input (Y, CB/PB, CR/PR)

No.

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.5 60 HDTV 1080p

No.

Specification

Proposed Remarks

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz

-> 640*480 60 Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1360*768 47.72 59.8 84.75 WXGA

6. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

6. RGB (PC)

7. HDMI Input

(1) DTV Mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

- 6 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1360*768 47.72 59.8 84.75 WXGA HDCP

6. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model

(2) PC Mode

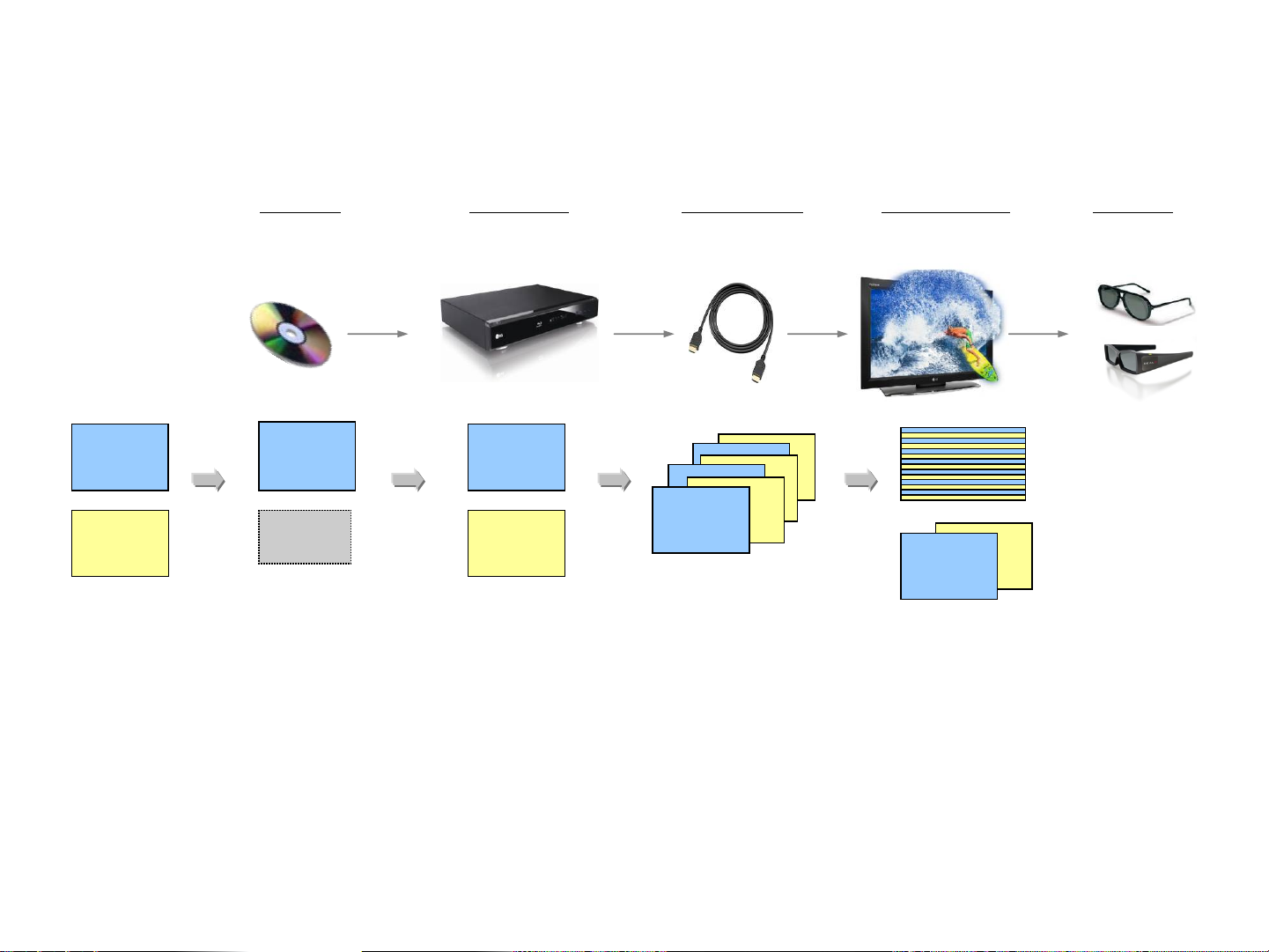

9. 3D Mode - HDMI & USB

(1) HDMI Input (V1.4a)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing

2 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing

3 1280*720 75 50 148.5 HDTV 720P Frame packing

4 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom

5 1920*1080 56.3 50 148.5 HDTV 1080P Side by Side(half), Top and bottom

6 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom

7 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom

8 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom

9 1920*1080 28.1 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom

10 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom

11 1920*1080 33.7 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

(2) HDMI Input(1.3)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom

2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom

4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom

5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

- 7 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

No. Side by Side Top & Bottom Checkerboard Single Frame Sequential Frame Packing 2D to 3D

1

(6) USB Input

(3) RF 3D Input(DTV)

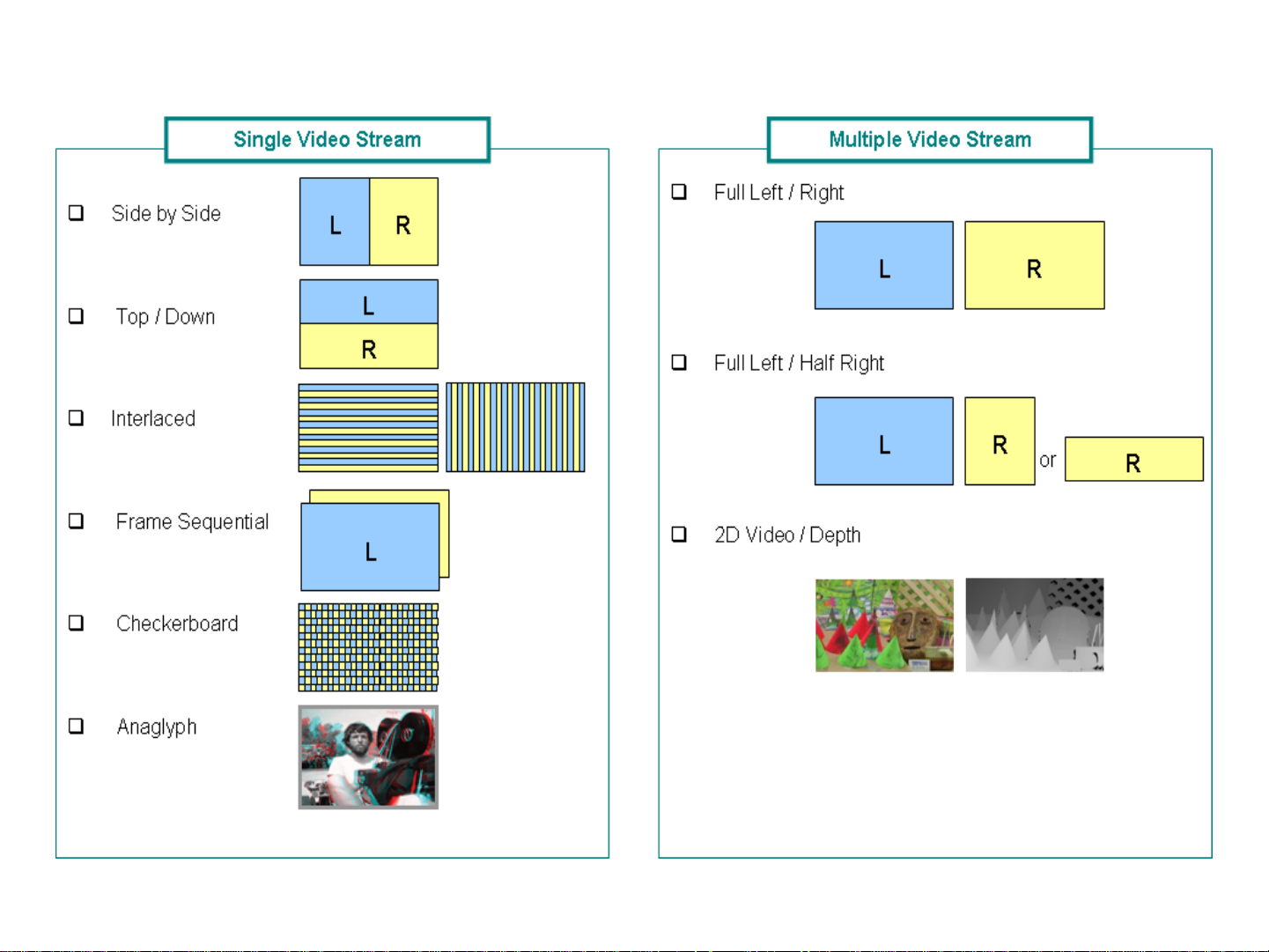

(8) 3D Input mode

RL

L

2D to 3D

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I Side by Side, Top & Bottom

(4) RGB-PC Input

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side, Top & Bottom

(5) DLNA

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1920*1080 33.75 30 74.25 HDTV 1080P Side by Side, Top & Bottom,

Checkerboard

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P

Top & Bottom

Checkerboard

(7) DVR

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 ALL - - - Side by Side

Top & Bottom

- 8 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED LCD TV
with LB12E chassis.

2. Designation

1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation
transformer will help protect test instrument.

2) Adjustment must be done in the correct order.

3) The adjustment must be performed in the circumstance of

25 ºC ± 5 ºC of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.

4) The input voltage of the receiver must keep AC 100-240

V~, 50 / 60Hz.

5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15.

In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.

In case of keeping module is in the circumstance of below ­20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.

[Caution]
When still image is displayed for a period of 20 minutes or
longer (especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.

3. Automatic Adjustment

3.1. ADC Adjustment

(1) Overview

ADC adjustment is needed to find the optimum black level
and gain in Analog-to-Digital device and to compensate
RGB deviation.

(2) Equipment & Condition

1) Jig (RS-232C protocol)

2) MSPG-925 Series Pattern Generator(MSPG-925FA,

pattern - 65)

- Resolution : 480i Comp1
1080P Comp1
1920*1080 RGB

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

(3) Adjustment

1) Adjustment method

- Using RS-232, adjust items in the other shown in
“3.1.(3).3)”

2) Adj. protocol

Ref.) ADC Adj. RS232C Protocol_Ver1.0

3) Adj. order

- aa 00 00 [Enter ADC adj. mode]

- xb 00 04 [Change input source to Component1 (480i&
1080p)]

- ad 00 10 [Adjust 480i Comp1]

- xb 00 06 [Change input source to RGB(1024*768)]

- ad 00 10 [Adjust 1024*768 RGB]

- ad 00 90 End adj.

3.2. MAC Address

(1) Equipment & Condition

- Play file: Serial.exe

- MAC Address edit

- Input Start / End MAC address

(2) Download method

1) Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40 b 00 OK40x (Adjust 480i, 1080p Comp1 )

xb 00 60 b 00 OK60x (Adjust 1920*1080 RGB)

Begin adj. ad 00 10

Return adj. result OKx (Case of Success)

NGx (Case of Fail)

Read adj. data (main) (main)

ad 00 20 000000000000000000000000007c007b006dx

(sub) (Sub)

ad 00 21 000000070000000000000000007c00830077x

Confirm adj. ad 00 99 NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

OK 03 03x (Success)

End adj. aa 00 90 a 00 OK90x

PCBA

PC(RS-232C)

RS-232C Por t

- 9 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

2) MAC Address Download, Whidevine Download

- Com 1,2,3,4 and 115200(Baud rate)

3.3. LAN

(1) Equipment & Condition

A Each other connection to LAN Port of IP Hub and Jig

(2) LAN inspection solution

A LAN Port connection with PCB
A Network setting at MENU Mode of TV
A setting automatic IP
A Setting state confirmation

-> If automatic setting is finished, you confirm IP and
MAC Address.

(3) WIDEVINE key Inspection

- Confirm key input data at the “IN START” MENU Mode.

3.4. LAN PORT INSPECTION(PING TEST)

Connect SET -> LAN port == PC -> LAN Port

(1) Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2

(2) LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) Connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) Remove LAN CABLE

3.5. Model name & Serial number Download

(1) Model name & Serial number D/L

A Press “Power on” key of service remote control.(Baud

rate : 115200 bps)

A Connect RS232 Signal Cable to RS-232 Jack.
A Write Serial number by use RS-232.
A Must check the serial number at Instart menu.

(2) Method & notice

A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing

Technology Group.

C.Serial number D/L must be conformed when it is

produced in production line, because serial number D/L
is mandatory by D-book 4.0

SET PC

- 10 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded by OTA or service man,
sometimes model name or serial number is initialized.(Not
always)
It is impossible to download by bar code scan, so It need
Manual download.

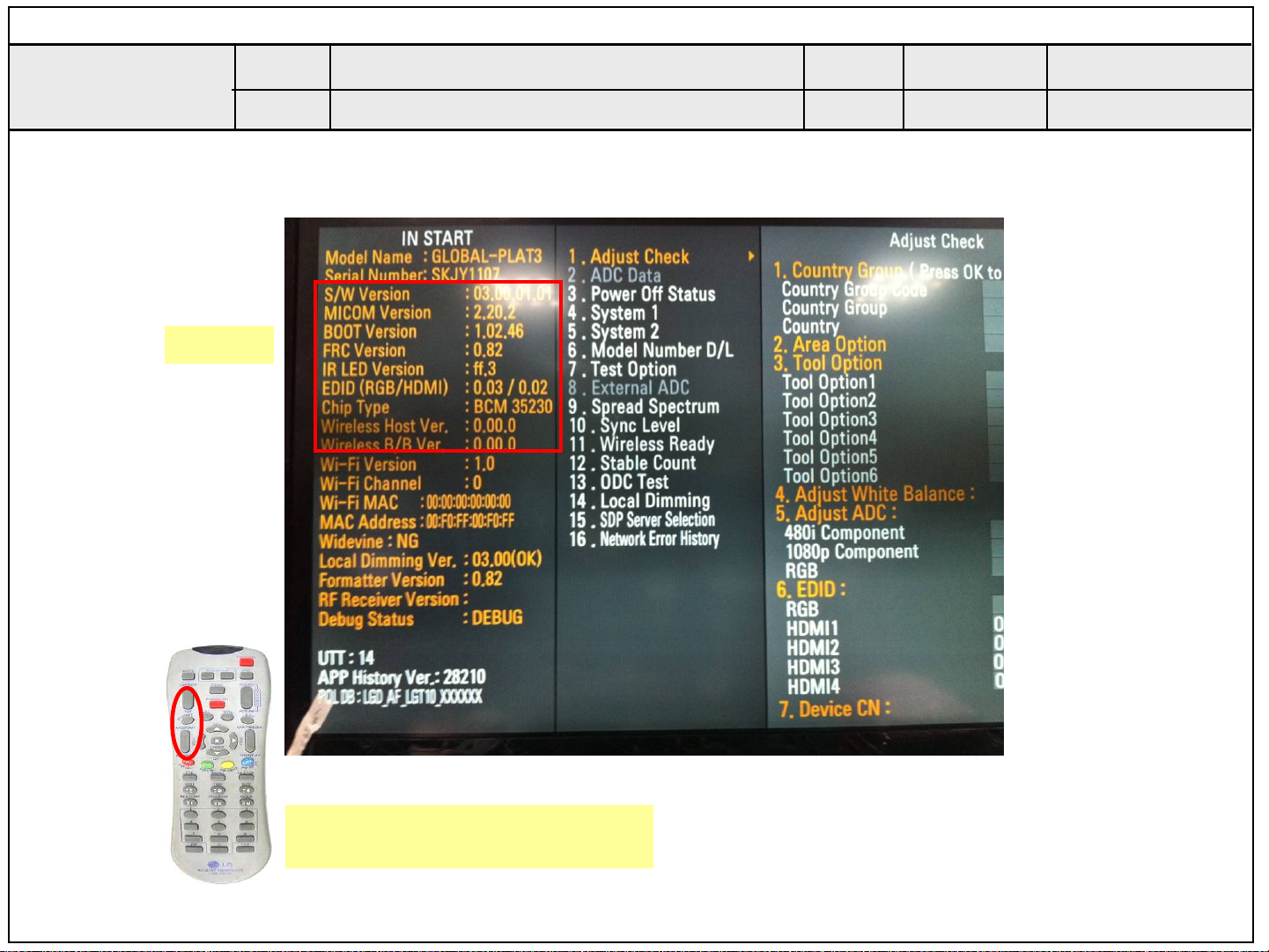

a. Press the ‘instart’ key of ADJ remote control.
b. Go to the menu ‘5.Model Number D/L’ like below photo.
c. Input the Factory model name(ex 42LD450-TA) or Serial

number like photo.

d. Check the model name Instart menu -> Factory name

displayed (ex 42LE7500-TA)

e. Check the Diagnostics(DTV country only) -> Buyer model

displayed (ex 42LE7500-TA)

3.6. WIFI MAC ADDRESS CHECK

a. Using RS232

b. Check the menu on in-start

4. Manual Adjustment

4.1. ADC Adjustment

4.1.1. Overview

ADC adjustment is needed to find the optimum black level and
gain in Analog-to-Digital device and to compensate RGB
deviation.

4.1.2. Equipment & Condition

(1) Adjust Remote control
(2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator

- Resolution :

480i,720*480(MSPG-925FA -> Model: 209, Pattern: 65) ­480i
1080p, 1920*1080(MSPG-925FA -> Model: 225, Pattern:

65) - 1080p

- Pattern : Horizontal 100 % Color Bar Pattern

- Pattern level: 0.7 ± 0.1 Vp-p

- Image

(3) Must use standard cable

4.1.3. Adjust method

(1) ADC 480i, 1080p Comp1

1) Check connected condition of Comp1 cable to the

equipment.

2) Give a 480i, 1080p Mode, Horizontal 100% Color Bar

Pattern to Comp1.

(MSPG-925FA -> Model: 209, Pattern: 65) - 480i
(MSPG-925FA -> Model: 225, Pattern: 65) - 1080p

3) Change input mode as Component1 and picture mode

as “Standard”

4) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The
adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is

displayed. If ADC calibration is failure, “ADC RGB Fail”
is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or

condition retry calibration Error message refer to 5).

(2) ADC 1920*1080 RGB

1) Check connected condition of Component & RGB cable

to the equipment

2) Give a 1920*1080 Mode, 100 % Horizontal Color Bar

Pattern to RGB port.

(MSPG-925 Series -> model: 225 , pattern: 65 )

3) Change input mode as RGB and picture mode as “Standard”.

4) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select 7. External ADC ->

1. COMP 1080p on the menu. Press enter key. The
adjustment will start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is

displayed. If ADC calibration is failure, “ADC RGB Fail”
is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or

condition retry calibration Error message refer to 5).

H-freq(kHz) V-freq.(Hz)

Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]

- 11 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

4.2. EDID(The Extended Display Identification
Data)/DDC(Display Data Channel) download

(1) Overview

It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.

(2) Equipment

- Adjust remote control

- Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.

(3)Download method

1) Press Adj. key on the Adj. R/C, then select “10.EDID

D/L”, By pressing Enter key, enter EDID D/L menu.

2) Select [Start] button by pressing Enter key, HDMI1/

HDMI2/ HDMI3/ HDMI4/ RGB are Writing and display
OK or NG

(4) EDID DATA

A RGB

A HDMI

* Physical Add & Checksum(HDMI1/2/3/4)

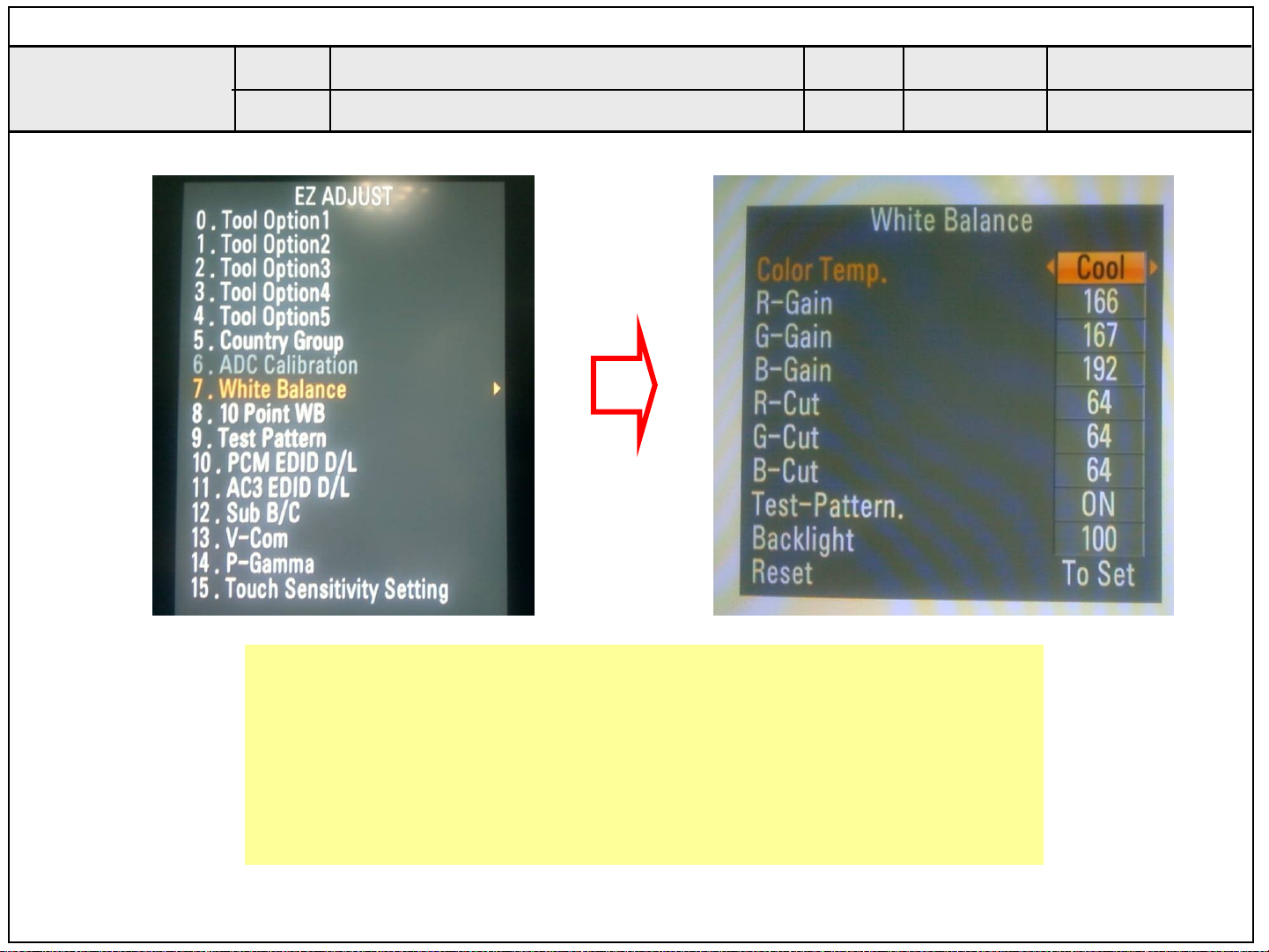

4.3. White Balance Adjustment

4.3.1. Overview

(1) W/B adj. Objective & How-it-works
(2) Objective: To reduce each Panel’s W/B deviation
(3) How-it-works : When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

(4) Adj. condition : normal temperature

1) Surrounding Temperature : 25 ºC ± 5 ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity : 20 % ~ 80 %

4.3.2. Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is
needed)

3) Adjust Remote control

4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:217, Pattern:78)

-> Only when internal pattern is not available

A Color Analyzer Matrix should be calibrated using CS-1000

4.3.3. Equipment connection MAP

4.3.4. Adj. Command (Protocol)

<Command Format>

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

0123456789ABCDEF

0 00FFFFFFFFFFFF001E6D 0100 0101 0101

10 01 14 01 03 80 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 71 4F 81 01 01 01 01 01 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 D7

80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21

90 22 15 01 26 15 07 50 09 57 07 67 03 0C 00 XX XX

A0 B8 2D E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 1A 20

C0 6E 88 55 00 A0 5A 00 00 00 1A 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00

F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 XX

0123456789ABCDEF

0 00FFFFFFFFFFFF001E6D01 00 01 010101

10 01 15 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 71 40 81 C0 81 00 81 80 95 00

30 90 40 A9 C0 B3 00 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30

50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC

70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 98

INPURT 9Eh/9Fh(Physical Add) FFh(Checksum)

HDMI 1 10 00 D9

HDMI 2 20 00 C9

HDMI 3 30 00 B9

HDMI 4 40 00 A9

Color Analyzer

Comp uter

Pattern Generator

RS- 232C

RS-232C

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

LEN CMD VAL

CS

- 12 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

A RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f -> Gain adj. completed

*(wb 00 20(Start), wb 00 2f(completed)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

A Adj. Map

4.3.5. Adj. method

(1) Auto adj. method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the
Display.

3) Connect Cable (RS-232C)

4) Select mode in adj. Program and begin adjustment.

5) When adj. is complete (OK Sign), check adj. status pre
mode. (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

A W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

(2) Manual adj. method

1) Set TV in Adj. mode using POWER ON.

2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the surface.

3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White­Balance then press the cursor to the right (KEY

G).

(When KEY(G) is pressed 216 Gray internal pattern will
be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes
of color temperature.

A If internal pattern is not available, use RF input. In EZ

Adj. menu 7.White Balance, you can select one of 2
Test-pattern: ON, OFF. Default is inner(ON). By selecting
OFF, you can adjust using RF signal in 216 Gray pattern.

A Adj. condition and cautionary items

1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.

2) Probe location
: Color Analyzer (CA-210) probe should be within 10
cm and perpendicular of the module surface (80° ~
100°)

3) Aging time

- After Aging Start, Keep the Power ON status during

5 Minutes.

- In case of LCD, Back-light on should be checked

using no signal or Full-white pattern.

4.3.6. Reference (White Balance Adj. coordinate and
color temperature)

A Luminance : 204 Gray
A Standard color coordinate and temperature using CS-1000

(over 26 inch)

A Standard color coordinate and temperature using CA-210

(CH 9)

ITEM Command Data Range(Hex.) Default(Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0

G-Gain j h 00 C0

B-Gain j i 00 C0

R-Cut

G-Cut

B-Cut

Medium R-Gain j a 00 C0

G-Gain j b 00 C0

B-Gain j c 00 C0

R-Cut

G-Cut

B-Cut

Warm R-Gain j d 00 C0

G-Gain j e 00 C0

B-Gain j f 00 C0

R-Cut

G-Cut

RS-232C COMMAND

Explanation

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.(Internal pattern disappears)

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 ± 0.002 0.273 ± 0.002 13000 K 0.0000

MEDIUM 0.285 ± 0.002 0.293 ± 0.002 9300 K 0.0000

WARM 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 0.273 13000 K 0.0000

MEDIUM 0.285 0.293 9300 K 0.0000

WARM 0.313 0.329 6500 K 0.0000

- 13 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

4.3.7. ALELF & EDGE LED White banlance table

- ALELF&EDGE LED module change color coordinate
because of aging time.

- Apply under the color coordinate table, for compensated
aging time.

- EDGE LED - LGD Only

4.4. Wireless function check

Step 1) Connect set and Dongle of Wireless to Cable of HDMI

& TTA 20Pin
Step 2) At OSD of SET, check the message like Fig 3.
Step 3) Detach Cable of Wireless Dongle

4.5. EYE-Q function check

Step 1) Turn on TV.
Step 2) Press EYE key of Adj. R/C.
Step 3) Cover the Eye Q II sensor on the front of the using

your hand and wait for 6 seconds.

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw

Data (Sensor data, Back light)”. If after 6 seconds,
R/G/B value is not lower than 10, replace Eye Q II
sensor.

Step 5) Remove your hand from the Eye Q II sensor and wait

for 6 seconds.

Step 6) Confirm that “ok” pop up. If change is not seen,

replace Eye Q II sensor.

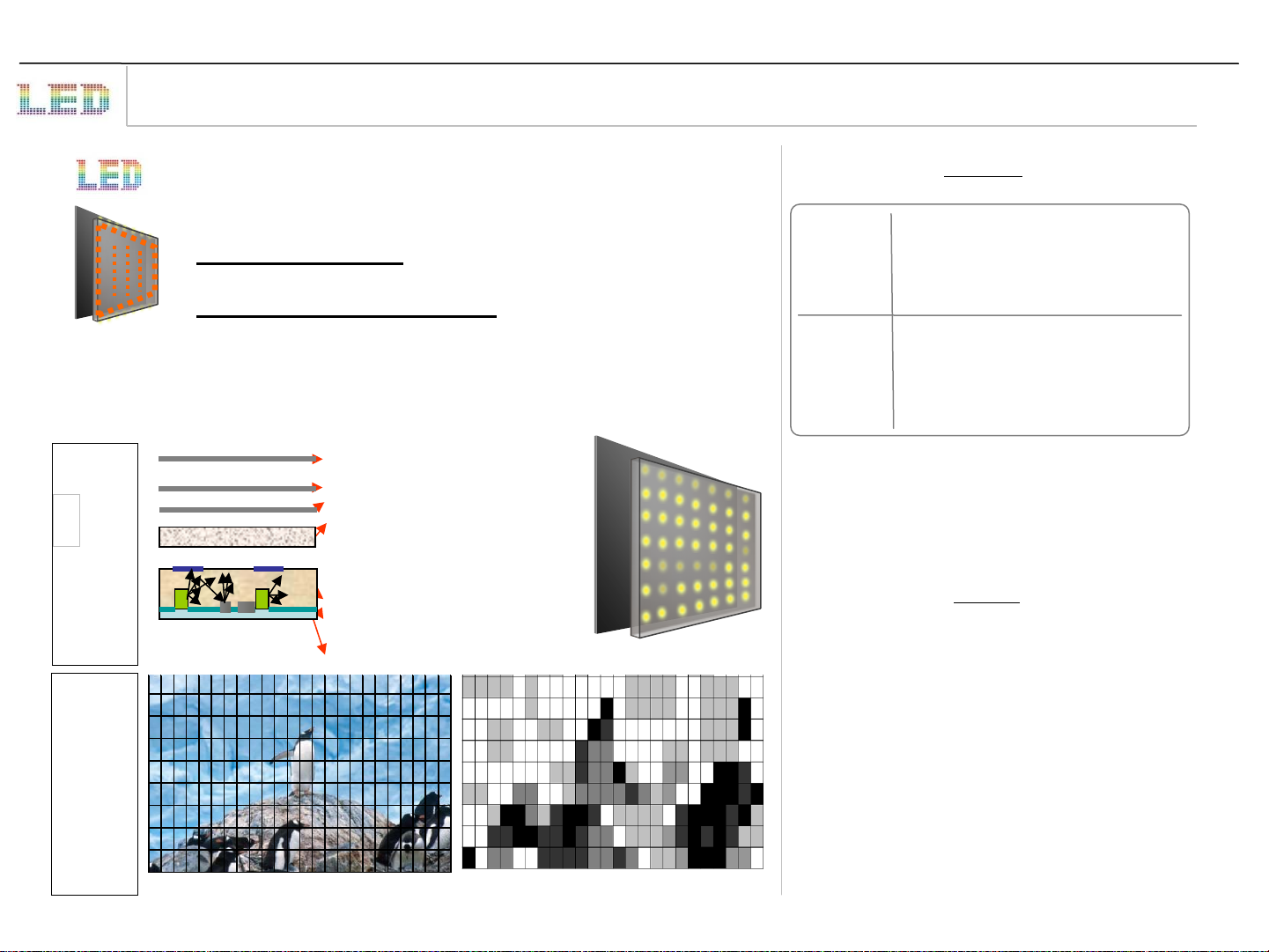

4.6. Local Dimming Function Check

Step 1) Turn on TV.
Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving.
Step 3) Confirm the Local Dimming mode.
Step 4) Press “exit” key.

4.7. Magic Motion Remote control test

- Equipment : RF Remote control for test, IR-KEY-Code

Remote control for test

- You must confirm the battery power of RF-Remote control

before test(recommend that change the battery per every lot)

- Sequence (test)

1) if you select the ‘start(Mute)’ key on the controller, you
can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select
the ‘OK’ key on the controller

3) You must remove the pairing with the TV Set by select
‘OK’ Key + ‘Mute’ key on the controller for 5 seconds.

Aging Time Cool Medium Warm

GP3 (Min.) X Y X Y X Y

269 273 285 293 313 329

1 0-2 279 288 295 308 319 338

2 3-5 278 286 294 306 318 336

3 6-9 277 285 293 305 317 335

4 10-19 276 283 292 303 316 333

5 20-35 274 280 290 300 314 330

6 36-49 272 277 288 297 312 327

7 50-79 271 275 287 295 311 325

8 80-149 270 274 286 294 310 324

9 Over 150 269 273 285 293 309 323

Fig.1

Fig.3 Connect the Dongle

Fig.2

Connect

Local Dimming Demo (Edge LED Model)

Local Dimming Demo (IOP & ALEF Model)

- 14 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

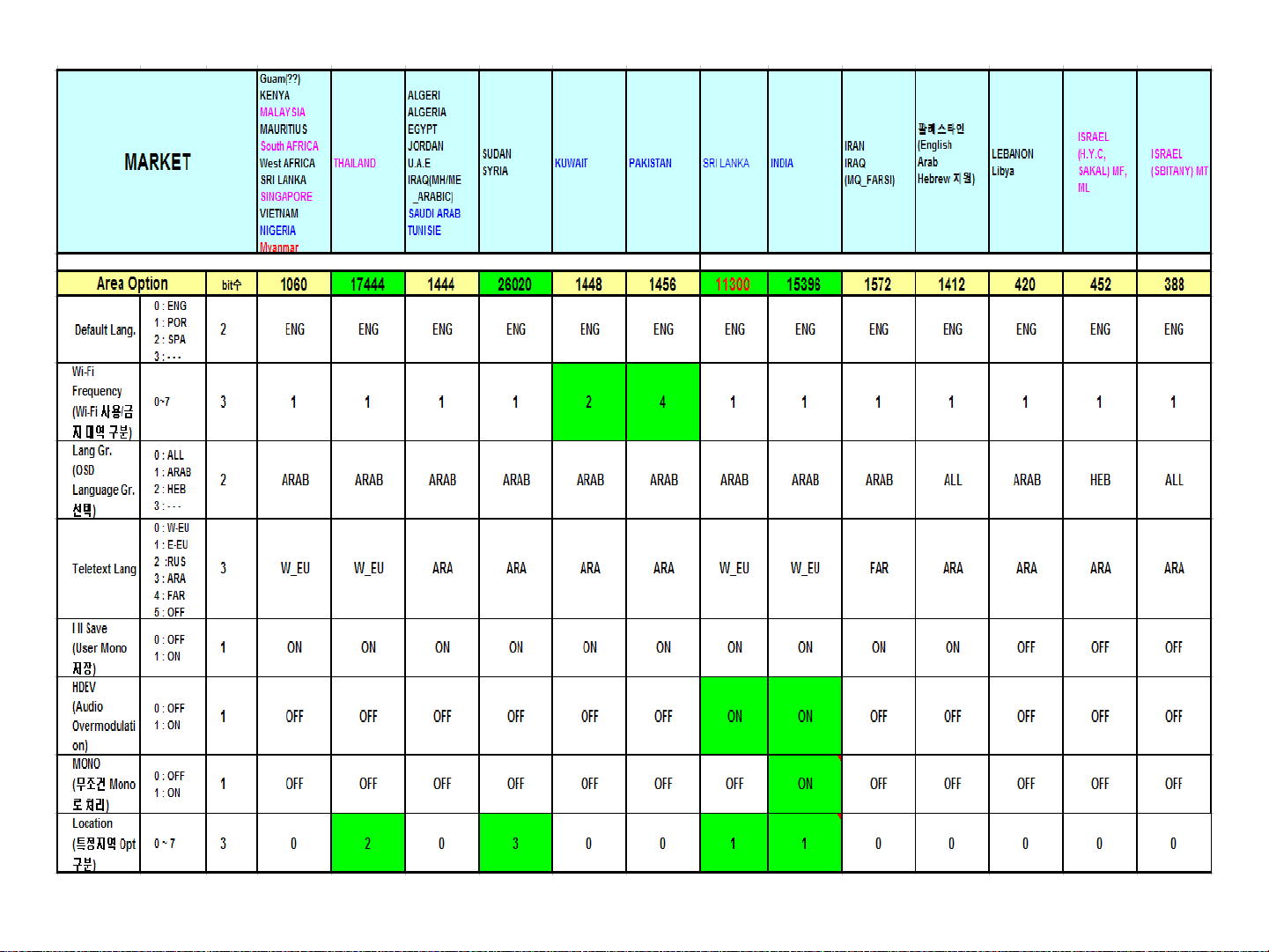

4.8. Option selection per country

(1) Overview

- Option selection is only done for models in Non-EU.

- Applied model: LB12C/D/E Chassis applied Non-EU model.

(2) Method

1) Press ADJ key on the Adj. R/C, then select Country
Group Meun.

2) Depending on destination, select Country Group Code
12 or Country Group A-ASIA.

3) Press ADJ key on the Adj. R/C, then select Area Option.

4) Depending on Area code number, select Default Lang.,
Wi-Fi Frequency, Lang Gr., Teletext Lang Gr., I II Save,
HDEV, MONO, Location.

4.9. Tool Option selection

- Method : Press Adj. key on the Adj. Remote Control, then
select Tool option.

4.10. Ship-out mode check(In-stop)

After final inspection, press IN-STOP key of the Adjustment
remote control and check that the unit goes to Stand-by mode.

4.11. GND and Internal Pressure check

(1) Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET.
(If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V

arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow

the pallet to move on to next process.

(2) Checkpoint

• TEST voltage

- GND: 1.5 KV / min at 100 mA

- SIGNAL: 3 KV / min at 100 mA

• TEST time: 1 second

• TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE
& NEUTRAL

• LEAKAGE CURRENT: At 0.5 mArms

5. Audio

Measurement condition:

1. RF input: Mono, 1 KHz sine wave signal, 100 % Modulation

2. CVBS, Component: 1 KHz sine wave signal 0.5 Vrms

3. RGB PC: 1 KHz sine wave signal 0.7 Vrms

6. USB S/W download(Service only)

1) Put the USB Stick to the USB socket

2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting

3) Show the message “Copying files from memory”

4) Updating is starting.

5) Updating Completed, The TV will restart automatically

6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a
DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1) Push "IN-START" key in service remote control.

2) Select "Tool Option 1" and Push “OK” button.

3) Push in the number. (Each model has their number.)

No. Item Min. Typ. Max. Unit

1. Audio practical max 9.0 10.0 12.0 W EQ Off

Output, L/R AVL Off

(Distortion=10 % 8.5 8.9 9.8 Vrms Clear Voice Off

max Output)

2. Speaker (8 Ω 10.0 15.0 W EQ On

Impedance) AVL On

Clear Voice On

Module Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Remark

LGD 32996 715 3327 17594 8789 663 STD B/L: 60

CMI 35044 715 3327 17594 8917 665

- 15 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

DISASSEMBLY

1 2

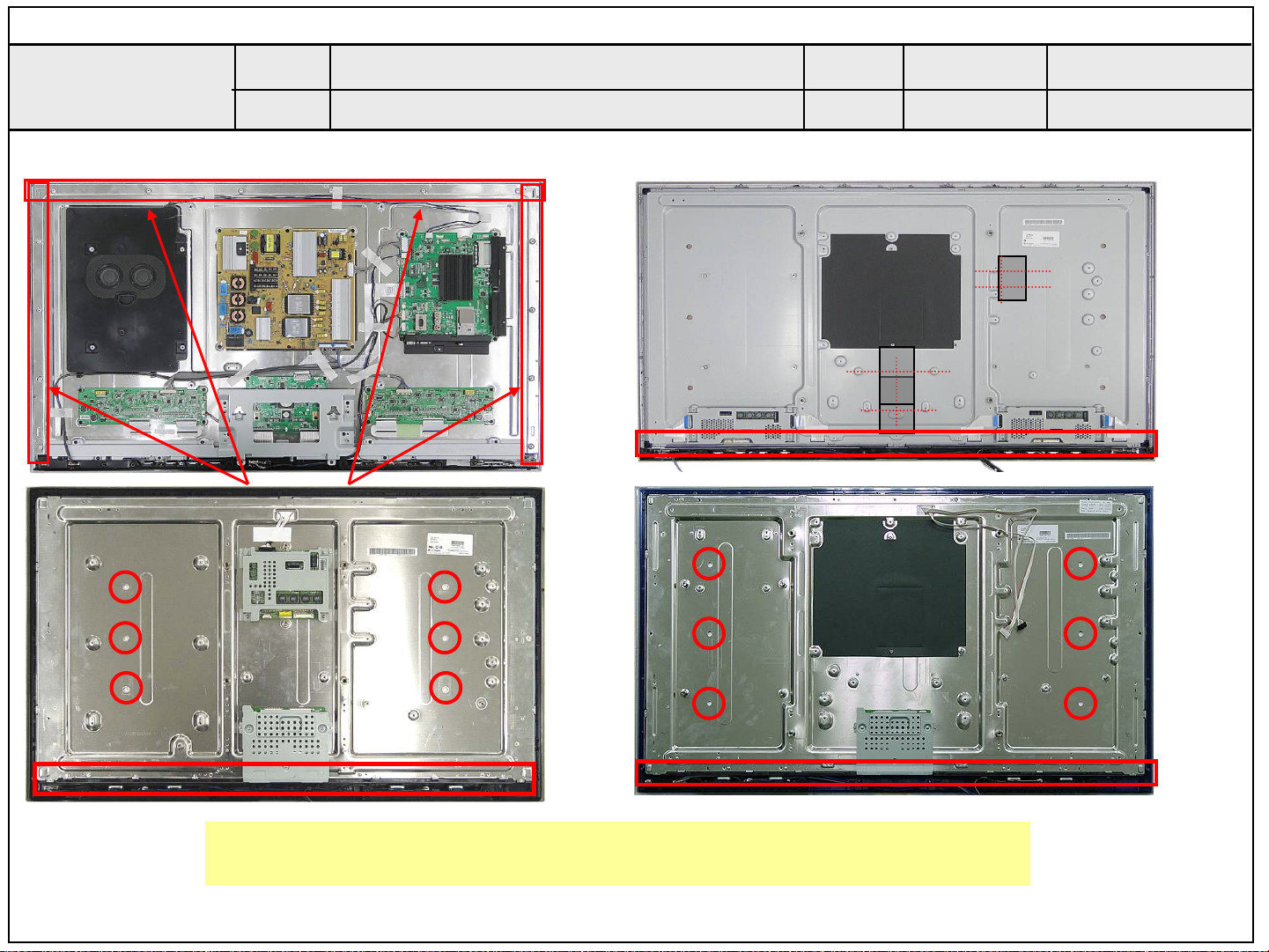

Loosen 4 screws that bind Stand Assembly and set. Disassemble 18 screws around the 4 edges of set after

separation Stand Assembly.

3 4

Disassemble 4 VESA screws. Disassemble 3 screws that fix Side AV bracket and Back

cover.

5 6

Disassemble 1 screw which bind Main Board and Back
cover.

Detach Power cord Cover from the Back cover.

- 16 -

LGE Internal Use OnlyCopyright © 2011 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

7 8

Push the latch to get Power cord out of the set.
Remove the Back cover.

Push the Panel aside and bend Cabinet back. Take the Panel out of Cabinet by detaching latch.

Disconnect cables of Soft touch PCB, Motion PCB, Speaker
from Main board.

9

- 17 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All rights reserved.

Only for training and service purposes

501

510

511

300

A5

A2

A21

A10

LV2

LV1

120

800

200

400

900

910

530

540

521

710

700

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

NAND FLASH MEMORY 8Gbit

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

LGE35230(BCM35230KFSBG)

B5
C5

A4
B4

A3
B3

A2
B2

W2

V4
W4

V3
V2

D13

E6

R106
3K

IC101

NON_BCM_CAP

HDMI0_CLKN
HDMI0_CLKP

HDMI0_D0N
HDMI0_D0P

HDMI0_D1N
HDMI0_D1P

HDMI0_D2N
HDMI0_D2P

CEC

DDC0_SCL
DDC0_SDA

HDMI0_HTPLG_IN
HDMI0_HTPLG_OUT

HDMI0_ARC
HDMI0_RESREF

LT0VCAL_MONITOR

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

R101

4.7K

FLASH_WP

R105

4.7K

NAND_WEb

R104

4.7K

R195

4.7K

Write Protection

- High : Normal Operation

- Low : Write Protection

+3.3V_Normal

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

HDMI_CLK­HDMI_CLK+

HDMI_RX0­HDMI_RX0+

HDMI_RX1­HDMI_RX1+

HDMI_RX2­HDMI_RX2+

HDMI_ARC

16Gbit

R149 0

16Gbit

0

C102

4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

TXOUT0_L0N
TXOUT0_L0P
TXOUT0_L1N
TXOUT0_L1P
TXOUT0_L2N
TXOUT0_L2P

TXCLK_LN

TXCLK_LP
TXOUT0_L3N
TXOUT0_L3P
TXOUT0_L4N
TXOUT0_L4P

TXOUT0_U0N
TXOUT0_U0P
TXOUT0_U1N
TXOUT0_U1P
TXOUT0_U2N
TXOUT0_U2P

TXCLK_UN

TXCLK_UP
TXOUT0_U3N
TXOUT0_U3P
TXOUT0_U4N
TXOUT0_U4P

TXOUT1_L0N
TXOUT1_L0P
TXOUT1_L1N
TXOUT1_L1P
TXOUT1_L2N
TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP
TXOUT1_L3N
TXOUT1_L3P
TXOUT1_L4N
TXOUT1_L4P

TXOUT1_U0N
TXOUT1_U0P
TXOUT1_U1N
TXOUT1_U1P
TXOUT1_U2N
TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP
TXOUT1_U3N
TXOUT1_U3P
TXOUT1_U4N
TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE27
AE28
AF27
AF28
AG27
AG28
AE26
AF26
AH27
AG26
AF25
AE25

AH26
AG25
AE24
AD24
AH25
AF24
AE23
AD23
AG24
AF23
AC22
AD22

AG23
AH23
AE22
AE21
AF22
AH22
AG22
AF21
AG21
AF20
AD21
AC21

AG20
AH20
AD19
AE19
AF19
AH19
AE18
AD18
AG19
AF18
AG18
AF17

AC18
AH16
AG16

16Gbit

IC102-*1

TH58DVG4S0ETA20

SDA0_3.3V
SCL0_3.3V

SCL2_3.3V
SDA2_3.3V

R199 22
R197 22

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_26

NC_25

NC_24

NC_23

I/O8

I/O7

I/O6

I/O5

NC_22

PSL

NC_21

VCC_2

VSS_2

NC_20

NC_19

NC_18

I/O4

I/O3

I/O2

I/O1

NC_17

NC_16

NC_15

NC_14

+3.3V_Normal

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

NAND_DATA[7]

44

I/O7

NAND_DATA[6]

43

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

TXB4P
TXB4N
TXB3P
TXB3N
TXBCLKP
TXBCLKN
TXB2P
TXB2N
TXB1P
TXB1N
TXB0P
TXB0N

TXA4P
TXA4N
TXA3P
TXA3N
TXACLKP
TXACLKN
TXA2P
TXA2N
TXA1P
TXA1N
TXA0P
TXA0N

TXD4P
TXD4N
TXD3P
TXD3N
TXDCLKP
TXDCLKN
TXD2P
TXD2N
TXD1P
TXD1N
TXD0P
TXD0N

TXC4P
TXC4N
TXC3P
TXC3N
TXCCLKP
TXCCLKN
TXC2P
TXC2N
TXC1P
TXC1N
TXC0P
TXC0N

+3.3V_Normal

0

C103

0.1uF

10V

R194

2.7K

R108 10K

NAND_DATA[0-7]

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF
10V

Q101
BSS83

Q102
BSS83

+3.3V_Normal

VCC

SCL

SDA

GND

A_DIM

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

SBD

G

SBD

G

CE1

CE2

CLE

ALE

RE

WE

WP

C106

4.7uF

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R196
10K

C118

0.1uF
16V

+3.3V_Normal

R198
10K

C119

0.1uF
16V

R110

R109

1.5K

1.5K

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD
APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

R113
10K

R114
10K

OPT

R117
10K
OPT

R118
10K

R122
10K

R123
10K

OPT

R127
10K
OPT

R128
10K

CI_ADDR[4]
NAND_DATA[7]
NAND_DATA[2]
NAND_DATA[1]

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111
10K

OPT

R112
10K

10K

R116
10K
OPT

10K
OPT

R120
10K

CI_ADDR[3]
CI_ADDR[2]
NAND_ALE

DUAL COMPONENT

IC102 1ST : EAN61000101 2ND : T-TH58DVG4S0ETA20

IC102-*1

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R121

1.2K

C107
33pF
50V

DVB_S

+3.3V_Normal

+3.3V_Normal

R124
1K

OPT

R125
1K

R126

1.2K

C108
33pF
50V

DVB_S

R129

1.2K

C109
33pF
50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF
C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110
33pF
50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

SOC_RESET

LNB_INT

SC_ID

BCM_RX
BCM_TX

R135
R136 33

+3.3V_Normal

R141 4.7K

R142 22
R143 22

R144 22
R145 22

R139 0

SRST

R140
560
1%

OPT

OPT
OPT

OPT

0000: ST Micro M25P or compatible Serial Flash
0010: 8-bit 512Mbit 512B page SLC NAND Flash devices
0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices
0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices
1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices
1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O)
0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices
0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices
0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices
0111: 3B dual IO Serial Flash
1001: BB dual IO Serial Flash
1011: fast Serail Flash > 50Mhz
1100: OneNAND Flash (always 16-bit)
1110: Reserved
1101, 1111: Reserved

000 = ECC disabled
001 = ECC 1-bit repair
010 = ECC 4-bit BCH (O)
011 = ECC 8-bit BCH, 27 byte spare
100 = ECC 12-bit BCH, 27 byte spare
101 = ECC 8-bit BCH, 16 byte spare
110, 111 = Reservedd

IC101

NON_BCM_CAP

AVS_NDRIVE_1
AVS_PDRIVE_1

FAD_7
FAD_6
FAD_5
FAD_4
FAD_3
FAD_2
FAD_1
FAD_0

FALE
FCEB_0
FCEB_1
FCEB_2
FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10
FA_11
FA_12
FA_13
FA_14
FA_15

TRSTB

TDI/GPIO

TMS/GPIO
TCK/GPIO

DINT/GPIO

AVS_VFB
AVS_VSENSE
AVS_RESETB

VDAC_1
VDAC_2

AB1

NAND_DATA[7]

AB3

NAND_DATA[6]

AC1

NAND_DATA[5]

AC2

NAND_DATA[4]

AC3

NAND_DATA[3]

AD2

NAND_DATA[2]

AD3

NAND_DATA[1]

AE2

NAND_DATA[0]

AG1
AF1
AC5
AE6
AG5

AF3
AG2

FWE

AE3

FRD

AA5

AF2
AE1
AC4
AD5
AD4
AE4
AE5
AD6
AH3
AF4
AH4
AG4
AF5
AG3
AH2
AH5

AD15
AF14
AH14

TDO

AD14
AG14
AC16

AH7
AG7
AD7
AF7
AH8

C6
D7

NAND_ALE
NAND_CEb
NAND_CEb2
/CI_CE1
/CI_CE2

FLASH_WP
NAND_WEb
NAND_REb
/PCM_WAIT

NAND_CLE
NAND_RBb

CI_ADDR[2]
CI_ADDR[3]
CI_ADDR[4]
CI_ADDR[5]
CI_ADDR[6]
CI_ADDR[7]
CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]

CI_ADDR[14]

R146 10K

NAND_DATA[0-7]

R147
1K

DTV/MNT_V_OUT

Strap Setting

CI_ADDR[2-14]

+3.3V_Normal

R150

R153

1K

R156

1K

1K

For L/R sync GPIO

SRST

+3.3V_Normal

R157

R160

R154

10K

10K

OPT

OPT

R158

R155

10K

10K

NAND_DATA[0]:
0: System is LITTLE endian (O)
1: System is BIG endian

CI_ADDR[7]:
0: Disable EDID automatic Downloading from Flash (O)
1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] :
0: Disable OSC clock output on chip Pin (O)
1: Enable OSC clock output on chip pin.

CI_ADDR[6]:
0: Host MIPS run at 500 MHz (O)
1: Host MIPS run at 250 MHz

NAND_CLE:
0: Differential Oscillators TVM not bypassed (O)
1: Differential Oscillators TVM bypassed

NAND_DATA[4]:
0: 27MHz TVM Crystal Frequency
1: 54MHz TVM Crystal Frequency (O)

R162

R159
1K

L/R_SYNC_DINT
L/R_SYNC_DINT

R166

1K

1K

R163
1K

10K
OPT

R161
10K

R164
10K

OPT

R165
10K

R167
10K

OPT

R168
10K

R175
10K

OPT

R176
10K

R177
10K

R178
10K

OPT

R170
10K

R171
10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13]
TVM Crystal oscillator bias/gain control
0000: 210uA
0001: 390uA
0010: 570uA
0011: 730uA
0100: 890uA (O)
0111: 1290uA
1000: 1416uA
1111: 2196uA
0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]:
0: RESETOUTb (in On/Off only) stay asserted until software releases them.
1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only)
at end of RESETb pulse (O)

NAND_DATA[3]:
0: MIPS will boot from external flash (O)
1: MIPS will boot from ROM

NAND_DATA[5]:
0: FLASH MODE (O)
1: BSC_SLAVE(BBS) MODE

R179
10K

OPT

R180
10K

R181
10K

OPT

R182
10K

R183
10K

R184
10K

OPT

R187
10K

OPT

R188
10K

NVRAM

+3.3V_Normal

R169
0

R173

R172

4.7K

4.7K

OPT

R174

4.7K

BCM_NVM_1M

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

R190 33

R191 33

54MHz X-TAL

C113
12pF

50V

3

X-TAL_2

4

GND_2

54MHz

X101

CRYSTAL_BCM_Sunny

C114

12pF

EAW58812611

50V

SUNNY ELECTRONICS CORPORATION

2

1

GND_1

X-TAL_1

R185 0

R186 0

R189
1M
OPT

54MHz_XTAL_N

54MHz_XTAL_P

R192
10K

OPT

NAND_DATA[0]
CI_ADDR[7]
NAND_DATA[6]
CI_ADDR[6]
NAND_CLE
NAND_DATA[4]
CI_ADDR[9]
CI_ADDR[11]
CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[8]
NAND_DATA[3]
NAND_DATA[5]

R193
10K

BCM_NVM_256K

IC103-*1

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

Write Protection

- Low : Normal Operation

- High : Write Protection

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_KDS

EAW58239604

DAISHINKU CORPORATION.

X101-*1

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

VCC

8

WP

7

SCL

6

SDA

5

SCL3_3.3V

SDA3_3.3V

GND_2

4

X-TAL_2

3

GND_2

4

X-TAL_2

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

+3.3V_Normal

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

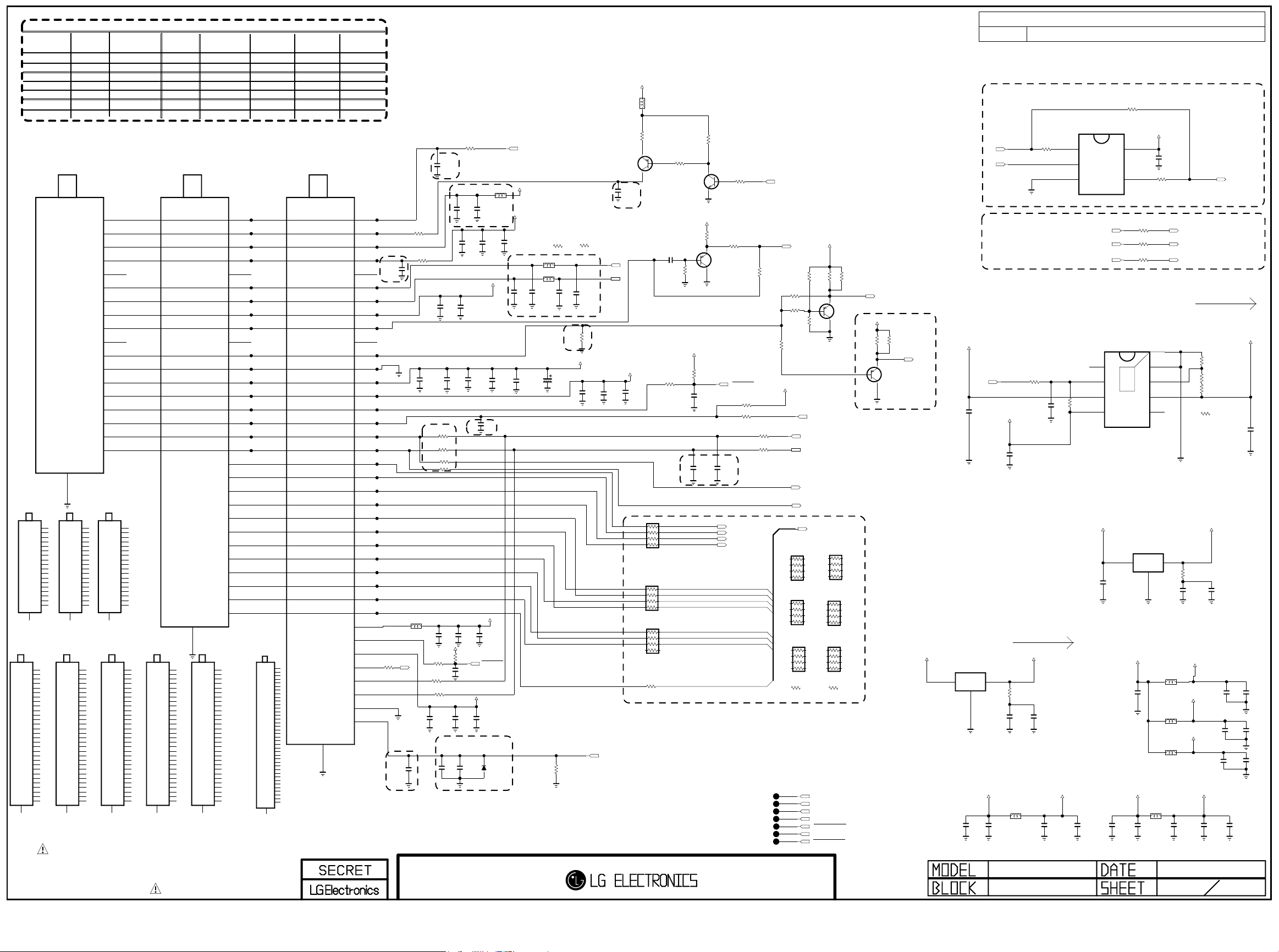

FHD

R252

1K

HD

R262

1K

PHM

FE_TS_DATA[0-7]

OLED

LCD

BCM
internal
FRC

00 11

1 100

HIGH

Support

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

1K

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

R253

1K

R263

1K

CHBO_TS_CLK

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external
URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

PCM_TS_DATA[0-7]

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

OPT

R202

0

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

R286
10K

WIFI

TU_TS_CLK

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

PHM

NO_PHM

R287
10K

WIFI

R257

1K

R267

1K

R203 0
R204 0
R205 0
R206 0

R207 0
R208 0
R209 0

C201
100pF

OPT

F/NIM_EU_CN
F/NIM_EU_CN

F/NIM_EU_CN

PCM_MDI[0]
PCM_MDI[1]
PCM_MDI[2]
PCM_MDI[3]
PCM_MDI[4]
PCM_MDI[5]
PCM_MDI[6]
PCM_MDI[7]

R211

6.04K
EPHY_TDP

EPHY_TDN
EPHY_RDP
EPHY_RDN

R210

4.87K
1%

SIDE_USB_DM
SIDE_USB_DP

SIDE_USB_CTL1

WIFI_DM
WIFI_DP

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0]
PCM_TS_DATA[1]
PCM_TS_DATA[2]
PCM_TS_DATA[3]
PCM_TS_DATA[4]
PCM_TS_DATA[5]
PCM_TS_DATA[6]
PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN

F/NIM_EU_CN
F/NIM_EU_CN
F/NIM_EU_CN

TU_TS_SYNC
TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3
MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6
MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26
D26

F27
F28
E27
E26

F5
E5

C2
D1

E1
D2

B1
C1

C3
C4

M4
L5
M5
L6
N3
N1
N2
M3
M2
L4
N4

K6
J4
K5
J2
J3
K2
K1
K3
L1
L3
L2

P4
T2
R3
R2
P3
P2
P1
R6
N5
T4
P5

R4
U1
T3
T1
T5

IC101

NON_BCM_CAP
EPHY_VREF
EPHY_RDAC

EPHY_TDP
EPHY_TDN
EPHY_RDP
EPHY_RDN

USB_MONCDR
USB_RREF

USB_PORT1DN
USB_PORT1DP

USB_PWRFLT_1/GPIO
USB_PWRON_1/GPIO

USB_PORT2DN
USB_PORT2DP

USB_PWRFLT_2/GPIO
USB_PWRON_2/GPIO

TCLKA/GPIO
TDATA_0/GPIO
TDATA_1/GPIO
TDATA_2/GPIO
TDATA_3/GPIO
TDATA_4/GPIO
TDATA_5/GPIO
TDATA_6/GPIO
TDATA_7/GPIO
TSTRTA/GPIO
TVLDA/GPIO

TCLKD/GPIO
TDATD_0/GPIO
TDATD_1/GPIO
TDATD_2/GPIO
TDATD_3/GPIO
TDATD_4/GPIO
TDATD_5/GPIO
TDATD_6/GPIO
TDATD_7/GPIO
TSTRTD/GPIO
TVLDD/GPIO

MPEG_CLK/GPIO
MPEG_D_0/GPIO
MPEG_D_1/GPIO
MPEG_D_2/GPIO
MPEG_D_3/GPIO
MPEG_D_4/GPIO
MPEG_D_5/GPIO
MPEG_D_6/GPIO
MPEG_D_7/GPIO
MPEG_SYNC/GPIO
MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO
MCIF_SCLK/GPIO
MCIF_SCTL/GPIO
MCIF_SDI/GPIO
MCIF_SDO/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

C225

0.22uF

6.3V

VI_IFP0
VI_IFM0

VDDR_AGC

AGC_SDM_2
AGC_SDM_1

GPIO_0
GPIO_1
GPIO_2
GPIO_3

PCI_VIO_0
PCI_VIO_1
PCI_VIO_2

GPIO_4
GPIO_5
GPIO_6

GPIO_7
GPIO_70
GPIO_71
GPIO_72
GPIO_73
GPIO_74
GPIO_75
GPIO_76
GPIO_77
GPIO_78
GPIO_79

PCI_AD05
PCI_AD06
PCI_AD07

PCI_AD08
PCI_AD09/GPIO
PCI_AD10/GPIO
PCI_AD11/GPIO
PCI_AD12/GPIO
PCI_AD13/GPIO
PCI_AD14/GPIO
PCI_AD15/GPIO
PCI_AD16/GPIO
PCI_AD17/GPIO
PCI_AD18/GPIO
PCI_AD19/GPIO
PCI_AD20/GPIO
PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00
PCI_CBE01/GPIO
PCI_CBE02/GPIO

PCI_CBE03

PCI_IRDYB/GPIO

PCI_PAR/GPIO

PCI_PERRB/GPIO

PCI_REQ1B
PCI_SERRB/GPIO
PCI_STOPB/GPIO
PCI_TRDYB/GPIO

+0.9V_CORE

C221

0.1uF

C17
B17
D15

B16
A16

A15
C16
G28
G26

+3.3V_Normal

W14
W15
W13

J5
R5
V6
H6
AE15
AF15
AG15
AF16
AD16
AE16
AG17
AH17
AE17
AD17

AB13
AC15
AB12
AB11
AE14
AG13
AH13
AF13
AE13
AD12
AF12
AG10
AF10
AE10
AD10
AE9
AE8
AC10
AC11
AC8
AB8

AC14
AG12
AH10
AB7

AG11
AD11
AE11
AD13
AE12
AC12
AC13
AH11
AF11

C223

0.01uF

C203
10uF
10V

close to soc

Non_CHB

R212
1K

closed to soc

R213 2K

C216 0.01uF

R280
22

R214 22

R215 22
R281 22
R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283
22

R223 22

R284 22

R224 22

R235

R225 0

R226 22

R285 22

R227 22

C205

C207

10uF

4.7uF
10V

10V

C217

16V

100

0.1uF
R241

C218

100

0.1uF
R242

16V

M_REMOTE_RX

CI_DET
M_RFModule_RESET
EPHY_ACTIVITY
EPHY_LINK

DTV_ATV_SELECT
RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM
BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

GND

C232

4.7uF
10V

C209

4.7uF
10V

IF_P

IF_N

IF_AGC

3D_SYNC

MODEL_OPT_0

MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3

SC_DET/COMP2_DET
CHB_RESET

TW9910_RESET

AV2_CVBS_DET
RF_BOOSTER_CTL
DSUB_DET
PCM_RST

MODEL_OPT_4
DC_MREMOTE
DD_MREMOTE

COMP1_DET

MODEL_OPT_5

3D_GPIO_0
MODEL_OPT_6
MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

OUTIN

C234

0.1uF

C211

0.1uF

+3.3V_Normal

+3.3V_Normal

R228 22
R230 22

BCM_L/DIM

R231 100

L/DIM0_MOSI
L/DIM0_SCLK

NFM18PS105R0J

C204

6.3V

OUTIN

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

C229

0.1uF

R240

2.7K

+3.3V_Normal

R231-*1 0

FRC2_RESET

URSA_RESET

NFM18PS105R0J

C238

4.7uF
10V

C215

0.01uF

L201

NON_NTP

PWM_DIM
L/DIM0_VS

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

+1.5V_DDR

C222

0.01uF

R233

1.2K

C227
33pF
50V

R232-*1

FRC2_RESET

R234

1.2K

C231
33pF
50V

C247
22uF

C248
10uF

10V

NON_NTP

FRC_RESET

SDA1_3.3V
SCL1_3.3V

POWER 2.5V

+2.5V_BCM35230

+2.5V_BCM35230

Place Cap
Very close to R22 Ball

L202

BLM18PG121SN1D

C249
10uF
10V

L203

BLM18PG121SN1D

C251

0.1uF
16V

+2.5V_BCM35230

BLM18PG121SN1D

C250

4.7uF
10V

+1.5V_DDR

Place Cap

Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253
10uF
10V

EPHY_VDD25

C252

4.7uF
10V

L204

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF
25V
OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

VAFE3_VDD25

C257

0.1uF

+0.9V_CORE

C226

0.1uF
16V
OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C259

C260

10uF

4.7uF

10V

+2.5V_BCM35230

+2.5V_BCM35230

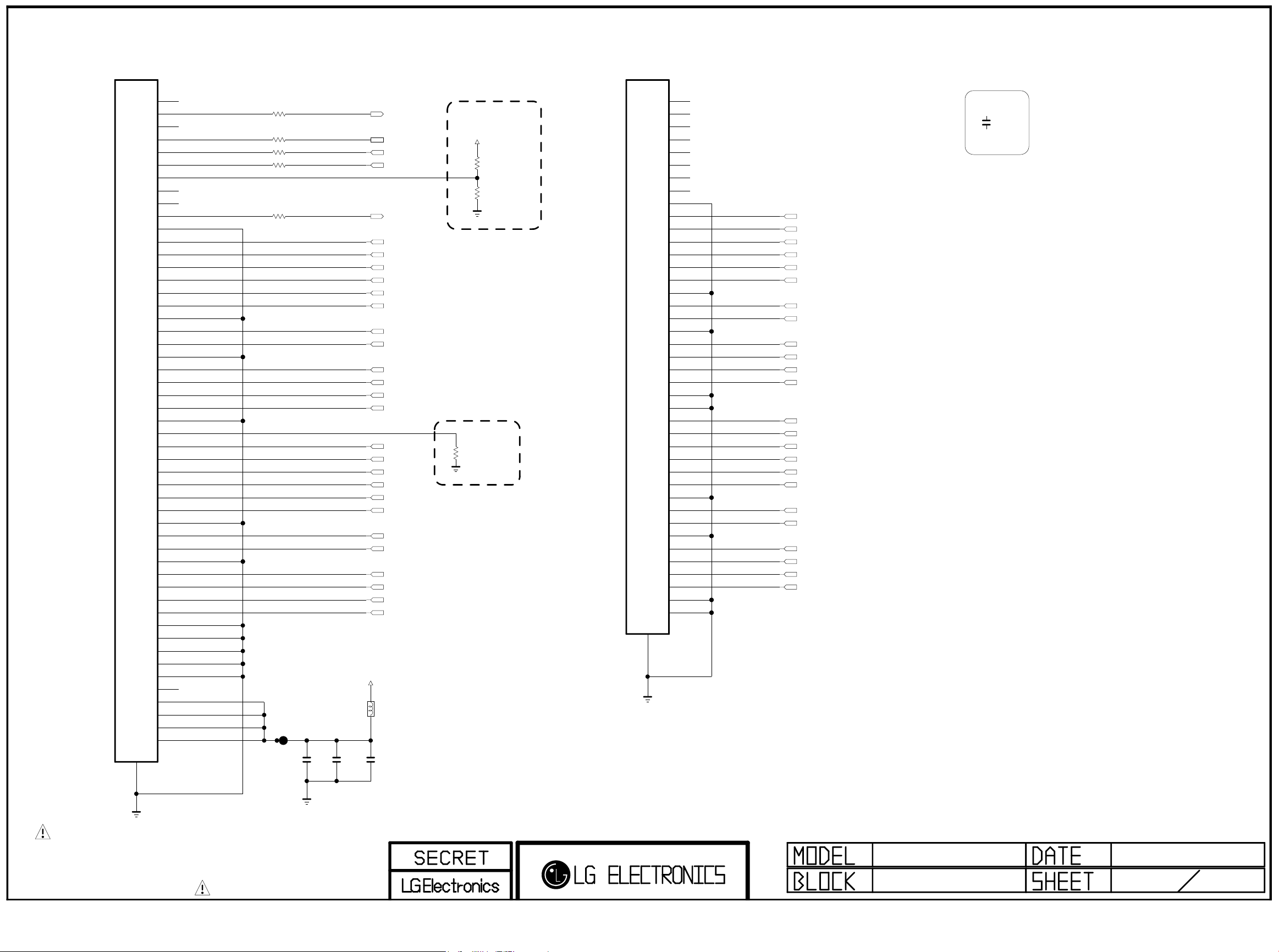

NON_BCM_CAP

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27
VDDC_28
VDDC_29
VDDC_30
VDDC_31
VDDC_32
VDDC_33
VDDC_34
VDDC_35
VDDC_36
VDDC_37
VDDC_38
VDDC_39
VDDC_40
VDDC_41
VDDC_42

POR_VDD

VDDR1_1
VDDR1_2
VDDR1_3
VDDR1_4
VDDR1_5
VDDR1_6
VDDR1_7
VDDR1_8
VDDR1_9
VDDR1_10
VDDR1_11
VDDR1_12

DDR_LDO_VDDO

VDDR3_1
VDDR3_2
VDDR3_3
VDDR3_4
VDDR3_5
VDDR3_6
VDDR3_7
VDDR3_8
VDDR3_9
VDDR3_10
VDDR3_11

AON_VDDC_1
AON_VDDC_2
AON_POR_VDD

AON_VDDR3

AON_VDDR10_1
AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7
M10
N10
P10
R10
T10
U10
V10
W10
V13
L11
M11
N11
P11
R11
T11
U11
V11
W11
V14
L18
M18
N18
P18
R18
T18
U18
V18
W18
V15
L19
M19
N19
P19
R19
T19
U19
V19
W19
V16
V17

L10

L22

AA28

V28
R28
M28
J28
K23
M22
T22
T23
U22
Y22

R22

G15
H22
G23
AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6
AA7

Y7

U7

T7

T6

C261
10uF
10V

C262
10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C271

C267

C263

4.7uF

C265

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

0.01uF

0.1uF

C272

C270

C266

4.7uF C277

VAFE2_VDD25

0.1uF

C269

0.1uF

C268

0.1uF

0.01uF

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274
22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1
220pF
50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208
390pF
50V

C206
390pF
50V

+0.9V_CORE

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284
22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF
OPT

USB_AVDD33

C212
390pF
50V

C210
390pF
50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202
390pF
50V

L214

C285

4.7uF

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214
390pF
50V

PLL_AUD_AVDD

+3.3V_Normal

USB_AVDD

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

+0.9V_CORE

+0.9V_CORE

HDMI_AVDD33

C291

4.7uF

LGE35230(BCM35230KFSBG)

AADC_AVDD25

ADACA_AVDD25
ADACC_AVDD25
ADACD_AVDD25

EPHY_BVDD25
EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

LT0VDD25_1
LT0VDD25_2
LT0VDD25_3
LT0VDD25_4

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

VAFE2_DVDD
VAFE2_AVDD25_1
VAFE2_AVDD25_2
VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD
PLL_MIPS_AVDD

PLL_VAFE_AVDD
PLL_VAFE_AVDD25

TVM_OSC_AVDD

U6

AUX_AVDD33

NON_BCM_CAP

C278

0.1uF

AE20
AD20
AC20
AB20

AD25

F19

D25
D24
E24

F24
E25

D14

D18
E17
D16
D17

G25

D11
D12

AE7

L219

BLM18PG121SN1D

C292
22uF

L217

BLM18PG121SN1D

L218

BLM18PG121SN1D

C293

0.1uF

IC101

AADC_AVSS

ADACA_AVSS
ADACC_AVSS
ADACD_AVSS

EPHY_AVSS

HDMI0_AVSS_1
HDMI0_AVSS_2

LT0VSS_1
LT0VSS_2
LT0VSS_3
LT0VSS_4
LT0VSS_5
LT0VSS_6
LT0VSS_7

SPDIF_IN_AVSS

USB_AVSS_1
USB_AVSS_2

VDAC_AVSS

VAFE2_VSS_1
VAFE2_VSS_2
VAFE2_VSS_3
VAFE2_VSS_4
VAFE2_VSS_5
VAFE2_VSS_6
VAFE2_VSS_7

VAFE3_VSS_1
VAFE3_VSS_2
VAFE3_VSS_3
VAFE3_VSS_4
VAFE3_VSS_5
VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

PLL_MAIN_AVDD

C297

C294

0.1uF

4.7uF

PLL_MIPS_AVDD

C298

C295

0.1uF

4.7uF

F20

G22
G21
F22

F23

F6
G6

AB22
AB21
AB19
AC19
AB18
AB17
AC17

F15

G7
G8

G9

G20
E18
G18
G17
F18
G16
F16

G13
G12
F12
G11
G10
F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

DSUB_R+

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

INCM_R

DSUB_G+

INCM_G

DSUB_B+

INCM_B

COMP1_Y
COMP1_Pr
COMP1_Pb

INCM_VID_SC/COMP2

AV2_CVBS_IN

INCM_VID_AV2

C320 0.1uF
C321 0.1uF

R311
36

C327 0.1uF
C328 0.1uF
R317

36

C322 0.1uF
C323 0.1uF
R312

36

INCM_VID_COMP1

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

C303 0.1uF
C304 0.1uF
R303

36

TU_CVBS

AV1_CVBS_IN

INCM_VID_AV1

TU_SIF

R310
0

R318
0

EU

R325-*1

10

C317 0.1uF
C318 0.1uF
R304

36

SC_CVBS_IN

INCM_VID_SC

NON_EU

R325 0

INCM_TUNER

R306
75
1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305
240

OPT

INCM_SIF

C325 0.1uF
C326 0.1uF
R316

36

R313
10K

+2.5V_BCM35230

R314
12K

C324 0.1uF
R315

120
OPT

DSUB_HSYNC
DSUB_VSYNC

C329 0.1uF
C330 0.1uF
C331 0.1uF
C332 0.1uF

C333 0.1uF
C334 0.1uF
C335 0.1uF
C336 0.1uF

SC_FB

R319
10K
OPT

R320
12K
OPT

LGE35230(BCM35230KFSBG)

B6
A6
C7
A7
B7
C8

C13
A13

C9
A9
B9
B8

C11
A10
B10
C10

D10
F13

A12
C12
B12
B11

E12
E14

E15
F17
E16
F14
E11

C18
B18
A18
C19
A19
B19
C20
B20

E19
D19
E10
F11

IC101

NON_BCM_CAP

VI_R
VI_INCM_R
VI_G
VI_INCM_G
VI_B
VI_INCM_B

HSYNC_IN
VSYNC_IN

VI_Y1
VI_PR1
VI_PB1
VI_INCM_COMP1

VI_SC_R1
VI_SC_G1
VI_SC_B1
VI_INCM_SC1

VI_FB_1/GPIO
VI_FS1

VI_SC_R2
VI_SC_G2
VI_SC_B2
VI_INCM_SC2

VI_FB_2/GPIO
VI_FS2

VI_L1
VI_C1_1
VI_INCM_LC1_1
VI_C1_2
VI_INCM_LC1_2

VI_CVBS1
VI_INCM_CVBS1
VI_CVBS2
VI_INCM_CVBS2
VI_CVBS3
VI_INCM_CVBS3
VI_CVBS4
VI_INCM_CVBS4

VI_SIF1_1
VI_INCM_SIF1_1
VI_SIF1_2
VI_INCM_SIF1_2

Near

Near

Near

Near

Near

Near

Near
Near

P801

P801

P801

JK1101

JK1104

TU2101/2
TU2201/2/3

JK1102

JK1103
JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

BCM35230_with_CAP_220pF

IC101-*1
LGE35230

B6

BCM_CAP

VI_R

A6

VI_INCM_R

C7

VI_G

A7

VI_INCM_G

B7

VI_B

C8

VI_INCM_B

C13

HSYNC_IN

A13

VSYNC_IN

C9

VI_Y1

A9

VI_PR1

B9

VI_PB1

B8

VI_INCM_COMP1

C11

VI_SC_R1

A10

VI_SC_G1

B10

VI_SC_B1

C10

VI_INCM_SC1

D10

VI_FB_1/GPIO

F13

VI_FS1

A12

VI_SC_R2

C12

VI_SC_G2

B12

VI_SC_B2

B11

VI_INCM_SC2

E12

VI_FB_2/GPIO

E14

VI_FS2

E15

VI_L1

F17

VI_C1_1

E16

VI_INCM_LC1_1

F14

VI_C1_2

E11

VI_INCM_LC1_2

C18

VI_CVBS1

B18

VI_INCM_CVBS1

A18

VI_CVBS2

C19

VI_INCM_CVBS2

A19

VI_CVBS3

B19

VI_INCM_CVBS3

C20

VI_CVBS4

B20

VI_INCM_CVBS4

E19

VI_SIF1_1

D19

VI_INCM_SIF1_1

E10

VI_SIF1_2

F11

VI_INCM_SIF1_2

SCL3_3.3V
SDA3_3.3V

+3.3V_Normal

R302

R301

1.2K

1.2K

C301

C302

33pF

33pF

50V

50V

PHONE JACK

INCM_AUD_SC/COMP2

M_REMOTE_TX

PC_L_IN
PC_R_IN

AV1_L_IN
AV1_R_IN

INCM_AUD_AV1

AV2_L_IN
AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN
SC/COMP2_R_IN

C305 1uF10V
C306 1uF10V
C307 1uF10V

C308 1uF10V
C309 1uF10V
C310 1uF10V

C311 1uF10V
C312 1uF10V
C313 1uF10V

C314 1uF10V
C315 1uF10V
C316 1uF10V

NON_BCM_CAP

SPDIF_INC_P
SPDIF_INC_N

SPDIF_IND_P
SPDIF_IND_N

I2SSCK_IN/GPIO
I2SWS_IN
I2SSD_IN/GPIO

AADC_LINE_L1
AADC_LINE_R1
AADC_INCM1

AADC_LINE_L2
AADC_LINE_R2
AADC_INCM2

AADC_LINE_L3
AADC_LINE_R3
AADC_INCM3

AADC_LINE_L4
AADC_LINE_R4
AADC_INCM4

AADC_LINE_L5
AADC_LINE_R5
AADC_INCM5

AADC_LINE_L6
AADC_LINE_R6
AADC_INCM6

AADC_LINE_L7
AADC_LINE_R7
AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO
I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO
I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO
I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

AUDMUTE_0/GPIO

LGE35230(BCM35230KFSBG)

B15
C15

C14
B14

G4
F4
G5

C25
B24
A24

E22
E23
D23

C24
C23
B23

E21
D21
D22

B22
C22
A22

F21
D20
E20

A21
C21
B21

AUDMUTE_1

ADAC_AL_N
ADAC_AL_P

ADAC_AR_N
ADAC_AR_P

ADAC_CL_N
ADAC_CL_P

ADAC_CR_N
ADAC_CR_P

ADAC_DL_N
ADAC_DL_P

ADAC_DR_N
ADAC_DR_P

AF8
AF9
AG9
AC9
AD8
AD9

E2
F2
E3
F3

G2
G3
G1
H1

B13

AG8
E13

C28
C27

D28
D27

C26
A27

B27
B28

B25
A25

A26
B26

R326 100
R327 100
R328 100
R329 100

TU_RESET_SUB

HP_DET
AV1_CVBS_DET
TU_RESET

SC_RE1
SC_RE2INCM_AUD_PC
/RST_HUB
S2_RESET

SPDIF_OUT

HP_LOUT_N
HP_LOUT_P

HP_ROUT_N
HP_ROUT_P

SCART1_Lout_N
SCART1_Lout_P

SCART1_Rout_N
SCART1_Rout_P

C337
22pF

OPT

C338
22pF

OPT

C339
22pF
OPT

C340
33pF

OPT

AUD_SCK
AUD_LRCK
AUD_LRCH
AUD_MASTER_CLK

Near

Near

Near

Near

Near

JK1102

JK1103
JK2501

JK1104
JK801

TU2101/2
TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50

DDR STRAP

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

R401

4.7K

DDR_1333

R403

4.7K

R405

4.7K

DDR_1333

R407

4.7K

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]

JEDEC Types : DDR_DQ[0:4]

R409

00001 : DDR3-1333H (CasL=9)

4.7K
10101 : DDR3-1600K (CasL=11) (O)

OPT

DUAL COMPONENT

IC401,IC402 1ST : EAN61667501, 2ND : EAN61570701

IC401-*1
IC402-*1

1ST : T-K4B2G1646B_HCK0, 2ND : T-H5TQ2G63BFR-PBC

+1.5V_DDR

OUTIN

GND

C403

2.2uF

C405
10uF

C407

2.2uF

NFM18PS105R0J

C410

6.3V

C417
470pF

C421

2.2uF

C423
10uF

C425
10uF

NFM18PS105R0J

C432

6.3V

OUTIN

GND

+1.5V_DDR

DDR_DQ[10]

DDR_DQ[9]
DDR_DQ[7]

DDR_DQ[8]
DDR_DQ[6]
DDR_DQ[5]

R408

4.7K

IC101

NON_BCM_CAP

DDR_ADA_ALT_4
DDR_ADA_ALT_5
DDR_ADA_ALT_6

DDR_CKA01_P
DDR_CKA01_N

DDR_CKA23_P
DDR_CKA23_N

R410

4.7K
OPT

DDR_ADA_0
DDR_ADA_1
DDR_ADA_2
DDR_ADA_3

DDR_ADA_4
DDR_ADA_5
DDR_ADA_6

DDR_ADA_7
DDR_ADA_8

DDR_ADA_9
DDR_ADA_10
DDR_ADA_11
DDR_ADA_12
DDR_ADA_13
DDR_ADA_14

DDR_BAA_0

DDR_BAA_1

DDR_BAA_2

DDR_RASA_N
DDR_CASA_N

DDR_WEA_N

DDR_CKEA

DDR_VREFA

DDR_RST_N

DDR_ZQ

V23
AB27
Y23
Y26

AB26
Y24
AC26

AB24
AC25
AC24

AB25
AD28
Y25
AA27
AC27
AA26
AA24
AD27

Y27
AB28
W24

V24
W25
V26

U24

W27
W28

N28
N27

U23

AA23

W26

IC401-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

Bus Width : DDR_DQ[10]
0 - 16b
1 - 32b (O)
Chip Width : DDR_DQ[8]
0 - 8b
1 - 16b (O)
Chip Size : DDR_DQ[6:5]
00 - 4Gbit
01 - 2Gbit (O)
10 - 1Gbit
11 - 512Mbit

DDR_AA0
DDR_AA1
DDR_AA2
DDR_AA3

DDR01_AA4
DDR01_AA5
DDR01_AA6

DDR23_AA4
DDR23_AA5
DDR23_AA6

DDR_AA7
DDR_AA8
DDR_AA9
DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13
DDR_AA14

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_RASb
DDR_CASb
DDR_WEb

DDR_CKE

DDR01_CLK
DDR01_CLKb

DDR23_CLK
DDR23_CLKb

DDR_VREFA

DDR_RESETb

R411 240

1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C453
1uF

6.3V

DDR01_CLK

DDR01_CLKb

R412

56
1%

C401
1000pF

DDR_DQ[0-7]

DDR_DQ[8-15]

IC401-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

OPT

R432

4.7K

R404

4.7K
OPT

4.7K
OPT

R402

4.7K
OPT

R406

LGE35230(BCM35230KFSBG)

DDR_DQ[0-7]

DDR_DQ[8-15]

DDR_DQ[8]
DDR_DQ[9]
DDR_DQ[10]
DDR_DQ[11]
DDR_DQ[12]
DDR_DQ[13]

DDR_DQ[24]
DDR_DQ[25]
DDR_DQ[26]
DDR_DQ[27]
DDR_DQ[28]
DDR_DQ[29]
DDR_DQ[30]
DDR_DQ[31]

DDR_DM[0]
DDR_DM[1]
DDR_DM[2]
DDR_DM[3]

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_QS2

DDR_QS2b

DDR_QS3

DDR_QS3b

DDR_DQ[14]

DDR_DQ[15]
DDR_DQ[16]
DDR_DQ[17]
DDR_DQ[18]
DDR_DQ[19]
DDR_DQ[20]
DDR_DQ[21]
DDR_DQ[22]
DDR_DQ[23]

DDR_DQ[16-23]

DDR_DQ[24-31]

DDR_DM[0-3] DDR_QS3

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]
DDR_DQ[5]
DDR_DQ[6]
DDR_DQ[7]

U26
R26
U27
R27
V27
P26
U25
P27
R24
N24
T25
M23
R23
N25
T24
N26
L26
H27
L27
J26
M27
G27
M26
H26
L23
H25
L24
J24
M24
H23
L25
H24

T26
P25
J27
K24

T27
T28

P24
P23

K27
K28

K25
K26

DDR_DQA_0
DDR_DQA_1
DDR_DQA_2
DDR_DQA_3
DDR_DQA_4
DDR_DQA_5
DDR_DQA_6
DDR_DQA_7
DDR_DQA_8
DDR_DQA_9
DDR_DQA_10
DDR_DQA_11
DDR_DQA_12
DDR_DQA_13
DDR_DQA_14
DDR_DQA_15
DDR_DQA_16
DDR_DQA_17
DDR_DQA_18
DDR_DQA_19
DDR_DQA_20
DDR_DQA_21
DDR_DQA_22
DDR_DQA_23
DDR_DQA_24
DDR_DQA_25
DDR_DQA_26
DDR_DQA_27
DDR_DQA_28
DDR_DQA_29
DDR_DQA_30
DDR_DQA_31

DDR_DMA_0
DDR_DMA_1
DDR_DMA_2
DDR_DMA_3

DDR_DQSA_P_0
DDR_DQSA_N_0

DDR_DQSA_P_1
DDR_DQSA_N_1

DDR_DQSA_P_2
DDR_DQSA_N_2

DDR_DQSA_P_3
DDR_DQSA_N_3

R413
56
1%

+1.5V_DDR

C455

C454

1uF

1uF

6.3V

6.3V

DDR_AA0
DDR_AA1
DDR_AA2
DDR_AA3

DDR01_AA4
DDR01_AA5
DDR01_AA6

DDR_AA7
DDR_AA8

DDR_AA9
DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_CKE

+1.5V_DDR

R414 10K

DDR_RASb
DDR_CASb

DDR_WEb

DDR_RESETb

DDR_QS0
DDR_QS0b

DDR_QS1
DDR_QS1b

DDR_DM[0]
DDR_DM[1]

DDR_DQ[0]
DDR_DQ[1]
DDR_DQ[2]
DDR_DQ[3]
DDR_DQ[4]
DDR_DQ[5]
DDR_DQ[6]
DDR_DQ[7]

DDR_DQ[8]
DDR_DQ[14]
DDR_DQ[13]
DDR_DQ[12]
DDR_DQ[9]
DDR_DQ[10]
DDR_DQ[15]
DDR_DQ[11]

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

NFM18PS105R0J

K4B2G1646C

DDR_1333_SS

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

C402

6.3V

GND

IC401

OUTIN

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

C412
1uF

ZQ

M8

H1

L8

R415 240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

C415

0.01uF

C416

0.01uF

1%

+1.5V_DDR

DDR_AA14

R416

4.99K
1%

R417

4.99K
1%

DDR_VREFA

+1.5V_DDR

DDR23_CLK

DDR23_CLKb

DDR_DQ[16-23]

DDR_DQ[24-31]

R418

DDR23_AA4
DDR23_AA5
DDR23_AA6

R419
56

56

1%

1%

C419
1000pF

+1.5V_DDR

DDR_RESETb

DDR_DM[2]
DDR_DM[3]

DDR_DQ[24]
DDR_DQ[30]
DDR_DQ[29]
DDR_DQ[28]
DDR_DQ[25]
DDR_DQ[26]
DDR_DQ[31]
DDR_DQ[27]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_AA0
DDR_AA1
DDR_AA2
DDR_AA3

DDR_AA7
DDR_AA8

DDR_AA9
DDR_AA10
DDR_AA11
DDR_AA12
DDR_AA13

DDR_BAA0
DDR_BAA1
DDR_BAA2

DDR_CKE

R420 10K

DDR_RASb
DDR_CASb

DDR_WEb

DDR_QS2
DDR_QS2b

DDR_QS3b

DDR_DQ[16]
DDR_DQ[17]
DDR_DQ[18]
DDR_DQ[19]
DDR_DQ[20]
DDR_DQ[21]
DDR_DQ[22]
DDR_DQ[23]

NFM18PS105R0J

C433

6.3V

OUTIN

GND

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

K4B2G1646C

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

C426
1uF

IC402

DDR_1333_SS

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

R421 240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+1.5V_DDR

R422

4.99K
1%

R423

C435

4.99K

0.01uF

1%

DDR_VREFA

C436

0.01uF

+1.5V_DDR

1%

DDR_AA14

BCM35230

MAIN DDR

IC401-*1

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_SS

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

DDR23_AA6
DDR23_AA4

DDR23_AA5

DDR01_AA6
DDR01_AA4

DDR01_AA5

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DDR_RESETb

DDR_CKE

DDR_AA13
DDR_AA14

DDR_AA2

DDR_AA11

DDR_AA3
DDR_AA7

DDR_AA9
DDR_AA8
DDR_AA0

DDR_AA1
DDR_BAA0
DDR_BAA2
DDR_BAA1
DDR_AA10
DDR_AA12

DDR_WEb

DDR_CASb
DDR_RASb

R428
82

R424 56
R425 56

AR401 56

AR402 56

AR403 56

AR404 56

AR405 56

AR406 56

R426 56
R427 56

IC402-*1

K4B2G1646C-HCK0

DDR_1600_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

R429
82

C437
100pF

OPT

C441 1uF

VREFCA

VREFDQ

ZQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

4

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

C438

C404

C406

C450

C408

C439

C409

C451

C411

C440

C452

R430

4.7K
OPT

C442
100pF

R431

4.7K
OPT

1uF

0.1uF

0.1uF

0.1uF

0.1uF

1uF

0.1uF

0.1uF

0.1uF

1uF

0.1uF

50

NEC MICOM

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

For Debug

P601

12505WS-12A00

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

R607

R610

+3.5V_ST

R606 10K

10K

10K

R61 5 22

R61 7 22

R62 1 22

EEPROM for Micom

IC601

M24C16-WMN6T

NC/E0

1

NC/E1

R60 1

47K

NC/E2

2

3

VSS

4

VCC

8

WC

7

SCL

6

SDA

5

MICOM MODEL OPTION

+3.5V_ST

PDP/3D

R613 10K

R611 10K

LCD/OLED

R612 10K

TOUCH_KEY

TACT_KEY

R614 10K

AMP_RESET_N

PANEL_CTL

INSTANT_MODE

R604 100

R605 100
R602 100
R603 100

R619

22

R616

22

I2C LED

R622 10K

PWM_LED

R623 10K

MICOM_RESET
NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Rx

NEC_ISP_Tx

R624 10K

10YEAR_TOOL

R625 10K

11YEAR_TOOL

+3.5V_ST

MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3

EEPROM_SCL

EEPROM_SDA

PIN NAME

MODEL_OPT_0

MODEL_OPT_1 I2C_LED

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

MODEL OPTION

PIN NO.

LCD

HIGH

10YEAR_TOOL

8

(10 SENSOR)

11

30

TOUCH_KEY

31

PDP/3D

PDP

0 0

LOW

1

0 10

10

LOW

11YEAR_TOOL
(11 SENSOR)

PWM_LED

TACT_KEY

LCD/OLED

OLED 3D

TBD

0

GND

+3.5V_ST

C602

13pF

C603

50V

50V

13pF

X601

10MHz

47K

OPT

R637

10Mhz Crystal

+3.5V_ST

C604

0.1uF

+3.5V_ST

VDD

R626 4.7K

SCL2_3.3V

SDA2_3.3V

EEPROM_SCL

EEPROM_SDA

HDMI_CEC

POWER_ON/OFF2_1

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

S/T_SCL

+3.5V_ST

R628 4.7K

R629

R630

R631 22

R632 22

R633
22

OPT

R627

4.7K

22

22

P60/SCL0
P61/SDA0

P62/EXSCL0

P33/TI51/TO51/INTP4

P73/KR3
P72/KR2
P71/KR1
P70/KR0

P32/INTP3/OCD1B

P63

P75
P74

1
2
3
4
5
6
7
8
9
10
11
12

48

13

P31/INTP2/OCD1A

OPT

1

HIGHLOW_SMALL

1

1

+3.5V_ST

4.7K

R636

R63 8 22

S/T_SDA

OCD1A

FLMD0

R641

R639 10K

GND

C605 0.1uF

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

44

45

46

47

IC602

uPD78F0514

NEC_MICOM

14

15

16

17

P30/INTP1

P15/TOH0

P17/TI50/TO50

P16/TOH1/INTP5

10K

R64 0

IR

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

0

15pF

C606

MICOM_DOWNLOAD

C607 15pF

X602

32.768KHz
R642

4.7M
OPT

P124/XT2/EXCLKS

P123/XT1

FLMD0

41

42

43

18

19

20

P14/RXD6

P13/TXD6

P12/SO10

NEC_ISP_Tx

NEC_ISP_Rx

POWER_ON/OFF2_2

WIRELESS_PWR_EN

WIRELESS_DET

C608

0.1uF
16V

R643 22

P120/INTP0/EXLVI

P41

P40

RESET

37

38

39

40

36
35
34
33
32
31
30
29
28
27
26
25

21

22

23

24

AVSS

AVREF

P11/SL10/RXD0

P10/SCK10/TXD0

NEC_TXD

NEC_RXD MICOM_RESET

+3.5V_ST

47K

OPT

270K

R647 20K

R646

20K

JTP-1127WEM

4 3

1/16W
1%

1/16W

1%

SW1

12

R644

R645

P140/PCL/INTP6
P00/TI000
P01/TI010/TO00
P130
P20/ANI0
ANI1/P21
ANI2/P22
ANI3/P23
ANI4/P24
ANI5/P25
ANI6/P26
ANI7/P27

+3.5V_ST

C609 1uF

R648 10K





R649 0

OPT

RL_ON

SCART_MUTE

C

Q601

B

2SC3052

E

EDID_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MICOM

6

50

BODY_SHIELD

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

20

EAG62611201

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1

R730

3.6K

OPT

VR703

10V
OPT

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

R737
0

DUAL COMPONENT

D707,D708

D713

D710,D711

D713

R754
27K

BODY_SHIELD

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R735

3.6K
OPT

VR707
10V

OPT

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

R727
0

R729

1K
OPT

HDMI_HPD_4

* HDMI CEC

BAT54_SUZHO

CEC_REMOTE

VR708
10V
OPT

C717

OPT

0.1uF
16V
OPT

DDC_SDA_4

DDC_SCL_4

GND

20

EAG62611201

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

R77 5

150

R77 6

63. 4

R728
1K

OPT

HDMI_HPD_1

HDMI_ARC

VR706
10V
OPT

C714

OPT

0.1uF
16V
OPT

DDC_SDA_1

DDC_SCL_1

ARC

C730

0.1uF

1ST : 0DD184009AA 2ND : 0DSIH00028A

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

+3.5V_ST

G

SBD

Q710
BSS83

R741
120K

HDMI_CEC

+3.3V_Normal +3.3V_HDMI

L701

BLM18PG121SN1D

C720

0.1uF
16V

C718
10uF

C719
10uF

JK703

RSD-105156-100

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG62611201

JK701

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK702

RSD-105156-100

9

8

7

6

5

4

3

2

1

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R740

3.6K
OPT

5V_HDMI_3

R739

3.6K
OPT

VR701
10V

OPT

VR702
10V

OPT

R725
0

R731
0

HDMI1

R736

1K
OPT

HDMI_HPD_2

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

VR704
10V
OPT

C715

OPT

0.1uF
16V

OPT

DDC_SDA_2

DDC_SCL_2

HDMI2

R726

1K

OPT

HDMI_HPD_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

VR705
10V
OPT

C716

OPT

0.1uF
16V
OPT

DDC_SDA_3

DDC_SCL_3

RSD-105156-100

JK704

+5V_Normal

D707

R713

4.7K

+5V_Normal

D708

R714

4.7K

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R715

4.7K

R716

4.7K

HDMI3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

HDMI4

+5V_Normal

5V_HDMI_2

A1CA2

D710

R723

R720

4.7K

4.7K

+5V_Normal

5V_HDMI_4

R721

4.7K

A1CA2

R724

4.7K

D711

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

DDC_SDA_4

DDC_SCL_4

+3.3V_HDMI

C707
10uF
10V

HDMI2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI3

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

C701
10uF
10V

C706
10uF
10V

C703

0.1uF

16V

C711

0.1uF

16V

C712

0.1uF

16V

C713

0.1uF

16V

R1XCN
R1XCP
R1X0N
R1X0P
R1X1N
R1X1P
R1X2N
R1X2P

VCC33_1

RSVD_1

R2XCN
R2XCP
R2X0N
R2X0P
R2X1N
R2X1P
R2X2N
R2X2P

HDMI1

D2-_HDMI1

D1+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D2+_HDMI1

R0X0N

R0X0P

R0X1N

R0X1P

R0X2N

R0X2P

[EP]GND

67

68

69

70

71

72

1
2

THERMAL

3

73
4
5
6
7
8
9

SII9287B

10
11
12
13
14
15
16
17
18

19

R3XCN20R3XCP21R3X0N22R3X0P23R3X1N24R3X1P25R3X2N26R3X2P

CK-_HDMI4

D0-_HDMI4

D0+_HDMI4

CK+_HDMI4

D1-_HDMI4

D1+_HDMI4

CK+_HDMI1

R0XCP

66

IC701

D2-_HDMI4

HDMI4

CK-_HDMI1

VCC33_3

R0XCN

64

65

27

VCC33_2

D2+_HDMI4

HDMI S/W OUTPUT

HDMI_RX0+

HDMI_CLK-

HDMI_RX0-

HDMI_CLK+

TX0P

TX0N

TXCP

TXCN

60

61

62

63

28

29

31

DSDA030DSCL0

RSVD_2

CBUS_HPD0

DDC_SCL_1

DDC_SDA_1

HDMI_HPD_1

HDMI_RX1-

HDMI_RX1+

TX2N

TX1P

TX1N

58

59

32

33

DSDA134DSCL1

R0PWR5V

DDC_SDA_2

HDMI_RX2+

HDMI_RX2-

+5V_Normal

C708
1uF

OPT

OPT

C710

1uF
10V

R780 33

R781 33

R778
33

R779
33

TPWR_CI2CA

TX2P

55

56

57

35

36

R1PWR5V

CBUS_HPD1

DDC_SCL_2

HDMI_HPD_2

CSCL

54

CSDA

53

INT

52

CEC_D

51

CEC_A

50

R4PWR5V

49

DSCL4

48

DSDA4

47

R3PWR5V

46

CBUS_HPD3

45

DSCL3

44

DSDA3

43

R2PWR5V

42

CBUS_HPD2

41

DSCL2

40

DSDA2

39

SBVCC

38

MICOM_VCC33

37

1uF

C704

C709
1uF

R708
10

R712
10

R777

4.7K

1/16W
R707

1K
1%

5V_HDMI_1

1/16W

R703
1K
1%

R706

0

5V_HDMI_2

BCM35230

HDMI 7

HDMI_HPD_4

DDC_SCL_4

DDC_SDA_4

HDMI_HPD_3

DDC_SCL_3

DDC_SDA_3

SCL1_3.3V

SDA1_3.3V

SCL3_3.3V

SDA3_3.3V

R717
10

C705

1uF

C702
1uF

1/16W
R711
1K

1%

5V_HDMI_4

5V_HDMI_3

R718
10

1/16W

R705
1K

1%

31

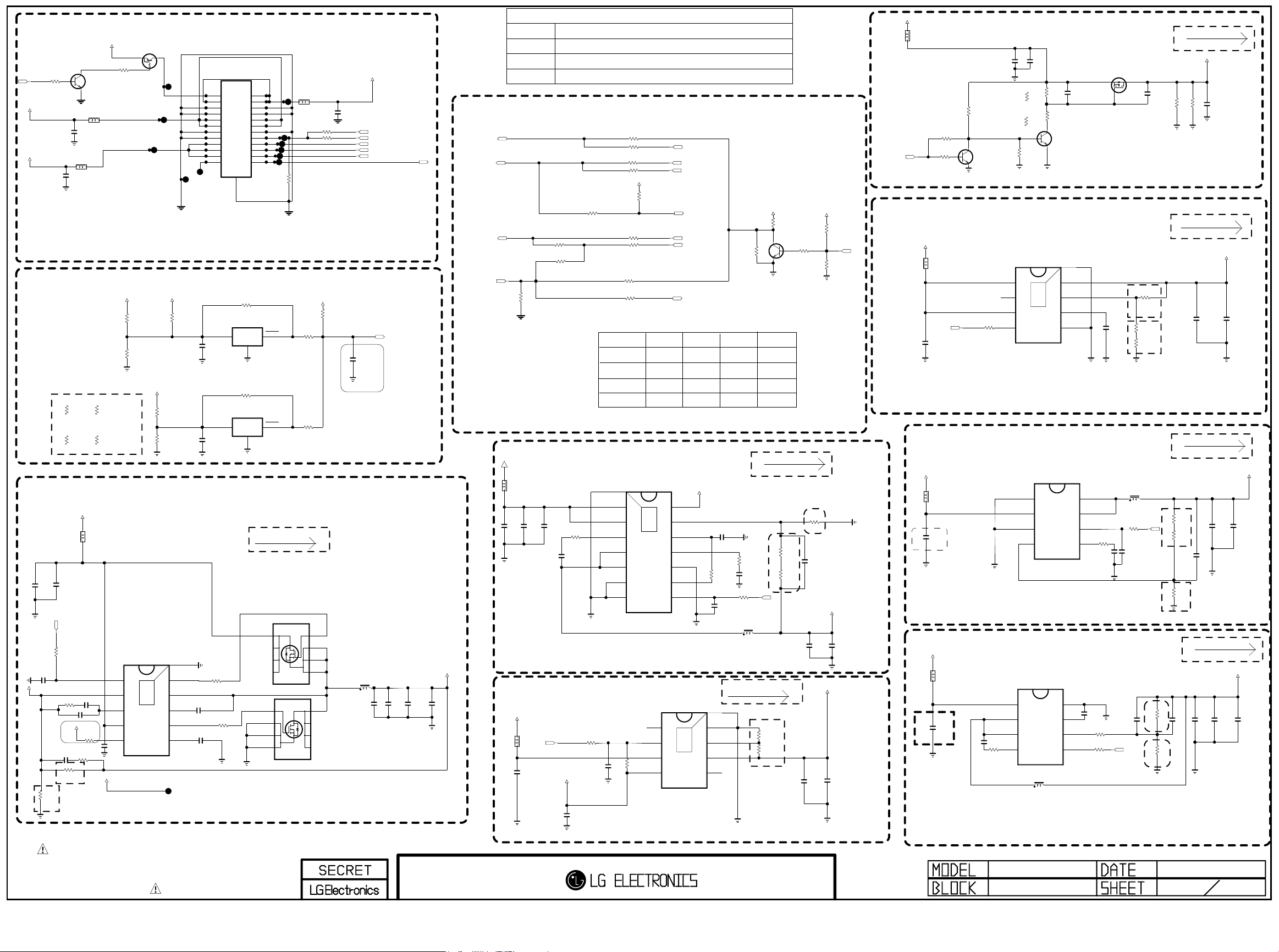

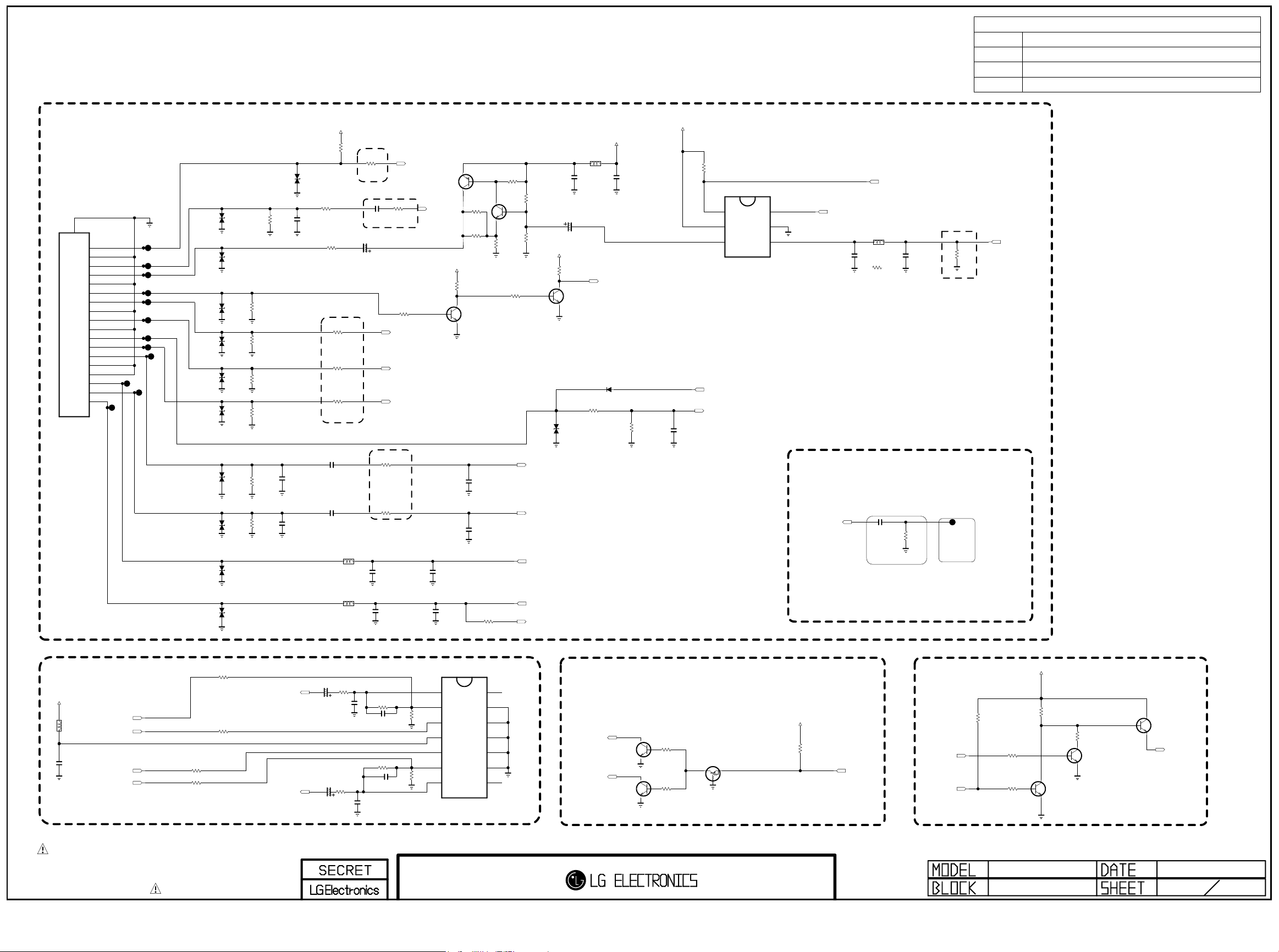

RGB/ PC AUDIO/ SPDIF/ EARPHONE/ RS232C

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

RGB PC

DSUB_VSYNC

DSUB_HSYNC

R868
0

R869
0

DUAL COMPONENT

L804

BG2012B080TF

C828

0.22uF
10V

+3.3V_Normal

R842

4.7K

C

Q801

E

L805

BG2012B080TF

C829

0.22uF
10V

B

2SC3052

OPT

R843
0

R844
1K

HP_LOUT

SIDE_HP_MUTE

HP_ROUT

D811

5.6V
OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R819
10K

D812

5.6V

ESD_COMMON

R8201K

D812-*1

5.6V
ESD_CERADIODE

DSUB_DET

EARPHON JACK

+3.3V_Normal

R822

2.7K
HP_LOUT

HP_DET

R8211K

HP_ROUT

EARPHONE AMP

HP_LOUT_N

HP_LOUT_P

HP_ROUT_P

HP_ROUT_N

R823

R824

4.7K

OPT

R825

R826 0

C816
1uF
10V

C817
1uF
10V

C818
1uF

10V

C819
1uF

10V

OPT

OPT

JK803

KJA-PH-0-0177
5GND

4L

3DETECT

1R

EAG61030001

0

OPT

R828

SPK_R+_HOTEL

SPK_R-_HOTEL

INL-

INL+

INR+

INR-

4.7K

R827

Close to the IC

SGND

OUTL

15

16

1

2

IC804
TPA6132A2

3

4

EAN60724701

6G07G18

5

OUTR

+3.3V_Normal

D810

KDS184

A2

C

A1

IC801

74F08D

D0A

1

D0B

R801

22

R802

22

R850 0

R851 0

2

Q0

3

D1A

4

OPT

D1B

5

OPT

Q1

6

GND

7

DSUB_B+

DSUB_G+

DSUB_R+

+5V_Normal

IC802

VCC

14

D3B

13

D3A

12

Q3

11

D2B

R852 0

10

OPT

D2A

R853 0

9

OPT

Q2

8

R807
10K
OPT

R808
10K
OPT

R812
75

R811
75

R813
75

D804
30V

D805
30V

C830
47pF
50V

C831
47pF
50V

C832
47pF
50V

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

5.6V
D808-*1

ESD_CERADIODE

ESD_COMMON

5.6V
D806-*1

ESD_CERADIODE

ESD_COMMON

5.6V
D807-*1

ESD_CERADIODE

VCC

8

WP

7

SCL

6

SDA

5

C807
22pF
50V

C808
22pF
50V

BLM15BD121SN1

ESD_COMMON

D808
30V

BLM15BD121SN1

D806
30V

BLM15BD121SN1

D807
30V

Closed to JACK

L807

L808

L806

C809
18pF

R814

R815

2.7K

2.7K

R848 22

R847 22

C810

18pF

50V

50V

R817

10K

OPT

D809

5.6V

91010

5

15

D804,D805,D806
D807,D808,D813
D814

D810

Q801

IC805

L803
120-ohm
BLM18PG121SN1D

C822

10uF
10V

C821
1uF
10V

EN14VDD

13

12

11

10

9

HPVSS

C823

2.2uF
10V

HPVDD

CPP

PGND

CPN

C824

0.1uF

16V

1ST : EAH39491601, 2ND : EAH33945901

1ST : 0DD184009AA, 2ND : 0DSIH00028A

1ST : 0TRIY80001A, 2ND : 0TR387500AA

1ST : EAN61151201, 2ND : EAN61130001

LPF READEY
(For H/P Noise Improvement)

R837

C825

100K

2.2uF

OPT

10V

C826

2.2uF
10V

PC AUDIO

JK801

KJA-PH-0-0177

5 GND

4 L

3 DETECT

1 R

SPDIF OUT

SPDIF_OUT

R803
0

D801
AMOTECH

5.6V

ESD_COMMON

D802

AMOTECH

5.6V

ESD_COMMON

R804
470K

R805
470K

R806

2.7K

R866
22

C801
560pF
50V

R867
22

C802
560pF
50V

+3.3V_Normal

D803
30V
OPT

C803

0.1uF
16V

C804
560pF
50V

C805
560pF
50V

PC_L_IN

PC_R_IN

JK802

2F11TC1-EM52-4F

VIN

A

VCC

B

GND

C

Fiber Optic

4

SHIELD

111112121313141415

6677889

112233445

JK804

SLIM-15F-D-2

16

16

RS232C

10

5

JP809

9

8

7

6

SPG09-DB-009

JK805

R862
0

R863
0

R864
0

R865
0

4

3

2

1

BCM_RX

NEC_RXD

BCM_TX

NEC_TXD

0.1uF

C8120.1uF

C813

C8150.1uF

IR_OUT

100

+3.5V_ST

IC803

MAX3232CDR

C1+

1

V+

2

C1-

3

C2+

C8140.1uF

4

C2-

5

V-

6

DOUT2

7

RIN2

8

EAN41348201

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

R833

100

R834

ESD_COMMON

D813-*1

D813
30V

5.6V

ESD_CERADIODE

+3.5V_ST

D814
30V

ESD_COMMON

5.6V

D814-*1

R860

4.7K
OPT

IR_OUT

ESD_CERADIODE

R861

4.7K
OPT

R8380

JP810

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.10.21
8COMMON JACK

58

Q901,Q902,Q903

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

Q904,Q905,Q906

D903,D904
D905,D906

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EAH42720601, 2ND : EAH60994401

IR & KEY

IR

Q901

2SC3052

+3.5V_ST

R903

47K

R902
0

+3.5V_ST

KEY1

KEY2

3.5V

3.3V

S/T_SCL

ST_SDA

GND

GND

IR

GND

GND

IR_15P

P901

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

.

IR_12P

P902

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

EEPROM_SCL

EEPROM_SDA

LED_B/LOGO

LED_R/BUZZ

C911

100pF

50V

R933
100

R934
100

R928 1.5K

D907

5.6V

AMOTECH

LED_R/BUZZ

D903

CDS3C05HDMI1

5.6V

D904

CDS3C05HDMI1

5.6V

D905

CDS3C05HDMI1

5.6V

D906

CDS3C05HDMI1

5.6V

R929

1.5K

LED_B/LG_LOGO

+3.3V_Normal

BLM18PG121SN1D

16V

EEPROM_SCL

EEPROM_SDA

L902

C913

0.1uF

ESD_ATSC

16V

R920

R919

10K

10K

1%

1%

R915
100

KEY1

R916

+3.5V_ST

R908

47K

COMMERCIAL_EU

Q903

2SC3052

COMMERCIAL_EU

WIRELESS

Q904

2SC3052

WIRELESS

+3.5V_ST

R909

3.3K
OPT

+3.5V_ST

R911

47K

C

B

E

COMMERCIAL_EU

COMMERCIAL_US

R910
0

+3.5V_ST

R912

47K

C

B

E

WIRELESS

R905

47K

R904

C

10K

B

E

OPT

Q902

2SC3052

C

B

E

COMMERCIAL

R906

COMMERCIAL

22

IR_OUT

WIRELESS

R907

WIRELESS

22

IR_PASS

KEY2

R913
10K

R914
10K

R917

COMMERCIAL

Q905

2SC3052

COMMERCIAL

R918

WIRELESS

Q906

2SC3052

WIRELESS

100

+3.5V_ST

47K

+3.5V_ST

47K

C

B

E

C

B

E

R921

47K

COMMERCIAL

R922

47K

WIRELESS

+3.5V_ST

C901

0.1uF

C902

0.1uF
OPT

BLM18PG121SN1D

16V

L901

S/T_SCL

S/T_SDA

C903

0.1uF

C904

0.1uF

D901

5.6V

AMOTECH

16V

OPT

Zener Diode is

close to wafer

C905
1000pF
50V

R935
100

R936
100

D902

5.6V

AMOTECH

ESD_ATSC

C912

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

IR/KEY

9

50

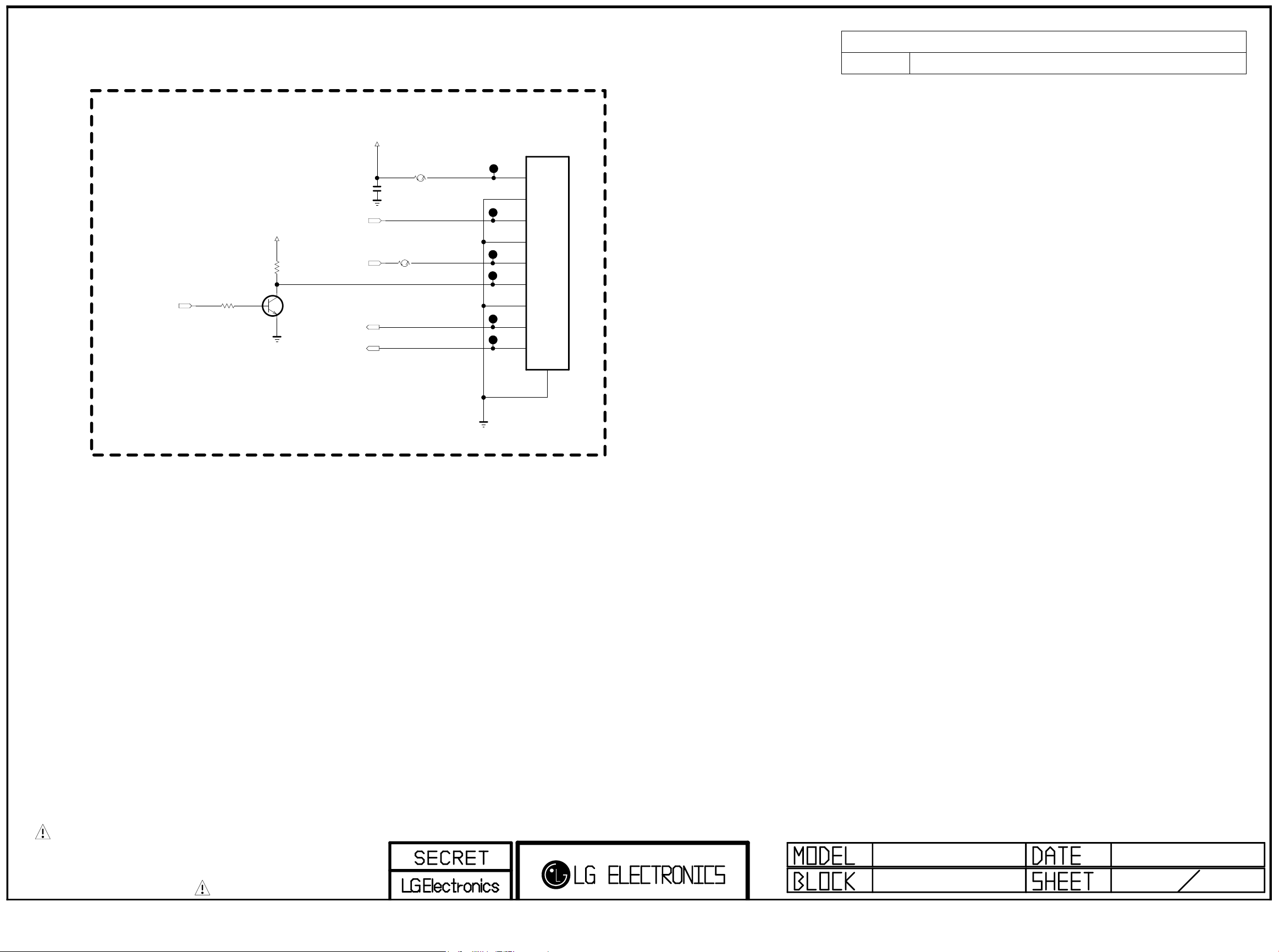

WIRELESS READY MODEL

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

D1001,D1002

Q1001

Q1002

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

1ST : EBK61012601, 2ND : 0TRDI80002A

1ST : EBK60752501, 2ND : EBK61011501

Wireless power

+24V

R1002

22K

WIRELESS

R1003

2.2K

WIRELESS

WIRELESS_PWR_EN

R1001

10K

WIRELESS

B

C1002

2.2uF

WIRELESS

Q1002
AO3407A

WIRELESS

C

Q1001
MMBT3904(NXP)

WIRELESS

E

JK1001

KJA-PH-3-0168

DETECT

INTERRUPT

GND_1

RESET

GND_2

I2C_SCL

I2C_SDA

GND_3

UART_RX

UART_TX

GND_4

GND_5

IR

WIRELESS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20GND_6

21

SHIELD

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_2

VCC(24V/20V/17V)_3

VCC(24V/20V/17V)_4

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_1

+3.3V_Normal

S

G

D

L1001

MLB-201209-0120P-N2

WIRELESS

C1004
10uF
35V

WIRELESS

WIRELESS_DET

WIRELESS_SCL

WIRELESS_SDA

IR_PASS

R1008

WIRELESS

R1007 1K

WIRELESS

D1001

CDS3C05HDMI1

WIRELESS

10K

5.6V
WIRELESS

D1002

5.6V

CDS3C05HDMI1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Wireless I2C connection with I2C_1

Address : 0X20

WIRELESS_SCL

WIRELESS_SDA

R1005 33

WIRELESS

R1006 33

WIRELESS

SCL2_3.3V

SDA2_3.3V

BCM35230

10

50WIRELESS

CVBS 1 PHONE JACK

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

D1105

D1107

5.6V

5.6V

ZD1115

5.1V
ZD1116

5.1V

D1108

5.6V

R1110

JK1102

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

COMPONENT 1 PHONE JACK

D1101

JK1101

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

5.6V

ZD1117

5.1V
ZD1110

5.1V

ZD1111

5.1V
ZD1112

5.1V

ZD1113

5.1V
ZD1114

5.1V

R1109
75

1%

470K

R1111
470K

+3.3V_Normal

R1105

2.7K

R1106
75

1%

R1107
75

1%

R1108
75

1%

+3.3V_Normal

R1112

2.7K

C1106
47pF
50V

C1107
560pF
50V

C1108
560pF
50V

R1137
10

R1138
10

R1139
10

R1143
22

R1144
22

R1114
1K

C1102
47pF
50V

C1103
27pF
50V

C1104
27pF
50V

R1113
1K

R1136
10

L1110

CM2012FR10KT

L1111

CM2012FR27KT

L1112

CM2012FR27KT

FOR EMI

C1109
560pF
50V

C1110
560pF
50V

C1125
47pF
50V

C1126
27pF
50V

C1127
27pF
50V

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

AV1_CVBS_DET

AV1_CVBS_IN

AV1_L_IN

AV1_R_IN

JACK_PACK

JK1105

PPJ238-01

[RD1]E-LUG

6C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SPRING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O-SPRING_1

5F

[RD2]E-LUG-S

7F

[BL2]O-SPRING

5E

[BL2]E-LUG-S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

CVBS2 REAR JACK

JK1104

PPJ233-01

AV2_JACK

[RD]E-LUG

5C

[RD]O-SPRING

4C

[RD]CONTACT

3C

[WH]C-LUG

4B

[YL]CONTACT

3A

[YL]O-SPRING

4A

[YL]E-LUG

5A

COMP2 REAR JACK

COMP2

COMP2

COMP2

COMP2

COMP2

COMP2

ZD1103

5.1V

ZD1104

5.1V

ZD1105

5.1V

ZD1106

5.1V

ZD1107

5.1V

ZD1108

5.1V

AV2
R1141
22

D1109
AMOTECH

5.6V
AV2

D1110
AMOTECH

5.6V
AV2

ZD1101

AV2

5.1V
ZD1102

AV2

5.1V

D1111

AV2

5.6V

COMP2

R1119
0

COMP2

R1124
75

COMP2

R1120
0

COMP2
R1125

75

COMP2

R1121
0

COMP2
R1126

75

D1112

5.6V
COMP2

D1113

5.6V
COMP2

COMP2

D1114

5.6V

AV2

10

10

10

AV2

AV2

COMP2

COMP2

COMP2

R1116
470K

R1117
470K

R1118
75

R1133

R1134

R1135

+3.3V_Normal

+3.3V_Normal

R1128

2.7K

AV2

COMP2
R1122
470K

COMP2

R1123

470K

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R1127

2.7K

C1118
560pF
50V
AV2

C1119
560pF
50V
AV2

C1120
47pF
50V

AV2

BLM18PG121SN1D

C1113
560pF
50V

COMP2

BLM18PG121SN1D

COMP2

C1114
560pF
50V

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

COMP2

COMP2

COMP_NON_EU

R11301K

R1142
22

R1129

1K

AV2

L1103

L1104

AV2

C1117-*1
47pF
50V

C1121
560pF
50V

COMP2

COMP2

C1122
560pF
50V

CM2012FR27KT

C1115

27pF
50V

CM2012FR27KT

C1116

27pF
50V

CM2012FR27KT

COMP_EU

C1117

27pF

50V

COMP_EU

L1109

L1108

L1107

FOR EMI

C1123
560pF
50V

AV2

C1124
560pF
50V

AV2

COMP2
R1131
22

COMP2
R1132
22

AV2
R1140
10

SC/COMP2_R_IN

SC/COMP2_L_IN

SC_R/COMP2_Pr

C1128

27pF
50V

SC_B/COMP2_Pb

C1129

27pF
50V

L1107-*1

CM2012FR10KT

COMP_NON_EU

SC_G/COMP2_Y

COMP_NON_EU

C1130

27pF

50V

COMP_EU

SC_DET/COMP2_DET

C1130-*1
47pF
50V

AV2_R_IN

AV2_L_IN

AV2_CVBS_IN

AV2_CVBS_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

COMP/AV 11

50

USB_WIFI

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

+3.3V_Normal

WIFI_DM

WIFI_DP

L1203

BLM18PG121SN1D

WIFI

+5V_USB

+3.3V_USB

L1202

MLB-201209-0120P-N2

C1234

WIFI

0.1uF
16V

For EMI

Close to BCM IC

R1232 0

WIFI

R1233 0

WIFI

CDS3C05HDMI1

WIFI

WIFI120-ohm

WIFI

D1201

5.6V

WIFI_ESD

WIFI

C1209

1uF

10V

WIFI

C1210

0.1uF

R1204

12K

1/16W 1%

WIFI

C1211

15pF

WIFI
R1205
1M

WIFI

X1201
24MHz

C1233

0.1uF
16V

WIFI

CDS3C05HDMI1

SIDE_USB_DP

WIFI

C1213

15pF

1%

C1232
100uF
16V

D1202

5.6V

WIFI_ESD

SIDE_USB_DM

R1206

WIFI

100K

12507WR-04L

VDD

DM

DP

GND

1

2

3

4

P1201

WIFI

5

.

+3.3V_USB

DUAL COMPONENT

D1201,D1202
D1203,D1204
D1205,D1206

1ST : EAH42720601 2ND : EAH60994401

USB / DVR Ready

L1205

MLB-201209-0120P-N2

120-ohm

C1220

C1231

10uF

100uF

10V

3AU04S-305-ZC-(LG)

JK1201

1234

USB D OWN STRE AM USB D OWN STRE AM

5

16V

OPT

D1207

RCLAMP0502BA

D1203
CDS3C05HDMI1

5.6V

IC1204

NC
OUT_2
OUT_1

FLG

AP2191DSG

1

8

2

7

3

6

4

5

EAN61849601

D1205
CDS3C05HDMI1

5.6V

GND
IN_1
IN_2
EN

+3.3V_Normal

R1221

4.7K
OPT

USB_CTL1

R1230 0
R1231 0

NON_WIFI

R1224 0
R1225 0

NON_WIFI

NON_WIFI

NON_WIFI

R1223

2.7K

+5V_USB

C1224

0.1uF

/USB_OCD1

SIDE_USB_CTL1

SIDE_USB_OCD1

USB_DM1

USB_DP1

SIDE_USB_DM
SIDE_USB_DP

SUSP_IND/LOCAL_PWR/NON_REM[0]

VDDA33_3

USBDM_UP

USBDP_UP

XTALOUT

XTALIN/CLKIN

PLLFILT

RBIAS

VDD33_3

+3.3V_USB

C1204
1uF
10V

WIFI

C1205

0.1uF
WIFI

USB_DM1

USB_DP1

USB_DM2

USB_DP2

C1206

0.1uF
WIFI

C1207

0.1uF
WIFI

C1208

0.1uF
WIFI

USBDM_DN[1]

USBDP_DN[1]

USBDM_DN[2]

USBDP_DN[2]

VDDA33_1

NC_1

NC_2

NC_3

NC_4

[EP]VSS

36

1

THERMAL

2

3

4

5

6

7

8

9

10

VDDA33_2

32

33

34

35

37

IC1202

USB2512B-AEZG

WIFI

11

12

13

14

TEST

CRFILT

OCS_N[1]

WIFI

PRTPWR[1]/BC_EN[1]

C1212

USB_CTL1

/USB_OCD1

29

30

31

15

16

17

VDD33_1

OCS_N[2]

C1214

0.1uF
PRTPWR[2]/BC_EN[2]

1uF

10V

WIFI

USB_CTL2

/USB_OCD2

28

VBUS_DET

27

RESET_N

26

HS_IND/CFG_SEL[1]

25

SCL/SMBCLK/CFG_SEL[0]

24

VDD33_2

23

SDA/SMBDATA/NON_REM[1]

22

NC_8

21

NC_7

20

NC_6

19

18

NC_5

WIFI

R1207

100K

WIFI

C1216

0.1uF

C1215

0.1uF

WIFI

WIFI

R1208

100K

R1212
100K

R1213

WIFI

100K

R1209

OPT

100K
OPT

R1215 100K

R1214 100K

R1216 100K

+3.3V_USB

C1218

0.1uF
OPT

WIFI
C1217

4.7uF

OPT

OPT

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_USB

/RST_HUB

USB

3AU04S-305-ZC-(LG)

JK1202

1234

5

L1204

MLB-201209-0120P-N2

120-ohm

C1230

C1219

100uF

10uF

16V

10V

OPT

D1208

RCLAMP0502BA

BCM35230

USB + WIFI

IC1203

AP2191DSG

NC

8

OUT_2

7

OUT_1

6

FLG

5

EAN61849601

D1204
CDS3C05HDMI1

5.6V

+3.3V_Normal

GND

1

IN_1

2

IN_2

3

EN

4

D1206
CDS3C05HDMI1

5.6V

R1220

4.7K

OPT

USB_CTL2

R1228 0
R1229 0

R1226 0

R1227 0

NON_WIFI

NON_WIFI

NON_WIFI

NON_WIFI

R1222

2.7K

SIDE_USB_CTL2

SIDE_USB_OCD2

USB_DM2

USB_DP2

WIFI_DM

WIFI_DP

12

+5V_USB

C1223

0.1uF

/USB_OCD2

TI solution M_REMOTE OPTION

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

P1302

12507WR-12L

M_REMOTE

13

.

+3.3V_Normal

L1303

120-ohm

R1315
100

R1319
100

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

M_REMOTE

R1316
100

R1317
100

R1318
100

R1320
22

R1324
22

R1325
22

R1326
22

M_REMOTE_RX

M_REMOTE_TX

3D_GPIO_0

3D_GPIO_1

3D_GPIO_2

3D_SYNC_RF

R1321

2.7K
M_REMOTE

3.3V

1

GND

2

3

4

5

6

7

8

9

10

11

12

RX

TX

RESET

DC

DD

GND

GPIO_0

GPIO_1

GPIO_2

3D_SYNC

M_REMOTE

M_REMOTE

+3.3V_Normal

R1322

2.7K

M_REMOTE

R1323

2.7K

M_REMOTE

M_RFModule_RESET

DC_MREMOTE

DD_MREMOTE

ALL M_REMOTE OPTION

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

13

50M_REMOCON

Ethernet Block

Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

LGE Internal Use Only

JK1401

XRJH-01A-4-DA7-180-LG(B)

R1

1

R2

2

R3

3

R4

4

R5

5

R6

6

R7

7

R8

8

R9

9

R10[GND]

10

R11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

R1401 240

R1402

+2.5V_BCM35230

+3.3V_Normal

240

L1401

MLB-201209-0120P-N2

C1401

0.1uF

16V

D1401

5.5V

LAN_ESD

D1405

D1403

5V

5V

LAN_ESD

LAN_ESD

D1402

5.5V

LAN_ESD

D1404

5.5V

LAN_ESD

D1401,D1402
D1403,D1404
D1405,D1406

D1406

5.5V

LAN_ESD

EPHY_ACTIVITY

EPHY_LINK

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

14ETHERNET

50
