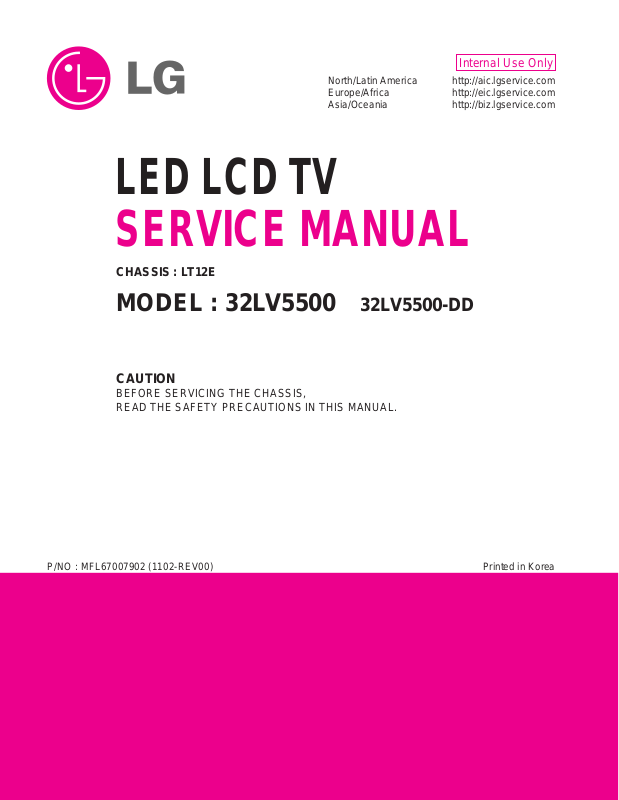

LG 32LV5500-DD Schematic

LED LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LT12E

MODEL : 32LV5500 32LV5500-DD

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL67007902 (1102-REV00)

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 18

EXPLODED VIEW .................................................................................. 26

SVC. SHEET ...............................................................................................

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Only for training and service purposes

1. Application range

This spec sheet is applied all of the 32”,42”,47”,55”,60”, 72” LCD TV with LT12B/C/D/E/N chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC, CST : 40 ± 5 ºC

2) Relative Humidity: 65 ± 10 %

3) Power Voltage : Standard input voltage(100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE,IEC

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement.

- 7 -

Only for training and service purposes

4. General Specification(TV)

No Item Specification Remark

32 wide Color Display Module Resolution: 1920*1080 42 wide Color Display Module Resolution: 1920*1080 47 wide Color Display Module Resolution: 1920*1080 55 wide Color Display Module Resolution: 1920*1080 65 wide Color Display Module Resolution: 1920*1080

1. Display Screen Device

72 wide Color Display Module Resolution: 1920*1080

2. Aspect Rat io 16:9 32" TFT WUXGA LCD 42" TFT WUXGA LCD 47 TFT WUXGA LCD 55 TFT WUXGA LCD

3. LCD Module

42 ALEF 47 ALEF 55 ALEF 65 72 IOL

TFT

Temp. : 0 ~ 40 deg Humidity : 0 ~ 85%

ALEF

Temp. : 0 ~ 50 deg Humidity : 20 ~ 90%

4. Operating Environment

IOL

Temp. : 0 ~ 50 deg Humidity : 20 ~ 90%

TFT

Temp. : -20 ~ 60 deg Humidity : 10 ~ 90%

ALEF

Temp. : -20 ~ 60 deg Humidity : 10 ~ 90%

5. Storage Environment

IOL

Temp. : -20 ~ 60 deg Humidity : 10 ~ 90%

LGE SPEC

6. Input Voltage AC100 ~ 240V, 50/60Hz

32 50 W Normal : LC320EUN-SDV2 [32LV3700-DA] 42 90 W Normal : LC420EUN-SDV3 [42LV3700-DA]

FHD 60Hz Edge LED

47 90 W Normal : LC470EUE-SDV1 [37LV3700-DA]

100 W Normal : V315H3-LE8 [32LV5500-DD] 60 W Normal : LC320EUD-SDA1 [32LV5500-DD]

32

60 W PG : LC320EUD-S DF1 [32LW5700-DA] 110 W Normal : V420H2-LE6 [42LV5500-DD] 90

100 110

W Normal : LC420EUF-SDA1 [42LV5500-DD]

42

100 W

W W

PG : LC420EUF-SDF1 [42LW5700-DA]

Normal : LC470EUF-SDA1 [47LV5500-DD]

47

PG : LC470EUF-SDF1 [47LW5700-DA]

FHD 120Hz Edge LED

55 14 0 W

Normal : LC550EUF-SDA1 [55LV5500-DD] 42 110 W SG : LC420DUC-SDS1 [42LW7700-DA] 47 160 W SG : LC470DUC-SDS1 [47LW7700-DA]

7.

Power Consumption = LCD(Module) + Backlight(LED)

FHD M240Hz ALEF

55 170 W SG : LC550DUC- SDS1 [55LW7700-DA] 47 30 W SG : LC470DUT-SDA1 Only Cell

FHD T480Hz ALEF

55 30 W SG : LC550DUT-SDA1 Only Cell

65

FHD T480Hz IOL

72 400 W SG : LC720DUC-SCM1 Only Cell

- 8 -

Only for training and service purposes

Maker Inch (H)mm x (V)mm x (D)mm Unit: mm

735.4 x 433.0 x 10.8

LC320EUN-SDV2 : Edge Non-3D_60Hz

735.4 x 433.0 x 10.8

LC320EUD-SDA1 : Edge Non-3D_120Hz

32

698.40 x 392.85 x 10.8

LC320EUD-SDF1 : Edge 3D-PG

968.4 x 564 x 10.8

LC420EUN-SDV3: Edge Non-3D_60Hz

968.4 x 564 x 10.8

LC420EUF-SDA1 : Edge Non-3D_120Hz

968.4 x 564 x 10.8

LC420EUF-SDF1 : Edge 3D-PG

42

968.4 x 564 x 12.2

LC420DUC-SDS1 : ALEF 3D-SG M240

1078.6 x 626.0 x 10.8

LC470EUE-SDV1 : Edge Non-3D_6 0Hz

1078.6 x 626.0 x 10.8

LC470EUF-SDA1 : Edge Non-3D_120Hz

1078.6 x 626.0 x 10.8

LC470EUF-SDF1 : Edge 3D-PG

1078.6 x 626.0 x 12.2

LC470DUC-SDS1 : ALEF 3D-SG M240

47

1054.5 x 600.0 x 1.8

LC470DUT-SDA1 : ALEF 3D-SG T480

1255.6 x 726.4 x 19.0

LC550EUF-SDA1 : Edge Non-3D_120Hz

1255.6 x 726.4 x 12.2

LC550DUC- SDS1 : ALEF 3D-SG M240

55

1220.8 x 693.8 x 1.8

LC550DUT-SDA1 : ALEF 3D-SG T480 65

LGD

72 1666.0 x 96 8.0 x 60.0

LC720DUC-SCM1 : IOL 3D-SG

32 735.4 x 433 x 10.8

V315H3-LE8 : Edge Non-3D

Size

CMI

42 968.4 x 564 x 10.8

V420H2-LE6 : Edge Non-3D

Maker Inch mm x mm

mm

LC320EUN-SDV2 : Edge Non-3D_60Hz

LC320EUD-SDA1 : Edge Non-3D_120Hz

8. LCD Module

Pixel Pitch

LGD

32 0.36375 x 0.36375

LC320EUD-SDF1 : Edge 3D-PG

LC420EUN-SDV3: Edge Non-3D_60Hz

LC420EUF-SDA1 : Edge Non-3D_120Hz

LC420EUF-SDF1 : Edge 3D-PG

42

0.4845 x 0.4845 LC420DUC-SDS1 : ALEF 3D-SG M240

LC470EUE-SDV1 : Edge Non-3D_60Hz LC470EUF-SDA1 : Edge Non-3D_120Hz LC470EUF-SDF1 : Edge 3D-PG LC470DUC-SDS1 : ALEF 3D-SG M240

47 0.5415 x 0.5415

LC470DUT-SDA1 : ALEF 3D-SG T480 LC550EUF-SDA1 : Edge Non-3D LC550DUC- SDS1 : ALEF 3D-SG M240

55 0.630 x 0.630

LC550DUT-SDA1 : ALEF 3D-SG T480

65 72 0.831 x 0.831

LC720DUC-SCM1 : IOL 3D-SG

32 0.12125 x 0.12125

V315H3-LE8 : Edge Non-3D

CMI

42

0.1615 x 0.4845

V420H2-LE6 : Edge Non-3D

32 Ed ge-LED

LC320EUN-SDV2

LC320EUD-SDA1 LC320EUD-SDF1

Edge-LED

LC420EUN-SDV3

LC420EUF-SDA1 LC420EUF-SDF1

42

ALEF

LC420DUC-SDS1

Edge-LED

LC470EUE-SDV1

LC470EUF-SDA1 LC470EUF-SDF1

47

ALEF

LC470DUC-SDS1

Edge-LED

LC550EUF-SDA1

55

ALEF

LC550DUC- SDS1

LC550DUT-SDA1

Back Light LGD

65

- 9 -

Only for training and service purposes

72 IOL

LC720DUC-SCM1

32 Ed ge-LED

V315H3-LE8

CMI

42 Ed ge-LED

V420H2-LE6

1.06 B (10-bit) Except FHD 60Hz models

Display Colors

16.7 M (8-bit) Only FHD 60Hz models

Coating 3H(Hard coating), Anti-glare

5. Chrominance & Luminance

No Item Min Typ Max Unit Remark

89/89 89/89

Edge : LC320EUN-SDV2 Edge : LC420EUN-SDV3 Edge : LC470EUE-SDV1 Edge : LC320EUD-SDA1 Edge : LC420EUF-SDA1 Edge : LC470EUF-SDA1 Edge : LC550EUF-SDA1 Edge : LC320EUD-SDF1 Edge : LC420EUD-SDF1 Edge : LC470EUF-SDF1 ALEF : LC420DUC-SDS1 ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1 ALEF : LC470DUT-SDA1 ALEF : LC550DUT-SDA1 IOL : LC720DUC-SCM1

1 View angle (R/L, U/D)

88/88 88/88

degree

Edge : V315H3-LE8 Edge : V420H2-LE6

290 360

Edge : LC320EUN-SDV2

Edge : LC420EUN-SDV3 Edge : LC470EUE-SDV1

320 400

Edge : V315H3-LE8

Edge : LC320EUD-SDA1 Edge : LC420EUF-SDA1 Edge : LC470EUF-SDA1 Edge : LC550EUF-SDA1 : FHD 120Hz Edge LED Edge : LC320EUD-SDF1 Edge : LC420EUF-SDF1 Edge : LC470EUF-SDF1 : FHD 120Hz Patterned Edge LED

2

Luminance (W/O PC mode)

360 450

cd/m

ALEF : LC420DUC-SDS1

ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1 : FHD M240Hz ALEF LED

- 10 -

Only for training and service purposes

350 450

Edge : V420H2-LE6 : FHD 120Hz Edge LED

360 450

ALEF : LC470DUT-SDA1 ALEF : LC550DUT-SDA1 : FHD T480Hz ALEF LED

400 500

IOL : LC720DU C-SCM1 : FHD T480Hz IOL LED

1000:1 1400:1

Edge : LC320EUN-SDV2 Edge : LC420EUN-SDV3 Edge : LC470EUE-SDV1

3500:1 5000:1 Edge : V315H3-LE8

4200:1 6000:1 Edge : V420H2-LE6

1100:1 1600:1

Edge : LC320EUD-SDA1 Edge : LC420EUF-SDA1 Edge : LC470EUF-SDA1 Edge : LC550EUF-SDA1 Edge : LC320EUD-SDF1 Edge : LC420EUF-SDF1 Edge : LC470EUF-SDF1

900:1 1300:1

ALEF : LC420DUC-SDS1

ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1

900:1 1300:1

ALEF : LC470DUT-SDA1

ALEF : LC550DUT-SDA1

3

Module Contrast Ratio

1000:1 1200:1 IOL : LC720DUC-SCM1

X

0.279

White

Y

0.292

X

0.637

Red

Y

0.341

X

0.320

Green

Y

0.606

X

0.152

Blue

Y

Typ.

-0.03

0.055

Typ.

+0.03

Edge : LC320EUN-SDV2

X

0.279

4 CIE

Color Coordinates

White

Y

0.292

Typ. Edge : LC420EUN-SDV3

X

0.637

Red

Y

0.341

X

0.325

Green

Y

0.600

X

0.152

Blue

Y

Typ.

-0.03

0.051

+0.03

X

0.279

White

Y

0.292

X

0.639

Red

Y

0.343

X

0.316

Green

Y

0.595

X

0.152

Blue

Y

Typ.

-0.03

0.058

Typ.

+0.03

Edge : LC470EUE-SDV1

X

0.280

White

Y

0.290

X

0.635

Red

Y

0.323

X

0.288

Green

Y

0.600

X

0.148

Blue

Y

Typ.

-0.03

0.050

Typ.

+0.03

Edge : V315H3-LE8

X

0.279

White

Y

0.292

X

0.649

Red

Y

0.333

X

0.301

Green

Y

0.609

X

0.152

Blue

Y

Typ.

-0.03

0.060

Typ.

+0.03

Edge : LC320EUD-SDA1

- 11 -

Only for training and service purposes

Y X

X

0.280

White

0.290

0.644

Red

Y

Typ.

-0.03

0.331

Typ.

+0.03

Edge : V420H2-LE6

0.297

Green

0.618

0.147

Blue

0.054

X

0.279

White

Y

0.292

X

0.644

Red

Y

X Y X Y

0.333

X

0.306

Green

Y

0.604

X

0.150

Blue

Y

Typ.

-0.03

0.058

Typ.

+0.03

Edge : LC420EUF-SDA1

X

0.279

White

Y

0.292

X

0.648

Red

Y

0.333

X

0.308

Green

Y

0.600

X

0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC470EUF-SDA1

X

0.279

White

Y

0.292

0.649

Red

Y

0.332

0.307

Green

Y

0.595

0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC550EUF-SDA1

X

0.279

White

0.292

X

0.648

Red

Y

0.334

X

0.307

Green

Y

Typ.

-0.03

0.606

Typ.

+0.03

Edge : LC320EUD-SDF1

X

0.152

Blue

Y

0.058

X

0.279

White

0.292

X

0.650

Red

Y

0.333

X

0.307

Green

Y

0.604

X

0.150

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC420EUF-SDF1

X

0.279

White

0.292

X

0.648

Red

Y

0.332

X

0.306

Green

Y

0.606

X

0.150

Blue

Y

Typ.

-0.03

0.058

Typ.

+0.03

Edge : LC470EUF-SDF1

X

White

Y X

Red

Y X

Green

Y X

Blue

Y

Typ.

-0.03

Typ.

+0.03

ALEF : LC420DUC-SDS1

Y X

X

0.280

White

0.290

0.644

Red

Y

Typ.

-0.03

0.331

Typ.

+0.03

Edge : V420H2-LE6

0.297

Green

0.618

0.147

Blue

0.054

X

0.279

White

Y

0.292

X

0.644

Red

Y

X Y X Y

0.333

X

0.306

Green

Y

0.604

X

0.150

Blue

Y

Typ.

-0.03

0.058

Typ.

+0.03

Edge : LC420EUF-SDA1

X

0.279

White

Y

0.292

X

0.648

Red

Y

0.333

X

0.308

Green

Y

0.600

X

0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC470EUF-SDA1

X

0.279

White

Y

0.292

0.649

Red

Y

0.332

0.307

Green

Y

0.595

0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC550EUF-SDA1

X

0.279

White

0.292

X

0.648

Red

Y

0.334

X

0.307

Green

Y

Typ.

-0.03

0.606

Typ.

+0.03

Edge : LC320EUD-SDF1

X

0.152

Blue

Y

0.058

X

0.279

White

0.292

X

0.650

Red

Y

0.333

X

0.307

Green

Y

0.604

X

0.150

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

Edge : LC420EUF-SDF1

X

0.279

White

0.292

X

0.648

Red

Y

0.332

X

0.306

Green

Y

0.606

X

0.150

Blue

Y

Typ.

-0.03

0.058

Typ.

+0.03

Edge : LC470EUF-SDF1

X

White

Y X

Red

Y X

Green

Y X

Blue

Y

Typ.

-0.03

Typ.

+0.03

ALEF : LC420DUC-SDS1

- 12 -

Only for training and service purposes

Y

X

Y

X

Y

X

0.279

White

0.292

0.644

Red

0.333

0.308

Green

0.605

0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

ALEF : LC470DUC-SDS1

X

0.279

White

Y 0.292 X 0.644

Red

Y 0.333 X 0.308

Green

Y 0.605 X 0.149

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

ALEF : LC550DUC-SDS1

X 0.280

White

Y 0.290 X

0.651

Red

Y

0.334

X

0.312

Green

Y

0.598

X

0.150

Blue

Y

Typ.

-0.03

0.068

Typ.

+0.03

ALEF : LC470DUT-SDA1

X 0.279

White

Y 0.292 X 0.642

Red

Y 0.333 X 0.307

Green

Y 0.606 X 0.149

Blue

Y

Typ.

-0.03

0.068

Typ.

+0.03

ALEF : LC550DUT-SDA1

X 0.279

White

Y 0.292 X 0.646

Red

Y 0.330 X 0.303

Green

Y 0.640 X 0.152

Blue

Y

Typ.

-0.03

0.059

Typ.

+0.03

IOL : LC720DUC-SCM1

- 13 -

Only for training and service purposes

5 8

Edge : LC320EUD-SDA1

Edge : LC370EUD-SDA1 Edge : LC420EUF-SDA1 Edge : LC470EUF-SDA1 Edge : LC320EUD-SDP1 Edge : LC420EUD-SDP1 Edge : LC470EUF-SDP1 Edge : LC550EUF-SDP1 ALEF : LC420DUC-SDS1 ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1 ALEF : LC470DUT-SDA1 ALEF : LC550DUT-SDA1 IOL : LC720DUC-SCM1

8. 5 Edge : V315H3-LE8 6 12 Edge : V420H2-LE6

Gray to Gray

6 9

Edge : LC320EUN-SDV2 Edge : LC420EUN-SDV3 Edge : LC470EUE-SDV1

8 12

Edge : V315H3-LE8 Edge : LC320EUD-SDA1 Edge : LC370EUD-SDA1 Edge : LC420EUF-SDA1 Edge : LC470EUF-SDA1

8 12

Edge : LC320EUD-SDF1 Edge : LC420EUF-SDF1 Edge : LC470EUF-SDF1

8 12

ALEF : LC420DUC-SDS1 ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1

8 12

ALEF : LC470DUT-SDA1 ALEF : LC550DUT-SDA1

5 Response time

MPRT

8 12

ms

IOL : LC720DUC-SCM1

14 18 %

Edge : LC320EUD-SDF1 Edge : LC420EUF-SDF1 Edge : LC470EUF-SDF1

14 18 %

ALEF : LC420DUC-SDS1 ALEF : LC470DUC-SDS1 ALEF : LC550DUC-SDS1

14 18 %

ALEF : LC470DUT-SDA1 ALEF : LC550DUT-SDA1

5 3D Crosstalk

14 18 %

IOL : LC720DUC-SCM1

- 14 -

Only for training and service purposes

6. Component Video Input (Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 720*576 15.625 50* 13.5 SDTV 576I

6. 720*576 31.25 50* 13.5 SDTV 576P

7. 1280*720 37.5 50* 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1929*1080 28.125 50* 74.25 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.25 50* 148.5 HDTV 1080P

14. 1920*1080 67.500 60 148.50 HDTV 1080P

15. 1920*1080 67.432 59.94 148.352 HDTV 1080P

16. 1920*1080 27.000 24.000 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.000 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 740176 HDTV 1080P

7. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC

1. 640*350 31.468 70.09 25.17 EGA

2. 720*400 31.469 70.08 28.32 DOS

3. 640*480 31.469 59.94 25.17 VESA(VGA)

4. 800*600 37.879 60.31 40.00 VESA(SVGA)

5. 1024*768 48.363 60.00 65.00 VESA(XGA)

6. 1360*768 47.712 60.015 85.50 VESA(WXGA)

7. 1920*1080 66.587 59.94 138.50 WUXGA (Reduced Blanking)

Only for training and service purposes

- 15 -

8. HDMI input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS O

3. 640*480 31.469 59.94 25.17 VESA(VGA) O

4. 800*600 37.879 60.31 40.00 VESA(SVGA) O

5. 1024*768 48.363 60.00 65.00 VESA(XGA) O

6. 1280*768 47.776 59.870 79.5 CVT(WXGA) O

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) O

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) O

9. 1600*1200 75.00 60.00 162 VESA (UXGA) O

10. 1920*1080 67.500 60.000 148.50 HDTV 1080P O

DTV 1 720*480 31.50 60 27.027 SDTV 480P 2 720*480 31.47 59.94 27.00 SDTV 480P 3 720*576 31.25 50* 13.5 SDTV 576P 4 1280*720 37.5 50* 74.25 HDTV 720P 5 1280*720 45.00 60.00 74.25 HDTV 720P 6 1280*720 44.96 59.94 74.176 HDTV 720P 7 1929*1080 28.125 50* 74.25 HDTV 1080I 8 1920*1080 33.75 60.00 74.25 HDTV 1080I 9 1920*1080 33.72 59.94 74.176 HDTV 1080I

10 1920*1080 56.25 50* 148.5 HDTV 1080P 11 1920*1080 67.500 60 148.50 HDTV 1080P 12 1920*1080 67.432 59.939 148.352 HDTV 1080P 13 1920*1080 27.000 24.000 74.25 HDTV 1080P 14 1920*1080 26.97 23.976 74.176 HDTV 1080P 15 1920*1080 33.75 30.000 74.25 HDTV 1080P 16 1920*1080 33.71 29.97 74.176 HDTV 1080P

(* Except Brazil)

• HDMI Monitor Range Limits

Min Vertical Freq - 56 Hz Max Vertical Freq - 62 Hz Min Horiz. Freq - 30 kHz Max Horiz. Freq - 80 kHz Pixel Clock - 170 MHz

- 16 -

Only for training and service purposes

* Only 3DTV

9. HDMI Input(1.4a)

10. HDMI Input(1.3a)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing 2 1280*720 89.9 / 90 59.94/60 148.35/148.5 HDTV 720P Frame packing 3 1280*720 75 50 148.5 HDTV 720P Frame packing 4 1920*1080 67.5 60 148.5 HDTV 1080P Side by Side(half), Top and bottom 5 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side(half), Top and bottom, 6 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom 7 1280*720 37.5 50 74.25 HDTV 720P Side by Side(half), Top and Bottom 8 1920*1080 33.75 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom 9 1920*1080 28.125 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom

10 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom 11 1920*1080 33.75 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom 2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom 3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom 4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom 5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard 6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard 7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

- 17 -

Only for training and service purposes

11. Wireless Input(1.3)

12. RGB input 3D(PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 3D input proposed mode

1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom 2 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom 3 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom 4 1920*1080 28.125 50.00 74.25 HDTV 1080I Side by Side, Top & Bottom 5 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard 6 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom, Checkerboard 7 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

8 1920*1080 56.250 50 148.5 HDTV 1080P Side by Side, Top & Bottom, Checkerboard

Single Frame Sequential

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

PC DDC

1. 1920*1080 67.50 60.00 148.5 WUXGA (Reduced Blanking) (Side by Side), Top and Bottom

O

Only for training and service purposes

- 18 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied all of the LT12C/D/E/F/N LCD TV models, which produced in manufacture department or similar LG TV factory

2. Notice

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ºC ± 5 ºC of temperature and 65 % ± 10 % of relative humidity if there is no specific designation.

(4) The input voltage of the receiver must keep AC 100-220

V~ 50 / 60Hz. (5) Before adjustment, execute Heat-Run for 5 minutes.

A After Receive 100% Full white pattern (06CH) then

process Heat-run

(or “8. Test pattern” condition of Ez-Adjust status)

A How to make set white pattern

1) Press Power ON button of Service Remocon

2) Press ADJ button of Service remocon. Select “8. Test pattern” and, after select “White” using navigation button, and then you can see 100% Full White pattern.

* In this status you can maintain Heat-Run useless any

pattern generator

* Notice: if you maintain one picture over 20 minutes

(Especially sharp distinction black with white pattern – 13Ch, or Cross hatch pattern – 09Ch) then it can appear image stick near black level.

3. Adjustment Items

3.1. PCB Assembly Adjustment

A MAC Address Download A Adjust 480i Comp1

A Adjust 1080p Comp1/RGB

• If it is necessary, it can adjustment at Manufacture Line

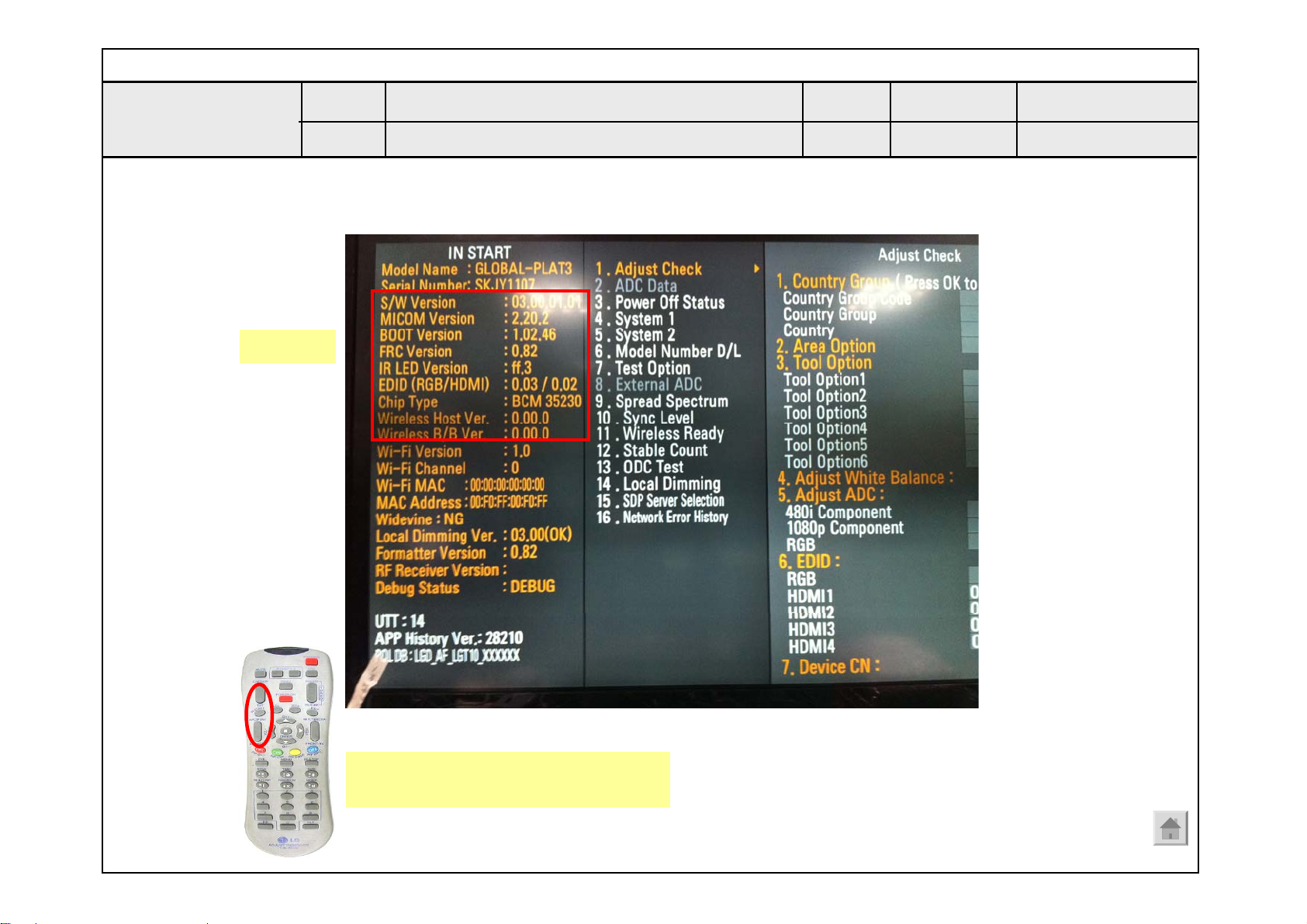

• You can see set adjustment status at “1. ADJUST CHECK” of the “In-start menu”

A EDID (The Extended Display Identification Data)/DDC

(Display Data Channel) download

3.2. Set Assembly Adjustment

A Color Temperature (White Balance) Adjustment A Using RS-232C A PING Test A Selection Factory output option

4. PCB Assembly Adjustment

4.1. MAC Address

4.1.1. Equipment & Condition

• Play file: Serial.exe

• MAC Address edit

• Input Start / End MAC address

4.1.2 Download method

4.1.2.1 Communication Prot connection

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

4.1.2.2 MAC Address Download

• Com 1,2,3,4 and 115200(Baudrate)

• Port connection button click(1)

• Load button click(2) for MAC Address write.

• Start MAC Address write button(3)

• Check the OK Or NG

4.1.3 Equipment & Condition

• Each other connection to LAN Port of IP Hub and Jig

PCBA

PC(RS-232C)

RS-23 2C Po r t

- 19 -

Only for training and service purposes

4.1.4 LAN inspection solution

• LAN Port connection with PCB

• Network setting at MENU Mode of TV

• Setting automatic IP

• Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.1.5 LAN Port Inspection (PING Test)

4.1.5.1 Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2

4.1.6 LAN Port Inspection (PING Test)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.2. Using RS-232C

Adjust 3 items at 3.1 PCB assembly adjustments “adjustment sequence” one after the order.

A Adjustment protocol

See ADC Adjustment RS232C Protocol_Ver1.0

A Necessary items before Adjustment items

• Pattern Generator : (MSPG-925FA)

•Adjust 480i Comp1 (MSPG-925FA:model :209 , pattern :65) – Comp1 Mode

• Adjust 1080p Comp1 (MSPG-925FA:model :225 ,

pattern :65) – Comp1 Mode

• Adjust RGB (MSPG-925FA:model :225 , Pattern :65) –

RGB-PC Mode

* If you want more information then see the below

Adjustment method (Factory Adjustment)

A Adjustment sequence

• aa 00 00: Enter the ADC Adjustment mode.

• xb 00 40: Change the mode to Component1 (No actions)

• ad 00 10: Adjust 480i Comp

• ad 00 10: Adjust 1080p Comp

• xb 00 60: Change to RGB-PC mode(No action)

• ad 00 10: Adjust 1080p RGB

• xb 00 90: Endo of Adjustmennt

- 20 -

Only for training and service purposes

5 Factory Adjustment

5.1 Manual Adjust Component 480i/1080p RGB 1080p

A Summary : Adjustment component 480i/1080i and RGB

1080p is Gain and Black level setting at Analog to Digital converter, and compensate the RGB deviation

A Using instrument

• Adjustment remocon, 801GF(802B, 802F, 802R) or MSPG925FA pattern generator (It can output 480i/1080i horizontal 100% color bar pattern signal, and its output level must setting 0.7V±0.1V p-p correctly)

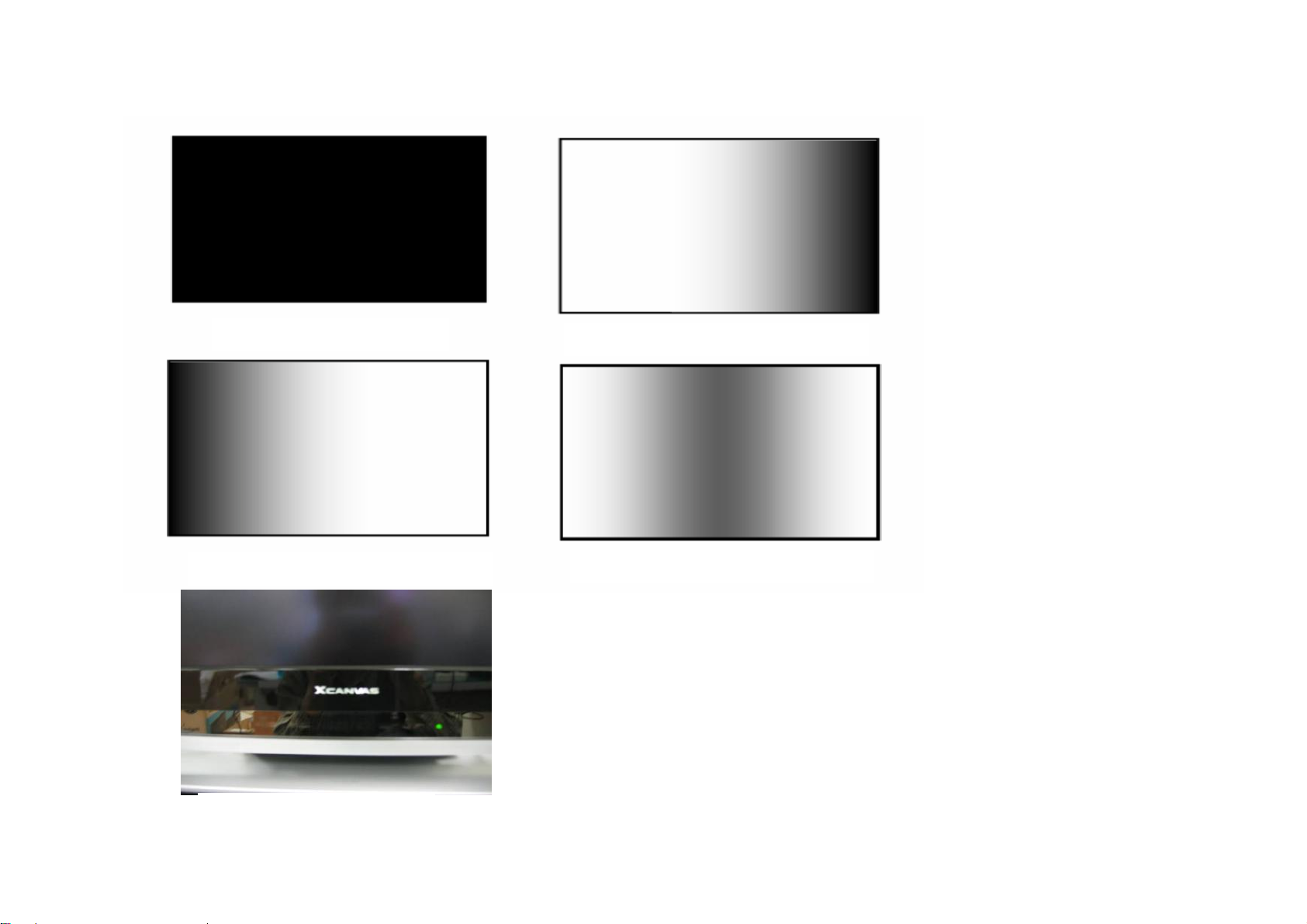

<Pic.4 Adjustment pattern : 480i / 1080p 60Hz Pattern >

A You must make it sure its resolution and pattern cause

every instrument can have different setting

A Adjustment method 480i Comp1, Adjust 1080p Comp1/RGB

(Factory adjustment)

• ADC 480i Component1 adjustment

- Check connection of Component1

- MSPG-925FA -> Model: 209, Pattern 65

• Set Component 480i mode and 100% Horizontal Color Bar Pattern(HozTV31Bar), then set TV set to Component1 mode and its screen to “NORMAL”

• ADC 1080p Component1 / RGB adjustment

- Check connection both of Component1 and RGB

- MSPG-925FA -> Model: 225, Pattern 65

• Set Component 1080p mode and 100% Horizontal Color Bar Pattern(HozTV31Bar), then set TV set to Component1 mode and its screen to “NORMAL”

• After get each the signal, wait more a second and enter the “IN-START” with press IN-START key of Service remocon. After then select “7. External ADC” with navigator button and press “Enter”.

• After Then Press key of Service remocon “Right Arrow(VOL+)”

• You can see “ADC Component1 Success”

• Component1 1080p, RGB 1080p Adjust is same method.

• Component 1080p Adjustment in Component1 input

mode

• RGB 1080p adjustment in RGB input mode

• If you success RGB 1080p Adjust. You can see “ADC RGB-DTV Success”

5.2 EDID (The Extended Display Identification Data) / DDC (Display Data Channel) Download.

A Summary

• It is established in VESA, for communication between PC and Monitor without order from user for building user condition. It helps to make easily use realize “Plug and Play” function.

• For EDID data write, we use DDC2B protocol.

A Auto Download

• After enter Service Mode by pushing “ADJ” key,

• Enter EDID D/L mode.

• Enter “START” by pushing “OK” key.

=> Caution : - Never connect HDMI & D-sub Cable when

the user downloading .

- Use the proper cables below for EDID Writing.

§ Edid data and Model option download (RS232)

- 21 -

Only for training and service purposes

5.2.1 Manual Download

A Write HDMI EDID data

• Using instruments

- Jig. (PC Serial to D-Sub connection) for PC, DDC adjustment.

- S/W for DDC recording (EDID data write and read)

- D-sub jack

- Additional HDMI cable connection Jig.

• Preparing and setting.

- Set instruments and Jig. Like pic.5), then turn on PC and Jig.

- Operate DDC write S/W (EDID write & read)

- It will operate in the DOS mode.

Pic.3) For write EDID data, setting Jig and another instruments. See Working Guide if you want more information about EDID communication.

• EDID data for Non 3DTV (Model name = LG TV )

- HDMI EDID table (0x1E : Physical Address)

1) HDMI 1 Check sum : 0x7F, 0xD9 (CEA Block 0x1E :10)

2) HDMI 2 Check sum : 0x7F, 0xC9 (CEA Block 0x1E :20)

3) HDMI 3 Check sum : 0x7F, 0xB9 (CEA Block 0x1E :30)

4) HDMI 4 Check sum : 0x7F, 0xA9 (CEA Block 0x1E :40)

- Analog (RGB) EDID table

1) RGB CheckSum : 1C

• EDID data for 3DTV ( Model name = LG TV )

- HDMI EDID table (0x1E : Physical Address)

1) HDMI 1 Check sum : 0x7F, 0xCB (CEA Block 0x1E :10)

2) HDMI 2 Check sum : 0x7F, 0xBB (CEA Block 0x1E :20)

3) HDMI 3 Check sum : 0x7F, 0xAB (CEA Block 0x1E :30)

4) HDMI 4 Check sum : 0x7F, 0x9B (CEA Block 0x1E :40)

- Analog (RGB) EDID table

1) CheckSum : 1C

PC

VSC

B/D

- 22 -

Only for training and service purposes

5.3 Adjustment Color Temperature (White

balance)

A Using Instruments

• Color Analyzer: CA-210 (CH 9)

- Using LCD color temperature, Color Analyzer (CA-210) must use CH 9, which Matrix compensated (White, Red, Green, Blue compensation) with CS-2100. See the Coordination bellowed one.

• Auto-adjustment Equipment (It needs when Autoadjustment – It is availed communicate with RS-232C : Baud rate: 115200)

• Video Signal Generator MSPG-925F 720p, 216Gray (Model: 217, Pattern 78)

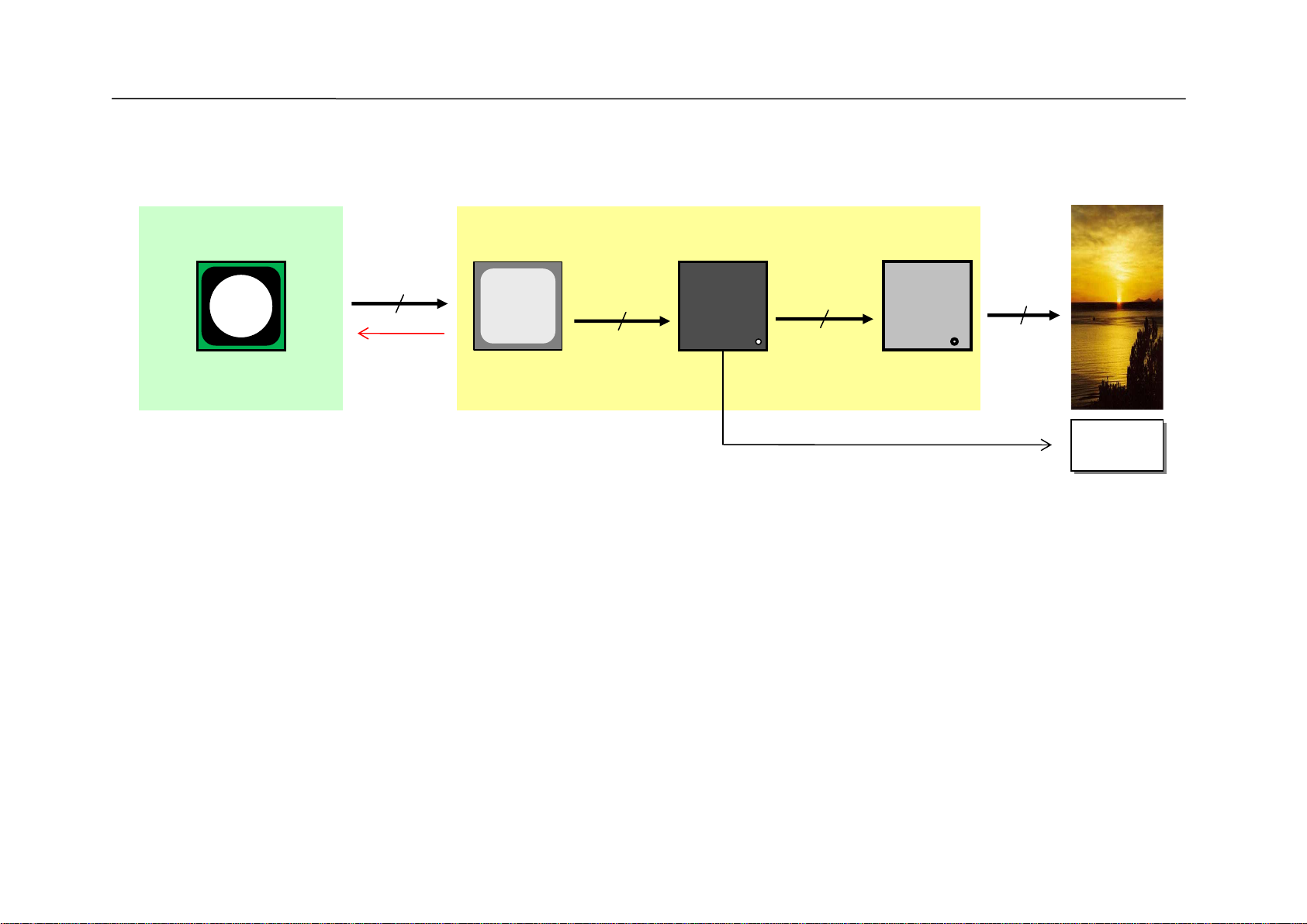

A Connection Diagram (Auto Adjustment)

• Using Inner Pattern

• Using HDMI input

<Pic.5 Connection Diagram for Adjustment White balance>

A White Balance Adjustment

If you can’t adjust with inner pattern, then you can adjust it using HDMI pattern. You can select option at “Ez-Adjust Menu – 7. White Balance” there items “NONE, INNER, HDMI”. It is normally setting at inner basically. If you can’t adjust using inner pattern you can select HDMI item, and you can adjust.

In manual Adjust case, if you press ADJ button of service remocon, and enter “Ez-Adjust Menu – 7. White Balance”, then automatically inner pattern operates. (In case of

“Inner” originally “Test-Pattern. On” will be selected in The “Test-Pattern. On/Off”.

• Connect all cables and equipments like Pic.5)

• Set Baud Rate of RS-232C to 115200. It may set 115200

orignally.

• Connect RS-232C cable to set

• Connect HDMI cable to set

A RS-232C Command (Commonly apply)

• “wb 00 00”: Start Auto-adjustment of white balance.

• “wb 00 10”: Start Gain Adjustment (Inner pattern)

• “jb 00 c0” :

• …

• “wb 00 1f”: End of Adjustment

* If it needs, offset adjustment (wb 00 20-start, wb 00 2f-

end)

• “wb 00 ff”: End of white balance adjustment (inner pattern disappear)

CA-100+

COL OR ANALYZER TYPE; CA-100+

Full W hite Pattern

RS-232C

-- 23 -

Only for training and service purposes

O Notice) Adjustment Mapping information

• When Color temperature (White balance) Adjustment (Automatically)

- Press “Power only key” of service remocon and operate automatically adjustment.

- Set BaudRate to 115200.

• If it needs, then adjustment “Offset”.

A White Balance Adjustment (Manual adjustment)

• Test Equipment: CA-210

- Using LCD color temperature, Color Analyzer (CA-210) must use CH 9, which Matrix compensated (White, Red, Green, Blue compensation) with CS-2100. See the Coordination bellowed one.

• Manual adjustment sequence is like bellowed one.

- Turn to “Ez-Adjust” mode with press ADJ button of service remocon.

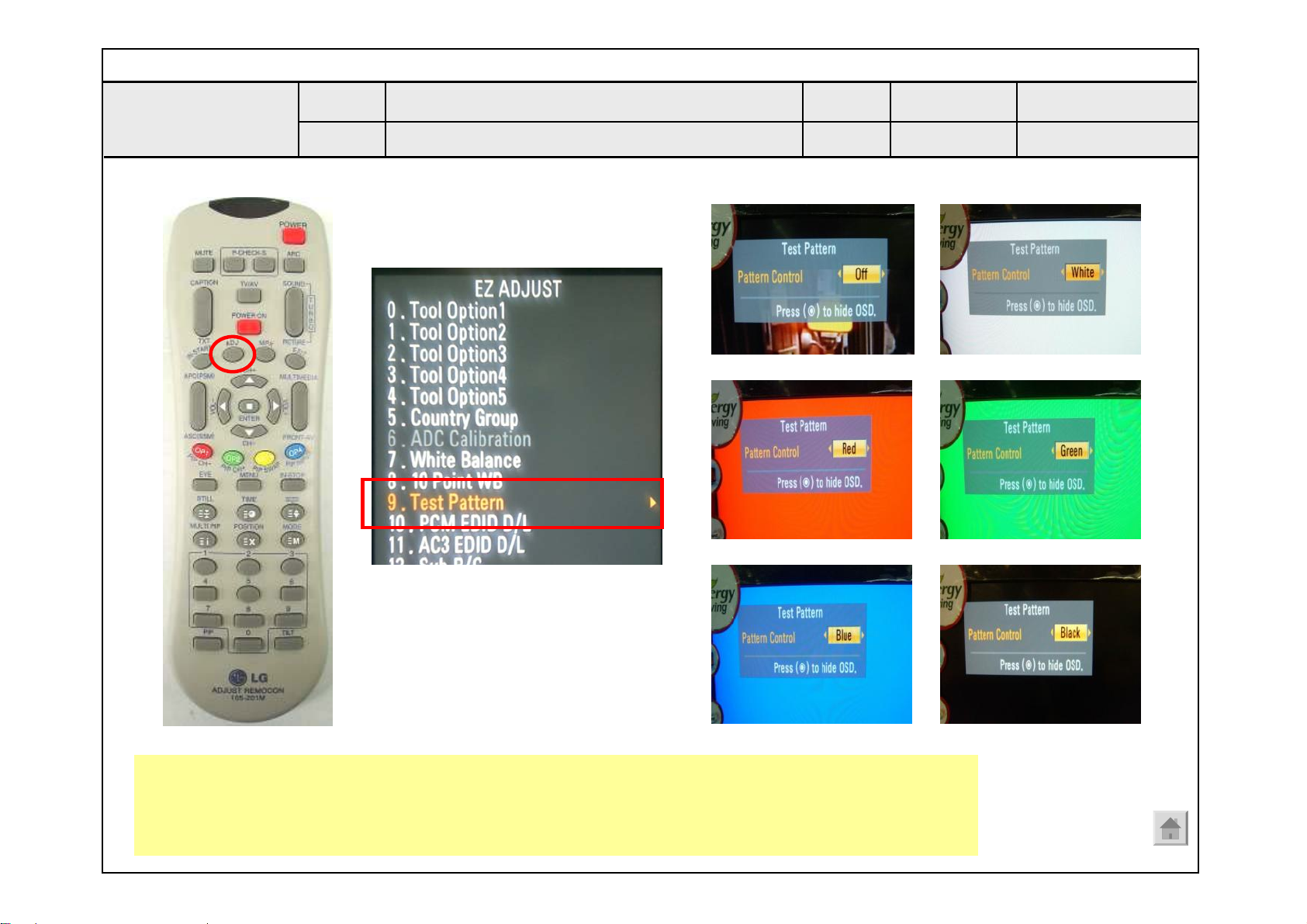

- Select “10.Test Pattern” with CH+/- button and press enter. Then set will go on Heat-run mode. Over 30 minutes set let on Heat-run mode.

- Let CA-210 to zero calibration and must has gap more 10cm from center of LCD module when adjustment.

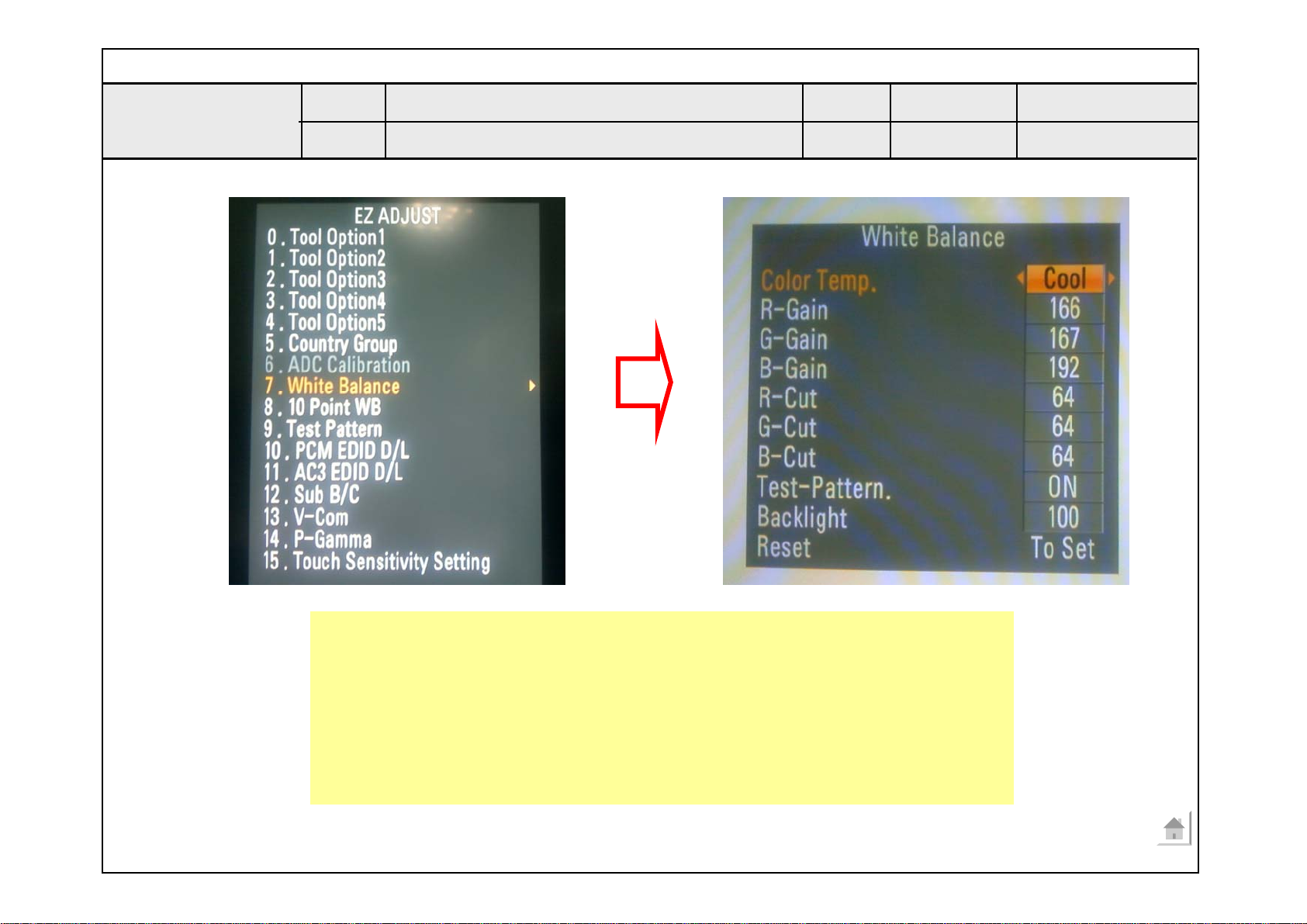

- Press “ADJ” button of service remocon and select “7.White-Balance” in “Ez-Adjust” then press “

G ” button

of navigation key.

(When press “

G ” button then set will go to full white

mode)

- Adjust at three mode (Cool, Medium, Warm)

- If “cool” mode Let B-Gain to 192 and R, G, B-Cut to 64 and then control R, G gain adjustment High Light adjustment.

- If “Medium” and “Warm” mode Let R-Gain to 192 and R, G, B-Cut to 64 and then control G, B gain adjustment High Light adjustment.

- All of the three mode Let R-Gain to 192 and R, G, B-Cut to 64 and then control G, B gain adjustment High Light adjustment.

- With volume button (+/-) you can adjust.

- After all adjustment finished, with Enter (A key) turn to Ez-Adjust mode. Then with ADJ button, exit from adjustment mode

Attachment: White Balance adjustment coordination and

color temperature.

• Using CS-1000 Equipment.

- COOL : T=11000K, ∆uv=0.000, x=0.276 y=0.283

- MEDIUM : T=9300K, ∆uv=0.000, x=0.285 y=0.293

- WARM : T=6500K, ∆uv=0.000, x=0.313 y=0.329

• Using CA-210 Equipment. (9 CH)

- Contrast value: 216 Gray

• Using CA-210 Equipment. (14 CH)

- White Balance adjustment coordination and color temperature for Edge / IOP LED, ALEF

-White Balance adjustment table for Edge (IOP) LED

Color coordination is different according to heat run time. LGD IOP LED, LGD EDGE LED, LGD 3D EDGE LED (for LV5500, LW5700)

White Balance adjustment table for ALEF Model (LW9500)

White Balance adjustment table for IOL LED MODEL (LZ9700)

Color Coordination

Color temperature Test Equipment

x y

COOL

CA-210 CA-210

CA-210

0.269±0.002 0.273±0.002

MEDIUM

0.285±0.002 0.293±0.002

WARM

0.313±0.002 0.329±0.002

Cool 13,000k

K

o

X=0.269 (±0.002) Y=0.273 (±0.002)

Medium 9,300k

K

X=0.285 (±0.002) Y=0.293 (±0.002)

Color

Temperature

Warm 6,500k

K

X=0.313 (±0.002) Y=0.329 (±0.002)

Inner pattern

(216gray,85IRE)

o

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329

1 0-2

3-5 6-9

10-19

279 308 2 278 306 3 277 305 4 276 303 5 20-35 274 300 6 36-49 272 297 7 50-79 271 295 8 80-149 270 294 9 Over 150 269

288 286 285 283 280 277 275 274 273

295 294 293 292 290 288 287 286 285

319 318 317 316 314 312 311 310 309

338 336 335 333 330 327 325 324 323293

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329 1 0-2

3-5 6-9

10-19

282 314 2 281 312 3 280 311 4 279 309 5 20-35 277 304 6 36-49 274 299 7 50-79 271 297 8 80-149 270 294 9 Over 150 269

294 292 291 289 284 279 277 274 273

298 297 296 295 293 290 287 286 285

322 321 320 319 317 314 311 310 309

343 341 340 338 333 328 326 323 322293

Aging time Cool Medium Warm

(Min) x y x y x y

GP3

269 273 285 293 313 329

1 0-2

3-5 6-9

10-19

278 307 2 277 305 3 276 304 4 274 302 5 20-35 272 298 6 36-49 270 295 7 50-79 269 293 8 Over80 269 293

288 286 284 282 278 275 273 273

295 294 293 291 289 287 285 285

316 315 314 313 311 309 308 308

334 332 331 329 325 322 323 323

- 24 -

Only for training and service purposes

5.4 EYE-Q function check

1) Turn on TV

2) Press EYE key of Adj. R/C

3) Cover the Eye Q II sensor on the front of the using your hand and wait for 6 seconds

4) Confirm that R/G/B value is lower than 10 of the “Raw Data (Sensor data, Back lignt )” . If after 6 seconds, R/G/B value is not lower than 10, replace Eye Q II sensor

5) Remove your hand from the Eye Q II sensor and wait for 6 seconds

6) Confirm that “ok” pop up. If change is not seen, replace Eye Q II sensor

5.5 HDCP (High-Bandwidth Digital Contents Protection) Setting

• No Need.

5.6 Test of RS-232C control.

Press In-Start button of Service Remocon then set the “4.Baud Rate” to 115200. Then check RS-232C control and

5.7 Selection of Country option.

Selection of country option is allowed only North American model (Not allowed Korean model). It is selection of Country about Rating and Time Zone.

Models: All models which use LA75A Chassis (See the first page.) Press “In-Start” button of Service Remocon, then enter the “Option” Menu with “PIP CH-“ Button Select one of these three (USA, CANADA, MEXICO) defends on its market using “Vol. +/-“button.

* Caution : Don’t push The INSTOP KEY after completing

the function inspection.

6. GND and ESD Testing

6.1 Prepare GND and ESD Testing.

A Check the connection between set and power cord

6.2 Operate GND and ESD auto-test.

A Fully connected (Between set and power cord) set enter the

Auto-test sequence.

A Connect D-Jack AV jack test equipment. A Turn on Auto-controller(GWS103-4) A Start Auto GND test. A If its result is NG, then notice with buzzer. A If its result is OK, then automatically it turns to ESD Test. A Operate ESD test A If its result is NG, then notice with buzzer. A If its result is OK, then process next steps. Notice it with

Good lamp and STOPER Down.Check Items.

A Test Voltage

• GND: 1.5KV/min at 100mA

• Signal: 3KV/min at 100mA

A Test time: just 1 second. A Test point

• GND test: Test between Power cord GND and Signal cable metal GND.

• ESD test: Test between Power cord GND and Live and

neutral.

A Leakage current: Set to 0.5mA(rms)

7. Preset Ch information.

In case of POWER ONLY, System color is operated multi system In case of IN STOP, System color is operated default system (PAN-M)

- 25 -

Only for training and service purposes

8. Default Service option.

8.1 ADC-Set.

A R-Gain adjustment Value (default 128) A G-Gain adjustment Value (default 128) A B-Gain adjustment Value (default 128) A R-Offset adjustment Value (default 128) A G-Offset adjustment Value (default 128) A B-Offset adjustment Value (default 128)

8.2 White balance. Value.

9. USB DOWNLOAD (*.epk file download)

9.1 Put the USB Stick to the USB socket

9.2 Press Menu key, and move OPTION

9.3 Press “FAV” Press 7 times.

9.4 Select download file (epk file)

9.5 After download is finished, remove the

USB stick.

9.6 Press “IN-START” key of ADJ remote

control, check the S/W version.

Only for training and service purposes

- 26 -

300

200

530

540

521

400

710

810

910

900

120

510

511

¿˝¿¸∏µ ø‹∫¿‘∑

§ø§

¿‘√øµªÛ

3D

TV

¿∑

¿ß¡¨

Ω∏∆ TV

¿Ã¿¸

∞∆º¡§

3D ø…º«

≥∞±

»Æ¿Œ

«ˆ¿Áπº¤

πº¤æ»≥ ¡§∫«•Ω

≥»

º±»£√≥

∆¿Ã¡ˆ

øµªÛ√≥∏∑

¡øÎ»˜

º±≈

¡ˆøÚ

«—/øµ/º˝¿⁄

√≥

»√∞

¿Ã¿¸√≥

!

A2

A5

!

A10

LV1

LV2

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

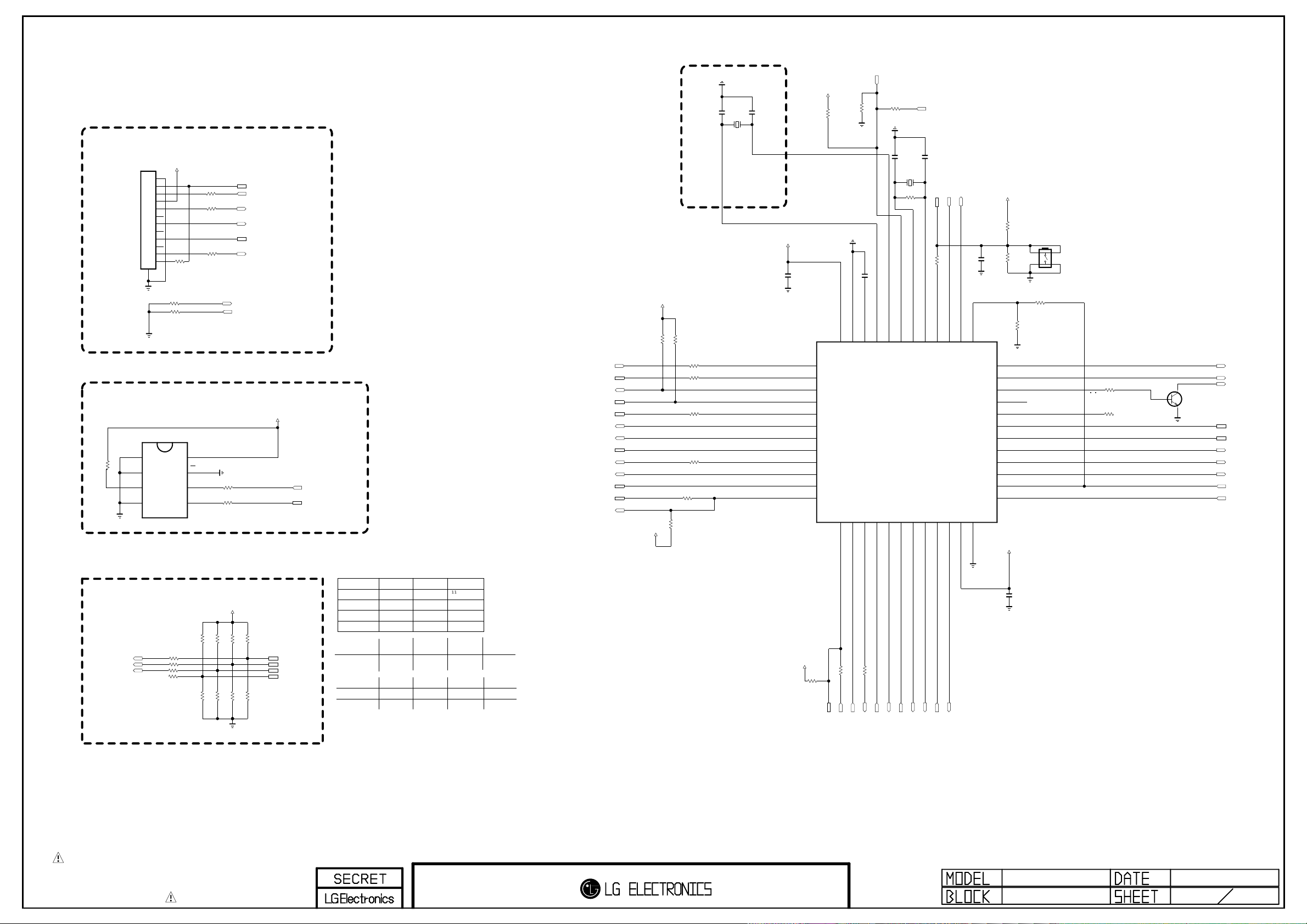

NAND FLASH MEMORY 8Gbit

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

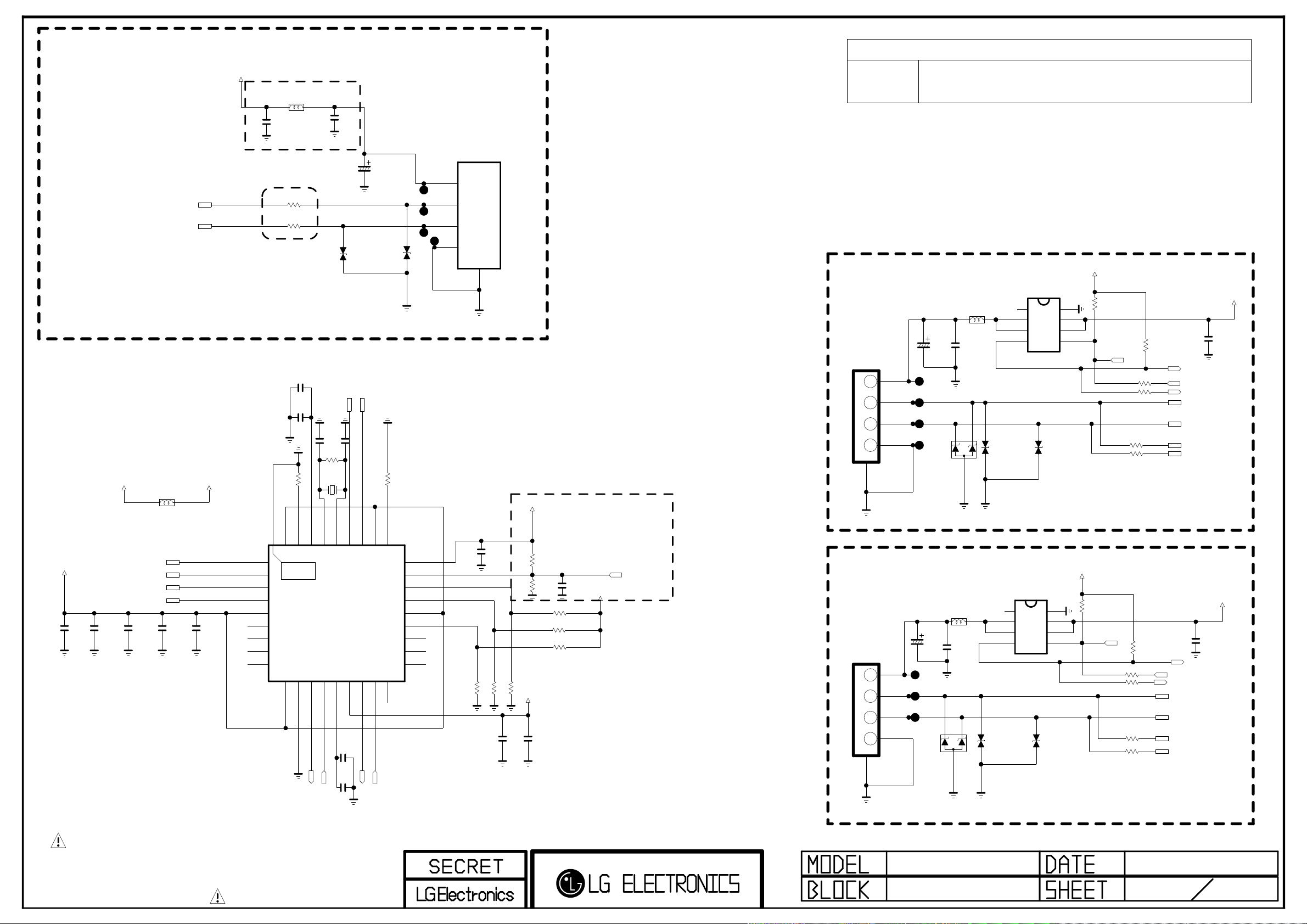

LGE35230(BCM35230KFSBG)

B5 C5

A4 B4

A3 B3

A2 B2

W2

V4 W4

V3 V2

D13

E6

R106 3K

IC101

NON_BCM_CAP

HDMI0_CLKN HDMI0_CLKP

HDMI0_D0N HDMI0_D0P

HDMI0_D1N HDMI0_D1P

HDMI0_D2N HDMI0_D2P

CEC

DDC0_SCL DDC0_SDA

HDMI0_HTPLG_IN HDMI0_HTPLG_OUT

HDMI0_ARC HDMI0_RESREF

LT0VCAL_MONITOR

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

R101

4.7K

FLASH_WP

R105

4.7K

NAND_WEb

R104

4.7K

R195

4.7K

Write Protection

- High : Normal Operation

- Low : Write Protection

+3.3V_Normal

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

HDMI_CLKHDMI_CLK+

HDMI_RX0HDMI_RX0+

HDMI_RX1HDMI_RX1+

HDMI_RX2HDMI_RX2+

HDMI_ARC

16Gbit

R149 0

16Gbit

0

C102

4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

TXOUT0_L0N TXOUT0_L0P TXOUT0_L1N TXOUT0_L1P TXOUT0_L2N TXOUT0_L2P

TXCLK_LN

TXCLK_LP TXOUT0_L3N TXOUT0_L3P TXOUT0_L4N TXOUT0_L4P

TXOUT0_U0N TXOUT0_U0P TXOUT0_U1N TXOUT0_U1P TXOUT0_U2N TXOUT0_U2P

TXCLK_UN

TXCLK_UP TXOUT0_U3N TXOUT0_U3P TXOUT0_U4N TXOUT0_U4P

TXOUT1_L0N TXOUT1_L0P TXOUT1_L1N TXOUT1_L1P TXOUT1_L2N TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP TXOUT1_L3N TXOUT1_L3P TXOUT1_L4N TXOUT1_L4P

TXOUT1_U0N TXOUT1_U0P TXOUT1_U1N TXOUT1_U1P TXOUT1_U2N TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP TXOUT1_U3N TXOUT1_U3P TXOUT1_U4N TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE27 AE28 AF27 AF28 AG27 AG28 AE26 AF26 AH27 AG26 AF25 AE25

AH26 AG25 AE24 AD24 AH25 AF24 AE23 AD23 AG24 AF23 AC22 AD22

AG23 AH23 AE22 AE21 AF22 AH22 AG22 AF21 AG21 AF20 AD21 AC21

AG20 AH20 AD19 AE19 AF19 AH19 AE18 AD18 AG19 AF18 AG18 AF17

AC18 AH16 AG16

16Gbit

IC102-*1

TH58DVG4S0ETA20

SDA0_3.3V SCL0_3.3V

SCL2_3.3V SDA2_3.3V

R199 22 R197 22

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_26

NC_25

NC_24

NC_23

I/O8

I/O7

I/O6

I/O5

NC_22

PSL

NC_21

VCC_2

VSS_2

NC_20

NC_19

NC_18

I/O4

I/O3

I/O2

I/O1

NC_17

NC_16

NC_15

NC_14

+3.3V_Normal

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

44

NAND_DATA[7]

I/O7

43

NAND_DATA[6]

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

TXB4P TXB4N TXB3P TXB3N TXBCLKP TXBCLKN TXB2P TXB2N TXB1P TXB1N TXB0P TXB0N

TXA4P TXA4N TXA3P TXA3N TXACLKP TXACLKN TXA2P TXA2N TXA1P TXA1N TXA0P TXA0N

TXD4P TXD4N TXD3P TXD3N TXDCLKP TXDCLKN TXD2P TXD2N TXD1P TXD1N TXD0P TXD0N

TXC4P TXC4N TXC3P TXC3N TXCCLKP TXCCLKN TXC2P TXC2N TXC1P TXC1N TXC0P TXC0N

+3.3V_Normal

0

C103

0.1uF

10V

R194

2.7K

R108 10K

NAND_DATA[0-7]

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF 10V

Q101 BSS83

Q102 BSS83

+3.3V_Normal

VCC

SCL

SDA

GND

A_DIM

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

SBD

G

SBD

G

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

CE1

CE2

CLE

ALE

RE

WE

WP

C106

4.7uF

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R196 10K

C118

0.1uF 16V

+3.3V_Normal

R198 10K

C119

0.1uF 16V

R110

R109

1.5K

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

R113 10K

R114 10K

OPT

R117 10K OPT

R118 10K

R122 10K

R123 10K

OPT

R127 10K OPT

R128 10K

CI_ADDR[4] NAND_DATA[7] NAND_DATA[2] NAND_DATA[1]

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111 10K

OPT

R112 10K

10K

R116 10K OPT

10K OPT

R120 10K

CI_ADDR[3] CI_ADDR[2] NAND_ALE

DUAL COMPONENT

IC102 1ST : EAN61000101 2ND : T-TH58DVG4S0ETA20

IC102-*1

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R121

1.2K

C107 33pF 50V

DVB_S

+3.3V_Normal

R124 1K

OPT

R125 1K

R126

1.2K

C108 33pF 50V

DVB_S

R129

1.2K

C109 33pF 50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110 33pF 50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

SOC_RESET

LNB_INT

SC_ID

BCM_RX BCM_TX

R135 R136 33

+3.3V_Normal

R141 4.7K

R142 22 R143 22

R144 22 R145 22

R139 0

SRST

R140 560 1%

OPT

OPT OPT

OPT

0000: ST Micro M25P or compatible Serial Flash 0010: 8-bit 512Mbit 512B page SLC NAND Flash devices 0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices 0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices 1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices 1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O) 0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices 0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices 0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices 0111: 3B dual IO Serial Flash 1001: BB dual IO Serial Flash 1011: fast Serail Flash > 50Mhz 1100: OneNAND Flash (always 16-bit) 1110: Reserved 1101, 1111: Reserved

000 = ECC disabled 001 = ECC 1-bit repair 010 = ECC 4-bit BCH (O) 011 = ECC 8-bit BCH, 27 byte spare 100 = ECC 12-bit BCH, 27 byte spare 101 = ECC 8-bit BCH, 16 byte spare 110, 111 = Reservedd

IC101

NON_BCM_CAP

AVS_NDRIVE_1 AVS_PDRIVE_1

FAD_7 FAD_6 FAD_5 FAD_4 FAD_3 FAD_2 FAD_1 FAD_0

FALE FCEB_0 FCEB_1 FCEB_2 FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10 FA_11 FA_12 FA_13 FA_14 FA_15

TRSTB

TDI/GPIO

TMS/GPIO TCK/GPIO

DINT/GPIO

AVS_VFB AVS_VSENSE AVS_RESETB

VDAC_1 VDAC_2

AB1

NAND_DATA[7]

AB3

NAND_DATA[6]

AC1

NAND_DATA[5]

AC2

NAND_DATA[4]

AC3

NAND_DATA[3]

AD2

NAND_DATA[2]

AD3

NAND_DATA[1]

AE2

NAND_DATA[0]

AG1 AF1 AC5 AE6 AG5

AF3 AG2

FWE

AE3

FRD

AA5

AF2 AE1 AC4 AD5 AD4 AE4 AE5 AD6 AH3 AF4 AH4 AG4 AF5 AG3 AH2 AH5

AD15 AF14 AH14

TDO

AD14 AG14 AC16

AH7 AG7 AD7 AF7 AH8

C6 D7

NAND_ALE NAND_CEb NAND_CEb2 /CI_CE1 /CI_CE2

FLASH_WP NAND_WEb NAND_REb /PCM_WAIT

NAND_CLE NAND_RBb

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13]

CI_ADDR[14]

R146 10K

NAND_DATA[0-7]

R147 1K

DTV/MNT_V_OUT

Strap Setting

CI_ADDR[2-14]

+3.3V_Normal

R156

R153

R150 1K

1K

For L/R sync GPIO

SRST

+3.3V_Normal

R166 1K

R157 10K

OPT

R158 10K

R160 10K

OPT

R161 10K

R164 10K

OPT

R165 10K

R154 10K

OPT

R155 10K

NAND_DATA[0]: 0: System is LITTLE endian (O) 1: System is BIG endian

CI_ADDR[7]: 0: Disable EDID automatic Downloading from Flash (O) 1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] : 0: Disable OSC clock output on chip Pin (O) 1: Enable OSC clock output on chip pin.

CI_ADDR[6]: 0: Host MIPS run at 500 MHz (O) 1: Host MIPS run at 250 MHz

NAND_CLE: 0: Differential Oscillators TVM not bypassed (O) 1: Differential Oscillators TVM bypassed

NAND_DATA[4]: 0: 27MHz TVM Crystal Frequency 1: 54MHz TVM Crystal Frequency (O)

R162

R159

1K

R163 1K

L/R_SYNC_DINT L/R_SYNC_DINT

R167 10K

OPT

R168 10K

R175 10K

OPT

R176 10K

R177 10K

R178 10K

OPT

R170 10K

R171 10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13] TVM Crystal oscillator bias/gain control 0000: 210uA 0001: 390uA 0010: 570uA 0011: 730uA 0100: 890uA (O) 0111: 1290uA 1000: 1416uA 1111: 2196uA 0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]: 0: RESETOUTb (in On/Off only) stay asserted until software releases them. 1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only) at end of RESETb pulse (O)

NAND_DATA[3]: 0: MIPS will boot from external flash (O) 1: MIPS will boot from ROM

NAND_DATA[5]: 0: FLASH MODE (O) 1: BSC_SLAVE(BBS) MODE

R179 10K

OPT

R180 10K

R181 10K

OPT

R182 10K

R183 10K

R184 10K

OPT

R187 10K

OPT

R188 10K

NVRAM

+3.3V_Normal

R169 0

R173

R172

4.7K

OPT

R174

4.7K

BCM_NVM_1M

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

R190 33

R191 33

54MHz X-TAL

C113 12pF

50V

3

X-TAL_2

4

GND_2

54MHz

X101

CRYSTAL_BCM_Sunny

C114

12pF

EAW58812611

50V

SUNNY ELECTRONICS CORPORATION

2

1

GND_1

X-TAL_1

R185 0

R186 0

R189 1M OPT

54MHz_XTAL_N

54MHz_XTAL_P

R192 10K

OPT

NAND_DATA[0] CI_ADDR[7] NAND_DATA[6] CI_ADDR[6] NAND_CLE NAND_DATA[4] CI_ADDR[9] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[8] NAND_DATA[3] NAND_DATA[5]

R193 10K

BCM_NVM_256K

IC103-*1

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

Write Protection

- Low : Normal Operation

- High : Write Protection

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_KDS

EAW58239604

DAISHINKU CORPORATION.

X101-*1

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

VCC

8

WP

7

SCL

6

SDA

5

SCL3_3.3V

SDA3_3.3V

GND_2

4

X-TAL_2

3

GND_2

4

X-TAL_2

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

+3.3V_Normal

FHD

R252

1K

HD

R262

1K

PHM

OLED

LCD

BCM internal FRC

00 11

1 100

HIGH

Support

FE_TS_DATA[0-7]

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

R253

R263

1K

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

PCM_TS_DATA[0-7]

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

OPT

R202

0

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

R286 10K

WIFI

TU_TS_CLK

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

PHM

NO_PHM

R287 10K WIFI

R257

1K

R267

1K

R203 0 R204 0 R205 0 R206 0 R207 0 R208 0 R209 0

C201 100pF

OPT

F/NIM_EU_CN F/NIM_EU_CN

F/NIM_EU_CN

PCM_MDI[0] PCM_MDI[1] PCM_MDI[2] PCM_MDI[3] PCM_MDI[4] PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

R211

6.04K EPHY_TDP

EPHY_TDN EPHY_RDP EPHY_RDN

R210

4.87K 1%

SIDE_USB_DM SIDE_USB_DP

SIDE_USB_CTL1

WIFI_DM WIFI_DP

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3] PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN

F/NIM_EU_CN F/NIM_EU_CN F/NIM_EU_CN

TU_TS_SYNC

TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3 MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6 MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26 D26

F27 F28 E27 E26

F5 E5

C2 D1

E1 D2

B1 C1

C3 C4

M4 L5 M5 L6 N3 N1 N2 M3 M2 L4 N4

K6 J4 K5 J2 J3 K2 K1 K3 L1 L3 L2

P4 T2 R3 R2 P3 P2 P1 R6 N5 T4 P5

R4 U1 T3 T1 T5

IC101

NON_BCM_CAP EPHY_VREF EPHY_RDAC

EPHY_TDP EPHY_TDN EPHY_RDP EPHY_RDN

USB_MONCDR USB_RREF

USB_PORT1DN USB_PORT1DP

USB_PWRFLT_1/GPIO USB_PWRON_1/GPIO

USB_PORT2DN USB_PORT2DP

USB_PWRFLT_2/GPIO USB_PWRON_2/GPIO

TCLKA/GPIO TDATA_0/GPIO TDATA_1/GPIO TDATA_2/GPIO TDATA_3/GPIO TDATA_4/GPIO TDATA_5/GPIO TDATA_6/GPIO TDATA_7/GPIO TSTRTA/GPIO TVLDA/GPIO

TCLKD/GPIO TDATD_0/GPIO TDATD_1/GPIO TDATD_2/GPIO TDATD_3/GPIO TDATD_4/GPIO TDATD_5/GPIO TDATD_6/GPIO TDATD_7/GPIO TSTRTD/GPIO TVLDD/GPIO

MPEG_CLK/GPIO MPEG_D_0/GPIO MPEG_D_1/GPIO MPEG_D_2/GPIO MPEG_D_3/GPIO MPEG_D_4/GPIO MPEG_D_5/GPIO MPEG_D_6/GPIO MPEG_D_7/GPIO MPEG_SYNC/GPIO MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO MCIF_SCLK/GPIO MCIF_SCTL/GPIO MCIF_SDI/GPIO MCIF_SDO/GPIO

PCI_CBE01/GPIO PCI_CBE02/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

PCI_IRDYB/GPIO

PCI_PERRB/GPIO

PCI_SERRB/GPIO PCI_STOPB/GPIO PCI_TRDYB/GPIO

C225

0.22uF

6.3V

VI_IFP0 VI_IFM0

VDDR_AGC

AGC_SDM_2 AGC_SDM_1

GPIO_0 GPIO_1 GPIO_2 GPIO_3

PCI_VIO_0 PCI_VIO_1 PCI_VIO_2

GPIO_4 GPIO_5 GPIO_6

GPIO_7 GPIO_70 GPIO_71 GPIO_72 GPIO_73 GPIO_74 GPIO_75 GPIO_76 GPIO_77 GPIO_78 GPIO_79

PCI_AD05 PCI_AD06 PCI_AD07

PCI_AD08 PCI_AD09/GPIO PCI_AD10/GPIO PCI_AD11/GPIO PCI_AD12/GPIO PCI_AD13/GPIO PCI_AD14/GPIO PCI_AD15/GPIO PCI_AD16/GPIO PCI_AD17/GPIO PCI_AD18/GPIO PCI_AD19/GPIO PCI_AD20/GPIO PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00

PCI_CBE03

PCI_PAR/GPIO

PCI_REQ1B

+0.9V_CORE

C221

0.1uF

C17 B17 D15

B16 A16

A15 C16 G28 G26

+3.3V_Normal

W14 W15 W13

J5 R5 V6 H6 AE15 AF15 AG15 AF16 AD16 AE16 AG17 AH17 AE17 AD17

AB13 AC15 AB12 AB11 AE14 AG13 AH13 AF13 AE13 AD12 AF12 AG10 AF10 AE10 AD10 AE9 AE8 AC10 AC11 AC8 AB8

AC14 AG12 AH10 AB7

AG11 AD11 AE11 AD13 AE12 AC12 AC13 AH11 AF11

C223

0.01uF

C203 10uF 10V

close to soc

Non_CHB

R212

C218

1K

closed to soc

R213 2K

C216 0.01uF

R280 22

R214 22

R215 22 R281 22 R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283 22

R223 22

R284 22

R224 22

R235

R225 0

R226 22 R285 22

R227 22

C207

C205

4.7uF

10uF

10V

C217

16V

100

0.1uF R241

100

0.1uF R242

16V

3D_SYNC

M_REMOTE_RX

CI_DET M_RFModule_RESET

EPHY_ACTIVITY EPHY_LINK

DTV_ATV_SELECT RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

OUTIN

GND

C232

4.7uF 10V

C209

4.7uF 10V

IF_P

IF_N

IF_AGC

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

SC_DET/COMP2_DET

CHB_RESET

TW9910_RESET

AV2_CVBS_DET RF_BOOSTER_CTL DSUB_DET PCM_RST

MODEL_OPT_4 DC_MREMOTE DD_MREMOTE

L/DIM0_MOSI L/DIM0_SCLK

COMP1_DET

MODEL_OPT_5

3D_GPIO_0 MODEL_OPT_6 MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

NFM18PS105R0J

C234

0.1uF

C211

0.1uF

+3.3V_Normal

R228 22 R230 22

BCM_L/DIM

R231 100

C204

6.3V

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

0.1uF

R240

2.7K

R231-*1 0

FRC2_RESET

URSA_RESET

OUTIN

NFM18PS105R0J

C238

4.7uF 10V

C215

0.01uF

L201

C229

NON_NTP

PWM_DIM L/DIM0_VS

+3.3V_Normal

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

+1.5V_DDR

C222

0.01uF

R233

1.2K

C227 33pF 50V

R232-*1

FRC2_RESET

R234

1.2K

C231 33pF 50V

C247 22uF

C248 10uF

10V

NON_NTP

FRC_RESET

SDA1_3.3V SCL1_3.3V

POWER 2.5V

+2.5V_BCM35230

Place Cap Very close to R22 Ball

L202

BLM18PG121SN1D

C249 10uF 10V

L203

BLM18PG121SN1D

C251

0.1uF 16V

+2.5V_BCM35230

BLM18PG121SN1D

C250

4.7uF 10V

+1.5V_DDR

Place Cap

Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253 10uF 10V

EPHY_VDD25

C252

4.7uF 10V

L204

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF 25V OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

VAFE3_VDD25

C257

0.1uF

+0.9V_CORE

C226

0.1uF 16V OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C260

C259

4.7uF

10uF 10V

+2.5V_BCM35230

NON_BCM_CAP

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32 VDDC_33 VDDC_34 VDDC_35 VDDC_36 VDDC_37 VDDC_38 VDDC_39 VDDC_40 VDDC_41 VDDC_42

POR_VDD

VDDR1_1 VDDR1_2 VDDR1_3 VDDR1_4 VDDR1_5 VDDR1_6 VDDR1_7 VDDR1_8 VDDR1_9 VDDR1_10 VDDR1_11 VDDR1_12

DDR_LDO_VDDO

VDDR3_1 VDDR3_2 VDDR3_3 VDDR3_4 VDDR3_5 VDDR3_6 VDDR3_7 VDDR3_8 VDDR3_9 VDDR3_10 VDDR3_11

AON_VDDC_1 AON_VDDC_2 AON_POR_VDD

AON_VDDR3

AON_VDDR10_1 AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7 M10 N10 P10 R10 T10 U10 V10 W10 V13 L11 M11 N11 P11 R11 T11 U11 V11 W11 V14 L18 M18 N18 P18 R18 T18 U18 V18 W18 V15 L19 M19 N19 P19 R19 T19 U19 V19 W19 V16 V17

L10

L22

AA28

V28 R28 M28 J28 K23 M22 T22 T23 U22 Y22

R22

G15 H22 G23 AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6 AA7

Y7

U7

T7

T6

C261 10uF 10V

C262 10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C263

4.7uF

C265

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

C271

C267

0.01uF

0.1uF

C266

C270

0.1uF

C269

0.1uF

C268

0.1uF

C272

0.01uF

4.7uF C277

VAFE2_VDD25

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274 22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1 220pF 50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208 390pF 50V

C206 390pF 50V

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284 22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF OPT

USB_AVDD33

C212 390pF 50V

C210 390pF 50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202 390pF 50V

L214

C285

4.7uF

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214 390pF 50V

PLL_AUD_AVDD

+3.3V_Normal

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

HDMI_AVDD33

C291

4.7uF

USB_AVDD

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

LGE35230(BCM35230KFSBG)

AADC_AVDD25

ADACA_AVDD25 ADACC_AVDD25 ADACD_AVDD25

EPHY_BVDD25 EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

LT0VDD25_1 LT0VDD25_2 LT0VDD25_3 LT0VDD25_4

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

VAFE2_DVDD VAFE2_AVDD25_1 VAFE2_AVDD25_2 VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD PLL_MIPS_AVDD

PLL_VAFE_AVDD PLL_VAFE_AVDD25

TVM_OSC_AVDD

U6

AUX_AVDD33

NON_BCM_CAP

C278

0.1uF

AE20 AD20 AC20 AB20

AD25

F19

D25 D24 E24

F24 E25

D14

D18 E17 D16 D17

G25

D11 D12

AE7

L219

BLM18PG121SN1D

C292 22uF

L217

BLM18PG121SN1D

L218

BLM18PG121SN1D

C293

0.1uF

IC101

AADC_AVSS

ADACA_AVSS ADACC_AVSS ADACD_AVSS

EPHY_AVSS

HDMI0_AVSS_1 HDMI0_AVSS_2

LT0VSS_1 LT0VSS_2 LT0VSS_3 LT0VSS_4 LT0VSS_5 LT0VSS_6 LT0VSS_7

SPDIF_IN_AVSS

USB_AVSS_1 USB_AVSS_2

VDAC_AVSS

VAFE2_VSS_1 VAFE2_VSS_2 VAFE2_VSS_3 VAFE2_VSS_4 VAFE2_VSS_5 VAFE2_VSS_6 VAFE2_VSS_7

VAFE3_VSS_1 VAFE3_VSS_2 VAFE3_VSS_3 VAFE3_VSS_4 VAFE3_VSS_5 VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

PLL_MAIN_AVDD

C294

C297

4.7uF

0.1uF

PLL_MIPS_AVDD

C295

C298

4.7uF

0.1uF

F20

G22 G21 F22

F23

F6 G6

AB22 AB21 AB19 AC19 AB18 AB17 AC17

F15

G7 G8

G9

G20 E18 G18 G17 F18 G16 F16

G13 G12 F12 G11 G10 F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

DSUB_R+

INCM_R

DSUB_G+

INCM_G

DSUB_B+

INCM_B

COMP1_Y COMP1_Pr COMP1_Pb

INCM_VID_SC/COMP2

AV2_CVBS_IN

INCM_VID_AV2

C320 0.1uF C321 0.1uF

R311 36

C327 0.1uF C328 0.1uF R317

36

C322 0.1uF C323 0.1uF R312

36

INCM_VID_COMP1

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

C303 0.1uF C304 0.1uF R303

36

TU_CVBS

AV1_CVBS_IN

INCM_VID_AV1

TU_SIF

R310 0

R318 0

EU

R325-*1

10

C317 0.1uF C318 0.1uF R304

36

SC_CVBS_IN

INCM_VID_SC

NON_EU R325 0

INCM_TUNER R306

75 1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305 240

OPT

INCM_SIF

C325 0.1uF C326 0.1uF R316

36

R313 10K

+2.5V_BCM35230

R314 12K

C324 0.1uF R315

120 OPT

DSUB_HSYNC DSUB_VSYNC

C329 0.1uF C330 0.1uF C331 0.1uF C332 0.1uF

C333 0.1uF C334 0.1uF C335 0.1uF C336 0.1uF

SC_FB

R319 10K OPT

R320 12K OPT

LGE35230(BCM35230KFSBG)

B6 A6 C7 A7 B7 C8

C13 A13

C9 A9 B9 B8

C11 A10 B10 C10

D10 F13

A12 C12 B12 B11

E12 E14

E15 F17 E16 F14 E11

C18 B18 A18 C19 A19 B19 C20 B20

E19 D19 E10 F11

IC101

NON_BCM_CAP

VI_R VI_INCM_R VI_G VI_INCM_G VI_B VI_INCM_B

HSYNC_IN VSYNC_IN

VI_Y1 VI_PR1 VI_PB1 VI_INCM_COMP1

VI_SC_R1 VI_SC_G1 VI_SC_B1 VI_INCM_SC1

VI_FB_1/GPIO VI_FS1

VI_SC_R2 VI_SC_G2 VI_SC_B2 VI_INCM_SC2

VI_FB_2/GPIO VI_FS2

VI_L1 VI_C1_1 VI_INCM_LC1_1 VI_C1_2 VI_INCM_LC1_2

VI_CVBS1 VI_INCM_CVBS1 VI_CVBS2 VI_INCM_CVBS2 VI_CVBS3 VI_INCM_CVBS3 VI_CVBS4 VI_INCM_CVBS4

VI_SIF1_1 VI_INCM_SIF1_1 VI_SIF1_2 VI_INCM_SIF1_2

Near

Near Near

P801

JK1101

JK1104

TU2101/2 TU2201/2/3

JK1102

JK1103 JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

BCM35230_with_CAP_220pF

IC101-*1 LGE35230

B6

BCM_CAP

VI_R

A6

VI_INCM_R

C7

VI_G

A7

VI_INCM_G

B7

VI_B

C8

VI_INCM_B

C13

HSYNC_IN

A13

VSYNC_IN

C9

VI_Y1

A9

VI_PR1

B9

VI_PB1

B8

VI_INCM_COMP1

C11

VI_SC_R1

A10

VI_SC_G1

B10

VI_SC_B1

C10

VI_INCM_SC1

D10

VI_FB_1/GPIO

F13

VI_FS1

A12

VI_SC_R2

C12

VI_SC_G2

B12

VI_SC_B2

B11

VI_INCM_SC2

E12

VI_FB_2/GPIO

E14

VI_FS2

E15

VI_L1

F17

VI_C1_1

E16

VI_INCM_LC1_1

F14

VI_C1_2

E11

VI_INCM_LC1_2

C18

VI_CVBS1

B18

VI_INCM_CVBS1

A18

VI_CVBS2

C19

VI_INCM_CVBS2

A19

VI_CVBS3

B19

VI_INCM_CVBS3

C20

VI_CVBS4

B20

VI_INCM_CVBS4

E19

VI_SIF1_1

D19

VI_INCM_SIF1_1

E10

VI_SIF1_2

F11

VI_INCM_SIF1_2

SCL3_3.3V SDA3_3.3V

+3.3V_Normal

R301

1.2K

C301 33pF 50V

PHONE JACK

INCM_AUD_SC/COMP2

R302

1.2K M_REMOTE_TX

C302 33pF 50V

PC_L_IN PC_R_IN

AV1_L_IN AV1_R_IN

INCM_AUD_AV1

AV2_L_IN AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN SC/COMP2_R_IN

C305 1uF 10V C306 1uF 10V C307 1uF 10V

C308 1uF 10V C309 1uF 10V C310 1uF 10V

C311 1uF 10V C312 1uF 10V C313 1uF 10V

C314 1uF 10V C315 1uF 10V C316 1uF 10V

NON_BCM_CAP

SPDIF_INC_P SPDIF_INC_N

SPDIF_IND_P SPDIF_IND_N

I2SSCK_IN/GPIO I2SWS_IN I2SSD_IN/GPIO

AADC_LINE_L1 AADC_LINE_R1 AADC_INCM1

AADC_LINE_L2 AADC_LINE_R2 AADC_INCM2

AADC_LINE_L3 AADC_LINE_R3 AADC_INCM3

AADC_LINE_L4 AADC_LINE_R4 AADC_INCM4

AADC_LINE_L5 AADC_LINE_R5 AADC_INCM5

AADC_LINE_L6 AADC_LINE_R6 AADC_INCM6

AADC_LINE_L7 AADC_LINE_R7 AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

LGE35230(BCM35230KFSBG)

B15 C15

C14 B14

G4 F4 G5

C25 B24 A24

E22 E23 D23

C24 C23 B23

E21 D21 D22

B22 C22 A22

F21 D20 E20

A21 C21 B21

AUDMUTE_0/GPIO

AUDMUTE_1

ADAC_AL_N ADAC_AL_P

ADAC_AR_N ADAC_AR_P

ADAC_CL_N ADAC_CL_P

ADAC_CR_N ADAC_CR_P

ADAC_DL_N ADAC_DL_P

ADAC_DR_N ADAC_DR_P

AF8 AF9 AG9 AC9 AD8 AD9

E2 F2 E3 F3

G2 G3 G1 H1

B13

AG8 E13

C28 C27

D28 D27

C26 A27

B27 B28

B25 A25

A26 B26

R326 100 R327 100 R328 100 R329 100

TU_RESET_SUB

HP_DET AV1_CVBS_DET TU_RESET

SC_RE1 SC_RE2INCM_AUD_PC /RST_HUB S2_RESET

SPDIF_OUT

HP_LOUT_N HP_LOUT_P

HP_ROUT_N HP_ROUT_P

SCART1_Lout_N SCART1_Lout_P

SCART1_Rout_N SCART1_Rout_P

C337 22pF

OPT

C338 22pF

OPT

C339 22pF OPT

C340 33pF

OPT

AUD_SCK AUD_LRCK AUD_LRCH AUD_MASTER_CLK

Near

JK1102

JK1103 JK2501

JK1104 JK801

TU2101/2 TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50

DDR STRAP

R401

4.7K

DDR_1333

R403

4.7K

R405

4.7K

DDR_1333

R407

4.7K

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4]

JEDEC Types : DDR_DQ[0:4]

R409

00001 : DDR3-1333H (CasL=9)

4.7K OPT

10101 : DDR3-1600K (CasL=11) (O)

DUAL COMPONENT

IC401,IC402 1ST : EAN61667501, 2ND : EAN61570701

IC401-*1 IC402-*1

1ST : T-K4B2G1646B_HCK0, 2ND : T-H5TQ2G63BFR-PBC

+1.5V_DDR

OUTIN

GND

C403

2.2uF

C405 10uF

C407

2.2uF

NFM18PS105R0J

C410

6.3V

C417 470pF

C421

2.2uF

C423 10uF

C425 10uF

NFM18PS105R0J

C432

6.3V

OUTIN

GND

+1.5V_DDR

DDR_DQ[10] DDR_DQ[9] DDR_DQ[7] DDR_DQ[8] DDR_DQ[6] DDR_DQ[5]

R408

4.7K

IC101

NON_BCM_CAP

DDR_ADA_ALT_4 DDR_ADA_ALT_5 DDR_ADA_ALT_6

DDR_CKA01_P DDR_CKA01_N

DDR_CKA23_P DDR_CKA23_N

R410

4.7K

OPT

DDR_ADA_0 DDR_ADA_1 DDR_ADA_2 DDR_ADA_3

DDR_ADA_4 DDR_ADA_5 DDR_ADA_6

DDR_ADA_7 DDR_ADA_8

DDR_ADA_9 DDR_ADA_10 DDR_ADA_11 DDR_ADA_12 DDR_ADA_13 DDR_ADA_14

DDR_BAA_0

DDR_BAA_1

DDR_BAA_2

DDR_RASA_N DDR_CASA_N

DDR_WEA_N

DDR_CKEA

DDR_VREFA

DDR_RST_N

DDR_ZQ

V23 AB27 Y23 Y26

AB26 Y24 AC26

AB24 AC25 AC24

AB25 AD28 Y25 AA27 AC27 AA26 AA24 AD27

Y27 AB28 W24

V24 W25 V26

U24

W27 W28

N28 N27

U23

AA23

W26

IC401-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

Bus Width : DDR_DQ[10] 0 - 16b 1 - 32b (O) Chip Width : DDR_DQ[8] 0 - 8b 1 - 16b (O) Chip Size : DDR_DQ[6:5] 00 - 4Gbit 01 - 2Gbit (O) 10 - 1Gbit 11 - 512Mbit

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR23_AA4 DDR23_AA5 DDR23_AA6

DDR_AA7 DDR_AA8 DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13 DDR_AA14

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_RASb DDR_CASb DDR_WEb

DDR_CKE

DDR01_CLK DDR01_CLKb

DDR23_CLK DDR23_CLKb

DDR_VREFA

DDR_RESETb

R411 240

1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C453 1uF

6.3V

DDR01_CLK

DDR01_CLKb

R412

56 1%

C401 1000pF

DDR_DQ[0-7]

DDR_DQ[8-15]

IC401-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

OPT

R432

4.7K

R404

4.7K OPT

R402

4.7K OPT

R406

LGE35230(BCM35230KFSBG)

DDR_DQ[0-7]

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4] DDR_DQ[5]

DDR_DQ[24] DDR_DQ[25] DDR_DQ[26] DDR_DQ[27] DDR_DQ[28] DDR_DQ[29] DDR_DQ[30] DDR_DQ[31]

DDR_DM[0] DDR_DM[1] DDR_DM[2] DDR_DM[3]

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_QS2

DDR_QS2b

DDR_QS3

DDR_QS3b

DDR_DQ[6]

DDR_DQ[7] DDR_DQ[8] DDR_DQ[9] DDR_DQ[10] DDR_DQ[11] DDR_DQ[12] DDR_DQ[13] DDR_DQ[14] DDR_DQ[15]

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

DDR_DQ[8-15]

DDR_DQ[16-23]

DDR_DQ[24-31]

DDR_DM[0-3] DDR_QS3

U26 R26 U27 R27 V27 P26 U25 P27 R24 N24 T25 M23 R23 N25 T24 N26 L26 H27 L27 J26 M27 G27 M26 H26 L23 H25 L24 J24 M24 H23 L25 H24

T26 P25 J27 K24

T27 T28

P24 P23

K27 K28

K25 K26

DDR_DQA_0 DDR_DQA_1 DDR_DQA_2 DDR_DQA_3 DDR_DQA_4 DDR_DQA_5 DDR_DQA_6 DDR_DQA_7 DDR_DQA_8 DDR_DQA_9 DDR_DQA_10 DDR_DQA_11 DDR_DQA_12 DDR_DQA_13 DDR_DQA_14 DDR_DQA_15 DDR_DQA_16 DDR_DQA_17 DDR_DQA_18 DDR_DQA_19 DDR_DQA_20 DDR_DQA_21 DDR_DQA_22 DDR_DQA_23 DDR_DQA_24 DDR_DQA_25 DDR_DQA_26 DDR_DQA_27 DDR_DQA_28 DDR_DQA_29 DDR_DQA_30 DDR_DQA_31

DDR_DMA_0 DDR_DMA_1 DDR_DMA_2 DDR_DMA_3

DDR_DQSA_P_0 DDR_DQSA_N_0

DDR_DQSA_P_1 DDR_DQSA_N_1

DDR_DQSA_P_2 DDR_DQSA_N_2

DDR_DQSA_P_3 DDR_DQSA_N_3

R413 56 1%

+1.5V_DDR

C455

C454

1uF

6.3V

DDR_AA0 DDR_AA1 DDR_AA2

DDR_AA3 DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR_AA7

DDR_AA8

DDR_AA9

DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_CKE

+1.5V_DDR

R414 10K

DDR_RASb DDR_CASb

DDR_WEb

DDR_RESETb

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_DM[0] DDR_DM[1]

DDR_DQ[0]

DDR_DQ[1]

DDR_DQ[2]

DDR_DQ[3]

DDR_DQ[4]

DDR_DQ[5]

DDR_DQ[6]

DDR_DQ[7]

DDR_DQ[8] DDR_DQ[14] DDR_DQ[13] DDR_DQ[12] DDR_DQ[9] DDR_DQ[10] DDR_DQ[15] DDR_DQ[11]

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

NFM18PS105R0J

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C402

6.3V

OUTIN

GND

IC401

DDR_1333_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

C412 1uF

ZQ

M8

H1

L8

R415 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

C415

0.01uF

C416

0.01uF

1%

+1.5V_DDR

DDR_AA14

R416

4.99K 1%

R417

4.99K 1%

DDR_VREFA

+1.5V_DDR

DDR23_CLK

DDR23_CLKb

DDR_DQ[16-23]

DDR_DQ[24-31]

R418

DDR23_AA4 DDR23_AA5 DDR23_AA6

R419

56

1%

+1.5V_DDR

C419 1000pF

DDR_RESETb

DDR_DM[2] DDR_DM[3]

DDR_DQ[24] DDR_DQ[30] DDR_DQ[29] DDR_DQ[28] DDR_DQ[25] DDR_DQ[26] DDR_DQ[31] DDR_DQ[27]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR_AA7 DDR_AA8

DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_CKE

R420 10K

DDR_RASb DDR_CASb

DDR_WEb

DDR_QS2 DDR_QS2b

DDR_QS3b

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

NFM18PS105R0J

C433

6.3V

OUTIN

GND

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C426 1uF

IC402

DDR_1333_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

R421 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

R422

4.99K 1%

R423

C435

4.99K

0.01uF

1%

DDR_VREFA

C436

0.01uF

+1.5V_DDR

1%

DDR_AA14

BCM35230

MAIN DDR

IC401-*1

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

NC_1 NC_2 NC_3 NC_4 NC_6

DDR_RESETb

DDR_AA13 DDR_AA14

DDR_AA2

DDR_AA11

DDR_AA3 DDR_AA7

DDR_AA9 DDR_AA8 DDR_AA0

DDR_AA1 DDR_BAA0 DDR_BAA2 DDR_BAA1 DDR_AA10 DDR_AA12

DDR_WEb

DDR23_AA6 DDR23_AA4 DDR23_AA5

DDR01_AA6 DDR01_AA4 DDR01_AA5

DDR_CASb DDR_RASb

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_CKE

R428 82

R424 56 R425 56

AR401 56

AR402 56

AR403 56

AR404 56

AR405 56

AR406 56

R426 56 R427 56

IC402-*1

K4B2G1646C-HCK0

DDR_1600_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

R429 82

C437 100pF

OPT

C441 1uF

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

4

R430

4.7K OPT

C442 100pF

R431

4.7K OPT

C438

1uF

0.1uF

C404

C406 0.1uF

C450

0.1uF

C408

0.1uF

C439

1uF

C409

0.1uF

C451

0.1uF

C411

C440

1uF

0.1uF

C452

50

NEC MICOM

For Debug

P601

12505WS-12A00

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

R607

R610

+3.5V_ST

R606 10K

10K

R61 5 22

R61 7 22

R62 1 22

EEPROM for Micom

IC601

M24C16-WMN6T

NC/E0

1

NC/E1

R60 1

47K

NC/E2

2

3

VSS

4

VCC

8

WC

7

SCL

6

SDA

5

MICOM MODEL OPTION

+3.5V_ST

PDP/3D

R613 10K

R611 10K

LCD/OLED

R612 10K

TOUCH_KEY

TACT_KEY

R614 10K

AMP_RESET_N

PANEL_CTL

INSTANT_MODE

R604 100

R605 100 R602 100 R603 100

R619

22

R616

22

I2C LED

R622 10K

PWM_LED

R623 10K

MICOM_RESET NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Rx

NEC_ISP_Tx

R624 10K

10YEAR_TOOL

R625 10K

11YEAR_TOOL

+3.5V_ST

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2 MODEL1_OPT_3

EEPROM_SCL

EEPROM_SDA

PIN NAME

MODEL_OPT_0

MODEL_OPT_1 I2C_LED

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

MODEL OPTION

PIN NO.

LCD

LOW

HIGH

10YEAR_TOOL

8

(10 SENSOR)

11

TOUCH_KEY

30

PDP/3D

31

PDP

0 0

1

0 10

10

LOW

11YEAR_TOOL (11 SENSOR)

PWM_LED

TACT_KEY

LCD/OLED

OLED 3D

TBD

0

GND

+3.5V_ST

C602

13pF

C603

50V

13pF

X601

10MHz

47K

OPT

R637

10Mhz Crystal

+3.5V_ST

C604

0.1uF

+3.5V_ST

VDD

R626 4.7K

SCL2_3.3V

SDA2_3.3V

EEPROM_SCL

EEPROM_SDA

HDMI_CEC

POWER_ON/OFF2_1

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

S/T_SCL

+3.5V_ST

R628 4.7K

R629

R630

R631 22

R632 22

R633 22

OPT

R627

4.7K

22

P60/SCL0 P61/SDA0

P62/EXSCL0

P33/TI51/TO51/INTP4

P73/KR3 P72/KR2 P71/KR1 P70/KR0

P32/INTP3/OCD1B

P63

P75 P74

1 2 3 4 5 6 7 8 9 10 11 12

48

13

P31/INTP2/OCD1A

OPT

1

HIGHLOW_SMALL

1

+3.5V_ST

4.7K

R636

R63 8 22

S/T_SDA

OCD1A

FLMD0

R641

R639 10K

GND

C605 0.1uF

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

44

45

46

47

IC602

uPD78F0514

NEC_MICOM

14

15

16

17

P30/INTP1

P15/TOH0

P17/TI50/TO50

P16/TOH1/INTP5

10K

R64 0

IR

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

0

15pF

C606

MICOM_DOWNLOAD

C607 15pF

X602

32.768KHz R642

4.7M OPT

RESET

P124/XT2/EXCLKS

P123/XT1

FLMD0

41

42

43

18

19

20

P14/RXD6

P13/TXD6

P12/SO10

P11/SL10/RXD0

NEC_ISP_Tx

NEC_ISP_Rx

POWER_ON/OFF2_2

WIRELESS_PWR_EN

WIRELESS_DET

C608

0.1uF 16V

R643 22

P120/INTP0/EXLVI

P41

P40

37

38

39

40

36 35 34 33 32 31 30 29 28 27 26 25

21

22

23

24

AVSS

AVREF

P10/SCK10/TXD0

NEC_TXD

NEC_RXD MICOM_RESET

+3.5V_ST

47K

OPT

270K

R647 20K

R646

20K

JTP-1127WEM

4 3

1/16W 1%

1/16W

1%

SW1

12

R644

R645

P140/PCL/INTP6 P00/TI000 P01/TI010/TO00 P130 P20/ANI0 ANI1/P21 ANI2/P22 ANI3/P23 ANI4/P24 ANI5/P25 ANI6/P26 ANI7/P27

+3.5V_ST

C609 1uF

R648 10K



R649 0

OPT

RL_ON

SCART_MUTE

C

Q601

B

2SC3052

E

EDID_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MICOM

6

50

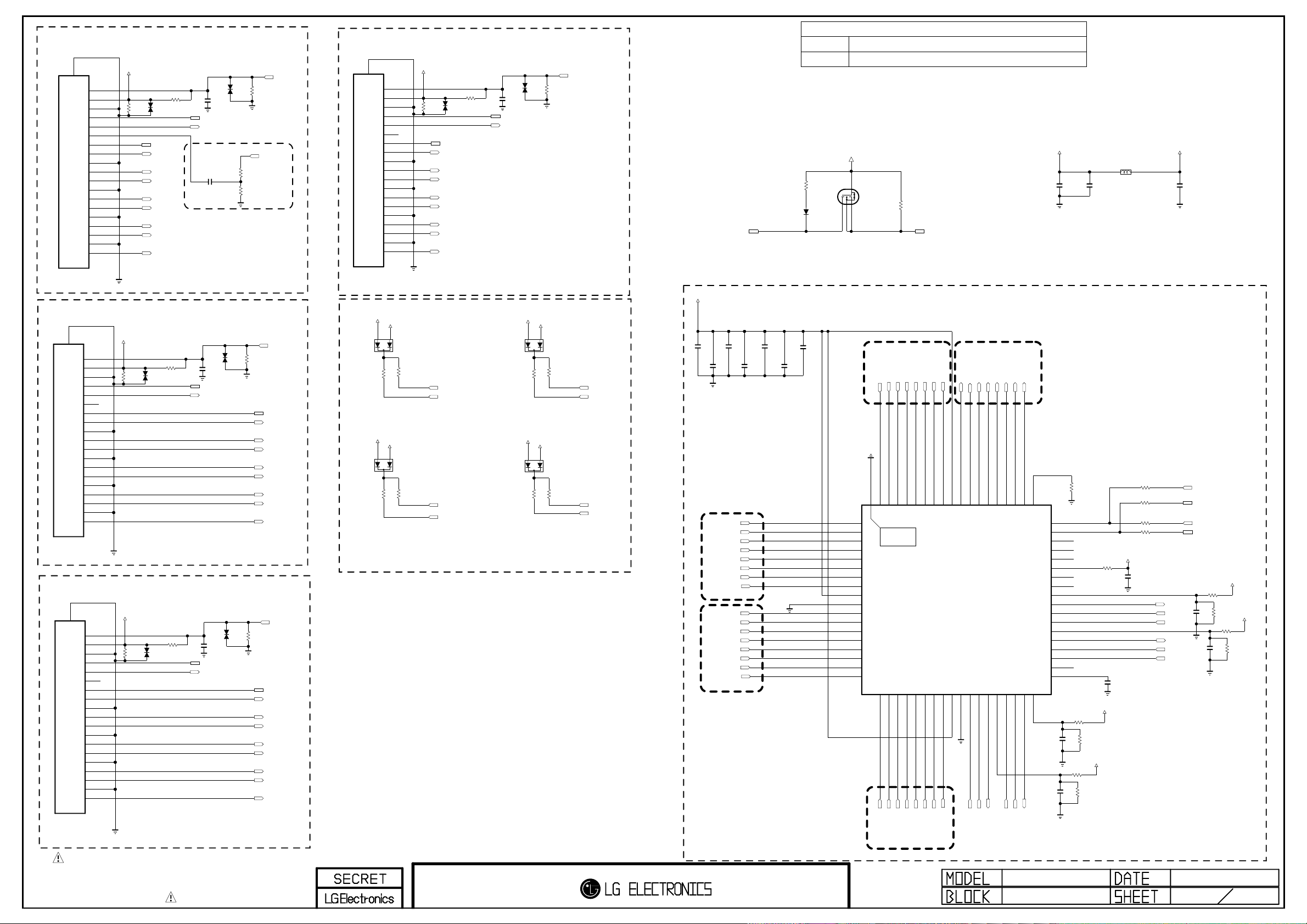

BODY_SHIELD

20

EAG62611201

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1

R730

3.6K

OPT

VR703 10V

OPT

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

R737 0

DUAL COMPONENT

D707,D708

D713

D710,D711

D713

R754 27K

BODY_SHIELD

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R735

3.6K OPT

VR707 10V

OPT

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

R727 0

OPT

C717

0.1uF 16V OPT

DDC_SDA_4

DDC_SCL_4

VR708 10V

OPT

R729

1K OPT

HDMI_HPD_4

* HDMI CEC

BAT54_SUZHO

CEC_REMOTE

GND

20

EAG62611201

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

R77 5

150

R77 6

63. 4

R728 1K

OPT

HDMI_HPD_1

HDMI_ARC

VR706 10V OPT

C714

OPT

0.1uF 16V

OPT

DDC_SDA_1

DDC_SCL_1

ARC

C730

0.1uF

1ST : 0DD184009AA 2ND : 0DSIH00028A

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

+3.5V_ST

G

SBD

Q710 BSS83

R741 120K

HDMI_CEC

+3.3V_Normal +3.3V_HDMI

L701

BLM18PG121SN1D

C720

0.1uF 16V

C718 10uF

C719 10uF

JK703

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK701

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK702

RSD-105156-100

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

19

18

17

16

15

14

13

12

11 10

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

CE_REMOTE

CK-

CK_GND

CK+

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

5V_HDMI_2

R740

3.6K OPT

5V_HDMI_3

R739

3.6K

OPT

VR701 10V

OPT

VR702 10V

OPT

R725 0

OPT

R731 0

HDMI1

HDMI_HPD_2

R736

VR704

1K

10V

OPT

C715

0.1uF 16V OPT

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI2

HDMI_HPD_3

R726

VR705

1K

10V

OPT

C716

OPT

0.1uF 16V

OPT

DDC_SDA_3

DDC_SCL_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

RSD-105156-100

JK704

+5V_Normal

D707

R713

4.7K

+5V_Normal

D708

R714

4.7K

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R715

4.7K

R716

4.7K

HDMI3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

HDMI4

+5V_Normal

5V_HDMI_2

A1CA2

D710

R723

R720

4.7K

+5V_Normal

5V_HDMI_4

R721

4.7K

A1CA2

R724

4.7K

D711

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

DDC_SDA_4

DDC_SCL_4

+3.3V_HDMI

C707 10uF 10V

HDMI2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI3

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

C701 10uF 10V

C706 10uF 10V

C703

0.1uF

16V

C711

0.1uF

16V

C712

0.1uF

16V

C713

0.1uF

16V

R1XCN R1XCP R1X0N R1X0P R1X1N R1X1P R1X2N R1X2P

VCC33_1

RSVD_1

R2XCN R2XCP R2X0N R2X0P R2X1N R2X1P R2X2N R2X2P

HDMI1

D2-_HDMI1

D1+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D2+_HDMI1

R0X0N

R0X0P

R0X1N

R0X1P

R0X2N

R0X2P

[EP]GND

67

68

69

70

71

72

1 2

THERMAL

3

73 4 5 6 7 8 9

SII9287B

10 11 12 13 14 15 16 17 18

19

R3XCN20R3XCP21R3X0N22R3X0P23R3X1N24R3X1P25R3X2N26R3X2P

D1-_HDMI4

D0-_HDMI4

D0+_HDMI4

D1+_HDMI4

CK-_HDMI4

CK+_HDMI4

CK+_HDMI1

R0XCP

66

IC701

D2-_HDMI4

HDMI4

CK-_HDMI1

VCC33_3

R0XCN

64

65

27

VCC33_2

D2+_HDMI4

HDMI S/W OUTPUT

HDMI_RX0+

HDMI_CLK-

HDMI_RX0-

HDMI_CLK+

TX0P

TX0N

TXCP

TXCN

60

61

62

63

28

29

31

DSDA030DSCL0

RSVD_2

CBUS_HPD0

DDC_SCL_1

DDC_SDA_1

HDMI_HPD_1

HDMI_RX1-

HDMI_RX1+

TX2N

TX1P

TX1N

58

59

32

33

DSDA134DSCL1

R0PWR5V

DDC_SDA_2

HDMI_RX2+

HDMI_RX2-

+5V_Normal

C708 1uF

OPT

C710

1uF 10V

R780 33

R781 33

R778 33

R779 33

TPWR_CI2CA

TX2P

55

56

57

35

36

R1PWR5V

CBUS_HPD1

DDC_SCL_2

HDMI_HPD_2

CSCL

54

CSDA

53

INT

52

CEC_D

51

CEC_A

50

R4PWR5V

49

DSCL4

48

DSDA4

47

R3PWR5V

46

CBUS_HPD3

45

DSCL3

44

DSDA3

43

R2PWR5V

42

CBUS_HPD2

41

DSCL2

40

DSDA2

39

SBVCC

38

MICOM_VCC33

37

1uF

C704

C709 1uF

R708 10

R712 10

R777

4.7K

1/16W R707

1K 1%

5V_HDMI_1

1/16W

R703 1K 1%

R706

0

5V_HDMI_2

BCM35230

HDMI 7

HDMI_HPD_4

DDC_SCL_4

DDC_SDA_4

HDMI_HPD_3

DDC_SCL_3

DDC_SDA_3

SCL1_3.3V

SDA1_3.3V

SCL3_3.3V

SDA3_3.3V

R717 10

C705

1uF

C702 1uF

1/16W R711 1K

1%

5V_HDMI_4

5V_HDMI_3

R718 10

1/16W

R705 1K 1%

31

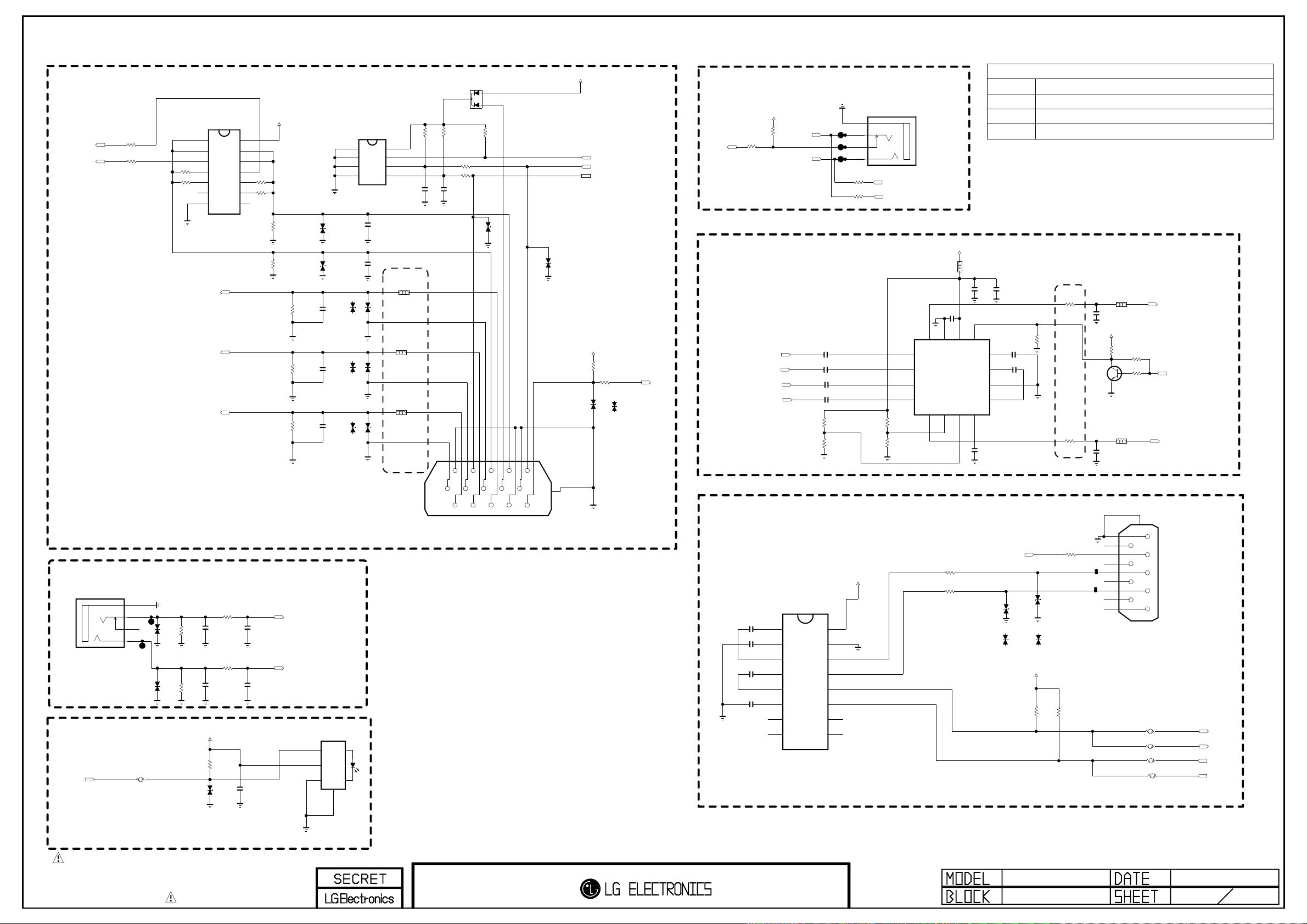

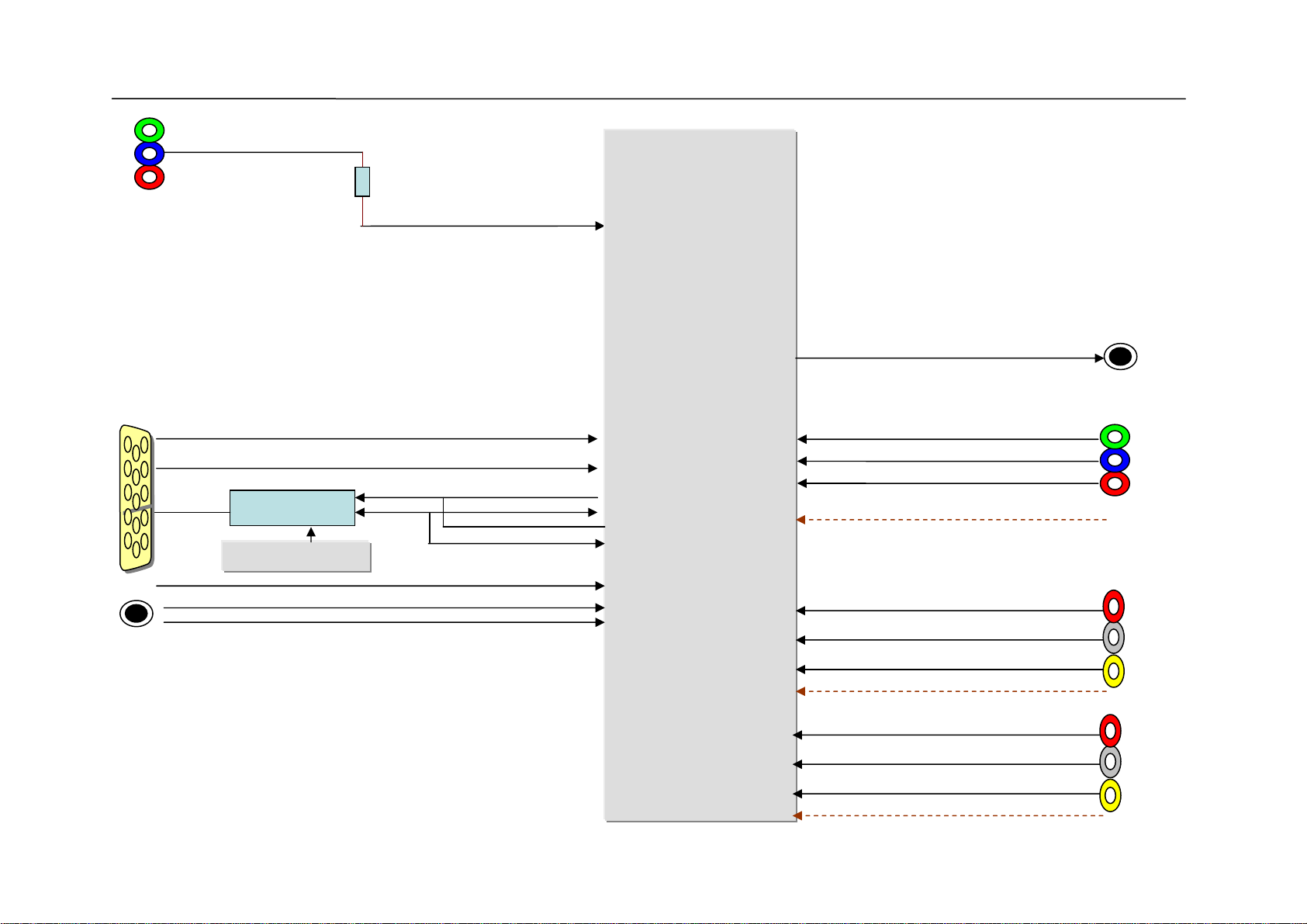

RGB/ PC AUDIO/ SPDIF/ EARPHONE/ RS232C

RGB PC

DSUB_VSYNC

DSUB_HSYNC

R868 0

R869 0

DUAL COMPONENT

L804

BG2012B080TF

C828

0.22uF 10V

+3.3V_Normal

R842

4.7K

C

Q801

E

L805

BG2012B080TF

C829

0.22uF 10V

B

2SC3052

OPT

R843 0

R844 1K

HP_LOUT

SIDE_HP_MUTE

HP_ROUT

D811

5.6V OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R819 10K

D812

5.6V

ESD_COMMON

R8201K

D812-*1

5.6V ESD_CERADIODE

DSUB_DET

EARPHON JACK

+3.3V_Normal

R822

2.7K HP_LOUT

HP_DET

R8211K

HP_ROUT

EARPHONE AMP

HP_LOUT_N

HP_LOUT_P

HP_ROUT_P

HP_ROUT_N

R823

R824

4.7K

OPT

R825 0

R826 0

C816 1uF 10V

C817 1uF 10V

C818 1uF

10V

C819 1uF

10V

OPT

JK803

KJA-PH-0-0177 5GND

4L

3DETECT

1R

EAG61030001

SPK_R+_HOTEL

SPK_R-_HOTEL

R827

OPT

R828

INL-

INL+

INR+

INR-

4.7K

Close to the IC

SGND

OUTL

15

16

1

2

IC804 TPA6132A2

3

4

EAN60724701

6G07G18

5

OUTR

+3.3V_Normal

D810

KDS184

A2

C

A1

IC801

74F08D

D0A

1

D0B

R801

22

R802

22

R850 0

R851 0

2

Q0

3

D1A

4

OPT

D1B

5

OPT

Q1

6

GND

7

DSUB_B+

DSUB_G+

DSUB_R+

+5V_Normal

IC802

30V

D805 30V

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

5.6V D808-*1

ESD_CERADIODE

5.6V D806-*1

ESD_CERADIODE

5.6V D807-*1

ESD_CERADIODE

VCC

8

WP

7

SCL

6

SDA

5

C807 22pF 50V

C808 22pF 50V

BLM15BD121SN1

ESD_COMMON

D808 30V

BLM15BD121SN1

ESD_COMMON

D806 30V

BLM15BD121SN1

ESD_COMMON

D807 30V

Closed to JACK

VCC

14

D3B

13

D3A

12

Q3

11

D2B

R852 0

10

OPT

D2A

R853 0

9

OPT

Q2

8

R807 10K OPT

R808 10K OPT

R812

75

R811

75

R813

75

D804

C830 47pF 50V

C831 47pF 50V

C832 47pF 50V

L807

L808

L806

C809 18pF

R814

R815

2.7K

R848 22

R847 22

C810

18pF

50V

10K

R817

D809

5.6V

OPT

91010

5

15

D804,D805,D806 D807,D808,D813 D814

D810

Q801

IC805

L803 120-ohm BLM18PG121SN1D

C822

10uF 10V

C821 1uF 10V

EN14VDD

13

12

11

10

9

HPVSS

C823

2.2uF 10V

HPVDD

CPP

PGND

CPN

C824

0.1uF

16V

1ST : EAH39491601, 2ND : EAH33945901

1ST : 0DD184009AA, 2ND : 0DSIH00028A

1ST : 0TRIY80001A, 2ND : 0TR387500AA

1ST : EAN61151201, 2ND : EAN61130001

LPF READEY (For H/P Noise Improvement)

R837

C825

100K

2.2uF

OPT

10V

C826

2.2uF 10V

PC AUDIO

JK801

KJA-PH-0-0177

5 GND

4 L

3 DETECT

1 R

SPDIF OUT

SPDIF_OUT

R803 0

D801 AMOTECH

5.6V

ESD_COMMON

D802

AMOTECH

5.6V

ESD_COMMON

R804 470K

R805 470K

2.7K

R806

R866 22

C801 560pF 50V

R867 22

C802 560pF 50V

+3.3V_Normal

D803 30V

OPT

C803

0.1uF 16V

C804 560pF 50V

C805 560pF 50V

PC_L_IN

PC_R_IN

JK802

2F11TC1-EM52-4F

VIN

A

VCC

B

GND

C

Fiber Optic

4

SHIELD

111112121313141415

6677889

112233445

JK804

SLIM-15F-D-2

16

RS232C

10

5

JP809

9

8

7

6

SPG09-DB-009

JK805

R862 0

R863 0

R864 0

R865 0

4

3

2

1

BCM_RX

NEC_RXD

BCM_TX

NEC_TXD

0.1uF

C8120.1uF

C813

C8150.1uF

IR_OUT

100

+3.5V_ST

IC803

MAX3232CDR

C1+

1

V+

2

C1-

3

C2+

C8140.1uF

4

C2-

5

V-

6

DOUT2

7

RIN2

8

EAN41348201

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

R833

100

R834

ESD_COMMON

D813-*1

D813 30V

5.6V

ESD_CERADIODE

+3.5V_ST

D814 30V

ESD_COMMON

5.6V

D814-*1

R860

4.7K OPT

IR_OUT

ESD_CERADIODE

R861

4.7K OPT

R8380

JP810

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.10.21 8COMMON JACK

58

Q901,Q902,Q903 Q904,Q905,Q906

D903,D904 D905,D906

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EAH42720601, 2ND : EAH60994401

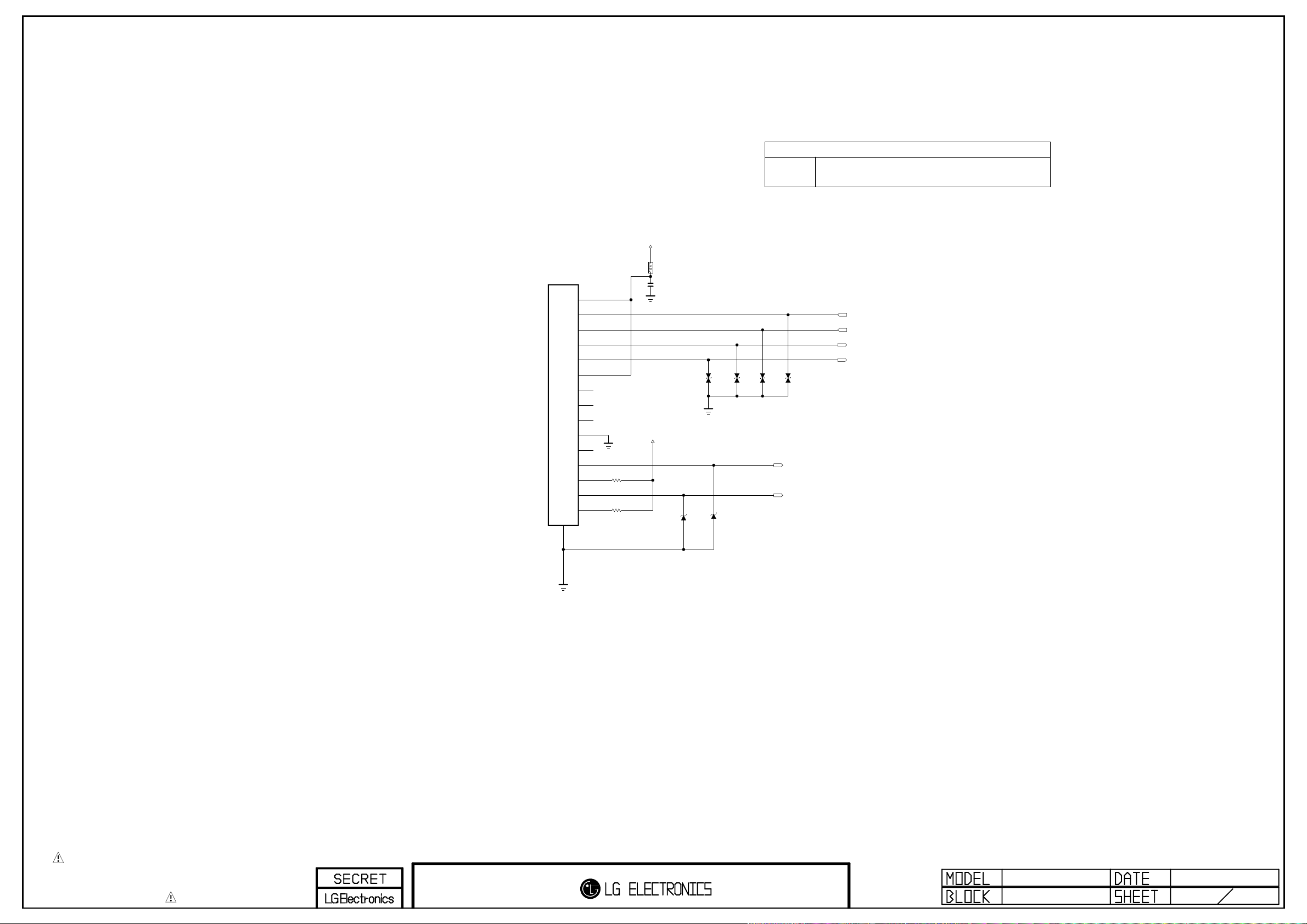

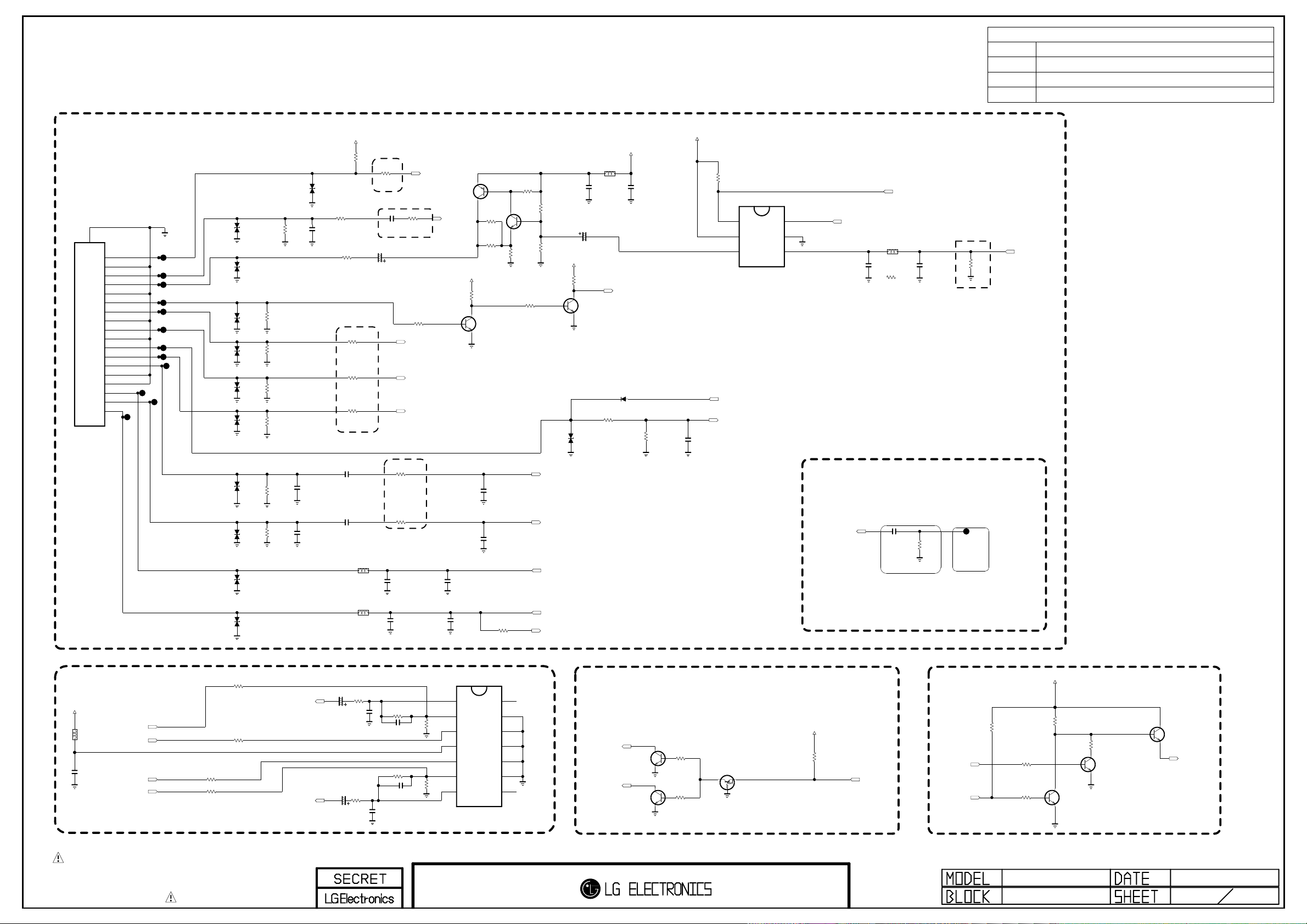

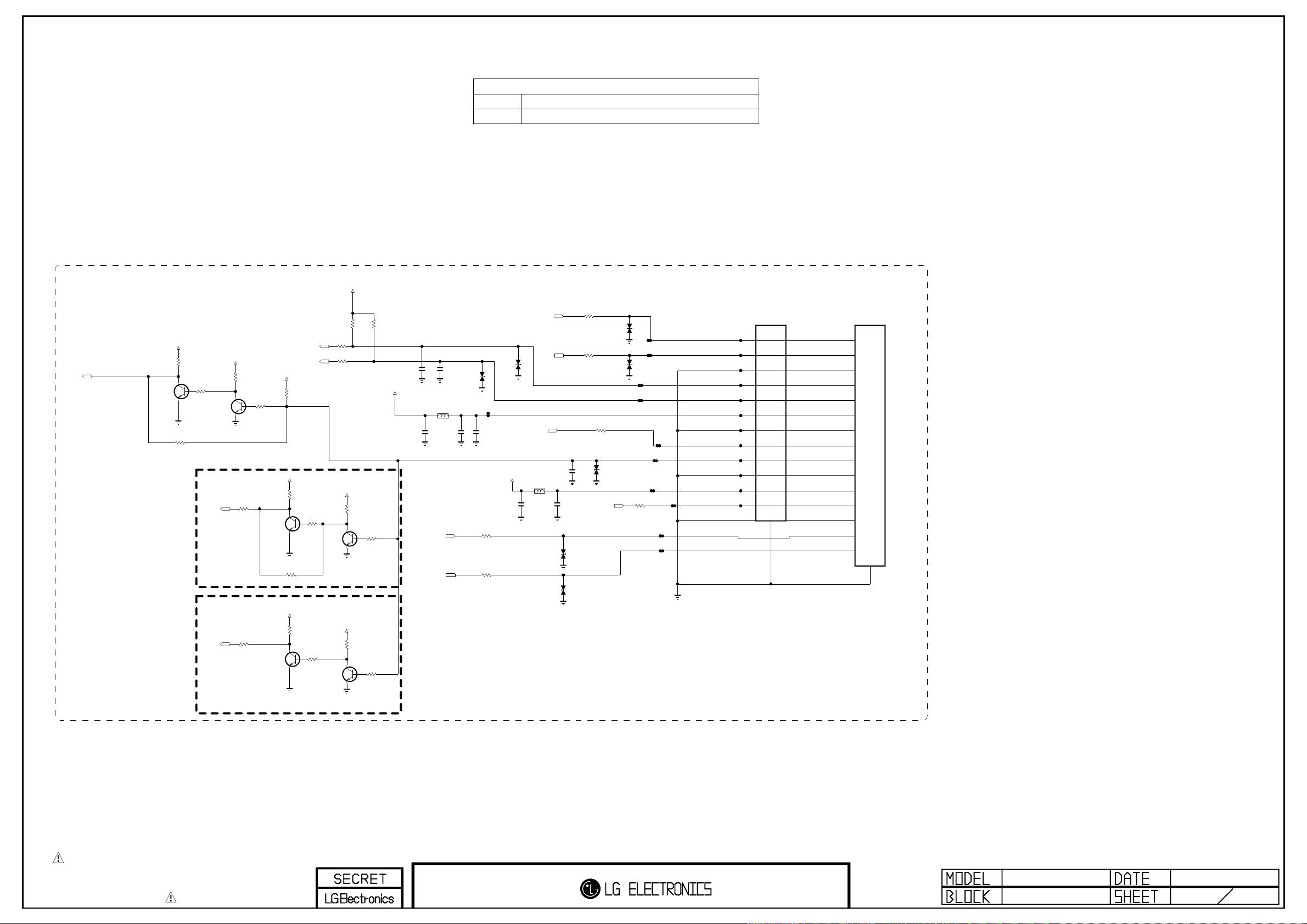

IR & KEY

IR

Q901

2SC3052

+3.5V_ST

R903

47K

R902 0

+3.5V_ST

KEY1

KEY2

3.5V

3.3V

S/T_SCL

ST_SDA

GND

IR

GND

IR_15P

P901

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

.

IR_12P

P902

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

EEPROM_SCL

EEPROM_SDA

LED_B/LOGO

LED_R/BUZZ

C911

100pF

50V

R933 100

R934 100

R928 1.5K

D907

5.6V

AMOTECH

LED_R/BUZZ

D903

CDS3C05HDMI1

5.6V

D904

CDS3C05HDMI1

5.6V

D905

CDS3C05HDMI1

5.6V

D906

CDS3C05HDMI1

5.6V

R929

1.5K

LED_B/LG_LOGO

+3.3V_Normal

BLM18PG121SN1D

16V

EEPROM_SCL

EEPROM_SDA

L902

C913

0.1uF 16V

ESD_ATSC

R920

R919

10K

1%

R915 100

KEY1

R916

+3.5V_ST

R908

47K

COMMERCIAL_EU

Q903

2SC3052

COMMERCIAL_EU

WIRELESS

Q904

2SC3052

WIRELESS

+3.5V_ST

R909

3.3K OPT

+3.5V_ST

R911

47K

C

B

E

COMMERCIAL_EU

COMMERCIAL_US

R910 0

+3.5V_ST

R912

47K

C

B

E

R905

47K

R904

C

10K

B

E

OPT

Q902

2SC3052

C

B

E

COMMERCIAL

R906

COMMERCIAL

22

IR_OUT

WIRELESS

R907

WIRELESS

22

IR_PASS

KEY2

R913 10K

R914 10K

WIRELESS

R917

COMMERCIAL

Q905

2SC3052

COMMERCIAL

R918

WIRELESS

Q906

2SC3052

WIRELESS

100

+3.5V_ST

47K

+3.5V_ST

47K

C

B

E

C

B

E

R921

47K

COMMERCIAL

R922

47K

WIRELESS

+3.5V_ST

C901

0.1uF

C902

0.1uF OPT

BLM18PG121SN1D

16V

L901

S/T_SCL

S/T_SDA

C903

0.1uF

C904

0.1uF

D901

5.6V

AMOTECH

16V

OPT

Zener Diode is

close to wafer

C905 1000pF 50V

R935 100

R936 100

D902

5.6V

AMOTECH

ESD_ATSC

C912

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

IR/KEY

9

50

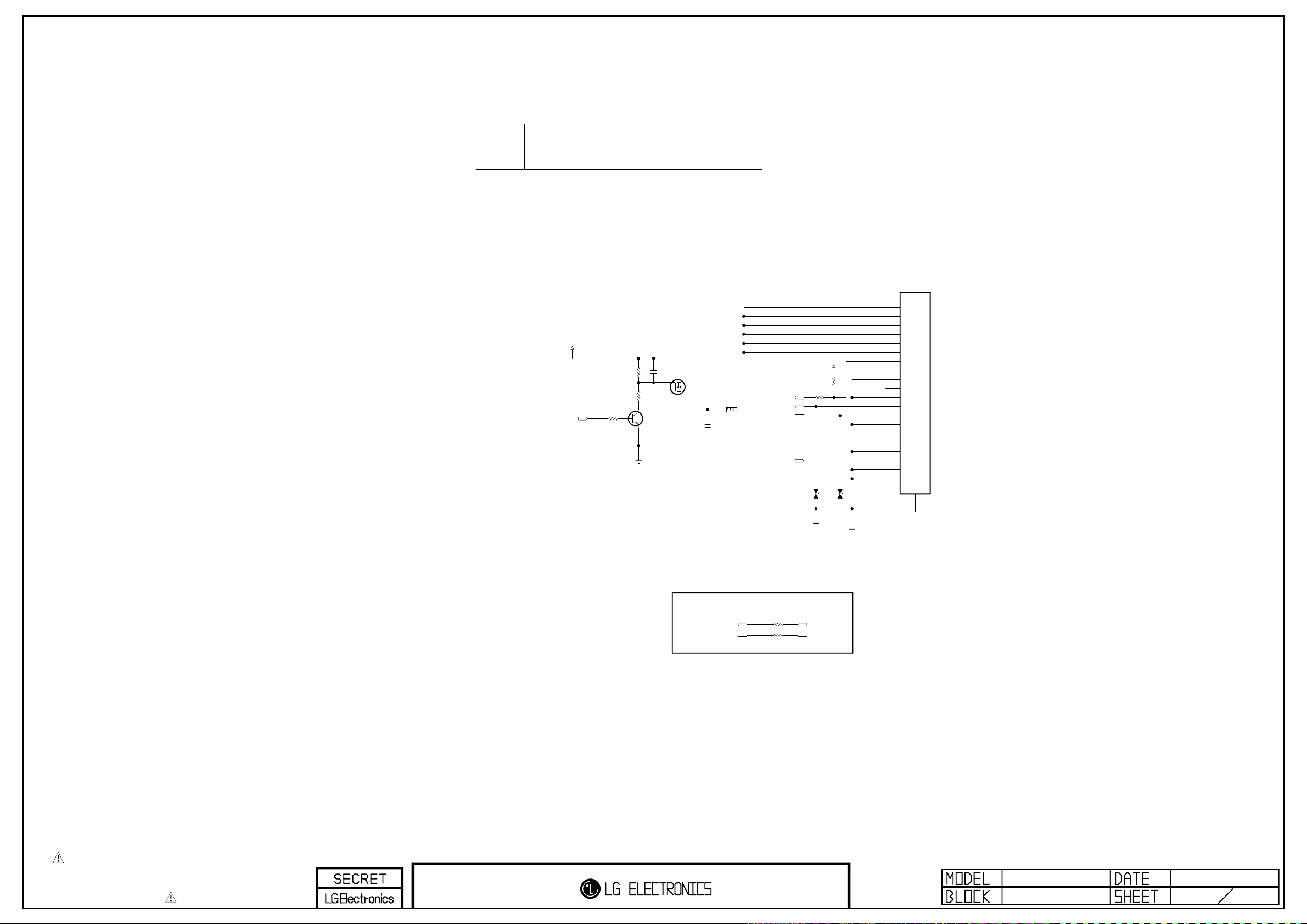

WIRELESS READY MODEL

D1001,D1002

Q1001

Q1002

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

1ST : EBK61012601, 2ND : 0TRDI80002A

1ST : EBK60752501, 2ND : EBK61011501

Wireless power

+24V

R1002

22K

WIRELESS

R1003

2.2K

WIRELESS

WIRELESS_PWR_EN

R1001

10K

WIRELESS

B

C1002

2.2uF

WIRELESS

Q1002 AO3407A

WIRELESS

C

Q1001 MMBT3904(NXP)

WIRELESS

E

JK1001

KJA-PH-3-0168

DETECT

INTERRUPT

GND_1

RESET

GND_2

I2C_SCL

I2C_SDA

GND_3

UART_RX

UART_TX

GND_4

GND_5

IR

WIRELESS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20GND_6

21

SHIELD

VCC(24V/20V/17V)_1

VCC(24V/20V/17V)_2

VCC(24V/20V/17V)_3

VCC(24V/20V/17V)_4

VCC(24V/20V/17V)_1

+3.3V_Normal

S

G

D

L1001

MLB-201209-0120P-N2

WIRELESS

C1004 10uF 35V

WIRELESS

WIRELESS_DET

WIRELESS_SCL

WIRELESS_SDA

IR_PASS

R1008

WIRELESS

R1007 1K

WIRELESS

D1001

CDS3C05HDMI1

WIRELESS

10K

5.6V WIRELESS

D1002

5.6V

CDS3C05HDMI1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Wireless I2C connection with I2C_1

Address : 0X20

WIRELESS_SCL

WIRELESS_SDA

R1005 33

WIRELESS

R1006 33

WIRELESS

SCL2_3.3V

SDA2_3.3V

BCM35230

10

50WIRELESS

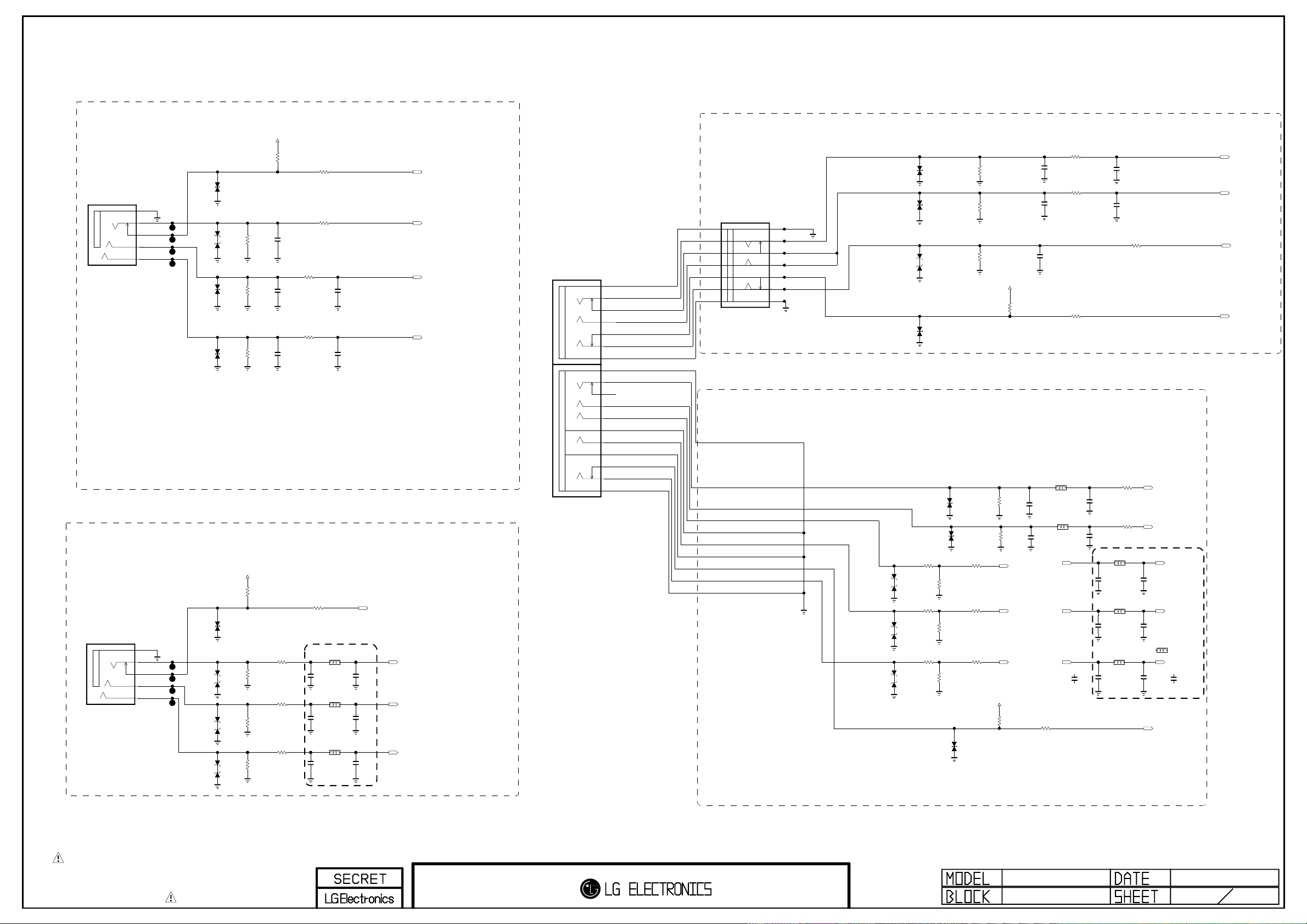

CVBS 1 PHONE JACK

D1105

D1107

5.6V

ZD1115

5.1V ZD1116

5.1V

D1108

5.6V

R1110

JK1102

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

COMPONENT 1 PHONE JACK

D1101

JK1101

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

5.6V

ZD1117

5.1V ZD1110

5.1V

ZD1111

5.1V ZD1112

5.1V

ZD1113

5.1V ZD1114

5.1V

R1109 75

1%

470K

R1111 470K

+3.3V_Normal

R1105

2.7K

R1106 75

1%

R1107 75

1%

R1108 75

1%

+3.3V_Normal

R1112

2.7K

C1106 47pF 50V

C1107 560pF 50V

C1108 560pF 50V

R1137 10

R1138 10

R1139 10

R1143 22

R1144 22

R1114 1K

C1102 47pF 50V

C1103 27pF 50V

C1104 27pF 50V

R1113 1K

R1136 10

L1110

CM2012FR10KT

L1111

CM2012FR27KT

L1112

CM2012FR27KT

FOR EMI

C1109 560pF 50V

C1110 560pF 50V

C1125 47pF 50V

C1126 27pF 50V

C1127 27pF 50V

COMP1_DET

COMP1_Y

COMP1_Pb

COMP1_Pr

AV1_CVBS_DET

AV1_CVBS_IN

AV1_L_IN

AV1_R_IN

JACK_PACK

JK1105

PPJ238-01

[RD1]E-LUG

6C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SPRING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O-SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O-SPRING_1

5F

[RD2]E-LUG-S

7F

[BL2]O-SPRING

5E

[BL2]E-LUG-S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

CVBS2 REAR JACK

JK1104

PPJ233-01

AV2_JACK

[RD]E-LUG

5C

[RD]O-SPRING

4C

[RD]CONTACT

3C

[WH]C-LUG

4B

[YL]CONTACT

3A

[YL]O-SPRING

4A

[YL]E-LUG

5A

COMP2 REAR JACK

COMP2

ZD1103

5.1V

ZD1104

5.1V

ZD1105

5.1V

ZD1106

5.1V

ZD1107

5.1V

ZD1108

5.1V

AV2 R1141 22

D1109 AMOTECH

5.6V AV2

D1110 AMOTECH

5.6V AV2

ZD1101

AV2

5.1V ZD1102

AV2

5.1V

D1111

AV2

5.6V

COMP2

R1119 0

COMP2

R1124 75

COMP2

R1120 0

COMP2 R1125

75

COMP2

R1121 0

COMP2 R1126

75

D1112

5.6V COMP2

D1113

5.6V COMP2

COMP2

D1114

5.6V

AV2

10

AV2

COMP2

R1116 470K

R1117 470K

R1118 75

R1133

R1134

R1135

+3.3V_Normal

R1128

2.7K

AV2

COMP2 R1122 470K

COMP2

R1123

470K

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

R1127

2.7K

C1118 560pF 50V AV2

C1119 560pF 50V AV2

C1120 47pF 50V

AV2

BLM18PG121SN1D

C1113 560pF 50V

COMP2

BLM18PG121SN1D

COMP2

C1114 560pF 50V

COMP2_Pr

COMP2_Pb

COMP2_Y

COMP2

COMP_NON_EU

R11301K

R1142 22

R1129

1K

AV2

L1103

L1104

AV2

C1117-*1 47pF 50V

C1121 560pF 50V

COMP2

C1122 560pF 50V

CM2012FR27KT

C1115

27pF 50V

CM2012FR27KT

C1116

27pF 50V

CM2012FR27KT

COMP_EU

C1117

27pF

50V

COMP_EU

L1109

L1108

L1107

FOR EMI

C1123 560pF 50V

AV2

C1124 560pF 50V

AV2

COMP2 R1131 22

COMP2 R1132 22

AV2 R1140 10

SC/COMP2_R_IN

SC/COMP2_L_IN

SC_R/COMP2_Pr

C1128

27pF 50V

SC_B/COMP2_Pb

C1129

27pF 50V

L1107-*1

CM2012FR10KT

COMP_NON_EU

SC_G/COMP2_Y

COMP_NON_EU

C1130

27pF

50V

COMP_EU

SC_DET/COMP2_DET

C1130-*1 47pF 50V

AV2_R_IN

AV2_L_IN

AV2_CVBS_IN

AV2_CVBS_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

COMP/AV 11

50

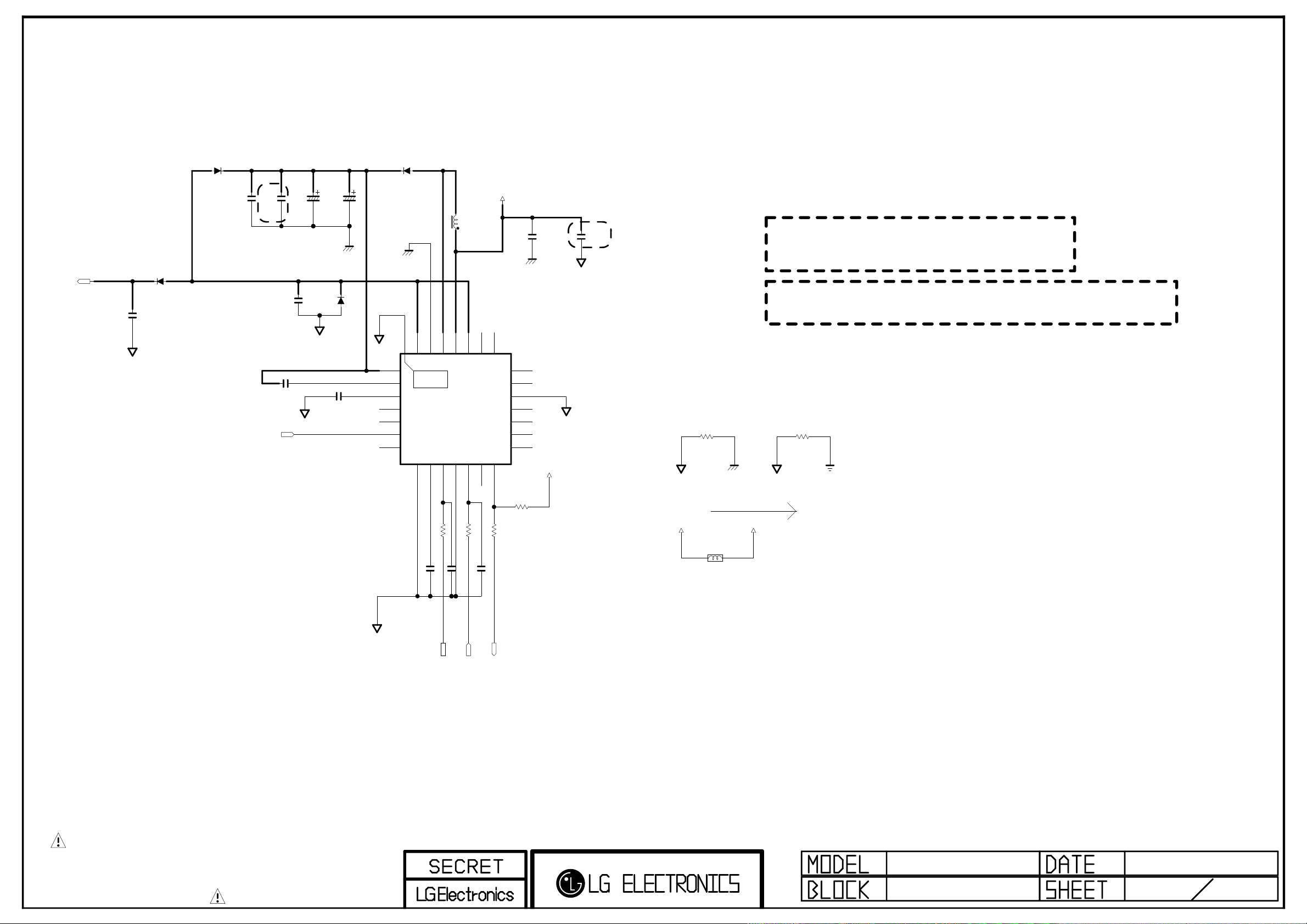

USB_WIFI

+3.3V_Normal

WIFI_DM

WIFI_DP

L1203

BLM18PG121SN1D

WIFI

+5V_USB

+3.3V_USB

L1202

MLB-201209-0120P-N2

C1234

WIFI

0.1uF 16V

For EMI

Close to BCM IC

R1232 0

WIFI

R1233 0

WIFI

CDS3C05HDMI1

WIFI

WIFI120-ohm

WIFI

D1201

5.6V

WIFI_ESD

WIFI

C1209

1uF

10V

WIFI

C1210

0.1uF

R1204

12K

1/16W 1%

WIFI

C1211

15pF

WIFI R1205 1M

WIFI

X1201 24MHz

C1233

0.1uF 16V

WIFI

CDS3C05HDMI1

SIDE_USB_DP

WIFI

C1213

15pF

1%

C1232

100uF 16V

D1202

5.6V

WIFI_ESD

SIDE_USB_DM

R1206

WIFI

100K

VDD

DM

DP

GND

P1201

12507WR-04L

WIFI

1

2

3

4

5

.

+3.3V_USB

DUAL COMPONENT

D1201,D1202 D1203,D1204 D1205,D1206

1ST : EAH42720601 2ND : EAH60994401

USB / DVR Ready

L1205

MLB-201209-0120P-N2

120-ohm

C1220

C1231

10uF

100uF

10V

3AU04S-305-ZC-(LG)

JK1201

1234

USB D OWN STRE AM

5

16V

OPT

D1207

RCLAMP0502BA

D1203 CDS3C05HDMI1

5.6V

IC1204

NC OUT_2 OUT_1

FLG

AP2191DSG

1

8 7

2

6

3

5

4

EAN61849601

D1205 CDS3C05HDMI1

5.6V

GND IN_1 IN_2 EN

+3.3V_Normal

R1221

4.7K OPT

USB_CTL1

R1230 0 R1231 0

NON_WIFI

R1224 0 R1225 0

NON_WIFI

R1223

2.7K

+5V_USB

C1224

0.1uF

/USB_OCD1

SIDE_USB_CTL1

SIDE_USB_OCD1

USB_DM1

USB_DP1

SIDE_USB_DM SIDE_USB_DP

SUSP_IND/LOCAL_PWR/NON_REM[0]

VDDA33_3

USBDM_UP

USBDP_UP

XTALOUT

XTALIN/CLKIN

PLLFILT

RBIAS

VDD33_3

+3.3V_USB

C1204 1uF 10V

WIFI

C1205

0.1uF WIFI

USB_DM1

USB_DP1

USB_DM2

USB_DP2

C1206

0.1uF WIFI

C1207

0.1uF WIFI

C1208

0.1uF WIFI

USBDM_DN[1]

USBDP_DN[1]

USBDM_DN[2]

USBDP_DN[2]

VDDA33_1

NC_1

NC_2

NC_3

NC_4

[EP]VSS

36

1

THERMAL

2

3

4

5

6

7

8

9

10

VDDA33_2

32

33

34

35

37

IC1202

USB2512B-AEZG

WIFI

11

12

13

14

TEST

CRFILT

OCS_N[1]

WIFI

PRTPWR[1]/BC_EN[1]

C1212

USB_CTL1

/USB_OCD1

29

30

31

15

16

17

VDD33_1

OCS_N[2]

C1214

0.1uF PRTPWR[2]/BC_EN[2]

1uF

10V

WIFI

USB_CTL2

/USB_OCD2

28

VBUS_DET

27

RESET_N

26

HS_IND/CFG_SEL[1]

25

SCL/SMBCLK/CFG_SEL[0]

24

VDD33_2

23

SDA/SMBDATA/NON_REM[1]

22

NC_8

21

NC_7

20

NC_6

19

18

NC_5

WIFI

R1207

100K

WIFI

C1216

0.1uF

C1215

0.1uF

WIFI

R1208

100K

R1212 100K

R1213

WIFI

100K

R1209

OPT

100K OPT

R1215 100K

R1214 100K

R1216 100K

+3.3V_USB

C1218

0.1uF OPT

WIFI C1217

4.7uF

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_USB

/RST_HUB

USB

3AU04S-305-ZC-(LG)

JK1202

1234

USB D OWN STRE AM

5

L1204

MLB-201209-0120P-N2

120-ohm

C1230

C1219

100uF

10uF

16V

10V

OPT

D1208

RCLAMP0502BA

BCM35230

USB + WIFI

IC1203

AP2191DSG

NC

8

OUT_2

7

OUT_1

6

FLG

5

EAN61849601

D1204 CDS3C05HDMI1

5.6V

+3.3V_Normal

GND

1

IN_1

2

IN_2

3

EN

4

D1206 CDS3C05HDMI1

5.6V

R1220

4.7K

OPT

USB_CTL2

R1228 0 R1229 0

R1226 0

R1227 0

NON_WIFI

R1222

2.7K

SIDE_USB_CTL2

SIDE_USB_OCD2

USB_DM2

USB_DP2

WIFI_DM

WIFI_DP

12

+5V_USB

C1223

0.1uF

/USB_OCD2

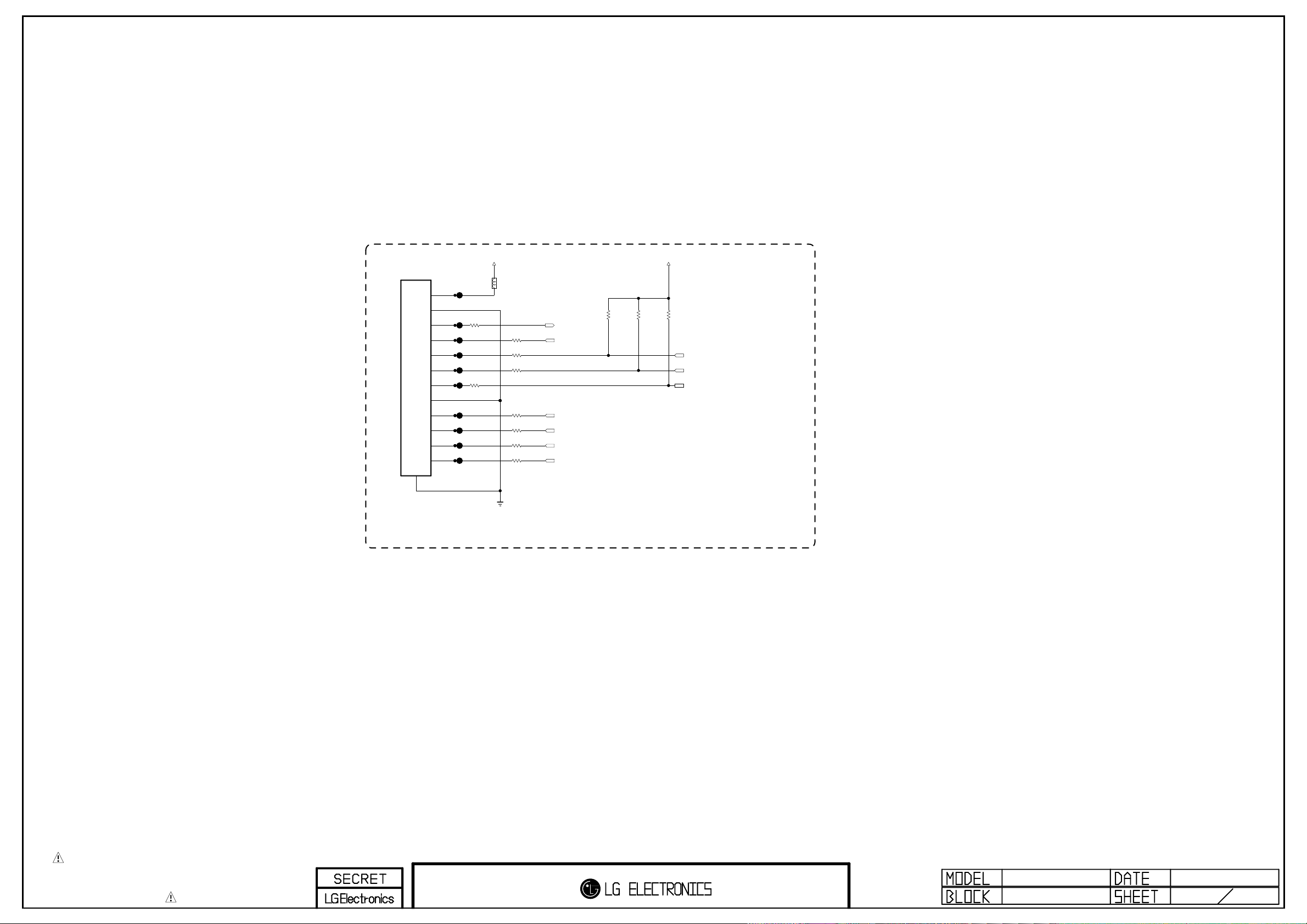

TI solution M_REMOTE OPTION

P1302

12507WR-12L

M_REMOTE

13

.

+3.3V_Normal

L1303

120-ohm

R1315 100

R1319 100

M_REMOTE

R1316 100

R1317 100

R1318 100

R1320 22

R1324 22

R1325 22

R1326 22

M_REMOTE_RX

M_REMOTE_TX

3D_GPIO_0

3D_GPIO_1

3D_GPIO_2

3D_SYNC_RF

R1321

2.7K M_REMOTE

3.3V

1

GND

2

3

4

5

6

7

8

9

10

11

12

RX

TX

RESET

DC

DD

GND

GPIO_0

GPIO_1

GPIO_2

3D_SYNC

M_REMOTE

+3.3V_Normal

R1322

2.7K

M_REMOTE

R1323

2.7K

M_REMOTE

M_RFModule_RESET

DC_MREMOTE

DD_MREMOTE

ALL M_REMOTE OPTION

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

13

50M_REMOCON

Ethernet Block

JK1401

XRJH-01A-4-DA7-180-LG(B)

R1

1

R2

2

R3

3

R4

4

R5

5

R6

6

R7

7

R8

8

R9

9

R10[GND]

10

R11

11

YL_C

D1

YL_A

D2

GN_C

D3

GN_A

D4

12

SHIELD

R1401 240

R1402

+2.5V_BCM35230

+3.3V_Normal

240

L1401

MLB-201209-0120P-N2

C1401

0.1uF

16V

D1401

5.5V

LAN_ESD

D1405

D1403

5V

LAN_ESD

D1402

5.5V

LAN_ESD

D1404

5.5V

LAN_ESD

D1401,D1402 D1403,D1404 D1405,D1406

D1406

5.5V

LAN_ESD

EPHY_ACTIVITY

EPHY_LINK

DUAL COMPONENT

1ST : EAH42720601 2ND : EAH60994401

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

14ETHERNET

50

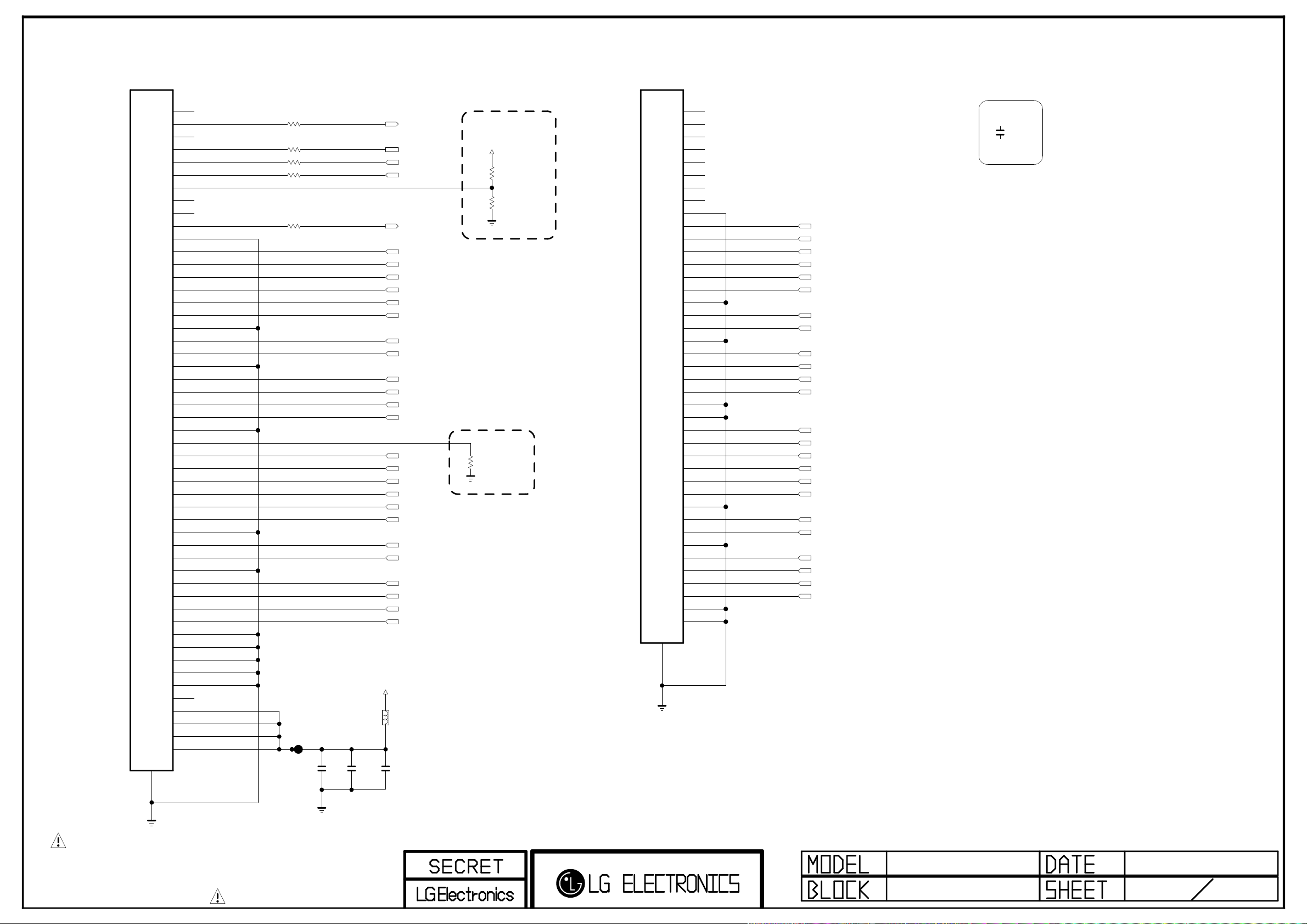

FHD120Hz LVDS output(51pin+41Pin)

P1501

FI-RE51S-HFK-A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R1504 33

R1506 33

R1507 33

R1508 33

R1516 33

FRC2

SHARP_OPT

C1501 10uF 25V

OPT

PANEL_VCC

C1502 1000pF 50V

3D_SYNC_RF

SDA2_3.3V

SCL2_3.3V

FRC_RESET

PANEL_CTL

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

L1501 MLB-201209-0120P-N2

NON_SHARP_60INCH

C1503

0.1uF 16V

LVDS_SEL

+3.3V_Normal

R1513

3.3K LVDS_SEL_HIGH

R1514 10K

LVDS_SEL_LOW

BIT_SEL

R1512 10K

BIT_SEL_LOW

P1502

FI-RE41S-HFK-A

LVDS_41P

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

1

2

3

4

5

6

7

8

9

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

REVERSE MARK

LVDS_41P

C1504

2.2uF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

2010.11.03 5015LVDS

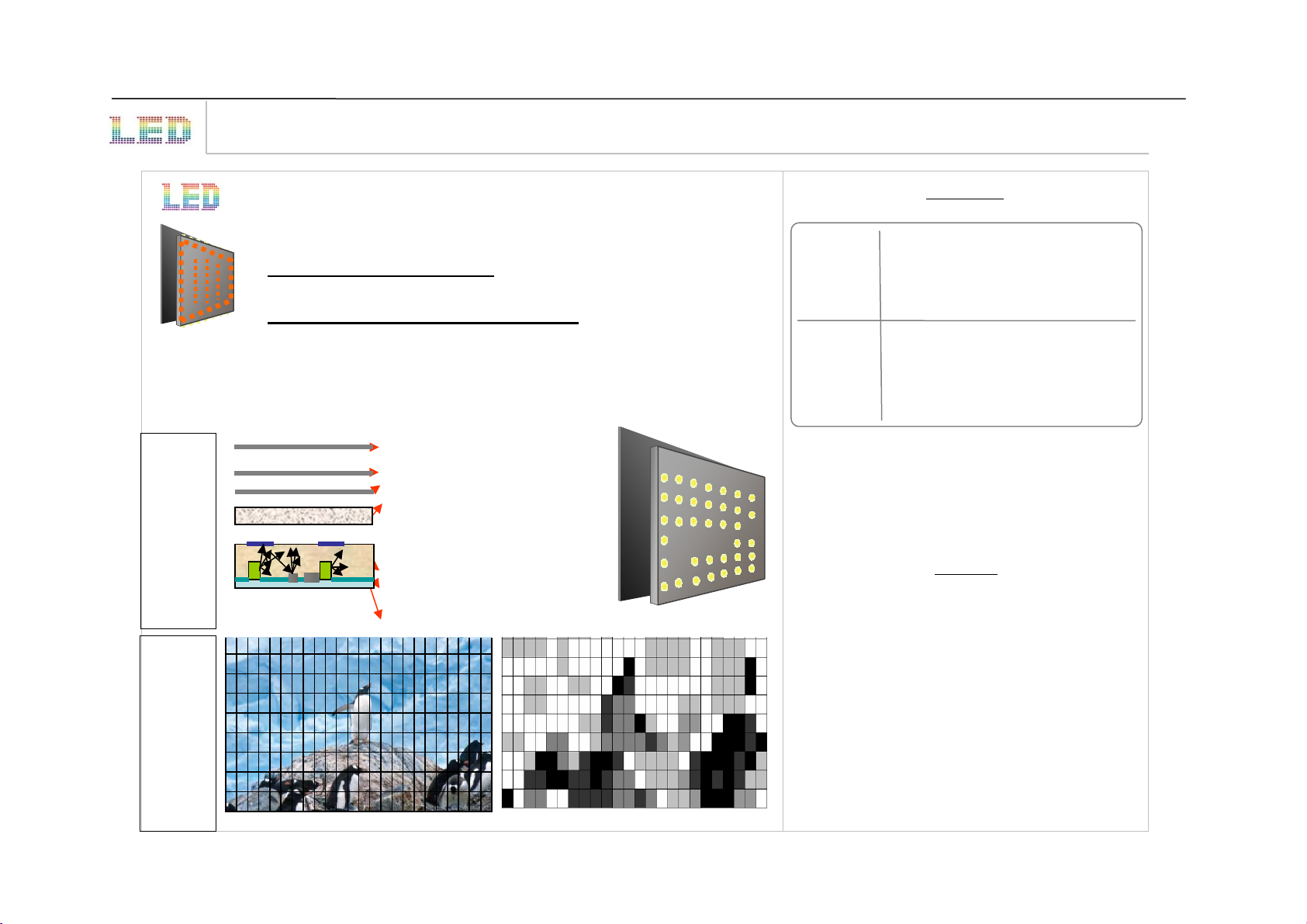

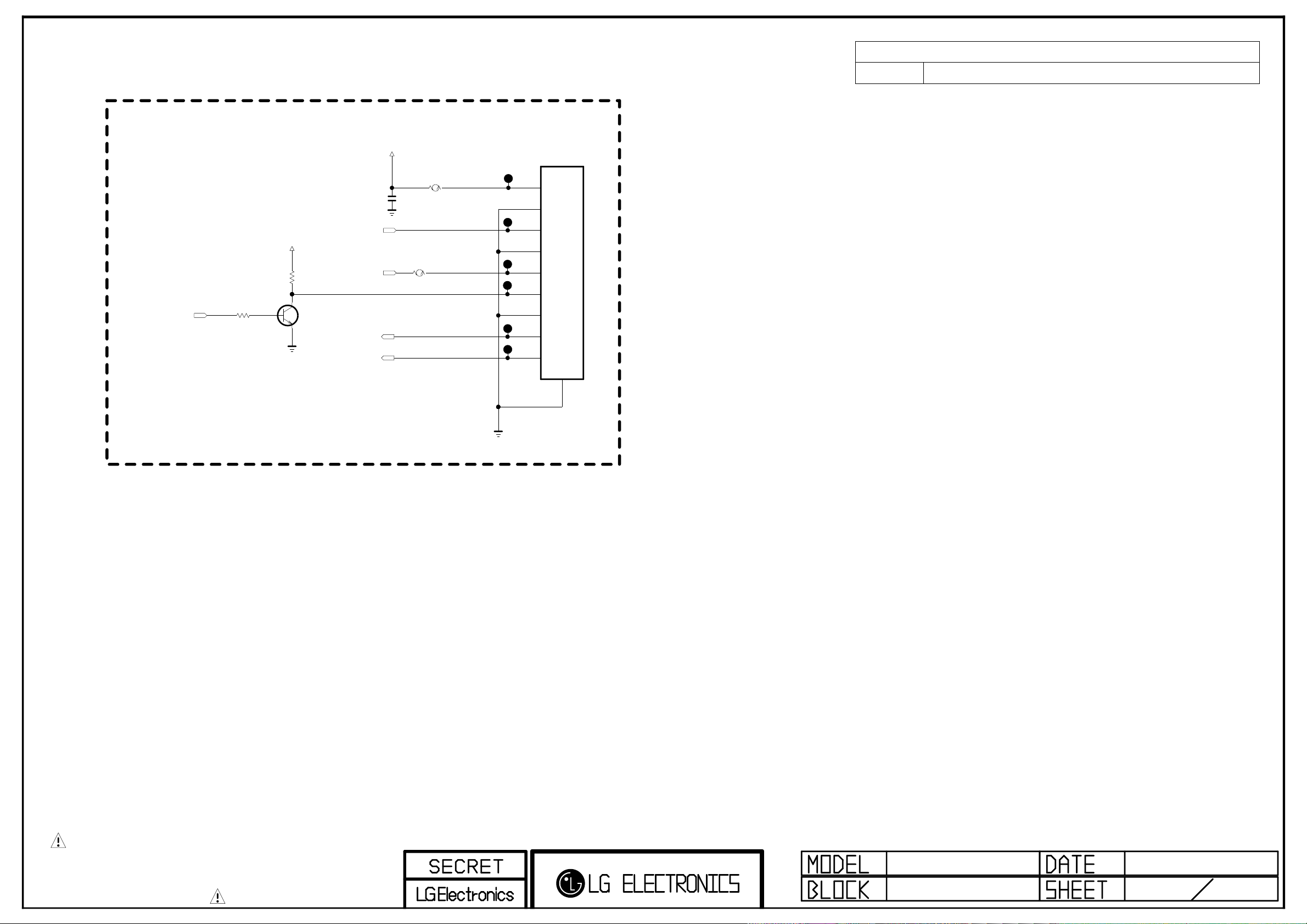

[Local Dimming Block]

P1601

12507WR-08L

L/Dim Wafer

1

2

3

4

5

6

7

8

9

R1601 33

LPB_42/47/55

R1602 33

LPB_42/47/55

L/DIM0_SCLK

L/DIM0_MOSI

SCL2_3.3V

SDA2_3.3V

L/DIM0_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

L_DIMMING

16

50

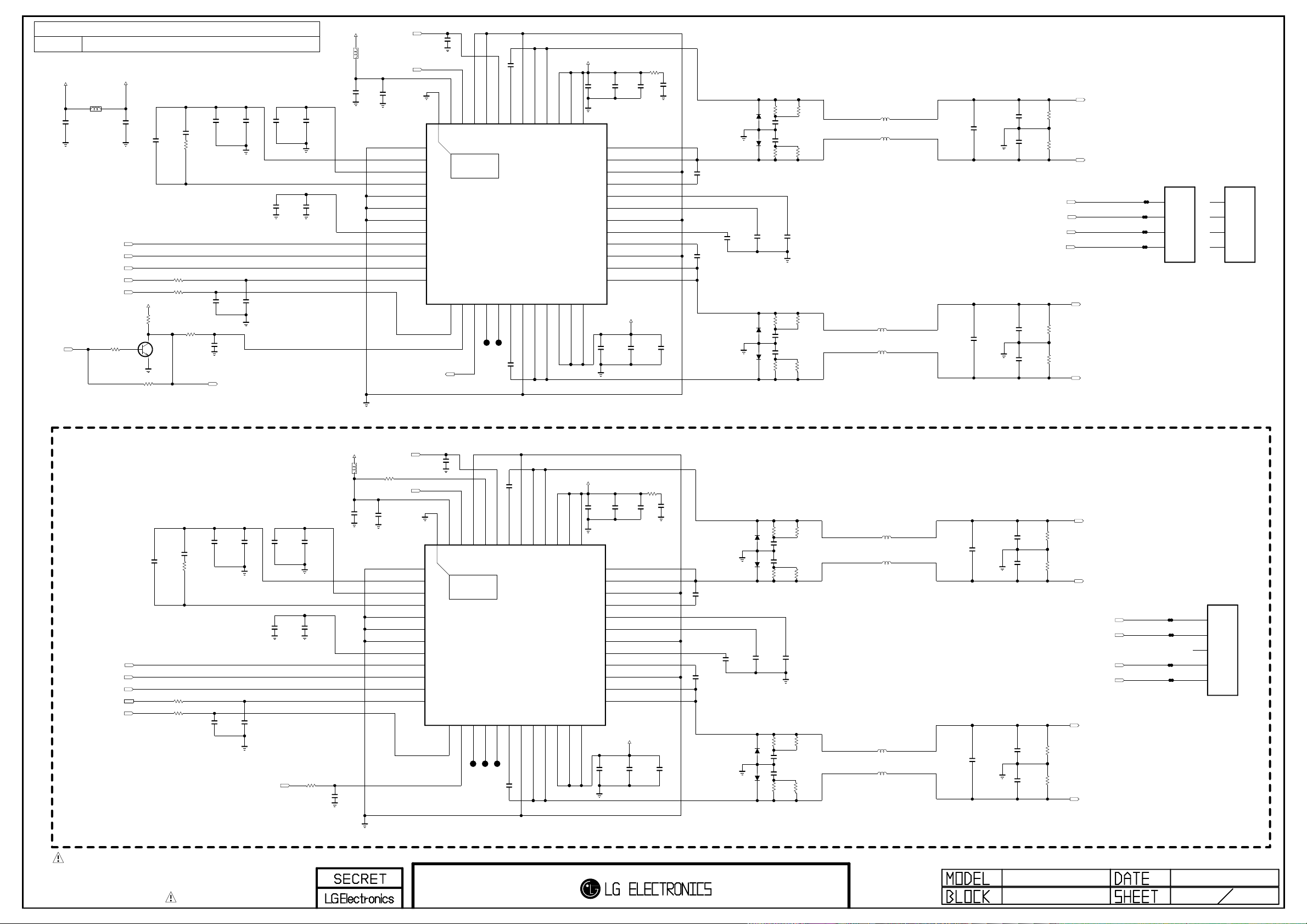

Q1801

+24V

AMP_MUTE

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

+24V_AMP

L1801

MLB-201209-0120P-N2

AUD_LRCH

AUD_LRCK

AUD_SCK

SDA3_3.3V

SCL3_3.3V

R1801

10K

C1802

0.1uF 50V

+3.5V_ST

B

R1803

OPT

C1804 100pF

50V

R1807 100

R1808 100

R1802

10K

C

Q1801

2SC3052

E

0

C1801

0.1uF 50V

R1816

100

C1806 1000pF

50V

R1815

3.3K

1000pF

C1807

+3.3V_Normal

L1803

BLM18PG121SN1D

C1832

0.1uF 16V

C1814

0.1uF 16V

C1815 33pF 50V

OPT

C1819

10uF

10V

OPT C1820 10uF

10V

C1825

0.1uF

C1826

0.1uF 16V

16V

OPT C1810

10uF

10V

C1811 33pF

NTP

50V

SUB_MUTE

AMP_RESET_N

AUD_MASTER_CLK

C1883 10uF 10V

AGND_PLL AVDD_PLL DVDD_PLL

LF

DGND_PLL

GND_1

DGND DVDD

SDATA

WCK BCK SDA

AMP_MUTE_HOTEL

C1834

1000pF

50V

[EP]

1 2 3 4 5 6 7 8 9 10 11 12

GND_IO

CLK_I

VDD_IO

46

47

48

THERMAL

49

NTP-7400L

13

14

15

SCL

/FAULT

MONITOR0

50V

C1837

BST1A

/RESET

AD

43

44

45

IC1802

16

17

18

BST2B

MONITOR1

MONITOR2

C1838

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

C1842

0.1uF 50V

PVDD1_1

37

36 35 34 33 32 31 30 29 28 27 26 25

24

PVDD2_3

C1846

0.1uF 50V

OUT1B_2 OUT1B_1 PGND1B BST1B VDR1 VCC_5 GND_2 VDR2 BST2A PGND2A OUT2A_2 OUT2A_1

+24V_AMP

C1840

0.1uF 50V

C1844

0.1uF 50V

C1848 10uF 35V

OPT

R1851

3.3 OPT

C1881

0.01uF 50V

C1850 10uF 35V

C1853 22000pF 50V

C1854 22000pF 50V

C18 56 1uF 25V

D1805

1N4148W

100V

OPT

D1806

1N4148W

100V

D1807

1N4148W

100V

OPT

D1808

1N4148W

100V

R1823

R1834

12

C1863 390pF

50V

C1864 390pF

50V

R1824

R1832

12

R1825

12

C1865 390pF

50V

C1866 390pF

50V

R1826

12

C1868 1uF 25V

12

R1833

12

R1830

12

OPT

C18 58 1uF 25V

OPT

L1810

10.0uH

NRS6045T100MMGK

L1811

10.0uH

NRS6045T100MMGK

L1806

10.0uH

NRS6045T100MMGK

L1807

10.0uH

NRS6045T100MMGK

C1871

0.47uF 50V

C1872

0.47uF 50V

C1877

0.1uF 50V

C1878

0.1uF 50V

C1879

0.1uF 50V

C1880

0.1uF

50V

R1839

4.7K

R1840

4.7K

SPK_L+

SPK_L-

SPK_R+

SPK_R-

R1841

4.7K

R1842

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

P1801

SMAW250-H04R

4

3

2

1

SPK_WAFER_ANGLE

P1801-*1

TJC2508-4A

4

3

2

1

SPK_WAFER_STRIGHT

WOOFER AMP.

AUD_LRCH

AUD_LRCK

AUD_SCK

SDA3_3.3V

SCL3_3.3V

WOOFER

C1803 100pF

50V

WOOFER

R1811 100

WOOFER

R1812 100

WOOFER

C1805 1000pF

50V

WOOFER

R1814

3.3K

OPT

C1808

10uF

10V

C1809 33pF 50V

NTP_WOOFER

WOOFER

C1812

0.1uF 16V

C1813 33pF 50V

NTP_WOOFER

SUB_MUTE

C1816

10uF

10V

C1817 10uF

+3.3V_Normal

WOOFER

L1802

BLM18PG121SN1D

WOOFER

C1831

0.1uF 16V

WOOFER

OPT

C1822

0.1uF 16V

OPT

WOOFER C1823

10V

0.1uF 16V

WOOFER

R1817

WOOFER

100

C1829

1000pF

50V

AMP_RESET_N

WOOFER

R1818

10K

AUD_MASTER_CLK

WOOFER

C1884 10uF 10V

AGND_PLL AVDD_PLL DVDD_PLL

DGND_PLL

GND_1

DGND DVDD

SDATA

WCK BCK SDA

LF

WOOFER

C1833

1000pF

50V

[EP]

1 2 3 4 5 6 7 8 9 10 11 12

GND_IO

CLK_I

VDD_IO

47

48

THERMAL

49

NTP-7400L

13

14

15

SCL

/FAULT

MONITOR0

WOOFER

50V

C1835

BST1A

/RESET

43

44

45AD46

WOOFER

IC1801

16

17

18

BST2B

MONITOR1

MONITOR2

WOOFER C1836

22000pF

50V

22000pF

OUT1A_2

PGND1A

41

42

19

20

PGND2B

OUT2B_1

PVDD1_2

PVDD1_3

OUT1A_1

38

39

40

21

22

23

OUT2B_2

PVDD2_1

PVDD2_2

+24V_AMP

WOOFER

C1841

0.1uF 50V

PVDD1_1

37

36 35 34 33 32 31 30 29 28 27 26 25

24

PVDD2_3

WOOFER C1845

0.1uF 50V

OUT1B_2 OUT1B_1 PGND1B BST1B VDR1 VCC_5 GND_2 VDR2 BST2A PGND2A OUT2A_2 OUT2A_1

+24V_AMP

WOOFER C1839

0.1uF 50V

WOOFER C1843

0.1uF 50V

OPT

R1852

3.3

WOOFER

C1847 10uF 35V

C1882

0.01uF 50V

WOOFER

C1849 10uF 35V

OPT

WOOFER

SPK_WOOFER_L+

WOOFER_L

SPK_WOOFER_L-

SPK_WOOFER_R-

SPK_WOOFER_R+

SPK_WOOFER_L-

SPK_WOOFER_L+

SPK_WOOFER_R+

WOOFER_R

SPK_WOOFER_R-

P1802

SMAW250-05

WOOFER

1

2

3

4

5

WOOFER C1851

22000pF 50V

WOOFER

C1852 22000pF 50V

OPT

WOOFER C18 55 1uF 25V

OPT

D1801

1N4148W

100V

D1802

1N4148W

100V

OPT

D1803

1N4148W

100V

D1804

1N4148W

100V

WOOFER

C18 57 1uF 25V

WOOFER

R1819

12

WOOFER

C1859 390pF

50V

WOOFER C1860 390pF

50V WOOFER R1820

12

WOOFER

R1821

12

WOOFER C1861 390pF

50V

WOOFER C1862 390pF

50V

WOOFER R1822

12

WOOFER C1867 1uF 25V

WOOFER R1831

12

WOOFER R1828

12

WOOFER R1829

12

WOOFER R1827

12

L1808

10.0uH

NRS6045T100MMGK

L1809

10.0uH

NRS6045T100MMGK

L1804

10.0uH

NRS6045T100MMGK

L1805

10.0uH

NRS6045T100MMGK

WOOFER

WOOFER C1869

0.47uF 50V

WOOFER C1870

0.47uF

50V

WOOFER C1873

0.1uF 50V

WOOFER C1874

0.1uF 50V

WOOFER

C1875

0.1uF 50V

WOOFER

C1876

0.1uF

50V

R1835

4.7K

WOOFER

R1836

4.7K

WOOFER

R1837

4.7K

WOOFER R1838

4.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

AUDIO[NEO]

18

50

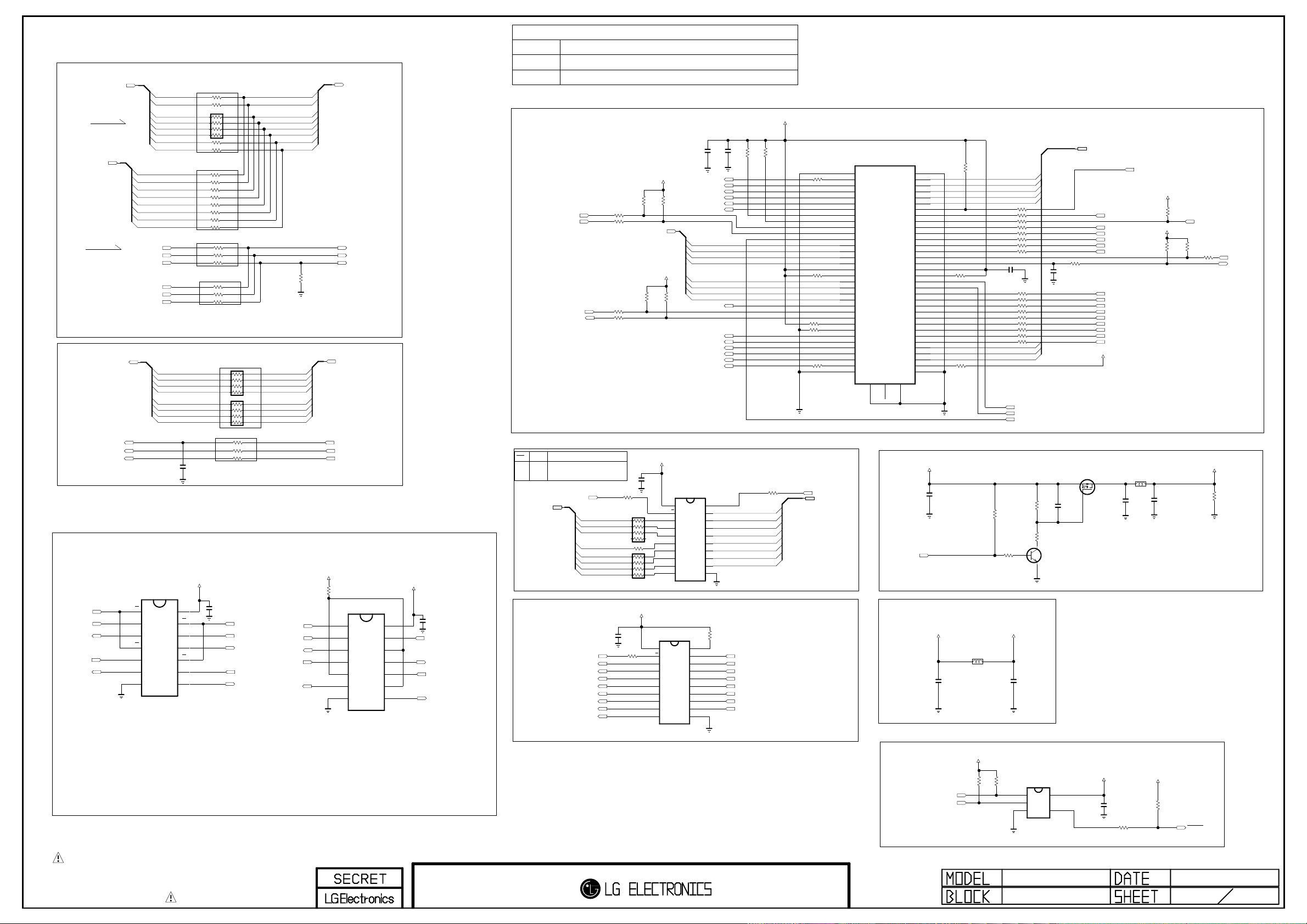

PCM_MDI[0-7]

BCM INT Demod

CI TS INPUT

PCM_TS_DATA[0-7]

PCM_TS_CLK

PCM_TS_VAL PCM_TS_SYNC

CI TS OUTPUT

/CI_CE1

NAND_REb

/PCM_OE

NAND_WEb

/PCM_WE

FE_TS_DATA[0-7]

PCM_MISTRT

PCM_MIVAL_ERR

PCM_MCLKI

NIM_VAL_ERR

CI 9

CI 15

Close to BCM35230

PCM_MDI[0] PCM_MDI[1]

PCM_MDI[2] PCM_MDI[3] PCM_MDI[4]

PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

Close to BCM35230

NIM_TS_SYNC

NIM_TS_CLK

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3]

PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

IC1901

CI

74LVC125APW

1OE

1

1A

2

1Y

3

2OE

4

2A

5

2Y

6

GND

7

R1909 22 R1910

AR1903 22

R1915 22 R1916 22

R1901 22 R1902

R1903 22 R1904 22 R1905 22 R1906 R1907 22 R1908 22

R1917 R1918 R1919

Close to Tuner

R1920 R1921 R1922

Close to CI Slot

C1916 12pF 50V OPT

+3.3V_CI

C1901

VCC

14

4OE

13

4A

12

4Y

11

10

9

8

CI 45

3OE

3A

3Y

CI 44

OPT

22

OPT

OPT OPT

CI

22

CI CI CI CI

22

CI CI CI

OPT

22

OPT

22

OPT

22

CI

22

CI

22

CI

22

AR1901 100

AR1902 100

R1923

220

R1924

100

R1925

100

0.1uF

OPT

16V

/CI_CE2

NAND_WEb

/PCM_IOWR

NAND_REb

/PCM_IORD

CI

CI CI

CI_MDI[0] CI_MDI[1]

CI_MDI[2] CI_MDI[3] CI_MDI[4] CI_MDI[5]

CI_MDI[6] CI_MDI[7]

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3]

CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

/CI_CE1

/CI_CE2

/CI_EN1

/PCM_CE1

R1977 10K OPT

+5V_CI_ON

CI

CI 7

CI_MDI[0-7]

CI_MISTRT CI_MIVAL_ERR CI_MCLKI

CI_TS_DATA[0-7]

CI_TS_CLK

CI_TS_VAL CI_TS_SYNC

R1970

22

1A

1

1B

2

1Y

3

2A

4

2B

5

2Y

6

GND

7

IC1902

74AHC08PW

CI

DUAL COMPONENT

Q1901

Q1902

IC1904

OE DIR CI_DATA NAND_DATA L L OUTPUT INPUT L H INPUT OUTPUT H X Z Z

CI_DATA[0-7]

+3.3V_CI

OPT

C1902

VCC

14

4B

13

4A

12

4Y

11

3B

10

3A

9

3Y

8

0.1uF 16V

NAND_RBb

CI_ADDR[1]

NAND_CLE

CI_ADDR[0]

NAND F/M Data

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EBK60752501, 2ND : EBK61011501

1ST : 0ISTLPH062A, 2ND : EAN40055001

+5V_CI_ON

R1971

10K

/PCM_IORD /PCM_IOWR

PCM_RST

/PCM_WAIT

/CI_EN1

PCM_ADDR[2] PCM_ADDR[3] PCM_ADDR[4] PCM_ADDR[7] PCM_ADDR[9] PCM_ADDR[11] PCM_ADDR[12] PCM_ADDR[13]

CI_DATA[0] CI_DATA[1]

CI_DATA[2]

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

/CI_EN1

R1976 R1974

R1927 R1928

R1926

OPT

CI

22

CI

22

CI

22

CI

22

OPT

22

AR1904 100

R1980 100

AR1905 100

+3.3V_CI

C1915

0.1uF 16V

R1986 22

CI

CI_MDI[0-7]

R1929

10K OPT

+3.3V_CI

0.1uF C1903 16V

CI

CI CI

74LVC245A

VCC

CI

R1972

10K

CI

+5V_CI_ON

R1930

10K OPT

IC1905

20

OE

19

B0

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

IC1903

74LVC245A

VCC

20

OE

19

B0

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

/CI_CD1 CI_TS_DATA[3] CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

CI_MDI[0] CI_MDI[1] CI_MDI[2] CI_MDI[3]

CI_MDI[4] CI_MDI[5] CI_MDI[6] CI_MDI[7]

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2]

/CI_CD2

DIR

1

CI

A0

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

GND

10

CI

DIR

1

A0

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

GND

10

C1904

0.1uF CI

R1985 10K CI

C1905 10uF 10V

CI

NAND_DATA[0] NAND_DATA[1] NAND_DATA[2] NAND_DATA[3] NAND_DATA[4] NAND_DATA[5] NAND_DATA[6] NAND_DATA[7]

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[7] CI_ADDR[9] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13]

R1932

10K

CI

R1931 22

+5V_CI_ON

R1933 10K OPT

CI

R1937

R1936

10K

R1934

R1935 0

CI

R1938 62

NAND_REb

NAND_DATA[0-7]

62

/CI_DET1

CI

CARD_EN2

TS_IN_SYN

0

OPT

TS_OUT_CLK

CI_RESET

OPT

CI

TS_OUT_VAL TS_OUT_SYN

/CI_DET2

TS_OUT3 TS_OUT4 TS_OUT5 TS_OUT6 TS_OUT7

IORD IOWR

TS_IN0 TS_IN1 TS_IN2 TS_IN3

TS_IN4 TS_IN5 TS_IN6 TS_IN7

CI_WAIT

INPACK

TS_OUT0 TS_OUT1 TS_OUT2

GND

35 36 37 38 39 40 41 42

VS1

43 44 45 46 47 48 49 50

VCC

51

VPP

52 53 54 55 56 57 58 59 60

REG

61 62 63 64 65 66 67

GND

68

P1901

10067972-000LF CI

69

GND

1

DAT3

2

DAT4

3

DAT5

4

DAT6

5

DAT6

6

/CARD_EN1

7

ADDR10

8

/O_EN

9

ADDR11

10

ADDR10

11

ADDR8

12

ADDR13

13

ADDR14

14

/WR_EN

15

/IRQA

16

VCC

17

VPP

18

TS_IN_VAL

19

TS_IN_CLK

20

ADDR12

21

ADDR7

22

ADDR6

23

ADDR5

24

ADDR4

25

ADDR3

26

ADDR2

27

ADDR1

28

ADDR0

29

DAT0

30

DAT1

31

DAT2

32

/IO_BIT

33

GND

34

G1G2

CI POWER ENABLE CONTROL

+5V_Normal

OPT

PCM_5V_CTL

3,3V_CI POWER

+3.3V_Normal

CI

C1906

0.1uF 16V

C1907

0.1uF

R1944

R1945

R1946 10K OPT

0

OPT

10K

OPT

L1901

BLM18PG121SN1D

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI CI

CI CI CI CI CI CI

C1910 0.1uF

CI CI CI CI CI CI CI CI CI

CI

R1956 22

R1962 R1963 R1957 22 R1958 R1959 R1960 R1961

CI

R1947 R1948 R1949 R1950 R1951 R1952 R1953 R1954 R1955

CI_DATA[0] CI_DATA[1] CI_DATA[2]

CI_MIVAL_ERR CI_MCLKI CI_MISTRT

R1940 10K

OPT

R1942

4.7K

CI

+3.3V_CI

C1908

CI

0.1uF

CI_DATA[0-7]

/PCM_CE1

+5V_CI_ON

R1973

22

CI_ADDR[10]

22

PCM_ADDR[11]

22

PCM_ADDR[9]

22

CI_ADDR[8]

22

PCM_ADDR[13]

22

CI_ADDR[14]

R1967 22

C1913

CI

0.1uF

16V

22 22 22 22 22 22 22 22 22

PCM_ADDR[12] PCM_ADDR[7] CI_ADDR[6] CI_ADDR[5] PCM_ADDR[4] PCM_ADDR[3] PCM_ADDR[2] CI_ADDR[1] CI_ADDR[0]

CI

CI_ADDR[10]

PCM_ADDR[11] PCM_ADDR[9] CI_ADDR[8] PCM_ADDR[13] CI_ADDR[14]

PCM_ADDR[12] PCM_ADDR[7] CI_ADDR[6] CI_ADDR[5] PCM_ADDR[4] PCM_ADDR[3] PCM_ADDR[2] CI_ADDR[1] CI_ADDR[0]

10K

+5V_CI_ON

R1968

10K

CI

/PCM_OE

R1975

10K

CI

R1964 22

/PCM_WE /PCM_IRQA

+5V_CI_ON

Q1902

AO3407A

D

S

CI

G

C1909

R1943

CI

B

22K

R1987

2.2K CI

C

Q1901 2SC3052 CI

E

4.7uF 16V OPT

BLM18PG121SN1D

C1912

0.1uF 16V

L1902

CI

C1914

CI

0.1uF 16V

+5V_CI_ON

R1969

10K

CI

CI DETECT

CI CONTROL INTERFACE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

/CI_CD2 /CI_CD1

+3.3V_CI

R1939

10K

CI

R1941

10K

74LVC1G32GW

CI

1B 5 VCC

3GND2A4 Y

BCM35230

IC1904

CI

C1911

OPT

0.1uF

16V

GND

+3.3V_CI

CI

R1965

+3.3V_CI

R1966

10K

CI

47

CI_DET

2010.11.11

CI

19

58

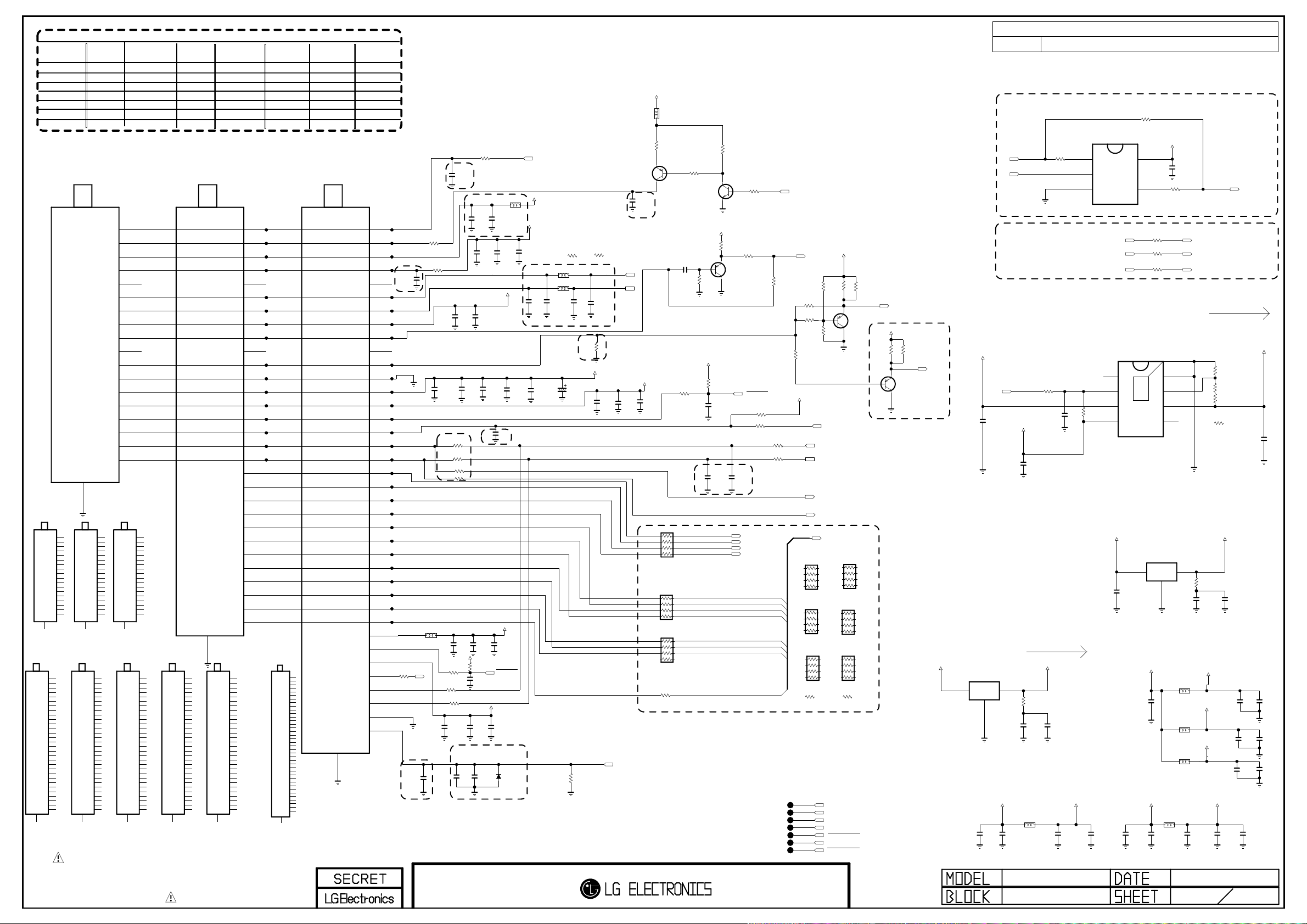

OPTION TABLE

H/NIM

(EU)

Non_DVB_S

H/NIM F/NIM

BOOSTER

H/NIM

(AU,Latin)

Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S Non_DVB_S

H/NIM

BOOSTER

H/NIM

(Brazil,Taiwan)

H/NIM

BOOSTER

RF_SW_CTL

SCART

AU_ASIA_TUNER_V

TU2201 TDTJ-S131D

ANT_PWR

1

NC_1

2

+B1[5V]

3

RF_AGC

4

MOPLL_AS

5

SCL

6

SDA

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

IF_AGC_CNTL

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

TU2201-*2 TDVJ-H031F

19

SHIELD

CN_VERTICAL_ALTOBEAM

TU2202-*2 TDFR-C256D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

LATIN_TUNER_H

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

RF_S/W_CNTL

BST_CNTL

+B1[+5V]

NC[RF_AGC]

NC_1

SCLT

SDAT

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

AU_ASIA_H/NIM_H

TU2201-*3 TDTJ-S101D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SHIELD

CN_HORIZONTAL_ALTOBEAM

TU2202-*3 TDFR-C236D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

ANT_PWR

NC_1

+B1[5V]

RF_AGC

MOPLL_AS

SCL

SDA

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

IF_AGC

DIF_1[N]

DIF_2[P]

RF_S/W_CNTL

BST_CNTL

+B1[+5V]

NC[RF_AGC]

NC_1

SCLT

SDAT

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

31

SHIELD

TAIWAN_BR_V

TU2201-*1 TDTR-T056F

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SHIELD

EU_F/NIM_DVB_T2_V

TU2202-*1 TDFR-G256D

NC_1

1

BST_CNTL

2

+B1[5V]

3

NC_2[RF_AGC]

4

NC_3

5

SCLT

6

SDAT

7

NC_4

8

SIF

9

NC_5

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

+B4[2.5V]

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

RF_S/W_CTL

BST_CNTL

+B[5V]

NC_1[RF_AGC]

NC_2

SCL

SDA

NC_3

SIF

NC_4

VIDEO

GND

+B2[1.26V]

+B3[3.3V]

RESET

IF_AGC_CNTL

DIF_1[N]

DIF_2[P]

F/NIM_T/C

BOOSTER

SCART

EU_F/NIM

TC_S_F/NIM

EU_F/NIM_DVB_TC_V

31

SHIELD

CN_VERTIAL_LG3911

TU2202-*4 TDFR-C056D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

31

SHIELD

31

SHIELD

F/NIM_T2

F/NIM

BOOSTER

SCART

EU_F/NIM

TC_S_F/NIM

TU2202 TDFR-G156D

NC_1

1

BST_CNTL

2

+B1[5V]

3

NC_2[RF_AGC]

4

NC_3

5

SCLT

6

SDAT

7

NC_4

8

SIF

9

NC_5

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

+B4[2.5V]

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

CN_HORIZONTAL_LG3911

TU2202-*5 TDFR-C036D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

(China)

F/NIM

BOOSTER

RF_SW_CTL

CN_F/NIM_BR

DVB_TCS_H

39

SHIELD

F/NIM_Brazil

(Brazil)

F/NIM

BOOSTER

RF_SW_CTL

CN

CN_F/NIM_BR

EU_F/NIM_DVB_TCS_V

TU2203-*1 TDFQ-G001D

NC_1

1

NC_2

2

NC_3

3

S2_TU[3.3V]

4

NC_4

5

TU_SCL

6

TU_SDA

7

T_1.8V

8

T_SIF

9

NC_5

10

T_CVBS

11

GND_1

12

TD_1.2V

13

T_3.3

14

T_TU_RESET

15

NC_6

16

TD_SCL

17

TD_SDA

18

T/C/S2_ERROR

19

T/C/S2_SYNC

20

T/C/S2_VALID

21

T/C/S2_MCL

22

T/C/S2_D0

23

T/C/S2_D1

24

T/C/S2_D2

25

T/C/S2_D3

26

T/C/S2_D4

27

T/C/S2_D5

28

T/C/S2_D6

29

T/C/S2_D7

30

S2_1.25V

31

S2_RESET

32

S2_3.3V

33

S2_F22

34

S2_SCL

35

S2_SDA

36

GND_2

37

S2_LNB

38

39

SHIELD

DVB-T/C/S2F/NIM_CN

(Eu,Aisa)

DVB_S

F/NIM

SCART

TC_S_F/NIM

TU2203 TDFQ-G031D

NC_1

1

NC_2

2

NC_3

3

S2_TU[3.3V]

4

NC_4

5

TU_SCL

6

TU_SDA

7

T_1.8V

8

T_SIF

9

NC_5

10

T_CVBS

11

GND_1

12

TD_1.2V

13

T_3.3V

14

T_TU_RESET

15

NC_6

16

TD_SCL

17

TD_SDA

18

T/C/S2_ERROR

19

T/C/S2_SYNC

20

T/C/S2_VALID

21

T/C/S2_MCL

22

T/C/S2_D0

23

T/C/S2_D1

24

T/C/S2_D2

25

T/C/S2_D3

26

T/C/S2_D4

27

T/C/S2_D5

28

T/C/S2_D6

29

T/C/S2_D7

30

S2_1.25V

31

S2_RESET

32

S2_3.3V

33

S2_F22

34

S2_SCL

35

S2_SDA

36

GND_2

37

S2_LNB

38

Close to Tuner #38 pin

C2201

0.1uF 16V

OPT

BLM18PG121SN1D

R2202 51

1/16W 5%

DVB_S

C2206 1000pF 50V DVB_S

RF_SW_CTL

120-ohm

LNB_TX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

H/NIM & F/NIM & T/C/S2 Combo Tuner

NON_DVB_S: use H/NIM and F/NIM

DVB_S: use DVB-T/C/S2 combo Tuner

H/NIM: use H/NIM

F/NIM: use F/NIM and DVB-T/C/S2 combo Tuner

SCART: use Scart Jack

CN : use China F/NIM

BOOSTER: use BOOSTER_CTL

RF_SW_CTL: use RF_SWITCH_CTL

TC_S_F/NIM: use EU_DVB-T/C F/NIM

CN_F/NIM_BR: use F/NIM(China, BRZIL)

EU_F/NIM: use EU_F/NIM

R2209

0

RF_SW_CTL

C2203

close to TUNER

0.1uF 16V

C2225

0.1uF

16V

NON_DVB_S

C2284

C2285

100pF

0.1uF

50V

16V

DVB_S

+1.8V_TU

C2208

0.1uF 16V

DVB_S

C2220 1000pF

CN

50V

C2213

0.1uF 16V

C2226

C2230

0.1uF

10uF

16V

10V

DVB_S

S2_RESET

+3.3V_S2_DE

C2232 10uF 10V

DVB_S

D2201

C2212

3.0SMCJ20A(suzhougrande)

33pF

DVB_S

NON_DVB_S

BOOSTER

0

R2206

DVB_S R2277

0

close to TUNER

C2204 100pF 50V

DVB_S

C2215

CN

L2209

DVB_S

10uF

16V

R2204 0

R2205 0

R2293 0 R2292 0

R2203

100

DVB_S

R2283 0

DVB_S

R2284 0

DVB_S

C2224 100pF 50V

DVB_S

F/NIM

H/NIM

C2223 100pF 50V DVB_S

C2205 100pF 50V

+1.25V_TU

Surge protectioin

C2209 33pF OPT

C2222 100pF 50V NON_DVB_S

close to IF line

+3.3V_S2_LNB R2208

2.2K DVB_S

C2207

0.1uF DVB_S

C2228

0.1uF

16V

DVB_S

L2205

1uH

close to TUNER

+3.3V_S2_TU

C2286

10uF

6.3V

DVB_S

close to TUNER

C2219 62pF 50V

NON_DVB_S

C2218

C2210

4700pF

CN

50V

16V

EU_F/NIM

close to Tuner

RF_SWITCH_CTL

+5V_TU

L2206 270nH

L2210 270nH

C2221 62pF 50V

NON_DVB_S

CN

0.1uF

L2206-*1

DVB_S

0

NON_DVB_S

C2214 100uF 16V

R2207

2.2K DVB_S 6432

C2202 20pF 50V

R2291

L2210-*1

DVB_S

75

OPT

+1.25V_TU

CN

0

SCL0_3.3V

SDA0_3.3V C2211 20pF 50V

NON_DVB_S

close to TUNER

C2217

C2227

10uF

100pF 50V

16V

LNB_OUT

+5V_TU

BOOSTER

L2201

BLM18PG121SN1D

BOOSTER

R2231

0

Q2202 MMBT3906(NXP)

E

B

C

C2234

0.01uF 50V

BOOSTER

close to TUNER

+3.3V_TU

C2231

0.1uF 16V

AR2200 47

EU_F/NIM

AR2201

47

EU_F/NIM

AR2202

47

EU_F/NIM

R2226 47

EU_F/NIM

Close to the tuner

BOOSTER

R2235

2.2K

BOOSTER

2SC3052

+5V_TU

C2235

DVB_S

0.1uF R2230

16V

4.7K

DVB_S

+3.3V_TU

R2229 100

close to TUNER

Q2203

R2234

B

470

DVB_S

R2233 100K

C2238 16V

C2237 18pF 50V

OPT

0.1uF

BOOSTER

R2242 10K

C

B

E

Q2201

C

MMBT3906(NXP)

DVB_S

C2241 18pF 50V

OPT

R2246 10K

BOOSTER

R2237 82

DVB_S

TU_RESET

EU_F/NIM

R2240

H/NIM

R2241

TU_TS_ERR TU_TS_SYNC TU_TS_VAL TU_TS_CLK

FE_TS_DATA[1] FE_TS_DATA[0] FE_TS_DATA[3] FE_TS_DATA[2]

FE_TS_DATA[5] FE_TS_DATA[4] FE_TS_DATA[6]

FE_TS_DATA[7]

NON_DVB_S

SCART

0

R2215 22

R2216 22

R2243

0

R2247

0

+2.5V_TU

RF_BOOSTER_CTL

TU_SIF

R2250

1K

OPT

0

R2248

0

R2249

1K

OPT

SCL1_3.3V

SDA1_3.3V

IF_N

IF_P

AR2200-*1 0

CN

AR2201-*1 0

CN

AR2202-*1 0

CN

R2226-*1 0

CN

+5V_TU

R2252 220

E

B

Q2204

R2251

MMBT3906(NXP)

C

IF_AGC

FE_TS_DATA[0-7]

AR2200-*2 33

DVB_S

AR2201-*2 33

DVB_S

AR2202-*2 33

DVB_S

R2226-*2 33

DVB_S

CHBO_TS_CLK CHBO_TS_SERIAL CHBO_TS_SYNC CHBO_TS_VAL_ERR

TU_RESET_SUB

RF_SWITCH_CTL_2

TW9910_RESET

R2253

220

SCART

TU_CVBS

+5V_TU

R2254

200

E

B

Q2205

MMBT3906(NXP)

C

SCART

OPTION:SCART

R2255

200

SCART

ATV_OUT

+3.3V_TU

C2289

10uF

16V

IC2202

AZ1117BH-1.8TRE1

IN

3

DVB_S

1

ADJ/GND

+5V_Normal

C2258 22uF 16V

IC2204

1ST:T-AP2114H(EAN61573601) / 2ND:T-TJ3940S (EAN61573501)

ERROR & VALID PIN

<EU, China, Brazil,S2>

TU_TS_VAL

TU_TS_ERR

R2258 0

DVB_TC/TCS_F/NIM

Tuner to CI Slot

OPT C2292 1uF

R2210 10K

0.1uF

C2291

OPT

POWER_ON/OFF2_1

+5V_Normal

Max 217mA

+1.8V_TU

OUT

2

R2298 1

DVB_S

C2288

C2287

0.1uF

10uF

16V

10V DVB_S

DVB_S

L2208

MLB-201209-0120P-N2

C2252

0.1uF

16V

C2260 22uF 16V

BCM35230

TUNER SINGLE

DUAL COMPONENT

R2263 0

DVB_T2/CN_F/NIM_BR

IN_B

IN_A

GND

IC2203

NL17SZ08DFT2G

1

2

3

VCC

5

OUT_Y

4

+3.3V_TU

DVB_TC/TCS_F/NIM

R2266

IC2208

1

2

3

4

2A

EAN61387601

9

THERMAL

0

R2267 0

R2268 0

TS_VAL_ERR

TU_TS_SYNC

TU_TS_CLK

AP2132MP-2.5TRG1

R2211

10K

OPT

VCTRL

PG

EN

VIN

Vout=0.6*(1+R1/R2)

+3.3V_TU

IC2204

AP2114H-2.5TRG1

VIN

3

C2268

0.1uF

OPT

16V

+3.3V_TU

C2242

OPT

0.1uF

+5V_TU

C2262

0.1uF 16V

+3.3V_Normal

MLB-201209-0120P-N2

C2216

C2249

22uF

0.1uF

16V

CN

C2271

0.1uF 16V

OPT

R2269 0

NIM_VAL_ERR

NIM_TS_SYNC

NIM_TS_CLK

[EP]

8

GND

7

ADJ

6

VOUT

5

NC

VOUT

2

1

GND

+3.3V_S2_LNB

L2204

MLB-201209-0120P-N2

DVB_S

+3.3V_S2_DE

L2202

MLB-201209-0120P-N2

DVB_S

+3.3V_S2_TU

L2203

MLB-201209-0120P-N2

DVB_S

L2207

C2255

22uF

16V

22

NON_CN

R2214-*1 10K

1/16W 1%

CN

+2.5V_TU

R2270 1 EU_F/NIM

C2276 10uF 10V EU_F/NIM

+3.3V_TU

Max 1.5A

+1.25V_TU (EU)

+1.23V_TU (CN)

R2212 20K 1%

R2213 11K 1% R2214 11K 1%

C2279

0.1uF 16V

EU_F/NIM

C2245

10uF

10V

DVB_S

C2243

10uF

10V

DVB_S

C2244 10uF 10V

DVB_S

C2259

0.1uF 16V

TS_VAL_ERR

R2

R1

C2261

0.1uF 16V

+1.25V_TU

C2248

0.1uF

DVB_S

C2246

0.1uF DVB_S

C2247

0.1uF 16V DVB_S

C2290 10uF

16V

DVB-S2 LNB Part Allegro

(Option:LNB)

LNB_OUT

2A

D2302

US1M(suzhou)

1000V

LNB

C2301

0.22uF 25V

A_GND

LNB

D2301 SMAB34

40V

C2307

0.01uF 50V

LNB

close to Boost pin(#1)

C2302

1uF 50V LNB

LNB_TX

C2324

68uF

35V

LNB

C2303

0.1uF 50V

LNB

C2304 0.1uF

LNB

A_GND

C2305

68uF

35V

LNB

DCDC_GND

D2303 SMAB34

40V

LNB

A_GND

C2306 22000pF

LNB

A_GND

BOOST

VCP

TCAP

NC_1

TDO

EXTM

TDI

D2304 SMAB34

40V

LNB

DCDC_GND

[EP]

1

2

3

4

5

6

7

VIN

GNDLX

LNB

25

26LX27

28

THERMAL

29

IC2301

A8290SETTR-T

LNB

9

10

8

SDA11ADD12SCL

GND

VREG

3A

LNB

L2301

33UH

SP-7850_33

2.4A

NC_9

BFI

23

24

13

NC_2

+12V_LNB

BFO

22

21

20

19

18

17

16

15

14

IRQ

C2311 10uF 25V

LNB

DCDC_GND

NC_8

NC_7

BFC

NC_6

NC_5

NC_4

NC_3

+3.3V_Normal

A_GND

C2312

0.1uF 50V

close to VIN pin(#25)

LNB

A_GND

R2313 0

LNB

DCDC_GND

DCDC_GND and A_GND are connected DCDC_GND and A_GND are connected in pin#27

PCB_GND and A_GND are connected

Input trace widths should be sized to conduct at least 3A Ouput trace widths should be sized to conduct at least 2A

R2314 0

LNB

A_GND

R2301 33

LNB

C2308 0.22uF

LNB

R2302 33

OPT

C2309 27pF

SDA1_3.3V

LNB

R2303 0

27pF

OPT

C2310

SCL1_3.3V

LNB

LNB_INT

R2304

4.7K

LNB

+12V

L2302

BLM18PG121SN1D

Max 1.3A

+12V_LNB

LNB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

LNB

2010.11.02

23

57

Q2502,Q2503 Q2504,Q2506 Q2507,Q2508

Q2501

Q2505

D2513

DUAL COMPONENT

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : EBK61012701, 2ND : EBK58172301

1ST : 0TRIH80004A, 2ND : EBK61012501, 3RD : 0TR102009AM

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

Full Scart(18 Pin Gender)

D2501

5.5V

D2502

5.5V

OPT D2503

30V

D2504

5.5V

D2505

5.5V

D2506

5.5V

D2507

5.6V OPT

D2508

5.6V

OPT

D2509

5.6V OPT

D2510

5.6V OPT

EU

SHIELD

19

DA1R018H91E

JK2501

EU

AV_DET

18

17

16

15

14

RGB_IO

13

12

11

G_OUT

10

G_GND

9

ID

8

B_OUT

7

AUDIO_L_IN

6

B_GND

5

AUDIO_GND

4

AUDIO_L_OUT

3

AUDIO_R_IN

2

AUDIO_R_OUT

1

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND

R_OUT

R_GND

JP2501

JP2502

JP2503

JP2504

JP2505

JP2506

JP2507

JP2508

JP2509

JP2510

JP2511

JP2512

EU

R2506 75 1%

R2507 75

EU

EU R2508 75 1%

EU

R2509

75 1%

EU

R2510

470K

EU R2511

470K

+3.3V_Normal

R2514

CLOSE TO JUNCTION

10K

EU

R2525

1K

R251375

EU

25V

C2515 100uF 16V

R25150

R25160

R25170

L2508

EU

L2509

EU

C2511

0.1uF EU

EU

CLOSE TO JUNCTION

D2511

5.6V

R2577

C2509 560pF 50V

EU

C2510 560pF 50V

EU

10

C2536 47pF 50V

EU

CLOSE TO JUNCTION

EU

C2537

1uF

EU

C2538

1uF

EU

BLM18PG121SN1D

EU

R2504

75 1%

1%

R2522

EU

CLOSE TO SOC

COMP2_Pr

COMP2_Y

COMP2_Pb

EU

R253022

EU

R253122

EU

C2518 1000pF 50V

EU

C2519

1000pF

50V

SC_DET/COMP2_DET

0

EU R2578 10K

MMBT3906(NXP)

Q2501

SC_CVBS_IN

Gain=1+Rf/Rg

+3.3V_Normal

B

EU C2522 4700pF

C2523 4700pF

EU

E

B

C

EU R2532

390

EU R2533 390

Rf

EU

R2579

10K

C

EU

Q2509 2SC3052

E

C2516 100pF 50V

C2517 100pF 50V

EU

C

E

Rg

EU

HOTEL_OPT

470

R25340

EU

Q2502 2SC3052

B

EU R2535 180

EU R2581 1K

R2536

EU R2537 47K

EU R2538 15K

SC/COMP2_L_IN

SC/COMP2_R_IN

AUDIO_R

+3.3V_Normal

B

DTV/MNT_L_OUT

DTV/MNT_R_OUT

C2524 47uF 16V

EU

R2580

10K

C

E

OPT

D2512

30V

IN CASE OF SMALL= 15V

EU

L2506

EU

C2525

0.1uF 50V

EU

EU Q2510 2SC3052

EU

R2539

9.1K

1/16W 1%

+12V

EU

C2526

0.1uF 50V

SC_FB

D2513

30V

EU

R2542

10K/1K to match ADC Full-Scale range (1% of accruacy)

+5V_Normal

EU

R2545

10K

IC2502

NLASB3157DFT2G

SELECT

6

VCC

5

A

4

Selece = High ==> A = B1

Selece = Low ==> A = B0

REC_8

EU

1K

1%

C2528 1uF 10V

SC_ID

EU

B1

1

EU

GND

2

B0

3

ATV_OUT

C2532 180pF

50V

OPT

INCM_VID_SC

DTV_ATV_SELECT

L2507

120-ohm

BLM18PG121SN1D

NON_DTV_OUT

L2507-*1 0

DVT_OUT

CLOSE TO SOC

C2533

0.1uF 16V

C2534 180pF

50V

OPT

R2549 36

R2551

75 1% EU

CLOSE TO SOC

CLOSE TO JACK

TP2501

DTV/MNT_V_OUT

AUD_OUT >> EU/CHINA_HOTEL_OPT

+12V

AUD_OUT

SCART1_Lout_N

SCART1_Lout_P

SCART1_Rout_P

SCART1_Rout_N

AUD_OUT

CLOSE TO soc

L2501 AUD_OUT

C2501

0.1uF 50V

R25715.6K

R25725.6K

AUD_OUT

R25735.6K

DTV/MNT_L_OUT

AUD_OUT

R25705.6K

DTV/MNT_R_OUT

C2513 10uF 16V

C2514

10uF 16V

AUD_OUT

C2535 6800pF

AUD_OUT

R2518 1K

50V

AUD_OUT

R25191K

AUD_OUT

R2524 6800pF

50V

AUD_OUT

33pF AUD_OUT

AUD_OUT

R252633K

C2520

R252733K

C2521 33pF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

AUD_OUT

R2528 10K

AUD_OUT R2529 10K

OUT1

IN1-

IN1+

IN2+

IN2-

OUT2

OPT R2557 1K

OPT

R2556 1K

OPT R2558 10K

B

+12V

C

Q2506 2SC3052

E

C

OPT

B

Q2508

OPT R2561 12K

C

B

OPT

E

Q2507 2SC3052

OPT

E

2SC3052

REC_8

IC2501 LM324D

1

AUD_OUT

2

3

VCC

4

5

6

7

OUT4

14

IN4-

13

IN4+

12

VEE/GND

11

IN3+

10

IN3-

9

OUT3

8

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU Q2503 2SC3052

EU Q2504 2SC3052

R2543 2K

R2544 2K

EU

EU RT1P141C-T112 Q2505

3

2

+3.5V_ST

R2548 10K EU

1

SCART_MUTE

[SCART PIN 8]

OPT R2552

4.7K

SC_RE1

SC_RE2

BCM35230

SCART

25

NON CHB

TS Output

CHBO_TS_SERIAL CHBO_TS_CLK CHBO_TS_VAL_ERR CHBO_TS_SYNC

CHB_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON CHB

28

50

DUAL COMPONENT

China Hotel Option

+3.3V_Normal

AMP_RESET_N

SPK_R+_HOTEL

SPK_R-_HOTEL

AMP_MUTE_HOTEL

R2901 200 CN_HOTEL

B

R2902 10K CN_HOTEL

C

Q2901 MMBT3904(NXP) CN_HOTEL

E

AUDIO_R

+24V_AMP

C2901

0.1uF CN_HOTEL

R2904 CN_HOTEL

CN_HOTEL

R2903 0

Q2901

P2901

12505WS-09A00

CN_HOTEL

0

1

2

3

4

5

6

7

8

9

10

1ST : EBK61012601 2ND : 0TRDI80002A

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

CHINA HOTEL

29

3D_SYNC

L_VS

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

NON URSA 50

36

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SMD GASKET

M1-*3

MDS62110206 GASKET_6.5T

M2-*3

MDS62110206 GASKET_6.5T

M3-*3

MDS62110206 GASKET_6.5T

M4-*3

MDS62110206 GASKET_6.5T

M5-*3

MDS62110206 GASKET_6.5T

M6-*3

MDS62110206 GASKET_6.5T

M7-*3

MDS62110206 GASKET_6.5T

M8-*3

MDS62110206 GASKET_6.5T

M9-*3

MDS62110206 GASKET_6.5T

M10-*3

MDS62110206 GASKET_6.5T

M11-*3

MDS62110206 GASKET_6.5T

M12-*3

MDS62110206 GASKET_6.5T

SMD GASKET 6.5T

MDS62110204 GASKET_5.5T

M1-*2

M2-*2

M3-*2

M4-*2

M5-*2

M6-*2

M7-*2

M8-*2

M9-*2

M10-*2

M11-*2

M12-*2

SMD GASKET 5.5T

M1-*1

MDS62110210

GASKET_5.0T

M2-*1

MDS62110210

GASKET_5.0T

M3-*1

MDS62110210

GASKET_5.0T

M4-*1

MDS62110210

GASKET_5.0T

M5-*1

MDS62110210

GASKET_5.0T

M6-*1

MDS62110210

GASKET_5.0T

M7-*1

MDS62110210

GASKET_5.0T

M8-*1

MDS62110210

GASKET_5.0T

M9-*1

MDS62110210

GASKET_5.0T

M10-*1

MDS62110210

GASKET_5.0T

M11-*1

MDS62110210

GASKET_5.0T

M12-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M1

MDS62110208

GASKET_4.5T

M2

MDS62110208 GASKET_4.5T

M3

MDS62110208 GASKET_4.5T

M4

MDS62110208 GASKET_4.5T

M5

MDS62110208 GASKET_4.5T

M6

MDS62110208 GASKET_4.5T

M7

MDS62110208 GASKET_4.5T

M8

MDS62110208 GASKET_4.5T

M9

MDS62110208 GASKET_4.5T

M10

MDS62110208 GASKET_4.5T

M11

MDS62110208 GASKET_4.5T

M12

MDS62110208 GASKET_4.5T

SMD GASKET 4.5T

SMD GASKET

BCM35230

GASKET3.5T_HEATSINK

MDS62110213

M20

GASKET3.5T_HEATSINK

MDS62110213

M21

GASKET3.5T_HEATSINK

MDS62110213

M22

GASKET3.5T_HEATSINK

MDS62110213

M23

M1-*6

MDS61887710

GASKET_9.5T

M2-*6

MDS61887710

GASKET_9.5T

M3-*6

MDS61887710

GASKET_9.5T

M4-*6

MDS61887710

GASKET_9.5T

M5-*6

MDS61887710

GASKET_9.5T

M6-*6

MDS61887710

GASKET_9.5T

M7-*6

MDS61887710

GASKET_9.5T

M8-*6

MDS61887710

GASKET_9.5T

M9-*6

MDS61887710

GASKET_9.5T

M10-*6

MDS61887710

GASKET_9.5T

M11-*6

MDS61887710

GASKET_9.5T

M12-*6

MDS61887710

GASKET_9.5T

SMD GASKET 9.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

MDS62110209

GASKET_8.5T

M1-*5

M2-*5

M3-*5

M4-*5

M5-*5

M6-*5

M7-*5

M8-*5

M9-*5

M10-*5

M11-*5

M12-*5

SMD GASKET 8.5T

M1-*4

MDS62110205

GASKET_7.5T

M2-*4

MDS62110205

GASKET_7.5T

M3-*4

MDS62110205

GASKET_7.5T

M4-*4

MDS62110205

GASKET_7.5T

M5-*4

MDS62110205

GASKET_7.5T

M6-*4

MDS62110205

GASKET_7.5T

M7-*4

MDS62110205

GASKET_7.5T

M8-*4

MDS62110205

GASKET_7.5T

M9-*4

MDS62110205

GASKET_7.5T

M10-*4

MDS62110205

GASKET_7.5T

M11-*4

MDS62110205

GASKET_7.5T

M12-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

2010. 09. 18

56

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M13-*2

MDS62110204 GASKET_5.5T

M14-*2

MDS62110204 GASKET_5.5T

M15-*2

MDS62110204 GASKET_5.5T

SMD GASKET 5.5T

M13-*1

MDS62110210

GASKET_5.0T

M14-*1

MDS62110210

GASKET_5.0T

M15-*1

MDS62110210

GASKET_5.0T

SMD GASKET 5.0T

M13

MDS62110208

GASKET_4.5T

M14

MDS62110208 GASKET_4.5T

M15

MDS62110208 GASKET_4.5T

SMD GASKET (UNDER THE TUNER)

SMD GASKET 4.5T

M13-*5

MDS62110209

GASKET_8.5T

M14-*5

MDS62110209

GASKET_8.5T

M15-*5

MDS62110209

GASKET_8.5T

SMD GASKET 8.5T

M13-*4

MDS62110205

GASKET_7.5T

M14-*4

MDS62110205

GASKET_7.5T

M15-*4

MDS62110205

GASKET_7.5T

SMD GASKET 7.5T

M13-*3

MDS62110206 GASKET_6.5T

M14-*3

MDS62110206 GASKET_6.5T

M15-*3

MDS62110206 GASKET_6.5T

M13-*6

MDS61887710

GASKET_9.5T

M14-*6

MDS61887710

GASKET_9.5T

M15-*6

MDS61887710

GASKET_9.5T

SMD GASKET 6.5T

SMD GASKET 9.5T

TUNER SMD GASKET

BCM35230

2010. 09. 18

57

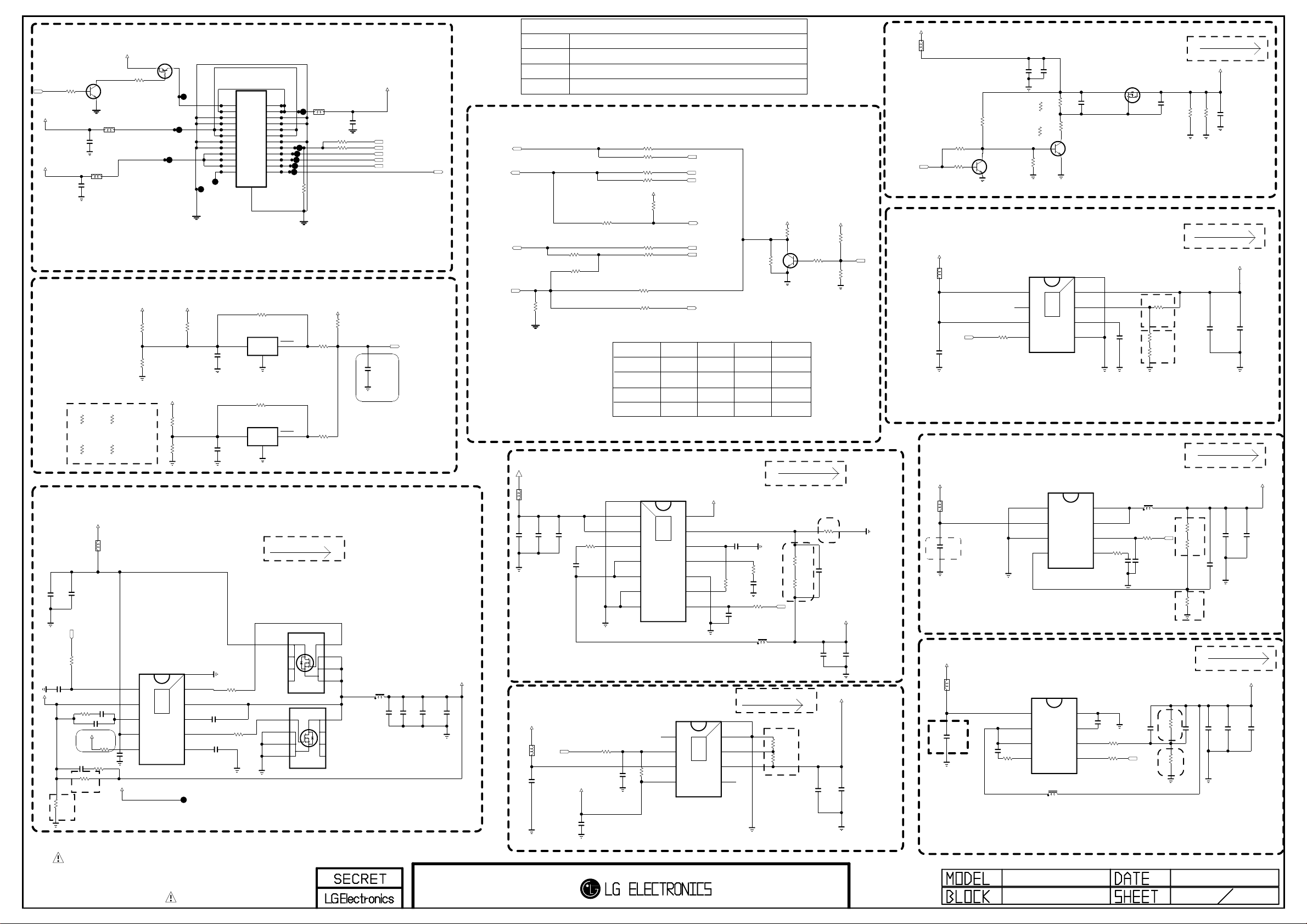

FROM LIPS & POWER B/D

+3.5V_ST

RT1P141C-T112

Q502

R502

RL_ON

10K

+3.5V_ST

+12V

MLB-201209-0120P-N2

C506

0.1uF 50V

#16/#20/#23 LD - GND OR USE LE(N.L.D.) - OPEN LE(L.D.) - USE

C

Q501

B

2SC3052

E

L503

MLB-201209-0120P-N2

C508

0.1uF 16V

L501

R508

4.7K

3

1

2

PWR ON

3.5V

GND/P.DIM2

NORMAL_26~55

1

24V

3

GND

5

GND

7

7 9

9 11

11

GND

13

GND

15

12V

17

12V

19

12V

21

21 22 23

23 24

SLIM_32~55

SMAW200-H24S2

P502 FW20020-24S

2

2 4

4 6

6 8

8

10

10 12

12 14

14 16

16 18

18 20

20 22 24

25

P501

24V 24V GND GND

3.5V

3.5V GND GND/V-sync INV ON A.DIM P.DIM1 Err OUT

L504

MLB-201209-0120P-N2

POWER_16_URSA_SCAN

R574 0 R573 0

POWER_16_BCM_SCAN

R518

0

POWER_16_GND

C519

0.1uF

+24V

50V

L_VS L/DIM0_VS INV_CTL_18

A_DIM_20 PWM_DIM_22

Power_DET

PD_+20V R510-*4

5.6K 1%

PD_+20V R511-*4

1.3K 1%

PD_+18.5V R510-*3

4.7K 1%

PD_+18.5V R511-*3

1.21K 1%

+12V

PD_+12V

R512

2.7K 1%

PD_+12V

R513

1.21K 1%

+24V

+3.5V_ST

PD_24V

R510

8.2K 1%

PD_24V

R511

1.5K 1%

PD_+3.5V R515 0 5%

NCP803SN293

VCC

3

C580

0.1uF 16V

PD_+18.5_20_24V

NCP803SN293

VCC

3

C581

0.1uF 16V

PD_+18.5_20_24V

GND

R517 100K

IC503

R516 100K

IC502

+3.5V_ST

R522 10K OPT

R520

RESET

2

1

RESET

2

1

100

R519 100

PD_+18.5_20_24V

POWER_DET

ESD

C520

0.1uF 16V

not to RESET at 8kV ESD

15V-->3.6V 20V-->3.5V

24V-->3.48V 12V-->3.58V

ST_3.5V-->3.5V

+0.9V_CORE_BCM35230

+12V

L502

BLM18PG121SN1D

Placed on SMD-TOP

C505

C503

10uF

16V

POWER_ON/OFF2_2

R503

C504

100pF

50V

0.9V_CORE_FB

R501 12K 1%

R2

1K

R504 2K

C509

+3.3V_Normal TEST

C507 1000pF

50V

R505

6.8K 1%

R1

10K

R506 330

50V

R507

C510

0.01uF 50V

220pF

OPT

ENABLE

TPS40192DRCR

1

FB

2

COMP

3

VDD

4

PGD

5

C513

0.1uF 16V

0.9V_CORE_FB

IC501

11

THERMAL

EP_GND

HDRV

10

9

8

7

6

SW

BOOT

LDRV

BP5

R577 4.7

C515

0.47uF

25V

R578 4.7

C516

4.7uF

10V

Vout=0.591*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Max 7350 mA

AON7430

5D

4G

3S_3

2S_2

1S_1

AON7200

Q508

Q503

4 G

3 S_3

2 S_2

1 S_1

5 D

L505

1uH

C522 22uF 10V

Switching freq: 600K

OPT

C523

22uF

10V

ERROR_OUT_24

OPT C524 47uF 10V

+0.9V_CORE

C525 10uF 10V

Q501,Q504, Q505,Q506

Q502

Q507

IC502,IC503

1ST : 0TRIY80001A 2ND : 0TR387500AA

1ST : 0TRIH80004A, 2ND : EBK61012501, 3RD : 0TR102009AM

1ST : EBK60752501, 2ND : EBK61011501

1ST : EAN61151001, 2ND : EAN60670101

OS Module OPT

INV_CTL_18

A_DIM_20

POWER_20_ERROR_OUT

PWM_DIM_22

ERROR_OUT_24

0

POWER_24_GND

R524

POWER_22_PWM_DIM

R526

0

0R527

POWER_24_PWM_DIM

+12V

L507

BLM18PG121SN1D

C502

10uF 16V OPT

C535

0.1uF 50V OPT

C511

0.1uF 50V

R562 0

1/10W 5%

C501

10uF 16V

Vout=0.8*(1+R1/R2)

+2.5V_BCM35230

+3.5V_ST

POWER_ON/OFF2_1

L506

120-ohm

C527

+5V_Normal

10uF

6.3V

C531 1uF

OPT

DUAL COMPONENT

R532

POWER_18_INV_CTL

100

POWER_18_A_DIM

R533

POWER_20_A_DIM

R531 0

POWER_20_PWM_DIM

+3.3V_Normal

0R529

POWER_22_A_DIM R535 0

NON_OPC/NON_IOP

POWER_24_INV_CTL

100

POWER_24_ERROR_OUT

0

0R538

ERROR_OUT_PULL_UP R523

4.7K

0R540

R537

0R541

A_DIM

PWM_DIM

ERROR_OUT

PWM_DIM

ERROR_OUT

PIN No

18

20

22

24

INV_ON

V4:VBR-A V5:NC

PWM_DIM

Err_out LED:GND

LGD

CMO(09)

A-DIM

PWM_DIM

INV_ON

CHECK PWR/MODULE PIN MAP

+3.3V_NORMAL

VIN2

VIN1

VBST

SW2

SW1

IC505

TPS54425PWPR

14

13

12

4A

11

10

9

8

THERMAL

15

[EP]PGND

PGND2

PGND1

AP2132MP-2.5TRG1

OPT R528 10K

R536

VIN

10K

VCTRL

C533

0.1uF OPT

Vout=0.6*(1+R1/R2)

PG

EN

VO

1

VFB

2

VREG5

3

SS

4

GND

5

PG

6

EN

7

IC504

1

2

3

4

2A

EAN61387601

+3.3V_Normal

9

THERMAL

A_DIM

+12V

L511

12V_PANEL

MLB-201209-0120P-N2

R555 22K

OPT R554 10K

C

R553

+3.5V_ST

47K

L517

BLM18PG121SN1D

C590

10uF

10V

PANEL_CTL

B

Q504

2SC3052

R547 10K

+3.5V_ST

R551 10K

10K

OPT

R552 OPT

INV_CTL

+3.3V_Normal

R546 1K

C

R543

6.8K OPT

E

AUO

INV_ON

Err_out

NC

A-DIM

PWM_DIM

SHARP

INV_ON

Err_out

PWM_DIM

GND

Q505

B

2SC3052

E

+1.5V_DDR

POWER_ON/OFF1

PANEL_POWER

C550

0.01uF 50V

AP7173-SPG-13 HF(DIODES)

R591 10K

C551

0.1uF 50V

R558

10K

R558-*1

22K

5V_PANEL

12V_PANEL

R559

1.8K

R559-*1

2.7K

5V_PANEL

R557

C

12V_PANEL

Q506

B

2SC3052

E

22K

IC508

IN

1

PG

2

VCC

3

EN

4

THERMAL

1.5A

8

9

7

6

5

Vout=0.8*(1+R1/R2)

+5V_Normal

[EP]

OUT

FB

SS

GND

C552 10uF

TYP 1450mA

PANEL_VCC

Q507

AO3407A

D

S

1uF

25V

G

25V

C560

OPT

R575

PANEL_DISCHARGE_REG

C563

2K

0.1uF

1/8W

R576

50V

PANEL_DISCHARGE_REG

Max 800mA

+1.5V_DDR

R1

R595

4.3K

C593 560pF 50V

1%

R593

3.9K 1%

R592 1K 1%

R2

C594

22uF

10V

C591

0.1uF 16V

MAX 1A

MAX 2.8A

C568 22uF 10V

MAX 1.9A

C534

0.1uF 16V

+5V_Normal

C570 22uF 16V

+5V_USB

C536

0.1uF 16V

+12V

L514

BLM18PG121SN1D

R534 10K

1%

C512 1uF 25V

R521 0

C514

R509

3300pF

100K

50V

R514 10K

C537

POWER_ON/OFF2_2

0.1uF

OPT

L508

2uH

Max 960 mA

[EP]

8

GND

7

ADJ

6

VOUT

5

NC

R544 18K 1%

R545 56K 1%

R2

R1

R530 33K 1%

R1

R525 330 1%

R2

C595 22pF 50V

+3.3V_Normal

C517 22uF 10V

+2.5V_BCM35230

C539

C538

10uF

47uF

10V

6.3V

C518

22uF 10V

Placed on SMD-TOP

C546 10uF 16V

Vout=0.8*(1+R1/R2)

+12V

L513

CIC21J501NE

C521 10uF 25V

+5V_USB+WIFI

C526

0.1uF

R539 22

MP8706EN-C247-LF-Z

IN

SW_1

SW_2

BST

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3

FB

4

IC506

1

2

3A

3

4

EAN31346002

L509

3.6uH

NR8040T3R6N

IC507

3A

8

7

6

5

8

7

6

5

GND

VCC

FB

EN/SYNC

LX_2

LX_1

EN

COMP

C528 1uF 50V

2200pF

R542 10K

R548

10K

NR8040T3R6N

POWER_ON/OFF2_1

R564 12K

OPT C559

C557

0.1uF 16V

OPT

C529

100pF

50V

POWER_ON/OFF2_1

3.6uH

R566

L516

1%

R570

51K

R1

10K

R571

R572

3.6K

10K

1%

R2

C565

100pF

50V

OPT

Switching freq: 500K

C530

R549

R550

33K

6.2K

1%

R1

1%

R2

100pF 50V OPT

C532 22uF 10V

Vout=(1+R1/R2)*0.8

Vout=0.8*(1+R1/R2)

BCM35230

POWER

5

58

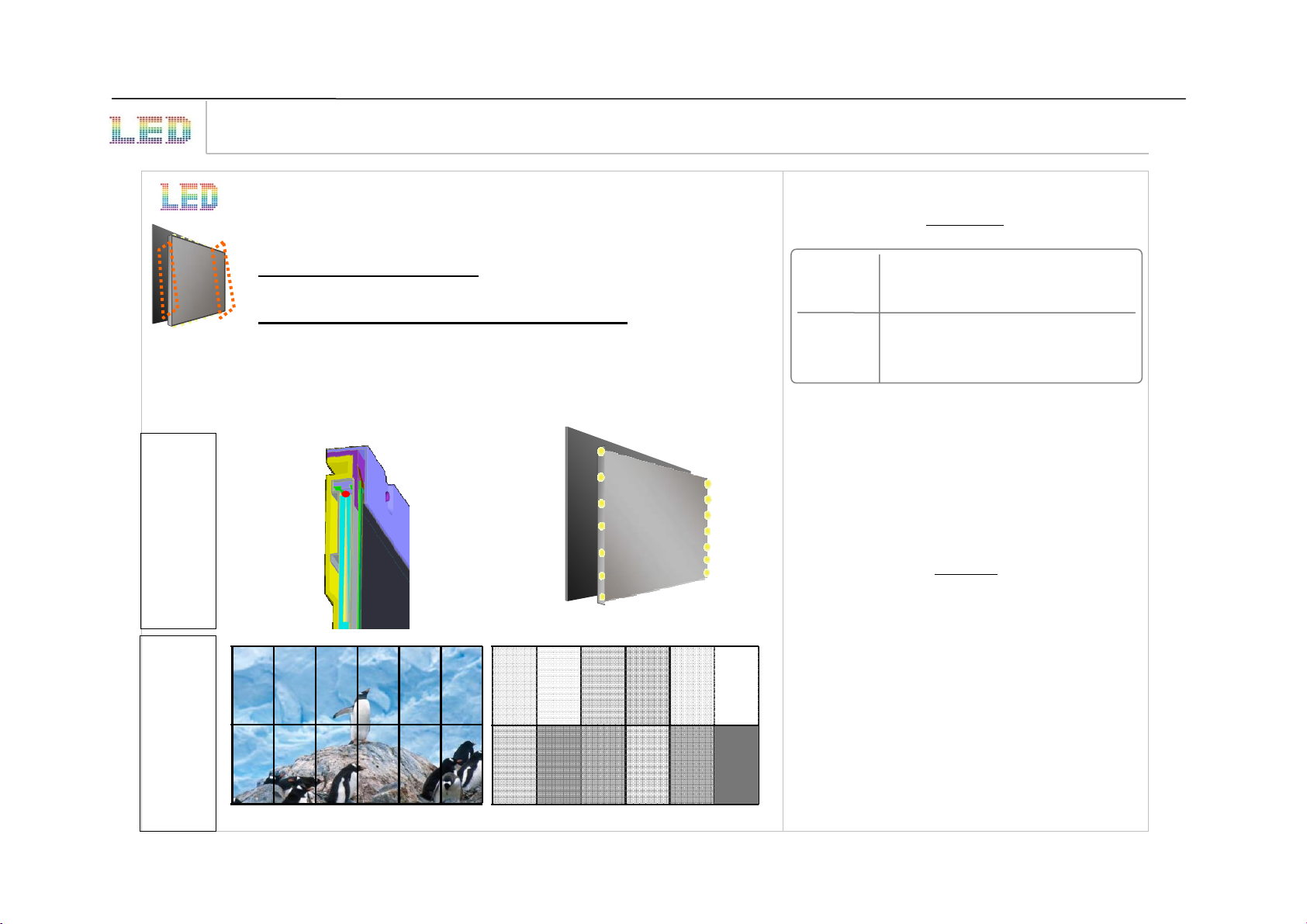

2 types of LED - Edge

LGE Internal Use Only

Benefit: More Clear More Real

Edge Type w/ Local Dimming

LED Array

Upper Metal

BLU

Cover

Edge LED

Local

Dimming

Feature

Best picture quality + thin TV

Local dimming depicts more deep black.

structure

Local

Dimming

LED Array is on the side of Module

Model

XXLW750T/W/S/G

42inch : H(2) * V(8) = 16Block 42inch : H(2) * V(8) = 16Block 42inch : H(2) * V(8) = 16Block

2 types of LED - ALEF

LGE Internal Use Only

Benefit: More Clear More Real

Feature

BLU

structure

ALEF Type Local Dimming

DBEF

Prism sheets

Diffuser plate

Light Blocking Pattern

Guiding Layer Reflecting coating w/patterns

PCB

LED Array is on the back of Module

ALEF LED`

Local

Dimming

Best picture quality + thin TV Slimmer depth better picture quality

Local dimming depicts more deep black.

Model

XXLW950T/W/S/G 47inch : H(24) * V(10) = 240Block 55inch : H(24) * V(12) = 288Block

Local

Dimming

XXLW770T/W/S/G

42inch : H(12) * V(4) = 48Block

47inch : H(12) * V(5) = 60Block 55inch : H(16) * V(6) = 96Block

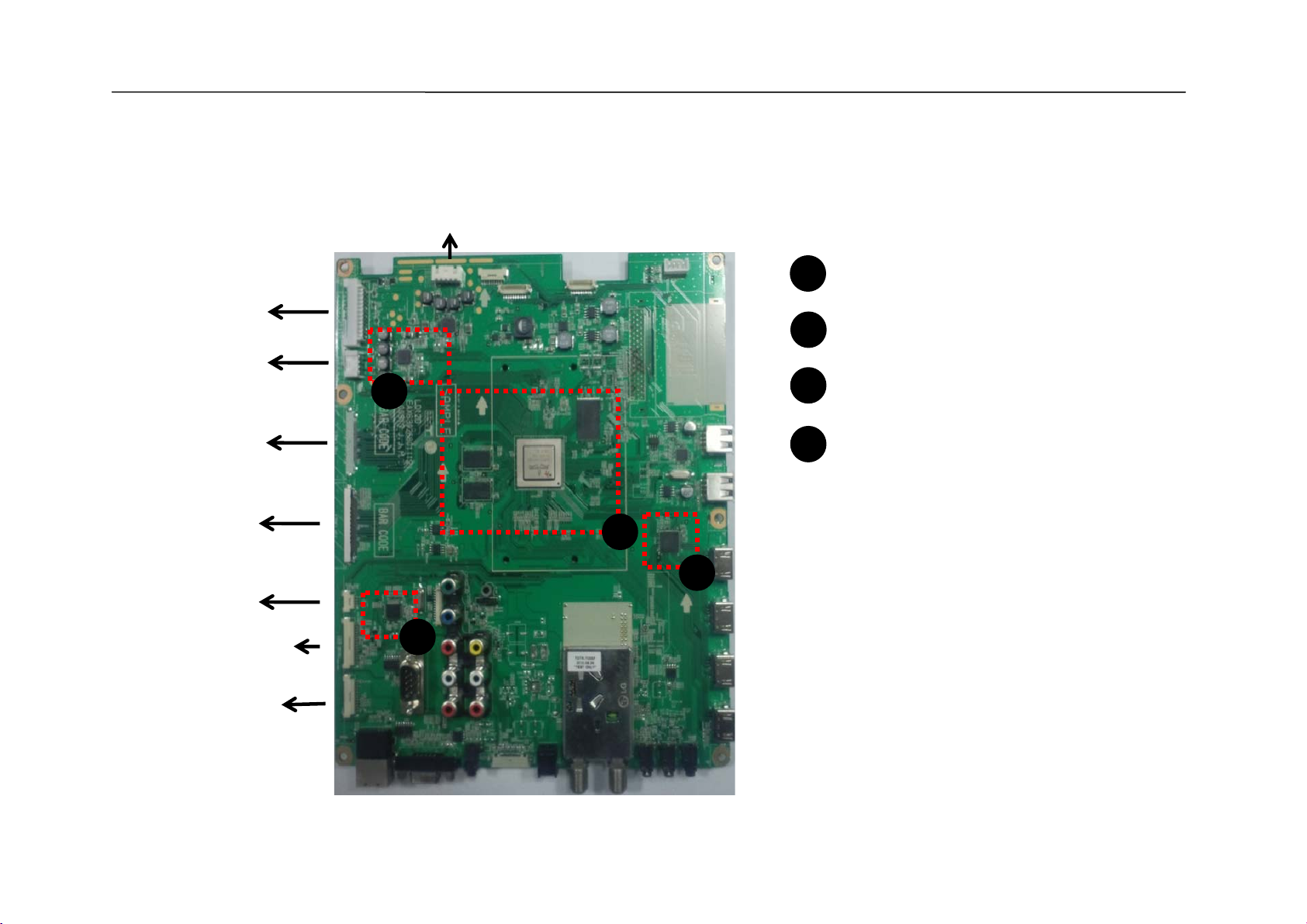

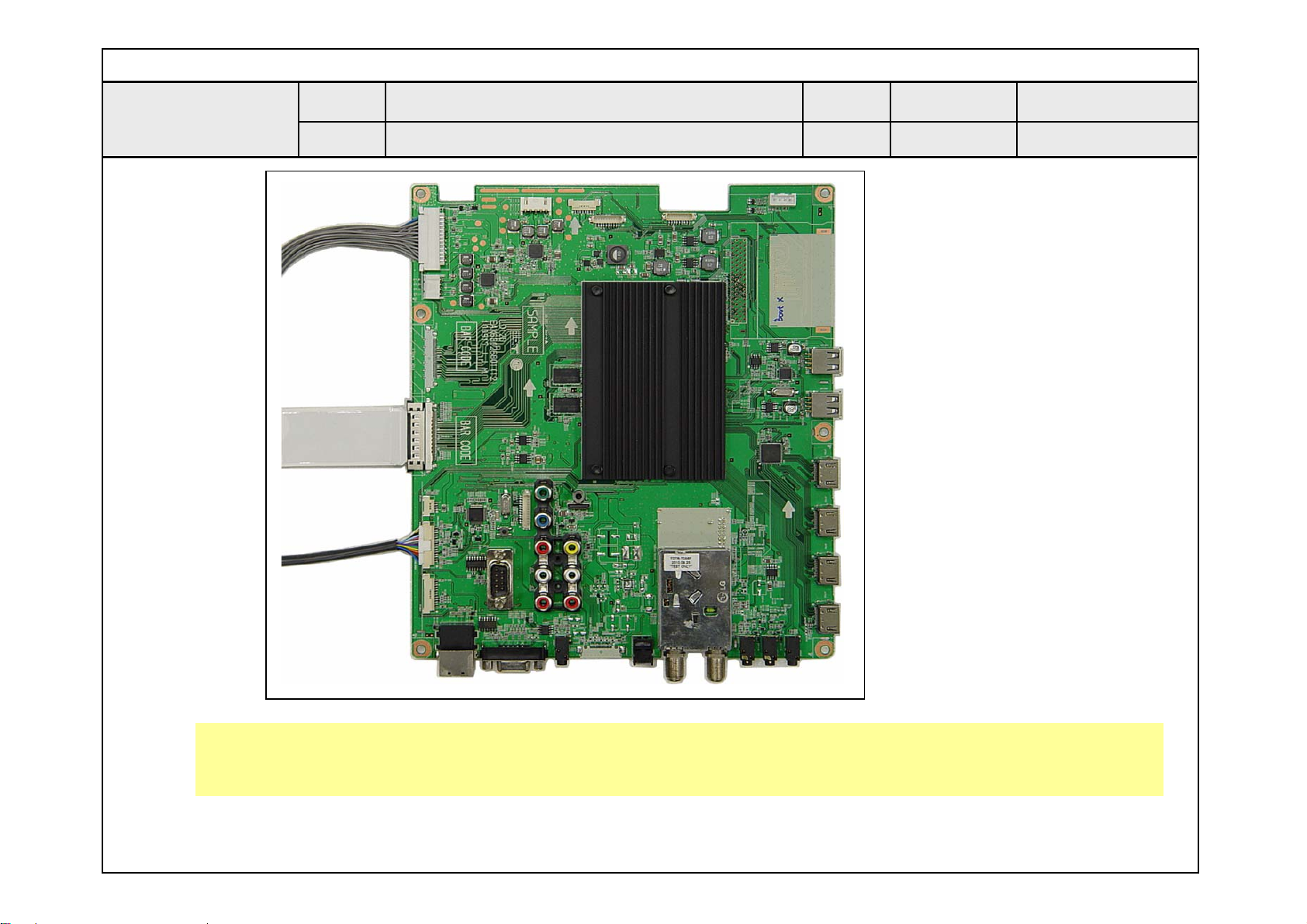

Main PCB for Broadband

LGE Internal Use Only

XXLW9500

XXLV5500

Woofer Spk (W/O LV5500)

Main + TCON all in one

Main processor, DDR Memory

1

Flash Memory

To PSU

Front Spk

To T-CON

BOARD

(W/ LV5500)

To T-CON

BOARD

wifi (W/O LV5500)

Soft touch +IR

RF assy

(W/O LV5500)

Micom for Key/IR sensing

2

3

4

1

3

2

HDMI switch (4:1)

4

Audio AMP (10W+10W)

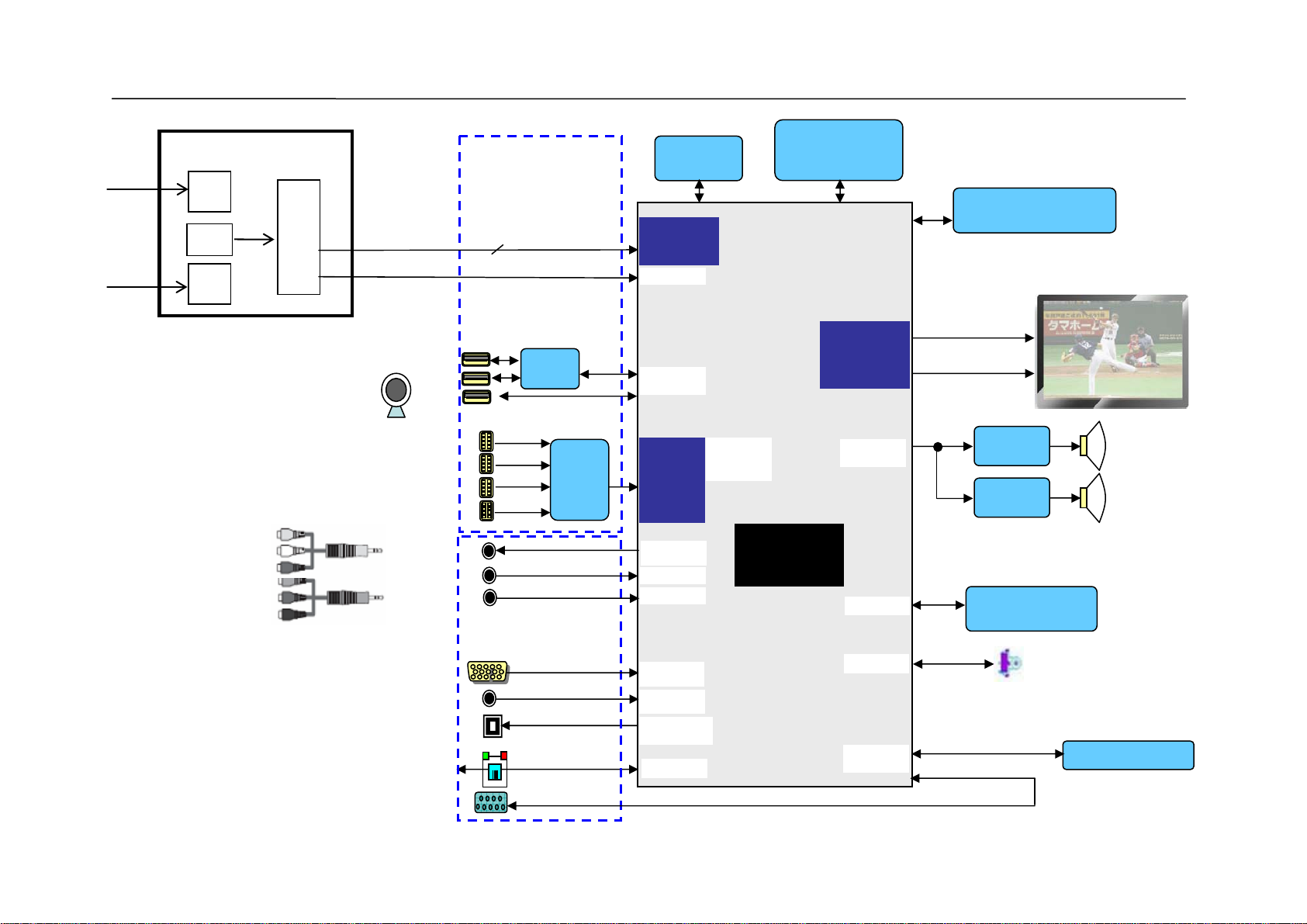

BCM35230 Block Diagram

LGE Internal Use Only

Air/ ISDB-T

Cable

TUNER

(T/C)

S/W

TUNER

(T/C)

ANALOG

DEMOD

DIF(+/-)

CVBS(M)

NAND

Flash(8Gb)

ISDB-T

Demod

CVBS

SYSTEM

DDR3 X 16 X 2

(2Gb)

SYSTEM EEPROM X 1

(1Mb)

51P

CAM, DVR Ready

USB1 USB2

WIFI

HDMI1 HDMI2

HDMI3 HDMI4

H/P

A/V1

COMP1

PC-RGB

PC-AUDIO

OPTIC

LAN

RS-232C

USB

HUB IC

Side

HDMI

HUB IC

Rear

USB

HDMI

S/W

L/R Out

CVBS

COMP

RGB,H/V

L/R In

SPDIF OUT

Ethernet

(HDCP

EEPROM)

BCM 35230

LVDS.

I2S Out

I2C

UART

41P

Audio

AMP

Audio

AMP

Sub Micom

(sanyo)

Wireless Ready

M-Remote

Module

Jack Interface

LGE Internal Use Only

PC L,R

COMP2_R/G/B

DSUB_R / G / B

DSUB_ V / HSYNC

AT24C02BN-10SU-1.8

RGB DET

EDID EEPROM

[EDID_WP] MICOM

COMP2 OPT

0 OHM

RGB_DDC_SCL RGB_DDC_SDA

[VI_SC_R1],[VI_SC_G1],[VI_SC_B1]

[SPDIF_OUT]

BCM35230

[DSUB_R+/G+/B+]

[DSUB_V/H SYNC]

[RGB_DDC_SCL] [RGB_DDC_SDA]

[BSC_S_SCL] [BSC_S_SDA]

[DSUB_DET] // GPIO [PC_L_IN]

[PC_R_IN]

[COMP1_Y]

[COMP1_Pb]

[COMP1_Pr]

[COMP1_DET]

[AV1_R_IN]

[AV1_L_IN]

SPDIF

COMP1

COMP_Y COMP_PB COMP_PR

COMP DET

AV1

R

L

[AV1_CVBS_IN]

[AV1_CVBS_DET]

[AV1_R_IN]

[AV1_L_IN]

[AV1_CVBS_IN]

[AV1_CVBS_DET]

CVBS

AV DET

AV2

R

L

CVBS

AV DET

Appendix. Block Diagram for Edge/ALEF Backlight

LGE Internal Use Only

Main SoC

(BCM)

FHD@60Hz

Dual-Link LVDS

2

2D-3D

(LGSIC)

FHD@60Hz

Dual-Link LVDS

2

FRC-II

(LG1121)

FHD@240Hz

Octa-Link LVDS

4

XTR T-Con

(LGSIC)

3D_Sync

SPI/Vsync

[ All in one main PCB for XXLW9500, ALEF LED Backlight]

FHD@240Hz

Quad-Link

HF mini-LVDS

8

LED BLU control

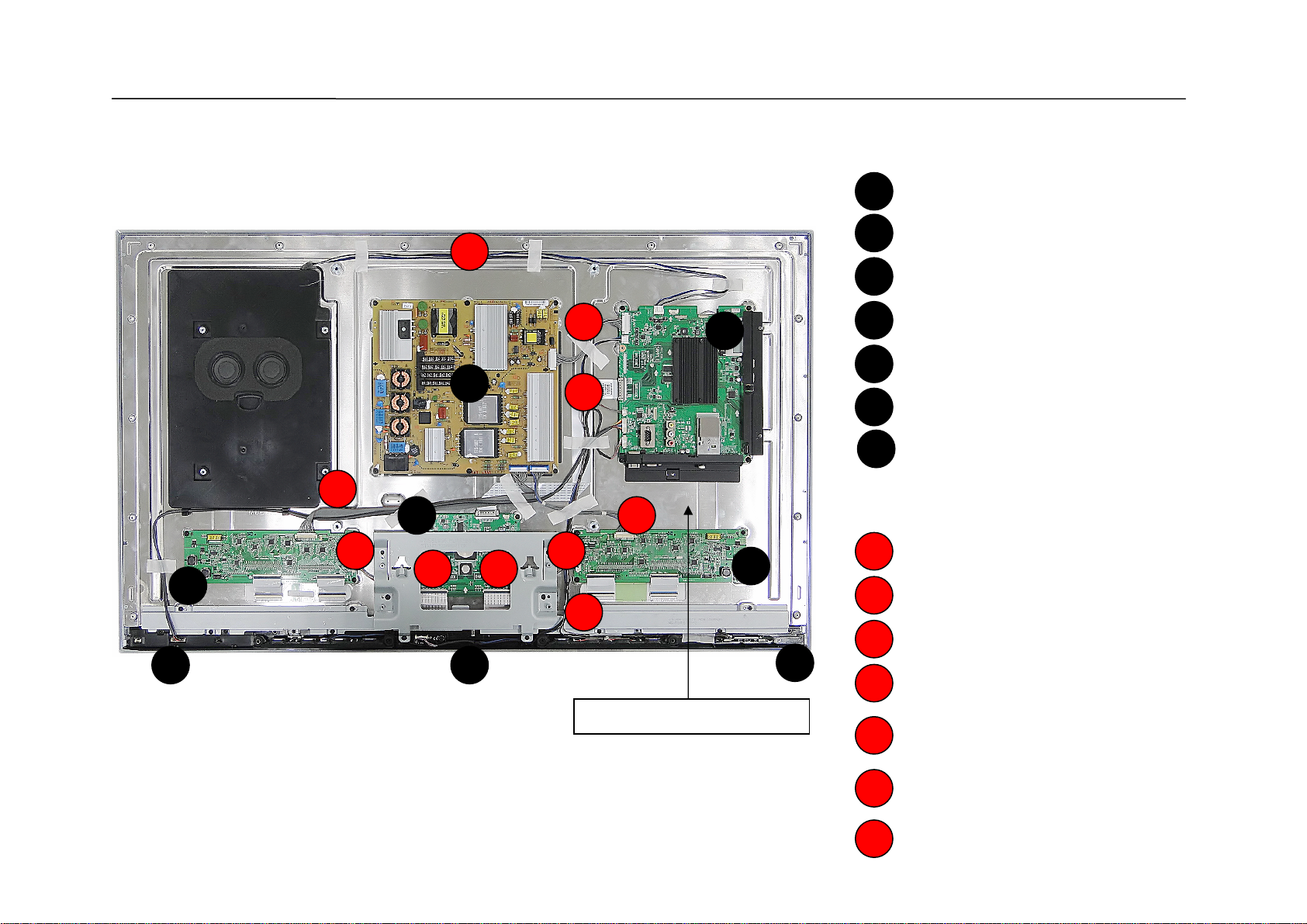

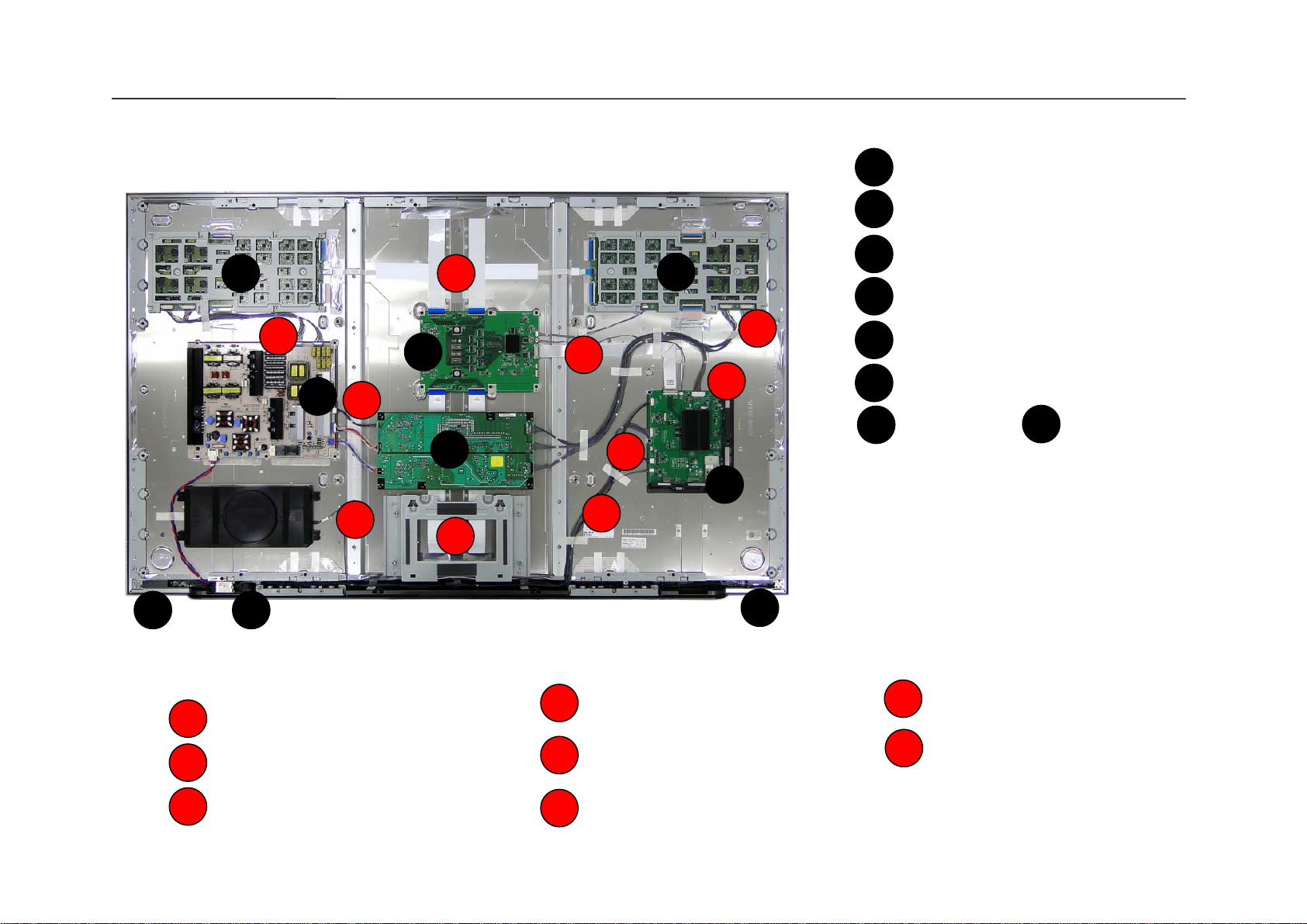

Interconnection - 1

LGE Internal Use Only

XXLW9500

LED driver

2

[PCBs]

1

Main PCB

2

LED driver

6

3

WIFI ASSY

4

1

7

3

6

7

4

2

3

7

5

1

2

RF MOTION ASSY

5

Soft Touch + IR Key PCB

6

T-CON ASSY

7

PSU

[Cables]

1

Main / PSU cable Main / Module LVDS cable 51PIN

2

3

LED driver / PSU

45

ALEF Module Assy

3

4

T-CON to Module 80pin FFC

Multi-cable:

5

IR+MOTION+WIFI +SPK

6

WOOFER SPK CABLE

7

Local dimming cable 8pin

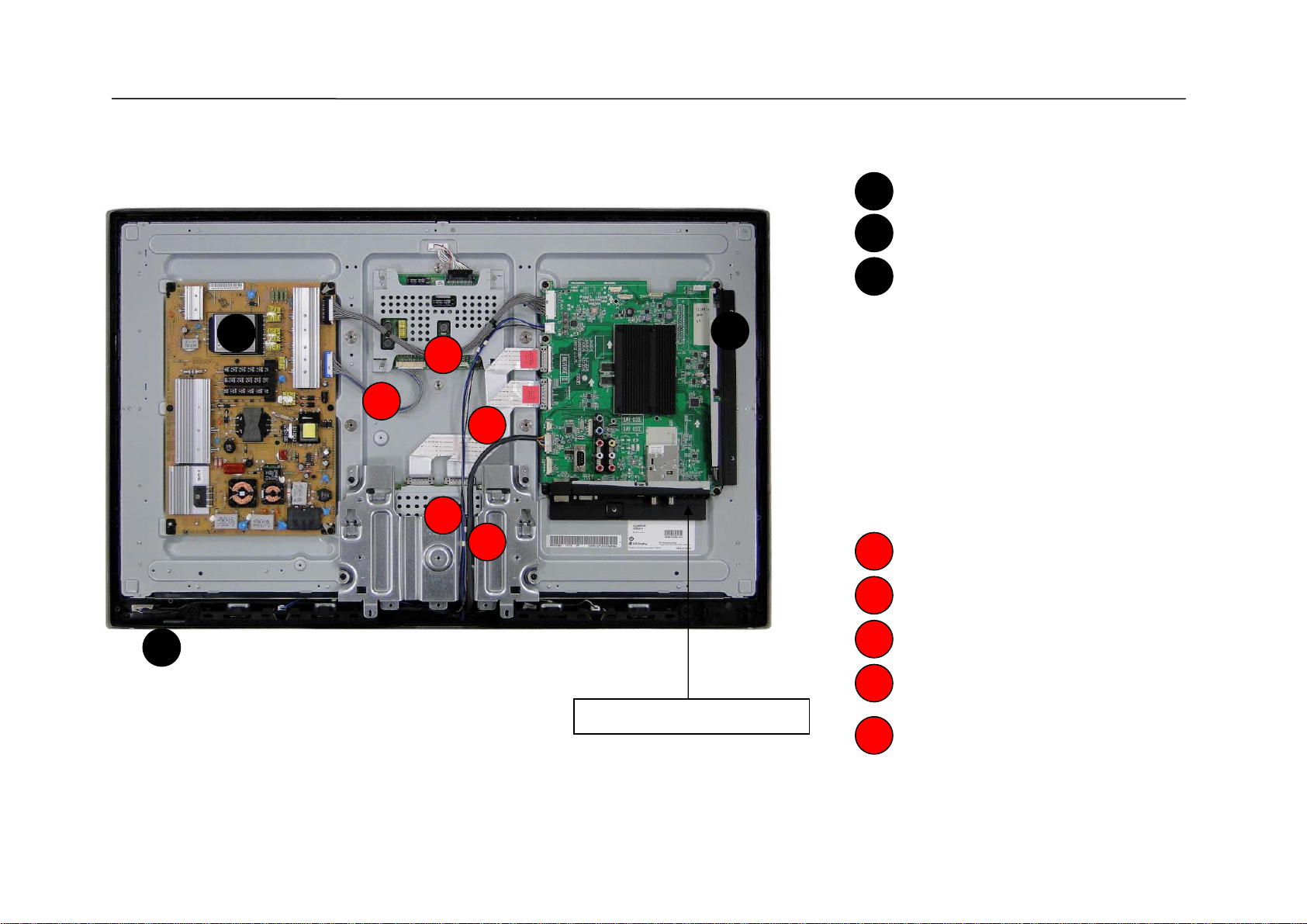

Interconnection - 2

LGE Internal Use Only

XXLV5500

3

LED driver

1

3

5

[PCBs]

1

Main PCB

2

Soft Touch + IR Key PCB

3

1

2

PSU

[Cables]

4

1

Main / PSU cable

2

Edge Module Assy

Main / Module LVDS cable

2

Drive B/D Cable

3

4

Multi-cable: IR + Soft Touch

SPK CABLE

5

Interconnection - 3

LGE Internal Use Only

72LZ9700

2

3

[PCBs]

1

Main PCB

2

LED driver

RF MOTION ASSY

3

4

6

7

8

6

4

2

7

5

2

4

IR Key PCB

3

1

5

Soft Touch Assy

6

T-CON ASSY

7

Main PSU

8

Sub PSU

4

1

2

3

5

Main / PSU cable Main / T-Con LVDS cable 51PIN

LED driver / PSU

4

T-CON to Module 80pin FFC

Multi-cable:

5

IR+MOTION+WIFI +SPK

6

WOOFER SPK CABLE

3

[Cables]

7

SPK CABLE

8

Main PSU/Sub PSU CABLE

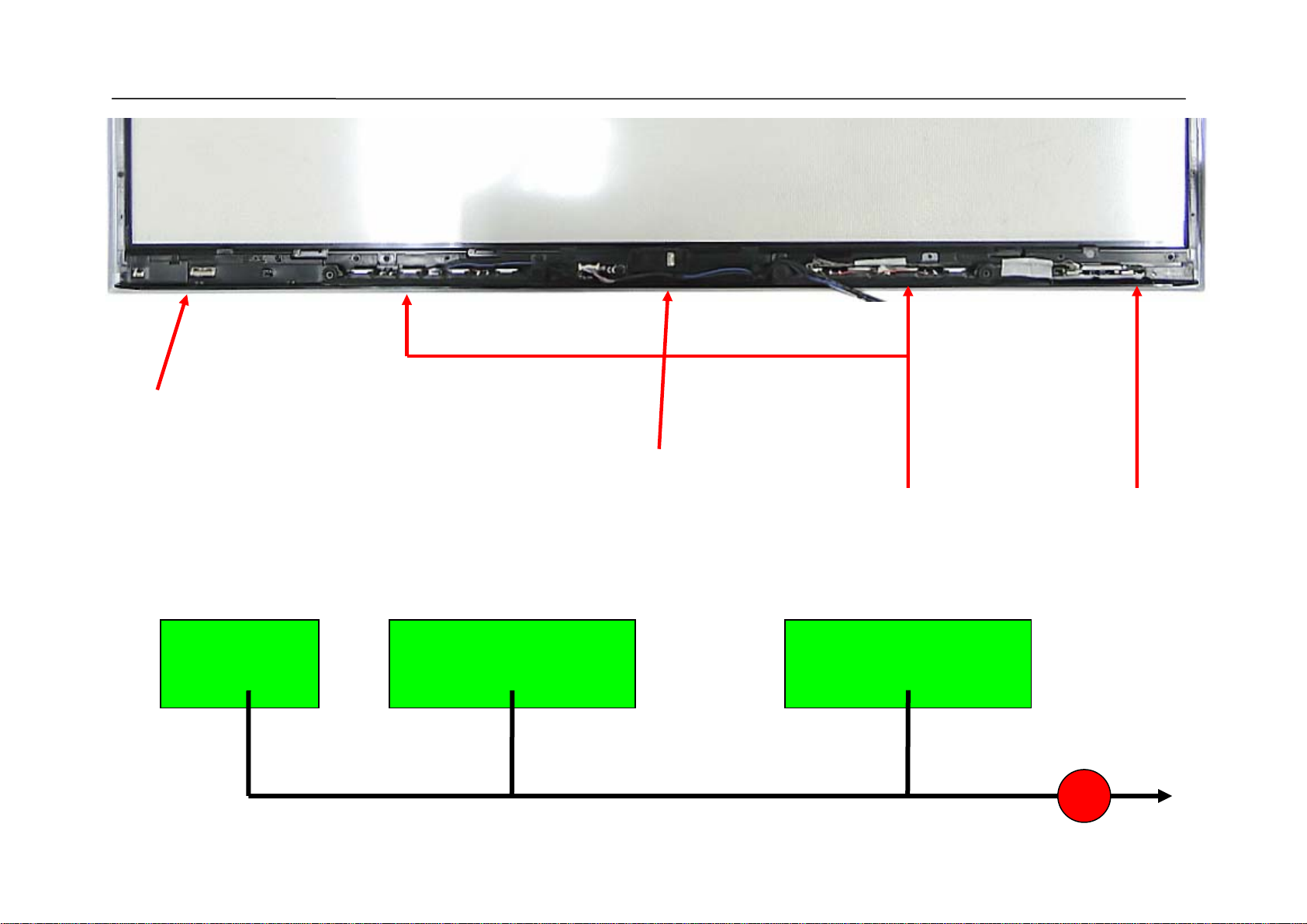

Interconnection – sub PCB( LW9500 Series )

LGE Internal Use Only

Soft Touch + IR PCB

RF MOTION ASSY

Soft Touch

IR PCB

SPK unit

RF MOTION ASSY WIFI ASSY

WIFI ASSY

1

To Main

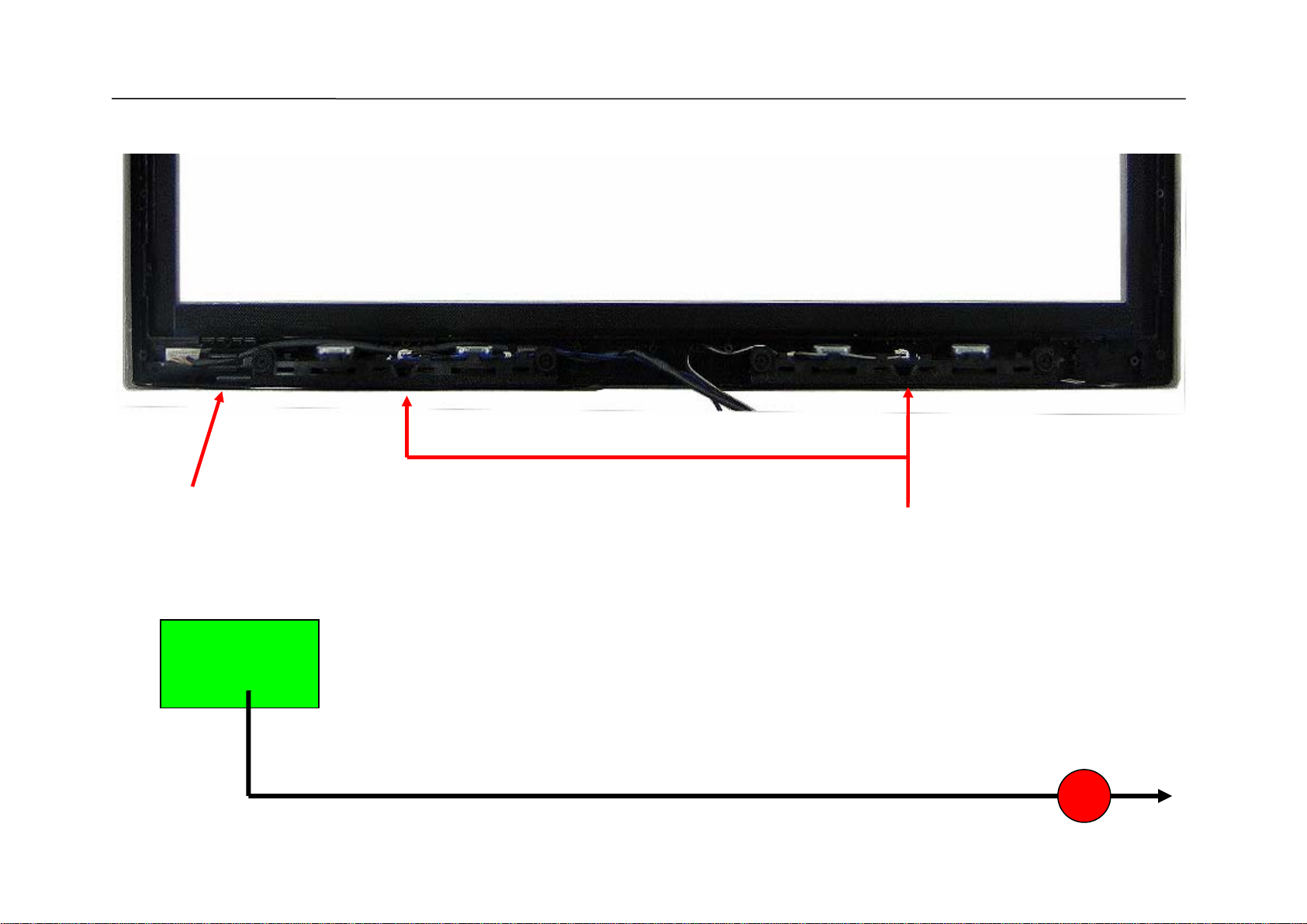

Interconnection – sub PCB( LV5500 Series )

LGE Internal Use Only

Soft Touch + IR PCB

Soft Touch

IR PCB

SPK unit

1

To Main

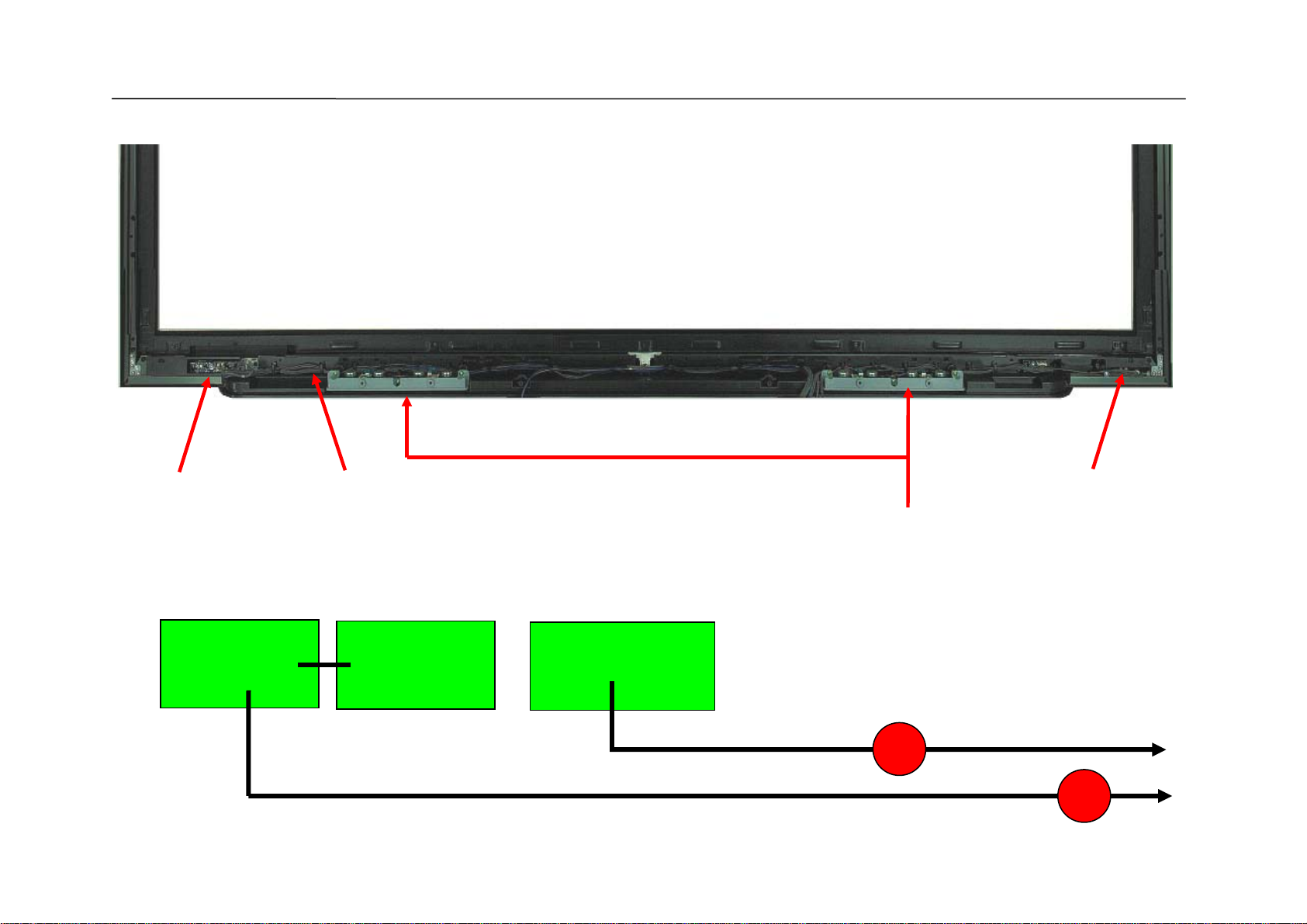

Interconnection – sub PCB( 72LZ9700)

LGE Internal Use Only

IR PCB

Soft Touch PCB

IR PCB

Soft Touch

RF Motion Assy

SPK unit

RF Motion Assy

2

To Main

1

To Main

Contents of LCD TV Standard Repair Process

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1 2 No video/No audio 2 3 Video error, video lag/stop 3 4 Color error 4

5

6

7

8 9 Wrecked audio/discontinuation/noise 9

10

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image, light spot, external device color error

No power 6 Off when on, off while viewing, power auto

on/off No audio/Normal video 8

No response in remote controller, key error, recording error, memory error

5

7

10

11 External device recognition error 11 12 E. Noise Circuit noise, mechanical noise 12 13 F. Exterior error Exterior defect 13

First of all, Check whether there is SVC Bulletin in GCSC System for these model.

Standard Repair Process

LGE Internal Use Only

Established

date

Revised date

2010. 12 .14

LCD TV

Error

symptom

A. Video error

No video/ Normal audio

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)

☞A4☞A1

No video Normal audio

Normal

audio

N

Move to No video/No audio

Y

Check Back Light On with naked eye

☞A2

Check Power Board 24v output

On

Normal voltage

Repair Power Board or parts

Y

Check Power Board 12v,3.5v etc.

N

Replace Inverter

Y

or module

N

Normal

voltage

Repair Power Board or parts

N

End

Y

Replace T-con Board or module And Adjust VCOM

☞A28

1/13

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A7 & A3

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

LGE Internal Use Only

LCD TV

symptom

No Video/ No audio

Error

☞A4

Check various voltages of Power Board ( 3.5V,12V,20V or 24V…)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power Board and repair parts

Y

N

Check and replace MAIN B/D

Established

date

Revised date

End

2010. 12 .14 2/13

2

Standard Repair Process

LGE Internal Use Only

LCD TV

☞ A6

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

Error

symptom

A. Picture Problem

Picture broken/ Freezing

. By using Digital signal level meter . By using Diagnostics menu on OSD

( Menu→ Set up→ Support → Signal Test )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A7

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

N

Check

S/W Version

SVC

Bulletin?

Y

S/W Upgrade

Normal

Picture?

Y

Established

date

Revised date

2010. 12 .14

■ Menu→Setup →Booster

N

Booster menu On→Off: Check Off→On: Check

Tuner soldering

N

Normal

Picture?

N

Check

Replace

Main B/D

3/13

Y

Close

3

Standard Repair Process

LGE Internal Use Only

LCD TV

☞A8

Check color by input

-External Input

-COMPONENT

-RGB

-HDMI/DVI

☞A12

Check Test pattern

Error

symptom

Color

error?

N

Check error color input mode

A. Video error

☞ A10/ A11

※ Check

and replace

Y

Link Cable (LVDS) and contact condition

External Input/

Component

error

Color error

Color

error?

N

Check external device and cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

2010. 12 .14 4/13

Y

Replace module

N

Replace Main B/D

RGB/

HDMI/DVI

error

Check external device and cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

A. Video error

LCD TV

Error

symptom

Vertical / Horizontal bar, residual image, light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A8

Check color condition by input

-External Input

-Component

-RGB

-HDMI/DVI

☞A12

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair for external device

External device screen error-Color error

Check screen condition by

Check S/W Version

Check

version

Y

S/W Upgrade

Normal

screen?

Y

End

N

input

-External Input

-Component

-RGB

-HDMI/DVI

☞ A10/ A11

Check and

Y

replace Link Cable

External

Input error

Component

error

RGB

error

HDMI/

DVI

5

Established

date

Revised date

☞ A28

Screen

normal?

End

N

Replace Main B/D (adjust VCOM)

Y

For LGD panel

Replace Main B/D

For other panel

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Connect other external device and cab le

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

2010. 12 .14

Replace Module

normal?

Screen

normal?

Request repair for external device

Screen

normal?

N

Replace Main B/D

Y

N

5/13

N

Screen

Y

End

Replace Main B/D

Standard Repair Process

LGE Internal Use Only

LCD TV

☞A17

Check Power LED

. Stand-By: Red . Operating: white

Error

symptom

Power LED

On?

N

Check Power cord was inserted properly

N

Normal?

Y

※

Close

Y

Check ST-BY 3.5V

☞A18

B. Power error

No power

DC Power on by pressing Power Key On Remote control

Normal

voltage?

Established

date

Revised date

2010. 12 .14 6/13

☞A19

Normal

operation?

Y

N

Check Power On ‘”High”

OK?

N

Replace Main B/D

Y

Replace Power B/D

☞A4

Measure voltage of each output of Power B/D

Y

N

Normal

voltage?

Replace Power B/D

Y

N

Replace Main B/D

Replace Power B/D

6

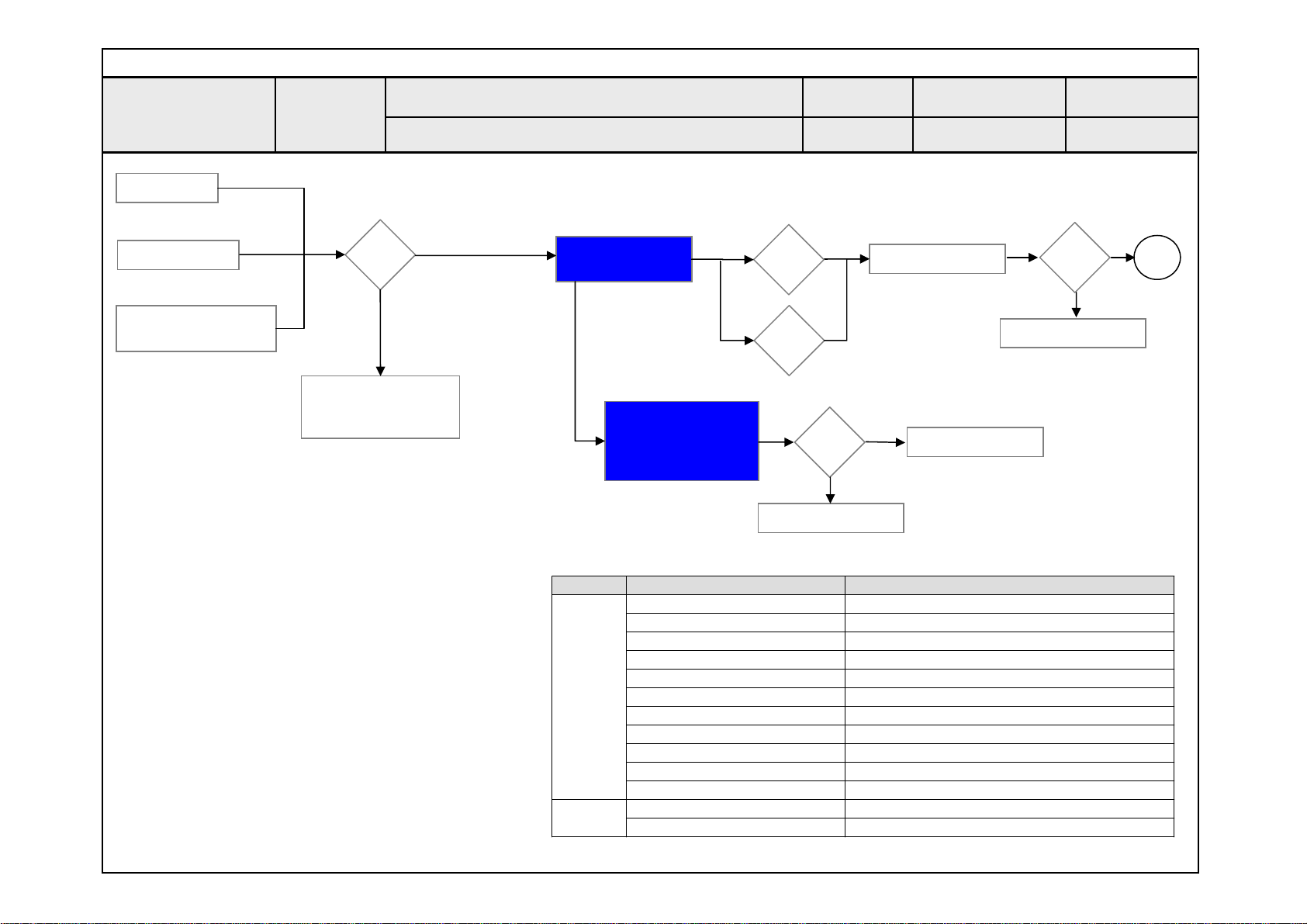

Standard Repair Process

LGE Internal Use Only

LCD TV

Check outlet

Check A/C cord

Check for all 3- phase

power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A22

N

Check Power Off Mode

☞A19

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution

Check and fix exterior of Power B/D Part

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Y

N

2010. 12 .14

Replace Main B/D

7/13

Normal?

Replace Power B/D

Y

N

End

* Please refer to the all cases which

can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL "POWEROFF_OFFTIMER" Power off by OFF TIMER "POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download "POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

LGE Internal Use Only

LCD TV

No audio Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A24 ☞A25

Check user menu > Speaker off

Off

Y

Cancel OFF

Check audio B+

N

24V of Power Board

Established

date

Revised date

Normal voltage

Replace Power Board and repair parts

Y

N

2010. 12 .14 8/13

Check Speaker disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board End

Standard Repair Process

LGE Internal Use Only

LCD TV

Check input signal

-RF

-External Input signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

2010. 12 .14

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A25

Signal

normal?

Y

N

(When RF signal is not received) Request repair to external cable/ANT provider

(In case of External Input signal error) Check and fix external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Check audio B+ Voltage (24V)

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

Normal

audio?

Y

N

Y

9/13

End

Check and fix external device

9

Standard Repair Process

LGE Internal Use Only

D. General Function Problem

Remote control & Local switch checking

LCD TV

Error

symptom

1. Remote control(R/C) operating error

☞A27

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Y

N

Check & Replace

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair Cable connection Connector solder

Close

N

Normal

operating?

Y

Close

☞A27

N

On Main B/D

Established

date

Revised date

Check B+

3.5V

Normal

Voltage?

N

☞A4

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

☞A27

Y

Check IR

Output signal

2010. 12 .14 10/13

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

LGE Internal Use Only

LCD TV

Check input signal

Error

symptom

Y

Signal input?

N

Check and fix external device/cable

D. Function error

External device recognition error

Check technical information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Established

date

Revised date

External Input and

N

Y

Component

Recognition error

RGB,HDMI/ DVI, Optical

Recognition error

2010. 12 .14 11/13

Replace Main B/D

11

Standard Repair Process

LGE Internal Use Only

LCD TV

Identify nose type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanica l noise

Check location of noise

E. Noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Replace PSU(with LED driver)

OR

Replace LED driver

※ When the nose is severe, replace the module (For models with fix information, upgrade the S/W or provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual

OR

(For models without any fix information, provide the description)

Established

date

Revised date

2010. 12 .14 12/13

12

Standard Repair Process

LGE Internal Use Only

LCD TV

Error

symptom

Zoom part with exterior damage

Module

damage

Cabinet damage

Remote

controller

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote controller

Established

date

Revised date

Adjust VCOM

☞A28

2010. 12 .14 13/13

Stand

dent

Replace stand

13

Contents of LCD TV Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

1 2 LED driver B+ 24V measuring method A2

A. Video error_ No video/Normal audio

3 Check White Balance value A3 4 Power Board voltage measuring method A4 6

A. Video error_ No video/Video lag/stop

7 LCD-TV Version checking method A7 9

10 Tuner Checking Part A9

A. Video error_Color error

11

12 Adjustment Test pattern - ADJ Key A12 13

A. Video error_Vertical/Horizontal bar,

14

residual image, light spot

15 Adjustment Test pattern - ADJ Key A12

Check LCD back light with naked eye A1

TUNER input signal strength checking method A6

LCD TV connection diagram A8

Check Link Cable (LVDS) reconnection condition

LCD TV connection diagram A8 Check Link Cable (LVDS) reconnection

condition

A10 A11

A10 : 32/37/42/47/55 A11 : 32 AUO

16 17 Exchange T-Con Board (2) A-2/5

Defected Type caused by T-Con/

18 Exchange LED driver Board (PSU) A-3/5

Inverter/ Module

19 Exchange Module itself (1) A-4/5 20 Exchange Module itself (2) A-5/5

Exchange T-Con Board (1) A-1/5

55” : driver board Other : PSU

Continue to the next page

Contents of LCD TV Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Continued from previous page

No. Error symptom Content Page Remarks

21 22 Check power input Voltage & ST-BY 5V A18 23 Checking method when power is ON A19 24 POWER BOARD voltage measuring method A4 25

26

27

28

29

30

31

B. Power error_No power

B. Power error_Off when on, off while viewing

C. Audio error_No audio/Normal video

C. Audio error_Wrecked audio/discontinuation

D. Function error_ No response in remote controller, key error

Check front display LED A17

POWER OFF MODE checking method A22

POWER BOARD PIN voltage checking method

Checking method in menu when there is no audio

Voltage and speaker checking method when there is no audio

Voltage and speaker checking method in case of audio error

Remote controller operation checking method

A19

A24

A25

A27

32 D. VCOM Adjustment Sequence of the Vcom adjustment A28

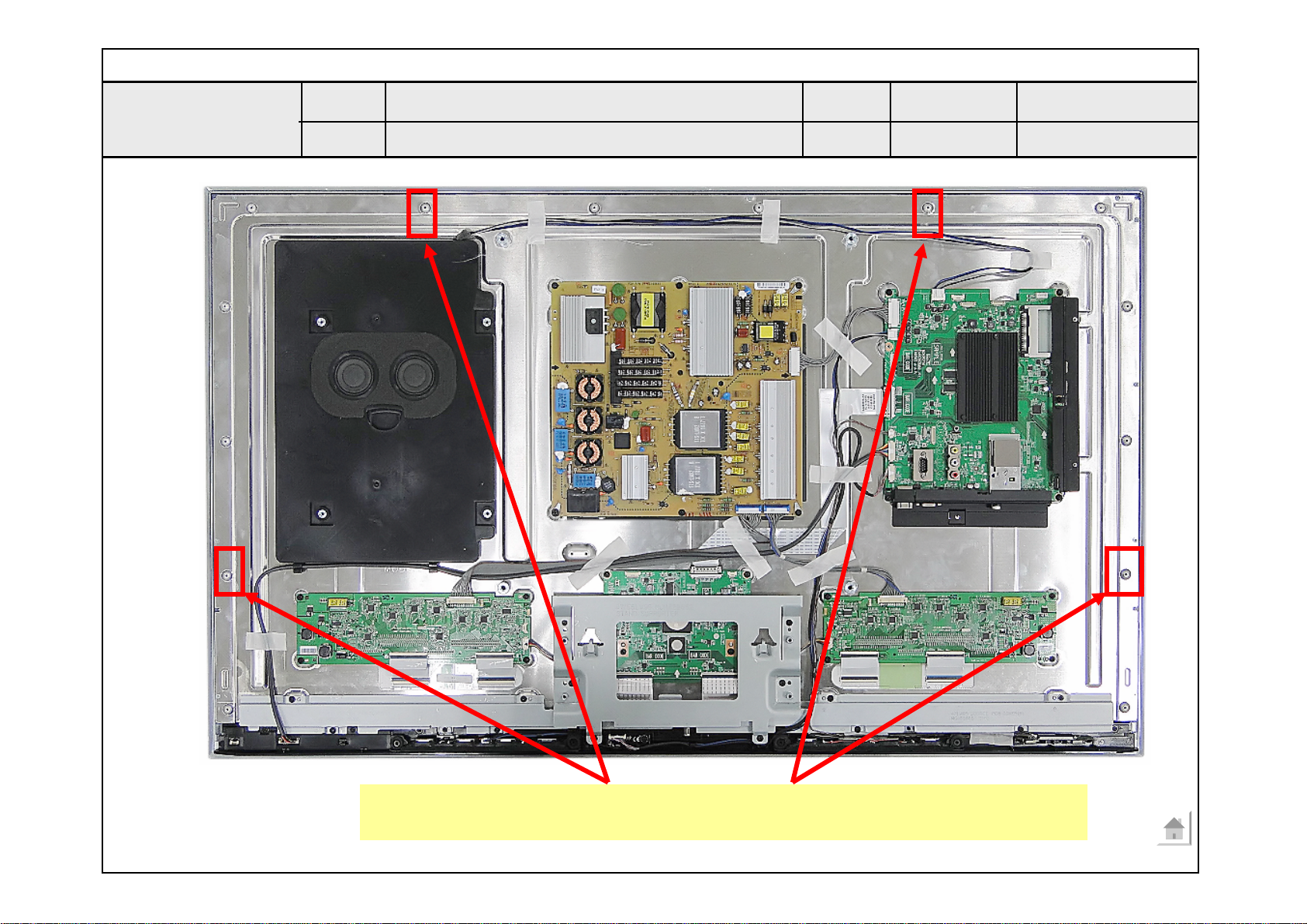

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/Normal audio

Check LCD back light with naked eye

Established

date

Revised

date

2010. 12 .14

A1

After turning on the power and disassembling the case, check with the naked eye, whether you can see light from 4 locations.

A1

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

ALEF LED

Error

symptom

Content

A. Video error_No video/Normal audio

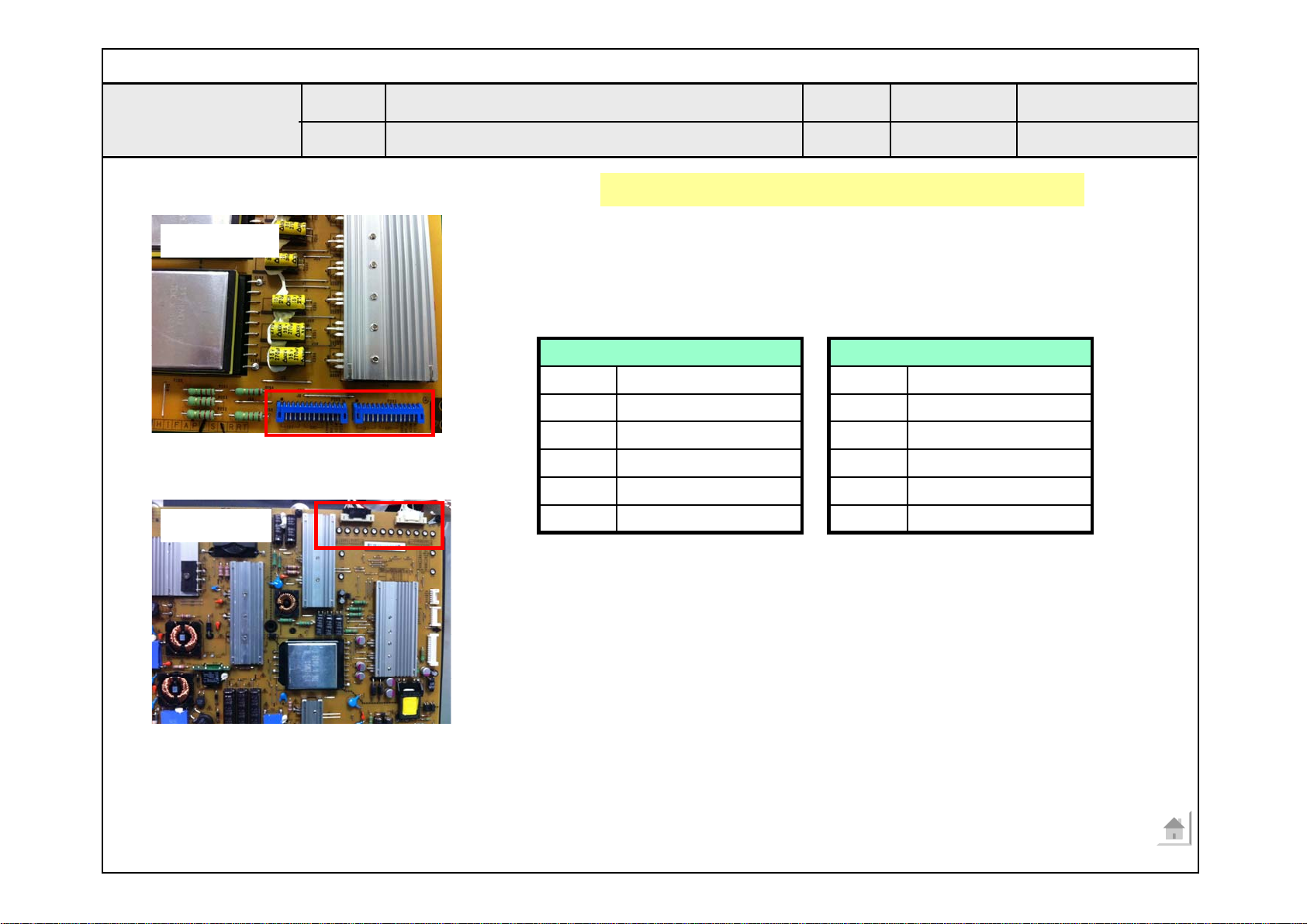

LED driver B+ 24V measuring method

Check the DC 24V, 12V, 3.5V and Inverter on

Established

date

Revised

date

2010. 12 .14 A2

Edge LED

1~5

6~10

11 12 13 14

P202

24V

GND

Error

Inverter ON

A-dim

P-dim

1~5

6~10

11 12 13 14

P203

24V

GND

Error

Inverter ON

A-dim P-dim

A2

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

2010. 12 .14 A4

Entry method

1. Press the ADJ button on the remote controller for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 7.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A3

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_No video/ Audio

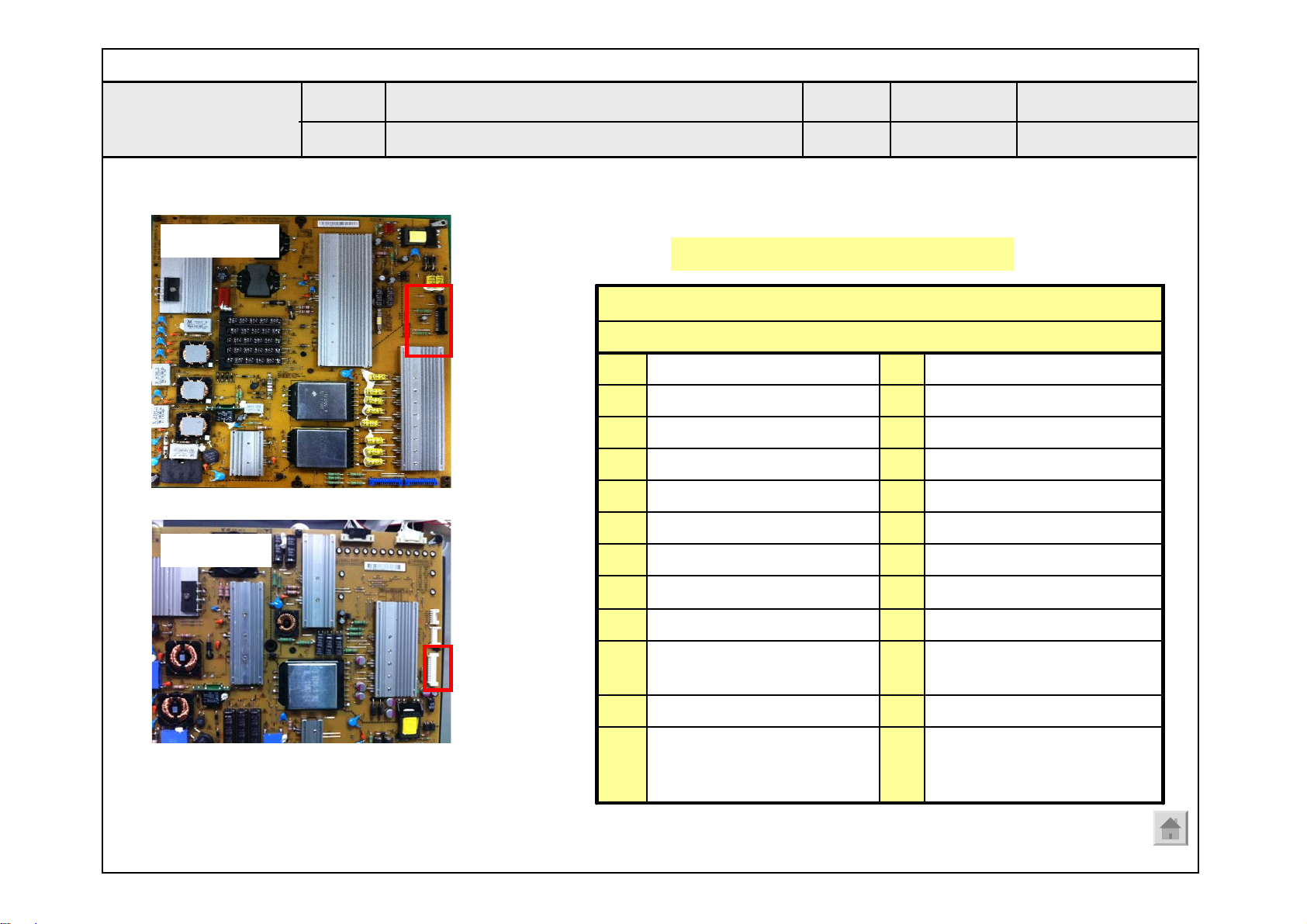

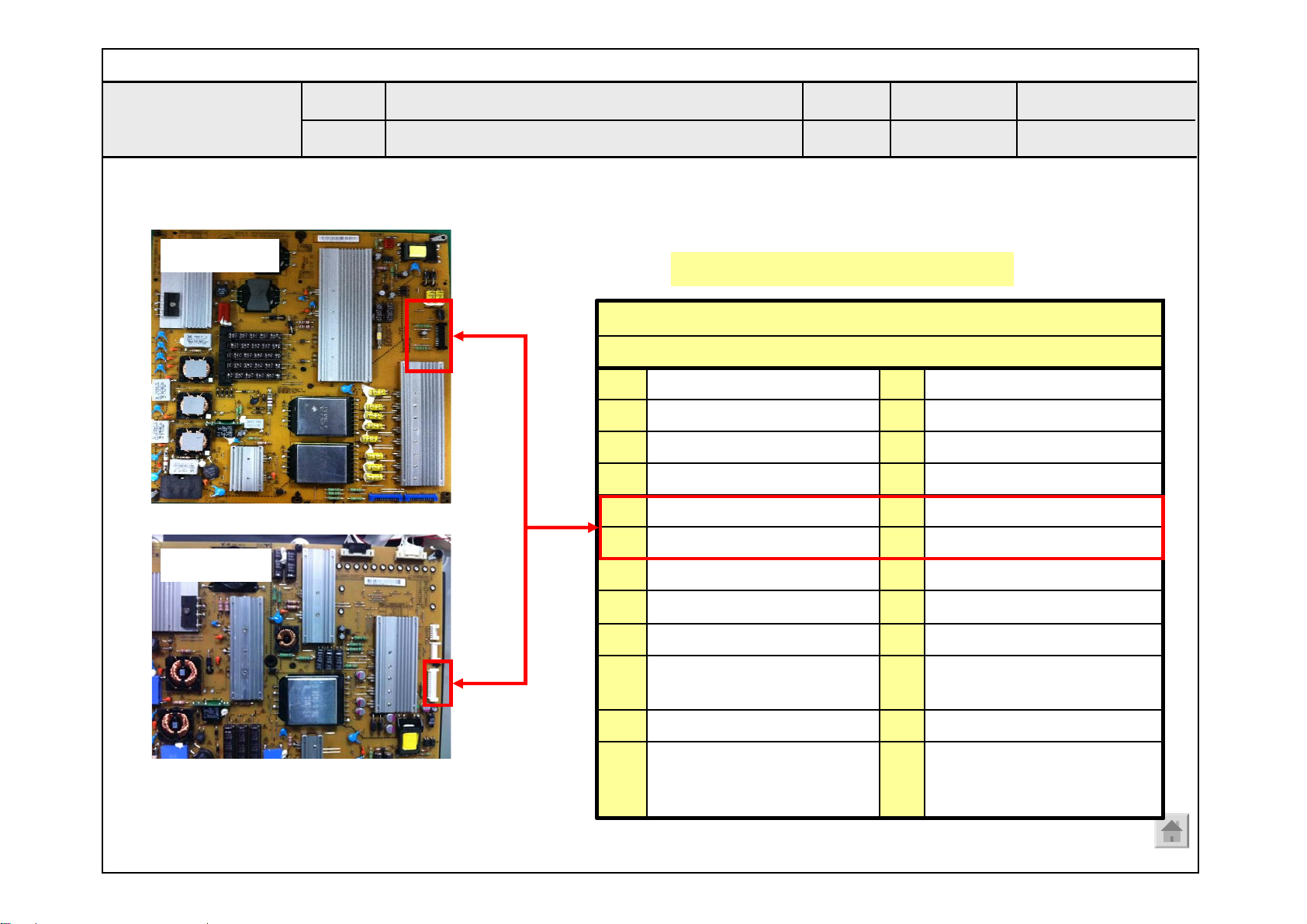

Power Board voltage measuring method

Established

date

Revised

date

2010. 12 .14 A5

ALEF LED

Edge LED

Check the DC 24V, 12V, 3.5V.

24 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H24S (YEONHO)

20V (24V)2Power on1 20V (24V)420V (24V)3

Inverter On/off1812V17

2012V19

Lamp : A-Dim

LED : N.C

GND6GND5 GND8GND7

3.5V103.5V9

3.5V123.5V11 GND14GND13 GND16GND15

23

• Lamp SCANNING Model

: PWM Dim #2

A4

2212V21

PWM Dim #1

Error-out24N.C

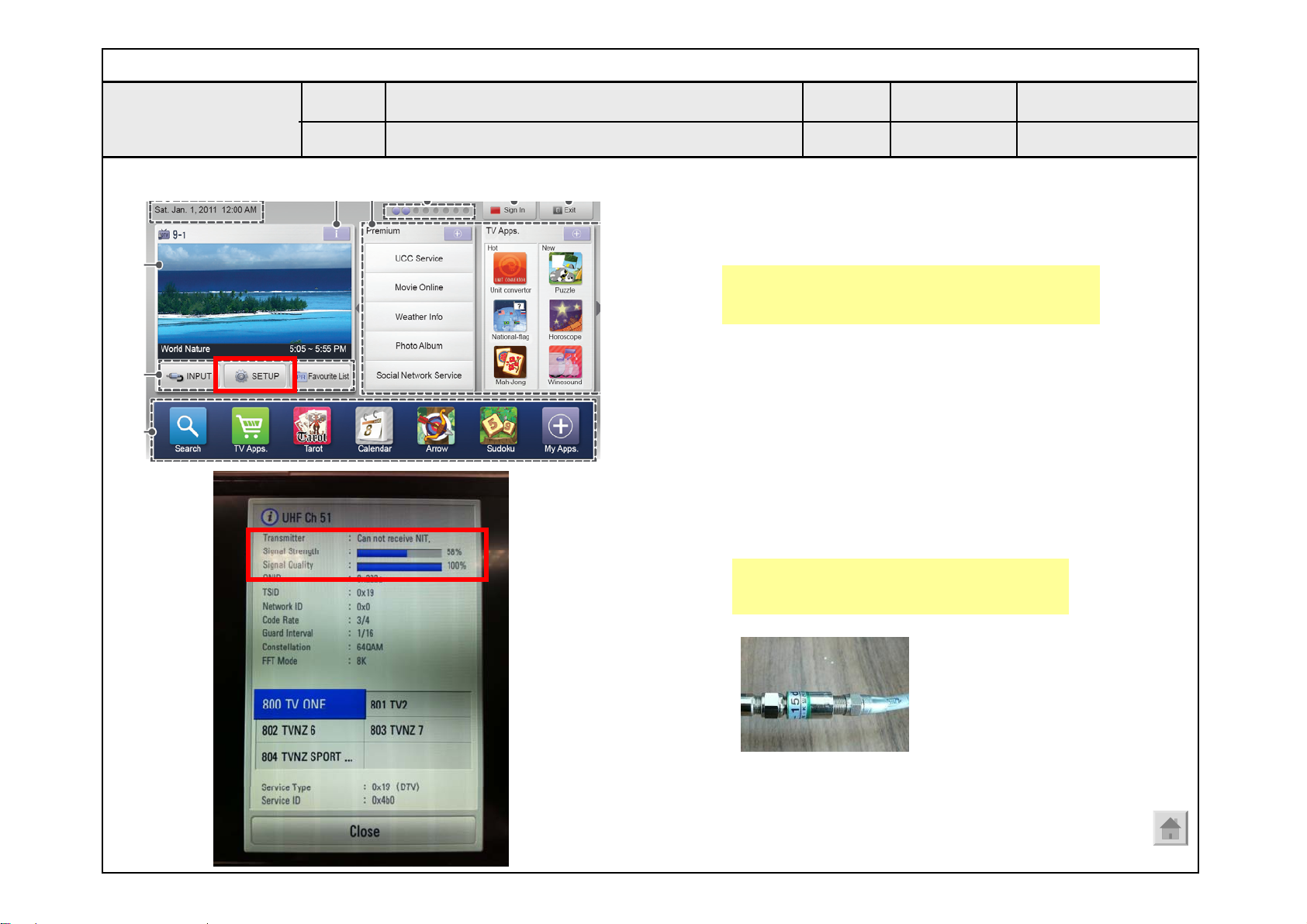

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

2010. 12 .14

MENU -Æ Set up Æ support -Æ signal test

-Æ select channel

A6

When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

LCD-TV Version checking method

Established

date

Revised

date

2010. 12 .14 A7

1. Checking method for remote controller for adjustment

Version

Press the IN-START with the remote controller for adjustment

A7

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

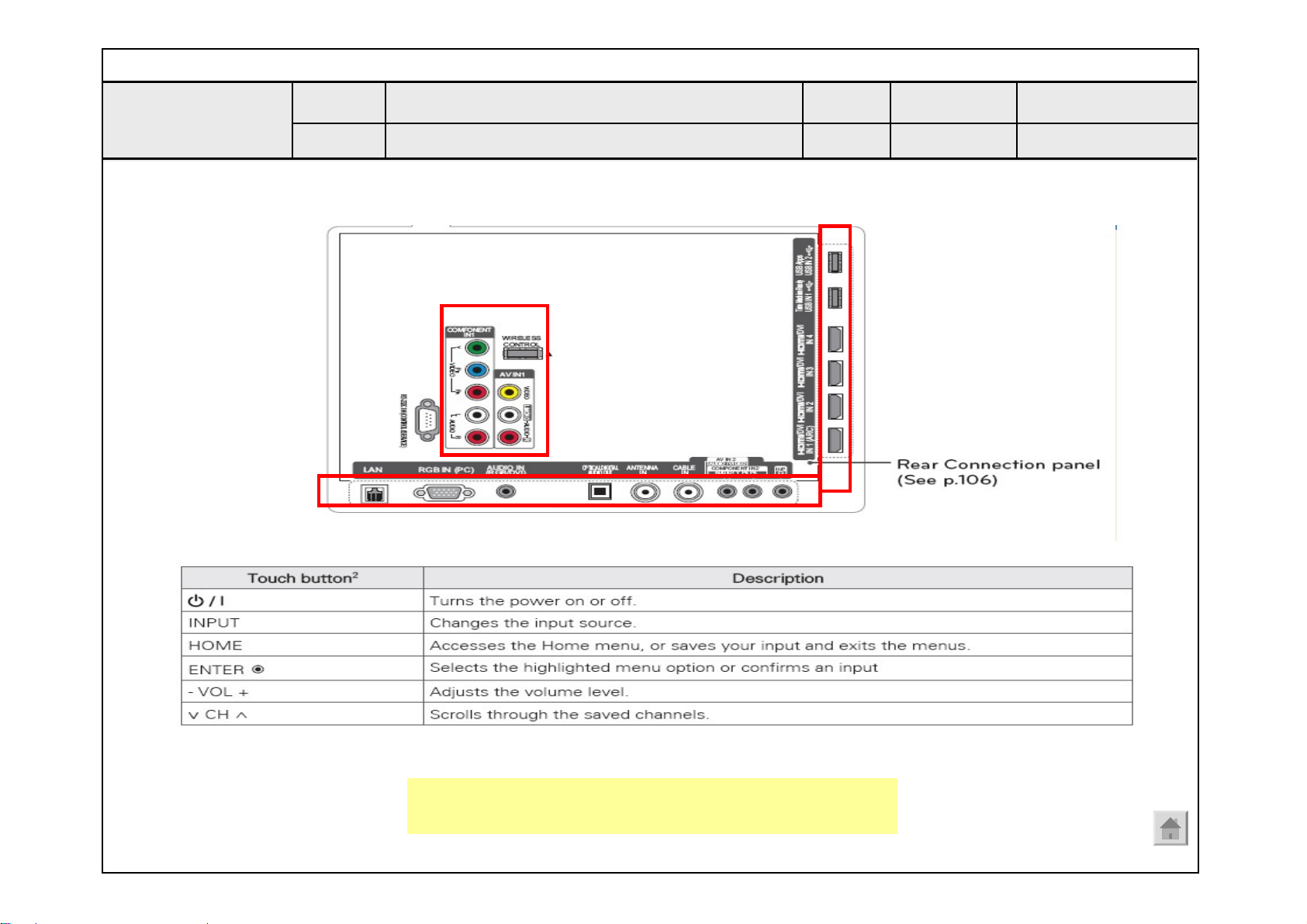

LCD TV connection diagram (1)

Established

date

Revised

date

2010. 12 .14

A8

As the part connecting to the external input, check the screen condition by signal

A8

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

2010. 12 .14 A9

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

A9

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

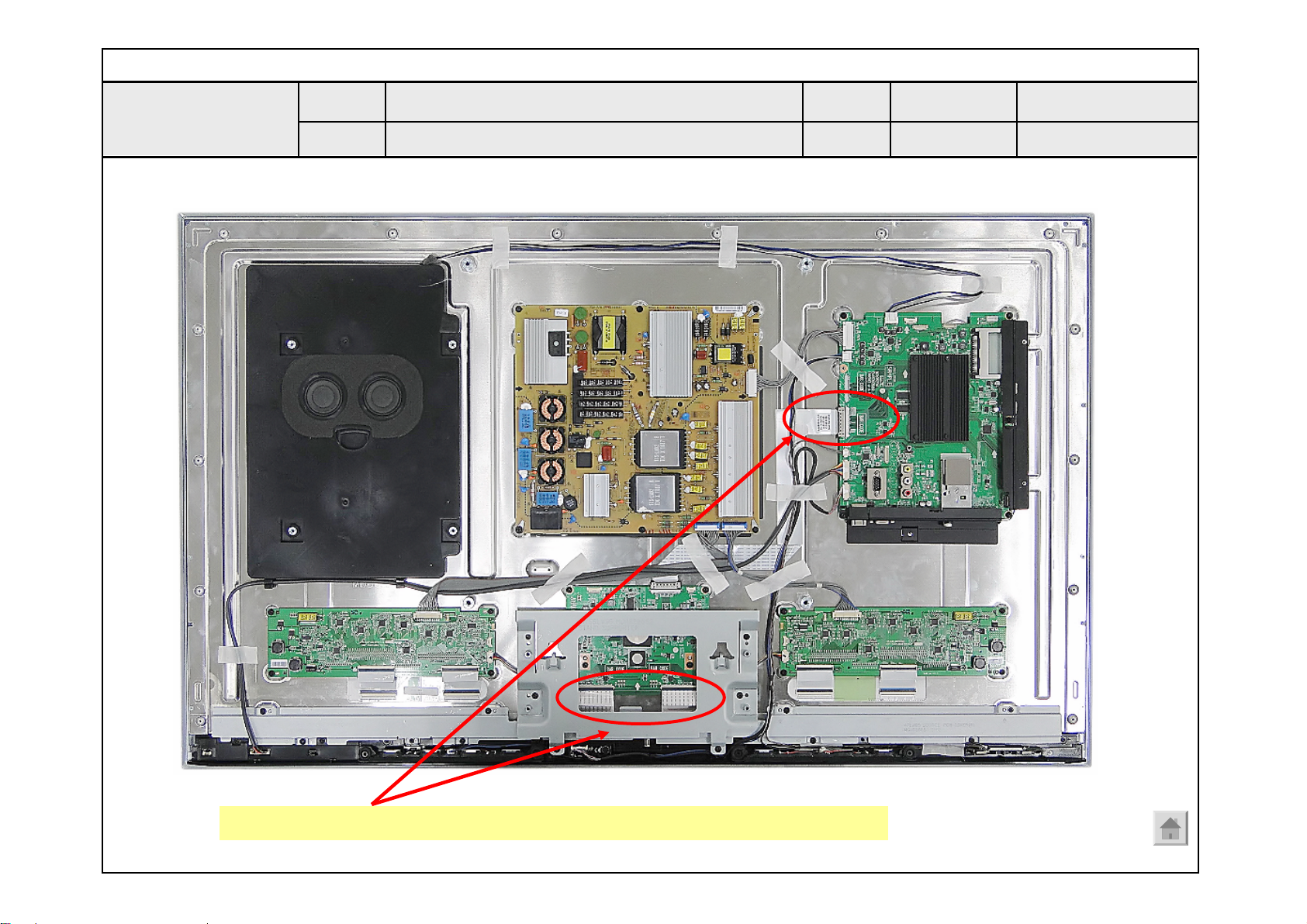

Check Link Cable (LVDS) reconnection condition

A. Video error_Color error

Established

date

Revised

date

2010. 12 .14

A10

Check the contact condition of the Link Cable, especially dust or mis insertion.

A10

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

A. Video error_Color error

Adjustment Test pattern - ADJ Key

Established

date

Revised

date

2010. 12 .14

A12

You can view 6 types of patterns using the ADJ Key Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A12

Appendix : Exchange T-Con Board (1)

LGE Internal Use Only

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

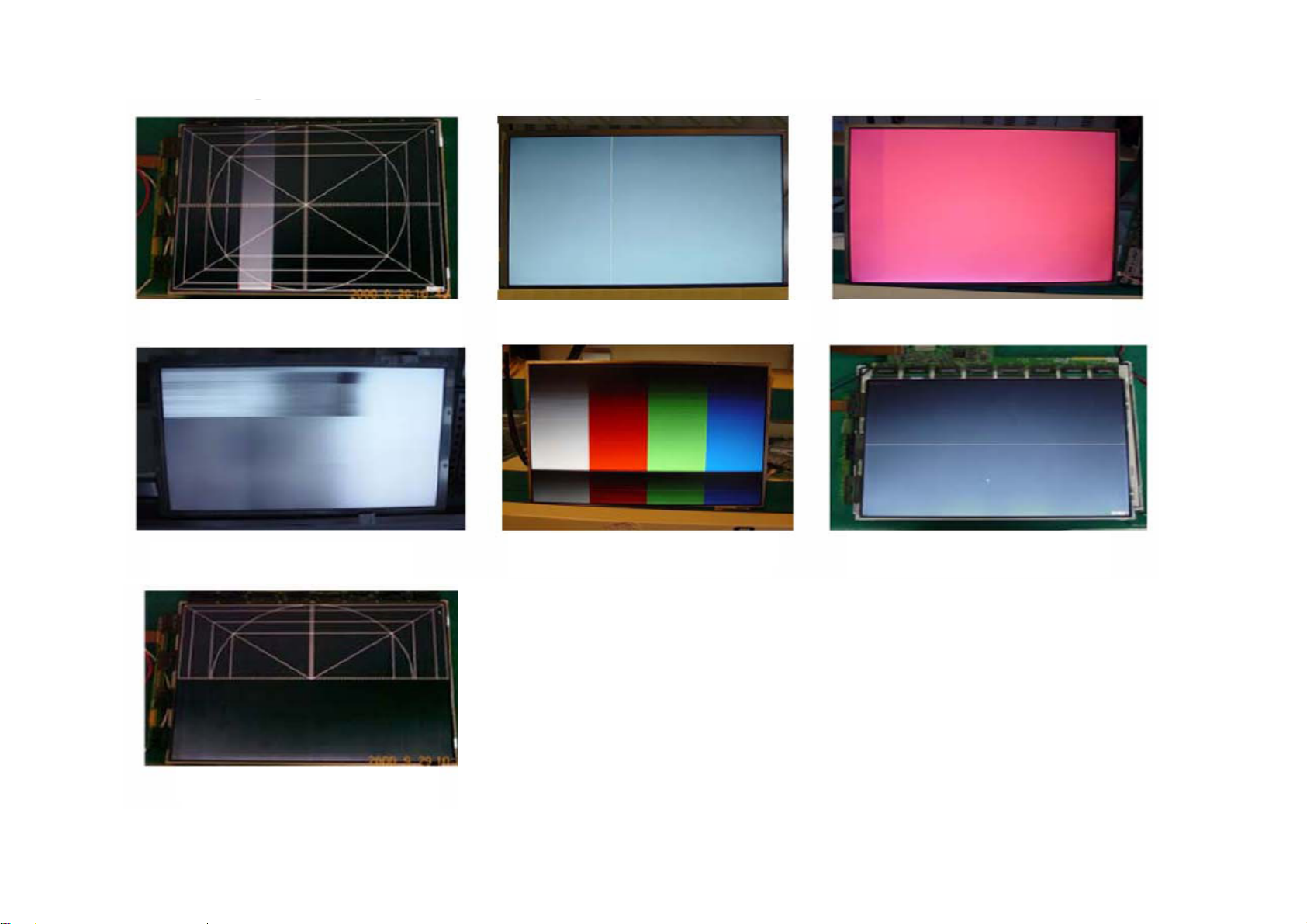

Appendix : Exchange T-Con Board (2)

LGE Internal Use Only

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

Appendix : Exchange PSU(LED driver)

LGE Internal Use Only

No Light

Dim Light

No picture/Sound Ok

A - 3/5

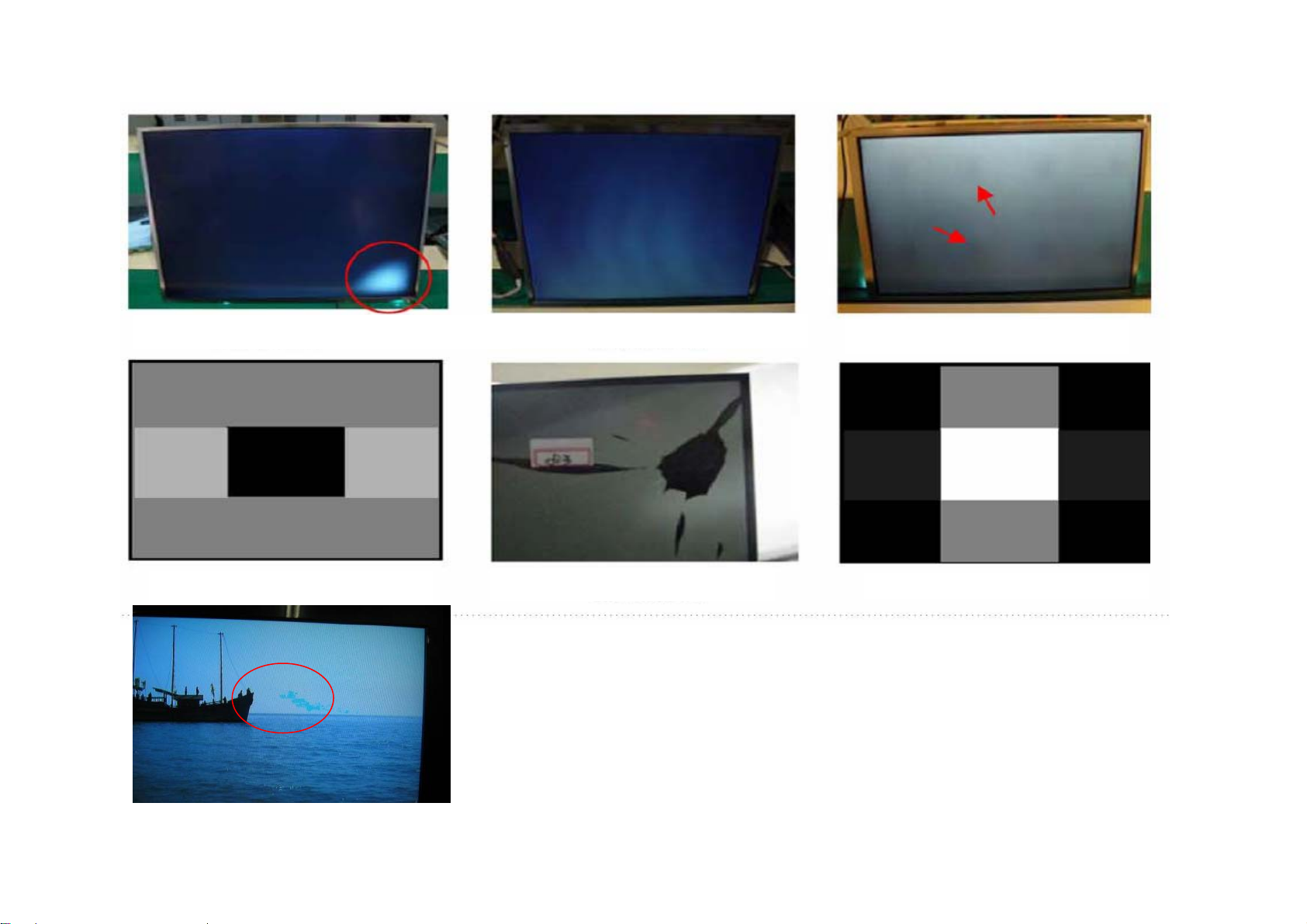

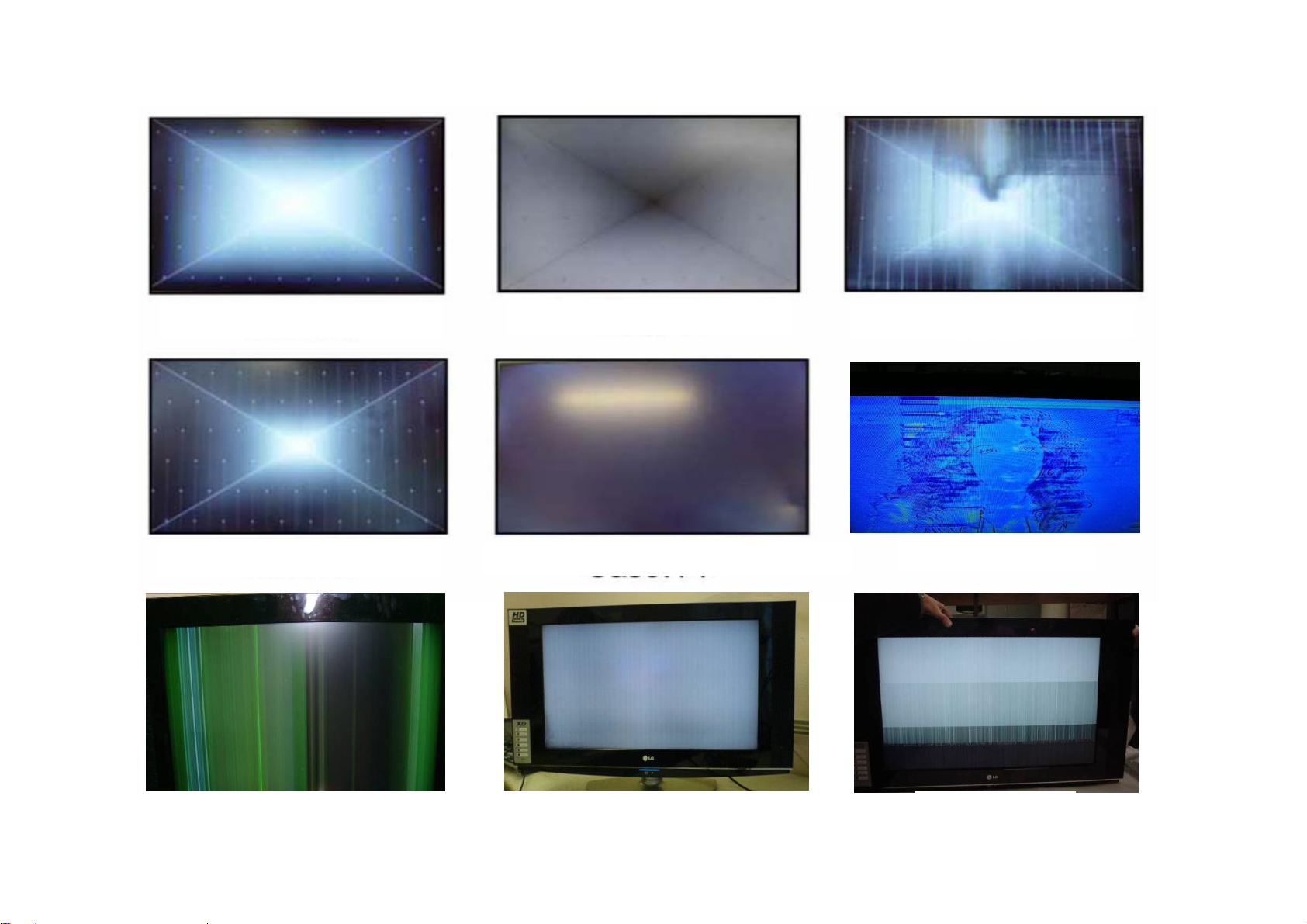

Appendix : Exchange the Module (1)

LGE Internal Use Only

Panel Mura, Light leakage

Crosstalk

Panel Mura, Light leakage

Press damage

Crosstalk

Un-repairable Cases In this case please exchange the module.

Press damage

A - 4/5

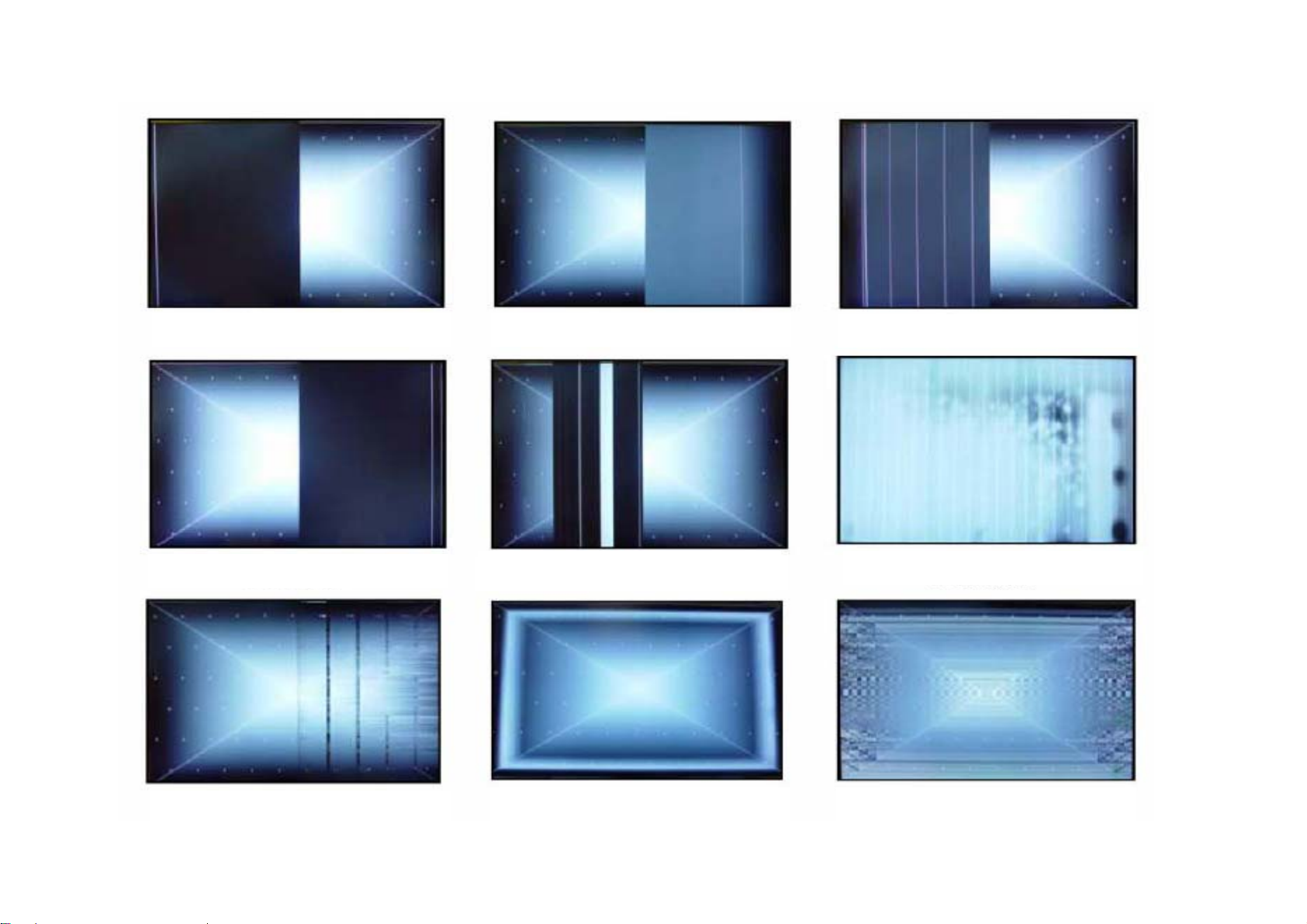

Appendix : Exchange the Module (2)

LGE Internal Use Only

Vertical Block

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Line

Source TAB IC Defect

Horizontal Block

Gate TAB IC Defect

Vertical Block

Source TAB IC Defect

Horizontal line

Gate TAB IC Defect Gate TAB IC Defect

Un-repairable Cases In this case please exchange the module.

Horizontal Block

Gate TAB IC Defect

A - 5/5

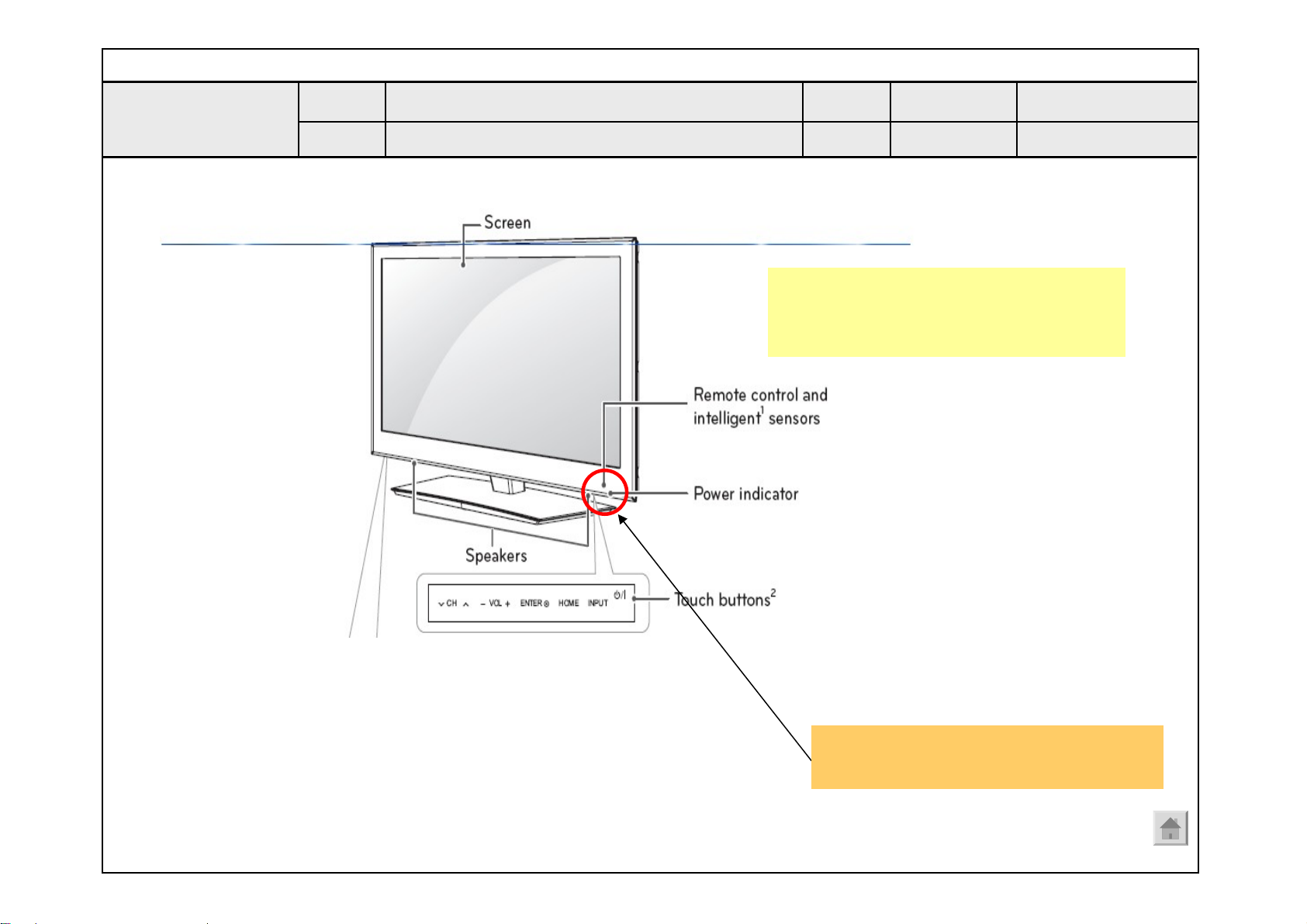

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

B. Power error _No power

Check front display LED

Established

date

Revised

date

2010. 12 .14

A17

Front LED control : Menu Æ Option Æ Power Indicator Æ Standby light ON

A17

ST-BY condition: Red Power ON condition: white

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

LCD TV

symptom

Content

For ’10 models, there is no voltage out for st-by purpose. When st-by, only 3.5V is normally on.

B. Power error _No power

Check power input voltage and ST-BY 5V

Established

date

Revised

date

2010. 12 .14

A18

ALEF LED

Edge LED

Check the DC 20V/24V, 12V, 3.5V.

24 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H24S (YEONHO)

20V (24V)2Power on1 20V (24V)420V (24V)3

Inverter On/off1812V17

2012V19

Lamp : A-Dim

LED : N.C

GND6GND5 GND8GND7

3.5V103.5V9

3.5V123.5V11 GND14GND13 GND16GND15

23

• Lamp SCANNING Model

: PWM Dim #2

A18

2212V21

PWM Dim #1

Error-out24N.C

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

B. Power error _No power

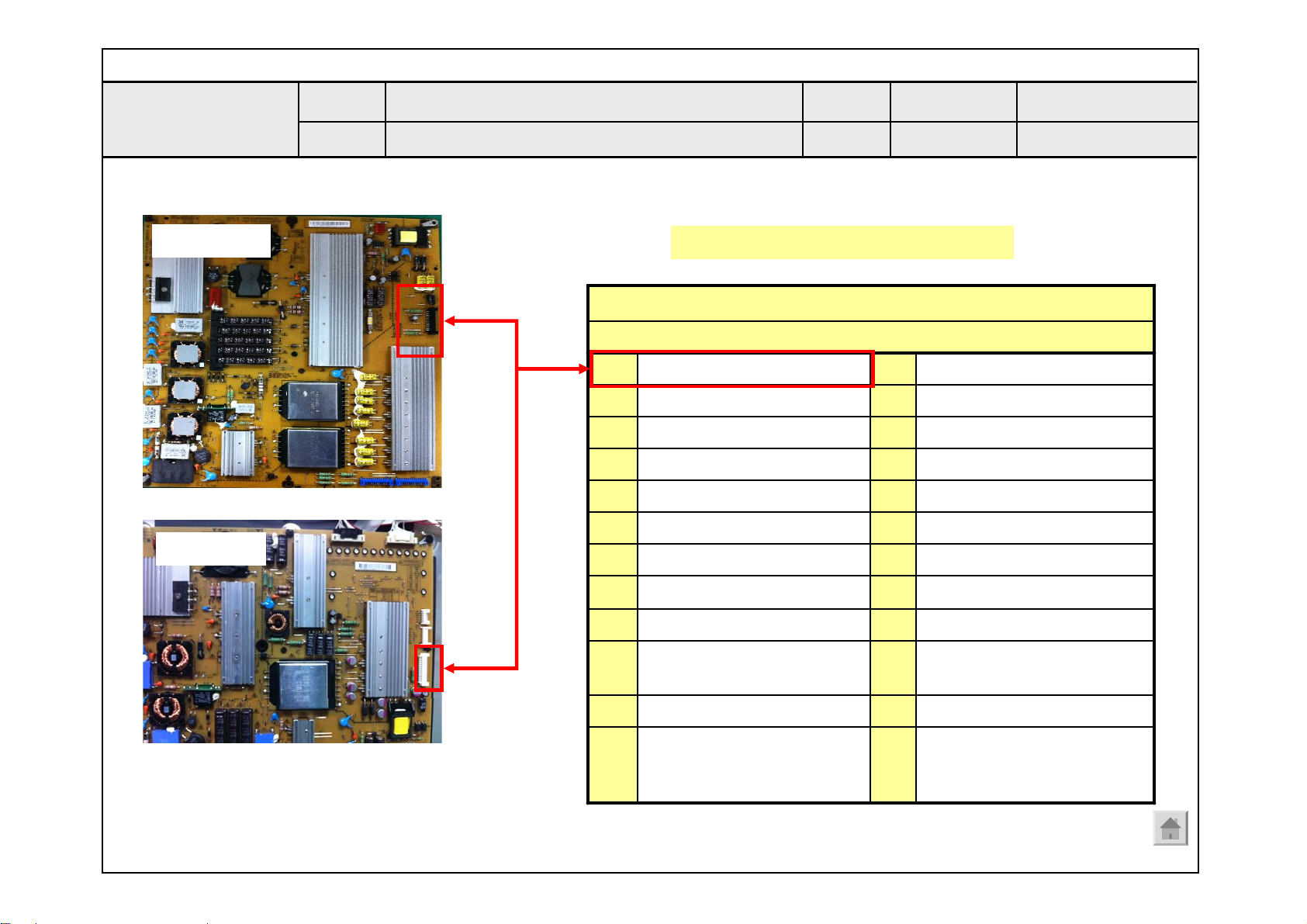

Checking method when power is ON

Established

date

Revised

date

2010. 12 .14

A19

ALEF LED

Edge LED

Check “power on” pin is high

24 Pin (Power Board ↔ Main Board) - 공통

SMAW200-H24S (YEONHO)

20V (24V)2Power on1 20V (24V)420V (24V)3

GND6GND5 GND8GND7

3.5V103.5V9

3.5V123.5V11 GND14GND13 GND16GND15

Inverter On/off1812V17

2012V19

Lamp : A-Dim

LED : N.C

23

• Lamp SCANNING Model

: PWM Dim #2

A19

2212V21

PWM Dim #1

Error-out24N.C

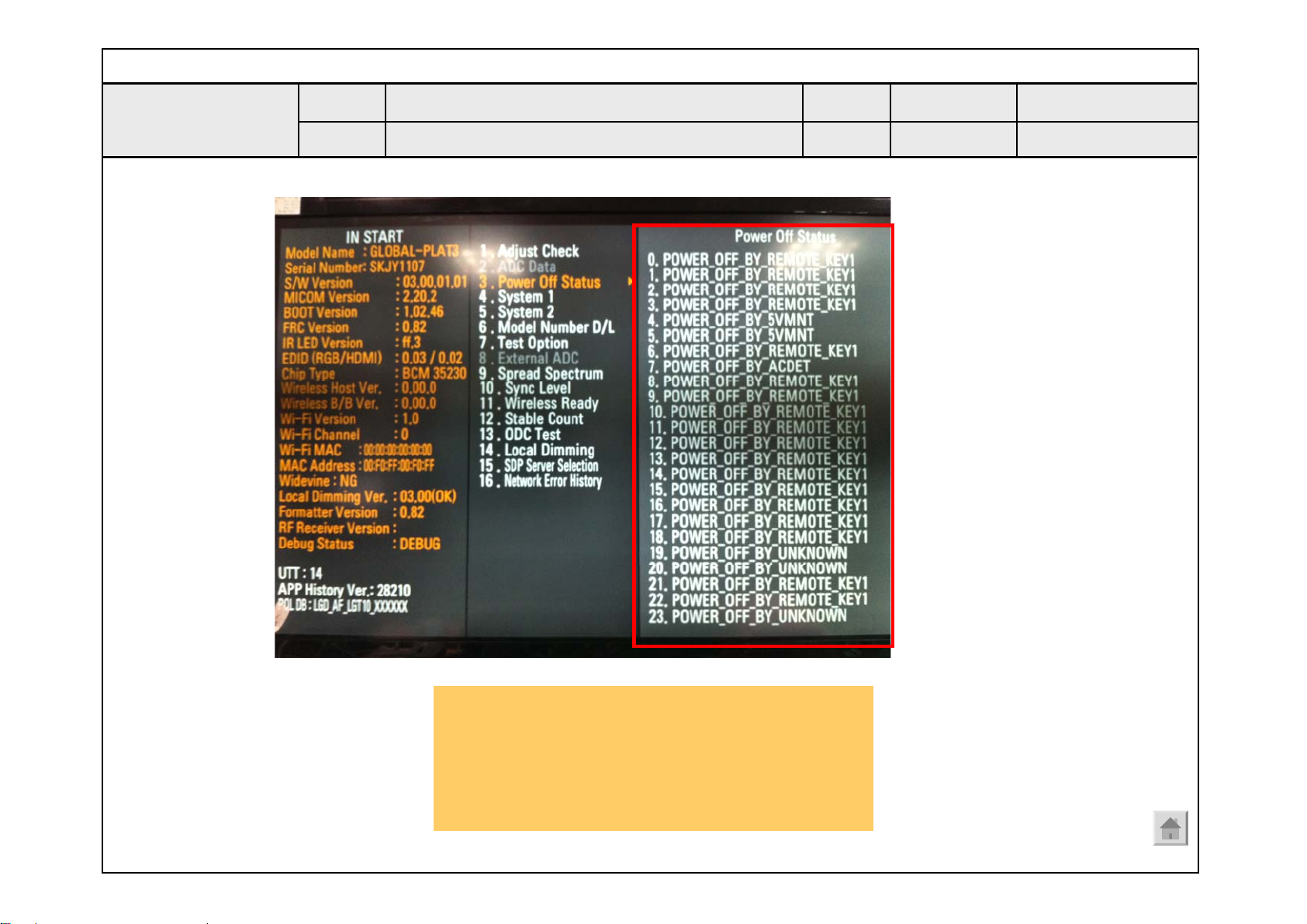

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

LCD TV

Error

symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

2010. 12 .14 A22

Entry method

1. Press the IN-START button of the remote controller for adjustment

2. Check the entry into adjustment item 3

A22

LG 32LV5500DD Schematic
