LG 32LV5700 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LCD TV

SERVICE MANUAL

CHASSIS : LC12E

MODEL : 32LV5700 32LV5700-CA

37LV5700 42LV5700 47LV5700

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

37LV5700-CA

42LV5700-CA

47LV5700-CA

Printed in ChinaP/NO : MFL62864836 (1104-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ......................................................................... 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION ..............................................................59

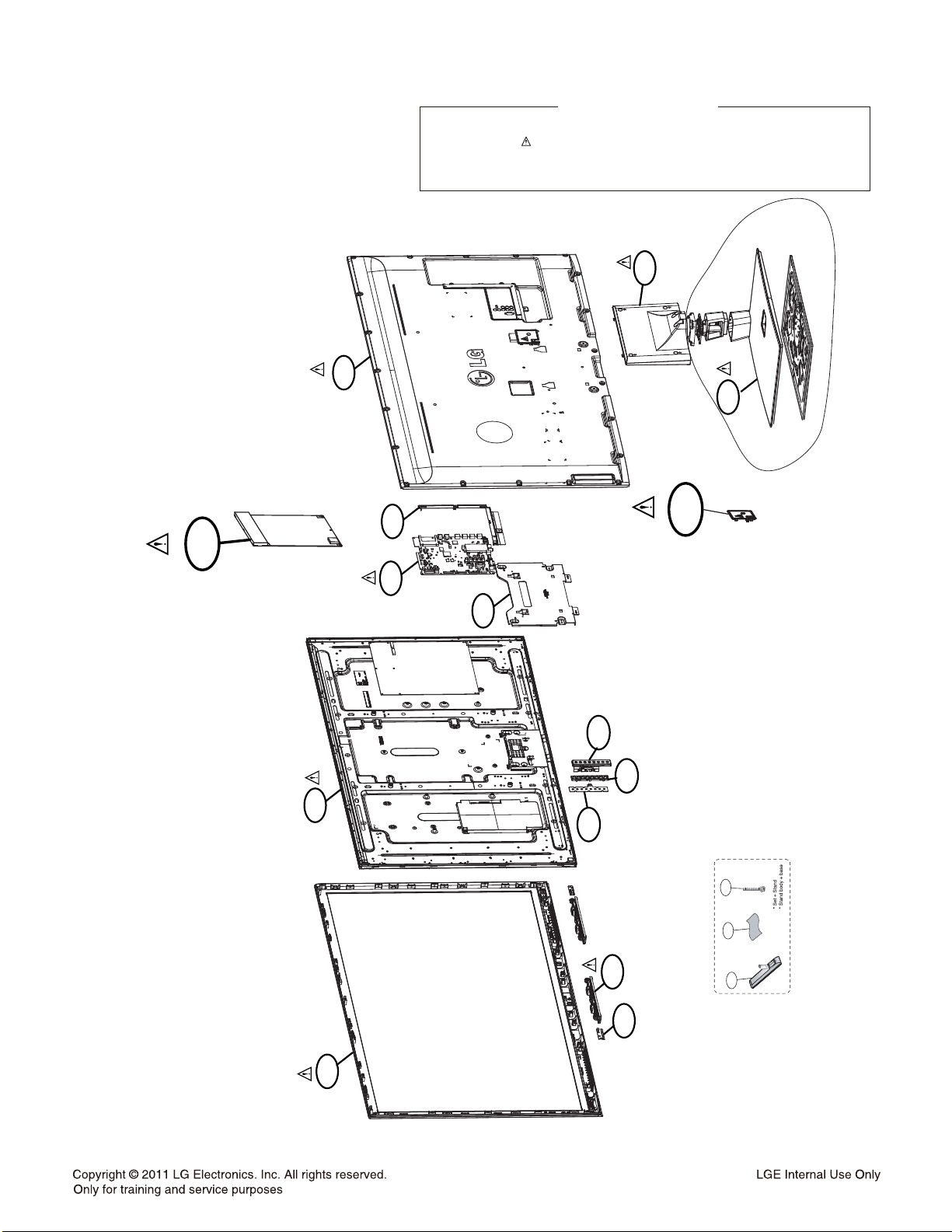

EXPLODED VIEW ..................................................................................92

SVC. SHEET ...............................................................................................

- 2 -

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

LGE Display Division LG(51)

Product Specification

LC12E Product Specification

LC12E

LG 전자

LCD TV Research Department 3

LG ELECTRONICS Inc.

GL1 Group

LGE Display Division LG(51)

LC12E Product Specification

- Contents -

1. Application range.

2. Specification

3. Test Method

4. Electrical Specification

5. Feature and Function

6. Safety and Regulation

7. Video

8. Digital Receiver (DTMB)

9. Digital Receiver (DVB-C)

10. Chroma & Brightness

11. Audio

12. Power

13. Standard Level For Input Signal(Video, Audio, Y/C, Component, RGB)

14. Component Video Input (Y, PB, PR)

15. RGB Input ( PC )

16. HDMI Input

17. RGB/HV Control Signal In/Out Spec(D-sub15 pin Cable )

18. USB Input

19. WIFI

20. Screen Size(over scan spec)

21. The others

22. Reliability

23. LED Control

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

24. SET factoring condition

25. Accessories & Mechanical Spec.

26. Additional Rules

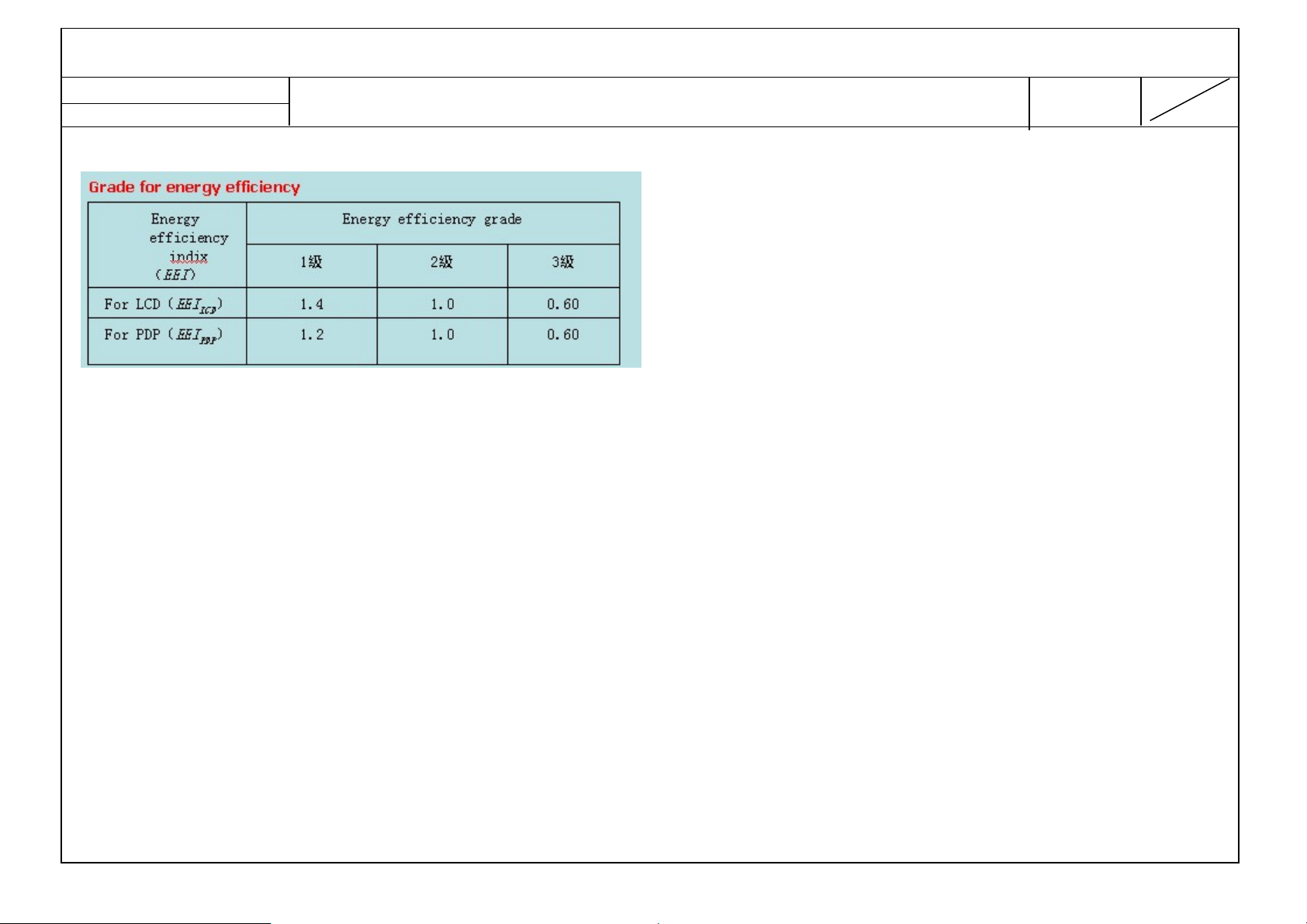

27. Energy Efficiency Index

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

1. Application range.

This spec sheet is applied to the LCD TV used LC12E chassis.

Chassis Basic Model Name Market Place Brand Remarks

42LV5700-CA 47LV5700-CA 55LV5700-CA

32LV5700-CA 37LV5700-CA

LC12E

42LV5700-CA 47LV5700-CA

42LV5740-CE 47LV5740-CE 55LV5740-CE

CHIINA(PAL/DTMB Market) LG

HONG KONG(PAL/DTMB Market) LG

CHIINA(PAL/DTMB Market) LG

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

2. Specification

Each part is tested as below without special appointment.`

2.1 Temperature : 25±5℃ (77±9℉), CST : 40±5℃

2.2 Relative Humidity : 65±10%

2.3 Power Voltage : Standard input voltage (100~240V@ 50/60Hz)

Standard Voltage of each product is marked by models

2.4 Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM .

2.5 The receiver must be operated for about5 minutes prior to the adjustment

LG 전자

LGE Display Division LG(51)

3. Test method

3.1 Performance : LGE TV test method followed.

3.2 Demanded other specification

Safety : CE, IEC specification

EMC : CE, IEC

42/47/55LV5700-CA

32/3742/47LV5700-CA

42/47/55LV5740-CE

Model Market Appliance Remarks

(PAL/DTMB Market)

LC12E Product Specification

CHINA

HONG KONG

CHINA

Safety : IEC/EN60065

EMI : EN55013

EMS : EN55020

Safety : IEC/EN60065

EMI : EN55013

EMS : EN55020

Safety : IEC/EN60065

EMI : EN55013

EMS : EN55020

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

4. Electrical Specification

4.1 Module Specification

4.1.1 General Specification (2D 100Hz)

No Item Specification Measurement Result Remark

1 Display Screen Device 32,37,42,47,55,60 wide Color Display Module LCD 2 Aspect Ratio 16:9

32” 120Hz Edge LED (LC320EUD-SDA1) 37” 120Hz Edge LED (LC370EUD-SDA1)

3 LCD Module

4 Operating Environment

5 Storage Environment

6 Input Voltage AC100 ~ 240V, 50/60Hz

Power Consumption

7

Module Size

Surface treatment

42” 120Hz Edge LED (LC420EUF-SDA1) 47” 120Hz Edge LED (LC470EUF-SDA1) 55” 120Hz Edge LED (LC550EUF-SDA1)

Temp. : 0 ~ 50 deg Humidity : 10 ~ 90 %

Temp. : -20 ~ 60 deg Humidity : 10 ~ 90 %

Power on (White) 32” LGD Typ : 51W

37” LGD Typ : 75.17W 42” LGD Typ : 71.6W 47” LGD Typ : 81.9W 55” LGD Typ : 102.4W

32” LGD Typ : 735.4(H)×433.0 (V) X10.8(B)/23.6(D)mm

37” LGD Typ : 856.4(H)×501.0 (V)×10.8(B)/23.6(D) mm 42” LGD Typ: 968.4(H) × 564(V) X 10.8(B)/18.3 mm(D) 47” LGD Typ: 1078.6(H) × 626.0(V) X 10.8(B)/22.9 mm 55” LGD Typ: 1255.6(H) × 726.4(V) X 19.0(B)/10.8 mm

Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)

LGD

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

4.2 MODEL General Specification

No Item Specification Measurement Result Remarks

1 Market CHINA, HONG KONG

1) PAL-DK

2) PAL-I

2 Broadcasting system

3 Receiving system

4 Video Input RCA(2EA) PAL, NTSC

3) NTSC-M

4) DTMB

5) DVB-C

Analog : Upper Heterodyne Digital : COFDM, QAM

DTMB : DMB-T (Multi Carrier) + ADTB-T (Single Carrier)

▶ DTMB

(Carrier, Code Rate, Constellation, Frame Header, Interleaving) ※China

- MODE1 : 3780, 0.4, 16QAM, PN945, 720, 9.626Mbps

- MODE2 : 1, 0.8, 4QAM, PN595, 720, 10.396Mbps

- MODE3 : 3780, 0.6, 16QAM, PN945, 720, 14.438Mbps

- MODE4 : 1, 0.8, 16QAM, PN595, 720, 20.791Mbps

- MODE5 : 3780, 0.8, 16QAM, PN420, 720, 21.658Mbps

- MODE6 : 3780, 0.6, 64QAM, PN420, 720, 24.365Mbps

- MODE7 : 1, 0.8, 32QAM, PN595, 720, 25.989Mbps ※ Hong Kong

- 3780, 0.4/0.6, 4/16/64QAM, PN945, 720

▶ DVB-C

- Symbolrate :

4.0Msymbols/s to 7.2Msymbols/s

- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM

4 System : PAL, SECAM, NTSC, PAL60 Rear 1EA, AV gender jack 1EA

LG 전자

LGE Display Division LG(51)

No Item Specification Measurement Result Remarks

Antenna, AV1, AV2, AV3,

5 Head phone out

6 Component Input (1EA)

7 RGB Input RGB-PC

8 HDMI Input (4EA)

9 Audio Input (4EA)

10 SDPIF out (1EA) SPDIF out

11 USB (2EA)

Component, RGB, HDMI1, HDMI2, HDMI3, HDMI4, USB Y/Cb/Cr Y/Pb/Pr

HDMI1-DTV/DVI HDMI2-DTV HDMI3-DTV HDMI4-DTV RGB/DVI Audio Component AV1,2

EMF, DivX HD, For SVC (download)

LC12E Product Specification

Component Gender 1EA

L/R Input

JPEG, MP3, DivX HD

Analog(D-SUB 15PIN)

PC(HDMI version 1.3) Support HDCP

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

5. Feature and Function

No Item Specification Measurement Result Remarks

1 TV/ DTV Input 1

2 RGB Input 1 Analog RGB (Separate)

3 HDMI Input 4 Digital Input Rear(4EA)

5 AV Input 2 CVBS/L/R Rear (1EA), Side (1EA) 7 Component Input 1 480i /576i/480p/576p/720p/1080i/1080p Side (1EA) 8 RS-232C 1 Remote Control Rear (1EA)

9 Audio Input 4 RGB/DVI Audio,Component, AV, Side Gender(Component2, AV2) Rear (3EA)

10 SPDIF Output 1 SPDIF out Rear (1EA)

11 USB 2 EMF, DivX, For SVC (download) Side (2EA)

12 Remocon Code LG code 13 Remote control Wireless Remote Control 14 Local Key ▼PR▲, ◄VOL►, OK, MENU, INPUT, Power 8EA 15 Set Installation Wall Mount / Desk top 16 Main Power Key O Soft touch 17 PIP / POP Mode X 18 SSC (Split Screen) Mode X 19 Favorite O 20 Teletext O 21 AVL O 22 On/Off Timer O 23 Aspect Ratio 16:9/JustScan/Original/Full Wide/4:3/14:9/Zoom/Cinema Zoom1/

24 Picture Mode Intelligent sensor/ Vivid/ Standard/Cinema/ Sport/ Game/ Expert1/ Expert2

Analog : PAL BG, DK, I/I’ Digital : DTMB,DVB-C

Right : DTMB, Analog

Left : DVB-C, Analog

D-Sub 15 pin, Side(1EA)

25 Sound Mode Standard /Music /Cinema /Sport /Game

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

Auto Tuning Quick (/Frequency/Symbol rate/Modulation/Network ID/reset/Start and End frequency)

Auto Tuning

(DVB-C)

Manual Tuning DTV (UHF CH,Frequency)

Full (full frequency search)

TV/CATV (Storage, System, Band, Channel, Fine, Search, Name)

TV Mode.

Manual

26

setup (SETUP)

Tuning

Programme Edit Programme Edit

Programme Edit

Booster On/Off CI Information Module

Cable DTV Setting

CADTV (Frequency, Symbol Rate, Modulation)

ATV/TV/: Favourite Pr. Group, Previous, wa tch, s et as favo urit e ,Skip, Move, block/unblock, Delete CADTV: Favourite Pr. Group, Previous, watch, s e t a s f a v ourite,Skip, Move, block/unblock, Delete

DTV/Radio/Cable radio: Favourite Pr. Group, Previous, watch, set as favourite,Skip, Move, block/unblock, Delete

Service operator Channel auto update(on/ff) Audio auto mode(on/off)

DTV-T Mode

DVB-S Mode

TV Mode DTV Mode / Radio Mode

DTV (DTMB) Mode DTV (DVB-C) Mode

Only CHINA

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

1. You can only select 4:3, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in Component mode.

2. You can only select 4:3, Original, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in HDMI mode.

3. You can only select 4:3, 16:9 (Wide) in RGB-PC, HDMI-PC mode only.

4. In DTV/HDMI/Component (over 720p) mode, Just Scan is available.

5. In Analogue/AV mode, Full Wide is available.

Only for DVB-S model

27

setup (PICTURE)

16:9

-DTV,ATV, AV1/2, Component, RGB, HDMI1~4 Just Scan

-DTV, Component, HDMI1~4(over 720p) Original

- DTV,ATV, AV1/2, HDMI1~4 Full Wide(WSS signal)

Aspect Ratio

Picture Wizard O

Energy Saving Auto/Off/Minimum/Medium/Maximum/Screen Off Picture Mode Intelligent sensor/Vivid/ Standard/ Cinema/Game/ Expert1/ Expert2

Energy Saving

Picture Mode

-ATV, AV1/2 4:3

-DTV,ATV, AV1/2, Component, RGB, HDMI1~4 14:9

-DTV,ATV, AV1/2,Component, HDMI1~4 Zoom

-DTV,ATV, AV1/2,Component, HDMI1~4 Cinema Zoom 1

-DTV,ATV, AV1/2,Component, HDMI1~4

BackLight(0~100), Contrast(0~100), Brightness(0~100), Sharpness(0~100), Colour(0~100), Tint(R50~G50), Colour Temp(W50~C50), Picture Reset

Dynamic Contrast : Off, Low, Medium, High Dynamic Colour : Off, Low, High Clear white : off Skin Colour : 0 Noise Reduction : Off, Low, Medium. High

Advanced Control

Super rdsolution:on/off MPEG Noise Reduction:low medium high off Gamma : Low, Medium, High Black Level : Low, High

Eye Care : on/off Real Cinema : on/off Coluor Gamut : Standard, Wide

xvYCC : on / off / Auto

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

TruMotion:Off, Low, High, User

28 setup

(Audio)

setup

29

(TIME)

TruMotion

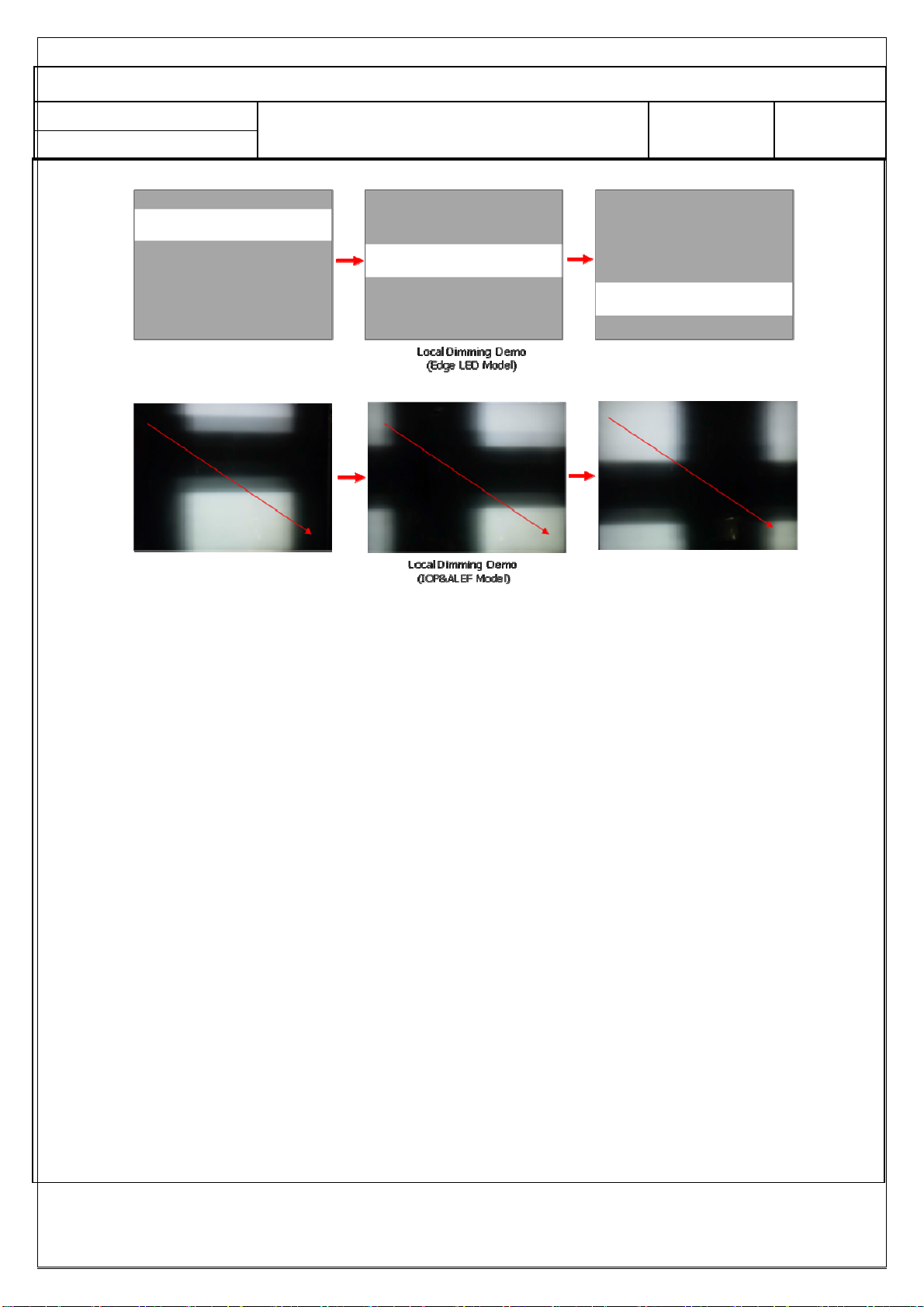

LED Local Di mming

Screen

Auto volume Off / On Clear Voice II Off / On

Balance 0 (L50 ~ R50)

Sound Mode

Digital Audio Out

TV Speaker Off / On DTV Audio

Setting

ARC Mode OFF On

Sound Optimiz er

AV Sync

De-Judder:(user mode adjust)0-10 De-Blur:(user mode adjust)0-10

OFF,Low,Medi um,High

Resolution Auto Config Position Size Phase Reset

Standard /Music /Cinema /Sport /Game Infinite Sound, Treble, Bass, Reset

Auto, PCM

Auto, AAC, Dolby Digital+, Dolby Digital, MPEG

Normal, Wall Mount Type ,Stand Type

AV Sync : Off/ On TV Speaker : SPDIF :

Only RGB modee

DTV mode

Date, Month, Year, Hour, Minute, Time Zone

30 setup

Clock

Off Time Repeat (Off, Once, Daily, Mon.~Fri., Mon.~Sat., Sat.~Sun., Sun.) Hour, Minute DTV mode

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

Repeat (Off, Once, Daily, Mon.~Fri., Mon.~Sat., Sat.~Sun., Sun.) Hour, Minute, Input(Antenna, AV1, AV2, AV3, Component, RGB, HDMI1, HDMI2, HDMI3, HDMI4), Programme, Volume Off / 10min / 20min / 30min / 60min / 90min/ 120min / 180min / 240min

New, Confirm

On / Off

Block Programme

DTV/RADIO/T V (Change, Navigation, Page Change, Previos, Block/Unblock)

DTV mode

25

31

(Lock)

setup (Option)

On Time Sleep timer Set Password Lock System

Key Lock

Input Block AV1, AV2,

Language Menu Language

Subtitle Language

Country

Country Hard of Heari

Audio Language

Subtitle Language

Beijing, others, Hong Kong

Chinese / English

Mandarin / Cantonese / English

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

32

Hot Key (Remote)

ng

Power Indicator

My Media Sett ing

Factory Reset

Set ID Mode Setting ENERGY

SAVING

INPUT

RATIO TV/RAD Q.MENU MENU GUIDE RETURN INFO AV MODE

Etc.

MARK Favorite List

Hard of hearing On/off

Standby Light On / Off Power Light On / Off

DMR(On Off), Divx VOD Registration,DivX Deregistration

YES / NO

1 ~ 99 Store Domo / Home Use

Auto/Off/Minimum/Medium/Maximum/Screen Off

Antenna→AV1→AV2→Component1→Component2→RGB→HDMI1 →HDMI2 → HDMI3 → HDMI4 → Antenna

POWER, Navigation key (Up, Down ,Left ,Right ), OK, Numeric(0~9), P +/-, Δ +/-, RED KEY, GREEN KEY, YELLOW KEY, BLUE KEY SUBTITLE,REC KEY,SIMPLINK

33 setup

(Network)

MUTE Audio Mute

LIST

Q.VIEW APP/* APP List MHP model Network type

Network Setting

Wired / Wireless IP Auto Setting / IP Manual Setting IP Address(0.0.0.0)

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

No Item Specification Measurement Result Remarks

Network

Subnet Mask(0.0.0.0) Gateway(0,0,0,0)

DNS Server(0,0,0,0)

Status

Network Status

34

Customer support

Legal Notice Software update

Picture test Sound test Signal test

Product service info.

35 MENU(UI) Netcast 36 MENU(UI) APP.store 37 MENU(UI) PR guide 38 MENU(UI) PR list 39 MENU(UI)

Recorded list

40 MENU(UI) My media ex MENU(UI) Bottom widget

Setting/Test/Close

Yahoo, netflix, accuwether,picasa, you tube HOT(TBD), NEW(TBD)

More, search, Appstore, yutnori, sudoku, jump, janggi

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

6. Safety and Regulation

No Item Min Typ Max Unit Remarks

1. Force Stability – Incline Plane Tip Test 10 12 Deg

Clearances & Creepage,

2. : AC-AC

Clearances & Creepage,

3. : AC-GND

Clearances & Creepage

4. : Primary ↔ Secondary

Power

5.

Consumption, Max

32LV5700-CA 37LV5700-CA 42LV5700-CA 47LV5700-CA 55LV5700-CA

Power

6.

Consumption,

All-inch 0.1 0.13 W

Stand by

7. Dielectric Voltage 1.5 kV

8. Dielectric Voltage(for M/P) 1.8 kV

9. Isolation Resistance 4

10.

Leakage Current

UL/CSA 0.5 mA (rms)

Etc. 0.35 V Peak

3.0 mm

6 mm

TBD

W

TBD

120 130 140 150

TBD

10 ㏁

∝ ㏁

IEC60065

※ Energy Saving Spec

※ Power Consumption Stand by

- Power Indicator RED LED : Off

※ Dielectric Voltage (AC↔FG)

※ Dielectric Voltage(WITHOUT FG)

- 3kV/100mA/1min

※ Energy Saving Spec

Maximum:40±15%

- Min / Medium / Screen off has 10% difference each

other.

- 1.5kV/100mA/1min

- 1.8kV/100mA/1sec(M/P)

External interface signal line↔AC

- 3.6kV/100mA/1sec

OFF : 100% Minimum: 80±10% Medium: 63±10% Maximum: 43±10% Screen Off: 29±10%

11. Power cord Length 1.6 1.8 3.0 M

LG 전자

LGE Display Division LG(51)

No Item Min Typ Max Unit Remarks

12. Sharp Edge None

Korea Compliance

UL Compliance

CSA Compliance

IEC Compliance

13.

Safety K60065 Not Applied

EMC

Safety UL6500

EMC

Safety CSA60065

EMC GRR Part II A

Safety IEC60065, d

EMC CISPR Applied

Safety EN60065 Applied

LC12E Product Specification

MIC Class A MIC Class B

FCC Part 15 Class A FCC Part 15 Class B

EN55013, EN55020 Applied

EN61000-3-2 Harmonics

Not Applied

Applied

EN61000-3-3 Flicker

EN61000-4-2 ESD

CE Compliance

EMC

EN61000-4-3 Radiated

EN61000-4-4 EFT

EN61000-4-5 Surge

EN61000-4-6

EN61000-4-11 Applied

Conducted immunity

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

7. Video

No Item Min Typ Max Unit Remarks

1. IF Rejection Ratio -13.0 dB

2. Image Rejection Ratio -13.0 dB

3. Adjacent CH Rejection, Upper -6.0 dB

4. Adjacent CH Rejection, Lower -13.0 dB

5. Sync Level 25 %

6. Color 7 %

7. AFT -1.5 +1.5 MHz

8. AGC speed 100 Hz Multi-Tuner(PAL/SECAM)

8. Sub Carrier Pull In Range -450 +450 Hz

9. Sub Carrier Delay -1.5 +1.5 usec

10. AV Video Out Level 0.85 1.0 1.15 Vpp AV Out

11. AV Video Sync Out Level 0.25 0.3 0.35 Vpp

12. AV Burst Out Level 0.15 0.3 0.35 Vpp

AV Video Out Frequency

13. Characteristic

14. AV Video Out S/N 40.0 DB

AV Video Out Frequency

15. Characteristic

3.0 MHz

LG 전자

LGE Display Division LG(51)

No Item Min Typ Max Unit Remarks

16. Color Distortion, DG 10 %

17. Color Distortion, DP 10 deg

18. Color S/N, AM 43 dB

19. Color S/N, PM 43 dB

20. AV Video In Level 0.85 1 1.15 Vpp

21. AV Sync In Level 0.25 0.3 0.35 Vpp

22. AV Burst In Level 0.15 0.3 0.35 Vpp

23. AV Video In Impedance 100KHz 67.5 75 82.5 Ohm

24. AV Video In Impedance 2MHz 67.5 75 82.5 Ohm

LC12E Product Specification

25. Video Processing Time (50Hz) 270 ms Signal Time delay from input to output

26. Video Processing Time (60Hz) 208 ms Signal Time delay from input to output

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

8. Digital Receiver (DTMB)

8-1.Digital Receiver (DTMB : ADTB-T) : C=1, 16QAM, 0.8, PN=595, M=720

No Item Min Typ Max Unit

1 Frequency Range

2 Input Impedance 75 Ω

3 Carrier C=1

4 Modulation 4QAM, 16QAM, 32QAM

5 Code Rate 0.8

6 Frame Header PN595

7 Interleaver M=720

8-1 RF Sensitivity(VHF) -85 -25 dBm

8-2 RF Sensitivity(UHF) -83 -25 dBm

9 Channel Offsets ±150 kHz

10 C/N with AWGN 14 dB

11-1 PAL CCI Protection (Analog) 2 dB

11-2 PAL CCI Protection (Digital) 14 dB

12-1 PAL ACI protection(Analog Lower) -37 dB

12-2 PAL ACI protection(Analog Upper) -36 dB

12-3 PAL ACI protection(Digital) -28 dB

13 Ricean channel C/N 15 dB

14 Rayleigh channel C/N 18 dB

474

52.5

866 219

MHz

Remarks

UHF BAND VHF BAND

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

8-2.Digital Receiver (DTMB : DMB-T) : C=3780, 16QAM, 0.8, PN=420, M=720

No Item Min Typ Max Unit

1 Frequency Range

2 Input Impedance 75 Ω

3 Carrier C=3780

4 Modulation 16QAM, 64QAM

5 Code Rate 0.4, 0.6, 0.8

6 Frame Header PN420, PN945

7 Interleaver M=720

8-1 RF Sensitivity(VHF) -85 -25 dBm

8-2 RF Sensitivity(UHF) -83 -25 dBm

9 Channel Offsets ±150 kHz

10 C/N with AWGN 14 dB

11-1 PAL CCI Protection (Analog) 2 dB

11-2 PAL CCI Protection (Digital) 14 dB

12-1 PAL ACI protection(Analog Lower) -37 dB

12-2 PAL ACI protection(Analog Upper) -36 dB

12-3 PAL ACI protection(Digital) -28 dB

13 Ricean channel C/N 15 dB

14 Rayleigh channel C/N 18 dB

474

52.5

866 219

MHz

UHF BAND VHF BAND

Remarks

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

9. Digital Receiver (DVB-C)

No Item Min Typ Max Unit

1. Frequency Range 52.5 866 MHz

2. Input Impedance 75 Ω

3. Symbol Rate

4. Modulation 16, 64, 128, 256QAM

5 RF Sensitivity 47 70 dBuV

16QAM 20.5 dB

32QAM 26.5 dB

6. C/N with AWGN

64QAM 29.5 dB

128QAM 31.5 dB

256QAM 32.5 dB

4000 Ks/s~7200 Ks/s

Remarks

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

10. Chroma & Brightness

10.1 Module optical specifications.

* Edge LED 100Hz module (LGD)

for more details, refer to the module spec.

No. Item Specification Min. Typ. Max. Remark

Viewing Angle<CR>10> 2D Right/Left/Up/Down

1.

2. Luminance 2D

3. Contrast Ratio CR 1100 1600

4

CIE Color Coordinates

White

1) Standard Test Condition(The unit has been ‘ON’)

Luminance (cd/m2)

Variation 1.3 MAX / MIN

RED

Green

Blue

RX R

Y

GX G

Y

BX B

Y

Wx 0.279 Wy

89/89/89/89

360 320 320 320 320

CR>10 450 400 400 400 400

0.650

0.331

0.306

0.607

0.150

0.059

0.292

LC320EUD-SDA1 LC370EUD-SDA1 LC420EUF-SDA1 LC470EUF-SDA1 LC550EUF-SDA1

2) Stable for approximately 60 minutes in a dark environment at 25℃

3) The values specified are at approximate distance 50Cm from the LCD surface

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

10.2 Chroma (PSM: Vivid, Color Temperature: Cool ) – except “RGB PC Mode PSM: Standard, Color Temperature: Medium”

** The W/B Tolerance is ±0.002 for Adjustment, but for DQA ±0.015

(W/B Variation Design(R&D) Spec : ±0.002, DQA Spec ±0.015)

No Item Min Typ Max Unit Remark

<Test Condition> 85% Full white pattern Cool/Medium : Backlight 100

Warm : Backlight 30

** In the case of LED Model, Measure the color temperature at the warm mode after heat run T.V more than 60 minutes at Cinema mode.

1. Cool

2. Medium

3. Warm

Color Space : After 90min heat run, test the Color Space Spec

Luminance : After 90min heat run, test the Luminance Spec

White Balance, X axis White Balance, Y axis

0.267

0.271

0.283

0.291

0.311

0.327

0.269

0.273

0.285

0.293

0.313

0.329

0.271

0.275

0.287

0.295

0.315

0.331

DQA : ±0.015 DQA : ±0.015

▣ Color Temperature measure specification

1) In non-impressed condition, measure White Balance displayable as much as possible LCD module.

2) Measuring instrument: CA-210 or a sort of Color Analyzer.

3) Pattern Generator : VG-828 or a sort of digital pattern generator (216 Gray)

4) Measure condition

● Test pattern: 85% Full White pattern

● SET condition : Contrast & Brightness Level default

● Environment condition : Dark room in the non outside light

● Video menu option condition

LG 전자

LGE Display Division LG(51)

RF

AV

Component 1080p Standard 100 0 Off Off Off High

RGB 1024x768 Standard 100 0 Off deactivated NA

HDMI DTV 1080p Standard 100 0 Off Off Off Low

Signal Picture Mode Backlight Color Temp. Dynamic Contrast Dynamic Color Eye Care Black Level

NTSC-M Standard 100 0 Off Off Off Low

PAL Standard 100 0 Off Off Off Auto

NTSC-J Standard 100 0 Off Off Off High

PAL Standard 100 0 Off Off Off Auto

LC12E Product Specification

▣ Max Luminance measure specification

1) In non-impressed condition, measure peak brightness displayable as much as possible LCD module.

2) Measuring instrument: CA-210 or a sort of Color Analyzer.

3) Pattern Generator : VG-828 or a sort of digital pattern generator (displayable Full White & 1/25 White Window pattern)

4) Measure condition

● Test pattern: in center, 1/5(H) * 1/5(V) of Window Pattern (white pattern in non-impressed condition)

● SET condition : Contrast & Brightness Level 100%

● Environment condition : Dark room in the non outside light

● Video menu option condition

RF

AV

Component 1080p Standard 100 0 Off Off Off High

RGB 1024x768 Standard 100 0 Off deactivated NA

HDMI DTV 1080p Standard 100 0 Off Off Off Low

Signal Picture Mode Backlight Color Temp. Dynamic Contrast Dynamic Color Eye Care Black Level

NTSC-M Standard 100 0 Off Off Off Low

PAL Standard 100 0 Off Off Off Auto

NTSC-J Standard 100 0 Off Off Off High

PAL Standard 100 0 Off Off Off Auto

LG 전자

LGE Display Division LG(51)

▣ Brightness / Contrast tracking measure specification

1) In non-impressed condition, measure peak brightness displayable as much as possible LCD module.

2) Measuring instrument: CA-210 or a sort of Color Analyzer.

3) Pattern Generator : VG-828 or a sort of digital pattern generator (displayable Full White & 1/25 White Window pattern)

4) Measure condition

● Test pattern: in center, 1/5(H) * 1/5(V) of Window Pattern (white pattern in non-impressed condition)

● Environment condition : Dark room in the non outside light

● Video menu option condition : Shipment mode (In-stop)

LC12E Product Specification

▣ Contrast ratio measure specification

1) Test display signal : 100%(255Gray)Full White Window signal & all Black Raster signal(0Gray)

2) Dark room measure condition : : Using touch type Color analyzer CA-210 Dark room in the non outside light

3) Bright room measure condition : In bright room of 150Lx illumination in the panel surface, locate a source of light on the above 45˚of the panel surface.

4) Measure method

● In standard test condition, impress 100%(255Gray)Full White Window Pattern signal .

measure center peak brightness degree LV of white window

● Impress black Raster signal as contrast ratio measurement signal.

Measure black brightness degree Lb of central

Calculate the following numerical formula

Contrast ratio = LV / Lb

If it does not use Prior measurement, use generally simple test measurement.

LG 전자

LGE Display Division LG(51)

RF

AV

Component 1080p Vivid High High High High

RGB 1024x768 Vivid Off deactivated NA

HDMI DTV 1080p Vivid High High High Low

Signal Picture Mode Dynamic Contrast Dynamic Color Clear White Black Level

NTSC-M Vivid High High High Low

PAL Vivid High High High Auto

NTSC-J Vivid High High High High

PAL Vivid High High High Auto

▣ Luminance uniformity measure specification

1) Impress 100 % (255Gray Level) full white pattern at the same peak brightness measurement.

2) Measure average brightness in IOP LED 17 points.

< EDGE LED>

1 4 7

2 5 8

3 6 9

LC12E Product Specification

Luminance uniformity: Min 77% (Full white (17 point measure))

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

10.3 SET Optical Feature

1) General feature (Measurement Condition: Full white/ Dynamic) Æ Measure the black luminance after 30 seconds.

No Item Module

32LV5700-CA 37LV5700-CA 42LV5700-CA

1

47LV5700-CA 55LV5700-CA 42LV5740-CE

2

47LV5740-CE 55LV5740-CE

LGD 350 900 Except from the PC mode.

Luminance (min) C/R(min)

Remark

AV, COMPONENT, HDMI AV, COMPONENT, HDMI

2) Special feature (Dynamic CR)

No Item Min Typ Max Inch Power B/D P/N remark

Dynamic CR

(Only HDMI mode)

40000 50000

- HDMI 720p Full Black Pattern

(Min spec : Typ * 80%)

3) Special feature (Local Dimming Statics CR)

No Item Min Typ Max Inch Power B/D P/N remark

Static CR

(Only HDMI mode)

2200 3200

- HDMI 720p Full Black Pattern

(Min spec : Typ * 80%)

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

11. Audio

No. Item Min Typ Max Unit Remark

Spec In SVC mode EQ off(0)

RF Audio Output

1

(RF 1kHz 100% modulation) PC Audio Output

(1KHz 0.7Vrms)

2 Speaker Impedance 8 ohm

Speaker Power rating 10 12 W 4 IF Rejection Ratio -13 dB PAL-BG 5 Image Rejection Ratio -13 dB PAL-BG

6 Adjacent CH Rejection, Upper -6 dB PAL-BG 7 Adjacent CH Rejection, Lower -13 dB PAL-BG

8 Audio S/N, Main (Mono)

9 Audio S/N, Sub (SAP) 40 dB PAL-BG

10 Audio S/N, L 40 dB PAL-BG 11 Audio S/N, R 40 dB PAL-BG

12 Audio Buzz P/S Ratio

13 Audio Noise Limited Sensitivity, M

14 Audio Noise Limited Sensitivity, S -70 dBm PAL-BG 15 Audio F Response Low, L/Mono 80 Hz PAL-BG/DK/I, SECAM-L

16 Audio F Response High, L/Mono

9 10 12

40 dB PAL-BG/DK/I 37 dB SECAM-L

30 dB PAL-BG/DK/I 20 dB SECAM-L

-80 dBm PAL-BG/DK/I

-60 dBm SECAM-L

7 10 15 KHz PAL-BG/DK/I 6 10 15 KHz SECAM-L

W

LG 전자

LGE Display Division LG(51)

17 Audio F Response Low, R 80 Hz PAL-BG 18 Audio F Response High, R 7 10 15 KHz PAL-BG 19 Audio THD, L (Mono) 2 % PAL-BG/DK/I, SECAM-L 20 Audio THD, R 2 % PAL-BG 21 Audio Practical Max Output, L/Mono 9 10 12 W PAL-BG/DK/I, SECAM-L 22 Audio Practical Max Output, R 9 10 12 W PAL-BG 23 Audio Max Output, L/Mono 9 10 12 W PAL-BG/DK/I, SECAM-L 24 Audio Max Output, R 9 10 12 W PAL-BG 25 Max Distortion 20 % PAL-BG/DK/I, SECAM-L 26 Audio Residual Hum, L/Mono 12.5 uW PAL-BG/DK/I, SECAM-L 27 Audio Residual Hum, R 12.5 uW PAL-BG 28 Dual Sound Crosstalk, Main -45 dB PAL-BG 29 Dual Sound Crosstalk, Sub -45 dB PAL-BG 30 Stereo Separation, L 25 dB PAL-BG 31 Stereo Separation, R 25 dB PAL-BG 32 Pilot Detection Sensitivity, Dual -70 dBm PAL-BG 33 Pilot Detection Sensitivity, Stereo -70 dBm PAL-BG 34 Audio Balance Deviation, L/R 1.5 dB PAL-BG 35 Deviation Linearity 250 % PAL-BG/DK/I, SECAM-L 36 Deviation 250% Max Distortion 10 % PAL-BG/DK/I, SECAM-L 37 Output Level at Volume 30% 0.05 0.065 0.085 W PAL-BG/DK/I, SECAM-L 38 NICAM Audio S/N, L 45 dB PAL-BG 39 NICAM Audio S/N, R 45 dB PAL-BG 40 NICAM Audio S/N, Main 45 dB PAL-BG 41 NICAM Audio S/N, Sub 45 dB PAL-BG 42 NICAM Audio Sensitivity -75 dB PAL-BG 43 NICAM Audio P/N Ratio 30 dB PAL-BG 44 NICAM Audio F Response Low, L 80 Hz PAL-BG 45 NICAM Audio F Response High, L 7 10 18 KHz PAL-BG 46 NICAM Audio F Response Low, R 80 Hz PAL-BG

LC12E Product Specification

LG 전자

LGE Display Division LG(51)

47 NICAM Audio F Response High, R 7 10 18 KHz PAL-BG 48 NICAM Audio Distortion, L 1 % PAL-BG 49 NICAM Audio Distortion, R 1 % PAL-BG 50 NICAM Audio Separation, L 40 dB PAL-BG 51 NICAM Audio Separation, R 40 dB PAL-BG 52 NICAM Audio Output, L 9 10 12 W PAL-BG 53 NICAM Audio Output, R 9 10 12 W PAL-BG

54 AV Audio Out Level, L

55 AV Audio Out Level, R 0.4 0.5 0.6 V PAL-BG 56 AV Audio Out Crosstalk, L 20 dB PAL-BG 57 AV Audio Out Crosstalk, R 20 dB PAL-BG 58 AV Audio Out S/N, L 43(37) dB PAL-BG/DK/I, (SECAM-L) 59 AV Audio Out S/N, R 43 dB PAL-BG 60 AV Audio Out Frequency Response, Low 40 Hz PAL-BG/DK/I, SECAM-L

61 AV Audio Out Frequency Response, High

62 AV Audio Out Distortion 2 % PAL-BG/DK/I, SECAM-L 63 AV Audio In Level, L 0.87 1.2 V PAL-BG/DK/I, SECAM-L 64 AV Audio In Level, R 0.87 1.2 V PAL-BG 65 AV Audio In Crosstalk, L 40 dB PAL-BG 66 AV Audio In Crosstalk, R 40 dB PAL-BG

67 AV Audio In S/N, L 43 dB PAL-BG/DK/I 68 AV Audio In S/N, R 43 dB PAL-BG 69 AV Audio In Frequency Response, Low 80 Hz PAL-BG/DK/I, SECAM-L 70 AV Audio In Frequency Response, High 7 10 18 kHz PAL-BG/DK/I, SECAM-L 71 AV Audio In Distortion 2 % PAL-BG/DK/I, SECAM-L 72 AV Audio In Dynamic Range 2 V PAL-BG/DK/I, SECAM-L 73 AV Audio In Max Distortion 10 % PAL-BG/DK/I, SECAM-L 74 AV Audio In Impedance, 100 Hz 10 Kohm PAL-BG/DK/I, SECAM-L

LC12E Product Specification

0.4 0.5 0.6 V PAL-BG/DK/I

0.4 0.5 0.6 V SECAM-L

8 10 18 kHz PAL-BG/DK/I 6 10 18 kHz SECAM-L

LG 전자

LGE Display Division LG(51)

75 AV Audio In Impedance, 1 kHz 10 Kohm PAL-BG/DK/I, SECAM-L 76 AVL -8 8 dB

LC12E Product Specification

12. Power

No Item Min Typ Max Unit Remarks

1. AC Power Shut Down Voltage 90 264 Vac

2. DC Voltage, Inverter

3.

DC Voltage, LCD Panel

4. DC Voltage, Stand By 3.15 3.5 3.85 Vdc

5. DC Voltage, Sound AMP (20,24V) DC Voltage, Sound AMP (3.3V)

6. DC Voltage, Tuner (3.3V) DC Voltage, Tuner (2.5V) DC Voltage, Tuner (1.2V)

7. DC Voltage, BCM (3.5V) DC Voltage, BCM (2.5V) DC Voltage, BCM (1.5V) DC Voltage, BCM (0.9)

8. DC Voltage, Micom 3.15 3.5 3.85

47” 22.8 24 25.2 Vdc 55” 22.8 24 25.2 Vdc 60” 22.8 24 25.2 Vdc

47” 11.4 12.0 12.6 Vdc 55” 11.4 12.0 12.6 Vdc 60” 11.4 12.0 12.6 Vdc

18.8

22.8

3.135 0

2.2

1.1

3.135

2.2

0.81

20 24

3.3

2.5

1.2

3.3

2.5

0.9

21.2

25.2

3.465

3.6

2.8

1.3

3.465

2.8 10

Vdc Vdc Vdc Vdc Vdc Vdc

Vdc Vdc Vdc

Vdc

NTP7400

Main

Sanyo micom

Full NIM

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

13. Standard Level For Input Signal (Video, Audio, Y/C, Component, RGB)

No Item Min Typ Max Unit Remarks

1. Video Input Level 0.9 1 1.1 Vpp

2. S Video Input Level(Y) 0.85 1 1.15 Vpp

3. S Video Input Level(C-Burst) 0.143 0.286 Vpp

4. Audio Input Level 0.4 0.5 0.6 Vrms PAL,SECAM

Component Video Input Level (Y, C

5. C

/PR)

R

6. R/G/B Video Input Level, 0.6 0.7 0.8 Vpp

/PB,

B

0.6 0.7 0.8 Vpp

LG 전자

LGE Display Division LG(51)

14. Component Video Input (Y, PB, P

No.

Resolution H-freq(kHz) V-freq(Hz)

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13. 1920×1080 56.250 50

14. 1920×1080 67.5 60

720×480 15.73 60.00 SDTV, DVD 480i

720×480 15.63 59.94

720×480 31.47 59.94

720×480 31.50 60.00

720×576 15.625 50.00

720×576 31.25 50.00

1280×720 45.00 50.00

1280×720 44.96 59.94

1280×720 45.00 60.00

1920×1080 31.25 50.00

1920×1080 33.75 60.00

1920×1080 33.72 59.94

LC12E Product Specification

)

R

Specification

SDTV, DVD 480i

480p

SDTV, DVD 625 Line

HDTV 576p

HDTV 720p

HDTV 1080i

HDTV 1080p

Remark

LG 전자

LGE Display Division LG(51)

15. RGB Input ( PC )

No Resolution H-freq(kHz) V-freq.(Hz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA

3 800*600

4 1024*768 48.363 60.00 65.00 VESA(XGA)

5 1360*768 47.72 59.8 84.75 WXGA 6 1920*1080 66.587 59.93 138.625 WUXGA FHD model

15-1. EDID Data (RGB-PC)

* RGB-PC EDID DATA: Refer to adjust specification.

37.879

LC12E Product Specification

Pixel

clock(MHz)

60.31 40.00 VESA

Proposed Remarks

Input 848*480 60Hz, 852*480 60Hz Î 640*480 60Hz Display

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

16. HDMI input

16-1. DTV mode

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks

1. 720*480

2. 720*576 31.25 50

3. 1280*720 37.500 50

4. 1280*720 44.96 / 45 59.94 / 60

5. 1920*1080

6. 1920*1080 28.125 50.00

7. 1920*1080 26.97 / 27 23.97 / 24

8. 1920*1080

9. 1920*1080 56.250 50

10. 1920*1080 67.43 / 67.5 59.94 / 60

31.469 /

31.5

33.72 /

33.75

33.716 /

33.75

59.94 / 60

29.976 / 30.00

27.00/27.03 SDTV 480P

54 SDTV 576P

74.25 HDTV 720P

74.17/74.25 HDTV 720P

74.17/74.25 HDTV 1080I

74.25 HDTV 1080I

74.17/74.25 HDTV 1080P

74.25

148.5 HDTV 1080P

148.35/148.50 HDTV 1080P

HDTV 1080P

16-2. PC mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3 800*600 4 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5 1360*768 47.72 59.8 84.75 WXGA HDCP

6 1280*1024 63.595 60.0 108.875 SXGA HDCP / FHD model 7 1920*1080 67.5 60.00 138.625 WUXGA HDCP / FHD model

37.879

60.31 40.00 VESA HDCP

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

17. RGB/HV Control Signal In/Out Spec (D-sub15 pin Cable )

No Pin Name Min Typ Max Unit Spec. Remarks

1 R 0.65 0.7 0.75 Vpp 75Ohm

2 G 0.65 0.7 0.75 Vpp 75Ohm

3 B 0.65 0.7 0.75 Vpp 75Ohm

4 NC

5 ID_DSUBN 3 5 5.5 Vdc D-sub Enable

6 GND Case Common GND

7 GND Case Common GND

8 GND Case Common GND

9 NC

10 GND Case Common GND

11 NC

12 SDA 3.0 4.5 5.5 Vdc

13 H_SYNC 3.0 5.0 5.5 Vdc

14 V_SYNC 3.0 5.0 5.5 Vdc

15 SCL 3.0 4.5 5.5 Vdc

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

18.USB Input

18.1 PHOTO/MUSIC

No Extension Item Profile Measurement Result Remark

SOF0 : baseline

JPEG,

1 PHOTO

2 MUSIC MP3

JPG, JPE

Support File type

Picture Size

Bit rate 32kbps~320kbps Sample freq. 32kHz~48kHz

Support

18.2 MOVIE

■ VIDEO

No Item Specification Measurement Result Remark

MPG

1

MPEG VOB

2 DAT

Extended name

Video Size

Video Format

Audio Format

Extended name

Video Size

mpg, mpeg, vob

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

MPEG-1, MPEG-2

AC3, MPEG, MP3, PCM

dat

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

SOF1 : Extend Sequential SOF2 : Progressive Min : 64 * 64 Max : - Normal type : 15360(W)*8640(H)

- Progressive type : 1920(W) * 1440(H)

MPEG1, MPEG2, MPEG2.5 Layer2, Layer3

LG 전자

LGE Display Division LG(51)

No Item Specification Measurement Result Remark

TS

3

TRP TP

4 MP4

5 AVI

Video Format Audio Format Extended name

Video Size

Video Format Audio Format Extended name

Video Size

Video Format

Audio Format Extended name

Video Size

MPEG-1

AC3, MPEG, MP3, PCM

ts, trp, tp

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

MPEG-2, H.264

AC3, AAC, MPEG

mp4

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

MPEG-4 SP, MPEG-4 ASP, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid

1.00, Xvod 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264

AC3, EAC3, HEAAC, AAC, MPEG, MP3, PCM

avi

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

LC12E Product Specification

H.264 : profile level ≤ 4.0

LG 전자

LGE Display Division LG(51)

No Item Specification Measurement Result Remark

Video Format

Audio Format Extended name

Video Size

6 MKV

Video Format Audio Format Extended name

Video Size

7 DIVX

Video Format

Audio Format

MPEG-2, MPEG-4 SP, MPEG-4 ASP, DivX 3.11, DivX 4, DivX 5, DivX 6, Xvid

1.00, Xvod 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264

AC3, EAC3, HEAAC, AAC, MPEG, MP3, PCM

mkv

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

H.264, MPEG-1, MPEG-2, MPEG-4 SP, MPEG-4 ASP, AVC

AC3, EAC3, HEAAC, AAC, MPEG, MP3, PCM

DivX

1920 X 1080 ≤ 30FPS 1280 X 720 ≤ 60FPS

720 X 576 ≤ 50FPS 720 X 480 ≤ 60FPS

MPEG-2, MPEG-4 SP, MPEG-4 ASP, DivX 3.11, DivX 4, DivX 5, DivX 6, Xvid

1.00, Xvod 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264

AC3, EAC3, HEAAC, AAC, MPEG, MP3, PCM

LC12E Product Specification

H.264 : profile level ≤ 4.0

■ AUDIO

No Audio Codec Bit rate Sampling rate Measurement Result Remark

1 MP3 32kbps~320kbps 32kHz ~ 48kHz 2 AC3,EAC3 32kbps~640kbps 32kHz, 44.1kHz, 48kHz 3 MPEG 32kbps~448kbps 32kHz ~ 48kHz

LG 전자

Not Support :

DTS Audio Codec

LGE Display Division LG(51)

4 AAC,HEAAC 24kbps~3844kbps 8kHz ~ 96kHz 5 CDDA 1.44kbps 44.1kHz

6 PCM 1.41~9.6Mbps

LC12E Product Specification

Multi-channel : 44.1kHz,88.2kHz/48kHz,96kHz Stereo : 176.4kHz, 192kHz

■ SUBTITLE

No File Extension Subtitle language Support Language Measurement Result Remark

English, Spanish, French, German, Italian,

1 Latin1

smi,srt,sub,ssa,ass,ps

2 Latin2

b,txt 3 Latin4 Estonian, Latvian, Lithuanian 4 Cyrillic Bulgarian, Macedonian, Russian, Ukrainian, Kazakh 5 Greek Greek 6

Turkish Turkish

Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan, Valencian Bosnian, Polish, Croatian, Czech, Slovak, Slovenian, Serbian, Hungarian

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

19. WIFI(TBD)

20. Screen Size (over scan spec)

-.

LG Test PAL/NTSC title Reference #2 basis.

Horizontal size is 8% (left 4%+ right 4%) over scan.

Vertical 93.5% 93% 93.5% 93.5% 96% 96% 100%

Horizontal 93.5% 92% 93.5% 93.5% 96% 96% 100%

ATV DTV AV1/AV2 AV3 Component HDMI 1/2/3/4 RGB

21. The others

No Item Min Typ Max Unit Remarks

1. Soft Ware Functionality Test LGE Specification

REMOCON Working Sensitivity,

2. Straight

3. REMOCON Working Sensitivity

4. Emitted audible Noise Average

12 M

9 M L/R, 30 degree

7 M T/B, 30 degree

6 M

18.0 dB Front Side (Distance:1m)

3 wave length 650Lux, Susceptibility characteristic 1200Lux

LG 전자

LGE Display Division LG(51)

No Item Min Typ Max Unit Remarks

(B&K2260)

5. TEXT Sensitivity -70 dBm

LC12E Product Specification

25.0 dB Rear Side (Distance 1m)

22. Reliability

No Item Min Typ Max Unit Remarks

1. ESD 15 kV IEC-1000-4-2

2. EFT/Burst 2 kV IEC-1000-4-4

3. Surge Immunity 4 kV IEC-1000-4—5

4. Voltage Dip Test, 10ms 100 % IEC-1000-4-11

5. Voltage Dip Test, 100ms 40 % IEC-1000-4-11

6. CST LGE Specification

7. Abnormal Test LGE Specification

8. Operation Temperature 0 25 40 deg LGE Specification

9. Operation Humidity 80 % LGE Specification

10. Storage Temperature -20 60 Deg LGE Specification

11. Storage Humidity 85 % LGE Specification

12. Accumulated MTBF 180,000 Hours LGE Specification

LG 전자

LGE Display Division LG(51)

No Item Min Typ Max Unit Remarks

13. Ship Test LGE Specification

LC12E Product Specification

23. LED Control

LED Operating Status LED Color Abnormal 비고

LED Indicator

Remote control key White Blinking

Power On Sequence Red (or Off) ->

Off none

ST-BY Off or Red Default : Off

Power On White

White Blinking ->

White

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

24. SET factoring condition

No. Item Condition Remark

Power

1.

3. Volume Level 10 Main Picture Input

4. Main Last Channel

5. Mute

6. ARC

7.

Auto Tuning

SETUP

8.

(DTV&ATV)

9. PICTURE

Manual Tuning DTV/TV

Programme edit TV/DTV/Radio Booster

CI information Module

Aspect Ratio

Picture Wizard Energy Saving

Picture Mode

Off

DTV N.A.

Off

16:9(DTV)

16:9

Off

Standard

Backlight

Contrast 100

Brightness 50 Sharpness 70

Colour 60

Tint 0

Colour Temp 0

DTV&ATV

Dynamic Contrast Medium Dynamic Colour Low Clear White off Skin Colour 0 Noise Reduction Low Digital Noise Reduction Medium

TBD

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

Gamma

Black level Auto Eye Care Low Real Cinema On Colour Gamut Wide

xvYCC Off

Picture Reset

TruMotion Low

Resolution

Auto Config

Screen

Position

Size Phase Reset

On Level 3

Standard Music Cinema Sport Game

Treble 50 BASS 50

50

User control

10. AUDIO

11.

Time

Auto Volume Off

Clear Voice II Off Balance 0

Standard

Sound Mode

Infinity Sound : off

Treble 50

Bass

Reset

Digital Audio out PCM

TV Speaker On

DTV Audio Setting Auto

Clock -- : --

Off time Off

Medium

LG 전자

LGE Display Division LG(51)

On time

Sleep Timer Off

Menu Language

Audio language

Subtitle Language

Hard of hearing

Country UK

12. OPTION

13.

LOCK

Set ID 1

Power Indicator

Factory Reset Off

Mode setting Home Use

IR Blaster off Lock System Off

Set Password

Block Programme DTV/RADIO/TV

LC12E Product Specification

Stand by Light Off

Power Light on

New * * * * Confirm * * * *

Off

English

Off

In case of UK.

Stand by Light Control on first boot up

Parental Guidance Blocking Off

Input Block

14.

Bluetooth(spec out)

15.

USB

Off None

Photo List

Music List

Movie List

LG 전자

LGE Display Division LG(51)

LC12E Product Specification

25. Accessories & Mechanical Spec.

1) 32LV5700-CA

No Item Q’ty(EA) type P/N

1. Power cord Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

2) 37LV5700-CA

No Item Q’ty(EA) type P/N

1. Power cord Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

CD Manual Owner’s manual

EAD60818102

AKB73275618

EAD60818102

AKB73275618

3) 42LV5700-CA

No Item Q’ty(EA) type P/N

1. Power cord China / Hong Kong 1

2. Manual CD Manual

EAD60818302/EAD60818102

LG 전자

LGE Display Division LG(51)

No Item Q’ty(EA) type P/N

Owner’s manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

LC12E Product Specification

4) 47LV5700-CA

No Item Q’ty(EA) type P/N

1. Power cord China / Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

CD Manual Owner’s manual

AKB72914282/AKB73275618

EAD60818302/EAD60818102

AKB72914282/AKB73275618

5) 55LV5700-CA

No Item Q’ty(EA) type P/N

1. Power cord China 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

CD Manual Owner’s manual

EAD60818302

AKB72914282

LG 전자

LGE Display Division LG(51)

No Item Q’ty(EA) type P/N

8. Cover Stand Rear

9. Protective bracket for power cord

LC12E Product Specification

6) 42LV5740-CE

No Item Q’ty(EA) type P/N

1. Power cord China / Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

CD Manual Owner’s manual

7) 47LV5740-CE

No Item Q’ty(EA) type P/N

1. Power cord China / Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

CD Manual Owner’s manual

EAD60818302

AKB72914282

EAD60818302

AKB72914282

8) 55LV5740-CE

No Item Q’ty(EA) type P/N

LG 전자

LGE Display Division LG(51)

No Item Q’ty(EA) type P/N

1. Power cord China / Hong Kong 1

2. Manual

3. Remote control 1

4. Battery 2 130-013B 5 Cleansing Cloths 6 Screw (Stand Body + Top)

7. Deco Stand Cover Detach

8. Cover Stand Rear

9. Protective bracket for power cord

CD Manual Owner’s manual

LC12E Product Specification

26. Additional Rules

This specification goes into effect since 2010.12.18

27. Energy Efficiency Index

EAD60818302

AKB72914282

No

1.

2.

3.

4. 47LV5700/LV5740 1.439 2

5

Item

EEI

32LV5700

37LV5700

42LV5700/LV5740

55LV5700/LV5740

Model

Measurement Grade

1.055 3

1.170 2

1.299 2

1.582

2

Remarks

Minimum should get Grade 3.

LG 전자

LGE Display Division LG(51)

Remark:

LC12E Product Specification

LG 전자

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

Adjust

Specification

LC12E

GL1 Group

LCD TV Research Department 3

LG ELECTRONICS Inc.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

1. Application range

Chassis Model Name

LC12E

32/37/42/47/55LV5700-CA

42/47/55LV5740-CE

Module

type

Edge LED O 1 point W/B adjustment

▪This spec. sheet applies to LC12E Chassis applied LCD TV all models manufactured in TV

factory

Major production type

▪SET ( o )

▪CKD ( o )

▪SKD ( o )

2. Specification.

Local

dimming

Remark

2.1 Because this is not a hot chassis, it is not necessary to use an isolation transformer.

However, the use of isolation transformer will help protect test instrument.

2.2

Adjustment must be done in the correct order.

The adjustment must be performed in the circumstance of 25 ±5℃ of temperature and

2.3

65±10% of relative humidity if there is no specific designation.

2.4

The input voltage of the receiver must keep 100~240V, 50/60Hz.

2.5

The receiver must be operated for about 5 minutes prior to the adjustment when

module is in the circumstance of over 15 

In case of keeping module is in the circumstance of 0°C, it should be placed in

the circumstance of above 15°C for 2 hours

In case of keeping module is in the circumstance of below -20°C, it should be

placed in the circumstance of above 15°C for 3 hours,.

Caution) When still image is displayed for a period of 20 minutes or longer (especially where

W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some

afterimage in the black level area.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

3. Adjustment items

3.1 Main PCB check process

▪MAC Address Download

▪CI+ Key Download

▪Adjust 480i, 1920*1080P Comp1

▪Adjust 1920*1080 RGB

▪EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both

Board-level and Final assembly adjustment items can be check using In-Start Menu

1.ADJUST CHECK.

3.2 Final assembly adjustment

▪White Balance adjustment

▪RS-232C functionality check

▪PING Test

▪Factory Option setting per destination

▪Ship-out mode setting (In-Stop)

3.3 Etc

▪Ship-out mode

▪Service Option Default

▪USB Download(S/W Update, Option, Service only)

▪ISP Download (Option)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

4. Automatic Adjustment

4.1 ADC Adjustment

4.1.1 Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device

and to compensate RGB deviation.

※ If Adjust ADC is “OTP”, It doesn’t need ADC adjustment. (GP3-BCM)

4.1.2 Equipment & Condition

1) Jig (RS-232C protocol)

2) MSPG-925 Series Pattern Generator(MSPG-925FA, pattern -65)

- Resolution : 480i Comp1

1080P Comp1

1920*1080 RGB

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

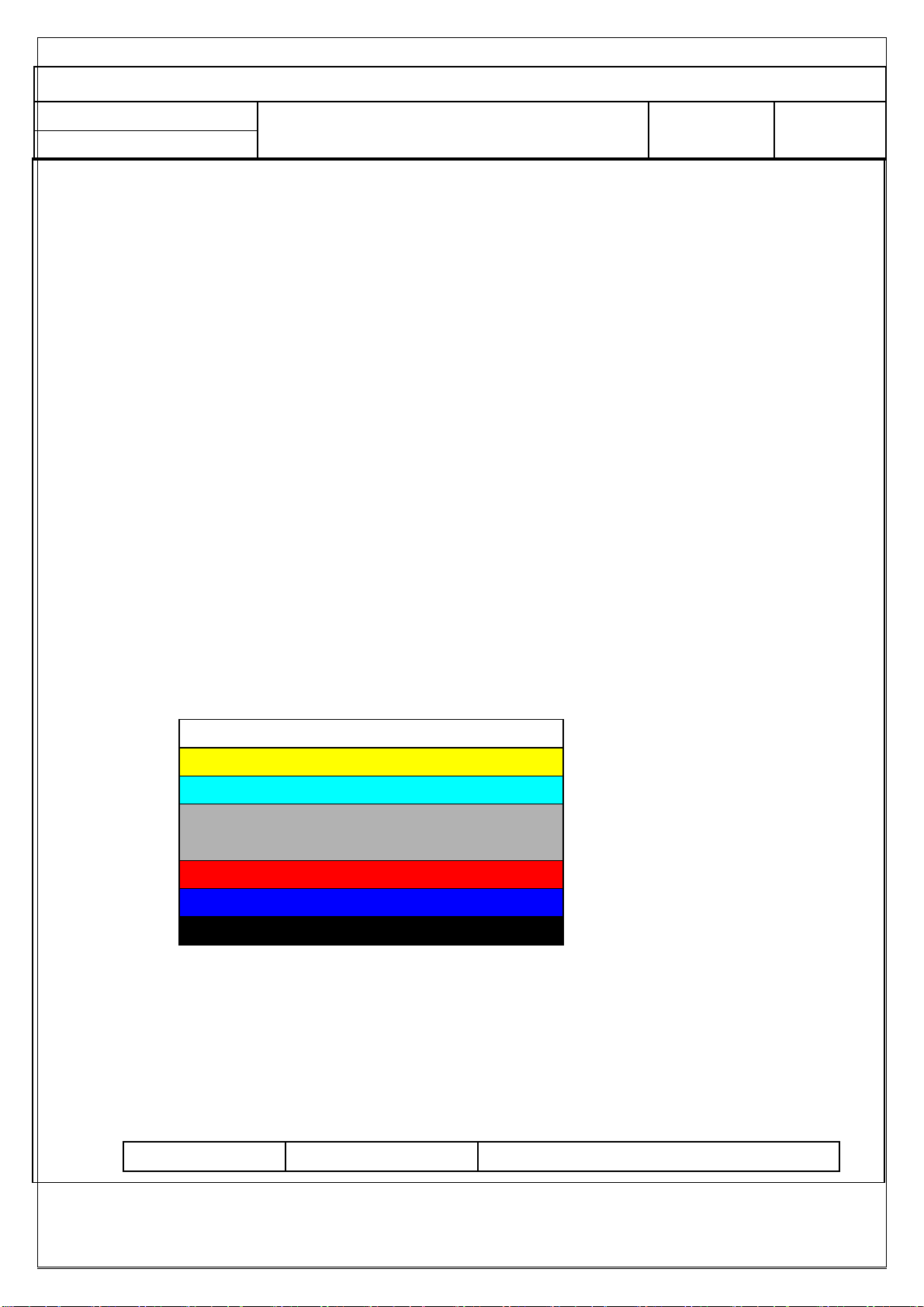

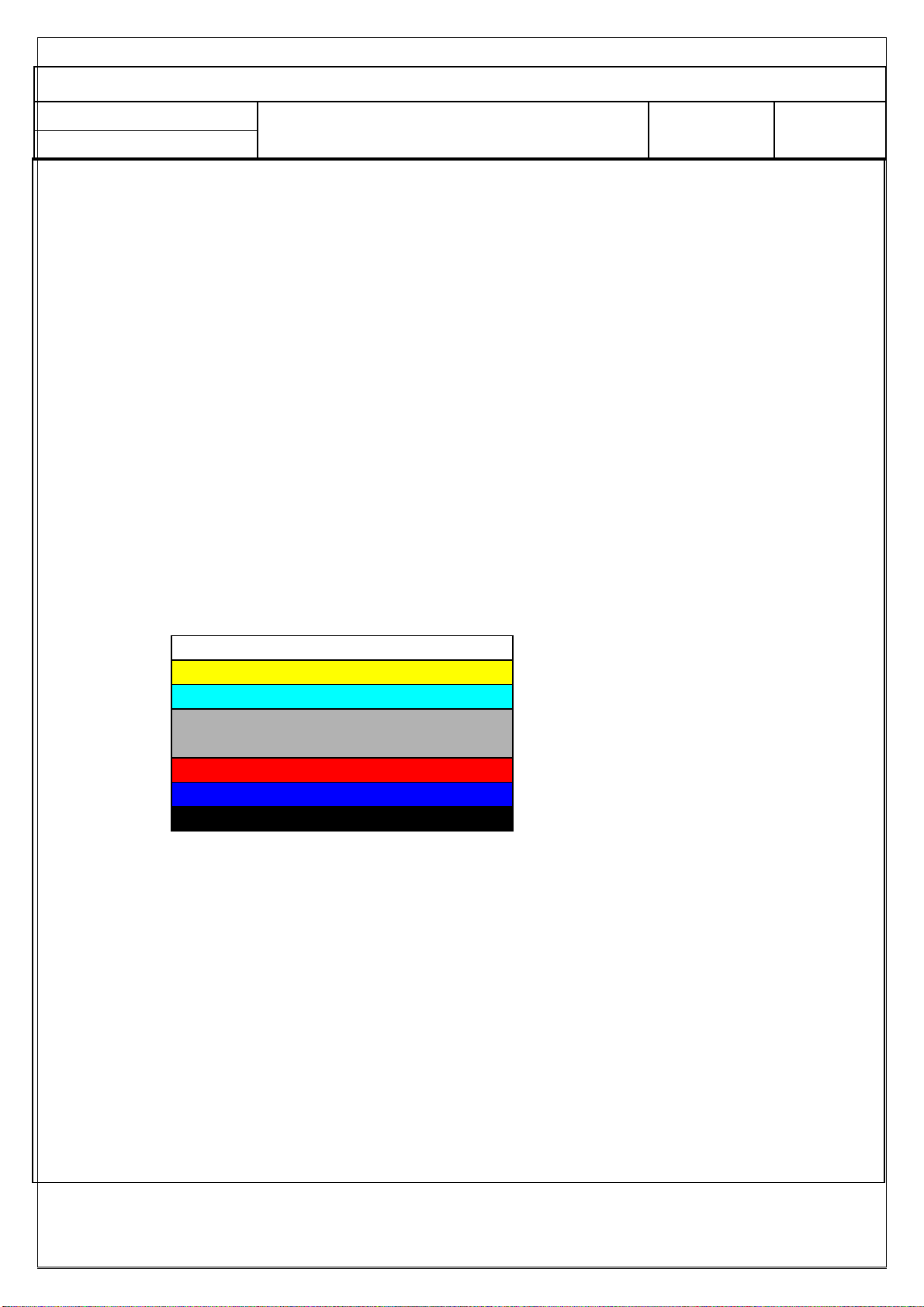

- Image

4.1.3 Adjustment

4.1.3.1 Adjustment method

▪ Using RS-232, adjust items listed in 3.1 in the other shown in “4.1.3.3”

4.1.3.2 Adj. protocol

Protocol Command Set ACK

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

Enter adj. mode aa 00 00 a 00 OK00x

Source change

Begin adj. ad 00 10

Return adj. result

Read adj. data

Confirm adj. ad 00 99

xb 00 04

xb 00 06

(main)

ad 00 20

(sub )

ad 00 21

b 00 OK04x (Adjust 480i, 1080p Comp1 )

b 00 OK06x (Adjust 1920*1080 RGB)

OKx (Case of Success)

NGx (Case of Fail)

(main)

000000000000000000000000007c007b006dx

(Sub)

000000070000000000000000007c00830077x

NG 03 00x (Fail)

NG 03 01x (Fail)

NG 03 02x (Fail)

End adj. aa 00 90 a 00 OK90x

Ref.) ADC Adj. RS232C Protocol_Ver1.0

4.1.3.3 Adj. order

▪aa 00 00 [Enter ADC adj. mode]

▪xb 00 04 [Change input source to Component1(480i&1080p)]

▪ad 00 10 [Adjust 480i&1080p Comp1]

▪xb 00 06 [Change input source to RGB(1024*768)]

▪ad 00 10 [Adjust 1920*1080 RGB]

▪aa 00 90 End adj.

Ref) ADC adj. RS232C Protocol_Ver1.0

4.2 MAC Address

4.2.1 Equipment & Condition

▪ Play file: Serial.exe

OK 03 03x (Success)

▪ MAC Address edit

▪ Input Start / End MAC address

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

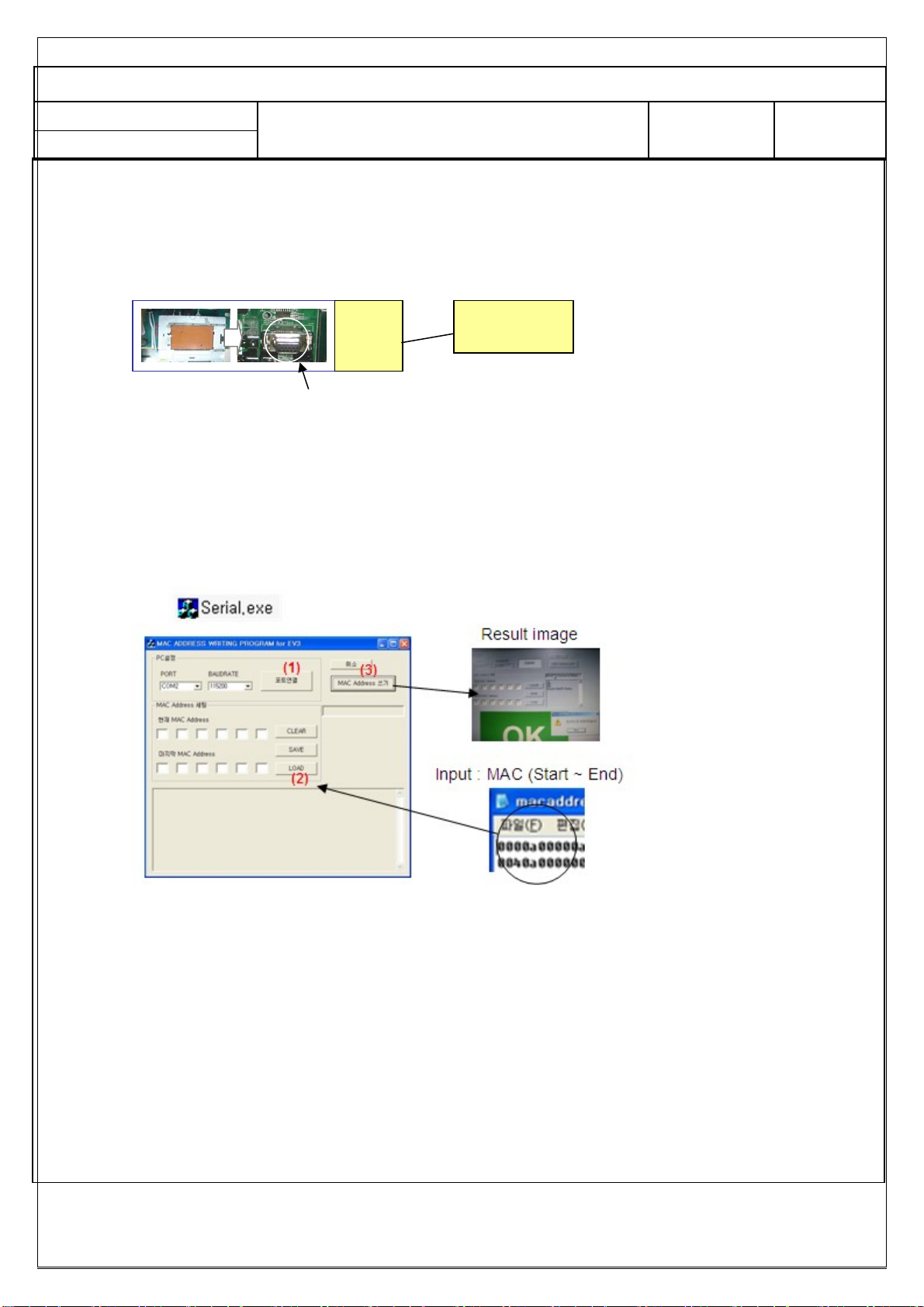

4.2.2 Download method

4.2.2.1 Communication Prot connection

PCBA

RS-232C Port

Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

4.2.2.2 MAC Address Download

▪ Com 1,2,3,4 and 115200(Baud rate)

▪ Port connection button click(1)

PC(RS-232C)

▪ Load button click(2) for MAC Address write.

▪ Start MAC Address write button(3)

▪ Check the OK Or NG

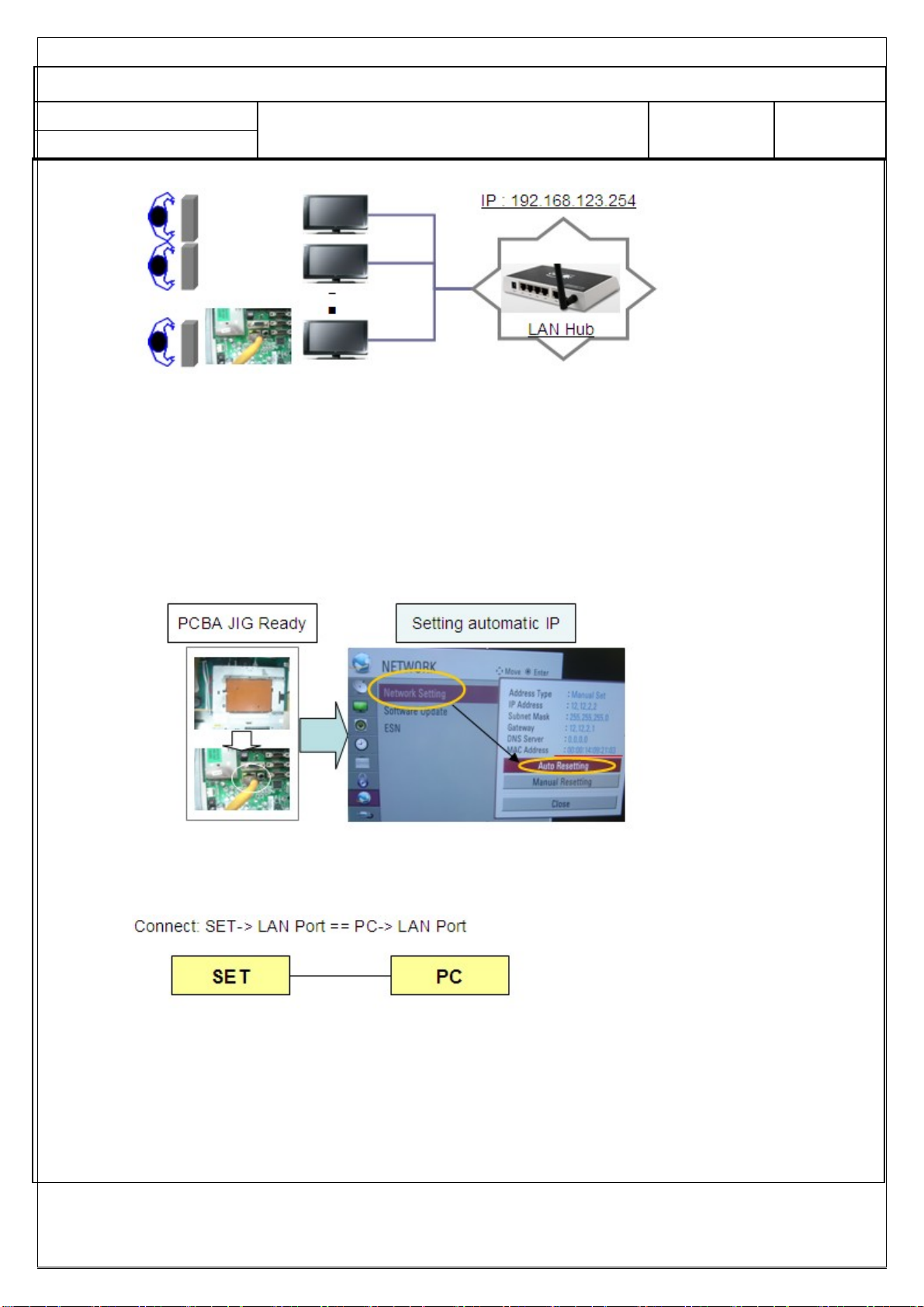

4.3 LAN Inspection

4.3.1 Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

4.3.2 LAN inspection solution

▪ LAN Port connection with PCB

▪ Network setting at MENU Mode of TV

▪ setting automatic IP

▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.4 LAN PORT INSPECTION (PING TEST)

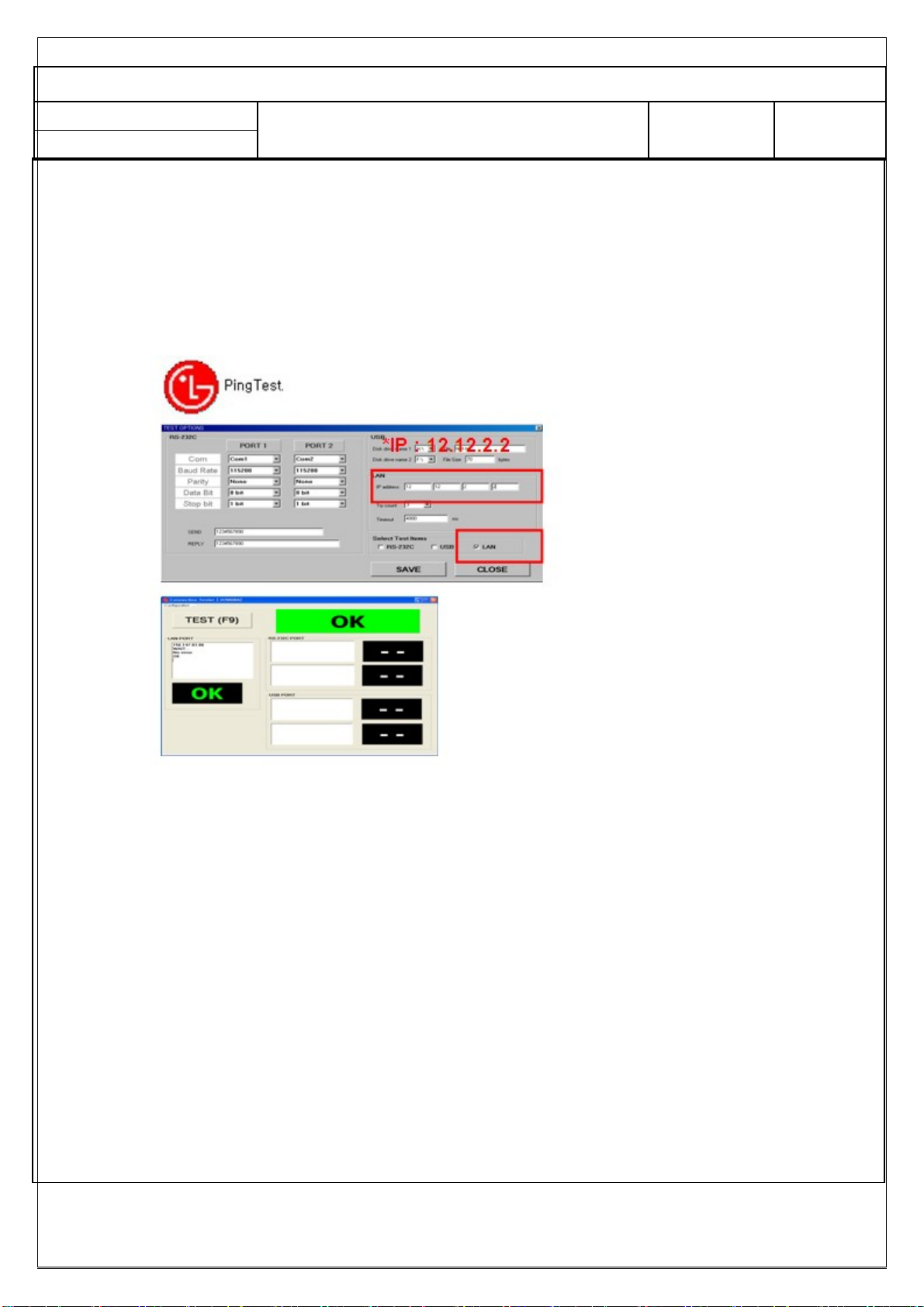

4.4.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test

Program.

*IP Number : 12.12.2.2

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

4.4.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.5 Model name & Serial number Download

4.5.1 Model name & Serial number D/L

■ Press “Power on” key of service remocon.(Baud rate : 115200 bps)

■ Connect RS232 Signal Cable to RS-232 Jack.

■ Write Serial number by use RS-232.

■ Must check the serial number at Instart menu.

4.5.2 Method & notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing Technology Group. C. Serial number D/L must be conformed when it is produced in production line,

because serial number D/L is mandatory by D-book 4.0

※ Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is

initialized.( Not always)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

There is impossible to download by bar code scan, so It need Manual download.

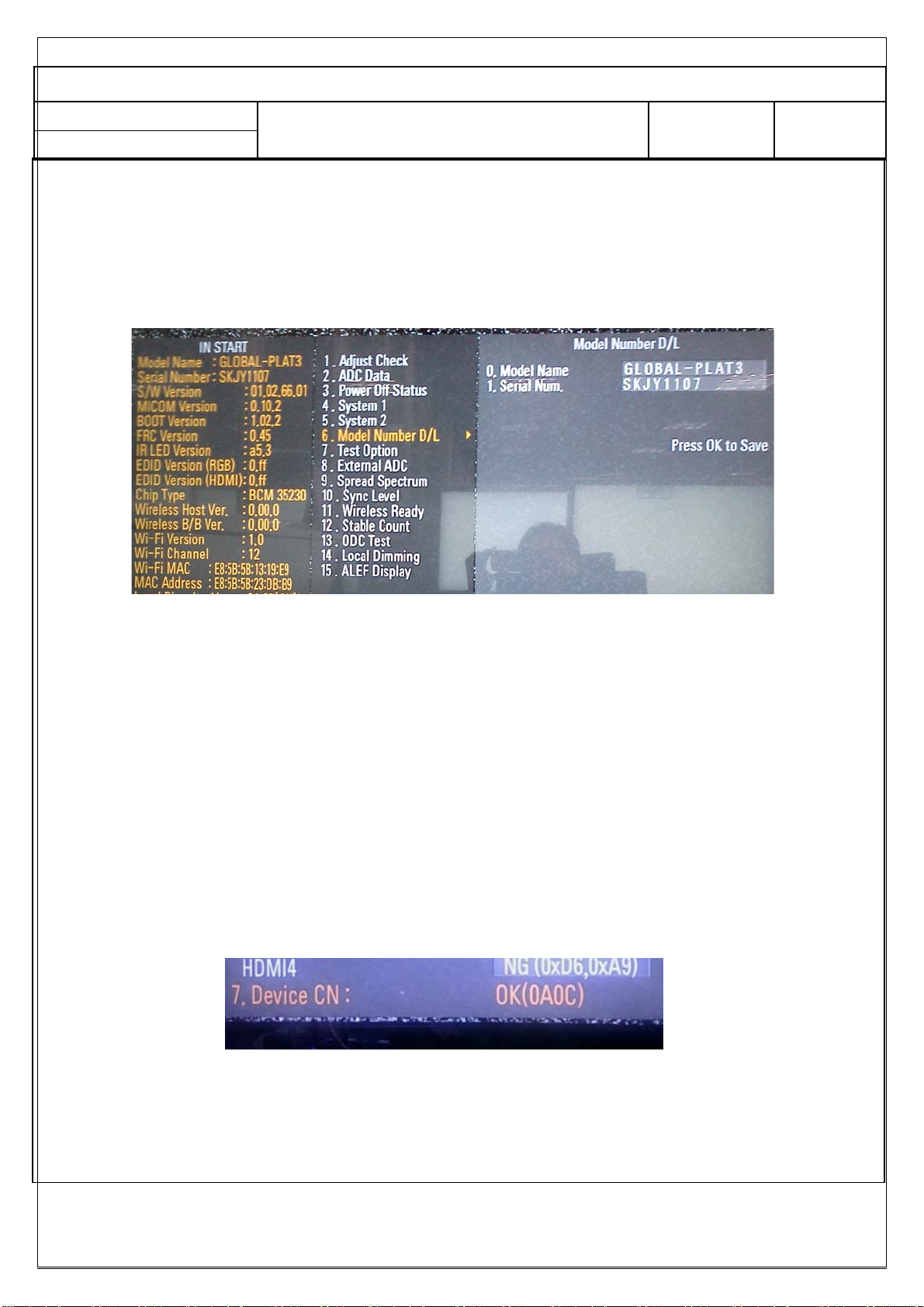

a. Press the ‘instart’ key of ADJ remote controller.

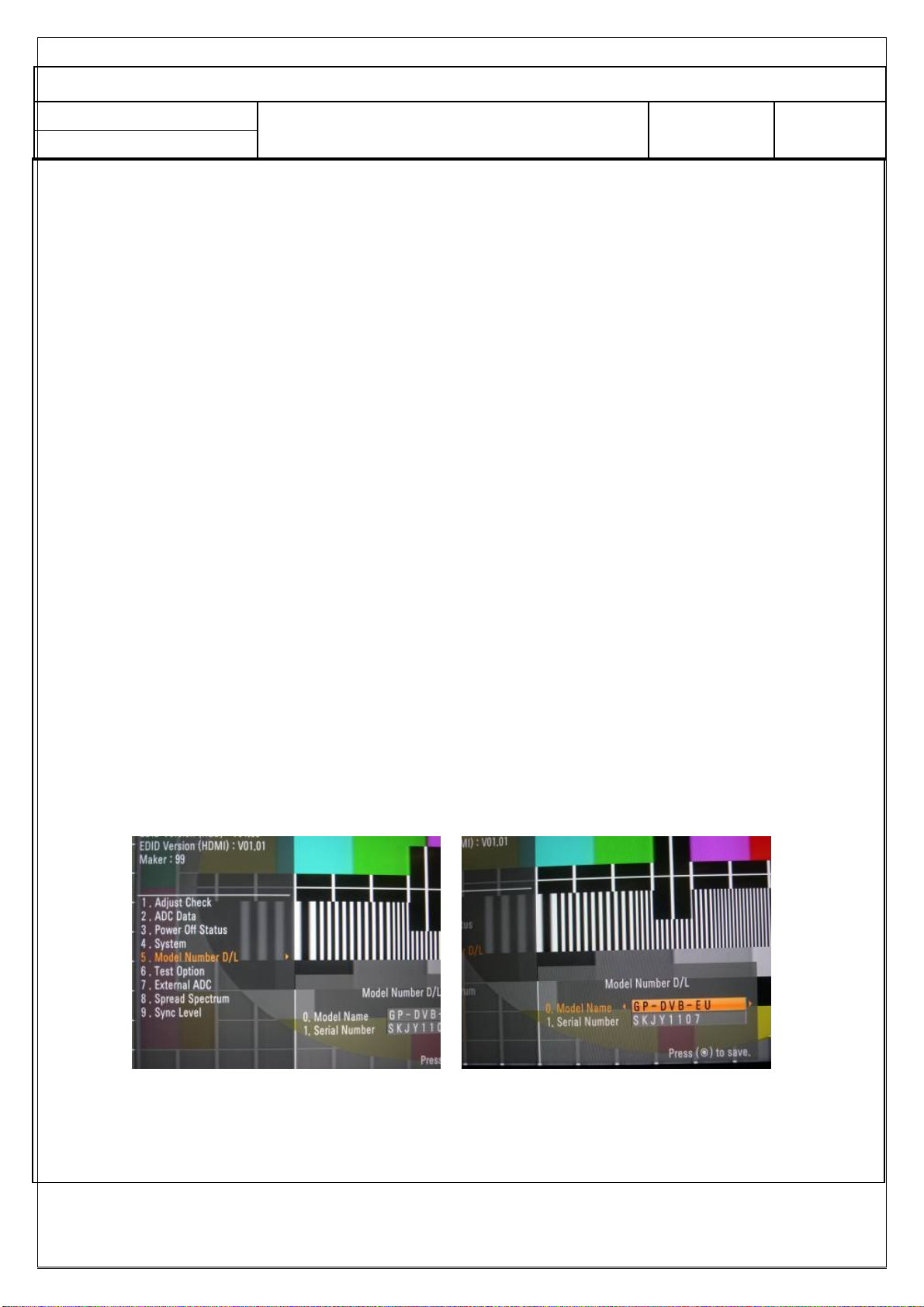

b. Go to the menu ‘5.Model Number D/L’ like below photo.

c. Input the Factory model name(ex 47LW9500-ZA) or Serial number like photo.

d. Check the model name Instart menu Æ Factory name displayed (ex 42LW750S-ZA)

e. Check the Diagnostics (DTV country only) Æ Buyer model displayed (ex 42LW750S-ZA)

4.6 CI+ Key Download method

CI+ Key Download

4.6.1. Download Procedure

1. Press "Power on" button of a service R/C.(Baud rate : 115200 bps)

2. Connect RS232-C Signal Cable.

3. Write CI+ Key through RS-232-C.

4. Check whether the key was downloaded or not at ‘In Start’ menu. (Refer to below).

Æ Check the Download to CI+ Key value in LGset.

1. check the method of CI+ Key value

a. check the method on Instart menu

b. check the method of RS232C Command

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) check the key download for transmitted command (RS232 : ci 00 10)

CMD 1 CMD 2 Data 0

C I 1 0

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

2. Check the method of CI+ Key value (RS232)

1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) check the mothed of CI+ key by command (RS232 : ci 00 20)

CMD 1 CMD 2 Data 0

C I 2 0

3) result value

i 01 OK 1d1852d21c1ed5dcx

4.7 Widevine Key Download method(Just for HONGKONG)

Widevine Key Download

4.7.1. Download Procedure

1. Press "Power on" button of a service R/C.(Baud rate : 115200 bps)

2. Connect RS232-C Signal Cable.

3. Write Widevine Key through RS-232-C.

4. Check whether the key was downloaded or not at ‘In Start’ menu. (Refer to below).

CI+ Key Value

=> Check the Download to Widevine Key value in LGset.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

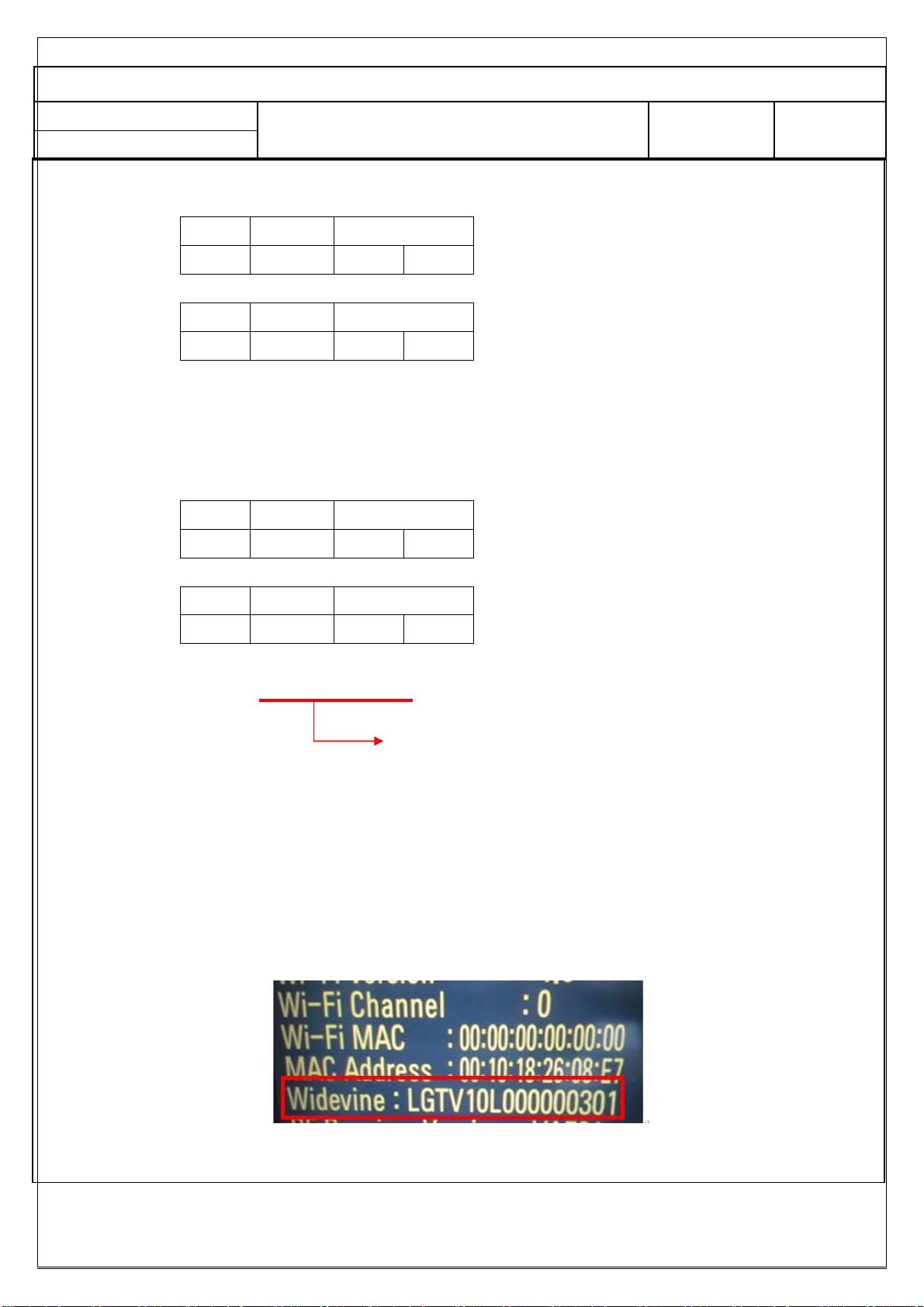

4.7.2 check the method of Widevine Key value

1. check the method on Instart menu

2. check the method of RS232C Command

1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) check the key download for transmitted command (RS232 : ci 00 10)

CMD 1 CMD 2 Data 0

C I 1 0

3) result value

- normally status for download : OKx

- abnormally status for download : NGx

-

4.7.3 check the method of Widevine Key value (RS232)

1) into the main ass’y mode (RS232 : aa 00 00)

CMD 1 CMD 2 Data 0

A A 0 0

2) check the method of Widevine key by command (RS232 : ci 00 20)

CMD 1 CMD 2 Data 0

C I 2 0

3) result value

i 01 OK 1d1852d21c1ed5dcx

Widevine Key Value

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

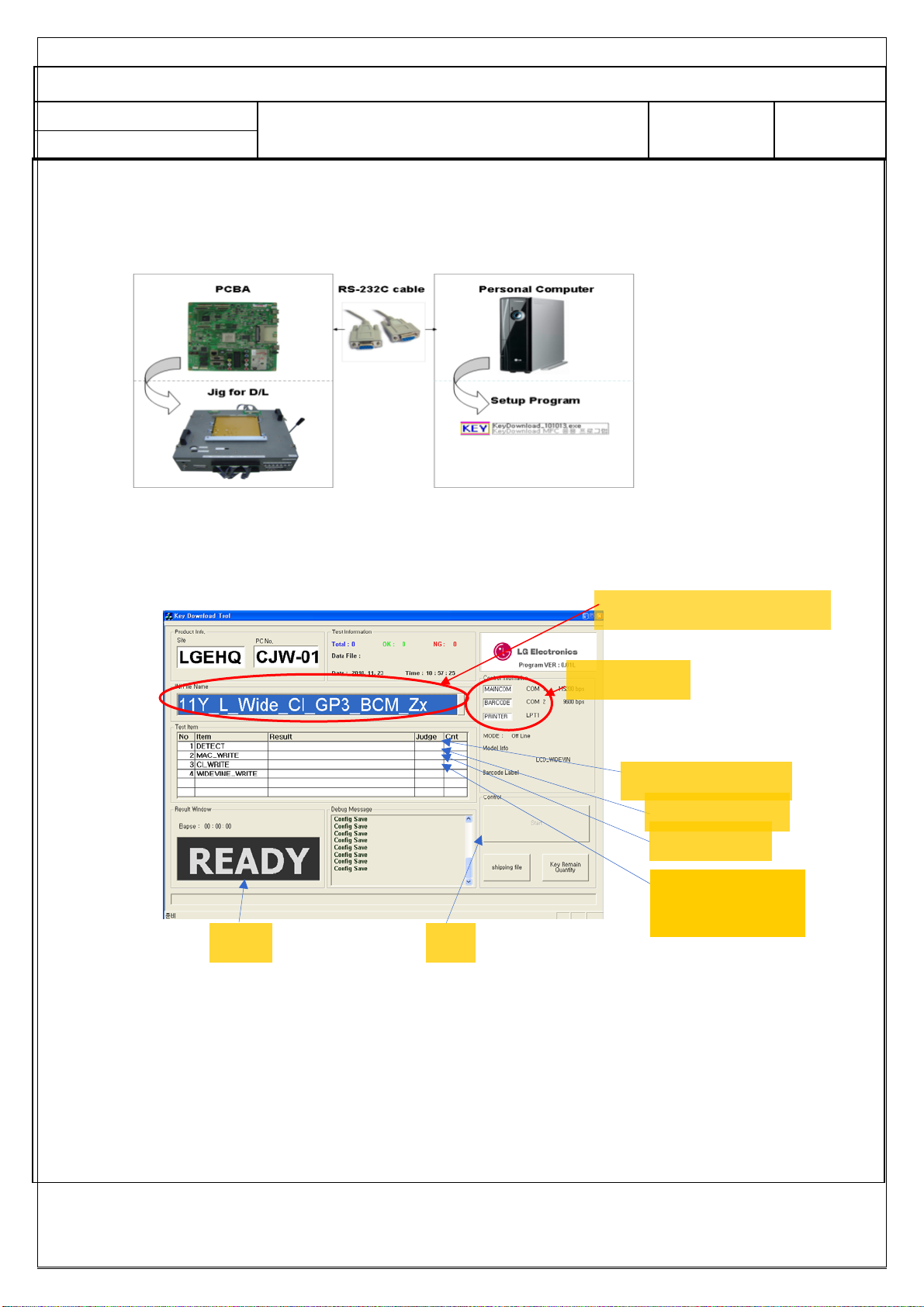

4.8 Mac + Widevine + GP3 BCM CI Plus Download

4.8.1 Connect: PCBA Jig-> RS-232C Port== PC-> RS-232C Port

4.8.2 MAC Address, CI Plus key and Widevine Key write.

11Y LCD TV + MAC + Widevine + GP3_BCM CI Plus

MARLIN Key : MAC + CI + WIDEVINE

Com Port Check

PCBA Power ON Check

1.Equipment setting

- Play file: keydownload.exe

Result Play

MAC Address Write

CI + Key Write

WIDEVINE Key Write

- select the download items.(MARLIN)

2. Communication Prot connection

- Key Write :Com 1,2,3,4 and 115200(Baudrate)

- Barcode : Com 1,2,3,4 and 9600(Baudrate)

3. Mode check: Online Only

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

4. check the test process: DETECT -> MAC -> CI -> WIDEVINE

5. Play: START

6. Result: Ready, Test, OK or NG

4.9 Model name & Serial number Download

4.9.1 Model name & Serial number D/L

■ Press “Power on” key of service remocon.(Baud rate : 115200 bps)

■ Connect RS232 Signal Cable to RS-232 Jack.

■ Write Serial number by use RS-232.

■ Must check the serial number at Instart menu.

4.9.2 Method & notice

D. Serial number D/L is using of scan equipment. E. Setting of scan equipment operated by Manufacturing Technology Group. F. Serial number D/L must be conformed when it is produced in production line,

because serial number D/L is mandatory by D-book 4.0

※ Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is

initialized.( Not always)

There is impossible to download by bar code scan, so It need Manual download.

a. Press the ‘instart’ key of ADJ remote controller.

b. Go to the menu ‘5.Model Number D/L’ like below photo.

c. Input the Factory model name(ex 42LD450-ZA) or Serial number like photo.

d. Check the model name Instart menu Æ Factory name displayed (ex 42LE7500-ZA)

e. Check the Diagnostics (DTV country only) Æ Buyer model displayed (ex 42LE7500-ZA)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

5. Manual Adjustment

5.1 ADC(GP3) Adjustment

5.1.1 Overview

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device

and to compensate RGB deviation.

5.1.2 Equipment & Condition

1) Adjust Remocon

2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator

- Resolution: 480i, 720*480 MSPG-925FA Î Model: 209, Pattern: 65) - 480i

1080p, 1920*1080 (MSPG-925FA Î Model: 225, Pattern: 65) - 1080p

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level: 0.7±0.1 Vp-p

- Image

3) Must use standard cable

5.1.3 Adjust method

※ If Adjust ADC is “OTP”, It doesn’t need ADC adjustment. (GP3-BCM)

5.1.3.1 ADC 480i, 1080p Comp1

1) Check connected condition of Comp1 cable to the equipment

2) Give a 480i, 1080p Mode, Horizontal 100% Color Bar Pattern to Comp1.

(MSPG-925FA Î Model: 209, Pattern: 65) - 480i

(MSPG-925FA Î Model: 225, Pattern: 65) - 1080p

3) Change input mode as Component1 and picture mode as “Standard”

4) Press the In-start Key on the ADJ remote after at least 1 min of signal reception. Then,

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

select 7. External ADC -> 1. COMP 1080p on the menu. Press enter key. The adjustment will

start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or condition retry calibration

Error message refer to

5.1.3.2 ADC 1920*1080 RGB

1) Check connected condition of Component & RGB cable to the equipment

2) Give a 1920*1080 Mode, 100% Horizontal Color Bar Pattern to RGB port.

(MSPG-925 Series Î model:225 , pattern:65 )

3) Change input mode as RGB and picture mode as “Standard”

4) Press the In-start Key on the ADJ remote after at least 1 min of signal reception. Then,

select 7. External ADC -> 1. COMP 1080p on the menu. Press enter key. The adjustment will

start automatically.

5) If ADC calibration is successful, “ADC RGB Success” is displayed.

If ADC calibration is failure, “ADC RGB Fail” is displayed.

6) If ADC calibration is failure, after recheck ADC pattern or condition retry calibration

Error message refer to 5)

5.2. EDID (The Extended Display Identification Data)

/ DDC (Display Data Channel) download

5.2.1 Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information

sharing without any necessity of user input. It is a realization of “Plug and Play”.

5.2.2 Equipment

▪ Since embedded EDID data is used, EDID download JIG, HDMI cable and D-sub cable are not

need.

▪ Adjust remocon

5.2.3 Download method

1) Press Adj. key on the Adj. R/C, then select “10.EDID D/L”.

By pressing Enter key, enter EDID D/L menu.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

LC12E Adjust Specification C2-2230

2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2 / HDMI3 / RGB are Writing and

display OK or NG.

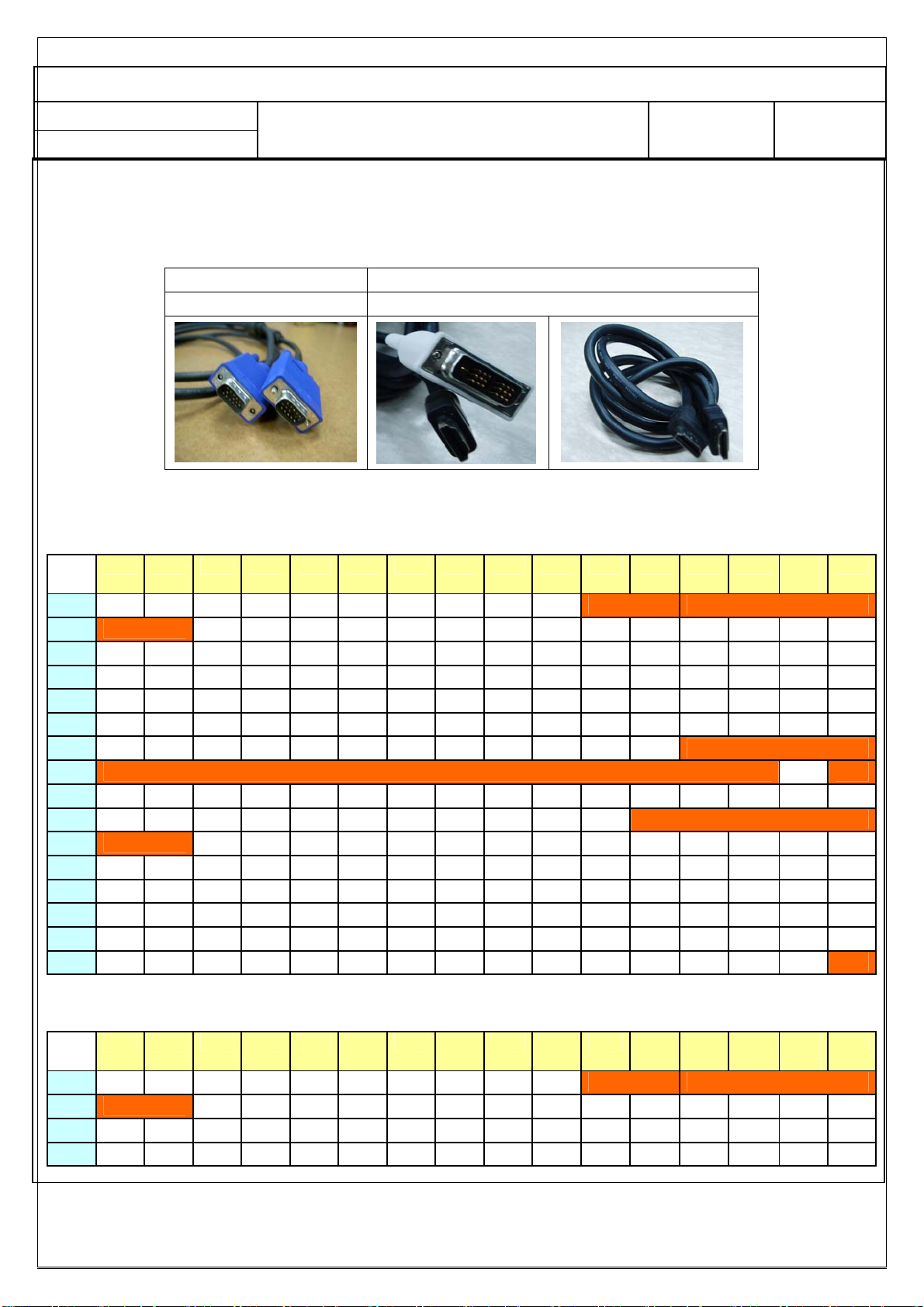

For Analog EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

5.2.4 EDID DATA

▪HDMI

For HDMI EDID

0x00 0 FF FF FF FF FF FF 0 1E 6D 0x01

0x02 0F 50 54 A1 8 0 71 40 81 80 1 1 1 1 1 1 0x03 1 1 1 1 1 1 2 3A 80 18 71 38 2D 40 58 2C 0x04 45 0 A0 5A 0 0 0 1E 1B 21 50 A0 51 0 1E 30 0x05 48 88 35 0 BC 86 21 0 0 1C 0 0 0 FD 0 3A 0x06 3E 1E 53 10 0 0A 20 20 20 20 20 20

0x07 0x00 0x01 22 15 1 26 15 7 50 9 57 7 67 0x02 0x03 0x04 0x05 0x06 0x07 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

ⓒ

2 3 26 F1 4E 10 1F 84 13 5 14 3 2 12 20 21

ⓕ

25 0 A0 5A 0 0 0 9E 1 1D 0 80 51 D0 1A 20 6E 88 55 0 A0 5A 0 0 0 1A 2 3A 80 18 71 38 2D 40 58 2C 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30 40 70 36 0 A0 5A 0 0 0 1E 0 0

▪RGB

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

1 3 80 10 9 78 0A EE 91 A3 54 4C 99 26

ⓓ

E3 5 3 1 1 1D 80 18 71 1C 16 20 58 2C

ⓐ ⓑ

ⓓ

ⓕ

1

ⓔ1

ⓔ2

0x00 0 FF FF FF FF FF FF 0 1E 6D 0x01

0x02 0F 50 54 A1 8 0 71 4F 81 C0 81 0 81 80 95 0 0x03 90 40 A9 C0 B3 0 2 3A 80 18 71 38 2D 40 58 2C

ⓒ

1 3 68 10 9 78 0A EE 91 A3 54 4C 99 26

LG Electronics

ⓐ ⓑ

LGE LCD Division LG(51)

Establish:

LC12E Adjust Specification C2-2230

Reform:

0x04 45 0 A0 5A 0 0 0 1E 66 21 50 B0 51 0 1B 30 0x05 40 70 36 0 A0 5A 0 0 0 1E 0 0 0 FD 0 3A 0x06 3E 1E 53 10 0 0A 20 20 20 20 20 20

0x07

▪Reference

- HDMI1 ~ HDMI4 / RGB

- In the data of EDID, bellows may be different by S/W or Input mode.

ⓓ

 Product ID :

HEX EDID Table

0001 0100 Analog 0001 0100 Digital

 Serial No: Controlled on production line.

 Month, Year: Controlled on production line: ex) Monthly : ‘01’ Î ‘01’

Year : ‘2010’ Î ‘14’

 Model Name(Hex): LGTV (00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 )

 Checksum(LG TV): Changeable by total EDID data.

DDC

Function

ⓓ

0

ⓔ3

HDMI1 79 D9 X HDMI2 79 C9 X HDMI3 79 B9 X HDMI4 79 A9 X

RGB

 Vendor Specific(HDMI)_

INPUT

HDMI1 67 03 0C 00 10 00 B8 2D HDMI2 67 03 0C 00 20 00 B8 2D HDMI3 67 03 0C 00 30 00 B8 2D HDMI4 67 03 0C 00 40 00 B8 2D HDMI5 67 03 0C 00 50 00 B8 2D

5.3 White Balance Adjustment

ⓔ1 ⓔ2 ⓔ3

X X 1C

MODEL NAME(HEX)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

5.3.1 Overview

▪ W/B adj. Objective & How-it-works

- Objective: To reduce each Panel’s W/B deviation

- How-it-works: When R/G/B gain in the OSD is at 192, it means the panel is at its Full

Dynamic Range. In order to prevent saturation of Full Dynamic range and data,

one of R/G/B is fixed at 192, and the other two is lowered to find the desired

value.

-Adj. condition : normal temperature

1) Surrounding Temperature: 25±5℃

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

Before White balance adjustment, Keep power on status. don't power off.※

※ ALEF Header(Module with T-con) supplied as SKD has White Balance data.

(White balance data is stored in EEPROM of the T-con Board)

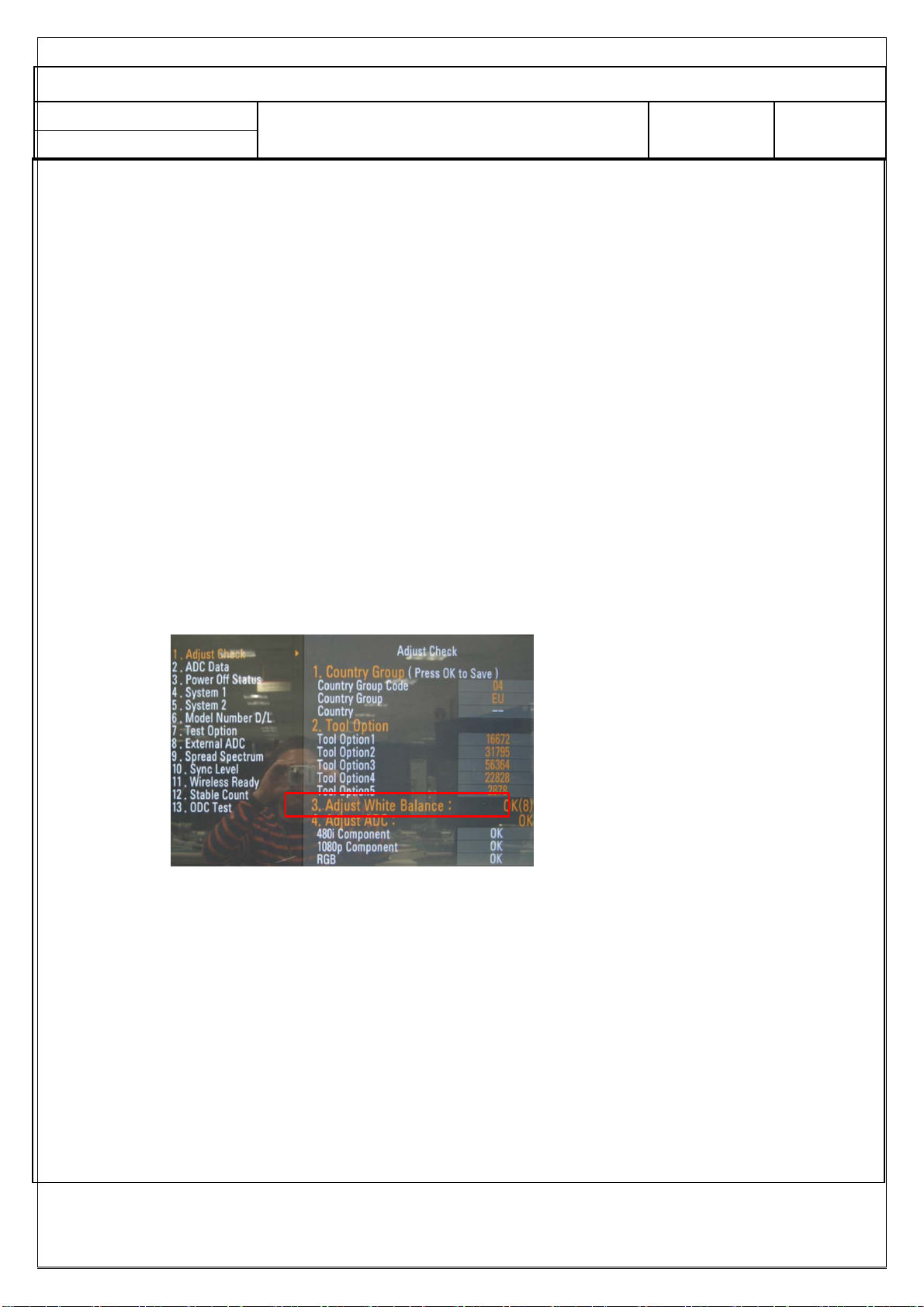

It doesn’t need to adjust White balance if “3. Adjust White Balance” is OK as figure below.

5.3.2 Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray(Model:217, Pattern:78)

→ Only when internal pattern is not available

▪Color Analyzer Matrix should be calibrated using CS-1000

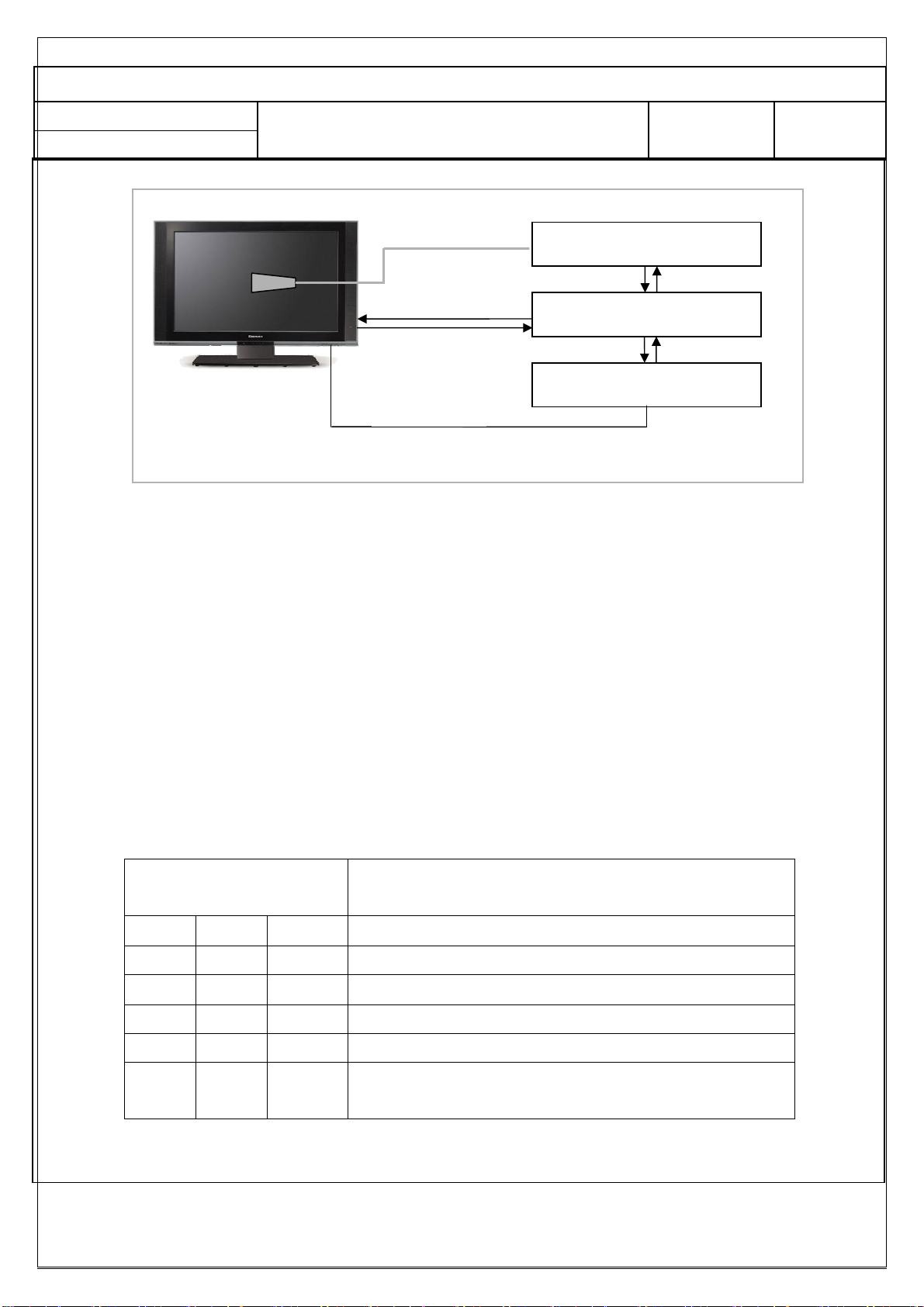

5.3.3 Equipment connection MAP

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

Probe

If TV internal pattern is used, not needed※

5.3.4 Adj. Command (Protocol)

RS-

232C

Signal

Source

Color Analyzer

Computer

※

Pattern Generator

RS-

232C

RS-

232C

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge

Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

▪RS-232C Command used during auto-adj.

RS-232C COMMAND

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

Explanation

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.

ja 00 ff -> Adj. data

jb 00 c0

...

wb 00 1f -> Gain adj. complete

*(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.

wb 00 ff -> End white balance auto adj.

▪Adj. Map

Adj. item

Command

(lower caseASCII)

Data Range

(Hex.)

Default

Details

(Decimal)

CMD1 CMD2 MIN MAX

Cool

Medium

Warm

R Gain j g 00 C0 TBD

G Gain j h 00 C0 TBD

B Gain j i 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

R Gain j a 00 C0 TBD

G Gain j b 00 C0 TBD

B Gain j c 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

R Gain j d 00 C0 TBD

G Gain j e 00 C0 TBD

B Gain j f 00 C0 TBD

R Cut TBD

G Cut TBD

5.3.5 Adj. method

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

5.3.5.1 Auto adj. method

1) Set TV in adj. mode using ADJ key

2) Zero calibrate probe then place it on the center of the Display

3) Connect Cable (RS-232C)

4) Select mode in adj. Program and begin adj.

5) When adj. is complete (OK Sing), check adj. status pre mode

(Cool, Medium, Warm)

6) Remove probe and RS-232C cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and finish as end command “wb 00 ff”,

and Adj. offset if need

5.3.5.2 Manual adj. method

1) Set TV in Adj. mode using ADJ key

2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within

10cm of the surface..

3) Press ADJ key Æ EZ adjust using adj. R/C Æ 7. White-Balance then press the cursor to the

right (KEY).

(When KEY() is pressed 216 Gray internal pattern will be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet

the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of color temperature.

▪ If internal pattern is not available, use RF input. In EZ Adj. menu 7.White Balance, you can

select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can

adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

1) Lighting condition in surrounding area

Surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.

2) Probe location

- PDP: Color Analyzer (CA-100, CA-100+, CA210) probe should be firmly attached to the

Module

- LCD: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the

module surface (80°~ 100°)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

3) Aging time

- After Aging Start, Keep the Power ON status during 5 Minutes.

- In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

5.3.6 Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 216 Gray

▪ Standard color coordinate and temperature using CS-1000 (over 26 inch)

Mode

Cool 0.269 0.273 13000K 0.0000

Medium 0.285 0.293 9300K 0.0000

Warm 0.313 0.329 6500K 0.0000

▪ Standard color coordinate and temperature using CA-210(CH 14)

Mode

Cool 0.269±0.002 0.273±0.002 13000K 0.0000

Medium 0.285±0.002 0.293±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

5.3.8 White balance table

Coordinate

x y

Coordinate

x y

Temp

△uv

▪ Module change color coordinate because of aging time ▪ apply under the color coordinate table, for compensated aging time

Cool Medium Warm

Aging time

GP2

(Min)

1 0-2 279 288 295 308 320 339

2 3-5 278 286 294 306 319 337

3 6-9 277 285 293 305 318 336

4 10-19 276 283 292 303 317 334

5 20-35 274 280 290 300 315 331

6 36-49 272 277 288 297 313 328

7 50-79 271 275 287 295 312 326

8 80-149 270 274 286 294 311 325

9 Over 150 269 273 285 293 310 324

x y x y x y

269 273 285 293 313 329

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

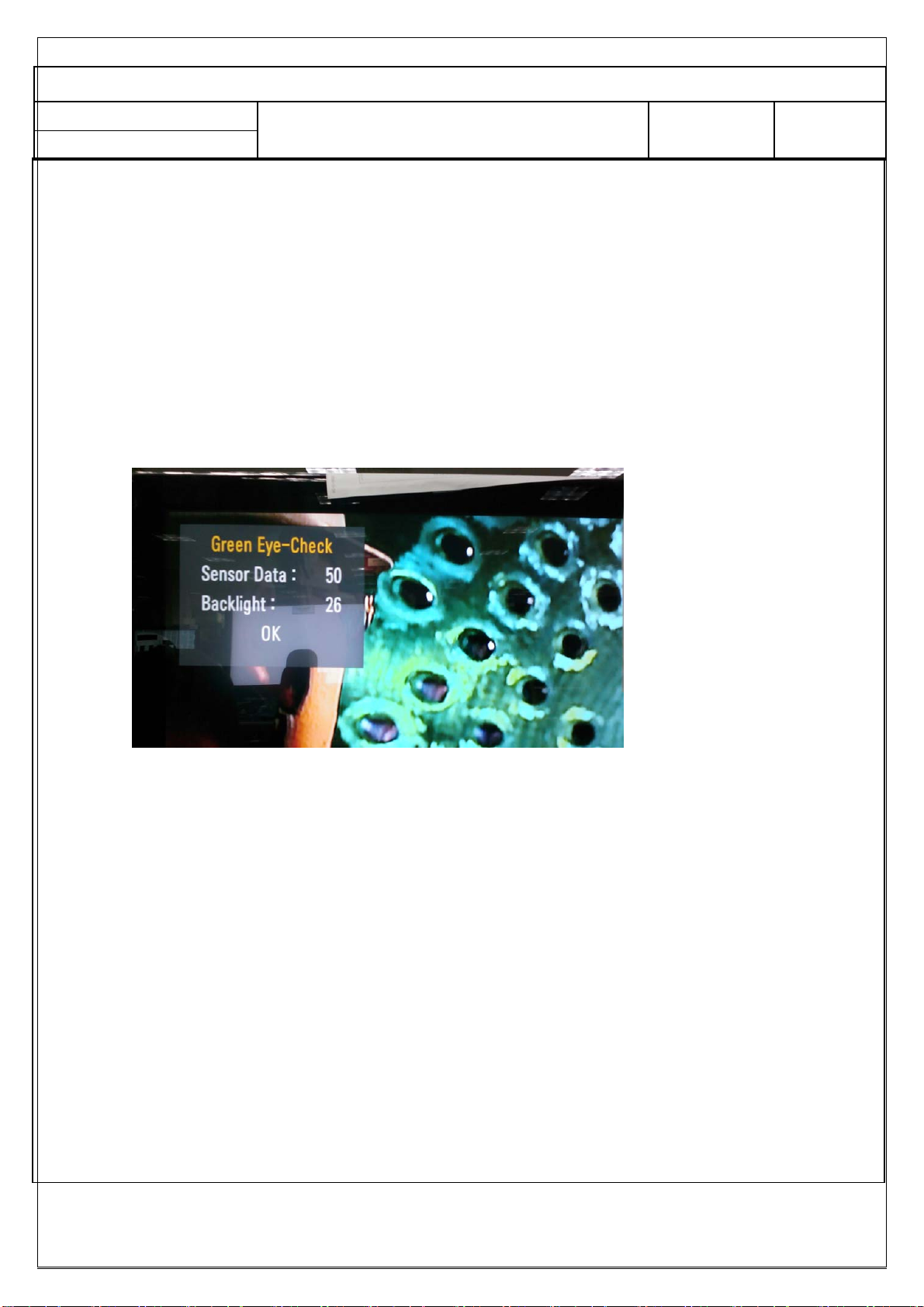

5.4 EYE-Q function check

LC12E Adjust Specification C2-2230

Step 1) Turn on TV

Step 2) Press EYE key of Adj. R/C

Step 3) Cover the Eye Q II sensor on the front of the using your hand and wait for 6 seconds

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw Data (Sensor data, Back light )” . If after

6 seconds, R/G/B value is not lower than 10, replace Eye Q II sensor

Step 5) Remove your hand from the Eye Q II sensor and wait for 6 seconds

Step 6) Confirm that “ok” pop up.

If change is not seen, replace Eye Q II sensor

5.5 Local Dimming Function Check Step 1) Turn on TV

Step 2) At the Local Dimming mode, module Edge Backlight moving Top to Bottom

Back light of IOP module moving

Step 3) confirm the Local Dimming mode

Step 4) Press “exit” Key

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

5.6 Magic Motion Remocon test

- equipment : RF Remocon for test, IR-KEY-Code Remocon for test

- You must confirm the battery power of RF-Remocon before test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(Mute)’ on the controller, you can pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select ‘Vol+(STOP) Key’ on the controller

2) Depending on destination, select Country Group Code 04 or Country Group EU then on

the lower Country option, select US, CA, MX. Selection is done using +,

KEY

- or ▶◀

5.7 Tool Option selection

▪ Method: Press Adj. key on the Adj. R/C, then select Tool option.

5.8 Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

by mode.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

6. GND and Internal Pressure auto check

6.1 Method

1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET.

(If loose, re-insert)

2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to Internal pressure auto check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

6.2 Checkpoint

▪ TEST voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

▪ TEST time: 1 second

▪ TEST POINT

- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND

- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL

▪ LEAKAGE CURRENT: At 0.5mArms

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

No Item Min Typ Max Unit Remark

1.

2.

LC12E Adjust Specification C2-2230

7. Audio

Audio practical max

Output, L/R

(Distortion=10%

max Output)

Speaker (8Ω

Impedance)

Measurement condition:

9 10 12 W

0.5 Vrm

9 10.0 12.0 W EQ On

EQ Off

AVL Off

Clear Voice

s

Off

AVL On

Clear Voice On

1. RF input: Mono, 1KHz sine wave signal, 100% Modulation

2. CVBS, Component: 1KHz sine wave signal 0.5Vrms

3. RGB PC: 1KHz sine wave signal 0.7Vrms

8. Etc

Main B/D Shipping Condition AC Switch condition

Chassis Module Assembly ON N/A

Front Module Assembly N/A OFF

Factory incoming ON OFF

Final Assembly ON ON

Ship-Out OFF ON

8. 1 SET Factoring Condition

No. Item Condition Remark

1. Power

Power Status

Off

3. Volume Level 10

4. Main Picture Input

5. Main Last Channel N.A.

6. Mute Off

LG Electronics

DTV

DTV&ATV

LGE LCD Division LG(51)

Establish: Reform:

ARC

7.

SETUP (DTV&ATV)

8.

9. PICTURE

LC12E Adjust Specification C2-2230

16:9(DTV)

Auto Tuning

Manual Tuning DTV/TV

Programme edit TV/DTV/Radio

Booster

CI information Module

Aspect Ratio

Picture Wizard

Energy Saving

Picture Mode

16:9

Off

Standard

Backlight

Contrast 100

70 (47LEX8*)

80 (55LEX8*)

Brightness 50

Sharpness 70

Colour 60

Tint 0

Colour Temp 0

Dynamic

Contrast

Dynamic

Colour

Clear White off

Skin Colour 0

Noise

Reduction

Digital Noise

Reduction

Gamma

Medium

Low

Medium

Black level Auto

Eye Care Low

Real Cinema On

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

Colour

Gamut

xvYCC Off

Picture Reset

TruMotion Low

Resolution

Auto Config

Position

Screen

Size

Phase

Reset

Auto Volume Off

Clear Voice II Off On Level 3

Wide

10. AUDIO

Time

11.

Balance 0

Stanard

Music

Standard

Sound Mode

Infinity Sound : off

Treble 50

Bass 50

Reset

Digital Audio out PCM

TV Speaker On

DTV Audio Setting Auto

Clock -- : --

Off time Off

On time

Off

Cinema

Sport

Game

Trable 50

BASS 50

User control

Sleep Timer Off

Menu Language

Audio language

English

In case of UK. 12. OPTION

In case of UK.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

English

Off

New * * * *

Confirm * * * *

In case of UK.

Stand by Light Control

on first boot up

13.

Subtitle Language

Hard of hearing

Country UK

Set ID 1

Stand by Light Off

Power Indicator

Power Light on

Factory Reset Off

Mode setting Home Use

IR Blaster off

Lock System Off

Set Password

LOCK

Block Programme DTV/RADIO/TV

Parental Guidance Blocking Off

Input Block

Photo List

USB

14.

Music List

Movie List

8.2 USB S/W Download (option, Service only)

1. Put the USB Stick to the USB socket

2. Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is Low, it didn’t work.

But your downloaded version is High, USB data is automatically detecting

(Download Version High & Power only mode, Set is automatically Download)

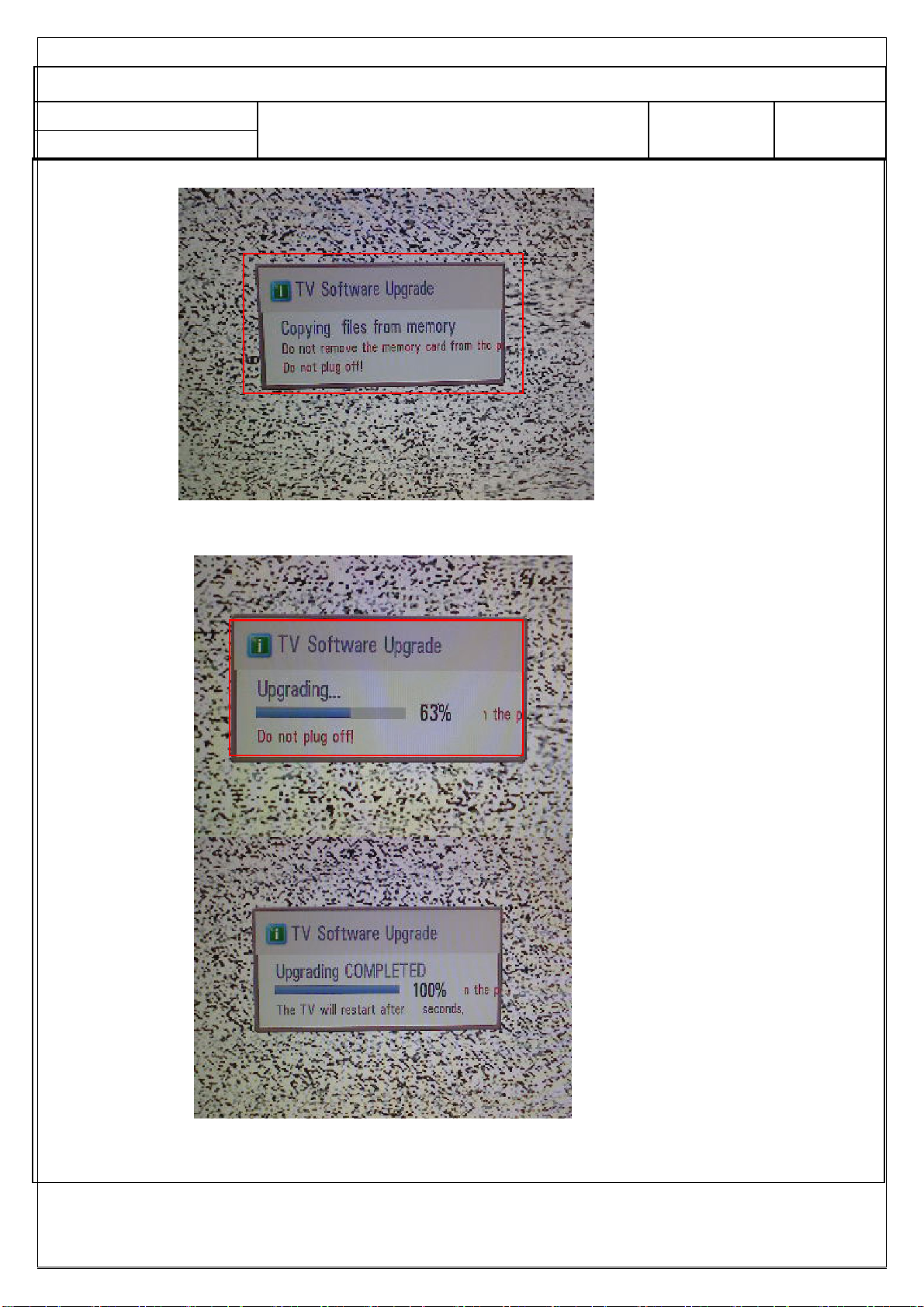

3. Show the message “Copying files from memory”

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

4. Updating is staring.

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

LC12E Adjust Specification C2-2230

5. Updating Completed, The TV will restart automatically

6. If your TV is turned on, check your updated version and Tool option. (explain the

Tool option, next stage)

* If downloading version is more high than your TV have, TV can lost all channel data. In

this case, you have to channel recover. if all channel data is cleared, you didn’t have

a DTV/ATV test on production line.

* After downloading, have to adjust TOOL OPTION again.

1. Push "IN-START" key in service remote controller.

2. Select Tool Option 1~5 and Push “OK” button.

3. Punch in the number. (Each model has their number.)

LG Electronics

LGE LCD Division LG(51)

Establish: Reform:

Market

CN

HK

LC12E Adjust Specification C2-2230

9. Tool Option selection (TBD)

▪ Method: Press Adj. key on the Adj. R/C, then select Tool option.

Inch. Model

42

47

55

32 LV5700 33252 5461 3327 17577 41577 665

37 LV5700 33253 5461 3327 17577 41577 665

42 LV5700 33254 5461 3327 17577 41577 665

47 LV5700 33256 5461 3327 17577 41577 665

Tool

Option1

LV5700.

LV5740 LV5700 LV5740 LV5700 LV5740

33254 5461 3263 17569 42577 729

33256 5461 3263 17569 42577 729

33259 5461 3263 17569 42577 729

Tool

Option

2

Tool

Option3

Tool

Option4

Tool

Option5

Tool

Option6

Country

Code

5

11

10. Addendum

▪This regulation being starting 2010/09/14.

승 인 연구 2 실 EU2 Gr.장 ( 인 )

심 의 Display 품질보증 Gr.장 ( 인 )

Display 생기 Gr.장 ( 인 )

Display 제조 Gr.장 ( 인 )

성 안 연구 2 실 EU2 Gr.장 ( 인 )

LG Electronics

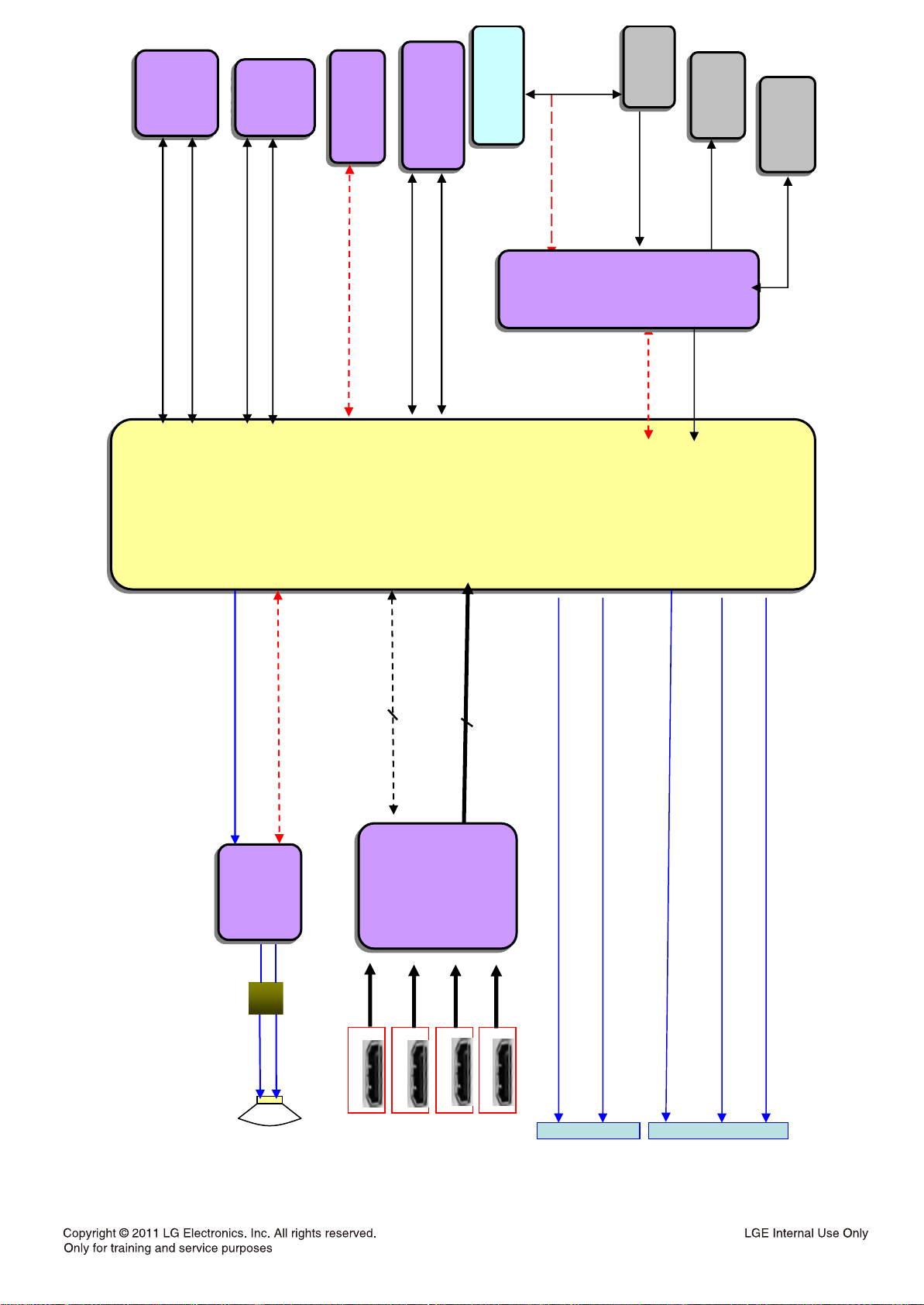

IC402

2G

16: DDR1 Data[0:15]

DDR2

IC401

14: DDR1 Adress[0:13]

DDR2

2G

14: DDR0 Adress[0:13]

16: DDR0 [0:15]

(IC103)

SDA/SCL1_3.3V

(8Gbit,IC102)

NAND Flash

NVRAM

CE/RB/RE/WP

7:NAND_WEb/ALE/CLE/

(16K, IC601)

NAND Flash

2: EEPROM_SCL/SDA

EEPROM

LED_R/BUZZ；

S/T_SDA/SCL

8:NAND_DATA[0:7]

Control& IR

P901

3: KEY1/2 ,IR,

LED_B/LG_LOGO

Micom

IC602

Micom

IC602

Power B/D

P502

2: INV_CTL,

RL_ON

P601

Debug

AUD_MASTER_CLK

Amp_reset_n：

4:AUD_LRCH/LRCK/SCK,

AMP_Mute

2: SCL1/SDA1_3.3V

DA(5V)

(IC10

(IC101)

1

)

4 : HDMI_SCL/S

IC100

BCM35230

BCM3556

HDMI_RX0/1/2-/+;

HDMI_CLK-/+

2: SCL2/SDA2_3.3V

TXD0N/P; TXD1N/P; TXD2N/P; TXD3N/P; TXD4N/P; T

TXC0N/P; TXC1N/P; TXC2N/P; TXC3N/P; TXC4N/P; T

1: SOC_ Reset

TXB0N/P; TXB1N/P; TXB2N/P; TXB3N/P; TXB4N/P; T

TXA0N/P; TXA1N/P; TXA2N/P; TXA3N/P; TXA4N/P; T

FRC_RESET；SDA/CL2_3.3V

NTP

NTP-7400L

IC1802

-

7400L

LPF

SPK_R+/-

Audio AMP

SPK_L+/-

Speaker

4

(JK704)

IC701

1

NDMI

HDMI

(JK703)

SIL9287BCNU

HDMI Switch

HDM

3

- 92 -

HDMI

2

(JK702)

(JK701)

XDCLKN/P

XCCLKN/P

P1502

XBCLKN/P

P1501

XACLKN/P

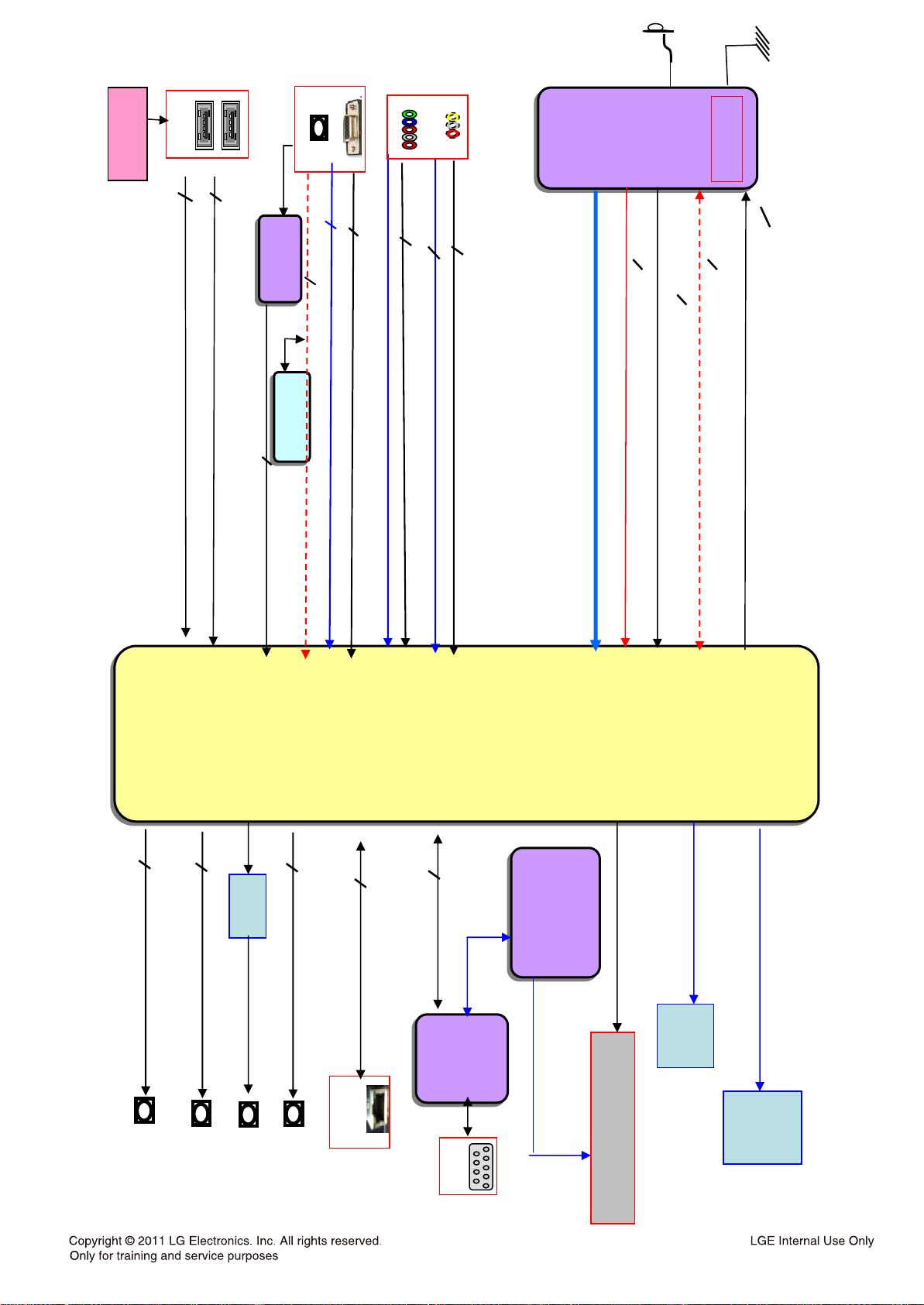

USB2

(Side)

JK1201/2)

IC1203/4

USB1

(Side)

2:USB_DM1/DP1

2:USB_DM2/DP2

(IC801)

PC Audio

(

JK801)

AND Gate

RGB_DDC_SCL/SDA; WP

(2K, IC802)

EEPROM

DSUB_VSYNC; DSUB_HSYNC

EEPROM

RGB In

(JK804)

2: PC _R/L _IN

COMP1 In

6: DSUB_R,G,B,DET, Hsync, Vsync

2: Comp2 _R/L _IN

2: Real_AV_R/L _IN

4:Comp2_Y/Pb/Pr/DET

Cable

AV 1 In

TDFR-C056D

JK1105

TDFR-C056D

TU2202

2:AV_CVBS_DET,Rear_AV_CVBS

TS_VAL_ERR/TU_TS_SYNC/TU_TS_CLK

2 : TU_CVBS/SIF (ATV)

8 : FE_TS_Data[0-7]

Inner Demod:

LG3911

3 : RF_SWITCH_CTL , RF_BOOSTER；TU_reset

4 : SCL0/SDA0_3.3V , SCL3/SDA3_3.3V

4:Side_Comp_Y/Pb/Pr/Det

(JK1101)

(JK1102)

Comp2

4: Side_AV_CVBS/DET, L/R

(JK803)

AV2

ic804

(JK802)

HP

1:SPDI_ OUT (Digital)

(JK1401)

SPDIF

4:EPHY_TDP/TDN/RDP/RDN

2:BCM_TX/RX

IC803

ETHERNET

(JK805)

LAN

BCM35230

(IC10

(IC101)

1

)

NEC_RXD/TXD

MAX3232

RS232

Wireless_SCL/SDA

UPD78F0513

NEC_

UPD78F0513

NEC_ Micom

IC602

Micom

WIRELESS_PWR_EN/DET

RS232 IC

Wireless

(JK1001)

SCL/SDA

PWM_DIM

P101

P502

- 93 -

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components a s recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

400

IMPORTANT SAFETY NOTICE

910

900

530

200

401

540

806

511

510

120

710

560

A10

A5

A2

300

500

- 94 -

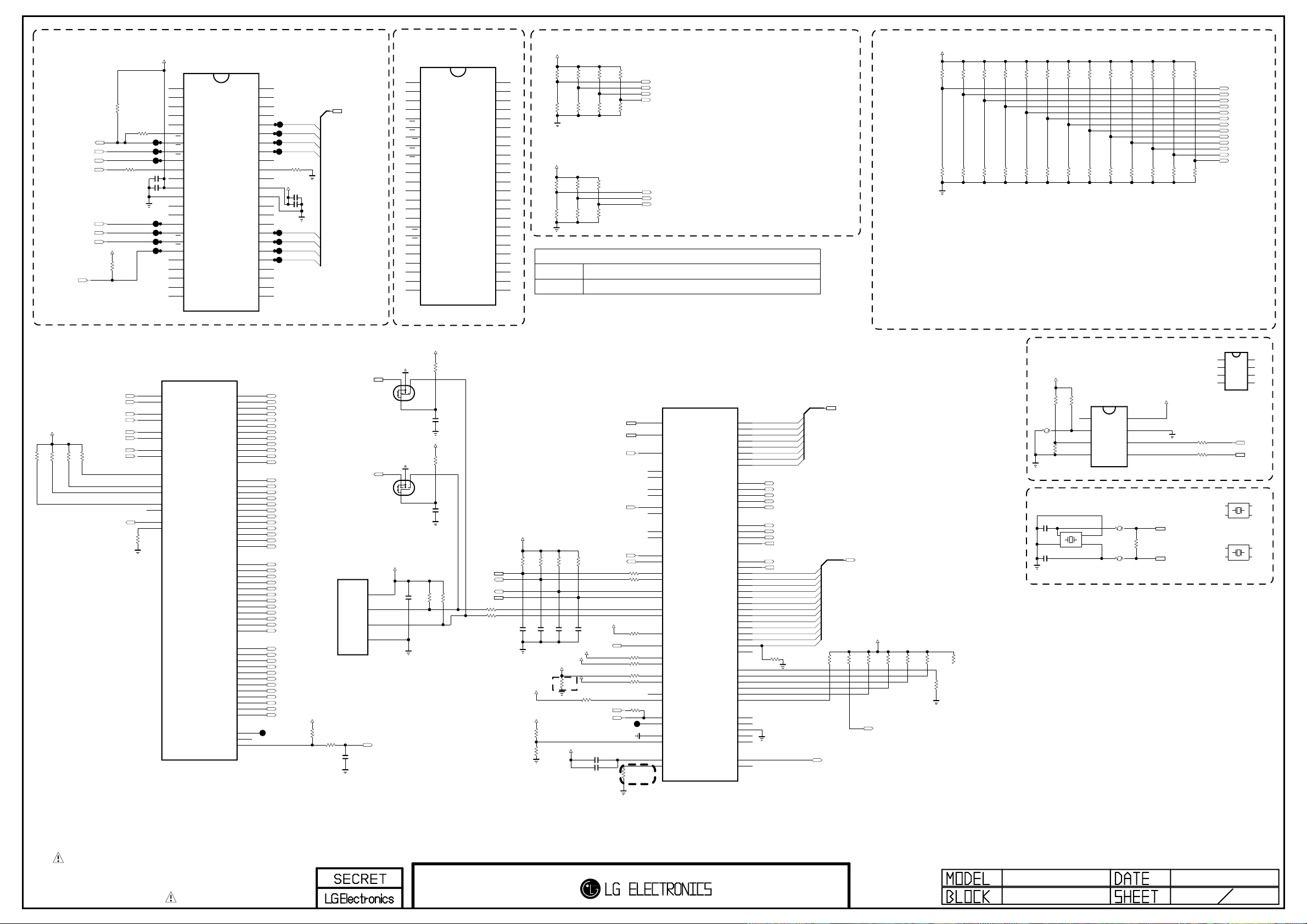

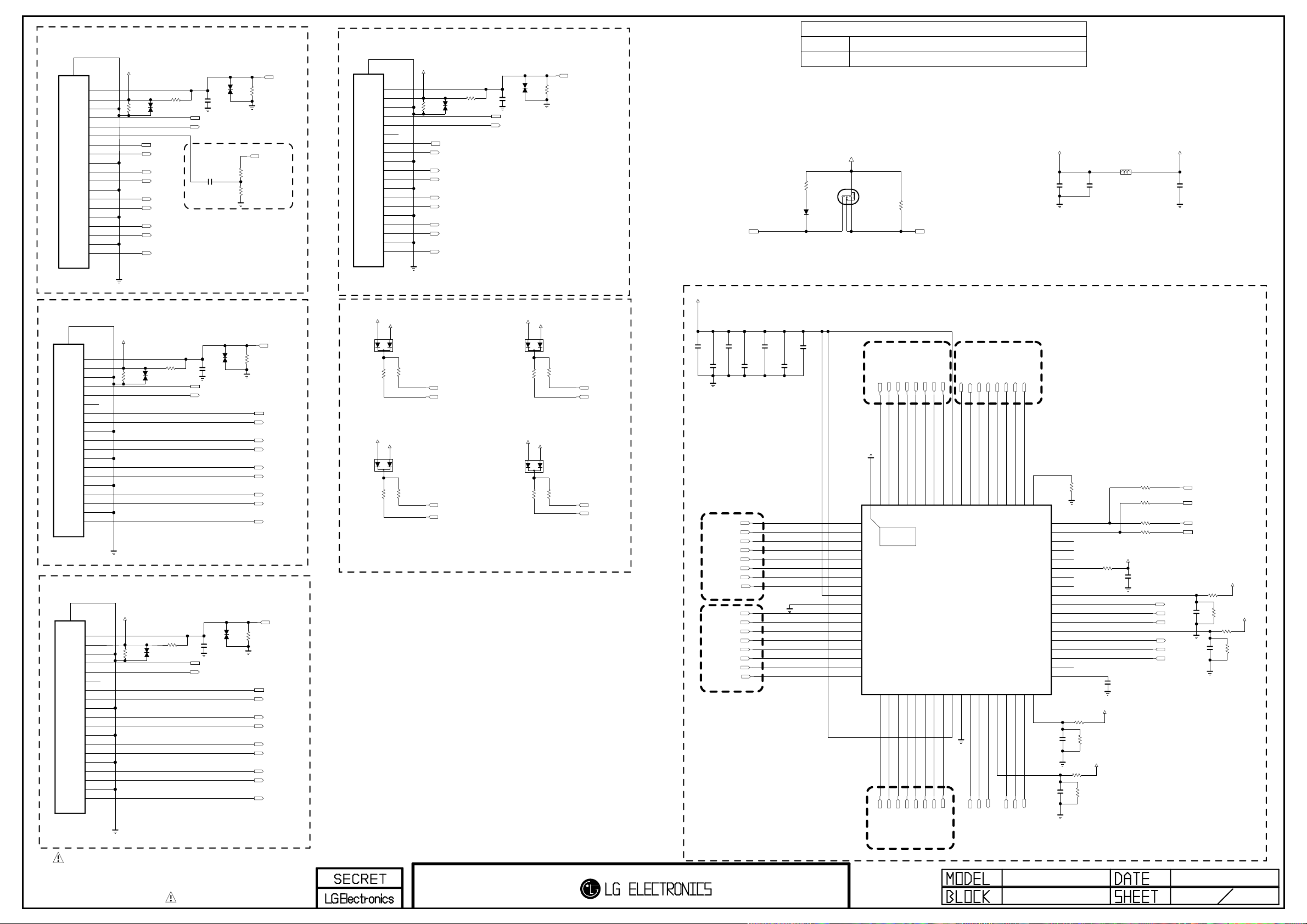

NAND FLASH MEMORY 8Gbit

+3.3V_Normal

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

RY/BY

7

RE

8

CE

9

NC_7

0

LGE35230(BCM35230KFSBG)

B5 C5

A4 B4

A3 B3

A2 B2

W2

V4 W4

V3 V2

D13

E6

R106 3K

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

IC101

NON_BCM_CAP

HDMI0_CLKN HDMI0_CLKP

HDMI0_D0N HDMI0_D0P

HDMI0_D1N HDMI0_D1P

HDMI0_D2N HDMI0_D2P

CEC

DDC0_SCL DDC0_SDA

HDMI0_HTPLG_IN HDMI0_HTPLG_OUT

HDMI0_ARC HDMI0_RESREF

LT0VCAL_MONITOR

NAND_RBb

NAND_REb

NAND_CEb

NAND_CEb2

NAND_CLE

NAND_ALE

R101

4.7K

FLASH_WP

R105

4.7K

NAND_WEb

R104

4.7K

R195

4.7K

Write Protection

- High : Normal Operation

- Low : Write Protection

+3.3V_Normal

R107 2.7K

R148

+3.3V_Normal

R103

4.7K

HDMI_CLKHDMI_CLK+

HDMI_RX0HDMI_RX0+

HDMI_RX1HDMI_RX1+

HDMI_RX2HDMI_RX2+

HDMI_ARC

16Gbit

R149 0

16Gbit

C102 4700pF

C101

0.1uF

OPT

IC102

TC58DVG3S0ETA00

NAND_8Gbit

TXOUT0_L0N TXOUT0_L0P TXOUT0_L1N TXOUT0_L1P TXOUT0_L2N TXOUT0_L2P

TXCLK_LN

TXCLK_LP TXOUT0_L3N TXOUT0_L3P TXOUT0_L4N TXOUT0_L4P

TXOUT0_U0N TXOUT0_U0P TXOUT0_U1N TXOUT0_U1P TXOUT0_U2N TXOUT0_U2P

TXCLK_UN

TXCLK_UP TXOUT0_U3N TXOUT0_U3P TXOUT0_U4N TXOUT0_U4P

TXOUT1_L0N TXOUT1_L0P TXOUT1_L1N TXOUT1_L1P TXOUT1_L2N TXOUT1_L2P

TXCLK1_LN

TXCLK1_LP TXOUT1_L3N TXOUT1_L3P TXOUT1_L4N TXOUT1_L4P

TXOUT1_U0N TXOUT1_U0P TXOUT1_U1N TXOUT1_U1P TXOUT1_U2N TXOUT1_U2P

TXCLK1_UN

TXCLK1_UP TXOUT1_U3N TXOUT1_U3P TXOUT1_U4N TXOUT1_U4P

GPIO_BL_ON

BL_PWM/GPIO

AE28 AF27 AF28 AG27 AG28 AE26 AF26 AH27 AG26 AF25 AE25

AH26 AG25 AE24 AD24 AH25 AF24 AE23 AD23 AG24 AF23 AC22 AD22

AG23 AH23 AE22 AE21 AF22 AH22 AG22 AF21 AG21 AF20 AD21 AC21

AG20 AH20 AD19 AE19 AF19 AH19 AE18 AD18 AG19 AF18 AG18 AF17

AC18 AH16 AG16

16Gbit

IC102-*1

TH58DVG4S0ETA20

SDA0_3.3V SCL0_3.3V

SCL2_3.3V SDA2_3.3V

R199 22 R197 22

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

NC_26

NC_25

NC_24

NC_23

I/O8

I/O7

I/O6

I/O5

NC_22

PSL

NC_21

VCC_2

VSS_2

NC_20

NC_19

NC_18

I/O4

I/O3

I/O2

I/O1

NC_17

NC_16

NC_15

NC_14

+3.3V_Normal

NC_1

1

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O8

NAND_DATA[7]

44

I/O7

NAND_DATA[6]

43

I/O6

42

NAND_DATA[5]

I/O5

41

NAND_DATA[4]

NC_24

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PSL

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

16Gbit

R151

+3.3V_Normal

C104 10uF

NAND_DATA[3]

NAND_DATA[2]

NAND_DATA[1]

NAND_DATA[0]

TXB4P TXB4N TXB3P TXB3N TXBCLKP TXBCLKN TXB2P TXB2N TXB1P TXB1N TXB0P TXB0N

TXA4P TXA4N TXA3P TXA3N TXACLKP TXACLKN TXA2P TXA2N TXA1P TXA1N TXA0P TXA0N

TXD4P TXD4N TXD3P TXD3N TXDCLKP TXDCLKN TXD2P TXD2N TXD1P TXD1N TXD0P TXD0N

TXC4P TXC4N TXC3P TXC3N TXCCLKP TXCCLKN TXC2P TXC2N TXC1P TXC1N TXC0P TXC0N

+3.3V_Normal

0

10V

C103

0.1uF

R194

2.7K

R108 10K

NAND_DATA[0-7]

RGB_DDC_SDA

RGB_DDC_SCL

BBS CONNECT

P101

TJC2508-4A

1

2

3

4

C105

2.2uF 10V

Q101 BSS83

Q102 BSS83

+3.3V_Normal

VCC

SCL

SDA

GND

A_DIM

RY/BY2

RY/BY1

VCC_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

SBD

G

SBD

G

CE1

CE2

CLE

ALE

RE

WE

WP

C106

4.7uF

DEV_NAND_16Gbit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

+3.3V_Normal

R196 10K

C118

0.1uF 16V

+3.3V_Normal

R198 10K

C119

0.1uF 16V

R110

R109

1.5K

DVB_S Option: apply EU Satellite model

FOR HDMI STANDARD APPLY ONLY WHEN CONNECT TO PULL-UP GPIO

Boot ROM Device Select - (FA4,FAD7,FAD2,FAD1)

+3.3V_Normal

R113 10K

R114 10K

OPT

R117 10K OPT

R118 10K

R122 10K

R123 10K

OPT

R127 10K OPT

R128 10K

CI_ADDR[4] NAND_DATA[7] NAND_DATA[2] NAND_DATA[1]

NAND ECC (FA3, FA2, FALE)

+3.3V_Normal

R119

R115

R111 10K

OPT

R112 10K

10K

R116 10K OPT

10K OPT

R120 10K

CI_ADDR[3] CI_ADDR[2] NAND_ALE

DUAL COMPONENT

IC102 1ST : EAN61000101 2ND : T-TH58DVG4S0ETA20

IC102-*1

LGE35230(BCM35230KFSBG)

AG6

TVM_XTALIN

AF6

TVM_XTALOUT

V5

IRRXDA

AB4

FP_IN0

Y4

FP_IN1

AA4

SPARE_ADC1

Y5

SPARE_ADC2

AB2

FS_IN1

AB5

FS_IN2

U3

VGA_SDA

U2

VGA_SCL

Y2

RDA

Y1

TDA

33

AA3

BSCDATAA

AA2

BSCCLKA

H3

RDB/GPIO

H2

TDB/GPIO

H4

BSC_S_SCL

H5

BSC_S_SDA

F25

NMIB

W5

POWER_CTRL

U5

AON_HSYNC

U4

AON_VSYNC

W3

AON_GPIO_36

W1

AON_GPIO_37

AB6

AON_RESETOUTB

Y6

TVM_BYPASS

Y3

RESETB

G24

RESETOUTB

J6

TMODE

W6

TESTEN

F7

VDAC_VREG

E7

VDAC_RBIAS

BCM REFRENCE is 562ohm

R121

1.2K

C107 33pF 50V

DVB_S

+3.3V_Normal

R124 1K

OPT

R125 1K

R126

1.2K

C108 33pF 50V

DVB_S

R129

1.2K

C109 33pF 50V

5V_HDMI_3

R130

OPT

2K

R132 4.7K

+3.3V_Normal

C111 0.01uF C112 0.1uF

54MHz_XTAL_P

54MHz_XTAL_N

R131

1.2K

C110 33pF 50V

PCM_5V_CTL

5V_HDMI_1

5V_HDMI_2

5V_HDMI_4

SOC_RESET

LNB_INT

SC_ID

BCM_RX BCM_TX

R135 R136 33

+3.3V_Normal

R141 4.7K

R142 22 R143 22

R144 22 R145 22

R139 0

SRST

R140 560 1%

OPT

OPT OPT

OPT

0000: ST Micro M25P or compatible Serial Flash 0010: 8-bit 512Mbit 512B page SLC NAND Flash devices 0100: 8-bit 128, 256Mbit 512B page SLC NAND Flash devices 0110: 8-bit 1Gbit 2KB page SLC NAND Flash devices 1000: 8-bit 2Gbit, 4Gbit, 8Gbit 2KB page SLC NAND Flash devices 1010: 8-bit 16Gbit, 32Gbit 4KB page SLC NAND Flash devices (O) 0001: 8-bit 8/16/32Gbit 2KB page MLC NAND Flash devices 0011: 8-bit 16/32Gbit 4KB page MLC NAND Flash devices 0101: 8-bit 32Gbit 8KB page MLC NAND Flash devices 0111: 3B dual IO Serial Flash 1001: BB dual IO Serial Flash 1011: fast Serail Flash > 50Mhz 1100: OneNAND Flash (always 16-bit) 1110: Reserved 1101, 1111: Reserved

000 = ECC disabled 001 = ECC 1-bit repair 010 = ECC 4-bit BCH (O) 011 = ECC 8-bit BCH, 27 byte spare 100 = ECC 12-bit BCH, 27 byte spare 101 = ECC 8-bit BCH, 16 byte spare 110, 111 = Reservedd

IC101

NON_BCM_CAP

AVS_NDRIVE_1 AVS_PDRIVE_1

FAD_7 FAD_6 FAD_5 FAD_4 FAD_3 FAD_2 FAD_1 FAD_0

FALE FCEB_0 FCEB_1 FCEB_2 FCEB_3

NFWPB

FRDYB

FA_0

FA_1

FA_2

FA_3

FA_4

FA_5

FA_6

FA_7

FA_8

FA_9

FA_10 FA_11 FA_12 FA_13 FA_14 FA_15

TRSTB

TDI/GPIO

TMS/GPIO TCK/GPIO

DINT/GPIO

AVS_VFB AVS_VSENSE AVS_RESETB

VDAC_1 VDAC_2

AB1

NAND_DATA[7]

AB3

NAND_DATA[6]

AC1

NAND_DATA[5]

AC2

NAND_DATA[4]

AC3

NAND_DATA[3]

AD2

NAND_DATA[2]

AD3

NAND_DATA[1]

AE2

NAND_DATA[0]

AG1 AF1 AC5 AE6 AG5

AF3 AG2

FWE

AE3

FRD

AA5

AF2 AE1 AC4 AD5 AD4 AE4 AE5 AD6 AH3 AF4 AH4 AG4 AF5 AG3 AH2 AH5

AD15 AF14 AH14

TDO

AD14 AG14 AC16

AH7 AG7 AD7 AF7 AH8

C6 D7

NAND_ALE NAND_CEb NAND_CEb2 /CI_CE1 /CI_CE2

FLASH_WP NAND_WEb NAND_REb /PCM_WAIT

NAND_CLE NAND_RBb

CI_ADDR[2] CI_ADDR[3] CI_ADDR[4] CI_ADDR[5] CI_ADDR[6] CI_ADDR[7] CI_ADDR[8]

CI_ADDR[9] CI_ADDR[10] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13]

CI_ADDR[14]

R146 10K

NAND_DATA[0-7]

R147 1K

DTV/MNT_V_OUT

Strap Setting

CI_ADDR[2-14]

+3.3V_Normal

R150

R153

1K

R156

1K

SRST

+3.3V_Normal

R157

R160

R154

10K

OPT

R158

R155

10K

NAND_DATA[0]: 0: System is LITTLE endian (O) 1: System is BIG endian

CI_ADDR[7]: 0: Disable EDID automatic Downloading from Flash (O) 1: Enable EDID automatic Downloading from Flash

NAND_DATA[6] : 0: Disable OSC clock output on chip Pin (O) 1: Enable OSC clock output on chip pin.

CI_ADDR[6]: 0: Host MIPS run at 500 MHz (O) 1: Host MIPS run at 250 MHz

NAND_CLE: 0: Differential Oscillators TVM not bypassed (O) 1: Differential Oscillators TVM bypassed

NAND_DATA[4]: 0: 27MHz TVM Crystal Frequency 1: 54MHz TVM Crystal Frequency (O)

R162

R159 1K

R166

1K

R163 1K

10K OPT

R161 10K

R164 10K

OPT

R165 10K

R167 10K

OPT

R168 10K

R175 10K

OPT

R176 10K

R177 10K

R178 10K

OPT

R170 10K

R171 10K

OPT

CI_ADDR[9],CI_ADDR[11],CI_ADDR[12],CI_ADDR[13] TVM Crystal oscillator bias/gain control 0000: 210uA 0001: 390uA 0010: 570uA 0011: 730uA 0100: 890uA (O) 0111: 1290uA 1000: 1416uA 1111: 2196uA 0101, 0110, 1001, 1010, 1011, 1100, 1101, 1110: Reserved

CI_ADDR[8]: 0: RESETOUTb (in On/Off only) stay asserted until software releases them. 1: Fix amount of delay for de-assertion on RESETOUTb (in On/IOff only) at end of RESETb pulse (O)

NAND_DATA[3]: 0: MIPS will boot from external flash (O) 1: MIPS will boot from ROM

NAND_DATA[5]: 0: FLASH MODE (O) 1: BSC_SLAVE(BBS) MODE

R179 10K

OPT

R180 10K

R181 10K

OPT

R182 10K

R183 10K

R184 10K

OPT

R187 10K

OPT

R188 10K

NVRAM

+3.3V_Normal

R169 0

R173

R172

4.7K

OPT

R174

4.7K

BCM_NVM_1M

IC103

M24M01-HRMN6TP

OPT

NC

1

E1

2

A8’h

E2

3

VSS

4

+3.3V_Normal

VCC

8

WP

7

SCL

6

SDA

5

R190 33

R191 33

54MHz X-TAL

C113 12pF

50V

3

X-TAL_2

4

GND_2

54MHz

X101

CRYSTAL_BCM_Sunny

C114

12pF

EAW58812611

50V

SUNNY ELECTRONICS CORPORATION

2

1

GND_1

X-TAL_1

R185 0

R186 0

R189 1M OPT

54MHz_XTAL_N

54MHz_XTAL_P

R192 10K

OPT

NAND_DATA[0] CI_ADDR[7] NAND_DATA[6] CI_ADDR[6] NAND_CLE NAND_DATA[4] CI_ADDR[9] CI_ADDR[11] CI_ADDR[12] CI_ADDR[13] CI_ADDR[8] NAND_DATA[3] NAND_DATA[5]

R193 10K

BCM_NVM_256K

IC103-*1

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

Write Protection

- Low : Normal Operation

- High : Write Protection

X101-*2

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_KDS

EAW58239604

DAISHINKU CORPORATION.

X101-*1

54MHz

X-TAL_1

1

GND_1

2

CRYSTAL_BCM_Lihom

EAW60763703

LIHOM CO., LTD.

VCC

8

WP

7

SCL

6

SDA

5

SCL3_3.3V

SDA3_3.3V

GND_2

4

X-TAL_2

3

GND_2

4

X-TAL_2

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN & NAND FLASH

2010.09.18

1

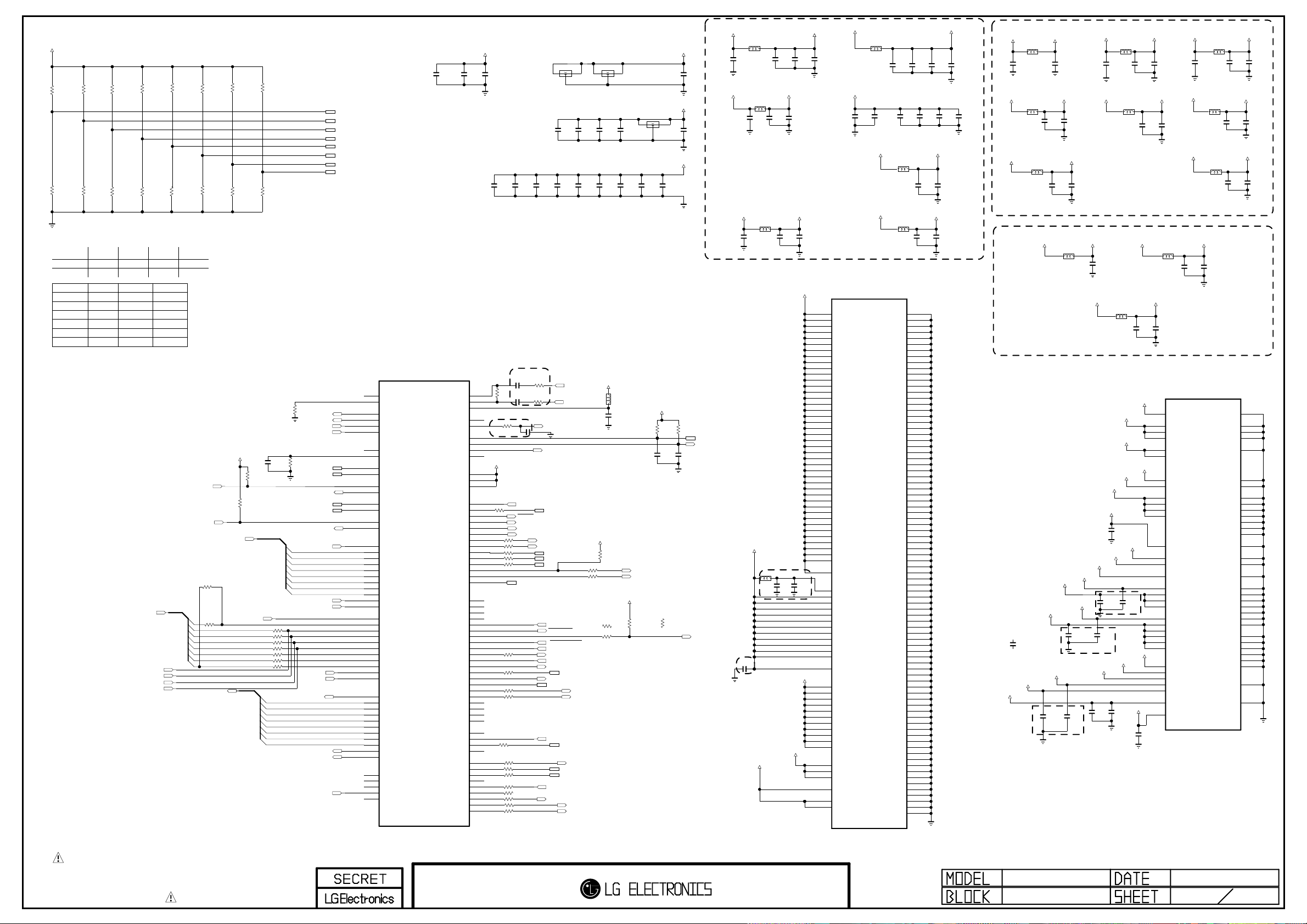

+3.3V_Normal

FHD

R252

1K

HD

R262

1K

FE_TS_DATA[0-7]

OLED

LCD

BCM internal FRC

00 11

1 100

HIGH

Support

CHBO_TS_CLK

CHBO_TS_SERIAL

CHBO_TS_SYNC

CHBO_TS_VAL_ERR

R251

1K

BCM_FRC/URSA5

R261

1K

NO_FRC/FRC2

R250

FRC2/URSA5

R260

NO_FRC/BCM_FRC

MODEL OPTION

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7 Enable Disable

NO_FRC

DDR speed

T2 Tuner

S Tuner

PHM

R253

R263

1K

R254

1K

OPT

R264

1K

LG FRC2

LOW

HDFHD

LCDOLED

16001333

Not Support

Not SupportSupport

R255

1K

T2_TUNER

R265

1K

NO_T2_TUNER

external URSA5

SIDE_USB_OCD1

SIDE_USB_OCD2

R201 0

F/NIM_EU_CN

PCM_MDI[0-7]

R256

1K

S_TUNER

R266

1K

NO_S_TUNNER

+3.3V_Normal

PCM_TS_DATA[0-7]

OPT

R202

0

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

R287 10K

WIFI

R286 10K

WIFI

TU_TS_CLK

PHM

R257

R267

NO_PHM

1K

C201 100pF

OPT

R203 0 R204 0 R205 0 R206 0

R207 0 R208 0 R209 0

PCM_MDI[0] PCM_MDI[1] PCM_MDI[2] PCM_MDI[3] PCM_MDI[4] PCM_MDI[5] PCM_MDI[6] PCM_MDI[7]

R211

6.04K

R210

4.87K 1%

SIDE_USB_DM SIDE_USB_DP

SIDE_USB_CTL1

SIDE_USB_CTL2

PCM_TS_CLK

PCM_TS_DATA[0] PCM_TS_DATA[1] PCM_TS_DATA[2] PCM_TS_DATA[3] PCM_TS_DATA[4] PCM_TS_DATA[5] PCM_TS_DATA[6] PCM_TS_DATA[7]

PCM_TS_SYNC

PCM_TS_VAL

F/NIM_EU_CN F/NIM_EU_CN

F/NIM_EU_CN

F/NIM_EU_CN F/NIM_EU_CN F/NIM_EU_CN

TU_TS_SYNC TS_VAL_ERR

PCM_MCLKI

PCM_MISTRT

PCM_MIVAL_ERR

EPHY_TDP EPHY_TDN EPHY_RDP EPHY_RDN

WIFI_DM WIFI_DP

/PCM_IRQA

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3 MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6 MODEL_OPT_7

LGE35230(BCM35230KFSBG)

F26 D26

F27 F28 E27 E26

F5 E5

C2 D1

E1 D2

B1 C1

C3 C4

M4 L5 M5 L6 N3 N1 N2 M3 M2 L4 N4

K6 J4 K5 J2 J3 K2 K1 K3 L1 L3 L2

P4 T2 R3 R2 P3 P2 P1 R6 N5 T4 P5

R4 U1 T3 T1 T5

IC101

NON_BCM_CAP EPHY_VREF EPHY_RDAC

EPHY_TDP EPHY_TDN EPHY_RDP EPHY_RDN

USB_MONCDR USB_RREF

USB_PORT1DN USB_PORT1DP

USB_PWRFLT_1/GPIO USB_PWRON_1/GPIO

USB_PORT2DN USB_PORT2DP

USB_PWRFLT_2/GPIO USB_PWRON_2/GPIO

TCLKA/GPIO TDATA_0/GPIO TDATA_1/GPIO TDATA_2/GPIO TDATA_3/GPIO TDATA_4/GPIO TDATA_5/GPIO TDATA_6/GPIO TDATA_7/GPIO TSTRTA/GPIO TVLDA/GPIO

TCLKD/GPIO TDATD_0/GPIO TDATD_1/GPIO TDATD_2/GPIO TDATD_3/GPIO TDATD_4/GPIO TDATD_5/GPIO TDATD_6/GPIO TDATD_7/GPIO TSTRTD/GPIO TVLDD/GPIO

MPEG_CLK/GPIO MPEG_D_0/GPIO MPEG_D_1/GPIO MPEG_D_2/GPIO MPEG_D_3/GPIO MPEG_D_4/GPIO MPEG_D_5/GPIO MPEG_D_6/GPIO MPEG_D_7/GPIO MPEG_SYNC/GPIO MPEG_DATA_EN/GPIO

MCIF_RESET/GPIO MCIF_SCLK/GPIO MCIF_SCTL/GPIO MCIF_SDI/GPIO MCIF_SDO/GPIO

PCI_DEVSELB/GPIO

PCI_FRAMEB/GPIO

C225

0.22uF

6.3V

VI_IFP0 VI_IFM0

VDDR_AGC

AGC_SDM_2 AGC_SDM_1

GPIO_0 GPIO_1 GPIO_2 GPIO_3

PCI_VIO_0 PCI_VIO_1 PCI_VIO_2

GPIO_4 GPIO_5 GPIO_6

GPIO_7 GPIO_70 GPIO_71 GPIO_72 GPIO_73 GPIO_74 GPIO_75 GPIO_76 GPIO_77 GPIO_78 GPIO_79

PCI_AD05 PCI_AD06 PCI_AD07

PCI_AD08 PCI_AD09/GPIO PCI_AD10/GPIO PCI_AD11/GPIO PCI_AD12/GPIO PCI_AD13/GPIO PCI_AD14/GPIO PCI_AD15/GPIO PCI_AD16/GPIO PCI_AD17/GPIO PCI_AD18/GPIO PCI_AD19/GPIO PCI_AD20/GPIO PCI_AD21/GPIO

PCI_AD22

PCI_AD23

PCI_AD24

PCI_AD25

PCI_CBE00 PCI_CBE01/GPIO PCI_CBE02/GPIO

PCI_CBE03

PCI_IRDYB/GPIO

PCI_PAR/GPIO

PCI_PERRB/GPIO

PCI_REQ1B PCI_SERRB/GPIO PCI_STOPB/GPIO PCI_TRDYB/GPIO

+0.9V_CORE

C221

0.1uF

C17 B17 D15

B16 A16

A15 C16 G28 G26

+3.3V_Normal

W14 W15 W13

J5 R5 V6 H6 AE15 AF15 AG15 AF16 AD16 AE16 AG17 AH17 AE17 AD17

AB13 AC15 AB12 AB11 AE14 AG13 AH13 AF13 AE13 AD12 AF12 AG10 AF10 AE10 AD10 AE9 AE8 AC10 AC11 AC8 AB8

AC14 AG12 AH10 AB7

AG11 AD11 AE11 AD13 AE12 AC12 AC13 AH11 AF11

C223

0.01uF

C203 10uF 10V

close to soc

Non_CHB

R212

C218

1K

closed to soc

R213 2K

C216 0.01uF

R280 22

R214 22

R215 22 R281 22 R282 22

R216 22

R218 22

R220 22

R221 22

R222 22

R283 22

R223 22

R284 22

R224 22

R235

R225 0

R226 22 R285 22

R227 22

C205

C207

10uF

4.7uF 10V

10V

C217

16V

100

0.1uF R241

100

0.1uF R242

16V

3D_SYNC

M_REMOTE_RX

CI_DET M_RFModule_RESET

EPHY_ACTIVITY EPHY_LINK

DTV_ATV_SELECT RF_SWITCH_CTL_2

INSTANT_MODE

BCM_L/DIM BCM_L/DIM

100

OPT

NFM18PS105R0J

C233

6.3V

OUTIN

GND

C232

4.7uF 10V

C209

4.7uF 10V

IF_P

IF_N

IF_AGC

MODEL_OPT_0

MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3

SC_DET/COMP2_DET CHB_RESET

TW9910_RESET

AV2_CVBS_DET RF_BOOSTER_CTL DSUB_DET PCM_RST

MODEL_OPT_4 DC_MREMOTE DD_MREMOTE

L/DIM0_MOSI L/DIM0_SCLK

COMP1_DET

MODEL_OPT_5

3D_GPIO_0 MODEL_OPT_6 MODEL_OPT_7

ERROR_OUT

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

NFM18PS105R0J

C234

0.1uF

C211

0.1uF

+3.3V_Normal

R228 22 R230 22

BCM_L/DIM

R231 100

C204

6.3V

GND

C236

0.1uF

C213

0.1uF

BLM18PG121SN1D

0.1uF

R240

2.7K

R231-*1 0 FRC2_RESET

URSA_RESET

OUTIN

NFM18PS105R0J

C238

4.7uF 10V

C215

0.01uF

L201

C229

NON_NTP

PWM_DIM L/DIM0_VS

+3.3V_Normal

4.7K

C244

6.3V

GND

C220

0.1uF

+3.3V_Normal

4.7K

R232

URSA_RESET

+0.9V_CORE

+3.3V_Normal

OUTIN

C222

0.01uF

R233

1.2K

C227 33pF 50V

R232-*1

FRC2_RESET

C247 22uF

C248 10uF

10V

+1.5V_DDR

R234

1.2K

C231 33pF 50V

POWER 2.5V

+2.5V_BCM35230

SDA1_3.3V SCL1_3.3V

NON_NTP

FRC_RESET

Place Cap Very close to R22 Ball

L202

BLM18PG121SN1D

C249 10uF 10V

L203

BLM18PG121SN1D

C251

0.1uF 16V

L204

BLM18PG121SN1D

C250

4.7uF 10V

+1.5V_DDR

Place Cap Very close to R22 Ball

C242

0.1uF

+3.3V_Normal

C253 10uF 10V

EPHY_VDD25

C252

4.7uF 10V

VAFE3_VDD25

C254

4.7uF

MLG1005S22NJT

C224

L220

1uF 25V OPT

+0.9V_CORE

AADC_AVDD25

C256

0.1uF

C255

0.1uF

C257

0.1uF

+0.9V_CORE

C226

0.1uF 16V OPT

+3.3V_Normal

+2.5V_BCM35230

L205

BLM18PG121SN1D

C258

0.1uF

+2.5V_BCM35230

C259

C260

10uF

4.7uF

10V

+2.5V_BCM35230

NON_BCM_CAP

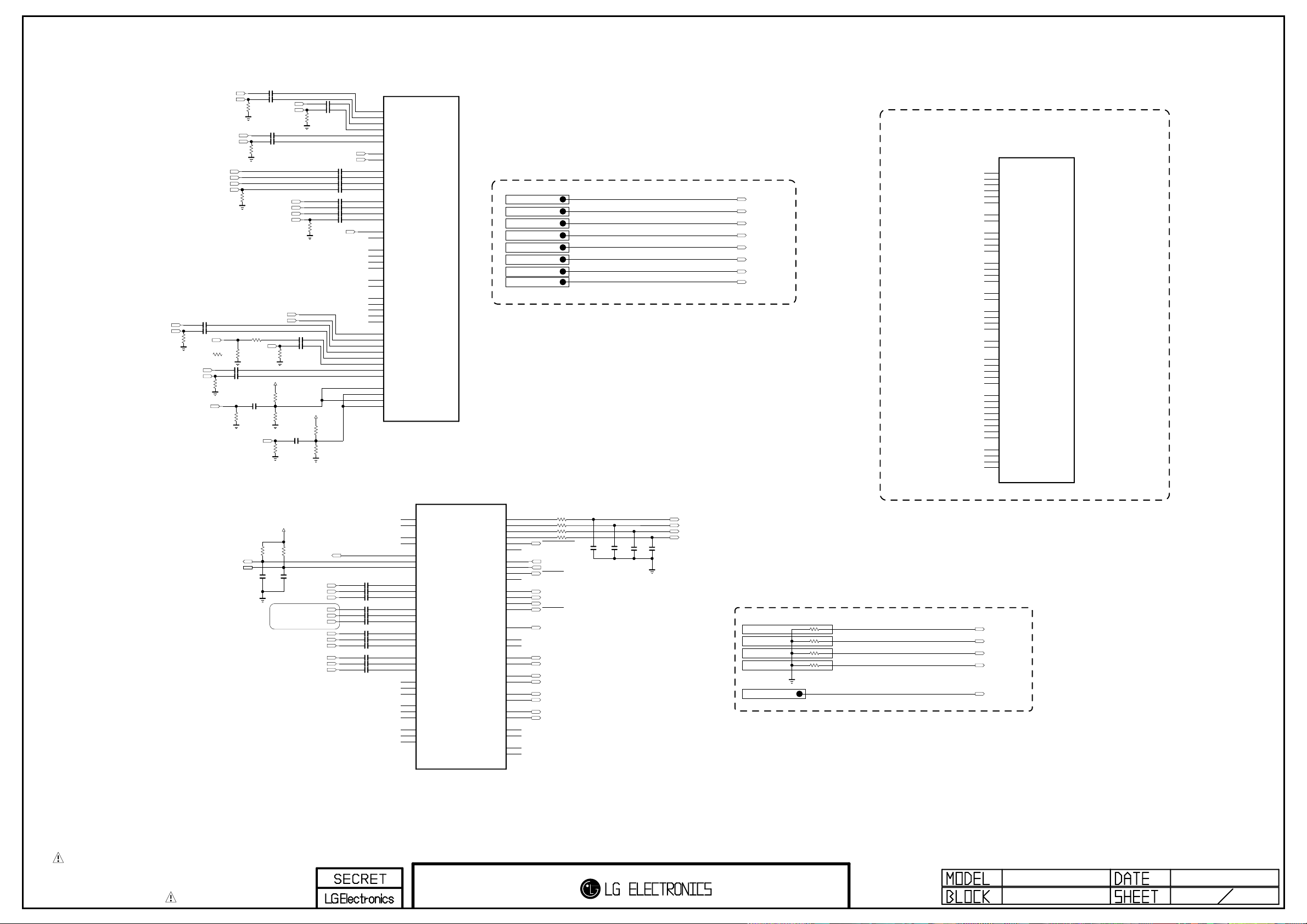

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32 VDDC_33 VDDC_34 VDDC_35 VDDC_36 VDDC_37 VDDC_38 VDDC_39 VDDC_40 VDDC_41 VDDC_42

POR_VDD

VDDR1_1 VDDR1_2 VDDR1_3 VDDR1_4 VDDR1_5 VDDR1_6 VDDR1_7 VDDR1_8 VDDR1_9 VDDR1_10 VDDR1_11 VDDR1_12

DDR_LDO_VDDO

VDDR3_1 VDDR3_2 VDDR3_3 VDDR3_4 VDDR3_5 VDDR3_6 VDDR3_7 VDDR3_8 VDDR3_9 VDDR3_10 VDDR3_11

AON_VDDC_1 AON_VDDC_2 AON_POR_VDD

AON_VDDR3

AON_VDDR10_1 AON_VDDR10_2

IC101

LGE35230(BCM35230KFSBG)

V12

V7 M10 N10 P10 R10 T10 U10 V10 W10 V13 L11 M11 N11 P11 R11 T11 U11 V11 W11 V14 L18 M18 N18 P18 R18 T18 U18 V18 W18 V15 L19 M19 N19 P19 R19 T19 U19 V19 W19 V16 V17

L10

L22

AA28

V28 R28 M28 J28 K23 M22 T22 T23 U22 Y22

R22

G15 H22 G23 AB9

K7

AB15

L7

AB14

M7

N6

P6

AA6 AA7

Y7

U7

T7

T6

C261 10uF 10V

C262 10uF

L206

BLM18PG121SN1D

L207

BLM18PG121SN1D

K10

VSS_1

K11

VSS_2

K12

VSS_3

L12

VSS_4

M12

VSS_5

N12

VSS_6

P12

VSS_7

R12

VSS_8

T12

VSS_9

U12

VSS_10

W12

VSS_11

K13

VSS_12

L13

VSS_13

M13

VSS_14

N13

VSS_15

P13

VSS_16

R13

VSS_17

T13

VSS_18

U13

VSS_19

W16

VSS_20

K14

VSS_21

L14

VSS_22

M14

VSS_23

N14

VSS_24

P14

VSS_25

R14

VSS_26

T14

VSS_27

U14

VSS_28

K15

VSS_29

L15

VSS_30

M15

VSS_31

N15

VSS_32

P15

VSS_33

R15

VSS_34

T15

VSS_35

U15

VSS_36

K16

VSS_37

L16

VSS_38

M16

VSS_39

N16

VSS_40

P16

VSS_41

R16

VSS_42

T16

VSS_43

U16

VSS_44

K17

VSS_45

L17

VSS_46

M17

VSS_47

N17

VSS_48

P17

VSS_49

R17

VSS_50

T17

VSS_51

U17

VSS_52

W17

VSS_53

K18

VSS_54

K19

VSS_55

H7

VSS_56

G14

VSS_57

AB16

VSS_58

R7

VSS_59

M6

VSS_60

AB23

VSS_61

P7

VSS_62

W7

VSS_63

J7

VSS_64

N7

VSS_65

AB10

VSS_66

AC23

VSS_67

AC6

VSS_68

G19

VSS_69

AA22

VSS_70

J23

VSS_71

J22

VSS_72

K22

VSS_73

J25

VSS_74

N22

VSS_75

N23

VSS_76

M25

VSS_77

P22

VSS_78

R25

VSS_79

V22

VSS_80

W22

VSS_81

W23

VSS_82

V25

VSS_83

AA25

VSS_84

ADAC_AVDD25

C271

C267

C263

4.7uF

C265

4.7uF

PLL_VAFE_AVDD25

C264

4.7uF

0.01uF

0.1uF

C272

C270

C266

4.7uF C277

VAFE2_VDD25

0.1uF

C269

0.1uF

C268

0.1uF

0.01uF

CORE 0.9V

+0.9V_CORE

L209

BLM18PG121SN1D

C274 22uF

+0.9V_CORE

L210

BLM18PG121SN1D

+0.9V_CORE

L211

BLM18PG121SN1D

POWER 3.3V

+3.3V_Normal

Place as close as possible to the pad

use only for A0/B0 chip

C210-*1 220pF 50V

BCM_A0/B0

PLL_VAFE_AVDD25

+0.9V_CORE

Place as close as possible to the pad

C281

0.1uF

C282

0.1uF

L212

VAFE2_DVDD

VAFE3_DVDD

C208 390pF 50V

C206 390pF 50V

+0.9V_CORE

USB_AVDD33

C283

0.1uF

+3.3V_Normal

+2.5V_BCM35230

VDAC_AVDD33

BCM_C0

PLL_MIPS_AVDD

C273

0.1uF

BLM18PG121SN1D

C284 22uF

BLM18PG121SN1D

L213

BLM18PG121SN1D

ADAC_AVDD25

EPHY_VDD25

HDMI_AVDD33

C275

0.1uF OPT

USB_AVDD33

C212 390pF 50V

C210 390pF 50V

PLL_MAIN_AVDD

C276

0.01uF

OPT

HDMI_AVDD

C280

0.1uF

PLL_AUD_AVDD

4.7uF

PLL_VAFE_AVDD

C279

4.7uF

BLM18PG121SN1D

VAFE2_VDD25

VAFE3_VDD25

Place as close as possible to the pad

PLL_VAFE_AVDD

C202 390pF 50V

L214

C285

4.7uF

L215

+3.3V_Normal

AADC_AVDD25

HDMI_AVDD

USB_AVDD

C214 390pF 50V

PLL_AUD_AVDD

+3.3V_Normal

USB_AVDD

VAFE3_DVDD

C287

4.7uF

VDAC_AVDD33

C286

4.7uF

C288

0.1uF

C290

0.1uF

L216

BLM18PG121SN1D

C289

0.1uF

+0.9V_CORE

HDMI_AVDD33

C291

4.7uF

LGE35230(BCM35230KFSBG)

AADC_AVDD25

ADACA_AVDD25 ADACC_AVDD25 ADACD_AVDD25

EPHY_BVDD25 EPHY_AVDD25

D5

HDMI0_AVDD

D4

HDMI0_AVDD33

LT0VDD25_1 LT0VDD25_2 LT0VDD25_3 LT0VDD25_4

SPDIF_IN_AVDD25

E4

USB_AVDD

D3

USB_AVDD33

D6

VDAC_AVDD33

VAFE2_DVDD VAFE2_AVDD25_1 VAFE2_AVDD25_2 VAFE2_DVDD25

D9

VAFE3_DVDD

D8

VAFE3_AVDD25_1

E8

VAFE3_AVDD25_2

F9

VAFE3_AVDD25_3

E9

VAFE3_DVDD25

F8

POR_VDD25

PLL_AUD_AVDD

K4

PLL_MAIN_AVDD PLL_MIPS_AVDD

PLL_VAFE_AVDD PLL_VAFE_AVDD25

TVM_OSC_AVDD

U6

AUX_AVDD33

NON_BCM_CAP

C278

0.1uF

AE20 AD20 AC20 AB20

AD25

F19

D25 D24 E24

F24 E25

D14

D18 E17 D16 D17

G25

D11 D12

AE7

L219

BLM18PG121SN1D

C292 22uF

L217

BLM18PG121SN1D

L218

BLM18PG121SN1D

C293

0.1uF

IC101

AADC_AVSS

ADACA_AVSS ADACC_AVSS ADACD_AVSS

EPHY_AVSS

HDMI0_AVSS_1 HDMI0_AVSS_2

LT0VSS_1 LT0VSS_2 LT0VSS_3 LT0VSS_4 LT0VSS_5 LT0VSS_6 LT0VSS_7

SPDIF_IN_AVSS

USB_AVSS_1 USB_AVSS_2

VDAC_AVSS

VAFE2_VSS_1 VAFE2_VSS_2 VAFE2_VSS_3 VAFE2_VSS_4 VAFE2_VSS_5 VAFE2_VSS_6 VAFE2_VSS_7

VAFE3_VSS_1 VAFE3_VSS_2 VAFE3_VSS_3 VAFE3_VSS_4 VAFE3_VSS_5 VAFE3_VSS_6

PLL_MIPS_AVSS

TVM_OSC_AVSS

VAFE2_DVDD

C299

C296

0.1uF

4.7uF

PLL_MAIN_AVDD

C297

C294

0.1uF

4.7uF

PLL_MIPS_AVDD

C298

C295

0.1uF

4.7uF

F20

G22 G21 F22

F23

F6 G6

AB22 AB21 AB19 AC19 AB18 AB17 AC17

F15

G7 G8

G9

G20 E18 G18 G17 F18 G16 F16

G13 G12 F12 G11 G10 F10

AD26

AC7

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN POWER

2

50

AV2_CVBS_IN

INCM_VID_AV2

INCM_VID_COMP1

C303 0.1uF C304 0.1uF R303

36

TU_CVBS

AV1_CVBS_IN

INCM_VID_AV1

TU_SIF

DSUB_R+

INCM_R

DSUB_B+

INCM_B

COMP1_Y COMP1_Pr COMP1_Pb

EU

R325-*1

10

C317 0.1uF C318 0.1uF R304

36

C320 0.1uF C321 0.1uF

R311 36

C322 0.1uF C323 0.1uF R312

36

R310 0

SC_R/COMP2_Pr

SC_G/COMP2_Y

SC_B/COMP2_Pb

INCM_VID_SC/COMP2

SC_CVBS_IN

INCM_VID_SC

NON_EU

R325 0

INCM_TUNER R306

75 1%

OPT

+2.5V_BCM35230

C319 0.1uF

R305 240

OPT

INCM_SIF

DSUB_G+

INCM_G

C325 0.1uF C326 0.1uF R316

36

R313 10K

+2.5V_BCM35230

R314 12K

C324 0.1uF R315

120 OPT

C327 0.1uF C328 0.1uF R317

36

DSUB_HSYNC DSUB_VSYNC

C329 0.1uF C330 0.1uF C331 0.1uF C332 0.1uF

C333 0.1uF C334 0.1uF C335 0.1uF C336 0.1uF

R318 0

SC_FB

R319 10K OPT

R320 12K OPT

LGE35230(BCM35230KFSBG)

B6 A6 C7 A7 B7 C8

C13 A13

C9 A9 B9 B8

C11 A10 B10 C10

D10 F13

A12 C12 B12 B11

E12 E14

E15 F17 E16 F14 E11

C18 B18 A18 C19 A19 B19 C20 B20

E19 D19 E10 F11

IC101

NON_BCM_CAP

VI_R VI_INCM_R VI_G VI_INCM_G VI_B VI_INCM_B

HSYNC_IN VSYNC_IN

VI_Y1 VI_PR1 VI_PB1 VI_INCM_COMP1

VI_SC_R1 VI_SC_G1 VI_SC_B1 VI_INCM_SC1

VI_FB_1/GPIO VI_FS1

VI_SC_R2 VI_SC_G2 VI_SC_B2 VI_INCM_SC2

VI_FB_2/GPIO VI_FS2

VI_L1 VI_C1_1 VI_INCM_LC1_1 VI_C1_2 VI_INCM_LC1_2

VI_CVBS1 VI_INCM_CVBS1 VI_CVBS2 VI_INCM_CVBS2 VI_CVBS3 VI_INCM_CVBS3 VI_CVBS4 VI_INCM_CVBS4

VI_SIF1_1 VI_INCM_SIF1_1 VI_SIF1_2 VI_INCM_SIF1_2

Near

Near Near

P801

JK1101

JK1104

TU2101/2 TU2201/2/3

JK1102

JK1103 JK2501

VIDEO INCM

Run Along DSUB_R Trace

Run Along DSUB_G Trace

Run Along DSUB_B Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN Trace

Run Along AV2_CVBS Trace

Run Along TUNER_CVBS_IF_P Trace

Run Along AV1_CVBS Trace

Run Along COMP_Y_IN,COMP_Pr_IN,COMP_Pb_IN/SC R,G,B Trace

INCM_R

INCM_G

INCM_B

INCM_VID_COMP1

INCM_VID_AV2

INCM_TUNER

INCM_VID_AV1

INCM_VID_SC/COMP2

BCM35230_with_CAP_220pF

IC101-*1 LGE35230

B6

BCM_CAP

VI_R

A6

VI_INCM_R

C7

VI_G

A7

VI_INCM_G

B7

VI_B

C8

VI_INCM_B

C13

HSYNC_IN

A13

VSYNC_IN

C9

VI_Y1

A9

VI_PR1

B9

VI_PB1

B8

VI_INCM_COMP1

C11

VI_SC_R1

A10

VI_SC_G1

B10

VI_SC_B1

C10

VI_INCM_SC1

D10

VI_FB_1/GPIO

F13

VI_FS1

A12

VI_SC_R2

C12

VI_SC_G2

B12

VI_SC_B2

B11

VI_INCM_SC2

E12

VI_FB_2/GPIO

E14

VI_FS2

E15

VI_L1

F17

VI_C1_1

E16

VI_INCM_LC1_1

F14

VI_C1_2

E11

VI_INCM_LC1_2

C18

VI_CVBS1

B18

VI_INCM_CVBS1

A18

VI_CVBS2

C19

VI_INCM_CVBS2

A19

VI_CVBS3

B19

VI_INCM_CVBS3

C20

VI_CVBS4

B20

VI_INCM_CVBS4

E19

VI_SIF1_1

D19

VI_INCM_SIF1_1

E10

VI_SIF1_2

F11

VI_INCM_SIF1_2

SCL3_3.3V SDA3_3.3V

+3.3V_Normal

R302

R301

1.2K

C301 33pF 50V

PHONE JACK

INCM_AUD_SC/COMP2

M_REMOTE_TX

C302 33pF 50V

PC_L_IN PC_R_IN

AV1_L_IN AV1_R_IN

INCM_AUD_AV1

AV2_L_IN AV2_R_IN

INCM_AUD_AV2

SC/COMP2_L_IN SC/COMP2_R_IN

C305 1uF 10V C306 1uF 10V C307 1uF 10V

C308 1uF 10V C309 1uF 10V C310 1uF 10V

C311 1uF 10V C312 1uF 10V C313 1uF 10V

C314 1uF 10V C315 1uF 10V C316 1uF 10V

NON_BCM_CAP

SPDIF_INC_P SPDIF_INC_N

SPDIF_IND_P SPDIF_IND_N

I2SSCK_IN/GPIO I2SWS_IN I2SSD_IN/GPIO

AADC_LINE_L1 AADC_LINE_R1 AADC_INCM1

AADC_LINE_L2 AADC_LINE_R2 AADC_INCM2

AADC_LINE_L3 AADC_LINE_R3 AADC_INCM3

AADC_LINE_L4 AADC_LINE_R4 AADC_INCM4

AADC_LINE_L5 AADC_LINE_R5 AADC_INCM5

AADC_LINE_L6 AADC_LINE_R6 AADC_INCM6

AADC_LINE_L7 AADC_LINE_R7 AADC_INCM7

IC101

I2SSCK_OUTA/GPIO

I2SWS_OUTA/GPIO

I2SSD_OUTA0/GPIO

I2SSOSCK_OUTA/GPIO

I2SSD_OUTA1/GPIO I2SSD_OUTA2/GPIO

I2SSCK_OUTC/GPIO

I2SWS_OUTC/GPIO I2SSD_OUTC/GPIO

I2SSOSCK_OUTC/GPIO

I2SSCK_OUTD/GPIO

I2SWS_OUTD/GPIO I2SSD_OUTD/GPIO

I2SSOSCK_OUTD/GPIO

SPDIF_OUTA/GPIO

LGE35230(BCM35230KFSBG)

B15 C15

C14 B14

G4 F4 G5

C25 B24 A24

E22 E23 D23

C24 C23 B23

E21 D21 D22

B22 C22 A22

F21 D20 E20

A21 C21 B21

AUDMUTE_0/GPIO

AUDMUTE_1

ADAC_AL_N ADAC_AL_P

ADAC_AR_N ADAC_AR_P

ADAC_CL_N ADAC_CL_P

ADAC_CR_N ADAC_CR_P

ADAC_DL_N ADAC_DL_P

ADAC_DR_N ADAC_DR_P

AF8 AF9 AG9 AC9 AD8 AD9

E2 F2 E3 F3

G2 G3 G1 H1

B13

AG8 E13

C28 C27

D28 D27

C26 A27

B27 B28

B25 A25

A26 B26

R326 100 R327 100 R328 100 R329 100

TU_RESET_SUB

HP_DET AV1_CVBS_DET TU_RESET

SC_RE1 SC_RE2INCM_AUD_PC /RST_HUB S2_RESET

SPDIF_OUT

HP_LOUT_N HP_LOUT_P

HP_ROUT_N HP_ROUT_P

SCART1_Lout_N SCART1_Lout_P

SCART1_Rout_N SCART1_Rout_P

C337 22pF

OPT

C338 22pF

OPT

C339 22pF OPT

C340 33pF

OPT

AUD_SCK AUD_LRCK AUD_LRCH AUD_MASTER_CLK

Near

JK1102

JK1103 JK2501

JK1104 JK801

TU2101/2 TU2201/2/3

R321 0

R322 0

R323 0

R324 0

AUDIO INCM

Route Between AV1_L_IN & AV1_R_IN Trace

Route Between SC/COMP2_L_IN & SC/COMP2_R_IN Trace

Route Between AV2_L_IN & AV2_R_IN Trace

Route Between PC_L_IN & PC_R_IN Trace

Route Along With TUNER_SIF_IF_N

INCM_AUD_AV1

INCM_AUD_SC/COMP2

INCM_AUD_AV2

INCM_AUD_PC

INCM_SIF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MAIN AUDIO/VIDEO

3

50

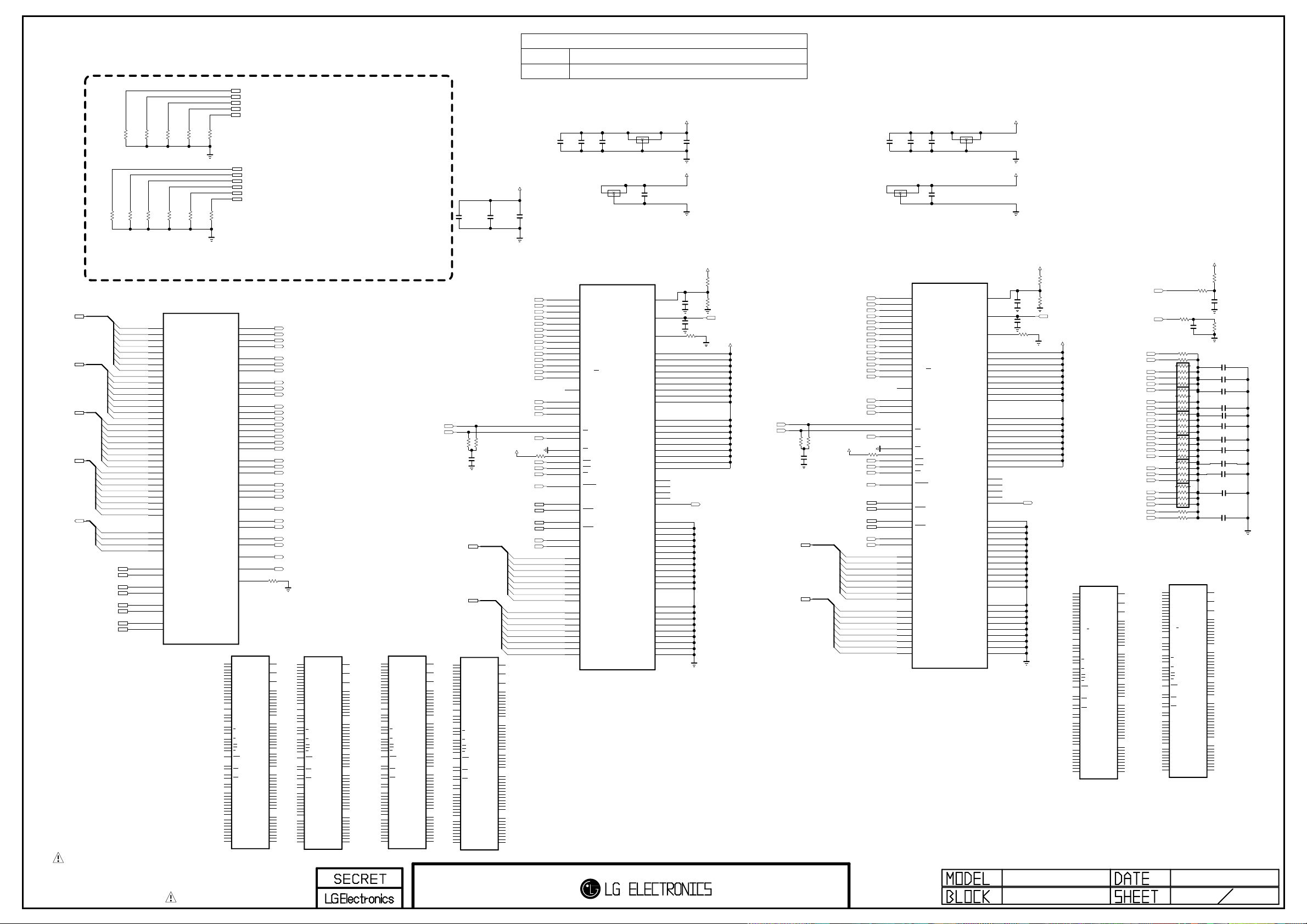

DDR STRAP

R401

4.7K

DDR_1333

R403

4.7K

R405

4.7K

DDR_1333

R407

4.7K

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4]

JEDEC Types : DDR_DQ[0:4]

R409

00001 : DDR3-1333H (CasL=9)

4.7K 10101 : DDR3-1600K (CasL=11) (O)

OPT

DUAL COMPONENT

IC401,IC402 1ST : EAN61667501, 2ND : EAN61570701

IC401-*1 IC402-*1

1ST : T-K4B2G1646B_HCK0, 2ND : T-H5TQ2G63BFR-PBC

+1.5V_DDR

OUTIN

GND

C403

2.2uF

C405 10uF

C407

2.2uF

NFM18PS105R0J

C410

6.3V

C417 470pF

C421

2.2uF

C423 10uF

C425 10uF

NFM18PS105R0J

C432

6.3V

OUTIN

GND

+1.5V_DDR

DDR_DQ[10] DDR_DQ[9] DDR_DQ[7] DDR_DQ[8] DDR_DQ[6] DDR_DQ[5]

R408

4.7K

IC101

NON_BCM_CAP

DDR_ADA_ALT_4 DDR_ADA_ALT_5 DDR_ADA_ALT_6

R410

4.7K OPT

DDR_ADA_0 DDR_ADA_1 DDR_ADA_2 DDR_ADA_3

DDR_ADA_4 DDR_ADA_5 DDR_ADA_6

DDR_ADA_7 DDR_ADA_8

DDR_ADA_9 DDR_ADA_10 DDR_ADA_11 DDR_ADA_12 DDR_ADA_13 DDR_ADA_14

DDR_BAA_0

DDR_BAA_1

DDR_BAA_2

DDR_RASA_N DDR_CASA_N

DDR_WEA_N

DDR_CKEA

DDR_CKA01_P DDR_CKA01_N

DDR_CKA23_P DDR_CKA23_N

DDR_VREFA

DDR_RST_N

DDR_ZQ

V23 AB27 Y23 Y26

AB26 Y24 AC26

AB24 AC25 AC24

AB25 AD28 Y25 AA27 AC27 AA26 AA24 AD27

Y27 AB28 W24

V24 W25 V26

U24

W27 W28

N28 N27

U23

AA23

W26

IC401-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

Bus Width : DDR_DQ[10] 0 - 16b 1 - 32b (O) Chip Width : DDR_DQ[8] 0 - 8b 1 - 16b (O) Chip Size : DDR_DQ[6:5] 00 - 4Gbit 01 - 2Gbit (O) 10 - 1Gbit 11 - 512Mbit

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR23_AA4 DDR23_AA5 DDR23_AA6

DDR_AA7 DDR_AA8 DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13 DDR_AA14

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_RASb DDR_CASb DDR_WEb

DDR_CKE

DDR01_CLK DDR01_CLKb

DDR23_CLK DDR23_CLKb

DDR_VREFA

DDR_RESETb

R411 240

1%

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*2

NT5CB128M16BP-CG

DDR_1333_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

C453 1uF

6.3V

DDR01_CLK

DDR01_CLKb

R412

56 1%

DDR_DQ[0-7]

DDR_DQ[8-15]

IC401-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

IC402-*3

NT5CB128M16BP-DI

DDR_1600_NANYA

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R406

R402

4.7K

R404

R432

4.7K

OPT

4.7K OPT

LGE35230(BCM35230KFSBG)

DDR_DQ[0-7]

DDR_DQ[0] DDR_DQ[1] DDR_DQ[2] DDR_DQ[3] DDR_DQ[4] DDR_DQ[5]

DDR_DQ[24] DDR_DQ[25] DDR_DQ[26] DDR_DQ[27] DDR_DQ[28] DDR_DQ[29] DDR_DQ[30] DDR_DQ[31]

DDR_DM[0] DDR_DM[1] DDR_DM[2] DDR_DM[3]

DDR_QS0

DDR_QS0b

DDR_QS1

DDR_QS1b

DDR_QS2

DDR_QS2b

DDR_QS3

DDR_QS3b

DDR_DQ[6]

DDR_DQ[7] DDR_DQ[8] DDR_DQ[9] DDR_DQ[10] DDR_DQ[11] DDR_DQ[12] DDR_DQ[13] DDR_DQ[14] DDR_DQ[15]

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

DDR_DQ[8-15]

DDR_DQ[16-23]

DDR_DQ[24-31]

DDR_DM[0-3] DDR_QS3

U26 R26 U27 R27 V27 P26 U25 P27 R24 N24 T25 M23 R23 N25 T24 N26 L26 H27 L27 J26 M27 G27 M26 H26 L23 H25 L24 J24 M24 H23 L25 H24

T26 P25 J27 K24

T27 T28

P24 P23

K27 K28

K25 K26

DDR_DQA_0 DDR_DQA_1 DDR_DQA_2 DDR_DQA_3 DDR_DQA_4 DDR_DQA_5 DDR_DQA_6 DDR_DQA_7 DDR_DQA_8 DDR_DQA_9 DDR_DQA_10 DDR_DQA_11 DDR_DQA_12 DDR_DQA_13 DDR_DQA_14 DDR_DQA_15 DDR_DQA_16 DDR_DQA_17 DDR_DQA_18 DDR_DQA_19 DDR_DQA_20 DDR_DQA_21 DDR_DQA_22 DDR_DQA_23 DDR_DQA_24 DDR_DQA_25 DDR_DQA_26 DDR_DQA_27 DDR_DQA_28 DDR_DQA_29 DDR_DQA_30 DDR_DQA_31

DDR_DMA_0 DDR_DMA_1 DDR_DMA_2 DDR_DMA_3

DDR_DQSA_P_0 DDR_DQSA_N_0

DDR_DQSA_P_1 DDR_DQSA_N_1

DDR_DQSA_P_2 DDR_DQSA_N_2

DDR_DQSA_P_3 DDR_DQSA_N_3

R413 56 1%

C401 1000pF

+1.5V_DDR

C455

C454

1uF

6.3V

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR01_AA4 DDR01_AA5 DDR01_AA6

DDR_AA7 DDR_AA8

DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_CKE

+1.5V_DDR

R414 10K

DDR_RASb DDR_CASb

DDR_WEb

DDR_RESETb

DDR_QS0 DDR_QS0b

DDR_QS1 DDR_QS1b

DDR_DM[0] DDR_DM[1]

DDR_DQ[0]

DDR_DQ[1]

DDR_DQ[2]

DDR_DQ[3]

DDR_DQ[4]

DDR_DQ[5]

DDR_DQ[6]

DDR_DQ[7]

DDR_DQ[8] DDR_DQ[14] DDR_DQ[13] DDR_DQ[12] DDR_DQ[9] DDR_DQ[10] DDR_DQ[15] DDR_DQ[11]

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

NFM18PS105R0J

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C402

6.3V

OUTIN

GND

IC401

DDR_1333_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

C412 1uF

ZQ

M8

H1

L8

R415 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

C415

0.01uF

C416

0.01uF

1%

+1.5V_DDR

DDR_AA14

R416

4.99K 1%

R417

4.99K 1%

DDR_VREFA

+1.5V_DDR

DDR23_CLK

DDR23_CLKb

DDR_DQ[16-23]

DDR_DQ[24-31]

R418

DDR23_AA4 DDR23_AA5 DDR23_AA6

R419 56

56

1%

C419 1000pF

+1.5V_DDR

DDR_RESETb

DDR_DM[2] DDR_DM[3]

DDR_DQ[24] DDR_DQ[30] DDR_DQ[29] DDR_DQ[28] DDR_DQ[25] DDR_DQ[26] DDR_DQ[31] DDR_DQ[27]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDR_AA0 DDR_AA1 DDR_AA2 DDR_AA3

DDR_AA7 DDR_AA8

DDR_AA9 DDR_AA10 DDR_AA11 DDR_AA12 DDR_AA13

DDR_BAA0 DDR_BAA1 DDR_BAA2

DDR_CKE

R420 10K

DDR_RASb DDR_CASb

DDR_WEb

DDR_QS2 DDR_QS2b

DDR_QS3b

DDR_DQ[16] DDR_DQ[17] DDR_DQ[18] DDR_DQ[19] DDR_DQ[20] DDR_DQ[21] DDR_DQ[22] DDR_DQ[23]

NFM18PS105R0J

C433

6.3V

OUTIN

GND

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

K4B2G1646C

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

C426 1uF

IC402

DDR_1333_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

+1.5V_DDR

M8

H1

L8

R421 240

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_DDR

R422

4.99K 1%

R423

C435

4.99K

0.01uF

1%

DDR_VREFA

C436

0.01uF

+1.5V_DDR

1%

DDR_AA14

BCM35230

MAIN DDR

IC401-*1

K4B2G1646C-HCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_SS

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

DDR23_AA6 DDR23_AA4

DDR23_AA5

DDR01_AA6 DDR01_AA4

DDR01_AA5

M8

H1

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_RESETb

DDR_CKE

DDR_AA13 DDR_AA14

DDR_AA2

DDR_AA11

DDR_AA3 DDR_AA7

DDR_AA9 DDR_AA8 DDR_AA0

DDR_AA1 DDR_BAA0 DDR_BAA2 DDR_BAA1 DDR_AA10 DDR_AA12

DDR_WEb

DDR_CASb DDR_RASb

R428 82

R424 56 R425 56

AR401 56

AR402 56

AR403 56

AR404 56

AR405 56

AR406 56

R426 56 R427 56

IC402-*1

K4B2G1646C-HCK0

DDR_1600_SS

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

+1.5V_DDR

R429 82

C437 100pF

OPT

C441 1uF

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

4

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

C438

C404

C406

C450

C408

C439

C409

C451

C411

C440

C452

R430

4.7K OPT

C442 100pF

R431

4.7K OPT

1uF

0.1uF

1uF

0.1uF

1uF

0.1uF

50

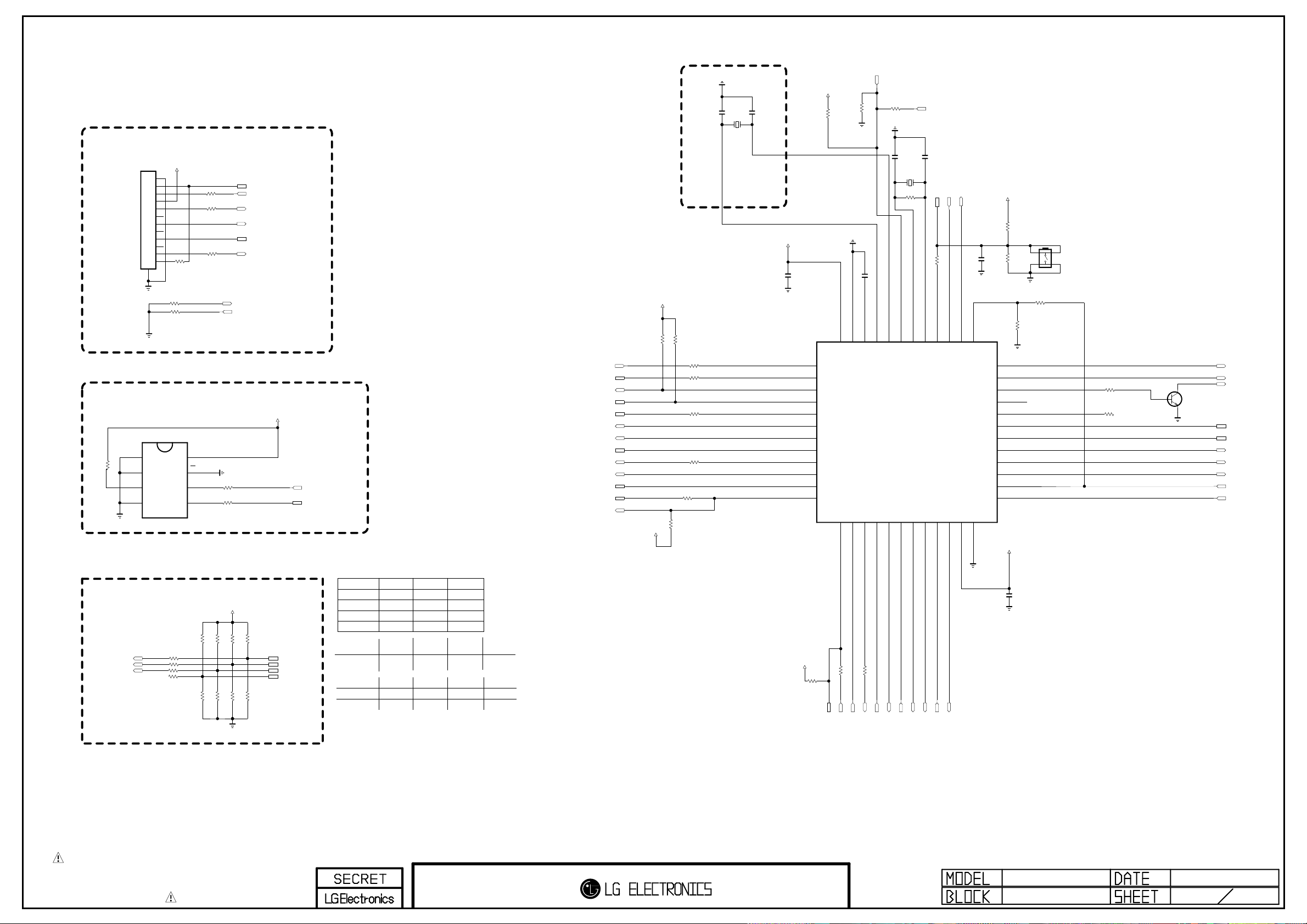

NEC MICOM

For Debug

P601

12505WS-12A00

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

R607

R610

+3.5V_ST

R606 10K

10K

R61 5 2 2

R61 7 2 2

R62 1 2 2

EEPROM for Micom

IC601

M24C16-WMN6T

NC/E0

NC/E1

NC/E2

1

2

3

VSS

4

7K

R60 1

4

VCC

8

WC

7

SCL

6

SDA

5

MICOM MODEL OPTION

+3.5V_ST

PDP/3D

R613 10K

R611 10K

LCD/OLED

R612 10K

TOUCH_KEY

TACT_KEY

R614 10K

AMP_RESET_N

PANEL_CTL

INSTANT_MODE

R604 100

R605 100 R602 100 R603 100

R619 22 R616 22

I2C LED

R622 10K

PWM_LED

R623 10K

MICOM_RESET NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Rx

NEC_ISP_Tx

R624 10K

10YEAR_TOOL

R625 10K

11YEAR_TOOL

+3.5V_ST

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2

MODEL1_OPT_3

EEPROM_SCL

EEPROM_SDA

PIN NAME

MODEL_OPT_0

MODEL_OPT_1 I2C_LED

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_1

MODEL_OPT_2

MODEL OPTION

PIN NO.

LCD

HIGH

10YEAR_TOOL

8

(10 SENSOR)

11

30

TOUCH_KEY

31

PDP/3D

PDP

0 0

LOW

1

0 10

10

LOW

11YEAR_TOOL (11 SENSOR)

PWM_LED

TACT_KEY

LCD/OLED

OLED 3D

TBD

0

GND

+3.5V_ST

C602

13pF

C603

50V

13pF

X601

10MHz

47K

OPT

R637

10Mhz Crystal

+3.5V_ST

C604

0.1uF

+3.5V_ST

VDD

R626 4.7K

SCL2_3.3V

SDA2_3.3V

EEPROM_SCL

EEPROM_SDA

HDMI_CEC

POWER_ON/OFF2_1

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

S/T_SCL

+3.5V_ST

R628 4.7K

R629

R630

R631 22

R632 22

R633 22

OPT

R627

4.7K

22

P60/SCL0 P61/SDA0

P62/EXSCL0

P33/TI51/TO51/INTP4

P73/KR3 P72/KR2 P71/KR1 P70/KR0

P32/INTP3/OCD1B

P63

P75 P74

1 2 3 4 5 6 7 8 9 10 11 12

48

13

P31/INTP2/OCD1A

OPT

1

HIGHLOW_SMALL

1

+3.5V_ST

4.7K

R636

R63 8 22

S/T_SDA

OCD1A

FLMD0

R641

R639 10K

GND

C605 0.1uF

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

REGC

VSS

44

45

46

47

IC602

uPD78F0514

NEC_MICOM

14

15

16

17

P30/INTP1

P15/TOH0

P17/TI50/TO50

P16/TOH1/INTP5

10K

R64 0

IR

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

0

15pF

C606

MICOM_DOWNLOAD

C607 15pF

X602

32.768KHz R642

4.7M OPT

P124/XT2/EXCLKS

P123/XT1

FLMD0

41

42

43

18

19

20

P14/RXD6

P13/TXD6

P12/SO10

NEC_ISP_Tx

NEC_ISP_Rx

POWER_ON/OFF2_2

WIRELESS_PWR_EN

WIRELESS_DET

C608

0.1uF 16V

R643 22

P120/INTP0/EXLVI

P41

P40

RESET

37

38

39

40

36 35 34 33 32 31 30 29 28 27 26 25

21

22

23

24

AVSS

AVREF

P11/SL10/RXD0

P10/SCK10/TXD0

NEC_TXD

NEC_RXD MICOM_RESET

+3.5V_ST

47K

OPT

270K

R647 20K

R646

20K

JTP-1127WEM

4 3

1/16W 1%

1/16W

1%

SW1

12

R644

R645

P140/PCL/INTP6 P00/TI000 P01/TI010/TO00 P130 P20/ANI0 ANI1/P21 ANI2/P22 ANI3/P23 ANI4/P24 ANI5/P25 ANI6/P26 ANI7/P27

+3.5V_ST

C609 1uF

R648 10K

N:

R649 0

OPT

RL_ON

SCART_MUTE

C

Q601

B

2SC3052

E

EDID_WP

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

MICOM_DOWNLOAD

SIDE_HP_MUTE

KEY2

KEY1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

BCM35230

MICOM

6

50

BODY_SHIELD

20

EAG62611201

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_1

R730

3.6K OPT

VR703

10V OPT

CEC_REMOTE

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

R737 0

DUAL COMPONENT

D707,D708

D713

D710,D711

D713

R754 27K

BODY_SHIELD

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R735

3.6K OPT

VR707 10V

OPT

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

R727 0

OPT

C717

0.1uF 16V OPT

DDC_SDA_4

DDC_SCL_4

VR708 10V OPT

R729

1K OPT

HDMI_HPD_4

* HDMI CEC

BAT54_SUZHO

CEC_REMOTE

GND

20

EAG62611201

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

R77 5 150

R77 6

63. 4

R728

1K OPT

HDMI_HPD_1

HDMI_ARC

VR706 10V

OPT

C714

OPT

0.1uF 16V OPT

DDC_SDA_1

DDC_SCL_1

ARC

C730

0.1uF

1ST : 0DD184009AA 2ND : 0DSIH00028A

1ST : T-BAT54_SUZHO, 2ND : 0DSON00138A

+3.5V_ST

G

SBD

Q710 BSS83

R741 120K

HDMI_CEC

+3.3V_Normal +3.3V_HDMI

L701

BLM18PG121SN1D

C720

0.1uF 16V

C718 10uF

C719 10uF

JK703

RSD-105156-100

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11 10

EAG62611201

JK701

RSD-105156-100

BODY_SHIELD

20

EAG62611201

JK702

RSD-105156-100

9

8

7

6

5

4

3

2

1

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R740

3.6K OPT

5V_HDMI_3

R739

3.6K

OPT

VR701 10V

OPT

VR702 10V

OPT

R725 0

OPT

R731 0

HDMI1

C715

0.1uF 16V

OPT

DDC_SDA_2

DDC_SCL_2

VR704 10V

OPT

R736

1K OPT

HDMI_HPD_2

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI2

R726 1K

OPT

HDMI_HPD_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

VR705 10V

OPT

C716

OPT

0.1uF 16V

OPT

DDC_SDA_3

DDC_SCL_3

RSD-105156-100

JK704

+5V_Normal

D707

R713

4.7K

+5V_Normal

D708

R714

4.7K

5V_HDMI_1

A1CA2

5V_HDMI_3

A1CA2

R715

4.7K

R716

4.7K

HDMI3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

DDC_SDA_1

DDC_SCL_1

DDC_SDA_3

DDC_SCL_3

HDMI4

+5V_Normal

5V_HDMI_2

A1CA2

D710

R723

R720

4.7K

+5V_Normal

5V_HDMI_4

R721

4.7K

A1CA2

R724

4.7K

D711

EDID Pull-up

DDC_SDA_2

DDC_SCL_2

DDC_SDA_4

DDC_SCL_4

+3.3V_HDMI

C707 10uF 10V

HDMI2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI3

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

C701 10uF 10V

C706 10uF 10V

C703

0.1uF

16V

C711

0.1uF

16V

C712

0.1uF

16V

C713

0.1uF

16V

R1XCN R1XCP R1X0N R1X0P R1X1N R1X1P R1X2N R1X2P

VCC33_1

RSVD_1

R2XCN R2XCP R2X0N R2X0P R2X1N R2X1P R2X2N R2X2P

HDMI1

D2-_HDMI1

D1+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D2+_HDMI1

R0X0N

R0X0P

R0X1N

R0X1P

R0X2N

R0X2P

[EP]GND

67

68

69

70

71

72

1 2

THERMAL

3

73 4 5 6 7 8 9

SII9287B

10 11 12 13 14 15 16 17 18

19

R3XCN20R3XCP21R3X0N22R3X0P23R3X1N24R3X1P25R3X2N26R3X2P

CK-_HDMI4

D0-_HDMI4

D0+_HDMI4

CK+_HDMI4

D1+_HDMI4

CK+_HDMI1

R0XCP

66

IC701

D2-_HDMI4

HDMI4

CK-_HDMI1

VCC33_3

R0XCN

64

65

27

VCC33_2

D2+_HDMI4

HDMI S/W OUTPUT

HDMI_RX0+

HDMI_CLK-

HDMI_RX0-

HDMI_CLK+

TX0P

TX0N

TXCP

TXCN

60

61

62

63

28

29

31

DSDA030DSCL0

RSVD_2

CBUS_HPD0

DDC_SCL_1

DDC_SDA_1

HDMI_HPD_1

HDMI_RX1-

HDMI_RX1+

TX2N

TX1P

TX1N

58

59

32

33

DSDA134DSCL1

R0PWR5V

DDC_SDA_2

HDMI_RX2+

HDMI_RX2-

+5V_Normal

C708 1uF

OPT

C710

1uF 10V

R780 33

R781 33

R778 33

R779 33

TPWR_CI2CA

TX2P

55

56

57

35

36

R1PWR5V

CBUS_HPD1

DDC_SCL_2

HDMI_HPD_2

CSCL

54

CSDA

53

INT

52

CEC_D

51

CEC_A

50

R4PWR5V

49

DSCL4

48

DSDA4

47

R3PWR5V

46

CBUS_HPD3

45

DSCL3

44

DSDA3

43

R2PWR5V

42

CBUS_HPD2

41

DSCL2

40

DSDA2

39

SBVCC

38

MICOM_VCC33

37

1uF

C704

C709 1uF

R708 10

R712 10

R777

4.7K

1/16W R707

1K 1%

5V_HDMI_1

1/16W

R703 1K 1%

R706

0

5V_HDMI_2

BCM35230

HDMI 7

HDMI_HPD_4

DDC_SCL_4

DDC_SDA_4

HDMI_HPD_3

DDC_SCL_3

DDC_SDA_3

SCL1_3.3V

SDA1_3.3V

SCL3_3.3V

SDA3_3.3V

R717 10

C705

1uF

C702 1uF

1/16W R711 1K

1%

5V_HDMI_4

5V_HDMI_3

R718 10

1/16W

R705 1K

1%

31
