Page 1

ENGLISH

OWNER’S MANUAL

IPS LED MONITOR (LED LCD MONITOR)

Please read this manual carefully before operating your set and retain it for future reference.

IPS LED(LED LCD) MONITOR MODEL

19MB35A

www.lg.com

Page 2

TABLE OF CONTENTS

ENGLISH

ENG

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

5 - Detaching the Stand Base

6 - Mounting on a table

7 - Using the Kensington locking device

8 - Mounting on a wall

9 USING THE MONITOR SET

9 Connecting to a PC

9 - D-SUB connection

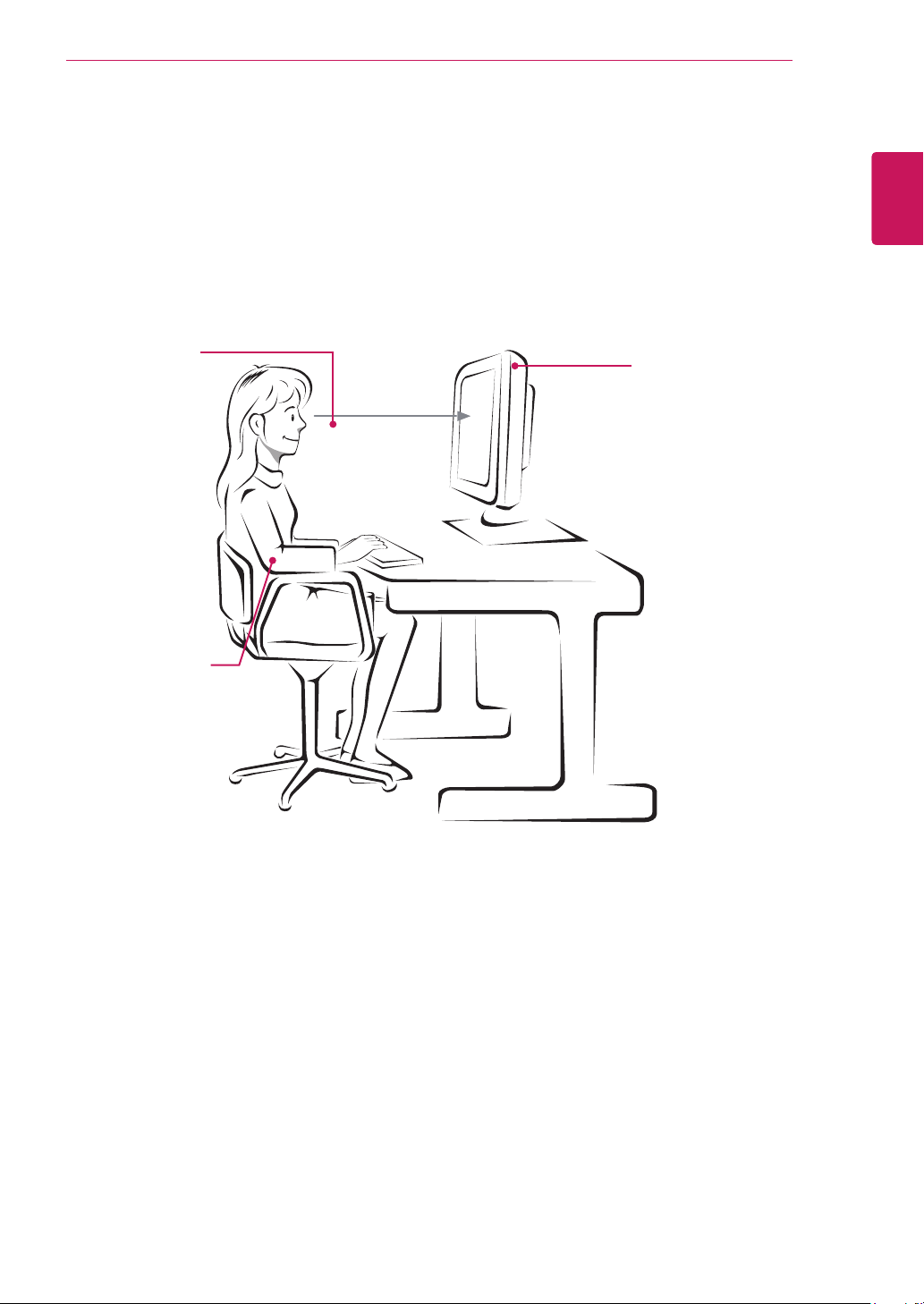

23 PROPER POSTURE

23 Proper posture for using the Monitor set.

11 CUSTOMIZING SETTINGS

12 Customizing Settings

12 - Menu Settings

13 - Picture

14 - Color

15 - Display

16 - Others

17 READER Setting

18 SUPER ENERGY SAVING

19 TROUBLESHOOTING

21 SPECIFICATIONS

21 19MB35A

22 Preset Modes (Resolution)

22 Indicator

Page 3

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) /

Card

(This cable is not included in all

D-SUB Cable

countries.)

ENGLISH

ENG

Power Cord

Stand Body

Stand Base

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Page 4

ENGLISH

ENG

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

LED On : Power is on

LED Off: Power is off

Input Connectors (See p.9)

(Power Button)

Front Side Buttons

Page 5

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

Attach the

Tie down the base lock to perpendicularity

direction.

Stand Body Stand Base

to the monitor set.

Detaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

Pushing the PUSH button, Take the

Body

from the monitor set.

Change your lock on the product as it

follows and turnit in the arrow direction. Pull out the

Stand Body

Stand Base

ENGLISH

ENG

Stand

Stand Body

Stand Base

CAUTION

This illustration depicts the general model of

connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding

only the stand base. The product may fall and get damaged or injure your foot.

Stand Base

CAUTION

If you can't release the stand base even the

locking knob is at a release position, Please push the indicated knob down and retry it.

Page 6

ASSEMBLING AND PREPARING

ENGLISH

ENG

Mounting on a table

Lift the monitor and place it on the table in an

upright position.

Install at least ensure sufficient ventilation.

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

10 cm

away from the wall to

10 cm

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Do not touch or press the screen when adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Press the (Power) button on the front of the

monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or

installing the monitor. There is risk of electric shock.

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

Front Rear

Page 7

Using the Kensington locking device

The connector for the Kensington lock is located on the rear of the monitor. For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

Using the Kensington lock is optional. The

accessories can be purchased at your local electronics store.

Page 8

ASSEMBLING AND PREPARING

ENGLISH

ENG

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

Model

VESA (A x B) 75 x 75 Standard screw M4 Number of screws 4

19MB35A

CAUTION

Disconnect the power cord first, and then

move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount

and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that

meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use improper screw, the product might be

damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible.

Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

NOTE

Use the screws that are listed on the VESA

standard screw specifications. The wall mount kit will include an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the

instructions supplied with the wall mount.

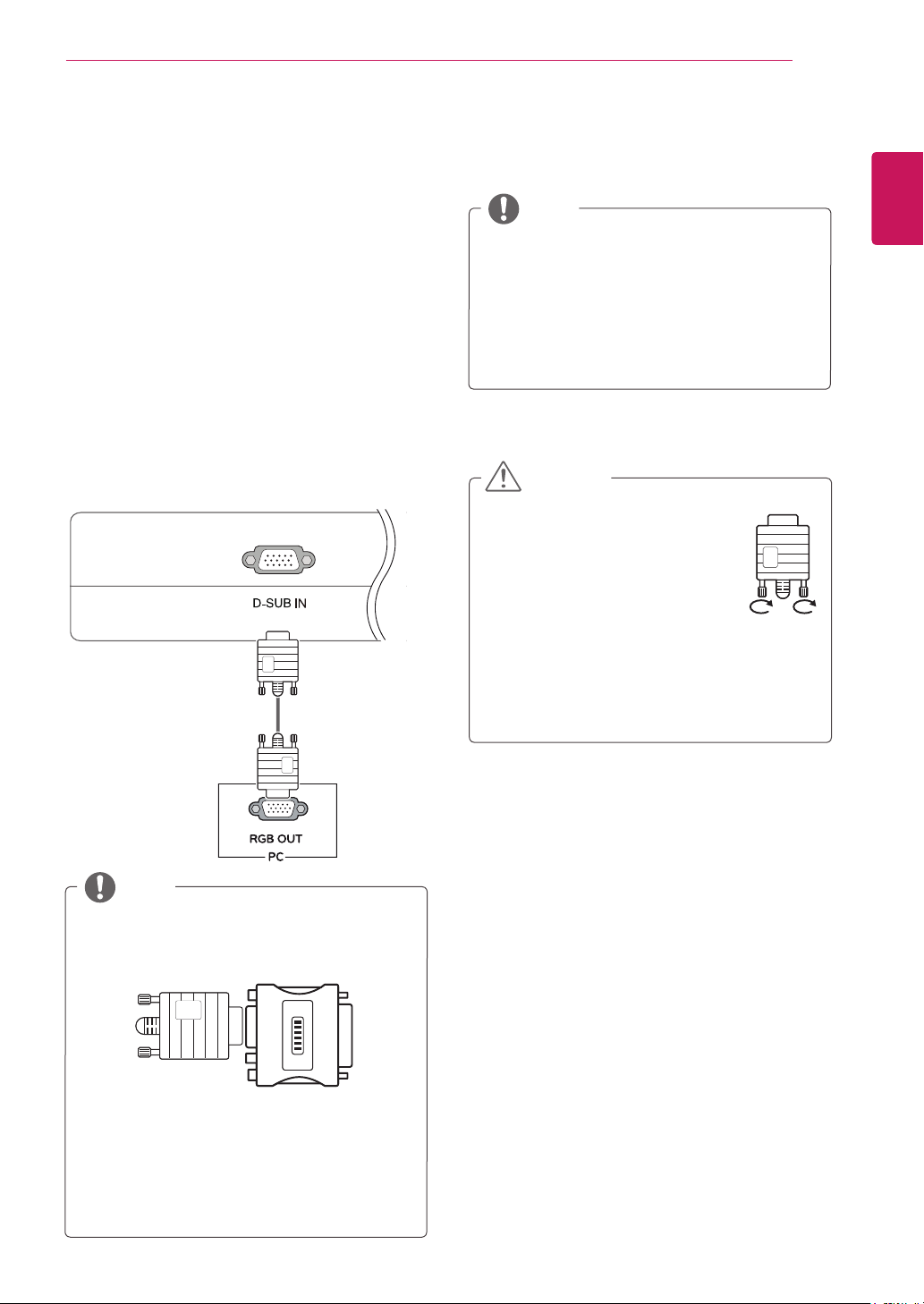

Page 9

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

NOTE

When you want to use two PC in our Monitor,

please connect the signal cable(D-SUB) respectively in Monitor set. If you turn the Monitor set on while it is cold,

the screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal.

CAUTION

Connect the signal input cable and

tighten it by turning the screws clockwise. Do not press the screen with your

finger for a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the

screen for a long period of time to prevent image burn. Use a screensaver if possible.

ENGLISH

ENG

NOTE

When using a D-Sub signal input cable

connector for Macintosh

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

Page 10

ENGLISH

ENG

USING THE MONITOR SET

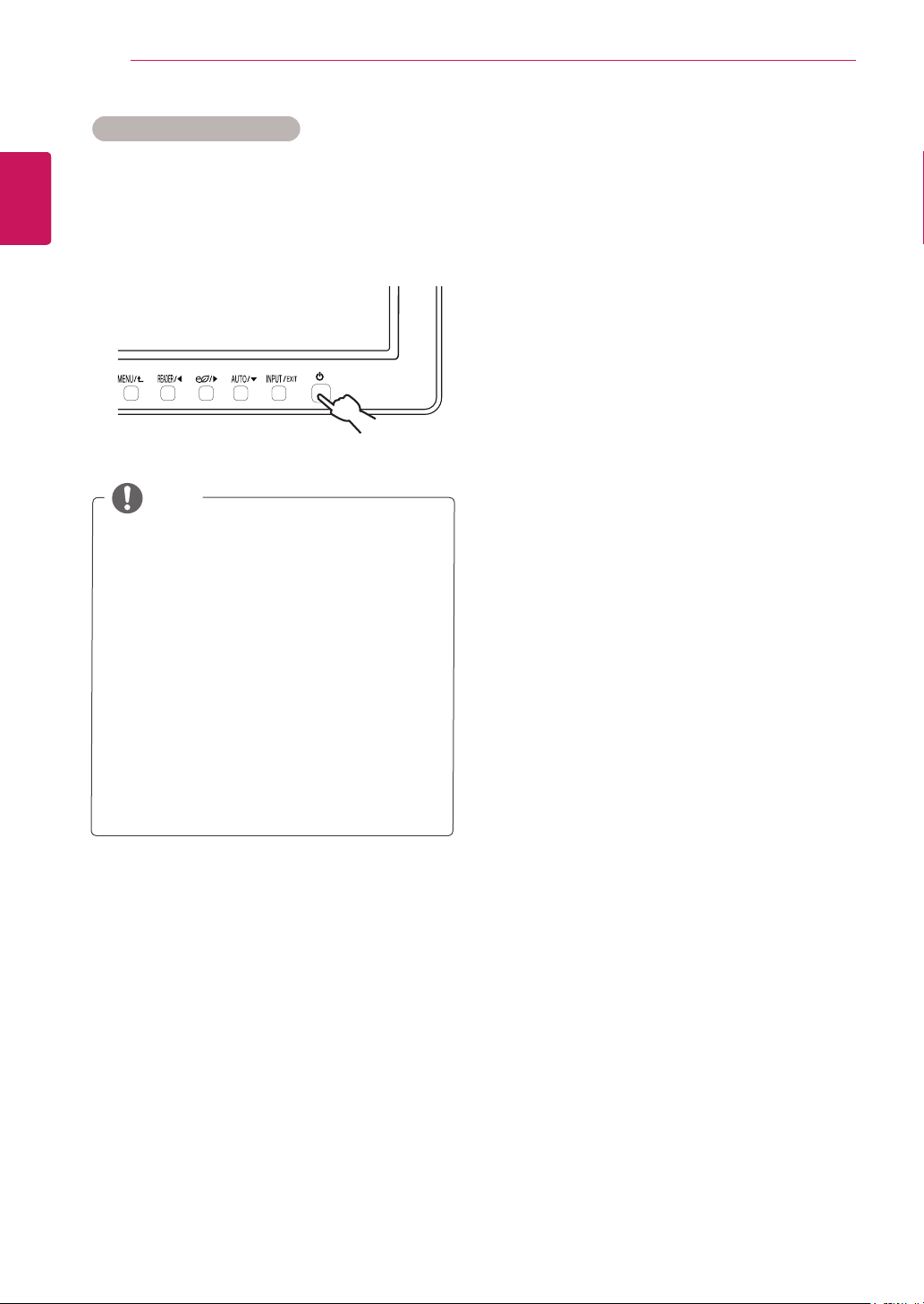

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the " automatically. (Only supported in Analog Mode)

Self Image Setting

" Function is executed

NOTE

"Self Image Setting" Function.

This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.(Only supported in Analog Mode)

‘AUTO’ Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

Page 11

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set.

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Select

EXIT

to leave the OSD menu.

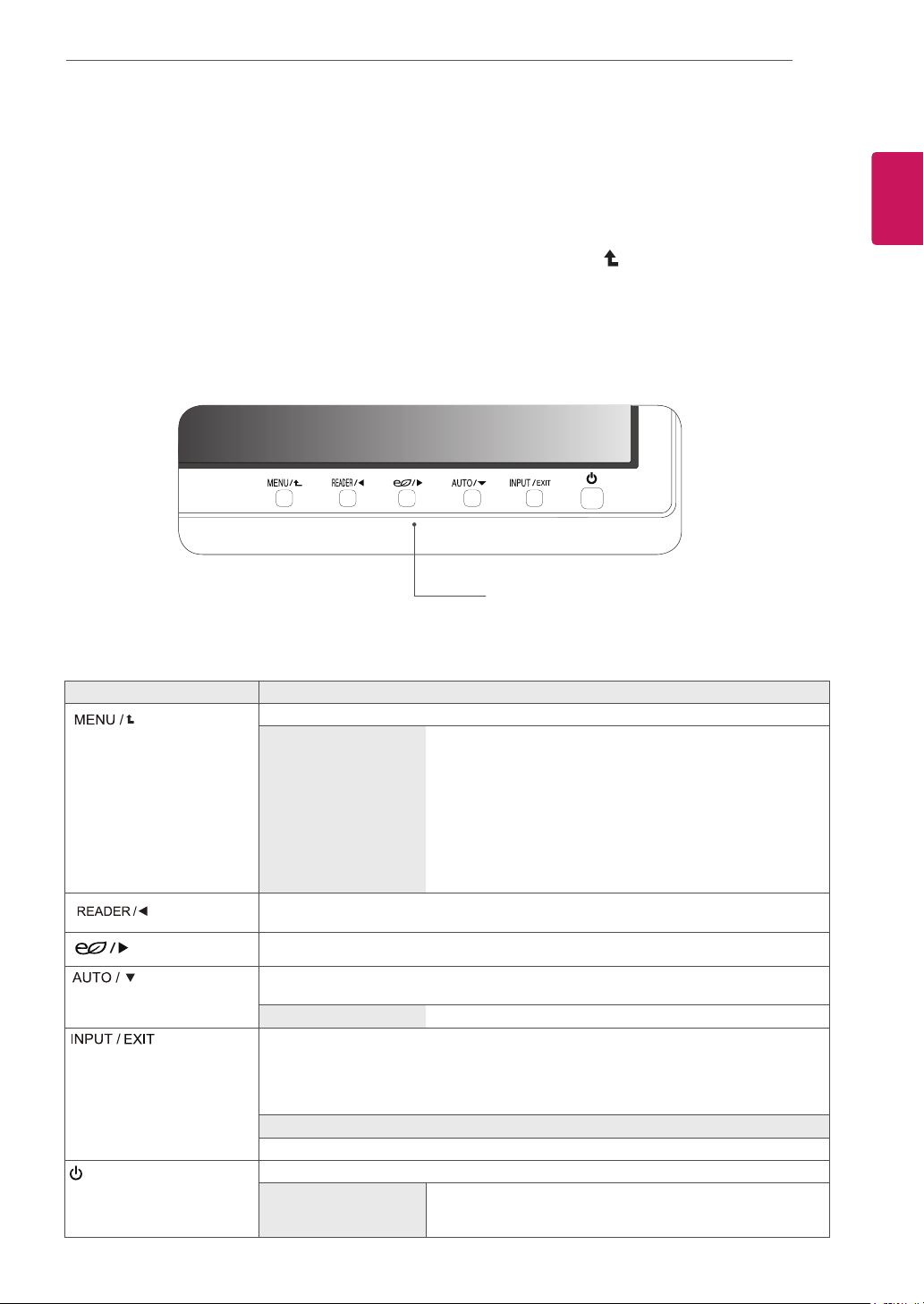

Monitor set Buttons

ENGLISH

ENG

Button Description

(Power Button)

Accesses the main menus.(See p.12)

OSD Locked/OSD Unlocked

Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information.(See p.17)

Use this button to enter SUPER ENERGY SAVING menu.(See p.18)

When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)

The best display mode

You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB) you

want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT

Exit the OSD(On Screen Display).

Turns the power on or off.

Power Indicator

This function allow you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button. If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.

19MB35A:1280 x 1024

The power indicator stays white if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

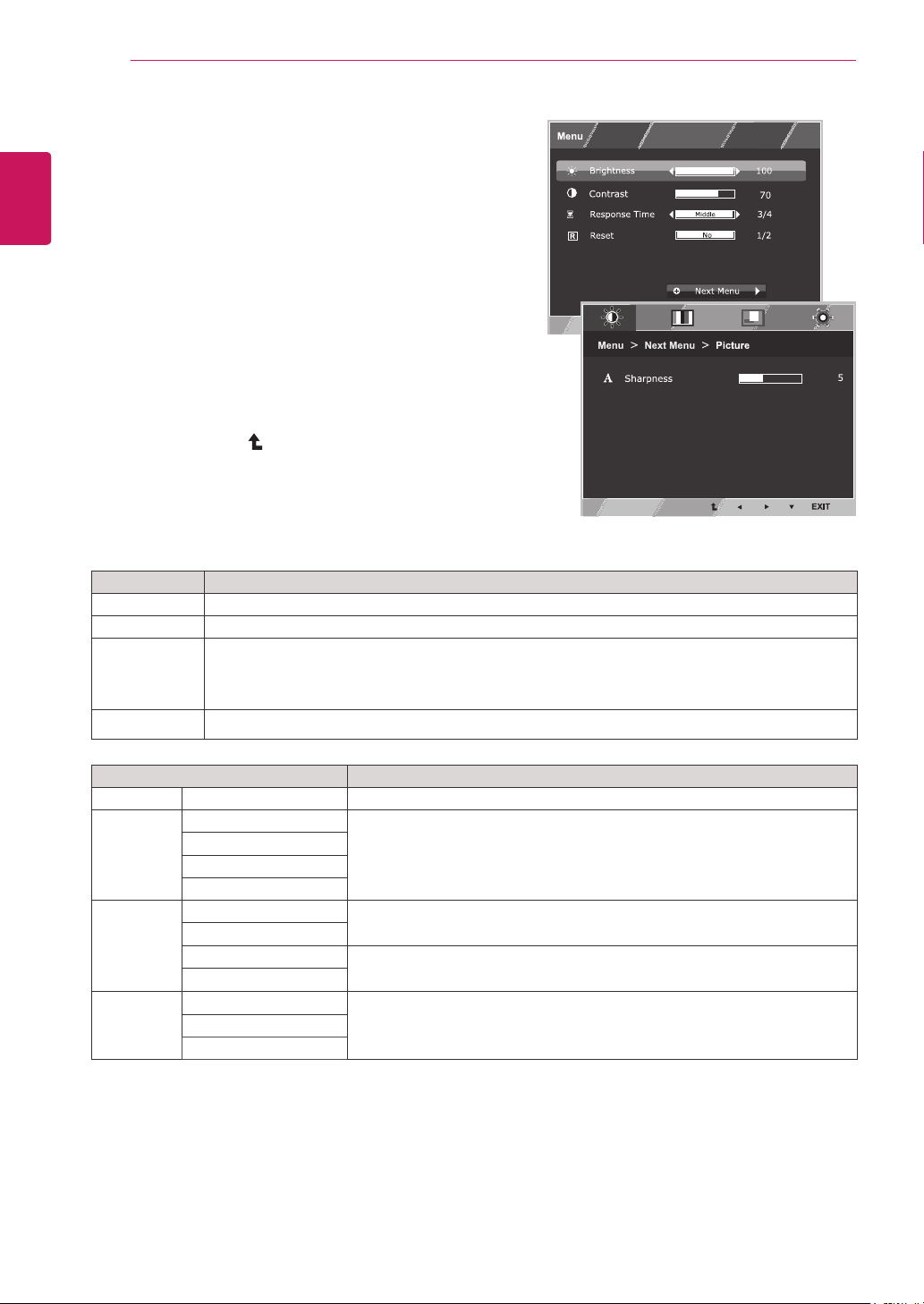

Page 12

ENGLISH

ENG

CUSTOMIZING SETTINGS

Customizing Settings

Menu Settings

Press

Set the options by pressing the ◄ or ► or ▼

to display the

button on the bottom of the Monitor set

OSD.

buttons.

Select the "

Next Menu

" button to enter the more

option settings.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu Description

Brightness

Contrast

Response Time

Reset

To adjust the brightness of the screen.

To adjust the contrast of the screen

You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'High'.

Restore all factory default settings. Press the◄ , ►buttons to reset immediately.


Color

Display

Others

Menu > Next Menu Description

Sharpness

Gamma

Color Temp

Six Color

Color Reset

Horizontal

Vertical

Clock

Phase

Language

Power Indicator

Off Time Setting

To adjust the clearness of the screen

To customize the color of the screen

To adjust the position of the screen

To improve the clarity and stability of the screen

To customize the screen status for a user's operating environment

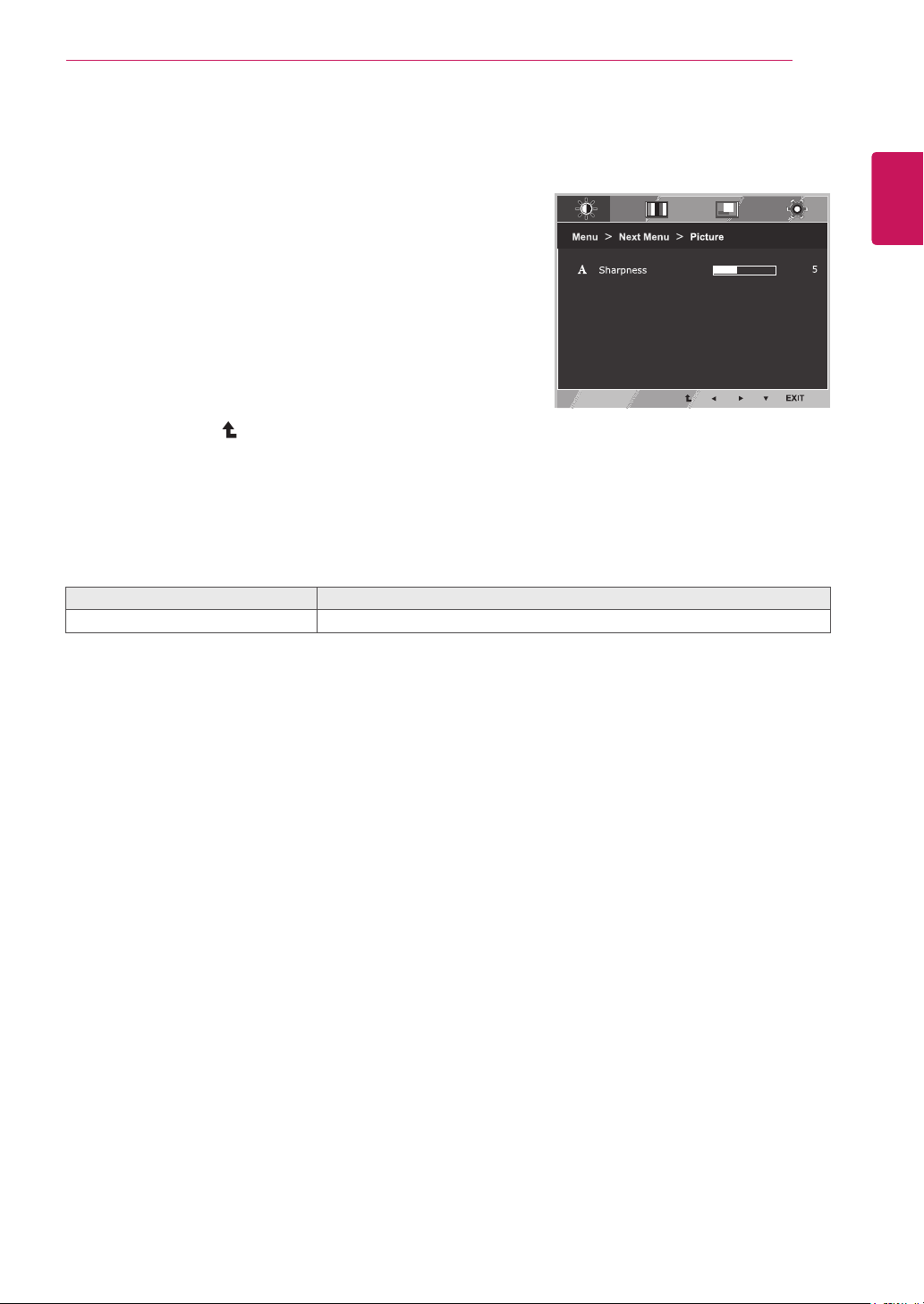

Page 13


Press

to display the

button on the bottom of the Monitor set

OSD.

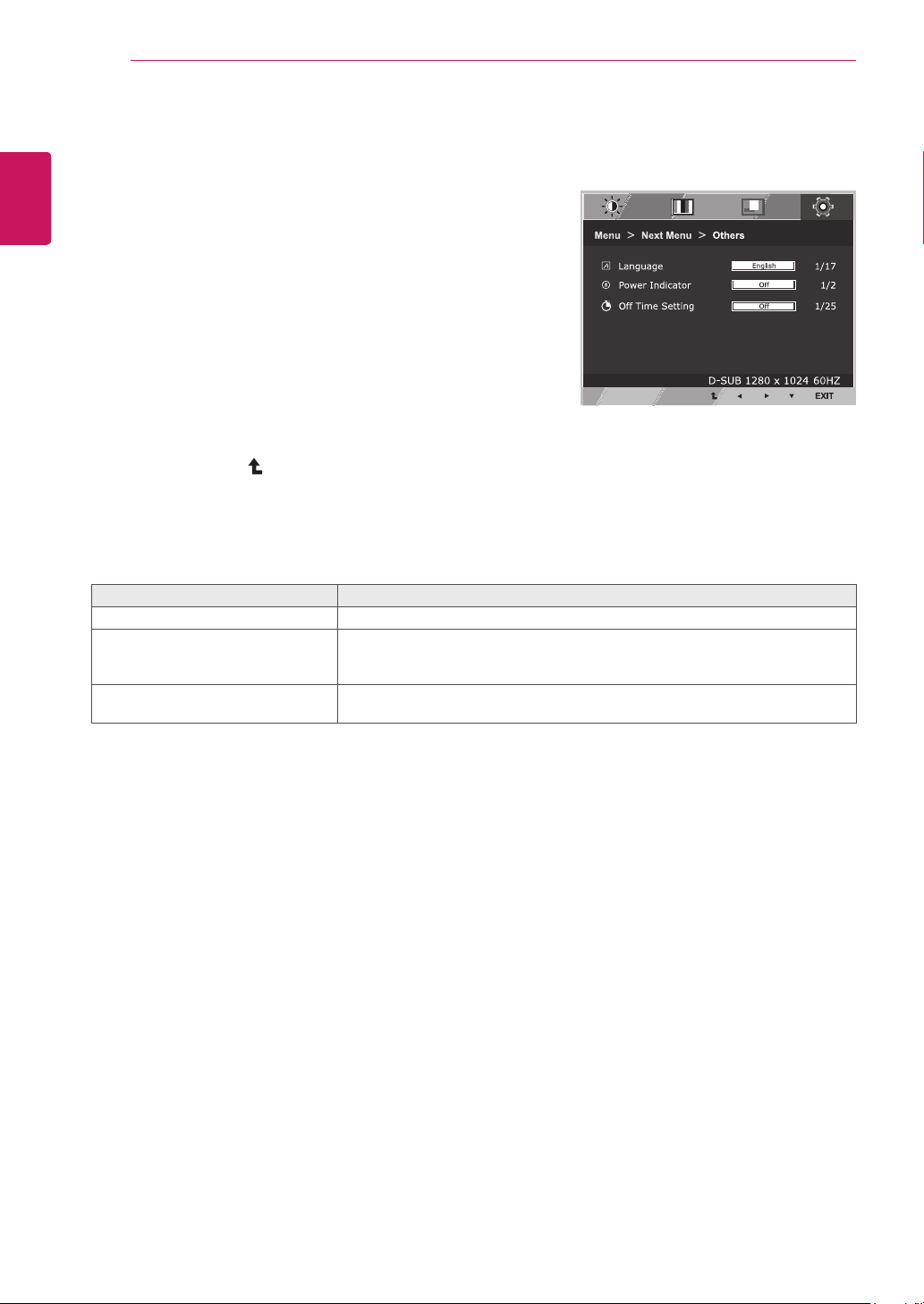

CUSTOMIZING SETTINGS

ENGLISH

ENG

Select the "

option settings.

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Picture Description

Sharpness

Next Menu


EXIT

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

To adjust the clearness of the screen.

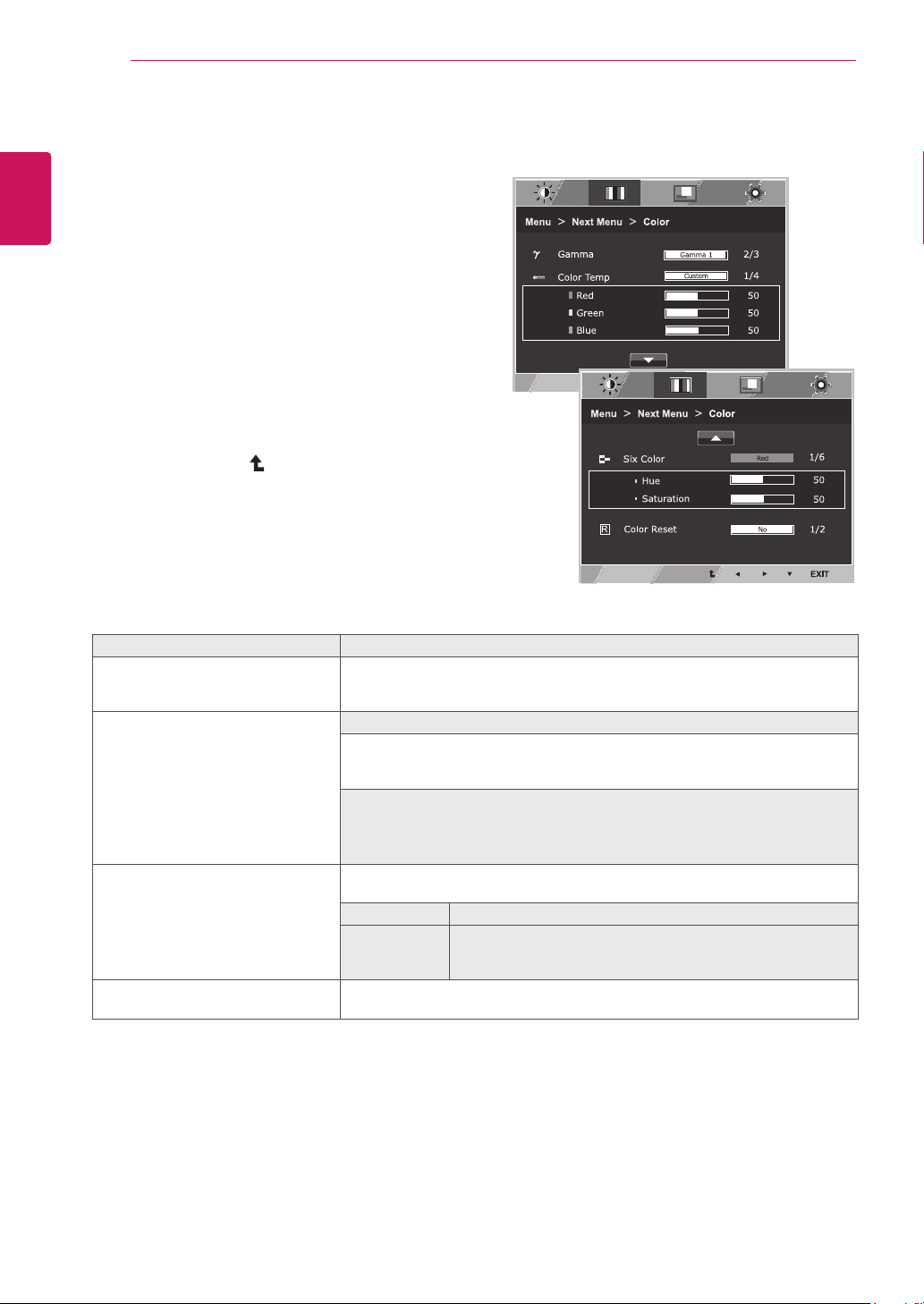

Page 14

ENGLISH

ENG

CUSTOMIZING SETTINGS

Color

Press

to display the

button on the bottom of the Monitor set

OSD.

Select the "

Next Menu

" button to enter the more

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

Color

by pressing the ► button.

Color

by pressing the ▼ button.

buttons.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Color Description

Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,

Color Temp Custom

Six Color Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/

Color Reset Resets the color settings to the factory default settings for the current input

high gamma values display whitish images and low gamma values display blackish images.

• Red:

Set your own red color levels.

• Green:

• Blue:

Select the screen color.

Warm: Medium: Cool:

Magenta/Yellow) to satisfy the color requirements of a user.

Hue Adjusts the screen hue.

Saturation Adjusts the color sharpness on the screen. Lower values make

device.

Set your own green color levels.

Set your own blue color levels.

Set the screen to warm color temperature (more red).

Set the screen to medium color temperature.

Set the screen to cool color temperature (more blue).

the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark.

Page 15

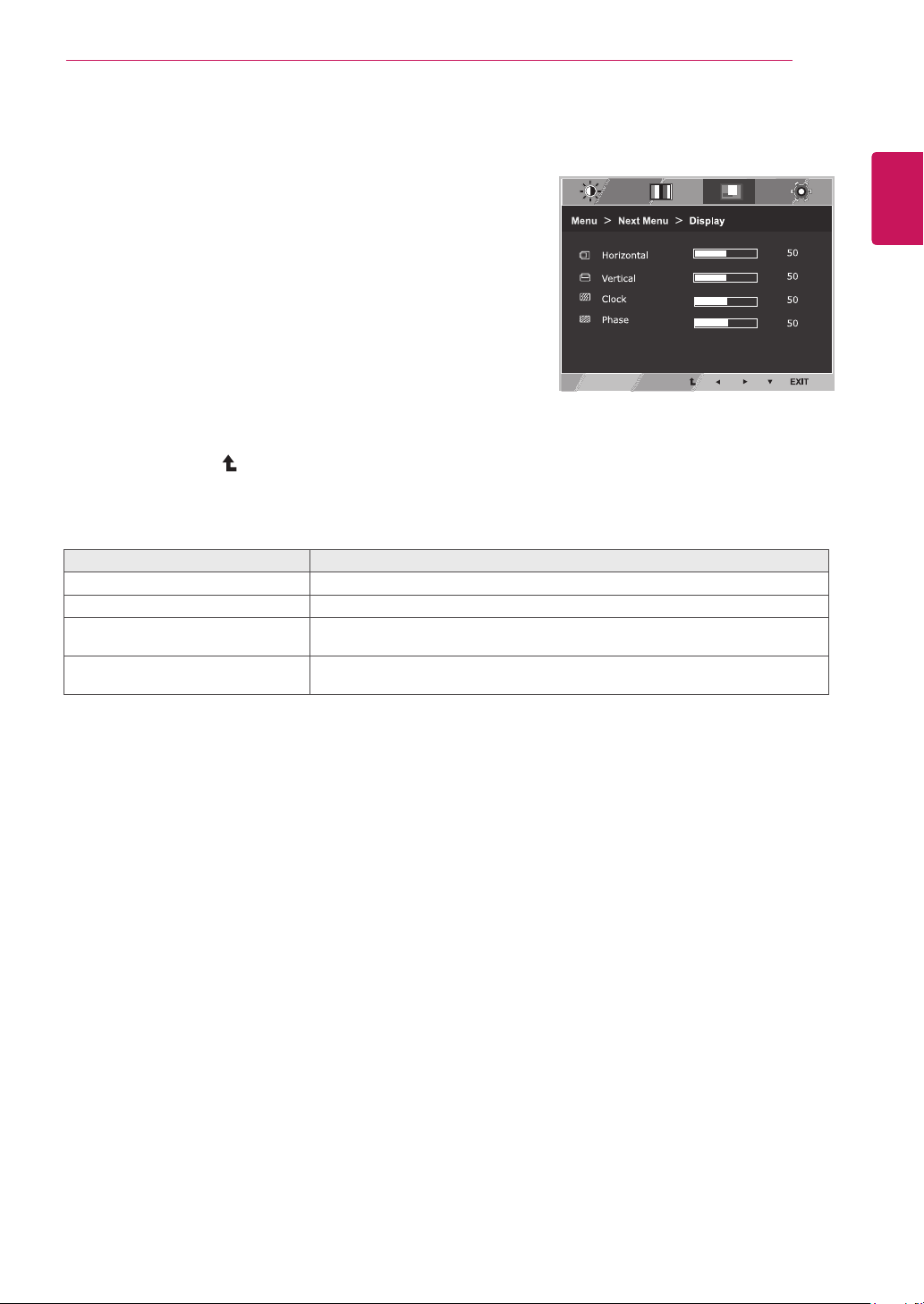

Display

Press

to display the

button on the bottom of the Monitor set

OSD.

CUSTOMIZING SETTINGS

ENGLISH

ENG

Select the "

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Display Description

Horizontal

Vertical

Clock

Phase

Next Menu

Display

EXIT

by pressing the ► button.

Display

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

To move image left and right.

To move image up and down.

To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Page 16

CUSTOMIZING SETTINGS

ENGLISH

ENG

Others

Press

Select the "

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

Select

Each option is explained below.

Language

Power Indicator

Off Time Setting

button on the bottom of the Monitor set

to display the

option settings.

buttons.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Menu > Next Menu > Others Description

OSD.

Next Menu

Others

by pressing the ► button.

Others

EXIT

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

To choose the language in which the control names are displayed.

Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off. If you set On at any time, the power indicator will automatically be turned on.

The monitor set will switch to power off mode after the time to be chosen by user (1 ~ 24 hours)

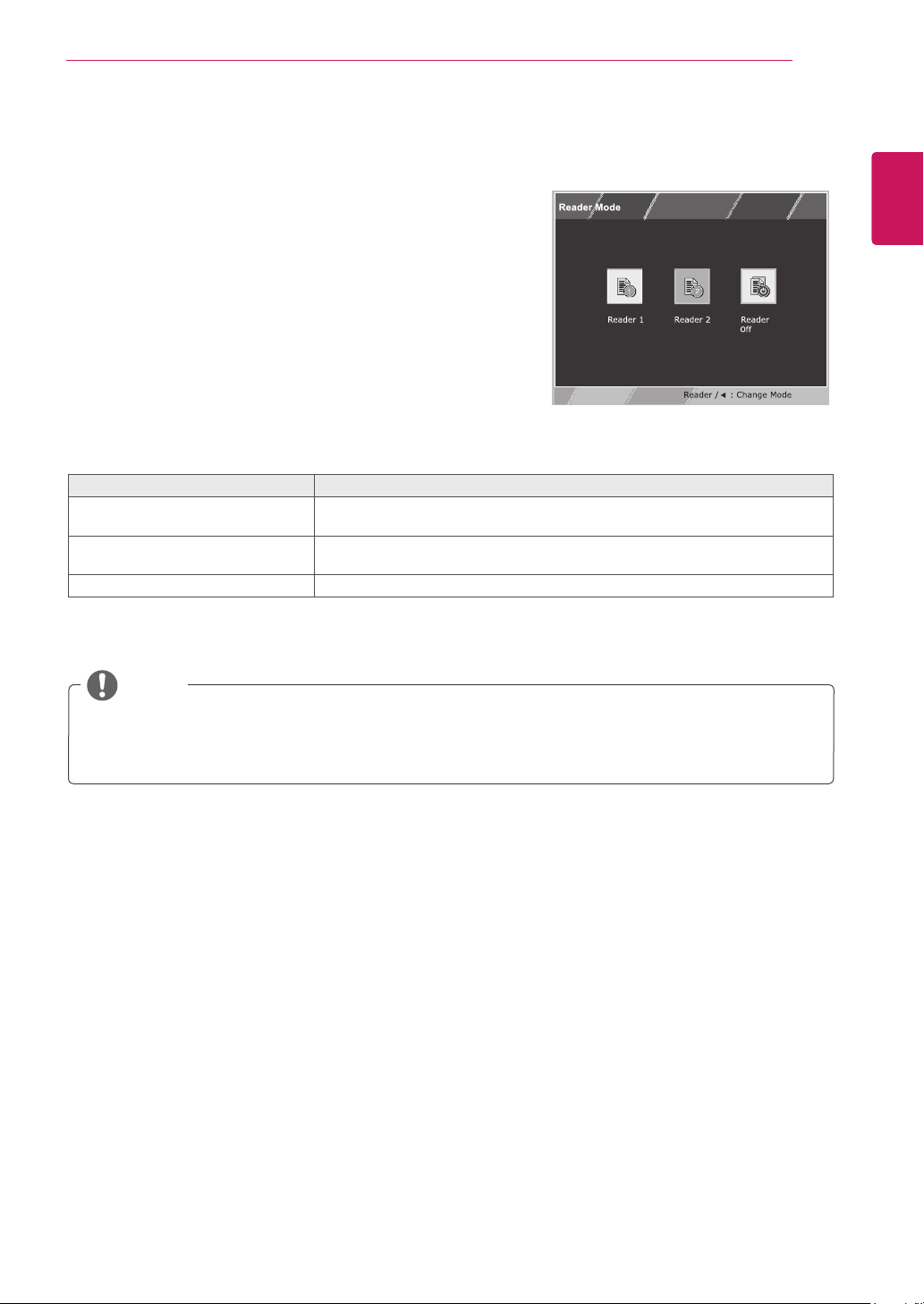

Page 17

CUSTOMIZING SETTINGS

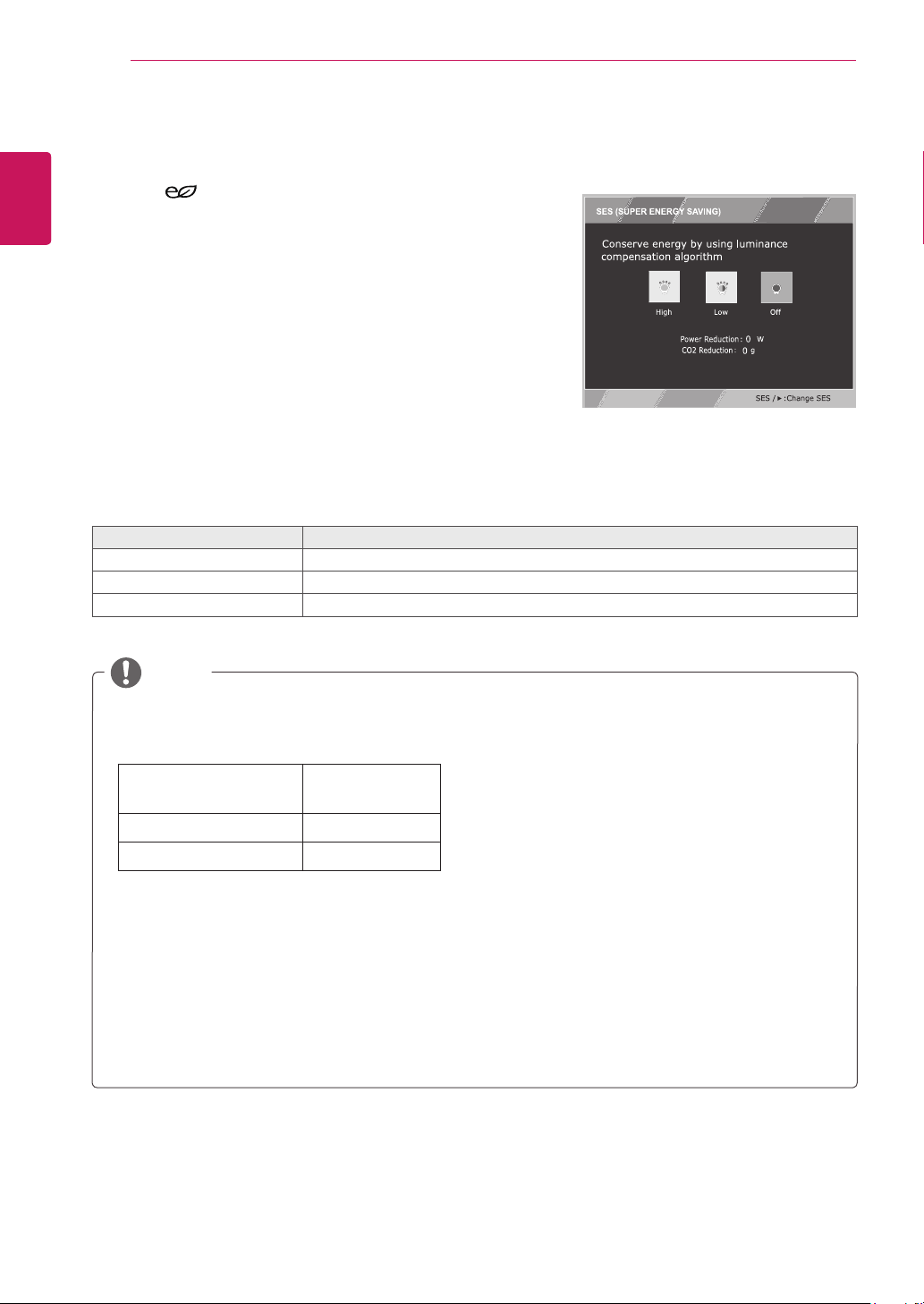

SUPER ENERGY SAVING

Enables SUPER ENERGY SAVING you can save energy with this energy- high efficient function.

Enables SUPER ENERGY SAVING you can save energy with this energy- low efficient function.

OSD.

NOTE

TOTAL POWER REDUCTION

TOTAL CO2 REDUCTION

SAVING DATA(W/h)

SUPER SAVING (High) 3 W/h

SUPER SAVING (Low) 1 W/h

Saving Data depends on the Panel. So,those values should be different from each panel and panel

vendor.If option of Super Energy Saving is High or Low, monitor luminance become higher or lower depend on source. LG calculated these values by using

(including broadcast video: IEC 62087)

SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING

function. If option of Super Energy Saving is High or Low, Picture Mode will automatically be Custom and

Reader Mode will automatically be Reader Off.

: How much power is saved while using the monitor.

: Change the TOTAL POWER REDUCTION to CO2.

482 mm

(19 inch)

“broadcast video signal”

Page 19

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display connected?

Is the power indicator light on?

Is the power on and the power indicator White?

Is the power indicator flickering?

Do you see an "OUT OF RANGE" message on the screen?

Do you see a "NO SIGNAL" message on the screen?

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when you push MENU button?

yCheck and see if the power cord is connected properly to the power

outlet.

yPress the Power button.

yAdjust the brightness and the contrast.

yIf the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

yTry to turn on the PC.

yThis message appears when the signal from the PC (video card) is

out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.

yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to

DPM mode.

yYou can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

ENGLISH

ENG

Display image is incorrect

Display Position is incorrect.

On the screen background, vertical bars or stripes are visible.

Any horizontal noise appearing in any image or characters are not clearly portrayed.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yCheck

Control Panel ► Display ► Settings

and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

Page 20

ENGLISH

ENG

TROUBLESHOOTING

CAUTION

Control Panel ► Display ► Settings

Check

changed. If yes, readjust the video card to the recommend resolution. If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution. The setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect

The screen color is mono or abnormal.

The screen blinks.

yCheck if the signal cable is properly connected and use a screwdriver

to fasten if necessary. yMake sure the video card is properly inserted in the slot. ySet the color setting higher than 24 bits (true color) at

► Settings

yCheck if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

and see if the frequency or the resolution were

Control Panel

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display driver?

yBe sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the

driver from our web site: http://www.lg.com. yMake sure to check if the video card supports Plug&Play function.

Page 21

SPECIFICATIONS

19MB35A

Display Screen Type

Pixel Pitch

Sync Input Horizontal Frequency

Vertical Frequency

Input Form

Video Input Signal Input

Input Form

Resolution Max

Recommend

Plug & Play

Power Consumption

Power Input

Dimensions (Width x Height x Depth)

Weight

Tilt Range

Environmental conditions

Stand Base

Power cord

DDC 2B(Analog)

On Mode : 15 W (ENERGY STAR® standard)*

Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W

AC 100-240V ~ 50/60Hz 0.8 A

With Stand

Without Stand

2.8 kg

-5° to 20°

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

Attached ( ), Detached (O)

Wall-outlet type

ENGLISH

ENG

48.2 cm (19 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating Visible diagonal size: 48.2 cm

0.294 mm x 0.294 mm (Pixel Pitch)

30 kHz to 83 kHz (Automatic)

56Hz to 75Hz (D-SUB)

Separate Sync.

15 pin D-SUB Connector

RGB Analog (0.7 Vp-p/ 75 ohm)

D-SUB(Analog) : 1280 x 1024 @ 60 Hz

VESA 1280 x 1024 @ 60 Hz

40.9 cm x 42.5 cm x 21.0 cm

40.9 cm x 33.8 cm x 5.8 cm

10°C to 35 °C 10 % to 80 %

-20°C to 60 °C 5 % to 90 % non-Condensing

Product specifications shown above may be changed without prior notice due to upgrade of product functions. * The power consumption level can be different by operating condition and monitor setting. * The On mode power consumption is measured with ENERGY STAR® test standard. * ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.

Page 22

ENGLISH

ENG

SPECIFICATIONS

Preset Modes (Resolution)

19MB35A

Display Modes (Resolution)

720 x 400 31.468 70 -/+

640 x 480 31.469 60 -/-

640 x 480 37.500 75 -/-

800 x 600 37.879 60 +/+

800 x 600 46.875 75 +/+

1024 x 768 48.363 60 -/-

1024 x 768 60.023 75

1152 x 864 67.500 75 +/+

1280 x 1024 63.981 60 +/+

1280 x 1024 79.976 75 +/+

Horizontal Frequency(kHz)

Vertical Frequency(Hz)

Indicator

Mode LED Color

On Mode White

Sleep Mode Blinking White

Off Mode Off

Polarity(H/V)

+/+

Recommend Mode

Page 23

PROPER POSTURE

Proper posture for using the Monitor set.

Adjust the

Monitor set and

your posture to

allow you to view

images at the

optimal viewing

angle.

Place your hands

gently on the

keyboard, keeping

your arms bent at

the elbows and

horizontally outright.

ENGLISH

ENG

Adjust the location of the Monitor set to avoid it reflecting light.

Page 24

Declaration of Conformity

Trade Name: LG Model : 19MB35AK Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

ENERGY STAR is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency(EPA).

As an ENERGY STAR Partner LGE U. S. A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efﬁciency.

LG 19MB35A-B User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

OWNER’S MANUAL

CONTENTS

ASSEMBLING AND PREPARING

Unpacking

Parts and buttons

Setting up the Monitor set

Attaching the Stand Base

Detaching the Stand Base

Mounting on a table

Using the Kensington locking device

Mounting on a wall

USING THE MONITOR SET

Connecting to a PC

D-SUB connection

CUSTOMIZING SETTINGS

CUSTOMIZING SETTINGS

Menu Settings


Color

Display

Others

READER Setting

SUPER ENERGY SAVING

TROUBLESHOOTING

SPECIFICATIONS

19MB35A

Preset Modes (Resolution)

Indicator

PROPER POSTURE

Proper posture for using the Monitor set.
