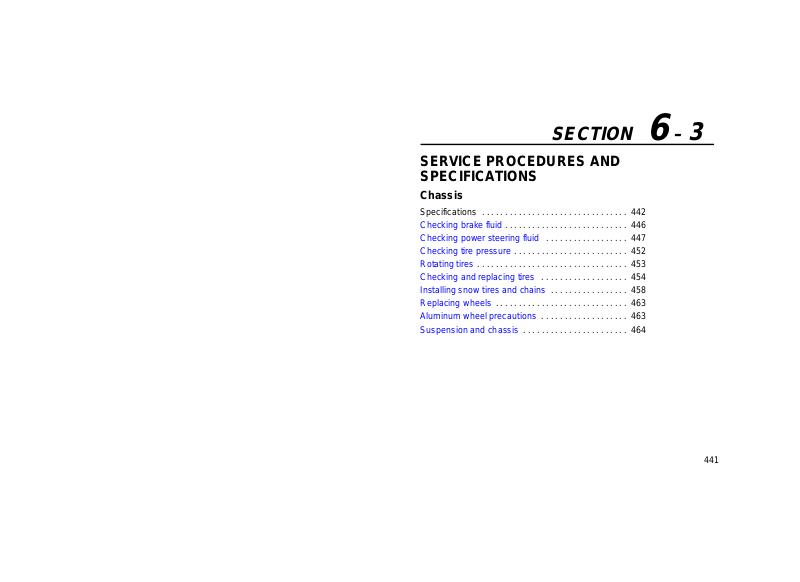

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Chassis

Specifications 442. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking brake fluid 446. . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking power steering fluid 447. . . . . . . . . . . . . . . . . .

Checking tire pressure 452. . . . . . . . . . . . . . . . . . . . . . . . .

Rotating tires 453. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing tires 454. . . . . . . . . . . . . . . . . . .

Installing snow tires and chains 458. . . . . . . . . . . . . . . . .

Replacing wheels 463. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Aluminum wheel precautions 463. . . . . . . . . . . . . . . . . . .

Suspension and chassis 464. . . . . . . . . . . . . . . . . . . . . . .

3

441

CHASSIS

SPECIFICATIONS

– TRANSFER

Oil capacity
Oil type
Recommended oil viscosity

– AUTOMATIC TRANSAXLE

Fluid capacity

Drain and refill

Two–wheel drive models
Four–wheel drive models

Fluid type

– DIFFERENTIAL

442

0.9 L (1.0 qt., 0.8 Imp.qt.)
Hypoid gear oil API GL–5
Above –18C (0F) SAE 90

Below –18C (0F) SAE 80W or 80W–90

3.1 L (3.3 qt., 2.7 lmp.qt.)

3.9 L (4.1 qt., 3.4 lmp.qt.)

Automatic transmission fluid type T–IV*

CHASSIS

Oil capacity
Oil type
Recommended oil viscosity

*Change automatic transmission fluid only as
necessary. Generally, it is necessary to change
automatic transmission fluid only if your vehicle is driven
under one of the Special Operating Conditions listed in
your “Owner’s Manual Supplement / Maintenance
Schedule”. When changing the automatic transmission
fluid, use only Toyota Genuine ATF Type T–IV (ATF
JWS3309 or NWS6500) to aid in assuring optimum
transaxle performance.

0.9 L (1.0 qt., 0.8 Imp. qt.)
Hypoid gear oil API GL–5
Above –18C (0F) SAE 90

Below –18C (0F) SAE 80W or 80W–90

NOTICE

Using automatic transmission fluid other than
Toyota Genuine ATF Type T–IV may cause
deterioration in shift quality, locking up of your
transmission accompanied by vibration, and
ultimately damage the automatic transmission of
your vehicle.

443

CHASSIS

– BRAKES

Pedal clearance
Pedal free play
Brake pad wear limit
Parking brake lining wear limit
Parking brake adjustment
Fluid type

122 mm (5.0 in.) Min. *
1 – 6 mm (0.04 – 0.24 in.)

1.0 mm (0.04 in.)

1.0 mm (0.04 in.)
5 – 7 clicks *

2

SAE J1703 or FMVSS No. 116 DOT 3

*1Minimum pedal clearance when depressed with the pressure of 490 N (50 kgf, 110 lbf.) with the engine running

2

*

Parking brake adjustment when depressed with the pressure of 294 N (30 kgf, 66 lbf.)

– STEERING

1

444

Wheel free play
Power steering fluid type

Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRON



II or III

– TIRES AND WHEELS

CHASSIS

Tire size

P225/70R16 101S

Recommended cold tire inflation pressure

Vehicle loaded up to vehicle capacity weight
Spare tire
Trailer towing (conventional and snow tires)

210 kPa (2.1 kgf/cm
rear)

210 kPa (2.1 kgf/cm
210 kPa (2.1 kgf/cm

2

or bar, 30 psi) (Both front and

2

or bar, 30 psi)

2

or bar, 30 psi) (Both front and

rear)
For sustained high speeds above 160 km/h (100

Wheel size
Wheel nut torque

mph), in countries where such speeds are permitted
by law, add 30 kPa (0.3 kgf/cm
front tires and rear tires, but never exceed the
maximum cold tire pressure molded on the tire
sidewall.

2

or bar, 5 psi) to the

16 x 6.5 JJ
103 N·m (10.5 kgf·m, 76 ft·lbf.)

NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through
“Aluminum wheel precautions” on page 452 through 463.

445

CHASSIS

CHECKING BRAKE FLUID

63R001b

To check the fluid level, simply look at the
see–through reservoir. T h e level should be between
the ”MAX” and ”MIN” lines on the tank.

It is normal for the brake fluid level to go down slightly as
the brake pads wear. So be sure to keep the reservoir
filled.

If the reservoir needs frequent refilling, it may indicate a
serious mechanical problem.

If the level is low, add FMVSS No.116 DOT 3 or SAE
J1703 brake fluid to the brake reservoir.

Remove and replace the reservoir cap by hand. Add
brake fluid up to the ”MAX” line.

Use only newly opened brake fluid. Once opened, brake
fluid absorbs moisture from the air , and excess moisture
can cause a dangerous loss of braking efficiency.

446

CAUTION

Take care when filling the reservoir because brake fluid
can harm your hands or eyes and damage painted
surfaces. If flu i d gets in your hands or eyes, flush them
with clean water.

CHASSIS

NOTICE

If you spill some of the fluid, be sure to wipe it off
to prevent it from damaging the parts or
paintwork.

CHECKING POWER STEERING

FLUID

447

CHASSIS

63R002

Check the fluid level through the reservoir. If
necessary, add automatic transmission fluid
DEXRON

If the vehicle has been driven around 80 km/h (50 mph)
for 20 minutes (a little more in frigid temperatures), the
fluid is hot (60C – 80C or 140F – 175F). You may
also check the level when the fluid is cold (about room
temperature, 10C – 30C or 50F – 85F) if the engine
has not been run for about five hours.



II or III.

448

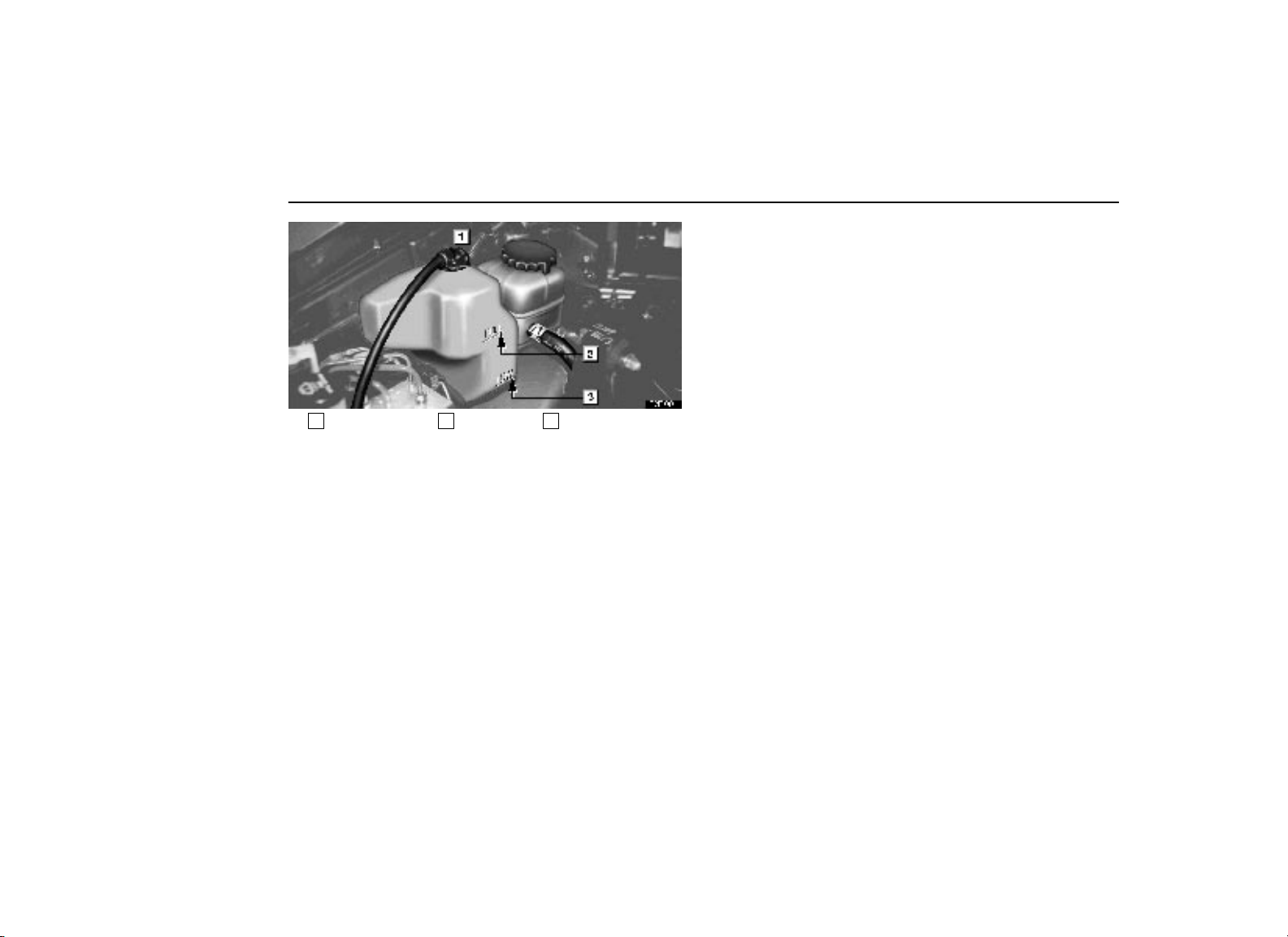

63R003

1



If hot O.K. 2If hot add 3If cold O.K.

4

If cold add

Clean all dirt off the reservoir and look at the fluid level.
If the fluid is cold, the level should be in the ”COLD”
range. Similarly , if it is hot, the fluid level should b e in t he
”HOT” range. If the level is at the low side of the
appropriate range, add automatic transmission fluid
DEXRON

To remove the reservoir cap, turn it counterclockwise
and lift up. To reinstall it, turn it clockwise. After
replacing the reservoir cap, visually check the steering
box case, vane pump and hose connections for leaks or
damage.



II or III to bring the level within the range.

CHASSIS

449

CHASSIS

CAUTION

The reservoir may be hot so be careful not to burn
yourself.

450

NOTICE

Avoid overfilling, or the power steering could be
damaged.

CHASSIS

451

CHASSIS

CHECKING TIRE PRESSURE

63R004a

The recommended cold tire pressures, tire size and
the vehicle capacity weight are given on the label.

Y ou should check the tire pressures every two weeks, or
at least once a month. And don’t forget the spare! The
air pressure for the spare tire should be 210 kPa (2.1

2

or bar, 30 psi). Incorrect tire pressure can

kgf/cm
reduce tire life and make your vehicle less safe to drive.

452

Low tire pressure results in excessive wear, poor
handling, reduced fuel economy, and the possibility of
blowouts from overheated tires. Also, low tire pressure
can cause poor sealing of the tire bead. If the tire
pressure is excessively low, there is the possibility of
wheel deformation and/or tire separation. So keep your
tire pressures at the proper level. If a tire needs frequent
refilling, have it checked by your Lexus dealer.

High tire pressure produces a harsh ride, handling
problems, excessive wear at the center of the tire tread,
and a greater possibility of tire damage from road
hazards.

The following instructions for checking tire pressure
should be observed:

 The pressure should be checked only when the

tires are cold. If your vehicle has been parked for at

CHASSIS

least 3 hours and has not been driven for more than

1.5 km or 1 mile since, you will get an accurate cold
tire pressure reading.

 Always use a tire pressure gauge. The

appearance of the tire can be misleading. Besides,
tire pressures that are even just a few pounds off can
degrade handling and ride.

 Do not bleed or reduce tire pressure after driving.

It is normal for the tire pressure to be higher after
driving.

 Never exceed the vehicle capacity weight. The

passengers and luggage weight should be located so
that the vehicle is balanced.

 Be sure to reinstall the tire valve caps. Without the

valve caps, dirt or moisture could get into the valve
core and cause air leakage. If the caps have been
lost, have new ones put on as soon as possible.

63E005–1

ROTATING TIRES

453

CHASSIS

To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires
approximately every 12000 km (7500 miles).
However, the most appropriate timing for tire
rotation may vary according to your driving habits
and road surface conditions.

The wheel assemblies must be rotated as illustrated
above.

When rotating tires, check for uneven wear and
damage. Abnormal wear is usually caused by incorrect
tire pressure, improper wheel alignment, out–of balance
wheels, or severe braking.

Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the
same direction when using them again. Tires should be
stored in a cool dry place.

CHECKING AND REPLACING

TIRES

When to replace your tires

454

63R006

1



New tread 2Tread wear indicator 3Worn

tread

Replace the tires when the tread wear indicators
show. The location of the tread wear indicators is
shown by the marks such as ”TWI” or ”
molded on the sidewall of each tire.

The tires on your Lexus have built–in tread wear
indicators to help you know when the tires need
replacement. When the tread depth wears to 1.6 mm
(0.06 in.) or less, the indicators will appear. If you can
see the indicators in two or more adjacent grooves, the
tire should be replaced.

The effectiveness of snow tires is lost if the tread
wears down below 4 mm (0.16 in.).

∆” marks

CHASSIS

455

CHASSIS

If you have tire damage such as cuts, splits, cracks
deep enough to expose the fabric, or bulges
indicating internal damage, the tire should be
replaced.

If a tire often goes flat or cannot be properly repaired due
to the size or location of a cut or other damage, it should
be replaced. If you are not sure, consult with your Lexus
dealer.

If an air loss occurs while driving, do not continue driving
with a deflated tire. Driving even a short distance can
damage a tire beyond repair.

Any tires which are over 6 years old must be
checked by a qualified technician even if damage is
not obvious.

Tires deteriorate with age even if they have never or
seldom been used.

This also applies to the spare tire and tires stored for
future use.

Uniform tire quality grading

This information has been prepared in accordance
with regulations issued by the National Highway
Traffic Safety Administration of the U.S. Department
of Transportation. It provides the purchasers and/or
prospective purchasers of Lexus vehicles with
information on uniform tire quality grading.

Your Lexus dealer will help answer any questions
you may have as you read this information.

DOT quality grades – All passenger vehicle tires
must conform to Federal Safety Requirements in
addition to these grades. Quality grades can be
found where applicable on the tire sidewall between
tread shoulder and maximum section width. For
example: Treadwear 200 Traction AA Temperature
A

Treadwear – The treadwear grade is a comparative

rating based on the wear rate of the tire when tested
under controlled conditions on a specified government
test course. For example, a tire graded 150 would wear
one and a half (1 – 1/2) times as well on the government
course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use,
however, and may depart significantly from the norm
due to variations in driving habits, service practices and
differences in road characteristics and climate.

Traction AA, A, B, C – The traction grades, from highest
to lowest, are AA, A, B and C, and they represent the

456

CHASSIS

tire’s ability to stop on wet pavement as measured under
controlled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C may
have poor traction performance.

Warning: The traction grade assigned to this tire is
based on braking (straight ahead) traction tests and
does not include cornering (turning) traction.

Temperature A, B, C – The temperature grades are A
(the highest), B, and C, representing the tire’s resistance
to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified
indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade
C corresponds to a level of performance which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the laboratory
test wheel than the minimum required by law.

Warning: The temperature grades for this tire are
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.

457

CHASSIS

Tire selection

When replacing a tire, use only the same size and
construction as originally installed and with the
same or greater load capacity.

Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration,
ground clearance, and clearance between the body and
tires or snow chains.

Do not mix radial, belted, or conventional tires on
your vehicle.

Do not use tires or wheels other than the
manufacturer’s recommended size.

It can cause dangerous handling characteristics,
resulting in loss of control. If you need to change from
conventional tires to radial tires or vice versa, replace
them as a set.

INSTALLING SNOW TIRES AND

CHAINS

When to use snow tires or chains

Snow tires or chains are recommended when
driving on snow or ice.

On wet or dry roads, conventional or radial tires provide
better traction than snow or studded tires.

Snow tire selection

If you need snow tires, select the same size,
construction and load capacity as the original tires
on your Lexus.

Do not use tires other than stated above. Since your
vehicle has radial tires as original equipment, make sure
your snow tires also have radial construction. Do not
install studded tires without first checking local
regulations for possible restrictions.

Snow tire installation

Snow tires should be installed on all wheels.

Installing snow tires on the front wheels only can lead to
an excessive difference in road grip capability between
the front and rear tires which could cause loss of vehicle
control.

458

CAUTION

 Snow tires should be inflated to the same pressure as

the original tires.

 Never drive over 120 km/h (75 mph) with any type of

snow tires.

CHASSIS

459

CHASSIS

Tire chain selection

63r007a

460

1



Side chain 2Cross chain

Use the tire chains of correct size.

For P225/70R16 101S tires, use the following type
chains.

mm (in.)

A: Diameter of side chain 3.0 (0.1

2)
B: Width of side chain 10.0 (0.3

9)
C: Length of side chain 30.0 (1.1

8)
D: Width of cross chain 14.0(0.5

5)
E: Length of cross chain 25.0 (0.9

8)
F: Diameter of cross chain 4.0 (0.1

6)

Regulations regarding the use of tire chains vary
according to location or type of road. Always check
the local regulations before installing chains.

CHASSIS

NOTICE

461

CHASSIS

If the wrong combination of tire and chain is used,
the chains could damage the vehicle body.

Chain installation

Install the chains on the front tires as tightly as
possible. Do not use tire chains on the rear tires.
Retighten chains after driving 0.5 – 1.0 km (1/4 – 1/2
mile).

When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.

CAUTION

 Do not exceed 50 km/h (30 mph) or the chain

manufacturer’s recommended speed limit,
whichever is lower.

 Drive carefully avoiding bumps, holes, and sharp

turns, which may cause the vehicle to bounce.

 Avoid sharp turns or locked–wheel braking, as use of

chains may adversely affect vehicle handling.

462

CHASSIS

REPLACING WHEELS

When to replace your wheels

If you have wheel damage such as bending, cracks
or heavy corrosion, the wheel should be replaced.

If you fail to replace damaged wheels, the tire may slip
off the wheel or cause loss of handling control.

Replacement with used wheels is not recommended as
they may have been subjected to rough treatment or
high mileage and could fail without warning. Also, bent
wheels which have been straightened may have hidden
structural damage and therefore should not be used.
Never use an inner tube in a leaking wheel which is
designed for a tubeless tire.

Wheel selection

When replacing wheels, care should be taken to
ensure that they are equivalent to those removed in
load capacity, diameter, rim width, and offset.

Correct replacement wheels are available at your Lexus
dealer.

A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability,
headlight aim, bumper height, vehicle ground clearance,
and tire or snow chain clearance to the body and
chassis.

ALUMINUM WHEEL

PRECAUTIONS

 After driving your vehicle the first 1600 km (1000

miles), check that the wheel nuts are tight.

 If you have rotated, repaired, or changed your tires,

check that the wheel nuts are still tight after driving
1600 km (1000 miles).

 When using tire chains, be careful not to damage the

aluminum wheels.

 Use only the Lexus wheel nuts and wrench designed

for your aluminum wheels.

 When balancing your wheels, use only Lexus

balance weights or equivalent and a plastic or rubber
hammer.

 As with any wheel, periodically check your aluminum

wheels for damage. If damaged, replace
immediately.

463

CHASSIS

SUSPENSION AND CHASSIS

CAUTION

Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

464

CHASSIS

465

SECTION 7

REPORTING SAFETY DEFECTS
FOR U.S. OWNERS

Reporting safety defects for U.S. owners 506. . . . . . . . .

505

REPORTING SAFETY DEFECTS

REPORTING SAFETY DEFECTS

FOR U.S. OWNERS

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or dea th, you should immediately inform
the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying Toyota Motor Sales, U.S.A., Inc.
(Toll–free: 1–800–25–LEXUS).

If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer ,
or Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may either call the
Auto Safety Hotline toll–free at
1–800–424–9393 (or 366–0123 in
Washington.D.C. area) or write to: NHTSA,
U.S. Department of Transportation,
Washington. D.C. 20590. You can also obtain
other information about motor vehicle safety
from the Hotline.

506

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Body

Specifications 496. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protecting your vehicle from corrosion 497. . . . . . . . . . .

Washing and waxing 499. . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning the interior 501. . . . . . . . . . . . . . . . . . . . . . . . . . .

5

495

BODY

SPECIFICATIONS

– DIMENSIONS AND WEIGHT

Overall length
Overall width
Overall height
Wheelbase
Tread – Front

Vehicle capacity weight (occupants + luggage)

*Unladen vehicle

– FUEL TANK

Capacity

496

– Rear

4575 mm (180.1 in.)
1815 mm (71.5 in.)
1665 mm (65.6 in.)*
2615 mm (103 in.)
1565 mm (61.6 in.)
1550 mm (61.0 in.)
400 kg (880 lb.)

65 L (17.2 gal., 14.3 lmp.gal.)

BODY

PROTECTING YOUR VEHICLE

FROM CORROSION

Proper care of your Lexus can help ensure long–term
corrosion prevention.

The most common causes of corrosion to your
vehicle are:

 The accumulation of road salt, dirt and moisture in

hard–to–reach areas under the vehicle.

 Chipping of paint or undercoating caused by minor

accidents or by stones and gravel.

The following conditions will cause or accelerate
corrosion of your vehicle, so it is important to keep
your vehicle, particularly the underside, as clean as
possible and to repair any damage to paint or
protective coatings as soon as possible.

 The presence of road salt or dust control chemicals,

salt in the air near the sea coast, industrial air
pollution.

 High humidity , especially at temperatures just above

freezing point.

 Certain parts of your vehicle are wet or damp for an

extended period of time, even though other parts of
the vehicle are dry.

 Components of the vehicle which are prevented from

quick–drying due to lack of proper ventilation are

exposed to high ambient temperature.

497

BODY

To help prevent corrosion on your Lexus, follow
these guidelines:

Keep your vehicle clean by regular washing. In

addition, observe the following points.
 If you drive on salted roads in the winter or if you live

near the ocean, you should hose off the
undercarriage at least once a month to minimize
corrosion.

 High pressure w a te r o r s t ea m i s e ffective for cleaning

the vehicle’s underside and wheel housings. Pay
particular attention to these areas as it is difficult to
see all the mud and dirt. It will do more harm than
good to simply wet the mud and debris without
removing them. The lower edge of doors, rocker
panels and frame members have drain holes which
should not be allowed to clog with dirt as trapped
water in these areas can cause corrosion.

 Wash the underside of the vehicle thoroughly when

winter is over.

See ”Washing and waxing” on page 499 for more tips.

Check the co n d ition of your vehicle’s paint and trim.

If you find any chips or scratches in the paint, touch them
up immediately to prevent corrosion from starting. If the
chips or scratches have gone through the bare metal,
have a qualified body shop make the repair.

Check the inte r i o r o f your vehicle. Water and dirt can
accumulate under the floor mats and could cause
corrosion. Occasionally check under the mats to make
sure the area is dry. Be particularly careful when
transporting chemicals, cleansers, fertilizers, salt, etc.
These should be transported in proper containers. If a
spill or leak should occur, immediately clean and dry the
area.

Use mud shields on your wheels. If you drive on
salted or gravel roads, mud shields help protect your
vehicle. Full–size shields, which come as near to the
ground as possible, are the best. We recommend that
the fittings and the area where the shields are installed
be treated to resist corrosion. Your Lexus dealer will be
happy to assist in supplying and installing the shields if
they are recommended for your area.

Keep your vehicle in a well ventilated garage or a
roofed place. Do not park your vehicle in a damp,
poorly ventilated garage. If you wash your vehicle in

the garage, or if you drive it in covered with water or
snow, your garage may be so damp it will cause
corrosion. Even if your garage is heated, a wet vehicle
can corrode if the ventilation is poor.

498

BODY

WASHING AND WAXING

Washing your Lexus

Keep your vehicle clean by regular washing.

The following cases may cause weakness to the paint
or corrosion to the body and parts. Wash your vehicle
as soon as possible.

 When driving in a coastal area
 When driving on a road sprinkled with antifreeze
 When having stuck of coal tar, tree sap, bird

droppings and carcass of an insect

 When driving in the areas where there is a lot of

smoke, soot, dust, iron dust and chemical substance

 When the vehicle becomes remarkably dirty with dust

and mud

Hand–washing your Lexus

Work in the shade and wait until the vehicle body is
not hot to the touch.

1. Rinse off loose dirt with a hose. Remove any mud or
road salt f r o m t h e underside of the vehicle or in the wheel
wells.

2. Wash with a mild car–wash soap, mixed according to
the manufacturer’s instructions. Use a soft cotton mitt
and keep it wet by dipping it frequently into the wash
water. Do not rub hard – let the soap and water remove
the dirt.

Plastic wheel ornaments: The plastic wheel
ornaments are damaged easily by organic substances.
If any organic substance splashes an ornament, be sure
to wash it off with water and check if the ornament is
damaged.

499

BODY

CAUTION

Do not attach the heavily damaged plastic wheel
ornament. It may fly off the wheel and cause accidents
while the vehicle is moving.

Aluminum wheels: Use only a mild soap or neutral

detergent.
Urethane bumpers and side moldings: Wash

carefully. Do not scrub with abrasive cleaners. The
bumper and side molding faces are soft.

Road tar: Remove with turpentine or cleaners that are
marked safe for painted surfaces.

NOTICE

Do not use organic substances (gasoline,
kerosene, benzine or strong solvents), which may
be toxic or cause damage.

500

3. Rinse thoroughly – dried soap can cause streaking.
In hot weather you may need to rinse each section right
after you wash it.

4. To prevent water spots, dry the vehicle using a clean
soft cotton towel. Do not rub or press hard – you might
scratch the paint.

Automatic car wash

NOTICE

To prevent damage to the antenna, make sure it is
retracted before driving your vehicle through an
automatic car wash.

Your vehicle may be washed in an automatic car wash,
but remember that the paint can be scratched by some
type of brushes, unfiltered washing water, or the
washing process itself. Scratching reduces paint
durability and gloss, especially on darker colors. The
manager of the car wash should be able to advise you
whether the process is safe for the paint on your vehicle.

BODY

Waxing your Lexus

Polishing and waxing is recommended to maintain
the original beauty of your Lexus’ finish.

Once a month or if the vehicle surface does not repel
water well, apply wax.

1. Always wash and dry the vehicle before you begin
waxing, even if you are using a combined cleaner and
wax.

2. Use a good quality polish and wax. If the finish has
become extremely weathered, use a car–cleaning
polish, followed by a separate wax. Carefully follow the
manufacturer’s instructions and precautions. Be sure to
polish and wax the chrome trim as well as the paint.

3. Wax the vehicle again when water does not bead but
remains on the surface in large patches.

CAUTION

 Be careful not to splash water or spill liquid on the

floor. This may prevent the side airbags from
activating correctly, resulting in serious injury.

 Do not wash the vehicle floor with water, or allow

water to get onto the floor when cleaning the vehicle
interior or exterior. Water may get into audio
components or other electrical components above or
under the floor carpet (or mat) and cause a
malfunction; and it may cause body corrosion.

CLEANING THE INTERIOR

501

BODY

Leather Interior

The selected leather is used in your Lexus. Due to a
leather product, some parts of leather may be rough,
uneven or scratched originally.

To keep good appearance, we recommend you to clean
it periodically twice a year.

Remove dirt on the leather in the following ways:

1. Wipe it off lightly using a soft cloth (e.g. gauze)
dampened with 5% solution of neutral detergent for
wool.

2. Wring water from a clean cloth and thoroughly wipe
off all traces of detergent with it.

3. Wipe of f the surface of the leather with a dry soft cloth.
Allow the leather to dry in a ventilated shaded area.
Excess of wet may cause the hardening or shrinking of
the leather.

NOTICE

502

BODY



Dirt or sand adhered to the leather may damage
the treated surface and cause it to wear earlier.
Remove dirt or sand using a vacuum cleaner.



If a stain should fail to come out with a neutral
detergent, apply a cleaner that does not
contain an organic solvent.



Never use organic substances such as
benzine, alcohol or gasoline, or alkaline or acid
solutions for cleaning the leather as these
could cause discoloring.



Use of a nylon brush or synthetic fiber cloth,
etc. may scratch the fine grained surface of the
leather.



Mildew may develop on soiled leather
upholstery. Be especially careful to avoid oil
spots. Try to keep your upholstery always
clean.



Long exposure to direct sunlight may cause
the leather surface to harden and shrink. Keep
your vehicle in a shaded area, especially in the
summer.



The interior of your vehicle is apt to heat up on
hot summer days, so avoid placing on the
upholstery items made of vinyl or plastic or
containing wax as these tend to stick to leather
when warm.



Improper cleaning of the leather upholstery
could result in discoloration or staining.

Synthetic Leather Areas (Dash)

The synthetic leather areas may be easily cleaned
with a mild soap or detergent and water.

First vacuum over the upholstery to remove loose dirt.
Then, using a sponge or soft cloth, apply the soap
solution to the synthetic leather . After allowing it to soak
in for a few minutes to loosen the dirt, remove the dirt and
wipe off the soap with a clean damp cloth. If all the dirt
does not come off, repeat the procedure. Commercial
foaming–type cleaners are also available which work
well. Follow the manufacturer’s instructions.

NOTICE

Do not use solvent, thinner, gasoline or window
cleaner on the interior.

Carpets, Windows and Seat Belts

Begin by vacuuming thoroughly to remove as much dirt
as possible. Several types of foam cleaners are
available; some are in aerosol cans and others are
powders or liquids which you mix with water to produce
a foam. T o shampoo the carpets, use a sponge or brush
to apply the foam. Rub in overlapping circles. Do not
apply water – the best results are obtained by keeping
the carpet as dry as possible. Read the shampoo
instructions and follow them closely.

The seat belts may be cleaned with mild soap and

503

BODY

water or with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the
belts for excessive wear, fraying or cuts.

NOTICE



Use a good foam–type shampoo to clean the
carpets.



Do not use dye or bleach on the belts – it may
weaken them.



Do not use the belts until they become dry.



The windows may be cleaned with any
household window cleaner.



When cleaning the inside of the rear window, be
careful not to scratch or damage the heater
wires.

Air Conditioning Control Panel, Car
Audio, Instrument Panel, Console Panel,
and Switches

Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or lukewarm water then

lightly wipe off any dirt.

NOTICE



Do not use organic substances (solvents,
kerosene, alcohol, gasoline, etc.) or alkaline or
acidic solutions. These chemicals can cause
discoloring, staining or peeling of the surface.



If you use cleaners or polishing agents, make
sure their ingredients do not include the
substances mentioned above.



If you use a liquid car freshener, do not spill the
liquid onto the vehicle’s interior surfaces. It
may contain the ingredients mentioned above.
Immediately clean any spill using the method
mentioned above.

If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to
answer them.

504

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Electrical components

Specifications 467. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

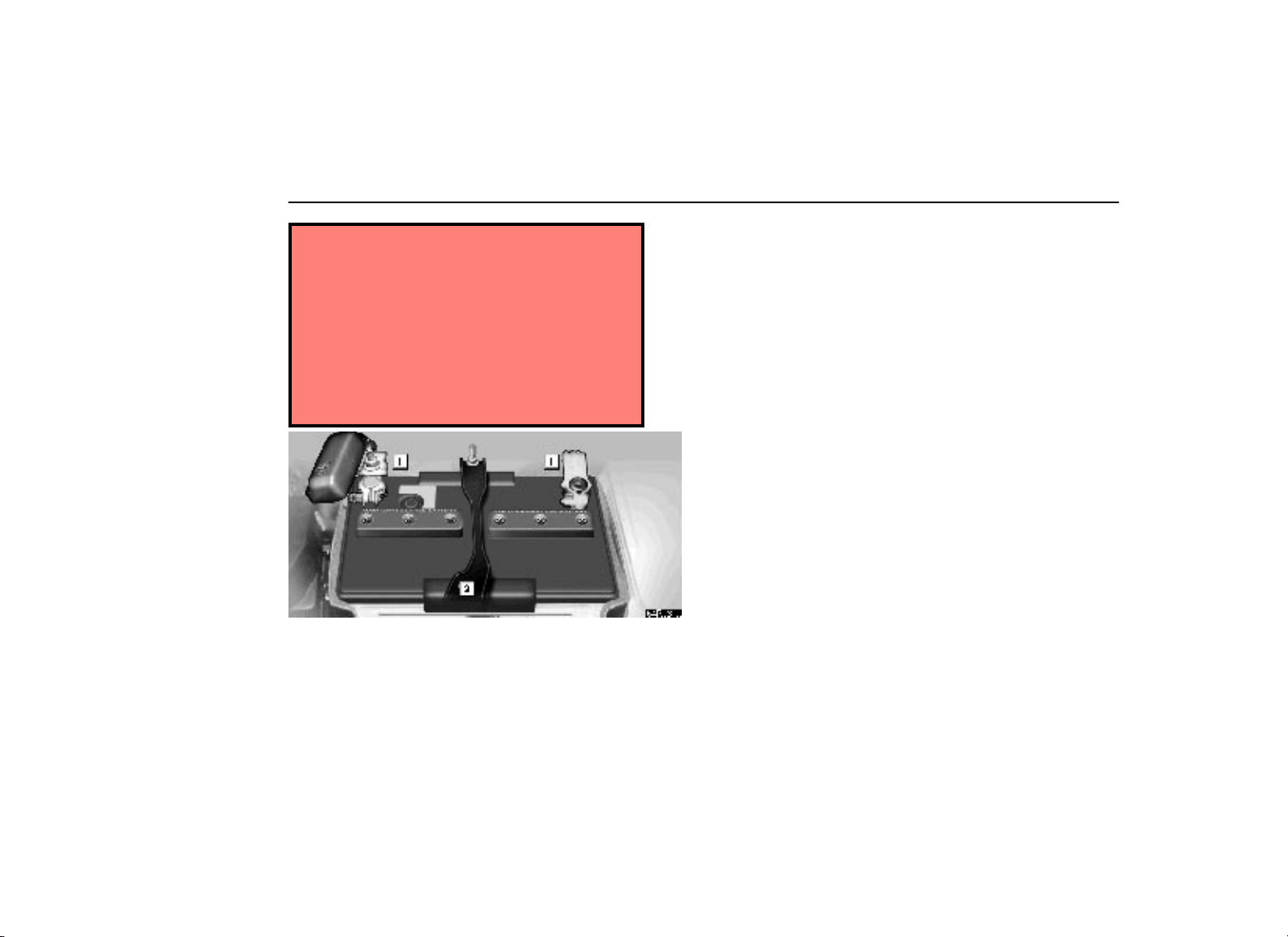

Checking battery condition 475. . . . . . . . . . . . . . . . . . . . .

Battery recharging precautions 479. . . . . . . . . . . . . . . . .

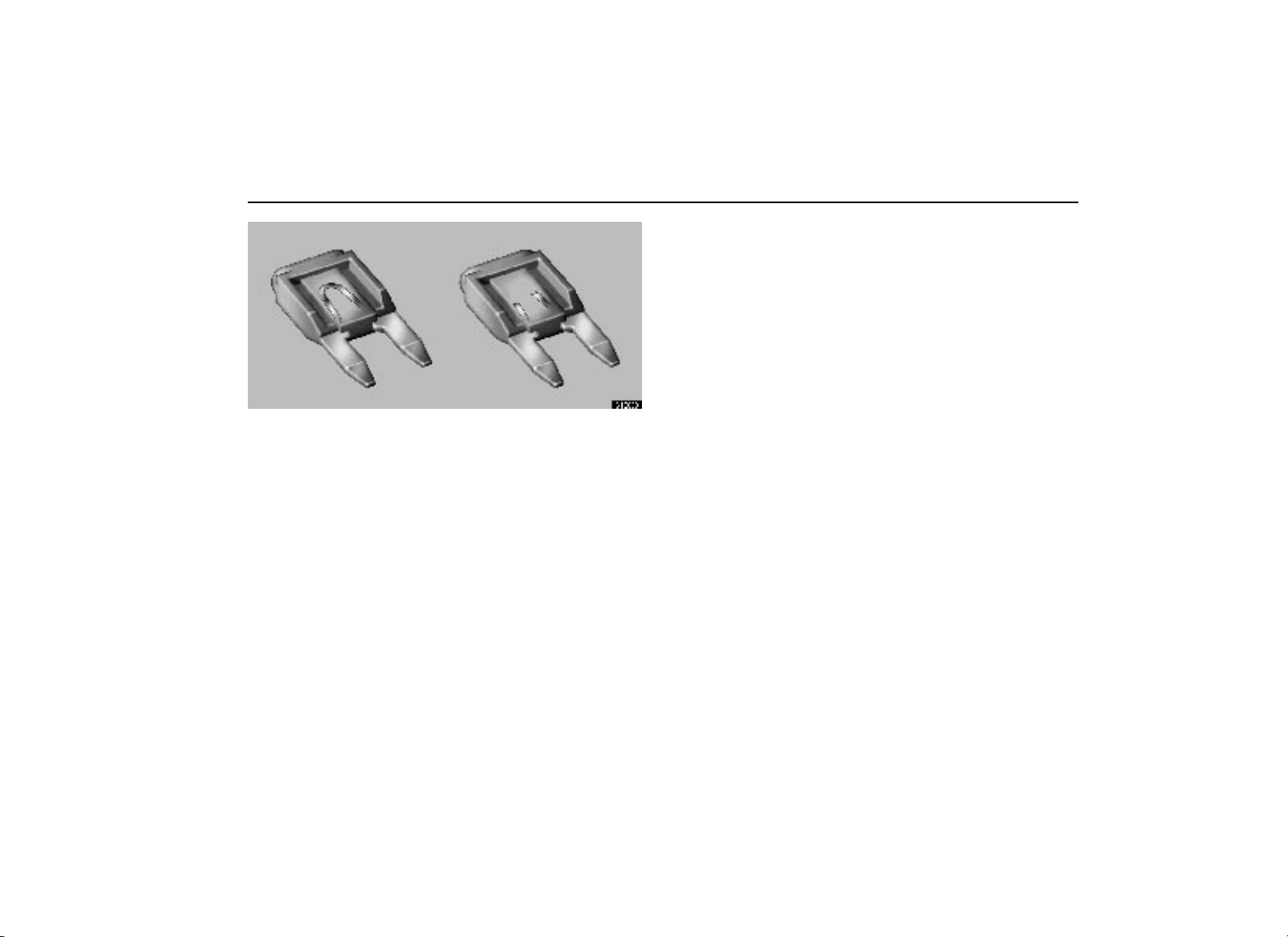

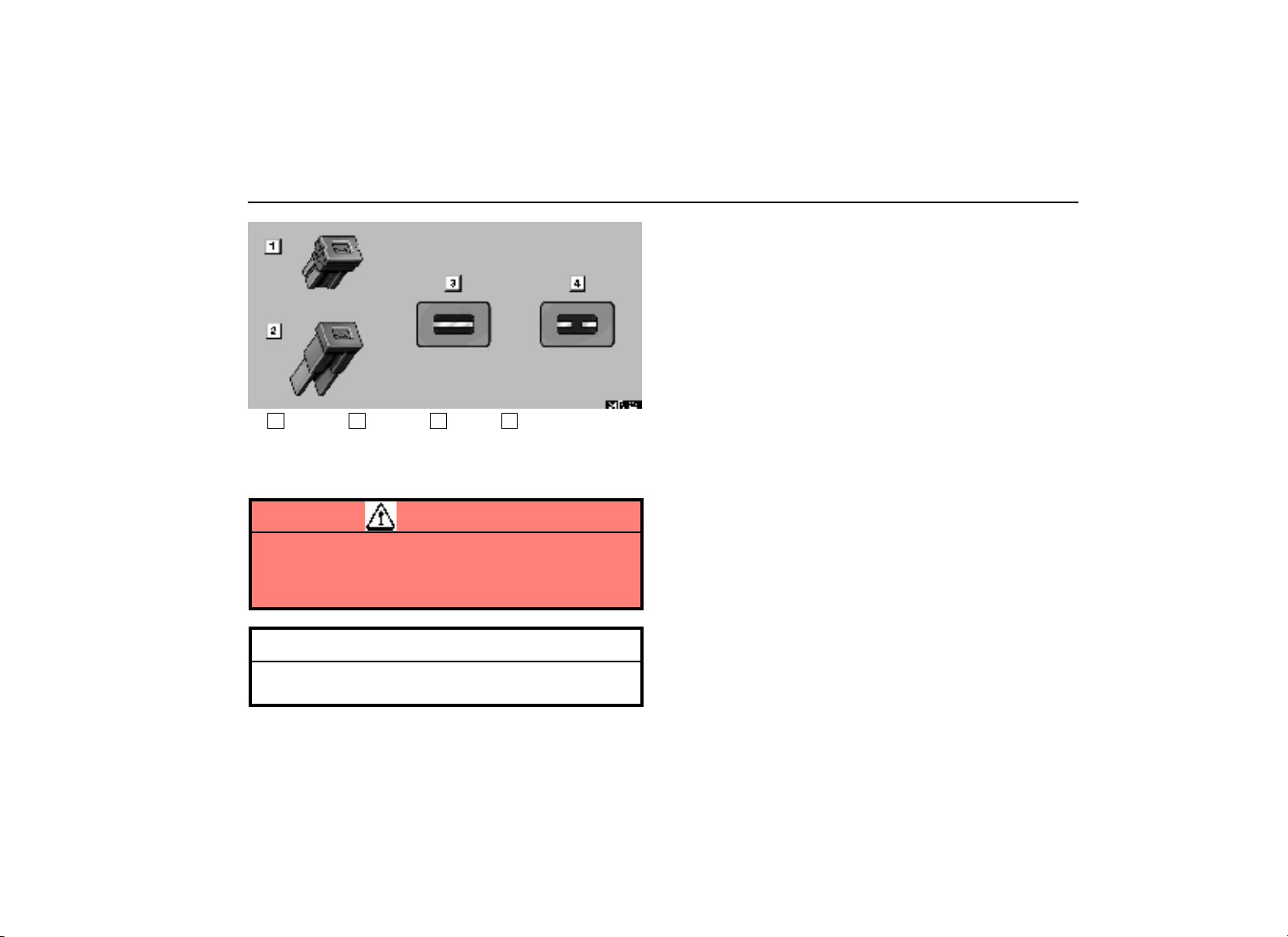

Checking and replacing the blade type fuses 481. . . . .

Checking the cartridge type fuses 486. . . . . . . . . . . . . . .

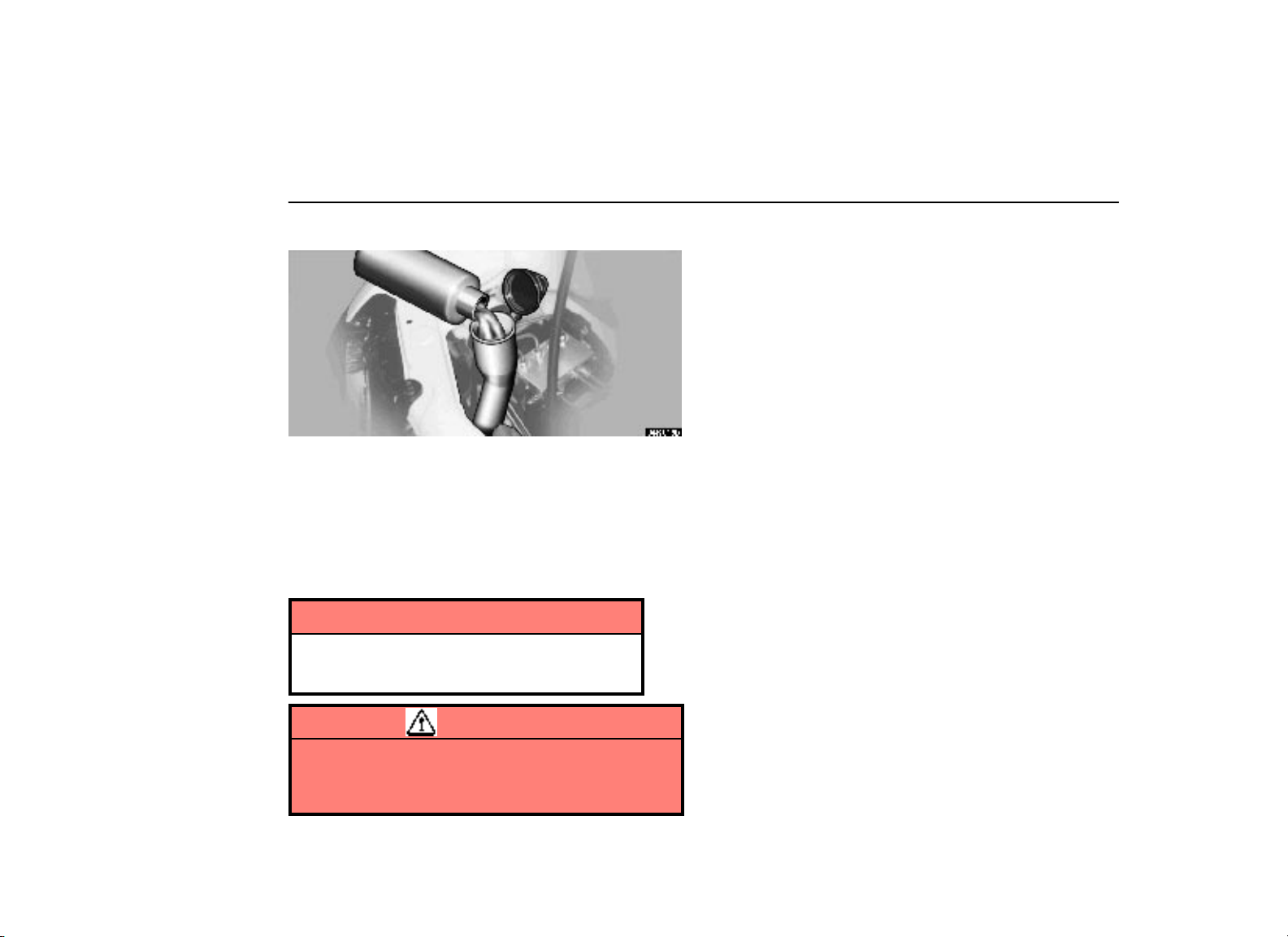

Adding washer fluid 489. . . . . . . . . . . . . . . . . . . . . . . . . . .

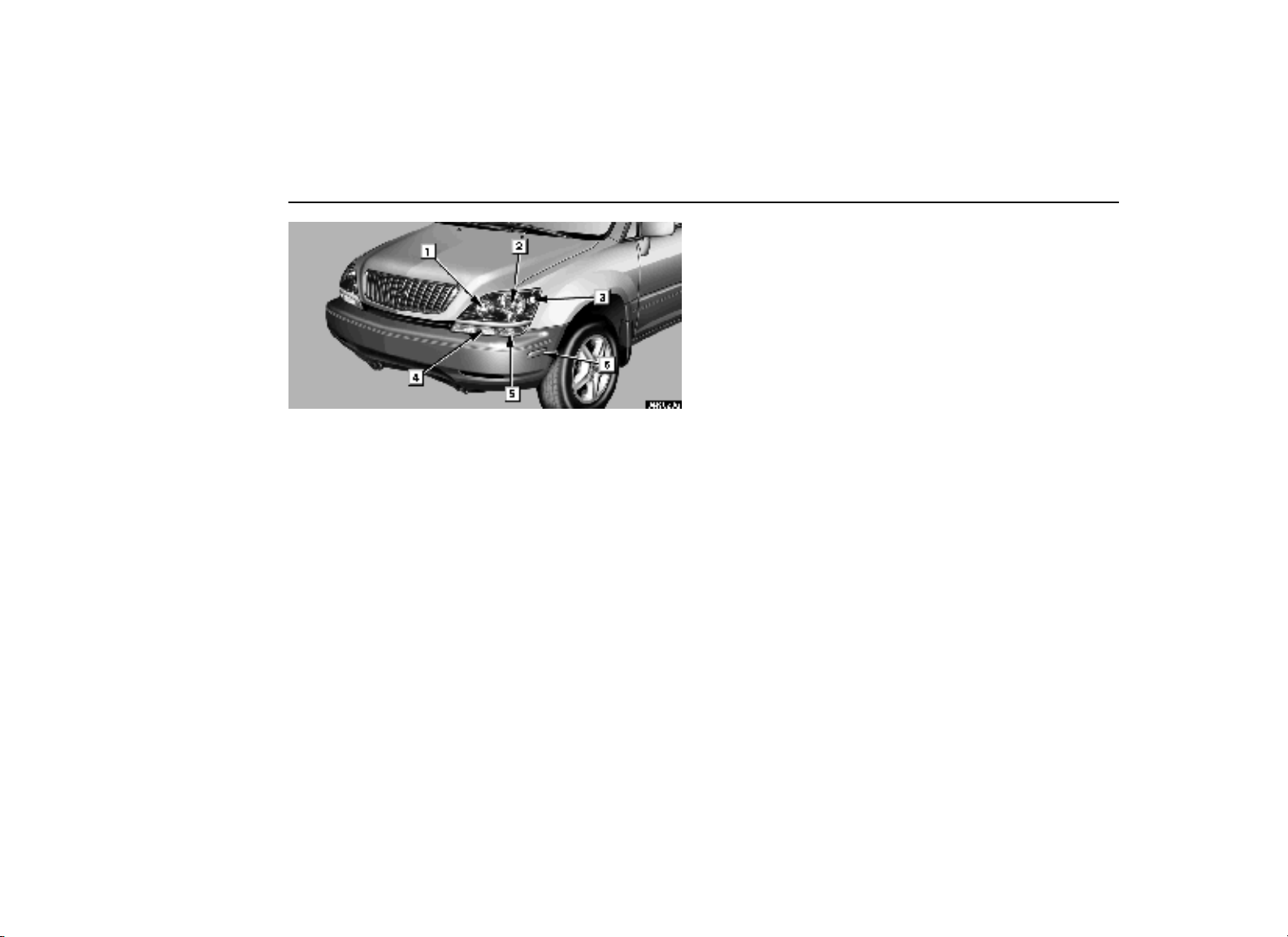

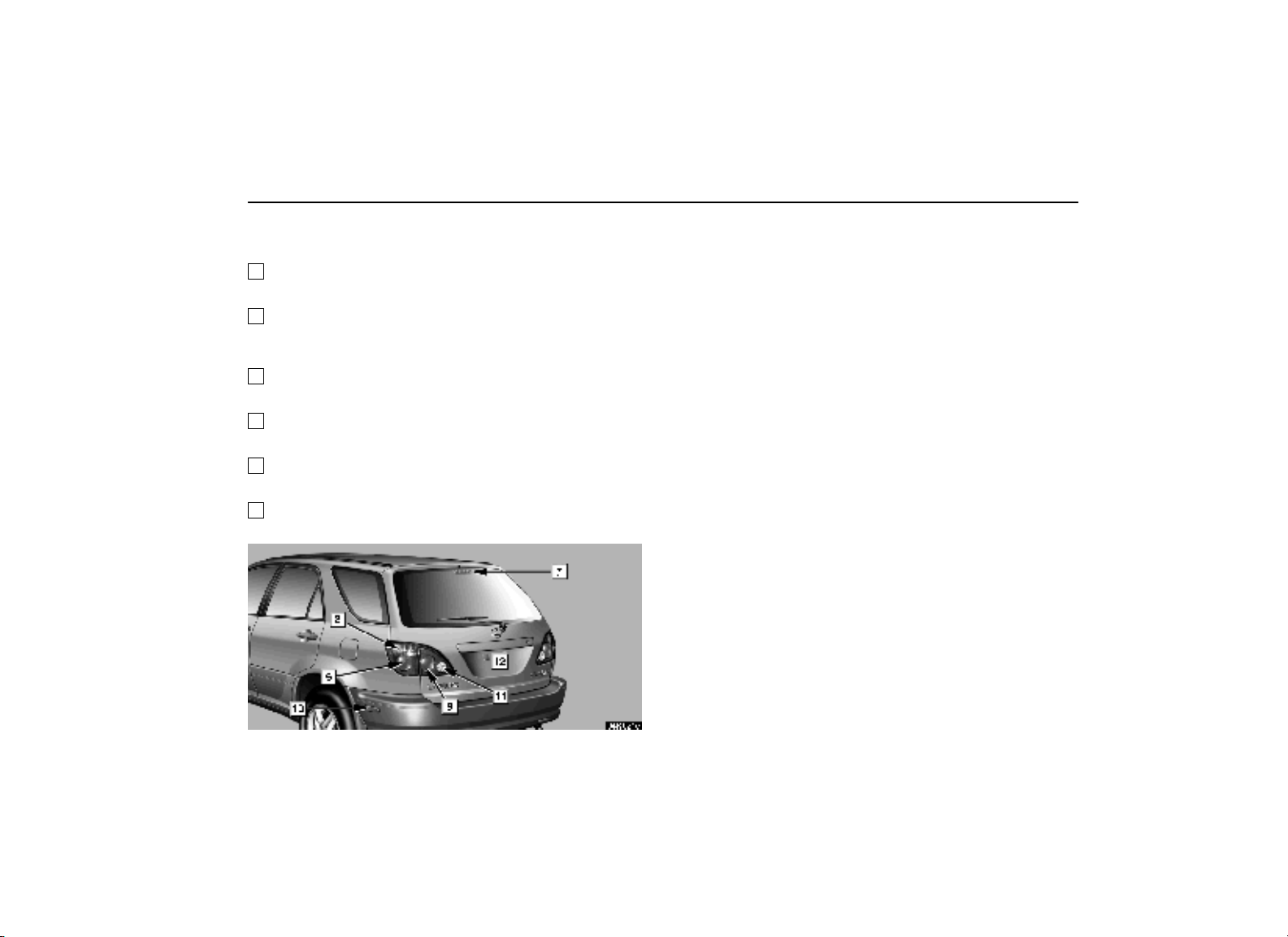

Replacing light bulbs 489. . . . . . . . . . . . . . . . . . . . . . . . . .

4

466

SPECIFICATIONS

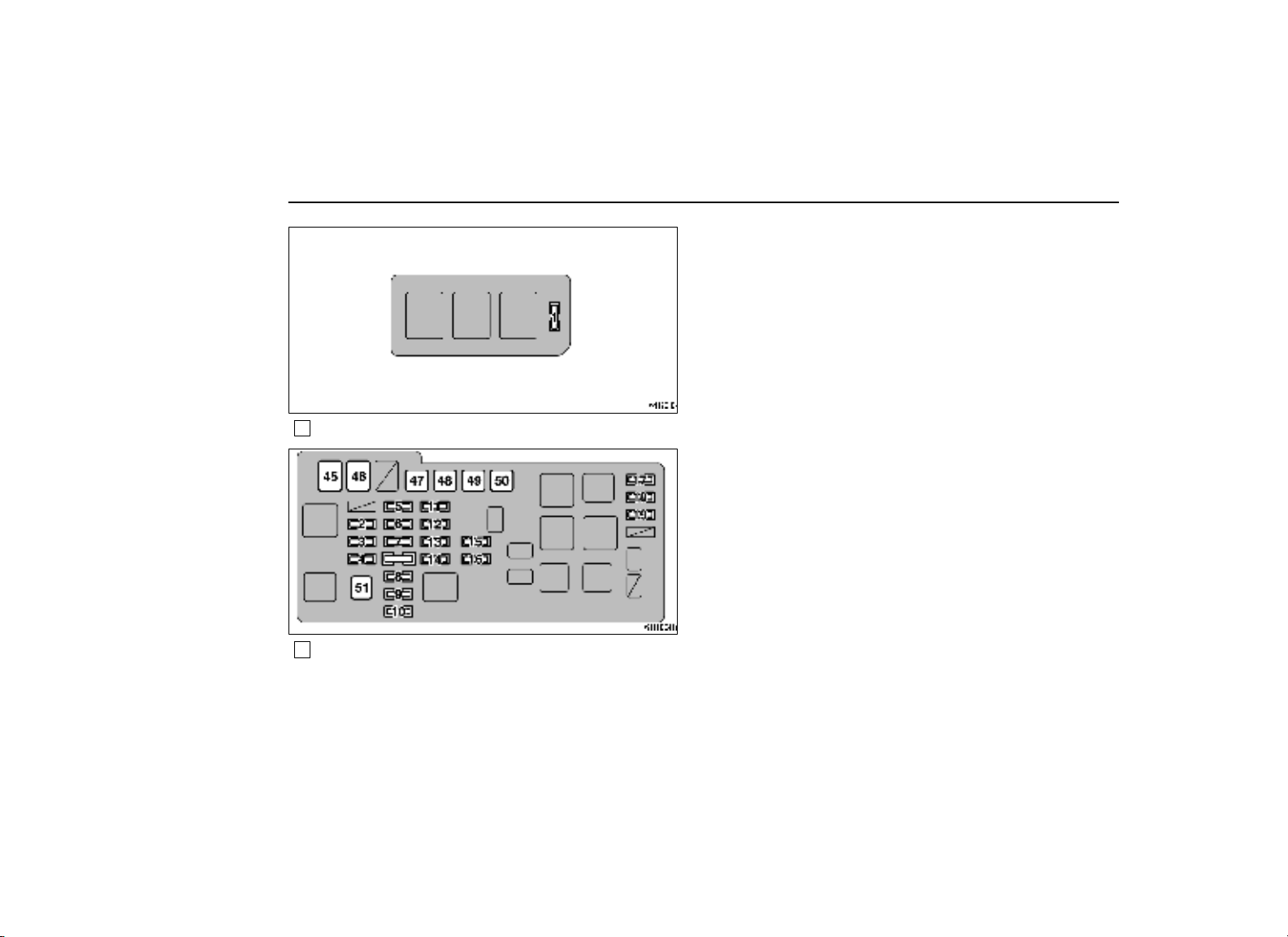

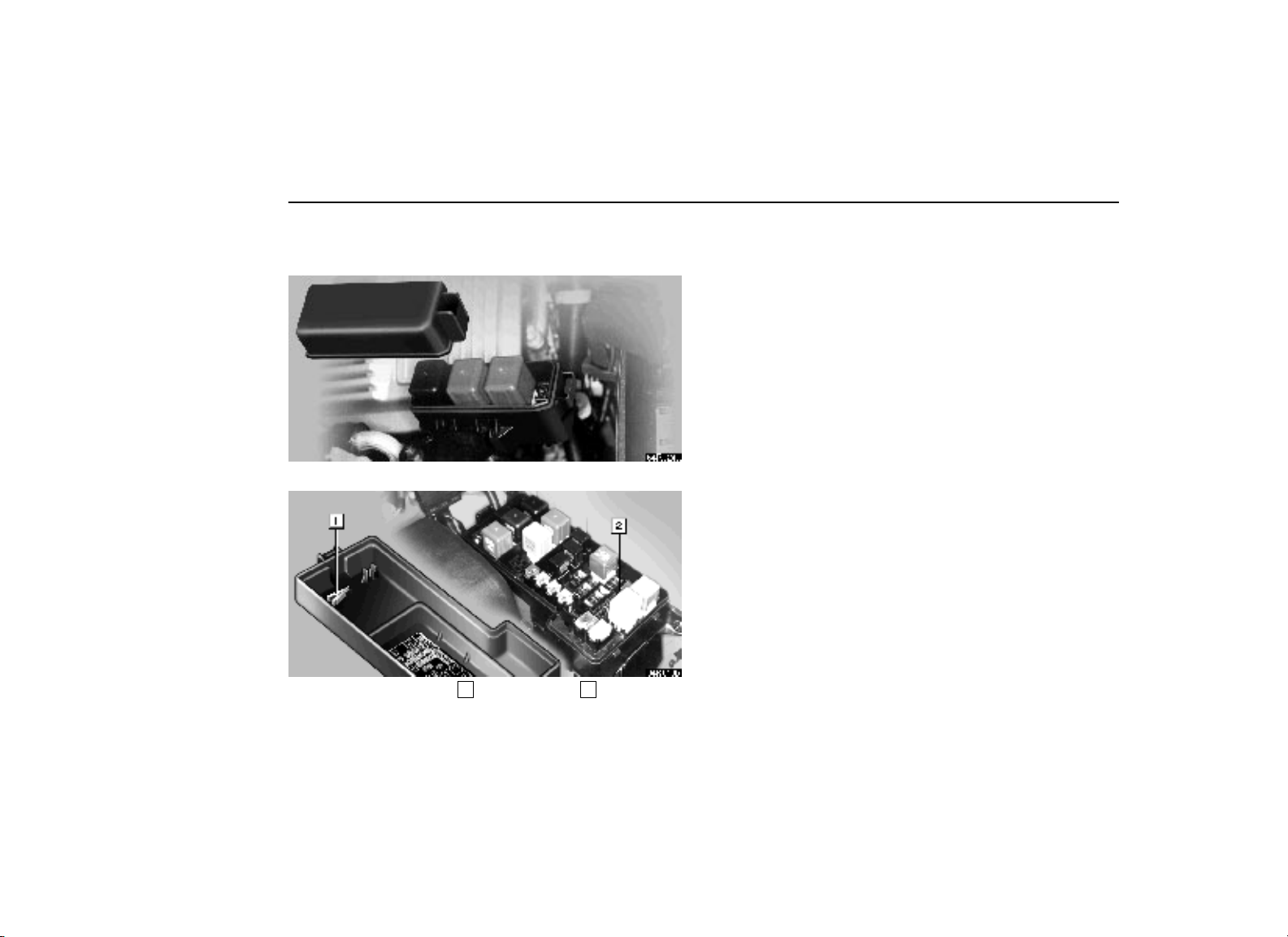

– FUSE LOCATIONS

64R001a

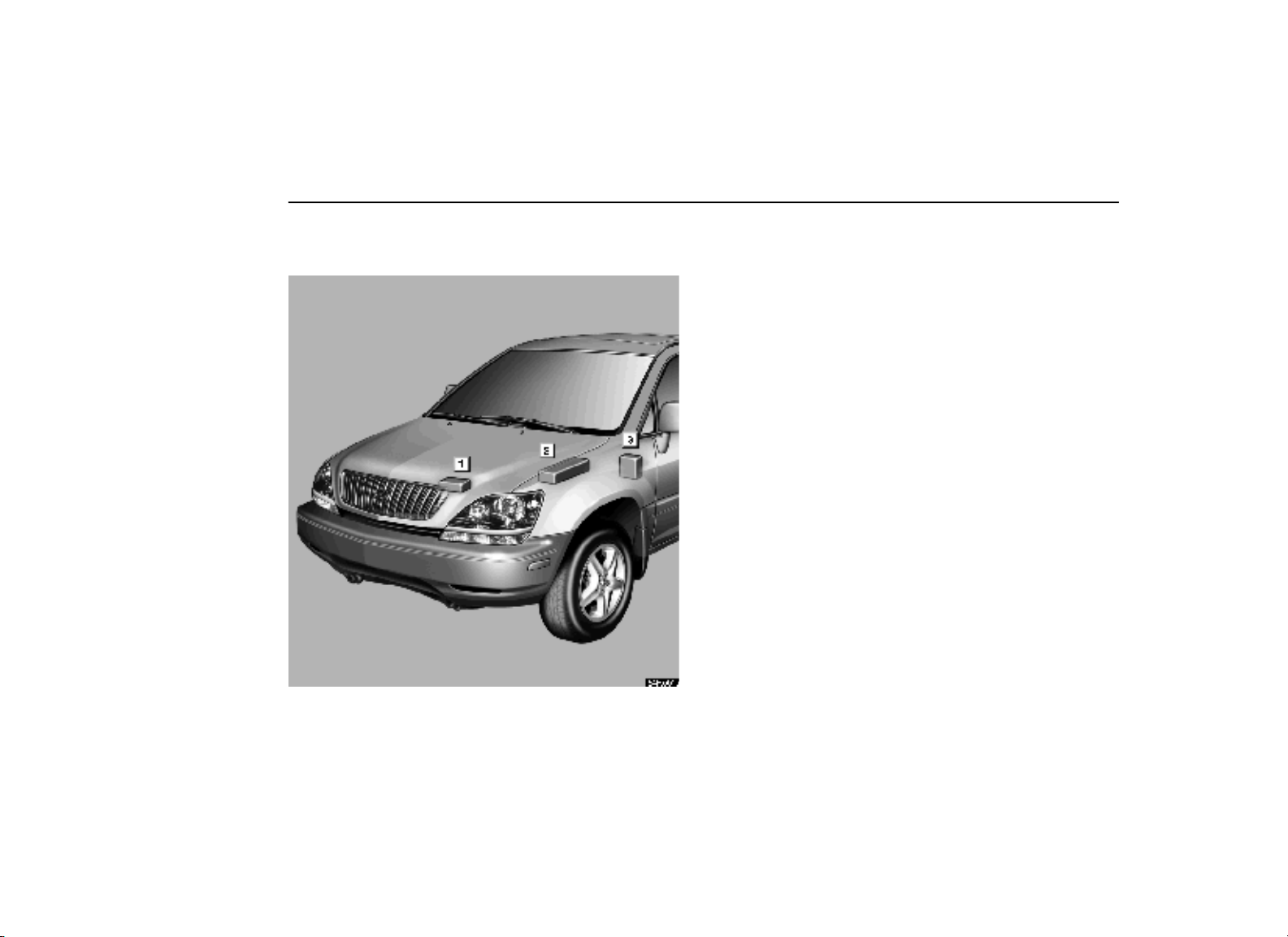

ELECTRICAL COMPONENTS

467

ELECTRICAL COMPONENTS

1



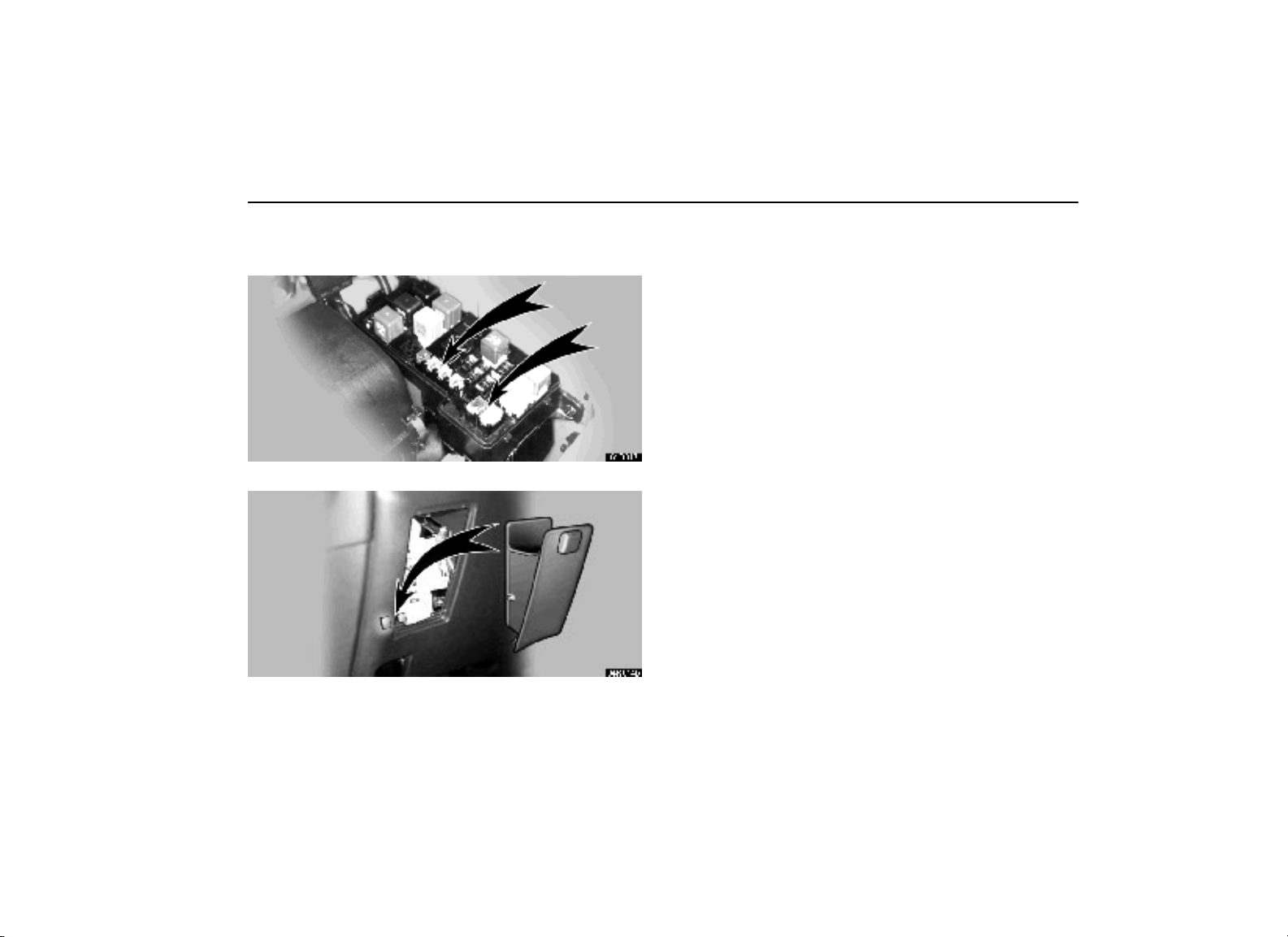

Engine compartment

2

Engine compartment

3

Driver’s side instrument panel

– FUSES

468

64R003

1

Engine compartment

64R004b

2

Engine compartment

ELECTRICAL COMPONENTS

469

ELECTRICAL COMPONENTS

64R005a

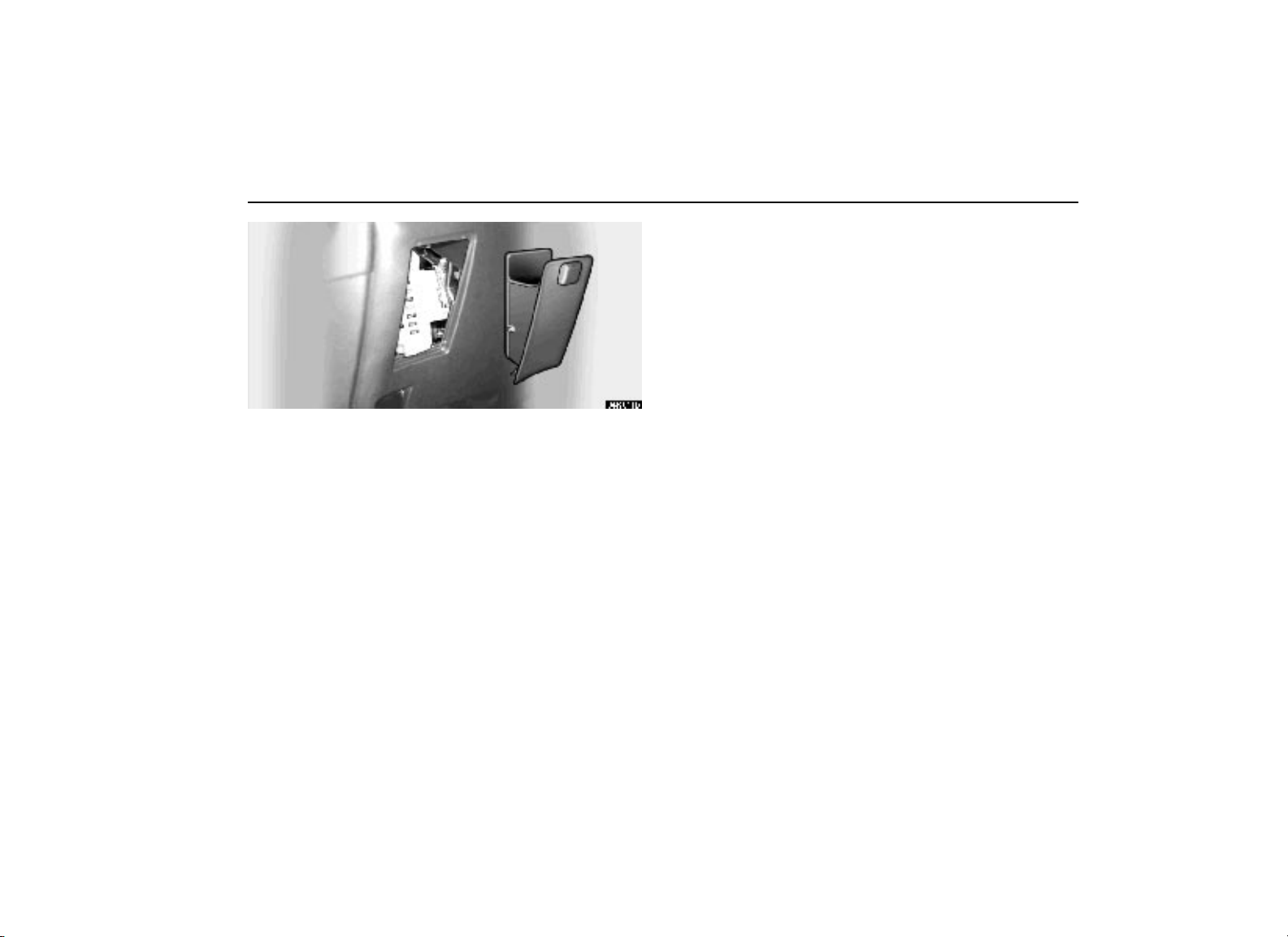

3

Driver’s side instrument panel

470

ELECTRICAL COMPONENTS

No.

10
11
12

13

14

FUSE

1

2

3

4

5
6
7
8
9

DRL 7.5 Daytime Running Light System

H–LP R

LWR

H–LP L

LWR

HAZARD 15

AM2 20 Starting system

TEL 15 Telephone

FL DOOR 20 Power door lock system

SPARE 7.5 Spare fuse
SPARE 15 Spare fuse
SPARE 25 Spare fuse

ALT–S 7.5 Charging system

HORN 10 Theft deterrent system, Horn

EFI 20

DOME 10

AMPERE

15

15

Right–hand headlight (Low
beam)

Left–hand headlight (Low
beam)

Emergency flashers, Turn
signal lights

Multiport fuel injection
system/Sequential multiport fuel
injection system

Interior light, Vanity lights, Foot
lights, Rear personal light,
Gauges and meters,
Multi–display

CIRCUIT

471

ELECTRICAL COMPONENTS

15

ECU–B 7.5 Multiplex computer

16

RAD NO.1 20 Audio system

472

No.

17

18

19

20

21

22

23

24

25
26

FUSE

H–LP R

UPR

H–LP L

UPR

A/F HTR 25 Air fuel ratio sensor

IGN 7.5

RADIO

NO.2

CIG 15

D. RR

DOOR

PWR

OUTLET

FR FOG 15 Fog lights

SRS–ACC 15 SRS system

AMPERE

15

15

7.5

20

15

Right–hand headlight (high
beam)

Left–hand headlight (high
beam)

SRS system, Multiport fuel
injection/Sequential multiport
fuel injection system

Audio system, Multiplex
computer

Cigarette lighter, Outside rear
view mirrors, Power door lock
system

Rear door lock, Rear power
window

Power outlets

CIRCUIT

Telephone, Inside rear view

27

ECU–IG 15

28

WIPER 25 Windshield wipers

29

No.

30

31
32

33

34

35

36
37
38
39
40

41

P RR

DOOR

FUSE

P FR

DOOR

20

AMPERE

20

S/ROOF 20 Moon roof

HEATER 15 Air conditioning system

GAUGE 7.5
RR WIP 15 Rear window wiper

STOP 20

OBD 7.5 On–board diagnosis system

SEAT HTR 15 Seat heater system

STARTER 7.5 Starting system
WASHER 20 Washer

RR FOG 7.5 No circuit

FR DEF 20

mirror, Anti–lock brake system,
Traction control system,
Multi–display

Rear door lock, Rear power
window

Front door lock, Front power
window

Multiplex computer, Service
reminder indicators

Stop lights, High mounted
stoplight, Anti–lock brake
system, Traction control system

Rear window and outside rear
view mirror defogger

ELECTRICAL COMPONENTS

CIRCUIT

473

ELECTRICAL COMPONENTS

42

SRS–B 7.5 SRS system

43

44
45
46

No.

47
48

49

50
51
52
53

TAIL 10

PANEL 7.5 Instrument panel lights

ABS 60 Anti–lock brake system

ALT 140 Charging system

FUSE

AMPERE

RDI 40 Cooling fan system

CDS 40 Cooling fan system

RR DEF 30

HEATER 50 Blower

MAIN 50 Starting system

AM1 40 Ignition system

POWER 30 Power seats

Tail lights, Side marker lights,
License plate lights, Parking
lights

Rear window and outside rear
view mirror defogger

CIRCUIT

474

CHECKING BATTERY

Precautions

ELECTRICAL COMPONENTS

CONDITION

475

ELECTRICAL COMPONENTS

CAUTION

BATTERY PRECAUTIONS
The battery produces flammable and explosive

hydrogen gas.
 Do not cause a spark by contacting the battery

terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive

sulfuric acid.

 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near

the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with

clean water f o r a t l east 15 minutes and get immediate

medical attention. If possible, continue to apply

water with a sponge or cloth while traveling to the

medical office.

476

ELECTRICAL COMPONENTS

 If electrolyte gets on your skin, thoroughly

wash the contacted area. If you feel a pain or
burn, get medical attention immediately.

 If electrolyte gets on your clothes, there is a

possibility of its soaking through to your skin,
so immediately take off the exposed clothing
and follow the procedure above, if necessary.

 If you accidentally swallow electrolyte, drink a

large quantity of water or milk. Follow with milk
of magnesia, beaten raw egg or vegetable oil.
Then go immediately for emergency help.

64R030a

Checking battery exterior

477

ELECTRICAL COMPONENTS

1



Terminals 2Hold–down clamp

Check the battery for corroded or loose
connections, cracks, or loose hold–down clamps.

1. If the battery is corroded, wash it off with a solution of
warm water and baking soda. Coat the terminals with
grease to prevent further corrosion.

2. If the connections are loose, tighten the clamp bolts
– but do not overtighten.

3. Tighten the hold–down clamp only enough to keep
the battery firmly in place. Overtightening may damage
the battery case.

NOTICE



Make sure the engine and all accessories are
turned off before performing maintenance.



When checking the battery, remove the ground
cable first and reinstall it last.



Be careful not to cause a short circuit with
tools.



Take care no solution gets into the battery
when washing it.

478

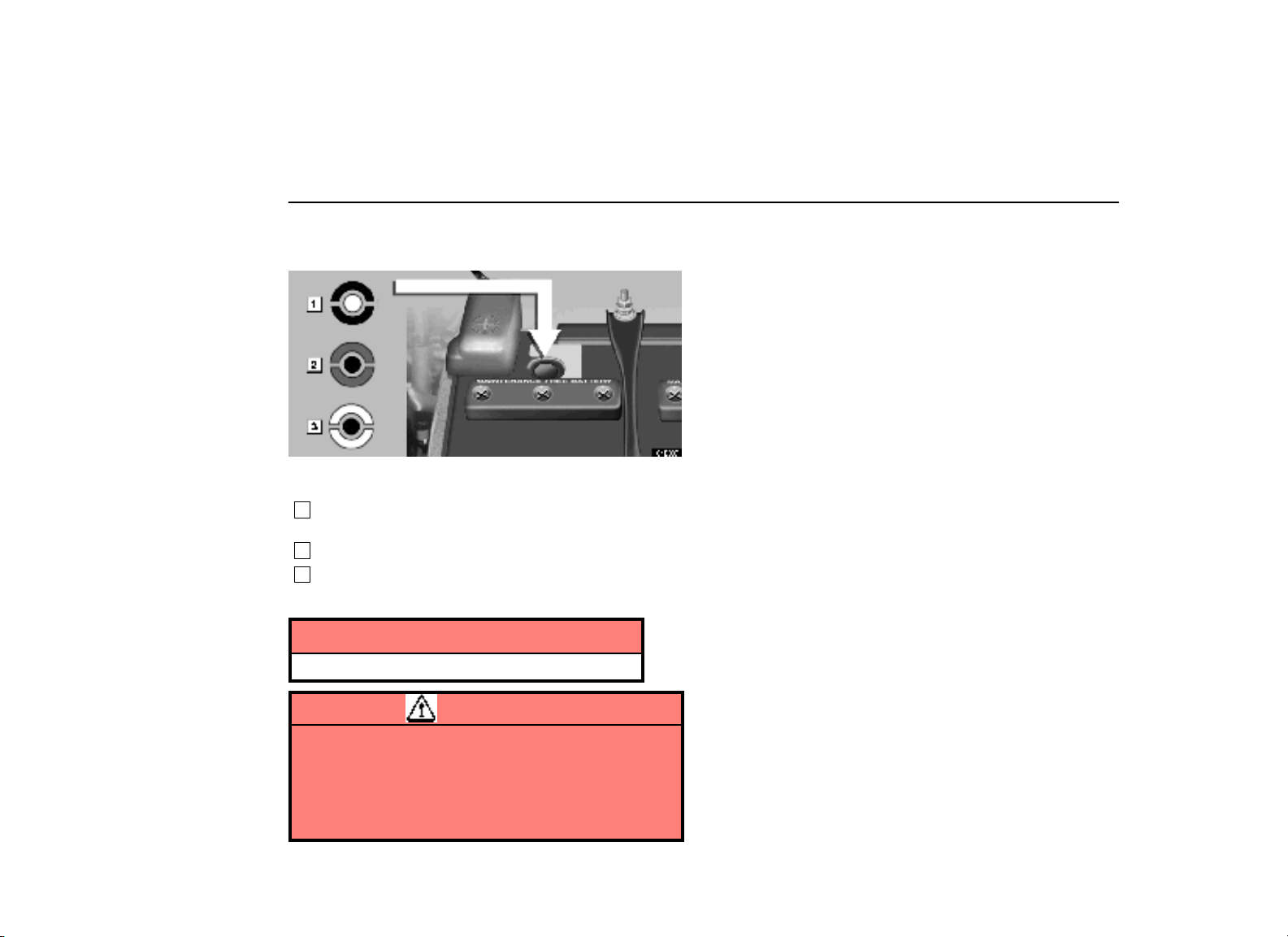

Checking battery fluid

Checking by hydrometer

64E009

ELECTRICAL COMPONENTS

Check the battery condition by the hydrometer
color.

1

RED – Have the battery checked by your Lexus
dealer.

2

BLUE – Good condition.

3

WHITE – Charging necessary. Have the battery
checked by your Lexus dealer.

NOTICE

Do not refill the battery with water.

CAUTION

 Always charge the battery in an unconfined area. Do

not charge the battery in a garage or closed room
where there is not sufficient ventilation.

 Only do a slow charge (5 A or less). Charging at a

quicker rate is dangerous. The battery may explode
causing personal injuries.

BATTERY RECHARGING

PRECAUTIONS

During recharging, the battery is producing
hydrogen gas.

Therefore, before recharging:

1. If recharging with the battery installed on the vehicle,
be sure to disconnect the ground cable.

2. Make sure the power switch on the recharger is off
when connecting the charger cables to the battery and
when disconnecting them.

479

ELECTRICAL COMPONENTS

NOTICE

Never recharge the battery while the engine is
running. Also, be sure all accessories are turned
off.

480

CHECKING AND REPLACING

THE BLADE TYPE FUSES

64R024a



Engine compartment

64R010b

ELECTRICAL COMPONENTS



Engine compartment 1Pull–out tool 2Spare
fuses

481

ELECTRICAL COMPONENTS

64R011b



Driver’s side instrument panel

1. Turn the ignition switch off and remove the
auxiliary box.

Determine whic h f use may be causing the problem. The
auxiliary box shows the name of the circuit for each fuse.

482

64L013

2. Make sure the inoperative component is turned
off. Pull the suspected fuse straight out with the
pull–out tool and check it. If it has blown, push a new
fuse into the clips.

ELECTRICAL COMPONENTS

483

ELECTRICAL COMPONENTS

64G008



Good

a. Look carefully at the fuse. If the thin wire is broken,
the fuse has blown. If you are not sure or if it is too dark
to see, try replacing the suspected fuse with one of the
same value that you know is good.

b. Only install a fuse with the amperage rating
designated on the fuse box lid.

If you do not have a spare fuse, in an emergency you can
pull out the ”RAD NO.1”, ”RADIO NO.2” or ”PWR
OUTLET” fuse, which may be dispensable for normal
driving, and use it if its amperage rating is the same.

If you cannot use one of the same amperage, use one
lower than, but as close as possible to, the amperage.
If the amperage is lower than that specified, the fuse
might blow out again but this does not indicate anything
wrong. Be sure to get the correct fuse as soon as
possible and return the substitute to its original clips.

484



Blown

It is a good idea to purchase a set of spare fuses and
keep them in your vehicle for emergencies.

If the new fuse immediately blows out, there is a problem
with the electrical system. Have your Lexus dealer
correct it as soon as possible.

CAUTION

Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.

ELECTRICAL COMPONENTS

485

ELECTRICAL COMPONENTS

CHECKING THE CARTRIDGE

TYPE FUSES

64R013



Engine compartment

64R014b

486



Driver’s side instrument panel

If the headlights or other electrical components do
not work and the blade type fuses are O.K., check
the cartridge type fuses. If any of the cartridge type
fuses are blown, they must be replaced.

ELECTRICAL COMPONENTS

487

ELECTRICAL COMPONENTS

64R023

1



Type A 2Type B 3Good 4Blown

If there is an overload in the circuits from the battery, the
fuses are designed to blow before the entire wiring
harness is damaged.

CAUTION

Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire – even for
a temporary fix. This may cause extensive damage and
possibly a fire.

NOTICE

Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer .

488

ADDING WASHER FLUID

64R016b

ELECTRICAL COMPONENTS

If the washer tank becomes nearly empty, add
washer fluid.

You may use plain water as washer fluid. However, in
cold areas where temperatures range below the
freezing point, use washer fluid containing antifreeze.
This product is available at your Lexus dealer and most
auto parts stores. Follow the manufacturer’s directions
for how much to mix with water.

NOTICE

Do not use engine antifreeze or any other
substitute because it may damage your vehicle’s
paint.

CAUTION

Halogen bulbs have pressurized gas inside and require
special handling. They can burst or shatter if scratched
or dropped. Hold a bulb only by its plastic or metal case.
Do not touch the glass part of a bulb with bare hands.

REPLACING LIGHT BULBS

The illustration on the following pages show the
locations of light bulbs. If it is necessary to replace a
bulb, take your vehicle to your Lexus dealer as soon as
possible. Use bulbs with the bulb numbers and wattage
ratings given in the table.

489

ELECTRICAL COMPONENTS

NOTICE

Only use a bulb of the listed type.

LIGHT LOCATION

490

64R020a

ELECTRICAL COMPONENTS

491

ELECTRICAL COMPONENTS

Light Bulbs Bulb No. W T

ype

1 Headlight (high beam) 9005 60

A

2 Headlight 9006 51

B
(low and high beam)

3 Parking light 168 5

D

4 Front turn signal ––– 21

D light

5 Fog light 9006 51

B

6 Front side marker light 168 5

D

64R021c

492

ELECTRICAL COMPONENTS

Light Bulbs Bulb No. W T

ype

7 High mounted stoplight 921 18

D

8 Rear turn signal light ––– 21

D

9 Tail and stop lights ––– 21/5

D

10 Rear side marker light ––– 5

D

11 Back–up light ––– 21

D

12 License plate light ––– 5

D

493

ELECTRICAL COMPONENTS

64R022d

Light Bulbs Bulb No. W T

ype

13 Personal light ––– 10

C

14 V anity light ––– 1.5

E

15 Interior lights ––– 8

E

16 Door courtesy lights ––– 5

D

494

17 Glove box light ––– 1.2

D

A: 9005 halogen
bulbs

B: 9006 halogen
bulbs

C: Single end
bulbs

D: Wedge base
bulbs

E: Double end
bulbs

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Engine

Specifications 422. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Facts about engine oil consumption 427. . . . . . . . . . . . .

Used engine oil 430. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine oil level 431. . . . . . . . . . . . . . . . . . .

Checking the engine coolant level 436. . . . . . . . . . . . . . .

Spark plugs 439. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

421

ENGINE

SPECIFICATIONS

– GENERAL

Model
Type
Bore and stroke
Displacement
V alve clearance (engine cold)

Intake
Exhaust

Drive belt tension (with Borroughs drive belt tension
gauge No. BT–33–73F)

– LUBRICATION SYSTEM

422

1MZ – FE
6 cylinder V type, 4 cycle, gasoline

87.5 X 83 mm (3.44 X 3.27 in.)
2995 cm

0.15 – 0.25 mm (0.006 – 0.010 in.)

0.25 – 0.35 mm (0.010 – 0.014 in.)
115  20 lb.

3

(182.7 cu.in.)

Oil capacity

Drain and refill

with filter
without filter

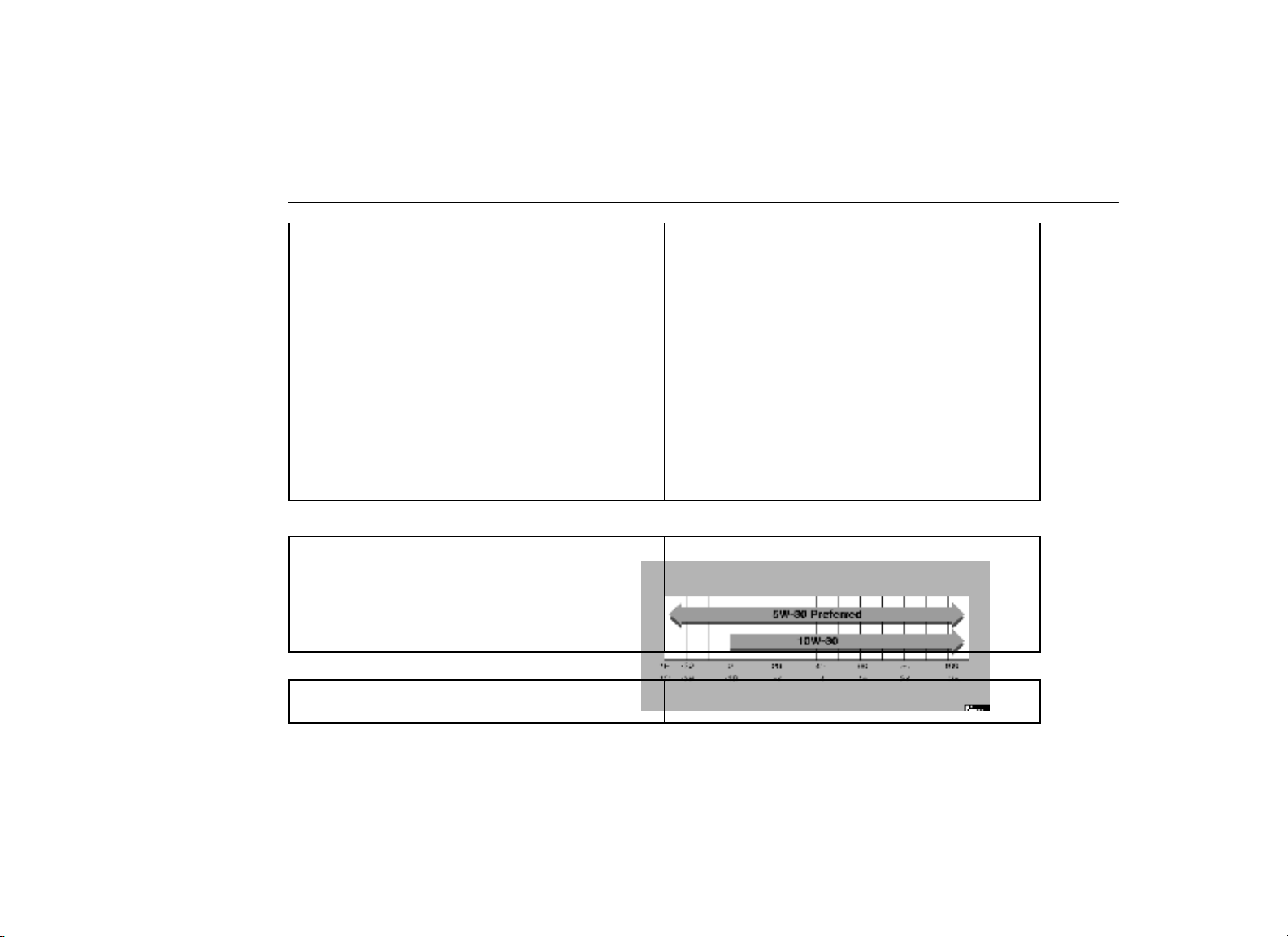

Oil grade
Recommended oil viscosity (SAE):

– COOLING SYSTEM

Capacity
Coolant type

– FUEL

Fuel type
Octane Rating

4.7 L (5.0 qt., 4.1 lmp.qt.)

4.5 L (4.8 qt., 4.0 lmp.qt.)
API SJ, ”Energy–Conserving” multigrade engine oil or

ILSAC multigrade engine oil

9.0 L (9.5 qt., 7.9 lmp.qt.)
”Toyota Long Life Coolant” or equivalent
With ethylene–glycol type coolant for a proper

corrosion protection of aluminum components
Do not use alcohol type antifreeze or plain water

alone.

62L005–1

Only UNLEADED

Temperature range anticipated before next oil change

87 (Research Octane Number 91) or higher

ENGINE

423

ENGINE

– IGNITION SYSTEM

Spark plug – Make DENSO

NGK

– Gap

– ELECTRICAL SYSTEM

Battery Open voltage at 20C (68F):

Charging rates

SK20R11
IFR6A11

1.1 mm (0.043 in.)

12.7V Fully charged

12.3V Half charged

11.9V Discharged
[Voltage that is checked 20 minutes after the key is
removed with all the lights turned off]

5A max.

424

ENGINE

FUEL

Fuel type

Y our vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Lexus has a
smaller fuel tank opening. The special nozzle on pumps
with unleaded fuel will fit it, but the larger standard nozzle
on pumps with leaded gas will not.

At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB

3.5–M93 in Canada.

NOTICE

Do not use leaded gasoline. Use of leaded
gasoline will cause the three–way catalytic
converter/warm up three–way catalytic converter
to lose its effectiveness and the emission control
system to function improperly. Also, this can
increase maintenance costs.

Octane rating

Select Octane Rating 87 (Research Octane Number

91) or higher. For improved vehicle performance,
the use of premium unleaded gasoline with an
Octane Rating of 91 (Research Octane Number 96)
or higher is recommended.

Use of unleaded fuel with an Octane Rating or Research
Octane Number lower than stated above will cause
persistent heavy knocking. If it is severe, this will lead
to engine damage.

425

ENGINE

If your engine knocks ...

If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your
Lexus dealer.

However, now and then, you may notice light knocking
for a short time while accelerating or driving up hills. This
is no cause for concern.

Gasoline containing detergent additives

Lexus recommends the use of gasoline that
contains detergent additives to avoid build–up of
engine deposits.

However, all gasoline sold in the U.S. contains detergent
additives to keep clean and/or clean intake systems.

Quality gasoline

Automotive manufacturers in the U.S., Europe and
Japan have developed a specification for quality
fuel named World–Wide Fuel Charter (WWFC) that is
expected to be applied world wide. The WWFC
consists of three categories that depend on
required emission levels. In the U.S., category 3 has
been adopted. The WWFC improves air quality by
providing for better emissions in vehicle fleets, and
customer satisfaction through better vehicle
performance.

Cleaner burning gasoline

Cleaner burning gasoline, including reformulated
gasoline that contains oxygenates such as ethanol
or MTBE is available in many areas.

Lexus recommends the use of cleaner burning gasoline
and appropriately blended reformulated gasoline.
These types of gasoline provide excellent vehicle
performance, reduce vehicle emissions, and improve air
quality.

Oxygenates in gasoline

Lexus allows the use of oxygenate blended gasoline
where the oxygenate content is up to 10% ethanol or
15% MTBE. If you use gasohol in your Lexus, be
sure that it has an octane rating no lower than 87.

Lexus does not recommend the use of gasoline
containing methanol.

Sulfur in gasoline

If your vehicle is certified to California Emission
Regulation, the vehicle is designed to operate on
California cleaner burning gasoline (CBG) that
contains lower sulfur. If you cannot use California
CBG, your emission control system may suffer
damage and turn on the Malfunction Indicator Lamp.

If the malfunction is caused by the type of fuel used,
repairs may not be covered by your warranty.

426

ENGINE

Gasoline containing MMT

Some gasoline contain an octane enhancing
additive called MMT (Methylcyclopentadienyl
Manganese Tricarbonyl).

Lexus does not recommend the use of gasoline that
contains MMT. If fuel containing MMT is used, your
emission control system may be adversely affected.
The Malfunction Indicator Lamp on the instrument
cluster may come on. If this happens, contact your
Lexus dealer for service.

Gasoline quality

In a very few cases, you may experience driveability
problems caused by the particular gasoline that you are
using. If you continue to have unacceptable driveability,
try changing gasoline brands. If this does not rectify your
problem, then consult your Lexus dealer.

NOTICE



Do not use gasohol other than stated above. It
will cause fuel system damage or vehicle
performance problems.



If drivability problems are encountered (poor
hot starting, vaporizing, engine knock, etc.),
discontinue its use.



Take care not to spill gasohol during refueling.
Gasohol may cause paint damage.

Fuel tank capacity

65 L (17.2 gal., 14.3 lmp.gal.)

FACTS ABOUT ENGINE OIL

CONSUMPTION

Functions of engine oil

Engine oil has the primary function of lubricating and
cooling the inside of the engine, and plays a major role
in maintaining the engine in proper working order.

Engine oil consumption

It is normal that an engine should consume some
engine oil during normal engine operation. The
causes of oil consumption in a normal engine are as
follows.

 Oil is used to lubricate pistons, piston rings and

cylinders. A thin film of oil is left on the cylinder wall
when a piston moves downwards in the cylinder.
High negative pressure generated when the vehicle
is decelerating sucks some of this oil into the
combustion chamber. This oil as well as some part of
the oil film left on the cylinder wall is burned by the
high temperature combustion gases during the

427

ENGINE

combustion process.

 Oil is also used to lubricate the stems of the intake

valves. Some of this oil is sucked into the combustion
chamber together with the intake air and is burned
along with the fuel. High temperature exhaust gases
also burn the oil used to lubricate the exhaust valve
stems.

428

The amount of engine oil consumed depends on the
viscosity of the oil, the quality of the oil and the way
the vehicle is driven.

More oil is consumed under driving conditions such as
high speeds and frequent acceleration and
deceleration.

A new engine consumes more oil, since its pistons,
piston rings and cylinder walls have not become
conditioned.

When judging the amount of oil consumption, keep
in mind that the oil may have become diluted,
making it difficult to judge the true level accurately .

For example, if a vehicle is used for repeated short trips
and consumes a normal amount of oil, the dipstick may
not show any drop in the oil level at all, even after 1000
km (600 miles) or more. This is because the oil is
gradually becoming diluted with fuel or moisture, making
it appear that the oil level has not changed.

The diluting ingredients evaporate out when the vehicle
is then driven at high speeds, as on an expressway,
making it appear that oil is excessively consumed after
driving at high speeds.

Importance of engine oil level check

One of the most important points in proper vehicle
maintenance is to keep the engine oil at the optimum
level so that oil function will not be impaired. Therefore,
it is essential that the oil level be checked regularly.

ENGINE

Lexus recommends that the oil level be checked every
time you refuel the vehicle.

NOTICE

Failure to check the oil level regularly could lead
to serious engine trouble due to insufficient oil.

For detailed information on oil level check, see
”Checking the engine oil level” on page 431.

429

ENGINE

USED ENGINE OIL

CAUTION

 Used engine oil contains potentially harmful

contaminants which may cause skin disorders such

as inflammation or skin cancer, so care should be

taken to avoid prolonged and repeated contact with

it. To remove used engine oil from your skin, wash

thoroughly with soap and water.

 Do not leave used oil within the reach of children.
 Dispose of used oil and used oil filters only in a safe

and acceptable manner. Do not dispose of used oil

and used oil filters in household trash, in sewers or

onto the ground. Call your Lexus dealer or a service

station for information concerning recycling or

disposal.

430

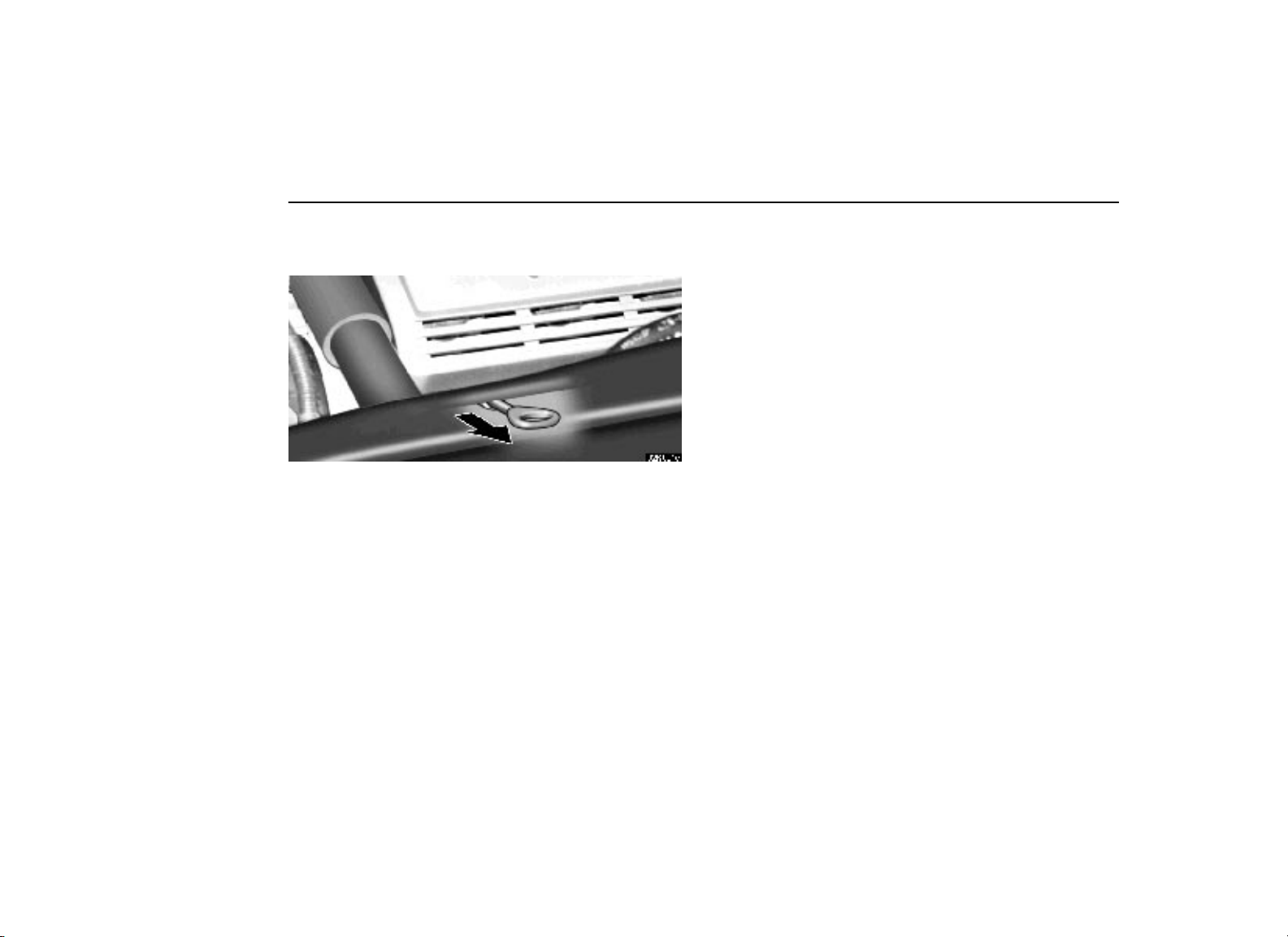

CHECKING THE ENGINE OIL

LEVEL

62R001c

With the engine at operating temperature and turned
off, check the oil level on the dipstick.

1. To get a true reading, the vehicle should be on a level
spot. After turning off the engine, wait a few minutes for
the oil to drain back into the bottom of the engine.

2. Pull out the dipstick, and wipe it clean with a rag.

3. Reinsert the dipstick and push it in as far as it will go,
or the reading will not be correct.

ENGINE

431

ENGINE

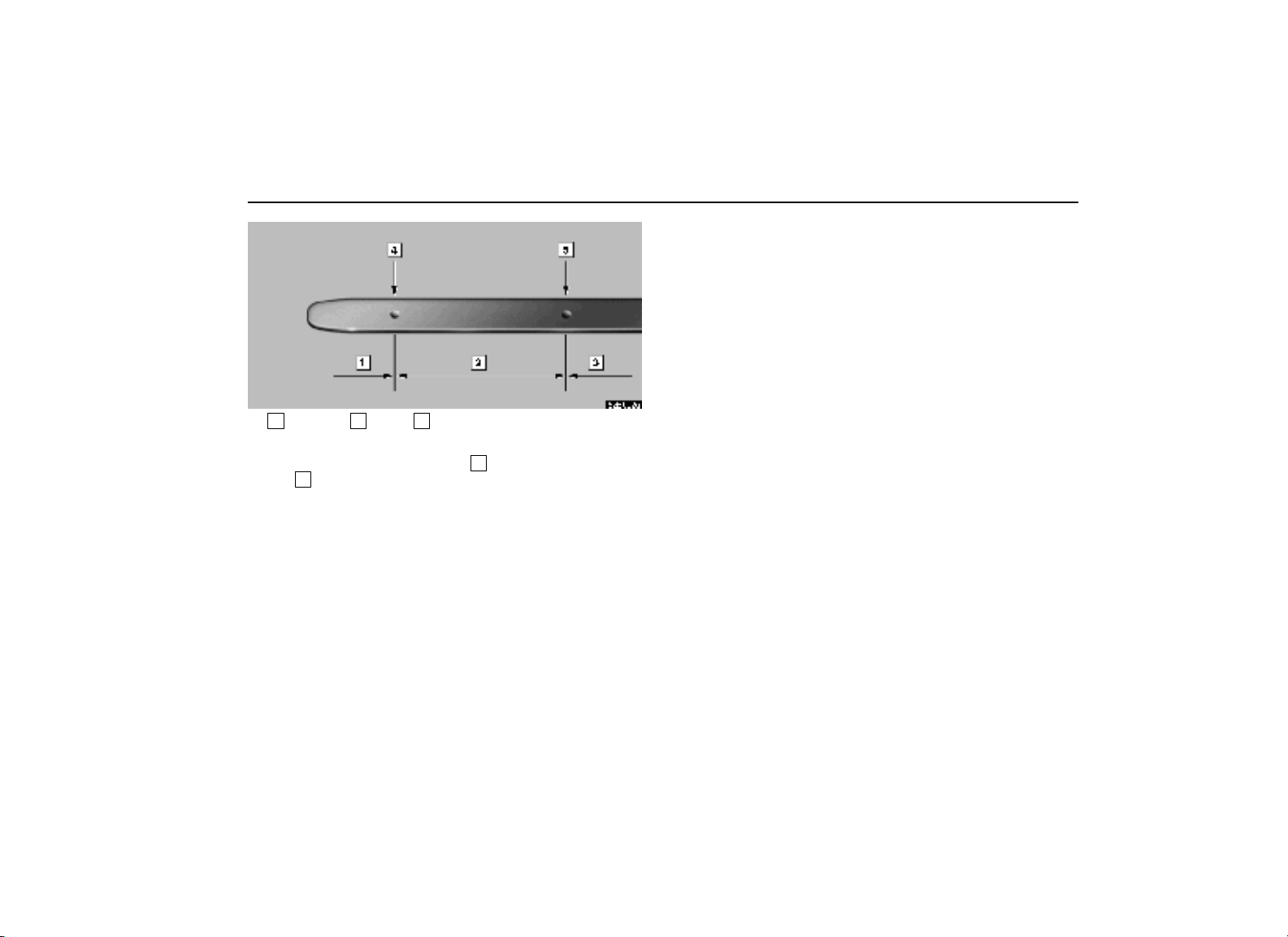

62e002a

1



Add oil 2O.K. 3Too full

4. Pull the dipstick out and look at the oil level on the end.
If it is between the low level mark (

5

mark (

), it is O.K.

4

) and the full level

432

62R003b

ENGINE

433

ENGINE

If the oil level is below or only slightly above the low
mark, add engine oil of the same type as already in
the engine.

Remove the oil filler cap and add engine oil a little at a
time, checking the dipstick. The approximate quantity o f
oil needed to fill between the low level mark and the full
level mark on the dipstick is indicated below for
reference.

When the level reaches within the correct range, return
the filler cap and turn the cap clockwise until you hear a
click.

Oil quantity . L (qt., lmp. qt.) 1.5 (1.6, 1.3)

NOTICE

Avoid overfilling, or the engine could be
damaged. Check the oil level on the dipstick once
again after adding the oil.

434

Engine oil selection

Use API SJ, ”Energy–Conserving” multigrade engine oil
or ILSAC multigrade engine oil.

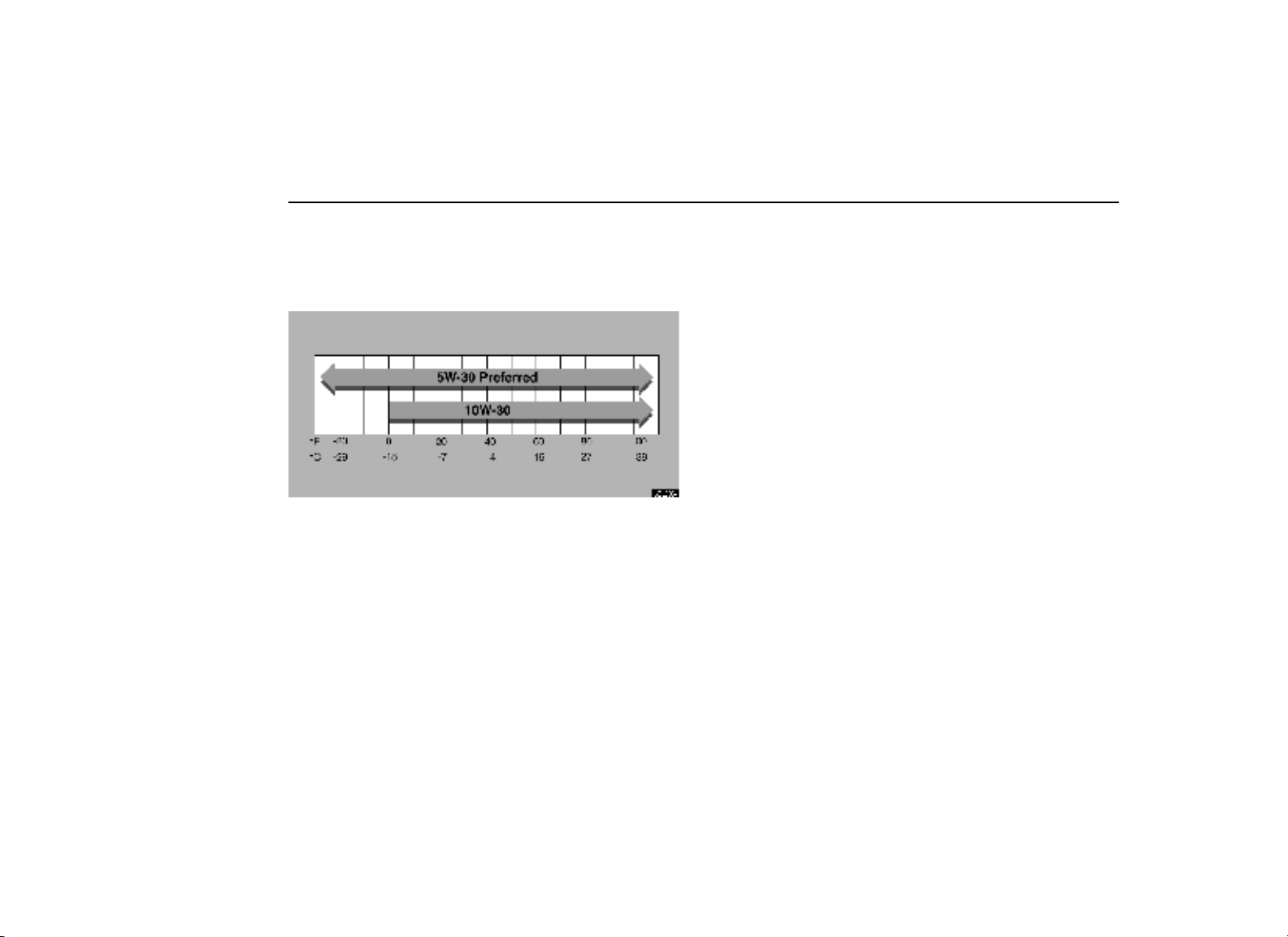

Recommended viscosity (SAE):

62L005

Temperature range anticipated before next oil change

SAE 5W–30 is the best choice for your vehicle, for
good fuel economy, and good starting in cold
weather.

If you use SAE 10W–30 engine oil in extremely low
temperatures, the engine may become difficult to
start, so SAE 5W–30 engine oil is recommended.

ENGINE

435

ENGINE

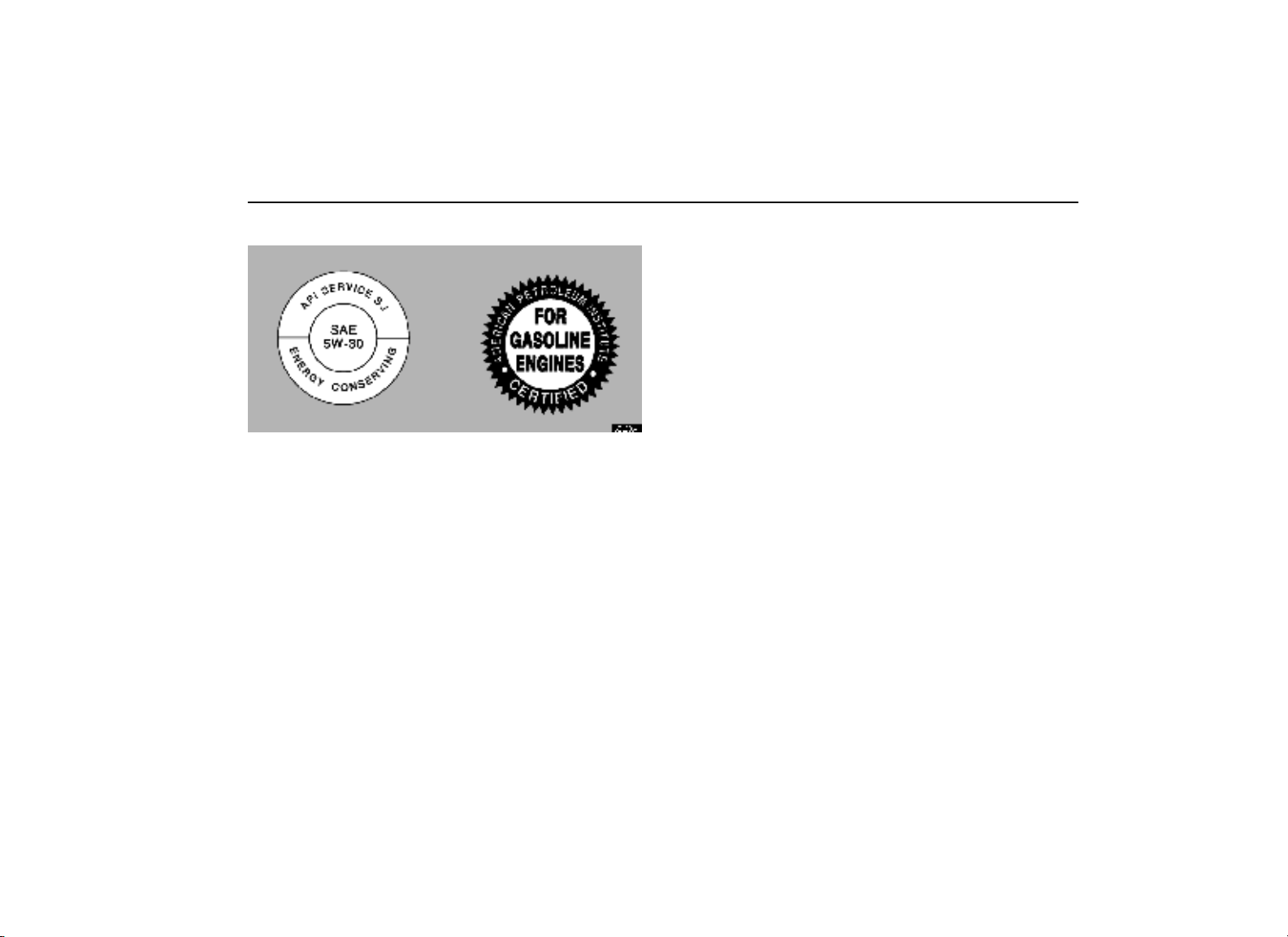

Oil identification marks

62L006



API Service Symbol

Mark

Either or both API registered marks are added to some
oil containers to help you select the oil you should use.

 The API Service Symbol is located anywhere on the

outside of the container.
The top portion of the label shows the oil quality by

API (American Petroleum Institute) designation such
as SJ. The center portion of the label shows the SAE
viscosity grade such as SAE 5W–30.
”Energy–Conserving”, shown in the lower portion,
indicates that the oil has fuel–saving capabilities.

 The ILSAC (International Lubricant Standardization

and Approval Committee) Certification Mark is
displayed on the front of the container.



ILSAC Certification

CHECKING THE ENGINE

COOLANT LEVEL

436

62R004

1



Reservoir cap 2Upper line 3Lower line

Look at the see–through coolant reservoir when the
engine is cold. The coolant level is satisfactory if it
is between the”FULL” and ”LOW” lines on the
reservoir. If the level is low, add ethylene–glycol
type coolant for a proper corrosion protection of
aluminum components.

The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the
”LOW” line, add coolant. Bring the level up to the ”FULL”
line.

Always use ethylene–glycol type coolant for a proper
corrosion protection of aluminum components. See
information in the next column.

ENGINE

If the coolant level drops within a short time after
replenishing, there may be a leak in the system. Visually
check the radiator, hoses, engine coolant filler cap,
radiator cap and drain cock and water pump.

If you can find no leak, have your Lexus dealer test the
radiator cap pressure and check for leaks in the cooling
system.

437

ENGINE

CAUTION

To prevent burning yourself, do not remove the radiator
cap when the engine is hot.

438

ENGINE

Coolant type selection

Use of improper coolants may damage your engine
cooling system. Your coolant must contain
ethylene–glycol type coolant for a proper corrosion
protection of your engine that contains aluminum
components. Use ”Toyota Long Life Coolant” or
equivalent.

In addition to preventing freezing and subsequent
damage to the engine, this type of coolant will also
prevent corrosion. Further supplemental inhibitors or
additives are neither needed nor recommended.

Read the coolant container for information on freeze
protection. Follow the manufacturer’s directions for how
much to mix with plain water (preferably demineralized
water or distilled water). The total capacity of the cooling
system is given on page 423.

We recommend to use 50% solution for your Lexus, to
provide protection down to about –35C (–31F). When
it is extremely cold, to provide protection down to about
–50C (–58F), 60% solution is recommended. Do not
use more than 70% solution for better coolant
performance.

NOTICE

Do not use alcohol type antifreeze or plain water
alone.

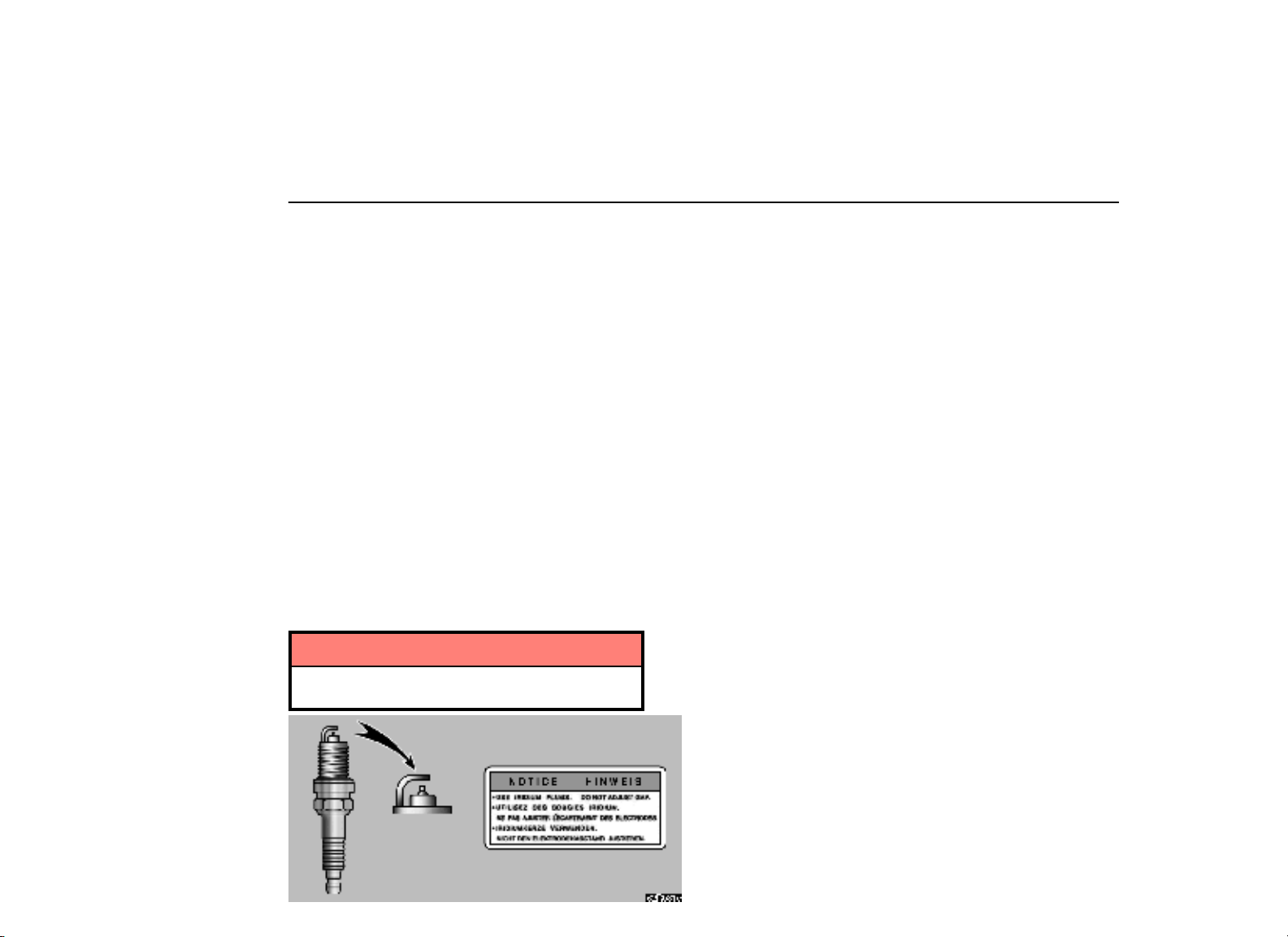

SPARK PLUGS

62R031c

439

ENGINE

Your engine is fitted with iridium–tipped spark
plugs.

NOTICE

Use only iridium–tipped spark plugs and do not
adjust gaps for your engine performance and
smooth drivability.

440

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Introduction

Vehicle identification 414. . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine compartment overview 415. . . . . . . . . . . . . . . . . .

Do–it–yourself service precautions 417. . . . . . . . . . . . . .

Parts and tools 419. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

413

INTRODUCTION

VEHICLE IDENTIFICATION

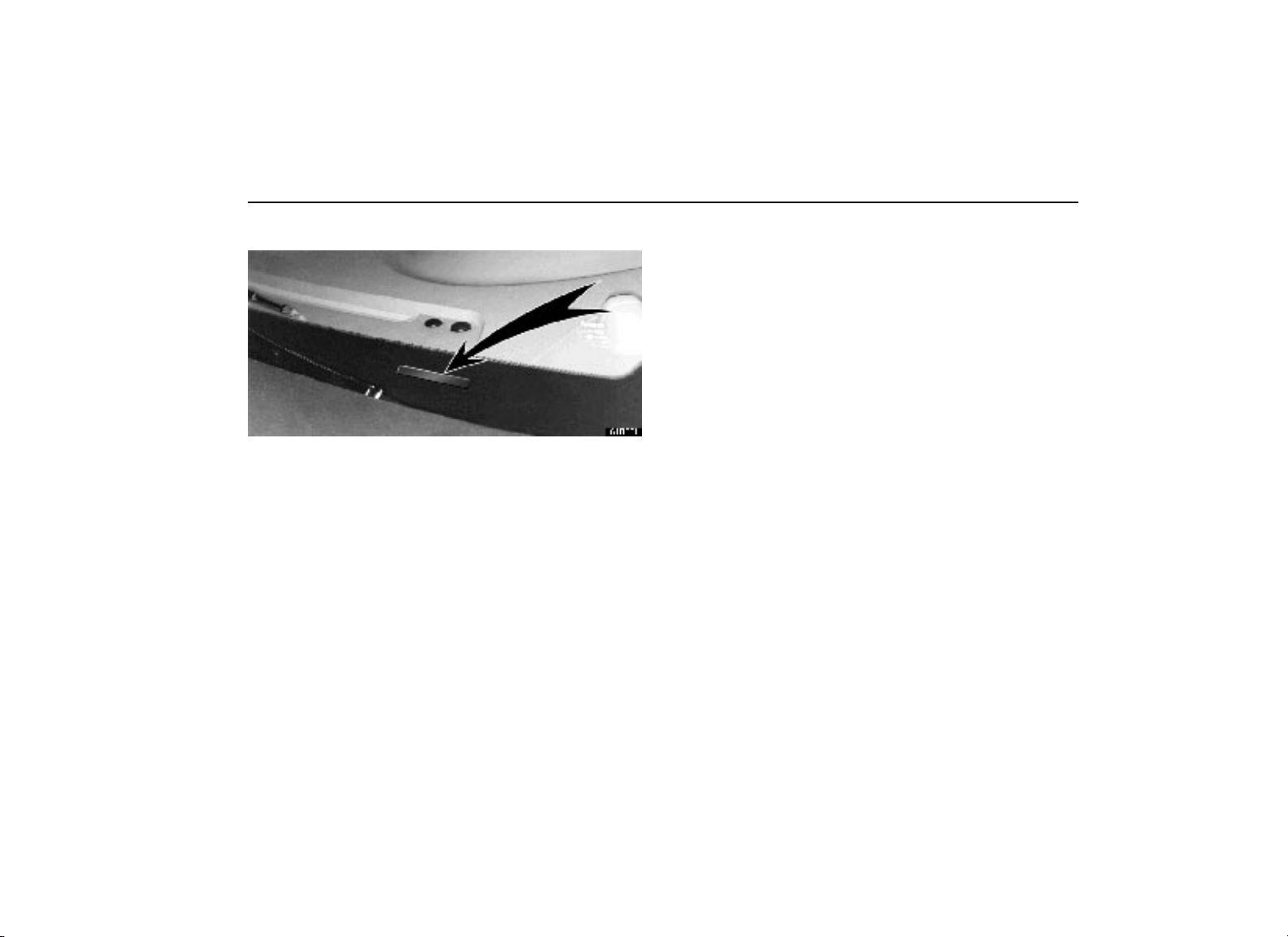

61R001

The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left
top of the instrument panel and can be seen through
the windshield from outside.

This is the primary identification number for your Lexus.
It is used in registering the ownership of your vehicle.

414

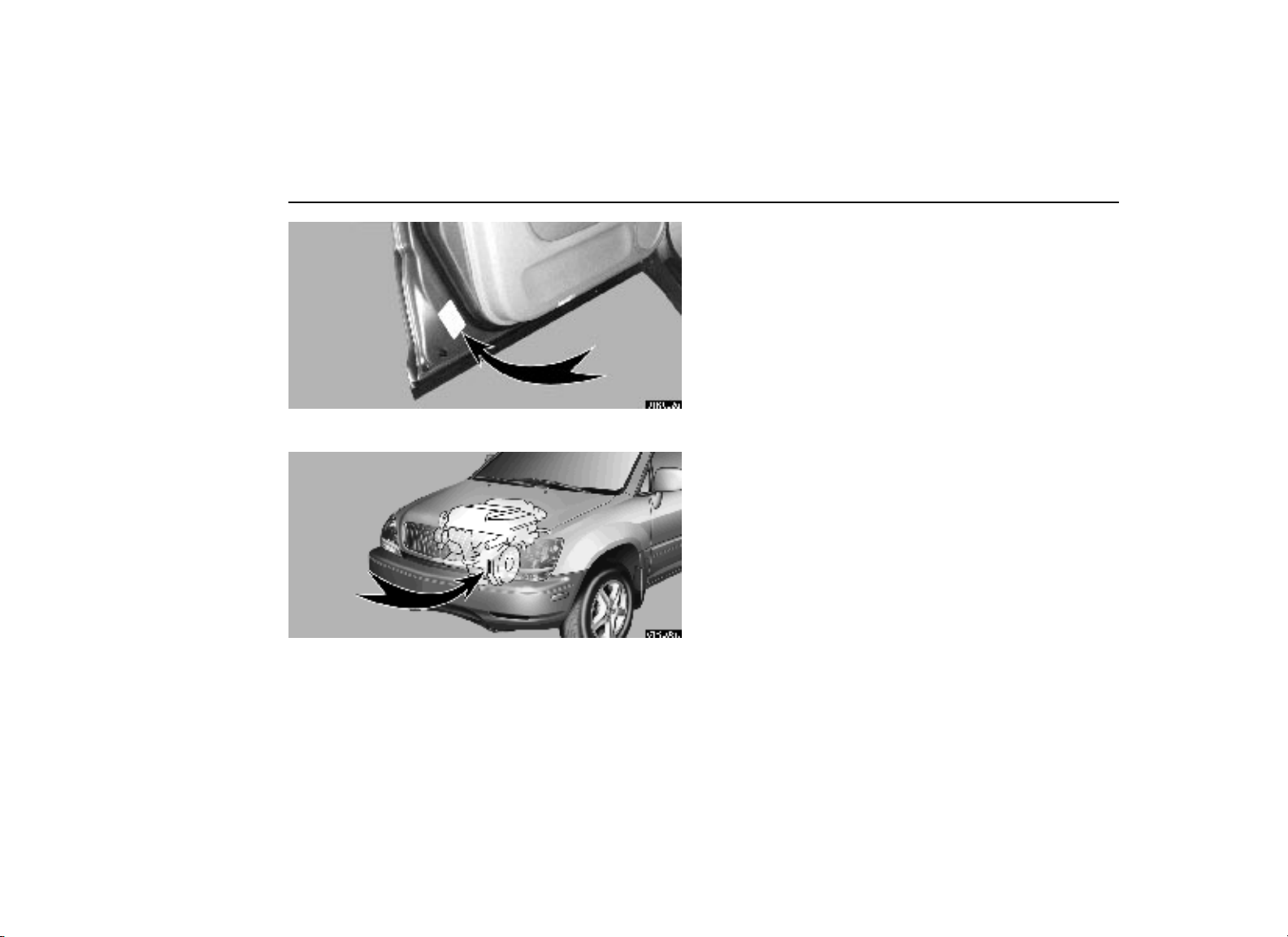

61R002a

The vehicle identification number (VIN) is also on the
Certification Label.

61R003a

The engine number is stamped on the engine block
as shown.

INTRODUCTION

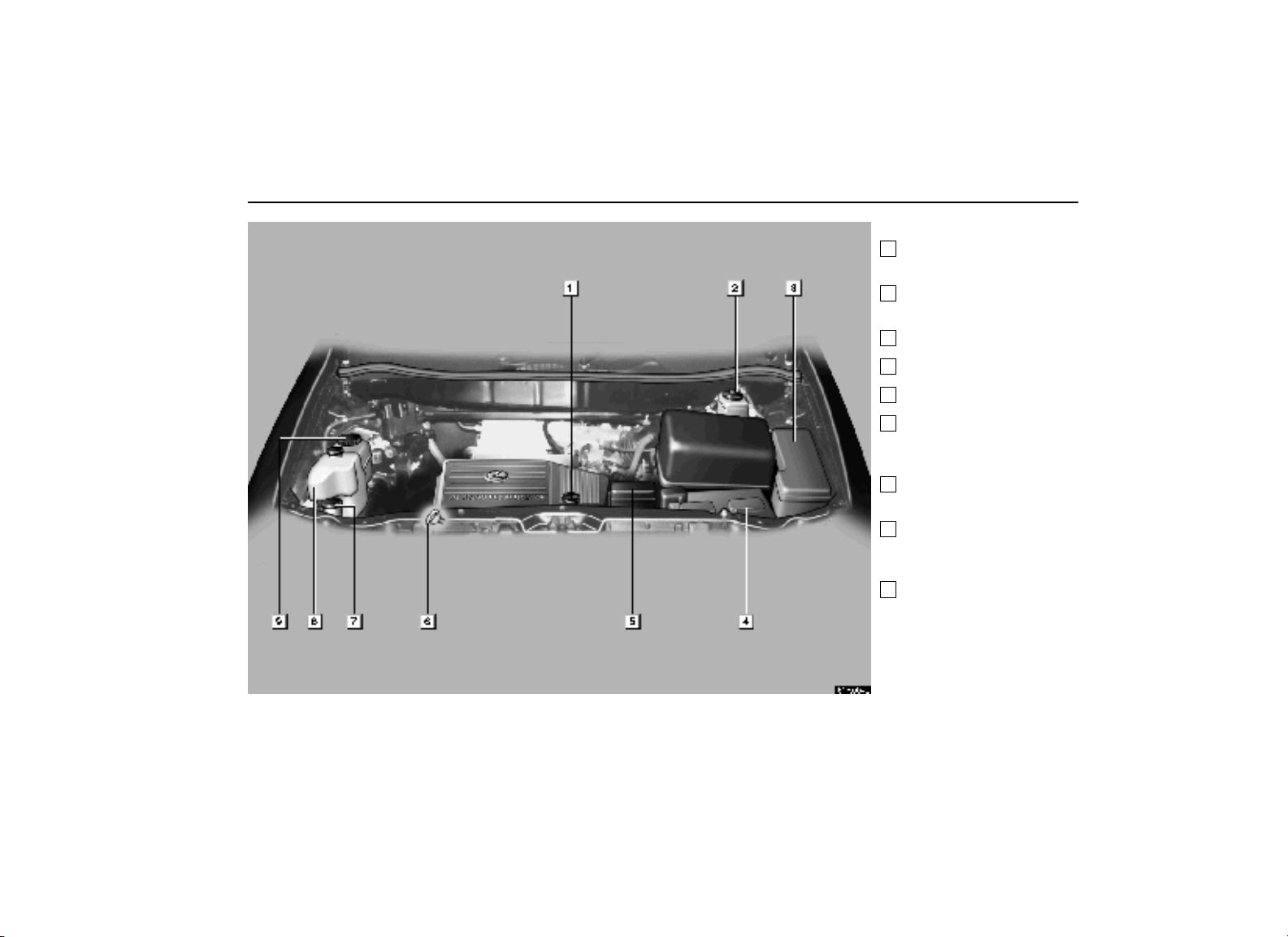

ENGINE COMPARTMENT OVERVIEW

415

INTRODUCTION

61R004c

1

Engine oil
filler cap

2

Brake fluid
reservoir

3

Fuse box

4

Battery

5

Fuse box

6

Engine oil
level
dipstick

7

Washer
fluid tank

8

Engine
coolant
reservoir

9

Power
steering
fluid
reservoir

416

DO–IT–YOURSELF SERVICE

PRECAUTIONS

If you perform maintenance yourself, be sure to
follow the correct procedure given in this Section.

You should be aware that improper or incomplete
servicing may result in operating problems.

Performing do–it–yourself maintenance during the
warranty period may affect your warranty coverage.
Read the separate Lexus Warranty statement for details
and suggestions.

This Section gives instructions only for those items that
are relatively easy for an owner to perform. As explained
in Section 5, there are still a number of items that must
be performed by a qualified technician with special tools.

For information on tools and parts for do–it–yourself
maintenance, see ”Parts and tools” on page 419.

Utmost care should be taken when working on your
vehicle to prevent accidental injury. Here are a few
precautions that you should be especially careful to
observe:

INTRODUCTION

417

INTRODUCTION

CAUTION

 When the engine is running, keep hands, clothing,

and tools away from the moving fan and engine drive

belt. (Removing rings, watches, and ties is

advisable.)
 Right after driving, the engine compartment – the

engine, radiator, exhaust manifold and power

steering fluid reservoir, etc. – will be hot. So be

careful not to touch them. Oil and other fluids may

also be hot.
 Do not smoke, cause sparks or allow open flames

around fuel or the battery. Their fumes are

flammable.
 Be extremely cautious when working on the battery.

It contains poisonous and corrosive sulfuric acid.
 Do not get under your vehicle with just the body jack

supporting it. Always use automotive jack stands or

other solid supports.
 Use eye protection whenever you work on or under

your vehicle where you may be exposed to flying or

falling material, fluid spray, etc.

418

INTRODUCTION

NOTICE



Remember that battery and ignition cables
carry high currents or voltages. Be careful of
accidentally causing a short circuit.



Before closing the engine hood, check to see
that you have not forgotten any tools, rags, etc.



Do not drive with the air cleaner removed, or
excessive engine wear could result. Also
backfiring could cause a fire in the engine
compartment.



Do not overfill automatic transmission fluid, or
the transmission could be damaged.



Be careful not to scratch the glass surface with
the wiper frame.

PARTS AND TOOLS

Here is a list of parts and tools you will need to perform
do–it–yourself maintenance. Remember all Lexus parts
are designed in metric sizes, so your tools must be
metric.

Checking the engine oil level

Parts (if level is low):

 Use API SJ, ”Energy–Conserving” multigrade engine

oil or ILSAC multigrade engine oil. For recommended
oil viscosity, see page 435.

Tools:

 Rag or paper towel
 Funnel (only for adding oil)

Checking the engine coolant level

Parts (if level is low):

 ”Toyota Long Life Coolant” or equivalent

See ”Checking the engine coolant level” on page 436
for instructions.

 Demineralized or distilled water

Tools:

 Funnel (only for adding coolant)

419

INTRODUCTION

Checking brake fluid

Parts (if level is low):

 FMVSS No. 116 DOT 3 or SAE J1703 brake fluid

Tools:

 Funnel (only for adding fluid)

Checking power steering fluid

Parts (if level is low):



 Automatic transmission fluid DEXRON

Tools:

 Rag or paper towel
 Funnel (only for adding fluid)

II or III

Checking battery condition

Tools:

 Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)

Checking and replacing the blade type
fuses

Parts (if replacement is necessary):

 Fuse with same amperage rating as original

Checking the cartridge type fuses

Parts (if replacement is necessary):

 Genuine Lexus fuse or equivalent with same

amperage rating as original

Adding washer fluid

Parts:

 Water
 Washer fluid containing antifreeze (for winter use)

Tools:

 Funnel

420

SECTION 5

MAINTENANCE

Maintenance requirements 405. . . . . . . . . . . . . . . . . . . . .

General maintenance 407. . . . . . . . . . . . . . . . . . . . . . . . . .

Does your vehicle need repairing? 410. . . . . . . . . . . . . .

For scheduled maintenance information,
please refer to the “Owner’s Manual
Supplement / Maintenance Schedule”.

404

MAINTENANCE

MAINTENANCE

REQUIREMENTS

Your Lexus vehicle has been designed to have fewer
maintenance requirements with longer service intervals
to save both your time and money. However, each
regular maintenance as well as day–to–day care is more
important than ever before to ensure smooth,
trouble–free, safe, and economical driving.

It is the owner’s responsibility to make sure the specified
maintenance, including general maintenance services,
is performed. Note that both the new vehicle and
emission control system warranties specify that proper
maintenance and care must be performed. See
“Owner’s Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet” for complete warranty information.

General maintenance

General maintenance items are those day–to–day care
practices that are important to your vehicle for proper
operation. It is the owner’s responsibility to ensure that
the general maintenance items are performed regularly.

These checks or inspections can be done either by
yourself or your Lexus dealer.

Scheduled maintenance

The scheduled maintenance items listed in the “Owner’s
Manual Supplement / Maintenance Schedule” are those
required to be serviced at regular intervals.

405

MAINTENANCE

For details of your maintenance schedule, read the
“Owner’s Manual Supplement / Maintenance
Schedule”.

It is recommended that any genuine Lexus parts be
used for maintenance.

The owner may elect to use non–Lexus supplied
parts for replacement purposes without invalidating
the emission control system warranty. However,
use of replacement parts which are not of equivalent
quality may impair the effectiveness of the emission
control systems.

You may also elect to have maintenance,
replacement, or repair of the emission control
devices and system performed by any automotive
repair establishment or individual without
invalidating this warranty. See “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty
Booklet” for complete warranty information.

Where to go for service?

Lexus technicians are well–trained specialists and are
kept up to date with the latest service information
through technical bulletins, service tips, and
in–dealership training programs. They are well informed
about the operation of all the systems on your vehicle.

You can be confident that your Lexus dealer’s service
department performs the best job to meet the
maintenance requirements of your vehicle.

Your copy of the repair order is proof that all required
maintenance has been performed for warranty
coverage. And if any problems should arise with your
vehicle while under warranty, your Lexus dealer will
promptly take care of it. Again, be sure to keep a copy
of the repair order for any service performed on your
Lexus.

What about do–it–yourself maintenance?

Many of the maintenance items are easy to do yourself,
if you have a little mechanical ability and a few basic
automotive tools. Simple instructions for how to perform
them are presented in Section 6.

If you are a skilled do–it–yourself mechanic, the Lexus
service manuals are recommended. Please be aware
that do–it–yourself maintenance can affect your
warranty coverage. See “Owner’s Guide”, “Owner’s
Manual Supplement” or “Warranty Booklet” for the
details.

406

GENERAL MAINTENANCE

Listed below are the general maintenance items that
should be performed at the intervals specified. It is
recommended that any problem you notice be brought
to the attention of your Lexus dealer or qualified service
shop for their advice.

CAUTION

Make these checks only where adequate ventilation can
be obtained if you run the engine.

MAINTENANCE

Vehicle exterior

Items listed below should be performed from time to
time, unless otherwise specified.

Tire pressure

Check the pressure with a gauge every two weeks, or at
least once a month and adjust as shown on the tire
pressure label. See page 452 for additional information.

Tire surface

Check the tires carefully for cuts, damage or excessive
wear. See page 454 for additional information.

Wheel nuts

When checking the tires, make sure to check the nuts for
looseness. Tighten them if necessary.

Tire rotation

Rotate the tires every 12000 km (7500 miles). See page
453 for additional information.

Fluid leaks

Check underneath for leaking fuel, oil, water or other
fluid after the vehicle has been parked for a while. If you
smell fuel fumes or notice any leak, have the cause
found and corrected immediately.

Doors and engine hood

Check that all doors and back door operate smoothly
and all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary
latch is released.

407

MAINTENANCE

Vehicle interior

Items listed below should be checked regularly, e.g.
while performing periodic services, cleaning the
vehicle, etc.

Lights

Make sure the headlight, stop lights, tail lights, turn
signal lights, and other lights are working. Check
headlight aim.

Service reminder indicators and warning buzzers

Check that all service reminder indicators and warning
buzzers function properly.

Steering wheel

Check that it has the specified free play. Be alert for
changes in steering condition, such as hard steering,
excessive free play or strange noise.

Seats

Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the
head restraints move up and down smoothly and that the
locks hold securely in any latched position. For
folding–down rear seatbacks, check that the latches
lock securely.

Seat belts

Check that the seat belt system such as buckles,
retractors and anchors operate properly and smoothly.

Make sure the belt webbing is not cut, frayed, worn or
damaged.

408

MAINTENANCE

Accelerator pedal

Check the pedal for smooth operation and uneven pedal
effort or catching.

Brake pedal

Check the pedal for smooth operation and the proper
clearance and free play. Check the brake booster
function.

Brakes

At a safe place, check that the brakes do not pull to one
side when applied.

Parking brake

Check that the pedal has the proper travel and that, on
a safe incline, your vehicle is held securely with only the
parking brake applied.

Automatic transmission ”Park” mechanism

Check the lock release button of the selector lever for
proper and smooth operation. On a safe incline, check
that your vehicle is held securely with the selector lever
in ”P” position and all brakes released.

Engine compartment

Items listed below should be checked from time to
time, e.g. each time when refueling.

Washer fluid

Make sure there is sufficient fluid in the tank. See page
489 for additional information.

Engine coolant level

Make sure the coolant level is between the ”FULL” and
”LOW” lines on the see–through reservoir when the
engine is cold. See page 436 for additional information.

Battery

Your Lexus has a maintenance free battery. You do not
have to add distilled water . For longer life of the battery,
however, see page 475 for additional information.

Brake fluid level

Make sure the brake fluid level is correct. See page 446
for additional information.

Engine oil level

Check the level on the dipstick with the engine turned off
and the vehicle parked on a level spot. See page 431 for
additional information.

409
