Lexus IS200 2005, IS220D 2005, IS250 2005, IS300 2005, IS350 2005 Owner Manual

04 06.30

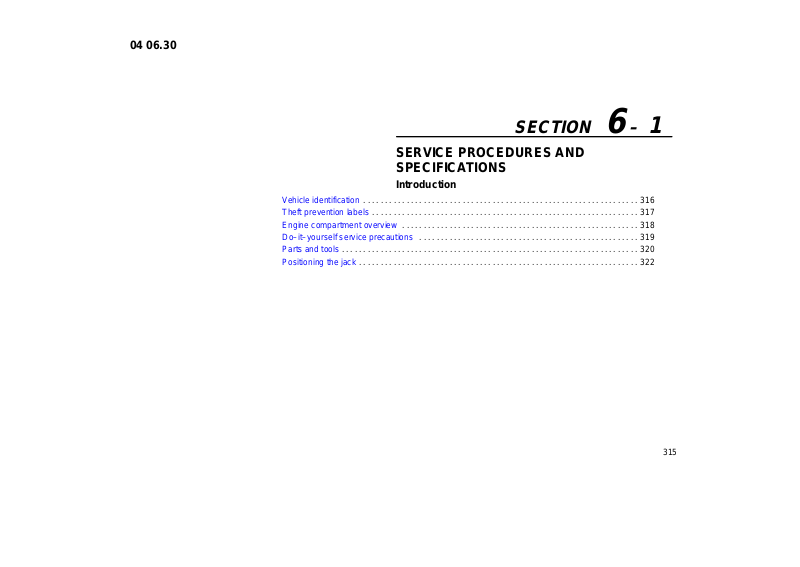

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Introduction

Vehicle identification 316. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft prevention labels 317. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine compartment overview 318. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Do–it–yourself service precautions 319. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts and tools 320. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Positioning the jack 322. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

315

04 06.30

INTRODUCTION

VEHICLE IDENTIFICATION

SV61008

The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left top of
the instrument panel and can be seen through the
windshield from outside.

This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.

SV63004

The vehicle identification number (VIN) is also on the
Certification Label.

SV61002

316

The engine number is stamped on the engine block as
shown.

04 06.30

INTRODUCTION

THEFT PREVENTION LABELS

SV61011

Your new vehicle carries theft prevention labels which are
approximately 47 mm (1.85 in.) by 12 mm (0.47 in.).

The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.

NOTICE

You should not attempt to remove the theft prevention
labels as it may violate certain state or federal laws.

317

04 06.30

INTRODUCTION

ENGINE COMPARTMENT OVERVIEW

SV61007a

1

Battery

2

Fuse box

3

Engine oil filler cap

4

Engine oil level
dipstick

5

Brake fluid reservoir

6

Washer fluid tank

7

Power steering fluid
reservoir

8

Engine coolant
reservoir

9

Electric cooling fans

10

Condenser

11

Radiator

318

04 06.30

INTRODUCTION

DO–IT–YOURSELF SERVICE

PRECAUTIONS

If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.

You should be aware that improper or incomplete servicing
may result in operating problems.

Performing do–it–yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.

This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in Section
5, there are still a number of items that must be performed by
a qualified technician with special tools.

For information on tools and parts for do–it–yourself
maintenance, see “Parts and tools” on page 320.

Utmost care should be taken when working on your vehicle to
prevent accidental injury . Here are a few precautions that you
should be especially careful to observe:

CAUTION

 When the engine is running, keep hands, clothing,

and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)

 Right after driving, the engine compartment – the

engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. – will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.

 Do not leave anything that may burn easily, such as

paper or rags, in the engine compartment.

 Do not smoke, cause sparks or allow open flames

around fuel or the battery. Their fumes are flammable.

 Do not get under your vehicle with just the body jack

supporting it. Always use automotive jack stands or
other solid supports.

 Be sure the ignition is off if you work near the electric

cooling fan or radiator grille. With the ignition on, the
electric cooling fan may automatically start to run if
the air conditioning is on and/or if the coolant
temperature is high.

 Use eye protection whenever you work on or under

your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.

 Be extremely cautious when working on the battery.

It contains poisonous and corrosive sulfuric acid.

319

04 06.30

INTRODUCTION

NOTICE



Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.



Add only “Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non–silicate, non–
amine, non–nitrite, and non–borate coolant with
long–life hybrid organic acid technology to fill the
radiator. “Toyota Super Long Life Coolant” is a mix­ture of 50% coolant and 50% deionized water (for the
U.S.A.) or 55% coolant and 45% deionized water (for
Canada).



If you spill some of the coolant, be sure to wash it off
with water to prevent it from damaging the parts or
paint.



Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.



Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.



Do not overfill automatic transmission fluid, or the
transmission could be damaged.



Be careful not to scratch the glass surface with the
wiper frame.

PARTS AND TOOLS

Here is a list of parts and tools you will need to perform
do–it–yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.

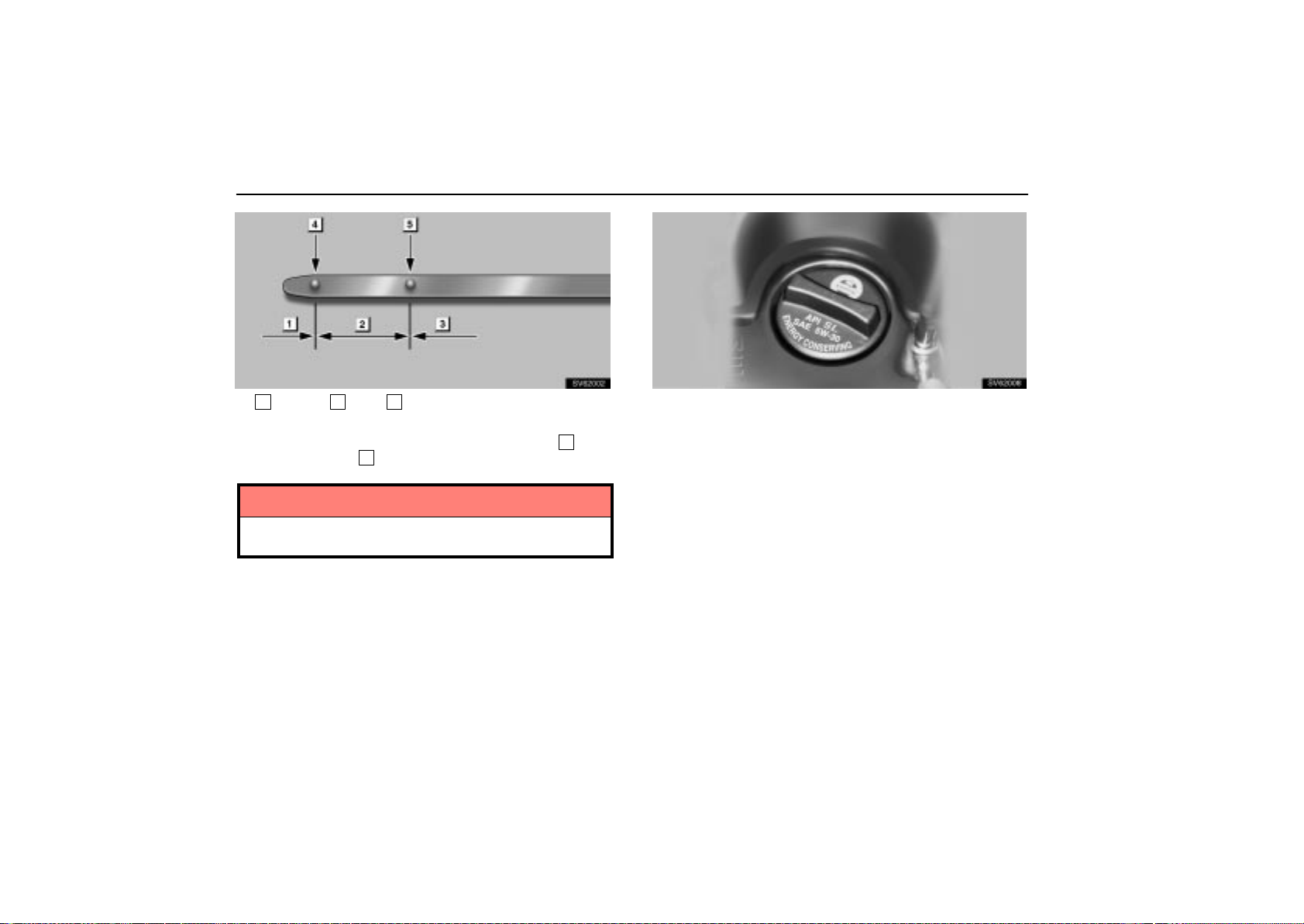

CHECKING THE ENGINE OIL LEVEL

Parts (if level is low):

 “Toyota Genuine Motor Oil” or equivalent

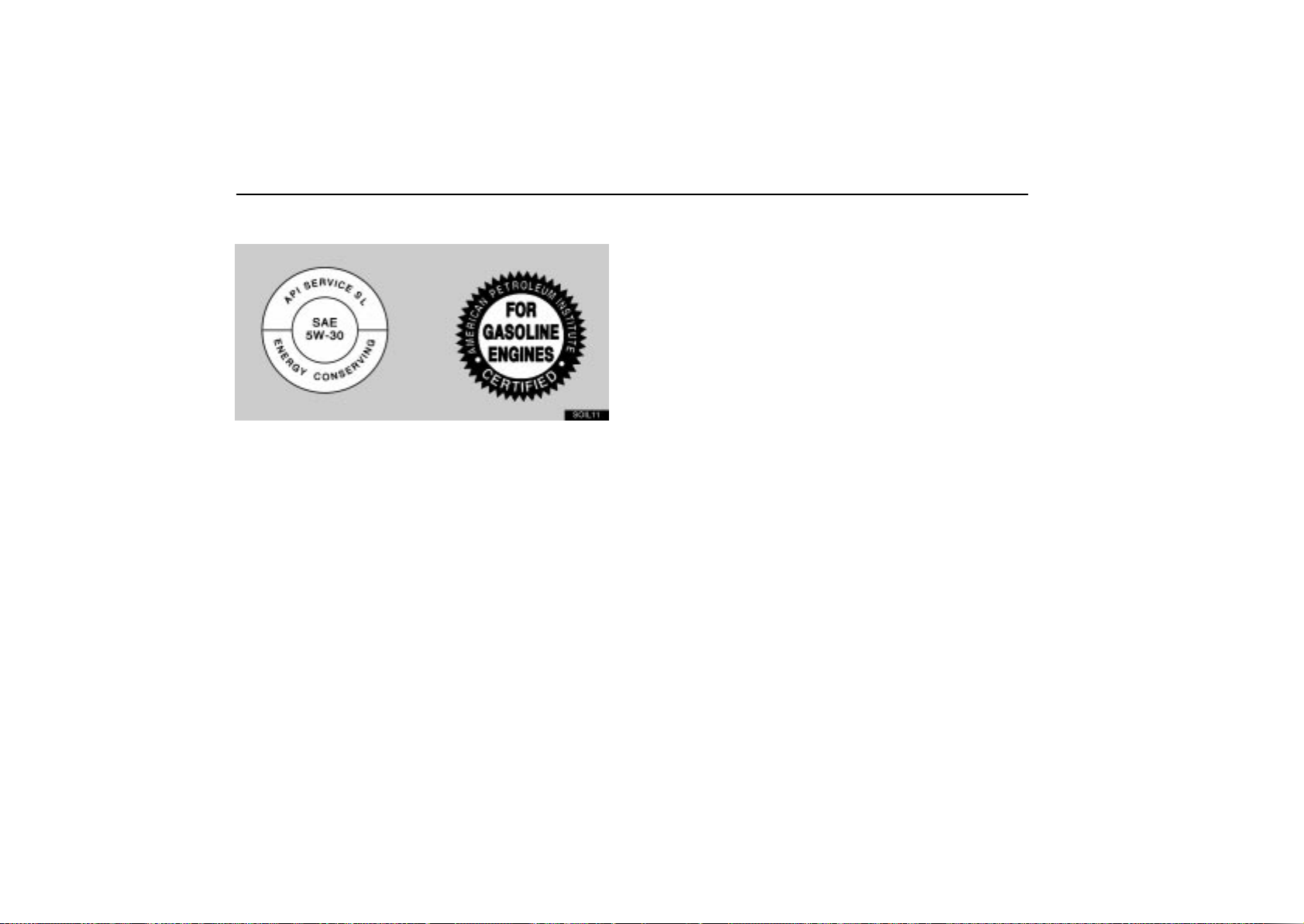

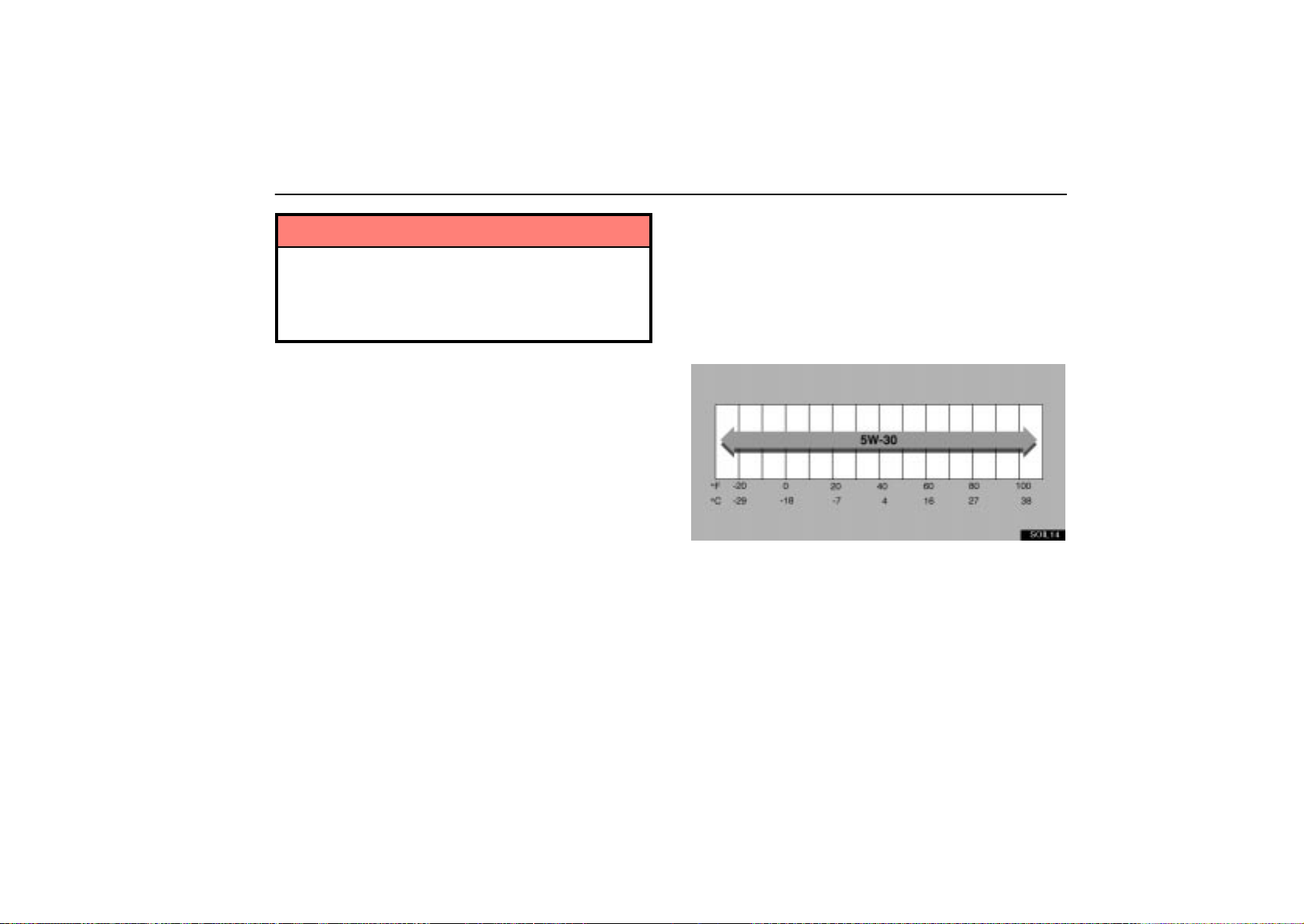

Oil grade: API grade SL “Energy–Conserving” or ILSAC

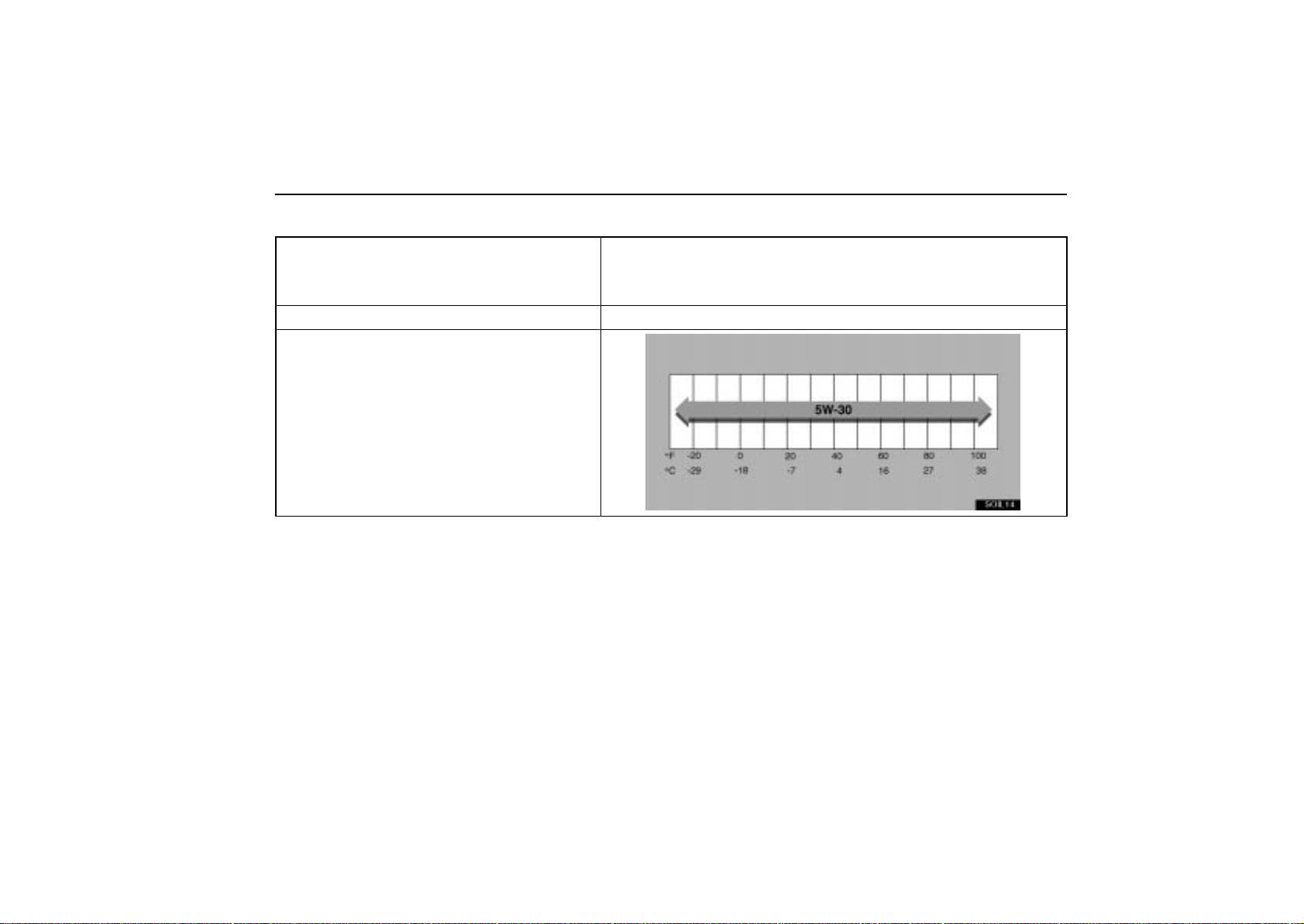

multigrade engine oil. For recommended oil viscosity, see

page 335.

Tools:

 Rag or paper towel
 Funnel (only for adding oil)

CHECKING THE ENGINE COOLANT LEVEL

Parts (if level is low):

 “Toyota Super Long Life Coolant” or similar high quality

ethylene glycol based non–silicate, non–amine, non–nitrite,
and non–borate coolant with long–life hybrid organic acid

technology.

“Toyota Super Long Life Coolant” is a mixture of 50%
coolant and 50% deionized water (for the U.S.A.) or 55%

coolant and 45% deionized water (for Canada).

Tools:

 Funnel (only for adding coolant)

320

04 06.30

INTRODUCTION

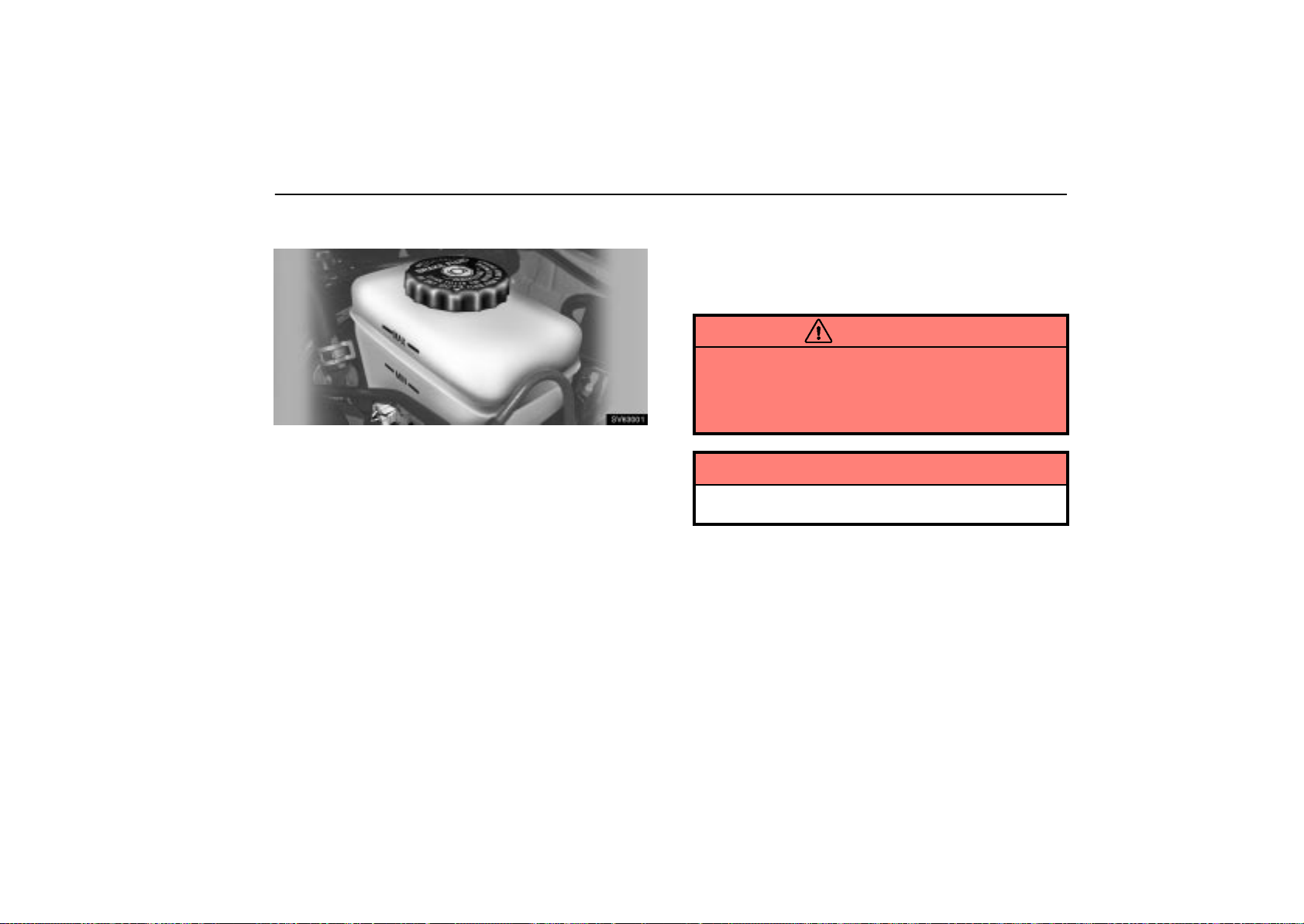

CHECKING BRAKE FLUID

Parts (if level is low):

 FMVSS No. 116 DOT 3 or SAE J1703 brake fluid

Tools:

 Funnel (only for adding fluid)

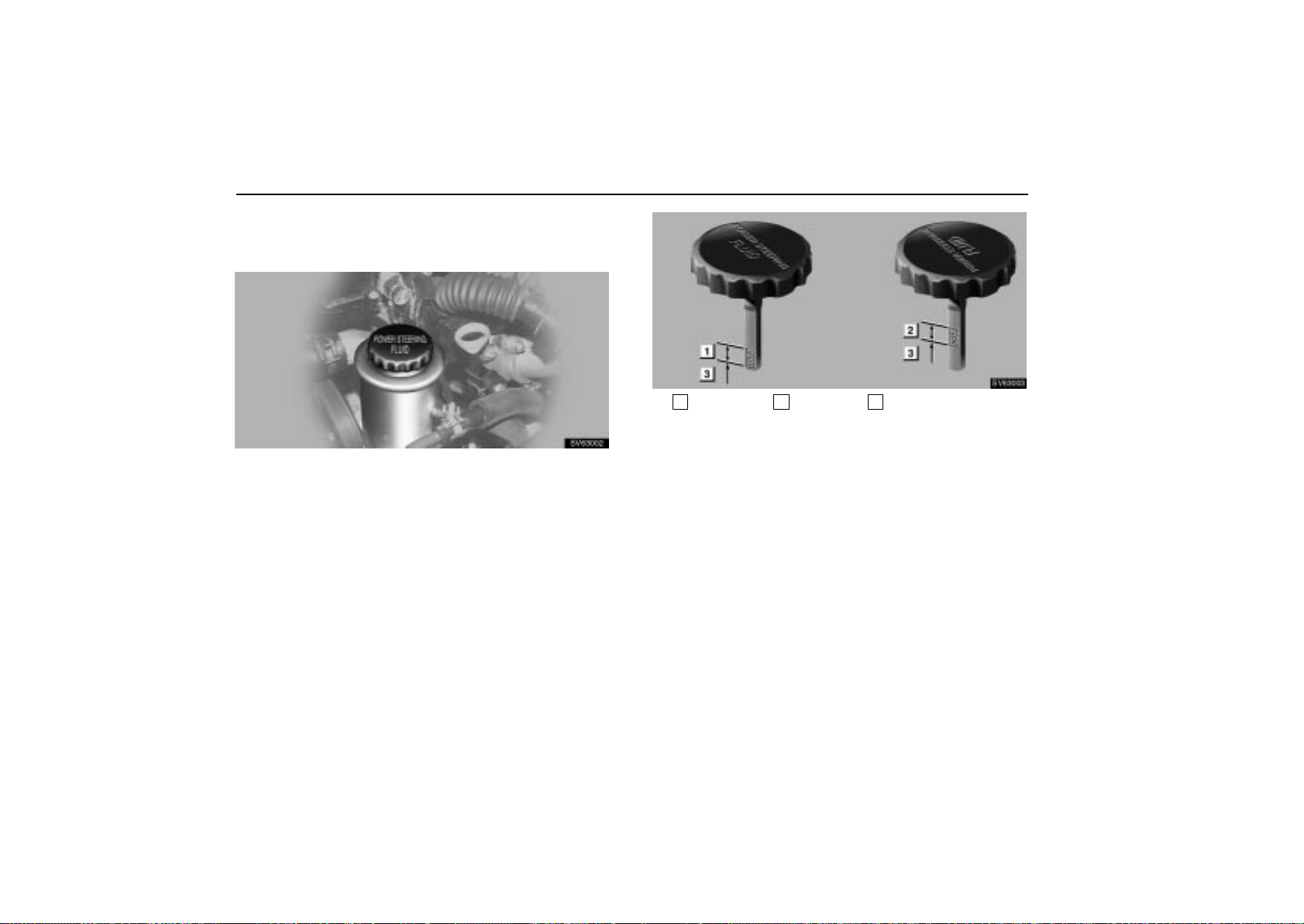

CHECKING POWER STEERING FLUID

Parts (if level is low):



 Automatic transmission fluid DEXRON

Tools:

 Rag or paper towel
 Funnel (only for adding fluid)

II or III

CHECKING BATTERY CONDITION

Tools:

 Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)

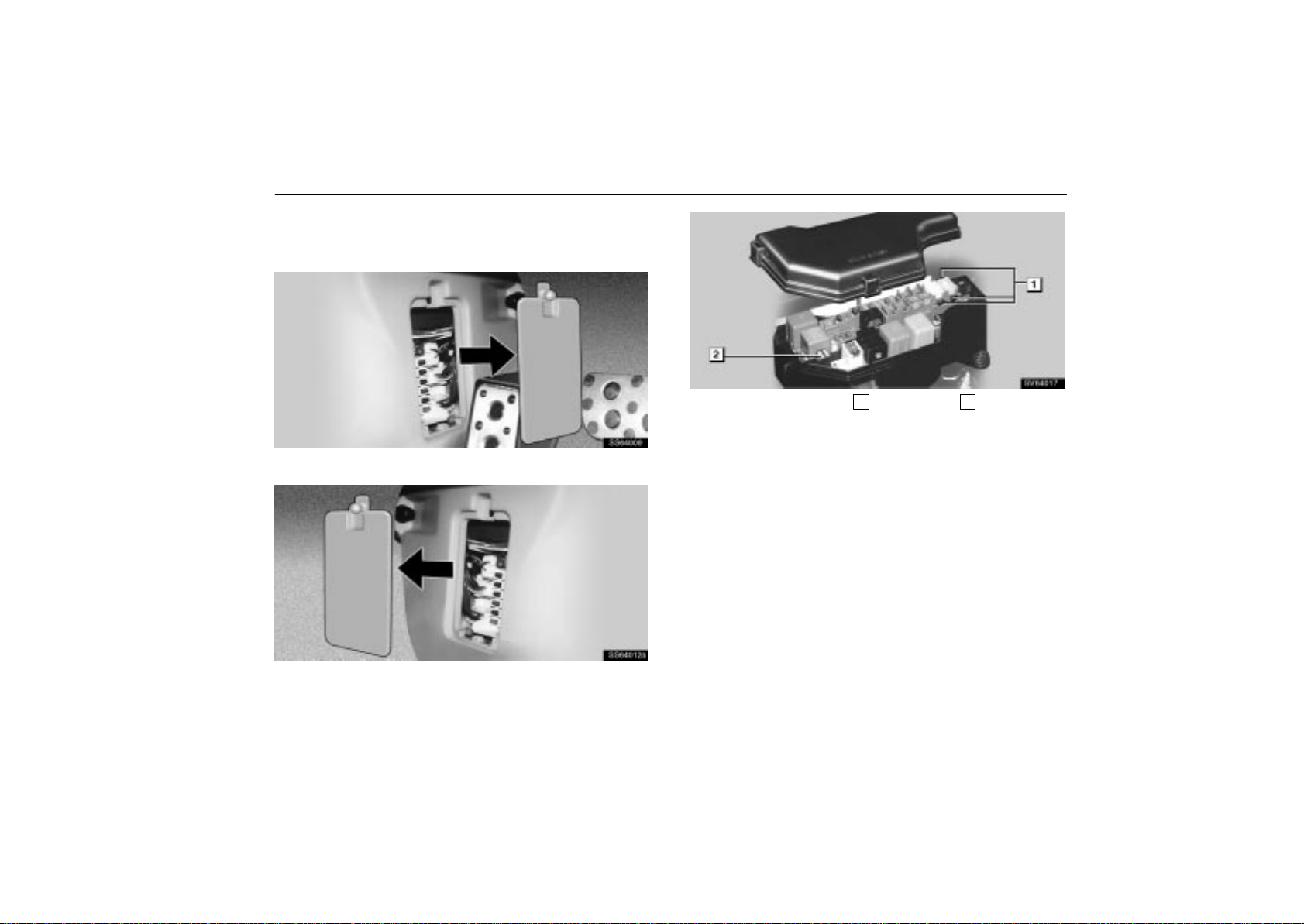

CHECKING AND REPLACING THE BLADE
TYPE FUSES

Parts (if replacement is necessary):

 Fuse with same amperage rating as original

CHECKING THE CARTRIDGE TYPE FUSES

Parts (if replacement is necessary):

 Genuine Lexus fuse or equivalent with same amperage

rating as original

ADDING WASHER FLUID

Parts:

 Water
 Washer fluid containing antifreeze (for winter use)

Tools:

 Funnel

321

04 06.30

INTRODUCTION

POSITIONING THE JACK

SV61006

Front of vehicle

When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustration.

Jack position

Support position and Pantograph jack position

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front– Front crossmember
Rear– Rear differential

. . . .

CAUTION

When jacking, be sure to observe the following to
reduce the possibility of personal injury:

 Follow jacking instructions.
 Do not put any part of your body under the vehicle

supported by a jack. Personal injury may occur.

 Do not start or run the engine while your vehicle is

supported by the jack.

 Stop the vehicle on a level firm ground, firmly set the

parking brake and put the transmission in “P”
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.

 Make sure to set the jack properly in the jack point.

Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.

 Never get under the vehicle when the vehicle is

supported by the jack alone; use vehicle support
stands.

 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not place any objects on

top of or underneath the jack.

322

04 06.30

INTRODUCTION

NOTICE

Make sure to place the jack correctly, or your vehicle
may be damaged.

323

04 06.30

INTRODUCTION

324

04 06.30

SECTION 7

REPORTING SAFETY DEFECTS
FOR U.S. OWNERS

Reporting safety defects for U.S. owners

Reporting safety defects for U.S. owners 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

403

04 06.30

REPORTING SAFETY DEFECTS

REPORTING SAFETY DEFECTS

FOR U.S. OWNERS

If you believe that your vehicle has a defect which
could cause a crash or could cause injury or death,
you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in
addition to notifying Toyota Motor Sales, U.S.A.,
Inc. (Toll–free: 1–800–25–LEXUS).

If NHTSA receives similar complaints, it may open
an investigation, and if it finds that a safety defect
exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot
become involved in individual problems between
you, your dealer, or Toyota Motor Sales, U.S.A.,
Inc.

To contact NHTSA, you may either call the Auto
Safety Hotline toll–free at 1–800–424–9393 (or
366–0123 in Washington, D.C. area) or write to:
NHTSA, U.S. Department of Transportation,
Washington, D . C . 20590. You can also obtain other
information about motor vehicle safety from the
Hotline.

404

04 06.30

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Body

Specifications (Sedan) 394. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications (SportCross) 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protecting your vehicle from corrosion 396. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Washing and waxing 397. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning the interior 399. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rain clearing mirrors 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

393

04 06.30

BODY

SPECIFICATIONS (Sedan)

– DIMENSIONS AND WEIGHT

Overall length
Overall width 1725 mm (67.9 in.)
Overall height 1410 mm (55.5 in.)*
Wheelbase 2670 mm (105.1 in.)
Tread – Front

– Rear

Vehicle capacity weight (occupants + cargo) 390 kg (860 lb.)

*Unladen vehicle

– FUEL TANK

Capacity

4485 mm (176.6 in.)

1495 mm (58.9 in.)
1485 mm (58.5 in.)

66 L (17.5 gal., 14.5 lmp.gal.)

394

04 06.30

BODY

SPECIFICATIONS (SportCross)

– DIMENSIONS AND WEIGHT

Overall length
Overall width 1725 mm (68.0 in.)
Overall height 1430 mm (56.3 in.)*
Wheelbase 2670 mm (105.1 in.)
Tread – Front

– Rear

Vehicle capacity weight (occupants + cargo) 390 kg (860 lb.)

*Unladen vehicle

– FUEL TANK

Capacity 66 L (17.5 gal., 14.5 lmp.gal.)

4495 mm (177.0 in.)

1495 mm (58.9 in.)
1475 mm (58.1 in.) (with the 225/45ZR17 tires)
1485 mm (58.5 in.) (except the 225/45ZR17 tires)

395

04 06.30

BODY

PROTECTING YOUR VEHICLE

FROM CORROSION

Proper care of your Lexus can help ensure long–term
corrosion prevention.

The most common causes of corrosion to your vehicle
are:

 The accumulation of road salt, dirt and moisture in

hard–to–reach areas under the vehicle.

 Chipping of paint or undercoating caused by minor

accidents or by stones and gravel.

The following conditions will cause or accelerate
corrosion of your vehicle, so it is important to keep your
vehicle, particularly the underside, as clean as possible
and to repair any damage to paint or protective coatings
as soon as possible.

 The presence of road salt or dust control chemicals, salt in

the air near the sea coast, industrial air pollution.

 High humidity, especially at temperatures just above

freezing point.

 Certain parts of your vehicle are wet or damp for an

extended period of time, even though other parts of the

vehicle are dry.

 Components of the vehicle which are prevented from

quick–drying due to lack of proper ventilation are exposed

to high ambient temperature.

To help prevent corrosion on your Lexus, follow these
guidelines:

Keep your vehicle clean by regular washing. In addition,

observe the following points.
 If you drive on salted roads in the winter or if you live near

the ocean, you should hose off the undercarriage at least

once a month to minimize corrosion.

 High pressure water or steam is effective for cleaning the

vehicle’s underside and wheel housings. Pay particular
attention to these areas as it is difficult to see all the mud and
dirt. It will do more harm than good to simply wet the mud
and debris without removing. The lower edge of doors,
rocker panels and frame members have drain holes which
should not be allowed to clog with dirt as trapped water in

these areas can cause corrosion.

 Wash the underside of the vehicle thoroughly when winter

is over.
See “Washing and waxing” on page 397 for more tips.
Check the condition of your vehicle’s paint and trim. If you

find any chips or scratches in the paint, touch them up
immediately to prevent corrosion from starting. If the chips or
scratches have gone through the bare metal, have a qualified
body shop make the repair.

396

04 06.30

BODY

Check the interior of your vehicle. Water and dirt can

accumulate under the floor mats and could cause corrosion.
Occasionally check under the mats to make sure the area is
dry. Be particularly careful when transporting chemicals,
cleansers, fertilizers, salt, etc. These should be transported in
proper containers. If a spill or leak should occur, immediately
clean and dry the area.

Keep your vehicle in a well ventilated garage or a roofed
place. Do not park your vehicle in a damp, poorly
ventilated garage. If you wash your vehicle in the garage, or

if you drive it covered with water or snow, your garage may be
so damp as to cause corrosion. Even if your garage is heated,
a wet vehicle can corrode if the ventilation is poor.

WASHING AND WAXING

Washing your Lexus

Keep your vehicle clean by regular washing.

The following cases may cause weakness to the paint or
corrosion to the body and parts. W ash your vehicle as soon as
possible.

 When driving in a coastal area
 When driving on a road sprinkled with antifreeze
 When exposed to coal tar, tree sap, bird droppings and

carcass of an insect

 When driving in areas where there is a lot of smoke, soot,

dust, iron dust or chemical substances

 When the vehicle becomes remarkably dirty with dust and

mud

Hand–washing your Lexus

Work in th e shade and wait until the vehicle body is not hot
to the touch.

1. Rinse off loose dirt with a hose. Remove any mud or road
salt from the underside of the vehicle or in the wheel wells.

2. Wash with a mild car–wash soap, mixed according to the
manufacturer’s instructions. Use a soft cotton mitt and keep it
wet by dipping it frequently into the wash water. Do not rub hard
– let the soap and water remove the dirt.

397

04 06.30

BODY

Plastic wheel ornaments: The plastic wheel ornaments are

damaged easily by organic substances. If any organic
substance splashes an ornament, be sure to wash it off with
water and check if the ornament is damaged.

CAUTION

Do not attach the heavily damaged plastic wheel
ornament. It may fly off the wheel and cause accidents
while the vehicle is moving.

Aluminum wheels: Use only a mild soap or neutral detergent.
Urethane bumpers and side moldings: Wash carefully. Do

not scrub with abrasive cleaners. The bumper and side
molding faces are soft.

Road tar: Remove with turpentine or cleaners that are marked
safe for painted surfaces.

NOTICE

Do not use organic substances (gasoline, kerosene,
benzine or strong solvents), which may be toxic or
cause damage.

3. Rinse thoroughly – dried soap can cause streaking. In hot
weather you may need to rinse each section right after you
wash it.

4. To prevent water spots, dry the vehicle using a clean soft
cotton towel. Do not rub or press hard – you might scratch the
paint.

Automatic car wash

NOTICE

To prevent damage to the antenna, make sure it is
removed before driving your vehicle through an
automatic car wash.

Your vehicle may be washed in an automatic car wash, but
remember that the paint can be scratched by some types of
brushes, unfiltered washing water, or the washing process
itself. Scratching reduces paint durability and gloss, especially
on darker colors. The manager of the car wash should be able
to advise you whether the process is safe for the paint on your
vehicle.

398

04 06.30

BODY

Waxing your Lexus

Polishing and waxing is recommended to maintain the
original beauty of your Lexus’ finish.

Apply wax once a month or if the vehicle surface does not repel
water well.

1. Always wash and dry the vehicle surface before you begin
waxing, even if you are using a combined cleaner and wax.

2. Use a good quality polish and wax. If the finish has become
extremely weathered, use a car–cleaning polish, followed by
a separate wax. Carefully follow the manufacturer’s
instructions and precautions. Be sure to polish and wax the
chrome trim as well as the paint.

3. Wax the vehicle again when water does not bead but
remains on the surface in large patches.

Windshield washer nozzles: Make sure that the nozzles do
not become blocked when waxing. If a nozzle becomes
blocked, contact your Lexus dealer to have the vehicle
serviced.

NOTICE

If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

CLEANING THE INTERIOR

CAUTION

 Be careful not to splash water or spill liquid on the

floor. This may prevent the side airbags from
activating correctly, resulting in serious injury.

 Do not wash the vehicle floor with water, or allow

water to get onto the floor when cleaning the vehicle
interior or exterior. Water may get into audio
components or other electrical components above or
under the floor carpet (or mat) and cause a
malfunction; and it may cause body corrosion.

Leather–trimmed interior

The selected leather is used in your Lexus. Due to
characteristics of leather products, some parts of leather may
be rough, uneven or scratched originally.

To keep good appearance, we recommend you to clean it
periodically twice a year.

Remove dirt on the leather in the following ways:

1. Wipe it off lightly using a soft cloth (e.g. gauze) dampened
with 5% solution of neutral detergent for wool.

2. Wring water from a clean cloth and thoroughly wipe off all
traces of detergent with it.

3. Wipe of f the surface of the leather with a dry soft cloth. Allow
the leather to dry in a ventilated shaded area. Excess of wet
may cause the hardening or shrinking of the leather.

399

04 06.30

BODY

NOTICE



Dirt or sand adhered to the leather may damage the
treated surface and cause it to wear earlier. Remove
dirt or sand using a vacuum cleaner.



If a stain should fail to come out with a neutral
detergent, apply a cleaner that does not contain an
organic solvent.



Never use organic substances such as benzine,
alcohol or gasoline, or alkaline or acid solutions for
cleaning the leather as these could cause
discoloring.



Use of a nylon brush or synthetic fiber cloth, etc. may
scratch the fine grained surface of the leather.



Mildew may develop on soiled leather upholstery. Be
especially careful to avoid oil spots. Try to keep your
upholstery always clean.



Long exposure to direct sunlight may cause the
leather surface to harden and shrink. Keep your
vehicle in a shaded area, especially in the summer.



The interior of your vehicle is apt to heat up on hot
summer days, so avoid placing on the upholstery
items made of vinyl or plastic or containing wax as
these tend to stick to leather when warm.



Improper cleaning of the leather upholstery could
result in discoloration or staining.

If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.

Carpets, Windows and Seat Belts

Begin by vacuuming thoroughly to remove as much dirt as
possible. Several types of foam cleaners are available; some
are in aerosol cans and others are powders or liquids which
you mix with water to produce a foam. To shampoo the carpets,
use a sponge or brush to apply the foam. Rub in overlapping
circles. Do not apply water – the best results are obtained by
keeping the carpet as dry as possible. Read the shampoo
instructions and follow them closely.

The seat belts may be cleaned with mild soap and water
or with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the belts for
excessive wear, fraying or cuts.

400

04 06.30

BODY

NOTICE



Use a good foam–type shampoo to clean the carpets.



Do not use dye or bleach on the belts – it may weaken
them.



Do not use the belts until they become dry.



The windows may be cleaned with any household
window cleaner.



When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.

Air Conditioning Control Panel, Audio Panel,
Instrument Panel, Console Panel, and
Switches

Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or lukewarm water then lightly

wipe off any dirt.

NOTICE



Do not use organic substances (solvents, kerosene,
alcohol, gasoline, etc.) or alkaline or acidic solutions.
These chemicals can cause discoloring, staining or
peeling of the surface.



If you use cleaners or polishing agents, make sure
their ingredients do not include the substances
mentioned above.



If you use a liquid car freshener, do not spill the liquid
onto the vehicle’s interior surfaces. It may contain
the ingredients mentioned above. Immediately clean
any spill using the method mentioned above.

If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.

401

04 06.30

BODY

RAIN CLEARING MIRRORS

The rear view mirrors have been coated to produce a “rain
clearing” effect. This coating causes the raindrops to
spread, clearing the driver’s rear view when it rains.

It is sufficient to wash the mirrors with water for day to day care.
The rain clearing effect is reduced in drizzle and light rain.
In the following cases, the rain clearing effect will be reduced

temporarily, but will gradually recover.

 After wiping dirt off the mirrors
 When the mirrors fog up
 After waxing your vehicle in an automatic car wash
 After your vehicle has been parked for a long period in

underground parking lots, etc. where there is no direct

sunlight.

If you would like to restore the rain clearing effect to its normal
level immediately in the above cases, wash the mirrors with
neutral detergent, then rinse thoroughly.

NOTICE

To maintain the rain clearing ability, and prevent the
mirrors from being scratched, observe the following
precautions.



Do not use any glass cleaners that contain
compounds.



If ice should jam the mirror, do not scrape the mirror.
Use a spray deicer to free the mirror.



Wash off any wax stuck to the mirrors with neutral
detergent and rinse thoroughly as any wax on the
surface of the mirrors can cause the rain clearing
effect to be lost.



Do not use any water repellents as they can destroy
the rain clearing effect. If any repellent gets stuck on
the surface of the mirrors, wash it off with neutral
detergent, then rinse thoroughly.

402

04 06.30

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Electrical components

Specifications 376. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking battery condition 380. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery recharging precautions 382. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing the blade type fuses 383. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the cartridge type fuses 385. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adding washer fluid 386. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the headlight aim 387. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing light bulbs 388. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

375

04 06.30

ELECTRICAL COMPONENTS

SPECIFICATIONS

– FUSE LOCATION

SV64029

– FUSES

SV64022



Driver’s side kick panel

376

1



Engine compartment

2

Passenger’s side kick panel

3

Driver’s side kick panel

SV64023



Passenger’s side kick panel

04 06.30

ELECTRICAL COMPONENTS

SV64031



Engine compartment

377

04 06.30

ELECTRICAL COMPONENTS

No. FUSE AMPERE CIRCUIT

1 D FR P/W 20 Power window system

2 TAIL 10

3 GAUGE 10

4 DOOR 20 Door lock system

5 PANEL 7.5

6 WASHER 15
7 STARTER 7.5 Starting system

8 FR DEF 20 Windshield wiper deicer

9 A/C 10 Air conditioning system
10 SEAT HTR 15 Seat heater
11 CIG 15 Cigarette lighter, Power outlet
12 S/ROOF 30 Moon roof

Tail lights, Side marker lights,
License plate lights,
Parking lights

Back–up lights, Power window,
Gauges and meters,
Service reminder indicators and
buzzers,
Emergency flashers,
Windshield defogger,
Outside rear view mirror
defogger

Instrument panel lights,
Seat heater, Cigarette lighter,
Automatic transmission system,
Traction control system,
Rear fog light, Ashtray light

Windshield washer,
Headlight cleaner

No. FUSE AMPERE CIRCUIT

Radiator fan,
Anti–lock brake system,
Moon roof, Shift lock system,

13 ECU–IG 10

14 SRS–ACC 10 SRS system

15 STOP 15
16 WIPER 25 Windshield wipers

17

18 DOOR DL 15 Power seat system

19 DOME 7.5

20 FR FOG 15 Fog lights
21 P FR P/W 20 Power window system

22

23 ECU–B2 7.5
24 D RR P/W 20 Power window system

25 MIR HTR 15 Outside rear view mirror

RADIO

NO.2

PWR

OUTLET

10

15 Power outlets

Air conditioning system,
Door lock system,
Headlight beam level control,
Theft deterrent system

Stop lights, Shift lock system,
Anti–lock brake system

Audio system, Air conditioning,
Outside rear view mirror,
Shift lock system

Interior lights, Trunk light,
Vanity lights,
Ignition switch light, Map light,
Door courtesy lights

Theft deterrent system,
Door lock system

378

04 06.30

ELECTRICAL COMPONENTS

No. FUSE AMPERE CIRCUIT

Power window system,

26 MPX–B 10

27 P RR P/W 20 Power window system
28 SRS–B 7.5 SRS system, Door lock system
29 TV 7.5 Television
30 OBD 7.5 On–board diagnosis system

31 IGN 7.5

32 ECU–B1 20

33 ALT–S 7.5 Charging system

34 ETCS 15

35 AM2 20

36 HORN 10 Horn

Air conditioning,
Gauges and meters,
Theft deterrent system

SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system,
Cruise control system

Theft deterrent system,
Door lock system,
Interior light, Trunk light,
Vanity light, Ignition switch light,
Map light, Door courtesy lights,
Power window system,
Air conditioning,
Gauges and meters

Electronic throttle control
system

Starting system, SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system, Cruise control
system

No. FUSE AMPERE CIRCUIT

RADIO

37
38 TURN–HAZ 15 Turn signal lights

39 EFI 25

40 DRL NO.2 30 Daytime running light system
41 DRL NO.1 7.5 Daytime running light system

42

43
44 ABS2 7.5 Anti–lock brake system

45 SPARE Spare fuse
46 SPARE Spare fuse
47 SPARE Spare fuse

48

49

NO.1

H–LP L

LWR

H–LP R

LWR

H–LP L

UPR

H–LP R

UPR

20

15

15

10

10

Audio system

Multiport fuel injection
system/sequential multiport fuel
injection system,
Emission control system,
Engine immobilizer system

Left–hand headlight
(low beam), Fog lights

Right–hand headlight
(low beam)

Left–hand headlight
(high beam)

Right–hand headlight
(high beam),
Service reminder indicators and
buzzers

379

04 06.30

ELECTRICAL COMPONENTS

CHECKING BATTERY CONDITION

Precautions

CAUTION

BATTERY PRECAUTIONS
The battery produces flammable and explosive

hydrogen gas.
 Do not cause a spark by contacting the battery

terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive

sulfuric acid.

 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near

the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with

clean water immediately and get immediate medical

attention. If possible, continue to apply water with a

sponge or cloth while traveling to the medical office.

 If electrolyte gets on your skin, thoroughly wash the

contacted area. If you feel a pain or burn, get medical
attention immediately.

 If electrolyte gets on your clothes, there is a

possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.

 If you accidentally swallow electrolyte, drink a large

quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go
immediately for emergency help.

380

04 06.30

ELECTRICAL COMPONENTS

Checking battery exterior

SV64002

1



Terminals 2Hold–down clamp

Check the battery for corroded or loose connections,
cracks, or loose hold–down clamps.

1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.

2. If the connections are loose, tighten the clamp bolts – but
do not overtighten.

3. Tighten the hold–down clamp only enough to keep the
battery firmly in place. Overtightening may damage the battery
case.

NOTICE



Make sure the engine and all accessories are turned
off before performing maintenance.



When checking the battery, remove the ground cable
first and reinstall it last.



Be careful not to cause a short circuit with tools.



Take care no solution gets into the battery when
washing it.

381

04 06.30

ELECTRICAL COMPONENTS

Checking battery condition

Checking by indicator

SV64016

Check the battery condition by the indicator color.

1

BLUE – Good condition.

2

WHITE – Charging necessary. Have the battery checked
by your Lexus dealer.

3

RED – Have the battery checked by your Lexus dealer.

NOTICE

Do not refill the battery with water.

BATTERY RECHARGING

PRECAUTIONS

During recharging, the battery is producing hydrogen
gas.

Therefore, before recharging:

1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.

2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.

CAUTION

 Always charge the battery in an unconfined area. Do

not charge the battery in a garage or closed room
where there is not sufficient ventilation.

 Only do a slow charge (5 A or less). Charging at a

quicker rate is dangerous. The battery may explode
causing personal injuries.

NOTICE

Never recharge the battery while the engine is running.
Also, be sure all accessories are turned off.

382

04 06.30

CHECKING AND REPLACING THE

BLADE TYPE FUSES

SS64009



Driver’s side kick panel

ELECTRICAL COMPONENTS

SV64017



Engine compartment 1Spare fuses 2Pull–out tool

1. Turn the ignition switch off and open the fuse box lid.

Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.

SS64012a



Passenger’s side kick panel

383

04 06.30

ELECTRICAL COMPONENTS

64L013

2. Make sure the inoperative component is turned off. Pull
the suspected fuse straight out with the pull–out tool and
check it. If it has blown, push a new fuse into the clips.

384

64G008



Good

a. Look carefully at the fuse. If the thin wire is broken, the fuse
has blown. If you are not sure or if it is too dark to see, try
replacing the suspected fuse with one of the same value that
you know is good.

b. Only install a fuse with the amperage rating designated on
the fuse box lid.

If you do not have a spare fuse, in an emergency you can pull
out the “CIG”, “RADIO NO.1” or “OBD” fuse, which may be
dispensable for normal driving, and use it if its amperage rating
is the same.

If you cannot use one of the same amperage, use one lower
than, but as close to the amperage as possible. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to get
the correct fuse as soon as possible and return the substitute
to its original clips.



Blown

04 06.30

ELECTRICAL COMPONENTS

It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.

If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.

CAUTION

Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.

CHECKING THE CARTRIDGE TYPE

FUSES

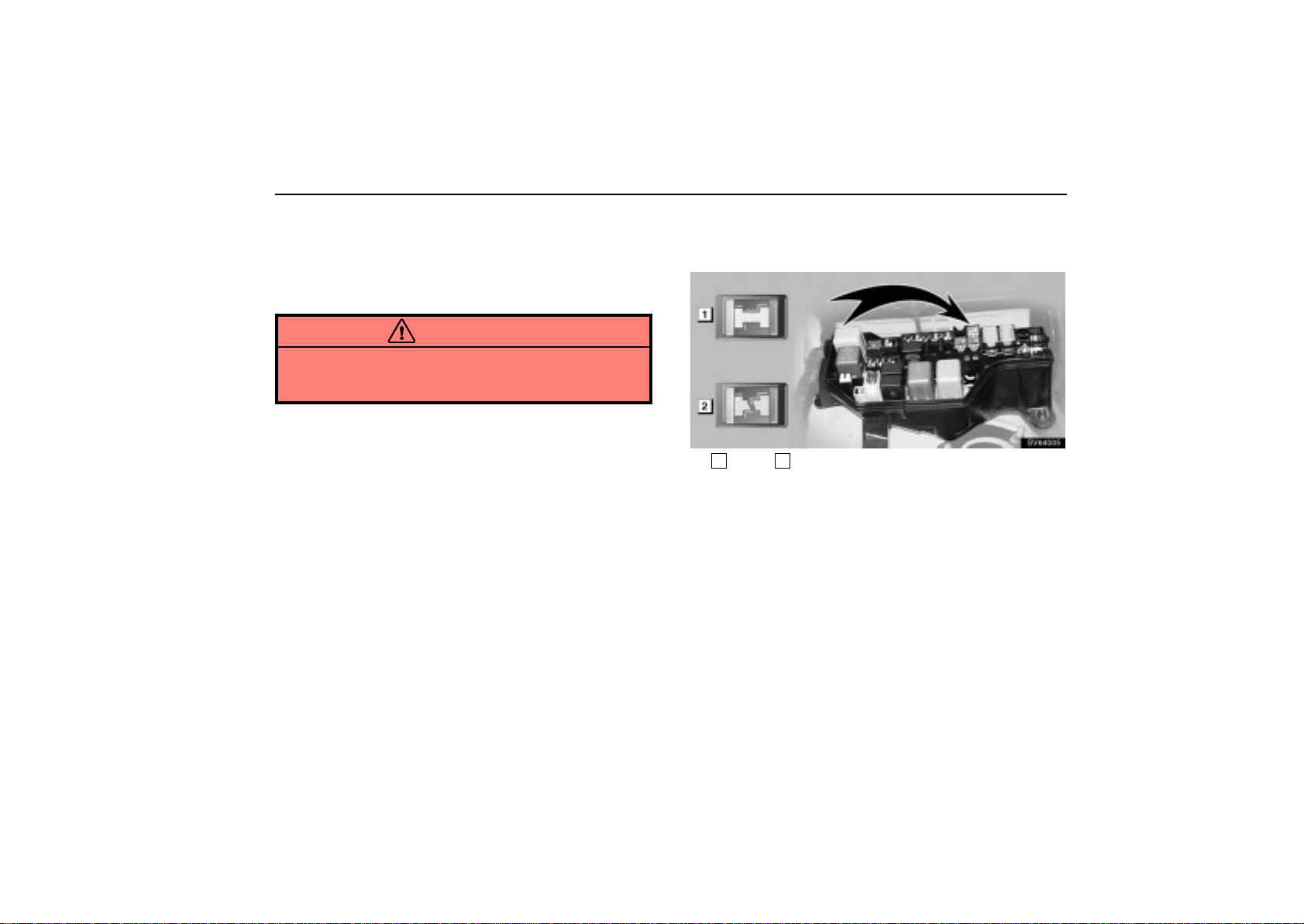

SV64005

1



Good 2Melted

If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.

If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.

385

04 06.30

ELECTRICAL COMPONENTS

CAUTION

Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire – even for a
temporary fix. This may cause extensive damage and
possibly a fire.

NOTICE

Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer .

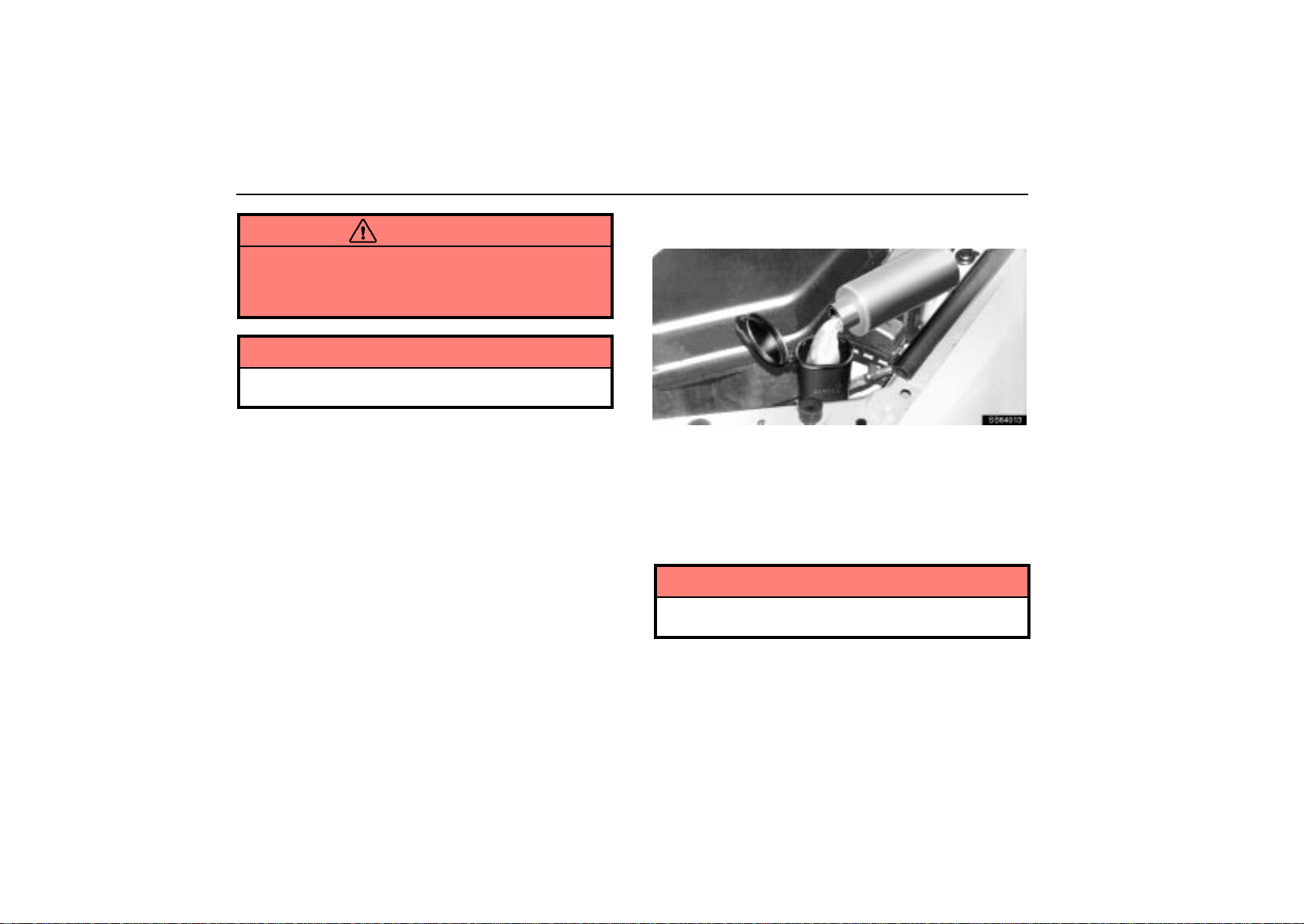

ADDING WASHER FLUID

SS64013

If the washer tank becomes nearly empty, add washer
fluid.

You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available at
your Lexus dealer and most auto parts stores. Follow the
manufacturer’s directions for how much to mix with water.

NOTICE

Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.

386

04 06.30

ELECTRICAL COMPONENTS

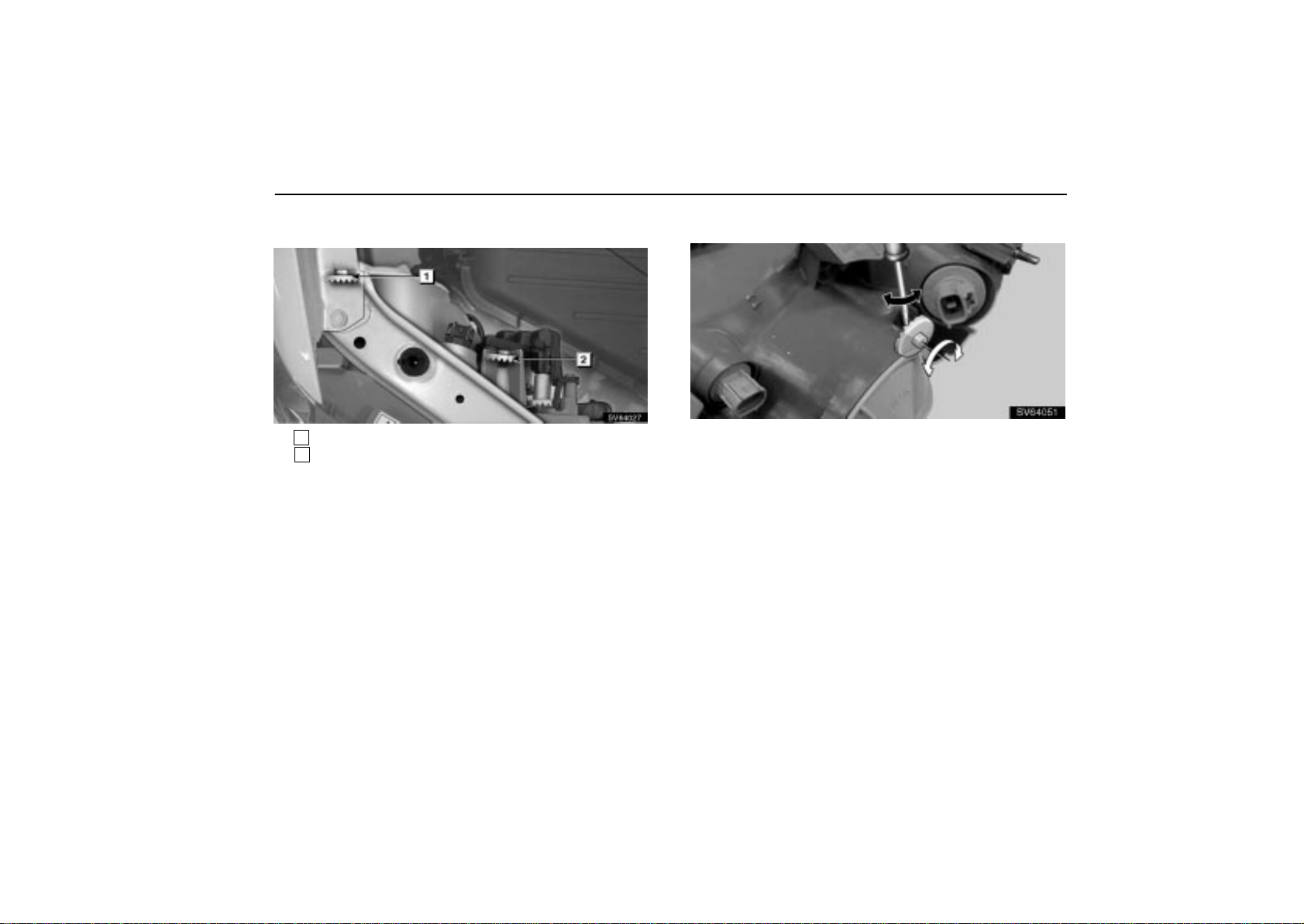

CHECKING THE HEADLIGHT AIM

SV64027

1



Vertical movement adjusting bolt 1

2

Vertical movement adjusting bolt 2

Before checking the headlight aim:

1. Be sure that the body around the headlight is not deformed.

2. Park the vehicle on a level spot.

3. The driver gets into the driver’s seat and puts the vehicle in
a state readying for a driving (with a full tank).

4. Bounce the vehicle several times.

Adjusting the vertical aiming

SV64051

1. Turn the vertical movement adjusting bolt 1 in either
direction. At this time, keep the turning direction and number
of turns in mind.

387

04 06.30

ELECTRICAL COMPONENTS

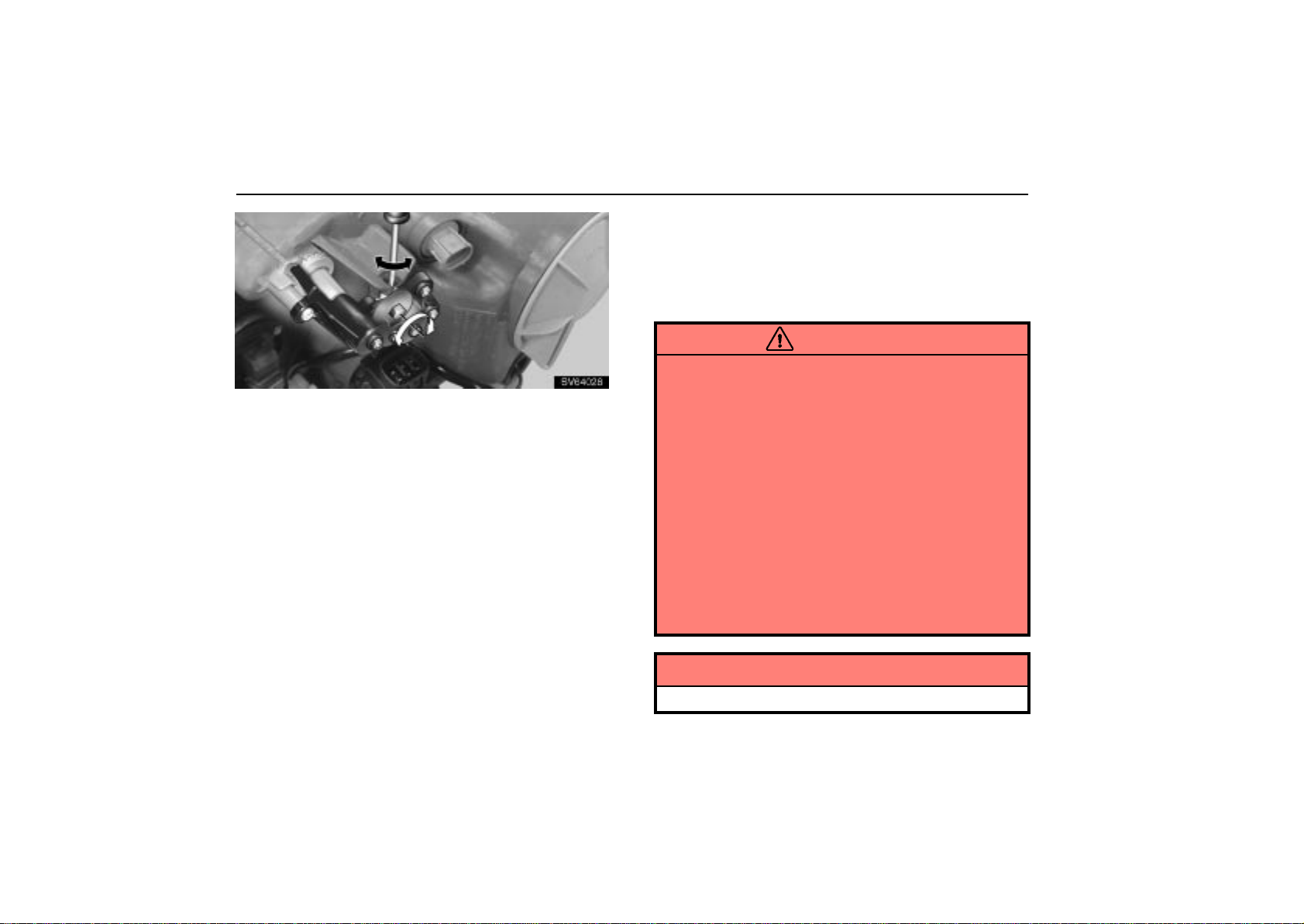

SB64028

2. Turn the vertical movement adjusting bolt 2 the same
number of turns and in the same direction as step 1.

REPLACING LIGHT BULBS

The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your vehicle
to your Lexus dealer as soon as possible. Use bulbs with the
bulb numbers and wattage ratings given in the table.

CAUTION

 To prevent burning yourself, do not replace the light

bulbs while they are hot.

 Halogen bulbs have pressurized gas inside and

require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb

with bare hands.
Vehicles with discharge headlights—
 Do not touch the high voltage socket when the

headlight turns on. 20000 V is momentarily generated

and may cause severe injury by electric shock.
 Do not disassemble, repair or take apart the headlight

bulbs, connector, power supply circuits and rotated

components. Or you may be injured by electric

shocks. Call your dealer when the headlights fail to

work or have to be replaced or disposed of.

388

NOTICE

Only use a bulb of the listed type.

04 06.30

ELECTRICAL COMPONENTS

The inside of the lens of exterior lights such as headlights may
temporarily fog up when the lens becomes wet in the rain or in
a car wash. This is not a problem because the fogging is
caused by the temperature difference between the outside and
inside of the lens, just like the windshield fogs up in the rain.
However, if there is a large drop of water on the inside of the
lens, or if there is water pooled inside the light, contact your
Lexus dealer.

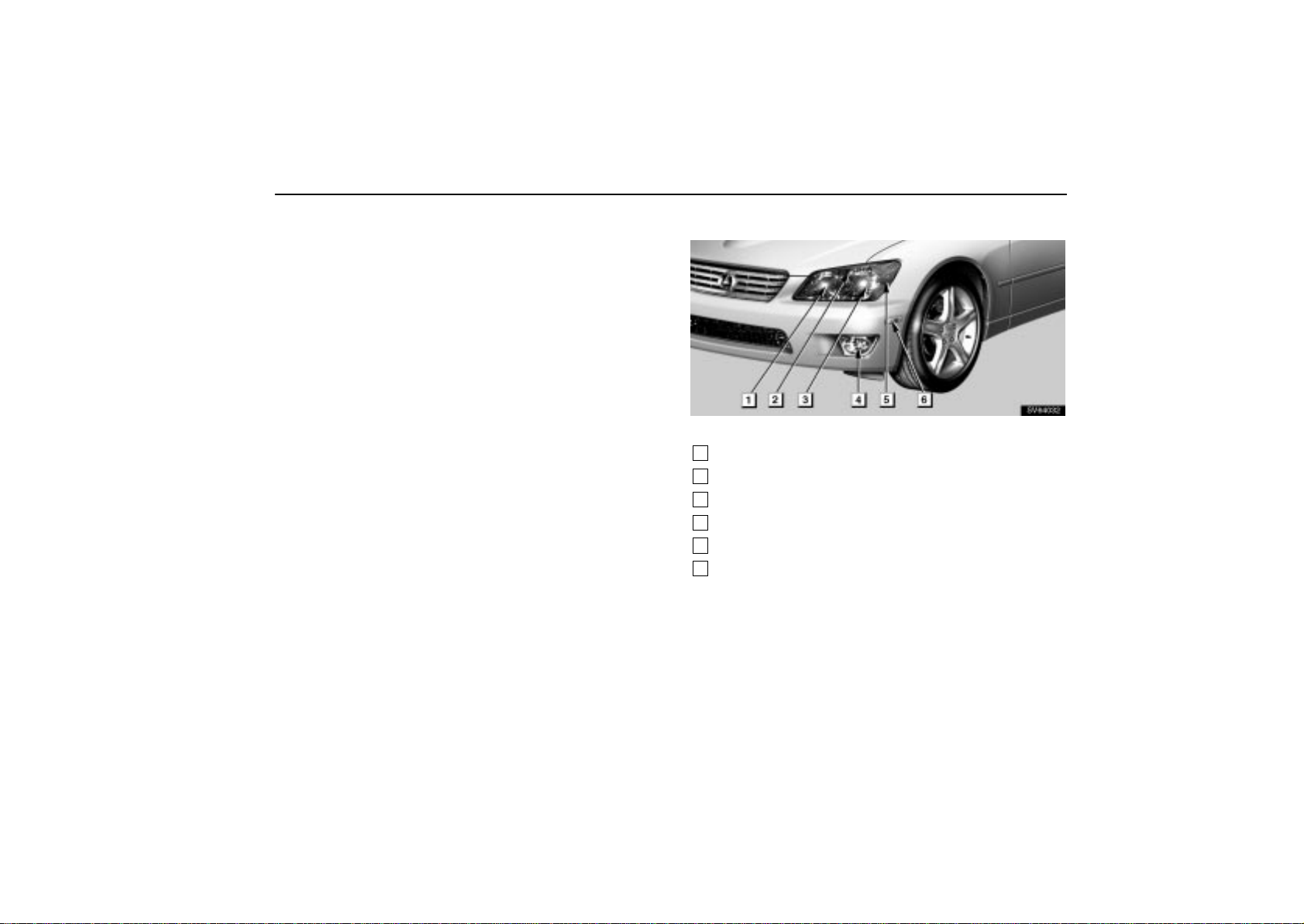

LIGHT LOCATION

SV64032

Light Bulbs Bulb No. W Type

1

Headlights (High beam) HB3 60 A

2

Parking lights 168 5 E

3

Headlights (Low beam) D2R 35 B

4

Front fog lights ––– 55 C

5

Front turn signal lights ––– 21 D

6

Front side marker lights 194 3.8 E

389

04 06.30

ELECTRICAL COMPONENTS

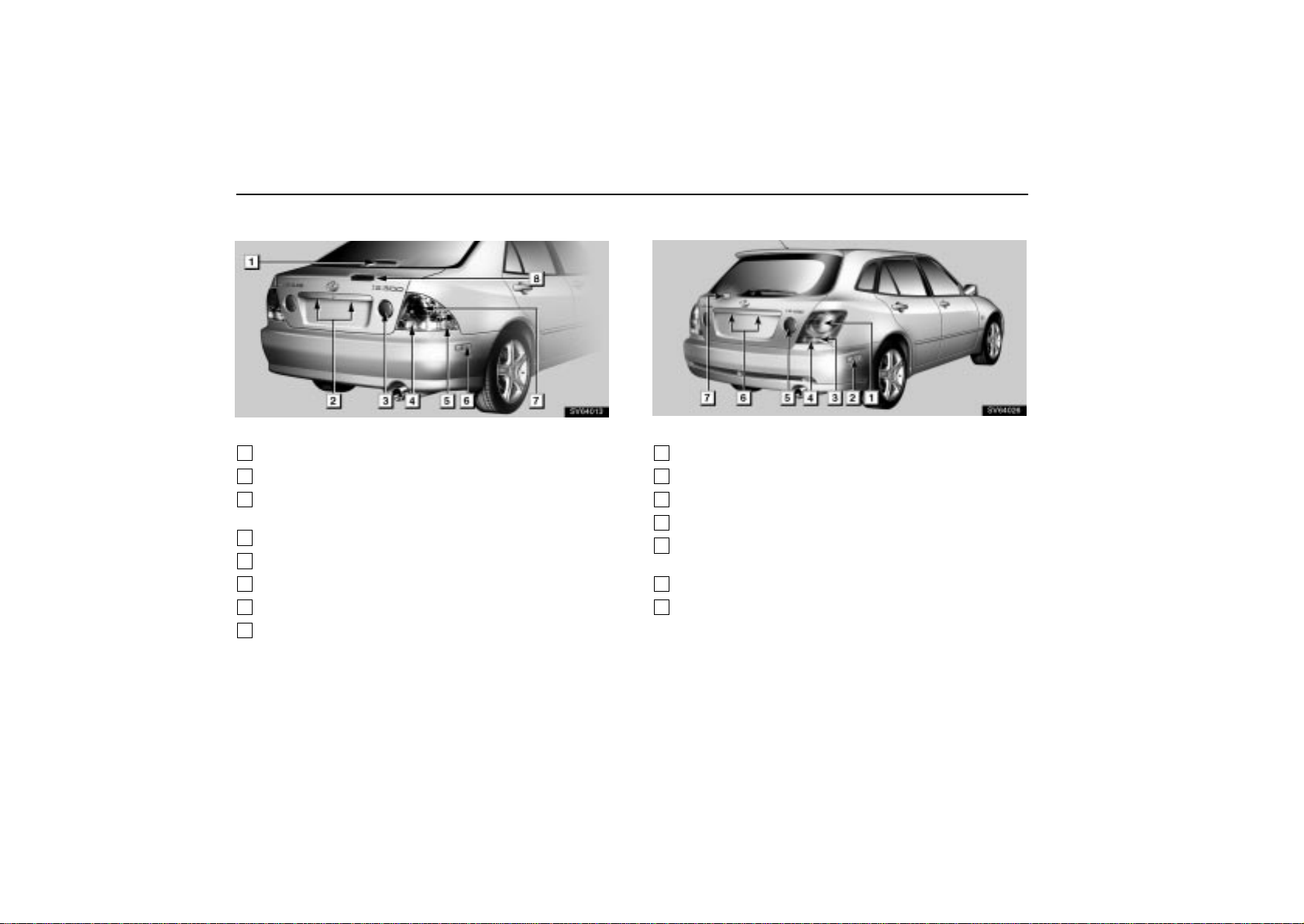

Sedan

SV64013

Light Bulbs Bulb No. W Type

1

High mounted stop light 921 18 E

2

License plate lights 168 5 E

3

Tail/stop lights 7443 5/21 E
Rear fog lights 7440 21 E

4

Back–up lights 7440 21 E

5

Rear turn signal lights ––– 21 G

6

Rear side marker lights 194 3.8 E

7

Tail/stop lights 7443 5/21 E

8

Trunk light 194 3.8 E

SportCross

SV64026

Light Bulbs Bulb No. W Type

1

Tail/stop lights 7443 5/21 E

2

Rear side marker lights 194 3.8 E

3

Rear turn signal lights ––– 21 D

4

Back–up lights 921 18 E

5

Tail/stop lights 7443 5/21 E
Rear fog lights 7440 21 E

6

License plate lights 168 5 E

7

Luggage compartment light ––– 5 F

390

04 06.30

SV64012

Light Bulbs Bulb No. W Type

1

Front personal lights

with moon roof ––– 10 H
without moon roof ––– 8 H

2

V anity lights ––– 3 F

3

Glove box light ––– 1.2 E

4

Door courtesy lights 194 3.8 E

5

Interior light ––– 8 F

ELECTRICAL COMPONENTS

A:HB3 halogen bulbs
B:D2R discharge bulbs
C:H3 halogen bulbs
D:Wedge base bulbs (amber)
E:Wedge base bulbs
F: Double end bulbs
G:Single end bulbs (amber)
H:Single end bulbs

391

04 06.30

ELECTRICAL COMPONENTS

392

04 06.30

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Engine

Specifications 326. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 329. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel pump shut off system 331. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Facts about engine oil consumption 331. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Used engine oil 333. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine oil level 333. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine coolant level 337. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the radiator and condenser 338. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

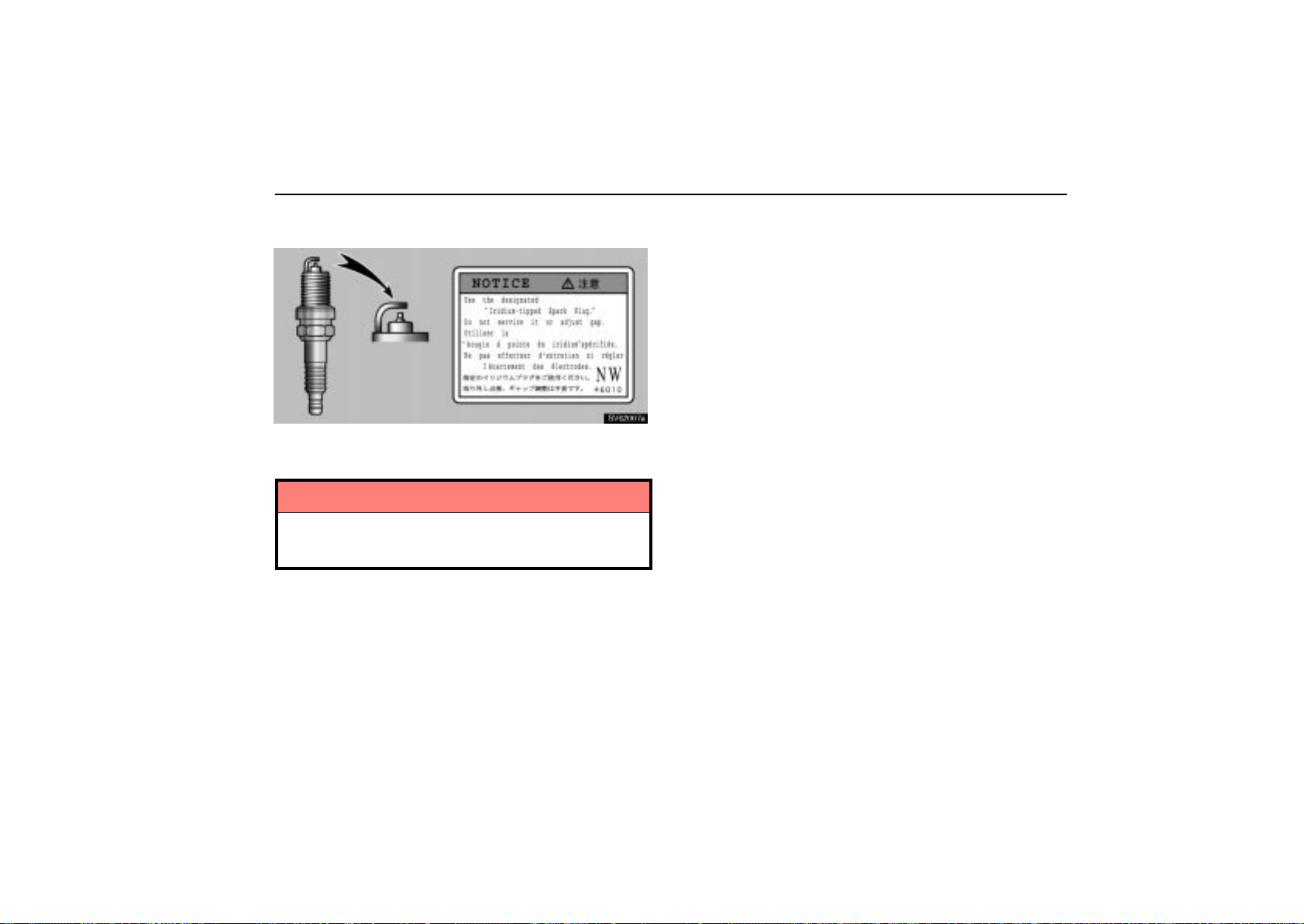

Spark plugs 339. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

325

04 06.30

ENGINE

SPECIFICATIONS

– GENERAL

Model
Type 6 cylinder in line, 4 cycle, gasoline
Bore and stroke 86.0 X 86.0 mm (3.39 X 3.39 in.)
Displacement 2997 cm3 (182.9 cu.in.)
V alve clearance (engine cold)

Intake
Exhaust

Drive belt tension Automatic adjustment

2JZ–GE

0.15 – 0.25 mm (0.006 – 0.010 in.)

0.25 – 0.35 mm (0.010 – 0.014 in.)

326

04 06.30

– LUBRICATION SYSTEM

Oil capacity

Drain and refill

with filter
without filter

Oil grade API grade SL “Energy–Conserving” or ILSAC multigrade engine oil
Recommended oil viscosity (SAE):

5.4 L (5.7 qt., 4.8 lmp.qt.)

5.1 L (5.4 qt., 4.5 lmp.qt.)

62L005–1S
OIL14

Outside temperature

ENGINE

NOTE:
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the above grade and viscosity. Please contact your Lexus dealer for further details.

327

04 06.30

ENGINE

– COOLING SYSTEM

Capacity
Coolant type “Toyota Super Long Life Coolant” or similar high quality ethylene glycol

NOTE:
“Toyota Super Long Life Coolant” is used in your Lexus vehicle at factory fill. In order to avoid technical problems, only use “Toyota
Super Long Life Coolant” or similar high quality ethylene glycol based non–silicate, non–amine, non–nitrite, and non–borate coolant
with long–life hybrid organic acid technology. (Coolant with long–life hybrid organic acid technology is a combination of low
phosphates and organic acids.) Do not use plain water alone. Please contact your Lexus dealer for further details.

– FUEL

Fuel type
Octane rating 91 (Research octane number 96) or higher

7.5 L (7.9 qt., 6.6 lmp.qt.)

based non–silicate, non–amine, non–nitrite, and non–borate coolant with
long–life hybrid organic acid technology. (Coolant with long–life hybrid
organic acid technology is a combination of low phosphates and organic
acids.)
Do not use plain water alone.

Unleaded gasoline only

– IGNITION SYSTEM

Spark plug – Make DENSO

– Gap

– ELECTRICAL SYSTEM

Battery– Open voltage at 20C (68F):

Charging rates

328

SK16R–P11

1.1 mm (0.043 in.)

12.7 V Fully charged

12.3 V Half charged

11.9 V Discharged
[Voltage that is checked 20 minutes after the key is removed with all the
lights turned off]
5A max.

04 06.30

ENGINE

FUEL

Fuel type

Y our vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Lexus has a smaller
fuel tank opening. The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle on pumps with
leaded gas will not.

At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB

3.5–M93 in Canada.

NOTICE

Do not use leaded gasoline. Use of leaded gasoline will
cause the three–way catalytic converter to lose its
effectiveness and the emission control system to
function improperly. Also, this can increase
maintenance costs.

Octane rating

Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for optimum
engine performance. However, if such premium type
cannot be obtained, you may temporarily use unleaded
gasoline with an Octane Rating as low as 87 (Research
Octane Number 91).

Use of unleaded fuel with an octane number or rating lower
than stated above will cause persistent heavy knocking. If
severe, this will lead to engine damage.

If your engine knocks ...

If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your Lexus
dealer.

However, occasionally, you may notice light knocking for a
short time while accelerating or driving up hills. This is normal
and there is no need for concern.

Gasoline containing detergent additives

Lexus recommends the use of gasoline that contains
detergent additives to avoid build–up of engine deposits.

However, all gasoline sold in the U.S. contains detergent
additives to keep clean and/or clean intake systems.

Quality gasoline

Automotive manufacturers in the U.S., Europe and Japan
have developed a specification for quality fuel named
World–Wide Fuel Charter (WWFC) that is expected to be
applied world wide. The WWFC consists of four
categories that depend on required emission levels. In the
U.S., category 3 has been adopted. The WWFC improves
air quality by providing for better emissions in vehicle
fleets, and customer satisfaction through better vehicle
performance.

329

04 06.30

ENGINE

Cleaner burning gasoline

Cleaner burning gasoline, including reformulated
gasoline that contains oxygenates such as ethanol or
MTBE is available in many areas.

Lexus recommends the use of cleaner burning gasoline and
appropriately blended reformulated gasoline. These types of
gasoline provide excellent vehicle performance, reduce
vehicle emissions, and improve air quality.

Oxygenates in gasoline

Lexus allows the use of oxygenate blended gasoline
where the oxygenate content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your Lexus, be sure that it has
an octane rating no lower than 87.

Lexus does not recommend the use of gasoline containing
methanol.

Gasoline containing MMT

Some gasoline contain an octane enhancing additive
called MMT (Methylcyclopentadienyl Manganese
Tricarbonyl).

Lexus does not recommend the use of gasoline that contains
MMT. If fuel containing MMT is used, your emission control
system may be adversely affected. The Malfunction Indicator
Lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.

Gasoline quality

In a very few cases, you may experience driveability problems
caused by the particular gasoline that you are using. If you
continue to have unacceptable driveability, try changing
gasoline brands. If this does not rectify your problem, then
consult your Lexus dealer.

NOTICE



Do not use gasohol other than stated above. It will

cause fuel system damage or vehicle performance

problems.



If driveability problems are encountered (poor hot

starting, vaporizing, engine knock, etc.), discontinue

its use.



Take care not to spill gasohol during refueling.

Gasohol may cause paint damage.

Fuel tank capacity

66 L (17.5 gal., 14.5 lmp.gal.)

330

04 06.30

ENGINE

FUEL PUMP SHUT OFF SYSTEM

The fuel pump shut off system stops supplying fuel to the
engine to minimize the risk of fuel leakage when the engine
stalls or an airbag inflates upon collision. To restart the engine
after the fuel pump shut off system activates, turn the ignition
switch to “ACC” or “LOCK” once and start it.

CAUTION

Inspect the ground under the vehicle before restarting
the engine. If you find that liquid has leaked onto the
ground, it is the fuel system has been damaged and it is
in need of repair. In this case, do not restart the engine.

FACTS ABOUT ENGINE OIL

CONSUMPTION

Functions of engine oil

Engine oil has the primary function of lubricating and cooling
the inside of the engine, and plays a major role in maintaining
the engine in proper working order.

Engine oil consumption

It is normal that an engine should consume some engine
oil during normal engine operation. The causes of oil
consumption in a normal engine are as follows.

 Oil is used to lubricate pistons, piston rings and cylinders.

A thin film of oil is left on the cylinder wall when a piston
moves downwards in the cylinder. High negative pressure
generated when the vehicle is decelerating sucks some of
this oil into the combustion chamber. This oil as well as
some part of the oil film left on the cylinder wall is burned by
the high temperature combustion gases during the

combustion process.

 Oil is also used to lubricate the stems of the intake valves.

Some of this oil is sucked into the combustion chamber
together with the intake air and is burned along with the fuel.
High temperature exhaust gases also burn the oil used to

lubricate the exhaust valve stems.

331

04 06.30

ENGINE

The amount of engine oil consumed depends on the
viscosity of the oil, the quality of the oil and the way the
vehicle is driven.

More oil is consumed under driving conditions such as high
speeds and frequent acceleration and deceleration.

A new engine consumes more oil, since its pistons, piston rings
and cylinder walls have not become conditioned.

Oil consumption: Max. 1.0L per 1000 km (1.1 qts./600 miles,

0.9 Imp. qts./600 miles)

When judging the amount of oil consumption, keep in
mind that the oil may have become diluted, making it
difficult to judge the true level accurately.

For example, if a vehicle is used for repeated short trips and
consumes a normal amount of oil, the dipstick may not show
any drop in the oil level at all, even after 1000 km (600 miles)
or more. This is because the oil is gradually becoming diluted
with fuel or moisture, making it appear that the oil level has not
changed.

The diluting ingredients evaporate out when the vehicle is then
driven at high speeds, as on an expressway , making it appear
that oil is excessively consumed after driving at high speeds.

Importance of engine oil level check

One of the most important points in proper vehicle
maintenance is to keep the engine oil at the optimum level so
that oil function will not be impaired. Therefore, it is essential
that the oil level be checked regularly. Lexus recommends that
the oil level be checked every time you refuel the vehicle.

NOTICE

Failure to check the oil level regularly could lead to
serious engine trouble due to insufficient oil.

For detailed information on oil level check, see “Checking the
engine oil level” on page 333.

332

04 06.30

ENGINE

USED ENGINE OIL

CAUTION

 Used engine oil contains potentially harmful

contaminants which may cause skin disorders such
as inflammation or skin cancer, so care should be
taken to avoid prolonged and repeated contact with
it. To remove used engine oil from your skin, wash
thoroughly with soap and water.

 Do not leave used oil within the reach of children.
 Dispose of used oil and used oil filters only in a safe

and acceptable manner. Do not dispose of used oil
and used oil filters in household trash, in sewers or
onto the ground. Call your Lexus dealer or a service
station for information concerning recycling or
disposal.

CHECKING THE ENGINE OIL LEVEL

SV62004

With the engine at operating temperature and turned off,
check the oil level on the dipstick.

1. To get a correct reading, the vehicle should be on level
ground. After turning off the engine, wait a few minutes for the
oil to drain back into the bottom of the engine.

2. Pull the dipstick out, hold a rag under the end and wipe it
clean.

3. Reinsert the dipstick and push it in as far as it will go, or the
reading will not be correct.

333

04 06.30

ENGINE

SV62002

1



Add oil 2O.K. 3Too full

4. Pull the dipstick out and look at the oil level while holding a
rag under the end. If it is between the low level mark (
the full level mark (

Be careful not to drop engine oil on the vehicle
components.

334

5

), it is O.K.

NOTICE

4

) and

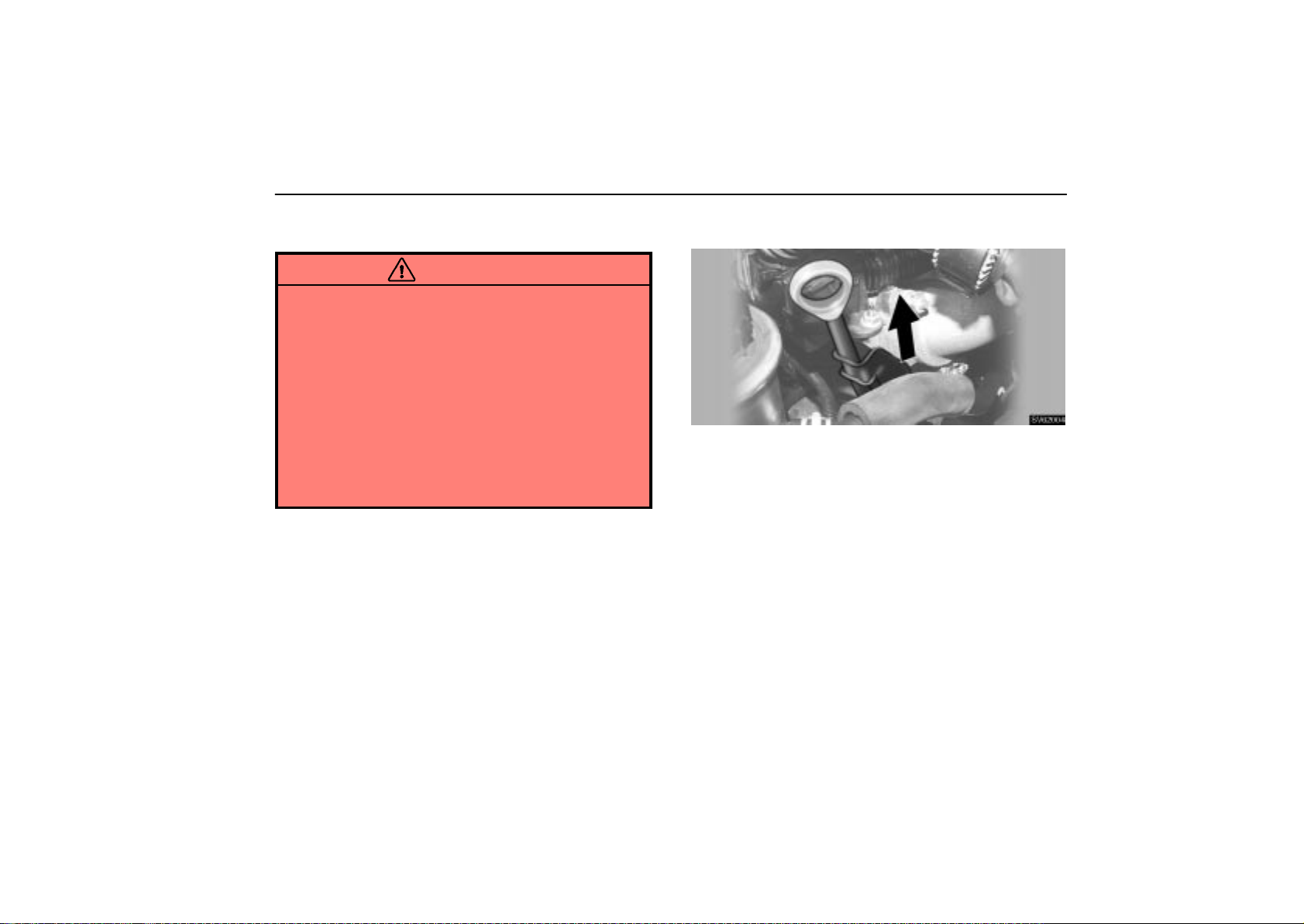

SV62008

If the oil level is below or only slightly above the low level
mark, add engine oil of the same type as already in the
engine.

Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. We recommend that you use a funnel
when adding oil.

The approximate quantity of oil needed to raise the level
between low and full on the dipstick is indicated below for
reference.

When the level reaches within the correct range, return the
filler cap and turn the cap clockwise until you hear a click.

Oil quantity. L (qt., lmp. qt.) 1.8 (1.9, 1.6)

04 06.30

ENGINE

NOTICE



Be careful not to spill engine oil on the vehicle
components.



Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick once again after
adding the oil.

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use
Lexus approved “Toyota Genuine Motor Oil” or equivalent to
satisfy the following grade and viscosity.

Oil grade:

API grade SL “Energy–Conserving” or ILSAC multigrade
engine oil.

Recommended viscosity (SAE):

SOIL14

Outside temperature

SAE 5W–30 is the best choice for good fuel economy, and
good starting in cold weather.

If SAE 5W–30 oil is not available, SAE 10W–30 oil may be
used. However, it should be replaced with SAE 5W–30 at
the next oil change.

335

04 06.30

ENGINE

Oil identification marks

SOIL11



API Service Symbol

Either or both API registered marks are added to some oil
containers to help you select the oil you should use.

 The API Service Symbol is located anywhere on the outside

of the container.

The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SL. The
center portion of the label shows the SAE viscosity grade
such as SAE 5W–30. “Energy–Conserving”, shown in the
lower portion, indicates that the oil has fuel–saving

capabilities.

 The ILSAC (International Lubricant Standardization and

Approval Committee) Certification Mark is displayed on the

front of the container.



ILSAC Certification Mark

To ensure excellent lubrication performance for your engine,
“Toyota Genuine Motor Oil” is available, which has been
specifically tested and approved for all Lexus engines.
Please contact your Lexus dealer for further details about
“Toyota Genuine Motor Oil”.

336

04 06.30

ENGINE

CHECKING THE ENGINE COOLANT

LEVEL

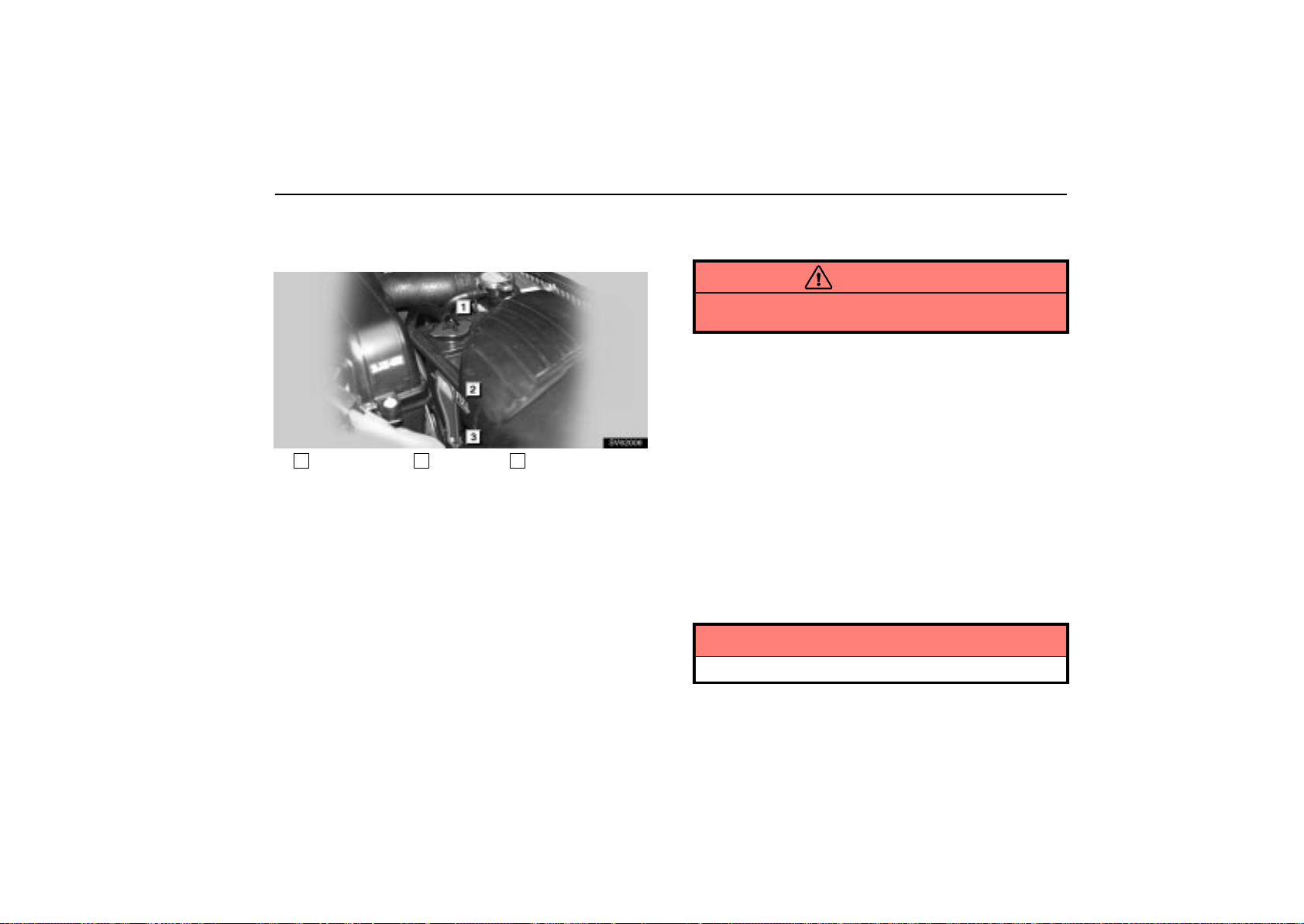

SV62006

1



Reservoir cap 2Upper line 3Lower line

Look at the see–through coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between the“FULL” and “L” lines on the reservoir. If the
level is low, add the coolant. (For the coolant type, see
“Coolant type selection” described below.)

The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the “L” line,
add coolant. Bring the level up to the “FULL” line.

If the coolant level drops within a short time after replenishing,
there may be a leak in the system. Visually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.

If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.

CAUTION

To prevent burning yourself, do not remove the radiator
cap when the engine is hot.

Coolant type selection

Use of improper coolants may damage your engine cooling
system.

Only use “Toyota Super Long Life Coolant” or similar high
quality ethylene glycol based non–silicate, non–amine,
non–nitrite, and non–borate coolant with long–life hybrid
organic acid technology . (Coolant with long–life hybrid organic
acid technology is a combination of low phosphates and
organic acids.)

For the U.S.A.—“T oyota Super Long Life Coolant” is a mixture
of 50% coolant and 50% deionized water. This coolant
provides protection down to about –35C (–31F).

For the Canada—“Toyota Super Long Life Coolant” is a
mixture of 55% coolant and 45% deionized water . This coolant
provides protection down to about –42C (–44F).

NOTICE

Do not use plain water alone.

337

04 06.30

ENGINE

Lexus recommends “Toyota Super Long Life Coolant”, which
has been tested to ensure that it will not cause corrosion nor
result in malfunction of your engine coolant system with proper
usage. “Toyota Super Long Life Coolant” is formulated with
long–life hybrid organic acid technology and has been
specifically designed to avoid engine cooling system
malfunction on Lexus vehicles.

Please contact your Lexus dealer for further details.

CHECKING THE RADIATOR AND

CONDENSER

If either of the above parts are extremely dirty or you are not
sure of their condition, take you vehicle to a Lexus dealer.

CAUTION

To prevent burning yourself, be careful not to touch the
radiator or condenser when the engine is hot.

NOTICE

To prevent damage to the radiator and condenser, do
not perform the work by yourself.

338

04 06.30

ENGINE

SPARK PLUGS

SV62007a

Your engine is fitted with designated iridium–tipped spark
plugs.

NOTICE

Use only designated iridium–tipped spark plugs and do
not adjust gaps for your engine performance and
smooth drivability.

339

04 06.30

ENGINE

340

04 06.30

SECTION 6 –

SERVICE PROCEDURES AND
SPECIFICATIONS

Chassis

Specifications 342. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking brake fluid 349. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking power steering fluid 350. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking tire inflation pressure 351. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire information 354. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Types of tires 365. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rotating tires 366. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing tires 368. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing snow tires and chains 370. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing wheels 373. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Aluminum wheel precautions 374. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suspension and chassis 374. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

341

04 06.30

CHASSIS

SPECIFICATIONS

– MANUAL TRANSMISSION

Oil capacity
Oil type Multipurpose gear oil API GL–4 or GL–5
Recommended oil viscosity SAE 75W–90

– DIFFERENTIAL

Oil capacity
Oil type Hypoid gear oil API GL–5
Oil viscosity Above –18C (0F): SAE 90

– AUTOMATIC TRANSMISSION

Fluid capacity

Drain and refill

Fluid type Toyota Genuine ATF Type T – IV*

2.6 L (2.7 qt., 2.3 lmp.qt.)

1.15 L (1.22 qt., 1.01 lmp.qt.)

Below –18C (0F): SAE 80W or SAE 80W–90

2.0 L (2.1 qt., 1.8 lmp.qt.)

*:Change automatic transmission fluid only as necessary.
Generally, it is necessary to change automatic transmission
fluid only if your vehicle is driven under one of the Special
Operating Conditions listed in your “Owner’s Manual
Supplement/Scheduled Maintenance”. When changing the
automatic transmission fluid, use only “Toyota Genuine ATF
Type T–IV” (ATF JWS3309 or NWS6500) to aid in assuring
optimum transmission performance.

342

NOTICE

Using automatic transmission fluid other than “Toyota
Genuine ATF Type T–IV” may cause deterioration in
shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the
automatic transmission of your vehicle.

04 06.30

CHASSIS

– CLUTCH

Pedal freeplay

5 – 15 mm (0.2 – 0.6 in.)

Fluid type SAE J1703 or FMVSS No. 116 DOT 3

– BRAKES

Pedal clearance *

1

99 mm (3.9 in.) Min.
Pedal free play 1 – 6 mm (0.04 –0.24 in.)
Brake pad wear limit 1.0 mm (0.04 in.)
Parking brake lining wear limit 1.0 mm (0.04 in.)
Parking brake adjustment *

2

5 – 8 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

*1:Minimum pedal clearance when depressed with the force of 490 N (49 kgf, 110 lbf) with the engine running
*2:Parking brake adjustment when pulled with the force of 196 N (20 kgf, 44 lbf)

– STEERING

Free play

Less than 30 mm (1.2 in.)
Power steering fluid Automatic transmission fluid DEXRONII or III

343

04 06.30

CHASSIS

– TIRES AND WHEELS (Type A)
Standard tire:

Tire size

Front
Rear

Tire inflation pressure

Recommended cold tire inflation pressure Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)

Wheel size

Front
Rear

Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf.)

215/45ZR17
225/45ZR17

Rear 240 kPa (2.4 kgf/cm2 or bar, 35 psi)
For sustained high speeds above 160 km/h (100 mph), in

countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.

17 x 7 JJ
17 x 7 1/2 JJ

344

Spare tire:

Tire size

215/45ZR17

Tire inflation pressure

Recommended cold tire inflation pressure 240 kPa (2.4 kgf/cm

2

or bar, 35 psi)

04 06.30

CHASSIS

Wheel size 17 x 7 JJ
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf.)

NOTE:
For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure”

through “Aluminum wheel precautions” on page 351 through 374.

345

04 06.30

CHASSIS

– TIRES AND WHEELS (Type B)

Tire size 215/45ZR17
Tire inflation pressure

Recommended cold tire inflation pressure Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)

Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in

countries where such speeds are permitted by law, add 70 kPa
(0.8 kgf/cm2, 0.7 bar, 10 psi) to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire
sidewall.

Wheel size 17 x 7 JJ
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf.)

NOTE:
For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure”

through “Aluminum wheel precautions” on page 351 through 374.

346

04 06.30

CHASSIS

– TIRES AND WHEELS (Type C)
Standard tire:

Tire size

P205/55R16 89V

Tire inflation pressure

Recommended cold tire inflation pressure Front 230 kPa (2.3 kgf/cm2 or bar, 33 psi)

Rear 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
For sustained high speeds above 160 km/h (100 mph), in

countries where such speeds are permitted by law, add the tire
pressure given below to the front tires and rear tires, but never
exceed the maximum cold tire pressure molded on the tire
sidewall.

Sedan

70 kPa (0.8 kgf/cm

SportCross

Front: 70 kPa (0.8 kgf/cm

Rear: 90 kPa (0.9 kgf/cm2, 0.9 bar, 15 psi)
Wheel size 16 x 6 1/2JJ
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf.)

Compact spare tire (IS300 sold in Canada only):

Tire size T125/70D17 98M
Tire inflation pressure 420 kPa (4.2 kgf/cm2 or bar, 60 psi)

2

, 0.7 bar, 10 psi)

2

, 0.7 bar, 10 psi)

347

04 06.30

CHASSIS

Wheel size 17 x 4T
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf.)

NOTE:
For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure”

through “Aluminum wheel precautions” on page 351 through 374.

348

04 06.30

CHASSIS

CHECKING BRAKE FLUID

SV63001

To check the fluid level, simply look at the see–through
reservoir. The level should be between the “MAX” and
“MIN” lines on the tank.

It is normal for the brake fluid level to go down slightly as the
brake pads wear or when the fluid level in the accumulator is
high.

If the reservoir needs frequent refilling, it may indicate a
serious mechanical problem.

If the level is low, add FMVSS No.116 DOT 3 or SAE J1703
brake fluid to the brake reservoir.

Refilling brake fluid:

1. Turn the ignition switch off.

2. Depress the brake pedal more than 40 times.

3. Remove the reservoir cap by hand. Add brake fluid up to the
“MAX” line.

If you do not follow the procedure above, the reservoir may
overflow.

Use only newly opened brake fluid. Once opened, brake fluid
absorbs moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.

CAUTION

Take care when filling the reservoir because brake fluid
can harm your hands or eyes. If fluid gets on your hands
or in your eyes, flush the affected area with clean water
immediately. If you still feel uncomfortable with your
hands or eyes, go to the doctor.

NOTICE

If you spill some of the fluid, be sure to wipe it off to
prevent it from damaging the parts or paintwork.

349

04 06.30

CHASSIS

CHECKING POWER STEERING

FLUID

SV63002

Check the fluid level on the dipstick. If necessary, add
automatic transmission fluid DEXRON

If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60C – 80C or 140F – 175F). You may also check the level
when the fluid is cold (about room temperature, 10C – 30C
or 50F – 85F) if the engine has not been run for about five
hours.



II or III.

SV63003

1



If cold O.K. 2If hot O.K. 3Add fluid

1. Clean all dirt off the reservoir.

2. Remove the reservoir cap by turning it counterclockwise
and wipe the dipstick clean.

3. Reinstall the reservoir cap.

4. Remove the reservoir cap again and look at the fluid level.
If the fluid is cold, the level should be in the “COLD” range on
the dipstick. Similarly, if it is hot, the fluid level should be in the
“HOT” range. If the level is at the low side of either range, add
automatic transmission fluid DEXRON
level within the range.

5. After replacing the reservoir cap, visually check the
steering box case, vane pump and hose connections for leaks
or damage.



II or III to bring the

350

04 06.30

CHASSIS

CAUTION

The reservoir may be hot so be careful not to burn
yourself.

NOTICE



Avoid overfilling, or the power steering could be
damaged.



When adding the power steering fluid, avoid spilling
it. The generator under the power steering reservoir
could be damaged if fluid is spilled on it.

CHECKING TIRE INFLATION

PRESSURE

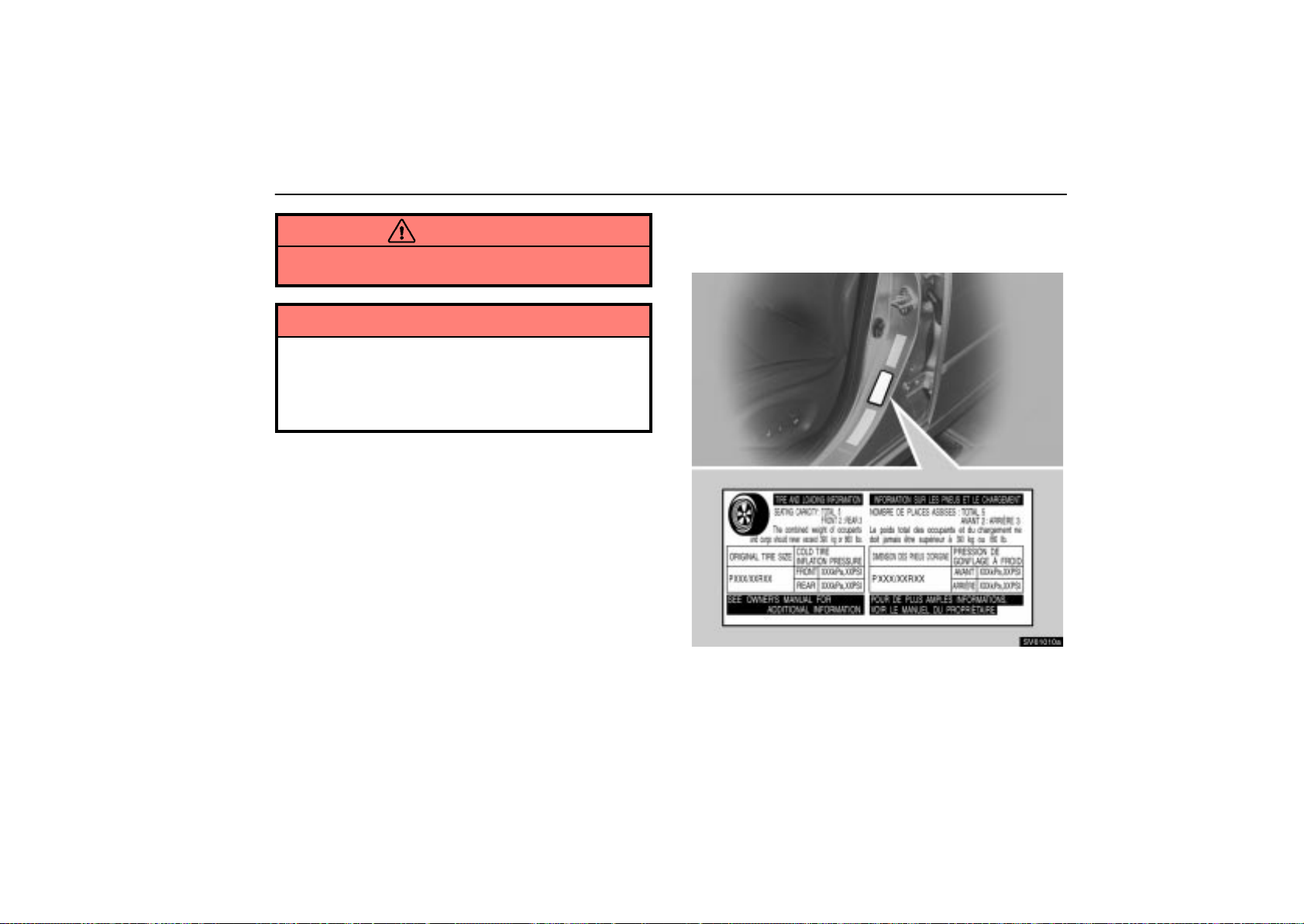

SV61010a

The recommended cold tire inflation pressure, tire
size and the combined weight of occupants and
cargo (vehicle capacity weight) are described on the
tire and loading information label.

351

04 06.30

CHASSIS

You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget the
spare. The inflation pressure for the spare tire should be
adjusted according to the conditions in the table on page
344, 346 or 347.

The following instructions for checking tire inflation
pressure should be observed:

 The inflation pressure should be checked only

when the tires are cold. If your vehicle has been

parked for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an

accurate cold tire inflation pressure reading.

 Always use a tire pressure gauge. The appearance

of the tire can be misleading. Besides, tire inflation
pressures that are even just a few pounds off can

degrade ride and handling.

 Do not bleed or reduce tire inflation pressure after

driving. It is normal for the tire inflation pressure to be

higher after driving.

 Never exceed the vehicle capacity weight.

Passengers and luggage weight should be located so

that the vehicle is balanced.

CAUTION

The inflation pressure for the compact spare tire
must be 420 kPa (4.3 kgf/cm2, 4.2 bar, 60 psi).

Inspection and adjustment procedure

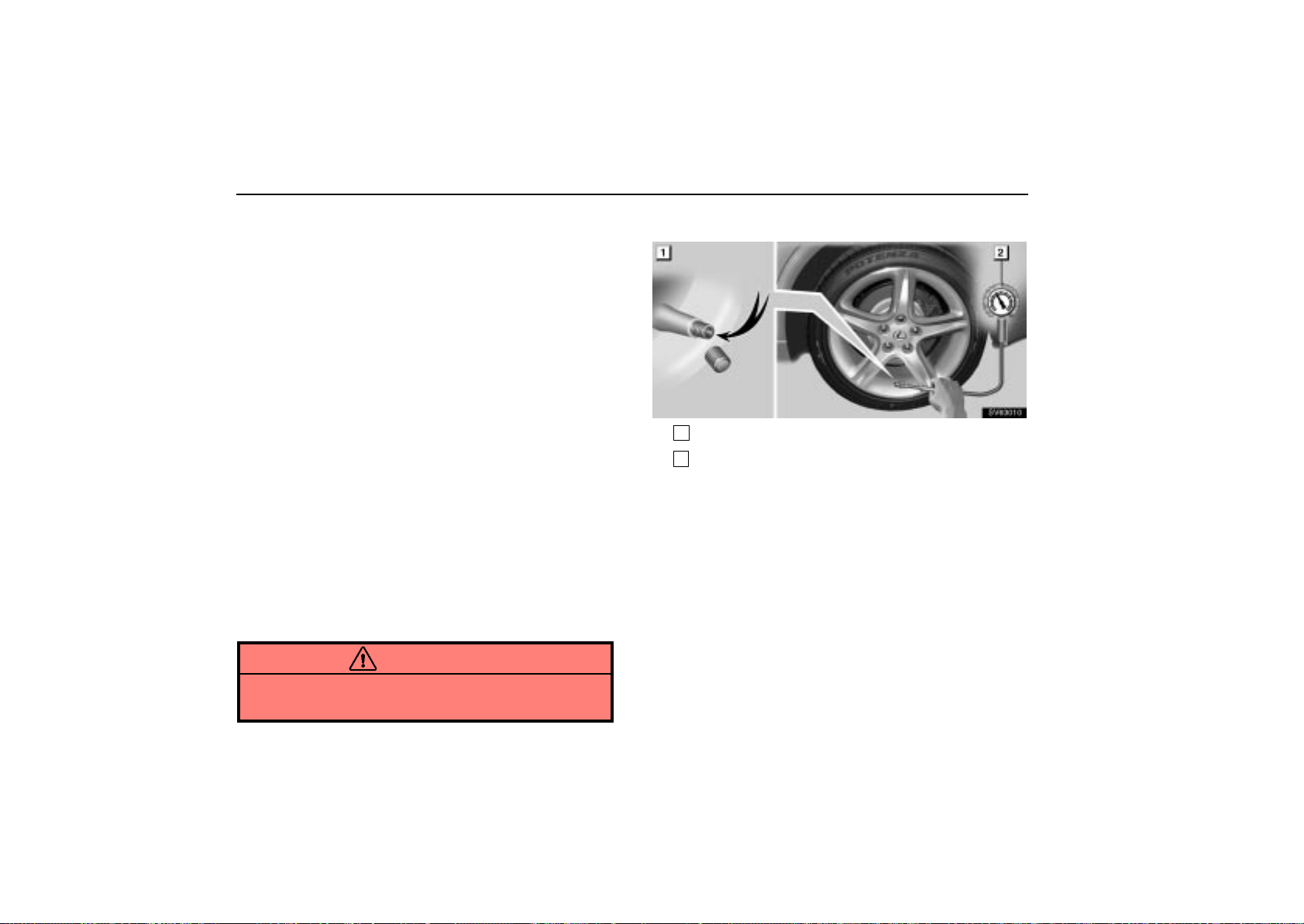

SV63010

1



Tire valve

2

Tire pressure gauge

1. Remove the tire valve cap.

2. Press the tip of the tire pressure gauge to the tire
valve.

3. Read the pressure using the graduations of the
gauge.

4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the center
of the valve and release the air to adjust.

5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to the
valve and check for leakage.

352

04 06.30

CHASSIS

6. Install the tire valve cap.
If a gauge and air pump are not available, have your

vehicle checked by your Lexus dealer.

CAUTION

Be sure to reinstall the tire valve caps. Without the
valve caps, dirt or moisture could get into the
valve core and cause air leakage. If the caps have
been lost, have new ones put on as soon as
possible.

Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.

If a tire needs frequent refilling, have it checked by your
Lexus dealer.

CAUTION

Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.

Low tire pressure (underinflation)—

 Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road

hazards

High tire pressure (overinflation)—

 Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road

hazards

353

04 06.30

CHASSIS

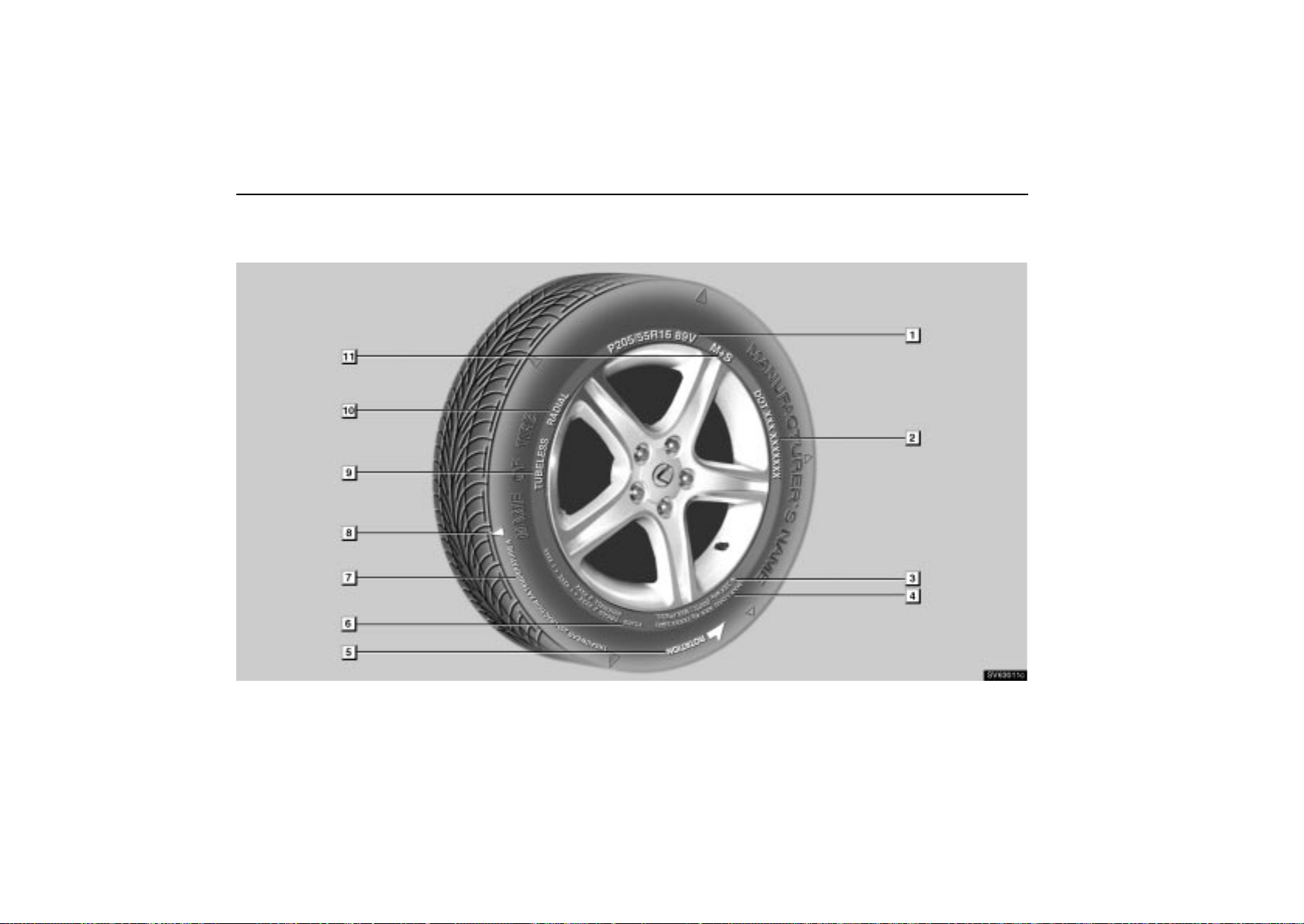

Tire symbols (Standard tire)

TIRE INFORMATION

SV63011c

354



The illustration indicates typical tire symbols.

04 06.30

CHASSIS

1

Tire size: For details, see “Tire size” on page

358.

2

DOT and Tire Identification Number (TIN): For

details, see “DOT and Tire Identification Number
(TIN)” on page 358.

3

Maximum cold tire inflation pressure: This

means the pressure to which a tire may be
inflated. For recommended cold tire inflation
pressure, see “Specifications” on page 344, 346
or 347.

4

Load limit at maximum cold tire inflation
pressure: For details, see “Checking and

replacing tires” on page 368.

5

Turning indicator: Some vehicles are equipped

with directional tires. For details, see “Rotating
tires” on page 366 or 367.

6

Tire ply composition and materials : Plies

mean a layer of rubber–coated parallel cords.
Cords mean the strands forming the plies in the
tire.

7

Uniform tire quality grading: For details, see

“Uniform tire quality grading” that follows.

8

Location of tread wear indicators: For details,

see “Checking and replacing tires” on page 368.

9

“TUBELESS” or “TUBE TYPE”: A tubeless tire

does not have a tube inside the tire and air is
directly filled in the tire. A tube type tire has a tube
inside the tire and the tube maintains the air
pressure.

10

Radial tires or bias–ply tires: A radial tire has

“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias–ply tire.

11

Summer tire or all season tire: An all season

tire has “M+S” on the sidewall. The tire not
marked with “M+S” is a summer tire. For details,
see “Types of tires” on page 365.

355

04 06.30

CHASSIS

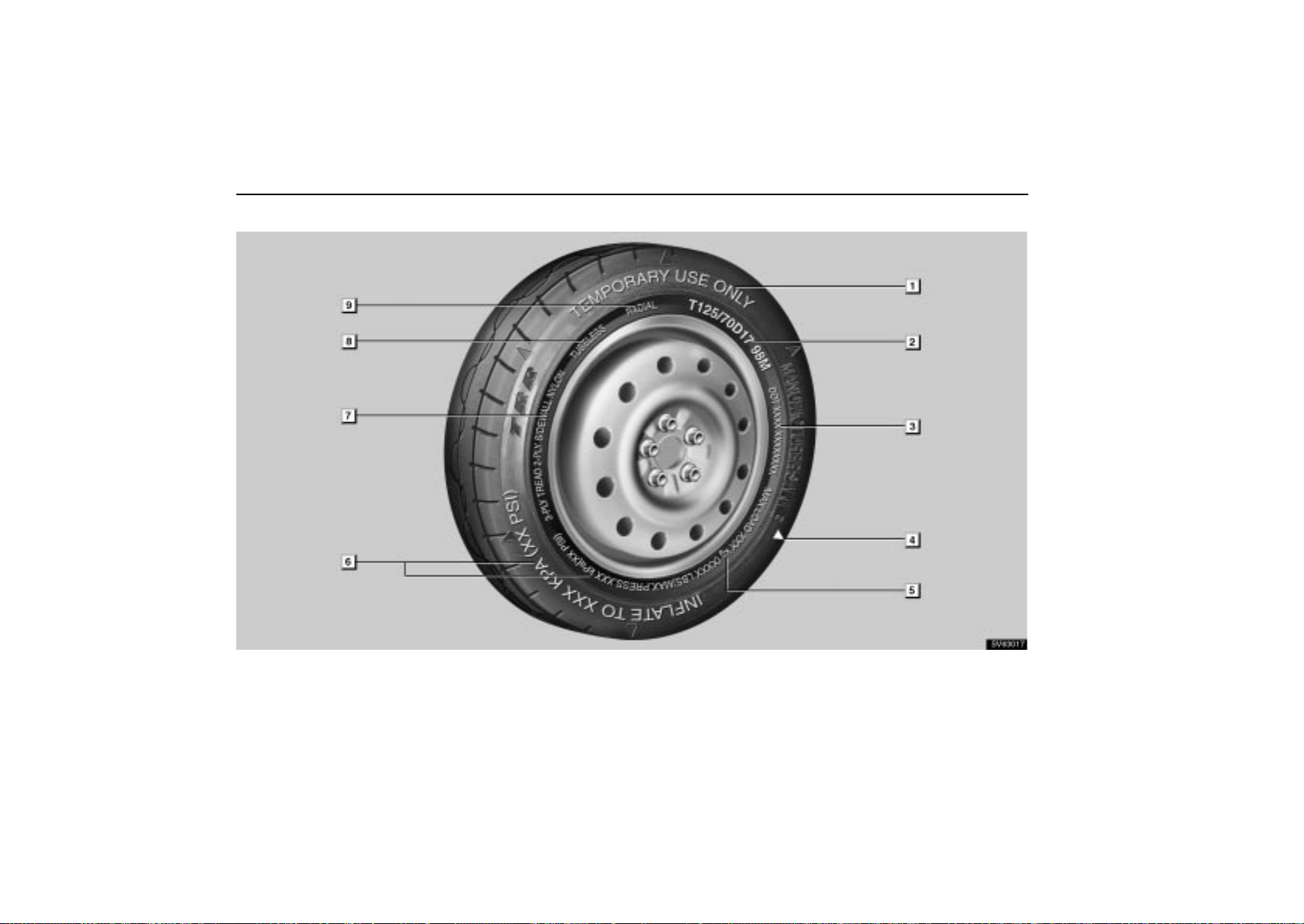

Tire symbols (Compact spare tire)

SV63017

356



The illustration indicates typical tire symbols.

04 06.30

CHASSIS

1

“TEMPORARY USE ONLY”: A compact spare

tire is identified by the phrase “TEMPORARY
USE ONLY” molded into its sidewall. This tire is
designed for temporary emergency use only. For
details, see “Compact spare tire” on page 287.

2

Tire size: For details, see “Tire size” on page

358.

3

DOT and Tire Identification Number (TIN): For

details, see “DOT and Tire Identification Number
(TIN)” on page 358.

4

Location of tread wear indicators: For details,

see “Checking and replacing tires” on page 368.

5

Load limit at maximum cold tire inflation
pressure: For details, see “Checking and

replacing tires” on page 368.

6

Maximum cold tire inflation pressure: This

means the pressure to which a tire may be
inflated. For recommended cold tire inflation
pressure, see “Specifications” on page 344, 346
or 347.

7

Tire ply composition and materials : Plies

mean a layer of rubber–coated parallel cords.
Cords mean the strands forming the plies in the
tire.

8

“TUBELESS” or “TUBE TYPE”: A tubeless tire

does not have a tube inside the tire and air is
directly filled in the tire. A tube type tire has a tube
inside the tire and the tube maintains the air
pressure.

9

Radial tires or bias–ply tires: A radial tire has

“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias–ply tire.

357

04 06.30

CHASSIS

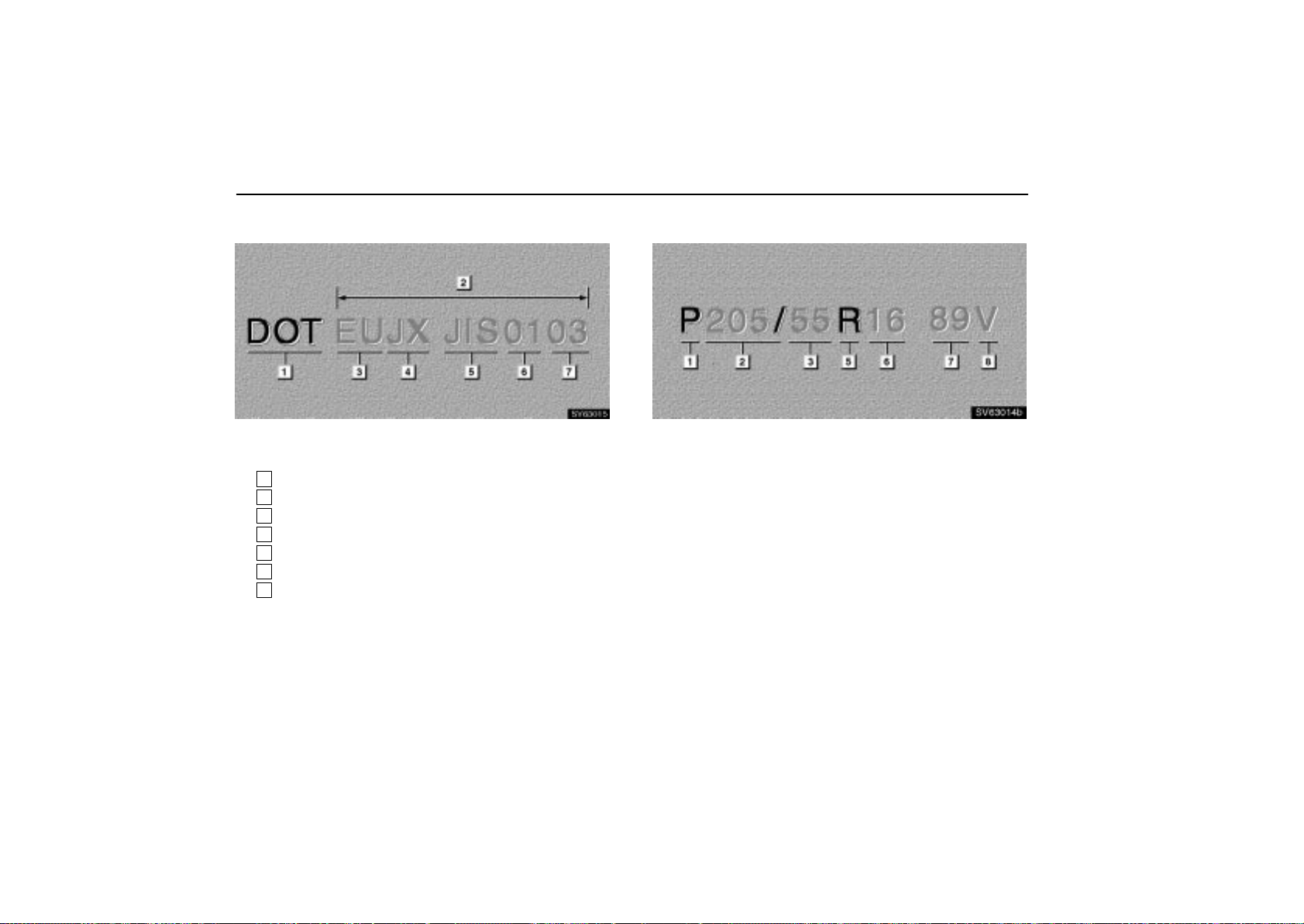

DOT and Tire Identification Number (TIN)

SV63015



The illustration indicates typical DOT and Tire
Identification Number (TIN)

1

“DOT” symbol

2

Tire Identification Number (TIN)

3

Tire manufacturer’s identification mark

4

Tire size code

5

Manufacturer’s optional tire type code

6

Manufacturing week

7

Manufacturing year

The “DOT” symbol certifies that the tire conforms to
applicable Federal Motor Vehicle Safety Standards.

Tire size



Type A

SV63014b

358

04 06.30

CHASSIS

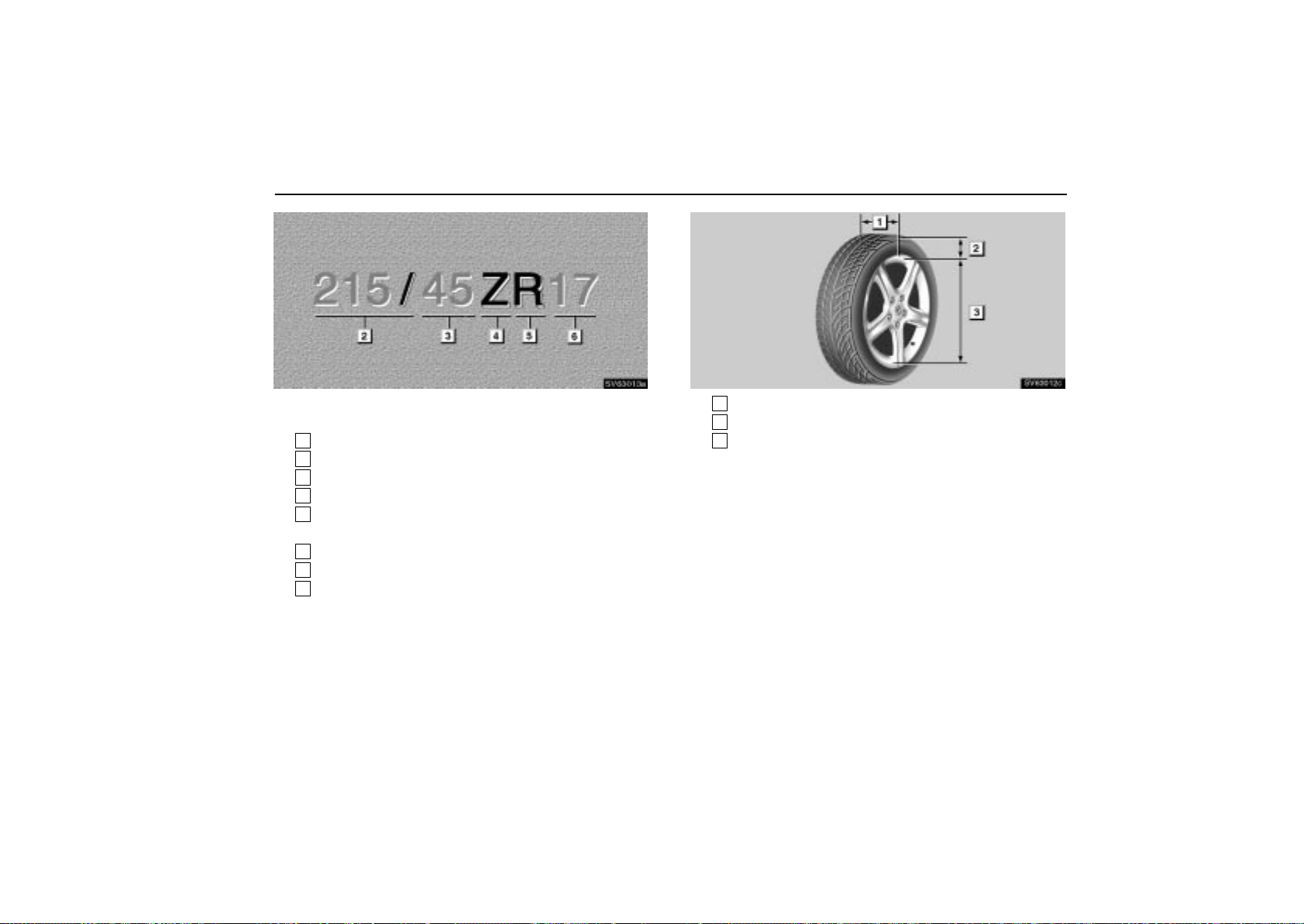

SV63013a



Type B
The illustration indicates typical tire size.

1

Tire use (P=Passenger car, T=Temporary use)

2

Section width (in millimeters)

3

Aspect ratio (tire height to section width)

4

Speed category (alphabet with one letter)

5

Tire construction code
(R=Radial, D=Diagonal)

6

Wheel diameter (in inches)

7

Load index (2 digits or 3 digits)

8

Speed symbol (alphabet with one letter)

1



Section width

2

Tire height

3

Wheel diameter

SV63012c

359

04 06.30

CHASSIS

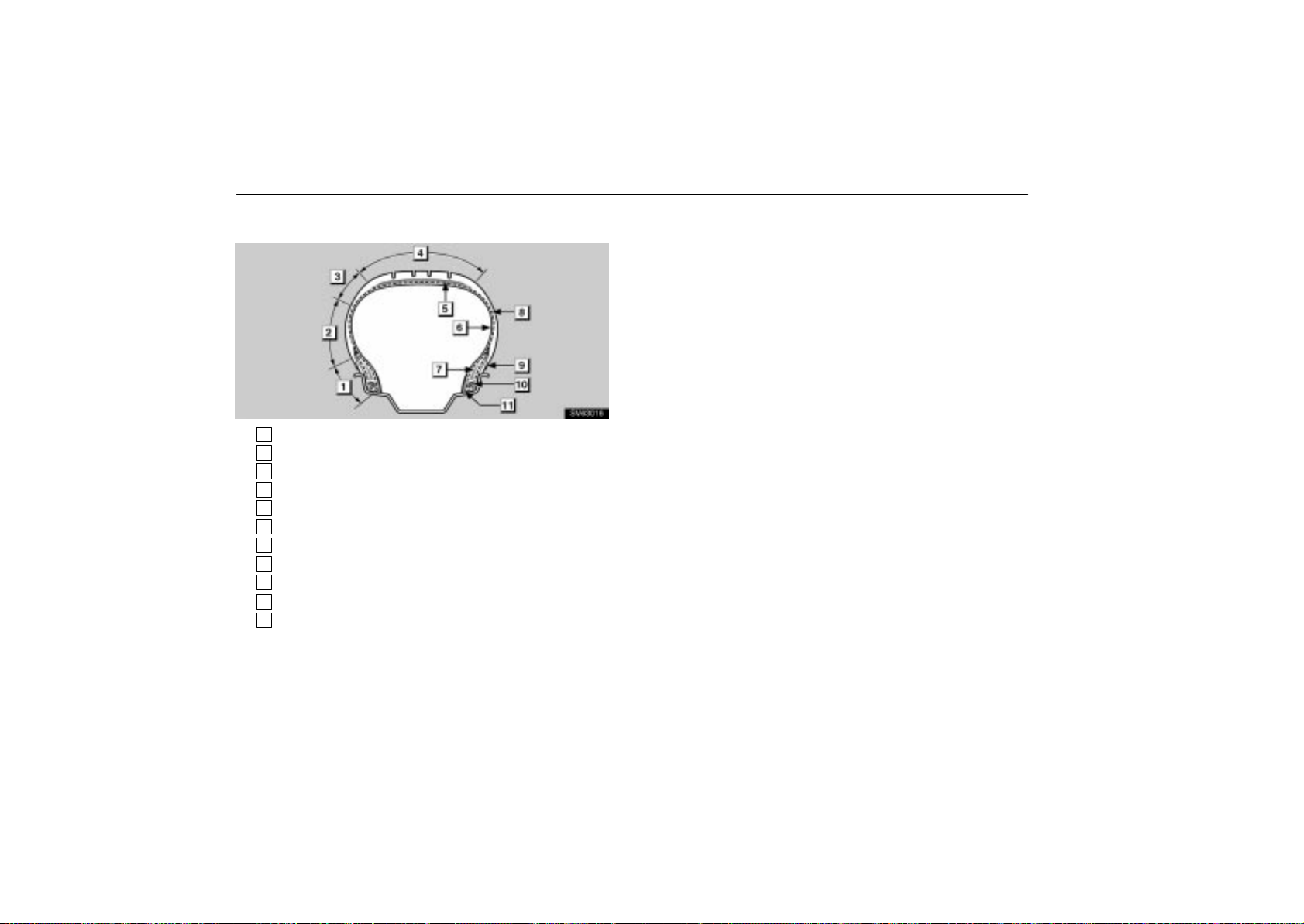

Name of each section of tire

SV63016

1



Bead

2

Sidewall

3

Shoulder

4

Tread

5

Belt

6

Inner liner

7

Reinforcing rubber

8

Carcass

9

Rim lines

10

Bead wires

11

Chafer

Uniform tire quality grading

This information has been prepared in accordance
with regulations issued by the National Highway
Traffic S afety Administration of the U.S. Department
of T ransportation. It provides the purchasers and/or
prospective purchasers of Lexus vehicles with
information on uniform tire quality grading.

Your Lexus dealer will help answer any questions
you may have as you read this information.

DOT quality grades – All passenger vehicle tires
must conform to Federal Safety Requirements in
addition to these grades. Quality grades can be
found where applicable on the tire sidewall between
tread shoulder and maximum section width. For
example: T readwear 200 Traction AA Temperature A

Tread wear – The treadwear grade is a comparative

rating based on the wear rate of the tire when tested
under controlled conditions on a specified government
test course. For example, a tire graded 150 would wear
one and a half (1 – 1/2) times as well on the government
course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use,
however, and may depart significantly from the norm
due to variations in driving habits, service practices and
differences in road characteristics and climate.

360

04 06.30

CHASSIS

Traction AA, A, B, C – The traction grades, from highest

to lowest, are AA, A, B and C, and they represent the
tire’s ability to stop on wet pavement as measured under
controlled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C may
have poor traction performance.

Warning: The traction grade assigned to this tire is
based on braking (straight ahead) traction tests and
does not include cornering (turning) traction.

Temperature A, B, C – The temperature grades are A
(the highest), B, and C, representing the tire’s resistance
to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified
indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade
C corresponds to a level of performance which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the laboratory
test wheel than the minimum required by law.

Warning: The temperature grades for this tire are
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.

361

04 06.30

CHASSIS

Glossary of tire terminology

Tire related term Meaning

362

Cold tire inflation
pressure

Maximum inflation
pressure

Recommended inflation
pressure

Accessory weight

Curb weight

Maximum loaded vehicle
weight

tire pressure when the vehicle has been parked for at least 3 hours or more, or it
has not been driven more than 1.5 km or 1 mile under that condition.

the maximum cold inflation pressure to which a tire may be inflated and it is shown
on the sidewall of the tire

cold tire inflation pressure recommended by a manufacturer

the combined weight (in excess of those standard items which may be replaced) of
automatic transmission, power steering, power brakes, power windows, power
seats, radio, and heater, to the extent that these items are available as
factory–installed equipment (whether installed or not)

the weight of a motor vehicle with standard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and
additional weight optional engine

the sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight

04 06.30

CHASSIS

Tire related term Meaning

Normal occupant weight

Production options weight

Vehicle capacity weight
(Total load capacity)

Intended outboard
sidewall

Occupant distribution

Rim

Rim diameter
(Wheel diameter)

68 kg (150 lb.) times the number of occupants specified in the second column of
Table 1 that follows.

the combined weight of those installed regular production options weighing over

2.3 kg (5 lb.) in excess of those standard items which they replace, not previously
considered in curb weight or accessory weight, including heavy duty brakes, ride
levelers, roof rack, heavy duty battery, and special trim

the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s
designated seating capacity

(a) the sidewall that contains a whitewall, bears white lettering or bears

manufacturer, brand, and/or model name molding that is higher or deeper than
the same molding on the other sidewall of the tire, or

(b) the outward facing sidewall of an asymmetrical tire that has a particular side

that must always face outward when mounted on a vehicle.

distribution of occupants in a vehicle as specified in the third column of Table 1 that
follows.

a metal support for a tire or a tire and tube assembly upon which the tire beads are
seated

nominal diameter of the bead seat

363

04 06.30

CHASSIS

Tire related term Meaning
Rim size designation rim diameter and width
Rim type designation the industry of manufacturer’s designation for a rim by style or code
Rim width nominal distance between rim flanges
Vehicle maximum load on

the tire

Vehicle normal load on
the tire

Weather side the surface area of the rim not covered by the inflated tire

Table 1 – Occupant loading and distribution for vehicle normal load for various designated seating capacities

Designated seating capacity,

Number of occupants
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second seat

364

the load on an individual tire that is determined by distributing to each axle its
share of the maximum loaded vehicle weight and dividing by two

the load on an individual tire that is determined by distributing to each axle its
share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two

Vehicle normal load,

Number of occupants

Occupant distribution in a normally

loaded vehicle

04 06.30

CHASSIS

TYPES OF TIRES

Determine what kind of tires your vehicle is originally
equipped with.

1. Summer tires

Summer tires are high–speed capability tires best suited
to highway driving under dry conditions.

Since summer tires do not have the same traction
performance as snow tires, summer tires are
inadequate for driving on snow–covered or icy roads.
For driving on snow–covered or icy roads, we
recommend using snow tires. If installing snow tires, be
sure to replace all four tires.

2. All season tires

All season tires are designed to provide better traction
in snow and to be adequate for driving in most winter
conditions, as well as for use all year round.

All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose
snow. Also, all season tires fall short in acceleration and
handling performance compared with summer tires in
highway driving.

The details about how to distinguish summer tires from
all season tires are described on page 354.

CAUTION

 Do not mix summer and all season tires on your

vehicle as this can cause dangerous handling
characteristics, resulting in loss of control.

 Do not use tires other than the manufacturer’s

designated tires, and never mix tires or wheels
of the sizes different from the originals as this
can cause dangerous handling characteristics,
resulting in loss of control.

365

04 06.30

CHASSIS



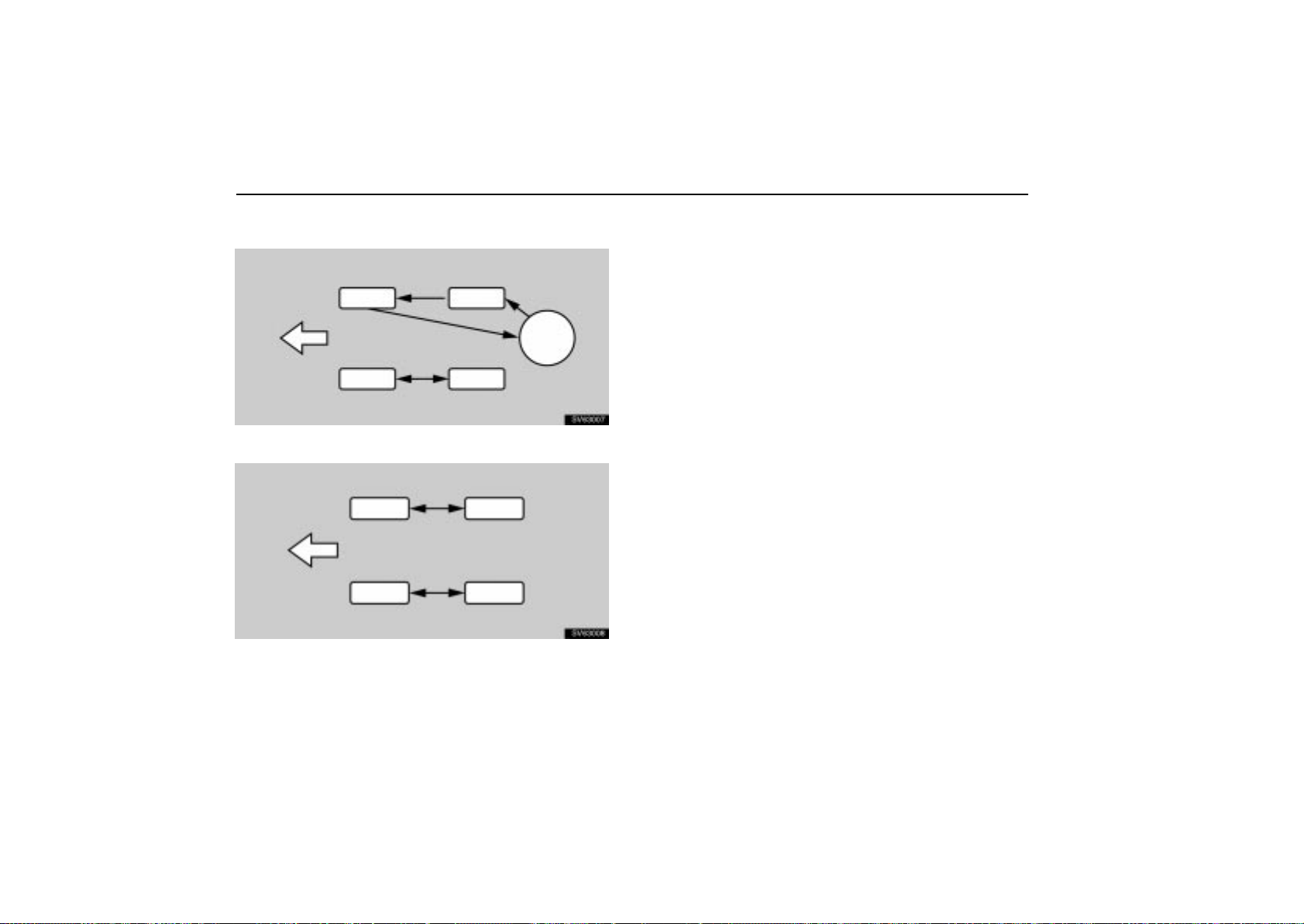

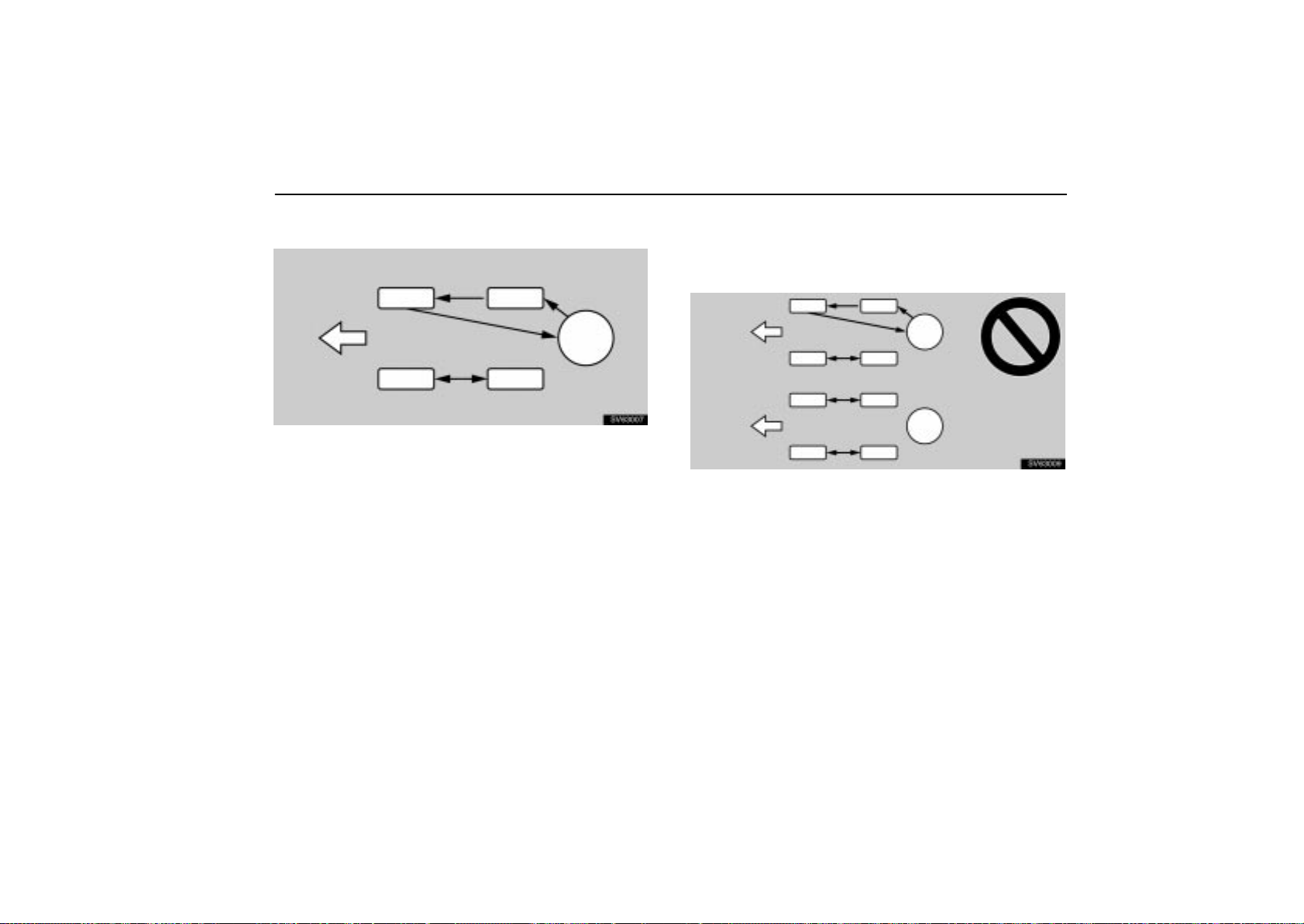

Pattern A



Pattern B

ROTATING TIRES (Sedan)

SV63007

SV63008

To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires according to
the maintenance schedule. (For scheduled
maintenance information, please refer to the
“Owner’s Manual Supplement/Scheduled
Maintenance”.) However, the most appropriate
timing for tire rotation may vary according to your
driving habits and road surface conditions.

The wheel assemblies must be rotated as illustrated
above.

Pattern A: Except vehicles with the P205/55 R16 tires
sold in Canada.

Pattern B: Vehicles with the P205/55R16 tires sold in
Canada.

When rotating tires, check for uneven wear and
damage. Abnormal wear is usually caused by incorrect
tire pressure, improper wheel alignment, out–of balance
wheels, or severe braking.

Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the
same direction when using them again. Tires should be
stored in a cool dry place.

366

04 06.30

CHASSIS

ROTATING TIRES (SportCross)

SV63007



With the P205/55R16 or 215/45ZR17 tires

To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires according to
the maintenance schedule. (For scheduled
maintenance information, please refer to the
“Owner’s Manual Supplement/Scheduled
Maintenance”.) However, the most appropriate
timing for tire rotation may vary according to your
driving habits and road surface conditions.

The wheel assemblies must be rotated as illustrated
above.

When rotating tires, check for uneven wear and
damage. Abnormal wear is usually caused by incorrect
tire pressure, improper wheel alignment, out–of balance
wheels, or severe braking.

Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the
same direction when using them again. Tires should be
stored in a cool dry place.

SV63009



With the 215/45ZR17 tires for front and the
225/45ZR17 tires for rear

Do not perform rotation of the tires, from front to rear
or from left to right, or using the spare tire,
performing such tire rotation may result in the tires
interfering with the body or in uneven wear of the
tires, so that steerability of the vehicle is impaired.

367

04 06.30

CHASSIS

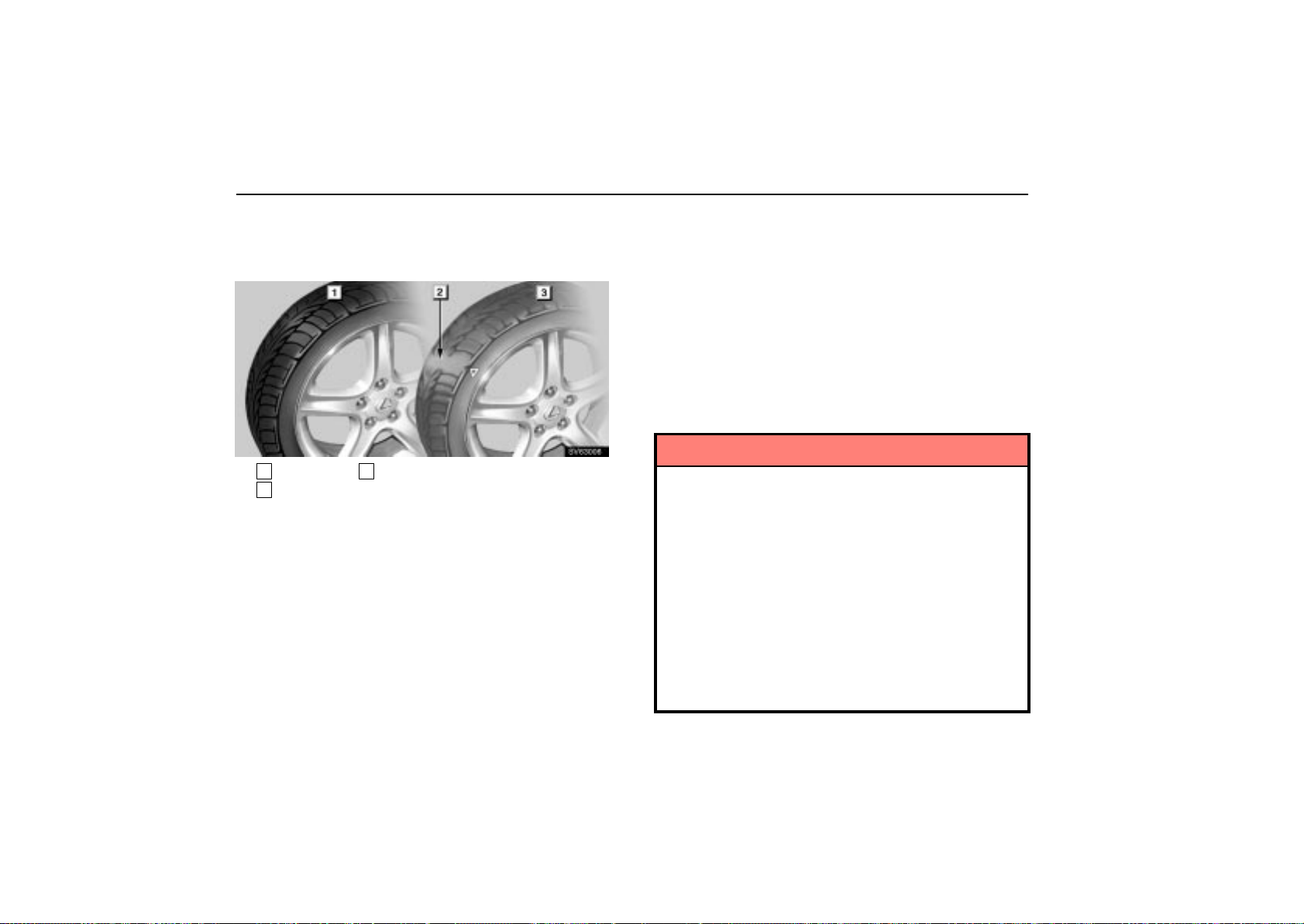

CHECKING AND REPLACING TIRES

When to replace your tires

SV63006

1



New tread 2Tread wear indicator

3

Worn tread

Replace the tires when the tread wear indicators
show. The location of tread wear indicators is shown
by the “TWI” or “
sidewall of each tire.

The tires on your Lexus have built–in tread wear
indicators to help you know when the tires need
replacement. When the tread depth wears to 1.6 mm
(0.06 in.) or less, the indicators will appear . If you can see
the indicators in two or more adjacent grooves, the tire
should be replaced.

∆” marks, etc., molded on the

Vehicles equipped with 215/45ZR17 or 225/45ZR17
tires: Your Lexus has been fitted with specially

developed tires which provide exceptional dynamic
performance under general road conditions. However
your riding comfort may worsen a little and road noise
may increase during driving. You may also notice that
your tires will wear more rapidly and tire grip
performance will be reduced on the snowy and/or icy
roads when compared to standard tires. Be sure to have
snow tires or tire chains on the snowy and/or icy roads
and drive carefully with the speed appropriate for road
conditions.

NOTICE

Low profile tire like 215/45ZR17 or 225/45ZR17
may have greater damage than usual tires to its
tire wheel when receiving impact from the road
surface. Therefore, pay attention to the
followings.



Be sure to use with proper tire inflation
pressure. If the tire pressure is low , the tire may
have a grea t e r damage. For detailed information
about tire inflation pressure, see page 344 or

346.



Avoid driving onto high, sharp–edged objects
and other road hazards. Failure to do so can
lead to severe tire damage.

368

04 06.30

CHASSIS

The effectiveness of snow tires is lost if the tread
wears down below 4 mm (0.16 in.).

If you have tire damage such as cuts, splits, cracks
deep enough to expose the fabric, or bulges
indicating internal damage, the tire should be
replaced.

If a tire often goes flat or cannot be properly repaired due
to the size or location of a cut or other damage, it should
be replaced. If you are not sure, consult with your Lexus
dealer.

If air loss occurs while driving, do not continue driving.
Driving even a short distance can damage a tire beyond
repair.

Any tires which are over 6 years old must be
checked by a qualified technician even if damage is
not obvious.

Tires deteriorate with age even if they have never or
seldom been used.

This applies also to the spare tire and tires stored for
future use.

Tire selection

When replacing a tire, use a tire of the same size and
construction, and the same or greater maximum
load as the originally installed tires.

Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration,
ground clearance, and clearance between the body and
tires or snow chains.

Check that the maximum load of the replaced tire is
greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle,
whichever is greater. As for the maximum load of the tire,
see the load limit at maximum cold tire inflation pressure
mentioned on the sidewall of the tire, and as for the
Gross Axle Weight Ratings (GAWR), see the
Certification Label. For details about the Certification
Label and sidewall of the tire, see pages 316 and 354.

369

04 06.30

CHASSIS

CAUTION

Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.

 Do not mix radial, bias belted, or bias–ply tires

on your vehicle, as this may cause dangerous
handling characteristics resulting in loss of
control.

 Do not use tires other than the manufacturer’s

recommended size, as this may cause
dangerous handling characteristics resulting in
loss of control.

If you need to change from conventional tires to radial
tires or vice versa, replace them as a set.

INSTALLING SNOW TIRES AND

CHAINS

When to use snow tires or chains

Snow tires or chains are recommended when driving on
snow or ice.

On wet or dry roads, conventional or radial tires provide better
traction than snow or studded tires.

Snow tire selection

If you need snow tires, select tires of the same size,
construction and load capacity as the originally installed
tires.

Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible restrictions.

CAUTION

Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.

Do not use snow tires other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.

370

04 06.30

CHASSIS

Snow tire installation

Snow tires should be installed on all wheels.

Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.

CAUTION

 Do not drive with the snow tires incorrectly inflated.
 Never drive over 120 km/h (75 mph) with any type of

snow tires.

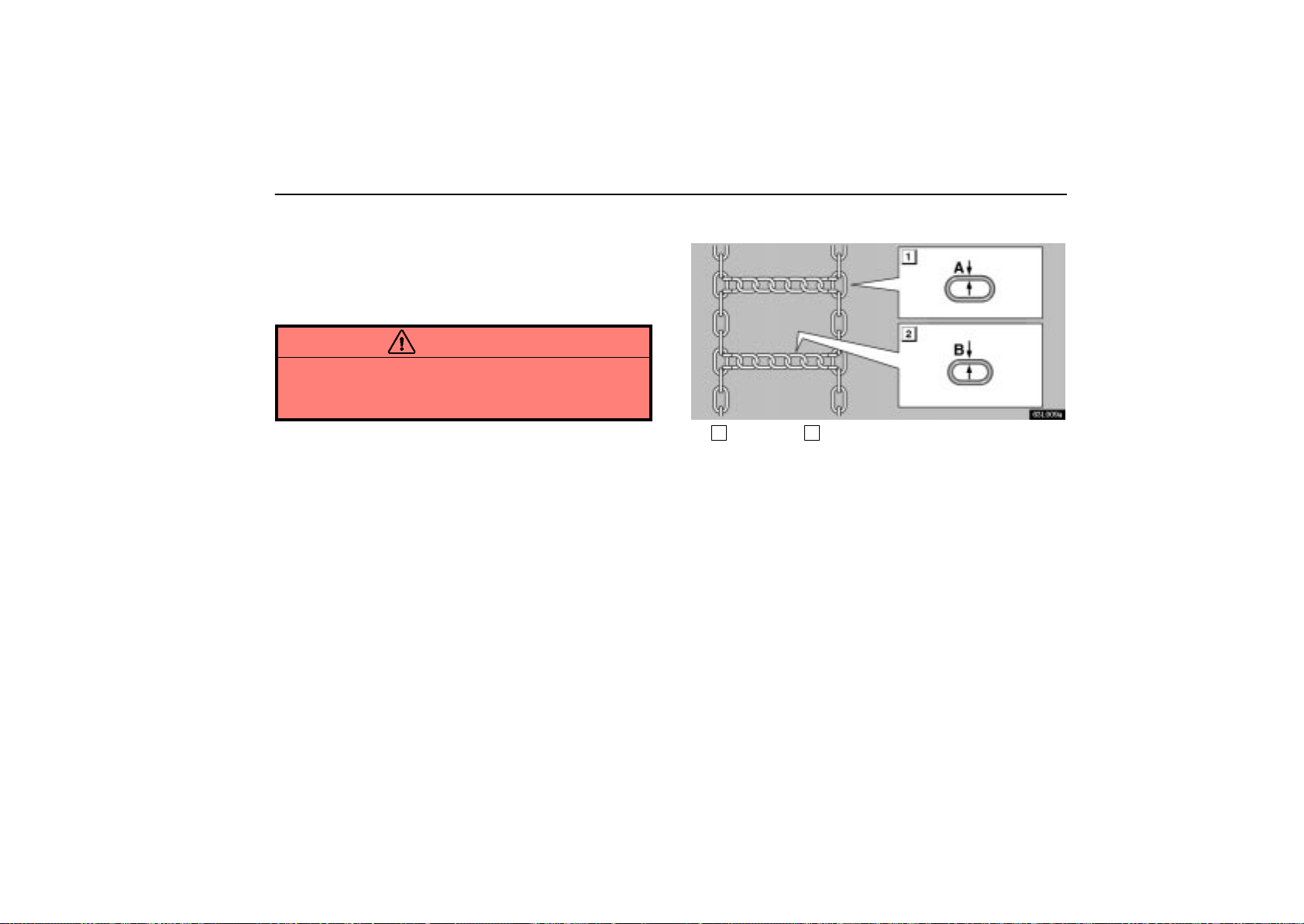

Tire chain selection

63L009a

1



Side chain 2Cross chain

Use the tire chains of correct size.

For 225/45ZR17 tires, use the following type chains.

mm (in.)
A: Diameter of side chain 3.0 (0.12)
B: Diameter of cross chain 4.0 (0.16)
For P205/55R16 or 215/45ZR17 tires, use SAE Class “S” type

radial tire chains, with the exception of radial cable chains or
V–bar type chains.

Regulations regarding the use of tire chains vary
according to location or type of road. Always check local
regulations before installing chains.

371

04 06.30

CHASSIS

NOTICE

If the wrong combination of tire and chain is used, the
chains could damage the vehicle body.

Chain installation

Install the chains on the rear tires as tightly as possible.
Do not use tire chains on the front tires. Retighten chains
after driving 0.5 – 1.0 km (1/4 – 1/2 mile).

When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.

CAUTION

 Do not exceed 50 km/h (30 mph) or the chain

manufacturer’s recommended speed limit,
whichever is lower.

 Drive carefully avoiding bumps, holes, and sharp

turns, which may cause the vehicle to bounce.

 Avoid sharp turns or locked–wheel braking, as use of

chains may adversely affect vehicle handling.

 When driving with chains installed, be sure to drive

carefully . Slow down before entering curves to avoid
losing control of the vehicle, it may cause an
accident.

NOTICE

Do not attempt to use a tire chain on the compact spare
tire, as it may result in damage to the vehicle as well as
the tire.

372

04 06.30

CHASSIS

REPLACING WHEELS

When to replace your wheels

If you have wheel damage such as bends, cracks or heavy
corrosion, the wheel should be replaced.

If you fail to replace a damaged wheel, the tire may slip off the
wheel or cause loss of handling control.

Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.

Wheel selection

When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.

Correct replacement wheels are available at your Lexus
dealer.

A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.

CAUTION

Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.

Do not use wheels other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.

373

04 06.30

CHASSIS

ALUMINUM WHEEL PRECAUTIONS

 When installing aluminum wheels, check that the wheel

nuts are tight after driving your vehicle the first 1600 km

(1000 miles).

 If you have rotated, repaired, or changed your tires, check

that the wheel nuts are still tight after driving 1600 km (1000

miles).

 When using tire chains, be careful not to damage the

aluminum wheels.

 Use only Lexus wheel nuts and wrench designed for your

aluminum wheels.

 When balancing your wheels, use only Lexus balance

weights or equivalent and a plastic or rubber hammer.

 As with any wheel, periodically check your aluminum

wheels for damage. If damaged, replace immediately.

SUSPENSION AND CHASSIS

CAUTION

Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

374

04 06.30

SECTION 5

MAINTENANCE

Maintenance

Maintenance requirements 308. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General maintenance 309. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Does your vehicle need repairing? 312. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emissions Inspection and Maintenance (I/M) programs 313. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For scheduled maintenance information, please refer
to the “Owner’s Manual Supplement/Scheduled

Maintenance”.

307

04 06.30

MAINTENANCE

MAINTENANCE REQUIREMENTS

Your Lexus vehicle has been designed for fewer maintenance
requirements with longer service intervals to save both your
time and money. However, each regular maintenance as well
as day–to–day care is more important than ever before to
ensure smooth, trouble–free, safe, and economical driving.

It is the owner’s responsibility to make sure the specified
maintenance, including general maintenance services, is
performed. Note that both the new vehicle and emission
control system warranties specify that proper maintenance
and care must be performed. See “Owner’s Guide”, “Owner’s
Manual Supplement” or “Warranty Booklet” for complete
warranty information.

General maintenance

General maintenance items are those day–to–day care
practices that are important to your vehicle for proper
operation. It is the owner’s responsibility to ensure that the
general maintenance items are performed regularly.

These checks or inspections can be done either by yourself or
your Lexus dealer.

Scheduled maintenance

The scheduled maintenance items listed in the “Owner’s
Manual Supplement/Scheduled Maintenance” are those
required to be serviced at regular intervals.

For details of your maintenance schedule, read the “Owner’s
Manual Supplement/Scheduled Maintenance”.

It is recommended that only genuine Lexus parts be used
for maintenance.

The owner may elect to use non–Lexus supplied parts for
replacement purposes without invalidating the emission
control system warranty. However, use of replacement
parts which are not of equivalent quality may impair the
effectiveness of the emission control systems.

You may also elect to have maintenance, replacement, or
repair of the emission control devices and system
performed by any automotive repair establishment or
individual without invalidating this warranty. See
“Owner’s Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet” for complete warranty information.

308

04 06.30

MAINTENANCE

Where to go for service?

Lexus technicians are well–trained specialists and are kept up
to date with the latest service information through technical
bulletins, service tips, and in–dealership training programs.
They are well informed about the operation of all the systems
on your vehicle.

You can be confident that your Lexus dealer’s service
department performs the best job to meet the maintenance
requirements of your vehicle.

Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty, your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.

What about do–it–yourself maintenance?

Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.

If you are a skilled do–it–yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do–it–yourself maintenance can affect your warranty
coverage. See “Owner’s Guide”, “Owner’s Manual
Supplement” or “Warranty Booklet” for the details.

GENERAL MAINTENANCE

Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.

CAUTION

Make these checks only with adequate ventilation if you
run the engine.

Engine compartment

Items listed below should be checked from time to time,
e.g. each time when refueling.

Washer fluid

Make sure there is sufficient fluid in the tank. See page 386 for
additional information.

Engine coolant level

Make sure the coolant level is between the Upper and Lower
lines on the see–through reservoir when the engine is cold.
See page 337 for additional information.

Battery

Your Lexus has a maintenance free battery. You do not have
to add distilled water. For longer life of the battery, however,
see page 380 for additional information.

309

04 06.30

MAINTENANCE

Brake fluid level

Make sure the brake fluid level is correct. See page 349 for
additional information.

Engine oil level

Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 333 for additional
information.

Power steering fluid level

Check the level on the dipstick. The level should be in the
“HOT” or “COLD” range depending on the fluid temperature.
See page 350 for additional information.

Exhaust system

If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See “Engine exhaust caution” on page 233 in
Section 3–1.)

Vehicle interior

Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.

Lights

Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.

Service reminder indicators and warning buzzers

Check that all service reminder indicators and warning
buzzers function properly.

Steering wheel

Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.

Seats

Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position. For folding–down rear
seatbacks, check that the latches lock securely.

Seat belts

Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.

Accelerator pedal

Check the pedal for smooth operation and uneven pedal effort
or catching.

Clutch pedal

Check the pedal for smooth operation.

Brake pedal

Check the pedal for smooth operation and the proper
clearance and freeplay. Check the brake booster function.

Brakes

In a safe place, check that the brakes do not pull to one side
when applied.

310

04 06.30

MAINTENANCE

Parking brake

Check that the lever has the proper travel and that, on a safe
incline, your vehicle is held securely with only the parking
brake applied.

Automatic transmission “Park” mechanism

On a safe incline, check that your vehicle is held securely with
the selector lever in “P” position and all brakes released.

Vehicle exterior

Items listed below should be performed from time to time,
unless otherwise specified.

Wheel nuts

When checking the tires, make sure to check the nuts for
looseness. Tighten them if necessary.

Fluid leaks

Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.

Doors and engine hood

Check that all doors, including trunk lid or back door, operate
smoothly and all latches lock securely. Make sure the engine
hood secondary latch secures the hood when the primary latch
is released.

Tire inflation pressure

Check the tire inflation pressure with a gauge every two
weeks, or at least once a month and adjust as shown o n
the tire and loading information label. See page 351 for
additional information.

Tire surface

Check the tires carefully for cuts, damage or excessive
wear. See page 368 for additional information.

Tire rotation

Rotate the tires according to the maintenance schedule.
(For scheduled maintenance information, please refer to
the “Owner’s Manual Supplement” or “Scheduled
Maintenance”.) See page 366 or 367 for additional
information.

311

04 06.30

MAINTENANCE

DOES YOUR VEHICLE NEED

REPAIRING?

Be on the alert for changes in performance and sounds, and
visual tip–offs that indicate service is needed. Some important
clues are:

 Engine missing, stumbling, or pinging
 Appreciable loss of power
 Strange engine noises
 A fluid leak under the vehicle (however, water dripping from

the air conditioning after use is normal.)

 Change in exhaust sound (This may indicate a dangerous

carbon monoxide leak. Drive with the windows open and

have the exhaust system checked immediately.)

 Flat–looking tires, excessive tire squeal when cornering,

uneven tire wear

 Vehicle pulls to one side when driving straight on a level

road

 Strange noises related to suspension movement
 Loss of brake effectiveness, spongy feeling brake pedal,

pedal almost touches floors, vehicle pulls to one side when

braking
 Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to your Lexus

dealer as soon as possible. It probably needs adjustment or
repair.

CAUTION

Do not continue driving with the vehicle unchecked. It
could result in serious vehicle damage and possibly
personal injury.

312

04 06.30

MAINTENANCE

EMISSIONS INSPECTION AND

MAINTENANCE (I/M) PROGRAMS

Some states have vehicle emission inspection programs
which include OBD (On–Board Diagnostics) checks.

The OBD system monitors the operation of the emission
control system. When the OBD system determines that a
problem exist s somewhere in the emission control system, the
malfunction indicator lamp comes on. In this case, your vehicle
may not pass the I/M test and need to be repaired. Contact
your Lexus dealer to service the vehicle.

Even if the malfunction indicator lamp does not come on, your
vehicle may not pass I/M test as readiness codes have not
been set in the OBD system.

Readiness codes are automatically set during ordinary driving.
However, when the battery is disconnected or run down, the
codes are erased. Also, depending on your driving habits, the
codes may not be completely set.

Also, if the malfunction indicator lamp had come on recently
due to temporary malfunction such as a loose fuel tank cap,
your vehicle may not pass the I/M test.

The malfunction indicator lamp will go off after taking several
driving trips, but the error code in the OBD system will not be
cleared unless about 40 trips or more are taken.

If your vehicle does not pass the I/M test as readiness codes
have not been set, contact your Lexus dealer to prepare the
vehicle for re–testing.

313

04 06.30

MAINTENANCE

314

04 06.30

SECTION 3 –

STARTING AND DRIVING

Driving tips

Break–in period 268. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation in foreign countries 268. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tips for driving in various conditionss 269. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Winter driving tips 270. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dinghy towing 272. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailer towing 272. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to save fuel and make your vehicle last longer 273. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Vehicle load limits 274. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cargo and luggage 275. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

267

04 06.30

DRIVING TIPS

BREAK–IN PERIOD

Drive gently and avoid high speeds.

Y ou need not follow a break–in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:

 Avoid full throttle acceleration when starting and driving.
 Avoid racing the engine.
 Try to avoid hard stops during the first 300 km (200 miles).
 Do not drive slowly with the manual transmission in a high

gear.
 Do not drive for a long time at any single speed, either fast

or slow.

OPERATION IN FOREIGN

COUNTRIES

If you plan to drive your Lexus in another country ...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel (unleaded

and minimum octane rating).

268
