Lexus CT (2017) Owner’s Manual

Download

Pictorial index

For safety

and security

Search by illustration

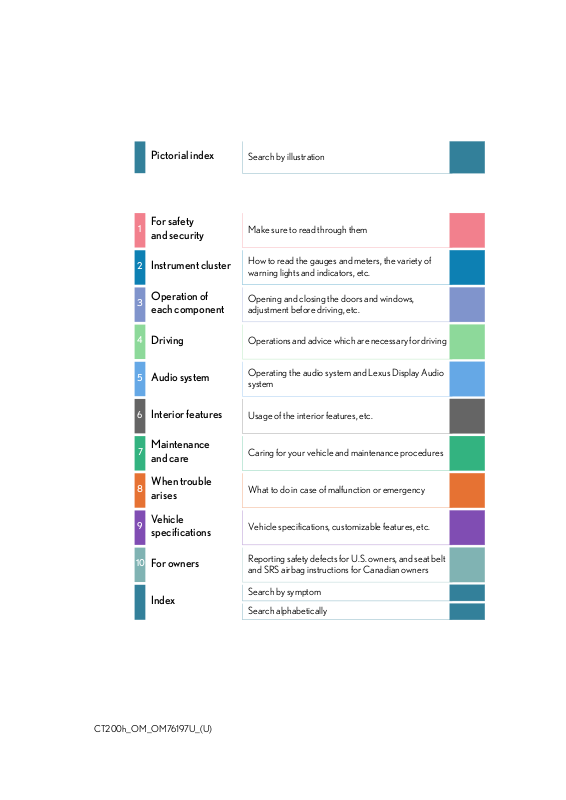

Make sure to read through them

Instrument cluster

Operation of

each component

Driving

Audio system

Interior features

Maintenance

and care

When trouble

arises

Vehicle

specifications

How to read the gauges and meters, the variety of warning lights and indicators, etc.

Opening and closing the doors and windows, adjustment before driving, etc.

Operations and advice which are necessary for driving

Operating the audio system and Lexus Display Audio system

Usage of the interior features, etc.

Caring for your vehicle and maintenance procedures

What to do in case of malfunction or emergency

Vehicle specifications, customizable features, etc.

For owners

Index

CT200h_OM_OM76197U_(U)

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Search by symptom

Search alphabetically

For your information................................. 10

Reading this manual...................................14

How to search..............................................15

Pictorial index...............................................16

For safety and security

1-1. For safe use

Before driving................................. 28

For safe driving ..............................30

Seat belts.......................................... 32

SRS airbags.....................................38

Front passenger occupant

classification system...................47

Safety information for

children .......................................... 52

Child restraint systems............... 53

Installing child restraints............. 56

Exhaust gas precautions............ 64

1-2. Hybrid system

Hybrid system features...............65

Hybrid system precautions....... 69

1-3. Theft deterrent system

Immobilizer system....................... 74

Alarm..................................................76

Theft prevention labels

(for U.S.A.).................................... 78

Instrument cluster

2. Instrument cluster

Warning lights and

indicators.......................................80

Gauges and meters.....................84

Multi-information display ..........88

Energy monitor/

consumption screen...................91

Operation of each

component

3-1. Key information

Keys.................................................. 100

3-2. Opening, closing and locking

the doors

Side doors...................................... 105

Back door ........................................110

Smart access system with

push-button start ....................... 114

3-3. Adjusting the seats

Front seats.......................................120

Rear seats........................................122

Driving position memory.......... 124

Head restraints............................. 127

CT200h_OM_OM76197U_(U)

3-4. Adjusting the steering

wheel and mirrors

Steering wheel............................. 130

Inside rear view mirror...............132

Outside rear view mirrors........135

3-5. Opening, closing the windows

and moon roof

Power windows.............................137

Moon roof...................................... 140

Driving

4-1. Before driving

Driving the vehicle ......................144

Cargo and luggage.................... 150

Vehicle load limits........................153

Trailer towing.................................154

Dinghy towing...............................155

4-2. Driving procedures

Power (ignition) switch ..............156

EV drive mode............................. 160

Hybrid transmission....................162

Turn signal lever ............................167

Parking brake ............................... 168

4-3. Operating the lights

and wipers

Headlight switch ..........................169

Fog light switch............................. 172

Windshield wipers and

washer............................................174

Rear window wiper and

washer.......................................... 180

Headlight cleaner switch..........182

4-4. Refueling

Opening the fuel tank cap...... 183

4-5. Using the driving support

systems

Cruise control.............................. 186

Dynamic radar cruise

control .......................................... 189

Intuitive parking assist.............. 202

Rear view monitor system......209

Lexus parking assist

monitor..........................................219

Driving mode select

switch........................................... 234

Driving assist systems ..............235

PCS (Pre-Collision

System) ....................................... 239

4-6. Driving tips

Hybrid vehicle driving

tips..................................................244

Winter driving tips......................246

CT200h_OM_OM76197U_(U)

TABLE OF CONTENTS

Audio system

5-1. Basic Operations

Audio system types.................. 252

Using the steering wheel

audio switches......................... 254

AUX port/USB port................255

5-2. Using the audio system

Optimal use of the audio

system..........................................257

5-3. Using the radio

Radio operation......................... 259

5-4. Playing audio CDs and

MP3/WMA discs

CD player operation ...............265

5-5. Using an external device

Listening to an iPod ...................272

Listening to a USB memory

device...........................................278

Using the AUX port ................283

5-6. Using Bluetooth

Bluetooth

devices

audio/phone....... 284

Using the steering wheel

switches........................................291

Registering a Bluetooth

audio system for the

first time...................................... 292

Registering a Bluetooth

phone for the first time......... 293

5-7. Setup menu

Setting up a Bluetooth

enabled portable player...... 294

Bluetooth

audio system

setup............................................ 298

Setting a cellular phone.......... 299

Security and system setup..... 302

Using the phone book ............305

5-8. Bluetooth

Audio

Operating a Bluetooth®

enabled portable player....... 310

5-9. Bluetooth® Phone

Making a phone call...................312

Receiving a phone call..............314

Speaking on the phone.............315

5-10. Bluetooth

Bluetooth®....................................316

CT200h_OM_OM76197U_(U)

5-11. Basic Operations

(Lexus Display Audio System)

Lexus Display Audio

System ........................................320

Steering wheel audio

switches...................................... 325

USB/AUX ports ........................326

5-12. Setup (Lexus Display Audio

System)

Setup menu .................................328

General settings........................ 329

Voice settings.............................. 332

Display settings.......................... 333

5-13. Using the audio system

(Lexus Display Audio System)

Selecting the audio

source......................................... 334

Optimal use of the audio

system......................................... 335

Audio settings............................. 336

Audio menu screen

operation ...................................338

5-14. Using the radio

(Lexus Display Audio System)

Radio operation...........................341

5-15. Playing an audio CD and

MP3/WMA/AAC discs

(Lexus Display Audio System)

CD player operation ............... 347

5-16. Using an external device

(Lexus Display Audio System)

Listening to an iPod.................. 353

Using USB memory

device.......................................... 356

Using the AUX port................360

5-17. Connecting Bluetooth

(Lexus Display Audio System)

Steps for using Bluetooth

devices..........................................361

Registering a Bluetooth

device.......................................... 363

Selecting a Bluetooth

device.......................................... 364

Connecting a Bluetooth

audio player.............................. 365

Connecting a Bluetooth

phone.......................................... 366

Displaying a Bluetooth

device details............................367

Detailed Bluetooth

settings .......................................368

5-18. Bluetooth® Audio

(Lexus Display Audio System)

Listening to Bluetooth

Audio .......................................... 369

CT200h_OM_OM76197U_(U)

TABLE OF CONTENTS

5-19. Bluetooth® Phone (Lexus

Display Audio System)

Using a Bluetooth

Phone............................................371

Making a call................................373

Receiving a call...........................375

Speaking on the phone............ 376

Using a Bluetooth

phone message....................... 378

Using the steering wheel

switches......................................380

Bluetooth

phone settings.... 381

5-20.Phonebook (Lexus

Display Audio System)

Contact settings ........................383

Messaging setting.....................386

5-21. Bluetooth

(Lexus

Display Audio System)

What to do if...

(Troubleshooting)................... 387

Bluetooth

..................................390

5-22.Other function (Lexus

Display Audio System)

“Information” screen................ 395

USB photo ....................................397

Weather information ...............399

Voice command system.........400

Mobile Assistant........................ 404

LEXUS Enform Remote........406

Interior features

6-1. Using the air conditioning

system and defogger

Automatic air conditioning

system (Vehicles with a navigation system or Lexus

Display Audio System).......... 410

Automatic air conditioning

system (Vehicles without a navigation system or Lexus

Display Audio System)...........418

Heated steering wheel/

seat heaters............................... 425

• Heated steering wheel .......426

• Seat heaters ............................426

6-2. Using the interior lights

Interior lights list ..........................427

• Personal/interior light

main switch..............................427

•Front personal/

interior lights.......................... 428

• Rear interior light................. 428

CT200h_OM_OM76197U_(U)

6-3. Using the storage features

List of storage features ............429

• Glove box............................... 430

• Console box ..........................430

•Cup holders/ bottle holders/

door pockets..........................430

• Auxiliary boxes ..................... 432

Luggage compartment

features .......................................434

6-4. Using the other interior features

Other interior features............ 439

• Sun visors ................................439

• Vanity mirrors........................ 439

• Clock ........................................440

• Power outlet........................... 440

• Assist grips ............................. 442

Garage door opener ...............443

Compass....................................... 449

LEXUS Enform Safety

Connect...................................... 455

Maintenance and care

7-1. Maintenance and care

Cleaning and protecting the

vehicle exterior.........................462

Cleaning and protecting the

vehicle interior......................... 465

7-2. Maintenance

Maintenance

requirements .............................467

General maintenance.............. 469

Emission inspection and

maintenance (I/M)

programs.....................................472

7-3. Do-it-yourself maintenance

Do-it-yourself service

precautions.................................473

Hood................................................475

Positioning a floor jack..............477

Engine compartment ................478

12-volt battery .............................486

Tires.................................................. 490

Tire inflation pressure ................497

Wheels...........................................500

Air conditioning filter ...............502

Electronic key battery..............504

Checking and replacing

fuses..............................................506

Light bulbs ....................................509

CT200h_OM_OM76197U_(U)

For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for information regarding the equipment listed below.

• Navigation system

• Rear view monitor system

• Audio/visual system

TABLE OF CONTENTS

When trouble arises

8-1. Essential information

Emergency flashers ..................522

If your vehicle has to be

stopped in an emergency.... 523

8-2. Steps to take in an emergency

If your vehicle needs to

be towed......................................524

If you think something is

wrong...........................................528

If a warning light turns on

or a warning buzzer

sounds ......................................... 529

If a warning message is

displayed ....................................536

If you have a flat tire ..................549

If the hybrid system will not

start...............................................558

If the electronic key does not

operate properly.....................560

If the 12-volt battery is

discharged................................. 562

If your vehicle overheats......... 566

If the vehicle becomes

stuck ............................................. 570

Vehicle specifications

9-1. Specifications

Maintenance data

(fuel, oil level, etc.)...................572

Fuel information .........................580

Tire information........................... 582

9-2. Customization

Customizable features..............591

9-3. Initialization

Items to initialize......................... 599

For owners

Reporting safety defects for

U.S. owners............................................602

Seat belt instructions for

Canadian owners (in French)........ 603

SRS airbag instructions for

Canadian owners (in French)........ 604

Index

What to do if...

(Troubleshooting) .................................612

Alphabetical index ..................................616

CT200h_OM_OM76197U_(U)

For your information

Main Owner’s Manual

The Owner’s Manual provides instructions on the proper operation of this vehicle. The driver should read the Owner’s Manual prior to driving the vehicle. Failure to follow the instructions in the Owner’s Manual could lead to an accident, resulting in death or serious injury.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of color and equipment.

The manuals for this vehicle can be stored in the auxiliary box beneath the luggage compartment. (P. 4 37 )

Noise from under vehicle after turning off the hybrid system

Approximately five hours after the hybrid system is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification with non-genuine Lexus products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

CT200h_OM_OM76197U_(U)

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as:

Multiport fuel injection system/sequential multiport fuel injection system

●

Dynamic radar cruise control system Cruise control system

●

Anti-lock brake system SRS airbag system

●

Seat belt pretensioner system

Be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.

High voltage parts and cables on the hybrid vehicles emit approximately the same amount of electromagnetic waves as the conventional gasoline powered vehicles or home electronic appliances despite of their electromagnetic shielding.

Unwanted noise may occur in the reception of the mobile two-way radio.

Vehicle data recordings

Your Lexus is equipped with several sophisticated computers that will record certain data, such as:

• Engine speed

• Electric motor speed (traction motor speed)

• Accelerator status

•Brake status

• Vehicle speed

•Shift position

• Hybrid battery (traction battery) status The recorded data varies according to the vehicle grade level and options with which it is equipped. Furthermore, these computers do not record conversations, sounds or pictures.

Data usage

●

Lexus may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.

Lexus will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if the vehicle

is leased

• In response to an official request by the police, a court of law or a government

agency

• For use by Lexus in a lawsuit

• For research purposes where the data is not tied to a specific vehicle or vehicle

owner

Usage of data collected through Safety Connect / Lexus Enform (U.S. mainland only)

●

If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to those services, please refer to the Safety Connect / Lexus Enform Telematics Subscription Service Agreement for information on data collected and its usage.

CT200h_OM_OM76197U_(U)

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling. These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

●

Disclosure of the EDR data

Lexus will not disclose the data recorded in an EDR to a third party except when:

• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is

obtained

• In response to an official request by the police, a court of law or a government

agency

• For use by Lexus in a lawsuit

However, if necessary, Lexus may:

• Use the data for research on vehicle safety performance

• Disclose the data to a third party for research purposes without disclosing informa-

tion about the specific vehicle or vehicle owner

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote control batteries.

CT200h_OM_OM76197U_(U)

WA RN I N G

■

General precautions while driving

Obey all traffic laws.

●

The driver is responsible for the proper operation of the vehicle, including evaluation

●

of weather conditions and road conditions.

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision causing death or serious injury to you, your occupants or others.

General precaution regarding children’s safety

■

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

CT200h_OM_OM76197U_(U)

Reading this manual

WA RN I NG : Explains something that, if not obeyed, could cause death or serious injury to people.

NOTICE: Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment.

Indicates operating or working procedures. Follow the steps in numerical order.

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Indicates the component or position being explained.

Means “Do not”, “Do not do this”, or “Do not let this happen”.

CT200h_OM_OM76197U_(U)

How to search

■

Searching by name

• Alphabetical index..................P. 616

Searching by installation position

■

• Pictorial index..............................P. 16

■

Searching by symptom or sound

• What to do if...

(Troubleshooting)....................P. 612

■

Searching by title

• Table of contents..........................P. 2

CT200h_OM_OM76197U_(U)

Pictorial index

■

Exterior

The shape of the headlights may differ depending on the grade, etc. (P. 509 )

Side doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105

Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105

Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137

Locking/unlocking by using the mechanical key. . . . . . . . . . . . . . . . . . . . . . . . P. 560

Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 530, 537

Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110

Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111

Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 530, 537

Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 135

Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135

Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 35

Driving position memory* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124

Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 414, 420

CT200h_OM_OM76197U_(U)

Pictorial index

Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174

Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 246

To prevent freezing (windshield wiper de-icer)

Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 463

Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 83

Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183

Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 573

Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490

Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 577

Winter tires/tire chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247

Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . . . . P. 490

Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 549

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475

Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475

Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 479

Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574

Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 566

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 537

Light bulbs of the exterior lights for driving (Replacing method: P. 509, Watts: P. 579)

. . . . . . . . . . . . . . . . . . . P. 415, 421

Headlights/parking lights/daytime running lights/

side marker lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169

Fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172

Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167

Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 169

License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169

Back-up lights

Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162

: If equipped

CT200h_OM_OM76197U_(U)

■

Pictorial index

Instrument panel

Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 156

Starting the hybrid system/changing the modes. . . . . . . . . . . . . . . . . . . . . . . . . P. 156

Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 523

When the hybrid system will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 545

Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 162

Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162

Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 524

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 84

Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . . . . . P. 84

Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 80

When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 529

CT200h_OM_OM76197U_(U)

Pictorial index

Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88

Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 91

When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 536

Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 168

Applying/releasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168

Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 246

Warning buzzer/message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 529, P. 539

Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167

Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 169

Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . . . . . P. 169

Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 172

Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174

Rear window wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180

Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 174, 180

Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 542

Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522

Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183

Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 475

Tilt and telescopic steering lock release lever. . . . . . . . . . . . . . . . . . . . . . P. 130

Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 410, 418

Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 410, 418

Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 414, 420

Audio system* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252, 320

Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252, 320

Hands-free system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 284, 361

P position switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 163

: For vehicles with a navigation system, refer to “NAVIGATION

SYSTEM OWNER’S MANUAL”.

CT200h_OM_OM76197U_(U)

■

Pictorial index

Switc hes

Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 135

Instrument panel light control dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 85

Intuitive parking assist switch

Heated steering wheel switch* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425

Windshield wiper de-icer switch

Headlight cleaner switch

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 421

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182

CT200h_OM_OM76197U_(U)

Pictorial index

Driving position memory buttons*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 124

Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 137

Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 107

Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 137

Pre-collision braking off switch

Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 491

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239

CT200h_OM_OM76197U_(U)

: If equipped

Pictorial index

Audio remote control switches

“DISP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 8 8

Cruise control switch

Cruise control Dynamic radar cruise control

Vehicle-to-vehicle distance button

Ta l k s wi t ch

Telephone switches

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291, 380, 400

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291, 380

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254, 325

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189

CT200h_OM_OM76197U_(U)

Pictorial index

EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 160

Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234

TRAC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236

Seat heater switches

Remote Touch

Lexus Display Audio controller

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425

2, 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91, 206, 412

. . . . . . . . . . . . . . . . . . . . . . . . P. 91, 206, 322

CT200h_OM_OM76197U_(U)

: For vehicles with a navigation system, refer to “NAVIGATION

SYSTEM OWNER’S MANUAL”.

: If equipped

: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

■

Pictorial index

Interior

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38

Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120

Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32

Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 430

Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 107

Cup holders/bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 430

Auxiliary boxes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432

CT200h_OM_OM76197U_(U)

Pictorial index

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132

Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439

Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439

Interior lights

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427

Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427

Moon roof switches

“SOS” button

Garage door opener switches

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 140

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 443

: The illustration shows the front, but they are also equipped in the rear.

CT200h_OM_OM76197U_(U)

: If equipped

Pictorial index

CT200h_OM_OM76197U_(U)

For safety and security

1-1. For safe use

Before driving.................................28

For safe driving...............................30

Seat belts ..........................................32

SRS airbags .....................................38

Front passenger occupant

classification system...................47

Safety information for

children .......................................... 52

Child restraint systems ...............53

Installing child restraints............. 56

Exhaust gas precautions............ 64

1-2. Hybrid system

Hybrid system features...............65

Hybrid system precautions....... 69

1-3. Theft deterrent system

Immobilizer system .......................74

Alarm ..................................................76

Theft prevention labels

(for U.S.A.).................................... 78

CT200h_OM_OM76197U_(U)

1-1. For safe use

Before driving

Floor mat

Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet.

Insert the retaining hooks (clips) into the floor mat eyelets.

Turn the upper knob of each retaining hook (clip) to secure the floor mats in place.

: Always align the marks.

The shape of the retaining hooks (clips) may differ from that shown in the illustration.

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

●

Check that the floor mat is securely fixed in the correct place with all the provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor.

●

With the hybrid system stopped and the shift position in P, fully depress each pedal to the floor to make sure it does not interfere with the floor mat.

Observe the following precautions. Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driving. An unexpectedly high speed may result or it may become difficult to stop the vehicle. This could lead to an accident, resulting in death or serious injury.

■

When installing the driver’s floor mat

Do not use floor mats designed for other models or different model year vehicles,

●

even if they are Lexus Genuine floor mats. Only use floor mats designed for the driver’s seating position.

●

Always install the floor mat securely using the retaining hooks (clips) provided.

●

Do not use two or more floor mats on top of each other.

●

Do not place the floor mat bottom-side up or upside-down.

Before driving

■

For safety and security

CT200h_OM_OM76197U_(U)

1-1. For safe use

For safe driving

For safe driving, adjust the seat and mirror to an appropriate position before driving.

Correct driving posture

Adjust the angle of the seatback so that you are sitting straight up and so that you do not have to lean forward to steer. (P. 1 20)

Adjust the seat so that you can depress the pedals fully and so that your arms bend slightly at the elbow when gripping the steering wheel. (P. 1 20)

Lock the head restraint in place with the center of the head restraint closest to the top of your ears. (P. 12 7)

Wear the seat belt correctly. (P. 3 2)

Correct use of the seat belts

Make sure that all occupants are wearing their seat belts before driving the vehicle. (P. 3 2) Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt. (P. 53 )

Adjusting the mirrors

Make sure that you can see backward clearly by adjusting the inside and outside rear view mirrors properly. (P. 132, 135)

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not adjust the position of the driver’s seat while driving.

Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. A cushion

●

may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt, head restraint and other safety systems, increasing the risk of death or serious injury to the occupant.

Do not place anything under the front seats.

●

Objects placed under the front seats may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.

When driving over long distances, take regular breaks before you start to feel tired.

●

Also, if you feel tired or sleepy while driving, do not force yourself to continue driving and take a break immediately.

For safety and security

CT200h_OM_OM76197U_(U)

Release button

1-1. For safe use

Seat belts

Make sure that all occupants are wearing their seat belts before driving the vehicle.

Correct use of the seat belts

Extend the shoulder belt so that it

●

comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

●

Position the lap belt as low as possible over the hips.

Adjust the position of the seatback.

●

Sit up straight and well back in the seat. Do not twist the seat belt.

●

Fastening and releasing the seat belt

To fasten the seat belt, push the plate into the buckle until a click sound is heard.

To release the seat belt, press the release button.

Adjusting the seat belt shoulder anchor height (front seats)

Push the seat belt shoulder anchor down while pressing the release button.

Push the seat belt shoulder anchor up.

Move the height adjuster up and down as needed until you hear a click.

CT200h_OM_OM76197U_(U)

1-1. For safe use

Seat belt pretensioners (front seats)

The pretensioners help the seat belts to quickly restrain the occupants by retracting the seat belts when the vehicle is subjected to certain types of severe frontal or side collision.

The pretensioners do not activate in the event of a minor frontal impact, a minor side impact, a rear impact or a vehicle rollover.

Pre-collision seat belts (front seats of vehicles with pre-collision system)

If the system determines that a collision is unavoidable, the front seat belts will retract before the collision. (P. 23 9)

After using the rear center seat belt

Store the buckle into the storage location in the seat cushion.

For safety and security

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

Automatic locking retractor (ALR)

■

When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (P. 5 6)

Child seat belt usage

■

The seat belts of your vehicle were principally designed for persons of adult size.

●

Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt. (P. 5 3)

When the child becomes large enough to properly wear the vehicle’s seat belt, follow

●

the instructions regarding seat belt usage. (P. 3 2)

CT200h_OM_OM76197U_(U)

■

Replacing the belt after the pretensioner has been activated

1-1. For safe use

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision of sufficient severity, but will not activate for the second or subsequent collisions. The seat belt must be replaced if the pretensioner has been activated.

■

Seat belt extender

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Lexus dealer free of charge.

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

Obtain medical advice and wear the seat belt in the proper way. (P. 32 )

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants, extending the shoulder belt completely over the shoulder and avoiding belt contact with the rounding of the abdominal area.

If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may cause death or serious injury.

■

Wearing a seat belt

Ensure that all passengers wear a seat belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one person only. Do not use a seat belt for more

●

than one person at once, including children.

●

Lexus recommends that children be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system.

●

To achieve a proper seating position, do not recline the seat more than necessary. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

Do not wear the shoulder belt under your arm.

●

Always wear your seat belt low and snug across your hips.

■

Pregnant women

For safety and security

CT200h_OM_OM76197U_(U)

WA RN I N G

■

1-1. For safe use

People with medical conditions

Obtain medical advice and wear the seat belt in the proper way. (P. 3 2)

When children are in the vehicle

■

Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death. If this occurs and the child cannot be released from the seat belt, scissors should be used to cut the belt.

Seat belt pretensioners

■

●

Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the seat belt pretensioner for the front passenger’s seat may not activate in the event of a collision.

If the pretensioner has activated, the SRS warning light will come on. In that case, the

●

seat belt cannot be used again and must be replaced at your Lexus dealer.

■

Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (P. 3 2)

Seat belt damage and wear

■

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

●

Ensure that the belt and plate are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact your Lexus dealer.

●

Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there’s no obvious damage.

Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.

●

Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.

Using a seat belt extender

■

Do not wear the seat belt extender if you can fasten the seat belt without the extender.

●

Do not use the seat belt extender when installing a child restraint system because the

●

belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.

●

The personalized extender may not be safe on another vehicle, when used by another person, or at a different seating position other than the one originally intended.

CT200h_OM_OM76197U_(U)

1-1. For safe use

NOTICE

■

When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

For safety and security

CT200h_OM_OM76197U_(U)

1-1. For safe use

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.

◆

SRS front airbags

SRS driver airbag/front passenger airbag Can help protect the head and chest of the driver and front passenger from impact with interior components

SRS knee airbags Can help provide driver and front passenger protection

SRS side and curtain shield airbags

◆

SRS side airbags Can help protect the torso of the front seat occupants

SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats

CT200h_OM_OM76197U_(U)

SRS airbag system components

1-1. For safe use

For safety and security

Front passenger airbag

“AIR BAG ON” and “AIR BAG OFF” indicator lights

Side airbags

Curtain shield airbags

Side impact sensors (rear)

SRS warning light

Front passenger occupant classification system (ECU and sensors)

Driver airbag

Side impact sensors (front)

Seat belt pretensioners and force limiters

Side impact sensors (front door)

Driver’s seat position sensor

Knee airbags

Driver’s seat belt buckle switch

Front passenger’s seat belt buckle switch

Front impact sensors

Airbag sensor assembly

Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above. This information includes crash severity and occupant information. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occupants.

CT200h_OM_OM76197U_(U)

WA RN I N G

●

If the seat belt extender has been connected to the front seat belt buckles but the seat belt extender has not also been fastened to the latch plate of the seat belt, the SRS front airbags will judge that the driver and front passenger are wearing the seat belt even though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a collision, resulting in death or serious injury in the event of a collision. Be sure to wear the seat belt with the seat belt extender.

■

1-1. For safe use

SRS airbag precautions

Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury.

The driver and all passengers in the vehicle must wear their seat belts properly.

●

The SRS airbags are supplemental devices to be used with the seat belts. The SRS driver airbag deploys with considerable force, and can cause death or seri-

●

ous injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (NHTSA) advises:

Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can change your driving position in several ways:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) distance, even with the driver seat all the way forward, simply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

The SRS front passenger airbag also deploys with considerable force, and can cause

●

death or serious injury especially if the front passenger is very close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.

Improperly seated and/or restrained infants and children can be killed or seriously

●

injured by a deploying airbag. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front passenger seat. (P. 53)

CT200h_OM_OM76197U_(U)

WA RN I N G

■

●

Do not sit on the edge of the seat or lean against the dashboard.

●

Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger.

●

Do not allow the front seat occupants to hold items on their knees.

●

Do not lean against the door, the roof side rail or the front, side and rear pillars.

●

Do not allow anyone to kneel on the passenger seat toward the door or put their head or hands outside the vehicle.

SRS airbag precautions

1-1. For safe use

For safety and security

CT200h_OM_OM76197U_(U)

WA RN I N G

●

Do not attach anything to or lean anything against areas such as the dashboard, steering wheel pad and lower portion of the instrument panel. These items can become projectiles when the SRS driver, front passenger and knee airbags deploy.

●

Do not attach anything to areas such as a door, windshield glass, side door glass, front or rear pillar, roof side rail and assist grip.

■

1-1. For safe use

SRS airbag precautions

●

Do not hang coat hangers or other hard objects on the coat hooks. All of these items could become projectiles and may cause death or serious injury, should the SRS curtain shield airbags deploy.

If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to

●

remove it.

●

Do not use seat accessories which cover the parts where the SRS side airbags inflate as they may interfere with inflation of the airbags. Such accessories may prevent the side airbags from activating correctly, disable the system or cause the side airbags to inflate accidentally, resulting in death or serious injury.

Do not strike or apply significant levels of force to the area of the SRS airbag compo-

●

nents. Doing so can cause the SRS airbags to malfunction.

●

Do not touch any of the component parts immediately after the SRS airbags have deployed (inflated) as they may be hot.

●

If breathing becomes difficult after the SRS airbags have deployed, open a door or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.

If the areas where the SRS airbags are stored, such as the steering wheel pad and

●

front and rear pillar garnishes, are damaged or cracked, have them replaced by your Lexus dealer.

Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will

●

disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the SRS front airbags for the front passenger may not deploy in the event of a collision.

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

■

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications without consulting your Lexus dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.

Installation, removal, disassembly and repair of the SRS airbags

●

Repairs, modifications, removal or replacement of the steering wheel, instrument

●

panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side rails Repairs or modifications of the front fender, front bumper, or side of the occupant

●

compartment

●

Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches

●

Modifications to the vehicle’s suspension system Installation of electronic devices such as mobile two-way radios and CD players

●

Modifications to your vehicle for a person with a physical disability

●

If the SRS airbags deploy (inflate)

■

Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the

●

extremely high speed deployment (inflation) by hot gases. A loud noise and white powder will be emitted.

●

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the

●

front seats, parts of the front and rear pillars, and roof side rails, may be hot for several minutes. The airbag itself may also be hot.

●

The windshield may crack.

●

For Safety Connect subscribers, if the SRS airbags deploy or in the event of a severe rear-end collision, the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to communicate, the agent automatically treats the call as an emergency and helps to dispatch the necessary emergency services. (P. 45 5)

■

SRS airbag deployment conditions (SRS front airbags)

The SRS front airbags will deploy in the event of an impact that exceeds the set threshold

●

level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).

However, this threshold velocity will be considerably higher in the following situations:

• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact

• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck

●

Depending on the type of collision, it is possible that only the seat belt pretensioners will activate.

●

The SRS front airbags for the front passenger will not activate if there is no passenger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if the seat is unoccupied. (P. 47 )

For safety and security

CT200h_OM_OM76197U_(U)

■

SRS airbag deployment conditions (SRS side and curtain shield airbags)

●

1-1. For safe use

The SRS side and curtain shield airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

●

The SRS curtain shield airbags may also deploy in the event of a severe frontal collision.

■

Conditions under which the SRS airbags may deploy (inflate), other than a collision

The SRS front airbags and SRS side and curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

●

Hitting a curb, edge of pavement or hard surface

●

Falling into or jumping over a deep hole Landing hard or falling

●

■

Types of collisions that may not deploy the SRS airbags (SRS front airbags)

The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.

●

Collision from the side

●

Collision from the rear

●

Vehicle rollover

CT200h_OM_OM76197U_(U)

1-1. For safe use

■

Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield airbags)

The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a collision from the side at certain angles, or a collision to the side of the vehicle body other than the passenger compartment.

●

Collision from the side to the vehicle body other than the passenger compartment

Collision from the side at an angle

●

The SRS side and curtain shield airbags do not generally inflate if the vehicle is involved in a rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal collision.

●

Collision from the rear Vehicle rollover

●

For safety and security

When to contact your Lexus dealer

■

In the following cases, the vehicle will require inspection and/or repair. Contact your Lexus dealer as soon as possible.

●

Any of the SRS airbags have been inflated. The front of the vehicle is damaged or

●

deformed, or was involved in an accident that was not severe enough to cause the SRS front airbags to inflate.

A portion of a door or its surrounding area is

●

damaged or deformed, or the vehicle was involved in an accident that was not severe enough to cause the SRS side and curtain shield airbags to inflate.

CT200h_OM_OM76197U_(U)

●

1-1. For safe use

The pad section of the steering wheel, dashboard near the front passenger airbag or lower portion of the instrument panel is scratched, cracked, or otherwise damaged.

The surface of the seats with the side airbag is

●

scratched, cracked, or otherwise damaged.

●

The portion of the front pillars, rear pillars or roof side rail garnishes (padding) containing the curtain shield airbags inside is scratched, cracked, or otherwise damaged.

CT200h_OM_OM76197U_(U)

1-1. For safe use

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger.

Seat belt reminder light

SRS warning light

“AIR BAG OFF” indicator light

“AIR BAG ON” indicator light

For safety and security

CT200h_OM_OM76197U_(U)

1-1. For safe use

Condition and operation in the front passenger occupant classification system

Adult

■

Indicator/

warning light

Devices

Child

■

Indicator/

warning light

“A I R B AG O N” a nd “A I R B AG O FF ”

Side airbag on the front passenger seat

Curtain shield airbag in the front passenger side

Front passenger knee airbag

Front passenger’s seat belt pretensioner

or child restraint system

“A I R B AG O N” a nd “A I R B AG O FF ”

indicator lights

SRS warning light Off

Seat belt reminder light

Front passenger airbag

indicator lights

SRS warning light Off

Seat belt reminder light

Front passenger airbag Deactivated

“A I R B AG O N”

Off

flashing

Activated

“A I R B AG

OFF”

Off

flashing

Devices

CT200h_OM_OM76197U_(U)

Side airbag on the front passenger seat

Activated

Curtain shield airbag in the front passenger side

Front passenger knee airbag Deactivated

Front passenger’s seat belt pretensioner Activated

■

Unoccupied

1-1. For safe use

“A I R B AG O N” a nd “A I R B AG O FF ”

Indicator/

warning light

Seat belt reminder light Front passenger airbag Deactivated

Side airbag on the front passenger seat

Devices

There is a malfunction in the system

■

Indicator/

warning light

Devices

Curtain shield airbag in the front passenger side

Front passenger knee airbag Deactivated

Front passenger’s seat belt pretensioner

“A I R B AG O N” a nd “A I R B AG O FF ”

Seat belt reminder light Front passenger airbag Deactivated

Side airbag on the front passenger seat

Curtain shield airbag in the front passenger side

indicator lights

SRS warning light

indicator lights

SRS warning light

Not illuminated

Off

Activated

deactivated

“A I R B AG

OFF”

Activated

For safety and security

CT200h_OM_OM76197U_(U)

Front passenger knee airbag Deactivated

Front passenger’s seat belt pretensioner Activated

WA RN I N G

1-1. For safe use

: The system judges a person of adult size as an adult. When a smaller adult sits in the

front passenger seat, the system may recognize him/her as a child depending on his/ her physique and posture.

: In the event the front passenger is wearing a seat belt.

: In the event the front passenger does not wear a seat belt.

: When a larger child who has outgrown a child restraint system sits in the front passen-

ger seat, the system may recognize him/her as an adult depending on his/her physique or posture.

: Never install a rear-facing child restraint system on the front passenger seat. A for-

ward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (P. 5 3)

: In case the indicator light is not illuminated, consult this manual on how to install the

child restraint system properly. (P. 56)

: In the event of a side collision.

: In the event of a frontal collision.

Front passenger occupant classification system precautions

■

Observe the following precautions regarding front passenger occupant classification system. Failure to do so may cause death or serious injury.

Wear the seat belt properly.

●

Make sure the front passenger’s seat belt plate has not been left inserted into the

●

buckle before someone sits in the front passenger seat.

●

Make sure the “AIR BAG OFF” indicator light is not illuminated when using the seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, and reconnect the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the front passenger will not activate, which could cause death or serious injury in the event of a collision.

●

Do not apply a heavy load to the front passenger seat or equipment (e.g. seatback pocket).

Do not put weight on the front passenger seat by putting your hands or feet on the

●

front passenger seat seatback from the rear passenger seat.

●

Do not let a rear passenger lift the front passenger seat with their feet or press on the seatback with their legs.

●

Do not put objects under the front passenger seat.

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

■

Front passenger occupant classification system precautions

Do not recline the front passenger seatback so far that it touches a rear seat. This may

●

cause the “AIR BAG OFF” indicator light to be illuminated, which indicates that the SRS airbags for the front passenger will not activate in the event of a severe accident. If the seatback touches the rear seat, return the seatback to a position where it does not touch the rear seat. Keep the front passenger seatback as upright as possible when the vehicle is moving. Reclining the seatback excessively may lessen the effectiveness of the seat belt system.

If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illumi-

●

nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to move to the rear seat, or if that is not possible, move the front passenger seat fully rearward.

When it is unavoidable to install a forward-facing child restraint system on the front

●

passenger seat, install the child restraint system on the front passenger seat in the proper order. (P. 56 )

Do not modify or remove the front seats.

●

Do not kick the front passenger seat or subject it to severe impact. Otherwise, the

●

SRS warning light may come on to indicate a malfunction of the front passenger occupant classification system. In this case, contact your Lexus dealer immediately.

●

Child restraint systems installed on the rear seat should not contact the front seatbacks.

Do not use a seat accessory, such as a cushion and seat cover, that covers the seat

●

cushion surface. Do not modify or replace the upholstery of the front seat.

●

For safety and security

CT200h_OM_OM76197U_(U)

WA RN I N G

1-1. For safe use

Safety information for children

Observe the following precautions when children are in the vehicle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt.

●

It is recommended that children sit in the rear seats to avoid accidental contact with the shift lever, wiper switch etc.

●

Use the rear door child-protector lock or the window lock switch to avoid children opening the door while driving or operating the power window accidentally. (P. 108 , 137 )

●

Do not let small children operate equipment which may catch or pinch body parts, such as the power window, hood, back door, seats etc.

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof (if equipped) or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

CT200h_OM_OM76197U_(U)

1-1. For safe use

Child restraint systems

A child restraint system for a small child or baby must itself be properly restrained on the seat with the LATCH anchors or the lap portion of the lap/ shoulder belt.

The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.

Points to remember

●

Choose a child restraint system that suits your vehicle and is appropriate to the age and size of the child.

For installation details, follow the instructions provided with the child restraint

●

system. General installation instructions are provided in this manual. (P. 56 )

For safety and security

CT200h_OM_OM76197U_(U)

1-1. For safe use

Types of child restraints

Child restraint systems are classified into the following 3 types according to the age and size of the child.



Rear facing  Infant seat/convertible seat



Booster seat

When installing a child restraint system on the front passenger seat

■



Forward facing  Convertible seat

When you have to use a child restraint system on the front passenger seat, adjust the following:

The seatback to the most upright position

●

The seat cushion to the fully rearward position

●

■

Selecting an appropriate child restraint system

●

Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt.

If the child is too large for a child restraint system, sit the child on a rear seat and use the

●

vehicle’s seat belt. (P. 32 )

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

■

Child restraint precautions

For effective protection in automobile accidents and sudden stops, a child must be

●

properly restrained, using a seat belt or child restraint system depending on the age and size of the child. Holding a child in your arms is not a substitute for a child restraint system. In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior.

Lexus strongly urges the use of a proper child restraint system that conforms to the

●

size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.

Never install a rear-facing child restraint system on the front passenger seat even if

●

the “AIR BAG OFF” indicator light is illuminated. In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.

A forward-facing child restraint system may be installed on the front passenger seat

●

only when it is unavoidable. A child restraint system that requires a top tether strap should not be used in the front passenger seat since there is no top tether strap anchor for the front passenger seat. Adjust the seatback as upright as possible and always move the seat as far back as possible even if the “AIR BAG OFF” indicator light is illuminated, because the front passenger airbag could inflate with considerable speed and force. Otherwise, the child may be killed or seriously injured.

●

Do not use the seat belt extender when installing a child restraint system on the front or rear passenger seat. If installing a child restraint system with the seat belt extender connected to the seat belt, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of a sudden stop, sudden swerve or accident.

Do not allow the child to lean his/her head or any part of his/her body against the

●

door or the area of the seat, front and rear pillars or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child restraint system. It is dangerous if the SRS side and curtain shield airbags inflate, and the impact could cause death or serious injury to the child.

Make sure you have complied with all installation instructions provided by the child

●

restraint manufacturer and that the system is properly secured. If it is not secured properly, it may cause death or serious injury to the child in the event of a sudden stop, sudden swerve or accident.

■

When children are in the vehicle

■

When the child restraint system is not in use

●

Keep the child restraint system properly secured on the seat even if it is not in use. Do not store the child restraint system unsecured in the passenger compartment.

If it is necessary to detach the child restraint system, remove it from the vehicle or

●

store it securely in the luggage compartment. This will prevent it from injuring passengers in the event of a sudden stop, sudden swerve or accident.

For safety and security

CT200h_OM_OM76197U_(U)

1-1. For safe use

Installing child restraints

Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint.

The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Children) system.

Child restraint LATCH anchors

LATCH anchors are provided for the outboard rear seats. (Buttons displaying the location of the anchors are attached to the seats.)

Seat belts equipped with a child restraint locking mechanism (ALR/ ELR belts except driver’s seat belt) (P. 3 2)

Anchor brackets (for top tether strap)

An anchor bracket is provided for each rear seat.

CT200h_OM_OM76197U_(U)

Installation with LATCH system

Canada only

Open the fasteners on the lower part of the seatback.



Typ e A

Latch the hooks of the lower straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.

For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.

1-1. For safe use

For safety and security

CT200h_OM_OM76197U_(U)

Canada only



1-1. For safe use

Typ e B Latch the buckles onto the LATCH

anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.

For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.

Installing child restraints using a seat belt (child restraint lock function belt)

■

Rear facing Infant seat/convertible seat

Place the child restraint system on the rear seat facing the rear of the vehicle.

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

CT200h_OM_OM76197U_(U)

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

1-1. For safe use

While pushing the child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

■

For war d-fa cin g Convertible seat

Place the child restraint system on the seat facing the front of the vehicle.

Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.

For safety and security

CT200h_OM_OM76197U_(U)

■

1-1. For safe use

Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.

While pushing the child restraint system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.

After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.

If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor. (P. 61 )

Booster seat

Place the child restraint system on the seat facing the front of the vehicle.

Sit the child in the child restraint system. Fit the seat belt to the child restraint system according to the manufacturer’s instructions and insert the plate into the buckle. Make sure that the belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s shoulder and that the lap belt is as low as possible. (P. 32 )

CT200h_OM_OM76197U_(U)

Removing a child restraint installed with a seat belt

Press the buckle release button and fully retract the seat belt.

Child restraint systems with a top tether strap

Secure the child restraint system using the seat belt or the LATCH anchors, and raise the head restraint while pressing the lock release button.

1-1. For safe use

For safety and security

Open the anchor bracket cover, latch the hook onto the anchor bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched.

Outboard only: Adjust the head restraint to the downmost position.

CT200h_OM_OM76197U_(U)

WA RN I N G

●

If the driver’s seat interferes with the child restraint system and prevents it from being attached correctly, attach the child restraint system to the right-hand rear seat.

●

Adjust the front passenger seat so that it does not interfere with the child restraint system.

●

Only put a forward-facing child restraint system on the front seat when unavoidable. When installing a forward-facing child restraint system on the front passenger seat, move the seat as far back as possible even if the “AIR BAG OFF” indicator light is illuminated. Failure to do so may result in death or serious injury if the airbags deploy (inflate).

Laws and regulations pertaining to anchors

■

1-1. For safe use

The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used. This vehicle is designed to conform to the SAE J1819.

■

When installing a booster seat

To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child. (P. 33 )

When installing a child restraint system

■

Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place. If the child restraint system is not correctly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking, sudden swerving or an accident.

When a booster seat is installed, always ensure that the shoulder belt is positioned

●

across the center of the child’s shoulder. The belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so may result in death or serious injury in the event of sudden braking, sudden swerving or an accident.

●

Ensure that the belt and plate are securely locked and the seat belt is not twisted. Shake the child restraint system left and right, and forward and backward to ensure

●

that it has been securely installed. If the seat is adjusted, reconfirm the security of the child restraint system.

●

Follow all installation instructions provided by the child restraint system manufacturer.

●

CT200h_OM_OM76197U_(U)

1-1. For safe use

WA RN I N G

■

Do not use a seat belt extender

If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of sudden braking, sudden swerving or an accident.

To correctly attach a child restraint system to the anchors

■

When using the LATCH anchors, be sure that there are no foreign objects around the anchors and that the seat belt is not caught behind the child restraint system. Make sure the child restraint system is securely attached, or it may cause death or serious injury to the child or other passengers in the event of a sudden stop, sudden swerve or accident.

For safety and security

CT200h_OM_OM76197U_(U)

WA RN I N G

1-1. For safe use

Exhaust gas precautions

Harmful substance to the human body is included in exhaust gases if inhaled.

Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless. Observe the following precautions. Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident caused by light-headedness, or may lead to death or a serious health hazard.

Important points while driving

■

●

Keep the back door closed.

●

If you smell exhaust gases in the vehicle even when the back door is closed, open the windows and have the vehicle inspected at your Lexus dealer as soon as possible.

When parking

■

If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the

●

hybrid system.

●

Do not leave the vehicle with the hybrid system on for a long time. If such a situation cannot be avoided, park the vehicle in an open space and ensure that exhaust fumes do not enter the vehicle interior.

Do not leave the hybrid system operating in an area with snow build-up, or where it is

●

snowing. If snowbanks build up around the vehicle while the hybrid system is operating, exhaust gases may collect and enter the vehicle.

Exhaust pipe

■

The exhaust system needs to be checked periodically. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Lexus dealer.

CT200h_OM_OM76197U_(U)

1-2. Hybrid system

Hybrid system features

Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and operate it with care.

The hybrid system combines the use of a gasoline engine and an electric motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.

For safety and security

The illustration is an example for explanation and may differ from the actual item.

Gasoline engine

Electric motor (traction motor)

CT200h_OM_OM76197U_(U)

◆

1-2. Hybrid system

When stopped/during start off

The gasoline engine stops* when the vehicle is stopped. During start off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped* and the electric motor (traction motor) is used.

When shift position is in N, the hybrid battery (traction battery) is not charged. When the vehicle is stopped, always put the shift position to P. Also, even in heavy traffic conditions, drive the vehicle in D or B.

: When the hybrid battery (traction battery) requires charging or the engine is warm-

ing up, etc., the gasoline engine will not automatically stop. (P. 67 )

During normal driving

The gasoline engine is predominantly used. The electric motor (traction motor) charges the hybrid battery (traction battery) as necessary.

When accelerating sharply

When the accelerator pedal is depressed heavily, the power of the hybrid battery (traction battery) is added to that of the gasoline engine via the electric motor (traction motor).

When braking (regenerative braking)

◆

The wheels operate the electric motor as a power generator, and the hybrid battery (traction battery) is charged.

Vehicle proximity notification system

When driving with the gasoline engine stopped, a sound, which changes in accordance with the driving speed, will be played in order to warn people nearby of the vehicle’s approach. The sound will stop when the vehicle speed exceeds approximately 15 mph (25 km/h).

CT200h_OM_OM76197U_(U)

1-2. Hybrid system

Regenerative braking

■

In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery).

The accelerator pedal is released while driving with the shift position in D or B.

●

The brake pedal is depressed while driving with the shift position in D or B.

●

EV indicator

■

The EV indicator comes on when the vehicle is driven using only the electric motor (traction motor) or the gasoline engine is stopped.

Conditions in which the gasoline engine may not stop

■

The gasoline engine starts and stops automatically. However, it may not stop automatically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery) charging

●

When the temperature of the hybrid battery (traction battery) is high or low When the heater is switched on

●

■

Charging the hybrid battery (traction battery)

As the gasoline engine charges the hybrid battery (traction battery), the battery does not need to be charged from an outside source. However, if the vehicle is left parked for a long time the hybrid battery will slowly discharge. For this reason, be sure to drive the vehicle at least once every few months for at least 30 minutes or 10 miles (16 km). If the hybrid battery becomes fully discharged and you are unable to start the hybrid system, contact your Lexus dealer.

Charging the 12-volt battery

■

P. 56 4

After the 12-volt battery has discharged or has been changed or removed

■

The gasoline engine may not stop even if the vehicle is being driven by the hybrid battery (traction battery). If this continues for a few days, contact your Lexus dealer.

For safety and security

CT200h_OM_OM76197U_(U)

■

Sounds and vibrations specific to a hybrid vehicle

1-2. Hybrid system

There may be no engine sound or vibration even though the vehicle is able to move with the “READY” indicator is illuminated. For safety, apply the parking brake and make sure to shift the shift position to P when parked.

The following sounds or vibrations may occur when the hybrid system is operating and are not a malfunction:

●

Motor sounds may be heard from the engine compartment.

●

Sounds may be heard from the hybrid battery (traction battery) behind the rear seats when the hybrid system starts or stops.

Relay operating sounds such as a snap or soft clank will be emitted from the hybrid bat-

●

tery (traction battery), behind the rear seats, when the hybrid system is started or stopped.

Sounds may be heard from the transmission when the gasoline engine starts or stops,

●

when driving at low speeds, or during idling. Engine sounds may be heard when accelerating sharply.

●

Sounds may be heard due to regenerative braking when the brake pedal is depressed or as the accelerator pedal is released.

Operating sounds or motor sounds that occur when the brake pedal is operated.

●

Vibration may be felt when the gasoline engine starts or stops.

●

Cooling fan sounds may be heard from the air intake vent on the side of rear right seat-

●

back.

■

Vehicle proximity notification system

In the following cases, the vehicle proximity notification system may be difficult for surrounding people to hear.

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notification system is installed on the front of the vehicle, it may be more difficult to hear from the rear of the vehicle compared to the front.

Maintenance, repair, recycling, and disposal

■

Contact your Lexus dealer regarding maintenance, repair, recycling and disposal. Do not dispose of the vehicle yourself.

■ Customization Settings

Settings (e.g. on/off operation of the EV indicator) can be changed. (Customizable features: P. 59 1)

CT200h_OM_OM76197U_(U)

1-2. Hybrid system

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system (about 650V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.

For safety and security

The illustration is an example for explanation and may differ from the actual item.

Caution label

Hybrid battery (traction battery)

Service plug

Air conditioning compressor

CT200h_OM_OM76197U_(U)

High voltage cables (orange)

Power control unit

Electric motor (traction motor)

1-2. Hybrid system

Hybrid battery (traction battery) air vent

There is an air intake vent on the side of the rear right seatback for the purpose of cooling the hybrid battery (traction battery). If the vent becomes blocked, the hybrid battery may overheat, leading to a reduction in hybrid battery output.

Emergency shut off system

When a certain level of impact is detected by the impact sensor, the emergency shut off system blocks the high voltage current and stops the fuel pump to minimize the risk of electrocution and fuel leakage. If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Lexus dealer.

Hybrid warning message

A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.

If a warning message is shown on the multi-information display, read the message and follow the instructions.

(

P. 5 36)

CT200h_OM_OM76197U_(U)

1-2. Hybrid system

WA RN I N G

●

Never try to open the service plug access hole located in the luggage compartment. The service plug is used only when the vehicle is serviced and is subject to high voltage.

If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-

■

connected

The hybrid system may not start. In this case, try to start the system again. If the “READY” indicator does not come on, contact your Lexus dealer.

Running out of fuel

■

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle with at least enough gasoline to make the low fuel level warning light (P. 5 3 1) go off. If there is only a small amount of fuel, the hybrid system may not be able to start. (The minimum amount of fuel to add to make the low fuel level warning light go out is about 3.1 gal. [11.8 L, 2.6 Imp.gal.], when the vehicle is on a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)

Electromagnetic waves

■

High voltage parts and cables on hybrid vehicles incorporate electromagnetic shield-

●

ing, and therefore emit approximately the same amount of electromagnetic waves as conventional gasoline powered vehicles or home electronic appliances.

●

Your vehicle may cause sound interference in some third party-produced radio parts.

Hybrid battery (traction battery)

■

The hybrid battery (traction battery) has a limited service life. The lifespan of the hybrid battery (traction battery) can change in accordance with driving style and driving conditions.

High voltage precautions

■

This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury.

●

Never touch, disassemble, remove or replace the high voltage parts, cables or their connectors.

The hybrid system will become hot after starting as the system uses high voltage. Be

●

careful of both the high voltage and the high temperature, and always obey the caution labels attached to the vehicle.

For safety and security

CT200h_OM_OM76197U_(U)

WA RN I N G

■

1-2. Hybrid system

Road accident cautions

Observe the following precautions to reduce the risk of death or serious injury:

Stop the vehicle in a safe place to prevent subsequent accidents. While depressing

●

the brake pedal, apply the parking brake and shift the shift position to P to stop the hybrid system. Then, slowly release the brake pedal.

Do not touch the high voltage parts, cables and connectors.

●

If electric wires are exposed inside or outside your vehicle, an electric shock may

●

occur. Never touch exposed electric wires.

●

If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte from the hybrid battery (traction battery). If it comes into contact with your skin or eyes, wash it off immediately with a large amount of water or, if possible, boric acid solution. Seek immediate medical attention.

If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never use a

●

fire extinguisher that is not meant for electric fires. Using even a small amount of water may be dangerous.

●

If your vehicle needs to be towed, do so with front wheels raised. If the wheels connected to the electric motor (traction motor) are on the ground when towing, the motor may continue to generate electricity. This may cause an electricity leakage leading to a fire. (P. 524)

Carefully inspect the ground under the vehicle. If you find that liquid has leaked onto

●

the ground, the fuel system may have been damaged. Leave the vehicle as soon as possible.

■

Hybrid battery (traction battery)

●

Never resell, hand over or modify the hybrid battery. To prevent accidents, hybrid batteries that have been removed from a disposed vehicle are collected through Lexus dealer. Do not dispose of the battery yourself.

Unless the battery is properly collected, the following may occur, resulting in death or serious injury:

• The hybrid battery may be illegally disposed of or dumped, and it is hazardous to the environment or someone may touch a high voltage part, resulting in an electric shock.

• The hybrid battery is intended to be used exclusively with your hybrid vehicle. If the hybrid battery is used outside of your vehicle or modified in any way, accidents such as electric shock, heat generation, smoke generation, an explosion and electrolyte leakage may occur.

When reselling or handing over your vehicle, the possibility of an accident is extremely high because the person receiving the vehicle may not be aware of these dangers.

If your vehicle is disposed of without the hybrid battery having been removed, there is

●

a danger of serious electric shock if high voltage parts, cables and their connectors are touched. In the event that your vehicle must be disposed of, the hybrid battery must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it may cause electric shock that can result in death or serious injury.

CT200h_OM_OM76197U_(U)

1-2. Hybrid system

NOTICE

■

Hybrid battery air vent

Do not put foreign objects near the air vent. The hybrid battery (traction battery) may

●

overheat and be damaged. Clean the air vent regularly to prevent the hybrid battery (traction battery) from over-

●

heating. Do not wet or allow foreign substances to enter the air vent as this may cause a short

●

circuit and damage the hybrid battery (traction battery). Do not carry large amounts of water such as water cooler bottles in the vehicle. If

●

water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Lexus dealer.

For safety and security

CT200h_OM_OM76197U_(U)

1-3. Theft deterrent system

Immobilizer system

The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously registered in the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.

The indicator light flashes after the power switch has been turned off to indicate that the system is operating.

The indicator light stops flashing after the power switch has been turned to ACCESSORY or ON mode to indicate that the system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type immobilizer system.

Conditions that may cause the system to malfunction

■

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key registered to the security system (key with a built-in transponder chip) of another vehicle

CT200h_OM_OM76197U_(U)

1-3. Theft deterrent system

NOTICE

■

Certification for the immobilizer system



For vehicles sold in the U.S.A., Guam, Puerto Rico and NATO Germany



For vehicles sold in Canada

For safety and security

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

CT200h_OM_OM76197U_(U)

1-3. Theft deterrent system

Alarm

The alarm

The alarm uses light and sound to give an alert when an intrusion is detected. The alarm is triggered in the following situations when the alarm is set:

A locked door is unlocked or opened in any way other than using the entry

●

function, wireless remote control or mechanical key. (The doors will lock again automatically.)

●

The hood is opened.

Setting the alarm system

Close the doors and hood, and lock all the doors. The system will be set automatically after 30 seconds.

The indicator light changes from being on to flashing when the system is set.

Deactivating or stopping the alarm

Do one of the following to deactivate or stop the alarms:

●

Unlock the doors.

●

Turn the power switch to ACCESSORY or ON mode, or start the hybrid system. (The alarm will be deactivated or stopped after a few seconds.)

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following:

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

●

CT200h_OM_OM76197U_(U)

1-3. Theft deterrent system

NOTICE

■

Triggering of the alarm

The alarm may be triggered in the following situations: (Stopping the alarm deactivates the alarm system.)

A person inside the vehicle opens a door or

●

hood.

●

The 12-volt battery is recharged or replaced when the vehicle is locked. (P. 56 4)

Alarm-operated door lock

■

In the following cases, depending on the situation, the door may automatically lock to prevent improper entry into the vehicle:

When a person remaining in the vehicle unlocks the door and the alarm is activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the door.

●

When recharging or replacing the 12-volt battery.

●

For safety and security

To ensure the system operates correctly

■

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

CT200h_OM_OM76197U_(U)

1-3. Theft deterrent system

Theft prevention labels (for U.S.A.)

These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from stolen vehicles. Do not remove under penalty of law.

CT200h_OM_OM76197U_(U)

Instrument cluster

2. Instrument cluster

Warning lights and

indicators.......................................80

Gauges and meters .....................84

Multi-information display ..........88

Energy monitor/

consumption screen.................. 91

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Warning lights and indicators

The warning lights and indicators on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems.

For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.

The units used on the meter and some indicators may differ depending on the target region.

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Warning lights

Warning lights inform the driver of malfunctions in any of the vehicle’s systems.

(U.S.A.)

(Canada)

(U.S.A.)

(Canada)

Brake system warning light (P. 52 9)

Charging system warning light (P. 52 9)

Low engine oil pressure warning light (P. 52 9)

Malfunction indicator lamp (P. 52 9)

(U.S.A.)

(Canada)

1, 2

(if equipped)

ABS warning light (P. 53 0)

Electric power steering

system warning light (P. 53 0)

“PCS” warning light (P. 53 0)

Slip indicator light (P. 53 0)

Automatic headlight leveling system warning light (P. 53 0)

High coolant temperature warning light (P. 5 30 )

Instrument cluster

Low fuel level warning light (P. 53 1)

Seat belt reminder light (P. 53 1)

SRS warning light (P. 53 0)

CT200h_OM_OM76197U_(U)

Open door warning light (P. 53 0)

Master warning light (P. 53 1)

Tire pressure warning light (P. 53 1)

2. Instrument cluster

: These lights turn on when the power switch is turned to ON mode to indicate that a

system check is being performed. They will turn off after the hybrid system is on, or after a few seconds. There may be a malfunction in a system if the lights do not turn on, or turn off. Have the vehicle inspected by your Lexus dealer.

: The light flashes to indicate a malfunction.

Indicators

The indicators inform the driver of the operating state of the vehicle’s various systems.

(U.S.A.)

(Canada)

Turn signal indicator (P. 16 7)

Headlight indicator (P. 16 9)

Tail light indicator (P. 16 9)

Headlight high beam indicator (P. 17 0)

Fog light indicator (P. 17 2)

“READY” indicator (P. 15 6)

EV indicator (P. 67 )

(if equipped)

1, 2

“ECO MODE” indicator (P. 23 4 )

“SPORT MODE” indicator (P. 23 4 )

Cruise control indicator (P. 18 6, 189 )

Radar cruise control indicator (P. 18 9)

Intuitive parking assist indicator (P. 202)

Slip indicator light (P. 23 6)

“TRAC OFF” indicator (P. 23 6)

EV drive mode indicator (P. 16 0)

Shift position indicators (P. 16 2)

CT200h_OM_OM76197U_(U)

1, 3

(if equipped)

“PCS” warning light (P. 23 9)

1, 4

“A I R B AG O N/ OFF” indicator (P. 47 )

2. Instrument cluster

WA RN I N G

: These lights turn on when the power switch is turned to the ON mode to indicate that

a system check is being performed. They will turn off after the hybrid system is on, or after a few seconds. There may be a malfunction in a system if the lights do not turn on, or turn off. Have the vehicle inspected by your Lexus dealer.

: The light flashes to indicate that the system is operating.

: The light comes on when the system is turned off. The light flashes faster than usual to

indicate that the system is operating.

: This light illuminates on the center panel.

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid system, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

Instrument cluster

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Gauges and meters

The units used on the meters may differ depending on the target region.

Hybrid System Indicator

Displays hybrid system output or regeneration level Changes to the tachometer depending on the drive mode or setting on the display.

(P. 8 6, 59 1)

Tachometer

Displays the engine speed in revolutions per minute Changes to Hybrid System Indicator depending on the drive mode or setting on the

display. (P. 86 , 59 1)

Shift position indicators

P. 16 2

Speedometer

Displays the vehicle speed

ECO lamp and SPORT lamp

Changes colors according to driving mode (P. 8 6)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of driving-related data (P. 88) Displays warning messages in case of a malfunction (P. 53 6)

Outside temperature

The temperature range that can be displayed is from -40F (-40C) to 122F (50C)

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Odometer and trip meter display Odometer:

Displays the total distance that the vehicle has been driven Trip meter:

Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances independently.

Odometer/trip meter display change button P. 8 5

Changing the display

Switches between odometer and trip meter displays. When the trip meter is displayed, pressing and holding the button will reset the trip meter.

Instrument panel light control

The brightness of the instrument panel lights can be adjusted by turning the dial.

Brighter

Darker

When the headlight switch is turned to ON, the brightness will be reduced slightly unless the control dial is turned fully up.

When the dial is turned fully down, the cup holder light and the footwell lights will turn off. (P. 4 27 )

Instrument cluster

CT200h_OM_OM76197U_(U)

The meters and display illuminate when

■

2. Instrument cluster

The power switch is in ON mode.

■

Hybrid System Indicator

Power are a Shows that an Eco-friendly driving range is being exceeded (during full power driving etc.)

Eco area Shows that the vehicle is being driven in an Eco-friendly manner.

Hybrid Eco area Shows that gasoline engine power is not being used very often.

The gasoline engine will automatically stop and restart under various conditions.

Charge area Shows that energy is being recovered via the regenerative brake.

●

Hybrid System Indicator is displayed when the driving mode is in other than the sport mode.

●

By keeping the indicator needle within Eco area, more Eco-friendly driving can be achieved.

●

Charge area indicates regeneration* status. Regenerated energy will be used to charge the hybrid battery (traction battery).

: When used in this manual, “regeneration” refers to the conversion of energy created

by the movement of the vehicle into electrical energy.

■

Tachometer

The tachometer is displayed when the driving mode is in the sport mode.

ECO lamp and SPORT lamp

■

When sport mode is selected, the SPORT lamp (red) will illuminate.

●

When all of the following conditions are satisfied and the Eco-friendly driving, the ECO lamp (blue) will illuminate:

• Driving with the shift position in D

• Either normal mode or Eco drive mode is selected, and EV drive mode is not in use (P. 1 60 , 2 34)

• The vehicle speed is approximately 80 mph (130 km/h) or below.

CT200h_OM_OM76197U_(U)

2. Instrument cluster

NOTICE

■

Engine speed

On hybrid vehicles, engine speed is precisely controlled in order to help improve fuel efficiency and reduce exhaust emissions etc. There are times when the engine speed that is displayed may differ even when vehicle operation and driving conditions are the same.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 12 mph [20 km/h])

• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Lexus dealer.

■

Customization

Settings (e.g. on/off operation of the ECO lamp) can be changed. (Customizable features: P. 59 1)

■

To prevent damage to the engine and its components

● Do not let the indicator needle of the tachometer enter the red zone, which indicates

the maximum engine speed. The engine may be overheating if the high coolant temperature warning light comes

●

on or flashes. In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely. (P. 566)

Instrument cluster

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Multi-information display

Display contents

The multi-information display presents the driver with a variety of vehicle data.

Energy monitor

●

Displays the status of the hybrid system. (P. 9 1)

Drive information

●

Displays driving range, fuel consumption and other cruising related information. (P. 8 8)

●

Setting

Changes instrument cluster display settings (P. 5 91)

●

Intuitive parking assist display (if equipped)

Automatically displayed when the system is used (P. 202)

Dynamic radar cruise control display (if equipped)

●

Automatically displayed when the system is used (P. 18 9)

●

Warn in g m es sa ges

Automatically displayed when a malfunction occurs in one of the vehicle’s systems (P. 5 36 )

Drive information

Items displayed can be switched by pressing the “DISP” switch.

Energy monitor

■

P. 9 1

■ Current fuel consumption/Average fuel consumption after refueling

Displays the instant fuel consumption and average fuel consumption after refueling.

Use the displayed average fuel consumption as a reference.

CT200h_OM_OM76197U_(U)

2. Instrument cluster

■

Average fuel consumption

Displays the average fuel consumption since the function was reset.

• The function can be reset by pressing the “DISP” switch for longer than 1 second when the average fuel consumption is displayed.

• Use the displayed average fuel consumption as a reference.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

• When only a small amount of fuel is added to the tank, the display may not be updated. When refueling, turn the power switch off. If the vehicle is refueled without turning the power switch off, the display may not be updated.

■

Elapsed time

Displays the elapsed time since the hybrid system was started or the function was reset.

The function can be reset by pressing the “DISP” switch for longer than 1 second when the elapsed time is displayed.

Average vehicle speed

■

Displays the average vehicle speed since the function was reset

The function can be reset by pushing the “DISP” switch for longer than 1 second when the average vehicle speed is displayed.

■

Setting

P. 5 91

Display off

■

A blank screen is displayed

Instrument cluster

System check display

■

After turning the power switch to ON mode, opening image is displayed while system operation is checked. When the system check is complete, the normal screen will return.

■

When disconnecting and reconnecting 12-volt battery terminals

The drive information will be reset.

Liquid crystal display

■

Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.

CT200h_OM_OM76197U_(U)

NOTICE

■

2. Instrument cluster

The multi-information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-information display and the navigation system (if equipped)/Lexus Display Audio system (if equipped).

Multi-information display

“DISP” switch

Navigation system screen/Lexus Display Audio screen (if equipped) Vehicles with a navigation system



“MENU” button

Remote Touch knob Vehicles with a Lexus Display Audio system



“MENU” button

Lexus Display Audio controller (P. 3 22 )

: For use of the Remote Touch, refer to “NAVIGATION SYSTEM OWNER’S

MANUAL”.

Instrument cluster

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Energy monitor



Navigation system screen

Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Trip Information” or “Past Record” screen is displayed, select “Energy”.



Lexus Display Audio screen

Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” screen does not appear, move the controller to the right and select “Energy”.

Multi-information display



Press the “DISP” switch on the steering wheel several times to select the energy monitor display.

CT200h_OM_OM76197U_(U)

2. Instrument cluster

■

Navigation system screen/Lexus Display Audio screen

Navigation system screen Lexus Display Audio screen

When the vehicle is powered by the electric motor (traction motor)

When the vehicle is powered by both the gasoline engine and the electric motor (traction motor)

When the vehicle is powered by the gasoline engine

When the vehicle is charging the hybrid battery (traction battery)

Instrument cluster

When there is no energy flow

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Navigation system screen Lexus Display Audio screen Low Full Low Full

Hybrid battery (traction battery) status

These images are examples only, and may vary slightly from actual conditions.

■

Multi-information display screen

Multi-information display

When the vehicle is powered by the electric motor (traction motor)

When the vehicle is powered by both the gasoline engine and the electric motor (traction motor)

When the vehicle is powered by the gasoline engine

When the vehicle is charging the hybrid battery (traction battery)

When there is no energy flow

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Multi-information display

Low Full

Hybrid battery (traction battery) status

These images are examples only, and may vary slightly from actual conditions.

Fuel consumption (vehicles with a navigation system or Lexus Display Audio system)

Trip information

■



Navigation system screen

Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Information”.

Resetting the consumption data

Fuel consumption in the past 15 minutes

Current fuel consumption

Regenerated energy in the past 15 minutes

One symbol indicates 30 Wh. Up to 5 symbols are shown.

Average vehicle speed since the hybrid system was started.

Elapsed time since the hybrid system was started.

Cruising range (P. 97 )

Instrument cluster

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Lexus Display Audio screen



Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Trip Information” screen does not appear, move the controller to the right and select “Trip Information”.

Fuel consumption in the past 15 minutes

Current fuel consumption

Regenerated energy in the past 15 minutes

One symbol indicates 30 Wh. Up to 5 symbols are shown.

Average vehicle speed since the hybrid system was started.

Elapsed time since the hybrid system was started.

Cruising range (P. 97 )

Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the power switch was last turned to ON mode. Use the displayed average fuel consumption as a reference.

The image is an example only.

■

Past record

Navigation system screen



Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Energy Monitor” or “Trip Information” screen is displayed, select “Past Record”.

Resetting the past record data

Best recorded fuel consumption

Average fuel consumption

Previous fuel consumption record

Updating the average fuel consumption data

CT200h_OM_OM76197U_(U)

2. Instrument cluster

Lexus Display Audio screen



Press the “MENU” button on the Lexus Display Audio controller, then select “Info” on the “Menu” screen, and then select “Fuel Consumption”.

If the “Past Record” screen does not appear, move the controller to the right and select “Past Record”.

Previous fuel consumption record

Current fuel consumption

Best recorded fuel consumption

The average fuel consumption history is divided by color into past averages and the average fuel consumption since the last updated. Use the displayed average fuel consumption as a reference.

The image is an example only.

Updating the past record data

■

Vehicles with a navigation system



Update the average fuel consumption by selecting “Update” to measure the current fuel consumption again.



Vehicles with a Lexus Display Audio system

Update the average fuel consumption by moving the controller to the left and select “Update” to measure the current fuel consumption again.

Resetting the data

■



Vehicles with a navigation system

The fuel consumption data can be deleted by selecting “Clear”.

Vehicles with a Lexus Display Audio system



The fuel consumption data can be deleted by moving the controller to the left and select “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

Instrument cluster

CT200h_OM_OM76197U_(U)

2. Instrument cluster

CT200h_OM_OM76197U_(U)

Operation of

each component

3-1. Key information

Keys..................................................100

3-2. Opening, closing and locking

the doors

Side doors...................................... 105

Back door.........................................110

Smart access system with

push-button start........................114

3-3. Adjusting the seats

Front seats...................................... 120

Rear seats........................................122

Driving position memory..........124

Head restraints .............................127

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .............................130

Inside rear view mirror.............. 132

Outside rear view mirrors....... 135

3-5. Opening, closing the windows

and moon roof

Power windows.............................137

Moon roof...................................... 140

CT200h_OM_OM76197U_(U)

100

3-1. Key information

Keys

The keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system with push-button start (P. 114)

• Operating the wireless remote control function

Mechanical keys

Key number plate

Card key (electronic key) (if equipped)

Operating the smart access system with push-button start (P. 114 )

Wireless remote control

Locks all the doors (P. 1 05)

Unlocks all the doors (P. 1 05 )

Opens the windows

Sounds the alarm (P. 1 01 )

: This setting must be customized at your

Lexus dealer.

(P. 1 05 )

CT200h_OM_OM76197U_(U)

Lexus CT (2017) Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

Pictorial index

For safety and security

1-1. For safe use

1-2. Hybrid system

1-3. Theft deterrent system

2. Instrument cluster

3-1. Key information
