Lexus CT200h (2011) Owner’s Manual

Download

Page 1

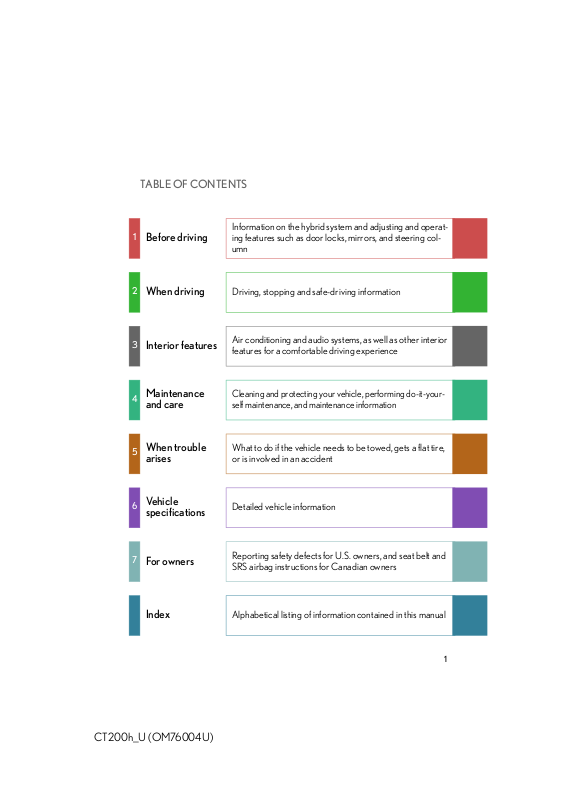

TABLE OF CONTENTS

Before driving

Information on the hybrid system and adjusting and operating features such as door locks, mirrors, and steering column

When driving

Interior features

Maintenance

and care

When trouble

arises

Vehicle 

specifications

For owners

Driving, stopping and safe-driving information

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience

Cleaning and protecting your vehicle, performing do-it-yourself maintenance, and maintenance information

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident

Detailed vehicle information

Reporting safety defects for U.S. owners, and seat belt and SRS airbag instructions for Canadian owners

Index

CT200h_U (OM76004U)

Alphabetical listing of information contained in this manual

Page 2

TABLE OF CONTENTS Index

For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual” for information regarding the equipment listed below.

• Navigation system

• Air conditioning

• Windshield wiper de-icer

• Rear view monitor system

Before driving

1-1. Hybrid system

Hybrid system features................. 24

Hybrid system precautions ......... 29

Energy monitor/

consumption screen ................... 35

Hybrid vehicle driving tips............ 41

1-2. Key information

Keys ...................................................... 43

1-3. Opening, closing and locking 

the doors

Smart access system with 

push-button start .......................... 49

Wireless remote control............... 61

Side doors .......................................... 66

Back door........................................... 70

• Audio/video system

• Rear window and outside rear view mirror defogging

• Climate control

1-4. Adjustable components 

(seats, mirrors, steering wheel)

Front seats.......................................... 75

Rear seats........................................... 78

Driving position memory ............ 80

Head restraints................................. 83

Seat belts ............................................ 86

Steering wheel.................................. 94

Inside rear view mirror.................. 95

Outside rear view mirrors........... 97

1-5. Opening and closing 

the windows and moon roof

Power windows.............................. 100

Moon roof ........................................ 103

1-6. Refueling

Opening the fuel tank cap......... 107

CT200h_U (OM76004U)

Page 3

1-7. Theft deterrent system

Immobilizer system ......................... 111

Alarm.................................................... 113

Theft prevention labels 

(for U.S.A.)...................................... 116

1-8. Safety information

Correct driving posture ............... 117

SRS airbags ....................................... 119

Front passenger occupant 

classification system.................. 133

Child restraint systems ............... 139

Installing child restraints............. 144

When driving

2-1. Driving procedures

Driving the vehicle........................ 156

Power (ignition) switch............... 169

EV drive mode ................................ 174

Hybrid transmission...................... 177

Turn signal lever ............................ 185

Parking brake ................................. 186

Horn.................................................... 187

2-2. Instrument cluster

Gauges and meters ..................... 188

Indicators and warning 

lights................................................. 194

Multi-information display........... 198

2-3. Operating the lights and 

windshield wipers

Headlight switch........................... 202

Fog light switch ............................. 207

Windshield wipers and 

washer .......................................... 208

Rear window wiper and 

washer ............................................ 214

Headlight cleaner switch ........... 215

CT200h_U (OM76004U)

Page 4

TABLE OF CONTENTS Index

2-4. Using other driving systems

Cruise control................................. 216

Dynamic radar cruise 

control............................................ 220

Intuitive parking assist ................ 233

Rear view monitor system........ 239

Driving assist systems................ 250

Hill-start assist control................ 254

Pre-Collision System.................. 256

2-5. Driving information

Cargo and luggage..................... 264

Vehicle load limits........................ 269

Winter driving tips ....................... 270

Trailer towing................................. 274

Dinghy towing ............................... 275

Interior features

3-1. Using the air conditioning 

system and defogger

Automatic air conditioning 

system ............................................ 278

Rear window defogger 

switch ............................................ 289

Windshield wiper de-icer........ 290

3-2. Using the audio system

Audio system types ...................... 291

Using the radio.............................. 295

Using the CD player................... 307

Playing MP3 and WMA 

discs ................................................. 318

Operating an iPod....................... 329

Operating a USB memory........ 341

Optimal use of the audio 

system ............................................ 352

Using the AUX port .................. 355

Using the steering wheel 

audio switches ............................ 356

CT200h_U (OM76004U)

Page 5

3-3. Using the Bluetooth® audio 

system

Bluetooth Using the Bluetooth

audio system ........ 360

audio 

system ............................................ 363

Operating a Bluetooth

enabled 

portable player........................... 370

Setting up a Bluetooth

enabled 

portable player........................... 375

Bluetooth

audio system 

setup .............................................. 384

3-4. Using the hands-free phone 

system (for cellular phones)

Hands-free system for 

cellular phones.......................... 385

Using the hands-free system 

(for cellular phones)................ 389

Making a phone call................... 398

Setting a cellular phone............ 403

Security and system setup......... 410

Using the phone book................. 415

3-5. Using the interior lights

Interior lights list............................ 425

• Personal/interior light 

main switch .................................. 426

• Front personal/

interior lights ............................... 426

• Rear interior light ...................... 427

3-6. Using the storage features

List of storage features .............. 428

• Glove box .................................... 429

• Console box............................... 430

• Cup holders.................................. 431

• Bottle holders ............................. 432

• Auxiliary boxes .......................... 433

3-7. Other interior features

Sun visors......................................... 435

Vanity mirrors................................ 436

Clock................................................. 437

Power outlet.................................. 438

Heated steering wheel .............. 440

Seat heaters.................................... 442

Floor mat.......................................... 444

Luggage compartment 

features.......................................... 446

Garage door opener................... 451

Compass ......................................... 459

Safety Connect............................. 466

CT200h_U (OM76004U)

Page 6

TABLE OF CONTENTS Index

Maintenance and care

4-1. Maintenance and care

Cleaning and protecting the 

vehicle exterior .......................... 474

Cleaning and protecting the 

vehicle interior............................ 479

4-2. Maintenance

Maintenance requirements .... 482

General maintenance............... 484

Emission inspection and 

maintenance (I/M) 

programs ..................................... 488

4-3. Do-it-yourself maintenance

Do-it-yourself service 

precautions................................. 489

Hood.................................................. 494

Positioning a floor jack............... 496

Engine compartment................. 498

12-volt battery................................... 511

Tires .................................................... 518

Tire inflation pressure................ 530

Wheels.............................................. 534

Air conditioning filter.................. 537

Electronic key battery ............... 539

Checking and replacing 

fuses................................................ 542

Light bulbs...................................... 554

When trouble arises

5-1. Essential information

Emergency flashers..................... 570

If your vehicle needs to be 

towed............................................... 571

If you think something is 

wrong............................................. 577

Event data recorder.................... 578

5-2. Steps to take in an emergency

If a warning light turns on or a 

warning buzzer sounds ......... 580

If a warning message is 

displayed...................................... 593

If you have a flat tire...................... 615

If the hybrid system 

will not start.................................. 629

If you lose your keys..................... 631

If the electronic key does not 

operate properly ....................... 632

If the 12-volt battery is 

discharged ................................... 635

If your vehicle overheats .......... 640

If the vehicle becomes 

stuck................................................ 645

If your vehicle has to be 

stopped in an emergency...... 647

CT200h_U (OM76004U)

Page 7

Vehicle specifications

Index

6-1. Specifications

Maintenance data 

(fuel, oil level, etc.).................... 650

Fuel information............................ 665

Tire information............................ 668

6-2. Customization

Customizable features ............. 684

6-3. Initialization

Items to initialize ........................... 705

For owners

Reporting safety defects 

for U.S. owners.......................... 708

Seat belt instructions 

for Canadian owners 

(in French).................................... 709

SRS airbag instructions 

for Canadian owners 

(in French)....................................... 711

Abbreviation list ....................... 722

Alphabetical index................... 724

What to do if................................ 736

CT200h_U (OM76004U)

Page 8

Pictorial index

P. 103

P. 207

P. 202

P. 202, 205

P. 202

P. 185

P. 494

P. 208

P. 97

P. 185

P. 215

Exterior

Moon roof

Windshield wipers

Hood

Headlight cleaner

Outside rear view

mirrors

Turn signal lights

Fog lights

CT200h_U (OM76004U)

Headlights Parking lights and daytime 

running lights Side marker lights Turn signal lights

Page 9

P. 202

Rear window defogger

P. 289

P. 518

P. 615

P. 661

P. 668

P. 202

P. 107

P. 185

P. 202

P. 66

P. 70

P. 214

Turn signal lights

Fuel filler door

Rear window wiper

Side doors

Tires

●Rotation

●Replacement

●Inflation pressure

●Information

Back door

License plate lights

Tail lights

Side marker lights

: If equipped

CT200h_U (OM76004U)

Page 10

P. 119

P. 444

Pictorial index

P. 119

P. 430

P. 83

P. 86

P. 119

P. 75

P. 78

P. 119

Interior

Seat belts

Head restraints

SRS driver airbag

SRS knee airbags

SRS front passenger

airbag

Rear seats

SRS side airbags

CT200h_U (OM76004U)

Floor mat

Front seats

Console box

Page 11

Anti-glare inside rear view mirror

P. 95

P. 459

P. 435

P. 119

P. 426

P. 103

P. 466

P. 451

P. 436

P. 426

Compass

Sun visors

Moon roof switches

“SOS” button



Garage door opener switches

Interior light



CT200h_U (OM76004U)

SRS curtain shield airbags

Vanity mirrors

Interior lights

Personal lights

: If equipped

Page 12

P. 80

P. 66

P. 100

P. 66

Pictorial index

Interior

Inside door lock button

Driving position memory switches

Window lock switch

Door lock switch

Power window switches

CT200h_U (OM76004U)

Page 13

P. 431

P. 442

P. 177

P position switch

P. 180

P. 355

P. 329, 341

P. 438

P. 174

P. 111, 113

P. 179

Security indicator

Shift lever

EV drive mode switch

AUX port*2

USB port

Power outlet

Cup holders

Seat heater switches

: If equipped

: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

CT200h_U (OM76004U)

Driving mode select switch

Page 14

Pictorial index

P. 202

P. 185

P. 207

P. 257

P. 186

P. 494

P. 94

P. 429

P. 169

P. 208

P. 214

P. 188

P. 198

P. 291

P. 570

P. 278

P. 289

P. 190

P. 97

Headlight switch

Turn signal lever

Fog light switch



Instrument panel

Gauges and meters

Multi-information display

Windshield wipers and washer switch

Rear window wiper and washer switch

Power (ignition) switch

Glove box

Emergency flasher switch

Navigation system*

Instrument panel  light control  dial

Outside rear  view mirror  switches

CT200h_U (OM76004U)

Audio system*2

Air conditioning system*2

Rear window and outside rear view mirror

defoggers

Tilt and telescopic steering control lever

Pre-collision braking off switch

Parking brake pedal

Hood lock release lever

Page 15

P. 390

P. 199

P. 356

P. 216

P. 220

P. 187

Talk switch*2

P. 390

“DISP” button

Audio remote  control switches

Telephone switches*

Vehicle-to-vehicle

Horn

distance button



Cruise control switch

Dynamic radar cruise control switch



: If equipped

: Refer to “Navigation System Owner’s Manual”.

: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

CT200h_U (OM76004U)

Page 16

Pictorial index

P. 215

P. 290

P. 107

P. 440

P. 233

Headlight cleaner switch

Instrument panel

Windshield wiper de-icer switch

Fuel filler door opener

Intuitive parking assist switch

Heated steering wheel switch

CT200h_U (OM76004U)

Page 17

P. 433

Remote touch*

Auxiliary box

CT200h_U (OM76004U)

TILT switch*

OPEN CLOSE switch*

: If equipped

: Refer to “Navigation System Owner’s Manual”.

Page 18

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of color and equipment.

The manuals for this vehicle can be stored in the auxiliary box beneath the luggage compartment. (P. 45 0)

Noise from under vehicle after turning off the hybrid system

Approximately five hours after the hybrid system is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification with non-genuine Lexus products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

CT200h_U (OM76004U)

Page 19

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as the multiport fuel injection system/sequential multiport fuel injection system, cruise control system, anti-lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation.

High voltage parts and cables on the hybrid vehicles emit approximately the same amount of electromagnetic waves as the conventional gasoline powered vehicles or home electronic appliances despite of their electromagnetic shielding.

Unwanted noise may occur in the reception of the mobile two-way radio.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote control batteries.

CT200h_U (OM76004U)

Page 20

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

■ Disposal of the hybrid battery (traction battery)

If your vehicle is disposed of without the hybrid battery having been removed, there is a danger of serious electric shock if high voltage parts, cables and their connectors are touched. In the event that your vehicle must be disposed of, the hybrid battery must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it may cause electric shock that can result in death or serious injury.

CT200h_U (OM76004U)

Page 21

Symbols used throughout this manual

CAUTION

NOTICE

Cautions & Notices

This is a warning against something which, if ignored, may cause death or serious injury to people. You are informed about what you must or must not do in order to reduce the risk of death or serious injury to yourself and others.

This is a warning against something which, if ignored, may cause damage to the vehicle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

CT200h_U (OM76004U)

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Page 22

Before driving

1-1. Hybrid system

Hybrid system features........... 24

Hybrid system precautions.... 29

Energy monitor/

consumption screen.............. 35

Hybrid vehicle driving tips ...... 41

1-2. Key information

Keys .............................................. 43

CT200h_U (OM76004U)

Page 23

Before driving

1-3. Opening, closing and 

locking the doors

Smart access system with 

push-button start .................... 49

Wireless remote control .......... 61

Side doors.................................... 66

Back door .................................... 70

1-5. Opening and closing the 

windows and moon roof

Power windows ........................ 100

Moon roof ................................. 103

1-6. Refueling

Opening the fuel tank cap ... 107

1-4. Adjustable components

(seats, mirrors, steering

wheel)

Front seats................................... 75

Rear seats.................................... 78

Driving position memory ....... 80

Head restraints......................... 83

Seat belts ..................................... 86

Steering wheel........................... 94

Inside rear view mirror ............ 95

Outside rear view mirrors...... 97

1-7. Theft deterrent system

Immobilizer system ................... 111

Alarm........................................... 113

Theft prevention labels 

(for U.S.A.) ............................... 116

1-8. Safety information

Correct driving posture ......... 117

SRS airbags ............................... 119

Front passenger occupant 

classification system............ 133

Child restraint systems ......... 139

Installing child restraints....... 144

CT200h_U (OM76004U)

Page 24

1-1. Hybrid system

Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and operate with care.

The hybrid system combines the use of a gasoline engine and an electric motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.

Gasoline engine Electric motor (traction motor)

Hybrid system features

CT200h_U (OM76004U)

Page 25

1-1. Hybrid system

■ When stopped/during start off

The gasoline engine stops* when the vehicle is stopped. During start off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped* and the motor is used.

When shift position is in N, the hybrid battery (traction battery) will not be charged. Thus, shift to P when the vehicle is stopped. In addition, when driving in heavy traffic, use D or B.

*: However, when the hybrid battery (traction battery) need to be

charged or while the engine is being warmed up, the gasoline engine may not stop automatically.

■ During normal driving

The gasoline engine is predominantly used. The electric motor (traction motor) charges the hybrid battery as necessary.

■ When accelerating sharply

The power of the hybrid battery (traction battery) is added to that of the gasoline engine via the electric motor (traction motor).

■ When braking (regenerative braking)

The electric motor (traction motor) charges the hybrid battery (traction battery).

Before driving

CT200h_U (OM76004U)

Page 26

1-1. Hybrid system

The EV indicator comes on when driving the vehicle using only the electric motor (traction motor).

■ Regenerative braking

In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery).

● The accelerator pedal is released while driving with the shift position in D or B.

● The brake pedal is depressed while driving with the shift position in D or B.

■ EV indicator

■ Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop automatically in the following conditions:

● During gasoline engine warm-up

● During hybrid battery (traction battery) charging

● When the temperature of the hybrid battery (traction battery) is high or low

● When the heater is switched on

CT200h_U (OM76004U)

Page 27

1-1. Hybrid system

■ Charging the battery

As the gasoline engine charges the hybrid battery (traction battery), the battery does not need to be charged from an outside source. However, if the vehicle is left parked for a long time the hybrid battery will slowly discharge. For this reason, be sure to drive the vehicle at least once every few months for at least 30 minutes or 10 miles (16 km). If the hybrid battery becomes fully discharged and you are unable to jump-start the vehicle with the 12-volt battery, contact your Lexus dealer.

■ After the 12-volt battery has discharged or has been changed or removed

The gasoline engine may not stop even if the vehicle is running on the hybrid battery (traction battery). If this continues for a few days, contact your Lexus dealer.

■ Sounds and vibrations specific to a hybrid vehicle

There may be no engine sounds or vibration even though the vehicle is able to move. For safety, apply the parking brake and make sure to shift the shift position to P when parked.

The following sounds or vibrations may occur when the hybrid system is operating and are not a malfunction:

● Motor sounds may be heard from the engine compartment.

● Sounds may be heard from the hybrid battery (traction battery) behind the rear

seats when the hybrid system starts or stops.

● Sounds may be heard from the transmission when the gasoline engine starts or

stops, when driving at low speeds, or during idling.

● Engine sounds may be heard when accelerating sharply.

Before driving

CT200h_U (OM76004U)

Page 28

1-1. Hybrid system

● Sounds may be heard due to regenerative braking when the brake pedal is

depressed and accelerator is loosened.

● Other sounds, such as motors and mechanical noises, may be heard from the

brake system when the brake pedal is depressed.

● Vibration may be felt when the gasoline engine starts or stops.

● Cooling fan sounds may be heard from the air intake vent on the side of rear

right seatback.

■ Maintenance, repair, recycling, and disposal

Contact your Lexus dealer regarding maintenance, repair, recycling and disposal. Do not dispose of the vehicle yourself.

■ Customization

Settings (e.g. on/off operation of the EV drive mode indicator) can be changed. (Customizable features P. 6 84 )

CT200h_U (OM76004U)

Page 29

1-1. Hybrid system

Take care when handling the hybrid system, as it contains a high voltage system (about 650V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.

Air conditioning compressor Power control unit Hybrid battery (traction bat-

tery) Service plug

High voltage cables (orange) Electric motor (traction motor) Caution label

Hybrid system precautions

Before driving

CT200h_U (OM76004U)

Page 30

1-1. Hybrid system

Hybrid battery air vent

There is an air intake vent on the side of the rear right seatback for the purpose of cooling the hybrid battery (traction battery). If the vent become blocked, the hybrid battery may overheat, leading to a reduction in hybrid battery output.

Emergency shut off system

When a certain level of impact is detected by the impact sensor, the emergency shut off system blocks off the high voltage current and stops the fuel pump to minimize the risk of electrocution and fuel leakage. If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Lexus dealer.

CT200h_U (OM76004U)

Page 31

1-1. Hybrid system

Hybrid warning message

A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.

If a warning message is shown on the multi-information display, read the message and follow the instructions. (P. 593)

■ If a warning light comes on, a warning message is displayed, or the 12-volt battery

is disconnected

The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Lexus dealer.

■ Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle with at least enough gasoline to make the low fuel level warning light (P. 584) go off. If there is only a small amount of fuel, the hybrid system may not be able to start. (The minimum amount of fuel to add to make the low fuel level warning light go out is about 3.1 gal. [11.8 L, 2.6 Imp.gal.], when the vehicle is on a level surface. This value may vary when the vehicle is on a slope.)

Before driving

CT200h_U (OM76004U)

Page 32

1-1. Hybrid system

CAUTION

● Never try to open the service plug access

hole located in the luggage compartment. The service plug is used only when the vehicle is serviced and is subject to high voltage.

■ Electromagnetic waves

● High voltage parts and cables on the hybrid vehicles incorporate electromag-

netic shielding, and therefore emit approximately the same amount of electromagnetic waves as conventional gasoline powered vehicles or home electronic appliances.

● Your vehicle may cause sound interference in some third party-produced radio

parts.

■ Hybrid battery (traction battery)

The hybrid battery (traction battery) has a limited service life. The lifespan of the hybrid battery (traction battery) can change in accordance with driving style and driving conditions.

■ High voltage precautions

The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury.

● Never touch, disassemble, remove or replace the high voltage parts, cables or

their connectors.

● The hybrid system will become hot after starting as the system uses high voltage.

Be careful of both the high voltage and the high temperature, and always obey the caution labels attached to the vehicle.

CT200h_U (OM76004U)

Page 33

1-1. Hybrid system

CAUTION

■ Road accident cautions

If your vehicle is involved in an accident, observe the following precautions to reduce the risk of death or serious injury:

● Stop the vehicle in a safe place, apply the parking brake while depressing the

brake pedal, shift the shift position to P and turn the hybrid system off. Then gradually release the brake pedal.

● Do not touch the high voltage parts, cables and connectors.

● If electric wires are exposed inside or outside your vehicle, an electric shock may

occur. Never touch exposed electric wires.

● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte

from the hybrid battery (traction battery). If it comes into contact with your skin or eyes, wash it off immediately with a large amount of water or, if possible, boric acid solution. Seek immediate medical attention.

● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never

use a fire extinguisher that is not meant for electric fires. Using even a small amount of water may be dangerous.

● If your vehicle needs to be towed, do so with front wheels raised. If the wheels

connected to the electric motor (traction motor) are on the ground when towing, the motor may continue to generate electricity. This may cause an electricity leakage leading to a fire. (P. 5 71 )

● Carefully inspect the ground under the vehicle. If you find that liquid has leaked

onto the ground, the fuel system may have been damaged. Leave the vehicle as soon as possible.

■ Hybrid battery (traction battery)

Your vehicle contains a sealed nickel-metal hydride battery. If disposed of improperly, it is hazardous to the environment and there is a risk of severe burns and electrical shock that may result in death or serious injury.

Before driving

CT200h_U (OM76004U)

Page 34

1-1. Hybrid system

NOTICE

■ Hybrid battery air vent

● Do not put foreign objects near the air vent. The hybrid battery (traction battery)

may overheat and be damaged.

● Clean the air vent regularly to prevent the hybrid battery (traction battery) from

overheating.

● Do not wet or allow foreign substances to enter the air vent as this may cause a

short circuit and damage the hybrid battery (traction battery).

● Do not carry large amounts of water such as water cooler bottles in the vehicle. If

water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Lexus dealer.

CT200h_U (OM76004U)

Page 35

1-1. Hybrid system

You can view the status of your hybrid system on the multi-information display and the navigation system screen.

Navigation system screen (if equipped)

Multi-information display

Remote Touch*

“MENU” button Remote Touch knob “ENTER” button

*: For use of the Remote Touch,

refer to “Navigation System Owner’s Manual”.

STEP 1

Energy monitor/consumption screen

Before driving

Energy monitor

Navigation system (if equipped)

CT200h_U (OM76004U)

Press the “MENU” button on the Remote Touch.

Page 36

1-1. Hybrid system

STEP 2

STEP 3

Multi-information display

Select on the screen

and press the “ENTER” button on the Remote Touch.

Select and press the

“ENTER” button. If the or

screen is displayed, select and press the “ENTER” button.

Push the “DISP” button on the steering wheel several times to select the energy monitor display.

CT200h_U (OM76004U)

Page 37

1-1. Hybrid system

When the vehicle is powered by the electric motor (traction motor)

When the vehicle is powered by both the gasoline engine and the electric motor (traction motor)

When the vehicle is powered by the  gasoline engine

When the vehicle is charging the hybrid  battery (traction  battery)

Navigation screen

Multi-information

display

Before driving

When there is no energy flow

Hybrid battery  (traction battery) status

These images are examples only, and may vary slightly from actual conditions.

CT200h_U (OM76004U)

Low Full Low Full

Page 38

1-1. Hybrid system

Consumption (vehicles with a navigation system)

STEP 1

STEP 2

Press the “MENU” button and select .

Select and press the “ENTER” button.

If the screen does not appear, select and press the “ENTER” button.

Fuel consumption in the past 30 minutes

Regenerated energy in the past 30 minutes

One symbol indicates 50 Wh. Up to 4 symbols are shown.

Cruising range (P. 4 0)

CT200h_U (OM76004U)

Page 39

Past record (vehicles with a navigation system)

1-1. Hybrid system

STEP 1

STEP 2

Press the “MENU” button and select .

Select and press the “ENTER” button.

If the screen does not appear, select and press the “ENTER” button.

Best past fuel consumption Average fuel consumption

Displays the average fuel consumption between each reset of the total average fuel consumption on the multi-information display.

When resetting, if the total average fuel consumption is better than the best past fuel consumption, the best past fuel consumption will be updated.

These images are examples only, and may vary slightly from actual conditions.

Before driving

CT200h_U (OM76004U)

Page 40

1-1. Hybrid system

■ Resetting the consumption data

Selecting on the screen will reset the average fuel consump-

tion. Selecting on the screen will reset the past records. Selecting will confirm resetting of all the data (except cruising range).

■ Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

This distance is computed based on your average fuel consumption.  As a result, the actual distance that can be driven may differ from that displayed.

CT200h_U (OM76004U)

Page 41

1-1. Hybrid system

For economical and ecological driving, pay attention to the following points:

■ Using Eco drive mode

When using Eco drive mode, the torque corresponding to the accelerator pedal depression amount can be generated more smoothly than it is in normal conditions. In addition, the operation of the air conditioning system (heating/cooling) will be minimized, improving the fuel economy.  (P. 1 79 )

■ Use of Hybrid System Indicator

The Eco-friendly driving is possible by keeping the indicate of Hybrid System Indicator within Eco area. (P. 1 91 )

■ When braking the vehicle

Make sure to operate the brakes gently and in good time. A greater amount of electrical energy can be retained when slowing down.

■ Delays

Repeated acceleration and deceleration, as well as long waits at traffic lights, will lead to bad fuel consumption. Check traffic reports before leaving and avoid delays as much as possible. When encountering a delay, gently release the brake pedal to allow the vehicle to move forward slightly while avoiding overuse of the accelerator pedal. Doing so can help control excessive gasoline consumption.

■ Highway driving

Control your speed and keep at a constant speed. Also, before stopping at a toll booth or similar, allow plenty of time to release the accelerator and gently apply the brakes. A greater amount of electrical energy can be retained when slowing down.

Hybrid vehicle driving tips

Before driving

CT200h_U (OM76004U)

Page 42

1-1. Hybrid system

■ Air conditioning

Use the air conditioning only when necessary. Doing so can help control excessive gasoline consumption. In summer: In high temperatures, use the recirculated air mode. Doing so will help to reduce the burden on the air conditioner and reduce fuel consumption as well. In winter: Because the gasoline engine will not automatically cut out until the gasoline engine and the interior of the vehicle are warm, it will consume fuel. Also, fuel consumption can be improved by avoiding overuse of the heater.

■ Checking tire inflation pressure

Make sure to check the tire inflation pressure frequently. Improper tire inflation pressure can cause poor fuel consumption. Also, as snow tires can cause large amounts of friction, their use on dry roads can lead to poor fuel consumption. Use a tire that is appropriate for the season.

■ Luggage

Carrying heavy luggage can lead to poor fuel consumption. Avoid carrying unnecessary luggage. Installing a large roof rack can also cause poor fuel consumption.

■ Warming up before driving

Since the gasoline engine starts up and cuts out automatically when cold, warming up the engine is unnecessary. Moreover, frequently driving short distances will cause the engine to repeatedly warm up, which can lead to poor fuel consumption.

CT200h_U (OM76004U)

Page 43

1-2. Key information

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system with push-button start (P. 4 9)

• Operating the wireless remote control function  (P. 61 )

Mechanical keys Key number plate Card key (electronic key) (if

equipped)

Operating the smart access system with push-button start  (P. 4 9)

Keys

Before driving

CT200h_U (OM76004U)

Page 44

1-2. Key information

Using the mechanical key

To take out the mechanical key:

Electronic keys: Slide the release lever and take the key out.

Card key: Press the lock release button and take the key out.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side. If the key cannot be inserted in a lock cylinder, turn it over and re-attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key.  (P. 6 32 )

CT200h_U (OM76004U)

Page 45

1-2. Key information

● To store the mechanical key in the card key,

insert it while pressing the lock release button.

● If the battery cover is not installed and the

battery falls out or if the battery was removed because the key got wet, reinstall the battery with the positive terminal facing the Lexus emblem.

■ Card key

● The mechanical key that is stored inside the card key should be used only if a

problem arises, such as when the card key does not operate properly.

● If it is difficult to take out the mechanical key, push down the lock release button

using a pen tip etc. If it is still difficult to pull it out, use a coin etc.

Before driving

● The card key is not waterproof.

CT200h_U (OM76004U)

Page 46

1-2. Key information

■ When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (P. 4 29 ) Remove the mechanical key for your own use and provide the attendant with the electronic key only.

■ Key numb er pla te

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Lexus dealer using the key number plate. (P. 63 1)

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press any buttons on the electronic key while inside the aircraft cabin. If you are carrying an electronic key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the electronic key to emit radio waves that could interfere with the operation of the aircraft.

CT200h_U (OM76004U)

Page 47

1-2. Key information

NOTICE

■ To prevent key damage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for long periods of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the electronic key.

● Do not place the keys near objects that produce magnetic fields, such as TVs,

audio systems and glass top ranges, or medical electrical equipment, such as lowfrequency therapy equipment.

■ Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing the key to not function properly.

■ In case of a smart access system with push-button start malfunction or other key-

1-3. Opening, closing and locking the doors

The following operations can be performed simply by carrying the electronic key (including the card key) on your person, for example in your pocket. (The driver should always carry the electronic key.)

Locks and unlocks the doors (P. 50) Starts and stops the hybrid system (P. 16 9)

Smart access system with push-button start

Before driving

CT200h_U (OM76004U)

Page 50

1-3. Opening, closing and locking the doors

Unlocking and locking the doors

Front door handles

Grip the handle to unlock the doors.

Make sure to touch the sensor on the back of the handle.

The doors cannot be unlocked for 3 seconds after the doors are locked.

Touch the lock sensor (the indentation on the upper part of the door handle) to lock the doors.

CT200h_U (OM76004U)

Page 51

Back door

1-3. Opening, closing and locking the doors

Press the unlock button to unlock the all the doors.

The doors cannot be unlocked for 3 seconds after the doors are locked.

Press the lock button to lock the all the doors.

Before driving

CT200h_U (OM76004U)

Page 52

1-3. Opening, closing and locking the doors

Antenna location and effective range

■ Antenna location

Antennas outside the cabin Antennas inside the cabin Antenna inside the luggage

compartment Antenna outside the luggage

compartment

CT200h_U (OM76004U)

Page 53

1-3. Opening, closing and locking the doors

If the door will not lock even when the topside sensor area is touched, try touching both the topside and underside sensor areas at the same time.

■ Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front and back door handles. (Only the doors detecting the key can be operated.)

When starting the hybrid system or changing “POWER” switch modes

The system can be operated when the electronic key is inside the vehicle.

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ When the door cannot be locked by the lock sensor on the upper part of the door

handle

Before driving

CT200h_U (OM76004U)

Page 54

1-3. Opening, closing and locking the doors

Alarm Situation Correction procedure

Exterior alarm sounds once for 10 seconds.

An attempt was made to lock the vehicle while a door was open.

Close all of the doors and lock the doors again.

Interior alarm pings repeatedly

The “POWER” switch was turned to ACCESSORY mode while the driver’s door was open (The driver’s door was opened when the “POWER” switch was in ACCESSORY mode.)

Turn the “POWER” switch off and close the driver’s door.

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages shown on the multi-information display is used to prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate measures in response to any warning message on the multi-information display. (P. 5 93 )

The following table describes circumstances and correction procedures when only alarms are sounded.

■ Security feature

P. 62

■ Battery-saving function

The battery-saving function will be activated in order to prevent the electronic key battery and the 12-volt battery from being discharged while the vehicle is not in operation for a long time.

● In the following situations, the smart access system with push-button start may

take some time to unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.

• The smart access system with push-button start has not been used for 5 days or longer.

CT200h_U (OM76004U)

Page 55

1-3. Opening, closing and locking the doors

● If the smart access system with push-button start has not been used for 14 days

or longer, the doors cannot be unlocked at any doors except the driver’s door. In this case, take hold of the driver’s door handle, or use the wireless remote control or the mechanical key, to unlock the doors.

■ Conditions affecting operation

P. 6 3

■ Note for the entry function

● Even when the electronic key is within the effective range (detection areas), the

system may not operate properly in the following cases:

• The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel, luggage room, floor, or in the door pockets or glove box when the hybrid system is started or “POWER” switch modes are changed.

● As long as the electronic key is within the effective range, the doors may be

locked or unlocked by anyone.

● Even if the electronic key is not inside the vehicle, it may be possible to start the

hybrid system if the electronic key is near the window.

● The doors may unlock if a large amount of water splashes on the door handle,

such as in the rain or in a car wash when the electronic key is within the effective range. (The door will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

● If the wireless remote control is used to lock the doors when the electronic key

is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

Before driving

CT200h_U (OM76004U)

Page 56

1-3. Opening, closing and locking the doors

■ Note for locking the doors

● Touching the door lock sensor while wearing gloves may delay or prevent lock

operation. Remove the gloves and touch the lock sensor again.

● When the lock operation is performed using the lock sensor, recognition signals

will be shown up to two consecutive times. After this, no recognition signals will be given.

● If the door handle becomes wet while the electronic key is within the effective

range, the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2 m) or more separate from the vehicle while the vehicle is being washed. (Take care to ensure that the key is not stolen.)

● If the electronic key is inside the vehicle and a door handle becomes wet during

a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

● The lock sensor may not work properly if it comes into contact with ice, snow,

mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on the lower part of the door handle.

● Fingernails may scrape against the door during operation of the door handle.

Be careful not to injure fingernails or damage the surface of the door.

CT200h_U (OM76004U)

Page 57

1-3. Opening, closing and locking the doors

■ Note for the unlocking function

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

● Gripping the door handle when wearing a glove may not unlock the door.

Remove the gloves and touch the sensor on the back of the handle again.

● If the door handle becomes wet while the electronic key is within the effective

● If there is another electronic key in the detection area, it may take slightly longer

to unlock the doors after the door handle is gripped.

● Fingernails may scrape against the door during operation of the door handle.

Be careful not to injure fingernails or damage the surface of the door.

■ When the vehicle is not driven for extended periods

● To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)

of the vehicle.

● The smart access system with push-button start can be deactivated in advance.

(P. 6 84 )

■ Alarm

Using the smart access system with push-button start to lock the doors will set the alarm system. (P. 113)

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not operate.)

Before driving

CT200h_U (OM76004U)

Page 58

1-3. Opening, closing and locking the doors

■ If the smart access system with push-button start does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (P. 6 32 )

● Starting the hybrid system: P. 63 3

■ Electronic key battery depletion

P. 6 4

■ When the electronic key battery is fully depleted

P. 5 39

■ Customization

Settings (e.g. smart access system with push-button start) can be changed.  (Customizable features P. 6 84 )

CT200h_U (OM76004U)

Page 59

1-3. Opening, closing and locking the doors

■ Certification for the smart access system with push-button start

For vehicles sold in the U.S.A.

FCC ID: HYQ14ACX FCC ID: HYQ14ADF

FCC ID: HYQ14AEB FCC ID: HYQ14AEF

FCC ID: HYQ13CZD FCC ID: HYQ13CZE NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC ID: NI4TMLF8-24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Before driving

CT200h_U (OM76004U)

Page 60

1-3. Opening, closing and locking the doors

CAUTION

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep away

from the smart access system antennas. (P. 52 )  The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

● Users of any electrical medical device other than implanted pacemakers and

implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Lexus dealer for details on disabling the entry function.

CT200h_U (OM76004U)

Page 61

1-3. Opening, closing and locking the doors

The wireless remote control can be used to lock and unlock the vehicle.

Locks all the doors Unlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Opens the windows (press and hold)*

Sounds the alarm  (press and hold) (P. 62 )

*: This setting must be custom-

ized at your Lexus dealer.

Wireless remote control

Before driving

CT200h_U (OM76004U)

Page 62

1-3. Opening, closing and locking the doors

When is pressed for longer than about one second, an alarm will sound intermit-

tently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, press any button on the electronic key.

■ Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the

doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Windows: A buzzer sounds to indicate that the windows are opening.

■ Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a buzzer sounds continuously for 10 seconds. Fully close the door to stop the buzzer, and lock the vehicle once more.

■ Pa nic mode

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■ Alarm

Using the wireless remote control to lock the doors will set the alarm system.  (P. 113)

CT200h_U (OM76004U)

Page 63

1-3. Opening, closing and locking the doors

■ Conditions affecting operation

The smart access system with push-button start, wireless remote control and immobilizer system use weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start, wireless remote control and immobilizer system from operating properly.  (Ways of coping: P. 632 )

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large display,

airport or other facility that generates strong radio waves or electrical noise

● When carrying a portable radio, cellular phone, cordless phone or other wire-

less communication devices

● When the electronic key is in contact with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

•Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When other wireless key (that emit radio waves) is being used nearby

● When carrying the electronic key together with the following devices that emit

radio waves

• Another vehicle’s electronic key or a wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

● If window tint with a metallic content or metallic objects are attached to the rear

window

■ If the wireless remote control does not operate properly

Locking and unlocking the doors: Use the mechanical key. (P. 6 32 )

Before driving

CT200h_U (OM76004U)

Page 64

1-3. Opening, closing and locking the doors

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years. (The card key battery life is about a year

and a half.)

● If the battery becomes low, an alarm will sound in the cabin when the hybrid sys-

tem stops. (P. 606)

● As the electronic key always transmits radio waves, the battery will become

depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when necessary. (P. 53 9)

• The smart access system with push-button start or the wireless remote control does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of

the following electrical appliances that produce a magnetic field:

•TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

•Glass top ranges

• Table lamps

■ When the electronic key battery is fully depleted

P. 5 39

■ Customization

Settings (e.g. door unlocking function) can be changed.  (Customizable features P. 6 84 )

CT200h_U (OM76004U)

Page 65

1-3. Opening, closing and locking the doors

■ Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: HYQ14ACX FCC ID: HYQ14ADF

FCC ID: HYQ14AEB FCC ID: HYQ14AEF

FCC ID: HYQ13CZD FCC ID: HYQ13CZE NOTE:

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

Before driving

CT200h_U (OM76004U)

Page 66

1-3. Opening, closing and locking the doors

The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch.

■ Entry function

P. 49

■ Wireless remote control

P. 61

■ Door lock switch

Locks all the doors Unlocks all the doors

■ Inside lock buttons

Locks the door Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Side doors

CT200h_U (OM76004U)

Page 67

1-3. Opening, closing and locking the doors

STEP 1

Locking the front doors from the outside without a key

Move the inside lock button to the lock position.

STEP 2

Close the door.

The door cannot be locked if the “POWER” switch is in ACCESSORY or ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the lock is set.

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Before driving

CT200h_U (OM76004U)

Page 68

1-3. Opening, closing and locking the doors

■ Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.

■ Using the mechanical key

The doors can also be locked and unlocked with the mechanical key. (P. 6 32 )

■ If a wrong key is used

The key cylinder rotates freely to isolate inside mechanism.

■ Customization

Settings (e.g. unlocking function using a key) can be changed.  (Customizable features P. 6 84 )

CT200h_U (OM76004U)

Page 69

1-3. Opening, closing and locking the doors

CAUTION

■ To prevent an accident

Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.

● Always use a seat belt.

● Always lock all the doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving. 

The doors may be opened and the passengers are thrown out of the vehicle and it may result in serious injury or death.

Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

● Set the rear door child-protector locks when children are seated in the rear seats.

■ When opening or closing a door

Check the surroundings of the vehicle such as whether the vehicle is on an incline, whether there is enough space for a door to open and whether a strong wind is blowing. When opening or closing the door, hold the door handle tightly to prepare for any unpredictable movement.

Before driving

CT200h_U (OM76004U)

Page 70

1-3. Opening, closing and locking the doors

The back door can be locked/unlocked and opened by the following procedures.

■ Locking and unlocking the back door

Entry function

P. 49

Wireless remote control

P. 61

Door lock switch

P. 66

■ Opening the back door from outside the vehicle

Raise the back door while pushing up the back door opener switch.

Back door

CT200h_U (OM76004U)

Page 71

1-3. Opening, closing and locking the doors

Lower the back door using the back door handle, and make sure to push the back door down from the outside to close it.

Off On

Lift the center deck board and then push down the lever in the hole.

■ When closing the back door using the back door handle

■ Luggage compartment light

The luggage compartment light turns on when the back door is opened with the luggage compartment light switch on.

Before driving

■ If the back door opener is inoperative

The back door can be opened from the inside.

CT200h_U (OM76004U)

Page 72

1-3. Opening, closing and locking the doors

CAUTION

■ Caution while driving

● Keep the back door closed while driving. 

If the back door is left open, it may hit near-by objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the back door before driving.

● Before driving the vehicle, make sure that the back door is fully closed. If the back

door is not fully closed, it may open unexpectedly while driving, causing an accident.

● Never let anyone sit in the luggage compartment. In the event of sudden braking,

sudden swerving or a collision, they are susceptible to death or serious injury.

■ When children are in the vehicle

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not leave children alone in the luggage compartment.

If a child is accidentally locked in the luggage compartment, they could have heat exhaustion.

● Do not allow a child to open or close the back door.

Doing so may cause the back door to move unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing back door.

CT200h_U (OM76004U)

Page 73

1-3. Opening, closing and locking the doors

CAUTION

● The back door may fall if it is not opened

fully. It is more difficult to open or close the back door on an incline than on a level surface, so beware of the back door unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before using the luggage compartment.

● When closing the back door, take extra

care to prevent your fingers etc. from being caught.

● When closing the back door, make sure to

press it lightly on its outer surface. If the back door handle is used to fully close the back door, it may result in hands or arms being caught.

■ Operating the back door

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or serious injury.

● Remove any heavy loads, such as snow and ice, from the back door before open-

ing it. Failure to do so may cause the back door to fall closed again after it is opened.

● When opening or closing the back door, thoroughly check to make sure the sur-

rounding area is safe.

● If anyone is in the vicinity, make sure they are safe and let them know that the back

door is about to open or close.

● Use caution when opening or closing the back door in windy weather as it may

move abruptly in strong wind.

Before driving

CT200h_U (OM76004U)

Page 74

1-3. Opening, closing and locking the doors

CAUTION

NOTICE

● Do not attach any foreign objects, such as

stickers, plastic sheets, or adhesives to the damper stay rod.

● Do not touch the damper stay rod with

gloves or other fabric items.

● Do not attach any accessories other than

genuine Lexus parts to the back door.

● Do not place your hand on the damper stay

or apply lateral forces to it.

Damper stays

■ Operating the back door

● Do not pull on the back door damper stay to close the back door, and do not

hang on the back door damper stay.  Doing so may cause hands to be caught or the back door damper stay to break, causing an accident.

● If a bicycle carrier or similar heavy object is attached to the back door, it may fall

closed again after opened, causing the user’s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Lexus part is recommended.

■ Back door damper stays

The back door is equipped with damper stays that hold the back door in place. Observe the following precautions.

Failure to do so may cause damage to the back door damper stay, resulting in malfunction.

CT200h_U (OM76004U)

Page 75

1-4. Adjustable components (seats, mirrors, steering wheel)

Manual seat

Seat position adjustment lever

Seatback angle adjustment lever

Vertical height adjustment lever (for driver’s side)

Front seats

Before driving

CT200h_U (OM76004U)

Page 76

1-4. Adjustable components (seats, mirrors, steering wheel)

Power seat (if equipped)

Seat position adjustment switch

Seat cushion (front) angle adjustment switch

Vertical height adjustment switch

Seatback angle adjustment switch

Lumbar support adjustment switch

CT200h_U (OM76004U)

Page 77

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat adjustment

● To reduce the risk of sliding under the lap belt during a collision, do not recline the

seat more than necessary. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.  Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

● After adjusting the seat, make sure that the seat is locked in position. (manual

seat)

Before driving

CT200h_U (OM76004U)

Page 78

1-4. Adjustable components (seats, mirrors, steering wheel)

The seatbacks of the rear seats can be folded down.

Pull up the seatback lock release lever until the lock is released.

Seat belt guide

Rear seats

Returning the seatbacks

To avoid trapping the seat belt between the seat and the inside of the vehicle, pass the seat belt inside the seat belt guide and then return the seatback securely to the locked position.

CT200h_U (OM76004U)

Page 79

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

● Make sure that the seatback is securely

locked in position by lightly pushing it back and forth. If the seatback is not securely locked, the red marking will be visible behind the seatback lock release lever. Make sure that the red marking is not visible.

■ When folding the rear seatbacks down

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not fold the seatbacks down while driving.

● Stop the vehicle on level ground, set the parking brake and shift the shift position

to P.

● Do not allow anyone to sit on a folded seatback or in the luggage compartment

while driving.

● Do not allow children to enter the luggage compartment.

■ When returning the rear seatback to the upright position

Do not put your hand on the seat belt guide.  Doing so may cause you to trap your hand between the guide and the pillar, causing an injury.

■ After returning the rear seatback to the upright position

Observe the following precautions. Failure to do so may result in death or serious injury.

Before driving

● Check that the seat belts are not twisted or caught in the seatback.

CT200h_U (OM76004U)

Page 80

1-4. Adjustable components (seats, mirrors, steering wheel)

Your preferred driving position (the position of the driver’s seat and outside rear view mirrors) can be memorized and recalled with the touch of a button. It is also possible to set this function to activate automatically when the doors are unlocked. Three different driving positions can be entered into memory.

■ Entering a position to memory

Turn the “POWER” switch to ON mode. Adjust the driver’s seat and outside rear view mirrors to the

desired positions.

While pressing the “SET” button, or within 3 seconds after the “SET” button is pressed, press button 1, 2 or 3 until the signal beeps.

If the selected button has already been preset, the previously recorded position will be overwritten.

■ Recalling the memorized position

Turn the “POWER” switch to ON mode.

Press button 1, 2 or 3 to recall the desired position.

Driving position memory

STEP 1

STEP 2

STEP 3

STEP 1



STEP 2

CT200h_U (OM76004U)

: If equipped

Page 81

1-4. Adjustable components (seats, mirrors, steering wheel)

Linking driving position memory with door unlock operation (driver’s seat only)

Record your driving position to button 1, 2 or 3 before performing the following:

Carry only the key (including the card key) to which you want to link the driving position. If 2 or more keys are in the vehicle, the driving position cannot be linked properly.

STEP 1

Close the driver’s door and turn the “POWER” switch to OFF mode.

STEP 2

Press the desired button (1, 2 or 3) to recall the position. Then, while keep pressing the button, press the driver’s door lock switches (either lock or unlock) until the signal beeps.

The driving position is recalled when the driver’s door is unlocked using the entry function or wireless remote control and the driver’s door is opened.

Before driving

CT200h_U (OM76004U)

Page 82

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Operating the driving position memory after turning the “POWER” switch off

Memorized positions can be activated up to 180 seconds after the driver’s door is opened and another 60 seconds after it is closed again, even after turning the “POWER” switch off.

■ Canceling the linked door unlock operation

STEP 1

STEP 2

Turn the “POWER” switch to ON mode and close the driver’s door. While pressing the “SET” button, press the driver’s door lock switches

(either lock or unlock) until the signal beeps.

■ Stopping seat position operation part-way through

Perform any of the following operations:

● Press the “SET” button.

● Press button 1, 2 or 3.

● Adjust the seat using the switches (only cancels seat position recall).

■ Correct seat position

When the seat is in the most forward or most backward position, and the seat is being moved in those directions, the system may not correctly recognize the current position and the memorized position will not be correctly recalled.

■ Seat adjustment caution

Take care during seat adjustment so that the seat does not strike the rear passenger or squeeze your body against the steering wheel.

CT200h_U (OM76004U)

Page 83

1-4. Adjustable components (seats, mirrors, steering wheel)

Head restraints are provided for all seats.

Front seats

Vertical adjustment

Pull the head restraints up.

Down

Push the head restraint down while pushing the lock release button.

Rear center seat

Vertical adjustment

Pull the head restraints up.

Down

Push the head restraint down while pushing the lock release button.

Rear outboard seats

To fold

Pull up the head restraint while pressing the lock release button.

To u se

Lift up and push down the head restraint to the lowest lock position.

Lock release  button

Lock release button

Head restraints

Before driving

CT200h_U (OM76004U)

Page 84

1-4. Adjustable components (seats, mirrors, steering wheel)

Pull the head restraint up while pressing the lock release button.

Lock release button

Pull the head restraint up while pressing the lock release buttons.

Lock release buttons

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

Lock release button

Align the head restraint with the installation holes and push it down to the lowest lock position.

■ Removing the head restraints

Front and rear center seats

Rear outboard seats

■ Installing the head restraints

Front and rear center seats

Rear outboard seats

CT200h_U (OM76004U)

Page 85

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

■ Adjusting the height of the head restraints (front seats)

■ Adjusting the rear center seat head restraint

Always raise the head restraint one level from the stowed position when using.

■ Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

● Use the head restraints designed for each respective seat.

● Adjust the head restraints to the correct position at all times.

● After adjusting the head restraints, push down on them and make sure they are

locked in position.

● Do not drive with the head restraints removed.

Before driving

CT200h_U (OM76004U)

Page 86

1-4. Adjustable components (seats, mirrors, steering wheel)

Make sure that all occupants are wearing their seat belts before driving the vehicle.

■ Correct use of the seat belts

● Extend the shoulder belt so

that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

● Position the lap belt as low as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat.

● Do not twist the seat belt.

■ Fastening and releasing the seat belt

To fasten the seat belt, push the plate into the buckle until a click sound is heard.

To release the seat belt, press the release button.

Release button

Seat belts

CT200h_U (OM76004U)

Page 87

1-4. Adjustable components (seats, mirrors, steering wheel)

■ Adjusting the seat belt shoulder anchor height (front seats)

Push the seat belt shoulder anchor down while pressing the release button.

Push the seat belt shoulder anchor up.

Move the height adjuster up and down as needed until you hear a click.

Seat belt pretensioners (front seats)

Before driving

The pretensioner helps the seat belt to quickly restrain the occupant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.

CT200h_U (OM76004U)

The pretensioner may not activate in the event of a minor frontal impact, a side impact, a rear impact or a vehicle rollover.

Page 88

1-4. Adjustable components (seats, mirrors, steering wheel)

Pre-collision seat belts (front seats of vehicles with pre-collision system)

If the pre-collision sensor detects that a collision is unavoidable, the precollision system will retract the seat belt, thus enhancing the effectiveness of the seat belt pretensioner in a crash.

The same will happen if the driver makes an emergency braking or loses control of the vehicle. (P. 2 56 )

After using the rear center seat belt

Store the buckle into the storage location in the seat cushion.

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■ Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (P. 1 44)

CT200h_U (OM76004U)

Page 89

1-4. Adjustable components (seats, mirrors, steering wheel)

Obtain medical advice and wear the seat belt in the proper way. (P. 86 )

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants. Extend the shoulder belt completely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area.

If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

■ Pregnant women

■ People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (P. 8 6)

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

● Use a child restraint system appropriate for the child, until the child becomes

large enough to properly wear the vehicle’s seat belt. (P. 13 9)

● When the child becomes large enough to properly wear the vehicle’s seat belt,

follow the instructions on P. 86 regarding seat belt usage.

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

Before driving

CT200h_U (OM76004U)

Page 90

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Lexus dealer free of charge.

■ Seat belt extender

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may cause death or serious injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt for more

than one person at once, including children.

● Lexus recommends that children be seated in the rear seat and always use a seat

belt and/or an appropriate child restraint system.

● To achieve a proper seating position, do not recline the seat more than necessary.

The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

CT200h_U (OM76004U)

Page 91

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat belt pretensioners

● Do not place anything, such as a cushion, on the front passenger’s seat. Doing so

will disperse the passenger’s weight, which prevents the sensor from detecting the passenger’s weight properly. As a result, the seat belt pretensioner for the front passenger’s seat may not activate in the event of a collision.

● If the pretensioner has activated, the SRS warning light will come on. In that case,

the seat belt cannot be used again and must be replaced at your Lexus dealer.

■ Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or accident. (P. 8 7)

■ Child restraint lock function belt precaution

Do not allow children to play with the child restraint lock function belt. If the belt becomes twisted around a child’s neck, it will not be possible to pull the belt out leading to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

Before driving

CT200h_U (OM76004U)

Page 92

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat belt damage and wear

● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed

in the door.

● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.

Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

● Ensure that the belt and plate are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Lexus dealer.

● Replace the seat assembly, including the belts, if your vehicle has been involved in

a serious accident, even if there’s no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.

Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling of the pretensioner may prevent it from operating properly, resulting in death or serious injury.

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without the

extender.

● Do not use the seat belt extender when installing a child restraint system because

the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when used by

another person, or at a different seating position other than the one originally intended.

CT200h_U (OM76004U)

Page 93

1-4. Adjustable components (seats, mirrors, steering wheel)

NOTICE

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

Before driving

CT200h_U (OM76004U)

Page 94

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

The steering wheel can be adjusted to a comfortable position.

Hold the steering wheel and push the lever down.

Adjust to the ideal position by moving the steering wheel horizontally and vertically.

After adjustment, pull the lever up to secure the steering wheel.

Steering wheel

STEP 1

STEP 2

■ While driving

Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury.

■ After adjusting the steering wheel

Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident, and resulting in death or serious injury.

CT200h_U (OM76004U)

Page 95

1-4. Adjustable components (seats, mirrors, steering wheel)

Glare from the headlights of vehicles behind can be reduced by using the following functions:

Manual anti-glare inside rear view mirror

Normal position Anti-glare position

Auto anti-glare inside rear view mirror

In “AUTO” mode, sensors are used to detect the headlights of vehicles behind and the reflected light is automatically reduced.

Turns automatic mode on/ off

The indicator comes on when automatic mode is turned on.

The mirror will revert to automatic mode each time the “POWER” switch is turned to ON mode.

Indicator

Inside rear view mirror

Before driving

CT200h_U (OM76004U)

Page 96

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

To ensure that the sensors operate properly, do not touch or cover them.

Adjusting the height of rear view mirror

Adjust the height of the rear view mirror by moving it up and down.

■ To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)

■ While driving

Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.

CT200h_U (OM76004U)

Page 97

1-4. Adjustable components (seats, mirrors, steering wheel)

Mirror angle can be adjusted using the switch.

To select a mirror to adjust, press the switch.

Left Right

To adjust the mirror, press the switch.

Up Right Down Left

Outside rear view mirrors

STEP 1

STEP 2

Before driving

Folding the mirrors

CT200h_U (OM76004U)

Push the mirror back in the direction of the vehicle’s rear.

Page 98

1-4. Adjustable components (seats, mirrors, steering wheel)

■ Mirror angle can be adjusted when

The “POWER” switch is in ACCESSORY or ON mode.

■ Linked mirror function when reversing (vehicles with driving position memory)

The outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. However, this function will not operate when the mirror select switch is in the neutral position (between “L” and “R”).

■ When the mirrors are fogged up

Turn on the mirror defoggers to defog the mirrors. (P. 2 89)

■ Automatic adjustment of the mirror angle (vehicles with driving position mem-

ory)

A desired mirror face angle can be entered to memory and recalled automatically by the driving position memory. (P. 8 0)

■ Auto anti-glare function (if equipped)

When the anti-glare inside rear view mirror is set to automatic mode, the outside rear view mirrors will activate in conjunction with the anti-glare inside rear view mirror to reduce reflected light. (P. 95 )

CT200h_U (OM76004U)

Page 99

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ When driving the vehicle

Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

● Do not adjust the mirrors while driving.

● Do not drive with the mirrors folded.

● Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

■ When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.

■ When the mirror defoggers are operating

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.

Before driving

CT200h_U (OM76004U)

Page 100

1-5. Opening and closing the windows and moon roof

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

Closing One-touch closing

Opening One-touch opening*

: Pushing the switch in the

opposite direction will stop window travel partway.

Power windows

Window lock switch

100

Press the switch down to lock the passenger window.

Use this switch to prevent children from accidentally opening or closing a passenger window.

CT200h_U (OM76004U)
