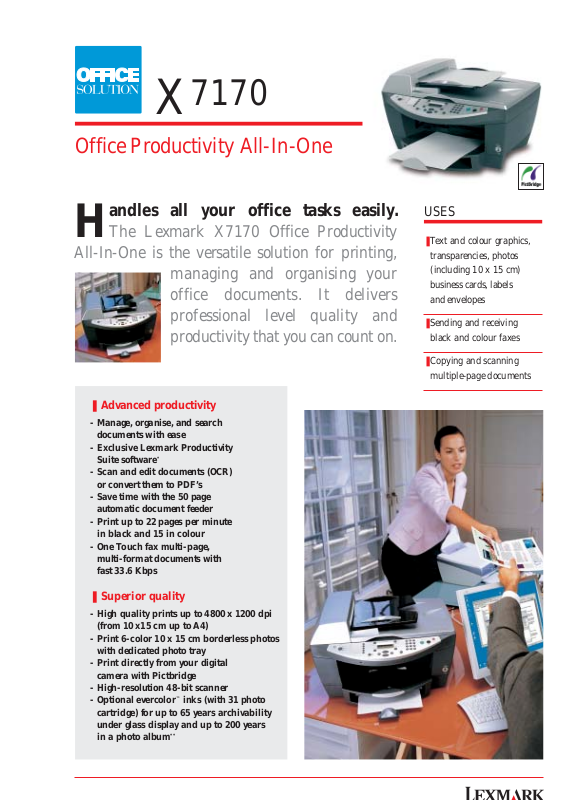

Lexmark X7170 User Manual

Office Productivity All-In-One

7170

USES

❚ Text and colour graphics,

transparencies, photos (including 10 x 15 cm) business cards, labels and envelopes

❚ Sending and receiving

black and colour faxes

❚ Copying and scanning

multiple-page documents

❚ Advanced productivity

- Manage, organise, and search documents with ease

- Exclusive Lexmark Productivity Suite software

- Scan and edit documents (OCR) or convert them to PDF’s

- Save time with the 50 page automatic document feeder

- Print up to 22 pages per minute in black and 15 in colour

- One Touch fax multi-page, multi-format documents with fast 33.6 Kbps

❚ Superior quality

- High quality prints up to 4800 x 1200 dpi (from 10 x15 cm up to A4)

- Print 6-color 10 x 15 cm borderless photos with dedicated photo tray

- Print directly from your digital camera with Pictbridge

- High-resolution 48-bit scanner

- Optional evercolor™inks (with 31 photo cartridge) for up to 65 years archivability under glass display and up to 200 years in a photo album

andles all your office tasks easily.

The Lexmark X7170 Office Productivity

All-In-One is the versatile solution for printing,

managing and organising your office documents. It delivers professional level quality and productivity that you can count on.

Lexmark, PrecisionPhoto, PrecisionSense, Color Jetprinter, ColorFine and evercolor are trademarks of Lexmark International,Inc. Mac and iMac are trademarks of Apple Computer,Inc., registered in the United States and other countries. Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DETAILED SPECIFICATIONS

❚ Resolution: Mode (dpi) Glossy paper Other media

Best 4800 x 1200 1200 x 1200 Normal 600 x 600 600 x 600 Quick 300 x 600 300 x 600

❚ Ink drop size:

Mono: 24 pl Colour: 3 pl and 10 pl Photo: 5pl c/m photo drop size, 9 pl k

❚ Acoustics: 55 dBA (Normal Mode) ❚ Duty cycle: 5000 pages/month ❚ Print Technology: Thermal Inkjet 4 Colour

– Cyan, Magenta, Yellow, Black

❚ 6 Colour capable with the optional

cartridge No. 31

❚ Prints directly from digital cameras via PictBridge

interface

❚ Print Speed: Mode Quick (ppm) Black Up to 22 Colour Up to 15

Scan

❚ Resolution: 4800 dpi (enhanced) 1200 dpi (optical) ❚ Colour depth:

48 bits internal True Colour 24 bits external True Colour 16 bits internal Gray Mode 8 bits external Gray Mode 1 bit Per Pixel Text/Line Art

❚ Acoustics:

41 dBA (Normal Mode)

❚ Scan area:

216 mm x 297 mm

❚ Removable scanner lid ❚ Scan Technology:

CCD, Flatbed

Fax

❚ PC Free Mono

and Colour Fax

❚ Modem: 33.6 Kbps ❚ Fax memory: 100 pages ❚ 99 programmable speed

dial numbers

❚ Automatic redial if

receiving line is busy

❚ Minimum system requirements:

Operating Processor RAM (MB) Hard disc Virtual system Speed (Mhz) space (MB) Memory (MB)

Windows 98/ME Pentium II 233 128 800 N/A Windows 2000 Pentium II 233 128 800 286 Windows XP Pentium II 300 128 800 300 Mac OS X 10.2.3 & up*G3 400 128 300 N/A

Miscellaneous

❚ Max. paper weight: 500 gsm ❚ Input / Output tray: Up to 150 sheets / 50 sheets ❚ Automatic Document Feeder: 50 sheets ❚ Paper Handling Technology: Accu-Feed

™

❚ On-Board Memory: SDRAM: 32 MB

Flash: 2 MB

❚ Interface: USB cable ❚ Lexmark guarantee: 1 year carry-in ❚ Power requirements: 90V AC – 270V AC input ❚ Windows 98, ME, 2000, XP ❚ Mac OS X,10.2.3 and higher

Copy

❚ Acoustics:

44 dBA (Normal Mode)

❚ PC Free copy, black and colour docu-

ments up to 50 pages with the Automatic Document Feeder.

❚ LCD screen ❚ Up to 99 copies at one time

(selectable via operator panel and computer)

❚ Reduce/Enlarge: 25% to 400% ❚ Copy Speed:

PC Free Mode Quick (ppm) Black Up to 18 Colour Up to 10

Host Mode Quick (ppm) Black Up to 22 Colour Up to 14

Weight and dimensions

❚ Machine extended: 490 mm (W) x 508 mm (D) x 305 mm (H) ❚ Machine retracted: 490 mm (W) x 421 mm (D) x 305 mm (H)

❚ Machine weight: 9.3 kg ❚ Packaged weight: 11.8 kg

❚ Packaging dimension: 589 mm (W) x 388 mm (D) x 533 mm (H)

TECHNOLOGY

LOGISTICAL INFORMATION

7170

* Lexmark Productivity Suite software works with Windows operating system only. ** Glass display tests conducted by Wilhelm Imaging Research on Lexmark Premium Glossy Photo Paper . Based on easily noticeable fading with 450 lux/12 hours per day lighting (glass filter) and WIR v.3.0 Endpoint Criteria Set. Photo album archivability claim based on dark storage at 23 degrees C / 50% Relative Humidity. For further information on the test procedure go to www.wilhelm-research.com. ***Approximate number of pages printable per cartridge in normal mode (600 x 600 dpi). Yield may vary based on factors such as machine model, media, print mode, print file type and application.

In the box

❚ Lexmark X7170 All-In-One ❚ Power supply and Line cord ❚ One High Resolution Black Cartridge No. 34 ❚ One High Resolution Colour Cartridge No. 35 ❚ Quick Set-up Guide ❚ Installation CDs (Windows and Mac) including ❚ Printer Drivers, Lexmark Productivity Suite

, Lexmark All-In-One

Center, Lexmark Photo Editor, OCR software, Fax software

❚ Service and Warrantee information

Supplies

BLACK CARTRIDGES COLOUR CARTRIDGES

❚ No. 34: up to 475 pages

***

❚ No. 35: up to 450 pages

***

❚ at 5% coverage ❚ at 15% coverage

Also compatible with:

❚ No. 32: up to 200 pages

***

❚ No. 33: up to 190 pages

***

❚ at 5% coverage ❚ at 15% coverage

❚ No. 31 Photo cartridge: up to 135 10x15 cm photos

Evercolor™Ink

Lexmark’s new evercolor™technology is a unique 6-colour ink combination that dramatically improves photo prints. It mixes pigmented photo inks with dye-based inks to produce photo-quality, fade-resistance results that rival prints developed in a professional lab.

❚ Full-strength, dye-based colour inks from the No. 35 Colour Cartridge

ensure a wide range of bright, accurate colours, especially on photo paper.

❚ Diluted pigmented photo inks from the No. 31 Photo Cartridge deliver

enhanced water resistance and superior print quality, even on plain paper.

❚ Evercolor

™

ink technology combines the inks from the two cartridges to deliver exceptional photo quality and up to 65 years archivability under glass display and up to 200 years in a photo album.**
