Lexmark 415, 28D0500, 22ZT157, CX410, 28D0550 User Manual

CX410 Series

User's Guide

October 2012 www.lexmark.com

Machine type(s):

7527

Model(s):

415, 436

Contents 2

Safety information.......................................................................................7

Learning about the printer...........................................................................9

Finding information about the printer......................................................................................................9

Selecting a location for the printer..........................................................................................................10

Printer configurations.............................................................................................................................11

Understanding the basic functions of the scanner..................................................................................12

Using the ADF and scanner glass.............................................................................................................13

Understanding the printer control panel....................................................14

Using the printer control panel...............................................................................................................14

Understanding the home screen.............................................................................................................14

Understanding the colors of the Sleep button and indicator lights........................................................16

Using the touch-screen buttons..............................................................................................................16

Setting up and using the home screen applications....................................18

Finding the IP address of the computer..................................................................................................18

Finding the IP address of the printer.......................................................................................................19

Accessing the Embedded Web Server.....................................................................................................19

Customizing the home screen.................................................................................................................19

Understanding the different applications...............................................................................................20

Activating the home screen applications................................................................................................20

Finding information about the home screen applications................................................................................ 20

Setting up Forms and Favorites ........................................................................................................................ 20

Setting up Card Copy ........................................................................................................................................21

Using MyShortcut .............................................................................................................................................22

Setting up Multi Send .......................................................................................................................................22

Setting up Scan to Network ..............................................................................................................................23

Setting up Remote Operator Panel...................................................................................................................24

Exporting and importing a configuration................................................................................................24

Additional printer setup.............................................................................26

Installing internal options........................................................................................................................26

Installing hardware options.....................................................................................................................33

Attaching cables......................................................................................................................................35

Setting up the printer software...............................................................................................................36

Contents 3

Networking..............................................................................................................................................38

Verifying printer setup............................................................................................................................43

Loading paper and specialty media............................................................45

Setting the paper size and type...............................................................................................................45

Configuring Universal paper settings......................................................................................................45

Loading the 250‑ and 550‑sheet tray......................................................................................................45

Loading the manual feeder.....................................................................................................................48

Loading the 650‑sheet duo tray..............................................................................................................49

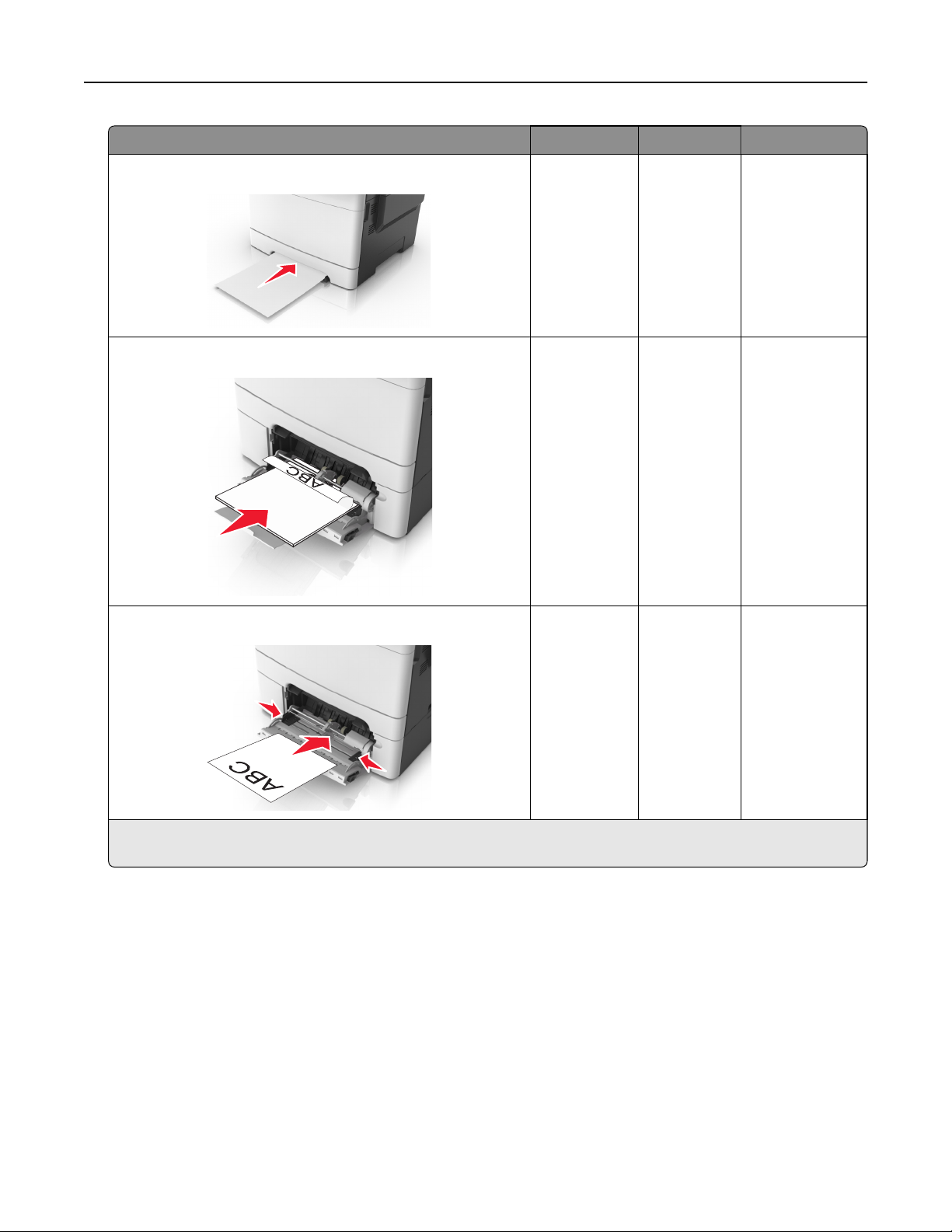

Loading the multipurpose feeder............................................................................................................50

Linking and unlinking trays......................................................................................................................52

Paper and specialty media guide................................................................55

Using specialty media..............................................................................................................................55

Paper guidelines......................................................................................................................................58

Supported paper sizes, types, and weights.............................................................................................61

Printing......................................................................................................65

Printing forms..........................................................................................................................................65

Printing a document................................................................................................................................65

Printing from a flash drive.......................................................................................................................67

Printing confidential and other held jobs................................................................................................69

Printing information pages......................................................................................................................71

Canceling a print job................................................................................................................................71

Copying......................................................................................................73

Making copies.........................................................................................................................................73

Copying photos........................................................................................................................................74

Copying on specialty media.....................................................................................................................74

Creating a copy shortcut using the printer control panel.......................................................................75

Customizing copy settings.......................................................................................................................75

Placing information on copies.................................................................................................................80

Canceling a copy job................................................................................................................................81

Understanding the copy options.............................................................................................................82

E-mailing....................................................................................................85

Setting up the printer to e-mail...............................................................................................................85

Creating an e-mail shortcut.....................................................................................................................85

Contents 4

E-mailing a document..............................................................................................................................86

Customizing e-mail settings.....................................................................................................................88

Canceling an e-mail.................................................................................................................................89

Understanding the e-mail options..........................................................................................................89

Faxing........................................................................................................92

Setting up the printer to fax....................................................................................................................92

Sending a fax.........................................................................................................................................106

Creating shortcuts.................................................................................................................................109

Customizing fax settings........................................................................................................................110

Canceling an outgoing fax.....................................................................................................................111

Holding and forwarding faxes...............................................................................................................111

Understanding the fax options..............................................................................................................112

Scanning...................................................................................................115

Using Scan to Network..........................................................................................................................115

Scanning to an FTP address...................................................................................................................115

Scanning to a computer or flash drive..................................................................................................117

Understanding the scan options...........................................................................................................119

Understanding printer menus...................................................................122

Menus list..............................................................................................................................................122

Supplies menu.......................................................................................................................................123

Paper menu...........................................................................................................................................124

Reports menu........................................................................................................................................133

Network/Ports.......................................................................................................................................134

Security menu.......................................................................................................................................143

Settings menu........................................................................................................................................146

Saving money and the environment.........................................................199

Saving paper and toner.........................................................................................................................199

Saving energy........................................................................................................................................200

Recycling................................................................................................................................................204

Securing the printer..................................................................................206

Using the security lock feature..............................................................................................................206

Statement of Volatility..........................................................................................................................206

Erasing volatile memory........................................................................................................................207

Contents 5

Erasing non‑volatile memory................................................................................................................207

Erasing printer hard disk memory.........................................................................................................208

Configuring printer hard disk encryption..............................................................................................208

Finding printer security information.....................................................................................................209

Maintaining the printer............................................................................210

Storing supplies.....................................................................................................................................210

Cleaning the printer parts.....................................................................................................................210

Checking the status of parts and supplies.............................................................................................212

Estimated number of remaining pages.................................................................................................212

Ordering supplies..................................................................................................................................213

Replacing supplies.................................................................................................................................215

Moving the printer................................................................................................................................235

Managing the printer...............................................................................236

Finding advanced networking and administrator information.............................................................236

Checking the virtual display...................................................................................................................236

Setting up e‑mail alerts.........................................................................................................................236

Viewing reports.....................................................................................................................................236

Configuring supply notifications from the Embedded Web Server.......................................................237

Modifying confidential print settings....................................................................................................238

Copying printer settings to other printers.............................................................................................238

Restoring factory default settings.........................................................................................................238

Clearing jams............................................................................................240

Avoiding jams........................................................................................................................................240

Understanding jam messages and locations.........................................................................................241

[x]‑page jam, clear standard bin [203.xx]..............................................................................................242

[x]-page jam, open front door to clear fuser [202.xx]...........................................................................245

[x]-page jam, open front door [20y.xx].................................................................................................248

[x]‑page jam, open front door to clear duplex [23y.xx]........................................................................249

[x]‑page jam, open tray [x] [24y.xx]......................................................................................................250

[x]‑page jam, clear manual feeder [251.xx]...........................................................................................252

[x]‑page jam, clear multipurpose feeder [250.xx].................................................................................252

[x]‑page jam, open automatic feeder top cover. [28y.xx].....................................................................254

Contents 6

Troubleshooting.......................................................................................256

Understanding the printer messages....................................................................................................256

Solving printer problems.......................................................................................................................270

Solving print problems..........................................................................................................................276

Solving copy problems..........................................................................................................................303

Solving fax problems.............................................................................................................................307

Solving scanner problems.....................................................................................................................312

Solving home screen applications problems.........................................................................................317

Embedded Web Server does not open.................................................................................................317

Contacting customer support................................................................................................................319

Notices.....................................................................................................320

Product information..............................................................................................................................320

Edition notice........................................................................................................................................320

Power consumption..............................................................................................................................324

Index........................................................................................................337

Safety information 7

Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer before moving it.

• Lift the printer off the optional tray, and then set it aside instead of trying to lift the tray and printer at the same

time.

Note: Use the handholds located on both sides of the printer to lift it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Use only the telecommunications (RJ‑11) cord provided with this product or a 26 AWG or larger replacement when connecting this product to the public switched telephone network.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

Safety information 8

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

SAVE THESE INSTRUCTIONS.

www.lexmark.com/multifunctionprinters.

Learning about the printer 9

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Instructions for:

• Connecting the printer to an Ethernet network

• Troubleshooting printer connection problems

Help using the prin ter software Windows or Mac Help—Open a printer software program

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Gu ide—The guides may be available on the Software and Documentation CD.

For more information, visit

http://support.lexmark.com.

Networking Guide—Open the Software and Documentation CD, and then look for Printer and Software Documentation under the Pubs folder. From

the list of publications, click the Networking Guide link.

or application, and then click Help.

Click

to view context‑sensitive information.

Notes:

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 10

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark Support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation for

your country or region can be found on the Support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited Warranty

included with this printer, or at

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with your printer.

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature -40 to 43°C (-40 to 110°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 11

1 Right side 305 mm (12 in.)

2 Front 508 mm (20 in.)

3 Left side 76 mm (3 in.)

4 Rear 101.6 mm (4 in.)

5 Top 762 mm (30 in.)

Printer configurations

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must

use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

Learning about the printer 12

Basic models

1 Printer control panel

2 Automatic document feeder (ADF)

3 Standard bin

4 Top door latch

5 Right side cover

6 Standard 250-sheet tray (Tray 1)

7 Manual feeder

8 Optional 650-sheet duo tray with integrated multipurpose feeder (Tray 2)

9 Optional 550-sheet tray (Tray 3)

Understanding the basic functions of the scanner

• Make quick copies or set the printer to perform specific copy jobs.

• Send a fax using the printer control panel.

• Send a fax to multiple fax destinations at the same time.

• Scan documents and send them to your computer, an e-mail address, or an FTP destination.

• Scan documents and send them to another printer (PDF through an FTP).

Learning about the printer 13

Using the ADF and scanner glass

Automatic document feeder (ADF) Scanner glass

Use the scanner glass for single‑page documents, book pages,

Use the ADF for multiple‑page documents including twosided (duplex) pages.

small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Using the ADF

When using the ADF:

• Load the document into the ADF tray faceup, short edge first.

• Load up to 50 sheets of plain paper into the ADF tray.

• Scan sizes from 105 x 148 mm (4.1 x 5.8 inches) wide to 216 x 355 mm (8.5 x 14 inches) long.

• Scan media weights from 52 to 120 g/m

(14 to 32 lb).

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings)

into the ADF tray. Place these items on the scanner glass.

Using the scanner glass

When using the scanner glass:

• Place a document facedown on the scanner glass in the corner with the green arrow.

• Scan or copy documents from 216 x 296.9 mm (8.5 x 11.69 inches) dimension.

• Copy books up to 12.7 mm (0.5 inch) thick.

Understanding the printer control panel 14

Understanding the printer control panel

Using the printer control panel

Use the To

1 Display

2 Home button Go to the home screen.

3 Help button Go to the Help menus.

4 Clear all / Reset button Reset the default settings of a function, such as printing, copying, or e-mailing.

5 Keypad Enter numbers, letters, or symbols.

6 Sleep button Enable Sleep mode or Hibernate mode.

7 Cancel button Cancel all printer activity.

8 Start button Start a job, depending on which mode is selected.

9 Indicator light Check the status of the printer.

10 USB port Connect a flash drive to the printer.

• View the printer status and messages.

• Set up and operate the printer.

Note: Only the front USB port supports flash drives.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or respond to messages.

Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

Understanding the printer control panel 15

Touch To

1 Copy Access the Copy menus and make copies.

2 Fax Access the Fax menus and send fax.

3 E‑mail Access the E-mail menus and send e‑mails.

4 FTP Access the File Transfer Protocol (FTP) menus and scan documents directly to an FTP server.

5 Menu icon Access printer menus.

Note: The menus are available only when the printer is in ready state.

6 Status message bar

• Show the current printer status such as Ready or Busy.

• Show printer supply conditions such as Imaging unit low or Cartridge Low.

• Show intervention messages and the instructions on how to clear them.

7 Status/Supplies

• Show a printer warning or error message whenever the printer requires intervention to

continue processing.

• View more information on the printer warning or message, and on how to clear it.

This may also appear on the home screen:

Touch To

Search Held Jobs Search current held jobs.

Jobs by user Access print jobs saved by user.

Profiles and Solutions Access profiles and solutions.

Features

Feature Description

Attendance message alert

If an attendance message affects a function, then this icon appears and the red indicator light blinks.

Understanding the printer control panel 16

Feature Description

Warning

Printer IP address Example: 123.123.123.123

If an error condition occurs, then this icon appears.

The IP address of your printer is located at the top left corner of the home screen and appears as four sets of numbers separated by periods. You can use the IP address when accessing the Embedded Web Server to view and remotely configure printer settings even when you are not physically near the printer.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Indicator light color and its corresponding printer status

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light color and its corresponding printer status

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Using the touch-screen buttons

Note: Your home screen, icons, and buttons may vary, depending on your home screen customization settings,

administrative setup, and active embedded solutions.

Understanding the printer control panel 17

Touch To

1 Arrows View a list of options.

2 Copy It Print a copy.

3 Advanced Options Select a copy option.

4 Home Go to the home screen.

5 Increase Select a higher value.

6 Decrease Select a lower value.

7 Tips Open a context-sensitive Help dialog.

Other touch-screen buttons

Touch To

Save a setting.

Cancel

Reset

• Cancel an action or a selection.

• Exit a screen and return to the previous screen without saving changes.

Reset values on the screen.

Setting up and using the home screen applications 18

Setting up and using the home screen applications

Notes:

• Your home screen may vary depending on your home screen customization settings, administrative setup, and

active embedded applications. Some applications are supported only in select printer models.

• There may be additional solutions and applications available for purchase. To learn more, visit

www.lexmark.com or inquire at your point of purchase.

Finding the IP address of the computer

Note: Make sure that you know how your printer and computer are connected to the network (Ethernet or

wireless).

The computer IP address is required when setting up home screen applications, such as:

• Forms and Favorites

• Multi Send

• Scan to Network

For Windows users

1 Open the command window.

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type cmd > OK

In Windows 7 or earlier

Click or click Start, and then click Run.

b In the Start Search or Run dialog, type cmd. c Press Enter, or click OK.

2 Type ipconfig, and then click Go or press Enter.

Note: Type ipconfig /all to see additional useful information.

3 Look for IP Address.

The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

For Macintosh users

Note: This is applicable only in Mac OS X version 10.5 or later.

1 From the Apple menu, navigate to:

System Preferences > Network

2 Click Ethernet, Wi‑Fi, or AirPort.

Setting up and using the home screen applications 19

3 Click Advanced > TCP/IP.

4 Look for IPv4 Address.

Finding the IP address of the printer

Note: Make sure your printer is connected to a network or to a print server.

You can find the printer IP address:

• From the top left corner of the printer home screen.

• From the TCP/IP section in the Network/Ports menu.

• By printing a network setup page or menu settings page, and then finding the TCP/IP section.

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even when you are not physically near the printer.

1 Obtain the printer IP address:

• From the printer control panel home screen

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Open a Web browser, and then type the printer IP address in the address field.

3 Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Customizing the home screen

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Do one or more of the following:

• Show or hide the icons of basic printer functions.

a Click Settings > General Settings > Home screen customization. b Select the check boxes to specify which icons appear on the home screen.

Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.

c Click Submit.

• Customize the icon for an application. For more information, see “Finding information about the home screen

applications” on page 20 or see the documentation that came with the application.

Setting up and using the home screen applications 20

Understanding the different applications

Use To

Card Copy Scan and print both sides of a card on a single page. For more information, see “Setting up Card Copy”

on page 21.

Fax Scan a document, and then send it to a fax number. For more information, see “Faxing” on page

92.

Forms and Favorites Quickly find and print frequently used online forms directly from the printer home screen. For more

information, see “Setting up Forms and Favorites” on page 20.

Multi Send Scan a document, and then send it to multiple destinations. For more information, see “Setting up

Multi Send” on page 22.

MyShortcut Create shortcuts directly on the printer home screen. For more information, see “Using MyShortcut”

on page 22.

Scan to E‑mail Scan a document, and then send it to an e‑mail address. For more information, see “E-mailing” on

page 85.

Scan to Computer Scan a document, and then save it to a predefined folder on a host computer. For more information,

see “Setting up Scan to Computer” on page 118.

Scan to FTP Scan documents directly to a File Transfer Protocol (FTP) server. For more information, see “Scanning

to an FTP address” on page 115.

Scan to Network Scan a document, and then send it to a network shared folder. For more information, see “Setting

up Scan to Network” on page 23.

Activating the home screen applications

Finding information about the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first activate and set up these applications using the Embedded Web Server. For more information on accessing the Embedded Web Server, see “Accessing the Embedded Web Server” on page 19.

For more information on configuring and using the home screen applications, do the following:

1 Go to http://support.lexmark.com, and then click SELECT YOUR PRODUCT > .

2 Do either of the following:

• Click Business Solutions, and then select the name of the application.

• Click Software and Solutions > Other Apps.

3 Click the Manuals tab, and then select the document for the home screen application.

Setting up Forms and Favorites

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To

check for updates of this User’s Guide, go to

http://support.lexmark.com.

Setting up and using the home screen applications 21

Use To

Streamline work processes by letting you quickly find and print frequently used online forms directly from the printer home screen.

Note: The printer must have permission to access the network folder, FTP site, or Web site where the bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and firewall settings to allow the printer at least a read access. For help, see the documentation that came with your operating system.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Forms and Favorites.

3 Click Add, and then customize the settings.

Notes:

• See the mouse-over help beside each field for a description of the setting.

• To make sure the location settings of the bookmark are correct, type the correct IP address of the host

computer where the bookmark is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 18.

• Make sure the printer has access rights to the folder where the bookmark is located.

4 Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Setting up Card Copy

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

Use To

Quickly and easily copy insurance, identification, and other wallet‑size cards. You can scan and print both sides of a card on a single page, saving paper and showing the information

on the card in a more convenient manner.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Card Copy.

http://support.lexmark.com.

Setting up and using the home screen applications 22

3 Change the default scanning options, if necessary.

• Default tray—Select the default tray to be used for printing scan images.

• Default number of copies—Specify the number of copies that should automatically print when the application

is used.

• Default contrast setting—Specify a setting to increase or decrease the level of contrast when a copy of the

scanned card is printed. Select Best for Content if you want the printer to adjust the contrast automatically.

• Default scale setting—Set the size of the scanned card when printed. The default setting is 100% (full size).

• Resolution setting—Adjust the quality of the scanned card.

Notes:

– When scanning a card, make sure the scan resolution is not more than 200 dpi for color, and 400 dpi for

black and white.

– When scanning multiple cards, make sure the scan resolution is not more than 150 dpi for color, and

300 dpi for black and white.

• Print Borders—Select the check box to print the scan image with a border around it.

4 Click Apply.

To use the application, touch Card Copy on the printer home screen, and then follow the instructions.

Using MyShortcut

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

Use To

Create shortcuts on the printer home screen, with settings for up to 25 frequently used copy, fax, or email jobs.

To use the application, touch MyShortcut, and then follow the instructions on the printer display.

http://support.lexmark.com.

Setting up Multi Send

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

Use To

Scan a document, and then send the scanned document to multiple destinations.

Note: Make sure there is enough space in the printer hard disk.

http://support.lexmark.com.

Setting up and using the home screen applications 23

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The printer IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Multi Send.

3 From the Profiles section, click Add, and then customize the settings.

Notes:

• See the mouse‑over help beside each field for a description of the setting.

• If you select FTP or Share Folder as a destination, then make sure the location settings of the destination are

correct. Type the correct IP address of the host computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 18.

4 Click Apply.

To use the application, touch Multi Send on the printer home screen, and then follow the instructions on the printer display.

Setting up Scan to Network

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To

check for updates of this User's Guide, go to

Use To

Scan a document and send it to a shared network folder. You can define up to 30 unique folder destinations.

Notes:

• The printer must have permission to write to the destinations. From the computer where the

destination is specified, use sharing, security, and firewall settings to allow the printer at least a write access. For help, see the documentation that came with your operating system.

• The Scan to Network icon appears only when one or more destinations are defined.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Scan to Network.

3 Specify the destinations, and then customize the settings.

Notes:

http://support.lexmark.com.

• See the mouse-over help beside some of the fields for a description of the setting.

• To make sure the location settings of the destination are correct, type the correct IP address of the host

computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 18.

• Make sure the printer has access rights to the folder where the specified destination is located.

4 Click Apply.

Setting up and using the home screen applications 24

To use the application, touch Scan to Network on the printer home screen, and then follow the instructions on the printer display.

Setting up Remote Operator Panel

This application shows the printer control panel on your computer screen and lets you interact with the printer control panel, even when you are not physically near the network printer. From your computer screen, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks you might normally do while standing at the network printer.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Remote Operator Panel Settings.

3 Select the Enabled check box, and then customize the settings.

4 Click Submit.

To use the application, click Remote Operator Panel > Launch VNC Applet.

Exporting and importing a configuration

You can export configuration settings into a text file, and then import the file to apply the settings to other printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 To export or import a configuration for one application, do the following:

a Click Settings > Apps > Apps Management. b From the list of installed applications, click the name of the application you want to configure. c Click Configure, and then do either of the following:

• To export a configuration to a file, click Export, and then follow the instructions on the computer screen to

save the configuration file.

Notes:

– When saving the configuration file, you can type a unique file name or use the default name. – If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is

saved.

• To import a configuration from a file, click Import, and then browse to the saved configuration file that was

exported from a previously configured printer.

Notes:

– Before importing the configuration file, you can choose to preview it first or load it directly. – If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.

Setting up and using the home screen applications 25

3 To export or import a configuration for multiple applications, do the following:

a Click Settings > Import/Export. b Do either of the following:

• To export a configuration file, click Export Embedded Solutions Settings File, and then follow the instructions

on the computer screen to save the configuration file.

• To import a configuration file, do the following:

1 Click Import Embedded Solutions Settings File > Choose File, and then browse to the saved configuration

file that was exported from a previously configured printer.

2 Click Submit.

Additional printer setup 26

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electircal outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer before touching any controller board electronic components or connectors.

Available internal options

• Memory card – DDR3 DIMM

• Flash memory – Fonts – Firmware

• Forms and Barcode

• Prescribe

• IPDS

Note: The printer hard disk is an optional memory device that can be attached to the rear USB port of the printer.

Additional printer setup 27

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Access the controller board at the back of the printer.

Note: This task requires a flat‑head screwdriver.

2 Turn the screws counterclockwise to remove them.

3 Slightly open the controller board access cover, and then shift to the right to remove it.

4 Locate the appropriate connector on the controller board.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch something metal on the printer before touching any controller board electronic components or connectors.

Additional printer setup 28

5 Reattach the cover.

1 Memory card connector

2 Option card connector

Additional printer setup 29

6 Turn the screws clockwise to lock the cover.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see “Accessing the controller board” on page 27.

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may

cause damage.

Additional printer setup 30

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

4 Push the memory card straight into the connector, and then push the card toward the controller board wall until

it clicks into place.

5 Close the controller board access cover.
