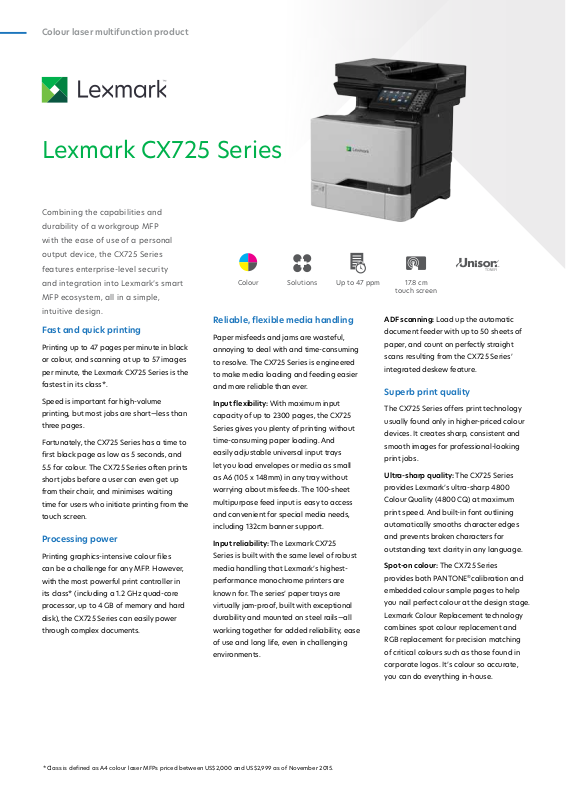

Lexmark 40C9588 Product Data Sheet

Colour laser multifunctionproduct

Lexmark CX725Series

Combining the capabilities and

durability of a workgroup MFP

with the ease of use of a personal

output device, the CX725 Series

features enterprise-level security

and integration into Lexmark’s smart

MFP ecosystem, all in a simple,

intuitivedesign.

Fast and quickprinting

Printing up to 47 pages per minute in black
or colour, and scanning at up to 57 images
per minute, the Lexmark CX725 Series is the
fastest in itsclass*.

Speed is important for high-volume
printing, but most jobs are short—less than
threepages.

Fortunately, the CX725 Series has a time to
first black page as low as 5 seconds, and

5.5 for colour. The CX725 Series often prints
short jobs before a user can even get up
from their chair, and minimises waiting
time for users who initiate printing from the
touchscreen.

Processingpower

Printing graphics-intensive colour files
can be a challenge for any MFP. However,
with the most powerful print controller in
its class* (including a 1.2 GHz quad-core
processor, up to 4 GB of memory and hard
disk), the CX725 Series can easily power
through complexdocuments.

Reliable, flexible mediahandling

Paper misfeeds and jams are wasteful,
annoying to deal with and time-consuming
to resolve. The CX725 Series is engineered
to make media loading and feeding easier
and more reliable thanever.

Input flexibility: With maximum input
capacity of up to 2300 pages, the CX725
Series gives you plenty of printing without
time-consuming paper loading. And
easily adjustable universal input trays
let you load envelopes or media as small
as A6 (105 x 148mm) in any tray without
worrying about misfeeds. The 100-sheet
multipurpose feed input is easy to access
and convenient for special media needs,
including 132cm bannersupport.

Input reliability: The Lexmark CX725
Series is built with the same level of robust
media handling that Lexmark’s highest­performance monochrome printers are
known for. The series’ paper trays are
virtually jam-proof, built with exceptional
durability and mounted on steel rails—all
working together for added reliability, ease
of use and long life, even in challenging
environments.

Solutions Up to 47ppmColour

17.8cm

touchscreen

ADF scanning: Load up the automatic
document feeder with up to 50 sheets of
paper, and count on perfectly straight
scans resulting from the CX725 Series’
integrated deskewfeature.

Superb printquality

The CX725 Series offers print technology
usually found only in higher-priced colour
devices. It creates sharp, consistent and
smooth images for professional-looking
printjobs.

Ultra-sharp quality: The CX725 Series
provides Lexmark’s ultra-sharp 4800
Colour Quality (4800 CQ) at maximum
print speed. And built-in font outlining
automatically smooths character edges
and prevents broken characters for
outstanding text clarity in anylanguage.

Spot-on colour: The CX725 Series
provides both PANTONE
embedded colour sample pages to help
you nail perfect colour at the design stage.
Lexmark Colour Replacement technology
combines spot colour replacement and
RGB replacement for precision matching
of critical colours such as those found in
corporate logos. It’s colour so accurate,
you can do everythingin-house.

®

calibration and

*Class is defined as A4 colour laser MFPs priced between US$2,000 and US$2,999 as of November2015.

Colour laser multifunctionproduct

Qualityscanning

Advanced scanning technology: The

CX725 Series scans at up to 57 images
per minute and its advanced scanning
technologyincludes:

} Automatic full-speed deskew to

straighten scanned images. This
eliminates the need for manual
straightening of image files and
savestime.

} Full-speed scanning of mixed

originals to scan a stack of different­sized originals without slowing the
scanspeed.

} Page-level jam recovery to quickly

resume a copy or scan job from where
a jam or misfeed occurred.

} Standard MRC (Mixed Raster Content)

image file compression technology
to reduce scanned file sizes by
approximately 50% with no image
qualityreduction.

Such advanced scanning technology
supports accurate data capture using
the included AccuRead Optical Character
Recognition (OCR)software.

The optional Perceptive Capture software
adds even more functionality to extract
scanned information, organise it and share
content with the people, business systems
and processes that need it most, bringing
order tochaos.

And the Lexmark VirtualReScan (VRS)
integration option improves scanning
productivity and capture efficiency by
reducing the time involved in manual
document preparation and automatically
enhancing the quality of scannedimages.

Software solutions save money
andenergy

Lexmark’s Embedded Solutions Framework
(eSF) and Cloud Solutions Framework (cSF)
allow the CX725 Series to load and run
software solutions tailored to your specific
need or industry.

Lexmark devices with cSF can run web
apps designed for the device, accessed
via the cloud or an on-premise server.
eSF applications are created by Lexmark,
its partners and customers, and loaded
directly on thedevice.

The CX725 Series can also integrate with
Kofax TotalAgility
market’s first and only unified platform
for the development and deployment of
smart process applications. TotalAgility
provides the essential connection between
your systems of engagement and systems
of record, making the information­intensive interactions you have with
your customers smarter. TotalAgility
dramatically transforms the business­critical First Mile™ of information-intensive
customerinteractions.

Solutions capabilities like that combine
with Lexmark fleet management tools
and your existing enterprise software
and technical infrastructure to form
the Lexmark smart MFP ecosystem. Its
adaptability future-proofs your investment
in Lexmarktechnology.

®

from Lexmark, the

Included eSFsolutions:

Forms and Favourites: Eliminate
waste and inaccuracy associated

†

with preprinted forms and other
documents by locating and selecting them
from network storage locations or content
management applications right from the
device’s touch screen. With the Forms and
Favourites solution, you can print
Microsoft

®

Office documents directly from
the device, as well as PDF, XPS, JPG, PRN,
TIFF and other fileformats.

Scan Centre: Save time by
scanning originals once and

automatically sending the
scanned image to multiple user-selectable
locations. Destinations include shared
network folder, email, fax, FTP server, cloud
drive, internal hard disk, mobile device or
remoteprinter.

AccuRead OCR: CX725dhe
includes an application that
turns paper documents into

searchable PDFs or Rich Text
Format to get documents out of a file
cabinet and into a searchable database.
Eliminate post-scan OCR processing with
desktop- or server-based software by
processing data directly at the device.

Card Copy: Save time and effort
in copying identification cards,

licenses and insurance cards by
automatically scanning, enlarging and
printing both sides of a two-sided card
onto one side of a sheet ofpaper.

+

+

VRS integration via Kofax Total Agility fromLexmark

†

Available Winter2016

lexmark.com.au

Colour laser multifunctionproduct

Serious output, minimaldowntime

The CX725 Series is engineered with long­life consumables so you can print, scan,
and copy with minimal downtime and get
more workdone.

Toner for the long haul: Available High
Yield toner cartridges produce up to
25,000 black and 16,000 colour pages
the highest number of any A4 colour laser
MFP in its class*. By reducing the number
of times toner runs out, the output keeps
going even in high-usageenvironments.

Long-life components: Constantly
replacing components creates unnecessary
waste and carbon emissions and hurts
productivity as the MFP stops and print
jobs back up. The CX725 Series’ long-life
components minimise downtime with
imaging components that can last up to
150,000 pages depending on usage. In
fact, the photoconductor unit drums are
covered with an ultra-durable coating
that can produce print quality as good at
page 150,000 as it does on page one. Plus,
an advanced auto colour retract feature
actually pulls colour printing components
away during monochrome printing to
prevent prematurewear.

1

,

Quality in Unison: Unison™ Toner is the
result of advanced toner science—powerful
enough to deliver consistently outstanding
image quality with rich, vibrant colour
and precise details, plus long-life system
reliability and amazing sustainability.
Documents printed with Unison Toner
look great from the first page to the
last because of its uniquely engineered
formulation. Even when the cartridge is
low, there’s no fading and no need to
shake the cartridge, and you won’t waste
money by replacing a cartridge that still
has toner init.

Unison Toner’s unique low-friction qualities
increase toner flow and contribute to its
ability to transfer efficiently to the page.
Unison Toner reduces internal wear on
long-life components and protects the
print system. This delivers long-term
reliability and ultimately saves time, money
and the environment.

Unison Toner is uniquely tuned to
the CX725 Series’ print system for
optimalperformance.

*Class is defined as A4 colour laser MFPs priced between US$2,000 and US$2,999 as of November2015.

lexmark.com.au

Lexmark Managed Print
Services(MPS)

Lexmark Managed Print Services (MPS)

takes a holistic approach to improving the

enterprise print architecture. Lexmark aligns

devices with the business mission and takes

care of their day-to-day management with

proactive and predictive service to ensure

optimal uptime. Once in place, the managed

environment becomes a conduit to unify

print and digital information for streamlined

processes. Customers benefit with fewer

devices, fewer pages, lower cost and

improved knowledge workerproductivity.

Colour laser multifunctionproduct

Security andmore

Advanced security features: Lexmark

CX725 Series security features encompass
device management, hardening
andoperation.

Device management: A combination of
administrative access and passwords,
HTTPS, SMNPv3, IPsec and 802.1x support
lets you remotely monitor, manage,
authorise and authenticate who and what
gets access to thenetwork.

Device hardening: Built-in tools include
port filtering and TCP connection filtering
to restrict which connections are active
from what sources. Encryption and
wiping of the optional hard disk protect
sensitive print job data. Digitally signed
firmware updates can prevent hackers
from uploading compromised software to
thedevice.

Device operation: You get user
authentication via PIN, passwords or
badge reader, address book lookup via
LDAP over SSL (Secure Socket Layer) to
provide a secure connection between
the device and the network, and device
operator panel lockouts to protect the
devicesettings.

Hard disk protection: Models equipped
with the hard disk include advanced hard
disk protection with 256-bit AES encryption
and encryption keys stored in the device’s
memory, not the hard disk. The data is
protected even if the hard disk is removed.
This level of protection is automatic at
power up—users and administrators do not
have to doanything.

The CX725 Series also performs automatic
file-based hard disk wiping after every
print job, which cannot be disabled.
And the process of clearing a device’s
disk drive and non-volatile memory
data when removing it from service or
a secure location is simple with a one­step “out of service” wiping command for
authorisedusers.

Ease of usefeatures

7-inch (17.8 cm) colour touch screen: The

bright touch screen features an ultra­smooth surface and can be activated by
almost anything, including pens, fingertips
or nails—without pressure or direct skin
contact. And support for gestures like
swipe to access panels and menus makes
operation easy and intuitive. Audible
feedback from the screen provides user
assurance, while a separate 10-key
number pad improves accessibility and
enhancesconvenience.

Intuitive interface: The e-Task interface
with modern tablet-like capabilities is
familiar to users, minimising the need for
training. On-screen features allow users to
select specific pages within a document,
do print preview and change print job
settings at thedevice.

Wireless and mobile printing: Lexmark
Print Management was the first AirPrint
certified enterprise print management
solution. Lexmark mobile printing includes
support for iOS, Android, and Microsoft
Windows Mobile printing, with optional
wireless and NFC direct connectivity from
smartphones and tablets. The CX725 is a

®

Mopria

-certified printer and is Google

Cloud Print™Ready.

®

-

®

Direct printing: Convenient front USB port
allows true PC-free printing of Microsoft
Office files, PDFs and other documents
and image types from flash drives, network
servers or onlinedrives.

Accessibility: The CX725 Series includes
advanced US Government Section

†

508

and European Standard EN 301
549 accessibility features for those with
varying levels of ability. Features such as
an operator panel that tilts from almost
horizontal to almost vertical, paper trays
that can be closed with less than five
pounds of force, high-contrast labelling,
headphone jack and standard talk-back
feature provide a better user experience
for all of our customers.

Compact footprint: Although equipped
with many enterprise-class features, the
CX725 Series’ compact footprint makes it
ideal for distributed environments, branch
locations or anywhere space islimited.

†

Available Winter2016

lexmark.com.au

Colour laser multifunctionproduct

Environmentalfeatures

Advanced toner: Lexmark’s exclusive

Unison Toner makes energy savings a
reality, using less energy than Lexmark’s
previous toners by printing at a lower
temperature. And through LCCP, the
Lexmark Cartridge Collection Programme,
Lexmark offers a free and easy way for you
to return empty cartridges for sustainable
recycling orremanufacturing.

Power saving modes: Sleep mode power
usage of less than 3 watts saves money
and energy between print jobs. When the
device is not in use, it goes to sleep and
wakes for incoming print jobs. In addition,
it can be powered on or off from its control
panel or a user-definedschedule.

Paper and toner savings: Standard duplex
printing prints on both sides by default.
Plus, the unique ColourSaver feature prints
images at a lighter shade by default, while
leaving text dark and readable, saving
toner andmoney.

Recycled paper compatibility: To ensure
that you can minimise the impact of the
paper you use the Lexmark CX725 Series
has been fully tested with a range of
recycled papers, up to 100%recycled.

Post-consumer recycled content: The
CX725 Series makes a measurable
impact on raw material consumption by
containing up to 50% post-consumer
recycled plasticcontent.

Environmental certifications: Lexmark
products meet globally recognised
environmentalstandards

} ENERGYSTAR

‡

:

®

} Blue Angel compliant, certification

inprocess

} EPEAT

®

Gold

LexmarkSustainability

For Lexmark, commitment to the environment

isn’t a marketing tagline, it’s a core value

backed up by real action and results. We

are forward thinking, innovative, and driven

to sustain a healthy planet for generations

to come. For our customers and partners we

bring this passion, our leading technology

and a deep understanding of industry-

specific business processes to continuously

improve their efficiency as well as our own.

For more information on Lexmark’s

sustainability initiatives, visitcsr.lexmark.com

‡

ENERGY STAR V2.0 for Imaging Equipment (EU RoHS and Section 4.3.1.1 of IEEE 1680.2-2. Available Summer2016.

lexmark.com.au

Smart MFPecosystem

Bridge paper and digital—unstructured and

structured—information with devices and

connections that drive your businessforward.

In an ecosystem, things work in concert

to ensure efficient processes. In the

business environment, people, technology

and information also form an ecosystem,

where information exists in both structured

and unstructured forms. And the centre

of this ecosystem is the smart MFP, the

connection point between digital and

printedinformation.

The Lexmark smart MFP ecosystem brings

together the hardware, software, tools and

services to help drive your business forward.

Colour laser multifunctionproduct

1. Intuitive colour touch screen with next-

generation e-Taskinterface

The large 17.8 cm colour touch screen
features an ultra-smooth surface and can be
activated by almost anything, including pens,
fingertips or nails—without pressure or direct
skin contact. The modern interface is familiar
to users, minimising the need fortraining.

2. Expandableinput

Add trays to print on multiple
paper types and boost maximum
input capacity to 2300sheets.

3. Universal inputtrays

Easily adjustable universal input
trays let you load envelopes or media
as small as A6 (105 x148mm).

1

4. Directprinting

Print Microsoft Office files and other
document and image types from flash
drives, or select and print documents
from network servers or onlinedrives.

5. Compactfootprint

Ideal for distributed environments, branch
locations or wherever space islimited.

6. Unison Toner print system with long-

lifesupplies

Unison Toner delivers consistently
outstanding image quality plus long-life
system reliability and amazing sustainability
in a no-shake design. High Yield toner
cartridges produce up to 25,000 black
and up to 16,000 colourpages.

4

5

6

3

lexmark.com.au

2

Lexmark CX725 Seriesfeatures

CS720de

Adjustable

PrinterStand

Standard

Optional

Product specifications Lexmark CX725dhe

Print

Display

Print Speed: Up to

Time to First Page: As fast as / Time to First
Page: as fast as

Print Resolution

Memory

Hard Disk

Recommended Monthly Page Volume

Maximum Monthly Duty Cycle: Up to

5

2

3

Copy

Copy Speed: Up to

Time to First Copy: as fast as

5

Scan

Scanner Type / ADF Scan

A4/Ltr Duplex Scan Speed: Up to / Duplex
Scan Speed: Up to

A4/Ltr Simplex Scan Speed: Up to / Scan
Speed: Up to

Fax

Modem Speed

Supplies

Laser Cartridge Yields (up to)

Imaging Unit Estimated Yield: Up to

Cartridge(s) Shipping with Product

7

1

6

1

Paper Handling

Included Paper Handling

Optional Paper Handling

Paper Input Capacity: Up to

Paper Output Capacity: Up to

Media Types Supported

Media Sizes Supported

General Information

Standard Ports

Optional Network Ports

Noise Level: Operating

Specified Operating Environment

Product Warranty

Size (mm - H x W x D) / Weight

4

Black: 1200 x 1200 dpi, 4800 Colour Quality (2400 x 600 dpi) / Colour: 1200 x 1200 dpi, 4800 Colour Quality (2400 x 600 dpi)

3,000-page Black and Colour (CMYK) Cartridges, 7,000-page Black and Colour (CMYK) Cartridges, 25,000-page Black High Yield Cartridge,

150000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

550-Sheet Input, 100-Sheet Multipurpose Feeder, Integrated Duplex, 300-Sheet Output Bin

Card Stock, Envelopes, Paper Labels, Plain Paper, Vinyl Labels, Refer to the Card Stock & Label Guide., Banner Paper

10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, B5 Envelope, C5 Envelope, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement,

One Internal Card Slot, USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed

Certified port (Type A), Rear Hi-Speed USB port Compatible with USB 2.0 Specification (Type A)

Humidity: 8 to 80% Relative Humidity, Temperature: 10 to 32°C, Altitude: 0 - 2896 metres

Lexmark e-Task 17.8 cm colour touch screen with audible feedback

Black: 47 ppm / Colour: 47 ppm

Black: 5.0 seconds / Colour: 5.5 seconds

Standard: 2048 MB / Maximum: 4096 MB

Included in configuration

2000 - 20000 pages

150000 pages per month

Black: 47 cpm / Colour: 47 cpm

Black: 6.5 seconds / Colour: 7.0 seconds

Flatbed scanner with ADF / RADF (reversing Duplex)

Black: 26 / 28 sides per minute / Colour: 26 / 28 sides per minute

Black: 56 / 60 sides per minute / Colour: 56 / 60 sides per minute

ITU T.30, V.34 Half-Duplex, 33.6 Kbps

16,000-page Colour (CMY) High Yield Cartridges

7,000-page Black and Colour (CMYK) Return Program Toner Cartridges

550-Sheet Tray

Standard: 650 pages 75 gsm bond / Maximum: 2300 pages 75 gsm bond

Standard: 300 pages 75 gsm bond / Maximum: 300 pages 75 gsm bond

Universal, Oficio, A6

Internal MarkNet N8360 802.11b/g/n Wireless, NFC

Print: 53 dBA / Copy: 56 dBA / Scan: 53 dBA

1-Year Onsite Service

648 x 505 x 533 mm / 44.9 kg

7-in (17.8cm) Colour TouchScreen

550-Sheet Input with 100-Sheet
Multi-purposeFeeder

550-SheetTray

550-SheetTray

550-SheetTray

1

Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798. 2”Recommended Monthly Page Volume”
is a range of pages that helps customers evaluate Lexmark’s product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends
that the number of pages per month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed,
and typical customer usage.
comparison of robustness in relation to other Lexmark printers and MFPs.
and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for moredetails.

3

”Maximum Monthly Duty Cycle” is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a

4

Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details. 5Print

6

Actual Yield may vary based on

7

Product functions only with

© 2015 Lexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the United States and/or other
countries. All other trademarks are the property of their respective owners.

Unison™ is a U.S. registeredtrademark.

AirPrint and the AirPrint logo are trademarks of AppleInc.

ENERGY STAR® is a U.S. registeredmark.

EPEAT® is a trademark of EPEAT, Inc. in the United States and othercountries.

Google Cloud Print™ is a trademark of GoogleInc.

Mopria®, the Mopria® Logo and the Mopria® Alliance logo are registered trademarks and service marks of Mopria Alliance , Inc. in the
United States and other countries. Unauthorized use is strictlyprohibited.

Notice: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit(http://www.openssl.org/).”

lexmark.com.au
