LevelOne WBR-6022 User Manual

LevelOne

User Manual

WBR-6022

300Mbps Wireless HomeGuard 22 Router

Ver. 1.4

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this product (Model-no. WBR-6022) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The CE-Declaration of Conformity can be downloaded at: http://www.levelone.eu/support.php

General Public License

This product incorporates open source code into the software and therefore falls under the guidelines governed by the General Public License (GPL) agreement.

Adhering to the GPL requirements, the open source code and open source license for the source code are available for free download at http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US$9.99 plus the cost of shipping.

Table of Content

admin

password

TABLE OF CONTENT ............................................................................................................................................................... 4

1 INTRODUCTION ................................................................................................................................................................ 5

2 PRODUCT FEATURES ...................................................................................................................................................... 6

3 PACKAGE CONTENTS & HARDWARE INSTALLATION ........................................................................................ 8

4 SETUP THE WBR-6022 HOME SURVEILLANCE .................................................................................................... 14

4.1 EASY SETUP UTILITY ................................................................................................................................................... 14

4.2 QUICKLY TO SETUP A HOMEGUARD SYSTEM ..................................................................................................... 22

4.2.1 HOMEGUARD CONFIGURATION ....................................................................................................................... 23

4.2.2 SEARCH NEW DEVICE .......................................................................................................................................... 25

4.2.3 SETUP DEVICE & LEVEL1DNS ............................................................................................................................ 28

4.2.4 VIEW THE VIDEO ................................................................................................................................................... 32

4.2.5 PLAYBACK THE RECORD .................................................................................................................................... 34

4.2.6 SCHEDULE RECORD.............................................................................................................................................. 35

4.3 DETAIL TO SETUP A HOMEGUARD SYSTEM ........................................................................................................ 37

4.3.1 VIEW , SNAP AND RECORD ................................................................................................................................. 37

A. VIEW ALL IP CAMERAS ............................................................................................................................................... 37

B. VIEW SINGLE IP CAMERA ........................................................................................................................................... 37

C. VIEW PTZ IP CAMERA .................................................................................................................................................. 38

D. SNAP THE SCREEN SHOT ............................................................................................................................................. 38

E. RECORD IP CAMERA .................................................................................................................................................... 39

F. CHECK THE RECORD FILE ......................................................................................................................................... 39

4.3.2 SCHEDULING RECORD ......................................................................................................................................... 40

4.3.3 ADVANCED SETTING ............................................................................................................................................ 41

1. ACCOUNT MANAGEMENT .......................................................................................................................................... 41

A. ADMINISTRATOR MANAGEMENT ............................................................................................................................ 41

B. ADD NORMAL USER ...................................................................................................................................................... 41

C. NORMAL USER MANAGEMENT ................................................................................................................................. 42

2. EMAIL ALERT ................................................................................................................................................................. 42

3. UNREGISTER ................................................................................................................................................................... 42

4. CHANGE ALIAS DOMAIN NAME ................................................................................................................................ 43

5. LOGIN TOOL .................................................................................................................................................................... 44

5 ROUTER SETTING .......................................................................................................................................................... 45

5.1 WIZARD ............................................................................................................................................................................. 45

5.2 ADVANCED SETUP ......................................................................................................................................................... 47

5.2.1 BASIC SETTING ....................................................................................................................................................... 48

5.2.2 FORWARDING RULES ........................................................................................................................................... 63

5.2.2.1 SECURITY SETTINGS ............................................................................................................................................ 67

5.2.2.2 ADVANCED SETTINGS .......................................................................................................................................... 75

5.2.2.3 TOOLBOX ................................................................................................................................................................. 85

TECHNICAL SPECIFICATIONS ........................................................................................................................................... 99

Default Settings

IP Address 192.168.0.1 Username Password Wireless Mode Enable Wireless SSID LevelOne Wireless Security None

1 Introduction

Congratulations on your purchase of LevelOne WBR-6022 Wireless HomeGuard 22 Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users.

Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read the manual carefully for fully exploiting the functions of this product.

User Manual Overview

Introduction Describes the WBR-6022 Wireless HomeGuard 22 Router.

Unpacking and Setup Helps user to get started with the basic installation of the router.

Hardware Installation Describes the LED indicators router.

Configuration Describes the functionalities and its settings.

Technical Specifications Lists the technical (general, physical and environmental)

specifications of the router.

2 Product Features

This chapter provides the package contents and setup information for the Wireless HomeGuard 22 Router.

Features

HomeGuard functions

 Camera View

Get supporting IP Cameras and after pairing with them, this device could show the camera screen on web UI.

 Camera Record

Get supporting IP Cameras and storage devices, after pairing with them, this device could record the video data of

 Level1DNS.net

The WBR-6022 had build-in a DDNS account, user can easily to remote access via internet, the default DDNS

camera into storage HDD. It also supports schedule and manually recording.

account also allow user to modify by level1dns.net (Level1 Service)

Router Basic functions

 Auto-sensing Ethernet Switch

Equipped with a 4-port auto-sensing Ethernet switch.

 WAN type supported

The router supports some WAN types, Static, Dynamic, PPPoE , PPTP ,L2TP, Dynamic IP with Road Runner.

 Firewall

All unwanted packets from outside intruders are blocked to protect your Intranet.

 DHCP server supported

All of the networked computers can retrieve TCP/IP settings automatically from this product.

 Web-based configuring

Configurable through any networked computer’s web browser using Netscape or Internet Explorer.

 Virtual Server supported

Enable you to expose WWW, FTP and other services on your LAN to be accessible to Internet users.

 User-Definable Application Sensing Tunnel

User can define the attributes to support the special applications requiring multiple connections, like Internet gaming, video conferencing, Internet telephony and so on, then this product can sense the application type and open multi-port tunnel for it.

 DMZ Host supported

Lets a networked computer be fully exposed to the Internet; this function is used when special application sensing tunnel feature is insufficient to allow an application to function correctly.

 Statistics of WAN Supported

Enables you to monitor inbound and outbound packets

Wireless functions

 High speed for wireless LAN connection

Up to 80Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing (OFDM).

 Roaming

Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN infrastructure.

 WDS(Wireless Distribution System): It is a system that enables the interconnection of access points wirelessly.  WPS(WiFi Protection Setup):WPS is WiFi Protection Setup which is similar to WCN-NET and offer safe and

easy way in Wireless Connection.

 IEEE 802.11b compatible (11M)

Allowing inter-operation among multiple vendors.

 IEEE 802.11g compatible (54M)

Allowing inter-operation among multiple vendors.

 IEEE 802.11n compatible (300M)

Green functions

 Standby mode:

When No Wireless Station is associated with Green Router in several minutes, it will be automatically switched into Standby mode. Of course, this mode will not influence on end users to roam Internet, such as noon Reset time 12:00~13:30.

Sleep Mode:



When time matches with rule of Schedule, Green Router will detect whether any client or Network flow. If No, Green Router will be in Sleep mode. Otherwise, it will not go to sleep mode until no data flowing in network. This mode can save almost 100% energy. (End-user can’t use Internet in Sleep Mode.) Such as 11:00PM~10:00AM for Family or 19:00PM~07:00AM for Office or in Weekend.

 Smart Schedule:

When time matches with Schedule rule, for example,11:00PM~08:00AM is in Sleep Mode, Green Router will detect if Network flow or Wireless Stations at 11:00PM, if no, it will go in Sleep Mode until 8:00AM. If yes, Green Router will detect until no data flowing and Wireless Stations then go “Sleep Mode”. Smart Schedule has another feature is when end-user wakes up at 3:00AM,then click On/Sleep button to awaken Green Router to use Internet until 5:00AM, then Green Router will detect no flow and Wireless Stations ,then go “Sleep Mode” until 08:00AM.

 On/Sleep Button:

End users can wake up Green Router from Sleep Mode via this Button.

※ There is a limit that End-user forces to sleep via this button and has to wake Green Router up by this Button. And

Force to wake up via this button and can Sleep by Schedule.

Security functions

 Packet filter supported

Packet Filter allows you to control access to a network by analyzing the incoming and outgoing packets and letting them pass or halting them based on the IP address of the source and destination.

 Domain Filter Supported

Let you prevent users under this device from accessing specific URLs.

 URL Blocking Supported

URL Blocking can block hundreds of websites connection by simply a keyword.

 VPN Pass-through

The router also supports VPN pass-through.

 802.1X supported

When the 802.1X function is enabled, the Wireless user must authenticate to this router first to use the Network service.

 Support WPA-PSK and WPA version 1 and 2

When the WPA function is enabled, the Wireless user must authenticate to this router first to use the Network

service

 SPI Mode Supported

When SPI Mode is enabled, the router will check every incoming packet to detect if this packet is valid.

 DoS Attack Detection Supported

When this feature is enabled, the router will detect and log the DoS attack comes from the Internet.

 Qos(Quality of Service)

Provide different priority to different users or data flows, or guarantee a certain level of performance.

Advanced functions

 System time Supported

Allow you to synchronize system time with network time server.

 E-mail Alert Supported

The router can send its info by mail.

 Dynamic dns Supported

At present,the router has some ddns providers,like.dyndns,no-ip TZO.com and dhs.org.

 SNMP Supported

The router supports basic SNMP function.

 Routing Table Supported

Now, the router supports static routing.

 Schedule Rule supported

Customers can control some functions, like virtual server and packet filters when to access or when to block.

Other functions

 UPNP (Universal Plug and Play)Supported

The router also supports this function. The applications: X-box(360), Msn Messenger, Windows Messenger and NDSL.

3 Package contents & Hardware Installation

3.1. Package Contents

Open the box of the Wireless HomeGuard 22 Router and carefully unpack it. The box should contain the following items:



WBR-6022 Wireless HomeGuard 22 Router



Power Adapter



Cat.5 Cable



Antenna x2



CD Manual / Utility



Quick Installation Guide

If any item is found missing or damaged, please contact your local reseller for replacement.

PS: the setup wizard utility in the CD, it will help user to setup the environment easily.

Front View

WLAN Button

Status Light

WAN Light

WLAN Light

LAN Lights

• Press and hold for 3 seconds to turn the Wireless LAN on or off.

• Please confirm WLAN status as indicated by WLAN Light

• A steady blinking light indicates the device is ready

• A solid light indicates the WAN port is connected.

• Off indicates Wireless LAN is turned off, or no wireless client is

connected to the router.

• LED blinks during wireless data transmission, or when there is a wireless client connected to the router.

• Fast and steady blinking indicates WPS function is activated and the router is pairing with wireless client.

• A solid light indicates to an Ethernet enable computer on ports 1 ~ 4.

• LED blinks during data transmission.

Sleep Light

WPS Button

Reset (WLAN and WPS Buttons)

• When solid light (orange) means that the router is in sleep mode.

• Wi-Fi Protected Setup push button. Press to activate WPS pairing with

wireless client.

• Press the WLAN and WPS buttons together for 5 seconds to reboot and restore the device to factory default settings.

Rear View

2 3 4

Power Jack

LAN Ports (1~4)

WAN Port

Sleep Button

PWR

LAN

Sleep Button

WAN

• Receptor for the supplied power adapter

• Connect Ethernet devices such as Level1 IP Cameras, computers,

switches or other network devices.

• The WAN port is the connection for the Ethernet cable to the Cable or DSL Modem.

• This button is used to force the router to enter sleep mode, or wake up. It has the highest priority and overrides the Power Saving Schedule.

Antennas

•

Green Router is in Sleep Mode.(Press this button about 1 sec.)

•

Green Router is in Standby or On mode. ( Press this button about 1 sec.)

• Detachable antennas allow users to change antenna if necessary.

3.2.

3.2.1. Decide where to place your Wireless Router You can place your Wireless Router on a desk or other flat surface. For optimal performance, place

your Wireless Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to power and network connection.

Hardware Installation

A. Attach the included antennas.

B. Connect your broadband internet connection to WBR-6022’s WAN port.

C. Connect the Computer LAN cable.

D. Plug in the Power Adapter

E. Wait until the Status light is blinking steadily. This means the router is ready for use.

F. Plug in the IP Camera & NAS for the Surveillance environment Please refer the below Diagram

3.2.2. Check Your Network Settings

A. Please make sure your PC can get IP address automatically so the WBR-6022 can communicate

with your PC during configuration.

• Select “Control Panel” > “Network Connections”.

• Right click the “Local Area Connection” and choose “Properties”.

• Select the TCP/IP protocol for your network card.

• Click on the Properties button. You should then see the following screen and make sure you

have selected “Obtain IP address automatically”

B. Reboot computer to make sure you have received the IP address correctly form the Router.

4 Setup the WBR-6022 Home Surveillance

Once properly configured, the WBR-6022 Wireless HomeGuard 22 Router will obtain and assign IP address information automatically. Configuration settings can be established through the Web-Based Configuration Menu, or the Easy Setup Utility on the CD.

4.1 Easy Setup Utility

The autorun program should start automatically. If it does not, please run autorun.exe on your CD.

In the autorun screen, click Utility to begin the Easy Setup Utility.

Insert the CD into your CD-ROM drive of your computer.

Before running Easy-Setup, please make sure that your PC is correctly connected with the

router. After executing it, you could see following screen:

Click “Next” to continue.

Select Wizard, the application will go steps one by one.

First, you have to make sure that your hardware connections are all correct. Click “Next” to continue.

Then, you have to adjust the time zone. This router could manage the power by time scheduling, so

we have to correct its system time. Click “Next” to continue.

Setup the Power Management schedule, and then click “Next” to continue. Smart Schedule means, when the router should go to sleep mode due to the schedule rule,

it would check the network packet first. If there are still some network packets being transferred, the rule would not be executed immediately until the network flow is stop.

Set wireless enable or disable, and then click “Next” to continue.

For wireless setting, the default SSID of wireless interface is “LevelOne”, default channel is 11, and

default encryption option is “NONE”. You could change it right now or later through WEB UI.

We strongly suggest you change the encryption option as soon as possible, because the non-

encrypted wireless network is not secured. Click “Next” to continue.

Click “Next” to continue.

Next step, we will help you to setup the WAN configurations.

Please follow the wizard, and choose the WAN type you used.

Click “Next” to continue

Now prepare to test the WBR-6022’s Level1DNS connection and account name.

Click “Next” to continue.

00116b5d54a1

The application would show you a default domain name that combined with this product, please

remember this domain name, next time you want to remotely control this HomeGuard system, you could use it to connect. It may be not easy to remember, so that you could set another domain name that you prefer after entering the web UI.

The default Level1DNS format is “MAC address”+”level1dns.net”, you can also change your

prefer alias name later through WEB UI.

Example the Level1DNS account will be 001150185d54a1, then you’re full DDNS dome is

“ 00116b5d54a1.level1dns.net

4.2 Quickly to Setup a HomeGuard system

To setup the HomeGuard system it needs few steps to complete all the setting:

1. Connect all the IP cameras and FNS-1020v2 with WBR-6022, then power on all device

2. Make sure WBR-6022 is connected to internet (If you want to use IP cam function).

3. Press WPS button on WBR-6022 for 5 Sec

4. Press WPS button on IP Cam for 5 Sec (step 3. & 4. are optional) then wait for 20 Sec

5. Search new device and register them each

6. Change each device name if you need.

7. Change preferred domain name of WBR-6022 on Level1DNS service

8. Recording setup if you have FNS-1020v2 registered

9. View the video form the registered IP cameras

10. Playback: if you have FNS-1020v2, you can record & playback the video.

4.2.1 HomeGuard Configuration

Homeguard setup

Open an IE browser and type in the IP Address http://192.168.0.1

(The Active-X works with IE only)

Click “Login”

(The default username and password is “admin” and “password”)

Multi

Language

Main page

Main Feature

Select

IP Devices List

Select your Language

On Line Help

4.2.2 Search New Device

Click the “Search New Device” icon, the HomeGuard start searching all compatible IP devices Connected by WBR-

6022’s

Step1

Step2:

Click “Search New Device”

Input

User Name / Password

Model Name & Username / Password

Model Name Username / Password FCS-0010 / WCS-0010 Default username is “administrator” and leave the password by blank FCS-0020 / WCS-0020 Default username is “administrator” and leave the password by blank FCS-1030v2 / WCS-2030v2 Default username is “root” and leave the password by blank FCS-1060 / WCS-2060 Default username is “root” and leave the password blank FCS-1081A Default username is “root”, and password is the MAC address (in capital letters) FCS-1091 / WCS-1090 Default username is “administrator” and leave the password by blank FCS-1101 Default username is “root”, and password is the MAC address (in capital letters) FCS-0030 / WCS-0030 Default username is “admin” and the password is “admin”

(MAC address will be show on Label of your devices)

(Example: 00116B73092E)

Step3

Click “Register

”

Step 4

Step5

Sync the device’s System Time & Click “Save”

Click “Next”

4.2.3 Setup Device & Level1DNS

A. Setup the Status for Camera & NVR

Click “Status”

HomeGuard will show the registered IP camera on the list. It can be configure in detail when clicked camera.

Once you have installed the IP camera on the list, you can click respective camera or view all to see the live view

You can change new device name

Ignore this step unless you have changed IP camera’s Username & Password

Only works if you have FNS-1020v2, please select NVR1

Please select NVR1 & click “Save”

NVR SettingS

You can change new device name to remember

You can change New device name or leave by blank then

B. Setup the Level1DNS Dome Name

Click “Save”

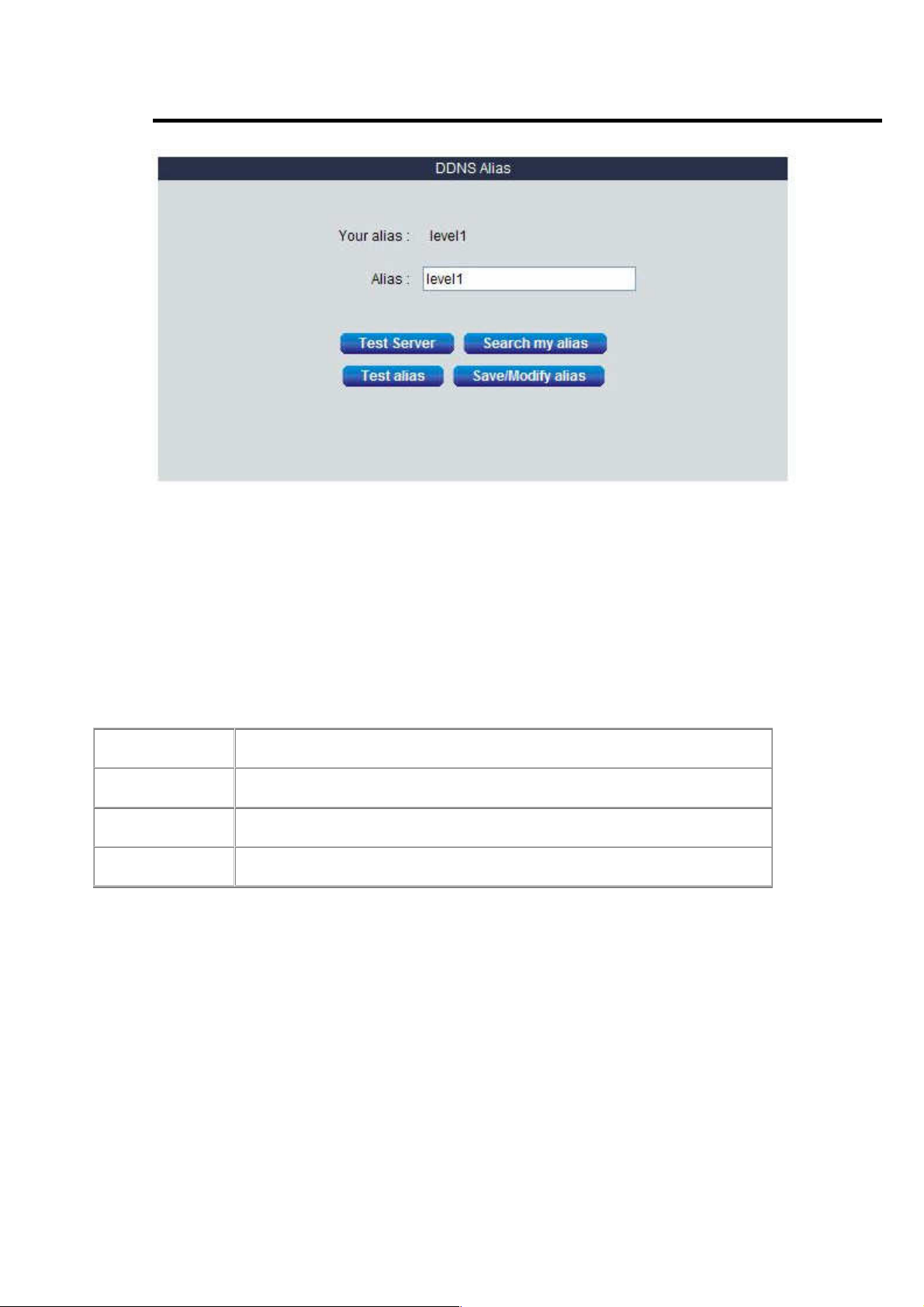

Click “System” and Then Click “DDNS Alias”

Enter your preferred Domin Name for your dedicated WBR-6022 HomeGuard

(Example: henry)

+ 69 hidden pages
