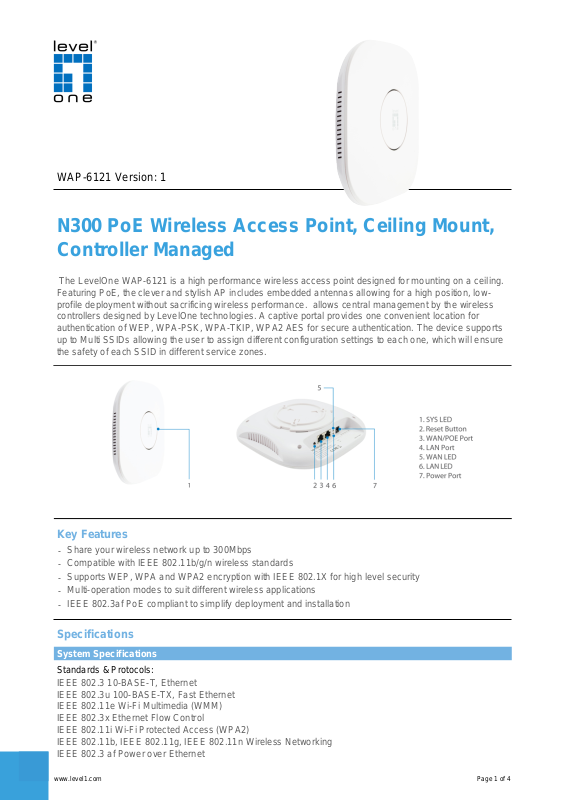

N300 PoE Wireless Access Point, Ceiling Mount,
Controller Managed

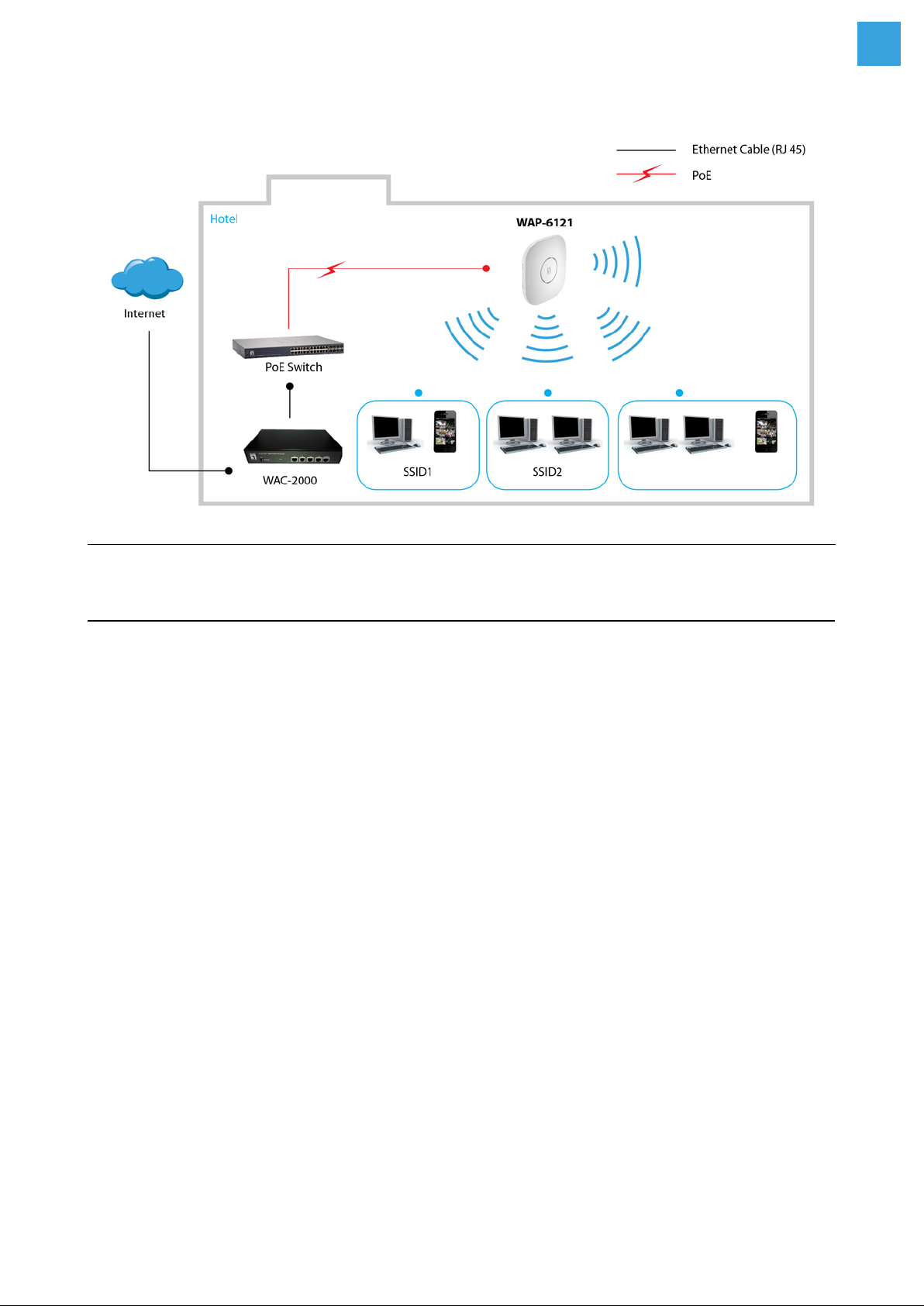

The LevelOne WAP-6121 is a high performance wireless access point designed for mounting on a ceiling.
Featuring PoE, the clever and stylish AP includes embedded antennas allowing for a high position, low­profile deployment without sacrificing wireless performance. allows central management by the wireless
controllers designed by LevelOne technologies. A captive portal provides one convenient location for
authentication of WEP, WPA-PSK, WPA-TKIP, WPA2 AES for secure authentication. The device supports
up to Multi SSIDs allowing the user to assign different configuration settings to each one, which will ensure
the safety of each SSID in different service zones.

Key Features

Share your wireless network up to 300Mbps

­Compatible with IEEE 802.11b/g/n wireless standards

­Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high level security

­Multi-operation modes to suit different wireless applications

­IEEE 802.3af PoE compliant to simplify deployment and installation

-

Specifications

System Specifications

Standards & Protocols:

IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.3x Ethernet Flow Control
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking
IEEE 802.3 af Power over Ethernet

www.level1.com Page 1 of 4

Connectors and Cabling:

1*10/100Mbps WAN port
1*10/100Mbps LAN port

Button/Knob:

reset button

Indicator:

Power
System status

Power Input:

Power over Ethernet (IEEE802.3af) 48 VDC
Power supply DC12V / 1.5A

Power Consumption:

<15W

Wireless

Operating Mode:

Gateway,AP, WISP,Universal Repeater

Encryption:

WEP Encryption-64/128/152 bit; WPA/WPA2 Personal (WPA-PSK using TKIP or AES);WPA/WPA2
Enterprise (WPA-EAP using TKIP)

Receive Sensitivity(dBm):

802.11n (20MHZ): Range (-90) dBm

802.11n (40MHZ): Range (-70 ~ -87) dBm

802.11g: Range ( -90) dBm

802.11b: Range ( -95) dBm

Channel:

Ch.1 ~ 11 USA
Ch.1 ~ 13 EU

EIRP(dBm):

802.11n: up to 27dBm ± 1dBm

802.11g: up to 25dBm ± 1dBm

802.11b: up to 23dBm ± 1dBm

Antenna:

5dBi inside Omni Antenna

Frequency Band (GHz):

2.4 ~ 2.4835 GHz

Modulation:

OFDM = BPSK,QPSK, 16-QAM, 64-QAM; DSSS = DBPSK, DQPSK, CCK

Data Transfer Rate:

802.11n: 300 ~ 78 Mbps

802.11g: 54 ~ 6 Mbps

802.11b: 11 ~ 1 Mbps

Features

General:

Multi-SSID: 4 SSIDs

PoE:

IEEE 802.3af

Security:

SSID Broadcast On/Off
Tag VLAN
