Leuze VRTU 430 Data Sheet

20 - 30 V

DC

U

L

US

C

LISTED

IEC 60947...

IEC 60947...

IP 65

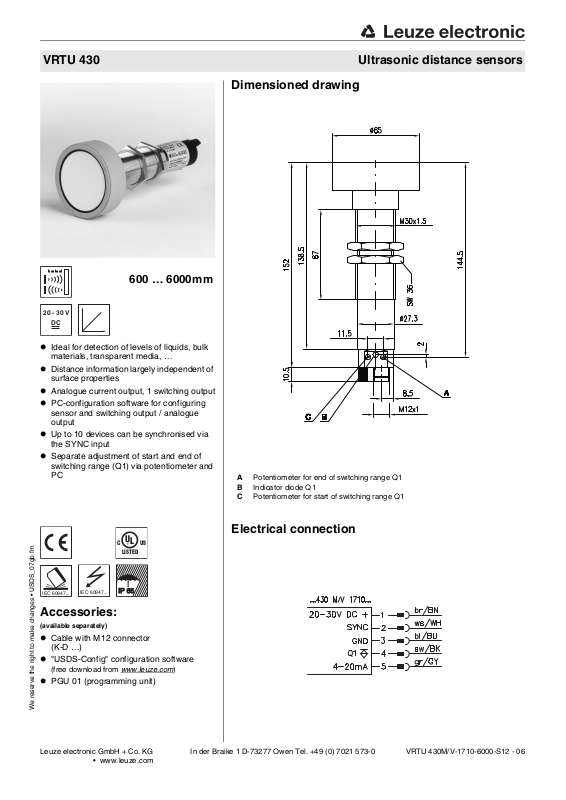

VRTU 430 Ultrasonic distance sensors

Dimensioned drawing

600 … 6000mm

z Ideal for detection of levels of liquids, bulk

materials, transparent media, …

z Distance information largely independent of

surface properties

z Analogue current output, 1 switching output
z PC-configuration software for configuring

sensor and switching output / analogue
output

z Up to 10 devices can be synchronised via

the SYNC input

z Separate adjustment of start and end of

switching range (Q1) via potentiometer and
PC

Accessories:

(available separately)

z Cable with M12 connector

(K-D …)

z "USDS-Config" configuration software

(free download from

z PGU 01 (programming unit)

www.leuze.com

)

A Potentiometer for end of switching range Q1
B Indicator diode Q1
C Potentiometer for start of switching range Q1

Electrical connection

We reserve the right to make changes • USDS_07gb.fm

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone]

• www.leuze.com

VRTU 430M/V-1710-6000-S12 - 06

y1

y2

-550

-450

-350

-250

-150

-50

50

150

250

350

450

550

0 1,0 2,0 3,0 4,0 5,0

6,0

Distance x [m]

Misalignment y [mm]

Typ. response behaviour

(object 100x 100mm)

y2

x

y1

VRTU 430

Specifications

Ultrasonic specifications VRTU…-1710-6000…

Operating range
Ultrasonic frequency 80kHz
Opening angle 6°
Resolution ≥ 1mm
Absolute measurement accuracy ± 1.5% of the measurement range end value
Reproducibility ± 9mm
Switching hysteresis 60 mm

Timing

Switching frequency (min.)
Response time (max.)
Delay before start-up 280ms

Electrical data

Operating voltage UB 20 … 30V DC (incl. ± 10% residual ripple)
Residual ripple ± 10% of U
Bias current < 60mA
Outputs 1 PNP transistor,

Function characteristics switching in case of object recognition
Output current (PNP/analogue) 300mA/4 … 20mA
Analogue output R
Characteristic curve ascending
Switching range adjustment potentiometer 270°

Indicators

Yellow LED output activated
Flashing yellow LED programming error

Mechanical data

Housing metal / CuZn
Weight 380g
Connection type M12 connector, plastic, 5-pin

Environmental data

Ambient temp. (operation/storage) -25 °C … +70°C/-40°C … +85 °C
Protective circuit
VDE safety class III
Protection class IP 65
Standards applied IEC 60947-5-2
Fitting position any

1) For the complete temperature range, measured object ≥ 100 x100 mm

2) Can be configured up to 3 times faster using "USDS-Config"

3) 1=short-circuit and overload protection, 2=no polarity reversal protection, 3=wire break and inductive protection

1)

2)

2)

600 … 6000mm

1Hz
400ms

B

1 analogue output

0 … 300Ω

L

3)

1, 2, 3

Tables

Diagrams

Remarks

z Approved purpose:

The ultrasonic distance sensors are used for acoustic, contactless detection of objects.

Order guide

VRTU 430M/V-1710-6000-S12 - 06 0801

Remarks

z Synchronisation:

Mutual interference is
excluded by connecting
the sensors with the
SYNC input.

Configuration software
"USDS-Config"

The configuration software
runs under Windows 95/98/
NT/2000/XP and offers the
following features:

z Configuration of multiplex

operation

z Configuration of the

sensor (attenuation,

Designation Part No.

VRTU 430M/V-1710-6000-S12 500 36269

switching frequency,
response time)

z Adjustment of the switch-

ing output (start/end of
switching range, hystere­sis, object present yes/no)

z Adjustment of the ana-

logue output

z Support of various

languages
