Leuze DMU330 Data Sheet

12 - 30 V
DC
4...20 mA
0...10
V
IP 67
IEC 60947...
IEC 60947...
DMU330-3500… DMU330-6000…
DMU330 Ultrasonic sensors with analog and switching output

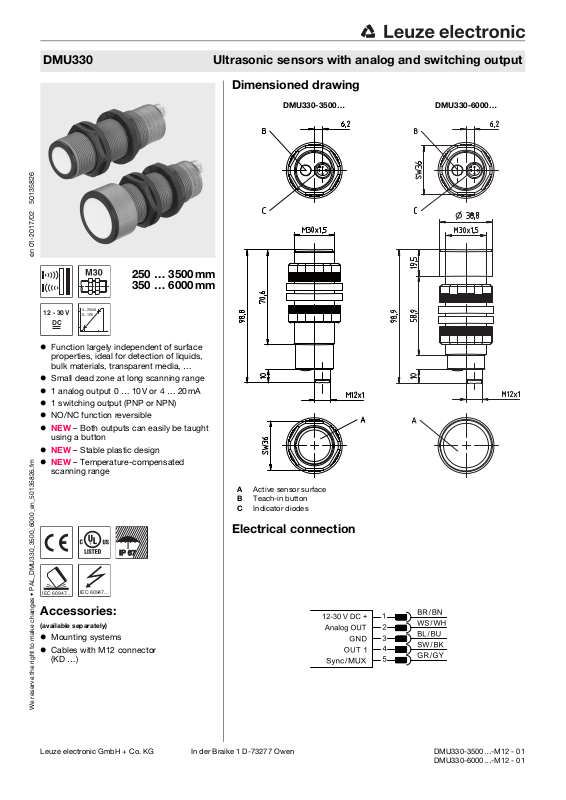

Dimensioned drawing
en 01-2017/02 50135826
250 … 3500mm 350 … 6000mm
Function largely independent of surface
properties, ideal for detection of liquids, bulk materials, transparent media, …

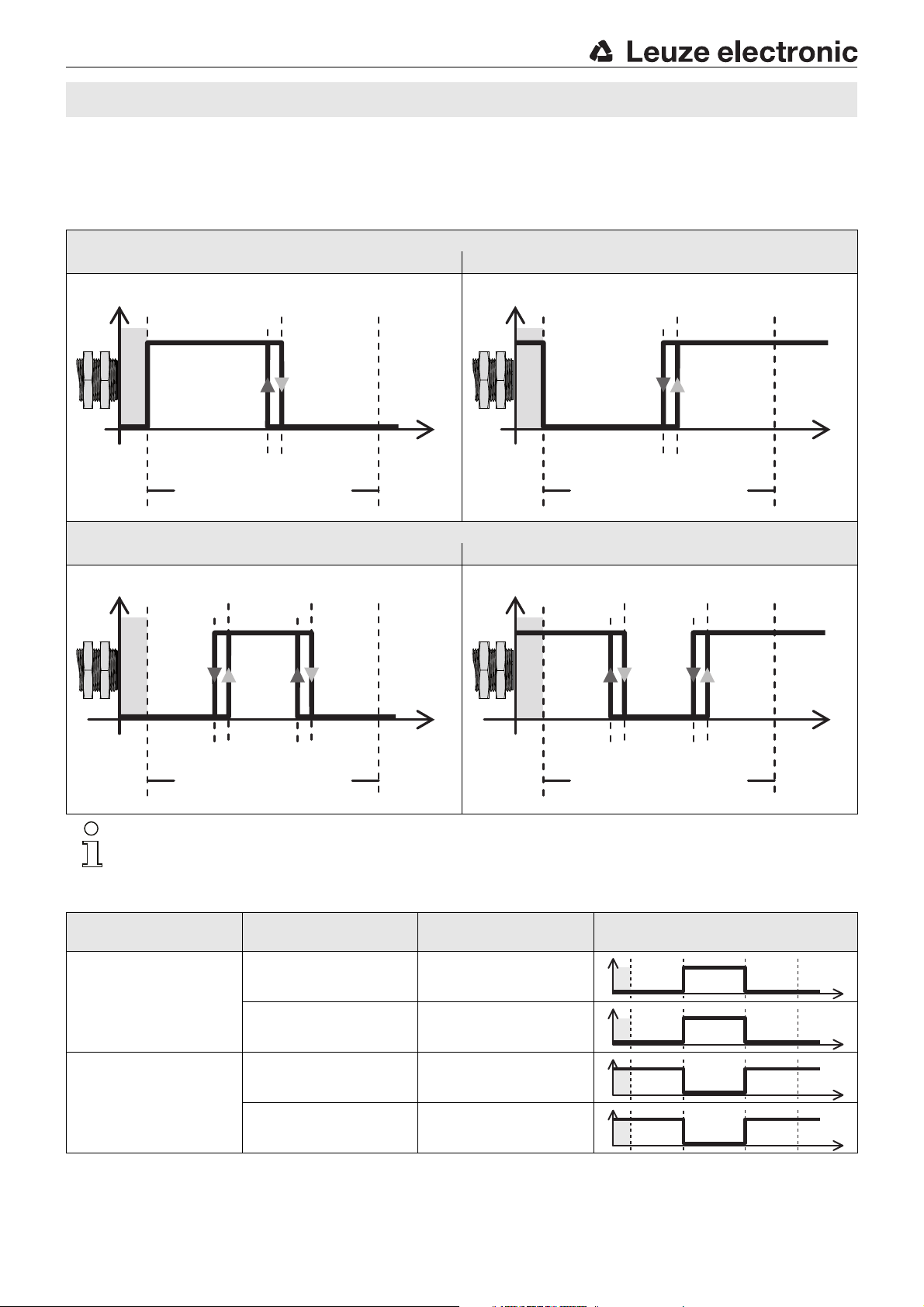

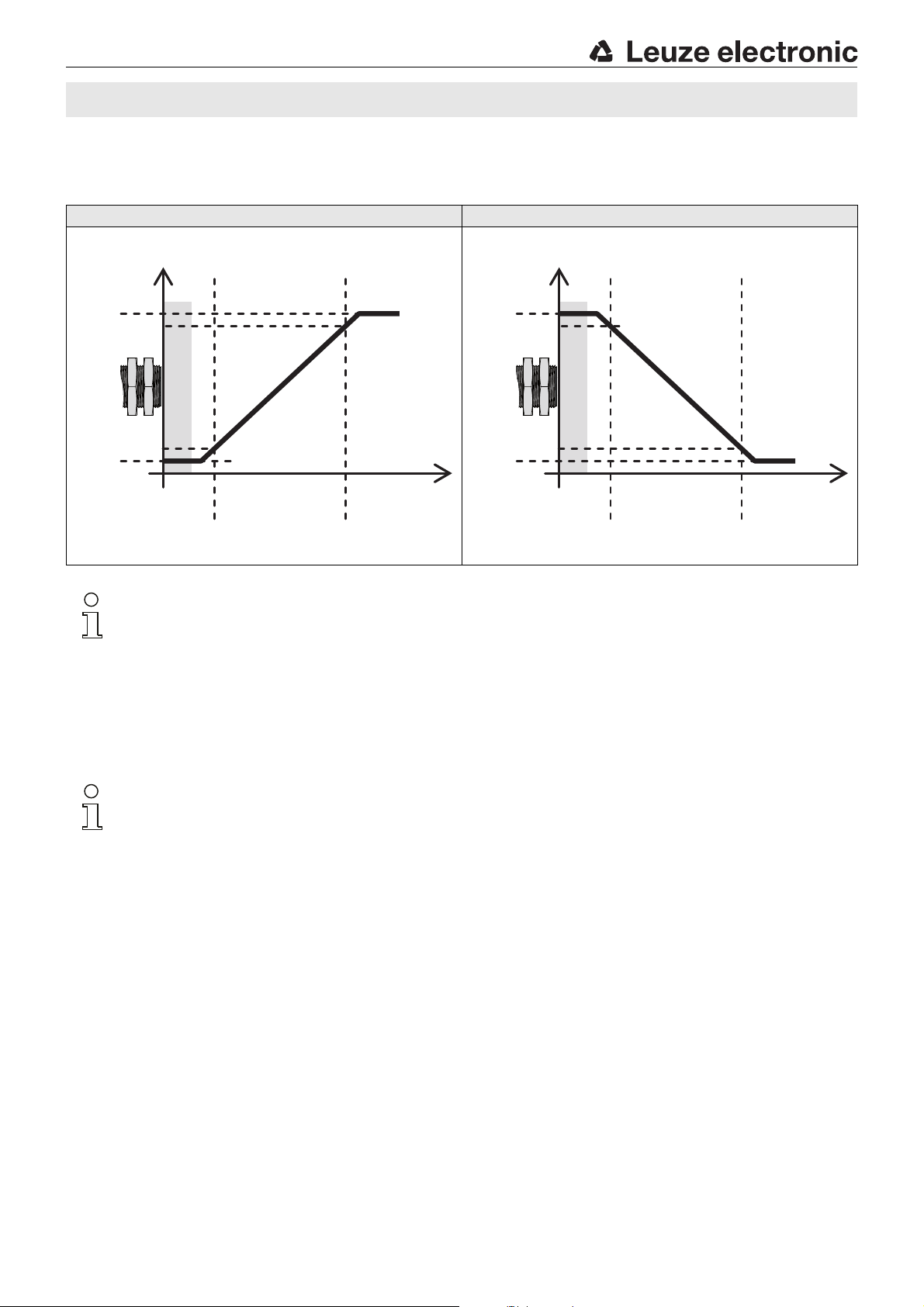

Small dead zone at long scanning range1 analog output 0 … 10V or 4 … 20mA1 switching output (PNP or NPN)NO/NC function reversibleNEW – Both outputs can easily be taught
using a button
NEW – Stable plastic designNEW – Temperature-compensated
scanning range

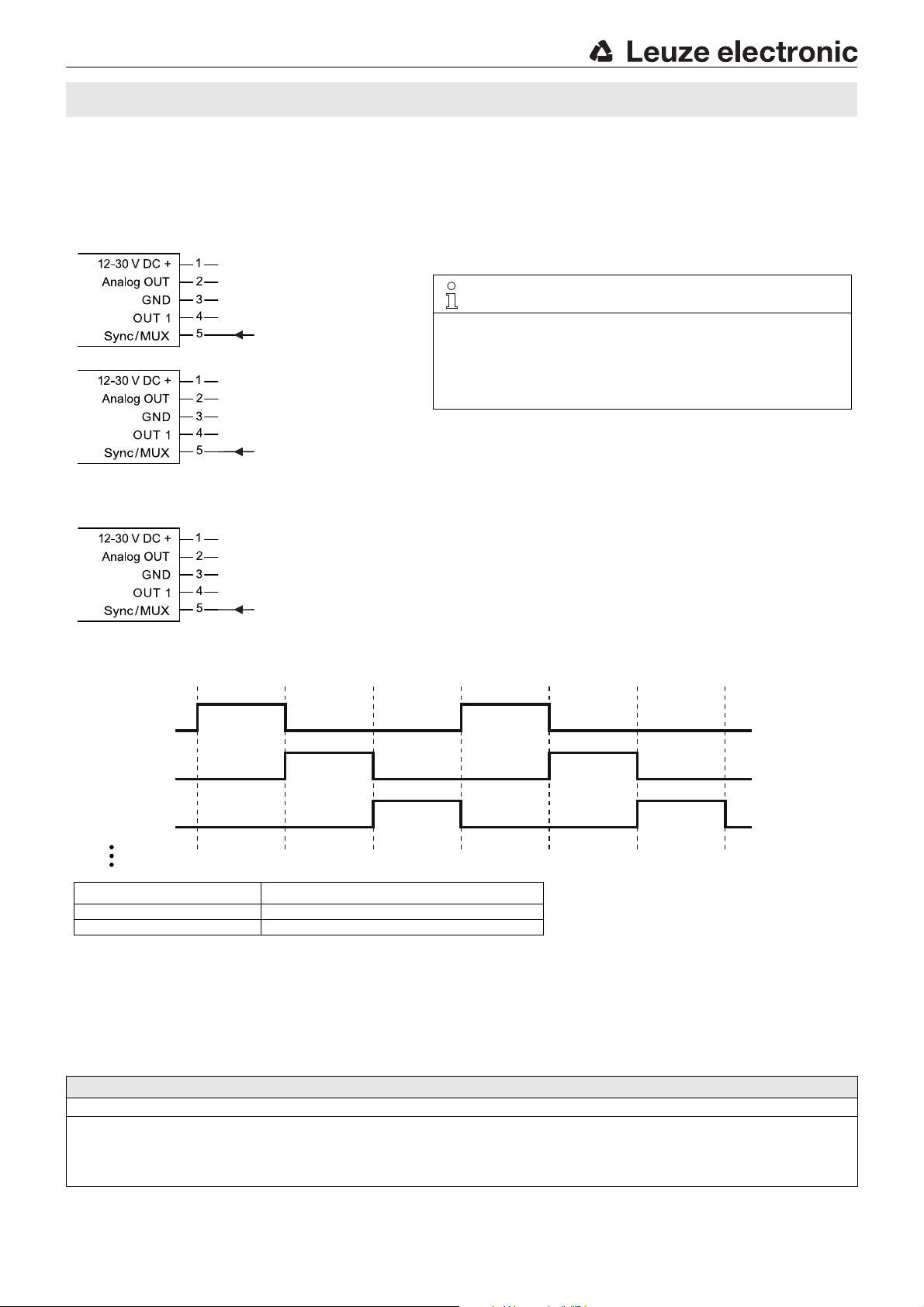

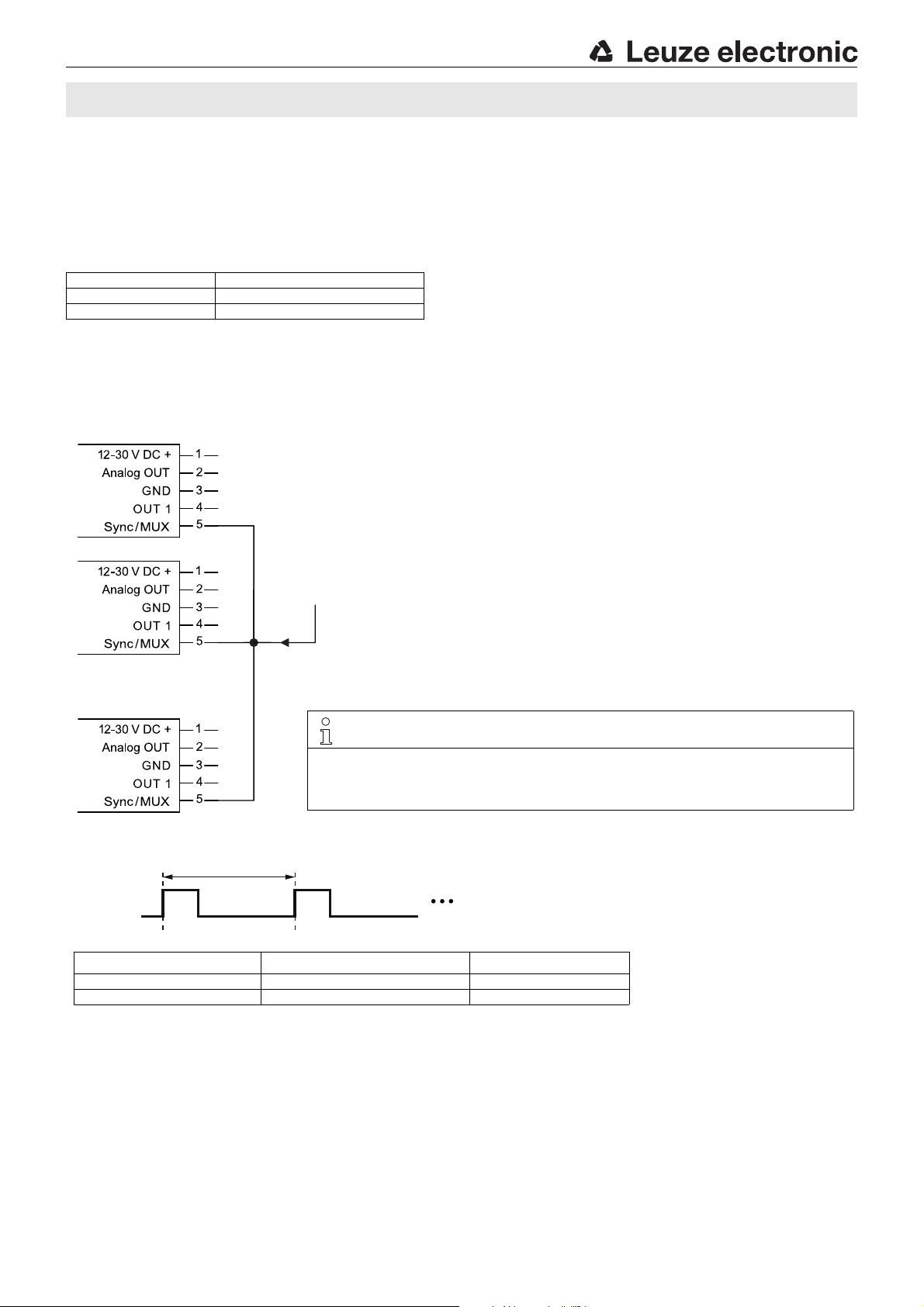

Electrical connection
Accessories:
(available separately)
Mounting systemsCables with M12 connector
(KD …)
A Active sensor surface B Teach-in button C Indicator diodes

We reserve the right to make changes • PAL_DMU330_3500_6000_en_50135826.fm
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen
DMU330-3500…-M12 - 01
DMU330-6000…-M12 - 01
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior (plate 200x 200mm)
0 1000 2000 3000 4000
y1
y2
-400
-200
0
200
400
-300
-100
100
300
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior (rod Ø 25 mm)
y1
y2
-600
-400
0
200
-200
400
600
0 2000 4000 6000
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior (plate 400x 400mm)
y1
y2
-600
-400
0
200
-200
400
600
0 2000 4000 6000
Object distance x [mm]
Width y of the sound cone [mm]
Typ. response behavior (rod Ø 25 mm)
Object distance [mm]
Target (fixed):
plate or rod
Sound cone
= f (α,x)
DMU330
Technical data
Ultrasonic specifications DMU330-3500.3/…-M12 DMU330-6000.3/…-M12
Scanning range Adjustment range 250 … 3500mm 350 … 6000mm Ultrasonic frequency 112kHz 75kHz Typ. opening angle ± 7° ± 9° Resolution 5mm 6mm Direction of beam Axial Axial Reproducibility ± 0.5% Switching hysteresis 1% 4) 1% Analog output accuracy 1% Temperature drift
Timing
Switching frequency 2Hz 1Hz Response time 250ms 500ms Readiness delay 900 ms (analog output),
Electrical data
Operating voltage U Residual ripple ± 5% of U Open-circuit current ≤ 50mA
Analog output
Analog output …/…C…
Load resistance Current output: R
Characteristic curve adjustment 1-point teach: teach in button 2 … 7s,
Analog output error signal Distance too small: approx. 3.8 mA,
Switching output
Switching output / Function …/4… 1 PNP transistor switching output
Output current Max. 100 mA Switching range adjustment 1-point teach: teach-in button 2 … 7s,
Changeover NO/NC Teach-in button > 12s
Indicators
Yellow LED OUT1: object detected Blue LED Analog OUT: object detected Yellow/green or blue/green LED flashing Teach-in / teaching error Green LED Object within the scanning range
Mechanical data
Housing Plastic (PBT) Active surface Epoxy resin, glass fiber reinforced Weight 140g / 170 g
Ultrasonic transducer Piezoceramic
Connection type M12 connector, 5-pin Fitting position Any
Environmental data
Ambient temp. (operation/storage) -20° … +70°C/-20° … +70°C Protective circuit VDE protection class III Degree of protection IP 67 Standards applied EN 60947-5-2 Certifications UL 508, CSA C22.2 No.14-13
1) At 20°C
2) Target: 200mm x 200 mm plate
3) Target: 400mm x 400 mm plate
4) From end value
5) Over the temperature range -20°C … +70°C
6) For UL applications: use is permitted exclusively in Class 2 circuits according to NEC
7) The ceramic material of the ultrasonic transducer contains lead zirconium titanate (PZT)
8) 1=short-circuit and overload protection, 2=polarity reversal protection, 3=wire break and inductive protection
9) These proximity switches shall be used with UL Listed Cable assemblies rated 30V, 0.5 A min, in the field installation, or equivalent (categories: CYJV/CYJV7 or PVVA/PVVA7)
1)
5)
6)
B
250 … 3500mm 2)
1) 4)
4)
1% Analog output: ≤ 5%, Switching output: ≤ 8%
500 ms (switching output)
350 … 6000mm 3)
±0.5% 1)
Analog output: ≤ 5%, Switching output: ≤ 8%
900ms (analog output), 500ms (switching output)
4)
4)
4)
12 … 30V DC (incl. ± 5% residual ripple)
B
1 analog output 4 … 20mA
…/…V…
1 analog output 0 … 10V
Voltage output: RL≥ 2kΩ
2-point teach: teach in button 7 … 12s, Characteristic curve inversion: teach in button > 12s
500 Ω,
L
Distance too large: approx. 11V / approx. 21mA
OUT 1 (pin 4): NO contact preset
…/2… 1 NPN transistor switching output
OUT 1 (pin 4): NO contact preset
2-point teach: teach-in button 7 … 12s
7)
8)
1, 2, 3
6) 9)
Diagrams
DMU330-3500.3/…-M12
400
300
200
100
0
-100
-200
-300
-400 0 1000 2000 3000 4000
DMU330-6000.3/…-M12
y2
y1
Notes
Observe intended use!
This product is not a safety sensor
and is not intended as personnel protection.
The product may only be put into
operation by competent persons.
Only use the product in accor-
dance with its intended use.
DMU330-3500…-M12 - 01 2017/02 DMU330-6000…-M12 - 01
DMU330 Ultrasonic sensors with analog and switching output
Part number code
DMU330-3500 . 3/4VK-M12
Operating principle HTU Ultrasonic sensor, scanning principle, with background suppression DMU Ultrasonic sensor, distance measurement RKU Ultrasonic sensor, retro-reflective ultrasonic sensor
Series 330 330 series, cylindrical short M30 design
Scanning range in mm 3500 250 … 3500 6000 350 … 6000
Equipment .3 Teach button on the sensor
Pin assignment of connector pin 4 / black cable wire (OUT1) 4 PNP output, NO contact preset P PNP output, NC contact preset 2 NPN output, NO contact preset N NPN output, NC contact preset
Pin assignment of connector pin 2 / white cable wire (Analog OUT/OUT2) 4 PNP output, NO contact preset P PNP output, NC contact preset 2 NPN output, NO contact preset N NPN output, NC contact preset C Analog output 4 … 20 mA V Analog output 0 … 10 V
Pin assignment of connector pin 5 / gray cable wire (Sync / MUX) K Synchronization/multiplex input
Connection technology M12 M12 connector, 5-pin
Order guide
The sensors listed here are preferred types; current information at www.leuze.com.
Designation Part no.
Scanning range / switching output / analog output / teach-in
250 … 3500mm / PNP / current output 4 … 20mA / teach button DMU330-3500.3/4CK-M12 50136114 250 … 3500mm / PNP / voltage output 0 … 10V / teach button DMU330-3500.3/4VK-M12 50136112 250 … 3500mm / NPN / current output 4 … 20mA / teach button DMU330-3500.3/2CK-M12 50136115 250 … 3500mm / NPN / voltage output 0 … 10V / teach button DMU330-3500.3/2VK-M12 50136113 350 … 6000mm / PNP / current output 4 … 20mA / teach button DMU330-6000.3/4CK-M12 50136117
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen DMU330-3500…-M12 - 01
DMU330-6000…-M12 - 01
Dead zone
Sensor
OUT1 active Yellow LED ON Green LED OFF
OUT1 not active Yellow LED OFF Green LED ON
Distance
Hysteresis
Switching point
Scanning range
OUT1 not active
Yellow LED OFF
Green LED OFF
OUT1 not active Yellow LED OFF Green LED OFF
Dead zone
Sensor
OUT1 not active Yellow LED OFF Green LED ON
OUT1 active Yellow LED ON Green LED OFF
Distance
Hysteresis
Switching point
Scanning range
OUT1 active
Yellow LED ON
Green LED OFF
OUT1 active Yellow LED ON Green LED OFF
Dead zone
Sensor
OUT1 active Yellow LED ON Green LED OFF
OUT1 not active Yellow LED OFF Green LED ON
Distance
Hysteresis
Scanning range
OUT1 not active
Yellow LED OFF
Green LED OFF
OUT1 not active Yellow LED OFF Green LED OFF
Hysteresis
OUT1 not active Yellow LED OFF Green LED ON
Switching point 1 Switching
point 2
Dead zone
Sensor
OUT1 active Yellow LED ON Green LED OFF
OUT1 not active Yellow LED OFF Green LED ON
Distance
Hysteresis
Scanning range
OUT1 active
Yellow LED ON
Green LED OFF
OUT1 active Yellow LED ON Green LED OFF
Hysteresis
Switching point 1 Switching
point 2
OUT1 active Yellow LED ON Green LED OFF
DMU330
Device functions and indicators – switching output
The sensor has a button for setting switching output OUT1 and analog output Analog OUT. Use the teach button to perform the 1-point teach, the 2-point window-teach and to changeover the switching function (NO contact/NC contact). Device status and switching states for OUT1 are indicated as follows by means of a yellow LED:
Switching output OUT1
1-point teach (1 switching point)
Switching behavior NO contact Switching behavior NC contact
2-point window-teach (2 switching points)
Switching behavior NO contact Switching behavior NC contact
Note!
The switching behavior is not defined in the dead zone.
Switching behavior with 2-point window-teach as a function of the switching function
Switching function
configured as
First taught object
distance
Second taught object
distance
Output switching behavior
Close Far
NO (normally open)
Far Close
Close Far
NC (normally closed)
Far Close
DMU330-3500…-M12 - 01 2017/02 DMU330-6000…-M12 - 01
DMU330 Ultrasonic sensors with analog and switching output
Adjusting the switching points via the teach button
The switching point of the sensor is set to 3500 mm or 6000mm (static 1-point teach) on delivery.
By means of a simple operating procedure, the switching point for the output OUT1 can be individually taught to an arbitrary distance within the scanning range with 1-point teach (static) or 2-point window-teach (static).
Moreover, the output function can be switched from NO contact (NO - normally open) to NC contact (NC - normally closed).
Selecting the output that is to be taught: OUT1 or Analog OUT
1.Press the teach button for ≥2s to activate teach mode. The yellow LED (OUT 1) flashes at 1Hz. While in this state, output OUT 1 can be taught.
2.To teach output Analog OUT, briefly press the teach button again. The blue LED (Analog OUT) now flashes at 1Hz. While in this state, output Analog OUT can be taught.
3.Briefly press the teach button again to toggle between outputs OUT 1 and Analog OUT in this state. The flashing LED indicates
which output is ready for teaching:
yellow LED flashing = OUT 1 ready for teaching, blue LED flashing = Analog OUT ready for teaching.
Teaching output OUT 1
First activate the previously described teach mode for output OUT 1.
1-point teach (static) 2-point window-teach (static)
1. Place object at desired switching distance. 1. First, place object at desired switching distance for switching point 1.
2. To adjust the output OUT1, press the teach button for 2…7s until the yellow LED flashes at 3Hz.
3. Release the teach button to complete the teach event.
The current object distance has been taught as the new switching point.
4. Error-free teach: LED states and switching behavior according to the dia­gram shown above. Faulty teach (object may be too close or too far away – please note scan­ning range): green and yellow LEDs flash at 8Hz until an error-free teach event is performed. The affected output is inactive as long as there is a teaching error.
1) See table "Switching behavior with 2-point window-teach as a function of the switching function"
2. To adjust the output OUT1, press the teach button for 7…12s until the yellow and green LEDs flash alternately at 3Hz.
3. Release the button. The sensor remains in teach mode and the LEDs
continue to flash.
4. Then, place the object at the desired switching distance for switching point 2.
Note:The minimum distance between the switching points is a s fo llo ws:
5. Briefly press the teach button again to complete the teach event.
The switching window was taught in.
6. Error-free teach: LED states and switching behavior according to the diagram shown above. Faulty teach (object may be too close or too far away – please note scan­ning range): green and yellow LEDs flash at 8Hz until an error-free teach event is performed.
scanning range of 3500mm:350mm scanning range of 6000mm:600mm
1)
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen DMU330-3500…-M12 - 01
DMU330-6000…-M12 - 01
DMU330
Adjusting the switching function (NC/NO) via the teach button
The switching function of the sensor is preset as follows on delivery:
OUT 1: NO contact
The output function can be switched from NO contact (NO - normally open) to NC contact (NC - normally closed) and vice versa. If the switching function is changed, the switching output is changed to the opposite state (toggled).
First activate the previously described teach mode for output OUT 1.
Changeover of the switching function
1. To change the switching function of output OUT 1, press the teach button for longer than 12s. The current state of output OUT 1 is frozen during the adjustment process.
2. The green and yellow LEDs flash alternately at 3Hz.
If the yellow LED is ON afterwards, output OUT 1 functions as a normally open contact (NO). If the yellow LED is OFF afterwards, output OUT 1 functions as a normally closed contact (NC).
DMU330-3500…-M12 - 01 2017/02 DMU330-6000…-M12 - 01
Dead zone
Sensor
Error
Approx.
11V
Approx.
21mA
Start point 0V
4mA
Object distance
Remote error: Object outside of the measurement range
Error
Approx.
3.8mA
End point 10V
20mA
Measurement range
Close error:
Object outside of
the measurement range
Object within measurement range
Blue LED ON
Dead zone
Sensor
Object distance
Error
Approx.
11V
Approx.
21mA
Error
Approx.
3.8mA
Remote error: Object outside of the measurement range
Close error:
Object outside of
the measurement range
Start point 10V
20mA
End point 0V
4mA
Measurement range
Object within measurement range
Blue LED ON
DMU330 Ultrasonic sensors with analog and switching output
Device functions – analog output
In measurement operation, the blue LED displays the behavior of analog output Analog OUT.
Analog output Analog OUT
Rising characteristic curve Falling characteristic curve
Note!
When setting the analog output (teach) via the teach button, one rising characteristic curve is always taught; with 2-point teach, independent of the selected object distances near/far. The characteristic output curve can be inverted, however.
Adjusting the analog output via the teach button
On delivery, the characteristic output curve of the sensor is set as a rising characteristic curve with spread over the entire scanning range: 4 … 20mA or 0 … 10V corresponds to an object distance of 250 … 3500mm or 350 … 6000mm, respectively.
The analog output can be set by means of 1-point teach or 2-point teach.
Note!
When setting the analog output (teach) via the teach input, one rising characteristic curve is always taught; with 2-point teach, independent of the selected object distances near/far. The characteristic output curve can be inverted, however.
Selecting the output that is to be taught: OUT1 or Analog OUT
1.Press the teach button for ≥2s to activate teach mode. The yellow LED (OUT 1) flashes at 1Hz. While in this state, output OUT 1 can be taught.
2.To teach output Analog OUT, briefly press the teach button again. The blue LED (Analog OUT) now flashes at 1Hz. While in this state, output Analog OUT can be taught.
3.Briefly press the teach button again to toggle between outputs OUT 1 and Analog OUT in this state. The flashing LED indicates
which output is ready for teaching:
yellow LED flashing = OUT 1 ready for teaching, blue LED flashing = Analog OUT ready for teaching.
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen DMU330-3500…-M12 - 01
DMU330-6000…-M12 - 01
DMU330
1-point teach of the analog output
First activate the previously described teach mode for output Analog OUT.
By selecting an object distance within the scanning range, the characteristic curve of the analog output can be adjusted.
If an object is located outside of the taught measurement range, an error signal is output. A different analog signal is output here by the sensor for the errors "distance too close: object outside of the measurement range" and "distance too far: object outside of the measurement range".
1-point teach - rising characteristic curve
1. Place object at desired distance for the end point of the measurement range.
Note:The minimum object distance for the end of the measurement range is as follows:
2. To adjust analog output Analog OUT, press the teach button for 2…7s until the blue and green LEDs flash simultaneously at 3Hz.
3. Release the button. The characteristic curve with plot rising from the start of the range (50 mm or 150 mm) to the set object distance was taught in.
4. Error-free teach: LED states acc. to "Technical data" -> "Indicators". Faulty teach: green and blue LEDs flash at 8Hz until an error-free teach is performed.
2-point teach of the analog output
First activate the previously described teach mode for output Analog OUT.
By selecting 2 object distances within the scanning range, the characteristic curve of the analog output can be adjusted.
If an object is located outside of the taught measurement range, an error signal is output. A different analog signal is output here by the sensor for the errors "distance too close: object outside of the measurement range" and "distance too far: object outside of the measurement range".
scanning range of 3500mm:600 mm scanning range of 6000mm:950 mm
2-point teach - rising characteristic curve
1. Position the object at the first desired distance (near or far).
2. To adjust analog output Analog OUT, press the teach button for 7 … 12s until the blue and green LEDs flash alternately at 3Hz.
3. Release the button. The sensor remains in teach mode and the LEDs continue to flash.
4. Then position the object at the second desired distance (far or near).
Note:the minimum object distance between the start and end point of the measurement range
5. Briefly press the teach button again to complete the teach event.
The characteristic curve with rising plot from the near to the far object distance was taught in.
6. Error-free teach: LED states acc. to "Technical data" -> "Indicators". Faulty teach: green and blue LEDs flash at 8Hz until an error-free teach is performed.
for a scanning range of 3500mm is:350mm for a scanning range of 6000mm is:600mm
Inverting the analog output (falling/rising characteristic curve)
First activate the previously described teach mode for output Analog OUT.
The characteristic curve of the analog output can be inverted, e.g., if a falling characteristic output curve is desired.
Inverting the characteristic curve
1. To invert the characteristic curve of the analog output Analog OUT, press the teach button for >12s until the blue and green LEDs flash alternately.
2. Release the button. The characteristic curve plot was inverted. The blue LED indicates the current setting of the analog output: ON = rising characteristic curve OFF = falling characteristic curve
DMU330-3500…-M12 - 01 2017/02 DMU330-6000…-M12 - 01
Sensor 2 Sensor 1Sensor n
NOTE
Please make certain that the wiring is performed according to the connection diagram. The Sync/MUX pin 5 on all sensors in the network must be connected to one output of the control. Generation of the synchronization signal for all sensors in the network occurs via the control.
+5VDC synchronization pulse from the control
PLC
t
sync
t
sync
t
cycle
0 V
+5
V
Scanning range Sync impulse duration t
sync
Cycle time t
cycle
250 … 3500mm 0.5 … 5ms 35ms 350 … 6000mm 0.5 … 1ms 60ms
DMU330 Ultrasonic sensors with analog and switching output
Synchronization of multiple DMU330 ultrasonic sensors
If adjacent ultrasonic sensors receive the signals of other sensors, so-called crosstalk occurs, which leads to faulty measurement results. Through temporal synchronization of the adjacent sensors, this can be avoided. Via the Sync/MUX input, the DMU330 ultrasonic sensors can be synchronized in 2 different ways:
Synchronous operation
In this operating mode the mutual interference of adjacent sensors can be avoided; a minimum mounting distance between the sensors is to be maintained, however:
Working distance Minimum mounting distance
< 1,500mm 100mm
1500mm 50 mm
Sensors of the same type are wired together in a network according to the following diagram. A synchronization pulse from the control activates synchronous operation.
The devices work in synchronous operation with a simultaneous transmission pulse. The response time of the individual sensors in the network corresponds approximately to that of a single sensor.
Synchronous operation wiring schematic
Timing diagram for synchronous operation
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen DMU330-3500…-M12 - 01
DMU330-6000…-M12 - 01
Sensor 2 Sensor 1Sensor n
NOTE
Please make certain that the wiring is performed according to the con­nection diagram.
The Sync/MUX pin 5 of each sensor must be connected with a separate output of the control. The control generates the time-delayed multiplex signals for all sensors.
+5VDC
MUX pulse from the control
Time-delayed +5VDC MUX pulse from the control
Time-delayed +5VDC MUX pulse from the control
Scanning range Response time of the switching/analog output t
resp
250 … 3500mm 250ms 350 … 6000mm 500ms
DMU330
Multiplex operation
In this operating mode the mutual interference of adjacent sensors can be reliably avoided. For this purpose, each sensor is wired with a separate output of the control.
The devices operate in multiplex operation with a cyclically time-delayed transmission pulse and are switched to a passive state out­side of the active phase.
Multiplex operation wiring schematic
Timing diagram for multiplex operation
t
Sensor 1
Sensor 2
Sensor 3
Resetting to factory settings
The sensor can be reset to the factory setting (1 switching point at 3500mm or 6000 mm, rising characteristic curve with spread over the entire scanning range).
resp
t
resp
t
resp
t
resp
t
resp
t
resp
Resetting to factory settings
1. When switching on the supply voltage (during power-on), press the teach button for >5s.
2. Release the button. The green, yellow and blue LEDs flash alternately and very quickly for a brief time.
The sensor was reset to the factory setting:
switching output: 1 switching point at 3500mm or 6000 mm (1-point teach, static), analog output: 4 … 20mA or 0 … 10 V corresponds to an object distance of 250 … 3500 mm or 350 … 6000 mm, respectively.
DMU330-3500…-M12 - 01 2017/02 DMU330-6000…-M12 - 01
