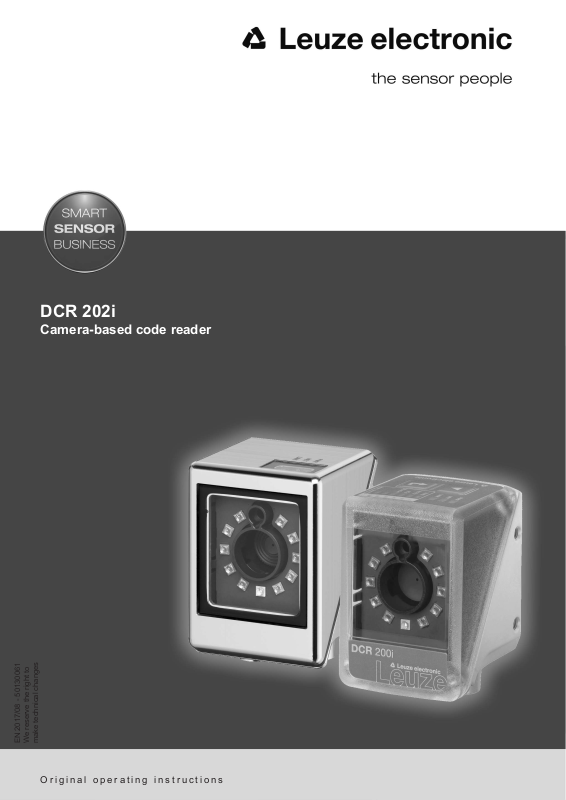

Leuze DCR 202i Operating Instructions

Download

DCR 202i

Camera-based code reader

EN 2017/08 - 50130061

We reserve the right to

make technical changes

O r i g i n a l o p e r a t i n g i n s t r u c t i o n s

Leuze electronic DCR 202i 2

Table of contents

1 About this document ............................................................................................6

1.1 Used symbols and signal words .............................................................................................6

2 Safety .....................................................................................................................8

2.1 Intended use ...........................................................................................................................8

2.2 Foreseeable misuse ............................................................................................................... 8

2.3 Competent persons ................................................................................................................ 9

2.4 Disclaimer ...............................................................................................................................9

3 Device description ..............................................................................................10

3.1 Device overview.................................................................................................................... 10

3.1.1 About the DCR200i code reader ......................................................................................10

3.1.2 Performance characteristics..............................................................................................10

3.1.3 Accessories .......................................................................................................................11

3.2 Device construction .............................................................................................................. 12

3.3 Connection technology .........................................................................................................13

3.4 Indicators and operational controls....................................................................................... 13

3.4.1 LED indicators ...................................................................................................................14

3.4.2 Bar graph display ..............................................................................................................16

3.4.3 Control buttons ..................................................................................................................16

4 Functions.............................................................................................................18

4.1 Camera operating modes .....................................................................................................18

4.1.1 Single trigger mode ...........................................................................................................18

4.1.2 Reading gate control .........................................................................................................18

4.1.3 Burst mode ........................................................................................................................18

4.1.4 Presentation mode ............................................................................................................19

4.1.5 Continuous mode ..............................................................................................................19

4.2 Reference code comparison................................................................................................. 19

4.3 Code quality.......................................................................................................................... 20

4.4 Leuze webConfig tool ...........................................................................................................21

5 Applications ........................................................................................................22

5.1 Reading of 1D-codes ............................................................................................................22

5.2 Reading of 2D-codes ............................................................................................................23

5.3 Code reading with polarization filter...................................................................................... 23

5.4 Code reading with diffusor foil .............................................................................................. 24

6 Mounting..............................................................................................................25

6.1 Determining the mounting position of the code reader .........................................................25

6.1.1 Selecting a mounting location ...........................................................................................25

6.1.2 Avoiding total reflection .....................................................................................................26

6.1.3 Determining the reading distance...................................................................................... 26

6.2 Mounting the code reader..................................................................................................... 30

6.2.1 Mounting with M4 fastening screws ..................................................................................30

6.2.2 Mounting with the BTU320M-D12 mounting system ........................................................30

6.2.3 Mounting with the BT320M mounting bracket ..................................................................31

6.2.4 Mounting with the BTU320M-D12-RL70 mounting bracket..............................................31

6.3 Replace housing hood ..........................................................................................................31

6.4 Attaching the diffusor foil ...................................................................................................... 32

Leuze electronic DCR 202i 3

Table of contents

7 Electrical connection..........................................................................................34

7.1 Overview............................................................................................................................... 34

7.2 PWR/SWIO – voltage supply / RS232/RS422 / switching inputs/outputs......................... 35

7.3 HOST - Host input / Ethernet................................................................................................ 38

7.4 Ethernet star topology........................................................................................................... 38

7.5 Cable lengths and shielding.................................................................................................. 40

7.6 Connecting code reader to fieldbus ......................................................................................40

7.7 Connecting code reader to MA150 connection unit............................................................. 40

8 Starting up the device – Basic configuration...................................................42

8.1 Measures to be performed prior to the initial commissioning ............................................... 42

8.2 Starting the device ................................................................................................................42

8.3 Setting the communication parameters ................................................................................43

8.3.1 Manually setting the IP address ........................................................................................43

8.3.2 Automatically setting the IP address .................................................................................44

8.3.3 Address Link Label............................................................................................................44

8.3.4 Ethernet host communication............................................................................................45

8.3.5 RS232/RS422 communication ........................................................................................46

8.3.6 FTP client ..........................................................................................................................46

8.4 Configuration via configuration codes................................................................................... 46

8.5 Activating device functions ................................................................................................... 47

8.6 Performing further settings ................................................................................................... 48

8.6.1 Decoding and processing the read data............................................................................ 48

8.6.2 Control of the decoding .....................................................................................................48

8.6.3 Activating camera operating mode....................................................................................49

8.6.4 Control of the switching outputs ........................................................................................49

8.6.5 Optimizing reading performance .......................................................................................50

8.6.6 Transfer configuration data ...............................................................................................50

9 Commissioning – Leuzeelectronic webConfig tool........................................51

9.1 System requirements............................................................................................................ 51

9.2 Start webConfig tool ............................................................................................................. 51

9.3 Short description of the webConfigtool ................................................................................52

9.3.1 Change operating mode....................................................................................................53

9.3.2 Menu options of the webConfig tool ..................................................................................53

9.3.3 CONFIGURATION menu ..................................................................................................54

9.3.4 Configuring applications with the wizard ...........................................................................55

10 Interfaces – Communication ..............................................................................56

10.1 Online commands................................................................................................................. 56

10.1.1 Overview of commands and parameters........................................................................... 56

10.1.2 General online commands ................................................................................................56

10.1.3 Online commands for system control ................................................................................61

10.2 XML-based communication ..................................................................................................61

11 Care, maintenance and disposal .......................................................................62

12 Diagnostics and troubleshooting ......................................................................63

13 Service and support ...........................................................................................64

13.1 What to do should servicing be required? ............................................................................ 64

Leuze electronic DCR 202i 4

Table of contents

14 Technical data .....................................................................................................65

14.1 General specifications .......................................................................................................... 65

14.2 Optical data........................................................................................................................... 66

14.2.1 Reading performance........................................................................................................67

14.2.2 Code specifications ...........................................................................................................67

14.3 Dimensioned drawings ......................................................................................................... 67

14.4 Dimensioned drawings - Accessories................................................................................... 68

15 Order guide and accessories.............................................................................72

15.1 Nomenclature ....................................................................................................................... 72

15.2 Type overview....................................................................................................................... 72

15.3 Optical accessories............................................................................................................... 73

15.4 Cables accessories............................................................................................................... 73

15.5 Other accessories................................................................................................................. 74

16 EC Declaration of Conformity ............................................................................76

17 Appendix..............................................................................................................77

17.1 ASCII character set............................................................................................................... 77

17.2 Code samples....................................................................................................................... 80

17.3 Configuration via configuration codes................................................................................... 82

17.4 License terms........................................................................................................................ 83

Leuze electronic DCR 202i 5

1 About this document

1.1 Used symbols and signal words

Tab.1.1: Warning symbols and signal words

Symbol indicating dangers to persons

NOTE Signal word for property damage

Indicates dangers that may result in property damage if the measures for danger avoidance are not followed.

CAUTION Signal word for minor injuries

Indicates dangers that may result in minor injury if the measures for danger avoidance are not followed.

Tab.1.2: Other symbols

Symbol for tips

Text passages with this symbol provide you with further information.

About this document

Symbol for action steps

Text passages with this symbol instruct you to perform actions.

Tab.1.3: Terms and abbreviations

CMOS Semiconductor process for implementing integrated

circuits

(Complementary Metal-Oxide-Semiconductor)

DCR Camera-based code reader

(Dual Code Reader)

EMC Electromagnetic compatibility

EN European standard

FE Functional earth

FOV Reading field of the code reader (Field of View)

IO or I/O Input/Output

IP address Network address, which is based on the Internet

Protocol (IP)

LED LED

(Light Emitting Diode)

MAC address Hardware address of a device in the network

(Media Access Control address)

PCRE Regular expressions for reference code comparison

(Perl Compatible Regular Expressions)

PELV Protective extra low voltage with reliable disconnec-

tion

(Protective Extra Low Voltage)

ROI Region of interest of the code reader (Region of In-

terest)

PLC Programmable Logic Control

Leuze electronic DCR 202i 6

About this document

TCP/IP Internet protocol family (Transmission Control Pro-

tocol/Internet Protocol)

UDP Network transmission protocol (User Datagram Pro-

tocol)

UL Underwriters Laboratories

Leuze electronic DCR 202i 7

2 Safety

This code reader was developed, manufactured and tested in accordance with the applicable safety standards. It corresponds to the state of the art.

2.1 Intended use

The code readers of the DCR200i series are camera-based code readers for all commonly used bar codes, stacked codes and DataMatrix codes as well as for codes of the GS1DataBar family.

Areas of application

The code readers of the DCR200i series are especially designed for the following areas of application:

• Packaging systems

• Mounting/handling technology

• Analysis technology

Observe intended use!

The protection of personnel and the device cannot be guaranteed if the device is operated in a manner not complying with its intended use.

Ä Only operate the device in accordance with its intended use. Ä LeuzeelectronicGmbH+Co.KG is not liable for damages caused by improper use. Ä Read these operating instructions before commissioning the device. Knowledge of the oper-

Safety

CAUTION

ating instructions is an element of proper use.

NOTICE

Integrated illumination!

The code readers of the DCR 200i series correspond to the following classification with respect to the integrated illumination:

Ä Illumination red: risk group0 (exempt group) in acc. with EN62471

NOTICE

Comply with conditions and regulations!

Ä Observe the locally applicable legal regulations and the rules of the employer's liability insur-

ance association.

2.2 Foreseeable misuse

Any use other than that defined under "Intended use" or which goes beyond that use is considered improper use.

In particular, use of the device is not permitted in the following cases:

• in rooms with explosive atmospheres

• in circuits which are relevant to safety

• in food processing (except device with stainless steel housing)

• for medical purposes

NOTICE

Do not modify or otherwise interfere with the device!

Ä Do not carry out modifications or otherwise interfere with the device.

The device must not be tampered with and must not be changed in any way.

Ä The device may only be opened for exchanging the housing hood.

Stainless stainless steel housings must not be opened.

Ä There are no user-serviceable parts inside the device. Ä Repairs must only be performed by Leuze electronic GmbH + Co. KG.

Leuze electronic DCR 202i 8

2.3 Competent persons

Connection, mounting, commissioning and adjustment of the device must only be carried out by competent persons.

Prerequisites for competent persons:

• They have a suitable technical education.

• They are familiar with the rules and regulations for occupational safety and safety at work.

• They are familiar with the operating instructions for the device.

• They have been instructed by the responsible person on the mounting and operation of the device.

Certified electricians

Electrical work must be carried out by a certified electrician.

Due to their technical training, knowledge and experience as well as their familiarity with relevant standards and regulations, certified electricians are able to perform work on electrical systems and independently detect possible dangers.

In Germany, certified electricians must fulfill the requirements of accident-prevention regulations BGV A3 (e.g. electrician foreman). In other countries, there are respective regulations that must be observed.

2.4 Disclaimer

LeuzeelectronicGmbH+Co.KG is not liable in the following cases:

• The device is not being used properly.

• Reasonably foreseeable misuse is not taken into account.

• Mounting and electrical connection are not properly performed.

• Changes (e.g., constructional) are made to the device.

Safety

Leuze electronic DCR 202i 9

3 Device description

3.1 Device overview

Device description

3.1.1

About the DCR200i code reader

The code readers of the DCR200i series are camera-based code readers for all commonly used bar codes, stacked codes and Data Matrix codes (e.g. Code128, EAN8/13, ECC200, QR etc.) as well as for codes of the GS1DataBar family.

The extensive options for device configuration via control buttons, configuration codes or software enable adaptation to a multitude of reading tasks. The high resolution in combination with a very high depth of field as well as the compact design make the device ideal for use in packaging machines.

Code readers of the DCR200i series perform numerous tasks in industrial code reading such as:

• Omnidirectional code reading

• Reading of codes while at a standstill or in motion

• Manual reading by holding up codes

• In packaging machines

• In automatic handling and testing machines

The DCR2xxi code readers are available in several optics models:

• DCR2xxi with HighDensity optics (N-optics)

• DCR2xxi with MediumDensity optics (M optics)

• DCR2xxi with LowDensity optics (F optics)

The DCR2xxi code readers are operated as a “stand-alone” single device with individual IP address in an Ethernet star topology.

Information on technical data and characteristics: see chapter 14 "Technical data".

3.1.2

Performance characteristics

• Decoding of 1D-, stacked- and 2D-codes

• Maximum depth of field and reading distance of approx. 40mm…360mm

• High object speed and decoding performance of up to 7m/s with 10decodings

• Reference code comparison

• Quality evaluation of 1D bar codes and 2D-codes in accordance with ISO/IEC15415 and ISO/ IEC15416

• Integrated process interfaces RS232, RS422 and Ethernet

The MA2xxi modular connection units are available for connecting to other fieldbus systems, e.g., PROFIBUS, PROFINET, EtherCAT, etc.

• Four freely programmable switching inputs/outputs for the activation or signaling of states:

• 1 switching input

• 1 switching output

• 2 switching inputs/outputs

• Optional: Robust stainless steel housing for use in the food and pharmaceutical industry; with lens cover made of plastic or glass

• Integrated red LED illumination for illumination of the rectangular read field

• Green feedback LED for direct acknowledgment of whether the read process was successful

• Two control buttons for intuitive operation without PC

• Industrial design: degree of protection IP65 acc. to EN60529 (Device with stainless steel housing: degree of protection IP67/69K)

• Diverse mounting options with mounting threads on rear and side surfaces

Leuze electronic DCR 202i 10

Device description

• Variously coded M12 connections for unique assignment of the connections:

• Voltage supply, RS232/RS422, switching inputs/outputs

• Ethernet connection

• webConfig, a web-based configuration tool for configuration of all device parameters

No additional configuration software necessary

• Installation wizard for simple configuration in just a few steps

• Integrated teach functions for automatic adjustment of the exposure time, of the code types, and of the number of digits and for teaching a reference code

3.1.3

Accessories

Special accessories are available for the code reader (see chapter 15 "Order guide and accessories"):

• Mounting systems for mounting

• Housing hood with integrated protective screen made of glass for increased protection against scratches or welding sparks

• Housing hood with integrated linear polarisation filter – avoids additional interfering reflections

• Diffusor foil that can be affixed to housing hoods, with plastic or glass screen. The diffusor foil reduces interfering reflections

• Ready-made connection and interconnection cables for M12 connectors

• External illumination and mounting bracket for external illumination

For further information, contact your responsible Leuzeelectronic subsidiary or Leuzeelectronic customer service (see chapter 13 "Service and support")

• MA2xxi modular connection units for connection to fieldbus systems (see chapter 7.6 "Connecting code reader to fieldbus")

• MA150 modular connection unit for decentralized distribution of the signals (see chapter 7.7 "Connecting code reader to MA150 connection unit")

Leuze electronic DCR 202i 11

3.2 Device construction

1 1

Device description

1 Lens 2 Control panel with indicator LEDs, control buttons, bar graph display

Device with stainless steel housing: indicator LEDs 3 LEDs for illumination (red light) 4 M4 mounting thread 5 Device housing 6 Housing hood 7 M12 connection technology 8 Feedback LED (green)

Fig.3.1: Device construction

Leuze electronic DCR 202i 12

3.3 Connection technology

PWR / SWIO HOST

1 2

The device is connected using variously coded M12 connectors:

• A-coded, 12-pin, M12 connection for operating voltage, switching inputs/outputs, RS232/RS422 interface

• D-coded, 4-pin, M12 connection for the Ethernet connection

Device description

1 PWR/SWIO, M12 plug, 12-pin, A-coded 2 HOST, M12 socket, 4-pin, D-coded

Fig.3.2: Electrical connections

NOTICE

Ready-made cables are available for all connections (see chapter 15.4 "Cables accessories").

NOTICE

Shielding connection!

Ä The shielding is connected via the M12 connector housing.

3.4 Indicators and operational controls

NOTICE

Devices with stainless steel housing do not have any control buttons.

Devices with stainless steel housing do not have a bar graph indicator.

The device is equipped with the following indicators and operational controls:

• Feedback LED

The green feedback LED indicates whether a read process was successful. This function is activated upon shipment of the device from the factory and can be deactivated via the webConfig tool.

Upon successful decoding, the feedback LED illuminates briefly (GOOD READ, MATCH).

• Three indicator LEDs (PWR, NET, LINK)

• Six-level bar graph display for function selection and display of the reading quality (SIGNALQUALITY) – not with devices with stainless steel housing

• Two control buttons – not on devices with stainless steel housing

Leuze electronic DCR 202i 13

1 1

1 LED indicators: PWR, NET, LINK 2 Bar graph display 3 Control buttons

Device description

Fig.3.3: Layout of indicator and control panel

3.4.1

LED indicators

PWR LED

Tab.3.1: PWR indicators

Color State Description

--- OFF Device off

Green Flashing Device ok

ON (continuous light) Device ok

Orange ON (continuous light) Service mode

No operating voltage

• Initialization phase

• Code reading not possible

• Operating voltage applied

• Self test running

• Code reading possible

• Self test successfully finished

• Device monitoring active

• Code reading possible

• No data on the host interface

Flashing Wave function (synchronous with NET LED)

• Code reading possible

Leuze electronic DCR 202i 14

Color State Description

Red Flashing Device ok, warning set

• Code reading possible

• Temporary operating fault

ON (continuous light) Device error/parameter enable

No code reading possible

NET LED

Tab.3.2: NET indicators

Color State Description

--- OFF No operating voltage

• No communication possible

• Ethernet protocols not released

Green Flashing Initialization of the device

Establishing communication

ON (continuous light) Operation ok

• Network mode ok

• Connection and communication to Host established

Device description

Red Flashing Communication error

• Temporary connection error

• If DHCP active: No IP address could be obtained

ON (continuous light) Network error

• No connection established

• No communication possible

NOTICE

NET indicator only for Ethernet communication!

The NET indicator refers only to the Ethernet communication, not to the RS232/RS422.

LINK LED

Tab.3.3: LINK indicators

Color State Description

Green ON (continuous light) Ethernet connected (LINK)

Yellow Flashing Data communication (ACT)

Leuze electronic DCR 202i 15

Device description

3.4.2

Bar graph display

Function selection

NOTICE

Devices with stainless steel housing do not have any control buttons.

Devices with stainless steel housing do not have a bar graph indicator.

The following functions are selected and displayed via the bar graph display (see chapter 8.5 "Activating device functions"):

• TRIG: Trigger function for activating a read process

• AUTO: Auto setup function for determining the optimum read setting

• ADJ: Adjustment function for aligning the device

• TEACH: Teach function for teaching a reference code

The individual functions are selected and activated with the control buttons.

• Select function with the navigation button : The function LED flashes.

• Activate function with the enter button : The function LED illuminates continuously.

NOTICE

A preselected function (flashing LED) does not yet have any influence on the functionality. If no button is pressed for a longer period of time, flashing of the LED is ended automatically by the device.

3.4.3

NOTICE

If you activate the TRIG, AUTO, ADJ or TEACH function via the control buttons, the device accepts no commands via the process interface. Process mode is thereby interrupted.

NOTICE

On devices with stainless steel housing, it is not possible to select functions using the control buttons.

Control buttons

The functions of the bar graph display are controlled via the control buttons.

NOTICE

Devices with stainless steel housing do not have any control buttons.

Devices with stainless steel housing do not have a bar graph indicator.

NOTICE

In the Service operating mode (which is set using the webConfig tool), the code reader cannot be operated using the control buttons.

•  –Navigation button: Scroll through the functions in the bar graph display from left to right.

•  –Navigation button: Scroll through the functions in the bar graph display.

Leuze electronic DCR 202i 16

NOTICE

Example: Activation of the trigger

Ä Press the navigation button .

ð The TRIG LED flashes and the Trigger function is preselected.

Ä Press the enter button .

ð The TRIG LED illuminates continuously. ð The configured Trigger function (e.g., reading gate control) is started.

Device description

Leuze electronic DCR 202i 17

4 Functions

A B C D

B C D E F G H A B DC

This chapter describes the functions of the code reader:

• Camera operating modes (see chapter 4.1 "Camera operating modes")

• Reference code comparison (see chapter 4.2 "Reference code comparison")

• Code quality (see chapter 4.3 "Code quality")

• webConfig tool (see chapter 4.4 "Leuze webConfig tool")

4.1 Camera operating modes

The camera operating mode defines how the code reader starts a read process and decodes the codes if a code is located in the read field.

Functions

4.1.1

4.1.2

4.1.3

Single trigger mode

In the "Single trigger mode" camera operating mode, the code reader captures one image and attempts to decode it. Under uniform conditions, this camera operating mode makes fast decoding possible.

Reading gate control

The "Reading gate control" camera operating mode is activated upon shipment from the factory. The reading gate control opens a time window for the read process in the code reader – the reading gate. In this time window, the code reader can capture and decode one or more codes.

Burst mode

In the "Burst mode" camera operating mode, the code reader captures multiple images in quick succession after activation by a trigger signal. The maximum number of image acquisitions can be set.

• Decoding occurs following image capture, thereby allowing the codes to be detected more quickly.

• As soon as the decoding result corresponds to the settings, the decoding stops the capture of the remaining images.

1 Continuous image capture 2 Decoding 3 Output of the read data

Fig.4.1: "Burst mode" camera operating mode

Leuze electronic DCR 202i 18

Functions

4.1.4

4.1.5

Presentation mode

In the "Presentation mode" camera operating mode, the code reader is in the idle state in a kind of wait mode.

In the event of a change in the image area, e.g., by holding up a code, the code reader captures images with illumination (as previously configured) until a code is read successfully. The code reader then switches back to the wait mode and the illumination switches off after a few seconds.

Reading the same code multiple times

To prevent the same code from being read and output repeatedly in the "Presentation mode" camera operating mode, a delay time can be defined that must elapse before a code can be read again.

The delay time is set or deactivated with the webConfig tool (see chapter 9 "Commissioning – Leuzeelectronic webConfig tool").

Configuration > Control > Reread delay

Sensitivity

This function can only be activated in the "Presentation mode" camera operating mode. You can set the sensitivity threshold at which a change in the field of view is to be detected: 0…100.

• 0 = not sensitive

• 100 = sensitive

Continuous mode

In the "Continuous mode" camera operating mode, the code reader operates continuously in process mode. In this mode, image acquisition is started again immediately after an image has been processed. An external trigger signal is not required.

Image frequency

You can limit the maximum number of images per second. A reduction in image frequency is recommended for slow applications where the object with the code moves slowly past the code reader. Consider here the decoding time per decoding.

• It is recommended to limit the decoding time.

• It is recommended to deactivate the NOREAD output.

4.2 Reference code comparison

With the reference code comparison, the code reader compares the actual decoding result with a stored reference code – the exact code content is compared.

Options for teaching-in a new reference code:

• webConfig tool: Configuration > Decoder > Reference

• Online command via the host interface

• Signal via a digital switching input

• TEACH function on the control panel of the code reader (not with devices with stainless steel housing)

In the webConfig tool, the exact code content can be entered for comparison.

Regular expressions

As an alternative to the exact code comparison, regular expressions can be used for a partial comparison.

Regular expressions can only be entered via the webConfig tool (see chapter 9 "Commissioning – Leuzeelectronic webConfig tool").

Detailed information on regular expressions can be found on the Internet under Perl Compatible Regular Expressions (PCRE) http://www.pcre.org/.

Leuze electronic DCR 202i 19

Functions

• Example1

The code reader is to perform a partial comparison of two characters "42". Any number of characters and content may precede the string "42".

• Comparison string entered in the webConfig tool: 42

• Positive reference code comparison (match): 123425

• Negative reference code comparison (mismatch): 12345

• Example2

The code reader is to perform a partial comparison of two characters "42". Beginning with the string "42", any number of characters and content may follow.

• Comparison string entered in the webConfig tool: ^42

• Positive reference code comparison (match): 42345

• Negative reference code comparison (mismatch): 12345

NOTICE

Using space characters with regular expressions!

Ä When entering regular expressions, note the use of space characters.

4.3 Code quality

Overview

To check the code quality, you can activate the Code quality function. This function determines the code quality for bar codes and 2D-codes in compliance with ISO/IEC15416 and ISO/IEC15415.

NOTICE

Activating the Code quality function increases the decoding time.

The code quality is given as follows: A…F

• A = High quality

• F = Low quality

The following options are available:

• Determination of individual features for bar codes and 2D-codes

• Setting of a minimum quality (= NOMINALMINIMUM)

• Output of each feature via the interface and as a programmable switching output

ISO/IEC15416 mode: Individual features for bar codes

• Overall quality

• Symbol contrast (SC)

• Modulation (MOD)

• Decodability

• Minimal edge contrast (EC

• Minimal reflectance (R

• Defects

• Decodes

min

)

min

)

Leuze electronic DCR 202i 20

Functions

ISO/IEC15415 mode: Individual features for 2D-codes

• Overall quality

• Symbol contrast (SC)

• Modulation (MOD)

• Decodability

• Fixed pattern damage (FPD)

• Axial non-uniformity (AN)

• Grid non-uniformity (GN)

• Unused error correction (UEC)

• Reflectance margin

• Print growth

• Defects (only PDF417)

• Start/stop pattern (only PDF417)

• Codeword yield (only PDF417)

Overall quality

The "Overall quality" feature corresponds to the lowest ascertained individual quality. If multiple codes are decoded, the minimum quality is output via the switching output for the first found code only.

4.4 Leuze webConfig tool

The webConfig configuration tool offers a graphical user interface for the configuration of the code reader via a PC (see chapter 9 "Commissioning – Leuzeelectronic webConfig tool").

The wizard of the webConfig tool can be used to easily configure the code reader in just a few steps.

Leuze electronic DCR 202i 21

5 Applications

5.1 Reading of 1D-codes

Applications

Fig.5.1: Reading of 1D-codes

Leuze electronic DCR 202i 22

5.2 Reading of 2D-codes

1 2

Applications

Fig.5.2: Reading of 2D-codes in packaging systems

5.3 Code reading with polarization filter

1 Code reading without polarization filter 2 Code reading with polarization filter

Fig.5.3: Using the polarization filter

By using the linear polarization filter integrated in the housing hood, you can avoid interfering reflections.

NOTICE

When the polarization filter is used, the exposure settings change. The exposure time is increased considerably.

Leuze electronic DCR 202i 23

5.4 Code reading with diffusor foil

1 Code reading without diffusor foil 2 Code reading with diffusor foil

Fig.5.4: Using the diffusor foil

The diffusor foil reduces interfering reflections by increasing the scatter of the integrated LED illumination of the code reader.

NOTICE

When the diffusor foil is used, the exposure settings change.

Applications

Leuze electronic DCR 202i 24

6 Mounting

The code reader can be mounted in the following ways:

• Mounting using four M4 mounting threads on the rear of the device

• Mounting using two M4 mounting threads on the rear of the device (devices with stainless steel housing)

• Mounting using two M4 mounting threads on each of the side surfaces of the device

• Mounting on a 12 mm rod using the BTU320M-D12 mounting system

• Mounting on the BT320M mounting bracket

NOTICE

Ä Mount the device on a metal mounting bracket.

6.1 Determining the mounting position of the code reader

Mounting

6.1.1

Selecting a mounting location

NOTICE

The size of the code module influences the maximum reading distance and the width of the reading field. Therefore, when selecting a mounting location and/or the suitable code label, take into account the different reading characteristics of the code reader with various code modules.

NOTICE

Observe when choosing the mounting location!

Ä Make certain that the required environmental conditions (humidity, temperature) are main-

tained.

Ä Avoid possible soiling of the reading window due to liquids, abrasion by boxes, or packaging

material residues.

Ä Ensure the lowest possible chance of damage to the code reader through mechanical colli-

sion or jammed parts.

Ä Avoid possible ambient light influence (no direct sunlight).

Take the following factors into account when selecting the correct mounting location:

• Size, orientation, and position tolerance of the bar codes or Data Matrix codes on the objects to be scanned.

• The reading distance resulting from the code size and code type (see chapter 6.1.3 "Determining the reading distance").

• Time of data output.

Position the device in such a way that, taking into consideration the time required for data processing and the conveyor belt speed, there is sufficient time to e.g. initiate sorting operations on the basis of the read data.

• The permissible line lengths between code reader and host system depending on which interface is used.

• Visibility of the control panel and access to the control buttons.

• No direct sunlight and/or no strong ambient light on the code that is to be read.

Leuze electronic DCR 202i 25

Mounting

10° … 20° 10° … 20°

Observe the following criteria for the best read results:

• The reading distance is located in the middle part of the read field (see chapter 6.1.3 "Determining the reading distance").

• There is no direct sunlight and protect against ambient light effects.

• The code labels are of good print quality and have good contrast ratios.

• Do not use glossy labels.

• The bar code or DataMatrix code is moved past the reading window with a tilt angle or angle of inclination of 10°… 20° (see chapter 6.1.2 "Avoiding total reflection").

6.1.2

Avoiding total reflection

If the illumination light of the code reader is directly incident on the surface of the code at an angle of 90°, total reflection occurs. The illumination light directly reflected by the code label may overload the code reader and thereby result in non-reading of the code.

Ä Mount the code reader with a tilt angle or angle of inclination of ±10°… 20° from vertical.

Recommended tilt angle or angle of inclination: 10°…20° 1 Code label 2 Mounting with tilt angle 3 Mounting with angle of inclination

Fig.6.1: Mounting with tilt angle or angle of inclination

6.1.3

Determining the reading distance

In general, the read field of the code reader becomes larger with increasing reading distance. This also results in a decrease in the resolution, however.

The following figures show typical reading distances for the individual optics models of the code reader.

NOTICE

Code reading while in motion is dependent on the code type, code size, cell or modulus size of the code and the position of the code in the read field of the code reader.

For the relationship between camera distance and reading field size, see the section "Relationship between camera distance and reading field size".

Leuze electronic DCR 202i 26

Reading distances for code reader with N1-optics

1D-Codes

2D-Codes

400

[mm]

350300250200150100500

0.127 mm (5 mil)

0.19 mm (7.5mil)

0.25 mm (10 mil)

0.5 mm (20 mil)

0.127 mm (5 mil)

0.19 mm (7.5 mil)

0.25 mm (10 mil)

0.5 mm (20 mil)

NOTICE

Please note that the actual reading distances are also influenced by factors such as labeling material, printing quality, reading angle, printing contrast etc., and may thus deviate from the reading distances specified here.

Mounting

1 Reading distance [mm]

Fig.6.2: Typical reading distances for 1D- and 2D-codes with various modulus sizes of the codes

Leuze electronic DCR 202i 27

Reading distances for code reader with M1-optics

1D-Codes

2D-Codes

400

[mm]

350300250200150100500

0.19 mm (7.5 mil)

0.25 mm (10 mil)

0.35 mm (14 mil)

0.5 mm (20 mil)

0.19 mm (7.5 mil)

0.25 mm (10 mil)

0.35 mm (14 mil)

0.5 mm (20 mil)

NOTICE

Mounting

1 Reading distance [mm]

Fig.6.3: Typical reading distances for 1D- and 2D-codes with various modulus sizes of the codes

Leuze electronic DCR 202i 28

Reading distances for code reader with F-optics

1D-Codes

2D-Codes

400

[mm]

350300250200150100500

0.19 mm (7.5 mil)

0.25 mm (10 mil)

0.35 mm (14 mil)

0.5 mm (20 mil)

0.19 mm (7.5 mil)

0.25 mm (10 mil)

0.35 mm (14 mil)

0.5 mm (20 mil)

NOTICE

Mounting

1 Reading distance [mm]

Fig.6.4: Typical reading distances for 1D- and 2D-codes with various modulus sizes of the codes

Relationship between camera distance and reading field size

The following images show the relationship between the camera distance and the resulting read field for the individual optics models of the code reader. The camera distance is the path from the front edge of the code reader to the code.

Leuze electronic DCR 202i 29

1 Camera distance 2 Reading field 3 Height of the reading field 4 Width of the reading field

Fig.6.5: Camera distance and read field

Mounting

0 x 0

20 x 15

40 x 30

60 x 45

80 x 60

100 x 75

120 x 90

140 x 105

0 50 100 150 200 250 300 350

3 4

1 Camera distance [mm] 2 Reading field: widthxheight [mm] 3 N1-optics, M1-optics 4 F-optics

Fig.6.6: Relationship between camera distance and reading field size

6.2 Mounting the code reader

NOTICE

Information on mounting the code reader can also be found in document "Quick Start Guide DCR200i".

6.2.1

6.2.2

Mounting with M4 fastening screws

Ä Mount the device on the system with M4 fastening screws (not included in delivery contents).

ð Max. tightening torque of the fastening screws: 1.4Nm ð Location and thread depth of the mounting thread: see chapter 14.3 "Dimensioned drawings"

Mounting with the BTU320M-D12 mounting system

Mounting with a BTU320M-D12 mounting system is intended for 12-mm rod mounting. For ordering information, see chapter 15.5 "Other accessories".

Ä Mount the mounting system on the rod with the clamp profile (system-side). Ä Mount the device to the mounting system with M4 fastening screws.

ð Max. tightening torque of the fastening screws: 1.4Nm ð Location and thread depth of the mounting thread: see chapter 14.3 "Dimensioned drawings"

Leuze electronic DCR 202i 30

Mounting

6.2.3

Mounting with the BT320M mounting bracket

Mounting with a BT320M mounting bracket is intended for wall mounting. For ordering information, see chapter 15.5 "Other accessories".

Ä Mount the mounting bracket on the system side with M4 fastening screws (included in delivery con-

tents).

Ä Mount the device to the mounting bracket with M4 fastening screws.

ð Max. tightening torque of the fastening screws: 1.4Nm ð Location and thread depth of the mounting thread: see chapter 14.3 "Dimensioned drawings"

6.2.4

Mounting with the BTU320M-D12-RL70 mounting bracket

Mounting using a BTU320M-D12-RL70 mounting bracket is intended for 12mm rod mounting in combination with the RL-70/40r-003-M12 ring light. For ordering information, see chapter 15.5 "Other accessories".

Ä Mount the ring light to the mounting bracket with M4 fastening screws. Ä Mount the device to the mounting bracket with M4 fastening screws.

ð Max. tightening torque of the fastening screws: 1.4Nm ð Location and thread depth of the mounting thread: see chapter 14.3 "Dimensioned drawings"

Ä Mount the mounting bracket on the rod with the clamp profile (system-side).

6.3 Replace housing hood

In individual cases, you can exchange the housing hood of the code reader, e.g., if the protective screen is scratched or if changed operating conditions necessitate a housing hood with polarization filter. For ordering information, see chapter 15.3 "Optical accessories".

NOTICE

Replacement of housing hood not permitted with stainless steel housing!

Ä On devices with stainless steel housing, it is not permitted to replace the housing hood.

NOTICE

Only replace the housing hood while the device is in a de-energized state!

Only replace the housing hood if no voltage is being applied to the device.

Ä Disconnect the device from the voltage supply before replacing the device hood.

NOTICE

Check the seal before mounting!

Ä Check the seal on the base of the code reader housing for cleanliness before mounting the

new housing hood.

NOTICE

Clean the new housing hood before mounting!

Ä Clean the new housing hood with a soft cloth before mounting.

Ä Loosen the four fastening screws of the housing hood. Ä First tip the housing hood downward and away from the housing base. Ä Then lift the housing hood up and off of the housing base. Ä Then mount the new housing hood in the reverse order. The tightening torque of the fastening screws

is 0.25Nm.

Leuze electronic DCR 202i 31

2 2

1 Fastening screws 2 Housing hood

Fig.6.7: Replace housing hood

6.4 Attaching the diffusor foil

To reduce interfering reflections, you can attach a diffusor foil to the screen of the housing hood.

Mounting

NOTICE

Do not use diffusor foil in combination with polarization filter!

The diffusor foil is not suitable for use in combination with the polarization filter.

NOTICE

Only attach diffusor foil to dust- and grease-free surface!

Ä Before attaching the foil, make certain that the surface is free of dust and grease.

Ä Make certain that the diffusor foil is correctly oriented.

Small recess at top, large recess at bottom.

Fig.6.8: Orientation of the diffusor foil

Ä Attach the diffusor foil to the housing screen from bottom to top.

Fig.6.9: Attaching the diffusor foil

Leuze electronic DCR 202i 32

Mounting

NOTICE

Avoid air bubbles when attaching the diffusor foil!

Ä When attaching the diffusor foil, take care to prevent bubbles from forming under the film.

Leuze electronic DCR 202i 33

7 Electrical connection

CAUTION

Safety notices!

Ä Before connecting the device, please ensure that the operating voltage matches the value

printed on the nameplate.

Ä Only allow competent persons to perform the electrical connection. Ä Ensure that the functional earth (FE) is connected correctly.

Fault-free operation is only guaranteed if the functional earth is connected properly.

Ä If faults cannot be rectified, take the device out of operation. Protect the device from acci-

dentally being started.

NOTICE

Shielding connection!

The shielding is connected via the M12 connector housing.

NOTICE

UL applications!

For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).

Electrical connection

7.1 Overview

The code reader is provided with the following connections:

• PWR/SWIO: A-coded, 12-pin, M12 connection for operating voltage, switching inputs/outputs, RS232/RS422 interface

• HOST: D-coded, 4-pin, M12 connection for the Ethernet connection

NOTICE

Protective Extra Low Voltage (PELV)!

The device is designed in accordance with protection classIII for supply with PELV (Protective Extra-Low Voltage).

NOTICE

Degrees of protection IP65 or IP67/69K!

Degree of protection IP65 or IP67/69K (with devices with stainless steel housing) is achieved only if the connectors and caps are screwed into place.

Leuze electronic DCR 202i 34

PWR / SWIO HOST

1 2

1 PWR/SWIO, M12 plug, 12-pin, A-coded

2 HOST, M12 socket, 4-pin, D-coded

Fig.7.1: Electrical connections

NOTICE

Electrical connection

Ready-made cables are available for all connections (see chapter 15.4 "Cables accessories").

Voltage supply, RS232/RS422 and switching inputs/outputs

The voltage supply (18V…30 V DC) is connected at the PWR/SWIO M12 plug.

The RS232/RS422 interface on the PWR/SWIO M12 plug is directly connected to the host.

To connect to other fieldbus systems, e.g., PROFIBUS, PROFINET, EtherCAT, etc., Leuzeelectronic offers various connection units (see chapter 7.6 "Connecting code reader to fieldbus").

Four freely programmable switching inputs/outputs for individual adaptation to the respective application are also available on the PWR/SWIO M12 plug.

Standalone operation in Ethernet network

The code reader is operated as a "stand-alone" single device in an Ethernet star topology with individual IP address. The host interface of the superior system is connected to the HOST M12 socket.

7.2 PWR/SWIO – voltage supply / RS232/RS422 / switching inputs/outputs

12-pin M12 plug (A-coded)

Fig.7.2: PWR/SWIO connection

Tab.7.1: PWR/SWIO pin assignment

Leuze electronic DCR 202i 35

Pin Designation Core color Assignment

1 VIN Brown +18…+30V DC operating voltage

2 GNDIN Blue Negative operating voltage (0V DC)

Electrical connection

Pin Designation Core color Assignment

3 SWI1 White Digital switching input1 (default: "Trigger")

4 SWO2 Green Digital switching output2 (default: "Good Read")

5 FE Pink Functional earth

6 GNDOUT Yellow Ground reference RS232/RS422

7 RX- Black RS422: RX- signal

8 TX- Gray RS422: TX- signal

9 RXD/RX+ Red RS232: RXD signal

RS422: RX+ signal

10 TXD/TX+ Violet RS232: TXD signal

RS422: TX+ signal

11 SWIO3 Gray/pink Digital switching input/output3 (configurable)

(default: switching output "Noread")

12 SWIO4 Red/blue Digital switching input/output4 (configurable)

(default: switching output "Device ready")

Thread (M12 plug)

FE (functional earth) Connection cable shield.

The shield of the connection cable is on the thread of the M12 plug.

NOTICE

The core colors only apply if Leuze electronic’s original connection cables are used (see chapter

15.4 "Cables accessories").

NOTICE

UL applications!

For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).

Switching input/output

The code reader features four freely programmable switching inputs/outputs: SWI1, SWO2, SWIO3 and SWIO4.

NOTICE

The function as switching input or switching output is set via the webConfig configuration tool (CONFIGURATION > DEVICE > Switching inputs/outputs, see chapter 9 "Commissioning – Leuzeelectronic webConfig tool").

The four switching inputs/outputs are configured by default as follows:

• SWI1

Trigger switching input (default)

• SWO2

GOODREAD switching output (default)

• SWIO3

As switching output: NOREAD (default)

• SWIO4

As switching output: device ready (default)

Leuze electronic DCR 202i 36

Function as switching input

18-30 V DC

max. 8 mA

SWI (Pin 3) SWIO (Pin 11/12)

VIN (Pin 1)

GNDIN (Pin 2)

18-30 V DC

SWO (Pin 4) SWIO (Pin 11/12)

VIN (Pin 1)

VIN

GNDIN (Pin 2)

max. 60 mA

1 Switching input 2 Switching input to controller

Fig.7.3: Switching input SWIO3 and SWIO4 connection

NOTICE

Maximum input current!

Ä The input current of the respective switching input is maximum 8mA.

Electrical connection

Function as switching output

1 Switching output 2 Switching output from controller

Fig.7.4: Switching output SWIO3 and SWIO4 connection

NOTICE

Maximum loading of the switching outputs!

Ä Do not load the respective switching output of the code reader with more than 60mA at

+18V…+30 V DC in normal operation.

Ä Each configured switching output is short-circuit proof.

NOTICE

SWIO3 and SWIO4 as switching output!

Ä Do not operate pins2 and 4 as switching output if sensors which function as switching input

are also connected to these pins.

ð If, for example, the inverted sensor output is connected to pin2, and pin2 of the code

reader is, at the same time, configured as a switching output (and not as a switching in-

Leuze electronic DCR 202i 37

put), the switching output malfunctions.

RS232/RS422 interface

The RS232/RS422 interface is used primarily for outputting the read and decoded code contents of the activated code types.

7.3 HOST - Host input / Ethernet

4-pin, M12 socket (D-coded) for connecting to HOST.

Fig.7.5: HOST connection

Tab.7.2: HOST pin assignment

Pin/terminal Designation Assignment

1 TD+ Transmit Data +

2 RD+ Receive Data +

Electrical connection

3 TD- Transmit Data -

4 RD- Receive Data -

Thread (M12

FE (functional earth) Connection cable shield.

socket)

NOTICE

Use ready-made cables!

Ä If possible, use the ready-made cables from Leuzeelectronic (see chapter 15.4 "Cables ac-

cessories").

7.4 Ethernet star topology

The code reader is operated as a "stand-alone" single device in an Ethernet star topology with individual IP address.

• The code reader is designed as an Ethernet device with a standard baud rate of 10/100Mbit.

• A fixed MAC address is assigned to each device by the manufacturer; this address cannot be changed.

• The device automatically supports the transmission rates of 10Mbit/s (10BASET) and 100Mbit/s (10BASETX), as well as auto-negotiation and auto-crossover.

• The device supports the following protocols and services:

• TCP / IP (client/server)

• UDP

• DHCP

• ARP

• PING

• For communication with the superior host system, the corresponding TCP/IP protocol (client/server mode) or UDP must be selected.

The shield of the connection cable is on the thread of the M12 socket.

Leuze electronic DCR 202i 38

1 Ethernet switch

2 Code reader of the DCR200i series 3 Other network participants 4 Host interface - PC/control

Electrical connection

Fig.7.6: Ethernet star topology

Ethernet cable assignment

Fig.7.7: HOST to RJ-45 cable assignments

Designed as shielded cable, max. 100m.

Pin (M12) Designation Pin/core color (RJ45)

1 TD+ 1/yellow

2 RD+ 3/white

3 TD- 2/orange

4 RD- 6/blue

NOTICE

Self-configured cables with Ethernet interface!

Ä Ensure adequate shielding. Ä The entire interconnection cable must be shielded and earthed. Ä The RD+/RD- and TD+/TD- wires must be stranded in pairs. Ä Use at least a CAT5 cable for the connection.

Leuze electronic DCR 202i 39

7.5 Cable lengths and shielding

Observe the maximum cable lengths and the shielding types:

Connection Interface Max. cable length Shielding

Electrical connection

DCR200i host RS232

RS422

Network from the first DCR200i to the last network participant

Switching input 10m Not necessary

Switching output 10m Not necessary

DCR200i power supply unit

Ethernet Max. segment length:

7.6 Connecting code reader to fieldbus

The code reader can be connected to the following fieldbuses via the MA2xxi modular connection units:

• CANopen: MA235i

• EtherCAT: MA238i

• EtherNet/IP: MA258i

• DeviceNET: MA255i

• PROFIBUS: MA204i

• PROFINET: MA248i

10m

1200m

(dependent on baud rate)

100m for 100BASE-TX twistedpair (min.CAT5)

30m Not necessary

Shielding absolutely necessary

RS422 conductors, stranded in pairs

Shielding absolutely necessary

NOTICE

Ready-made cables are available for connecting the code reader to a modular connection unit (see chapter 15.4 "Cables accessories").

7.7 Connecting code reader to MA150 connection unit

The signals from the code reader are distributed in the machine decentrally via the MA150 modular connection unit. The following components can be connected to the MA150 connection unit:

• Code reader of the DCR200i series

• Photoelectric sensor/diffuse sensor to activate the code reader

• Voltage supply

• External illumination

• Serial communication RS232/RS422

Leuze electronic DCR 202i 40

Circuit diagram example for electrical installation with MA150 connection unit

DC 18 V … 30 V

PWR/SWIO3/SWIO4

PWR/SWIO1-4/RS232-422

PWR/SWI1

RS 232 / RS 422

PWR/SWO2

Ethernet

SWIO3

MA 150

Art.-No.

01301095

SWIO4

PWR

PWR/SWIO

IDENT

SWO2

SWI1 HOST

Electrical connection

1 DCR200i code reader 2 External illumination

e.g., 50132511 3 MA150 modular connection unit 4 Sensor (photoelectric sensor/diffuse sensor) 5 Cable, M12 connector/RJ45, 4-pin, 2m

e.g., 50109880 6 Cable, M12 connector/socket, 3-pin, 2m

e.g., 50130734 7 Cable, M12 connector/open cable end, 5-pin, 2m

e.g., 50108595 8 Cable, M12 socket/open cable end, 5-pin, 2m

e.g., 50104555 9 Cable, M12 socket/connector, 4-pin, 2m

e.g., 50110126 10 Cable, M12 socket/connector, 12-pin, 2m

e.g., 5030284

Fig.7.8: Circuit diagram example with MA150 connection unit

Leuze electronic DCR 202i 41

Starting up the device – Basic configuration

8 Starting up the device – Basic configuration

8.1 Measures to be performed prior to the initial commissioning

NOTICE

Ä Observe the notices for device arrangement (see chapter 6.1 "Determining the mounting po-

sition of the code reader").

Ä If possible, always trigger the code reader with the aid of commands or an external signal

transmitter (e.g. photoelectric sensor/diffuse sensor).

ð Only then can you be certain whether a code has been read (code contents are trans-

mitted) or not (the "NOREAD" character is transmitted at the end of the reading gate).

Ä Before commissioning, familiarize yourself with the operation and configuration of the de-

vice.

Ä Before connecting the operating voltage, recheck all connections and ensure that they have

been properly made.

NOTICE

No additional configuration software is necessary for commissioning.

8.2 Starting the device

Ä Connect the 18V…30V DC operating voltage. Ä After applying the operating voltage, the device operates with the factory settings:

• Activation of the reading gate via SWI1. The integrated illumination becomes visible.

• If a code is detected, it is output via the interfaces.

• Protocol of the RS232 interface:

(9600baud, 8data bits, no parity, 1stop bit)

• With the factory settings, the device can decode the following code types:

• 2/5Interleaved; number of digits: 10

• Code128; number of digits: 4…63

• Code39; number of digits: 4…30

• EAN8/13; number of digits: 8 and 13

• UPC; number of digits: 8...12

• Codabar; number of digits: 4…63

• Code93; number of digits: 4…63

• GS1DataBar OMNIDIRECTIONAL; number of digits: 14

• GS1DataBar LIMITED; number of digits: 14

• GS1DataBar EXPANDED; number of digits: 14…21

• GS1DataBar TRUNCATED; number of digits: 14

• DataMatrix code ECC200; number of digits: 10x10…144x144, or 8x18…16x48

• QRcode; number of digits: 11x11…161x161

• Azteccode; number of digits: 11x11…151x151

Leuze electronic DCR 202i 42

NOTICE

Deviations from these settings must be set via the webConfig tool (see chapter 9 "Commissioning – Leuzeelectronic webConfig tool").

Ä Using the online commands, important device functions can be checked, e.g. reading activation (see

chapter 10.1 "Online commands").

NOTICE

For information on how to proceed in the event of problems during commissioning of the devices see chapter 12 "Diagnostics and troubleshooting".

If a problem occurs that cannot be rectified even after checking all electrical connections and settings on the devices and on the host, contact your responsible Leuzeelectronic subsidiary or Leuzeelectronic customer service (see chapter 13 "Service and support").

8.3 Setting the communication parameters

With the communication parameters, you determine how data is exchanged between device and host system, monitor PCs etc.

Starting up the device – Basic configuration

8.3.1

Manually setting the IP address

Set the IP manually if your system does not include a DHCP server or if the IP addresses of the devices are to be set permanently.

Factory settings for the network address of the code readers of the DCR200i series:

• IP address: 192.168.060.101

• Subnet mask: 255.255.255.0

Setting the IP address via PC/laptop

Set the network address on the PC (example for Windows7).

Ä Log in as administrator. Ä Select Start > System control > Network and Internet > Network and Sharing Center.

ð Select LAN connection and double-click to open the Properties dialog. Ä Select Internet Protocol Version 4 (TCP/IPv4) and click on the [Properties] button. Ä Set the IP address of the PC.

ð The IP address of the PC must not be identical to the IP address of the code reader.

ð Example: IP address of the code reader: 192.168.060.101

IP address of the PC: 192.168.060.110

Ä Set the subnet mask of the PC to the same value as on the code reader.

ð Example: 255.255.255.0 Ä Confirm all of the settings dialogs with [OK] or [Close]. Ä Connect the Ethernet interface of the device directly to the LAN port of the PC. Ä Start the webConfig tool using your PC's Internet browser with IP address 192.168.060.101. Ä In the webConfig tool, change the IP address to the IP address of the system:

Configuration > Control > Ethernet DCR

NOTICE

The device cannot be accessed if the IP address is incorrect!

Ä Make certain that the correct IP address is entered. The device can otherwise no longer be

accessed.

Leuze electronic DCR 202i 43

Starting up the device – Basic configuration

00:15:7B:20:00:15

DCR 202i MAC

Name

Setting the IP address with Device-Finder

Ä Download the program Device-Finder from the Internet to the PC.

ð Call up the Leuze home page: www.leuze.com.

ð Enter the type designation or part number of the device as the search term.

ð The program Device-Finder can be found on the product page for the device under the Downloads

tab.

Ä Connect the Ethernet interface of the device directly to the LAN port of the PC. Ä Start the program Device-Finder.

ð The program displays all code readers DCR2xxi that are available in the network. Ä Select the DCR2xxi code reader from the list.

ð The IP address of the code reader can now be changed to the desired IP address.

Setting the IP address with the DCRConfigurator

With the "DCRConfigurator" smartphone app, you can set the IP address of the code reader without a PC.

Ä Download the "DCR Configurator" smartphone app from the Internet.

ð Call up the Leuze home page: www.leuze.com.

ð Enter the type designation or part number of the device as the search term.

ð The "DCRConfigurator" smartphone app can be found on the product page for the device on the

Downloads tab.

Ä Open the "DCR Configurator" smartphone app. Ä Select the Assign IP address configuration menu item and enter the desired IP address.

ð The "DCRConfigurator" generates a configuration code for changing the IP address to the desired

value. The configuration code is displayed on the smartphone.

Ä Connect the code reader to the voltage supply and select the AUTO function on the control panel. Ä Hold the configuration code generated by the "DCRConfigurator" at the correct distance in front of the

optics of the code reader.

ð The code reader adjusts the illumination and reads the configuration code. ð The code reader changes the device configuration and saves the new configuration.

8.3.2

8.3.3

Automatically setting the IP address

Set the IP address automatically if a DHCP server assigns the IP addresses in the system.

Ä Select the option to obtain the IP address automatically in the webConfig tool:

Configuration > Control > Ethernet DCR > DHCP

Ä Use the configuration code to obtain the IP address automatically (see chapter 17.3 "Configuration via

configuration codes").

Address Link Label

The "Address Link Label" is an additional stick-on label that is affixed to the device.

Fig.8.1: Example of an "Address Link Label"; the device type varies depending on the series

• The "Address Link Label" contains the MAC address (Media Access Control address) of the device and makes it possible to enter the IP address and the device name manually.

The area of the "Address Link Label" on which the MAC address is printed can be separated from the remainder of the stick-on label if necessary using the perforation.

Leuze electronic DCR 202i 44

Starting up the device – Basic configuration

• The "Address Link Label" can be removed from the device and affixed in the installation and layout diagrams to designate the device.

• Once it is affixed in the documents, the "Address Link Label" establishes a unique reference between the mounting location, the MAC address or the device, and the associated control program.

There is no need for time-consuming searching, reading, and manually writing down of the MAC addresses of every device that is installed in the system.

NOTICE

Each device with Ethernet interface is uniquely identified via the MAC address assigned during production. The MAC address is also listed on the name plate of the device.

If multiple devices are commissioned in a system, the MAC address of each installed device must be correctly assigned, e.g., during programming of the control.

8.3.4

Ethernet host communication

You can configure the connections to an external host system via the Ethernet host communication.

You can use both the UDP protocol as well as the TCP/IP protocol – in either client or in server mode. Both protocols can be activated simultaneously and used in parallel.

• The connection-free UDP protocol is used primarily to transfer process data to the host (monitor operation).

• The connection-oriented TCP/IP protocol can also be used to transfer commands from the host to the device. With this connection, the data is backed up by the TCP/IP protocol itself.

• If you would like to use the TCP/IP protocol, you must also define whether the device is to operate as a TCP client or as a TCP server.

UDP

The device requires from the user the IP address and the port number of the communication partner. In the same way, the host system (PC/control) also requires the set IP address of the device and the selected port number. By assigning these parameters, a socket is formed via which the data can be sent and received.

Ä Activate the UDP protocol. Ä Set the following values:

ð IP address of the communication partner ð Port number of the communication partner

The corresponding adjustment options can be found in the webConfig tool:

Configuration > Control > Host > Ethernet > UDP

TCP/IP

Ä Activate the TCP/IP protocol. Ä Set the TCP/IP mode of the device.

ð In TCP client mode, the device actively establishes the connection to the superior host system, e.g.,

PC/control as server. The device requires from the user the IP address of the server (host system) and the port number on which the server (host system) accepts a connection. In this case, the device determines when and with whom a connection is established.

ð In TCP server mode, the superior host system (PC/control) actively establishes the connection and

the connected device waits for the connection to be set up. The TCP/IP stack must be informed by the user as to the local port of the device (port number) on which connection requests from a client application (host system) are to be received. If there is a connection request and a connection is established by the superior host system (PC/ control as client), the device – in server mode – accepts the connection. Data can then be sent and received.

Leuze electronic DCR 202i 45

Starting up the device – Basic configuration

Ä With a device as TCP client, set the following values:

ð IP address of the TCP server, normally the IP address of the control or the host computer ð Port number of the TCP server ð Timeout for the wait time for an answer from the server ð Repetition time for renewed communication attempt following a timeout

Ä With a device as TCP server, set the following values:

ð Port number for the communication of the device with the TCP clients

The corresponding adjustment options can be found in the webConfig tool:

Configuration > Control > Host > Ethernet > TCP/IP

8.3.5

8.3.6

RS232/RS422 communication

The code reader sends an S to the interface as a start-up message and to announce that the device is ready.

The device operates as follows with the factory settings:

• Activation of the reading gate via SWI1. The integrated illumination becomes visible.

• If a code is detected, it is output via the RS232 interface according to the following protocol.

(9600baud, 8data bits, no parity, 1stop bit)

FTP client

To transfer images and log files, you can configure process data output via an FTP server.

Ä You can set the IP address and the port number of the FTP server with which communication is to oc-

cur.

Ä Assign user names and password settings or define the direction of communication using the Passive

mode option.

ð When the Passive mode option is activated, the FTP client sets up an outgoing connection to the

server.

Ä Activate the FTP client. Ä Select which images (OK/NOK) are transferred. You can assign each one a name. Ä Use the Target directory function to specify a directory relative to the root directory in which the data is

to be stored.

The corresponding adjustment options can be found in the webConfig tool:

Configuration > Control > Host > FTP client

NOTICE

Ä You can set the time stamp via Maintenance > System clock.

ð The system clock is reset if the operating voltage is interrupted.

8.4 Configuration via configuration codes

You can make configuration changes with the help of configuration codes (see chapter 17.3 "Configuration via configuration codes").

Leuze electronic DCR 202i 46

8.5 Activating device functions

You can activate the following device functions via the control buttons on the control panel:

• TRIG

• AUTO

• ADJ

• TEACH

Ä Connect the code reader to the voltage supply. Ä Select the desired function via the control buttons on the control panel (see chapter 3.4.2 "Bar graph

display").

NOTICE

On devices with stainless steel housing, it is not possible to select functions using the control buttons.

TRIG

Trigger function that activates a read process with the configuration stored in the device, e.g., reading gate control.

Starting up the device – Basic configuration

AUTO

By activating the AUTO function, the following sequence is started:

1. Optimum image setting: The device determines the optimum illumination setting for the given scenario.

2. Determine code types and number of digits: If codes are found, they are decoded.

3. Decoder table: The contents of the decoder table stored in the device are deleted. The new codes (code type and number of digits) are stored in the decoder table.

NOTICE

Only activate the AUTO function while at a standstill!

Ä Only activate the AUTO function if the code is not moving relative to the device.

NOTICE

AUTO function not for Pharmacode!

Ä The AUTO function cannot be used for Pharmacode codes.

ADJ

Adjustment function for aligning the device.

The reading quality is visually displayed as a percentage in the bar graph display. The bar graph display depicts the average value over the last ten measurements.

NOTICE

Deactivate the ADJ function!

Ä You must deactivate the ADJ function with the enter button .

TEACH

With activation of the teach function, a present code is taught-in as a reference code.

During the teach event, the reading gate is opened and a code located in the read field is decoded. The decoded code is stored as a new reference code in the device.

Leuze electronic DCR 202i 47

NOTICE

Only one code in the read field during the teach function!

Ä Upon activation of the teach function, only one code may be located in the read field of the

device.

NOTICE

TEACH function for Pharmacode!

Before teaching Pharmacode codes, the number of bars, the read direction and the region of interest (ROI) must be configured using the webConfig tool.

8.6 Performing further settings

Starting up the device – Basic configuration

8.6.1

Decoding and processing the read data

The device offers the following possibilities:

• Setting the number of code labels to be decoded for each reading gate (0…99). This is done via the Max. no. of labels parameter.

• Setting the Search mode in which the system is to search for the codes (see chapter 8.6.5 "Optimizing reading performance").

• Fast

• Optimized

• Robust

• Further parameters can be set for many code types, e.g.

• Code type (symbology)

• Number of digits

Either a number of digits, e.g., 10, 12, 24, or a number of digits range, e.g., 8…22

• Check digit method used for decoding as well as the type of check digit transmission for the output of the read result.

Standard: corresponds to the standard for the selected code type/symbology

Not standard

Ä Define at least one code type with the desired settings.

ð webConfig tool: Configuration > Decoder ð Control buttons (not on devices wit stainless steel housing): AUTO function ð Control buttons: AUTO function

8.6.2

Control of the decoding

In general, decoding is controlled via the configurable switching inputs/outputs. The corresponding connection to the PWR/SWIO interface must be configured as a switching input for this purpose (see chapter 7.2 "PWR/SWIO – voltage supply / RS232/RS422 / switching inputs/outputs").

Controlling decoding via a switching input:

• Start/stop decoding

• Start decoding and then stop decoding after a configurable time period

• Read in a reference code

• Start automatic code type configuration (AUTO function)

• Start alignment mode

Ä Connect the required control devices, e.g., photoelectric sensor, proximity switch, etc., to the device

(see chapter 7 "Electrical connection").

Leuze electronic DCR 202i 48

Starting up the device – Basic configuration

Ä Configure the connected switching inputs according to your requirements.

ð First set the I/O mode to input. ð Then configure the switching behavior. ð webConfig tool: Configuration > Control > DigitalI/Os

NOTICE

Alternatively, depending on the camera operating mode, you can activate decoding using the+ online command and deactivate it using the– online command (see chapter 10.1 "Online commands").

8.6.3

8.6.4

Activating camera operating mode

The camera operating mode defines how the code reader starts a read process and decodes the codes if a code is located in the read field (see chapter 4.1 "Camera operating modes").

The following options are available for activating the camera operating mode:

• webConfig tool (see chapter 9 "Commissioning – Leuzeelectronic webConfig tool")

CONFIGURATION > CONTROL > Camera operating mode

• Online command via the host interface (see chapter 10.1 "Online commands")

• Trigger signal via a digital trigger input

Control of the switching outputs

By using the switching inputs/outputs of the device, external event-controlled functions can be implemented without assistance from the superior process control. Switching inputs/outputs SWO2, SWIO3 and SWIO4 on the PWR/SWIO connection must be configured as switching output for this purpose (see chapter 7.2 "PWR/SWIO – voltage supply / RS232/RS422 / switching inputs/outputs").

A switching output can, for example, be activated according to the following criteria:

• At the start/end of the reading gate

• Upon actuation by an external flash

• Depending on the read result:

• reference code comparison positive/negative

• read result valid/invalid

• Depending on the state of the device:

• Device ready/not ready

• Data transmission active/not active

• Active/standby

• Error/no error

Ä Connect the required switching outputs (see chapter 7 "Electrical connection"). Ä Configure the connected switching outputs according to your requirements.

ð First set the I/O mode to output ð Then configure the switching behavior. ð webConfig tool: Configuration > Control > DigitalI/Os

Leuze electronic DCR 202i 49

Starting up the device – Basic configuration

8.6.5

Optimizing reading performance

Optimize the reading performance of the code reader using the following settings in the webConfig tool:

• Decoding table

Limiting of the code types being searched for and the number of digits

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Code types

• Exposure time

A short exposure time enables high object speeds. Because the image brightness is thereby reduced, it may be necessary to adjust the signal gain. Image noise increases as a result, however.

The adjustment options can be found in the webConfig tool: Configuration > Image acquisition

• Image resolution

A reduced image resolution enables fast decoding. If the image resolution is reduced, the modulus size of the code that is to be read must be taken into account.

The adjustment options can be found in the webConfig tool: Configuration > Image acquisition

• Working range

Define a region of interest (ROI) to restrict coding to a single part of the image. If no region of interest is defined, the complete image is defined as the region of interest.

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Region of in-

terest

• Max. decoding time

Define the maximum decoding time to limit the execution time of the code search algorithm.

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Properties

• Camera operating mode

Select the Single trigger mode camera operating mode for fast complete decoding.

The adjustment options can be found in the webConfig tool: Configuration > Control > Camera oper-

ating mode

• Max. no. of codes

If the maximum number of codes to be expected in an image (ROI) is small and known, the code search is accelerated.

Define the maximum number of codes that can be decoded in a test program. If the defined number of codes has been decoded, the code search algorithm is interrupted.

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Extended

• Image transfer

Deactivation of image transfer in process mode increases the decoding rate.

Adjustment options can be found in the webConfig tool: Configuration > Device > Image transfer

• Search mode

Select the Optimized search mode for fast decoding. This search mode can only be used for 2D-codes.

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Extended

You must then teach the found codes using the [Optimize code] button.

• Color mode

If it is known beforehand whether the codes are printed black on a white background or white on a black background, you can select the color mode accordingly. Set the Automatic color mode if codes in both print variants are present.

The adjustment options can be found in the webConfig tool: Configuration > Decoder > Extended

8.6.6

Transfer configuration data

Transferring configuration data with the webConfig tool

With the webConfigtool, you can store complete device configurations on data carriers and transfer them from these to the device: Maintenance > Backup/Restore

This storage of configuration data is especially useful if you want to store basic configurations which will require only minor changes.

Leuze electronic DCR 202i 50

Commissioning – Leuzeelectronic webConfig tool

9 Commissioning – Leuzeelectronic webConfig tool

The code readers of the DCR200i series can be operated and configured via the Ethernet service interface with the integrated Leuzeelectronic webConfig tool.

With the webConfig tool, an operating-system independent, web-technology based, graphical user interface is available for configuring code readers.

Through the use of HTTP as communication protocol and the client-side restriction to standard technologies (HTML, JavaScript and AJAX), which are supported by all of today's popular, modern browsers, it is possible to operate the webConfig tool on any Internet-enabled PC.

NOTICE

The webConfig tool is offered in the following languages: German, English, French, Italian, Spanish, Chinese, Korean

9.1 System requirements

To use the webConfig tool, you need a PC or laptop with the following specifications:

Tab.9.1: System requirements for the webConfig tool

Monitor Min. resolution: 1280x800 pixels or higher

Internet browser Internet Explorer version9.0 or higher

Firefox version 30 or higher

Chrome version 40 or higher

NOTICE

Ä Regularly update the operating system and the Internet browser. Ä Install the current Windows Service Packs.

9.2 Start webConfig tool

ü Prerequisite: IP address and subnet mask for the LAN connection with the device are set correctly. Ä Connect the operating voltage to the device. Ä Connect the HOST interface of the device to the PC. The connection to the HOST interface of the de-

vice is made via the LAN port of the PC.

Ä Start the webConfig tool via your PC's Internet browser with IP address 192.168.60.101 or with the IP

address set by you.

ð 192.168.60.101 is the standard Leuzeelectronic IP address for communication with code readers

of the DCR200i series.

The PC displays the webConfig start page with the current process information in the Process operating mode:

• Current image of the code reader

• Current decoding result

• Brief history of the last decoding operations

• States of the switching inputs/outputs

• Statistics counter

NOTICE

The process information may be displayed with a time delay depending on the current processing speed.

Leuze electronic DCR 202i 51

1 Changing the operating mode (Process - Service)

Commissioning – Leuzeelectronic webConfig tool

Fig.9.1: The start page of the webConfig tool

The user interface of the webConfigtool is largely self-explanatory.

NOTICE

The webConfig tool is completely contained in the firmware of the device. The pages and functions of the webConfig tool may appear and be displayed differently depending on the firmware version.

Clear browser history

The cache of the Internet browser is to be cleared if different device types or devices with different firmware were connected to the webConfig tool.

Ä Delete cookies and temporary Internet and website data from browser history before starting the web-

Config tool.

ð Example for Internet Explorer10:

Settings > Security > Browser History > [Delete]

Note limit of Firefox sessions for version 17.0 and higher

If the limited number of Firefox sessions is exceeded, it may no longer be possible to address the device via the webConfig tool.

Ä Do not use the refresh functions of the Internet browser:

[Shift] [F5] or [Shift] + mouse click

9.3 Short description of the webConfigtool

The menus and dialog boxes of the webConfig tool are intuitive to operate and provide texts and tool tips.

The start page of the webConfig tool displays the current process information.

Leuze electronic DCR 202i 52

Commissioning – Leuzeelectronic webConfig tool

9.3.1

Change operating mode

For configurations with the webConfig tool, you can switch between the following operating modes:

• Process

The device is connected to the control or to the PC.

• The process communication to the control is activated.

• The switching inputs/outputs are activated.

• The image currently recorded by the code reader is displayed if the function was not deactivated in the webConfig tool.

• The configuration cannot be changed.

• Service

• Process communication to the control or to the PC has been interrupted.

• The switching inputs/outputs are deactivated.

• The configuration can be changed.

NOTICE

Configuration changes only in the Service operating mode!

Ä Changes made using the CONFIGURATION function can only be performed in the Service

operating mode.

Located in the upper left of all pages of the webConfig tool is a software switch for changing the operating mode (Process - Service).

After changing to the Service operating mode, the CONFIGURATION menu is displayed.

1 Changing the operating mode (Process - Service)

Fig.9.2: CONFIGURATION menu of the webConfig tool

9.3.2

Menu options of the webConfig tool

The webConfig tool offers the following menu functions:

• PROCESS

• Information on the current read result

• Current camera image

• Status of the switching inputs/outputs

• Reading statistics

Leuze electronic DCR 202i 53

• CONFIGURATION

• Configuring decoding

• Configuring data formatting and data output

• Configuring the switching inputs/outputs

• Configuring communication parameters and interfaces

• General device settings, e.g. device names

• DIAGNOSTICS

• Event logging of warnings and errors

• MAINTENANCE

• Assigning user roles (user management)

• Backup/restore the configuration file

• Update firmware

• Setting system time (system clock)

• Managing user guidance

Commissioning – Leuzeelectronic webConfig tool

9.3.3

CONFIGURATION menu

NOTICE

Configuration changes only in the Service operating mode!

Ä Changes made using the CONFIGURATION menu can only be performed in the Service op-

erating mode.

Fig.9.3: CONFIGURATION menu

Ä Select the application that you would like to configure.

• [Start wizard]: Quick configuration in just a few steps

• [Edit project]: Configuration via the full view of the webConfig tool

• [Load project from PC]: Configuration via an existing configuration project

• [Save project on PC]: Save configuration project

Leuze electronic DCR 202i 54

Commissioning – Leuzeelectronic webConfig tool

9.3.4

Configuring applications with the wizard

With the configuration wizard, you can set up your application in just a few steps.

Fig.9.4: Configuration wizard

Ä Select CONFIGURATION > [Start Wizard]. Ä Make the settings using the configuration steps presented by the wizard.

NOTICE

The settings are not saved until the final configuration step (FINISH) is performed.

Leuze electronic DCR 202i 55

10 Interfaces – Communication

Commands can be used to send commands directly to the code reader for control and configuration. The following transmission options are available for the commands:

• Online commands via the Ethernet or RS232/RS422 interface (see chapter 10.1 "Online commands")

• XML-based communication via the Ethernet interface (see chapter 10.2 "XML-based communication")

10.1 Online commands

Interfaces – Communication

10.1.1

Overview of commands and parameters

Online commands can be used to send commands directly to the code reader for control and configuration. For this, the code reader has to be connected to a computer (host) via the serial interface or the Ethernet interface (see chapter 8.3.4 "Ethernet host communication").

Online commands offer the following options for controlling and configuring the code reader:

• Control/decode the reading gate

• Read/write/copy parameters

• Carry out an automatic configuration

• Teach-in/set reference codes

• Call up error messages

• Query statistical device information

• Perform a software RESET and re-initialize the code reader

Syntax

Online commands consist of one or two ASCII characters followed by command parameters.

No separation characters may be entered between the command and the command parameter(s). Both small and capitalized letters can be used.

Example:

Command ’CA’: Auto setup function

Parameter ’+’: Activation

10.1.2

Transmitted is: ’CA+’

Notation

Commands, parameters and returned data are enclosed between single quotation marks ’’ in the text of this manual.

Most online commands are acknowledged by the device and any requested data returned. For commands that are not acknowledged, command execution can be observed or monitored directly on the device.

General online commands

Software version number

Command ’V’

Description Requests device version information

Parameter None

Acknowledgment Example: ’DCR202iFIX-F1-102-R2V1.0.02016-01-01’

The first line contains the device type of the code reader, followed by the device version number and version date. The data which is actually displayed may vary from the values given here.

Leuze electronic DCR 202i 56

Interfaces – Communication

NOTICE

You can use this command to check whether the communication between PC and code reader is functional.

Ä If you do not receive an acknowledgment, please check the interface connections or the pro-

tocol.

Software reset

Command ’H’

Description Carries out a software reset. The device is restarted and reinitialized, leaving it in the

same state as when the operating voltage is switched on.

Parameter None

Acknowledgment ’S’ (start signal)

Auto-setup

Command ’CA’

Description Activates the Auto setup function:

• Determine optimum illumination settings.

• Decode present code.

• Permanently store found code types and number of digits in the decoder table.

This is performed if a configuration code is present!

Parameter ’+’ Activates Auto setup

Acknowledgment ’CS=x’

x Status

’00’ Valid ’CA’ command

’01’ Invalid command

’02’ ‘Auto setup' could not be activated

Leuze electronic DCR 202i 57

Command ’CA’

Answer ’xx yyyy zzzzzz’

xx Code type of the read code

Interfaces – Communication

’01’ 2/5Interleaved

’02’ Code 39

’06’ UPC (A, E)

’07’ EAN

’08’ Code128, EAN128

’09’ Pharmacode

’10’ EAN Addendum

’11’ Codabar

’12’ Code93

’13’ GS1 DataBar Omni

’14’ GS1 DataBar Limited

’15’ GS1 DataBar Expanded

’20’ GS1 DataBar Truncated

’32’ DataMatrix ECC200

’33’ QRcode

’34’ Aztec

’48’ PDF417

’52’ GS1 DataBar Stacked

’53’ GS1 DataBar Stacked Omni

’54’ GS1 DataBar Stacked Expanded

yyyy Number of digits of the read code

zzzzzz Contents of the decoded label.

Alignment mode

Command ’JP’

Description Activates or deactivates the alignment mode for simple mounting alignment of the

device.

After activating the function with JP+, the code reader constantly outputs status information on the serial and Ethernet interface.

With the online command, the code reader is set so that it constantly outputs the floating average value of the last 10image acquisitions in [%] and the decoding result.

These values can be used to determine the reading quality or decoding quality.

The values are also output on the bar graph display of the device (SIGNALQUALITY).

Parameter ’+’ activates the alignment mode

’-’ deactivates the alignment mode

Acknowledgment ’yyyzzzzzz’

yyy Reading quality in [%].

zzzzzz Code information

Leuze electronic DCR 202i 58

Interfaces – Communication

Manual definition of the reference code

Command ’RS’

Description This command can be used to define a new reference code in the code reader by

means of direct input via the serial interface or the Ethernet interface.

Parameter ’RSyvxxzzzzzzzz’

y, v, x and z are placeholders (variables) for the actual input.

y Def. reference code no.

’1’ (Code1)

v Storage location for reference code:

’3’ RAM only

xx Defined code type (see command 'CA')

z Defined code information (1…244 characters)

Acknowledgment ’RS=x’

x Status

’00’ Valid ’Rx’ command

’01’ Invalid command

’02’ Insufficient memory for reference code

’03’ Reference code has not been saved

’04’ Reference code invalid

Example Entry = ’RS133211032010’

Code1 (1), RAM(03)+EEPROM(0), DataMatrix ECC200 (32), code information

Teach-in

Command ’RT’

Description This command enables a reference code to be defined quickly by reading an exam-

ple label.

Parameter ’RTy’

y Function

’1’ Defines reference code1

Acknowledgment The code reader responds with command ’RS’ and corresponding status (see com-

mand ’RS’). After a code has been read, it sends the result in the following format:

’RCyvxxzzzzz’

y, v, x and z are placeholders (variables) for the actual input.

y Def. reference code no.

’1’ (Code1)

v Storage location for reference code:

’3’ RAM only

xx Defined code type (see command 'CA')

z Defined code information (1…244 characters)

NOTICE

With this function, only code types are recognized that are identified using the Auto setup function or which were set in the setup.

Leuze electronic DCR 202i 59

Interfaces – Communication

Reading a reference code

Command ’RR’

Description The command reads out the reference code defined in the code reader. If no param-

eters are specified, all defined codes are output.

Parameter <reference code number>

’1’ Reference code1

Acknowledgment Output in the following format:

’RCyvxxzzzz’

If no reference codes are defined, nothing is entered for zzzz.

y, v, x and z are placeholders (variables) for the actual input.

y Def. reference code no.

’1’ (Code1)

v Storage location for reference code:

’3’ RAM only

xx ’00’ is always output

z Definedcodeinformation (1…244 characters)

Device status

Command ’SST?’

Description The command queries the device status. If the command is sent via the host

interface (Ethernet, RS232/RS422), acknowledgment is only given in the Process operating mode. The host interface is blocked in the Service operating mode.

Parameter None

Acknowledgment ’SST=xxxxxxxx’

x stands for a single bit (value ’1’ or ’0’)

Bit7 is at the far left, bit0 is at the far right

0 Ready for testing

’1’ The code reader is ready to receive a trigger and start a

check program.

’0’ The code reader does not respond to an incoming trigger

signal.

1 Operating mode

’1’ Process operating mode

’0’ Service operating mode

2 Device error

’1’ Device error, no inspection possible

’0’ No device error, ready

3…7 No function, value is always ’0’

Alternatively, the following acknowledgment is output:

’DS=xx’

x Error acknowledgment

’00’ Syntax error

’01’ Other error

Leuze electronic DCR 202i 60

Interfaces – Communication

10.1.3

Online commands for system control

Activate decoding

Command ’+’

Description The command activates configured decoding.

Parameter None

Acknowledgment None

Deactivate decoding

Command ’-’

Description The command deactivates configured decoding.

Parameter None

Acknowledgment None

10.2 XML-based communication

You can send commands for control and configuration directly to the code reader via XML-based communication.

• The code reader must be connected to a computer (host) via the Ethernet interface (see chapter 8.3.4 "Ethernet host communication").

• The code reader is designed as an XML server and communicates on port 10004.

You can find detailed information on XML-based communication on the Leuze home page:

www.leuze.com

• Enter the type designation or part number of the device as the search term.

• You can find the information on the Downloads tab.

Leuze electronic DCR 202i 61

11 Care, maintenance and disposal

Usually, the code reader does not require any maintenance by the operator.

Cleaning

Clean the protective screen of the code reader with a soft cloth before mounting.

NOTICE

Do not use aggressive cleaning agents!

Ä Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device.

Maintenance

Repairs to the device must only be carried out by the manufacturer.

Ä For repairs, contact your responsible Leuzeelectronic subsidiary or Leuzeelectronic customer service

(see chapter 13 "Service and support").

Disposing

Ä For disposal observe the applicable national regulations regarding electronic components.

Care, maintenance and disposal

Leuze electronic DCR 202i 62

12 Diagnostics and troubleshooting

Error signaling via LED

Tab.12.1: Meaning of the LED indicators

Error Possible error cause Measures

PWR LED

Diagnostics and troubleshooting

Off • No operating voltage connected to

the device

• Hardware error

Red, continuous

Device error/parameter enable Contact Leuzeelectronic customer service

light

Red, flashing Warning set

Temporary operating fault

NET LED

Off • No operating voltage connected to

the device

• Hardware error

Red, continuous light

Network error No communication established to the IO controller

Red, flashing No communication

Parameterization or configuration failed

• Check operating voltage

• Contact Leuzeelectronic customer service (see chapter 13 "Service and support")

(see chapter 13 "Service and support")

Query diagnostic data and carry out the resulting measures

• Check operating voltage

• Contact Leuzeelectronic customer service (see chapter 13 "Service and support")

Check interface

Leuze electronic DCR 202i 63

13 Service and support

24-hour on-call service at:

+49(0)7021573-0

Service hotline:

+49(0)7021573-123

Monday to Friday 8.00a.m. to 5.00p.m. (UTC+1)

E-mail:

service.identify@leuze.de

Repair service and returns:

Procedure and Internet form can be found at

www.leuze.com/repair

Return address for repairs:

Service center

LeuzeelectronicGmbH+Co.KG

InderBraike1

D-73277Owen/Germany

Service and support

13.1 What to do should servicing be required?

NOTICE

Please use this chapter as a master copy should servicing be required!

Ä Enter the contact information and fax this form together with your service order to the fax

number given below.

Customer data (please complete)

Device type:

Serial number:

Firmware:

Status of LEDs:

Error description:

Company:

Contact person/department:

Phone (direct dial):

Fax:

Street/No:

ZIP code/City:

Country:

Leuze Service fax number:

+497021 573-199

Leuze electronic DCR 202i 64

14 Technical data

14.1 General specifications

Tab.14.1: Electrical equipment

Technical data

Operating voltage U

18V…30V DC

PELV, Class2 / SELV

Average power consumption 8W without load on the switching output

During strobed operation, a higher power can briefly be consumed.

Switching input

Switching output

• SWI1: Digital switching input1 (default: "Trigger")

• SWO2: Digital switching output2 (default: "Good Read")

• SWI/O3: Digital switching input/output3

(default: switching output "Noread")

• SWI/O4: Digital switching input/output4

(default: switching output "Device ready")

18V…30V DC, depending on operating voltage

: 60mA per switching output; 100mA total current

max

Short-circuit proof, protected against polarity reversal

Process interface RS232/RS422, Ethernet 10/100Mbit/s

RS232 with adjustable data format. Default:

• 9600 Bd, 8data bits, no parity, 1stop bit

• <STX> <data> <CR><LF>

Tab.14.2: Operating and display elements

Keyboard 2 control buttons (not on devices with stainless steel housing)

LEDs 1 dual LED (green/red) for power (PWR)

1 dual LED (green/red) for bus state (NET)

1 dual LED (green/yellow) for link state (LINK)

Bar graph display with 6 LEDs (green) for function selection and displaying the reading quality (not with devices with stainless steel housing)

Tab.14.3: Mechanical data

Degree of protection IP65 acc. to EN60529

With screwed-on M 12 connectors or mounted caps

VDE protection class III (EN61140)

Connection technology M12 connectors

Weight 120 g (housing hood with plastic screen)

Dimensions (H x W x D) 65.6x43x44mm

Fastening 2 M4 threaded inserts on each of the side walls, 5mm deep

4 M4 threaded inserts on the rear, 3.5mm / 5mm deep

Housing Housing: polycarbonate

Housing base: diecast aluminum

Optics cover Polycarbonate

Optional: glass

Leuze electronic DCR 202i 65

Technical data

Devices with stainless steel housing

Degree of protection IP67/69K acc. to EN60529

With screwed-on M 12 connectors or mounted caps

Weight 392g (stainless steel housing with glass pane)

Dimensions (H x W x D) 66x46x45.5mm

Fastening 2 M4 threaded inserts on the rear, 3.5mm deep

Housing Upper part of housing/housing base: stainless steel AISI316L W.no:

1.4404

Housing seal: EPDM

Housing screws: A4 stainless steel

Optics cover Coated plastic (PMMA) or glass

Tab.14.4: Environmental data

Ambient temp. (operation/storage)

Air humidity max. 90% rel. humidity, non-condensing

Ambient light Max. 2000Lux

Electromagnetic compatibility EN61000-6-2, EN61000-6-4

Vibration IEC60068-2-6, test Fc

Continuous shock IEC60068-2-29, test Eb

Certifications UL 60950-1

Conformity CE, FCC, UL

Chemical resistance Stainless steel housing tested in accordance with ECOLAB and Clean-

14.2 Optical data

Integrated LED illumination Red light (visible, 616nm)

0°C…+50°C/-20°C…+70°C

CAN/CSA C22.2 No. 60950-1-07

CSA C22.2 No. 60950-1-07

Proof+ (see Leuze electronic website at www.leuze.com)

Risk group0 (exempt group)

Acc. to IEC 60825-1, EN62471:2008

Integrated feedback LED Green (528nm)

Beam exit Front

Image sensor Global shutter CMOS Imager

Number of pixels 1280x960 pixels

Optics models Resolution

• High Density (N)

0.127mm (5mil)…0.25mm (10mil)

• Medium Density (M)

0.19mm (7.5mil)…0.33mm (13mil)

• Low Density (F)

0.25mm (10mil)…0.5mm (20mil)

Electronic shutter speeds 68µs…5ms (flash)

Leuze electronic DCR 202i 66

Technical data

14.2.1

Reading performance

Reading distance see chapter 6.1.3 "Determining the reading distance"

Object speed • N-optics: Up to 4ms at m=0.19 mm (7.5 mil)

14.2.2

Code specifications

Code type: 1D Code128 EAN128 (GS1-128), Code39, Code 2/5Interleaved, EAN8/

Code type: stacked codes

Code type: 2D DataMatrix (ECC200), AztecCode, GS1AztecCode, GS1DataBar (ECC200)

14.3 Dimensioned drawings

• M-optics: Up to 5ms at m=0.25 mm (10 mil)

• F-optics: Up to 7ms at m=0.33 mm (13 mil)

EAN13, UPCA/E, Pharmacode, Codabar (Monarch), Code93

GS1DataBar (Omnidirectional, Expanded, Limted, Truncated)

GS1DataBar (Stacked Omnidirectional, StackedExpanded)

PDF417

QR-Code, GS1QR-Code

all dimensions in mm

A Optical axis

Fig.14.1: DCR200i dimensioned drawing

Leuze electronic DCR 202i 67

all dimensions in mm

A Optical axis

Technical data

Fig.14.2: Dimensioned drawing of DCR200i with stainless steel housing

14.4 Dimensioned drawings - Accessories

all dimensions in mm

Fig.14.3: Dimensioned drawing of the BTU320M-D12 mounting system

Leuze electronic DCR 202i 68

Technical data

all dimensions in mm

Fig.14.4: Dimensioned drawing of the BT320M mounting bracket

Leuze electronic DCR 202i 69

Technical data

all dimensions in mm

Fig.14.5: Dimensioned drawing of the BTU320M-D12-RL70 mounting bracket for ring light

Leuze electronic DCR 202i 70

Technical data

SWIO3

MA 150

Art.-No.

01301095

SWIO4

PWR

PWR/SWIO

IDENT

SWO2

SWI1 HOST

4,5

BEA AF

4,5

all dimensions in mm A Earthing strap B Green LED: PWR C White LED: SWI1 D White LED: SWO2 E White LED: SWIO3 F White LED: SWIO4

Fig.14.6: Dimensioned drawing of MA150 connection unit

Leuze electronic DCR 202i 71

15 Order guide and accessories

15.1 Nomenclature

Part designation:

DCR2xxiFIX-f -102-Rr-Z-V

Tab.15.1: Part number code

DCR Operating principle: Dual Code Reader

2 Series: DCR200

xx Host interface

02: Ethernet TCP/IP, UDP, RS232/RS422

48: PROFINET-IO, Ethernet TCP/IP, UDP, RS232/RS422

i Integrated fieldbus technology

FIXED Fixed focal length

f Optics model:

N: High Density

M: Medium Density

F: Low Density

Order guide and accessories

102 Device with connector/socket

R Illumination: red light

r Resolution range:

Z Type of protective screen:

V Stainless steel housing

NOTICE

A list with all available device types can be found on the Leuzeelectronic website at

www.leuze.com.

15.2 Type overview

Tab.15.2: Type overview

Beam exit at front

3: 1280x960 pixels

-: Plastic

G: Glass

P: Polarization filter

Type designation Description Part no.

DCR 202i FIX-N1-102-R3 Stationary 2D-code reader, N-optics 50128782

DCR 202i FIX-M1-102-R3 Stationary 2D-code reader, M-optics 50128783

DCR 202i FIX-F1-102-R3 Stationary 2D-code reader, F-optics 50128784

DCR 202i FIX-N1-102-R3-G Stationary 2D-code reader, N-optics, glass pane 50128785

DCR 202i FIX-M1-102-R3-G Stationary 2D-code reader, M-optics, glass pane 50128786

DCR 202i FIX-F1-102-R3-G Stationary 2D-code reader, F-optics, glass pane 50128787

DCR 202i FIX-N1-102-R3-P Stationary 2D-code reader, N-optics, polarization filter 50128788

Leuze electronic DCR 202i 72

Order guide and accessories

Type designation Description Part no.

DCR 202i FIX-M1-102-R3-P Stationary 2D-code reader, M-optics, polarization filter 50128789

DCR 202i FIX-F1-102-R3-P Stationary 2D-code reader, F-optics, polarization filter 50128790

DCR 202i FIX-N1-102-R3-V Stationary 2D-code reader, stainless steel housing, N-

DCR 202i FIX-M1-102-R3-V Stationary 2D-code reader, stainless steel housing,

DCR 202i FIX-F1-102-R3-V Stationary 2D-code reader, stainless steel housing, F-

DCR 202i FIX-N1-102-R3-G-V Stationary 2D-code reader, stainless steel housing, N-

DCR 202i FIX-M1-102-R3-G-V Stationary 2D-code reader, stainless steel housing,

DCR 202i FIX-F1-102-R3-G-V Stationary 2D-code reader, stainless steel housing, F-

15.3 Optical accessories

Tab.15.3: Accessories – housing hoods

Part no. Part designation Description

50131462 Cover DCR 200i Housing hood with plastic pane

50131461 Cover DCR 200i-G Housing hood with glass pane

50131460 Cover DCR 200i-P Housing hood with polarization filter

50134096

optics

50134097

M-optics

50134098

optics

50134099

optics, glass pane

50134100

M-optics, glass pane

50134101

optics, glass pane

50131459 Diffusor DCR 200i Diffusor foil

15.4 Cables accessories

Tab.15.4: Accessories–PWR connection cable (open cable end)

Part no. Part designation Description

M12 socket (12-pin, A-coded), axial connector, open cable end, shielded, UL

50130281 KDS-M12-CA-P1-020 PWR connection cable, length 2m

50130282 KDS-M12-CA-P1-050 PWR connection cable, length 5m

50130283 KDS-M12-CA-P1-100 PWR connection cable, length 10m

M12 socket (12-pin, A-coded), angled connector, open cable end, shielded, UL

50134943 KDS-M12-CW-P1-050 PWR connection cable, length 5m

Tab.15.5: Accessories – PWR connection cable (extension, to M12 plug)

Part no. Part designation Description

M12 socket (12-pin, A-coded), axial connector

M12 plug (12-pin, A-coded), shielded, UL

50130284 KDSS-M12-CA-M12-CA-P1-020 Connection cable, length 2m

50130285 KDSS-M12-CA-M12-CA-P1-050 Connection cable, length 5m

50130286 KDSS-M12-CA-M12-CA-P1-100 Connection cable, length 10m

Leuze electronic DCR 202i 73

Order guide and accessories

Tab.15.6: Accessories – Ethernet connection cable (to RJ-45)

Part no. Part designation Description

M12 plug (4-pin, D-coded), axial connector to RJ-45 connector, shielded, UL

50135080 KSSET-M12-4A-RJ45-A-P7-020 Ethernet connection cable (on RJ-45), length 2m

50135081 KSSET-M12-4A-RJ45-A-P7-050 Ethernet connection cable (on RJ-45), length 5m

50135082 KSSET-M12-4A-RJ45-A-P7-100 Ethernet connection cable (on RJ-45), length 10m

50135083 KSSET-M12-4A-RJ45-A-P7-150 Ethernet connection cable (on RJ-45), length 15m

50135084 KSSET-M12-4A-RJ45-A-P7-300 Ethernet connection cable (on RJ-45), length 30m

Tab.15.7: Accessories–Ethernet connection cable (open cable end)

Part no. Part designation Description

M12 plug (4-pin, D-coded), axial connector, open cable end, shielded, UL

50135073 KSET-M12-4A-P7-020 Ethernet connection cable, length 2m

50135074 KSET-M12-4A-P7-050 Ethernet connection cable, length 5m

50135075 KSET-M12-4A-P7-100 Ethernet connection cable, length 10m

50135076 KSET-M12-4A-P7-150 Ethernet connection cable, length 15m

50135077 KSET-M12-4A-P7-300 Ethernet connection cable, length 30m

M12 plug (4-pin, D-coded), angled connector, open cable end, shielded, UL

50134942 KSET-M12-4W-P7-050 Ethernet connection cable, length 5m

Tab.15.8: Accessories–BUSIN/BUSOUT connection cable (to M12)

Part no. Part designation Description

M12 plug (4-pin, D-coded), BUSIN/BUSOUT to M12 socket, shielded, UL

50106899 KBET-2000-SSA BUSOUT connection cable, length 2m

50106900 KBET-5000-SSA BUSOUT connection cable, length 5m

50106901 KBET-10000-SSA BUSOUT connection cable, length 10m

50106902 KBET-15000-SSA BUSOUT connection cable, length 15m

50106905 KBET-30000-SSA BUSOUT connection cable, length 30m

15.5 Other accessories

Tab.15.9: Accessories–External illumination

Part no. Part designation Description

50132511 RL-70/40r-003-M12 Ring light, red with 300 mm cable and M12 plug

Tab.15.10: Accessories–Mounting aids

Part no. Part designation Description

50132150 BTU320M-D12 Mounting system for 12 mm rod

50132151 BT320M Mounting bracket

50132453 BTU320M-D12-RL70 Mounting bracket for ring light

Leuze electronic DCR 202i 74

Order guide and accessories

Tab.15.11: Accessories – fieldbus connection

Part no. Part designation Description

50112891 MA248i Modular fieldbus connection for field use; interfaces:

RS232 / PROFINET

50112892 MA208i Modular fieldbus connection for field use; interfaces:

RS232 / EthernetTCP/IP

50112893 MA204i Modular fieldbus connection for field use; interfaces:

RS232 / PROFIBUS

50114154 MA235i Modular fieldbus connection for field use; interfaces:

RS232 / CANopen

50114155 MA238i Modular fieldbus connection for field use; interfaces:

RS232 / EtherCAT

50114156 MA255i Modular fieldbus connection for field use; interfaces:

RS232 / DeviceNet

50114157 MA258i Modular fieldbus connection for field use; interfaces:

RS232 / Ethernet/IP

50132488 KB JST-M12A-12P-50 Interconnection cable for DCR200i to MA2xxi modu-

lar fieldbus connection

Tab.15.12: Accessories – Modular connection unit

Part no. Part designation Description

50130109 MA150 Modular connection unit for decentralized distribution

of the signals in the machine

Leuze electronic DCR 202i 75

16 EC Declaration of Conformity

The code readers of the DCR200i series have been developed and manufactured in accordance with the applicable European standards and directives.

EC Declaration of Conformity

Leuze electronic DCR 202i 76

17 Appendix

17.1 ASCII character set

ASCII Dec. Hex. Oct. Designation Meaning

NUL 0 00 0 ZERO Zero

SOH 1 01 1 START OF HEADING Start of heading

STX 2 02 2 START OF TEXT Start of text characters

ETX 3 03 3 END OF TEXT Last character of text

EOT 4 04 4 END OF TRANSMISS. End of transmission

ENQ 5 05 5 ENQUIRY Request for data trans.

ACK 6 06 6 ACKNOWLEDGE Positive acknowledgment

BEL 7 07 7 BELL Bell signal

BS 8 08 10 BACKSPACE Backspace

HT 9 09 11 HORIZ. TABULATOR Horizontal tabulator

LF 10 0A 12 LINE FEED Line feed

Appendix

VT 11 0B 13 VERT. TABULATOR Vertical tabulator

FF 12 0C 14 FORM FEED Form feed

CR 13 0D 15 CARRIAGE RETURN Carriage return

SO 14 0E 16 SHIFT OUT Shift out

SI 15 0F 17 SHIFT IN Shift in

DLE 16 10 20 DATA LINK ESCAPE Data link escape

DC1 17 11 21 DEVICE CONTROL 1 Device control character 1

DC2 18 12 22 DEVICE CONTROL 2 Device control character 2

DC3 19 13 23 DEVICE CONTROL 3 Device control character 3

DC4 20 14 24 DEVICE CONTROL 4 Device control character 4

NAK 21 15 25 NEG. ACKNOWLEDGE Negative acknowledge

SYN 22 16 26 SYNCHRONOUS IDLE Synchronization

ETB 23 17 27 EOF TRANSM. BLOCK End of data transmission block

CAN 24 18 30 CANCEL Invalid

EM 25 19 31 END OF MEDIUM End of medium

SUB 26 1A 32 SUBSTITUTE Substitution

ESC 27 1B 33 ESCAPE Escape

FS 28 1C 34 FILE SEPARATOR File separator

GS 29 1D 35 GROUP SEPARATOR Group separator

RS 30 1E 36 RECORD SEPARATOR Record separator

US 31 1F 37 UNIT SEPARATOR Unit separator

SP 32 20 40 SPACE Space

! 33 21 41 EXCLAMATION POINT Exclamation point

" 34 22 42 QUOTATION MARK Quotation mark

# 35 23 43 NUMBER SIGN Number sign

$ 36 24 44 DOLLAR SIGN Dollar sign

% 37 25 45 PERCENT SIGN Percent sign

Leuze electronic DCR 202i 77

ASCII Dec. Hex. Oct. Designation Meaning

& 38 26 46 AMPERSAND Ampersand

’ 39 27 47 APOSTROPHE Apostrophe

( 40 28 50 OPEN. PARENTHESIS Open parenthesis

) 41 29 51 CLOS. PARENTHESIS Closed parenthesis

* 42 2A 52 ASTERISK Asterisk

+ 43 2B 53 PLUS Plus sign

, 44 2C 54 COMMA Comma

- 45 2D 55 HYPHEN (MINUS) Hyphen

. 46 2E 56 PERIOD (DECIMAL) Period (decimal)

/ 47 2F 57 SLANT Slant

0 48 30 60 0 Number

1 49 31 61 1 Number

2 50 32 62 2 Number

3 51 33 63 3 Number

Appendix

4 52 34 64 4 Number

5 53 35 65 5 Number

6 54 36 66 6 Number

7 55 37 67 7 Number

8 56 38 70 8 Number

9 57 39 71 9 Number

: 58 3A 72 COLON Colon

; 59 3B 73 SEMICOLON Semicolon

< 60 3C 74 LESS THAN Less than

= 61 3D 75 EQUALS Equals

> 62 3E 76 GREATER THAN Greater than

? 63 3F 77 QUESTION MARK Question mark

@ 64 40 100 COMMERCIAL AT Commercial AT

A 65 41 101 A Capital letter

B 66 42 102 B Capital letter

C 67 43 103 C Capital letter

D 68 44 104 D Capital letter

E 69 45 105 E Capital letter

F 70 46 106 F Capital letter

G 71 47 107 G Capital letter

H 72 48 110 H Capital letter

I 73 49 111 I Capital letter

J 74 4A 112 J Capital letter

K 75 4B 113 K Capital letter

L 76 4C 114 L Capital letter

M 77 4D 115 M Capital letter

Leuze electronic DCR 202i 78

ASCII Dec. Hex. Oct. Designation Meaning

N 78 4E 116 N Capital letter

O 79 4F 117 O Capital letter

P 80 50 120 P Capital letter

Q 81 51 121 Q Capital letter

R 82 52 122 R Capital letter

S 83 53 123 S Capital letter

T 84 54 124 T Capital letter

U 85 55 125 U Capital letter

V 86 56 126 V Capital letter

W 87 57 127 W Capital letter

X 88 58 130 X Capital letter

Y 89 59 131 Y Capital letter

Z 90 5A 132 Z Capital letter

[ 91 5B 133 OPENING BRACKET Opening bracket

Appendix

\ 92 5C 134 REVERSE SLANT Reverse slant

] 93 5D 135 CLOSING BRACKET Closing bracket

^ 94 5E 136 CIRCUMFLEX Circumflex

_ 95 5F 137 UNDERSCORE Underscore

` 96 60 140 GRAVE ACCENT Grave accent

a 97 61 141 a Lower case letter

b 98 62 142 b Lower case letter

c 99 63 143 c Lower case letter

d 100 64 144 d Lower case letter

e 101 65 145 e Lower case letter

f 102 66 146 f Lower case letter

g 103 67 147 g Lower case letter

h 104 68 150 h Lower case letter

i 105 69 151 i Lower case letter

j 106 6A 152 j Lower case letter

k 107 6B 153 k Lower case letter

l 108 6C 154 l Lower case letter

m 109 6D 155 m Lower case letter

n 110 6E 156 n Lower case letter

o 111 6F 157 o Lower case letter

p 112 70 160 p Lower case letter

q 113 71 161 q Lower case letter

r 114 72 162 r Lower case letter

s 115 73 163 s Lower case letter

t 116 74 164 t Lower case letter

u 117 75 165 u Lower case letter

Leuze electronic DCR 202i 79

ASCII Dec. Hex. Oct. Designation Meaning

v 118 76 166 v Lower case letter

w 119 77 167 w Lower case letter

x 120 78 170 x Lower case letter

y 121 79 171 y Lower case letter

z 122 7A 172 z Lower case letter

{ 123 7B 173 OPENING BRACE Opening brace

| 124 7C 174 VERTICAL LINE Vertical line

} 125 7D 175 CLOSING BRACE Closing brace

~ 126 7E 176 TILDE Tilde

DEL 127 7F 177 DELETE (RUBOUT) Delete

17.2 Code samples

Appendix

Module 0.3

Fig.17.1: Code type: 2/5Interleaved

Module 0.3

Fig.17.2: Code type: Code39

Module 0.3

Fig.17.3: Code type: Codabar

Module 0.3

Fig.17.4: Code type: Code128

Module 0.3

Fig.17.5: Code type: EAN128

Leuze electronic DCR 202i 80

SC 2

Fig.17.6: Code type: UPC-A

SC 3

Fig.17.7: Code type: EAN8

Appendix

SC 0 S

Fig.17.8: Code type: EAN13add-on

DCR200i

Fig.17.9: Code type: DataMatrix ECC200

DCR200i

Fig.17.10: Code type: QRCode

Test symbol

Fig.17.11: Code type: Aztec

DCR200i series

Fig.17.12: Code type: PDF417

Leuze electronic DCR 202i 81

17.3 Configuration via configuration codes

The code reader can also be configured using configuration codes. The device parameters in the device are set and permanently saved after reading this code.

Configuration changes via the configuration codes are only possible via button activation on the control panel of the device (AUTO function).

NOTICE

On devices with stainless steel housing, it is not possible to select functions using the control buttons.

Proceed as follows to read in a configuration code:

Ä Connect the code reader to the operating voltage and activate the AUTO function on the control panel. Ä Hold the configuration code at the correct distance in front of the optics of the code reader.

NOTICE

Read in configuration codes individually!

The configuration codes can only be read in individually.

Appendix

Reset to factory settings (without IP address)

Fig.17.13: Configuration code: reset to factory settings

Setting the IP address to the Leuze default address

Fig.17.14: Configuration code: Setting the IP address

DHCP activation

Fig.17.15: Configuration code: DHCP activation

DHCP deactivation

Fig.17.16: Configuration code: DHCP deactivation

Leuze electronic DCR 202i 82

Activation of reading gate control

Fig.17.17: Configuration code: Reading gate control activation

Activation of presentation mode

Fig.17.18: Configuration code: Presentation mode activation

Activation of single trigger mode

Appendix

Fig.17.19: Configuration code: Single trigger mode activation

Activation of burst mode

Fig.17.20: Configuration code: Burst mode activation

Activation of continuous mode

Fig.17.21: Configuration code: Continuous mode activation

17.4 License terms

This product contains software components that are licensed by the copyright holders as "free software" or as "open source software" under the GNU General Public License, Version 2. We can provide you with the source code of these software components on a data carrier/download (CD-ROM or DVD) if you submit a request to our customer support within three years of distribution of the product at the following address:

Service center

Leuze electronic GmbH + Co. KG

In der Braike 1

D-73277 Owen / Germany
