DB 112 B
Double Sheet Testing Unit
en 03-2014/06 50126540
We reserve the right to
make technical changes
TECHNICAL DESCRIPTION
Table of contents
1 General information ........................................................................................................... 2
1.1 Explanation of symbols ........................................................................................................ 2
1.2 Declaration of conformity ..................................................................................................... 2
2 Safety notices..................................................................................................................... 3
2.1 Safety standards ..................................................................................................................3
2.2 Intended use ........................................................................................................................ 3
2.3 Areas of application ............................................................................................................. 3
2.4 Organisational measures .....................................................................................................3
3 Device overview .................................................................................................................4
4 Specifications..................................................................................................................... 6
5 Mounting the transmitter and receiver............................................................................. 7
6 Electrical connection ......................................................................................................... 8
7 Commissioning ..................................................................................................................9
8 Operation - inputs and outputs....................................................................................... 12
9 Diagnosis in the case of error ........................................................................................ 13
10 Application-specific extension types............................................................................. 14
10.1 VDB 112 B/6.2N - Fixed switching threshold .....................................................................14
10.2 VDB 112B/6.12P - without teach button in the cover ......................................................... 15
Leuze electronic DB 112 B 1
General information
For UL applications:
only for use in "Class 2" circuits according to NEC.
1 General information
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
Attention!
This symbol appears before text passages which must absolutely be observed. Failure to
heed this information can lead to injuries to personnel or damage to the equipment.
Notice!
This symbol indicates text passages containing important information.
1.2 Declaration of conformity
The DB 112 B double sheet testing unit sensor system has been developed and manufactured in adherence with the applicable European standards and directives.
Notice!
The corresponding declaration of conformity can be requested from the manufacturer.
The manufacturer of the product, Leuze electronic GmbH + Co. KG in D-73277 Owen/Teck,
possesses a certified quality assurance system in accordance with ISO 9001.
2 DB 112 B Leuze electronic
2 Safety notices
2.1 Safety standards
The DB 112 B double sheet testing unit has been developed subject to the applicable safety
standard EN 60947-5-2 (IEC 60947-5-2).
2.2 Intended use
The DB 112 B double sheet testing unit has been conceived as a monitoring device mainly
for paper working machines. It monitors incoming paper sheets at machines designed to
process single sheets. It is used to detect and signal double sheets in the sheet feeder
during operation.
Attention!
The DB 112 B is not a safety module acc. to EU machine guidelines.
The protection of machine and the device cannot be guaranteed if the device is operated in
a manner not corresponding to its intended use.
Access to or changes on the device, except where expressly described in this manual, are
not authorised.
2.3 Areas of application
Safety notices
Double sheets made of the following materials can be reliably detected by the DB 112 B:
• Paper
• Plastic
• Metal foils
For paper, the measurement range is 20g/m² (airmail paper) to 800g/m² (homogeneous
cardboard).
2.4 Organisational measures
All entries in this operating manual must be heeded, in particular those in the section "Safety
notices" and "Commissioning".
Keep this technical description in a safe place. It should be accessible at all times.
Safety regulations
Observe the locally applicable safety regulations.
Qualified personnel
Mounting, commissioning and maintenance of the device may only be carried out by qualified personnel.
Leuze electronic DB 112 B 3
TNT 35/7-24V
Device overview
A M8 connector for transmitter DB 112 UP.1…
B M8 connector for receiver DB 112 UP.1…
C Indicator diodes
D Push button TEACH IN
3 Device overview
The ultrasonic double sheet testing system consists of a VDB 112 B… analysis amplifier
and a pair of DB 112 UP ultrasonic sensors.
It detects and checks primarily paper, plastic and metal foils which are guided in by feeders.
The device functions as a presence monitor by constantly applying a signal at the single
sheet output when an object is located between the sensors. It functions as a double sheet
testing unit by comparing each sheet with the stored reference value. A detected double
sheet is signalled at the double sheet output.
Figure 3.1: Device overview - dimensions
4 DB 112 B Leuze electronic
Controls and indicators
A LED green/yellow/red TEACH IN
B Ye l l o w L E D SINGLE SHEET
C Red LED DOUBLE SHEET
T Push button TEACH IN (not for VDB 112 B/6.2N)
VDB 112 B/6P
VDB 112 B/6.2N
Figure 3.2: Controls and indicators
Order guide
Designation Model Part No.
Sensor pair M12 x 21 mm, cable length 1.5m DB 112 UP.1-20,1500 501 08999
Sensor pair M12 x 21 mm, cable length 2.5m DB 112 UP.1-20,2500 501 09000
Amplifier (positive logic) VDB 112 B/6P 501 07002
Accessories
Designation Model Part No.
Cable 5m, PVC, 5-pin, with M12 connectors K-D M12A-5P-5m-PVC 501 04557
Device overview
TNT 35/7-24V
Leuze electronic DB 112 B 5
Specifications
4 Specifications
Technical data for sensor DB 112 UP
Sensor data
Operating range 15 … 30mm
Converter frequency 300kHz ±5%
Ultrasonic lobe approx. 12°
Mechanical data
Housing nickel-faced brass
Weight 30g
Connection type 1.5/2.5m cable with M8 connector,
Technical data for analysis amplifier VDB 112 B/…
Timing
Switching frequency 200Hz
Input pulse min. 5ms
Delay before start-up ≤ 300 ms
Electrical data
Operating voltage U
Residual ripple ≤ 15% of U
Open-circuit current ≤ 75mA
Switching output 2 push-pull switching outputs
Function single sheet detected, or ≥ 1 sheet
Signal voltage high/low ≥ (U
Output current max. 100mA per output
Teach input R
TEACH-IN active/not active
TEACH IN duration max. 100ms
TEACH IN delay
Indicators
LED green A double sheet testing unit ready
LED A yellow teach-in process
LED A red flashing error (see chapter 9)
LED yellow B single sheet detected
LED red C double sheet detected
Mechanical data
Housing aluminium, black powder-coated
Weight 400g
Connection type M12 connector, 5-pin
Environmental data
Ambient temp. (operation/storage) 0°C … +50 °C / -40°C … +70°C
Protective circuit
VDE safety class III
Protection class IP 65
Standards applied EN 60947-5-2
Certifications UL 508, C22.2 No.14-13
1) For UL applications: only for use in "Class 2" circuits according to NEC.
2) Function: …/…P = active high (+24V); inactive low (0V),
The push-pull switching outputs must not be connected in parallel
3) Setting the Teach IN input disables the TEACH IN button (see page 10)
4) Only applies for automatic calibration during sheet movement (automatic teach)
5) 1=transient protection, 2=polarity reversal protection, 3=short circuit protection
6) These proximity switches shall be used with UL Listed Cable assemblies rated 30V,
0.5A min, in the field installation, or equivalent (categories: CYJV/CYJV7 or PVVA/PVVA7)
B
4)
5)
…/…N = active low (0V); inactive high (+24V).
3-pin, bending radius r > 25mm
1)
3)
18 … 30V DC (incl. residual ripple)
double sheet detected, or ≥ 2 sheets
in
…/…P (PNP): ≥ 10V / ≤ 2V or not connected
…/…N (NPN): ≤ 2V / ≥ 10V or not connected
approx. 300ms
1,2,3
- 2V) / ≤ 2V
B
=10kΩ
B
2)
1) 6)
6 DB 112 B Leuze electronic

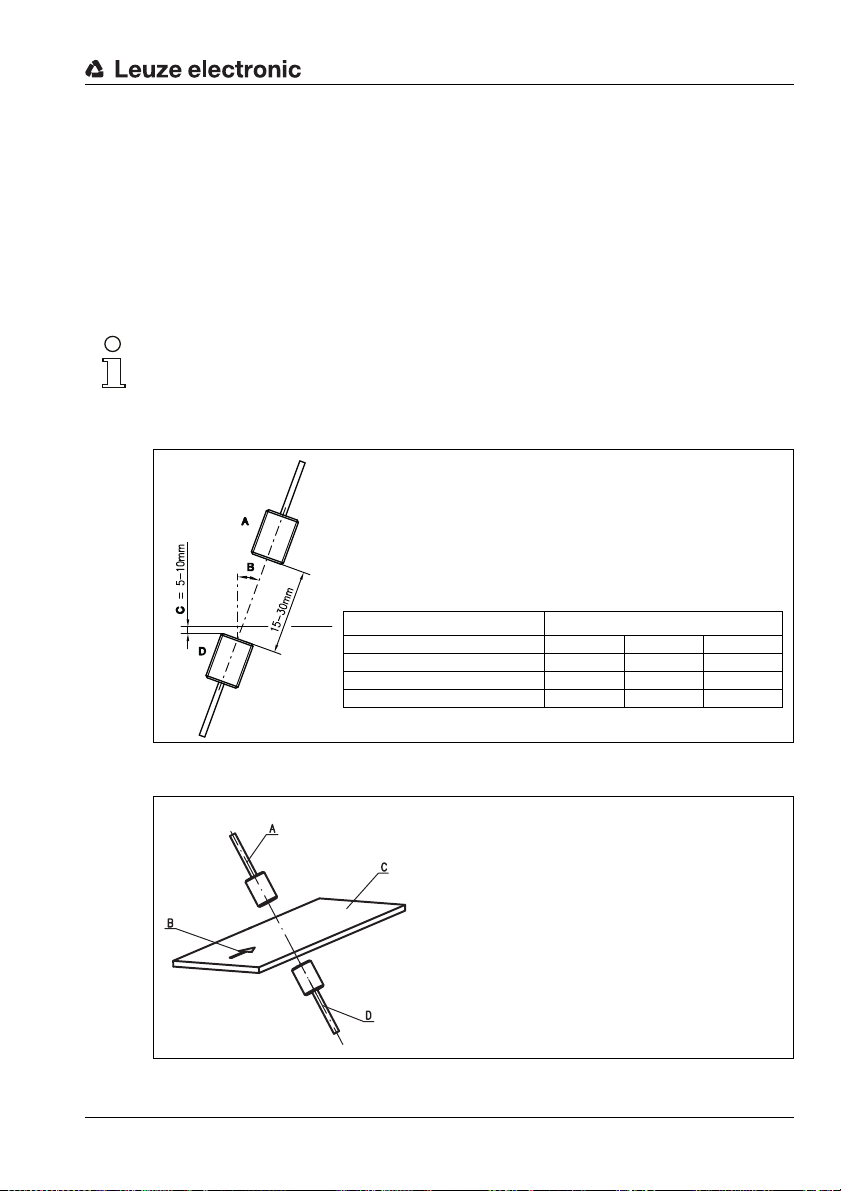

Mounting the transmitter and receiver
A Receiver
B Angle of inclination
C Sheet material
D Transmitter
Sheet material Recomm. angle of inclination B
0° 15° … 25° 25° … 35°
Standard paper up to 150g/m² X X X
Cardboard X X
Plastics X
A Receiver
B Machine direction
C Sheet material
D Transmitter
5 Mounting the transmitter and receiver
The transmitter and receiver (DB 112 UP) are identical in construction and are to be
mounted according to the table in figure 5.1 at an angle which varies depending on the sheet
material. A larger angle of inclination increases the flutter range; e.g. with a 35° pitch, flutter
is permissible within 50% of the measurement field. The distance between transmitter and
receiver must be at least 15mm and can be max. 30mm.
Ensure that alignment is exact (± 1°). If the alignment does not run along the axis, the
working range is reduced.
Notice!
When aligning the transmitter and receiver, take care to ensure the most exact alignment
possible. See "Alignment mode" on page 9. To ensure proper function, the sensors must be
inclined by the angle "B" towards the vertical.
Figure 5.1: Mounting the transmitter and receiver
Figure 5.2: Recommended configuration for maximum functionality
Leuze electronic DB 112 B 7
TNT 35/7-24V
Electrical connection
6 Electrical connection
Connect the transmitter and receiver at the appropriate M 8 connectors of the VDB 112 B/…
analysis amplifier.
Connect the analysis amplifier acc. to connection diagram (figure 6.1).
Figure 6.1: Connection diagram VDB 112 B/…
Circuit logic
VDB 112B/…P -> positive logic
VDB 112B/…N -> negative logic
8 DB 112 B Leuze electronic
7 Commissioning
Notice!
If the indicators flash during the initial commissioning, a calibration must first be performed
on a single sheet.
First apply operating voltage. An alignment mode is available for commissioning. This can
be used to check the alignment of the transmitter and receiver.
Alignment mode
Press the TEACH IN button
for >5s and <10s
LED green:
LED yellow:
LED red:
Commissioning
LEDs and flash synchronously at 3Hz
Alignment OKExit:
Alignment
critical
Alignment
bad
press the TEACH IN button < 5s
Align transmitter and receiver until
LED is green.
Only then is it possible to exit alignment mode!
Extraordinary exiting of alignment
mode is possible only by means of
Powe r OFF!
Align transmitter and receiver until
LED is green.
Only then is it possible to exit alignment mode!
Extraordinary exiting of alignment
mode is possible only by means of
Powe r OFF!
Notice!
After exiting alignment mode, it is absolutely necessary to perform a calibration.
Leuze electronic DB 112 B 9
TNT 35/7-24V
Commissioning
Calibrating on the material to be detected
For reliable detection of double layers of the medium being processed, it is always necessary to perform a calibration on a single sheet of the medium.
Calibration of the material to be detected can be performed by either pressing the TEACH IN
button on the analysis amplifier for 0.3s to 5s or by means of a control command at the
Teach IN input (pin 5).
Notice!
Setting the Teach IN input (pin 5) disables the TEACH IN button. As soon as a signal is applied once via the Teach IN input for the purpose of calibration, the TEACH IN button remains inactive (disabled) until the next Power On.
During the calibration process, LED illuminates yellow.
If the calibration was successful, LED illuminates green and LED yellow. The
single sheet output is activated. The reference value remains stored until the next calibration process.
If the calibration process was not successful, LED flashes red and LED illuminates
red. The double sheet output is activated.
Notice!
Causes of unsuccessful calibration include e.g.:
• More than 1 sheet between the sensors.
• Unsuitable sheet material, e.g. due to lamination or coating, too thin, too thick, or air
pockets present.
• Pitch to sensors too low.
The VDB 112 B analysis amplifier can be operated in 3 different operating modes (teach
modes):
1. Standard mode:
Teach with intelligent transmitter/receiver control for covering a wide spectrum of
materials.
2. Automatic teach:
300ms after sheet detection by the ultrasonic sensors, teach-in occurs automatically.
In this operating mode, manual or external teaching is not necessary. A new automatic teach-in is carried out if the ultrasonic path is clear for more than 2s.
3. Fixed switching threshold:
This operating mode is recommended when the process does not permit manual or
external teaching. In this operating mode, the variety of materials to be detected is
limited.
10 DB 112 B Leuze electronic
Commissioning
Selecting the operating mode (teach mode)
Press the TEACH IN button
for > 10s and < 15s
1. LED green:
2. LED red:
3. LED off:
Attention!
After selecting the operating mode (teach mode), a calibration must be performed!
LEDs and flash alternately at 3Hz
Manual teach
(standard mode)
Automatic teach
on the first sheet
Permanently
stored switching
threshold
To select and exit:
press the TEACH IN button > 3s
(LED yellow)
To advance to next:
press the TEACH-IN button < 3s
To select and exit:
press the TEACH IN button > 3s
(LED yellow)
To advance to next:
press the TEACH-IN button < 3s
To select and exit:
press the TEACH IN button > 3s
(LED yellow)
To advance to next:
press the TEACH-IN button < 3s
Leuze electronic DB 112 B 11
TNT 35/7-24V
Operation - inputs and outputs
8 Operation - inputs and outputs
The analysis unit VDB 112 B/… continuously signals the situation occurring between the
sensors to two outputs.
The single sheet output (pin 2) is activated as long as one or more sheets are located in
the measurement field.
The double sheet output (pin 4) is activated as long as two or more sheets are located in
the measurement field.
Notice!
For reliable operation, it is essential that calibration be performed on the material to be
detected. See "Calibrating on the material to be detected" on page 10.
12 DB 112 B Leuze electronic
9 Diagnosis in the case of error
The device LEDs indicate the following error states:
LED LED LED Meaning Cause Remedy
Diagnosis in the case of error
red
flashing
(6Hz)
red
flashing
(6Hz)
red
flashing
(6Hz)
red
flashing
(6Hz)
red
flashing
(3Hz)
yellow
flashing
(6Hz)
rapid
yellow
flashing
Double-sheet control not calibrated
No single sheet
red
detected during calibration
Amplifier detects
red
flashing
flashing
flashing
insufficient input signal when device
(6Hz)
switched on
Amplifier detects
red
excessively high
noise level when
(6Hz)
device switched on
rapid
Current at output too
red
high
red Fatal memory error Defect
No sheet inserted or
double sheet
inserted
Sheet between the
sensors or sensors
not connected
Extreme background noise
Short circuit
Perform calibration
Calibrate on single
sheet
Remove sheet and
acknowledge with
the TEACH IN button
Dampen background noises, e.g.
using foam
Switch off voltage,
check wiring
Have repaired by
Leuze electronic
TNT 35/7-24V
Leuze electronic DB 112 B 13
Application-specific extension types
10 Application-specific extension types
The amplifier types described below are used for the adaptation to specific applications.
They are used instead of the standard amplifier types.
10.1 VDB 112 B/6.2N - Fixed switching threshold
This amplifier corresponds to the VDB 112B/6P with regard to the technical and electrical
data. The software is adapted to a special customer application.
No calibration is needed for the material to be detected as a fixed switching threshold for
double sheet detection is implemented in the amplifier.
The detection range covers papers between 40g/m² and 450g/m².
Designation Model Part No.
Amplifier (negative logic) - fixed switching threshold VDB 112 B/6.2N 501 07003
Notice!
The VDB 112 B/6.2N has no TEACH-IN button. In order to enter alignment mode if required,
the 2-pin pin strip directly on the PCB may be bridged for >5 s. Afterwards, alignment can be
carried out as described under "Alignment mode" in chapter 7.
The device LEDs indicate the following error states:
LED LED LED Meaning Cause Remedy
red
flashing
(6Hz)
red
flashing
(6Hz)
red
flashing
(3Hz)
rapid
yellow
flashing
flashing
flashing
flashing
Amplifier detects
red
insufficient input signal when device
(6Hz)
switched on
Amplifier detects
red
excessively high
noise level when
(6Hz)
device switched on
rapid
Current at output too
red
high
red Fatal memory error Defect
Sheet between the
sensors or sensors
not connected
Extreme background noise
Short circuit
Remove sheet
Dampen background noises, e.g.
using foam
Switch off voltage,
check wiring
Have repaired by
Leuze electronic
In the case of VDB112B/6.2N, the operating voltage must be interrupted briefly in order to
reset the error message.
14 DB 112 B Leuze electronic
Application-specific extension types
10.2 VDB 112B/6.12P - without teach button in the cover
This amplifier corresponds to the VDB 112B/6P with regard to technical and electrical data
as well as the software. The devices are delivered with "manual teach" operating mode.
The calibration on the material to be detected is performed using pin 5 on the M 12
connector.
Designation Model Part No.
Amplifier (positive logic) without teach button in the cover VDB 112 B/6.12P 501 09780
Notice!
To enter alignment mode, the 2-pin pin strip directly on the PCB can be bridged for longer
than 5s. Afterwards, alignment can be carried out as described in chapter 7. Error states see
chapter 9 "Diagnosis in the case of error".
Leuze electronic DB 112 B 15
TNT 35/7-24V
Loading...
