Lenovo ThinkPad T14 Gen 1, ThinkPad T15 Gen 1, ThinkPad P14s Gen 1, ThinkPad P15s Gen 1 Setup Guide [en, bg]
T14 Gen 1 / T15 Gen 1
P14s Gen 1 / P15s Gen 1
Setup Guide
* For selected models
Initial Setup
* Lenovo HDMI to
VGA Adapter
* Lenovo USB-C to
DisplayPort Adapter
* Lenovo USB-C to
VGA Adapter
Overview
T14 Gen 1 / P14s Gen 1
Overview
T15 Gen 1 / P15s Gen 1
* For selected models

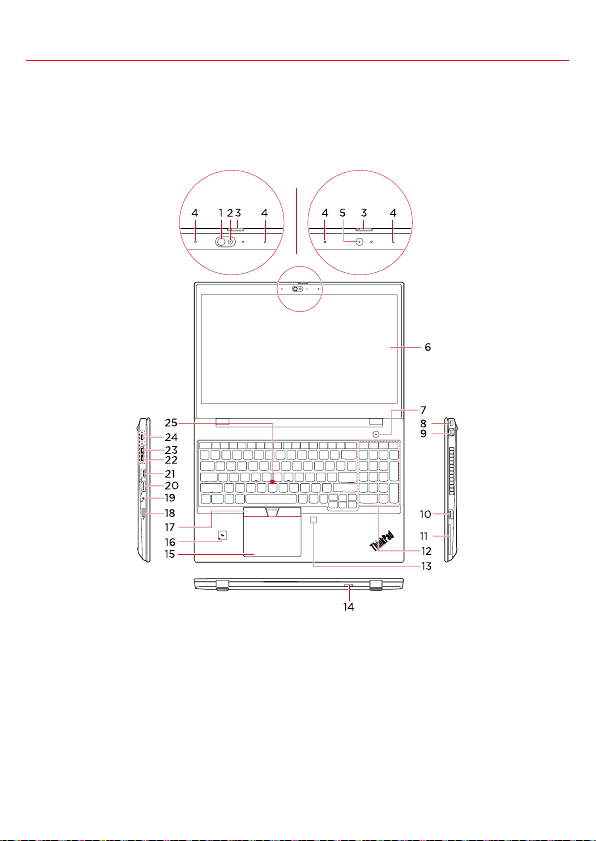

* 1. Infrared LED
* 2. Camera with IR function
* 3. ThinkShutter
* 4. Microphones
* 5. Camera
* 6. Multi-touch screen
7. Power button
8. Security-lock slot
9. Ethernet connector
10. Always On USB 3.2 connector
Gen 1
* 11. Smart-card slot
12. Numeric keypad
Read the statement on USB transfer rate in the Use r Guide. Refer to the Safety and
Warranty Guide for accessing the User Guide.
* 13. Fingerprint reader
* 14. Nano-SIM-card tray
15. Trackpad
* 16. NFC label
17. TrackPoint® buttons
18. microSD card slot
19. Audio connector
20. HDMI
TM
connector
21. USB 3.2 connector Gen 1
22. Docking-station connector
23. Thunderbolt™ 3 connector (USB-C)
24. USB-C™ (3.2 Gen 1) connector
25. TrackPoint pointing stick
* For selected models
Customer Replaceable Units (CRUs)
xxxxxxxxxxx | xxxxxxxxxxx | xxxxxxxxxxx | xxxxxxxxxxx | xxxxxxxxxxx
• ac power adapter
• Always On USB 3.2 connector Gen
1 board
• Always On USB 3.2 connector Gen
1 board bracket
• Base cover assembly
• Coin-cell battery
• Keyboard
* • Memory module
• M.2 solid-state drive
* • M.2 solid-state drive bracket
* • Nano-SIM-card tray
• Power cord
• Speaker assembly
* • Wireless WAN card
Refer to the User Guide for CRU definition.
Additional information
Technology
Frequency
band [MHz]
Maximum
transmit
power
WLAN
802.11b/g/n/ax
Technology
Frequency
band [MHz]
Maximum
transmit
power
WLAN
802.11a/n/ac/ax
WLAN
802.11a/n/ac/ax
Bluetooth
BR/EDR/LE
WWAN UMTS
1/8
< 24.5 dBm
WWAN LTE
1/3/7/8/20/28
< 24 dBm
WWAN LTE
38/40/42
< 24 dBm
< -5.31
@10m
xxxxxxx I xxxxxxx I xxxxxx I xxxxxxxxxx I xxxxxxxxx
European Union — compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that
the radio equipment type ThinkPad T14 Gen 1 ,
ThinkPad T15 Gen 1, ThinkPad P14s Gen 1, and
ThinkPad P15s Gen 1 are in compliance with
Directive 2014/53/EU.
The full text of the system EU declaration of
conformity is available at the following Internet
address:
https://www.lenovo.com/us/en/compliance/eudoc
This radio equipment operates with the following
frequency bands and maximum radio-frequency
power:
2400 - 2483.5 < 20 dBm
NFC 13.56
Usage of all the radio devices is limited to indoor in
the band 5150 MHz to 5350 MHz (channels 36, 40,
44, 48, 52, 56, 60, 64).
5150 - 5725 < 23 dBm
5725 - 5875 < 13.98 dBm
2400 - 2483.5 < 20 dBm
dBμA/m
E-manual
First Edition (April 2020)
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a
General Services Administ ration “GSA” contract, use, reproduction, or disclosure is subject to
restrictions set forth in Contract No. GS-35F-05925.
© Copyright Lenovo 2020.
