Lenovo C52 User Manual

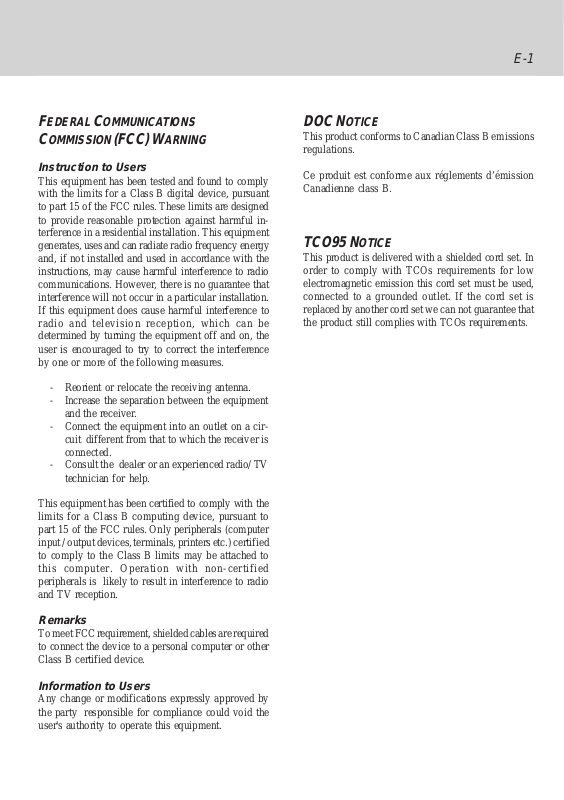

F
EDERAL
C
OMMISSION
C
OMMUNICATIONS
(FCC) W
ARNING
Instruction to Users
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio and television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/ TV
technician for help.
E-1
DOC N
This product conforms to Canadian Class B emissions
regulations.
Ce produit est conforme aux réglements d’émission
Canadienne class B.
TCO95 N
This product is delivered with a shielded cord set. In
order to comply with TCOs requirements for low
electromagnetic emission this cord set must be used,
connected to a grounded outlet. If the cord set is
replaced by another cord set we can not guarantee that
the product still complies with TCOs requirements.
OTICE
OTICE
This equipment has been certified to comply with the
limits for a Class B computing device, pursuant to
part 15 of the FCC rules. Only peripherals (computer
input / output devices, terminals, printers etc.) certified
to comply to the Class B limits may be attached to
this computer. Operation with non-certified
peripherals is likely to result in interference to radio
and TV reception.
Remarks
To meet FCC requirement, shielded cables are required
to connect the device to a personal computer or other
Class B certified device.
Information to Users
Any change or modifications expressly approved by
the party responsible for compliance could void the
user's authority to operate this equipment.
E-2
INTRODUCTION
This microprocessor-based, digital control 15” color
monitor is a high performance and easy to use product.

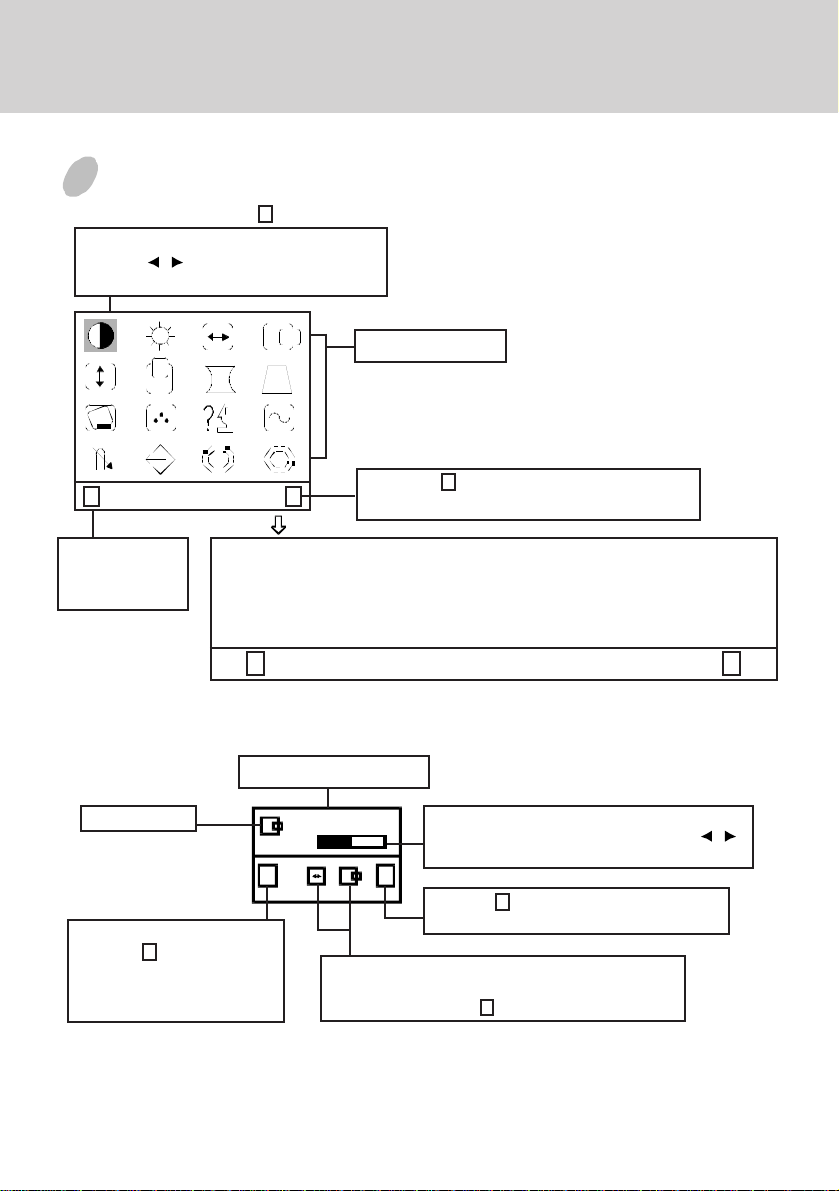

It employs the latest on-screen-menu technology. The
microprocessor capability offers 13 most commonly
used VESA timing modes preset in the factory, and 8
modes for user to adjust to the special timings that
user might have.
We hope that you will find this manual is helpful in
obtaining the fullest use of your monitor, and in
ensuring your personal safety during operation.
POWER SAVING
The monitor will be driven to different power saving
states upon receiving
display controller, this meets the EPA
Environment Protection Agency) Energy Star
requirements and reduces power consumption.
The monitor will work in the following 4 states
according to the VESA standard Display Power
Management Signal:
etatS
NOlamroNneerG
YBDNATSW51<wolleY
DNEPSUSW51<wolleY
FFOW5<rebmA
The power saving states will be kept until a control
signal has been detected or the keyboard or mouse is
activated. The recovery time from STANDBY/
SUSPEND state to ON state shall be within 3 seconds.
It will take about less than 15 seconds from OFF state
back to ON state.
control signals from the
rewoP
noitpmusnoC
DEL
thgiL
(
E-3

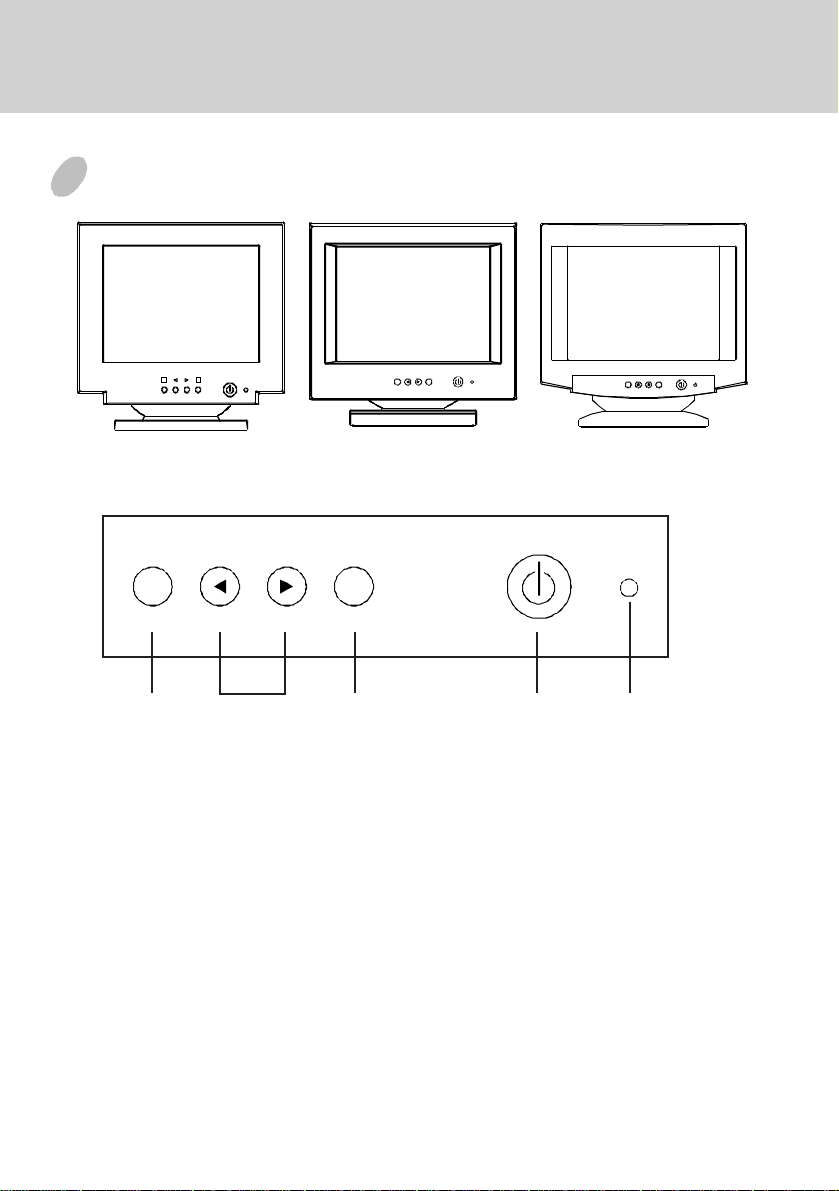

INSTALL THE
MONITOR
• To connect the tilt/swivel base to the monitor, align
hooks with the sockets on bottom side of the
monitor, and gently push the base towards the front
of the monitor.

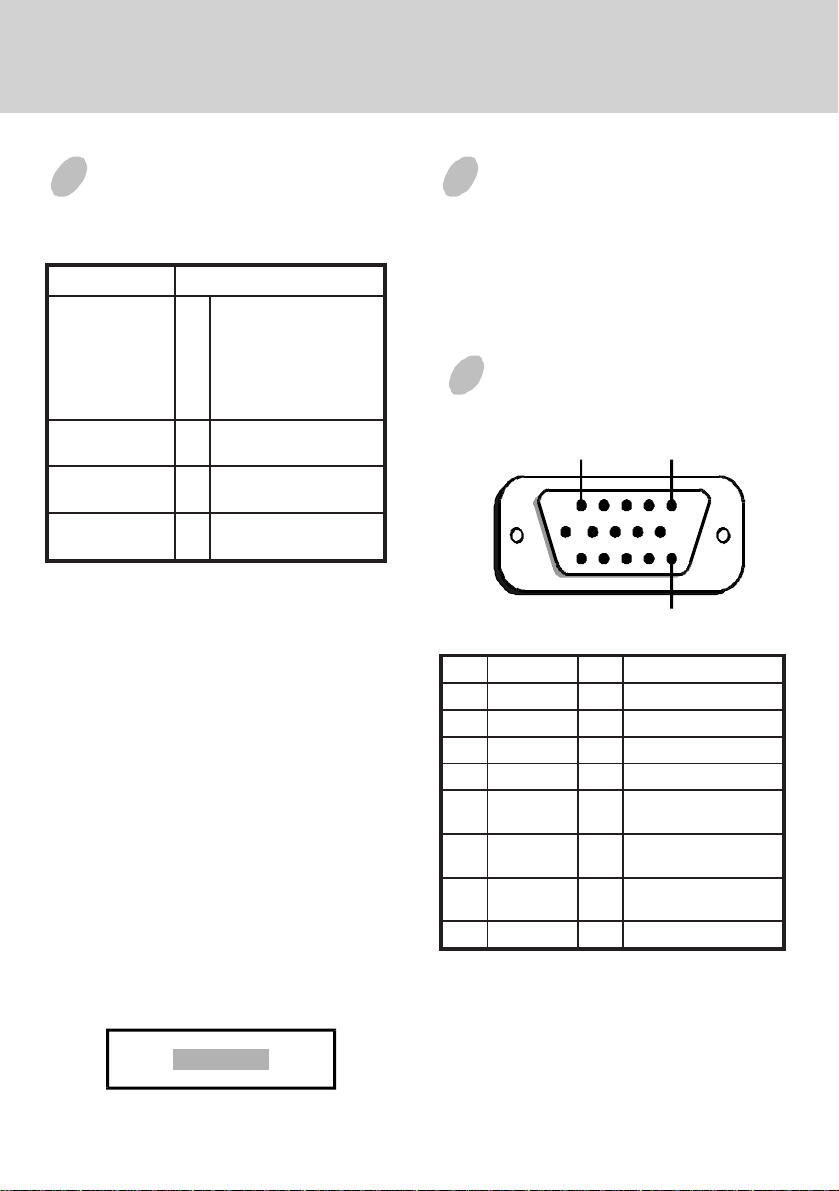

• The 15-pin D-shell signal connector on the signal
cable will connect easily to the video adapter
output on your personal computer. Lock both
screws on the connector to ensure a firm
connection.
• Turn the PC power switch ON. Then turn the
monitor power switch ON, by pressing the switch
inward. The green power indicator will light up.
• Allow about 30 seconds for the CRT tube to warm
up. Data will be displayed on the screen.
• If your display fails to function properly, please
first refer to the section "Troubleshooting" in this
manual.
POWER CORD
• Check first to make sure that the power cord
you use is the correct type required for your
area.
• This monitor has a universal power supply that
allows operation in either 100/120V AC or 220/
240V AC voltage area. No user-adjustment is
required.
• First connect the power cord into your
monitor’s power input socket, and then plug
the other end into a 3-pin AC outlet. The power
cord may be connected to either a wall socket
or the power output socket on your PC, depending on the type of power cord supplied
with your monitor.
• For units to be used at 120V AC:
Use a UL Listed Cord Set consisting of a min.
No. 18 AWG, Type SVT or SJT three-conductor a maximum of 15 ft. in length and a
parallel blade, grounding type attachment plug
rated 10A, 125V.
• For units to be used at 240V AC (domestic
use):
Use a UL Listed Cord Set consisting of a min.
No. 18 AWG, Type SVT or SJT three-conductor cord a maximum of 15 ft. in length and a
tandem blade, grounding type attachment plug
rated 10A, 250V.
• For units to be used at 220/240V AC (outside
of U.S.):
Use a Cord Set consisting of a min. No.18
AWG cord and grounding type attachment plug
rated 15A, 250V. The cord set should have
the appropriate safety approvals for the country in which the equipment will be installed and
marked HAR.
