7″PORTABLE DVD PLAYER
WALKYBOX
USER MANUAL
Please read and keep these instructions
For information and support, www.lenco.eu
SAFETY INFORMATION
CAUTION:
DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/
VIDEO, CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPO SURE IF DIRECTED. BE SURE TO OPERATE THE
DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND
OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS PLAYER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
WARNING:
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN
EXTENSION CORD. RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION - LASER RADIATION WHEN OPEN, DO NOT STARE INTO BEAM.
VENTILATION WARNING - THE NORMAL VENTILATION OF THE PRODUCT SHALL
NOT BE IMPEDED FOR INTENDED USE.
The lighting flash and
arrow head within the
triangle is a warning sign
alerting you of
“dangerous voltage”
inside the product.
CAUTION: To reduce the risk of
electric shock. Do not remove cover
(or back). No user serviceable parts
inside. Refer servicing to qualified
service personnel.
The exclamation point
within the triangle is a
warning sign alerting you
of important instructions
accompanying the
product.
Always follow basic safety precautions when using electrical products, especially
when children are present.
WARNING: To avoid the risk of electrical shock, make sure the product is unplugged from the electrical
outlet before relocating, servicing, or cleaning it.
1
Read all instructions before using
• Do not use this product near water.
• Do not ceiling- or wall-mount the product.
• Install the product in accordance with the operating instructions.
• Do not set the product near heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit the product.
• Unplug the product during lightning storms or when unused for long periods of time.
• Do not expose the product to dripping or splashing water. Do not place objects filled with liquid
(e.g., vases) on the product.
• Do not place in or expose the product to direct sunlight, extreme heat, humid or dusty locations.
• Do not attempt to examine or repair this product yourself; take the product to a service centre for
inspection and repair.
• Keep magnetic objects such as speakers,at a distance from the player.
LASER SAFETY
This set employs an optical laser beam system in the CD mechanism designed with
built-in safeguards. Do not attempt to disassemble. Exposure to this
invisible laser light beam may be harmful to the human eye. This is a Class-1
laser product. Use of controls, adjustments or procedures other than those
specified herein may result in hazardous laser light beam exposure. This
compact disc player should not be adjusted or repaired by anyone except
qualified service personnel. The laser mechanism in the set corresponds to the
stylus (needle) of a record player. Although this product uses a laser pick-up
lens, it is completely safe when operated according to directions.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications. Such modifications could void the user's authority to operate the equipment.
1) Operate turning controls and switches as instructed in the manual.
2) Before turning on the power for the first time,make sure that the power cord is properly
installed.
3) Store your discs in a cool area to avoid damage from heat.
Battery Handling and Usage
NOTE: This style player contains rechargeable Lithium battery. There is a CR 2025 battery for remote
control.
1) Never throw batteries into a fire. Do not expose batteries to fire or other heat sources.
2) Once the battery has reached the end of its life span, you need to carefully remove it from the
player and dispose of it at your nearest recycling centre. To remove the battery carefully unscrew the
base of the DVD player, then unscrew the main board, then simply detach the wires.
2
DISC handling and maintenance
Handling precautions
Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints,
dirt and scratches can cause skipping and distortion.
Do not write on the label side with a ball-point pen or other writing utensils.
Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids.
Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc compartment.
Do not try to close the disc cover when the disc is not installed properly.
Be sure to store the disc in its exclusive case when not in use.
If the surface is soiled
Wipe gently with a soft, damp (water only) cloth.
When wiping discs, always move the cloth from the centre hole toward the outside, which
will not cause distortion. (If you wipe the discs using a circular motion, circular scratches are
likely to occur, which will cause distortion.)
If the disc is brought from a cold to a warm environment moisture may
form on the disc
Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.
Improper disc storage
You can damage discs if you store them in the following places:
Areas exposed to direct sunlight
Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance
Maintenance
Be sure to disconnect the AC adaptor before maintaining the player.
Wipe the player with a dry, soft cloth.
If the surfaces are extremely dirty ,wipe clean with a cloth which has been dipped
in a weak soap-and-water solution and wrung out thoroughly, and then wipe again
with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. And do not use
compressed air to remove dust
Accessories
Remote control…………………………………………………..……….….…....…1
Battery (CR-2025) for remote control………………………………..……….……1
AV cable………………………………………………………………………………1
Ac adaptor………………………………………………………….……….……...…1
Instruction manual………………………………………………..………………..…1
Cigarette lighter…………………………………………………...………………..…1
Plug………….………………….....……………………………...……………………1
3
Table of contents
Getting Started:
Safety information…………………………………………………..………………………………...1-2
Disc handing and maintenance………………………………………………………………….…….3
Accessories………………………………………………………………………………………………3
Features…………………..………………………………………………………………………………5
Control reference guide…………………………………………………………………………….…6-7
Basic connection…………………………………………………………………………………..…8-10
Remote control preparation……………………………………………………………………………11
Basic Operation:
Basic play...................................................................................................................................12
Stopping play……………………………………………………………………………………………13
Skipping ahead or back……………………………………………………………..…………………13
Fast forward or backward ………………………………………………………………………..……13
Pause or play ……………………………………………..……………………………………………13
Slow-motion play [DVD/VCD]…………………………………………………………………………14
MP3 playback…………………………………………………………………………………………..14
MP4 playback ………………………………………………………………………………………….15
JPEG CD ……………………………………………………………………………………………16-17
Enjoying Video CD with playback control ………………………………………………………..…17
USB playback.............................................................................................................................18
CARD playback…………………………………………………………………………… ……… ….19
On screen display information....................................................................................................20
Advanced Operation:
Program play……………….………………………………………………………………….………..20
Repeat play……………………………………………………………………………………………..21
Repeat viewing …………………………………………………………………..…………………… 21
A-B repeat play………………………………………………………………………………….………21
TFT MODE.................................................................................................................................21
GO TO……………………………………………………….…………………………………………..21
Changing subtitle language (DVD only)………………………………………………………...……22
ZOOM play..................................................................................................................................22
Changing audio soundtrack language (DVD/VCD disc)……………………………………………22
Viewing from different angle (DVD only)………………………….……………….…………………23
Initial Settings:
General setup……………………………………………………………………...…………..……23-24
Audio setup…..…………………………….……………………………………………………………24
Password set up………………………………………………………..………………………….24-25
For Reference:
Definition of terms………………………………………………………………………………………26
Specifications………………..……………………………….…………………………………………27
Troubleshooting………………………………………………………………………………….….28-29
Region code setting ………..………………………………………………………………………….29
4
Features
7" TFT DISPLAY
This player has a built-in 7" TFT display window, to provide clear vision, and low radiation.
Built-in rechargeable Lithium battery
USB/ CARD READER FUNCTION
This player can play USB /SD /MMC card containing files in VCD/SVCD/DVD/MP3/WMA/MP4/JPEG
/CD format.
SLIDE SHOW IN 17 MODES
MULTI TV SYSTEM SUPPORT
The player can play discs with signal system of PAL and NTSC.
MULTI-AUDIO FUNCTION
The audio soundtrack can be heard in up to 8 languages. (The number of audio sound languages
depends on the software.)
MULTI-SUBTITLES FUNCTION
Subtitles may be displayed in one of a maximum of 32 languages depending on the software.
MULTI-ANGLE FUNCTION
This function allows you to choose the viewing angle of scenes which were shot from a number of
different angles. (Limited to DVD recorded with multiple camera angles.)
PARENTAL LOCK FUNCTION
This prevents play unsuitable for children.
DISC FORMATS SUPPORTED BY PLAYER
The player can play back discs bearing any of the following marks:
5
Control reference guide
Main unit
1.TFT Display window- Displays all information about DVD work scene.
2. Built-in Speaker.
3.PLAY/PAUSE button - Press this button to start or pause playing the disc.
4.STOP button -Press this button to stop playing.
5.VOLUME + button- Press this button to turn up the volume.
6. VOLUME - button- Press this button to turn down the volume.
7. OPEN button- Press this button to open the disc cover.
8. Remote control sensor
9. LCD ON/OFF button-Press this button to turn on/off the display screen
10.SETUP button -Press this button to enter initial settings menu.
11.MENU button - Press this button to return to the root menu(DVD) or to turn on/off the PBC(VCD).
12. OK button - Press this button to confirm a selection.
13.UP/PREV button-Press UP button to up, and if you keep pressing it for more than 2 seconds,
the player will skip to the previous chapter or title(for DVD)or track (for CD).
14. LEFT/ FR button-Press LEFT button to left, and if you keep pressing it for more than 2
seconds, the player will play the disc backward at speed:x2,x4,x8,x16x32.
15.RIGHT/FF button- Press RIGHT button to right, and if you keep pressing it for more than 2
seconds, the player will play the disc forward at speed:x2,x4,x8,x16,x32.
16. DOWN/NEXT button-Press DOWN button to down, and if you keep pressing it for more than 2
seconds, the player will skip to the next chapter or title(DVD) or track (for CD).
17. Power Switch - Switch this knob to turn on/off the player.
18. DC In Jack - Power input jack.
19. Charge indicator
20. POWER indicator
21. Phone - Connect headphone to this jack for share listening.
22. AV Out Jack - Connect to TV or other external AV equipment to use the player as a signal source
23. USB slot- Insert USB to play the files contained in it.
24. SD/MMC slot-Insert SD/MMC card to play the files contained in those cards.
6
Control reference guide
Remote control

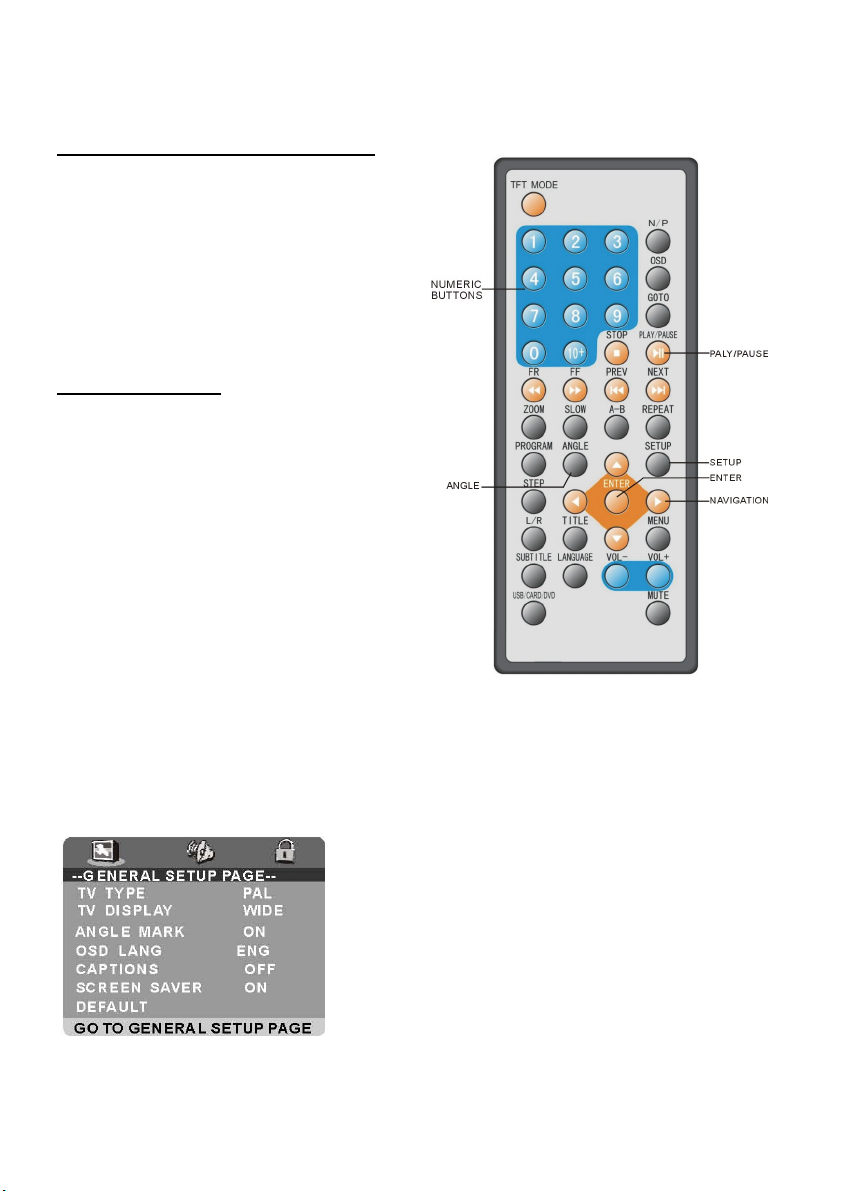

1 TFT MODE button - Press this button to select
BRIGHTNESS, CONTRAST, SHARPNESS,
SATURATION, HUE or 16:9/4:3 screen mode
and then press left or right button to adjust as
you like.
2 NUMERIC buttons - Press these buttons to input
numeric information, such as track number, chapter
number and so on.
3 FR button - Press this button to play the disc
backward at speeds:x2,x4,x8,x16,x32.
4 FF button - Press this button to play the disc
forward at speeds: x2,x4,x8,x16,x32.
5 ZOOM button - Press this button to enlarge picture
size, max. to X 4 or to shrink picture size, min. to X1/4.
6 SLOW button - Press this button to play the disc at
speeds:1/2,1/4,1/8,1/16.
7 PROGRAM button - Press this button to setup the
memory order of chapter or title (for DVD) or tracks
(for VCD/CD).
8 ANGLE button - Press this button to display the
angle number and change to different angles.
9 STEP button - Press this button to play the
file forward step by step.
10 L/R button - To change audio output mode: Left
Mono, Right Mono, Mix-mono and Stereo soundtrack.
11 TITLE button - Press this button to return to title menu (for DVD).
12 SUBTITLE button - Press this button to display and change subtitle language(For DVD only).
13 LANGUAGE BUTTON - To select the soundtrack language(DVD).
14 USB/CARD/DVD - Press this button continuously to switch the unit among USB/CARD/DVD mode.
15 N/P button - Press this button to select NTSC or PAL system (For DVD only).
16 OSD button - Press OSD button continuously during playback, the screen will display the
playing information, such as elapsed time, remaining time and so on.
17 GO TO button - Press this button to set the player to play disc starting at a certain point.
18 PLAY/PAUSE button - Press this button to start or pause playing the disc.
19 STOP button - Press this button to halt playing.
20 NEXT button - Press this button to play the next chapter (for DVD) or track (for VCD/CD).
21 PREV button - Press this button to play the previous chapter (for DVD) or track (for VCD/CD).
22 REPEAT button - Press this button to repeat playing one chapter or one title (for DVD) or repeat
playing the current track or the whole tracks (for VCD/CD).
23 A-B button - Press this button to repeat playing sections between two specific points (A-B).
24 SETUP button - Press this button to enter initial settings menu.
25 ENTER button - Press this button to confirm what you have selected.
26 Navigation buttons - Press this button to move up, down, left or right.
27 MENU button - Press this button to return to the root menu (for DVD) or to turn on/off the PBC (for
VCD).
28 VOLUME + button - Press this button to turn up the volume.
29 VOLUME – button - Press this button to turn down the volume.
30 MUTE button - Press this button to mute the sound.
7
Basic connection
Ensure all the cables are disconnected from the main unit before connecting to AC power
source by AC power adaptor.
Read through the instructions before connecting other equipment.
Do not charge up the battery pack while the DVD player is working with the battery pack.
Connecting to AC power source
Rechargeable battery use
The player built-in a rchargeable Llithium battery.
The battery charge if it is used correctly, is of 2 hours time.
1. Charge the battery
-Connect the adaptor to the DC 12V IN jack, then set the unit in POWER ON mode for fully
charge ( SLOW CHARGE).
-Or set in POWER OFF mode for fully charge (FAST CHARGE).
And the indicator is red during charging; it gets green when charging completed.
2. Time to recharge the battery
Recharge and playback time depends on battery pack capacity and the temperature condition.
Generally speaking, the battery needs to be charged about 3 hours in FAST CHARGE mode
And about 12 hours in SLOW CHARGE mode.
3. Using and Maintaining Rechargeable Battery
-The normal working condition temperature is: 0 ~45 ;
-Always unplug AC/DC power supply for the unit whenever not playing.
NOTE: A new battery pack which has not been used or one which has not been used for more than
a month, may appear to not recharged enough, this is due to the characteristic of this battery and
is not a malfunction. In this case, recharge it two or three times before the first use. It needs more
than 6 hours to recharge battery while playing discs.
Noises may be generated during recharging. In this case, use a more distant power socket.
Do not recharge or discharge battery near a heating element such as a heater or direct sunlight.
8
Basic connection
- It is recommended to connect a multi-system TV.
- Disconnect the AC adaptor before commencing connection.
- Do not block ventilation holes of equipment and arrange them so that air can circulate freely.
- Read through the instructions before connecting other equipment.
- Ensure that you observe the color coding when connecting audio and video cables.
Note:
During DVD play, the TV volume may be at a lower level than during TV broadcasts, etc.
If this is the case, adjust the volume to the desired level.
If the DVD/VCD/CD player is connected to the TV through a video cassette recorder,
the picture may not be played back normally with some DVDs. If this is the case,
do not connect the player via the VCR.
Connecting to a TV set
Connecting to audio equipment
9
Basic connection
Connect headphones
1. Connect the headphones.
Adjust the volume to minimiez the volume.
Connect the headphones to phone jacks.
2. Connect the plug.
1.In AV OUT mode, when insert this plug into the phone jack of main unit, the speakers of main unit will
mute. (And the audio/video output function is normal.)
Phone
PHONE
plug
10
Remote control preparation
Battery installation
Insert the batteries while observing the correct
(+) and (-) polarities as illustrated at right
(Fig 1).
Service life of batteries
The batteries normally last for about one
year although this depends on how often,
and for what operations, the remote
control is used.
If the remote control fails to work even
when it is operated near the player, replace
the batteries.
Use one size CR2025 battery.
Note:
Do not use rechargeable (Ni-Cd) batteries.
Do not attempt to recharge, short-circuit,
disassemble, heat or throw the batteries
into the fire.
Do not drop, step on or otherwise impact
the remote control. This may damage the
parts or lead to malfunction.
If the remote control is not going to be
used for a long time, remove the battery.
Remote control operation
1. Remove the protective plastic tab before
operating the remote control (Fig 1).
2. Point the remote control from no more than
about 6 m from the remote control sensor and
within about 60o of the front of the player (Fig 2).
NOTE:
The operating distance may vary according to
the brightness of the room.
Do not point bright lights at remote control
sensor.
Do not place objects between the remote control and the remote control sensor.
Do not use this remote control while simultaneously operating the remote control of any other equipment.
Fig 1
REMOTE CONTROL SENSOR
11
Before enjoying DVD/Video CD/CD
LOADING
The On-Screen menu language of your
player has been factory pre-set to Dutch.
If you want to change the menu language
to other language, please refer to "Initial
settings / General setup / OSD lang”
In the explanation below it is assumed that
English has been selected as menu language.
Basic play
1. Push POWER knob on the unit to switch
on the power.
2. Push the open button to open the disc cover.
3. Place a disc onto the disc compartment.
Hold the disc without touching either of its
surfaces, position it with the printed title side
facing up, align it with the guides, and place it
in its proper position.
4. Close the disc cover, after closing the disc
cover , play begins. The player starts to read
the disc immediately.
5. When a menu screen appears on the TV, move the navigation buttons or press the numeric buttons
to select preferred track number, then press ENTER button to confirm.
6. When the menu continues onto another screen, press NEXT button to view the next screen, or press
PREV button to skip to previous screen.
NOTE: Due to the different design of some software titles, NEXT button may not always work.
7.To stop play and return to the menu screen, press TITLE button, or MENU button.
Open
DVD-VIDEO
12
Stopping play
Press the STOP button to stop playing a disc.
NOTE: When player is stopped, the player
records the point where STOP was pressed
(RESUME function). Press PLAY again,
playback will resume from this point . When the
tray is Opened or STOP is pressed again, the
RESUME function will be cleared.
Skipping ahead or back
Skipping ahead
Press NEXT button during play
A chapter (DVD) or a track (Video CD/CD) is
skipped each time the button is pressed.
Skipping back
Press PREV button during play
A chapter(DVD) or a track (Video CD/CD) is
skipped each time the button is pressed.
Rapid advance (Rapid
Reverse)
During playback, press FF button or FR
button to fast forward/rewind. Press
PLAY button to resume normal play.
Pause or play
During playback, press PLAY/PAUSE button, the play will be paused, To resume normal play, press
PLAY button.
13
Slow-motion play (DVD/VCD)
Press the SLOW button during playback.
1) Plays the disc at a 1/2 of normal speed at
first. Each time the button is pressed, the
play speed becomes 1/4,1/8,1/16.
2) Press PLAY button, the unit will return to
normal play.
MP3 playback
1. Insert the disc containing the files in Mp3
format to be played and after a few seconds,
the screen of the monitor will show all the
folders on the disc:
2. Select the folder you want to play by the
navigation buttons and press the ENTER
button to confirm.
3. The files in this folder are displayed and
select the desired song by navigation buttons,
then press the PLAY button to start playback.
4. Press NEXT or PREV button to turn the current menu page to the next or previous menu page.
5. Press REPEAT button to change play mode.
- SHUFFLE: All the files will be randomly sorted and played by the order.
- RANDOM : randomly select any file to play.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER: all the files in the folder will be played
DISC
14
MP4 playback
1.Insert the disc containing the files in MP4
format to be played and after a few seconds,
the screen of the monitor will show all the
folders on the disc:
2. Select the folder you want to play by the
navigation buttons and press the ENTER
button to confirm.
3. The files in this folder are displayed and
select the desired fire by navigation buttons,
then press the PLAY button to start playback.
DISC
DISC
4. Press NEXT or PREV button, then press
ENTER button, the player will play the next or
previous file.
5. Press the SLOW button to play the disc at a 1/2,1/4,1/8 or 1/16 of normal speed.
6. Press REPEAT button to change play mode.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT ALL: all the files in the folder will be played repeatedly.
- REPEAT OFF: no files in the folder will be played repeatedly.
- SHUFFLE: all the files will be randomly sorted and played by the order.
- RANDOM : randomly select any file to play.
NOTE: The player can only play the disc with MPEG-4
15
JPEG CD
For JPEG picture CD, select the folder
you want to play by the navigation buttons
and press ENTER button to confirm.
The files in this folder are displayed and
select your pictures by using the up/down
navigation buttons and press ENTER button
to start playback. Thumbnail of picture will
be displayed while you scrolling across the
file name.
Once a folder and file is selected, the
picture is loaded onto the screen.
NOTE: The time to load and display picture
depends on the file size of the pictures.
During playback, press MENU button to
return to folder selection or STOP button to
enter preview mode.
Press REPEAT button to change play
mode:
- SHUFFLE: All the files will be randomly
sorted and play by the order.
- RANDOM: randomly select any file to play.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT ALL: all the files in the folder
will be played repeatedly.
- FOLDER OFF: cancel repeat mode.
Skip to next/previous picture
Press NEXT button to skip to the next picture
or PREV button to skip to the previous picture.
If no key is pressed for 5 seconds, it will skip
to next picture automatically.
Rotating pictures
Press RIGHT navigation button to rotate
the picture clockwise.
Press LEFT navigation button to rotate
the picture counter-clockwise.
Flipping pictures
Press UP navigation button to flip the
picture vertically.
Press DOWN navigation button to flip
the picture horizontally.
Picture Shrink/Zoom
Press ZOOM button to enter the zoom
mode
Press FF button to enlarge picture to
100%, 125%, 150% and 200%
Press FR button to shrink pictures to
50%, 75%, and 100%
If the picture is enlarged, you may press
navigation buttons to see other portions
of the picture.
16
JPEG CD
Slide show effects
Press PROGRAM button to select one of the
effects when changing from one picture to
another:
1 WIPE TOP
2 WIPE BOTTOM
3 WIPE LEFT
4 WIPE RIGHT
5 DIAGONAL WIPE LEFT TOP
6 DIAGONAL WIPE RIGHT TOP
7 DIAGONAL WIPE LEFT BOTTOM
8 DIAGONAL WIPE RIGHT BOTTOM
9 EXTEND FROM CENTRE H
10 EXTEND FROM CENTRE V
11 COMPRESS TO CENTER H
12 COMPRESS TO CENTER V
13 WINDOW H
14 WINDOW V
15 WIPE FROM EDGE TO CENTRE
16 MOVE IN FROM TOP
17 NONE
Enjoying Video CD with
playback control
When playing VCD 2.0 with PBC, the player
will show the VCD version and PBC status
on the screen.
After a few seconds, a menu will appear on
the screen.
Press numeric buttons to select corresponding
track, if the track number is under 10, choose one of the numeric buttons 0 ~ 9.
If the track number is exceed 10, press 10+ button firstly, then press numeric buttons 0 ~ 9.
Press NEXT
button, the player will play the next or previous track in the scheduled sequence on the disc.
button or PREV
17
USB Playback
1. Insert USB containing the files in Music,
picture or movie format to be played.
2. Press USB/CARD/DVD button to switch the
unit in USB reader mode. Then the screen will
display as following:
3. After several seconds, all the folders in the
USB will display on monitor screen:
4. Select a folder you want to play using the
navigation buttons and press the ENTER
button to confirm.
5.The files in this folder are displayed and
select the desired file by navigation buttons,
then press the ENTER button to start to play.
6. Press NEXT or PREV button to turn the current menu page to the next or previous menu page.
7. Press REPEAT button to change repeat playing mode.
- SHUFFLE: All the files will be randomly sorted and played by the order.
- RANDOM : randomly select any file to play.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER: all the files in the folder will be played
18
CARD Playback
1. Insert the CARD(SD/MMC) containing
the files in VCD(DAT)/SVCD(DAT)/DVD(VOB)/
MP3/WMA/JPEG CD format to be played.
2. Press USB/CARD/DVD button to switch the
unit in CARD reader mode.
3. After several seconds, all the folders in the
CARD will display on monitor screen:
4. Select a folder you want to play by using the
navigation buttons and press the ENTER
button to confirm.
5.The files in this folder display and select the
desired file by navigation buttons, then press
the ENTER button to start playback.
6. Press NEXT or PREV button to turn the
current menu page to the next or previous
menu page.
7. Press REPEAT button to change repeat
playing mode.
- SHUFFLE: All the files will be randomly sorted and played by the order.
- RANDOM : randomly select any file to play.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER: all the files in the folder will be played
8. Press STOP button when playing, then you will enter preview mode.
9.Press MENU button to return files list menu.
10.Press right/ left button to rotate the image clockwise/ counter-clockwise during photo playback.
11.Press up/ down button to flip the image vertically/ horizontally during photo playback.
12.Press ZOOM button to enter the zoom mode:
-Press FF button to enlarge picture to 100%, 125%, 150% and 200%
-Press FR button to shrink pictures to 50%, 75%, and 100%
19
On screen display Information
Press OSD button to display playing
information.
Program play
The player plays the files in an desired order.
1.Press PROGRAM button and the screen will
display the program menu.
2. Press navigation buttons to choose memory index and then press ENTER button to start input. Enter
desire titles/chapters numbers by using the numeric buttons. The selected titles/
chapters are stored into the memory. Select NEXT on the menu to see the next page. Up to 20
memories can be stored.
NOTE: Leading zero is not necessary. If the track number is more than 10, press the 10+ key
first and then the unit digit.
Example: Track 12, press "10+" and then "2"
Track 21, press "10+" twice and then "1"
3. Select START on the menu and press ENTER button to start program play or select EXIT
on the menu and press ENTER button to exit without program play.
4. To clear programmed items, scroll the navigation button to the item to be cleared and press
ENTER button, the selected item will be deleted.
5. To stop the program, press PROGRAM button select STOP on the menu, then press ENTER button.
20
Repeat play
Press REPEAT button during play, it will
repeat play one chapter or one title (for DVD
disc), or repeat play track (for VCD/CD).
A-B repeat play
Repeating sections between two specific
points(A-B repeat)
1. Press A-B REPEAT button during play at the point where repeat play is to be started(A).
2. Press A-B REPEAT button at the point where repeat play is to be ended(B). Repeat play of
the selection between points A and B starts.
3. Press A-B REPEAT button once again to return normal play.
TFT MODE
Press TFT MODE button, the bottom at right of
screen will display as the picture at right:
Press this button continuously to select
BRIGHTNESS, CONTRAST, SHARPNESS,
SATURATION, HUE or screen mode(16:9/4:3). Then
CONTRASTE IIIIIIIIII........ 00
press the LEFT or RIGHT navigation button to adjust the level of the selected item.
NOTE: The level of BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION and HUE can be
adjusted from -20 to +20. And the SCREEN MODE can be switched between 16:9 and 4:3.
Press TFT MODE button again to exit the TFT MODE Menu Page.
GO TO
Press GO TO button, the screen will display a menu, then you can move Up or Down Navigation
button and enter directly a time, chapter or track, the disc will play from the selected point.
Press GO TO button again to exit the menu.
21
Changing subtitle
language (DVD only)
It is possible to change the subtitle language to
a different language from the one selected at
the initial settings. ( This operation works only
with discs on which multiple subtitle languages
are recorded )
1. Press SUBTITLE button during play, the
screen will display the current language.
2. Press SUBTITLE button again to change
language or turn off.
NOTE: When no subtitles are recorded,
press this button will not work.
ZOOM PLAY
This function allows you to enjoy a motion
picture.
Press ZOOM button when playing, the
screen shows:
Press NAVIGATION button to scroll across the
enlarged picture.
Changing audio soundtrack language(DVD/VCD/CD disc)
It is possible to change the audio soundtrack language to a different language from the one selected at
the initial settings (This operation works only with discs on which multiple audio soundtrack
languages are recorded).
Press LANGUAGE button while playing DVD disc the screen will display the number of current
soundtrack languages, pressing the button again will change the language.
Pressing L/R button while playing VCD/CD disc will change audio output mode: Mono Left,
Mono Right, Mix-mono and Stereo soundtrack.
NOTE: When no soundtrack languages are recorded, pressing this button will not
work. When the power is turned on or the disc is removed, the language heard is the
one selected at the initial settings.
22
1.1 TV
TYPE
Viewing from different
angle (DVD only)
Some DVDs may contain scenes which have
been shot simultaneously from a number of
different angles. For these discs, the same
scene can be viewed from each of these
different angles using the ANGLE button.
Press ANGLE during play, number of angle
being played will be displayed in the screen,
press the button to change to different angles.
Initial Settings
Once the initial programming is entered it is
retained in memory until changed, the player can
always be operated under the same conditions.
The settings will be retained in the memory
until the settings are changed even after setting
the player to the OFF mode.
Common procedure for initial settings
1. Press SETUP button.
2. Use the navigation buttons to select preferred
item, and press ENTER button, each screen
for setting the value is displayed. Then move
the navigation button to set the item and press
ENTER button to confirm the settings.
3. Press SETUP button to close setup menu in any mode.
4. Use left navigation button to switch to another main setup items
1. GENERAL SET UP
system according to the colour system of
the TV.
Options: PAL
NTSC
- it is for selecting the TV
23
1.2 TV DISPLAY - it is for selecting TV output mode.
Options: Normal /PS: Pan & scan mode
Normal/ LB: Letter box mode
Wide : 16:9 wide screen mode
1.3 ANGLE MARK - it is used to select whether or not the multi- angle icon is display on screen
when a Multi-angle DVD disc is playing.
Options: On: Icon will be displayed
Off: Icon will be turned off
1.4 OSD LANG - It is used to choose the desired language for different user. In this player, you can
choose English or other languages.
1.5 CAPTIONS - It is used to switch the caption ON/OFF when playing DVD disc.
1.6 SCREEN SAVER - when the player is not in use for 5 minutes, a running DVD logo will move across
the screen to protect the TV CRT.
Options: On: Screen saver is enabled
Off: Screen saver is disabled
1.7 DEFAULT - It is used to reset to factory settings.
2. AUDIO SETUP
2.1 SPEAKER SETUP - it is used to set the speaker Output levels
Options: LT/RT-Left/Right mix mode
STEREO - Select this option if you don't have a 2.1 channel amplifier.
SURROUND- It is used to set dummy surrounding audio effectiveness.
2.2 EQUALIZER SETUP - It is used to compensate for frequency distortion to improve its
frequency response in audio systems (not applicable).
Options: SOUND MODE-It is for selecting the Equalizer Type, in this unit, you can choose
Mono, Rock, Pop, Live, Dance, Techno, Classic or Soft.
BASS BOOST- It is used to turn the Bass Boost ON or OFF.
SUPER BASS- It is used to turn the Super Bass ON or OFF.
TREBLE BOOST- It is used to turn the Treble Boost ON or OFF.
24
3.PASSWORD SET UP
3.1 PASSWORD - It is used to change the password, and the procedure of changing password
is described as followings:
Enter old password in the OLD PASSWORD row
Enter new password in the NEW PASSWORD row
Enter the new password again in the CONFIRM PWD row
Press OK button on the screen to return to the Password Setup Page, then the
Password has been changed.
NOTE: The original password is 136900, you can change it, but you should write it
down and keep it safe. If you forget the password, please use the original password: 136900.
3.2 PARENTAL - This setting allows certain people to view certain discs, which may be
especially useful to forbid children from viewing some unbefitting discs. When you
have entered the Parental Control, the screen will display:
Scroll down the alternatives by moving Up or Down Navigation button, press ENTER button
and enter the password which you has set before, then you have set a Parental Control.
There are eight different settings from “Kid Safe” to “Adult” which you can choose.
25
Definition of terms
DVD
This refers to a high-density optical disc on which high-quality pictures and sound have been
obtained by means of digital signals. Incorporation a new video compression technology
(MPEG II) and high-density recording technology, DVD enables aesthetically pleasing
full-motion video to be recorded over long periods of time (for instance, a whole movie can
be recorded). DVD has a structure consisting of two 0.6 mm thin discs which are adhered
to each other. Since the thinner the disc, the higher the density at which the information can
be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the
two thin discs are adhered to each other, there is the potential to achieve double-sided play
sometime in the future for even longer duration play.
Video CD
This contains recordings of pictures and sound whose quality is on a par with that of video
tape. This player also supports Video CDs with playback control (version 2.0).
MP3
These contain recordings of music which are compressed, allowing a significantly larger
amount of music to be stored on a CD.
Angle
Recorded onto some DVD discs are scenes which have been simultaneously shot from
a number of different angles (the same scene is shot from the front, from the left side, from
the right side, etc.). With such discs, the ANGLE button can be used to view the scene from
different angles.
Subtitles
This is the appearance of the dialogue at the bottom of the screen which are prerecorded on
some DVD discs.
Title number
These numbers are recorded on DVD discs. When a disc contains two or more movies, these
movies are numbered as title 1, title 2, etc.
Chapter number
These numbers are recorded on DVD discs. A title is sub- divided into many sections, each
of which is numbered, and specific parts of video presentations can be searched quickly
using these numbers.
Time number
This indicates the play time which has elapsed from the start of a disc or a title. It can be
used to find a specific scene quickly.(It may not work with some discs.)
Playback control (PBC)
This is recorded on a Video CD (version 2.0). The scenes or information to be viewed
(or listened to) can be selected interactively with the TV monitor by looking at the menu
shown on the TV monitor.
Track number
These numbers are assigned to the tracks which are re- corded on Video CDs and CDs. They
enable specific tracks to be located quickly.
26
Specifications
Power requirements: AC 100 -240V~ 50/60Hz DC12V - - - 800mA
Power consumption: < 9.6W
Signal system: NTSC/PAL
Resolution: 480X3(RGB) X 234
Dots Distance: 0.107 (W) X 0.370 (H) mm
Visible Range: 154.08 (W) X 86.58 (H) mm
Discs played:
(1) DVD-VIDEO disc
12 cm single-sided, single-layer
12 cm single-sided, dual-layer
12 cm double-sided, single-layer
8 cm single-sided, single-layer
8 cm single-sided, dual-layer
8 cm double-sided, single-layer
(2) Compact disc(VIDEO CD)
12 cm disc
8 cm disc
Video output level: 1 Vp-p
Audio output level: 1.2V
Earphone output level: (1KHz , 0dB, 25mW )
Pickup: Wave length: 655nm
Laser power: CLASS-1
Measurement: 245(L) X 215(W) X 45(D)mm
Weight: Approx.931g
Specifications are subject to change without notice.
27
Troubleshooting
Before requesting service for this player, check the chart below for a possible cause of the
problem you are experiencing. Some simple checks or an adjustment on your part may
eliminate the problem and restore proper operation.
Symptom(Common) Remedy
No power. Insert the AC adaptor securely into the power outlet.
Play fails to start even when
PLAY is pressed.
Play starts but then stops
immediately.
No picture. Ensure that the equipment is connected properly.
No sound.
Distorted sound.
Picture is distorted during rapid
advance or rapid reverse.
No rapid advance or rapid
reverse play
No operations can be performed
with the remote control unit.
No key operation (by the main
unit and/or the remote control
unit) is effective.
Play does not start even
when title is selected.
Audio soundtrack and/or subtitle
language is not the initial settings.
No subtitles.
Alternative audio soundtrack
(or subtitle) languages fail to be
selected.
Angle cannot be changed.
Condensation has formed: wait about 1 to 2 hours to allow the player to
dry out.
This player cannot play a disc other than DVD, VCD and CD.
The disc may be dirty and may require cleaning.
Ensure that the disc is installed with the label side up.
Ensure that the equipment is connected properly.
Ensure that the input setting for the TV and stereo
system are correct.
Adjust the master volume to a suitable volume by rotating
the volume knob at the side of the player.
The picture will be somewhat distorted at times: this is normal.
Some discs may have sections which prohibit rapid
advance (or rapid reverse.)
Check the batteries are installed with the correct polarities.
The batteries are exhausted: replace them with new ones.
Point remote control at the remote control sensor and operate.
Operate the remote control unit at a distance of not
more than 6 m from the remote control sensor.
Remove the obstacles between the remote control and
remote control sensor.
Disconnect the power adaptor and then reconnect it. (The player may not
be operating properly due to lightning, static electricity or some other
Symptom [DVD] Remedy
external factor.)
Confirm the region code setting is right.
If the audio soundtrack and/or subtitle language does not exist on the
disc, the language selected at the initial settings will not be seen/heard.
Subtitles appear only with discs which contain them.
Subtitles are cleared from the TV monitor, Perform the
steps display the subtitles.
An alternative language is not selected with discs which
do not contain more than one language.
In the case of some discs, the alternative language can not be selected
by operating the LANGUAGE or SUBTITLE button. Try selecting it
from the DVD menu if one is available.
This function is dependent on software availability. Even if a disc has a
number of angles recorded, these angles may be
recorded for specific scenes only.
- To be continued
28
Troubleshooting (Continued)
The password for rating level
has been forgotten.
Symptom [Video CD] Remedy
No menu play. This function works only for Video CDs with playback
Please contact your local sales dealer.
control.
Region code setting
Region coding: All DVD discs are coded by the sales territory. Please note the player
is set to region 2 coding by the factory which cannot be changed. This is in compliance
with the DVD patent requirements
The region number for this DVD player is
29
Loading...
