Introduction

Introduction Introduction

Congratulations on your purchase of 15

15 inch Digital Picture Frame, model DP-1520

15 15

Before operating the unit, please read this manual thoroughly, and retain it for future reference. This manual will help you use many of the exciting and useful features that will make your Digital Picture Frame viewing more enjoyable.

This Digital Picture Frame lets you view digital pictures directly from your camera's memory cards. You will be able to create a slideshow using multiple transition effects or display one picture at a time. No computer, digital camera or Internet connection is required.

This Digital Picture Frame is compatible with the following popular memory card formats: CompactFlash®, SD™, XD, MultiMediaCard™, and Memory Stick®.

It can also read files stored on a USB Flash drive using the USB host port.

Main Features

Main Features Main Features

• Displays digital pictures (JPEG) without a computer

• Simply insert a compatible memory card into the Digital Picture Frame to show

photos, play MP3 music or supported video files (memory card not included).

• Compatible memory cards include Secure Digital Card (SD), MultiMedia Card (MMC), Memory Stick (MS), XD Cards & Compact Flash

• Able to read files located on a USB Flash drive

• Instantly plays MP3 music with the integrated speakers.

• Instantly plays MPEG1，2，4 files stored on supported memory cards*.

• Supports up to 12 Mega Pixels image files (JPEG format).

• Compatible with most digital cameras’ stored JPEG images and motion JPEG files.

• Includes a credit card style remote control

• Bright 15” TFT active matrix LCD screen.

• Automatic slide show with multiple transition effects.

• Plays slide show with MP3 music on the background.

• User-friendly on-screen display lets you access all controls easily.

*Video files may not play properly if stored on a low speed card.

For information and support;

www.lenco.eu

- 1 -

Getting Started

Getting Started Getting Started

Package Contents

Digital Picture Frame and stand

User Guide

AC/DC Adapter

Remote

USB cable

For information and support;

www.lenco.eu

- 2 -

Installing your unit

• Open the package and remove the protective foam. Remove the protective sleeve from the unit.

• Install the Digital Picture Frame stand as the back of the unit.

• Plug in the AC adapter into power outlet. Plug the other end into the unit.

• After the content is stored on the target flash media; insert the media into the correct

slot.

• Turn power to ON position via the ON/OFF switch.

Connecting to a PC

The Digital Picture Frame has a USB port for connection to a PC (USB Slave) and a second USB port for connection to other devices such as a Flash Drive, USB card reader, or a camera (USB Host). When connected to the PC you can drag-and-drop content from the PC to the internal memory or memory card. You can also delete content from the internal memory.

NOTE: USB Slave and USB Host can not be used at the same time.

For information and support;

- 3 -

www.lenco.eu

Operation

This Digital Frame is extremely easy to operate:

1. Remove memory card from camera:

2. Insert memory card into the frame with face away from the unit:

3. when power on the frame,the picture would displayed automatically.

For information and support;

- 4 -

www.lenco.eu

Controls

ControlsControls

For information and support;

- 5 -

www.lenco.eu

Using your Remote Control

Using your Remote ControlUsing your Remote Control

The following table briefly describes the remote control functions

Button Description

On/Off Switch on/off the frame

Mode Photo/Audio/Video Mode

Switch

Vol - Decrease volume

Vol + Increase Volume

Slideshow Start the slideshow

OSD Display the picture menu

Menu Display the main menu

Rotate Rotate the current picture

Enter Confirm

Zoom Zoom the current picture

Play/Pause

Stop

Arrows Navigate on screen

For information and support;

- 6 -

www.lenco.eu

Inserting Memory Cards

Inserting Memory Cards Inserting Memory Cards

The Digital Picture Frame is compatible with the following memory cards:

• Secure DigitalTM Card (SD)

• MultiMediaTM Card (MMC)

• Memory StickTM

• CompactFlashTM (CF) Card

• XD Picture Cards

Insert the memory card with the front label facing AWAY from you. Do not force the memory card into the memory slot. If you are not able to easily insert the memory card completely, you may have inserted it the wrong way.

Note:

The Digital Picture Frame will ONLY recognize digital pictures stored in JPEG format. Digital pictures stored in other formats will be ignored by the device.

Make sure you have at least one picture stored on the memory card. The frame will not function properly without a stored picture.

You also can use a USB flash drive in the exact same way as you would use a memory card. Simply copy files on the flash drive and insert it at the right side of the unit in the USB Host plug.

For information and support;

- 7 -

www.lenco.eu

Main menu

Main menuMain menu

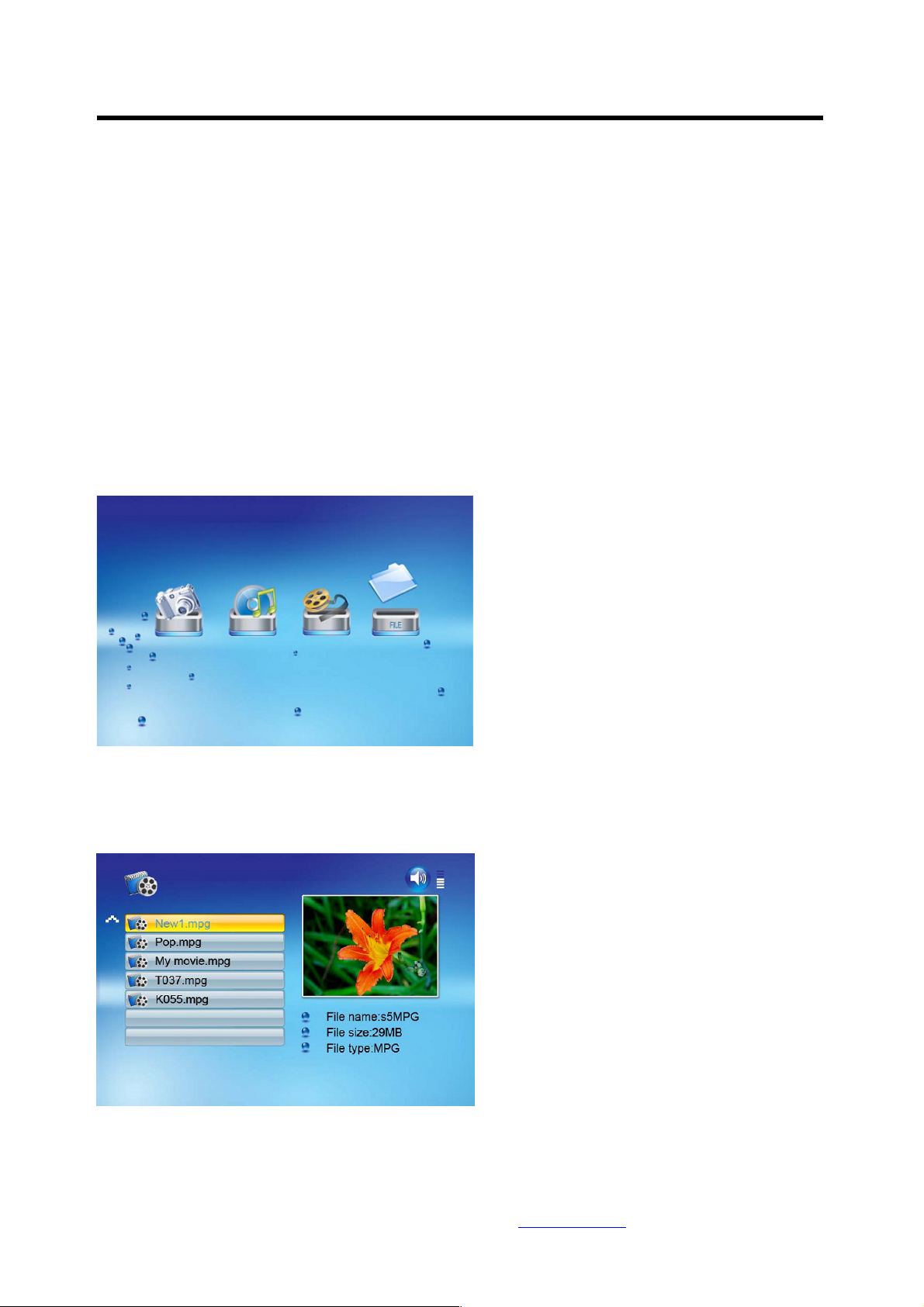

Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. To set the Auto Start feature Choose the SETUP screen. Use the left/right arrow to go to the “Set up”. Press the Enter button to enter the options screen. Use the Up / down arrows to choose your auto start option. Press the “MENU” button to show the following menu:

For information and support;

- 8 -

www.lenco.eu

Use the left and right arrows to move inside the menu and then press “Enter” to continue

Note: In all menus, pressing the “Menu” button will bring you back to the main menu

Function Description

Nand Play files in internal memory Setup Set system menu Calendar Display calendar, clock, alarm SD/MMC/MS/xD Play files on SD/MMC/MS/xD memory card CF Play files on CF memory card USB Play files on USB flash drive

NOTE: Icons of above functions shall appear automatically on MENU screen when certain memory card is inserted. Icons shall disappear when correspondent card is removed from card slot.

For information and support;

- 9 -

www.lenco.eu

Viewing Pictures

Make sure you have at least one picture on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “PHOTO” option from the menu and press “ENTER”

• A Photo thumbnail will appear. User UP/DOWN/LEFT/RIGHT arrows can move the

highlight. If the highlighted is a folder, press Enter to enter the folder.

For information and support;

- 10 -

www.lenco.eu

• Otherwise press Enter to enter the full screen photo (pause mode) and press Play to enter

into slideshow mode.

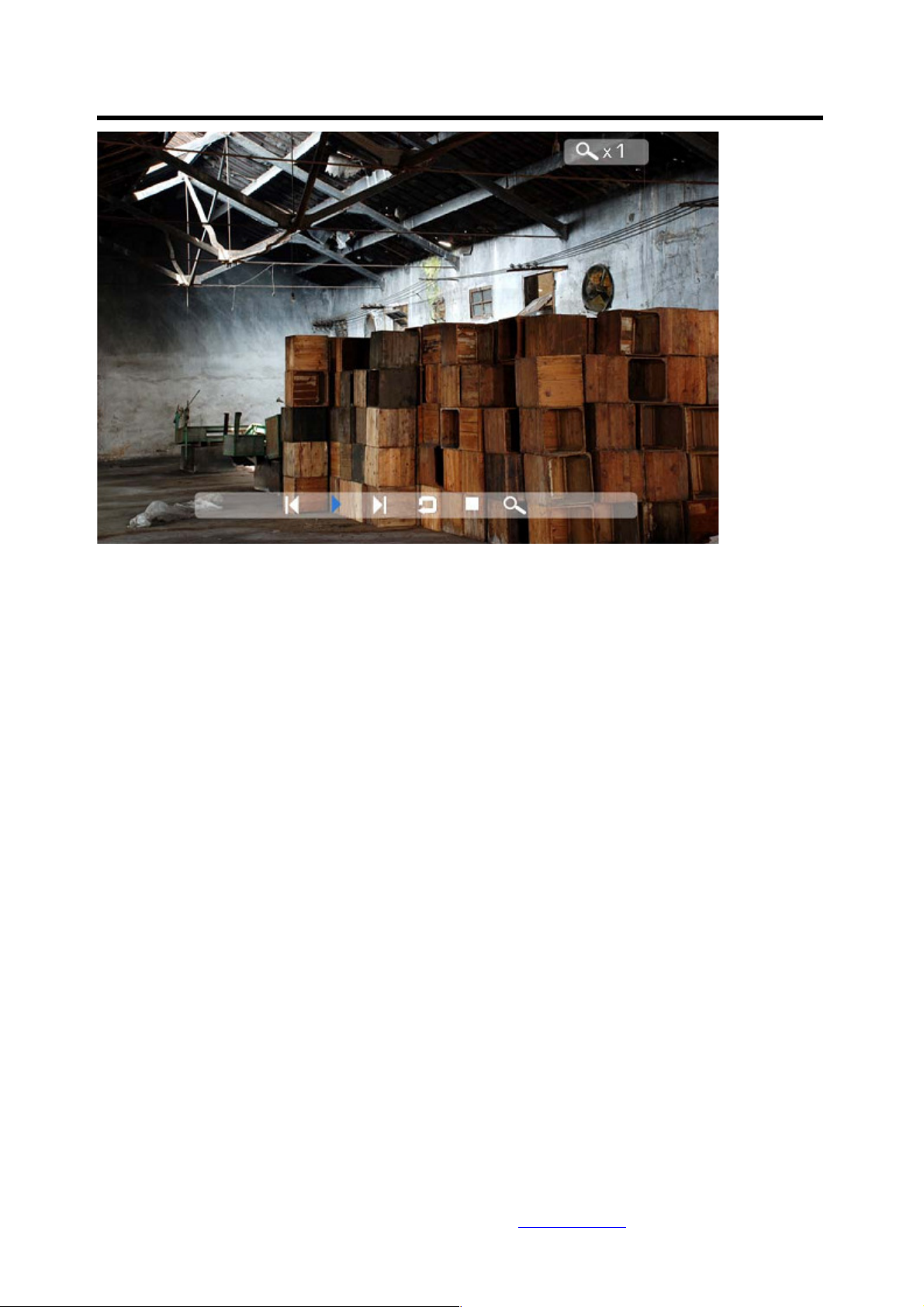

• Once a slideshow is playing or a picture is being shown, press the OSD button. The

following menu will appear:

Play previous picture in the picture list

Play or Pause

Play or pause the current slideshow.

Play next picture in the picture list

Rotate

Use the rotate function to change the picture orientation to either portrait or landscape.

Stop

Stop slideshow and return to photo thumbnail.

Zoom

Choose the Zoom function to magnify the iamge,Repeat this operation several times to further zoom in.

For information and support;

- 11 -

www.lenco.eu

Watching video

The Digital Picture Frame supports the following video formats:

• Motion JPEG (*avi): video format used by most digital cameras

MPEG-I &MPEG-2 –w/layer I,II,III(*MPG,*MPEG,*DAT)

• MPEG 4-W/MP3 audio (*avi)

Make sure you have at least one video on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “MOVIE” option from the menu and press “ENTER”

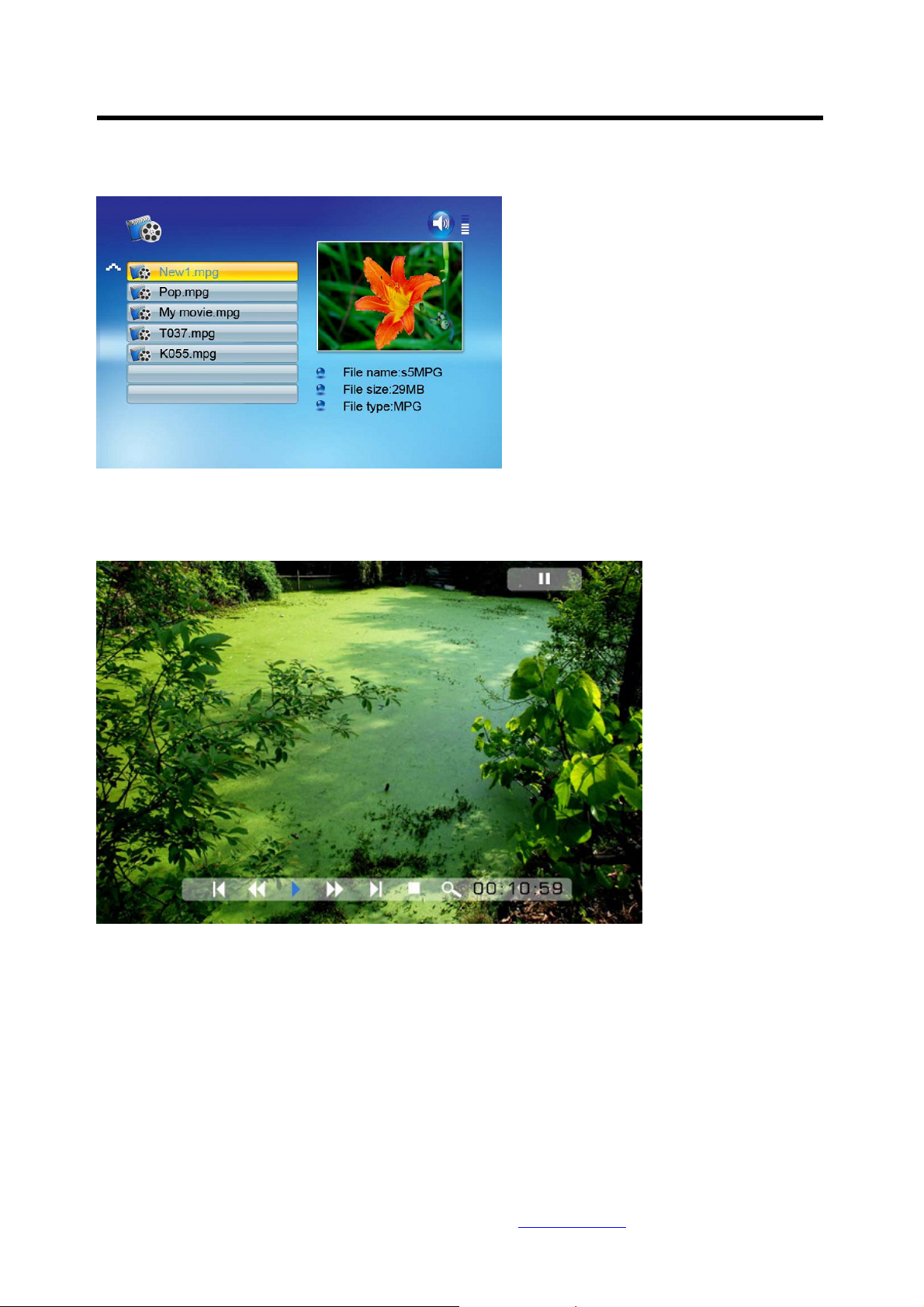

• A list of all movie files will be listed on the left side of the screen. The right side consists

of the movie preview window and information display of the current movie. Use Up/Down arrows to select the movie and press Enter to play.

Once a movie is playing, press the OSD button on the remote control. The following menu will appear:

For information and support;

- 12 -

www.lenco.eu

Play previous movie in the play list

Fast Forward

Play forward the movie by 2/3/4 times speed.

Play or Pause

Play or Pause the movie.

Fast Backward

Play backward the movie by 2/3/4 times speed.

Play next movie in the play list

Stop

Stop the movie and return to the play list

Zoom

Increase the size of the picture by 2/3/4/1 times.

For information and support;

- 13 -

www.lenco.eu

Listening to MP3 music

Make sure you have at least one MP3 file on your memory card or your USB flash drive. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “MUSIC” option from the menu and press “ENTER”

•

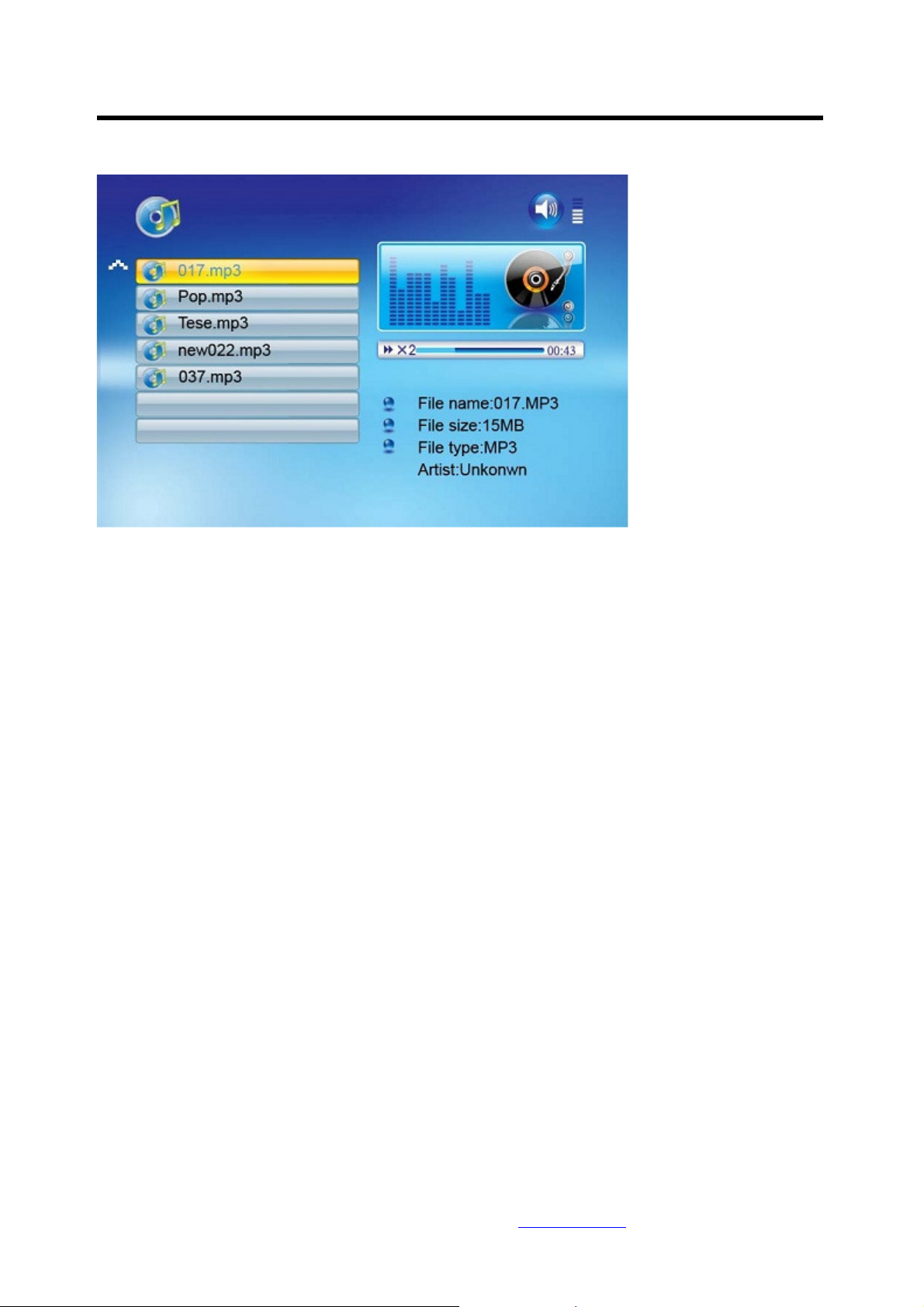

• A list of music files will be listed on the left side of the screen. The right side consists of

the frequency chart and information status bar. The song information area is below the status bar. Use the Up/Down arrows to select the music file and press Enter to play.

For information and support;

- 14 -

www.lenco.eu

• Press VOL+ to increase the volume or VOL- to decrease the volume.

• Press the Play/Pause button on remote control to play or pause the music file.

• Press the Stop button on the remote control to return to the list of music files.

File Option

Playing a slideshow with music

Ensure you have at least one picture on your memory card or your USB flash drive. Additionally, you must have one MP3 file saved on the selected memory card/USB/Internal Memory. When this is done:

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “FILE” option from the menu and press “ENTER”

• A list of all files on the selected memory card or internal memory will be listed on the left

side of the screen. The right side consists of the file information. Use Up/Down arrows to select a picture file and press Enter to enter a full screen photo (pause mode). Press Play button on the remote control, an audio slideshow will begin automatically.

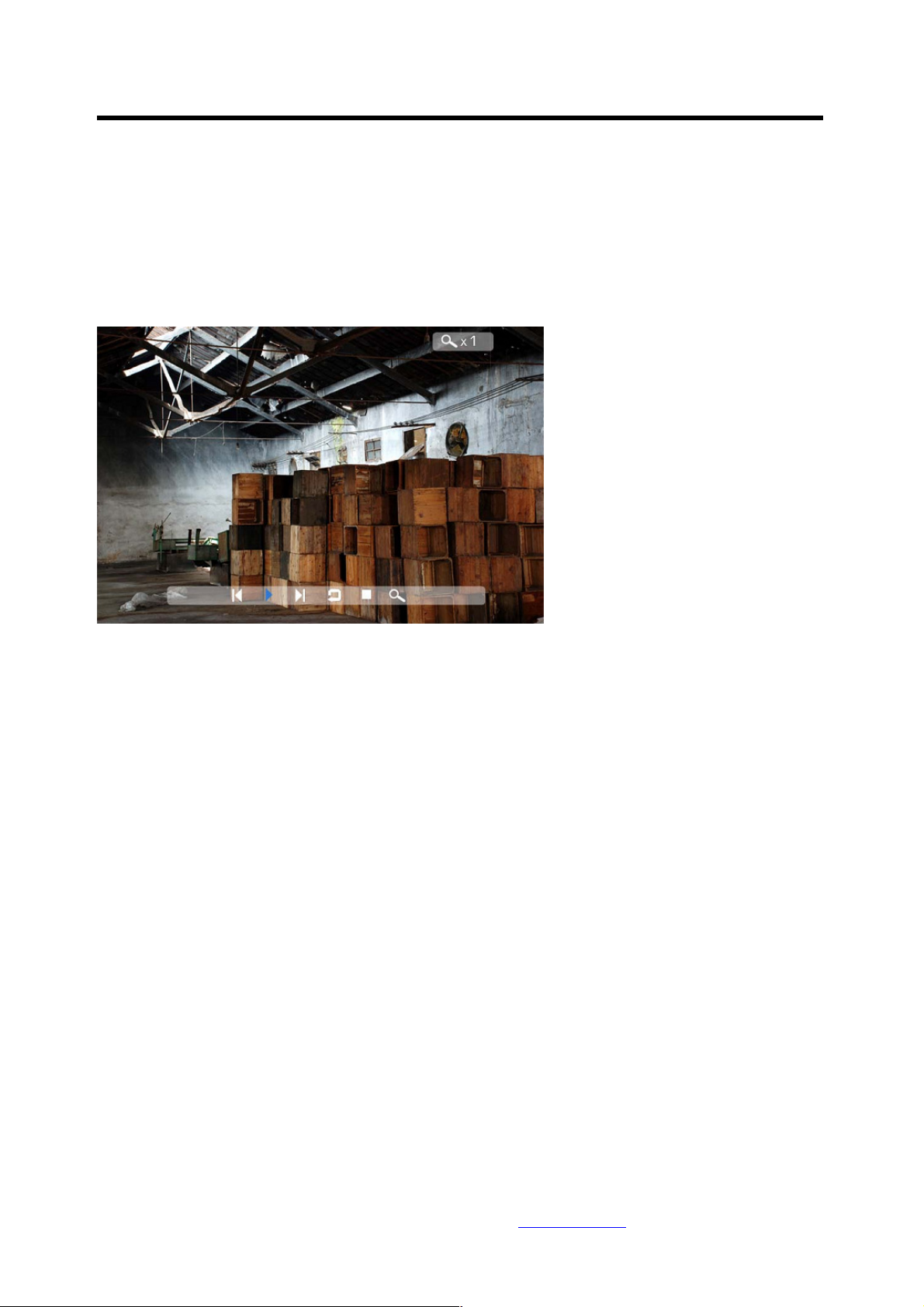

Once an audio-slideshow is playing, press the OSD button. The following menu will appear:

For information and support;

- 15 -

www.lenco.eu

Play previous picture in the picture list

Play or Pause

Play or pause the current slideshow.

Play next picture in the picture list

Rotate

Use the rotate function to change the picture orientation to either portrait or landscape.

Stop

Stop slideshow and return to photo thumbnail.

Zoom

Increase the size of the picture by 2/4/8/16/1 times.

VOL

Press VOL+ or VOL- on remote control to increase or decrease the volume

For information and support;

- 16 -

www.lenco.eu

Copying and Deleting Files

To copy and delete files on your memory card, USB drive or internal memory.

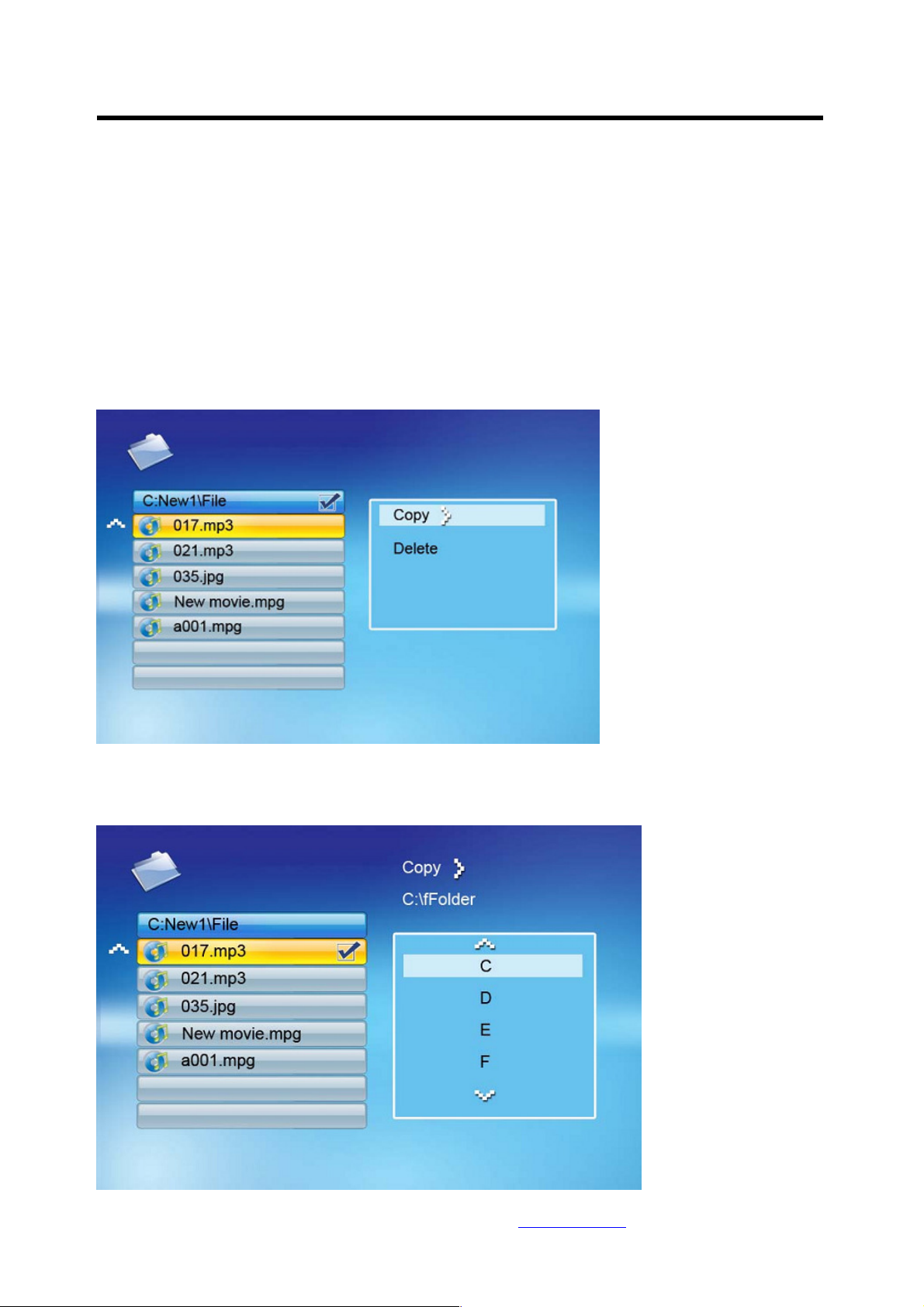

Copy

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “FILE” option from the menu and press “ENTER”

• A list of available files will be displayed. Use the up and down arrows to highlight your

required file and press the right arrow to highlight the desired file. Repeat for all files that you want to copy

• Press the “OSD” button to display the Copy and Delete menu. Select Copy function and

Enter.

• Use the Up/Down arrows to select the file destination folder. Press Right button to

confirm.

For information and support;

- 17 -

www.lenco.eu

• Press Enter to start copying the file.

Delete

• Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal

Memory)

• Select the “FILE” option from the menu and press “ENTER”

• A list of available files will be displayed. Use the up and down arrows to highlight your

required file and press the right arrow to highlight the desired file. Repeat for all files that you want to delete

• Press the “OSD” button to display the Copy and Delete menu. Select Delete function and

press Enter. File will be deleted.

For information and support;

- 18 -

www.lenco.eu

Using the SETUP option

Using the SETUP option Using the SETUP option

The following options can be changed by using the “SETUP” option from the main menu:

Function Description

Language Includes English, French,

Spanish，Deutsch,Swedish,Greek,Italian,Turkce. Slideshow time Slideshow duration: 3s/5s/15s/1mins/15mins/1hour Slideshow mode Off, Random, Fading, Bottom_to_top, Top_to_bottom, Left_to

right, Right_to_left, Door_close, Door_open, Hori_cross,

Verti_cross Music Repeat Mode Movie Repeat Mode Display mode Crop, Stretch, Cinema Time Year/Month/Date/Time setup Alarm Alarm Time/Alarm Music/Alarm On/off setup Default Recover the factory default setup

Repeat one, Repeat all, Repeat off

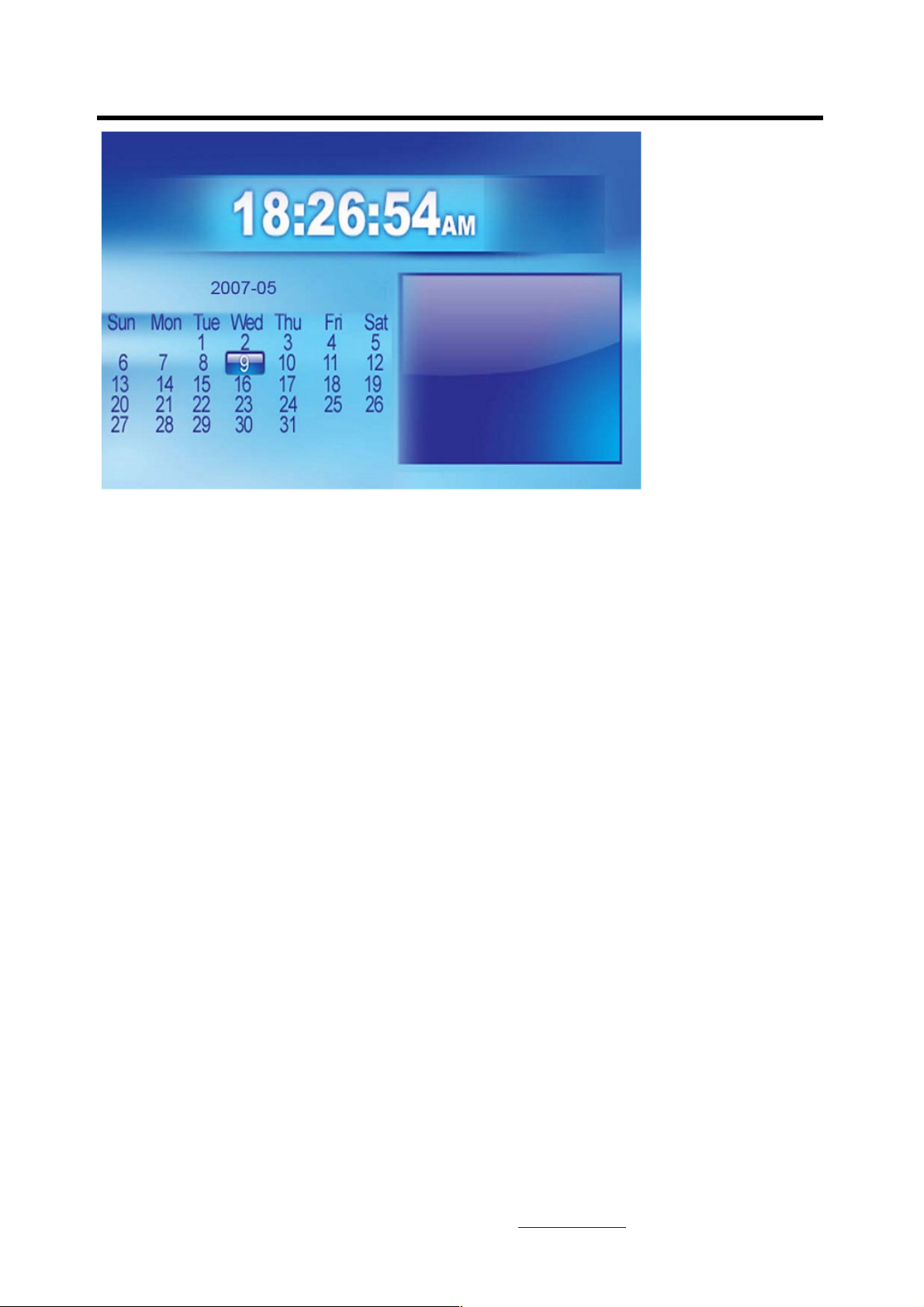

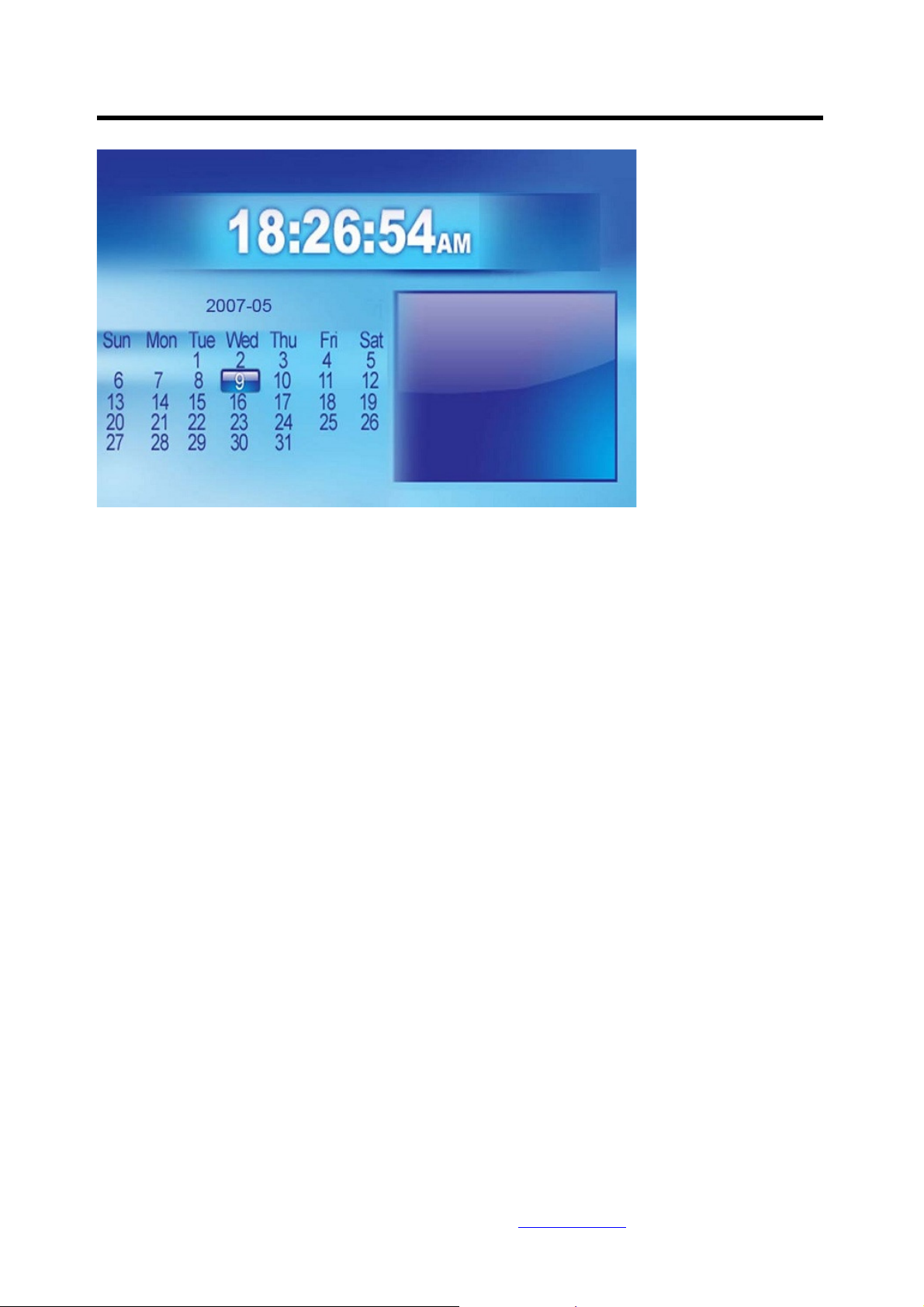

Calendar/Clock Display

Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. If you select the Calendar/Clock and press Enter, you will go to Calendar/Clock screen. If the Alarm is turned on, it will also show the alarm time. A picture slideshow will begin at the picture preview window at the right part of the screen.

For information and support;

- 19 -

www.lenco.eu

Technical Support

Technical SupportTechnical Support

Frequently asked questions

1) Q: Can I use touch-enabled technology for my Digital Picture Frame? A: The LCD screen does not support touch-enabled technology. Please use the buttons or remote control to control the Digital Picture Frame.

2) Q: If I keep showing the same photo for a long time, will it damage the LCD screen? A: No. The Digital Picture Frame can display the same photo continuously for a long time. But it is recommended not to show the same picture continuously for more than 1 month.

3) Q: How do I store music files? A: First, use a personal computer and popular audio editing software to convert your music to MP3 format. The Digital Picture Frame will only play MP3 files so all Windows Media Player™ and/or iTunes™ files will have to be converted first. You can use a card reader or your digital camera to transfer those files to your memory card.

4) Q: Does the Digital Picture Frame have built-in memory? A: Yes. The Digital Picture Frame has 128 MB built-in memory to store your files.

5) Q: What is the maximum picture size? A: The Digital Picture Frame is able to display pictures up to 12 Mega Pixels.

7) Q: How come the Digital Picture Frame does not show some of my photos? A: The Digital Picture Frame is designed to show photos following the same camera industry standards format as digital cameras. This format is a JPEG format. Images, such as web images, scanned images, or photos in RAW format, are not stored according to camera industry standards and therefore cannot be displayed correctly on the Digital Picture Frame. Please use your PC applications to convert such images into standard JPEG format before viewing them on the Digital Picture Frame.

For information and support;

www.lenco.eu

- 20 -

Troubleshooting

Symptom Cause Corrective Actions

Digital Picture Frame doesn’t power on

No Start-up screen Memory card is not inserted

The File doesn’t play

Video doesn’t play properly

Small video size on the screen

The POWER connector to the unit is not securely inserted.

Make sure you connect the AC adapter to the frame properly. When you connect the AC adapter to the frame and power up the unit, even without a memory card, you should see a blank screen. If you don’t see the lit screen, check if the power is connected to the Digital Picture Frame and make sure it is securely attached.

Insert a supported memory card correctly. Incompatible File Format Make sure there is at least one

supported photo file on the

memory card.

• Compatible Photo format: Compatible Photo format: JPEG

• Compatible Music format: MP3

• Compatible Video format: Motion JPEG (avi), MPEG1, MPEG2, MPEG4.

Slow Memory Card Make sure you use a high-

speed memory card to play video files.

Low Video Resolution The best supported resolution

of a photo or video is 1024x768 Use the Zoom button on the remote control to enlarge it.

For information and support;

www.lenco.eu

- 21 -

Specifications

SpecificationsSpecifications

Type 15 inch Digital Picture Frame Internal Memory 128 MB Resolution 1024x786 Alimentation 12 V Consumption 24 Watts Luminosity 450cd/m2 max. Contrast 450:1 Viewing Angle 60/60/45/45 (CR=10) Response Time 10ms Display Mode 4:3 File Format JPEG, MPEG1, MPEG2, MP3, MPEG4 Photo Size 12 Mega Pixels Current AC110—240V (50HZ—60HZ) Cards SD/MMC/MS/CF/XD/USB USB ports USB Host, USB Slave Package Contents Digital Picture Frame

AC/DC Adapter User Guide Remote control USB Cable Stand

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical andElectronic Equipment Directive)

For information and support;

- 22 -

www.lenco.eu

Inleiding………………………………………………………………………………………………..……………23 Voornaamste functies………………………………………………………………………………...…………..23 Start………………………………………………………………………………………………………..…………24

Inhoud van de verpakking……………………………………………………………….....….......……………24

Het toestel installeren…………………………………………………………………….................……..……24

Aansluiten op de PC……………………………………………………………………………….……………..25

Werking…………………………………………………………………………......…............…………………..25

Bediening……………………………………………………………………………......….....….………………..26

Gebruik van de afstandbediening……………………………………….............….......……………………….27

Geheugenkaart inbrengen………………………………………..…..…..........…..…....……………………….28

Hoofdmenu……………………………………………………………...........…........……………………………28

Foto’s bekijken…………………………………………………….............….........……………………………29

Vorige……………………………………………………………….......................………………………………30

Afspelen pauzeren……………………………………………..….......................………………………………30

Volgende…………………………………………………...................…......……………………………………30

Draaien……………………………………………………........................………………………………………31

Stop………………………………………………………..........................………………………………………31

Zoom………………………………………………………........................………………………………………31

Video’s bekijken……………………………………….......................…………………………………………31

Vorige……………………………………………….................…….....…………………………………………32

Snel vooruit……………………………………..........….......……………………………………………………32

Afspelen of pauzeren…………………………………..…………………………………………………………32 Snel achteruit…………………………………………………...…………………………………………………32 Volgende……………………………………………………………………………………………………………32 Stop…………………………………………………………………………………………………………………32 Zoom………………………………………………………………………………………….….…………………32 MP3 muziek beluisteren……………………………………………………………………………..…………33 Bestandskeuze……………………………………………………………………………………………………34 Een diavoorstelling afspelen met muziek……………………………………………………..……………34 Vorige………………………………………………………………………………………………………………35

Afspelen of pauzeren……………………………………………………………………….........………………35

Volgende……………………………………………………………………………………….............…………35

Draaien…………………………………………………………………………………………........……………35

Stop…………………………………………………………………………………………….............…………35

Zoom……………………………………………………………………………………………….………………35

VOL…………………………………………………………………………………………………….......………35

Bestanden kopieren en verwijderen…………………………………………………………………………36 Instellingen………………………………………… …………………………………………………...………37 Technische indersteuning………………………………………………………………………..……………39 Veel gestelde vragen…………………………………………………..…………………………….…………40 Specificaties…………………………………………………………..………………………………….………41

For information and support;

Inhouds opgave

www.lenco.eu

- 23 -

Inleiding

Gefeliciteerd met de aankoop van uw 15 inch Digitaal Fotokader model DF-1520.

Lees zorgvuldig de gebruiksaanwijzing alvorens het toestel in gebruik te nemen en bewaar de gebruiksaanwijzing voor later gebruik. Deze handleiding helpt u gebruik te maken van de vele boeiende mogelijkheden van uw Digitaal Fotokader.

Dit Digitaal Fotokader laat u toe uw foto’s rechtstreeks van de geheugenkaart van uw fototoestel te bekijken. U kunt een diavoorstelling maken met verschillende overgangseffecten of gewoon een foto tonen. U heeft hiervoor geen computer, fototoestel of internetverbinding nodig.

Dit Digitaal Fotokader is geschikt voor de volgende veel voorkomende geheugenkaarten: CompactFlash®, SD™, XD, MultiMediaCard™ en Memory Stick®.

Het toestel kan ook bestanden lezen die opgeslagen zijn op een USB-stick via de USB-poort.

Voornaamste functies

Toont digitale foto’s zonder computer. Plaats gewoon een geheugenkaart in het Digitaal Fotokader om de foto’s te bekijken of om MP3 bestanden en video’s af te spelen (geheugenkaart niet inbegrepen). Geschikte geheugenkaarten zijn Secure Digital Card (SD), MultiMedia Card (MMC), Memory Stick (MS), XD Cards & Compact Flash. Leest bestanden van een USB Flash geheugen. Speelt rechtstreeks MP3 muziek via de geïntegreerde luidsprekers. Speelt rechtstreeks MPEG1

，，

2 en 4 bestanden vanop de geschikte geheugenkaarten*. Ondersteunt foto’s tot 12 Mega Pixels (JPEG formaat). Compatibel met de meeste fotocamera’s voor JPEG bestanden en video. Bevat een afstandsbediening ter grootte van een kredietkaart. Helder 15” TFT active matrix LCD scherm. Automatische diavoorstelling met verschillende overgangseffecten. Speelt diavoorstellingen met MP3 muziek op de achtergrond. Gebruiksvriendelijk scherm met eenvoudige toegang tot alle mogelijkheden.

*Het is mogelijk dat video bestanden niet goed afspeeld worden als ze opgeslagen zijn op kaarten met lage snelheid.

For information and support;

- 24 -

www.lenco.eu

Starten

Inhoud van de verpakking

Digitaal Fotokader en standaard

Handleiding

AC/DC Adapter

Afstandsbediening

USB kabel

Het toestel installeren

Open de verpakking en verwijder het beschermende piepschuim. Verwijder ook de beschermhoes rond het toestel. Bevestig de standaard achteraan het toestel. Steek de adapter in een wisselstroom stopcontact. Steek het Plaats de geheugenkaart met de bestanden in de juiste gleuf.

andere einde in het toestel.

For information and support;

- 25 -

www.lenco.eu

Zet het toestel aan met de Aan/Uit schakelaar.

Aansluiten op een PC

Het Digitaal Fotokader heeft een USB poort om op een PC (USB Slave) aan te sluiten en een tweede om andere apparaten aan te sluiten zoals een Flash geheugen, een USB kaartlezer of een camera (USB Host). Wanneer het toestel aangesloten is op een PC kan u bestanden van de PC verplaaatsen naar het intern geheugen of de geheugenkaart. U kan ook bestanden uit het intern geheugen verwijderen.

Opmerking: USB Slave en USB Host kunnen niet gelijktijdig gebruikt worden.

Werking

Het Digitaal Fotokader is zeer eenvoudig te gebruiken:

1. Verwijder de geheugenkaart uit de camera.

2. Plaats de geheugenkaart in het toestel met de bedrukte kant naar beneden.

3. Zet het toestel aan, de foto wordt nu automatisch getoond.

For information and support;

- 26 -

www.lenco.eu

+ 93 hidden pages
