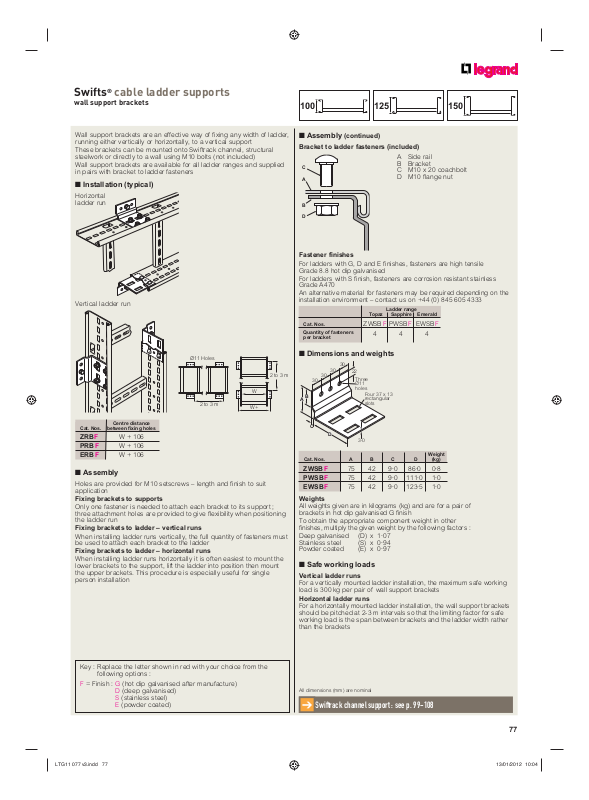

Swifts® cable ladder supports
B
A
D
C
3·0
30
30
30
30
22
Three
Ø11
holes
Four 37 x 13
rectangular
slots
C
A
B
D
W
W+
2 to 3 m
2 to 3 m
Ø11 Holes
wall support brackets
150125100
Wall support brackets are an effective way of fixing any width of ladder,
running either vertically or horizontally, to a vertical support
These brackets can be mounted onto Swiftrack channel, structural
steelwork or directly to a wall using M10 bolts (not included)
Wall support brackets are available for all ladder ranges and supplied
in pairs with bracket to ladder fasteners
■ Installation (typical)
Horizontal
ladder run
Vertical ladder run
■ Assembly
(continued)
Bracket to ladder fasteners (included)
A Side rail
B Bracket
C M10 x 20 coachbolt
D M10 flange nut
Fastener finishes
For ladders with G, D and E finishes, fasteners are high tensile
Grade 8.8 hot dip galvanised
For ladders with S finish, fasteners are corrosion resistant stainless
Grade A470
An alternative material for fasteners may be required depending on the
installation environment – contact us on +44 (0) 845 605 4333
Ladder range
Topaz Sapphire Emerald
Cat. Nos.
ZWSB F PWSB F EWSB F
Quantity of fasteners
per bracket
4 4 4
■ Dimensions and weights
Centre distance
Cat. Nos. between fixing holes
ZRB F W + 106
PRB
F W + 106
ERB
F W + 106
■ Assembly
Holes are provided for M10 setscrews – length and finish to suit
application
Fixing brackets to supports
Only one fastener is needed to attach each bracket to its support ;
three attachment holes are provided to give flexibility when positioning
the ladder run
Fixing brackets to ladder – vertical runs
When installing ladder runs vertically, the full quantity of fasteners must
be used to attach each bracket to the ladder
Fixing brackets to ladder – horizontal runs
When installing ladder runs horizontally it is often easiest to mount the
lower brackets to the support, lift the ladder into position then mount
the upper brackets. This procedure is especially useful for single
person installation
Weight
Cat. Nos. A B C D (kg)
ZWSB F 75 42 9·0 86·0 0·8
PWSB
F 75 42 9·0 111·0 1·0
EWSB
F 75 42 9·0 123·5 1·0
Weights
All weights given are in kilograms (kg) and are for a pair of
brackets in hot dip galvanised G finish
To obtain the appropriate component weight in other
finishes, multiply the given weight by the following factors :
Deep galvanised (D) x 1·07
Stainless steel (S) x 0·94
Powder coated (E) x 0·97
■ Safe working loads
Vertical ladder runs
For a vertically mounted ladder installation, the maximum safe working
load is 300 kg per pair of wall support brackets
Horizontal ladder runs
For a horizontally mounted ladder installation, the wall support brackets
should be pitched at 2-3 m intervals so that the limiting factor for safe
working load is the span between brackets and the ladder width rather
than the brackets
Key : Replace the letter shown in red with your choice from the
following options :
F = Finish : G (hot dip galvanised after manufacture)
D (deep galvanised)
S (stainless steel)
E (powder coated)
All dimensions (mm) are nominal
Swiftrack channel support : see p. 99-108
➔
77
