Swifts® cable ladder ancillary items
ABC
D
E
Copper lug to
BS 6017 (1981) and
BS 1977 (1976)
1318
30
12
295 (braid length)
320 (hole centres)
Hole Ø6·5 Conductor area 16 mm
(copper braid to BS 4109)
2
3·0
5·5
2·0
Two holes Ø7·5Two holes Ø7·5

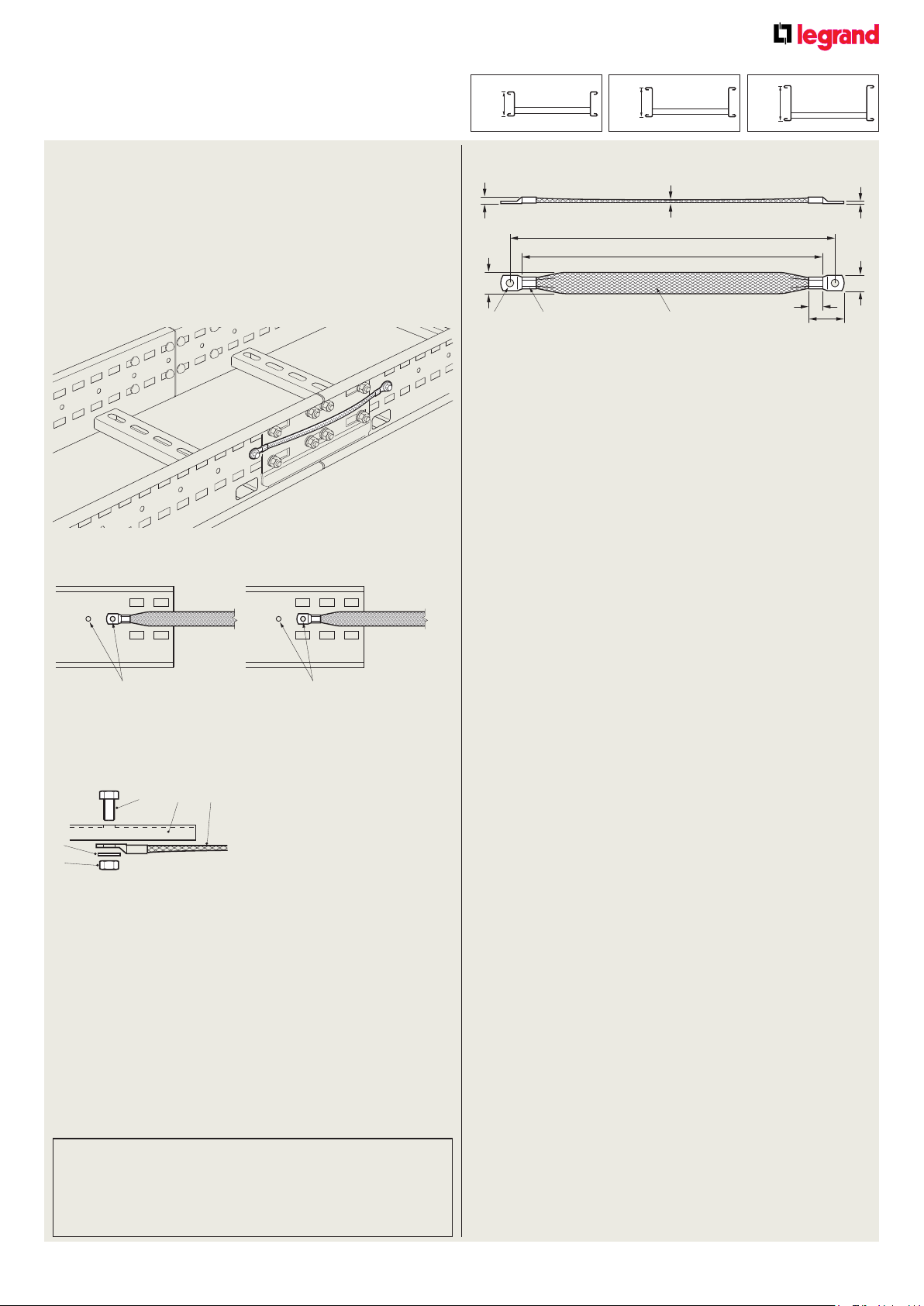

earth continuity connector
150125100
If a supplementary bonding conductor for equipotential earthing is
required, straight lengths and fittings in all Swifts ladder ranges have
fixing holes provided to accommodate a flexible earth continuity
connector. On straight lengths, fixing holes are pitched every 75 mm to
avoid the need for drilling if the ladder is cut
When used with galvanised or stainless steel finish ladder, the lug of
the earth continuity connector is fixed directly to the ladder side rail
Finish : electro tinned copper
The earth continuity connector has a current capacity rating of
100 Amps
Supplied in bagged quantities of ten with fasteners
■ Installation (typical)
■ Assembly
Typical ladder length ends
■ Dimensions
Attach the earth continuity connector to either hole, depending on
coupler position
Fasteners (included)
Two fasteners per connector
G, D, S and E finishes
A M6 x 10 Brass setscrew (BS 3692)
B Ladder side rail
C Earth continuity connector
D Brass form A washer 1·6 x 12·5 x 6·4 (BS4320)
E M6 Brass nut (BS 3692)
Key : Replace the letter shown in red with your choice from the
following options :
F = Finish : G (hot dip galvanised after manufacture)
D (deep galvanised)
S (stainless steel)
E (powder coated)
All dimensions (mm) are nominal
