EMBLSK
Please read these instructions and retain them for future reference.
Switch off the mains supply before installation.Switch off the mains supply before installation.
265mm
22.5mm
265mm

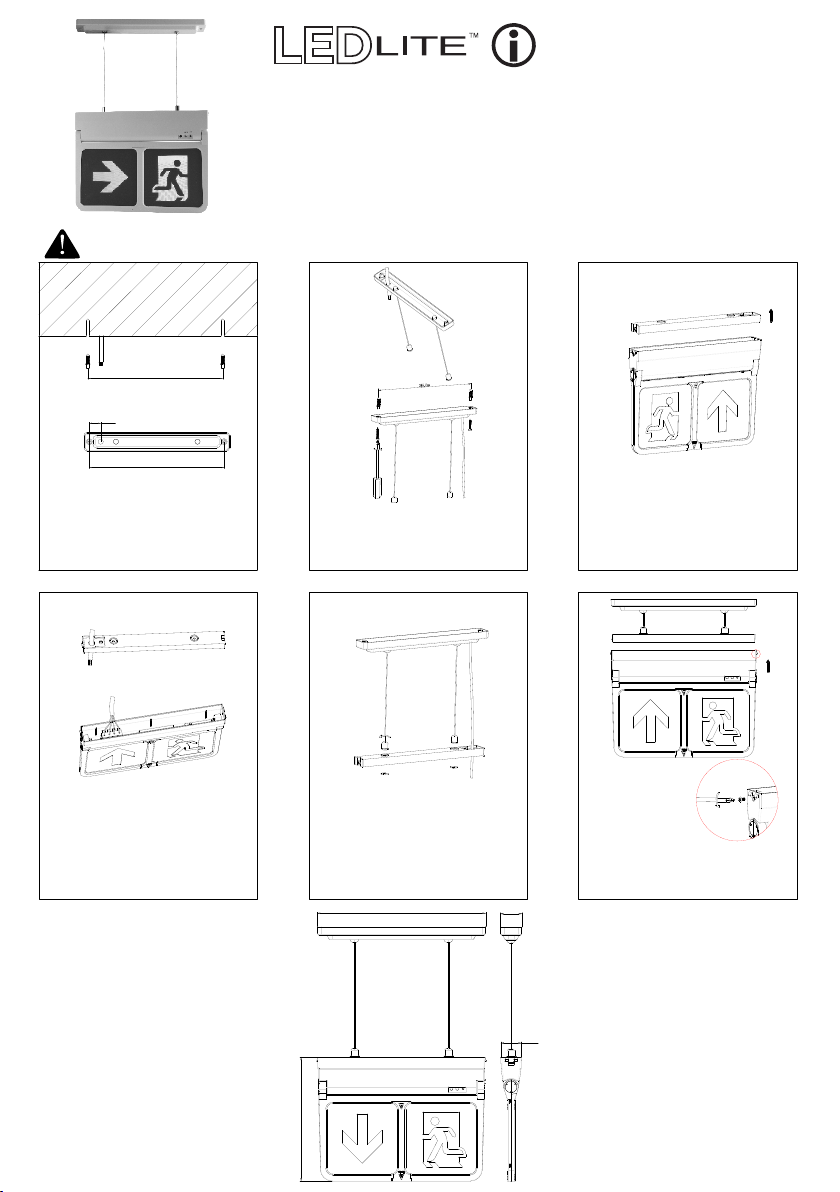

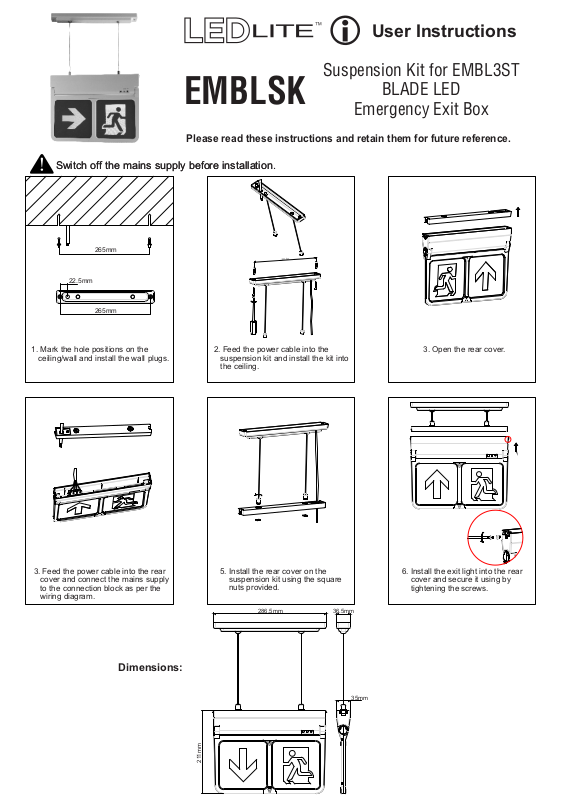

User Instructions
Suspension Kit for EMBL3ST
BLADE LED
Emergency Exit Box
1. Mark the hole positions on the
ceiling/wall and install the wall plugs.
3. Feed the power cable into the rear
cover and connect the mains supply
to the connection block as per the
wiring diagram.
Dimensions:
2. Feed the power cable into the
suspension kit and install the kit into
the ceiling.
5. Install the rear cover on the
suspension kit using the square
nuts provided.
286.5mm
36.5mm
35mm
3. Open the rear cover.
6. Install the exit light into the rear
cover and secure it using by
tightening the screws.
211mm
