operating instructions
__________
instrucciones de operación
__________
instructions
|
La-Z-Touch® |
|
Massage system |
|
________ |
|
Sistema de masaje |
|
________ |
la-z-boy.com |
Système de massage |
La-Z-Boy Incorporated
1284 N. Telegraph Road
Monroe, MI 48162
©2014 La-Z-Boy Incorporated |
93000466-00 Rev. 08/14 |
|
|
|
|
|
|
|
ongratulations!C
You are now the proud owner of a state-of-the-art La-Z-Touch®
Massage Recliner by La-Z-Boy®.
You have just selected one of the finest quality upholstered products produced in the North American furniture industry, backed by over 86 years of quality manufacturing experience. La-Z-Boy is proud of our designs and craftsmanship and know you will feel the same as
you enjoy your new furniture’s comfort and style.
IMPORTANT
Read these instructions thoroughly before using your La-Z-Touch® Massage Recliner.
Keep them for future reference.
Table of Contents |
|
Important Safety Instructions.................................... |
4-5 |
La-Z-Touch® 2-Motor Massage & Heat Recliner |
|
Assembly Instructions .............................................. |
6-9 |
La-Z-Touch® 2-Motor Massage & Heat Recliner |
|
Operating Instructions............................................ |
10-11 |
La-Z-Touch® Massage & Heat Recliner |
|
Troubleshooting Instructions........................................ |
12 |
Reclining Tension Adjustment Instructions................... |
13 |

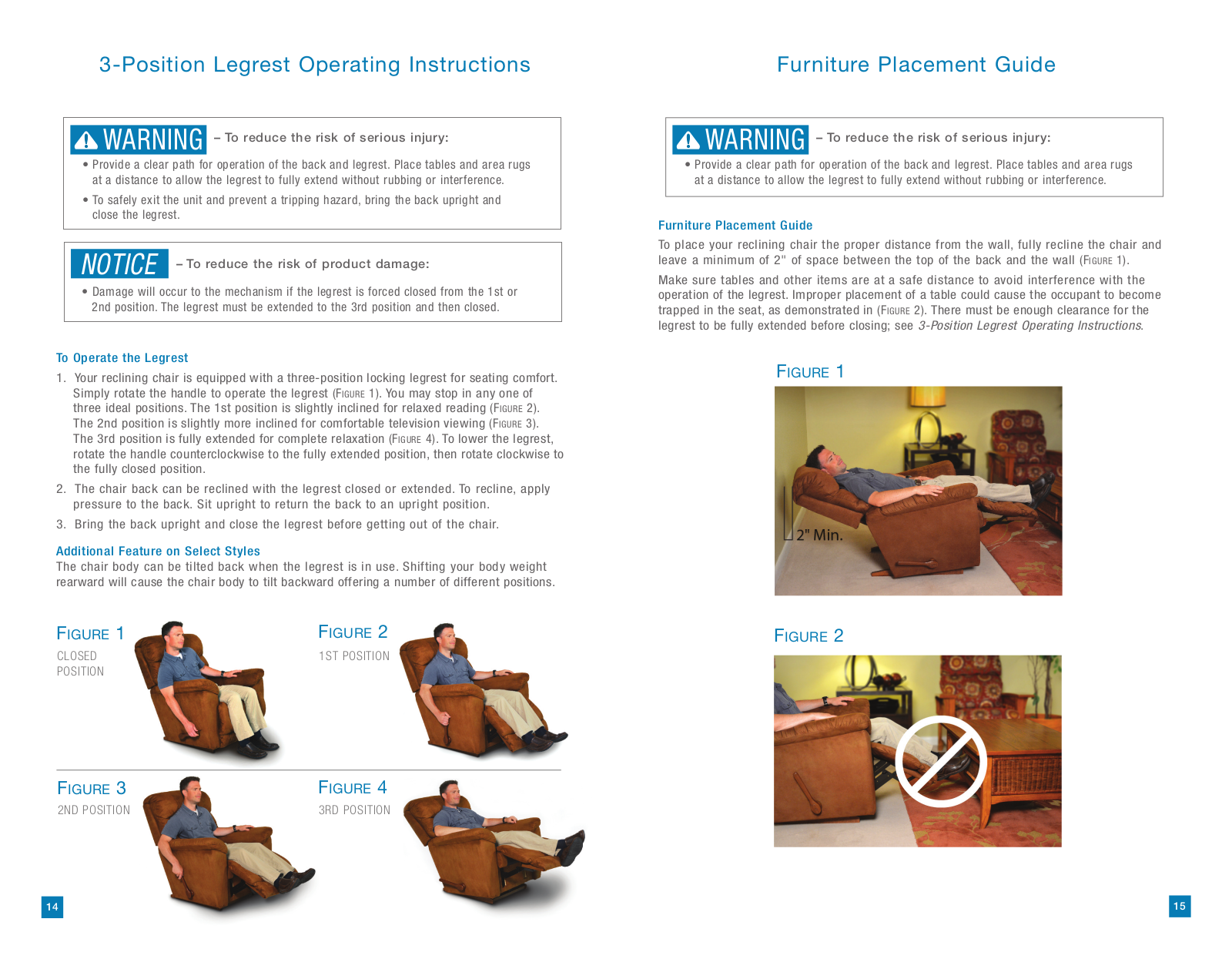

3-Position Legrest Operating Instructions.................... |
14 |
Furniture Placement Guide......................................... |
15 |
Disclaimer: The information and products featured in this manual may be somewhat different from the product you purchased. La-Z-Boy® reserves the right to make substitutions that are equal in quality and performance.
2 |
|
3 |
|
|
|

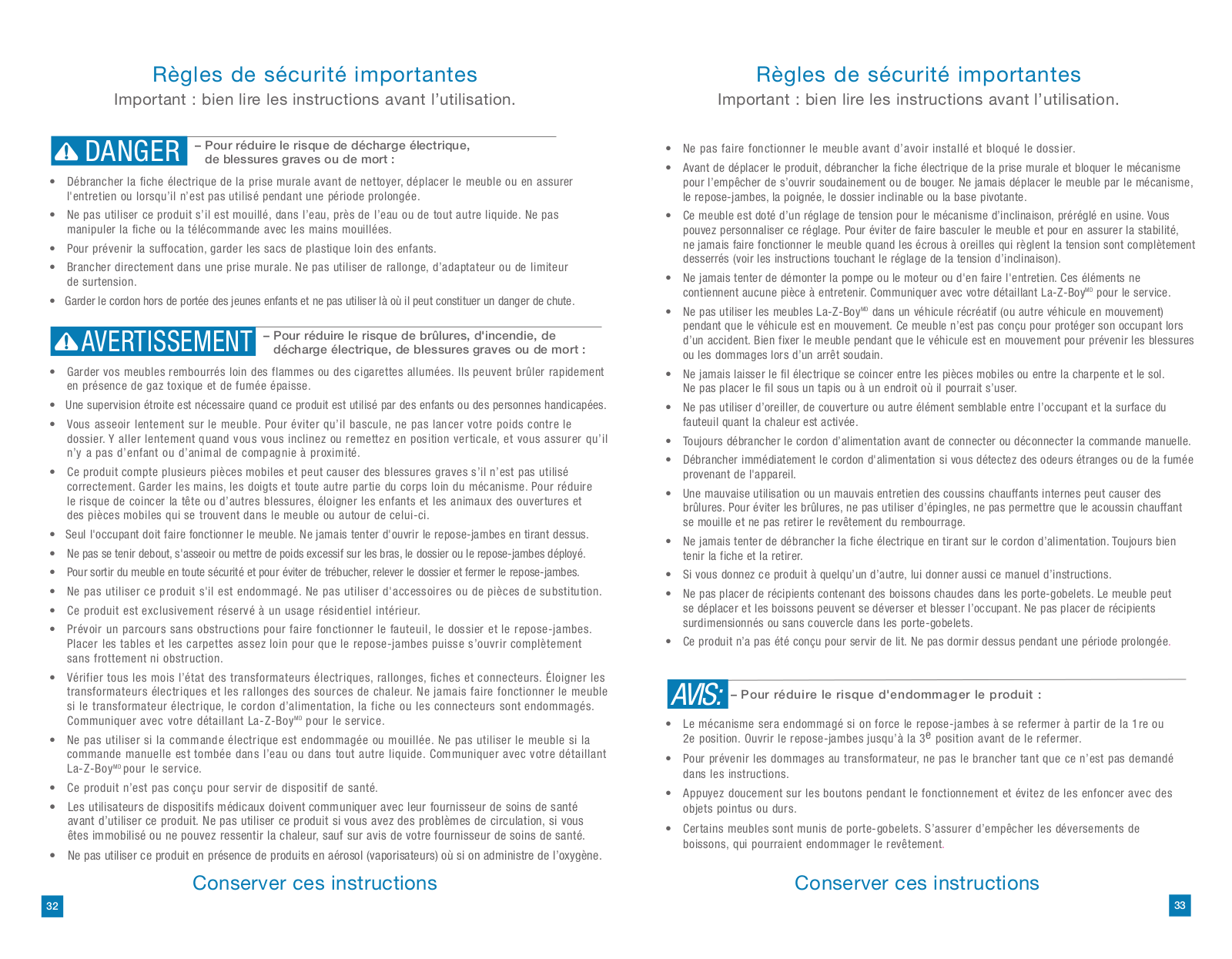

Important Safety Instructions
Important: Read these instructions thoroughly before using.
DANGER – To reduce the risk of electric shock, serious injury or death:
•Disconnect the electrical plug from the wall outlet before cleaning, moving, servicing or when not in use for an extended period of time.
•Do not use this product if it is wet, in water, around water or any liquid. Do not handle the plug or remote control with wet hands.
•To prevent suffocation keep plastic bags away from children.
•Plug directly into a wall outlet. Do not use an extension cord, adapter or surge protector.
•Keep cord out of the reach of small children, and do not use where it may be a trip hazard.
WARNING |
injury or death: |
|
– To reduce the risk of burns, fire, electric shock, serious |
|
|
•Always keep open flame and lit cigarettes away from upholstered furniture. Upholstered furniture may burn rapidly with toxic gas and thick smoke.
•Closely supervise children and disabled persons using this product.
•Sit down in the unit slowly. To avoid tipover, do not throw your weight against the back of the unit. Move the unit into or out of the reclining position slowly, making sure that no children or pets
are in close proximity.
•This product has many moving parts, serious injury can occur if not used properly. Keep hands, fingers and body parts away from the mechanism. To reduce the risk of head entrapment and other injuries, keep children and pets away from the openings and moving parts in and around furniture.
•Only the occupant should operate the unit. Never attempt to open the legrest by pulling on it.
•Do not stand, sit or place extra weight on the arms, back or open legrest.
•To safely exit the unit and prevent a tripping hazard bring the back upright and close the legrest.
•Do not use this product if it is damaged. Do not use attachments or substitute parts.
•This product is intended for indoor residential use only.
•Provide a clear path for operation of the chair, back and legrest. Place tables and area rugs at a distance to allow the legrest to fully extend without rubbing or interference.
•Check the condition of the power transformers, electrical cords, plugs and connectors monthly. Keep the power transformer and electrical cords away from heat sources. Never operate the unit with a damaged power transformer, electrical cord, plug or connector. Contact your La-Z-Boy® dealer for service.
•Do not use unit if power control is damaged or wet. Do not use unit if the hand wand has been
dropped in water or any liquid. Contact your La-Z-Boy® dealer for service.
•This product is not intended for use as a health care device.
•Users of medical devices should contact their health care provider before using this product. Do not use this product if you have poor circulation, are immobile or cannot sense heat, except as directed by your health care provider.
•Do not use this product where aerosol (spray) products are being used or where oxygen is being administered.
Save These Instructions
Important Safety Instructions
Important: Read these instructions thoroughly before using.
•Do not operate the unit until the back is installed and locked.
•Before moving the product, disconnect the electrical plug from the wall outlet and secure the mechanism to prevent unexpected opening or movement. Never move the product by the mechanism, legrest, handle, reclining back or swivel base.
•This unit is equipped with a tension adjustment feature for the reclining mechanism that is preset at the factory. The tension setting can be changed for your personal preference. To avoid tipover and insure stability, do not operate the unit with the tension adjustment wing nuts completely loosened (see Reclining Tension Adjustment Instructions).
•Do not attempt to disassemble or service the pump or motor; no serviceable parts are inside. Contact your La-Z-Boy® dealer for service.
•Do not use La-Z-Boy® furniture in a recreational vehicle (or other moving vehicle) while the vehicle is in motion. This furniture is not intended to protect its occupant in an accident. Safely secure the furniture while the vehicle is in motion to prevent injury or damages from any sudden stop.
•Do not allow electrical cord to be pinched between moving parts or between the frame and the floor. Do not place cord under carpet or in location where it could become worn.
•Do not use pillow, blanket, or other cover between occupant and chair surface when heat is engaged.
•Always unplug the power cord before connecting or disconnecting the hand wand.
•Unplug the power cord immediately if you detect strange odors or fumes coming from the unit.
• Burns may result from improper use and care of internal heating pads. To avoid risk of burns, do not use pins, do not allow heating pad area to become wet, and do not remove upholstery cover.
•Do not attempt to disconnect the power plug by pulling the power cord. Always hold the power plug and pull it out.
•If you give this product to someone else, include this Operating Instructions manual.
•Do not place containers with hot beverages in the cup holders. The furniture moves and beverages may spill and cause injury. Do not place oversized or uncovered beverage containers in the cup holders.
•This product is not intended to be used as a bed. Do not sleep in for an extended period.
NOTICE: – To reduce the risk of product damage:
•Damage will occur to the mechanism if the legrest is forced closed from the 1st or 2nd position. The legrest must be extended to the 3rd position and then closed.
•To prevent damage to the power transformer, do not plug in until instructed.
•Gently press the buttons during operation and avoid hitting the buttons with pointed or hard objects.
•Some units contain cup holders. Take care to prevent spilling of beverages, which could damage the cover.
Save These Instructions
4 |
|
5 |
|
|
|
La-Z-Touch® 2-Motor Massage & Heat Recliner
Assembly Instructions
NOTICE – Do not plug in until instructed.
1.The power supply cable and hand wand are secured to the body bracket (FIGURE 1).
Carefully cut the cable tie. Set the power transformer aside and lay the hand wand on the seat.
2.Lay the back across the chair arms (FIGURE 2).
3.Locate the two larger, round hand wand connectors, one extending from the bottom of the chair back and one lying on the seat of the chair. Align the arrows on the connectors and push together. Close the locking cover to secure the hand wand connection (FIGURE 3).
4.Place the power transformer on the floor near the base of the chair. Route the power supply cable that extends from the bottom of the chair back down the back of the chair between the back of the seat and the metal rear rail. Plug the round power supply connector into the power transformer connector (FIGURE 4).
FIGURE 1 |
FIGURE 2 |
FIGURE 3 |
FIGURE 4 |
Hand Wand |
Power Supply |
Connector |
|
|
Cable |
Make this |
Make this |
connection |
connection |
Hand Wand Cable |
Power Transformer |
(Assembly Instructions Continued)
La-Z-Touch® 2-Motor Massage & Heat Recliner
Assembly Instructions
5.Turn the locking levers, located on the brackets attached to the back (one on each side), to a 90 degree angle (FIGURE 5).
WARNING – To reduce the risk of injury:
•Do not operate the unit until the back is installed and locked.
6.Install the back.
•Lift the back at a slight angle and align the brackets on the back with the brackets on the body. Lower the back onto the body, making sure the back and body brackets are completely engaged. (FIGURE 6). Do not allow the cables to become pinched.
-To make sure the back is properly installed, with both sets of back and body brackets engaged, stand behind the chair and twist the back from side to side. If one or both sides move out of position, the brackets are not engaged (FIGURE 7). Remove the back and repeat the steps above.
-If you are unable to install the back properly, contact your La-Z-Boy dealer for assistance.
•Lock the brackets by using a screwdriver to push down the locking levers (FIGURE 8).
FIGURE 5 |
FIGURE 6 |
|
Body |
|
Bracket |
|
Back Bracket |
FIGURE 7 |
FIGURE 8 |
Back |
Locking |
|
Bracket |
||
Lever |
||
|
Locking
Position
Back and body brackets on this side are not engaged. Remove the back and reinstall.
(Assembly Instructions Continued)
6 |
7 |
La-Z-Touch® 2-Motor Massage & Heat Recliner
Assembly Instructions
WARNING – To reduce the risk of serious injury:
•Provide a clear path for operation of the back and legrest. Place tables and area rugs at a distance to allow the legrest to fully extend without rubbing or interference.
7.Choose a location for the chair that is close to an electrical outlet. Proceed to the Operating Instructions.
NOTICE – To prevent damage to the connectors and cords, it is important to unfasten all connections prior to removing the back.
8.To remove the back, unplug the 120 volt power transformer from the electrical outlet and disconnect the power transformer from the power supply located behind the chair.
9.Unlock the back brackets by using a screwdriver to push up on the locking levers.
10.Gently pull up on the back of the chair.
La-Z-Touch® 2-Motor Massage and Heat Power Transformer Specifications:
Input: 100-240V AC 50-60Hz 1.5A
Output: 13.8V DC 2.9A
(Page intentionally left blank)
8 |
9 |
La-Z-Touch® 2-Motor Massage & Heat Recliner
Operating Instructions
DANGER – To reduce the risk of electric shock, serious injury or death:
• Plug directly into a wall outlet. Do not use an extension cord, adapter or surge protector.
WARNING – To reduce the risk of serious injury:
•Sit down in the unit slowly. To avoid tip over, do not throw your weight against the back of the unit. Move the unit into or out of the reclining position slowly, making sure that no children or pets are in close proximity.
•To safely exit the unit and prevent a tripping hazard bring the back upright and close the legrest.
Plug the 2-motor massage and heat power transformer directly into a wall outlet. Make sure there is enough slack in the cord running from the chair to the outlet to allow for rocking and reclining. Never stretch or strain a cord.
TO OPERATE HEAT OR MASSAGE:
•Press the MSG button to start and stop the massage.
•Press the
button to select your massage mode. The button light will change to green for Constant massage, amber for Wave massage and red for Pulse massage. The massage program will run for 15 minutes, then shut off. When restarted, massage will operate in the last mode selected before shut off.
•Press the
button to select the massage intensity. The button light will change to green for Low intensity, amber for Medium intensity, and red for High intensity. The chair automatically resets to the Low intensity setting when massage is restarted.
•Heat may be used with or without massage. Press the HEAT button to start and stop the heat. The button light will change to amber for Low heat, and red for High heat. The heat will operate for 15 minutes, then shut off. The chair automatically resets to the Low heat setting when heat is restarted.
•When you are ready to leave the chair, turn the massage system off by pressing the MSG button. The indicator light will change to blue. Turn the heat system off by pressing the HEAT button until the indicator light changes to blue.
The massage and heat systems shut off automatically after approximately 15 minutes of operation. If you immediately restart the systems, they will operate for an additional 15 minutes and then shut off for a 30-minute cool down. You can restart the systems after the 30-minute cool down period. If you attempt to restart the massage or heat function before the cool down period is over, the MSG or HEAT button will flash for 5 seconds indicating the cool down period.
•Following a power outage or power interruption, the chair will return to the off setting when power is restored.
We recommend that you unplug the power transformer if you will be away from your residence for an extended period of time.
La-Z-Touch® 2-Motor Massage & Heat Recliner
Operating Instructions
MASSAGE
Activates the massage system. Press once for a 15-minute massage.
Two 15-minute massage cycles can be activated consecutively, followed by a 30-minute cool down.
OFF - (Blue)
ON - Push 1x (Green)
MASSAGE MODES OFF - (Blue)
CONSTANT - Push 1x Massage is constant. (Green)
WAVE - Push 2x Massage moves side to side in a wave-like motion. (Amber)
PULSE - Push 3x Massage turns on and off to simulate a pulsing action. (Red)
HEAT |
Activates the heat feature. Use independently or with the massage.
OFF - (Blue)
MSG HEAT LOW - Push 1x (Amber)
HIGH - Push 2x (Red)
Heat will activate for 15-minutes. Two 15-minute heat cycles can be activated consecutively, followed by a 30-minute cool down.
MASSAGE INTENSITY
OFF - (Blue)
LOW - Push 1x (Green)
MEDIUM - Push 2x (Amber)
HIGH - Push 3x (Red)
WARNING – To reduce the risk of serious injury:
•Do not use unit if power control is damaged or wet. Do not use unit if the hand wand has been dropped in water or any liquid. Contact your La-Z-Boy® dealer for service.
10 |
11 |
La-Z-Touch® Massage & Heat Recliner
Troubleshooting Instructions
WARNING – To reduce the risk of serious injury:
•Do not attempt to disassemble or service the pump or motor; no serviceable parts are inside. Contact your La-Z-Boy® dealer for service.
•Check the condition of the power transformer, electrical cords, plug and connectors monthly. Keep the power transformer and electrical cords away from heat sources. Never operate the unit with a damaged power transformer, electrical cord, plug or connector. Contact your La-Z-Boy® dealer for service.
Troubleshooting for Massage and Heat Function
If the massage or heat function does not work:
1.Make sure the automatic time-out operation has not been activated, indicated by either the MSG button or the HEAT button flashing for 5 seconds. If either button is blinking, the system is in a 30-minute cool down period. Following the cool down period, press the MSG button to restart the massage, or press the HEAT button to restart the heat.
2.Make sure the power transformer is plugged into an electrical outlet.
3.Make sure the electrical outlet is working. For example, make sure there are no blown fuses or tripped circuit breakers.
4.Make sure all the connectors are secured; refer to the Assembly Instructions.
5.Make sure that the electrical cords are not crimped or pinched. Make sure the electrical cord or plug is not damaged.
If the massage system still does not operate properly, contact your La-Z-Boy dealer for service. Except for replacement of the power transformer, never attempt to make any repairs or adjustments yourself.
Power Transformer Replacement
If the Power Transformer must be replaced:
1.Unplug the Power Transformer from the electrical outlet.
2.Locate the Power Transformer connection; refer to the Assembly Instructions. Gently pull the connectors apart to disengage.
3.Push the replacement Power Transformer connector into the mating connector; refer to the Assembly Instructions. Make sure the connectors are secured with no gaps between them.
Reclining Tension Adjustment Instructions
WARNING – To reduce the risk of injury:
•This unit is equipped with a tension adjustment feature for the reclining mechanism that is preset at the factory. The tension setting can be changed for your personal preference. To avoid tip over and insure stability, do not operate the unit with the tension adjustment wing nuts completely loosened.
NOTICE – To reduce the risk of product damage:
•Make sure the legrest is closed before tilting forward and adjusting the tension.
•Do not completely tighten the wing nuts. The tension springs should not be completely compressed after making adjustments. If this occurs, the wing nuts must be loosened counterclockwise a minimum of ½-turn to avoid damage to the spring tension assembly.
•Do not completely loosen the wing nuts. The spring should not slide on the bolt after making adjustments. If the spring slides on the bolt, tighten the wing nut clockwise a minimum
of ½-turn after the spring no longer slides on the bolt.
•Adjust both wing nuts equally.
Reclining Tension Adjustment Instructions:
You can adjust the tension of the reclining mechanism to respond to your individual size.
1.Unplug the power transformer from the electrical outlet. Gently roll the reclining chair forward to rest on its arms and top of the back. Locate the wing nuts, one on each side, toward the back of the recliner under the reclining seat (only one side shown below).
2.Adjust the tension by turning the wing nuts in ¼-turn increments until the desired setting is reached.
•A taller or heavier person may choose to increase the reclining tension by tightening the wing nuts clockwise.
•A smaller person may choose to decrease the reclining tension by loosening the wing nuts counterclockwise.
3.Return the reclining chair to the upright position and test the new setting. Make additional adjustments if needed, repeating these steps. Plug the power transformer directly into a wall outlet.
Wing Nut |
Tension Spring |
12 |
13 |
