Landoll LCS13151 User Manual

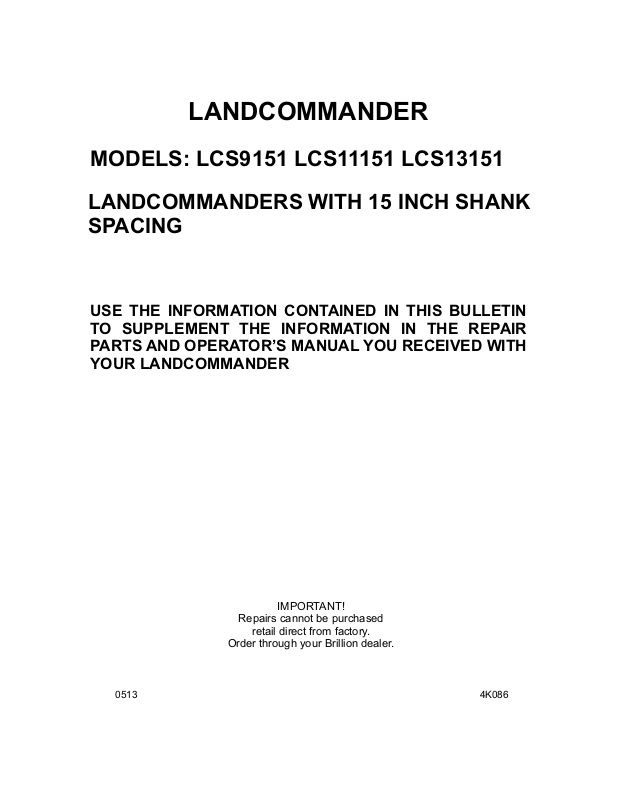

LANDCOMMANDER
MODELS: LCS9151 LCS11151 LCS13151
LANDCOMMANDERS WITH 15 INCH SHANK
SPACING
USE THE INFORMATION CONTAINED IN THIS BULLETIN
TO SUPPLEMENT THE INFORMATION IN THE REPAIR
PARTS AND OPERATOR’S MANUAL YOU RECEIVED WITH
YOUR LANDCOMMANDER
0513
IMPORTANT!
Repairs cannot be purchased
retail direct from factory.
Order through your Brillion dealer.
4K086
1D423
3/4 X 1-3/4
3K862
BRACKET
1K733
EXT. 9”
LCS9151
DRILL HOLES THROUGH LEG OF
ANGLE TO ATTACH THIS MOUNTING
BRACKET TO FRAME, OR WELD
MOUNTING BRACKET TO THE ANGLE.
DRILL HOLES THROUGH THIS
PLATE TO ATTACH THIS MOUNTING
BRACKET TO FRAME, OR WELD
MOUNTING BRACKET TO THE FRAME.
TO ASSEMBLE AN LCS9151, FOLLOW ALL THE ASSEMBLY INSTRUCTIONS FOR LCS5301 EXCEPT:
1. DO NOT ASSEMBLE FRAME TUBES TO THE FRAME.
2. USE PLATES, BOLTS AND NUTS FROM FRAME TUBES TO ATTACH EXTRA EXTENSIONS.
3. ATTACH MOUNTING BRACKETS TO THE FRAME AS SHOWN.
4. SEE PAGES 2 AND 3 OF REPAIR PARTS CATALOG FOR IDENTIFICATION OF FRAME PARTS.
1J588
3/4 X 5
3K672
21-1/2”
47”
124”
1K806
EXT. 14”
60”
60”
INSTALL SPACERS ON
DISC CYLINDER TO PREVENT COMPLETE
RETRACTION OF CYLINDER. DISC SCRAPER
BAR WILL HIT SHANK MOUNT IF CYLINDER
IS COMPLETELY COLLAPSED.
45”
30”
15”
15”
30”
45”
SHANK LOCATIONS FOR LCS9151
9 SHANKS WITH 15 INCH SPACING
47”
LCS9151
