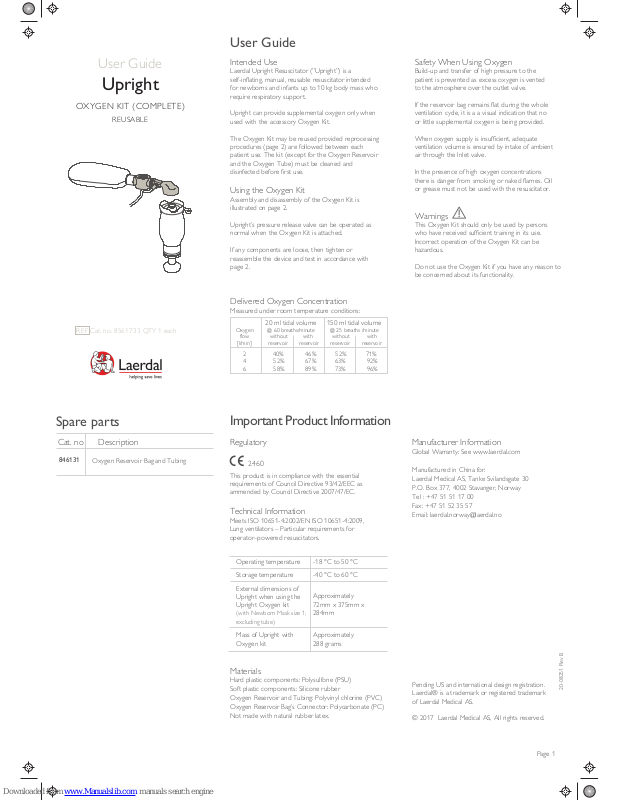

laerdal Upright User Manual

Safety When Using Oxygen

Build-up and transfer of high pressure to the
patient is prevented as excess oxygen is vented
to the atmosphere over the outlet valve.

If the reservoir bag remains flat during the whole
ventilation cycle, it is a a visual indication that no
or little supplemental oxygen is being provided.

When oxygen supply is insufficient, adequate
ventilation volume is ensured by intake of ambient
air through the Inlet valve.

In the presence of high oxygen concentrations
there is danger from smoking or naked flames. Oil
or grease must not be used with the resuscitator.

Warnings

This Oxygen Kit should only be used by persons
who have received sufficient training in its use.
Incorrect operation of the Oxygen Kit can be
hazardous.

Do not use the Oxygen Kit if you have any reason to
be concerned about its functionality.

846131

150 ml tidal volume

@ 25 breaths /minute

without with without with

[l/min]

Regulatory

2460

User Guide

20-08251 Rev B

User Guide

Upright

OXYGEN KIT (COMPLETE)

REUSABLE

Intended Use

Laerdal Upright Resuscitator (”Upright”) is a
self-inflating, manual, reusable resuscitator intended
for newborns and infants up to 10 kg body mass who
require respiratory support.

Upright can provide supplemental oxygen only when
used with the accessory Oxygen Kit.

The Oxygen Kit may be reused provided reprocessing
procedures (page 2) are followed between each
patient use. The kit (except for the Oxygen Reservoir
and the Oxygen Tube) must be cleaned and
disinfected before first use.

Using the Oxygen Kit

Assembly and disassembly of the Oxygen Kit is
illustrated on page 2.

Upright’s pressure release valve can be operated as
normal when the Oxygen Kit is attached.

If any components are loose, then tighten or
reassemble the device and test in accordance with
page 2.

Delivered Oxygen Concentration

Measured under room temperature conditions:

REF

Cat. no. 8561733 QTY 1 each

Oxygen

flow

20 ml tidal volume

@ 60 breaths/minute

reservoir

reservoir

reservoir

reservoir

2 40% 46% 52% 71%
4 52% 67% 63% 92%
6 58% 89% 73% 96%

Cat. no Description

Oxygen Reservoir Bag and Tubing

Spare parts

Important Product Information

This product is in compliance with the essential
requirements of Council Directive 93/42/EEC as
ammended by Council Directive 2007/47/EC.

Technical Information

Meets ISO 10651-4:2002/EN ISO 10651-4:2009,
Lung ventilators – Particular requirements for
operator–powered resuscitators.

-18 °C to 50 °C

-40 °C to 60 °C

Operating temperature

Storage temperature

External dimensions of
Upright when using the
Upright Oxygen kit

(with Newborn Mask size 1,
excluding tube)

Approximately
72mm x 375mm x
284mm

Approximately
288 grams

Mass of Upright with
Oxygen kit

Hard plastic components: Polysulfone (PSU)
Soft plastic components: Silicone rubber
Oxygen Reservoir and Tubing: Polyvinyl chlorine (PVC)
Oxygen Reservoir Bag’s Connector: Polycarbonate (PC)
Not made with natural rubber latex.

Materials

Manufacturer Information

Global Warranty: See www.laerdal.com

Manufactured in China for:
Laerdal Medical AS, Tanke Svilandsgate 30
P.O. Box 377, 4002 Stavanger, Norway
Tel : [phone]
Fax: [phone]
Email: [e-mail]

Pending US and international design registration.
Laerdal® is a trademark or registered trademark
of Laerdal Medical AS.

© 2017 Laerdal Medical AS, All rights reserved.

Page 1

3.

1

2

1.

2.

3.

2.

1

2

3

4

5

6

7

1

2

1. 2. 3.

1

2

4

5

6

3

4.

6.

4

.

5.

1. 2. 3. 4. 5.

1

2

3

1 1

2

2

4

4

5

5

Inlet

Outlet

Inlet

Outlet

OR

3.

Upright

OXYGEN KIT

Reprocessing instructions

1. Product overview

To dismantle, follow steps 1-7.
To reassemble, follow the steps in reverse.

Pull off

Pull off

Pull off

Pull out

Pull out

Snap out

Pull off

using a blunt
pair of tweezers

For proper function, make sure to only use
parts provided with the Upright Oxygen kit.

Cleaning and Disinfection procedure

Disassemble Clean Disinfect by one of the methods

Always disassemble
before cleaning.

Hard components
and yellow valves:

Follow the same
procedures as for
Upright components.

Boiling Autoclaving

10 minutes

100 °C

Steam 136 °C
10-20 minutes

Follow the same procedures as for Upright components.

Reservoir bag and
oxygen tube:

If the inside of the
oxygen tube or the
oxygen reservoir bag
has become soiled,
they must be discarded.

For outside-surface
soiling:

Wash outside surfaces
with clean water and
mild soap.

For reservoir bag and oxygen tube go directly to 4. Dry and Inspect.

Assemble and TestDry and Inspect

Dry all parts.

Visually inspect
each part for
damage and
cleanliness /
mineral deposits.

Remove damaged
or unclean parts
from service.

Reassemble the
Oxygen Kit.

Test the Oxygen Kit
with Upright using
steps shown
below.

Testing before use

Oxygen adaptor sealing Outlet valve to ambient Inlet valve from ambient

If any of the above tests fail: Disassemble, inspect the components, reassemble and repeat the complete “Testing before use” procedure (Section 3).

Page 2

Center the oxygen adaptor with
Upright’s top and one of its
U-shaped edges.

Press hard down into Upright

Check that the adaptor’s neck is
centered in the U-shape, without
touching its side edges.

Seal the oxygen-nipple with
a finger and seal the open
connector-end with your hand.

Squeeze Upright’s bag fully, and
release.

Check that the bag does not
re-expand quickly.

Attach the oxygen valve housing
to the oxygen adaptor.

Fill the reservoir bag with air
by using Upright as a pump.

Attach the oxygen valve housing
to the oxygen adaptor.

Seal the oxygen nipple with
a finger.

Compress the filled reservoir bag
rapidly with your hand.

Check visually that the outlet
valve opens and bleeds off
excessive air.

Seal the oxgen nipple with a
finger.

Squeeze Upright’s bag several
times.

Check that the reservoir bag
empties completely

Squeeze the Upright bag
fully and then release quickly.

Check visually that the inlet valve
opens and draws in ambient air.
