Labgruppen ip2100 v02 schematic
ámONMM=
pbosf`b=j^kr^i=
=
sЙклбзе=O
i~ДKЦкмййЙе=^_=
dмддкЙЦело®ЦЙе=NSI=pbJQPQ=QQ==hrkdp_^`h^I=ptbabk=
mЬзеЙW=HQS=PMM=RS=OU=MM=
c~сW=HQS=PMM=RS=OU=VV=
беСз]д~ДЦкмййЙеKЕзг
пппKд~ДЦкмййЙеKЕзг=
=
=
= pЙкобЕЙ=j~ем~д=бmONMM= m~ÖÉ=N=ERF=
iP2100
Internal connections ..........................................................................................3
Component list..................................................................................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
Sparepart list for iP2100 ...................................................................................5
A04B / A08B
Schematics for A04B, A08B.............................................................................2
Board placement for A04B ...............................................................................3
Board placement for A08B ...............................................................................4
Component list for A04B, A08B - rev 04A ......................................................5
Variant specific components for A04B versions - rev 04A ..............................9
Variant specific components for A08B versions - rev 04A ..............................9
Description for variant dependent components...............................................10
IN2G

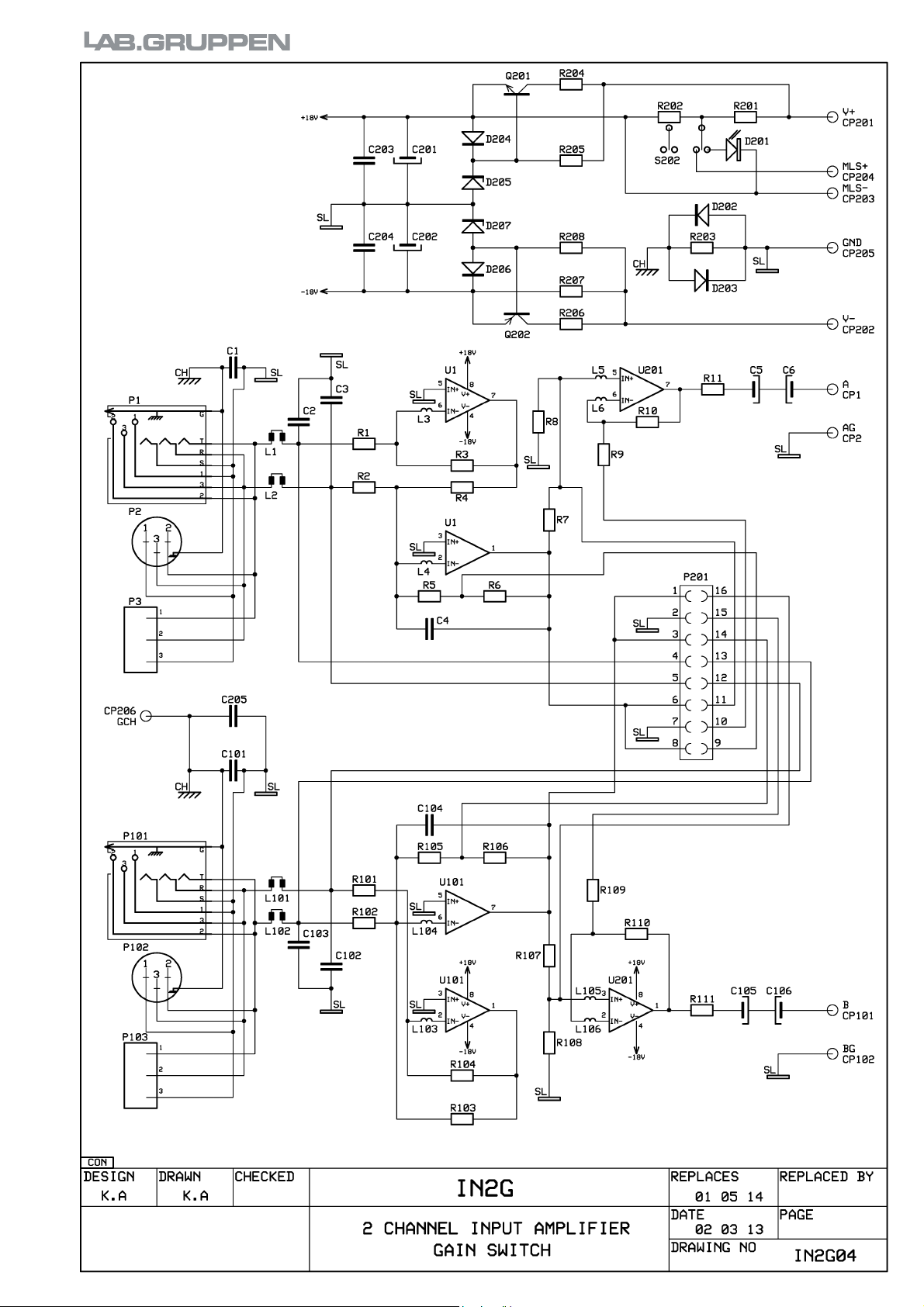

Schematics for IN2G.........................................................................................2

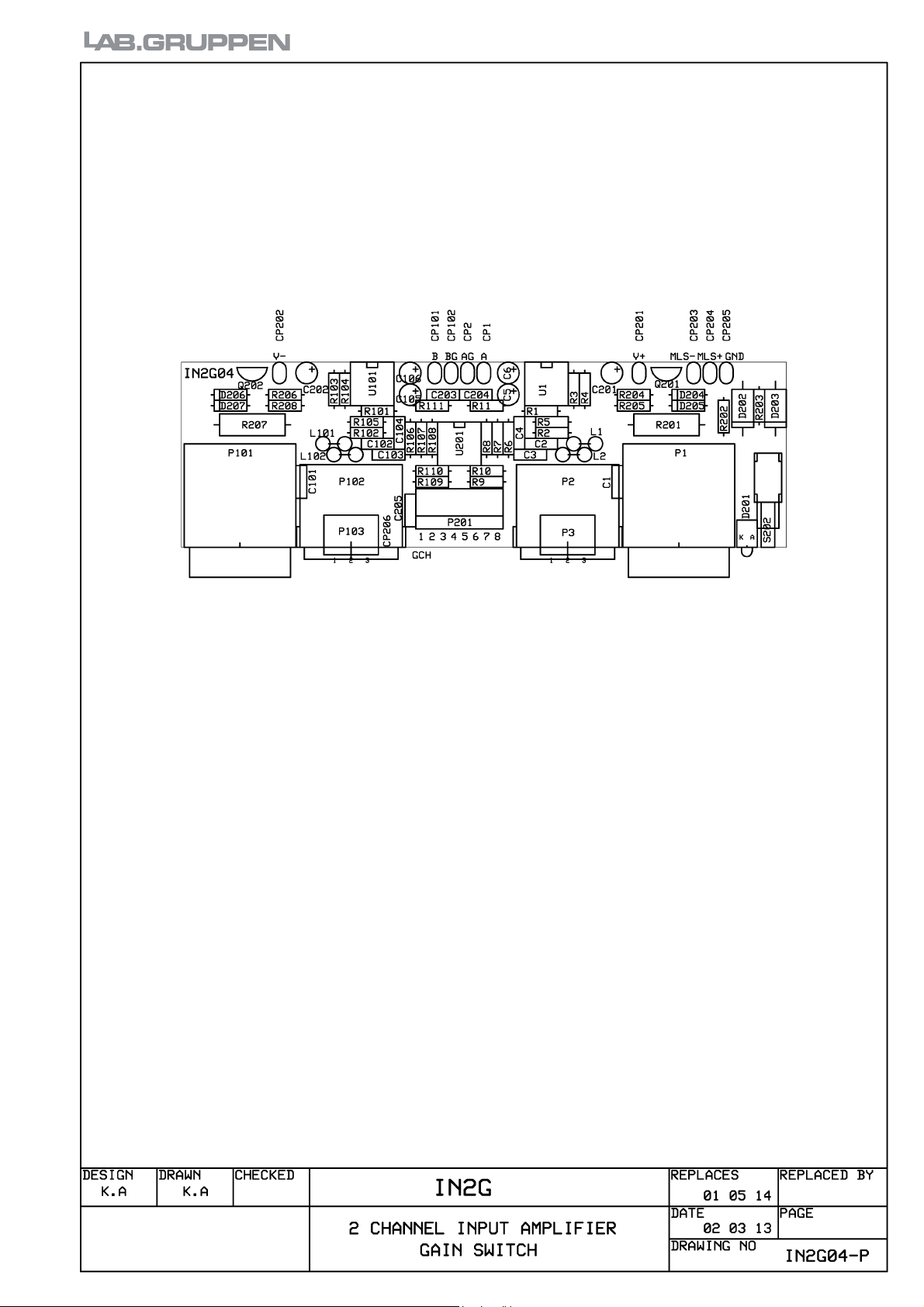

Board placement for IN2G................................................................................3
Component list for IN2G - rev 04.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................5
LD44

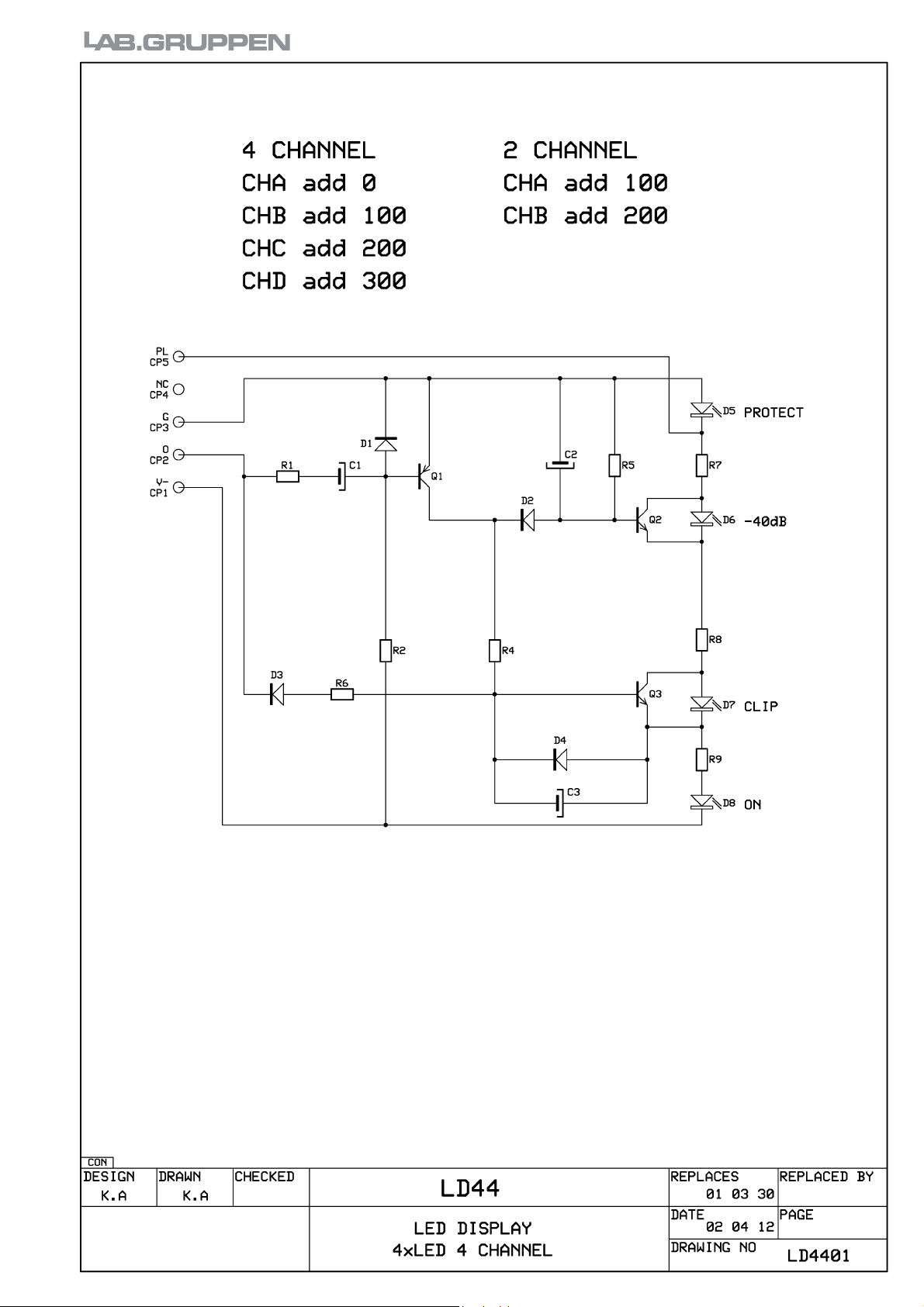

Schematics for LD44 ........................................................................................2

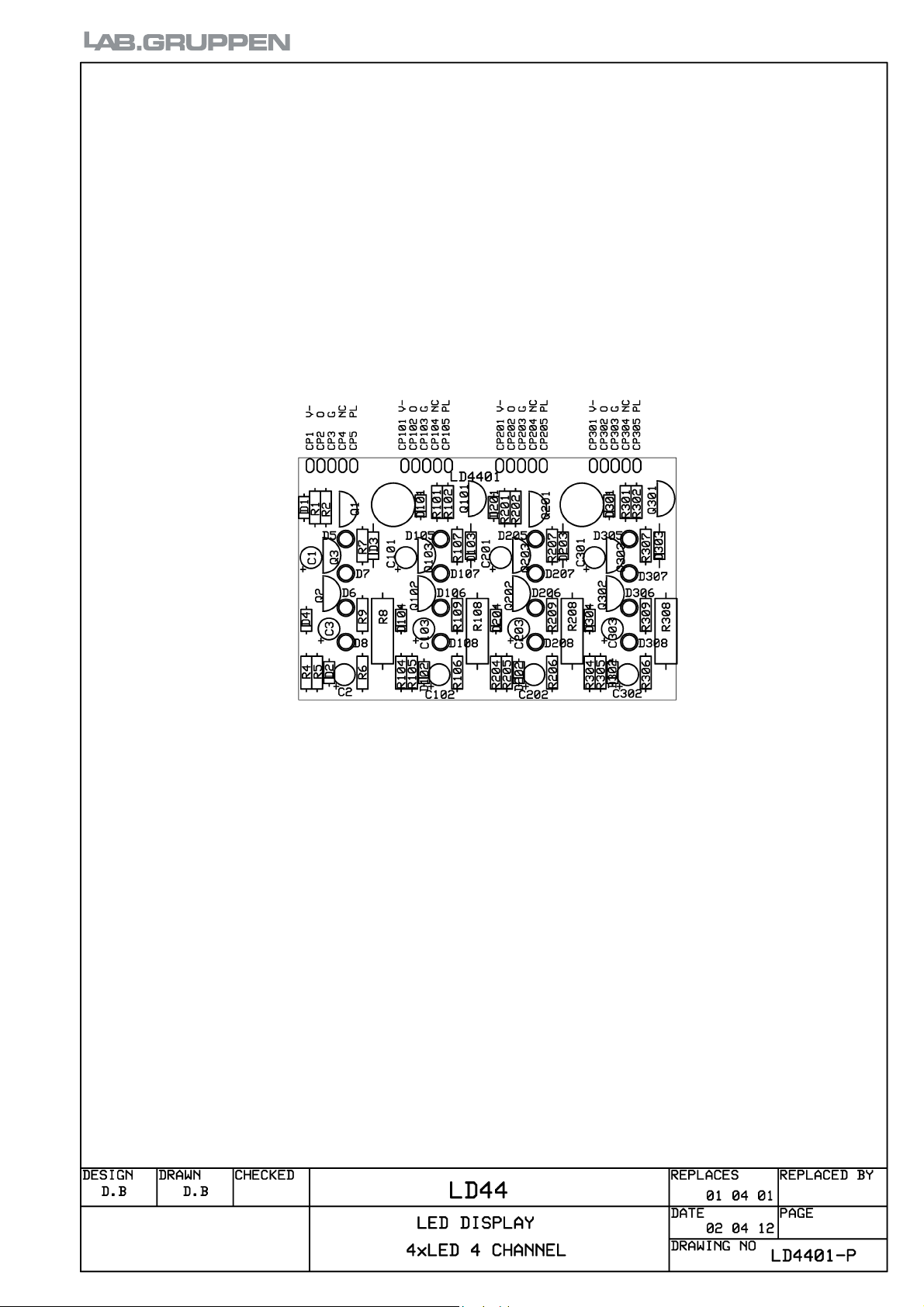

Board placement for LD44................................................................................3
Component list for LD44 - rev 01.....................................................................4
Variant specific components.............................................................................5
Description for variant dependent components.................................................6
OUT2

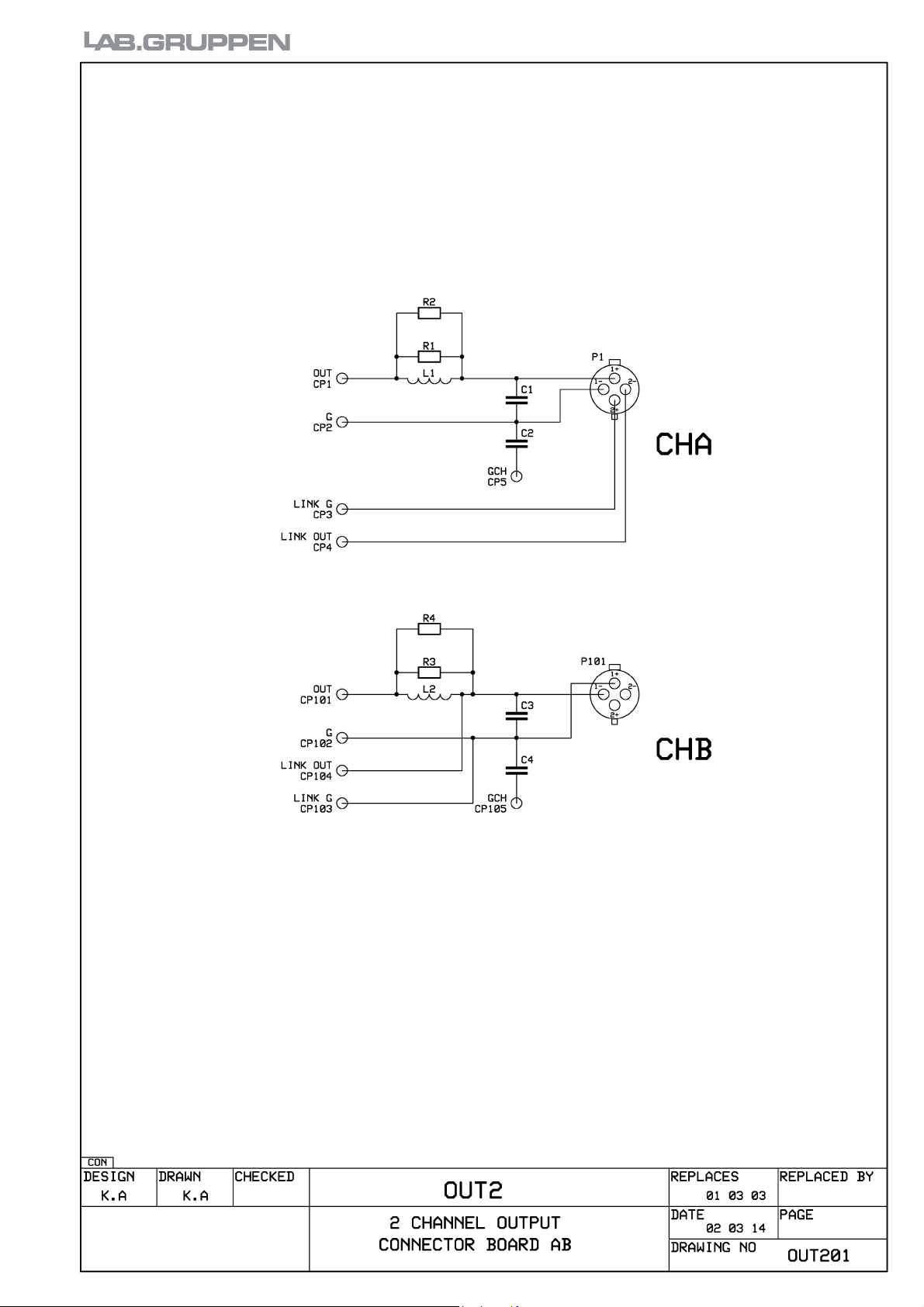

Schematics for OUT2........................................................................................2

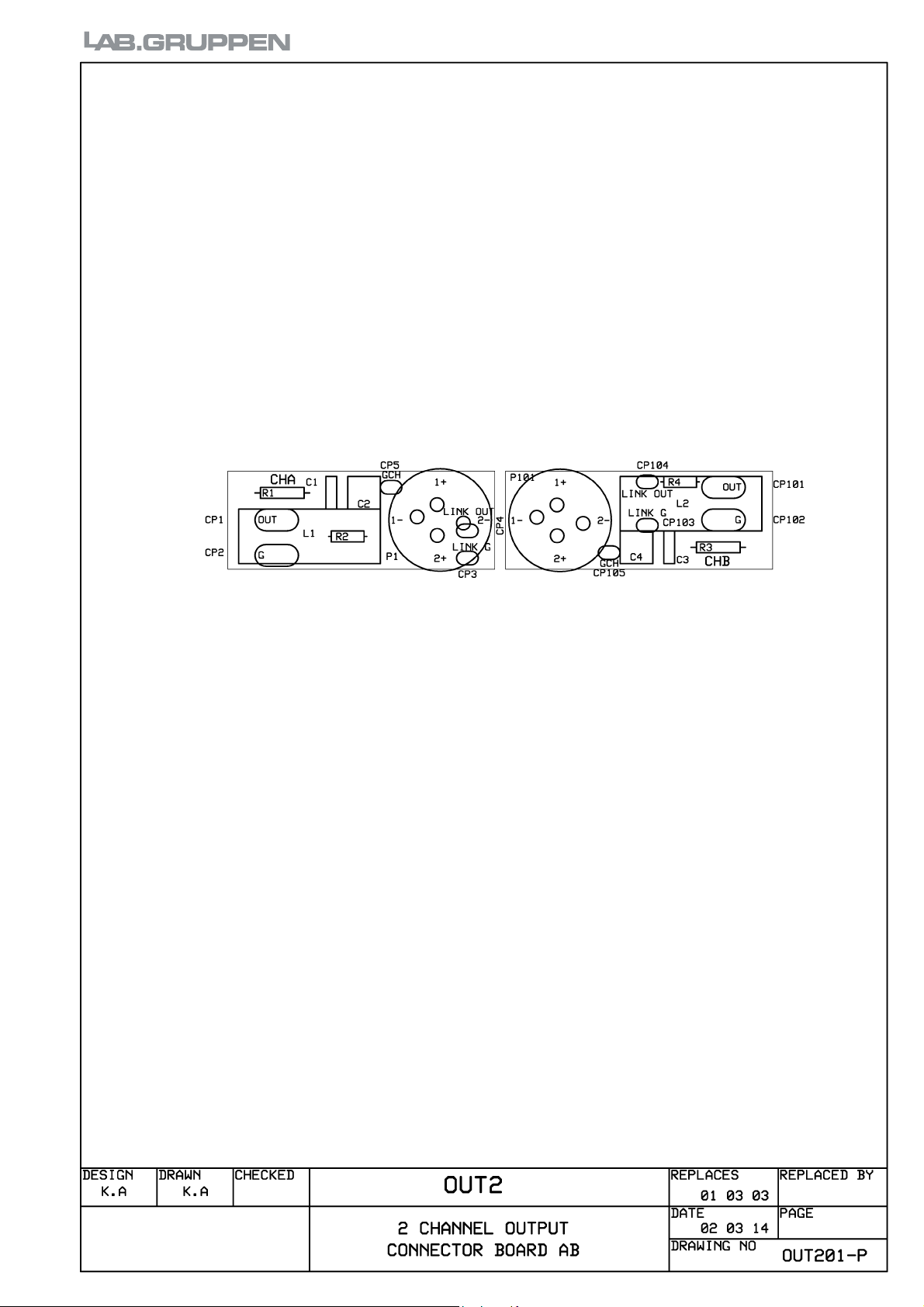

Board placement for OUT2...............................................................................3
Component list for OUT2CHA, OUT2CHB - rev 01A ....................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
PS14A

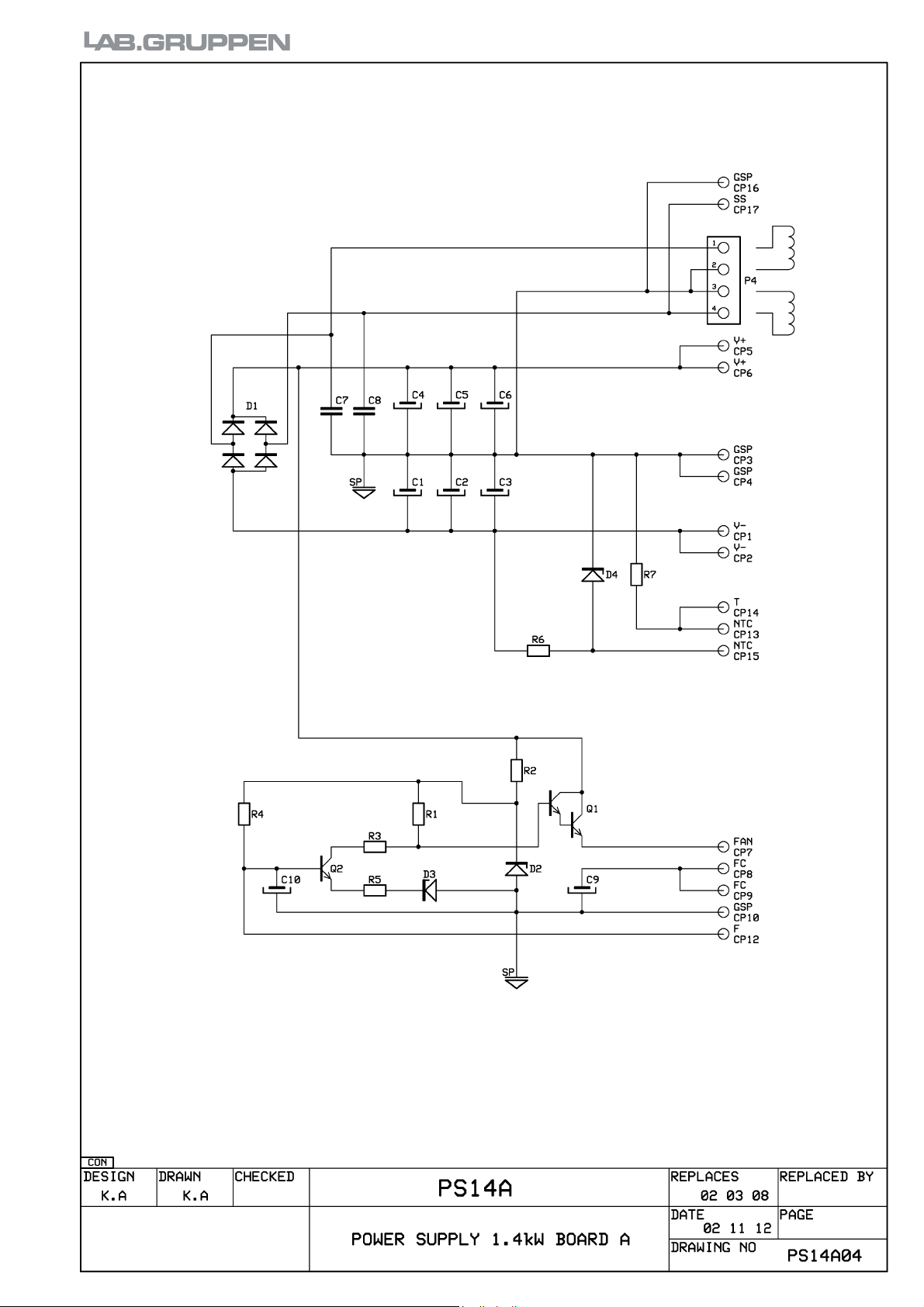

Schematics for PS14A ......................................................................................2

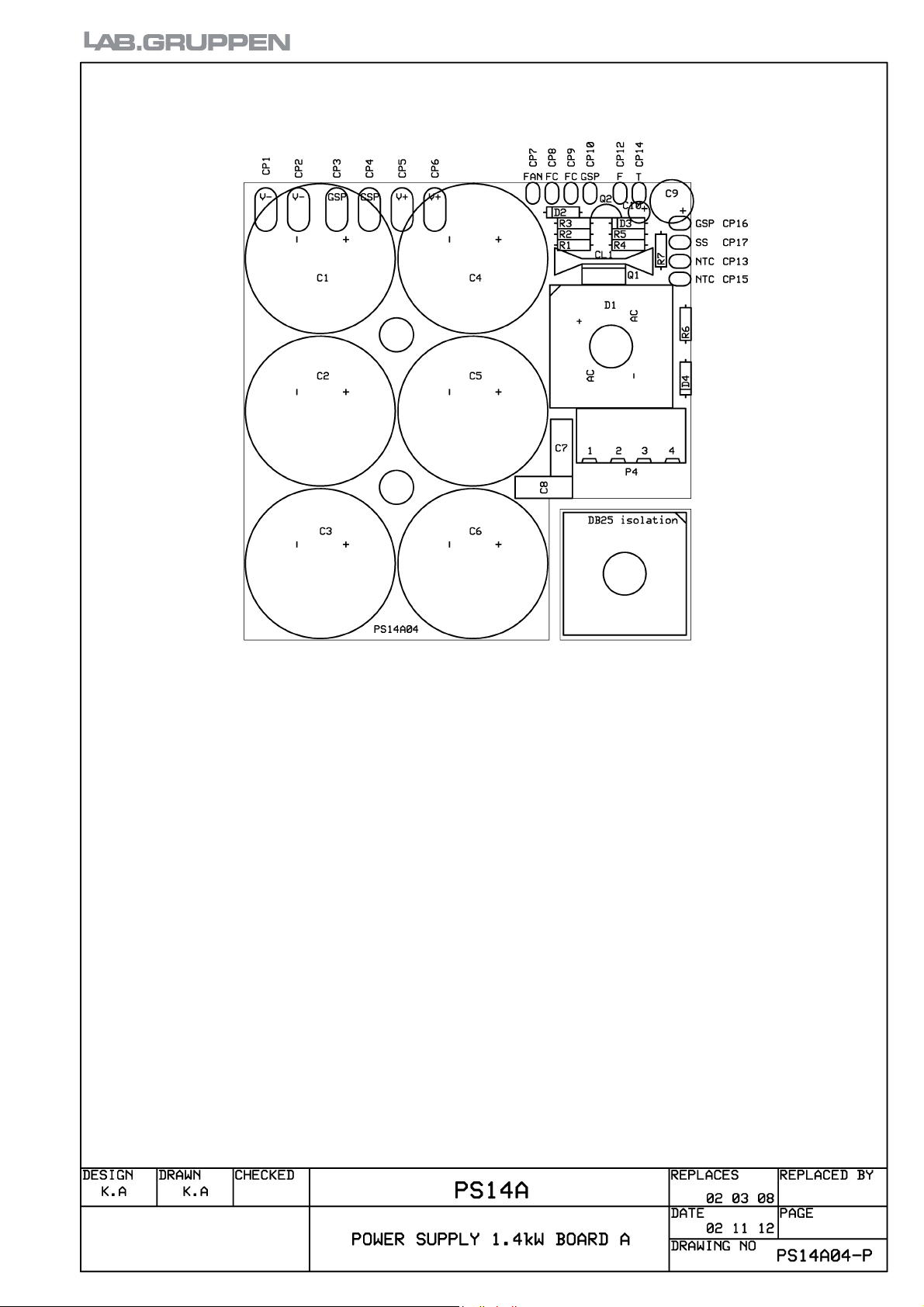

Board placement for PS14A..............................................................................3
Component list for PS14A - rev 04...................................................................4
Variant specific components.............................................................................4
Description for variant dependent components.................................................4
PS14B

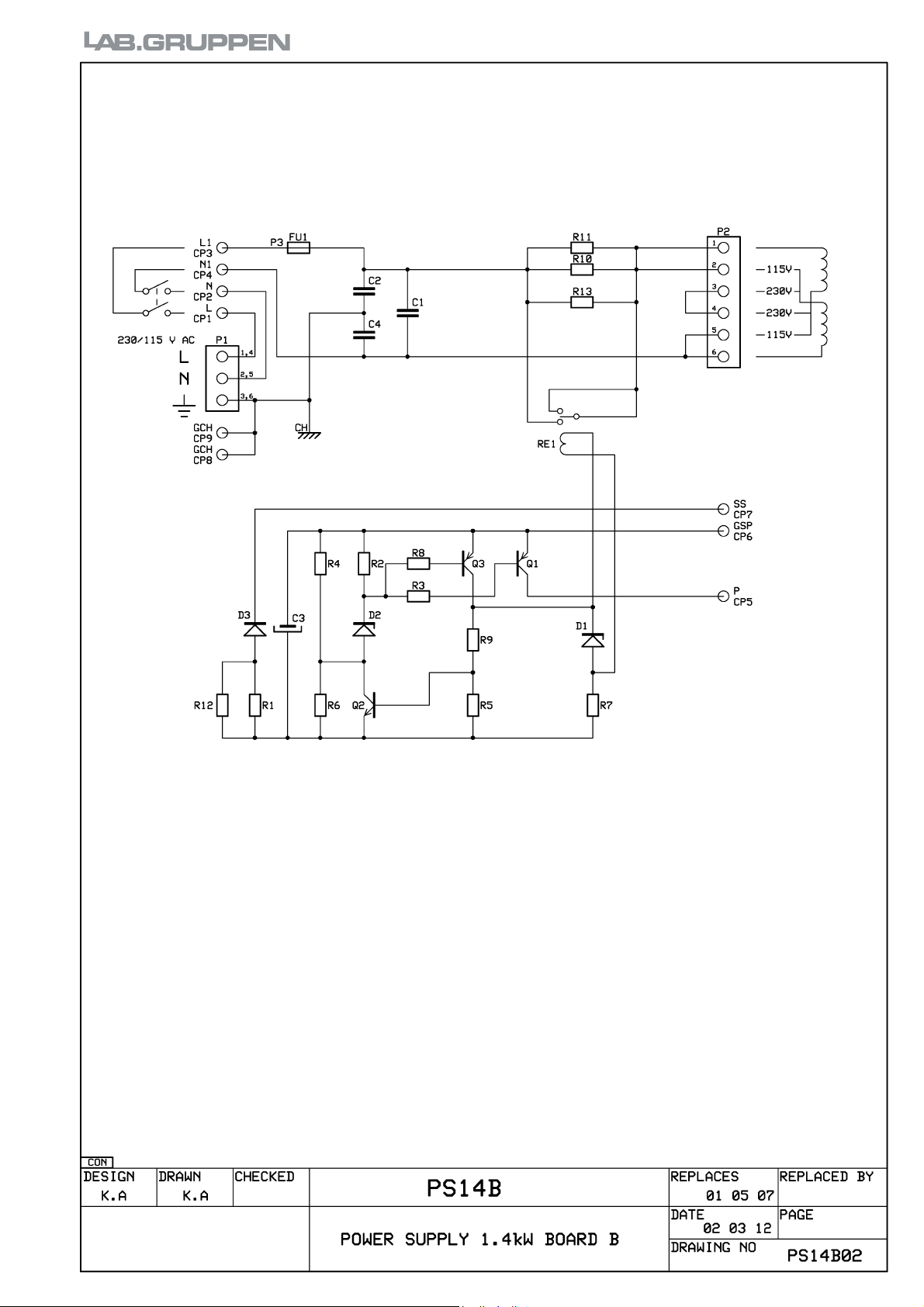

Schematics for PS14B.......................................................................................2

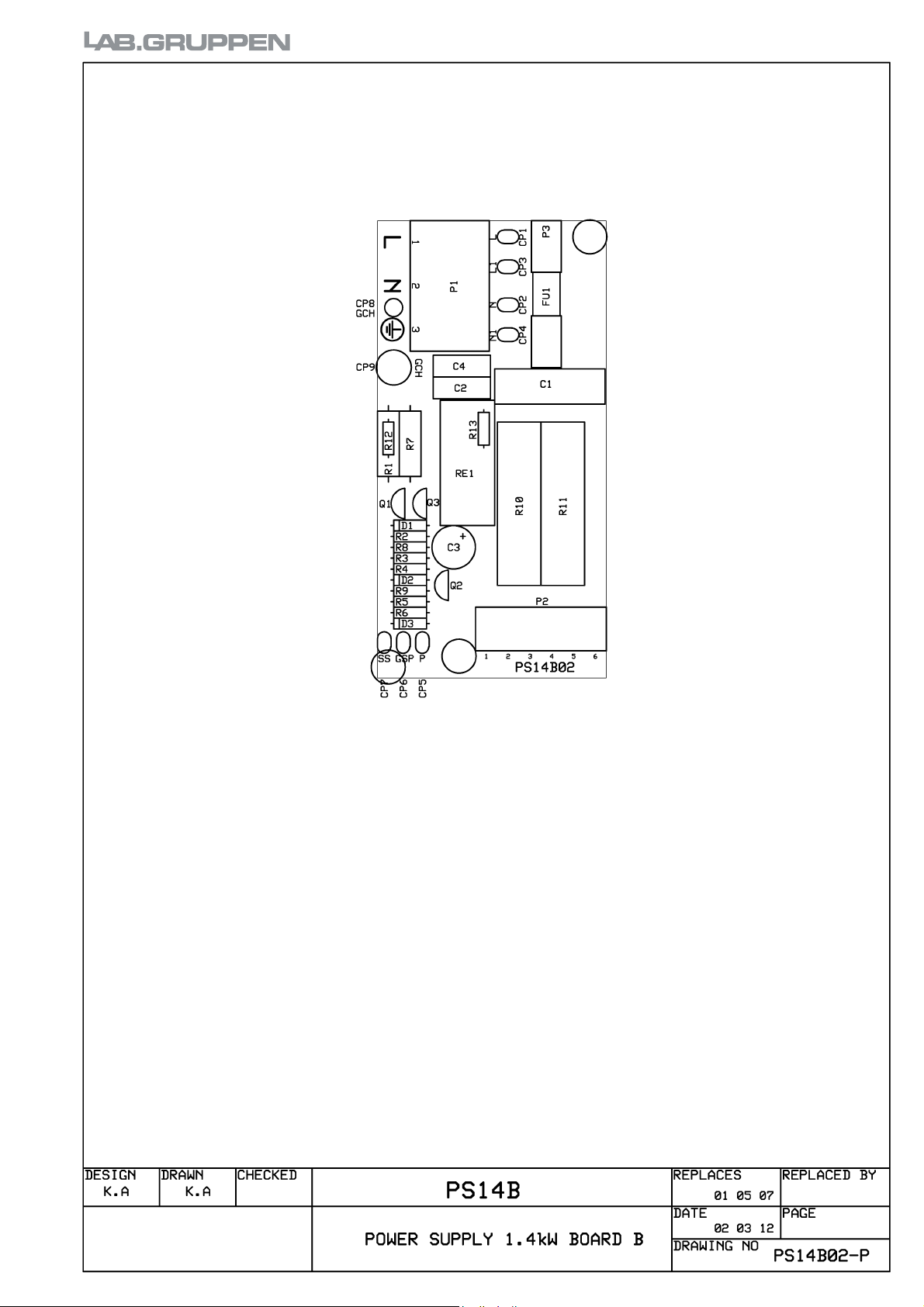

Board placement for PS14B..............................................................................3
Component list for PS14B - rev 02A ................................................................4
Variant specific components for 230V versions - rev 02A ...............................4
=
= pЙкобЕЙ=j~ем~д=бmONMM= m~ÖÉ=O=ERF=
Variant specific components for 115V versions - rev 02A ...............................4
Description for variant dependent components.................................................4
=
= pЙкобЕЙ=j~ем~д=бmONMM= m~ÖÉ=P=ERF=
fенЙке~д=ЕзееЙЕнбзел=
=
= pЙкобЕЙ=j~ем~д=бmONMM= m~ÖÉ=Q=ERF=
`згйзеЙен=дблн=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment
FAN201 F80x25-24HS Fan 80x80x25mm 24VDC high speed
FAN202 F80x25-24HS Fan 80x80x25mm 24VDC high speed
K201 2K1TOd185h80_LAB Transformer 2.1kW toridial dy185mm h 80mm LAB. Rev01
P201 Variant dependent, see separate list
S201 RK2-0-16A25x33 Switch Rocker Double Pole Single Trough on - off 16A 25x33mm
VR1 VR10KLIN31_TOK Potentiometer 10K LIN 31step TOKOS B103 TP96N08 Y4929 Rev1
VR101 VR10KLIN31_TOK Potentiometer 10K LIN 31step TOKOS B103 TP96N08 Y4929 Rev1
s~кб~ен=лйЙЕбСбЕ=ЕзгйзеЙенл=
Position 230V 115V
P201 MLEU3x1.52.5mBLK SJOOW-3xAWG12
aЙлЕкбйнбзе=Сзк=о~кб~ен=ЗЙйЙеЗЙен=ЕзгйзеЙенл=
Partnumber Description
MLEU3x1.52.5mBLK Mains lead EU Plug type CEE7/VII 3x1.5mm2 2.5m Black
SJOOW-3xAWG12 Cable SJOOW 3xAWG12 UL style 817
=
= pЙкобЕЙ=j~ем~д=бmONMM= m~ÖÉ=R=ERF=
pé~êÉé~êí=äáëí=Ñçê=ámONMM=
Completed modules
Partnumber Description
A08B-10-2 Amplifier 800W class B, variant 10-2
IN2G-CBG 2 channel input amplifier and gainswitch, variant CBG
LD44-2x13-2 Led display 4 x led 4 channel, variant 2x13-2
OUT2CHA-A08B 2 channel output connector board channel A, variant A08B
OUT2CHB-A08B 2 channel output connector board channel B, variant A08B
PS14A-2x13-2 Powersupply 1.4kW board A, variant 2x13-2
PS14B-2x13-2 Powersupply 1.4kW board B, variant 2x13-2, 230V
PS14B-2x13-2U Powersupply 1.4kW board B, variant 2x13-2U, 115V
Mecanical parts
- Safety critical component. Should only be replaced with the specified type.
Partnumber Description
TC14S-PBLK Top cover
BC14S-PBLK Bottom cover
AECHS-ANBLK Aluminium edging
RP-IP2100 Rear panel 230V
RP-IP2100U Rear panel 115V
HDL2HEM4_PEN Handle
DCS2-PBLK Dustfilter clip
DF233x62x5-20
KNBD18.5_TAI Gain potentiometer knob
Screws
Partnumber Description
MRX3x10SV Machine screw, pan head, phillips, M3x10, black
MFX3x12SV Machine screw, countersunk head, phillips, M3x12, black
RTS-HST2.9x9.5SV Self tapping screw, pan head, torx, 2.9x9.5mm, black
FXS-HST2.9x9.5SV Self tapping screw, countersunk head, phillips, 2.9x9.5mm, black
Dustfilter
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=N=ENMF=
A04B / A08B
Schematics for A04B, A08B.............................................................................2
Board placement for A04B ...............................................................................3
Board placement for A08B ...............................................................................4
Component list for A04B, A08B - rev 04A ......................................................5
Variant specific components for A04B versions - rev 04A ..............................9
Variant specific components for A08B versions - rev 04A ..............................9
Description for variant dependent components...............................................10
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=O=ENMF=
pÅÜÉã~íáÅë=Ñçê=^MQ_I=^MU_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=P=ENMF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=^MQ_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=Q=ENMF=
_ç~êЗ=йд~ЕЙгЙен=Сзк=^MU_=
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=R=ENMF=
`згйзеЙен=дблн=Сзк=^MQ_I=^MU_=J=кЙо=MQ^=
- Safety critical component. Should only be replaced with the specified type.
Position Partnumber Description Comment Side
C1 150p100VNP05%5 Capacitor ceramic 150p 100V NP0 5% 5mm Top
C2 470u16V Capacitor electrolytic 470u 16V 5mm Top
C3 47u25V Capacitor electrolytic 47u 25V 5mm Top
C4 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C5 680p400VK20005%5 Capacitor ceramic 680p 400V K2000 5% 5mm Top
C6 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C7 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C8 470p200VNP05%5 Capacitor ceramic 470p 200V NP0 5% 5mm Top
C9 2u2100V Capacitor electrolytic 2u2 100V 5mm Top
C10 10n250VMMK5 Capacitor polyester 10n 250V MMK 5mm Top
C11 100p200VNP05%5 Capacitor ceramic 100p 200V NP0 5% 5mm Top
C12 10u50V Capacitor electrolytic 10u 50V 5mm Top
C13 10u50V Capacitor electrolytic 10u 50V 5mm Top
C14 22n250VMMK10 Capacitor polyester 22n 250V MMK 10mm Top
C15 22p200VNP05%5 Capacitor ceramic 22p 200V NP0 5% 5mm Top
C16 33n100VMMK5 Capacitor polyester 33n 100V MMK 5mm Top
C17 2u2100V Capacitor electrolytic 2u2 100V 5mm Top
C18 470p200VNP05%5 Capacitor ceramic 470p 200V NP0 5% 5mm Top
C19 1n250VMMK5 Capacitor polyester 1n 250V MMK 5mm Top
C20 10u50V Capacitor electrolytic 10u 50V 5mm Top
C21 10u50V Capacitor electrolytic 10u 50V 5mm Top
C22 10u50V Capacitor electrolytic 10u 50V 5mm Top
C23 4u750V Capacitor electrolytic 4u7 50V 5mm Top
C24 39p200VNP05%5 Capacitor ceramic 39p 200V NP0 5% 5mm Top
C25 2u2100VMMK15 Capacitor polyester 2u2 100V MMK 15mm Top
C26 2u2100VMMK15 Capacitor polyester 2u2 100V MMK 15mm Top
D1 15V.4W5% Diode zener 15V .4W 5% Top
D2 1N4148 Diode signal 1N4148 Top
D3 1N4148 Diode signal 1N4148 Top
D4 1N4148 Diode signal 1N4148 Top
D5 1N4148 Diode signal 1N4148 Top
D6 BAV21 Diode signal BAV21 Top
D7 - Not used Top
D8 1N4148 Diode signal 1N4148 Top
D9 1N4148 Diode signal 1N4148 Top
D10 1N4148 Diode signal 1N4148 Top
D11 1N4148 Diode signal 1N4148 Top
D12 1N4148 Diode signal 1N4148 Top
D13 1N4148 Diode signal 1N4148 Top
D14 BAV21 Diode signal BAV21 Top
D15 15V.4W5% Diode zener 15V .4W 5% Top
D16 15V.4W5% Diode zener 15V .4W 5% Top
D17 1N4148 Diode signal 1N4148 Top
D18 1N4148 Diode signal 1N4148 Top
D19 1N4148 Diode signal 1N4148 Top
D20 1N4148 Diode signal 1N4148 Top
D21 BAV21 Diode signal BAV21 Top
D22 1N4004 Diode power 1N4004 Top
D23 1N4004 Diode power 1N4004 Top
D24 1N4004 Diode power 1N4004 Top
D25 1N4004 Diode power 1N4004 Top
D26 Variant dependent, see separate list Top
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=S=ENMF=
Position Partnumber Description Comment Side
FU1 Variant dependent, see separate list Top
FU2 Variant dependent, see separate list Top
L1 Variant dependent, see separate list Top
NTC1 NTC150KM3_EPC Resistor NTC 150K M3 EPCOS B57045-K154-K Top
NTC2 NTC150KM3_EPC Resistor NTC 150K M3 EPCOS B57045-K154-K Top
P1 FBPC5x209M Fuseblock PCB 5x20mm fuse 9 modules Top
P2 FBPC5x209M Fuseblock PCB 5x20mm fuse 9 modules Top
Q1 BC549C Transistor bipolar signal BC549C Top
Q2 BC549C Transistor bipolar signal BC549C Top
Q3 BC557B Transistor bipolar signal BC557B Top
Q4 BC557B Transistor bipolar signal BC557B Top
Q5 BC547B Transistor bipolar signal BC547B Top
Q6 MPSA42 Transistor bipolar signal MPSA42 Top
Q7 MPSA42 Transistor bipolar signal MPSA42 Top
Q8 BC557B Transistor bipolar signal BC557B Top
Q9 BC557B Transistor bipolar signal BC557B Top
Q10 BC547B Transistor bipolar signal BC547B Top
Q11 BC557B Transistor bipolar signal BC557B Top
Q12 MPSA42 Transistor bipolar signal MPSA42 Top
Q13 Q6015L5LY Triac Q6015L5 lying Top
Q14 BC557B Transistor bipolar signal BC557B Top
Q15 BC547B Transistor bipolar signal BC547B Top
Q16 BC547B Transistor bipolar signal BC547B Top
Q17 BC547B Transistor bipolar signal BC547B Top
Q18 MPSA92 Transistor bipolar signal MPSA92 Top
Q19 MPSA42 Transistor bipolar signal MPSA42 Top
Q20 MPSA92 Transistor bipolar signal MPSA92 Top
Q21 BC547B Transistor bipolar signal BC547B Top
Q22 BC557B Transistor bipolar signal BC557B Top
Q23 BC547B Transistor bipolar signal BC547B Top
Q24 BC557B Transistor bipolar signal BC557B Top
Q25 BC547B Transistor bipolar signal BC547B Top
Q26 BC557B Transistor bipolar signal BC557B Top
Q27 BC547B Transistor bipolar signal BC547B Top
Q28 BC547B Transistor bipolar signal BC547B Top
Q29 MJE350LY Transistor bipolar power MJE350 lying Top
Q30 MJE350LY Transistor bipolar power MJE350 lying Top
Q31 BD329LY Transistor bipolar power BD329 lying Top
Q32 MJE340LY Transistor bipolar power MJE340 lying Top
Q33 MJE350LY Transistor bipolar power MJE350 lying Top
Q34 MJE340LY Transistor bipolar power MJE340 lying Top
Q35 - Not used Bot.
Q36 Variant dependent, see separate list May have different
value
Q37 Variant dependent, see separate list May have different
value
Q38 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
Q39 - Not used Bot.
Q40 MJL21194_SA Transistor bipolar power MJL21194 surface mounted May have different
value
Q41 MJL21194_SA Transistor bipolar power MJL21194 surface mounted May have different
value
Q42 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
=
= pЙкобЕЙ=j~ем~д=^MQ_=L=^MU_= m~ÖÉ=T=ENMF=
Position Partnumber Description Comment Side
Q43 MJL3281_SA Transistor bipolar power MJL3281 surface mounted May have different
value
Q44 MJL1302_SA Transistor bipolar power MJL1302 surface mounted May have different
value
Q45 Variant dependent, see separate list May have different
value
Q46 MJL21193_SA Transistor bipolar power MJL21193 surface mounted May have different
value
Q47 MJL21193_SA Transistor bipolar power MJL21193 surface mounted May have different
value
Bot.
Bot.
Bot.
Bot.
Bot.
Q48 - Not used Bot.
Q49 Variant dependent, see separate list May have different
value
Q50 Variant dependent, see separate list May have different
value
Q51 Variant dependent, see separate list May have different
value
Bot.
Bot.
Bot.
Q52 - Not used Bot.
R1 - Not used Top
R2 2K7.7W1% Resistor Metal Film 2K7.7W1% Top
R3 1K8.7W1% Resistor Metal Film 1K8.7W1% Top
R4 15K.7W1% Resistor Metal Film 15K.7W1% Top
R5 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R6 1K.25W5% Resistor Carbon Film 1K.25W5% Top
R7 2K2.7W1% Resistor Metal Film 2K2.7W1% Top
R8 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R9 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R10 309R.7W1% Resistor Metal Film 309R.7W1% Top
R11 10R.25W5% Resistor Carbon Film 10R.25W5% Top
R12 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R13 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R14 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R15 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R16 6K8.7W1% Resistor Metal Film 6K8.7W1% Top
R17 22K.7W1% Resistor Metal Film 22K.7W1% Top
R18 150K.7W1% Resistor Metal Film 150K.7W1% May have different
value
Top
R19 10K.7W1%SO5 Resistor Metal Film 10K.7W1% 5mm stand off Top
R20 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R21 100R.7W1% Resistor Metal Film 100R.7W1% Top
R22 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R23 1K8.25W5% Resistor Carbon Film 1K8.25W5% Top
R24 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R25 100R.7W1% Resistor Metal Film 100R.7W1% Top
R26 82K.25W5% Resistor Carbon Film 82K.25W5% Top
R27 294K.7W1% Resistor Metal Film 294K.7W1% Top
R28 150K.7W1% Resistor Metal Film 150K.7W1% Top
R29 499R.7W1% Resistor Metal Film 499R.7W1% Top
R30 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R31 68K.7W1% Resistor Metal Film 68K.7W1% Top
R32 5K6.25W5% Resistor Carbon Film 5K6.25W5% Top
R33 68K.7W1% Resistor Metal Film 68K.7W1% Top
R34 47K.25W5% Resistor Carbon Film 47K.25W5% Top
R35 3K3.7W1% Resistor Metal Film 3K3.7W1% Top
R36 47R.25W5% Resistor Carbon Film 47R.25W5% Top
R37 560R.25W5% Resistor Carbon Film 560R.25W5% Top
Loading...
