FP 4000
Technical Data
FP+ Series: Dedicated Touring Amplifiers
▸ High power density – The FP 400 0 delivers a total of 4000 W
(2 x 2000 W @ 2 ohms) in only 2U.
▸ Lab.gruppen sound quality – FP 4000 ampliers maintain the
Lab.gruppen’s reputation for sound quality, with transparent
mid- and high-frequency performance and new circuit designs
optimized for sustained low-frequency output.
▸ NomadLink
functions accessible via the intuitive DeviceControl software and
the robust, daisy-chained NomadLink network, as well as by the
leading third party control platforms.
▸ Patented Class TD
stage delivers Class B audio quality with Class D efciency.
▸ Regulated Switch Mode Power Supply (R.SMPS
power remains constant even with signicant drops in the mains
voltage.
®
network ready – Monitoring and control of key
®
amplier topology – Road-proven output
™
) – Output
A Benchmark For Touring Amplication
Over the past decade, the tight and transparent sound of
Lab.gruppen touring ampliers has earned the praise of renowned
FOH engineers and leading sound rental companies worldwide.
The FP+ Series model FP 4000 continues this tradition. At the core
of the FP 4000’s performance is the patented Class TD output stage,
a breakthrough amplier topology that approaches the exceptional
efciency of Class D while retaining the sonic purity of proven Class B
technology designs. Further contributing to the remarkable efciency
of the FP 4000 is a Regulated Switch Mode Power Supply (R.SMPS),
which gives the added benet of stabilizing rail voltages to the output
even with wide uctuations of mains voltage. A highly rened and
updated circuit layout optimizes the interaction of R.SMPS and Class
TD to produce the high power density of the FP 4000.
To keep its cool under extreme demands, the FP 4000 relies on
Lab.gruppen’s proprietary Intercooler. This innovation uses thousands of copper ns to multiply the exposed heatsink surface’s rapid
heat dissipation. Also, all output devices are mounted transverse to
the airow for uniform cooling. As a result, the FP 4000 delivers
Lab.gruppen’s’ trademark “all the power, all the time” with no
degradation of sonic performance.
▸ Efcient cooling system – Unique, lightweight Intercooler
per cooling system dissipates more heat to allow extended peak
output.
▸ Adjustable parameters – Selectable Gain, scalable Voltage Peak
Limiter ( VPL
ration for any system or application.
▸ XLR input and link connectors
▸ Heavy-duty binding post or Speakon
▸ Comprehensive protection and warning – Excessive output
current, DC, high temperature, very high frequency ( VHF), short
circuit, open load, mains fuse protection, and soft start.
To maximize headroom in any application, the FP 4000 offers
adjustable input gain along with Lab.gruppen’s exclusive Voltage Peak
Limiter ( VPL). Adjustable on a per-channel basis, VPL optimizes the
output for any load, from a single massive subwoofer to a series of
HF compression drivers.
The comprehensive warning and protection features on the
FP 4000 safeguard output circuits and connected loads while also
extending amplier life and minimizing the chance of service interuptions. Whether it’s a matter of faulty wiring, improper use, or extreme
ambient temperatures, the FP 4000 gives clear indication of any problems. Automatic protection measures engage only at critical thresholds. Operating conditions are re-checked every six seconds and, if
a fault is detected, normal operation is resumed when measurements
return to nominal.
The FP 4000 is shipped with a NomadLink network interface as
standard. In conjunction with DeviceControl software, NomadLink
allows comprehensive monitoring of amplier status (including fault
or warning indications) and also enables remote control of power on/
off, channel mute, and channel solo functions. NomadLink is compatible with popular third- party control platforms; a separate NLB 60E
NomadLink Bridge & Network Controller is required.
™
), and bridge -mode operation allow custom congu-
®
output connectors
®
cop-
Specifications FP 4000
Gene ral
Number of channels 2
Peak total output both channels driven 4000 W
Peak output voltage per channel 121 V
Max. output current per channel 50 A peak
Max. Output Power 2 ohms 4 ohms 8 ohms 16 ohms
Per ch. (both ch.’s driven) 2000 W 1600 W 800 W 400 W
Bridged per ch. n.r.
Performance with Gain: 35 dB and VPL: 121 V
THD 20 Hz - 20 kHz for 1 W <0.1%
THD at 1 kHz and 1 dB below clipping <0.05%
Signal To Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Frequency response (1 W into 8 ohms) +0/-3 dB 2 Hz - 34.2 kHz
Input impedance 20 kOhm
Input Common Mo de Reje ction, CMR 54 dB
Output i mpeda nce @ 100 H z 32 mOhm
Voltage Peak Limiter (VPL), max. peak output
VPL, selectable per ch. 121, 101, 83, 70 , 56 , 47, 38 V
VPL, selectable when bridged
Voltage Peak Limiter mode (per ch.) Hard / Soft
Gain and Level
Amplifier gain selectable (all channels)
1)
1)
– rear-panel switches
Default gain 35 dB
Level adjustment (per ch.) Front-panel potentiometer, 31 position detented from -inf to 0 dB

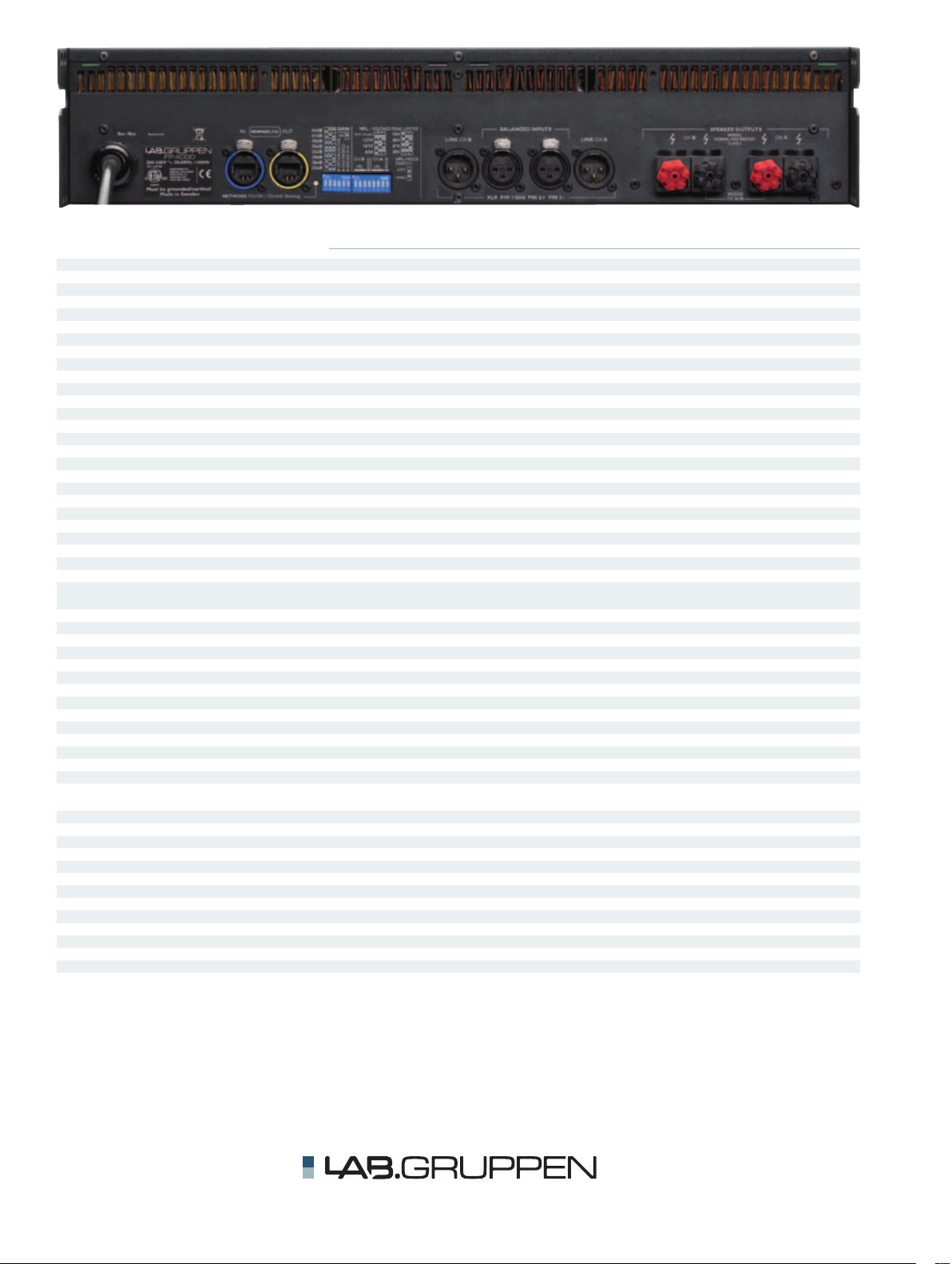

Connectors and Switches
Input connectors (per ch.) 3-pin XLR, electronically balanced
Output connectors (per ch.) Neutrik Speakon or Binding Posts (must be specified upon order)
Output bridge mode A+B - Ch. A is signal input source
NomadLink network On board, 2 x RJ45 EtherCon
Intelligent fans (on/off) Yes, depending on presence of output signal
Power on/off and Remote enable on/off Individual switches on front-panel
Cooling Two fans, front-to-rear airflow, temperature controlled speed
Front-panel indicators:
Common NomadLink network; Power Average Limiter (PAL)
Per channel
Power
Operating voltage, 230 V / 115 V nominal
Minimum power-up voltage, 230 V / 115 V 171 V / 85 V
Power Average Limiter (PAL)
Soft start / Inrush Current Draw Yes / max. 5 A
Mains c onnec tor 230 V CE: 16 A, CEE7; 115 V ETL: 20 A / NEMA 5-20P
Dimensions (W/H/D) W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)
Weight 12 kg (26.4 lbs.)
Finish Black painted steel chassis with black painted steel / aluminum front
2)
4)
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
Note 1): Automatic - 6 dB gain c ompens ation when b ridgin g chan nels.
Note 2): PAL c an red uce the maximum out put po wer to kee p the p ower su pply operat ing safely, and /or to p revent exc essive current draw trippin g the m ains breaker.
Refer to t he FP+ O perati on Man ual se ction 7.5.8 Power Avera ge Lim iter (PA L) fo r more informat ion.
Note 3): Rega rding n.r. (not re commended) notes: T he amp lifier will b e fully opera tional in bri dge -mode into 2 ohm an d high imped ance ( Hi- Z) lo ads, but due to phys ical
constraints in the construction, the ma x. output p ower will not b e signi ficant y hig her than running ind ividu al chan nels an d therefore this mode of operation is not
recomme nded.
Note 4): Sep arate 2 30 V or 115 V versions avai lable. Not se lecta ble on the am plifie r.
All s pec ifi cati ons are s ubje ct t o change with out n otice.
Intercoo ler, Nom adLink and C lass T D are national and /or inte rnatio nal reg istered trade marks o f Lab .grupp en AB . R.SMPS and V PL are trade marks o f Lab .grupp en AB . All other trade marks re main the prop ert y of their resp ective owner s. Co pyrigh t © 20 09 Lab.g ruppe n AB. All r ights reserved.
3)
4000 W 3200 W 1600 W
242, 202, 166, 140, 112, 94, 76 V
23, 26, 29, 32, 35, 38, 41, 44 dB
®
connectors, IN and OUT
2)
Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal;
Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); High temperature; Fault; Mute
; Power on
130-265 V / 65-135 V
Yes
i n t e r n a t i o n a L c o n t a c t ▸ i n f o @ L a b g r u p p e n . c o m | u S & c a n a d a c o n t a c t ▸ i n f o @ t c g - a m e r i c a S . c o m
L a b . g r u p p e n a b ▸ S w e d e n
w w w . l a b g r u p p e n . c o m
Item no. TDS-FP4000_V3
