A Benchmark For Touring Amplification
Over the past decade, the tight and transparent sound of
Lab.gruppen touring amplifiers has earned the praise of renowned
FOH engineers and leading sound rental companies worldwide.
FP 14000, the new flagship model of the FP+ Series, advances this
tradition by further augmenting effective power output to effortlessly
handle extreme low-frequency loads. The Regulated Switch Mode
Power Supply (R.SMPS) has been updated to provide more sustained
high power during extended bursts of low frequency content, while
at the same time ensuring stable rail voltages even with wide fluctuations of external mains voltage. The forceful, high-current (90 A peak)
output stage relies on Lab.gruppen’s patented Class TD topology, a
breakthrough in amplifier technology that approaches the efficiency
of Class D while retaining the sonic purity of proven Class B designs.
A highly refined and efficient circuit layout further optimizes the interaction of R.SMPS and Class TD to produce the unprecedented power
density of the FP 14000.
To keep its cool under extreme demands, the FP 14000 relies on
Lab.gruppen’s proprietary Intercooler. This innovation uses thousands of copper fins to multiply the exposed heatsink surface’s rapid
heat dissipation. Also, all output devices are mounted transverse to
the airflow for uniform cooling. As a result, the FP 14000 delivers
Lab.gruppen’s’ trademark “all the power, all the time” with no
degradation of sonic performance.
To maximize headroom in any application, the FP 14000 offers
adjustable input gain along with Lab.gruppen’s exclusive Voltage
Peak Limiter (VPL). Adjustable on a per-channel basis, VPL optimizes
the output for any load, from a single massive subwoofer to a series of
HF compression drivers.
The comprehensive warning and protection features on the
FP 14000 safeguard output circuits and connected loads while also
extending amplifier life and minimizing the chance of service interuptions. Whether it’s a matter of faulty wiring, improper use, or extreme
ambient temperatures, the FP 14000 gives clear indication of any
problems. Automatic protection measures engage only at critical
thresholds. Operating conditions are re-checked every six seconds
and, if a fault is detected, normal operation is resumed when measurements return to nominal.
The FP 14000 is shipped with a NomadLink network interface as
standard. In conjunction with DeviceControl software, or the leading
third party control platforms, NomadLink network allows monitoring
of all key amplifier parameters and remote control of power on/off,
channel mutes, and channel solo functions. (NomadLink requires the
separate NLB 60E NomadLink Bridge & Network Controller).
▸ Unprecedented power density – The FP 14000 delivers a total of
14000 W (2 x 7000 W @ 2 ohms) in only 2U.
▸ Lab.gruppen sound quality – The FP 14000 is optimized for sus-
tained performance into extreme low-frequency loads, yet it also
maintains Lab.gruppen’s reputation for exceptionally smooth and
transparent mid- and high-frequency response.
▸ NomadLink
®
network ready – Monitoring and control of key
functions accessible via the intuitive DeviceControl software and
the robust, daisy-chained NomadLink network, as well as by the
leading third party control platforms.
▸ Patented Class TD
®
amplifier topology – Road-proven output
stage delivers Class B audio quality with Class D efficiency.
▸ Regulated Switch Mode Power Supply (R.SMPS
™
) – Output
power remains constant even with significant drops in the mains
voltage.
▸ Efficient cooling system – Unique, lightweight Intercooler
®
copper cooling system dissipates more heat to allow extended
peak output.
▸ Adjustable parameters – Selectable Gain, scalable Voltage Peak
Limiter (VPL
™
), and bridge-mode operation allow custom configu-
ration for any system or application.
▸ XLR input and link connectors
▸ Heavy-duty binding posts
▸ Comprehensive protection and warning – Excessive output
current, DC, high temperature, very high frequency (VHF), short
circuit, open load, mains fuse protection, and soft start.

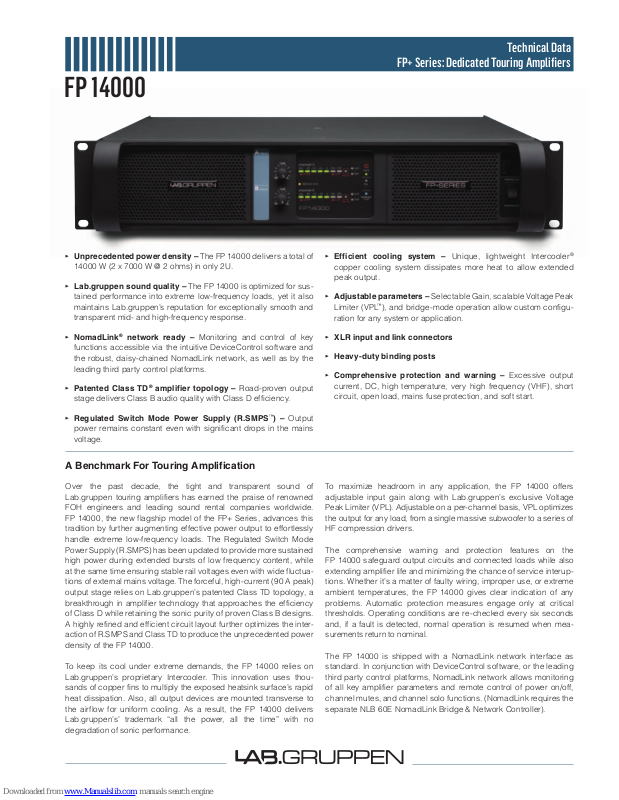

FP 14000
Technical Data
FP+ Series: Dedicated Touring Amplifiers
Item no. TDS-FP14000_V5
Lab.gru ppen ab ▸ Sweden
internationaL contact ▸ info@Labgru ppen.com | uS & ca nada contact ▸ info@tcg-americaS.com
www.labgruppen.co m
General
Number of channels 2
Peak total output both channels driven 14000 W
Peak output voltage per channel 195 V
Max. output current per channel 90 A peak
Max. Output Power 2 ohms 4 ohms 8 ohms 16 ohms
Per ch. (both ch.’s driven) 7000 W 4400 W 2350 W 1200 W
Bridged per ch. 3) 14000 W 8800 W 4700 W
Performance with Gain: 35 dB and VPL: 195 V
THD 20 Hz - 20 kHz for 1 W <0.1%
THD at 1 kHz and 1 dB below clipping <0.05%
Signal To Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Frequency response (1 W into 8 ohms) +0/-3 dB 2 Hz - 34.2 kHz
Input impedance 20 kOhm
Commo n Mode Rej ection (CM R) >54 dB, 2 0 Hz to 20 kHz
Output im pedance @ 10 0 Hz 19 mOh m
Voltage Peak Limiter (VPL), max. peak output
VPL, selectable per ch. 195, 170, 140, 116, 100, 80, 66, 54 V
VPL, selectable when bridged
1)
390, 340, 280, 232, 200, 160, 132, 108 V
Voltage Peak Limiter mode (per ch.) Hard / Soft
Gain and Level
Amplifier gain selectable (all channels)
1)
– rear-panel switches
23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain 38 dB
Level adjustment (per ch.) Front-panel potentiometer, 31 position detented from -inf to 0 dB
Connectors and Switches
Input connectors (per ch.) 3-pin XLR, electronically balanced
Output connectors (per ch.) Binding Posts 2-pole
Output bridge mode per two ch.’s A+B - Ch. A is signal input source
NomadLink network On board, 2 x RJ45 etherCON
®
connectors, IN and OUT
Intelligent fans (on/off) Yes, depending on presence of output signal
Power on/off and Remote enable on/off Individual switches on front-panel
Cooling Two fans, front-to-rear airflow, temperature controlled speed
Front-panel indicators:
Common NomadLink network; Power Average Limiter (PAL)
2)
; Power on
Per channel
Signal present / High-impedance; -20 dB, -15 dB, -10 dB and -4 dB output signal;
Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); High temperature; Fault; Mute
Power
Operating voltage, 230 V / 115 V nominal
4)
130-265 V / 65-135 V
Minimum power-up voltage, 230 V / 115 V 171 V / 85 V
Power Average Limiter (PAL)
2)
Yes
Soft start / Inrush Current Draw Yes / max. 5 A
Mains connector 230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock
Dimensions W: 483 mm (19”), H: 88 mm (2 U), Overall D: 396 mm (15.6”), Mounting D: 358 mm (14.1”)
Weight 12 kg (26.4 lbs.)
Finish Black painted steel chassis with black painted steel / al uminum fro nt
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
Note 1) : Automatic -6 dB ga in compensation when bridging c hannels.
Note 2): PAL can reduce the maxim um output power to keep th e power suppl y operating s afely, and/or to prevent excessive current draw tripping the mains breaker.
Refer to the FP+ Operation Ma nual secti on 7.5.8 Power Average Limiter (PAL) for m ore informat ion.
Note 3): The amplifier will be fu lly operational at bridge-mo de 2 ohm load s, but due to physical cons traints in the c onstruction, the ma x. output power will n ot be
significanty higher than running individua l channels and therefore t his mode of operation is n ot
recommended.
Note 4): Separate 2 30 V or 115 V versions avai lable. Not selectable on the ampli fier.
All specifica tions a re subj ect to ch ange wi thout n otice .
Intercoole r, NomadLin k and Class T D are national and/or international registered trade marks of La b.gruppen AB. R.SM PS and V PL are trademarks of Lab.gruppen AB. All other
trademarks remain the pro pert y of their respective owne rs. Copyright © 2010 Lab.gruppen AB. A ll rights rese rved.
