PRESCRIBE Command Reference

1. Overview of PRESCRIBE Commands by Function

The tables in this section list all the printing system commands supported by the various models. Support for certain commands varies depending on the printing system model.

Access Commands

These commands provide access in and out of PRESCRIBE mode.

Command Function Page

EXIT EXIT from PRESCRIBE mode 98 !R! PRESCRIBE start sequence 213 SCRC Set Command Recognition Character 275

Print System Setting Commands

These commands establish general printing environment parameters.

Command Function Page

COPY set number of COPIES 60 EPL select EcoPrint Level 97 FDIR MP tray Feed DIRection 99 FRPO Firmware RePrOgram 111 FRPO INIT FRPO-INITialize 113 MDAT set MeDia type ATtribute 161 MTYP select Media TYPe 170 OTRY select paper Output TRaY 175 PSRC select Paper SouRCe 211 RCLT Rotated CoLlaTion 215 RES RESet 218 RESL select RESoLution 220 RGST offset ReGiSTration 223 RPU Return to Previous Unit 231 SCSZ Set Custom paper SiZe 278 SCU Save Current Unit 279 SEM Set Emulation Mode 283 SIR Set Image Refinement level 300 SPSZ Set Paper SiZe 320 ST AK select paper STAcKer 331 STAT STATus 332 TRSM TRansparency Separate Mode 348 UNIT set UNIT of measurement 348 UOM Unit Of Measurement per dots 351 WIDE set WIDE A4 mode 357

Overview of PRESCRIBE Commands by Function

Page Control, Text, and Comment Commands

The placement commands determine where text will be placed on the page.

Command Function Page

CMNT CoMmeNT 58 CTXT print Centered TeXT 68 PAGE start new PAGE 177 RTT X R oTate TeXt 232 RTXT print Right-aligned TeXT 234 TEXT print TEXT 344

Margin and Page Portrait/Landscape Orientation Commands

These commands are used to set the top, bottom, right, and left margins, and to specify portrait or landscape page orientation. Normal text data is printed inside the margins, but the TEXT and RTEXT commands can be used to print character strings or graphics anywhere in the entire printable area of the page, regardless of the margin settings. There are several commands for setting margins, so it is possible to select the one that best suits the purpose at hand. Margin settings can be changed in the middle of a page.

Note that the following limitations apply to the margin setting commands.

• The right margin must be at least one space character to the right of the left margin.

• The bottom margin must be at least one line below the top margin.

• It is not possible to specify negativ e va lues as m a rgin settings.

For example, a right margin setting beyond the printable area’s right edge would be brought back just inside the right edge of the printable area. In like manner, it is not possible to use a bottom margin setting that would place the bottom margin past the bottom edge of the printable area. An easy way to set the right and bottom margins to the very edge of the printable area is to use a large value such as 100 (centimeters).

The margins and page orientation can be reset by using the RES command.

Command Function Page

SBM Set Bottom Margin 260 SLM Set Left Margin 303 SLPP Set Lines Per Page 306 SPL Set Page Length 316 SPO Set Page Orientation 318 SPW Set Page Width 322 SRM Set Right Margin 324 STM Set Top Margin 334

Margins and page orientation are more fully explained in Section 1.3. of the Technical Reference manual.

PRESCRIBE Command Reference

Text Spacing Commands

These commands control the line spacing, character spacing, underline spacing, and underline thickness. The SLS and SLPI commands are used to set the line spacing. Th e SCS and SCPI commands are used to set the character spacing. These spacing settings may be changed even in the middle of a page.

The table below lists the minimum, maximum, and default values for the text spacing command parameters. If values outside of the above ranges are used, the command is ignored. If a value smaller than one dot is specified for the character spacing, it is interpreted as 0, which results in proportional spacing.

Line spacing 1 dot

Character spacing 1 dot

Minimum value Maximum value Default value

0.01 cm

0.004 inch

0.01 cm

0.004 inch

2,047 dots

17.3 cm

6.8 inch 2,047 dots

17.3 cm

6.8 inch

6 lpi

0.423 cm

0.167 inch 10 cpi

0.254 cm

0.1 inch

Using the font mode (FTMD command), the line spacing and character spacing can be set automatically when the bitmap fonts are selected. Refer to the sections on the FTMD and SFA commands for additional details.

Command Function Page

SCPI Set Characters Per Inch 272 SCS Set Character Spacing 277 SHMI Set HMI 294 SLPI Set Lines Per Inch 305 SLS Set Line Spacing 308 SULP Set UnderLine Parameters 342

Font Commands

The font commands are used to select fonts. Fonts can be selected using substitute numbers instead of a font’s specific number. It is also possible to change the attributes of fonts and print them in a unique style. Additionally, there are commands to download fonts to the printing system from an external source, and to generate fonts.

Command Function Page

ALTB A [ALlocate TaBle] Assign user-defined character table 14 ALTB C [ALlocate TaBle] Convert character code 15 ALTB D [ALlocate TaBle] Delete user-defined character table 16 ALTB E [ALlocate T aBle] End defining combination characters 17 ALTB G [ALlocate TaBle] Generate user -defined table 18 ALTB R [ALlocate TaBle] Release user-defined character table 19 ALTB S [ALlocate TaBle] Start to define the combination character 20 ALTB T [ALlocate TaBle] define combined character by Table 21 ALTF change to ALTernate Font 23 ASFN ASsign external characters for FoNt 30

Overview of PRESCRIBE Commands by Function

Command Function Page

CSET Change symbol SET by symbol-set ID 64 DAF Delete All Fonts 70 DELF DELete Font 74 FLST print Font LiST 104 FONT change current FONT 107 FSET change current Font SETting by characteristic 114 FTMD bitmap FonT MoDe 118 INTL InterNaTionaL characters 128 LDFC LoaD Font Character 146 LDFN C generate bitmap character for LoaDing FoNt 148 LDFN F create header for LoaDing FoNt 150 LDFN S LoaD truetype FoNt 152 RPCS Return to Previous Code Set 224 RPF Return to Previous Font 225 SCCS Save Current Code Set 264 SCF Save Current Font 266 SETF SET alternate Font 284 SFA Set bitmap Font Attributes 286 SFNT Select current FoNT by typeface 290 TPRS Text PaRSing 347

Fonts are more fully explained in Chapter 4 of the Technical Reference manual.

Cursor Movement Commands

These commands move the cursor to specific positions. Cursor movements can be established for absolute positions based on the margins, zero point positions based on the printable area, or relative positions based on the current cursor position.

Cursor movement commands only change the position of the cursor. Also, the cursor may not be moved outside of the printable area (see MZP command). It is possible to store the cursor position in memory then to return to that position stored in memory.

Command Function Page

MAP Move to Absolute Position 156 MRP Move to Relative Position 165 MRPA Move to Relative Position specified by Angle 167 MZP Move to Zero-relative Position 172 RPP Return to Previous Position 228 SCP Save Current Position 271

Vector Graphics Commands

The commands below are used to create figures such as lines, circles, and rectangles, and to add shading, simply by adding parameters.

It is possible to specify colors for all vector graphics. For details, see a color specific command such as SCOL.

PRESCRIBE Command Reference

If an attempt is made to create figures outside of the printable area using these commands, the coordinates are adjusted automatically so that the figures print inside the printable area. As in the example below, this can produce printed results different from what is expected.

Print settings according to command

Printing extremely complex figures can exhaust printing system memory. Downloadable fonts can be particularly taxing on printing system memory, producing unexpected print results. It may be possible to correct the problem by removing some of the downloaded fonts or by simplifying the graphic. To determine current memory usage, refer to a status page.

Actual printed result

Command Function Page

ARC draw filled-in ARC 27 BLK draw filled-in BLocK 39 BOX draw BOX 41 CIR draw CIRcle 51 DAP Draw to Absolute Position 72 DPAT select Dashed PATtern 77 DRP Draw to Relative Position 79 DRPA Draw to Relative Position specified by Angle 81 DZP Draw to Zero-relative Position 86 FPAT generate Fill PATtern 109 GPAT set Gray PATtern 121 PAT select fill PATtern 182 PIE draw PIE chart 197 SPD Set Pen Diameter 314 XPAT generate eXpanded fill PATtern 389

Path Mode Graphics Commands

The following commands provide a variety of path construction operators and painting operators for stroking or filling paths.

Command Function Page

CLIP CLIP current path 53 CLPR CLiP Rectangular area 54 CLSP CLoSe Path 56 CPTH Character PaTH 63

Overview of PRESCRIBE Commands by Function

Command Function Page

FILL FILL closed path 100 FLAT set FLATness 103 NEWP start NEW Path 174 PARC in Path, draw ARC 180 PCRP iin Path, Curve to Relative Position 184 PCZP in Path, Curve to Zero-relative Position 186 PDIR set Print DIRection 188 PDRP in Path, Draw to Relative Position 191 PDZP in Path, Draw to Zero-relative Position 193 PELP in Path, draw ELlipse 195 PMRA in Path, Move to Relative position specified by Angle 199 PMRP in Path, Move to Relative Position 201 PMZP in Path, Move to Zero-relative Position 203 PRBX in Path, draw Round BoX 207 PRRC in Path, at Relative position, dra w aRC 209 RPG Return to Previous Graphics state 226 SCAP Set line CAP 262 SCG Save Current Graphics state 268 SDP Store Dash Pattern 281 SIMG Set IMaGe model 294 SLJN Set Line JoiN 301 SMLT Set Miter LimiT 309 STRK STRoKe current path 340

Raster Graphics Commands

Raster graphics commands can be used to draw any graphic design by specifying the individual dots. The dot resolution is selectable from 75, 100, 150, 200, 300, 600, and 1200 dots per inch.

Command Function Page

ENDR END Raster data 95 PXPL PiXel PLacement 212 RVCD ReceiVe Compressed raster Data 236 RVRD ReceiV e Raster Data 238 SRO Set Raster Options 326 SROP Set Raster OPeration 328 STR SeT dot Resolution 339

Color Commands

Color commands are used to create a color palette, assign colors to a palette, and specify colors. In this manual, color commands are marked with under the command name.

COLOR

PRESCRIBE Command Reference

Command Function Page

ACLI Add CoLor by Index 12 CID Configure color-Image Data 49 CMOD Color MODe 59 CPAL Control PALette 62 GRAY represent GRAY 123 GRRD GRaphic data ReaD 124 HUE adjust HUE 126 LGHT adjust LiGHTness 154 MCLR Match CoLoR 158 PANT create PANTone color palette 178 RGBL control RGB Level 221 RPPL Return to Previous PaLette 230 RVCL ReceiVe CoLor raster data 237 SATU adjust SATUration level 259 SCOL Select COLor 270 SCPL Save Current PaLette 274 SGPC Set kcGl Pen Color 293 SIMP create SIMPle color palette 298 SMNT Set MoNiTor simulation 311 SPAL Select PALette 313

Barcode Commands

Barcodes conforming to various specifications can be printed simply by specifying the type of barcode and the barcode data. It is also possible to print barcodes with check digits added.

Command Function Page

BARC draw BARCode 33 ENDB END a two-dimensional Barcode string 90 XBAR print two dimensional barcode 359 XBCP select barcode type/reset all other XBCP parameters, etc. 361 to 383 XBUF define a BUFfer name 387

Macro Commands

A series of PRESCRIBE commands can be defined for sequential processing as a macro. Macros are selected using the CALL command and automatically using the AMCR command.

Command Function Page

AMCR call Automatic MaCRo 25 CALL CALL macro 43 CCPY Carbon CoPY 45

Command Function Page

DAM Delete All Macros 71 DELM DELete Macro 75 EMCR Enable MaCRo depending on paper source 88 ENDC END carbon Copy 91 ENDM END Macro 93 MCRO define MaCRO 159

Debug Commands

These commands can be used to check the print data in hexadecimal format for print jobs with unexpected output.

Command Function Page

ENDD END Dump 92 RDMP Received-data DuMP 216

Overview of PRESCRIBE Commands by Function

External Media Control Commands

If an external storage, such as JEIDA Ver. 4 memory card or CompactFlash card, or a hard disk, is installed in the printing system, the following commands can be used to write data to or read from it. These commands do not apply to the models that do not have an external storage.

Command Function Page

RWER D [Read/Write External Resource] Delete data on external media 240 RWER F [Read/Write External Resource] Format external media 241 RWER I [Read/Write External Resource] automatically print partition Infor-

mation RWER L [Read/Write External Resource] print partition List 243 RWER R [Read/Write External Resource] Read data from external media 244 RWER S [Read/Write External Resource] Store Tru eType font 246 RWER T [Read/Write External Resource] set Terminate string 248 RWER W [Read/Write External Resource] Write data to external media 249 RWRF D [Read/Write Resource File] Delete data on external device 250 RWRF F [Read/Write Resource File] Format external device 251 RWRF L [Read/Write Resource File] print resource file List 252 RWRF P [Read/Write Resource File] set hidden file 253 RWRF T [Read/Write Resource File] set Terminate string 254 RWRF W [Read/Write Resource File] Write data to external device (API pro-

gram) RWRF W [Read/Write Resource File] Write data to external device (font) 256 RWRF W [Read/Write Resource File] Write data to external device (macro) 258 WRED WRite EnD 358

242

255

PRESCRIBE Command Reference

Control Commands for Option Devices

A variety of options, such as feeders, sorters, document finishers, etc., are available for print systems. The commands below provides access to the optional equipment.

Command Function Page

ASTK Assign STacKer trays 31 BKLT print in BooKLeT binding 37 CSTK select Collator STacKer 67 DUPX select/deselect DUPleX mode 83 DXPG select DupleX PaGe side 84 FOLD FOLD printed pages 106 JOG JOG output stacks for separation 144 MID Multi-tray ID 163 MSTK select Mailbox STacKer 169 PNCH PuNCH 205 SSTK select Sorter STacKer 330 STPC set STaPle Counter 336 STPL STaPLe 337

e-MPS Commands

The printing system features various job storing options – e-MPS (enhanced Multiple Printing System) – that utilize the hard disk. For this feature to be performed, a print job must be defined as an e-MPS job by the JOBS command. Once the job is defined and stored in the hard disk by the JOBS command, it can be retrieved from the hard disk for printing with various printing features such as stapling, duplex-printing, mailboxing, etc., added on the fly.

Command Function Page

CDSK Check hard DiSK 48 JOBD JOB Deletion 131 JOBL print JOB List 133 JOBO JOB Output 135 JOBP JOB, print with Print options 137 JOBS JOB Start 139 JOBT JOB Terminate 143 MPSS e-MPS Storage 164 VMAL Virtual Mailbox ALias 353 VMOB Virtual Mailbox Output Bin 354 VMPW set Virtual Mailbox PassWord 355

2. PRESCRIBE Commands

In the command format descriptions below, the command is written in fixed-pitch CAPITAL letters. Parameters are indicated in lowercase italics. Optional parameters, which may be omitted, are enclosed in brackets [ ]. Three dots (...) mean that the preceding parameters may be repeated. Except for the initial !R!, PRESCRIBE commands may be written in lowercase letters if preferred.

Example:

!R! SFNT ’Helvetica’; EXIT;

Refer to Chapter 1 of the Technical Reference manual for the discussion on how PRESCRIBE follows the rule regarding upper- and lowercase letters.

The functions of some PRESCRIBE commands are duplicated by the panel keys. For example, the same status page can be printed by the STAT command or by pressing the panel keys. The User’s Manual provides a full description of the control panel functions.

Many PRESCRIBE commands can be embedded commands within word processing software. This support depends upon the emulation mode and the software. See

Emulation of the Technical Reference manual.

PRESCRIBE Commands

PRESCRIBE Command Reference

ACLI — Add CoLor by Index

COLOR

Format

ACLI index, color1, color2, color3;

Parameters

index:

integer from 1 to 255

color1:

value for red, integer from 0 to 255, in RGB color space value for lightness, number from 0.0 to 100.0, in L*a*b color space

color2:

color3:

Function

value for green, integer from 0 to 255, in RGB color space value for red/green, number from 0.0 to 100.0, in L*a*b color space

value for blue, integer from 0 to 255, in RGB color space value for yellow/blue, number from 0.0 to 100.0, in L*a*b color space

The ACLI command adds a color to the currently active palette. This command is ignored when the currently active palette is a simple color palette or the Pantone color palette. If an index number larger than the palette size is given, this command is also ignored. If a color is added to the existing index number, the current color for that index number is automatically replaced with the new color.

T o add a color in a palette, the following guidelines must be used depending on the color space used:

For RGB color space, specify the values for red, green, and blue with an integer from 0 to 255, where 0 = 0% and 255 = 100%. Any value outside this range is rounded to the minimum or maximum value, namely 0 or 255. A fractional value beyond the decimal point is discarded.

For L*a*b color space, specify relative values for the lightness, red/green, and yellow/ blue with a number from 0.0 to 100.0. Any value outside this range is rounded to the minimum or maximum value, namely 0.0 or 100.0.

File

ACLI

!R! RES; DAM;

UNIT C; SFNT ’AntiqueOlive-Bd’, 20;

CPAL C; SPAL 1; CID 0, 1;

ACLI 1, 0, 0, 255; ACLI 2, 0, 255, 0; ACLI 3, 255, 0, 0;

MZP 1, 1; SCOL 1; TEXT ’This line is printed in blue.’; MZP 1, 2.4; SCOL 2; TEXT ’This line is printed in green.’; MZP 1, 3.8; SCOL 3; TEXT ’This line is printed in red.’;

EXIT;

Printout

Related Commands

CPAL, SPAL

PRESCRIBE Command Reference

ALTB A — [ALlocate TaBle] Assign user-defined

character table

Format

ALTB A, table-id;

Parameter

table-id:

number identifying the character table assigned to the resident font, from 1 to 65535

Function

The ALTB A command assigns the user-defined character table to the current resident font.

File

See ALTB C on page 15.

ALTB C

ALTB C — [ALlocate TaBle] Convert character code

Format

ALTB C, table-id, source-character, target-character;

Parameters

table-id:

number identifying the character table to convert the character, from 1 to 65535

source-character:

character code before conversion: 1-byte code = 0 to 255; 2-byte code = 0 to 65533, or in hexadecimal notation ($xxxx).

target-character:

character code after conversion: 1-byte code = 0 to 255; 2-byte code = 0 to 65533, or in hexadecimal notation ($xxxx).

Function

The ALTB C command converts the character code given as source-character to the character code given as target-character in the user-defined character table.

If the character table having the identical number already exists, the existing character table is replaced by the new character table.

File

In the example below, the character table number 56535 is generated by AL TB G, in which the character ‘‘\ (backslash, character code 92)’’ is replaced with the Euro currency symbol ‘‘a (character code 186 for Roman-9 symbol set).’’

!R! SFNT "TimesNewRoman", 14; CSET 4U; CMNT Roman-9; ALTB G, 56535, 1; ALTB C, 56535, 92, 186; ALTB A, 56535; TEXT "The Euro currency is symbolized as \."; ALTB R, 56535; CMNT Release user table; PAGE; EXIT;

Printout

PRESCRIBE Command Reference

ALTB D — [ALlocate TaBle] Delete user-defined

character table

Format

ALTB D, table-id;

Parameter

table-id:

number identifying the character table, from 1 to 65535, to be deleted

Function

The ALTB D command deletes the character table defined by the user. If the table to be deleted is currently allocated to the resident font (see ALTB A),

terminate the allocation by using ALTB R before deleting. It is possible to delete all userdefined character tables at once by using ALTB D, 0;.

File

See ALTB C on page 15.

Related Commands

ALTB A, ALTB R

ALTB E — [ALlocate TaBle] End defining

combination characters

Format

ALTB E;

Parameter

None

Function

This command signals the end of defining combination characters in an already generated user-defined character table which was started by the ALTB S command. (page 20). The registered combined characters can be printed by specifying the character code which was assigned at the time of definition.

ALTB E

Related Command

ALTB S

PRESCRIBE Command Reference

ALTB G — [ALlocate TaBle] Generate user-defined

table

Format

ALTB G, table-id, table-format;

Parameters

table-id:

table ID number: 1 to 65535

table-format:

1 = 1-byte, character codes 0 to 255 2 = 2-byte, character codes 0 to 65533

Function

The ALTB G command generates a user-defined table in either 1-byte or 2-byte form at. If the same table ID number already exists, the format table is replaced with the newly generated table.

ALTB R

ALTB R — [ALlocate TaBle] Release user-defined

character table

Format

ALTB R, table-id;

Parameter

table-id:

number identifying the character table to be released

Function

The ALTB R command terminates the assignment of the user-defined character table for the current resident font. It is also possible to terminate the assignment of all userdefined character tables by using ALTB R, 0;.

PRESCRIBE Command Reference

ALTB S — [ALlocate TaBle] Start to define the

combination character

Format

ALTB S, table-id, code[, width, height[[, x-coordinate, y-coordinate, [paint-mode]]];

Parameters

table-id:

number identifying the character table to define the combination character, from1 to 65535

code:

character code for which the combination character is defined. 1-byte code = 0 to 255; 2-byte code = 0 to 65533, or in hexadecimal notation ($xxxx).

width:

overall width of the combined character, represented by number from 1 to 65535 in units where the width of the resident font character is 1000

height:

overall height of the combined character, represented by number from 1 to 65535 in units where the height of the resident font character is 1000

x-coordinate:

X coordinate of the reference point, integer value converted in reference to 1000 units

y-coordinate:

Y coordinate of the reference point, integer value converted in reference to 1000 units

paint-mode:

paint mode: 0 = normal (filled), non-zero = line width of outli ne character (stroked): 1 to 100 units

Function

This command starts to define the combination of characters by specifying the region and coordinates. The characters to combine in this region are registered using the ALTB T command (page 21). The ALTB S sequence is terminated by the ALTB E command. If the identical table number already exists, the existing character table is replaced with the new character table.

ALTB T — [ALlocate TaBle] define combined

character by Table

Format

ALTB T, character-code, width, height, x-coordinate, y-coordinate;

Parameters

code:

character code for which the combined character is defined, or hexadecimal notation ($xxxx), JIS code

width:

character width: the value from 1 to the character width specified by ALTB S (page 20)

ALTB T

height:

character height: the value from 1 to the character height specified by ALTB S (page 20)

x-coordinate:

X coordinate of the reference point, integer value calculated in 1000 unit basis

y-coordinate:

Y coordinate of the reference point, integer value calculated in 1000 unit basis

Function

This command defines the region in which to store the combination of characters within coordinates (0, 0) to (1000, 1000) by specifying a rectangular area and reference point for the characters. There are no restrictions on the number of characters to be combined.

Example:

(1000, 1000)

(0, 0)

PRESCRIBE Command Reference

File

!R! res; unit c; SFNT ’TimesNewRoman’, 48; ALTB G, 1000, 1; ALTB A, 1000;

ALTB S, 1000, 64, 1800, 1000; ALTB T, 77, 700, 700, 0, 700; CMNT M; ALTB T, 65, 700, 700, 630, 700; CMNT A; ALTB T, 85, 700, 700, 1050, 700; CMNT U; ALTB T, 73, 700, 700, 1570, 700; CMNT I; ALTB T, 36, 700, 700, 0, 0; CMNT $; ALTB T, 57, 700, 700, 400, 0; CMNT 9; ALTB T, 57, 700, 700, 800, 0; CMNT 9; ALTB T, 57, 700, 700, 1200, 0; CMNT 9; ALTB E;

MZP 2, 4; SFNT ’TimesNewRoman’,48; TEXT "HOLIDAYS!"; PAGE; EXIT;

Printout

ALTF — change to ALTernate Font

Format

ALTF alternate-number;

Parameter

alternate-number: a number from 0 to 47

Function

The ALTF command changes the current font to a font designated by an alternate number. The actual font assigned to this alternate number is set by a previous SETF command.

The alternate number can be a bitmap font number or a number specifically assigned to the scalable font using the SFNT command (See File on the next page).

ALTF

If no font has been assigned to the specified alternate number, the ALTF command has no effect: the font does not change.

The ALTF command enables you to prepare a document usi ng several fonts, wit hout deciding in advance which specific fonts to use. For example, you could use ALTF 1 to designate plain text and AL TF 2 to designate italics, and allow the specific size and style of type to be determined by SETF commands at a later time.

PRESCRIBE Command Reference

File

!R! RES; SFNT "Helvetica-Nr", 12, 1000; SFNT "TimesNewRoman-It", 11, 1001; SETF 1, 1000; SETF 2, 1001; MCRO BIBLIO;

ENDM; ALTF 1; TEXT "Bibliography", N, U; TEXT, N; CALL BIBLIO,

CALL BIBLIO,

PAGE; EXIT;

ALTF 1; TEXT %1, E; TEXT " ", E; ALTF 2; TEXT %2, E; TEXT " ", E; ALTF 1; TEXT %3, N;

"Radin, Paul,", "Hero Cycles of the Winnebago,", "Indiana University Publications";

"Neumann, Erich,", "Amor and Psyche,", "Bollingen Press";

"Jung, Carl G.,", "Man and His Symbols,", "Bollingen Press";

Printout

AMCR — call Automatic MaCRo

Format

AMCR mode, [repeat-count] macro-name, parameter, ...;

Parameters

mode:

E = Enable automatic macro; Save and retain current printing parameters T = Enable automatic macro; Do not save current printing parameters D = Disable automatic macro

repeat-count:

number of times the macro is executed

AMCR

macro-name:

name defined by the MCRO command

parameter:

values given to the dummy parameters in the macro definition

Function

The AMCR command enables the automatic macro (overlay). It automatically executes the macro defined by a MCRO command each time a page is printed. For example, it would be used to print multiple copies of the same form, filled in with different text.

The AMCR command closely resembles the CALL command; therefore, the user should refer to the section on the CALL command for further information.

When the automatic macro is enabled using mode E, the following printing system settings are saved and retained upon completion of the macro: font information, margins, cursor position, line spacing, character spacing, page orientation, unit of measurement, underline parameters, and fill pattern.

When the automatic macro is enabled with mode T, the printing system settings are modified according to the parameter settings contained in the macro.

Color specifications may be used within macros. When an auto-macro (AMCR) is executed, the active palette and color index number are saved and restored after the macro has executed.

The automatic macro remains enabled until the AMCR command with the mode set to D is encountered or the printing system is switched off. Note that mode D requires no other parameters such as repeat-count.

The following commands are invalid within a macro: ASTK, PSRC, CCPY, DUPX, DXPG, JOBD, JOBL, JOBO, JOBP, JOBS, JOBT, JOG, LDFC, LDFN, MID, MSTK, RDMP, SEM, SPSZ, SSTK, STAK, STAT, STPL, VMAL, VMPW

PRESCRIBE Command Reference

File

!R! RES; MCRO CROPMARK; UNIT C; MZP 2.46, 3.96; SCP; SCP; SCP; MRP -.635, 0; DRP -1.9, 0; RPP; MRP 0, -.635; DRP 0, -1.9; RPP; MRP 14.85, 0; SCP; SCP; MRP .635, 0; DRP 1.9, 0; RPP; MRP 0, -.635; DRP 0, -1.9; RPP; MRP 0, 21; SCP; SCP; MRP .635, 0; DRP 1.9, 0; RPP; MRP 0, .635; DRP 0, 1.9; RPP; MRP -14.85, 0; SCP; MRP -.635, 0; DRP -1.9, 0; RPP; MRP 0, .635; DRP 0, 1.9; RPP; ENDM;

Printout

AMCR E, CROPMARK; PAGE; UNIT C; SLM 3.6; STM 5.2; EXIT; The text starts here.

Related Command

CCPY

ARC — draw filled-in ARC

Format

ARC inner-radius, outer-radius, start-angle, end-angle;

Parameters

inner-radius:

inner radius of arc

outer-radius:

outer radius of arc

start-angle:

starting angle

ARC

end-angle:

Function

ending angle

The ARC command works in the standard graphics mode. It draws a filled-in arc-shaped area extending from the inner radius to the outer radius, and from the starting angle to the ending angle. The area is filled with the pattern designated by the previous PAT , FPAT, or GPAT command. The starting and ending angles are specified in integer degrees measured clockwise from the vertical. (Note that the PARC command measures the angles from the positive x axis.) The cursor is located at the center of curvature of the arc, and does not move.

If the inner radius is zero, the area has a pie-slice shape, and can be used to fill in one sector of a pie chart.

If the inner and outer radii are nearly equal and the fill pattern is the all-black pattern (PAT 1, for example), the result is a line arc. The line thickness is the difference between the two radii, rather than the value designated by the SPD (set pen diameter) command.

The ARC command does not draw the boundary of the filled-in area.

PRESCRIBE Command Reference

File

!R! RES; UNIT C; MAP 5, 8; PAT 52; ARC 1, 2, -45, 45; MAP 5, 10; PIE 2, 0, 10, 20, 30; ARC 0, 2, 0, 60; PAT 20; ARC 0, 2, 60, 180; PAT 10; ARC 0, 2, 180, 360; PAT 1; NEWP; PMZP 4, 2; PARC 4, 3, 1, 90, 270; PARC 5, 4, 1, 180, 360; PARC 6, 3, 1, 270, 90; PARC 5, 2, 1, 0, 180; STRK; MRP 0.6, 1.1; SFNT "Univers-Md"; TEXT "ARC"; PAGE; EXIT;

Printout

ARC

Related Command

PARC

PRESCRIBE Command Reference

ASFN — ASsign external characters for FoNt

Format

ASFN mode, font-number;

Parameters

mode:

A = assign external characters R = release external characters

font-number:

number identifying the external character font:1000 to 65535

Function

The ASFN command assigns external characters which are defined by the user to the current resident font. The external characters should be generated and downloaded in the printing system as an external font by using the LDFC or LDFN command.

For the print systems supporting 2-byte font system, if the user-defined font is a 1-byte code font, it is assigned to the current resident roman (ANK) font. If it is a 2-byte code font, it is assigned to the current 2-byte font.

This command has no effect if the resident font is a bitmap font and the font to be assigned is an outline font, or vice versa.

mode = R is used to release the current resident font from the external characters. Note that it is necessary to release the external font assignment if you want to delete the external font.

ASTK — Assign STacKer trays

Format

ASTK tray1, tray2, tray3, ...;

Parameters

tray1, tray2, tray3, ...:

Number representing the tray in the optional sorter which becomes the last (bottom) tray in each group, as counted from the top towards the bottom tray.

Function

The ASTK command assigns the sorter trays in groups so that the sorter can be shared among the multiple users. Each parameter represents the last tray in each group of trays. The maximum number of parameters must be equal to the number of the trays the sorter is equipped with. By the factory default, the trays are grouped as the following table:

ASTK

Group Sorter model

SO-6 SO-30 SO-60

1 1, 2 1, 2 1, 2 2 3, 4 3, 4 3, 4 3 5, 6 5, 6 5 4 7, 8 7, 8 — 59 to 159— Equiv. ASTK command ASTK 2, 4, 6, 8; ASTK 2, 4, 6, 8; ASTK 2, 4;

The ASTK command is ignored if parameters include the value greater than the actual number of trays. If the number of parameters is less than the maximum number of sorter trays, the printing system automatica lly groups the remaining trays in one, making it the last group. For example, the command sequence ASTK 2, 4, 6; is equivalent to ASTK 2, 4, 6, (bottom tray number);.

The tray group setting made by ASTK is stored indefinitely in the printing system’s permanent memory while the power is off, or until it is changed by another ASTK command. It is ignored in the normal sorter mode (FRPO S0, 0;) but the printing system automatically sets up the previous tray group setting when the sorter is again switched to the multiple environment mode (FRPO S0, 1; or FRPO S0, 2;).

PRESCRIBE Command Reference

File

The following command sequence delivers print jobs to trays 4, 5, 6, and 7 (the second group).

!R! FRPO S0, 1; CMNT Enter multiple sorter mode;

EXIT;

Related Commands

CSTK, MID, MSTK, SSTK

ASTK 3, 7, 9; CMNT Create three groups; MID 2; CMNT Send the output to 2nd grp.; SSTK; CMNT Sort;

BARC — draw BARCode

Format

BARC type, flag, ’ string’[, short, tall [, bar1, bar2, bar3, bar4, space1, space2, space3, space4]];

Parameters

type:

There are the following barcode types: 0 = UPC A 1 = UPC A with two-digit supplement 2 = UPC A with five-digit supplement 3 = UPC D-1 4 = UPC D-2 5 = UPC D-3 6 = UPC D-4 7 = UPC D-5 8 = UPC E 9 = UPC E with two-digit supplement 10 = UPC E with five-digit supplement 11 = EAN-8 (Truncated JAN) 12 = EAN-13 (Truncated JAN) 13 = DUN-14 (Distribution Unit Number, EAN) 14 = DUN-16 (Distribution Unit Number, EAN) 15 = MSI with no check digit 16 = MSI with single mod-10 check digit 17 = MSI mod-10 followed by mod-10 check digit 18 = MSI mod-11 followed by mod-10 check digit 19 = CODE 39 with no check digit 20 = CODE 39 with mod-43 check digit 21 = Interleaved two of five with no check digit 22 =Identicon two of five with no checksum 23 = Code 128 (manual mode change) 24 = Code 128 (auto mode change) 25 = Code 11 with only ‘c’ 26 = Code 11 with both ‘c’ and ‘k’ checksum 27 = Code 93 with both ‘c’ and ‘k’ checksum 28 = CODABAR with no check digit (narrow gap) 29 = Matrix two of five with no checksum 31 = Industrial two of five with no checksum 32 = Ames with no checksum 33 = Delta distance ‘a’ (IBM) with no checksum 34 = Delta distance ‘a’ (IBM) with no checksum 35 = EAN 8 with two-digit supplement 36 = EAN 8 with five-digit supplement 37 = EAN 13 with two-digit supplement 38 = EAN 13 with five-digit supplement 39 = POSTNET 40 = FIM 41 = Interleaved two of five with check digit 42 = UPC/EAN128

BARC

PRESCRIBE Command Reference

43 = CUSTOM CODE (Japan)1 44 = CODABAR with no check digit (wide gap)

flag:

Y = Print the string under the barcode N = Do not print the string

string:

T ext to be converted to a barcode. The text must be enclosed with single or double quote marks.

short:

Height of short bars in barcode types that have bars in two different heights. Height of all bars in other cases. Default value is 1.52cm (0.6 inches, 180 dots). The unit of measurement is determined by the UNIT command. Minimum value 0.254cm (0.1 inch, 30 dots) Maximum value 27.9cm (11 inches, 3300 dots)

tall:

Height of tall bars in barcode types that have bars in two different heights. Default values are the same as that of the short height.

bar1/2/3/4:

Width of a bar. Minimum value 0.0085cm (0.0033 inches, 1 dot) Maximum value 1.6933cm (0.6667 inches, 200 dots)

space1/2/3/4:

The width of a space. The minimum and maximum values are the same as that of the bar width.

Function

The BARC command converts a string to a barcode and prints it. The specification of the type, flag and string parameters is necessary. After printing, the cursor positions at the upper left corner of the barcode.

If a value not mentioned above is specified as the barcode type, 12 EAN-13 will be automatically selected.

Specify the flag parameter to Y when printing the text under the printed barcode or N when not printing the text. The text will be printed in the font currently selected for the printing system. However, a font selection command can be written ahead of the BARC command to print the text in an arbitrary font.

FS-600/FS-7000/FS-9100/FS-9500 only

Characters that can be converted The length of the string varies depending on the type of barcode to use. Characters that

can be used for the most barcode type are described in th e tab le bel ow.

BARC

Ta ble 20 Characters that can be used

Type Max Characters to be used Default

0 11 0123456789 0 1 13 0123456789 0 2 16 0123456789 0 3 13 0123456789 0 4 18 0123456789 0 5 22 0123456789 0 6 25 0123456789 0 7 29 0123456789 0 8 6 0123456789 0 9 8 0123456789 0 10 11 0123456789 0 11 7 0123456789 0 12 12 0123456789 0 13 13 0123456789 0 14 15 0123456789 0 15 1 - 14 0123456789 0 16 1 - 14 0123456789 0 17 1 - 14 0123456789 0 18 1 - 14 0123456789 0 19 1 - 40 $%+-./0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ and spaces space 20 1 - 40 $%+-./0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ and spaces space 21 2 - 26 0123456789 0 22 1 - 25 0123456789 0 23 1 - 40 All (ASCII characters 32 - 126) space 24 2 - 40 All (ASCII characters 32 - 126) space 25 1 - 45 -0123456789 space 26 1 - 45 -0123456789 space 27 1 - 50 All (ASCII characters 32 - 126) space 28 3 - 32 $+-./0123456789:abcdetn* 29 1 - 25 0123456789 0 30 1 - 25 0123456789 0 31 1 - 25 0123456789 0 32 1 - 25 -0123456789 0 33 1 - 25 0123456789KLMO 0 34 1 - 25 0123456789KLMO 0 35 9 0123456789 0 36 12 0123456789 0 37 14 0123456789 0 38 17 0123456789 0 39 139 0123456789 -

PRESCRIBE Command Reference

Type Max Characters to be used Default

40 1 The following FIM pattern type

41 125 0123456789 0 42 80 All (ASCII characters 32 - 126) 43 1 - 20 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ 44 3 - 32 $+-./0123456789:abcdetn* and spaces -

Length of the bars For the UPC and EAN (JAN) barcode type, the length of the short and tall bars can be

adjusted. When adjusting the length of the tall or short bars, specify that of both tall and short bars. If the length of only the tall or short bars is adjusted, the bars' length does not change. It is recommended to use the dot for the unit of measurement in order to avoid the translation error by the barcode reader . In the example below, the length of the short bar is specified as 1.5cm and the tall bar as 1.7cm.

!R! UNIT D; BARC 8, Y, '123456', 180, 200; PAGE; EXIT;

A. Country Reply Mail with POSTNET

B. Business Reply, Penalty and Franked Mail without POSTNET C. Business Reply, Penalty and Franked Mail with POSTNET D. OCR Readable Mail without POSTNET

Width and space of the bar It is possible to adjust the widths of the bars and space between the bars. When adjusting

these widths, specify all of the eight width and space parameters. Specify the bar 1 to bar 4 in the ascending order. The values can be specified between 1 and 200 dots.

1dot bar1≤ bar2 bar3 bar4<<< 200dots≤ 1dot space1≤ space2 space3 space4<<< 200dots≤

It is recommended to use the dot for the unit of width in order to avoid the translation error by the barcode reader. The example below specifies the width of the first bar and space as 5 dots and that of the remaining bars as 10 dots.

!R! UNIT D;

BARC 19, Y, '0123ABC', 60, 60, 5, 10, 10, 10, 10, 5, 10, 10; PAGE;

EXIT;

BKLT — print in BooKLeT binding

Format

BKLT binding;

Parameter

binding:

number representing binding mode: 0 = None

1 = Left-to-right binding 2 = Right-to-left binding

Function

BKLT

The BKLT command allows printing a job as a booklet, reordering and printing the pages two-up on a sheet of paper. Booklet printing requires the hard disk to be installed in the printing system.

a = First page b = Last page

The job to booklet-print must be defined using the JOBS command. Used together with the FOLD command, the paper can be folded in the middle to form a booklet.

Booklet printing is possible for documents of A4, A5, B5, letter, or statement size documents and are automatically printed on double size paper, namely A3, A4-R, B4, ledger, or letter-R. The original page size must be specified by the SPSZ command, for example, SPSZ 8; for A4 page size. It is also possible to reduce the original page size by commanding the second parameter for SPSZ. For example, to print two A4 pages on a A4 sheet, command SPSZ 8, 5;. For details on page size, refer to the SPSZ command page in this manual. The document must have the same page size for all pages. If the double size paper for the document is not available in the printing system, the printing system ignores the BKL T command and prints in the original paper size. Duplex printing is also possible by adding the DUPX command. To correctly arrange two neighboring pages in line, short-edge binding duplex must be used by commanding DUPX 2;.

The order of print pages can be selected by binding in either of the following manners:

PRESCRIBE Command Reference

This command is not supported by some photocopier models.

File

The following command sequence prints a copy of a 12-page A4 document in booklet mode, folding the stack in the middle. The printing system will require A4-R paper to be loaded.

binding = 1, reading pages from left to right

binding = 2, reading pages from right to left

!R! RES; SPSZ 8, 5; UNIT C;

BKLT 1; DUPX 2; FOLD; SFNT ’Helvetica-Bd’, 72; JOBS 0, 1, 0, 0; MZP 4, 5; TEXT ”Page 1”; PAGE; MZP 4, 5; TEXT ”Page 2”; PAGE; MZP 4, 5; TEXT ”Page 3”; PAGE; MZP 4, 5; TEXT ”Page 4”; PAGE; MZP 4, 5; TEXT ”Page 5”; PAGE; MZP 4, 5; TEXT ”Page 6”; PAGE; MZP 4, 5; TEXT ”Page 7”; PAGE; MZP 4, 5; TEXT ”Page 8”; PAGE; MZP 4, 5; TEXT ”Page 9”; PAGE; MZP 4, 5; TEXT ”Page 10”; PAGE; MZP 4, 5; TEXT ”Page 11”; PAGE; MZP 4, 5; TEXT ”Page 12”; PAGE; JOBT; EXIT;

BLK — draw filled-in BLocK

Format

BLK width, depth[, option];

Parameters

width:

width of the block

depth:

depth of the block

option:

B = Leave the cursor unmoved (Default) H = Move the cursor to the horizontally adjacent corner V = Move the cursor to the vertically adjacent corner E = Move the cursor to the diagonally opposite corner L = Move the cursor one line down N = Move the cursor to the beginning of the next line

BLK

Function

B-option (No motion)

H-option

N-option

Left margin

The BLK command draws a block of a specified size with one corner at the current cursor position. The block is filled in with the pattern designated by the previous PAT, FPAT, or GPAT command. The cursor is moved as specified by the option. If the option is omitted, the cursor is not moved (same as option B).

L-option

V-option

E-option

PRESCRIBE Command Reference

File

!R! RES; UNIT C; MAP 5, 5; PAT 20; BOX 4, 1; BLK 4, 1; MRP 0, 1.5; BOX 4, 1; BLK 4, 1; MRP .9, .6; SFNT "Helvetica-Nr"; TEXT ’OVERPRINTING’; MRP 0, 5; PAT 29; BOX 1, -4; BLK 1, -4, H; PAT 39; BOX 1, -3; BLK 1, -3, H; PAT 49; BOX 1, -2; BLK 1, -2, H; PAT 59; BOX 1, -1; BLK 1, -1, H; PAGE; EXIT;

Printout

BOX — draw BOX

Format

BOX width, depth[, option];

Parameters

width:

width of the box

depth:

depth of the box

option:

BOX

Function

B-option (No motion)

N-option

Left margin

The BOX command draws a box of a specified size with one corner at the current cursor position. The line thickness is designated by the SPD (set pen diameter) command. The size and thickness is measured on the basis of value established in the UNIT command. The cursor is moved as specified by the option. If the option is omitted, the cursor is not moved (same as option B).

The BOX command draws only the outline of the box. To fill in the box, use the BLK command.

The width and depth may use either a positive or negative value.

L-option

V-option

H-option

E-option

File

!R! RES; UNIT C; SPD .1;

SLM 2;

PRESCRIBE Command Reference

EXIT;

Printout

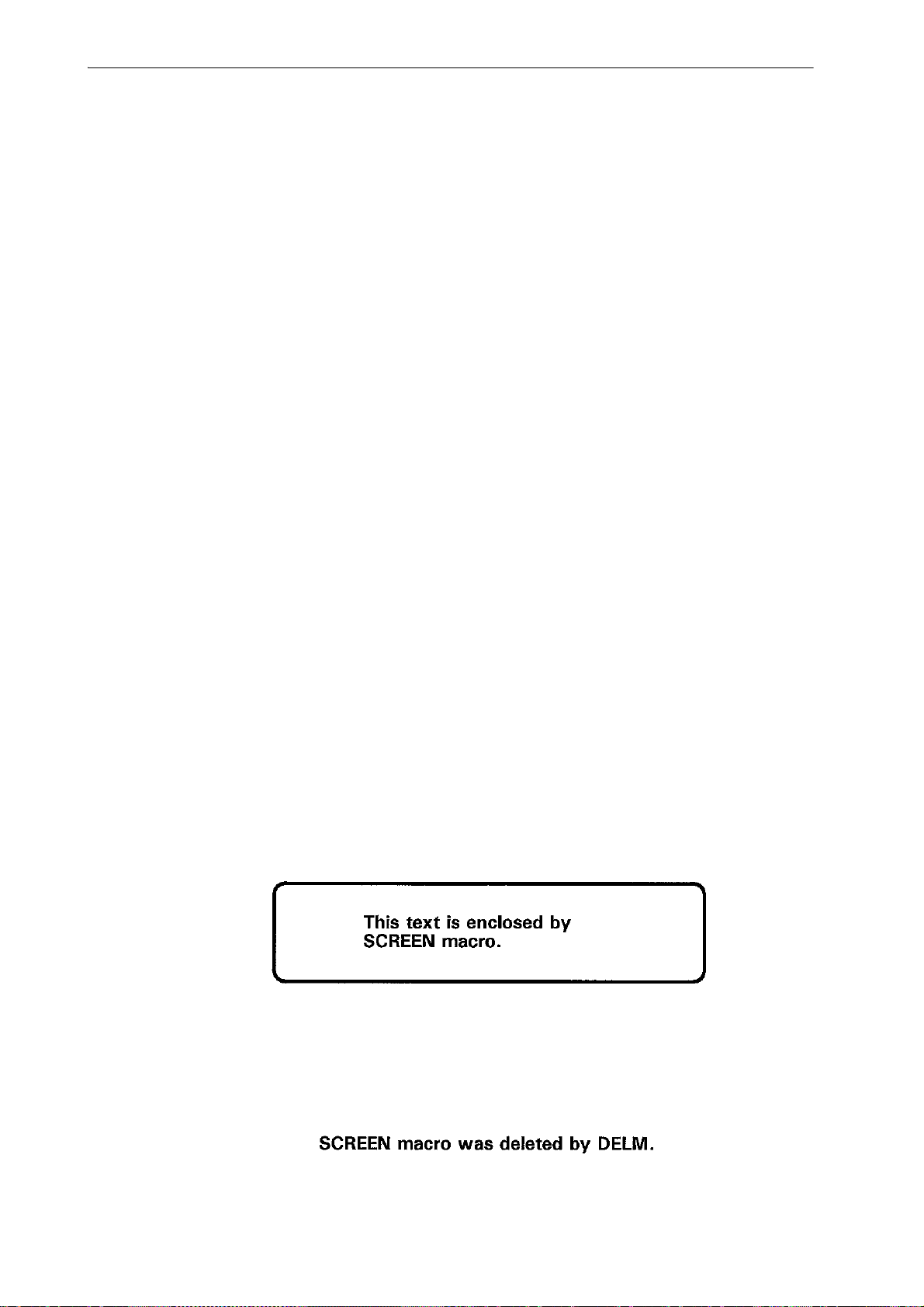

MAP 4, 0; SCP; SFNT "Helvetica-Nr", 10; BOX 4, 2, L; TEXT ’Text printed with option L’; RPP; BOX 4, 2, N; TEXT ’Text printed with option N’; PAGE;

CALL — CALL macro

Format

CALL[ repeat-count] macro-name, parameter-value, ...;

Parameters

repeat-count:

number of times the macro is to be executed

macro-name:

name defined by a MCRO command

parameter-values:

values given to the dummy parameters in the macro definition

CALL

Function

The CALL command executes a macro previously defined by a MCRO command. The macro may be executed any desired number of times by specifying a repeat count. Note that the repeat count is not followed by a comma. If the repeat count is omitted, the macro is executed once.

Only the first four characters of the macro name are significant. They must match the first four characters of a macro name defined by a previous MCRO command.

A parameter value consists of the characters that occur between the delimiting commas, excluding the commas. These parameters are substituted without change for the corresponding dummy parameter in the macro definition, except that consecutive spaces are compressed to a single space.

When a character-string parameter is enclosed in apostrophes or quotation marks, the enclosed string together with the enclosing apostrophes or quotation marks is substituted for the dummy parameter. In this case, consecutive spaces are not compressed.

If a CALL command has too few parameters, it is still valid. The macro is partially executed; any commands in the macro body without appropriate parameters will be ignored.

The CALL command, like other commands, is limited to 255 characters in length.

PRESCRIBE Command Reference

File

!R! RES; UNIT C; SLS .5; CMNT Requires BX and SCREEN macros; CMNT See ENDM command page; MAP 9, 3; CALL BX; MAP 7, 4; CALL 5 BX; MAP 5, 5; CALL 9 BX; MAP 8, 6; CALL SCREEN, 2.2, 1.7; MAP 8.6, 7; TEXT ’Narrow’, L; TEXT ’screen’; MAP 5,9; CALL SCREEN, 8.2,1.2; MAP 8,10; TEXT ’Wide screen’; PAGE; EXIT;

Printout

CCPY — Carbon CoPY

Format

CCPY mode;

Parameter

mode:

E = enable carbon copy D = disable carbon copy

Function

The CCPY command continuously executes different automacros using different paper sources, enabling to apply the different form overlay using the different paper type to a document to be carbon-copied, similarly to hand-writing carbon copy forms. The CCPY statement should be terminated with the ENDC command.

CCPY

The macro and paper source for each form should be described following the CCPY command in a separate line using the PSRC and AMCR command, and terminated by the TERM command. For example, the second line in the following example is applied to the first page of the document and executes the CROPMARK macro printing the page on the paper fed from cassette #2. The third line applies to the second page of the document, and so on. It is possible to add as many lines as required to match the number of pages of the document to print.

CCPY E;

PSRC 2; AMCR E, CROPMARK; TERM; PSRC 3; AMCR E, SIGNATURE; TERM; PSRC 4; AMCR E, COLOPHON; TERM;

ENDC;

During the carbon copy is executed, the copy count (COPY command) is forced to be 1. To apply no overlay to a specific page, describe only the TERM command in the line corresponding to the page. Note that the same paper source as the previous line is applied to that line. For example:

CCPY E;

PSRC 2; AMCR E, CROPMARK; TERM; TERM; PSRC 4; AMCR E, COLOPHON; TERM;

ENDC;

In the example above, the second page is printed using cassette #2 with no form overlay. In carbon copy, duplex printing is not possible. The paper size and the page orientation

should be consistent for all pages in the document to be carbon copied. Otherwise, the carbon copy is cancelled.

To terminate carbon copy, send CCPY D to the printing system.

PRESCRIBE Command Reference

File !R!

RES; DAM; CCPY D; UNIT C;

MCRO COVER; UNIT C; SFNT 'Helvetica-Bd',14; TEXT 'Registration Form', L; SFNT 'Helvetica', 9; TEXT 'Please provide your personal details:'; MRP 0, .2; BOX 6, 1; MRP 0, .35; TEXT ' Your Name'; ENDM;

MCRO MAIL; UNIT C; SFNT 'Helvetica-Bd',14; TEXT 'Mailing Information', L; SFNT 'Helvetica', 9; TEXT 'Shipping Department Use Only'; MRP 0, .2; BOX 6, 1; MRP 0, .35; TEXT " Client's Name"; ENDM;

MCRO COPY; UNIT C; SFNT 'Helvetica-Bd',14; TEXT "Client's Copy", L; SFNT 'Helvetica', 9; TEXT 'Please retain this copy for future reference.'; MRP 0, .2; BOX 6, 1; MRP 0, .35; TEXT ' Registered Client'; ENDM;

CCPY E; PSRC 1; AMCR E,COVER; TERM; PSRC 0; AMCR E,MAIL; TERM; PSRC 1; AMCR E,COPY; TERM; ENDC;

EXIT;

!R! CMNT Document to be carbon-copied; SFNT 'Helvetica', 12; MZP 0, 1.9; TEXT ' David Sumimoto'; PAGE; EXIT;

Printout

CCPY

PRESCRIBE Command Reference

CDSK — Check hard DiSK

Format

CDSK;

Parameter

None

Function

The CDSK command verifies data in the hard disk (garbage collection). It deletes garbage jobs such as page image data that were accidentally generated in the hard disk and normally inaccessible for deletion.

File

!R! CDSK; EXIT;

CID — Configure color-Image Data

COLOR

Format

CID color-space, encoding;

Parameters

color-space:

0 = Device-dependent RGB (Default) 1 = Device-dependent CMY 2 = Void 3 = CIE L*a*b

encoding:

Pixel encoding 1 = Indexed by Pixel (Default) 3 = Direct by Pixel

CID

Function

The CID command creates a new color palette using the ID which is assigned to the currently active palette. Note that the currently active palette is deleted by this command.

It is possible to add and change colors on this palette. However, the currently active colors do not change even though a new palette is created with this command.

The same colors as simple colors are defined for index numbers 0 through 7 when the RGB color space is specified. The color assignments for these indices can be changed using the ACLI command.

Indexed by Pixel encoding assigns colors onto the palette. This is used for rendering text and vector objects. Direct by Pixel encoding assigns colors directly to pixels. This is used for bitmap images.

Changing a color palette does not affect color print quality on output pages.

PRESCRIBE Command Reference

File

!R! RES; DAM; UNIT C; SFNT ’Helvetica-Bd’, 20;

CPAL C, 1; SPAL 1;

CID 0, 1; CMNT RGB Color Space used; ACLI 1, 0, 0, 255;

MZP 1, 1; SCOL 1; TEXT ’An RGB color palette is used.’

CID 3, 1; CMNT L*a*b Color Space used; ACLI 2, 100, 75, 0;

MZP 1, 2; SCOL 2; TEXT ’An L*a*b color palette is used.’;

Printout

PAGE; EXIT;

CIR — draw CIRcle

Format

CIR radius;

Parameter

radius:

radius of the circle

Function

In standard graphics mode, the CIR command draws a circle centered at the current cursor position. The line thickness used is designated by the SPD command.

A circle can also be drawn by using the path mode graphics. Refer to the PARC command.

CIR

File

!R! RES; UNIT C; SLS .5; SPD .01; MAP 10, 1; CIR .1; MRP 0, .1; CIR .2; MRP 0, .2; CIR .4; MRP 0, .4; CIR .8; MRP 0, .8; SPD .02; CIR 1.6; MRP 0, 1.6; CIR 3.2; MRP 0, 3.2; SPD .2; CIR .1; MRP .2, .4; SFNT "Helvetica-Nr"; TEXT ’Cursor now here’; PAGE; EXIT;

PRESCRIBE Command Reference

Printout

CLIP — CLIP current path

Format

CLIP [clip-mode];

Parameter

clip-mode:

1: EO clip 2: Non-zero winding clip

Function

The CLIP command sets the current path as the clipped path. After this command is issued, no painting is done outside the area of the path. Executing this command does not delete the current path.

CLIP

The RES command initializes paths to a state with no clip area.

PRESCRIBE Command Reference

CLPR — CLiP Rectangular area

Format

CLPR [x1, y1, x2, y2];

Parameters

x1:

x coordinate of the top-left corner of the rectangle

y1:

y coordinate of the top-left corner of the rectangle

x2:

x coordinate of the bottom-right corner of the rectangle

y2:

Function

y coordinate of the bottom-right corner of the rectangle

The CLPR command describes a rectangular path which intersects the inside of the texts, current path, or raster graphics objects. The clipping rectangle does not clip those graphics segments drawn in the standard mode graphics. Any painting operations outside the specified rectangle is erased and those segments within it are painted on the page.

The coordinates are measured from the top and left edge limits in the units designated by the UNIT command. If the parameters are omitted, the rectangle is equal to the size of the current page size. If an attempt is made to position the top-left corner to the right of the bottom-left corner [greater values for (x1, y1) than for (x2, y2)], the printi ng system exchanges the coordinate values with each other.

The printing system resets the size of the rectangular clipping path to be equal to the maximum printable area of the current page size when a PSRC, RES, SPO, or SPSZ (Set Page SiZe) command is encountered.

File

Printout

CLPR

!R! RES; UNIT C; NEWP; SPD 1; PMRA 6, 9, 3, 0; PAT 1; PARC 6, 9, 3, 0, 360; CLPR 3, 6, 9, 12; STRK; PAGE; EXIT;

PRESCRIBE Command Reference

CLSP — CLoSe Path

Format

CLSP;

Parameter

None

Function

The CLSP command closes an open path by adding a line segment extending from the end of the path to the beginning of the path.

Simply ending a path at the path’s starting point does not make it a closed path; such a path remains open until it is closed. Closure can be made either explicitly, by means of the CLSP command, or implicitly by means of the FILL (FILL current path) command.

File

!R! RES; UNIT C;

NEWP; CMNT The 1 st path below is stroked without closing; SPD .25; PMZP 5, 10; PMRA 5, 10, 1, 90; PARC 5, 10, 1, 90, 270; PARC 7, 10, 1, 270, 90; STRK;

NEWP; CMNT Next path is closed by CLSP before stroked; PMZP 5, 14; PMRA 5, 14, 1, 90; PARC 5, 14, 1, 90, 270; PARC 7, 14, 1, 270, 90; CLSP; STRK;

PAGE; EXIT;

Printout

CLSP

Related Command

NEWP

PRESCRIBE Command Reference

CMNT — CoMmeNT

Format

CMNT string;

Parameter

string:

any character string

Function

The CMNT command adds a character string, typically a comment explaining the purpose of the following PRESCRIBE commands. The CMNT command statement will be ignored by the printing system.

File

Printout

Although character strings are normally enclosed in apostrophes or quotation marks, this is unnecessary for comment strings as long as the string does not itself contain an apostrophe, quotation mark, or semicolon.

!R! RES; SLM 2; STM 2; SFNT ’TimesNewRoman’; CMNT TimesNewRoman; EXIT; The CMNT command in the above program reminds you that SFNT represents the TimesNewRoman font.

CMOD — Color MODe

COLOR

Format

CMOD mode;

Parameter

mode:

color mode: 0 = Monochrome 1 = Color (Default)

Function

The CMOD command switches between monochrome and color modes. In monochrome mode, other color commands are still enabled, but printing is converted to monochrome or grayscale.

CMOD

This command causes a page break.

PRESCRIBE Command Reference

COPY — set number of COPIES

Format

COPY number;

Parameter

number:

number of copies

Function

The COPY command designates the number of copies for each page in a print job. This copy count value can be changed by sending the printing system another COPY command or by issuing a reset command. For best results, place the copy command near the start of a job or at the top of a page. If two or more copy commands are placed on the same page, the last one will be recognized.

File

!R! RES; SLM 0.5; UNIT P; SFNT ’Helvetica-Bd’, 14.4; SLS 17; COPY 3; EXIT;

Announcement Party Tonight at 6:00

!R! PAGE; EXIT;

Printout

COPY

PRESCRIBE Command Reference

CPAL — Control PALette

COLOR

Format

CPAL mode[, palette-id];

Parameters

mode:

palette control mode: A = Delete all palettes S = Delete all stacked palettes D = Delete the palette having the specified ID C = Copy the active palette to the specified ID

palette-id:

number from 0 to 32767 (Default is 0)

Function

The CP AL command controls the palette identified by palette-id in the way described by the control mode. If palette-id is not specified, the command is applied to palette of ID 0. No check is made whether the palette ID number given already exists for another palette. The palette ID number is reset to 0 by RES command.

Mode A deletes all existing palettes and brings the default palette back to the default state (ID 0). Note that non-active palettes are not deleted. Also, palette-id is not used when mode is A.

Mode S deletes all palettes that are not active. The active palette is not affected. Also, any ID specified by palette-id is not used.

Mode D deletes the palette having the ID specified by palette-id regardless of being active or inactive. If the palette deleted was active, then the current palette will be a monochrome palette having the same ID as that of the deleted palette.

Mode C copies the currently active palette to a new palette with the new ID specified by palette-id. If the palette having the same ID already exists, that palette is overwritten.

Deleting or copying a color palette does not affect color print quality on output pages.

CPTH — Character PaTH

Format

CPTH ’string’;

Parameter

string:

any character string except from ASCII code 31 (hex 1F) and lower

Function

The CPTH command constructs a path which adds the outlines of characters to the current path. When stroked or filled, it prints the given string at the current cursor position and moves the cursor to the end of the string. The current font preceding this command must be a resident or a soft scalable font.

CPTH

File

Printout

The character path can be filled in with the pattern or shade of gray designated by the previous PAT, FPAT, or GPAT command.

!R! FSET 1p72v1s0b4148T; CMNT Univers-MdIt; NEWP; PMZP 2, 2; CPTH ’Enjoy’; STRK; PAGE; EXIT;

PRESCRIBE Command Reference

CSET — Change symbol SET by symbol-set ID

Format

CSET symbol-set-id;

Parameter

symbol-set-id:

symbol set ID: 0D = ISO 60 Norway 0E = Roman Extension 0F = ISO 25 French 0G = HP German 0I = ISO 15 Italian 0K = ISO 14 JIS ASCII 0N = ECMA-94 Latin 1 0S = ISO 11 Swedish 0U = ISO 6 ASCII 1D = ISO 61 Norwegian 1E = ISO 4 U.K. 1F = ISO 69 France 1G = ISO 21 Germany 1S = ISO 15 Spanish 1U = US Legal 2K = ISO 57 Chinese 2N = ISO Latin 2 2S = ISO 17 Spain 2U = ISO 2 IRV 3R = PC Cyrillic* 3S = ISO 10 Swedish 4S = ISO 16 Portuguese 4U = Roman-9 5M = PS Math 5N = ISO Latin 5 5S = ISO 84 Portuguese 5T = ISO Windows Latin 5 6J = MS Publishing 6M = Ventura Math 6N = ISO8859/10 Latin 6 6S = ISO 85 Spanish 7J = Desktop 8G = Greek-8 8M = Math 8 8Q = PC Set 1 IBM 8T = Turkish-8 8U = Roman-8 9E = Windows Latin 2 9G = Windows 3.1 Latin/Greek 9J = PC-1004 9L = Ventura ITC Zapf Dingbats 9N = ISO Latin 9 9Q = PC Extension

9R = Windows 3.1 Latin/Cyrillic 9T = PC-Turkish 9U = Windows 3.0 10G = PC-851 Latin/Greek 10J = PS Text 10N = ISO8859/5 Latin/Cyrillic 10R = PC-855 Cyrillic/Serbia 10U = IBM PC-8 11G = PC-869 Latin/Greek 11U = IBM PC-8 Danish/Norwegian 12G = PC-8 Latin/Greek 12J = Macintosh 12N = ISO8859/7 Latin/Greek 12R = USSR-GOST 12U = IBM PC-850 13P = ABICOMP Brazil/Portugal 13R = PC-8 Bulgarian 13U = PC-858 14G = Greek Alternate 437G 14L = PS ITC Zapf Dingbats

14P = ABICOMP International 14R = PC Ukrainian 15U = Pi Font 16U = PC-857 17U = PC 852 18N = ISO-10646 18U = PC-853 Turkish/Latin 3 19L = Windows 3.1 Baltic

†

19M = Symbol (Symbol-Set-SWM font only) 19U = Windows Latin 1 20U = PC-860 Portugal 21U = PC-861 Iceland 23U = PC-863 Canada-French 24Q = PC-8 Polish Mazovia 25U = PC-865 Norway 26U = PC-775 Baltic 27Q = PC-8 PC Nova

†

579L = Windings (More Wingbats-RegularSWM font only)

CSET

Available only with models having Agfa fonts

PRESCRIBE Command Reference

Function

‘Symbol set’ refers to a specific group of alphabetic, numeric, and symbolic characters. The CSET command summons the symbol set to suit the various languages with the current font. The factory default symbol set is 0U (US ASCII).

When the FSET command is used to select a font, the printing system selects a font based on a prioritization of the font characteristics. Among the given characteristics, the symbol set has the highest priority in the font selection process. Refer to the FSET command page.

The available symbol sets depend on the printing system model and the fonts. If the specified symbol set does not exist, the symbol set remains unchanged.

Files

!R! RES; SFNT ’Helvetica’, 24; SLPI 3; CMNT Current symbol set is ISO 6: ASCII; TEXT ’@ABCDEFG’, N; CSET 5M; CMNT Changed to PS math; TEXT ’@ABCDEFG’; PAGE; EXIT;

Printout

CSTK — select Collator STacKer

Format

CSTK [tray, tray, ...]; or CSTK 0;

Parameter

tray:

number from 1 to the maximum (bottom)

Function

The CSTK command is effective only when the optional sorter is installed to the printing system. It instructs the printing system to deliver printed pages to the sorter in the collator mode. Each tray specified receives all copies of one page. The copies of the first page go to the first tray, the copies of the second page to the second tray, and so on. If the tray parameter is omitted, the trays are used in order from top to bottom.

CSTK

File

The copy count must be selected with the COPY command. The maximum copy count is the maximum capacity of the sorter trays (which varies from sorter model to model).

Upon receiving the CSTK command, the printing system automatically performs a form feed.

The tray parameter of 0 (CSTK 0;) should be used only to deselect the collator mode and to receive the pages in the sorter’s bulk tray (if available).

This command is irrelevant to certain combination of photocopier models and option finisher models.

Note

!R! RES; CSTK 1, 2; COPY 2; EXIT; Page 1 (2 copies, tray 1) !R! PAGE; EXIT; Page 2 (2 copies, tray 2) !R! PAGE; EXIT; Page 3 (2 copies, tray 1) !R! PAGE; EXIT; Page 4 (2 copies, tray 2) !R! PAGE; EXIT;

PRESCRIBE Command Reference

CTXT — print Centered TeXT

Format

CTXT [,string][,option][,U-option];

Parameters

string:

any character string

option:

B = Leave cursor at center of string E = Move cursor at end of string L = Move cursor down one line N = Move cursor to beginning of next line

U-option:

Function

File

Underline text

The CTXT command prints the given string centered at the cursor location, then moves the cursor as designated by the option. The string must be enclosed in either single or double quotation marks. (If the string includes one kind of quotation marks, use the other kind to enclose it.) If the string is omitted, nothing is printed. If the option is omitted, the cursor is not moved. If the U-option is specified, the text is underlined. The underline thickness and location can be set by the SULP command.

The string is not centered between the right and left margins unless the cursor is located halfway between the margins. Before the CTXT command, the cursor should be moved to the desired center position by a command such as MAP, MRP, or PMRP.

The length of the string is unlimited, except that the command as a whole may not be longer than 255 characters. Carriage-return and linefeed codes in the string are ignored.

!R! RES; SLPI 3; SFNT "Helvetica-Bd", 16;

MAP 4, 1; CTXT ’NEWS!’, L, U; SFNT "TimesNewRoman-It", 16; CTXT ’Unforgettable Holidays in Sydney’, L; CTXT ’For 6 Days Only at $1000!’; PAGE;

EXIT;

Printout

CTXT

PRESCRIBE Command Reference

DAF — Delete All Fonts

Format

DAF;

Parameter

None

Function

The DAF command deletes all nonresident fonts and the font numbers assigned to scalable fonts by the SFNT command from the printing system’s memory. This enables the user to make room for new fonts, macros, and graphics.

File

Printout

!R! UNIT P; SLS 16; SFNT ’Helvetica-Bd’, 15, 2000, 277, 2, 0; SFNT ’Helvetica’, 15, 2001, 277, 1, .5;

FONT 10; TEXT ’1. FAREWELL TO ’, E; FONT 2000; TEXT ’FONT 2000’, N; FONT 2001; TEXT ’AND FONT 2001’, N; TEXT, N;

DAF; FONT 10; TEXT ’2. FAREWELL TO ’, E; FONT 2000; TEXT ’FONT 2000’, N; FONT 2001; TEXT ’AND FONT 2001’;

PAGE; EXIT;

DAM — Delete All Macros

Format

DAM;

Parameter

None

Function

The DAM command deletes all macro definitions made by using the PRESCRIBE MCRO command from the printing system’s memory. This en ables the user to make room for new macros, fonts, or graphics.

File

DAM

Printout

!R! RES; UNIT C; CMNT Print ENDM file first.; SFNT "Helvetica-Bd"; MAP 5, 4; CALL SCREEN, 9.2, 1.7; MAP 7, 5; TEXT ’This text is enclosed by’, L;

TEXT ’SCREEN macro.’; DAM; MAP 5, 6; CALL 10 BX; MAP 5, 7; CALL SCREEN, 9.2, 1.7; MAP 6, 8; TEXT ’SCREEN macro was deleted by DAM.’; PAGE; EXIT;

PRESCRIBE Command Reference

DAP — Draw to Absolute Position

Format

DAP x-coordinate, y-coordinate;

Parameters

x-coordinate:

distance from the left margin

y-coordinate:

distance from the top margin

Function

File

The DAP command draws a line from the current cursor position to a position specified relative to the top and left margins. The thickness of the line is designated by the SPD (set pen diameter) command. The coordinates and line thickness are measured in the units designated by the UNIT command.

The coordinates may be positive or negative. Negative coordinates cause the line to extend outside the margin.

The DAP command is ignored in the path mode graphics.

!R! RES;

UNIT C; CMNT Tree Diagram; STM 8; SLM 8; MAP 0, 0; DAP 2, 0.5; MAP 0, 1; DAP 2, 0.5; MAP 0, 1; DAP 2, 1.5; MAP 0, 2; DAP 2, 1.5; MAP 0, 2; DAP 2, 2.5; MAP 0, 3; DAP 2, 2.5; MAP 2, 0.5; DAP 4, 1; MAP 2, 1.5; DAP 4, 1; MAP 2, 1.5; DAP 4, 2; MAP 2, 2.5; DAP 4, 2; MAP 4, 1; DAP 6, 1.5; MAP 4, 2; DAP 6, 1.5;

PAGE; EXIT;

Printout

DAP

PRESCRIBE Command Reference

DELF — DELete Font

Format

DELF font-number;

Parameter

font-number:

number identifying the font to be deleted

Function

The DELF command deletes any designated non-resident font from the printing system’s memory. This enables the user to make room for new fonts, macros, and graphics.

The printing system’s memory is large but not unlimited, and judicious use of the DELF command may prevent memory overflow. (If a memory overflow occurs, the printing system gives an overflow warning message.) The amount of memory still available can be viewed on a status page, available by executing the STAT command.

File

Printout

!R! UNIT P; SLS 16; SFNT ’Helvetica-Bd’, 15, 2000, 277, 1.5, 0; SFNT ’Helvetica’, 15, 2001, 277, 1, .5;

FONT 2000; TEXT ’1. FAREWELL TO ’, E; FONT 2001; TEXT ’ITALICS’, N; TEXT, N;

DELF 2001;

FONT 2000; TEXT ’2. FAREWELL TO ’, E; FONT 2001; TEXT ’ITALICS’;

PAGE; EXIT;

DELM — DELete Macro

Format

DELM macro-name;

Parameter

macro-name:

name defined by a previous MCRO command

Function

The DELM command deletes a specified macro definition from the printing system’s memory to make room for new macros, fonts, or graphics, or so that the same name can be used for another macro.

DELM

PRESCRIBE Command Reference

File

!R! UNIT C; MCRO BX; SPD .05; BOX .8, -.8; MRP 1, 0; ENDM; MCRO SCREEN %, width, depth; CMNT Draws box with rounded corners; CMNT Leaves cursor at previous position; SPD .08; SCP; MRP .25, .25; ARC .23, .30, 270, 0; MRP 0, -.25; DRP %1, 0; MRP 0, .25; ARC .23, .30, 0, 90; MRP .27, 0; DRP 0, %2; MRP -.27, 0; ARC .23, .30, 90, 180; RPP; MRP 0, .25; DRP 0, %2; MRP .25, 0; ARC .23, .30, 180, 270; MRP 0, .27; DRP %1, 0; RPP; ENDM; SFNT "Helvetica-Bd"; MAP 5, 4; CALL SCREEN, 9.2, 1.7; MAP 7, 5; TEXT ’This text is enclosed by’, L; Text ’SCREEN macro.’; DELM SCREEN; MAP 5,8; CALL SCREEN, 9.2, 1.7; MAP 6, 10; TEXT ’SCREEN macro was deleted by DELM.’; PAGE; EXIT;

Printout

DPAT — select Dashed PATtern

Format

DPAT number;

Parameter

number:

number from 1 to 20 (11 to 20 are for user-defined patterns.)

Function

The DPA T command specifies the pattern of alternating black and white dashes to stroke the current path.

The resident patterns range in value between 1 and 10. Refer to resident patterns list on page 78. Numbers 11 to 20 are reserved for use with defining particular patterns using the SDP (Store Dash Pattern) command. If you specify a value between 11 to 20 when no user pattern has been defined, the path will be stroked in solid black.

DPAT

File

The DPAT command does not af fect the line drawn by the standard graphics commands such as DRP, BOX, ARC, etc.

!R! RES; UNIT C; MCRO DPAT; NEWP; SPD .2; SCP; SFNT "Helvetica-Nr", 10; TEXT ’DPAT %1’; PMRP 1.4, -.1; DPAT %1; PDRP 9, 0; RPP; PMRP 0, .7; STRK; ENDM; MZP 5, 5; FONT 13; CALL DPAT,1; CALL DPAT,2; CALL DPAT,3; CALL DPAT,4; CALL DPAT,5; CALL DPAT,6; CALL DPAT,7; CALL DPAT,8; CALL DPAT,9; CALL DPAT,10; PAGE; EXIT;

PRESCRIBE Command Reference

Printout

Related Command

SDP

DRP — Draw to Relative Position

Format

DRP x-coordinate, y-coordinate, ...;

Parameter

x-coordinate/y-coordinate:

coordinates as measured from the current cursor position

Function

The DRP command draws a line from the current cursor position to a specified relative position. The thickness of the line is designated by the SPD (set pen diameter) command. The coordinates and line thickness are measured by the value designated by the UNIT command.

DRP

File

Multiple pairs of coordinates may be specified. The printing system then draws a connected series of line segments, proceeding from one point to the next. For example, DRP 1, 2, 3, 4; is equivalent to DRP 1, 2; DRP 3, 4;. The coordinates may be positive or negative.

The DRP command is ignored in the path mode graphics. To add a line segment to a path, use the PDRP (in Path, Draw to Relative Position) command.

!R! RES; UNIT C; SPD .3; CMNT Cube; MZP 5, 10; DRP 4, 0, 2, -2, 0, -4, -4, 0, -2, 2, 0, 4; MRP 4, 0; DRP 0, -4, -4, 0, 4, 0, 2, -2;

PAGE; EXIT;

PRESCRIBE Command Reference

Printout

Related Command

PDRP

DRPA — Draw to Relative Position specified by

Angle

Format

DRPA length, angle;

Parameters

length:

length of the line

angle:

angle in degrees, measured clockwise from the vertical

DRPA

Function

File

The DRPA command draws a line of a specified length at a specified angle, starting from the current cursor position, with the thickness designated by the SPD command.

This command is ignored if placed within a path.

!R! RES; UNIT C;

MAP 2, 11;

DRPA 2, 72;

DRPA 2, 0;

DRPA 2, 144;

DRPA 2, 72;

DRPA 2, 216;

DRPA 2, 144;

DRPA 2, 288;

DRPA 2, 216;

DRPA 2, 0;

DRPA 2, 288;

PAGE; EXIT;

PRESCRIBE Command Reference

Printout

DUPX — select/deselect DUPleX mode

Format

DUPX mode;

Parameter

mode:

a number representing one of the following binding mode: 0 = simplex mode 1 = duplex mode, long-edge binding 2 = duplex mode, short-edge binding

Function

DUPX

The DUPX command is effective only when the option duplexer is installed to the printing system. It instructs the printing system to select or deselect duplex printing and sets the binding mode.

Portrait, short-edge

Portrait, long-edge

Landscape, long-edge

Landscape, short-edge

File/Printout

See DXPG on page 84.

PRESCRIBE Command Reference

DXPG — select DupleX PaGe side

Format

DXPG side;

Parameter

side:

a number representing the side of the ensuing page: 0 = Select next side (the same as form feed)

1 = Select front side 2 = Select back side

Function

The DXPG command is effective only when the option duplexer is installed to the printing system. It ends printing on the current page in the same manner as a form feed. However, unlike the form feed, it also selects the paper side, front or back, on which printing of the ensuing page is printed.

The side parameter 1 prints the ensuing page begins on the front side of the next sheet, regardless of whether the current page was printed on the front or back side of the current sheet.

The side parameter 2 prints the ensuing page begins on the back side of the current sheet if the current page was printed on the front side, or on the back side of the next sheet if the current page was printed on the back side.

File

DXPG

The following example selects the duplex mode with short-edge binding, a portrait page orientation which results in text printing on both sides of the page.

!R! CMNT Initiates a PRESCRIBE command sequence; RES; CMNT Causes a page break and resets parameters; DUPX 2; CMNT Selects duplex mode, short-edge binding; SPO P; CMNT Selects portrait orientation; STAK 1; CMNT Select face-down delivery; EXIT; This text prints right-side up on the front side of the page !R! DXPG 0; CMNT Ends current page (front side of the paper); EXIT; This text prints upside-down on the reverse side of the page !R! RES; EXIT;

Printout

This text points right side-up on the front side of the page

This text points upside-down on the reverse side of the page

PRESCRIBE Command Reference

DZP — Draw to Zero-relative Position

Format

DZP x-coordinate, y-coordinate;

Parameters

x-coordinate:

distance from the left edge limit of paper

y-coordinate:

distance from the top edge limit of paper

Function

File

The DZP command draws a line from the current curso r posit ion to a position specified relative to the top and left edge limits of the paper.

The thickness of the line is designated by the SPD (set pen diameter) command. The coordinates and line thickness are measured in the value designated by the UNIT command. The coordinates should be positive or zero. Negative coordinates are treated as zero.

The DZP command is ignored within a path construction. To add a zero-relative line segment in a path, use the PDZP (in Path, Draw to Zero-relative Position) command.

!R! RES;UNIT C;

MZP 0, 0; DZP 0, 5; MZP 1, 0; DZP 0, 4; MZP 2, 0; DZP 0, 3; MZP 3, 0; DZP 0, 2; MZP 4, 0; DZP 0, 1; MZP 5, 0; DZP 0, 0; PAGE;

EXIT;

Printout

Related Command

PDZP

DZP

PRESCRIBE Command Reference

EMCR — Enable MaCRo depending on paper

source

Format

EMCR mode, paper-source [ = print-side], [repeat-count] macro-name [, parameter...];

Parameters

mode:

E = enable automatic macro D = disable automatic macro

paper-source:

0 = multi-purpose feeder 1 = cassette 1 (printing system’s cassette) 2 = cassette 2 3 = cassette 3 4 = cassette 4 5 = cassette 5 6 = cassette 6 (bottom) 99 = envelope or universal feeder

print-side:

side of the page the macro is executed when duplex-printing 0 = front 1 = back

repeat-count:

number of times the macro is executed

macro-name:

name defined by the MCRO command

parameter:

values given to the dummy parameters in the macro definition

Function

EMCR

The EMCR command allows separate auto macros to be assigned for each of the separate paper sources. In duplex printing, it is also possible to assign separate auto macros for both the front and back sides of a page.

The following commands are invalid within a macro: AMCR, ASTK, PSRC, CCPY, DUPX, DXPG, JOBD, JOBL, JOBO, JOBP, JOBS,

JOBT, JOG, LDFC, LDFN, MID, MSTK, RDMP, SEM, SPSZ, SSTK, STAK, STAT, STPL, VMAL, VMPW

To disable the auto macro, use EMCR D. Note that EMCD D does not require other parameters such as paper-source.

PRESCRIBE Command Reference

ENDB — END a two-dimensional Barcode string

Format

ENDB;

Parameter

None

Function

The ENDB command terminates a barcode data string preceded by a XBAR or XBUF command. If there is no ENDB command after data input for the XBAR and XBUF commands, a malfunction may occur. As in the case of XBAR or XBUF command, if data length is omitted, 0, negative value or non integer, data string is counted, all characters until the program sees ;ENDB;. It is necessary to have no space and line feed between ‘;’ and ENDB.

If the XBCP 18 command is executed, the second and subsequent macro PDF417 symbols will be output. When ENDB is used immediately after XBCP 18 is executed, it is used alone, without association with XBAR or XBUF.

For details on two-dimensional barcodes, see Section 5.2. of the Technical Reference manual.

Kyocera Prescribe Command Reference

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

PRESCRIBE Command Reference

1. Overview of PRESCRIBE Commands by Function

Access Commands

Print System Setting Commands

Margin and Page Portrait/Landscape Orientation Commands

Font Commands

Cursor Movement Commands

Vector Graphics Commands

Path Mode Graphics Commands

Raster Graphics Commands

Color Commands

Barcode Commands

Macro Commands

Debug Commands

External Media Control Commands

e-MPS Commands

2. PRESCRIBE Commands

ALTB C

ALTB E

ALTB R

ALTB T

ALTF

AMCR

ASFN mode, font-number;

ASTK

BARC

BKLT

CALL

CCPY

CLIP

CMNT string;

COPY number;

CPTH

CSET symbol-set-id;

CSTK

DELF font-number;

DELM

DPAT

DRPA

DUPX

DXPG side;

EMCR mode, paper-source [ = print-side], [repeat-count] macro-name [, parameter...];
