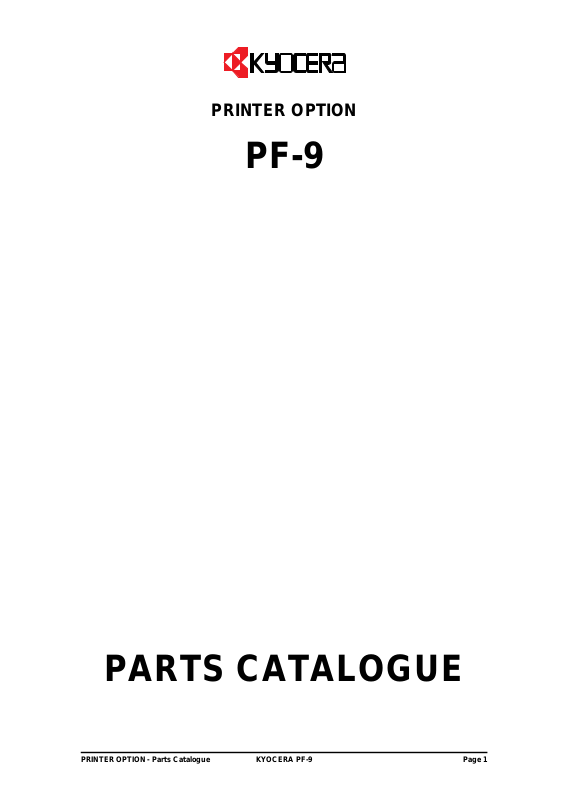

PRINTER OPTION
PF-9
PARTS CATALOGUE
PRINTER OPTION - Parts Catalogue KYOCERA PF-9 Page 1
PF-9 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
3Assembly (Fig.1)
PRINTER OPTION - Parts Catalogue KYOCERA PF-9 Page 2
07-001
07-007
07-003
14-002
01-003
07-008
07-002
01-010
07-009
14-003
13-001
05-002
13-003
07-007
01-008
08-001
10-001
07-005
10-003
10-002
09-001
01-008
09-002
01-013
01-012
07-007
08-004
07-005
07-006
08-005
02-005
08-007
07-004
02-003
08-006
08-003
08-008
08-002
02-004
01-011
08-007
01-002
02-006
02-001
02-007
14-001
17-003
18-001
17-001
11-004
18-002
18-001
13-002
18-002
06-001
Fig.1 - Assembly
06-002
04-002
11-001
06-003
11-006
02-002
01-001
11-005
16-002
16-003
16-001
11-007
PRINTER OPTION - Parts Catalogue KYOCERA PF-9 Page 3
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1BRACKET DRIVE ASSY5SNSP000973701-001
1FRAME RIGHT ASSY5SNSP000973801-002
1FRAME LEFT ASSY5SNSP000973901-003
1BUSHING5SNSP000974501-008
1BUSHING5SNSP000974501-010
1PWB CONTROL5SNSP000974601-011
1SENSOR PA-55SNSP000974701-012
1CONN. CORD ASSY5SNSP000974801-013
1BRACKET DRIVE5SNSP000974902-001
1MOTOR ASSY5SNSP000975002-002
1GEAR JOINT Z155SNSP000975202-003
2GEAR IDLE Z155SNSP000975302-004
1GEAR Z25-Z405SNSP000975402-005
1PLATE EARTH5SNSP000975502-006
1PLATE ARM ASSY5SNSP000975102-007
2FOOT5SNSP000975904-002
2FOOT5SNSP000975905-002
1COVER PANEL ASSY5SNSP000976106-001
1PWB PANEL5SNSP000976206-002
1CONN. CORD ASSY5SNSP000976306-003
1COVER TOP5SNSP000976607-001
1PE SENSOR ASSY5SNSP000976707-002
1ACTVATOR SENSOR5SNSP000976807-003
2CHANNEL REAM5SNSP000976907-004
3PLATE EARTH5SNSP000977007-005
1SHEET COVER 5SNSP000977107-006
2GUIDE PLATE5SNSP000977207-007
2SPRING GUIDE PAPER5SNSP000977307-008
1CONNECTER ASSY5SNSP000977407-009
1PLATE BASE5SNSP000977608-001
1COVER SENSOR REAR5SNSP000977708-002
1PWB SENSOR REAR5SNSP000977808-003
1COVER SENSOR WIDE5SNSP000977908-004
1PWB SENSOR WIDE5SNSP000978008-005
4SPRING ACTUATER5SNSP000978108-006
1CONN. CORD ASSY5SNSP000978208-007
4NYLON CLAMP5SNSP000978308-008
1ROLL FEED5SNSP000978409-001
1GEAR FEED Z305SNSP000978509-002
1ROLL DRIVE5SNSP000978610-001
1GEAR DRIVE Z155SNSP000978710-002
1BUSHING5SNSP000974510-003
1BASE CASSETTE ASSY5SNSP000978811-001
1GEAR PINION Z165SNSP000979111-004
1PLATE BOTTOM ASSY5SNSP000979211-005
PRINTER OPTION - Parts Catalogue KYOCERA PF-9 Page 4
QuantityDescriptionPart CodeRef No.
2SPRING CASSETTE5SNSP000979311-006
1BACK END ASSY5SNSP000979411-007
1GUIDE PAPER R5SNSP000980013-001
1LEVEL LOCK5SNSP000980113-002
1NAIL R5SNSP000980213-003
1GUIDE PANEL L5SNSP000980414-001
1NAIL L5SNSP000980514-002
1SPRING NAIL5SNSP000980314-003
1BACK END F5SNSP000980816-001
1BACK END R5SNSP000980916-002
1SPRING PRESS5SNSP000981016-003
1COVER FRONT5SNSP000981117-001
2ROLL PINCH ASSY5SNSP000981317-003
1ROLL PINCH5SNSP0009814 18-001
1SPRING ROLL PINCH5SNSP000981518-002
