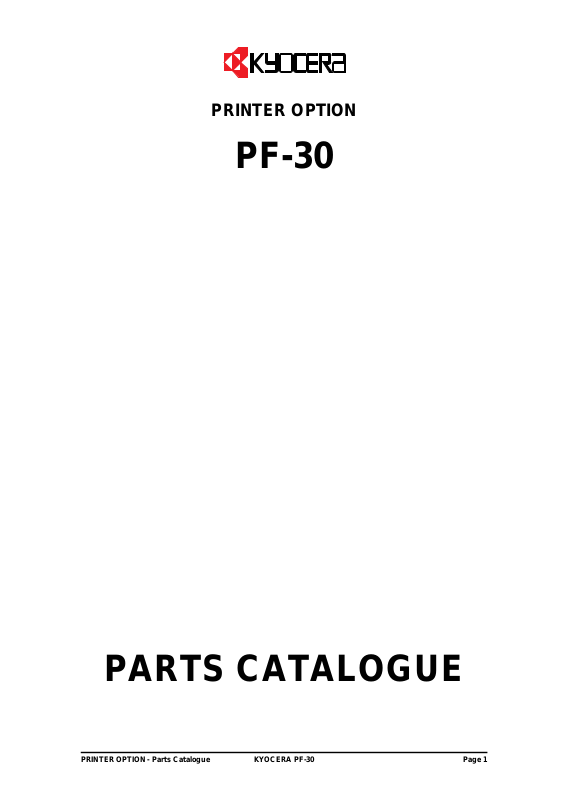

Page 1
PRINTER OPTION
PF-30
PARTS CATALOGUE
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 1
Page 2
PF-30 Parts Catalogue
Table of Contents
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
Reference number which corresponds to the parts in the figure’Ref No.’
Part code which identifies the part’Part code’
A brief description of the part’Part description’
Quantity of the part used in the printer or option’Quantity’
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
3Main Assembly (Fig.20A)
6Drive Assembly (Fig.20B)
8Cassette (Fig.21)
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 2
Page 3
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 3
20-004
20-009
20-032
20-032
20-054
20-026
20-008
20-033
Fig.20A - Main Assembly
20-006
20-013
20-034
20-062
20-031
20-043
20-012
20-009
20-043
20-010
20-012
20-042
20-031
20-060
20-012
20-080
20-081
20-035
20-003
20-011
20-051
20-047
20-044
20-032
20-062
20-044
20-011
20-001
20-055
20-055
20-024
20-012
20-062
20-026
20-047
20-061
20-002
20-051
20-061
20-054
20-063
20-032
20-053
20-027
20-048
20-039
20-027
20-064
20-025
20-050
20-005
20-036
20-038
20-037
20-007
Page 4
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1Plate Feed A5MMX965SD00120-001
1Plate Feed B5MMX963SD00120-002
1Plate Connector5MMX652SD00220-003
1Cover Feed Left5MVX985SH00120-004
1Cover Feed Right5MVX873SH01620-005
1Cover Feed Front A5MVX962SH00120-006
1Cover Feed5MVX985SH00220-007
1Cover Feed Rear5MVX986SH00220-008
1Gear Nip Assy5AAGEAR*02820-009
1Stay A-Pin5MMX973SD00220-010
1Stay B5MMX952SD00120-011
1Stay C5MMX855SD00120-012
1Rail Cassette L5MMX955SD00120-013
1Rail Cassette R20-014
1Plate Feed Drive5MMZ885SD00120-015
1Gear Feed Z23S5MVG132DN00220-024
1Spring Nip Feed5MMW261SD00320-025
1Roller Nip Feed5MMT876SN05220-026
1Pulley Middle5MVM276DN00520-027
1Shaft Nip Pulley5MMT643SN00120-028
4Foot5AAMPS6***0220-031
1Bush Drum5MMM121CX00120-032
1Spring Shaft FD5MMX432LD00120-033
1Cover Feed Front B5MVX962SH00220-034
1Stay A Right5MMB972SD00120-035
1Arm Cover5MVX622DN00120-036
1Lock Cover R5MVX421DN00320-037
1Spring Cover R5MMW261SD00420-038
1Plate Feed Right5MMX872SD00220-039
1Plate Feed C20-040
1BKT Cover Front5MMX732SD00120-042
1Stay B Front5MMX952SD00220-043
1Latch Rail5MVX321DN01020-044
1Coller DLP20-045
1Push Switch5ESP01000100*0120-049
1Bush SP Pulley5MVX111DN00220-050
Holder Cord5MMVX721SB00120-051
Spacer Motor5MVX754SB00920-052
1Plate Earth Cover5MMZ211LD00320-053
1Gear Nip Assy5AAGEAR*02820-054
1Rail Plate Assy5AAPLATE03120-055
1Plate Motor5MMX661SX00120-056
1Edge Clip5MVX531NB00420-057
1Ser No Plate5MVVSPF30**120-058
1Collar Spacer A5MMM140SZ01220-059
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 4
Page 5
QuantityDescriptionPart CodeRef No.
1Collar Spacer B5MMM140SZ01320-060
1Sheet Path5MVS431KF01320-061
1Sheet Rail Cass5MVS816EF00120-062
1Cord Keep5MMX221SW00220-063
1Shaft Nip Pulley5MMT743LD00120-064
1Conn Cord Assy5AACCNQD8GEA20-080
1Conn Cord Assy5AACCNQD9GEA20-081
1Conn Cord Assy5AACCNQE1GEA20-083
1Conn Cord Assy5AACCNQE2GEA20-084
1Conn Cord Assy5AACCNQE3GEA20-085
1Conn Cord Assy5AACCNQF8GEA20-086
1Feed PWB5AAPRCZR2004BH20-087
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 5
Page 6
20-087
20-059
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 6
Fig.20B - Drive Assembly
20-021
20-018
20-022
20-015
20-048
20-019
20-017
20-023
20-082
20-029
20-056
20-046
20-052
20-057
20-016
20-022
20-020
20-041
20-023
20-017
20-030
20-059
20-082
Page 7
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1Plate Feed Drive5MMZ885SD00120-015
1Cover Feed Drive5MVX774SN00120-016
1Feed Gear Z24SJ5MVG137DN01720-017
1Gear Free Z41S5MVG158DN02320-018
1Gear Z36S - Z30S5MVG148DN02220-019
1Gear Z39S5MVG148DN02320-020
1Gear Z63S5MVG169DN02220-021
1Gear Holder5MVX331CN00120-022
1Spring Joint Feed5MMW261LD02120-023
1DC Motor (Feed)5EZNT2400404*0320-029
1DC Motor (Nip)5EZNT2400404*0220-030
1Gear Z37S5MVG148DN02720-041
1Gear D Motor5EZND2400001*0120-046
1Photo Sencor5ENXGP1A44E1*0120-047
1Push Switch5ESP01000101*0120-048
1Conn Cord Assy5AACCNQE0GEA20-082
1Feed PWB KP-5465AAPRCZR2004BH20-087
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 7
Page 8
21-056
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 8
Fig.21 - Cassette
21-026
21-001
21-005
21-055
21-045
21-027
21-030
21-002
21-084
21-003
21-031
21-023
21-032
21-062
21-014
21-020
21-047
21-008
21-024
21-058
21-032
21-046
21-007
21-004
21-041
21-060
21-010
21-017
21-033
21-011
21-032
21-048
21-015
21-010
21-008
21-049
21-044
21-020
21-058
21-016
21-080
21-051
21-018
21-032
21-013
21-040
21-036
21-039
21-032
21-035
21-051
21-012
21-031
21-019
21-050
21-035
21-022
21-054
21-086
21-028
21-021
21-038
21-021
21-006
21-043
Page 9
QuantityDescriptionPart CodeRef No. QuantityDescriptionPart CodeRef No.
1Cassette Assy21-000
1Base Cassette5MVB996SH00621-001
1Plate Bottom5MVX882SH00121-002
1Guide Paper Side R5MML763SW00221-003
1Guide Paper Side L5MML765SW00121-004
1Rear Stopper5MVL666SH00221-005
1BKT Lift Bottom5MVX863SH00621-006
1Roller Retard Assy5AAVROLL*03221-007
1Roller Feed Assy5AAVROLL*03321-008
1Gear Nip Assy21-009
1Clutch Assy5AAVCLTCH00821-010
1Shaft Retard5MMT665SN00121-011
1Shaft Feed5MMT864SN00621-012
1Shaft Pick5MMT864SN00721-013
1Actuator Size5MVX521DB00221-014
1Gear Z35S5MVG147DN01421-015
1Gear Z305MVG147DN01221-016
1Turque Limmitor5AAVROLL*03121-017
1BKT Lift Pick5MMU752SD00221-018
1Stay Feed5MMX863SD00621-019
1Bush Retard5MVM276DN00921-020
1Rack5MVX731CN00121-021
1Holder LED5MVX665AC00321-022
1Holder Paper Side R5MMS756SD00821-023
1Holder Paper Side L5MMS756SD00921-024
1Label Size5MVS522KX00121-025
1Lever Lock Rear5MVX642CG00221-026
1Lever Lock Side5MVX642CG00121-027
1Actuator Rear5MVS628CN00121-028
1Pinion5MVG127DN04521-029
1Spring Retard21-030
1Pulley Rail Cass5MVM176DN00121-031
1BKT Rail Cass5MML222SD00621-032
1Pad Friction5MVS637WK00121-033
1Actuator Retard21-034
1Lid Cassette5MVX843SH01021-035
1Mode Switch5ESZ010201***0121-036
1Spring Separator21-037
1Spring Rack5MMW261SD00521-038
1Spacer Pick Up5MVX221DN00921-039
1Gear Mode SW5MVG165DN00221-040
1GearZ325MVG147DN01321-041
1Bush Joint21-042
1Plate Cassette5MMB871SD00121-043
1Actuator Empty5MVX631DB00121-044
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 9
Page 10
QuantityDescriptionPart CodeRef No.
1Spring Lever5MMW411LD00321-045
1Sheet Retard5MVS331KN00321-046
1Plate Retard5MMU531LD00121-047
1Pad Earth Rail5MVS331RN00121-048
1Plate Earth Rail5MMZ331LD00221-049
1Cover Connect5MVX865SX00121-050
1Cover Pick up5MVX642SX00121-051
1Label Pick up5MVVL642WN0821-052
1Label Cassette A5MVVL632WN0421-054
1Label Cassette B5MVVL632WN0521-055
1Paper Limit Label5MVVL431WN1321-056
1Spring Retard L5MMW241SD00321-057
1Spring Retard R5MMW241SD00421-058
1Stay Bottom5MML821SD00521-060
1Spring Actuator5MMW264LD00321-062
1Conn Cord Assy5AACCNQE4GEA21-080
1Conn Cord Assy5AACCNQE5GEA21-081
1Conn Cord Assy5AACCNQF5GEA21-082
1Conn Cord Assy5AACCNQF6GEA21-083
1Psize PWB KP-5815AAPRSSC1019AH21-084
1Pickup PWB KP-5835AAPRSSC1018AH21-085
1LED PWB KP-5855AAPRLDC1002AH21-086
PRINTER OPTION - Parts Catalogue KYOCERA PF-30 Page 10
