Kyocera DF 75P Diagram
DF-75
PH-2A
PARTS LIST
Published in Oct.’01
5FG70770
NOTE
1.Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity
5FG04120 FRONT COVER DF-75 60Hz 1
2.Service calls and freight will be charged separately.
3.Symbols in the "Parts Number" column.
• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name
3AK27510 WIRE, MIDDLE TRAY •J0150900 CONTACTOR, 175161-1(AMP)
•J0250900 SOCKET, BHF-001T-0.8SS
CONTENTS
FIG. Q01 MOUNTING HARDWARE · · · · · · · · · · · · · · · · · 2
FIG. Q10 EXTERNAL COVERS, PANELS, ETC. · · · · · · · 4
FIG. Q11 INTERNAL COMPONENTS 1 · · · · · · · · · · · · · · 6
FIG. Q12 INTERNAL COMPONENTS 2 · · · · · · · · · · · · · · 8
FIG. Q20 STACK MOTOR DRIVER ASSEMBLY · · · · · · · · 10
FIG. Q22 DRIVE ASSEMBLY· · · · · · · · · · · · · · · · · · · · · · · 12
FIG. Q24 BUNDLE SUPPORT COVER ASSEMBLY · · · · · 14
FIG. Q30 DISPOSE ASSEMBLY · · · · · · · · · · · · · · · · · · · · 16
FIG. Q32 PAPER FEEDER ASSEMBLY · · · · · · · · · · · · · · 18
FIG. Q35 FOLD ASSEMBLY (1/3) · · · · · · · · · · · · · · · · · · · 20
FIG. Q35 FOLD ASSEMBLY (2/3) · · · · · · · · · · · · · · · · · · · 22
FIG. Q35 FOLD ASSEMBLY (3/3) · · · · · · · · · · · · · · · · · · · 24
FIG. Q40 STAPLE ASSEMBLY (1/2) · · · · · · · · · · · · · · · · · 26
FIG. Q40 STAPLE ASSEMBLY (2/2) · · · · · · · · · · · · · · · · · 28
FIG. Q90 DC CONTROLLER PCB ASSEMBLY· · · · · · · · · 30
FIG. QB1 LIST OF CONNECTORS (1/2) · · · · · · · · · · · · · · 32
FIG. QB1 LIST OF CONNECTORS (2/2) · · · · · · · · · · · · · · 34
FIG. QB2 LIST OF ELECTRIC PARTS (1/2) · · · · · · · · · · · 36
FIG. QB2 LIST OF ELECTRIC PARTS (2/2) · · · · · · · · · · · 38
FIG. Q13 PUNCHER ASSEMBLY · · · · · · · · · · · · · · · · · · · 40
FIG. Q14 PUNCHER TOTAL ASSEMBLY · · · · · · · · · · · · · 42
FIG. QB1P LIST OF CONNECTORS (PUNCHER) · · · · · · · 44
FIG. QB2P LIST OF ELECTRIC PARTS (PUNCHER) · · · · · 46
• INDEX· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 48
– 1 –
FIG. Q01 MOUNTING HARDWARE
5FG
502
502
22
9
11
502
7
508
507
507
5
27
25
24
23
507
20
4
507
21
507
502
2
502
507
508
507
502
8
502
19
508
25
502
13
10
27
4
25
26
15
6
502
1
508
501
25
26
3
16
16
17
506
12
17
506
18
506
505
503
14
506
– 2 –
FIG. Q01 MOUNTING HARDWARE
Ref.
SP Part. No. Description
No.
1 5FG02010 BASE,LATCH 1 1 1
2 5FG02020 RETAINER A,RAIL 1 1 1
3 5FG02030 RETAINER B,RAIL 1 1 1
4 5FG02040 BRACKET,CASTER 4 4 4
'
5 5FG04280 FRONT COVER,SUPPORT 1 1 1
'
6 5FG04290 REAR COVER,SUPPORT 1 1 1
'
7 5FG04300 COVER,FOOT 1 1 1
'
8 5FG04310 COVER,SUPPORT PLA TE 1 1 1
'
9 5FG04320 FRONT COVER,ADJUSTING PLA TE 1 1 1
'
10 5FG04330 REAR COVER,ADJUSTING PLA TE 1 1 1
'
11 5FG04340 CAP ,SUPPORT PLA TE 4 4 4
12 5FG02050 GUIDE A,RAIL 1 1 1
13 5FG02060 GUIDE B,RAIL 1 1 1
14 5C120620 SLIDE CHOU 1 1 1
15 5C120700 PULLEY MOUNT UNIT(KM) 1 1 1
16 5C120750 CASTER RAIL 2 2 2
17 5FG11680 SP ACER RAIL 2 2 2
18 5C120930 SPRING,GROUNDING 1 1 1
19 5FG11690 ASSY,STAND 1 1 1
20 5FG11700 STAY,STAND 1 1 1
21 5FG11710 SUTAND BEES 1 1 1
22 5FG11720 SUTAND KABA 1 1 1
'
23 5FG11410 SD-BKT-F 1 1 1
24 5FG11730 SUTANDBURAKETO(BAKU) 1 1 1
25 5FG11740 SUTAND 1 1 1
26 5FG11750 SUTAND, 1 1 1
27 5FG11760 FUT 1 1 1
501 5FG13710 SCREW MACH,TRUSS HEAD.M4X10 2 2 2
502 5C119790 BIND(N)M4X6 13 13 13
503 59916200 WASHER,TOOTHED LOCK 1 1 1
505 5C120660 SCREW,BIND M4X4 1 1 1
506 5C120030 M4TP 8 8 8
507 5FG11860 SCREW M4X7 14 14 14
508 5FG12340 SCREW M4X8 8 8 8
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
5FG
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 3 –
FIG. Q10 EXTERNAL COVERS, PANELS, ETC
5FG
29
40
22
50
45
Z
17
16
20
502
21
W
TO FIGURE Q11
28
10
12
34
15
19
501
X
TO FIGURE Q12
11
14
To Puncher Unit
37
38
FIGURE Q13
T
41
E
E
S
6
F
43
24
27
18
15
26
49
502
TO FIGURE Q11
25
503
44
505
28
502
28
24
6
502
28
Y
TO FIGURE Q11
504
5
(CN1)
(CN2)
U
TO FIGURE Q11
7
9
8
13
2
Q
E
4
R
U
IG
501
30
(CN20)
(JS1)
28
46
39
2
43
24
25
23
4
1
36
32
V
33
TO FIGURE Q11
31
35
3
51
47
48
– 4 –
FIG. Q10 EXTERNAL COVERS, PANELS, ETC
Ref.
SP Part. No. Description
No.
'
1 5FG04010 HANDLE A,JAM RELEASE 1 1 1
'
2 5FG04020 REAR COVER 1 1 1
'
3 5FG04030 COVER,JAM FRAME 1 1 1
'
4 5FG04040 COVER,JAM RELEASE 1 1 1
5 5FG13700 CABLE,INTERFACE 1 1 1
6 5FG11770 CLIP 2 2 2
'
7 5FG04050 COVER,PUNCH LID 1 1 1
'
8 5FG10520 SPRING,TENSION 1 1 1
'
9 5FG04060 UPPER GUIDE,PUNCH DUMMY 1 1 1
'
10 5FG04070 GUIDE,PUNCH DUMMY 1 1 1
'
11 5FG04080 COVER,SIDE 1 1 1
'
12 5FG11360 LEVER,TRA Y UP/DOWN EMPTY 1 1 1
13 5FG11780 FIAG,PAPER SENSING REAR 1 1 1
14 5FG11790 SPRING,TENSION 1 1 1
15 5FG11800 LATCH,UPPER PANEL 2 2 2
'
16 5FG04090 UPPER COVER,SUB 1 1 1
'
17 5FG04100 UPPER COVER 1 1 1
18 5FG11810 SPRING,TORSION 1 1 1
19 5FG11820 SPRING,TORSION 1 1 1
20 5FG11830 HOLDER,ROLLER 1 1 1
'
21 5FG11430 ROLLER,PAPER FEED 1 1 1
'
22 5FG04110 COVER,RETAINING 1 1 1
'
23 5FG04120 FRONT COVER 1 1 1
24 5FG11840 BAND P ANEL 3 3 3
25 5FG11850 SUPPORT ,P ANEL BAND,2 2 2 2
'
26 5FG04130 TRAY A,ST ACK 1 1 1
'
27 5FG04140 TRA Y B,ST ACK 1 1 1
28 5FG11860 SCREW M4X7 3 3 3
29 5FG11870 PLA TE GROUNDING 1 1 1
'
30 5FG04150 COVER A,BRIDGE 1 1 1
'
31 5FG04160 COVER B,BRIDGE 1 1 1
32 5FG11880 FLAG BASE TRA Y 1 1 1
'
33 5FG04170 TRAY,MAIN 1 1 1
'
34 5FG04180 ARM,STOPPER 1 1 1
35 5FG11890 SPRING,TENSION 1 1 1
36 5FG11900 SPRING,TENSION 1 1 1
37 5FG11910 CLIP,SHAFT 1 1 1
38 5FG11920 CLIP,SHAFT 1 1 1
39 5FG11930 GUIDO,DUMMY PUNCHER P APER 1 1 1
40 5FG11940 LABEL STAPLE REMOVING 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
'
41 5FG10170 GEAR,48T/PULLEY,15T 1 1 1
43 5FG11960 SUPPORT ,P ANEL BAND,1 2 2 2
44 5FG11970 TRAY 1 1 1
45 5FG11980 TRAY 1 1 1
46 5FG11990 SHEET 1 1 1
47 5FG13720 SPACER 2 2 2
48 5FG13730 SCREW,STEPPED 2 2 2
49 5FG13740 TRAY, 1 1 1
50 5FG04350 TRAY,RIB 1 1 1
51 5FG13750 TENSION 2 2 2
501 5C119790 BIND(N)M4X6 8 8 8
502 5AH10870 SCREW,T APPING,P AN HEAD,M4X10 8 8 8
503 5AH14100 SCREW,T APPING,TRUSS HEAD,M3X6 1 1 1
504 5FG13760 SCREW M4X6 1 1 1
505 5C118090 TAPPING M4X6 2 2 2
5FG
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 5 –
FIG. Q11 INTERNAL COMPONENTS 1
5FG
TO FIGURE
Q10
Y
7
4
23
20
38
37
4
10
22
21
20
18
503
(CN56) (CN57)
(CN10)
42
47
(CN49)
(CN48)
4
(PI24)
(CN58)
(CN19)
50
49
29
29
31
33
34
32
11
28
51
44
TO FIGURE Q10
5
45
2
25
TO FIGURE
Q10
16
34
33
32
11
52
17
29
Z
29
28
A
14
6
23
48
4
10
4
12
8
W
26
4
4
40
24
21
30
501
4
20
8
27
28
39
28
13
36
35
TO FIGURE Q10
38
4
4
26
4
28
1
(M1)
(CN56)
37
46
4
U
28
15
9
4
(CN50)
(CN47)
41
(CN15)
TO FIGURE Q10
V
502
A
22
4
3
20
19
503
21
SEE FIGURE Q20
(CN74)
4
(CN71)
(CN6)
43
– 6 –

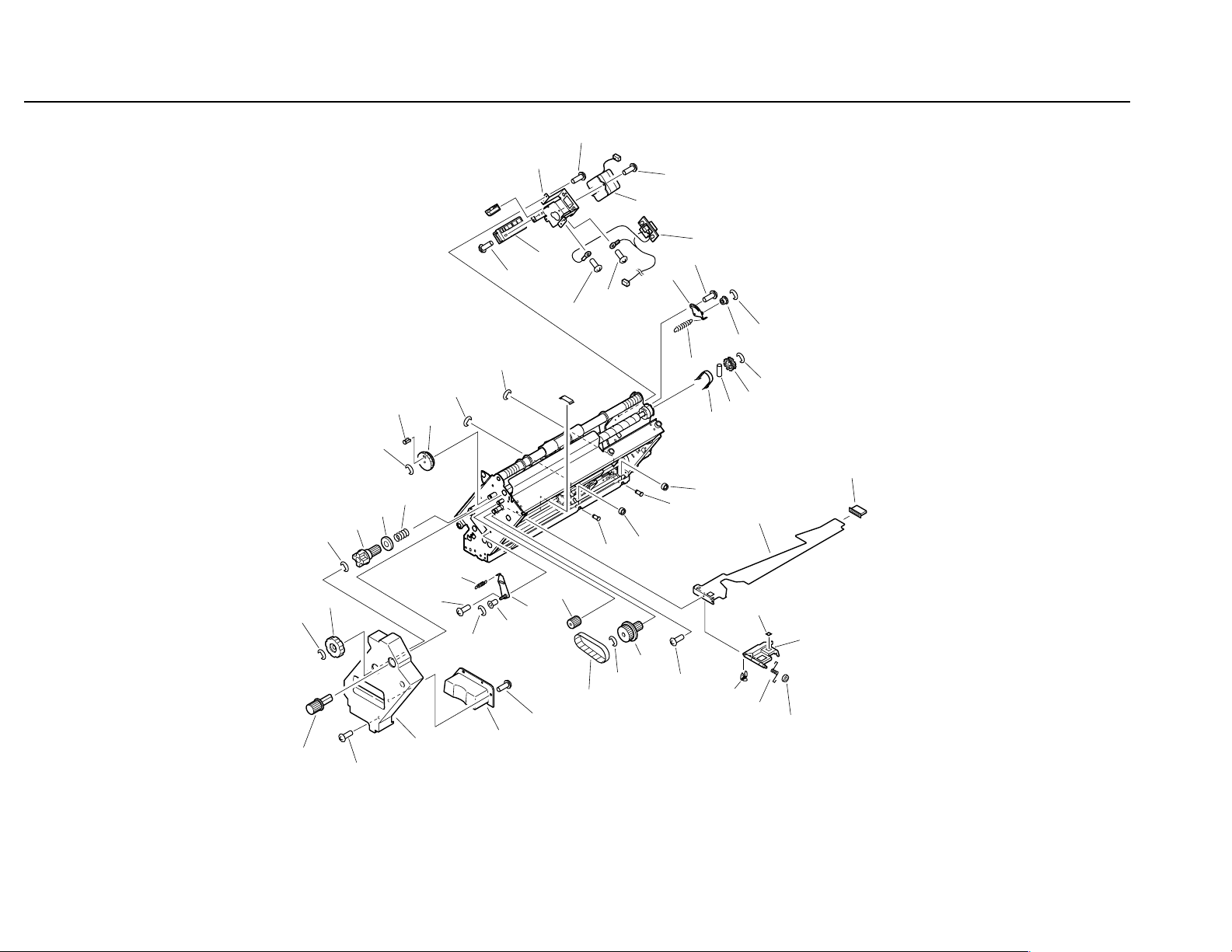

FIG. Q11 INTERNAL COMPONENTS 1
Ref.
SP Part. No. Description
No.
'
1 5FG10060 GEAR,24T/PULLEY,24T 1 1 1
2 5FG12230 LEVER ST ACK 1 1 1
'
3 5FG10010 GEAR,16T/PULLEY,18T 1 1 1
4 5FG11860 SCREW M4X7 14 14 14
5 57306720 SCREW STEPPED M3 1 1 1
6 5FG12240 HOLDER BELT REAR 1 1 1
7 5FG12250 HOLDER BEL T FRONT 1 1 1
8 5FG10490 ROLLER,TENSIONER 2 2 2
9 5FG12260 SPRING TENSION 1 1 1
'
10 5FG10660 SPRING,TENSION 2 2 2
'
11 5FG10680 SPRING,TENSION 2 2 2
'
12 5FG10700 SPRING,TENSION 1 1 1
'
13 5FG10760 PULLEY,18T/24T 1 1 1
14 5FG12270 LA TCH 1 1 1 1
15 5FG12280 LA TCH (2) 1 1 1
16 5FG12290 CABLE STACK SENSOR 1 1 1
17 5FG12300 BUSHING 1 1 1
'
18 5FG10770 PULLEY,18T 1 1 1
'
19 5FG10780 BUSHING 1 1 1
20 5FG12310 FLANGE 4 4 4
'
21 5FG11920 CLIP,SHAFT 5 5 5
'
22 5FG10840 BUSHING 2 2 2
23 5FG12330 SPRING LEAF 2 2 2
'
24 5FG10180 PULLEY,40T 1 1 1
'
25 5C111230 PHOTO INTERRUPTER B 1 1 1
26 5FG12340 SCREW M4X8 2 2 2
27 5FG12350 PLATE PAPER FEED TENSIONER 1 1 1 1
'
28 5FG11770 CLIP 4 4 4
29 5FG12360 CAP MOTOR 4 4 4
30 5FG12370 ROLLER RAIL 1 1 1
31 5FG12380 GUIDO STOPPER 1 1 1
32 5FG12390 LINK,1 2 2 2
33 5FG12400 LINK,2 2 2 2
'
34 5FG10820 SPRING,TENSION 2 2 2
'
35 5FG11280 MOTOR,STEPPING 1 1 1
36 5FG12410 SCREW,W/WASHER,M3X6 3 3 3
'
37 5FG10390 PULLEY,18T 2 2 2
'
38 5FG11140 BELT,TIMING 2 2 2
'
39 5FG11120 BELT,TIMING 1 1 1
'
40 5FG11110 BELT,TIMING 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
41 5FG12420 CABLE,SENSOR (1) 1 1 1
42 5FG12430 CABLE,FEED P ADDLE MOTOR 1 1 1
43 5FG12440 CABLE,DC MOTOR 1 1 1
44 5FG12450 ARM,STOPPER 1 1 1
45 5FG11890 SPRING,TENSION 1 1 1
'
46 5C117320 TIMING BELT50 1 1 1
47 5FG12480 TRAY FRONT KUMI 1 1 1
48 5FG12490 TRAY REAR KUMI 1 1 1
49 5FG13640 SUPPORT,KARRU 2 2 2
50 5FG13650 SHEET 2 2 2
51 5FG13770 PAD 1 1 1
52 5FG13780 STOPPER,PAD 2 2 2
501 5FG12460 PIN,DOWEL 1 1 1
502 5AH10870 SCREW,T APPING,P AN HEAD,M4X10 3 3 3
502 5C117780 B TIGHT 3 3 3
503 5FG12470 PIN,DOWEL 2 2 2
5FG
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 7 –
FIG. Q12 INTERNAL COMPONENTS 2
5FG
(CN51)
7
A
7
19
(CN53)
(CN52)
33
(PI4)
(CN23)
3
5
(PI22)
(CN25)
3
(CN9)
(CN64)
35
(CN62)
(PI1)
(CN44)
(CN3)
7
13
(CN43)
3
(CN44)
3
12
11
10
40
3
SEE FIGURE Q22
502
5
6
3
1
23
15
18
14
34
5
(CN73)
3
(CN18)
SEE FIGURE Q90
B
37
2
3
38
9
4
TO FIGURE Q10
X
3
6
3
3
7
(PI23)
(CN24)
25
26
3
9
B
41
45
(CN75)
(CN68)
27
8
(PI13)
(CN47)
24
7
28
(CN66)
3
(CN69)
17
36
(CN8)
C
42
43
44
(CN69)
B
22
3
(CN36)
(CN33)
29
31
(CN5)
17
C
(MS1)
(CN68)
21
20
501
A
(CN23)
(CN24)
(CN25)
3
(CN28)
(CN4)
(CN37)
(CN16)
(CN42)
32
30
– 8 –
FIG. Q12 INTERNAL COMPONENTS 2
Ref.
SP Part. No. Description
No.
'
1 5FG11370 COVER,STOPPER 1 1 1
2 5FG12340 SCREW M4X8 2 2 2
3 5FG11860 SCREW M4X7 15 15 15
4 5FG12000 PLA TE,ST APLER FRAME STOPPER 1 1 1
'
5 5FG11770 CLIP 5 5 5
'
6 5FG11050 BUSHING 2 2 2
'
7 5C111230 PHOTO INTERRUPTER B 5 5 5
8 5FG12010 COVER BLANKING 1 1 1
9 5FG12020 ROLLER FRAME TRA Y 2 2 2
10 5FG12030 GUIDE P APER LOWER 1 1 1
'
11 5FG11190 FLAG,SENSOR 1 1 1
'
12 5FG10690 SPRING,TENSION 1 1 1
13 5FG12040 CABLE SENSOR 1 1 1
14 5FG10490 ROLLER,TENSIONER 1 1 1
15 5FG12050 PLA TE P APER FEED TENSIONER,2 1 1 1
17 5FG11240 MICROSWITCH 2 2 2
'
18 5FG11090 BELT,TIMING 1 1 1
'
19 5FG11200 FLAG,TOP SENSOR 1 1 1
'
20 5FG11210 LEVER,SWITCH 1 1 1
21 5FG12060 HOLDER LEVER SUPPORT 1 1 1
22 5FG12070 HOLDER,SENSOR/MICROSWITCH 1 1 1
23 5FG12080 GEAR,24T 1 1 1
24 5FG12090 GUIDE,PAPER WEIGHT,1 1 1 1
25 5FG12100 PLATE,WEIGHT,1 1 1 1
26 5FG12110 PLATE,WEIGHT,2 1 1 1
27 5FG12120 GUIDE,PAPER WEIGHT,2 1 1 1
28 5FG12130 PANEL,FRAME COVER 1 1 1
29 5FG12140 SPRING,LEAF,GROUNDING 1 1 1
30 5FG12150 CABLE,FRONT DOOR SENSOR 1 1 1
31 5FG12160 CABLE,LEVER TRA Y SENSOR 1 1 1
32 5FG12170 CABLE SENSOR (2) 1 1 1
33 5FG12180 CABLE,SENSOR,3 1 1 1
34 5FG12190 SPRING TENSION 1 1 1
35 5FG12200 CABLE,JOG MOTOR 1 1 1
36 5FG12210 CABLE,SWITCH 1 1 1
37 5FG12220 CABLE,BIND CLUTCH 1 1 1
'
38 5FG11480 ROLLER,PAPER FEED 1 1 1
40 5FG13790 SENSOR 1 1 1
41 5FG13800 HOLDER,JOINT,SW 1 1 1
42 5FG13810 LEAF,GROUNDING 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
43 5FG13820 TENSION 1 1 1
44 5FG13830 LEVER, 1 1 1
45 5FG13840 GUIDE,PIN 1 1 1
501 5AH10870 SCREW,T APPING,P AN HEAD,M4X10 1 1 1
502 5AH10890 PIN,DOWEL 1 1 1
5FG
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 9 –
FIG. Q20 STACK MOTOR DRIVER ASSEMBLY
5FG
9
4
502
12
9
10
11
1
(PI16)
(CN49)
11
(PI17)
2
(CN48)
9
7
3
501
8
13
9
(CN70)
(CN74)
5
7
(M6)
(CN70)
6
10
9
– 10 –
FIG. Q20 STACK MOTOR DRIVER ASSEMBLY
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
5FG
Quantity
230V120V 240V
'
'
'
'
'
'
'
'
'
'
'
5FG13520 STACK MOTOR DRIVER ASSEMBLY 1 1 1
1 •5FG10020 GEAR,16T/40T 1 1 1
2 •5FG10030 GEAR,16T/45T 1 1 1
3 •5FG10040 GEAR,16T/45T 1 1 1
4 •5FG10050 PULLEY,56T 1 1 1
5 •5FG12500 CABLE,SHIFT MOTOR 1 1 1
6 •5FG11310 MOTOR,DC24V 1 1 1
7 •5FG11860 SCREW M4X7 3 3 3
8 •5FG12410 SCREW,W/WASHER,M3X6 2 2 2
9 •5FG11770 CLIP 5 5 5
10 •5FG11050 BUSHING 2 2 2
11 •5C111230 PHOTO INTERRUPTER B 2 2 2
12 •5FG12510 BELT,TIMING 1 1 1
13 •5FG12520 FIAG,CLOCK SENSOR 1 1 1
501 •5AH10890 PIN,DOWEL 2 2 2
502 •5FG12460 PIN,DOWEL 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 11 –
FIG. Q22 DRIVE ASSEMBLY
5FG
23
13
A
(CN7)
10
(CN11)
13
11
(CN72)
22
21
23
10
13
16
2
21
503
8
2
13
18
15
10
7
9
12
13
17
20
(PI14)
(CN52)
(CN71)
19
(M7)
A
501
14
502
1
12
9
6
4
10
3
5
– 12 –
FIG. Q22 DRIVE ASSEMBLY
Ref.
SP Part. No. Description
No.
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
5FG
Quantity
230V120V 240V
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
5FG13530 DRIVE ASSEMBLY 1 1 1
1 •5FG10250 GEAR,58T 1 1 1
2 •5FG10260 GEAR,23T 2 2 2
3 •5FG10270 GEAR,17T/65T 1 1 1
4 •5FG10280 GEAR,15T/54T 1 1 1
5 •5FG10290 GEAR,17T/29T 1 1 1
6 •5FG10300 GEAR,20T 1 1 1
7 •5FG10310 PULLEY,45T 1 1 1
8 •5FG10360 GEAR,82T 1 1 1
9 •5FG12530 CLIP,SHAFT 1 1 1
10 •5FG11920 CLIP,SHAFT 1 1 1
11 •5FG10840 BUSHING 1 1 1
12 •5FG10850 BUSHING 1 1 1
13 •5FG11860 SCREW M4X7 1 1 1
14 •5FG11040 BEARING,BALL 1 1 1
15 •5FG11130 BELT,TIMING 1 1 1
16 •5FG10240 GEAR,29T 1 1 1
17 •5FG12540 SCREW,M4X6 1 1 1
18 •5FG10320 FLAG,CLOCK SENSOR 1 1 1
19 •5FG11320 MOTOR,DC24V 1 1 1
20 •5FG11350 PHOTO-INTERRUPTER 1 1 1
21 •5FG10640 SPRING,COMPRESSION 1 1 1
22 •5FG12550 CABLE,STEPLER 1 1 1
23 •5FG12560 SCREW,STEPPED,M4 1 1 1
501 •5FG12460 PIN,DOWEL 1 1 1
502 •5FG12570 PIN,DOWEL 1 1 1
503 •5AH10890 PIN,DOWEL 1 1 1
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 13 –
FIG. Q24 BUNDLE SUPPORT COVER ASSEMBLY
19
10
14
5FG
7
11
12
9
17
8
13
18
2
16
(PI9)
(CN35)
1
(CN34)
4
6
15
5
2
3
– 14 –
FIG. Q24 BUNDLE SUPPORT COVER ASSEMBLY
Ref.
SP Part. No. Description
No.
5FG13540 BUNDLE SUPPORT COVER ASSEMBLY 1 1 1
1 •5FG12040 CABLE SENSOR 1 1 1
2 •5FG11860 SCREW M4X7 2 2 2
'
3 •5FG10670 SPRING,TENSION 1 1 1
'
4 •5FG10710 SPRING,COMPRESSION 1 1 1
'
5 •5FG10490 ROLLER,TENSIONER 1 1 1
6 •5FG11770 CLIP 1 1 1
7 •5FG12580 SHAFT,SUPPORT 1 1 1
'
8 •5FG10190 GEAR,20T/28T 1 1 1
9 •5FG12590 FIAG,PAPER SENSOR 1 1 1
'
10 •5FG10330 GEAR,5T 1 1 1
'
11 •5FG12600 BUSHING 1 1 1
'
12 •5FG10720 SPRING,TORSION 1 1 1
'
13 •5FG10730 SPRING,TORSION 1 1 1
'
14 •5FG10740 SPRING,TORSION 1 1 1
15 •5FG12010 COVER BLANKING 1 1 1
'
16 •5FG11230 FLAG,BUNDLE ROLLER 1 1 1
17 •5FG12620 SUPPORT,PAPER 1 1 1
18 •5FG12630 HOLDER,PAPER SUPPOR T 1 1 1
19 •5FG13850 TENSION,HOLDERGEAR 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
5FG
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
– 15 –
FIG. Q30 DISPOSE ASSEMBLY
5FG
44
51
9
51
45
48
46
47
3
3
8
3
42
16
SEE FIGURE Q32
503
3
30
25
30
503
B
29
27
13
3
49
38
37
32
50
52
39
36
39
33
54
31
3
501
(M5)
501
11
(M4)
(CN63)
(PI7)
(CN31)
(PI6)
(CN30)
12
14
(PI8)
(CN32)
NOTE 1: This assembly includes the assembly shown in Figure Q32.
NOTE 2: This assembly does not include the parts shown with key No. 8, 9 and 26.
(CN65)
11
12
14
3
(M3)
(CN59)
14
(CN59)
3
12
56
(MS4)
(CN75)
55
14
(CN50)
(PI15)
44
43
(MS3)
(CN66)
29
28
27
3
3
4
41
53
3
12
(M2)
(PI2)
(CN51)
(CN57)
34
14
3
40
(CN55)
(CN54)
2
23
31
24
5
7
B
19
15
6
502
A
17
18
502
29
20
1
4
3
34
(CN13)
35
6
A
20
19
22
21
18
502
19
22
(CN31)
(CN32)
(CN29)
(CN30)
10
26
– 16 –
Loading...
