Kyocera DC6500P Diagram

R

DC-6500

PARTS LIST

Published in Apr. ’98

36970771

Revision 1

DC-6500

NOTE

1. Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity

36904010 FRONT RIGHT COVER DC-6500 60Hz 1

2. Service calls and freight will be charged separately.

3. Symbols in the "Parts Number" column.

• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name

36700431 DRUM DRIVE ASS’Y •36722700 HOLDER, DRUM DRIVE

•36722710 RETAINER, DRUM DRIVE

• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name

•41529121 SOCKET ASS’Y KEY COUNTER ••41525016 SOCKET KEY COUNTER55

••J0220040 PLUG EL 4P, ELP-04V

4. See the last page of this parts list for the classification of the screws in the illustrations.

5. Items indicated by shaded areas ( ) are supply parts and should be ordered through your Regional Office.

Parts List

DC-6500

FIG.1 EXTERIOR COVERS · · · · · · · · · · · · · · · · · · · · · · · · · · 2
FIG.2 FRAMES · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG.3 CASSETTE(11"X8-1/2",8-1/2"X11"R) · · · · · · · · · · · · · · 6
FIG.4 LARGE PAPER DECK SECTION I · · · · · · · · · · · · · · · · 8
FIG.5 LARGE PAPER DECK SECTION II · · · · · · · · · · · · · · 10
FIG.6 LARGE PAPER DECK SECTION III · · · · · · · · · · · · · · 12
FIG.7 LARGE PAPER DECK SECTION IV· · · · · · · · · · · · · · 14
FIG.8 PAPER FEED-IN SECTION I · · · · · · · · · · · · · · · · · · · 16
FIG.9 PAPER FEED-IN SECTION II· · · · · · · · · · · · · · · · · · · 18
FIG.10 PAPER FEED-IN SECTION III · · · · · · · · · · · · · · · · · · 20
FIG.11 PAPER FEED-IN SECTION IV · · · · · · · · · · · · · · · · · · 22
FIG.12 PAPER FEED-IN SECTION V · · · · · · · · · · · · · · · · · · 24
FIG.13 PAPER CONVEYING SECTION I· · · · · · · · · · · · · · · · 26
FIG.14 PAPER CONVEYING SECTION II · · · · · · · · · · · · · · · 28
FIG.15 ORIGINAL SET SECTION · · · · · · · · · · · · · · · · · · · · · 30
FIG.16 OPTICAL SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · 32
FIG.17 OPTICAL SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · 34
FIG.18 IMAGE FORMATION SECTION I · · · · · · · · · · · · · · · · 36
FIG.19 IMAGE FORMATION SECTION II · · · · · · · · · · · · · · · 38
FIG.20 DEVELOPING SECTION I · · · · · · · · · · · · · · · · · · · · · 40
FIG.21 DEVELOPING SECTION II · · · · · · · · · · · · · · · · · · · · · 42
FIG.22 TONER HOPPER SECTION I · · · · · · · · · · · · · · · · · · 44
FIG.23 TONER HOPPER SECTION II · · · · · · · · · · · · · · · · · · 46
FIG.24 CLEANING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · 48
FIG.25 CLEANING SECTION II · · · · · · · · · · · · · · · · · · · · · · · 50
FIG.26 FIXING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · 52

CONTENTS

FIG.27 FIXING SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · · 54
FIG.28 DRIVING, COOLING SECTION I · · · · · · · · · · · · · · · · 56
FIG.29 DRIVING, COOLING SECTION II· · · · · · · · · · · · · · · · 58
FIG.30 DRIVING, COOLING SECTION III · · · · · · · · · · · · · · · 60
FIG.31 DUPLEX UNIT I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 62
FIG.32 DUPLEX UNIT II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 64
FIG.33 DUPLEX UNIT III · · · · · · · · · · · · · · · · · · · · · · · · · · · · 66
FIG.34 REVERSING SECTION · · · · · · · · · · · · · · · · · · · · · · · 68
FIG.35 PAPER EJECT SECTION · · · · · · · · · · · · · · · · · · · · · · 70
FIG.36 ELECTRICAL COMPONENTS I · · · · · · · · · · · · · · · · · 72
FIG.37 ELECTRICAL COMPONENTS II · · · · · · · · · · · · · · · · 74
FIG.38 ELECTRICAL COMPONENTS III · · · · · · · · · · · · · · · · 76
FIG.39 ELECTRICAL COMPONENTS IV · · · · · · · · · · · · · · · · 78
FIG.40 EXTERIOR COVERS (RDH) · · · · · · · · · · · · · · · · · · · 80
FIG.41 TABLE SECTION (RDH)· · · · · · · · · · · · · · · · · · · · · · · 82
FIG.42 PAPER FEED-IN SECTION I (RDH)· · · · · · · · · · · · · · 84
FIG.43 PAPER FEED-IN SECTION II (RDH) · · · · · · · · · · · · · 86
FIG.44 PAPER CONVEYING SECTION (RDH) · · · · · · · · · · · 88
FIG.45 PAPER EJECT SECTION (RDH)· · · · · · · · · · · · · · · · 90
FIG.46 DRIVING, ELECTRICAL SECTION (RDH) · · · · · · · · · 92
FIG.47 PARTITION SECTION (RDH) · · · · · · · · · · · · · · · · · · · 94
FIG.48 ELECTRICAL COMPONENTS (RDH) · · · · · · · · · · · · 96
FIG.49 ACCESSORIES & SERVICE PARTS · · · · · · · · · · · · · 98
FIG.50 OPTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 100
FIG.51 OPTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 102

– 1 –

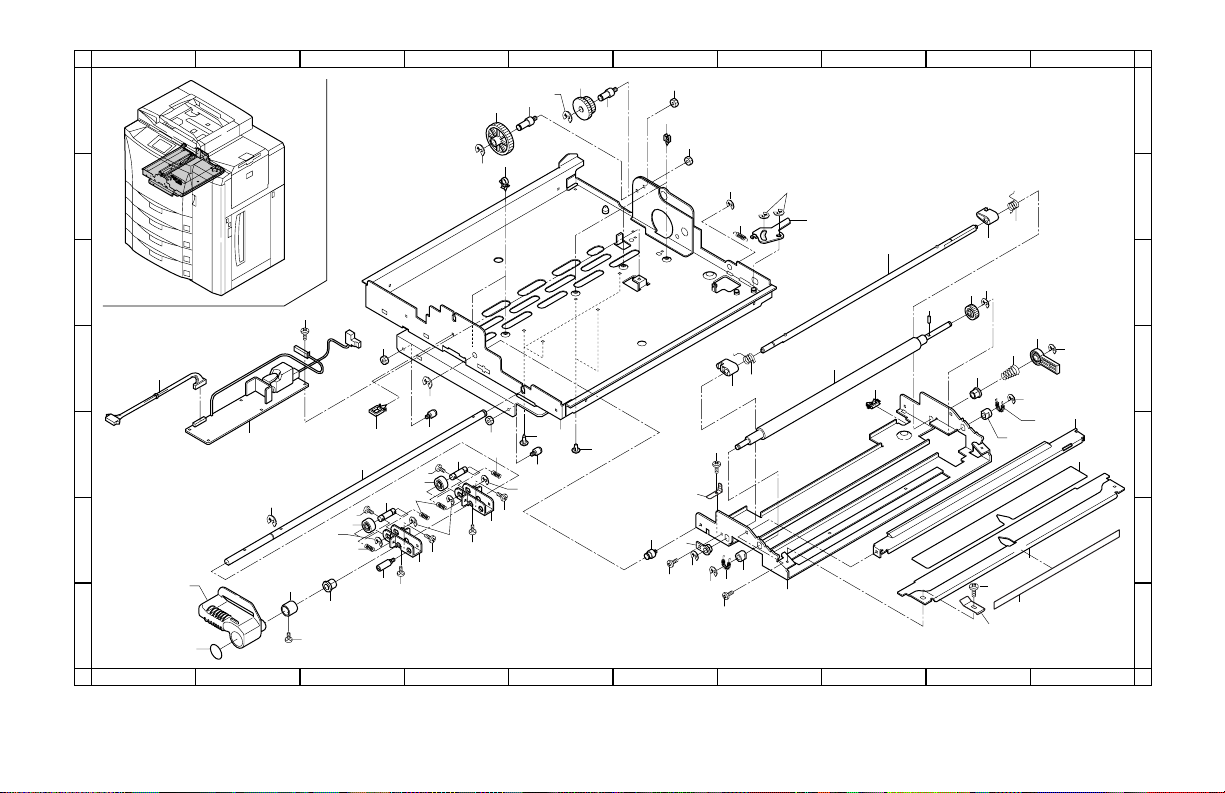

FIG. 1 EXTERIOR COVERS

ABCDEFGHI J

369/183

369/183-1

1

2

16

BGB

3

38

HCA

49

4

3

5

6

1

APM

4

42

7

A

BCDEFGHI J

HCA

41

EAH

45

17

HCC

BBE

BBE

4

2

APM

APM

6

24

28

APF

APM

HBD

6

APM

HBD

5

ABH

33

HBD

BAB

11

HBD

BAB

33

9

APF

8

10

RDC

7

APF

9

8

41

BAN

BHV

26

30

HCA

37

BAN

39

19

18

36

BHI

HCA

BBE

25

22

22

BHD

61

57

14

48

21

32

HBD

47

ABH

14

21

34

HBD

APM

61

HBD

HBD

ABE

43

APM

27

HCA

54

44

58

HBD

23

31

13

HCA

35

46

52

55

BGB

15

50

55

ADA

HCA

53

51

ADA

59

29

62

HCA

HCA

1

60

2

20

3

BCK

12

4

5

6

7

– 2 –

FIG. 1 EXTERIOR COVERS

Ref.

Part. No. Description

No.

1 36904250 FRONT LEFT COVER 1
2 36704020 UPPER FRONT POCKET,COVER 1
3 36704030 FRONT HINGE,COVER 1
4 36704200 FRONT MOUNT,COVER HINGE 2
5 36904050 STOPPER,SAFETY SWITCH 1
6 36704340 FRONT PROJECTION,COVER MAGNET 2
7 36704120 LOWER REAR LEFT COVER 1
8 36704210 LOWER REAR LEFT HINGE,COVER 2

9 36704220 LOWER REAR LEFT MOUNT,COVER HINGE 2
10 36704350 LEFT PROJECTION,COVER MAGNET 2
11 36904010 FRONT RIGHT COVER 1
12 36904060 RIGHT COVER,MIDDLE 1
13 36904020 COVER,HOPPER 1
14 36904040 MOUNT,HINGE 2
15 36904070 INNER COVER,HOPPER 1
16 36704102 LEFT COVER,MIDDLE 1
17 36904080 LOWER LEFT COVER 1
18 36904030 REAR COVER 1
19 36904100 UPPER REAR COVER 1
20 36904150 UPPER RIGHT COVER 1
21 74304250 HINGE,RIGHT DOOR 2
22 36704280 REAR MOUNT B,COVER 3
23 36904180 REAR RIGHT COVER 1
24 36704320 SHIELD,MAIN PCB 1
25 36704360 REAR SLIT,COVER 1
26 36904200 LOWER LEFT INNER COVER 1
27 36904210 LOWER RIGHT INNER COVER 1
28 36704390 UPPER INNER COVER 1
29 34004210 COVER,MEMORY UNIT WIRE 1
30 36904220 COVER,IMAGE FORMATION 1
31 36904230 UPPER RIGHT INNER COVER 1
32 36704430 COVER,TRANSFER CONVEYING 1
33 74304410 HINGE,DOOR 2
34 36704460 UPPER FRONT FEED GUIDE,COVER 1
35 36704470 REAR SLIT B,COVER 1
36 36904270 UPPER REAR HOLDER,COVER 1
37 36704500 COVER,RDH ADJUSTMENT 2
38 36704511 COVER,ROM 1
39 36704540 MIDDLE MOUNT,REAR COVER 1

Quantity

USA

(120V)

Ref.

Part. No. Description

No.

41 36718620 SPONGE,DISPOSAL TANK PRESSURE 3
42 60904230 STOPPER,SAFETY SWITCH 1
43 71804400 MAGNET CATCHER 1
44 36705010 LABEL,FEED OPERATION 1
45 62207620 MAGNET,FEED SHIFT 2
46 36904280 INNER GUIDE A,HOPPER 1
47 36705040 LABEL,CONVEYING OPERATION 1
48 36505050 LABEL,TRANSFER BELT 1
49 67505110 LABEL,STOPPER 1
50 36904290 INNER GUIDE B,HOPPER 1
51 36904300 INNER CAM,HOPPER 2
52 36904310 FRONT SPRING,HOPPER CAM 1
53 36904320 REAR SPRING,HOPPER CAM 1
54 44728101 MAGNET CATCHER 1
55 36904330 RETAINING PIN,ORIGINAL TRAY 2

57 36905010 LABEL,MACHINE OPERATION 1
58 36905030 LABEL,PAPER FEED DECK 1
59 36905040 LABEL,TRAY OPERATION 1
60 36905050 LABEL,TONER SUPPLY 1

61 1AF05050 CAUTION LABEL,HIGH VOLTAGE L (EXP) 2
62 36905100 LABEL SIM(EXP) 1

369/183

369/183-1

Quantity

USA

(120V)

• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.

– 3 –

• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.

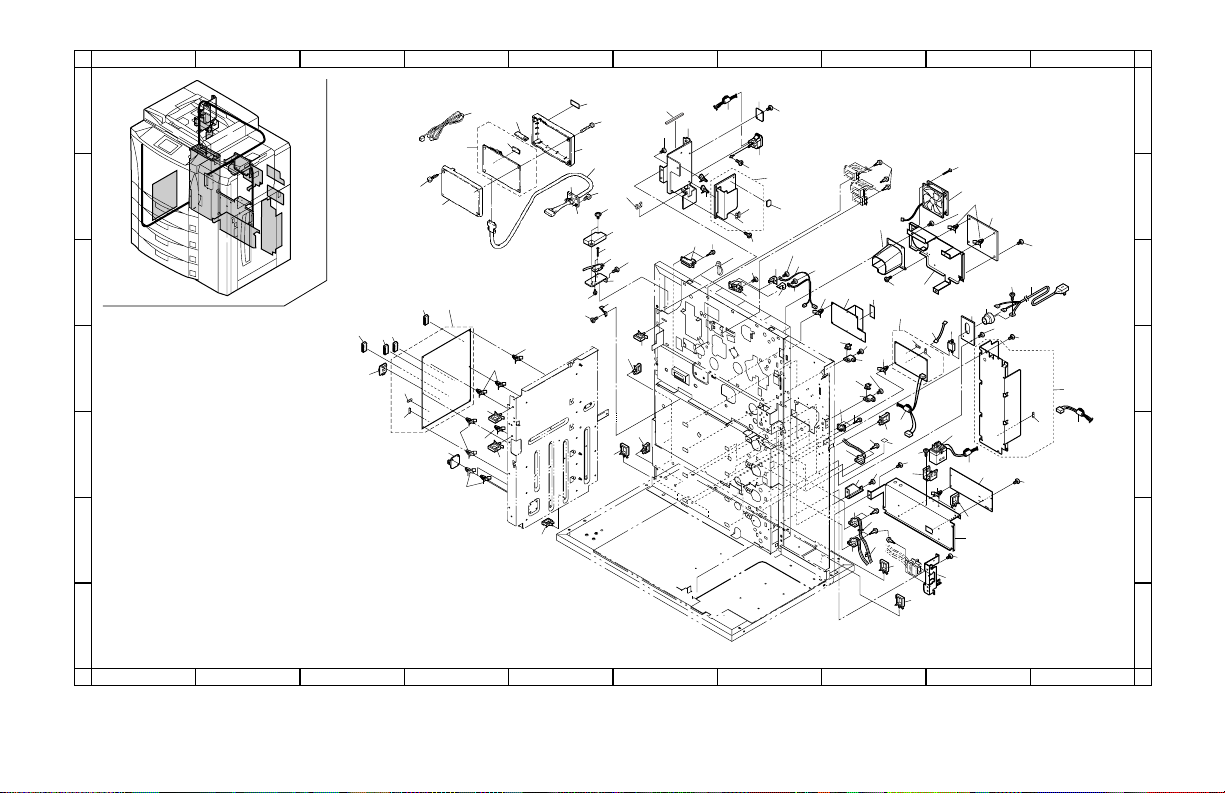

FIG. 2 FRAMES
