Quick Start Guide
DVD Maker 2
Introduction
Simply convert your aging VHS video collection straight into DVD using your MAC
Just connect practically any A/V source capture edit and burn to DVD.
For MAC users, please use iMovie to edit and burn your movies
MAC Installation
1. Please connect the Mulit-cable into the DVD Maker 2
2. Please plug the DVD Maker 2 into an available USB Port on your MAC
3. Please insert Driver CD, open the MAC OS folder, select file
“EMPIA1.0.0b18.pkg”, and follow the on-screen instructions.
4. Please restart your computer.
5. Use the EMPIA capturing program in the applications folder to capture videos and
the iMovie to create your movies.
Package Contents
z DVD Maker 2
z Mulit-Cable
z External USB Cable
z Quick Start Guide
z Installation CD
z ImageDJ CD with CG PAK and DV LOOPS
z CyberLink Combo CD with PowerDirector 6 and PowerProducer 4
System Requirements:
z PowerBook G4 1.5G or higher
z RAM: 512M DDR SDRAM
z OS : 10.4.5 above
Recommended System Requirements:
z MacBook Intel Core 2 Duo
z RAM: 1G DDR II SDRAM
z OS : 10.5 above
Page 2
Connection Diagram
MAC Installation Steps
1. Please insert the Installation
CD into the CD-ROM drive and
select the Mac OS folder.
2. Please execute Empia
1.0.0b18.pkg file.
Page 3
3. Please follow the on-screen
instructions to complete your
installation process.
4. Please follow the on-screen
instructions to complete your
installation process.
5. Please follow the on-screen
instructions to complete your
installation process.
Page 4
6. Please follow the on-screen
instructions to complete your
installation process.
7. Congratulations, the installation is
now complete, please reset your
computer.

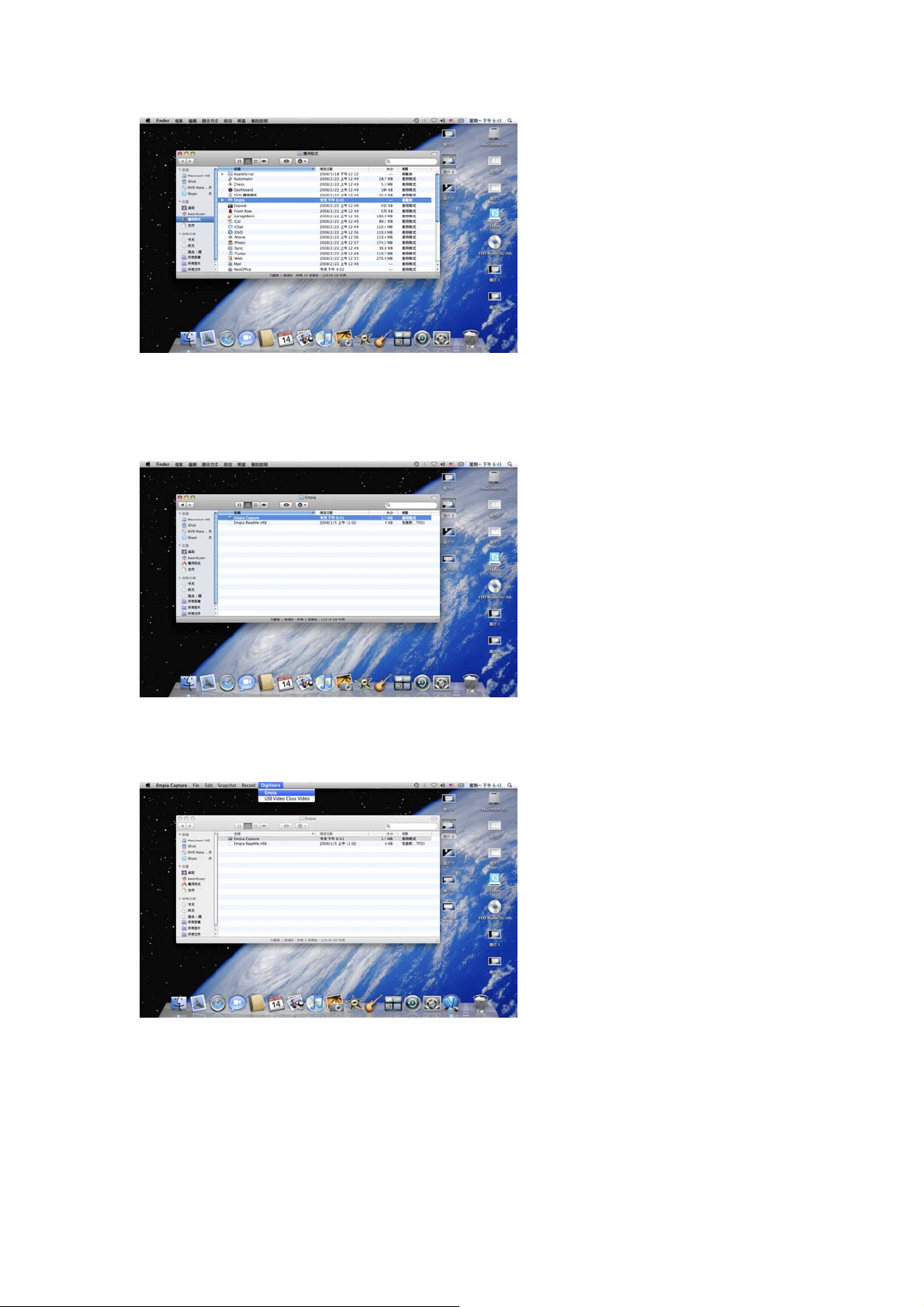

8. Please select “Go” from the
menu, and click-on
“Applications”.
Page 5
9. Please select the Empia folder.
10. Please click-on the Empia
Capture file.
11. Please choose hardware
device Empia
Page 6
Empia Capture Application
g
To close the viewin
File Close
Edit Can't Undo
Cut Cut the video clip.
Copy Copy the video clip.
window.
Undo the previous
execution
command.
Paste Paste the video clip.
Clear Clear
Select All Select All
Snapshot Snapshot Snapshot Save As
Adjust Snapshot
Snapshot Setup
setting. To setup file path, name and format.
Page 7
Record Video Settings To setup file source, transferring rate, file format…etc.
To setup file source, transferring rate, volume
Sound Setting
Record Video To execute video recording.
Record Sound To execute music recording.
Quarter Size 1/4 Screen
Half Size 1/2 Screen
Full Size Regular Size Screen
Double Size Double Size Screen
80 x 60 Aspect Ratio80 x 60
160 x120 Aspect Ratio160 x120
320 x240 Aspect Ratio320 x240
640 x480 Aspect Ratio640 x480
Custom Size Customize your screen size.
Full Screen Full Screen Mode.
Record Record
Record Duration To setup recording duration.
Record Setup To setup recording file path and file name.
control…etc.
Digitizers Empia Default Device.
