Kubota RTV-X900 Operator's Manual

Download

Code No. K7421-7121-4

OPERATOR'S MANUAL

UTILITY VEHICLE

1AYAACQAP0010

AS . E . 4 - 4 . - . AK

R T V

X 9 0 0

· R T V

X 1 1 2 0 D

KUBOTA Corporation 2013

PRINTED IN U.S.A.

READ AND SAVE THIS MANUAL

KUBOTA Corporation is ···

Since its inception in 1890, KUBOTA Corporation has grown to rank as one of the major firms in Japan.

To achieve this status, the company has through the years diversified the range of its products and services to a remarkable extent, until today, 19 plants and 16,000 employees produce over 1,000 different items, large and small.

All these products and all the services which accompany them, however, are unified by one central commitment. KUBOTA makes products which, taken on a national scale, are basic necessities. Products which are indispensable, products intended to help individuals and nations fulfill the potential inherent in their environment. For KUBOTA is the Basic Necessities Giant.

This potential includes water supply, food from the soil and from the sea, industrial development, architecture and construction, transportation.

Thousands of people depend on KUBOTA's know-how, technology, experience and customer service. You too can depend on KUBOTA.

Abbreviations Definitions

ABBREVIATION LIST

2 Wheel Drive

4 Wheel Drive

American Petroleum Institute

American Society of Agricultural and Biological Engineers, USA

American Society for Testing and Materials, USA

Deutsches Institut für Normung, GERMANY

Feet Per Minute

Hydrostatic Transmission

Kilometers Per Hour

Miles Per Hour

Meters Per Second

Power Take Off

Right-hand and left-hand sides are determined by facing in the direction of forward travel

Roll-Over Protective Structures

Revolutions Per Minute

Revolutions Per Second

Society of Automotive Engineers, USA

Variable Hydro Transmission

2WD

4WD

API

ASABE

ASTM

DIN

fpm

HST

Km/h

MPH

m/s

PTO

RH/LH

ROPS

rpm

r/s

SAE

VHT

IMPORTANT

The engine in this machine is equipped by the manufacture with a standard spark arrester. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on or near any forest-covered, brushcovered land, or grass- covered land unless the exhaust system is equipped with a working spark arrester meeting state laws. Other states or federal areas may have similar laws.

California Proposition 65

WARNING

Engine exhaust, some of its constituents, certain vehicle components and fluids, contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

UNIVERSAL SYMBOLS

As a guide to the operation of your vehicle, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning.

Safety Alert Symbol

Seat Belt (2 point type)

Seat Belt (3 point type)

Diesel Fuel

Fuel-Level

Hourmeter/Elapsed Operating Hours

Engine Coolant-Temperature

Brake Fluid

Parking Brake

Battery Charging Condition

Engine Oil-Pressure

VHT Oil-Temperature

Turn Signal/Hazard

Engine-Stop

Engine-Run

Starter Control

Diesel Preheat/Glow Plugs(Low Temperature Start Aid)

Differential Lock

Differential Lock Hold

Lift Cylinder-Retract

Lift Cylinder-Extend

Lift Cylinder-Float

Steering Wheel-Tilt Control

Hazard Warning Lights

Headlight

Audible Warning Device

Fast

Slow

4-Wheel Drive-On

Lock

Unlock

FOREWORD

You are now the proud owner of a KUBOTA Vehicle. This vehicle is a product of KUBOTA quality engineering and manufacturing. It is made of excellent materials and under a rigid quality control system. It will give you long, satisfactory service. To obtain the best use of your vehicle, please read this manual carefully. It will help you become familiar with the operation of the vehicle and contains many helpful hints about vehicle maintenance. This manual contains instructions for minor maintenance, but information about major repairs is outlined in the KUBOTA Work Shop Manual and should be performed only by a KUBOTA Dealer Technician. It is KUBOTA's policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to become outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.

This symbol, the industry's ''Safety Alert Symbol'', is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use this unit.

3 3 3

IMPORTANT :

NOTE :

DANGER :

WARNING :

CAUTION :

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

Indicates that equipment or property damage could result if instructions are not followed.

Gives helpful information.

SAFETY FIRST

CONTENTS

SAFE OPERATION ............................................................................................ -1

SERVICING OF VEHICLE........................................................................................... 1

SPECIFICATIONS....................................................................................................... 3

SPECIFICATION TABLE ......................................................................................... 3

TRAVELING SPEEDS ............................................................................................. 4

VEHICLE LIMITATIONS.............................................................................................. 5

INSTRUMENT PANEL AND CONTROLS................................................................... 6

LOCATION OF PARTS............................................................................................ 6

PRE-OPERATION CHECK ....................................................................................... 10

DAILY CHECK ....................................................................................................... 10

OPERATING THE ENGINE....................................................................................... 11

STARTING THE ENGINE ...................................................................................... 11

Cold Weather Starting ....................................................................................................13

Engine Hand Throttle......................................................................................................13

Block Heater ...................................................................................................................13

STOPPING THE ENGINE...................................................................................... 14

WARMING UP ....................................................................................................... 14

Warm-Up Transmission Oil in the Low Temperature Range.......................................... 14

JUMP STARTING .................................................................................................. 14

OPERATING THE VEHICLE ..................................................................................... 16

OPERATING NEW VEHICLE ................................................................................ 16

Do not Operate the Vehicle at Full Speed for the First 50 Hours ...................................16

Changing Lubricating Oil for New Vehicles .................................................................... 16

STARTING ............................................................................................................. 16

Locking and Unlocking the Door..................................................................................... 16

Seat Belt .........................................................................................................................17

Tilt Steering Wheel .........................................................................................................17

Seat Slide Lever .............................................................................................................17

Head Light Switch........................................................................................................... 18

Hazard Light Switch........................................................................................................18

Turn Signal Light Switch.................................................................................................18

Horn Button.....................................................................................................................19

Work Light (Front)........................................................................................................... 19

Work Light (Rear) ...........................................................................................................19

Brake Pedal ....................................................................................................................20

Range Gear Shift Lever..................................................................................................20

4WD Lever......................................................................................................................21

Parking Brake Lever ....................................................................................................... 21

Speed Control Pedal.......................................................................................................22

STOPPING............................................................................................................. 22

Stopping.......................................................................................................................... 22

CHECK DURING DRIVING ................................................................................... 22

Immediately Stop the Engine if:......................................................................................22

CONTENTS

Easy Checker(TM).......................................................................................................... 22

Fuel Gauge.....................................................................................................................23

Coolant Temperature Gauge..........................................................................................23

Hourmeter and Odometer...............................................................................................24

Speedometer ..................................................................................................................24

PARKING ............................................................................................................... 25

Parking Brake Lever ....................................................................................................... 25

ACCESSORY......................................................................................................... 25

12V Electric Outlet..........................................................................................................25

Utility Box........................................................................................................................25

Glove Box (Std.) and Glove Box Cover (if equipped) ..................................................... 26

OPERATING TECHNIQUES ................................................................................. 26

Differential Lock..............................................................................................................26

Directions for Use of Power Steering..............................................................................27

Unfamiliar Terrain ........................................................................................................... 27

Driving in Reverse ..........................................................................................................27

Driving in "4WD" .............................................................................................................28

Turning the Vehicle.........................................................................................................28

Hills.................................................................................................................................29

Traversing Hillsides ........................................................................................................29

Sliding and Skidding .......................................................................................................29

Driving through Water..................................................................................................... 30

OPERATING HAND THROTTLE........................................................................... 30

STATIONARY HYDRAULIC OUTLET ................................................................... 30

CARGO BED ............................................................................................................. 31

CARGO BED.......................................................................................................... 31

General Caution.............................................................................................................. 31

Max. Cargo Load ............................................................................................................31

Cargo Bed Tailgate......................................................................................................... 33

Raising and Lowering the Cargo Bed.............................................................................33

Raising and Lowering the Cargo Bed [without hydraulic dump] .....................................35

HYDRAULIC OUTLET............................................................................................... 36

HYDRAULIC OUTLET ........................................................................................... 36

Hydraulic Outlet Lever ....................................................................................................36

Hydraulic Outlet Valve Coupler Connecting and Disconnecting..................................... 37

TIRES AND WHEELS ............................................................................................... 38

TIRES..................................................................................................................... 38

Inflation Pressure............................................................................................................38

Tire Type and Use ..........................................................................................................38

WHEELS ................................................................................................................ 39

SHOCK ABSORBERS ........................................................................................... 39

Shock Absorber Spring Adjustment................................................................................ 39

TOWING AND TRANSPORTING.............................................................................. 40

TOWING AND TRANSPORTING .......................................................................... 40

Rear Trailer Hitch............................................................................................................40

Front Trailer Hitch...........................................................................................................40

Winch Mount Bracket......................................................................................................41

Transport the Vehicle Safely...........................................................................................41

CONTENTS

MAINTENANCE......................................................................................................... 42

SERVICE INTERVALS .......................................................................................... 42

LUBRICANTS, FUEL AND COOLANT .................................................................. 45

PERIODIC SERVICE................................................................................................. 49

HOW TO OPEN THE HOOD AND TILT THE SEAT.............................................. 49

Hood ...............................................................................................................................49

Seat ................................................................................................................................ 49

HOW TO RAISE THE CARGO BED...................................................................... 50

Raising and Lowering the Cargo Bed [if equipped with hydraulic dump]........................50

Raising and Lowering the Cargo Bed [without hydraulic dump] .....................................50

JACK-UP POINT.................................................................................................... 50

Front End........................................................................................................................50

Rear End......................................................................................................................... 51

DAILY CHECK ....................................................................................................... 51

Walk Around Inspection.................................................................................................. 51

Checking around Engine ................................................................................................51

Checking and Refueling..................................................................................................52

Checking Engine Oil Level..............................................................................................52

Checking Transmission Fluid Level................................................................................53

Checking Hydraulic Oil Tank Level................................................................................. 53

Checking Coolant Level.................................................................................................. 54

Cleaning Radiator Screen...............................................................................................54

Cleaning Oil Cooler Net..................................................................................................55

Checking Brake Fluid Level............................................................................................55

Checking Brake Pedal .................................................................................................... 56

Checking Parking Brake .................................................................................................56

Checking Easy Checker(TM).......................................................................................... 56

Checking Head Light, Turn Signal Light (if equipped) etc. .............................................56

Checking Seat Belt and ROPS.......................................................................................56

Checking Joint Boot........................................................................................................ 57

Checking Tire Inflation Pressure.....................................................................................58

Checking Backup Beeper ............................................................................................... 58

EVERY 50 HOURS ................................................................................................ 59

Greasing .........................................................................................................................59

Checking Engine Start System.......................................................................................60

EVERY 100 HOURS .............................................................................................. 61

Checking VHT Neutral Spring.........................................................................................61

Checking VHT Pressure Release...................................................................................61

Checking Wheel Fastener Torque..................................................................................62

Cleaning Air Cleaner Primary Element ........................................................................... 62

Adjusting Alternator Belt Tension ...................................................................................63

Checking Fuel Line and Fuel Filter ................................................................................. 63

Checking Battery Condition ............................................................................................64

Adjusting Toe-in.............................................................................................................. 66

Cleaning Muffler..............................................................................................................67

EVERY 200 HOURS .............................................................................................. 68

Adjusting Parking Brake .................................................................................................68

Replacing Engine Oil Filter .............................................................................................69

Changing Engine Oil....................................................................................................... 69

Replacing Transmission Oil Filter [VHT]......................................................................... 70

Replacing Transmission Oil Filter [SUCTION]................................................................ 71

CONTENTS

Changing Hydraulic Tank Oil..........................................................................................71

Checking Brake Pedal .................................................................................................... 72

Checking Brake Hose and Pipe...................................................................................... 73

Checking Front Brake Case............................................................................................73

Checking Brake Light Switch..........................................................................................74

Checking Radiator Hose, Pipe and Clamp .....................................................................74

Checking Intake Air Line................................................................................................. 75

Checking Hydraulic Oil Line............................................................................................76

EVERY 300 HOURS .............................................................................................. 77

Checking Tire..................................................................................................................77

EVERY 400 HOURS .............................................................................................. 78

Changing Front Knuckle Case Oil ..................................................................................78

Changing Transmission Fluid ......................................................................................... 78

Changing Front Axle Case Oil ........................................................................................ 79

EVERY 500 HOURS .............................................................................................. 80

Replacing Fuel Filter....................................................................................................... 80

EVERY 800 HOURS .............................................................................................. 80

Adjusting Engine Valve Clearance .................................................................................80

EVERY 1500 HOURS ............................................................................................ 80

Checking Fuel Injection Nozzle Injection Pressure.........................................................80

EVERY 3000 HOURS ............................................................................................ 80

Checking Injection Pump................................................................................................80

EVERY 1 YEAR ..................................................................................................... 80

Replacing Air Cleaner Primary Element and Secondary Element.................................. 80

EVERY 2 YEARS................................................................................................... 80

Changing Brake Fluid ..................................................................................................... 80

Flushing Cooling System and Changing Coolant ...........................................................80

Anti-Freeze .....................................................................................................................81

Replacing Radiator Hose (Water pipes) ......................................................................... 82

Replacing Hydraulic Oil Line...........................................................................................82

Replacing Fuel Hose ......................................................................................................82

Replacing Engine Breather Hose ...................................................................................82

Replacing Brake Master Cylinder (Inner Parts) ..............................................................82

Replacing Front Brake Seal............................................................................................ 82

Replacing Rear Brake Cylinder Seal .............................................................................. 82

Replacing Intake Air Line................................................................................................ 82

Replacing Air Conditioner Pipe and Hose ......................................................................82

EVERY 4 YEARS................................................................................................... 83

Replacing Brake Hose....................................................................................................83

SERVICE AS REQUIRED...................................................................................... 83

Bleeding Fuel System..................................................................................................... 83

Cleaning around Engine .................................................................................................83

Replacing Fuse...............................................................................................................83

Replacing Slow-Blow Fuses ........................................................................................... 85

Replacing Light Bulb.......................................................................................................85

Checking Hydraulic Tank Suction Strainer .....................................................................85

STORAGE ................................................................................................................. 86

VEHICLE STORAGE ............................................................................................. 86

REMOVING THE VEHICLE FROM STORAGE..................................................... 86

TROUBLESHOOTING............................................................................................... 87

CONTENTS

ENGINE TROUBLESHOOTING ............................................................................ 87

BATTERY TROUBLESHOOTING ......................................................................... 88

MACHINE TROUBLESHOOTING ......................................................................... 89

OPTIONS................................................................................................................... 90

INDEX........................................................................................................................ 91

SAFE OPERATION

-1SAFE OPERATION

Careful operation is your best insurance against an accident. Read and understand this Operator's Manual carefully before operating the vehicle. All operators, no matter how much experience they may have, should read this and other related manuals before operating the vehicle or any implement attached to it. It is the owner's obligation to instruct all operators in safe operation.

1. BEFORE OPERATING THE VEHICLE

1. Know your equipment and its limitations. Read this entire manual before attempting to start and operate the vehicle.

2. Pay special attention to the Danger, Warning and Caution labels on the vehicle.

3. Do not remove Roll-Over Protective Structures (ROPS) for any application and fasten seat belts at all times. This combination will reduce the risk of serious injury or death, should the vehicle be upset. If the ROPS is loosened or removed for any reason, make sure that all parts are reinstalled correctly before operating the vehicle. Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may weaken the structure. If any structural member of the ROPS is damaged, replace the entire structure at your local KUBOTA Dealer.

6. Carefully check the vicinity before operating the vehicle or any implement attached to it. Check for overhead clearance which may interfere with the CAB or ROPS. Do not allow any bystanders around or near the vehicle during operation.

7. Never allow anyone under age 16 or without a valid driver's license to operate this vehicle.

8. Before allowing other people to use your vehicle, explain how to operate and have them read this manual before operation.

9. Never wear loose, torn, or bulky clothing around the vehicle. It may catch on moving parts or controls, leading to the risk of an accident. Use additional safety items, e.g. helmet, safety boots or shoes, eye and hearing protection, gloves, etc., as appropriate or required.

10.This vehicle is for off road use only. KUBOTA does not recommend operating on public roads.

11.In addition to the driver, only 1 passenger should ride in the vehicle. Minimum age for passenger is 5 years old.

12.Keep all shields in place and stay away from all moving parts.

13.Check brakes, speed control pedal, and other mechanical parts for improper adjustment and wear. Replace worn or damaged parts promptly. Check the tightness of all nuts and bolts regularly. (For further details, see "MAINTENANCE" section.)

14.Keep your vehicle clean. Dirt, grease, and trash build up may contribute to fires and lead to personal injury.

15.Use only implements meeting the specifications listed under "VEHICLE LIMITATIONS" in this manual or implements approved by KUBOTA.

16.The maximum cargo capacity of this vehicle is 500 kg (1100 lbs.). Reduce cargo capacity to match operating conditions. Avoid top-heavy loading and ensure that the center-ofgravity remains as low as possible. Do not carry anything which sticks outside the cargo bed.

17.Do not modify the vehicle. Unauthorized modification may affect the function of the vehicle, which may result in personal injury.

18.Do not carry small children on lap.

(1) ROPS (2) Seat belt

4. Always use the seat belts. Check the seat belts regularly and replace if frayed or damaged.

5. Do not operate the vehicle or any implement attached to it while under the influence of alcohol, medication, controlled substances or while fatigued.

SAFE OPERATION-2

2. OPERATING THE VEHICLE

Operator safety is a priority. Safe operation, specifically with respect to overturning hazards, entails understanding the equipment and environmental conditions at the time of use. Some prohibited uses which can affect overturning hazards include traveling and turning with implements and loads carried too high etc. This manual sets forth some of the obvious risks, but the list is not, and cannot be, exhaustive. It is the operator's responsibility to be alert for any equipment or environmental condition that could compromise safe operation.

C Starting

1. Always sit in the operator's seat when starting engine or operating levers or controls.

2. Before starting the engine, make sure that all levers are in their neutral positions, that the parking brake is engaged, and that the hydraulic outlet (if equipped) is OFF. And make sure the engine hand throttle (if equipped) is in its idle engine speed position.

3. Do not start engine by shorting across starter terminals or bypassing the safety start switch. The vehicle may start in gear and move if normal starting circuitry is bypassed.

4. Be sure that the operator (and passenger) are properly positioned and seat belts are appropriately fastened.

5. Do not operate or idle engine in a non-ventilated area. Carbon monoxide gas is colorless, odorless, and deadly.

C Operating

1. Always wear the seat belt when operating the unit.

2. Do not wear headphones while operating.

3. Pull only from the trailer hitch (if equipped). Never hitch to any other point except trailer hitch; such arrangements will increase the risk of serious personal injury or death due to a vehicle upset.

5. Avoid sudden starts. To avoid rollovers, slow down when turning, on uneven ground, and before stopping. While increasing engine speed with the engine hand throttle (if equipped), operate the speed control pedal with great care to avoid sudden starts.

6. The vehicle cannot turn with the differential locked and attempting to do so could be dangerous.

7. Do not operate near ditches, holes, embankments, or other ground surface features which may collapse under the vehicle's weight. The risk of vehicle upset is even higher when the ground is loose or wet.

8. Watch where you are going at all times. Watch for and avoid obstacles. Be alert at row ends, near trees, and other obstructions.

9. When working in groups, always let the others know what you are going to do before you do it.

10.Never try to get on or off a moving vehicle.

11.Do not stand between vehicle and trailer unless parking brake is applied.

C Safety for children

Tragedy can occur if the operator is not alert to the presence of children. Children generally are attracted to vehicles and the work they do.

1. Never assume that children will remain where you last saw them.

2. Keep children out of the work area and under the watchful eye of another responsible adult.

3. Be alert and shut your vehicle down if children enter the work area.

4. Never carry children in the cargo bed. There is no safe place for them to ride. No person under the age of 5 may ride as a passenger in this vehicle. A passenger under 5 years of age requires special restraints which are not available with this vehicle.

5. Never allow children to operate the vehicle even under adult supervision.

6. Never allow children to play on the vehicle or on the implement.

7. Use extra caution when backing up. Look behind and down to make sure area is clear before moving.

8. Whenever possible, park your vehicle on a firm, flat and level surface. If this is not possible, park it across the slope. Set the parking brake(s), lower the implements to the ground, remove the key from the ignition and lock the door (if equipped) and chock the wheels.

(1) Trailer hitch (if equipped)

4. Keep all shields and guards in place. Replace any that are missing or damaged.

C Operating on slopes

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution.

1. Travel straight up or down hill.

2. Reduce load when operating on hilly or over rough terrain.

3. Keep front wheels straight at crest of hill or going over bumps.

-3SAFE OPERATION

4. Do not stop or start suddenly when going uphill or downhill. Be especially cautious when changing direction on slopes.

5. If vehicle stops or loses power going up a hill, lock parking brake to hold vehicle on slope. Maintain direction of travel and release brake slowly. Back straight downhill while maintaining control. Do not turn vehicle sideways. Vehicle is more stable in a straight forward or rearward position.

6. When riding on soft terrain, turn front wheels slightly uphill to keep vehicle on a straight line across the hill.

7. If the vehicle begins to tip, turn front wheels downhill to gain control before proceeding. (1) To avoid upsets, always back up steep slopes. If

you cannot back up the slope or if you feel uneasy on it, do not operate on it. Stay off slopes too steep for safe operation.

(2) Driving forward out of a ditch, mired condition or

up a steep slope increases the risk of a vehicle to be upset backward. Always back out of these situations. Extra caution is required with 4-wheel drive mode because the increased traction can give the operator false confidence in the vehicle's ability to climb slopes.

(3) Keep all movement on slopes slow and gradual.

Do not make sudden changes in speed, direction or apply brake and make sudden motions of the steering wheel.

(4) Special attention should be made to the weight

and location of implements and loads as such will affect the stability of the vehicle.

C Operation in inclement conditions

1. Only operate during daylight or with good artificial light.

2. Operate vehicle in an open, unobstructed area.

3. Use helmet and/or protective gear as appropriate or required for the operating conditions.

4. Reduce speed according to trail, terrain and visibility conditions.

5. Never drive exceeding the limit of visibility. Slow down near crest of hill until getting a clear view of the other side.

6. Stay alert for holes, rocks and other hidden hazards in the terrain.

7. Never cross any body of water where depth may be unknown to the operator (Deep water is considered anything in excess the bottom edge of the axle cap). Choose a course within the waterway where both banks have a gradual incline. Cross at a point known to be safe.

C Driving the vehicle at high speeds

1. Check the front wheel engagement. The braking characteristics are different between 2 and 4 wheel drive. Be aware of the difference and use carefully.

2. Always slow the vehicle down before turning. Turning at high speed may tip the vehicle over.

3. Turn the headlights on.

4. Drive at speeds that allow you to maintain control at all times.

5. Do not apply the differential lock while traveling at high speeds. The vehicle may run out of control.

6. Avoid sudden motions of the steering wheel as they can lead to a dangerous loss of stability. The risk is especially great when the vehicle is traveling at high speeds.

C Other miscellaneous

1. Clean platform if dirty and remove any debris from around foot controls.

2. Always keep both hands on the steering wheel.

3. Always keep arms and legs inside the operating compartment.

4. Never operate the vehicle while standing.

5. Do not tow a cart with any riders on it.

6. Never attempt wheelies, jumps or other stunts.

3. HAULING LOADS IN THE CARGO BED

1. No riders in cargo bed or anywhere else.

2. Do not overload vehicle. Securely anchor all loads.

3. Be sure load is evenly distributed.

4. Reduce cargo capacity when operating on rough or hilly terrain.

5. Balance loads evenly and secure them. Braking could shift the load and affect vehicle stability.

6. Never operate vehicle with the cargo bed raised.

7. Operate cargo bed dump with vehicle stationary and parking brake locked. Do not dump while moving.

8. Operate hydraulic dump (if equipped) on level ground only.

9. Operate dump from operator's seat only.

10.Do not place hands or body under the cargo bed when lowering bed.

4. OPERATING HYDRAULIC OUTLET DRIVEN EQUIPMENT (IF EQUIPPED)

1. Before installing or using hydraulic outlet driven equipment, read the manufacturer's manual and review the safety labels attached to the equipment.

2. Wait until all moving components have completely stopped before getting off the vehicle, connecting, disconnecting, adjusting, cleaning, or servicing any hydraulically driven equipment.

3. When operating stationary hydraulically driven equipment, always apply the vehicle parking brake and place chocks behind and in front of the rear wheels. Stay clear of all rotating parts. Never step over rotating parts.

SAFE OPERATION-4

(1) Hydraulic outlet (if equipped)

5. PARKING THE VEHICLE

1. Make sure the HYDRAULIC OUTLET is off (if equipped), lower all implements to the ground, place all control levers in their neutral positions, set the parking brake, stop the engine, and remove the key.

2. Make sure that the vehicle has come to a complete stop before dismounting.

3. Avoid parking on steep slopes, if at all possible park on a firm and level surface; if not, park across a slope with chock the wheels and always with attachment on the ground. Failure to comply with this warning may allow the vehicle to move and could cause injury or death.

7. SERVICING THE VEHICLE

Before servicing the vehicle, park it on a firm, flat and level surface, set the parking brake, lower all implements to the ground, place the range gear shift lever in neutral, stop the engine and remove the key.

1. Allow the vehicle time to cool off before working on or near the engine, muffler, radiator, etc.

2. Always stop the engine before refueling. Avoid spills and overfilling.

3. Do not smoke when working around battery or when refueling. Keep all sparks and flames away from battery and fuel tank. The battery presents an explosive hazard, because it gives off hydrogen and oxygen especially when recharging.

4. Before "jump starting" a dead battery, read and follow all of the instructions. (See "JUMP STARTING" in "OPERATING THE ENGINE" section.)

5. Keep first aid kit and fire extinguisher handy at all times.

6. Disconnect the battery's ground cable before working on or near electric components.

7. To avoid the possibility of battery explosion, do not use or charge the refillable type battery if the fluid level is below the LOWER (lower limit level) mark. Check the fluid level regularly and add distilled water as required so that the fluid level is between the UPPER and LOWER marks.

8. To avoid sparks from an accidental short circuit, always disconnect the battery's ground cable (-) first and reconnect it last.

(1) Parking brake lever

6. TRANSPORTING

1. Disengage power to attachment(s) when transporting or not in use.

2. Do not tow this vehicle. Use a suitable truck or trailer when transporting on public roads.

3. Use extra care when loading or unloading the vehicle into a trailer or truck.

(1) Battery

9. Do not remove radiator cap while coolant is hot. When cool, slowly rotate cap to the first stop and allow sufficient time for excess pressure to escape before removing the cap completely. This vehicle has a coolant recovery tank, add coolant or water to the tank, not the radiator. (See "Checking Coolant Level" in "DAILY CHECK" in "PERIODIC SERVICE" section.)

-5SAFE OPERATION

10.Do not attempt to mount a tire on a rim. This should be done by a qualified person with the proper equipment.

11.Always maintain the correct tire pressure. Do not inflate tires above the recommended pressure shown in the operator's manual.

12.Securely support the vehicle when changing wheels.

13.Make sure that wheel bolts and nuts have been tightened to the specified torque.

14.Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be accidentally lowered. If it is necessary to work under the vehicle or any vehicle elements for servicing or adjustment, securely support them with stands or suitable blocking beforehand.

15.Escaping hydraulic fluid under pressure has sufficient force to penetrate skin causing serious personal injury. Before disconnecting hydraulic lines, be sure to release all residual pressure. Before applying pressure to the hydraulic system, make sure that all connections are tight and that all lines, pipes, and hoses are free of damage. "High pressure fluid - Injection into body" hazard warning.

16.Fluid escaping from pinholes may be invisible. Do not use hands to search for suspected leaks; use a piece of cardboard or wood. Use of safety goggles or other eye protection is also highly recommended. If injured by escaping fluid, see a medical doctor at once. This fluid will produce gangrene or severe allergic reaction.

(1) Cardboard (2) Hydraulic line (3) Magnifying glass

17.Waste products such as used oil, fuel, hydraulic fluid, and batteries, can harm the environment, people, pets and wildlife. Please dispose properly. See your local Recycling Center or KUBOTA Dealer to learn how to recycle or get rid of waste products.

SAFE OPERATION-6

8. DANGER, WARNING AND CAUTION LABELS

-7SAFE OPERATION

SAFE OPERATION-8

-9SAFE OPERATION

SAFE OPERATION-10

-11SAFE OPERATION

9. CARE OF DANGER, WARNING AND CAUTION LABELS

1. Keep danger, warning and caution labels clean and free from obstructing material.

2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth.

3. Replace damaged or missing danger, warning and caution labels with new labels from your local KUBOTA Dealer.

4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is(are) attached in the same location(s) as the replaced component.

5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge.

SERVICING OF VEHICLE

Your dealer is interested in your new vehicle and has the desire to help you get the most value from it. After reading this manual thoroughly, you will find that you can do some of the regular maintenance by yourself. However, when in need of parts or major service, be sure to see your KUBOTA Dealer. For service, contact the KUBOTA Dealership from which you purchased your vehicle or your local KUBOTA Dealer. When in need of parts, be prepared to give your dealer the serial number of the vehicle, engine, transmission and ROPS. Locate the serial numbers now and record them in the space provided.

Type Serial No.

(1) Vehicle identification plate (2) Product identification number (3) ROPS serial number

1SERVICING OF VEHICLE

Vehicle

Engine

Transmission

ROPS

Product Identification Number

Date of Purchase

Name of Dealer (To be filled in by purchaser)

C Warranty

This vehicle is warranted under the Kubota Limited Express warranty a copy of which may be obtained from your selling dealer. No warranty shall, however, apply if the vehicle has not been handled according to the instruction given in the Operator's Manual even it is within the warranty period.

C Scrapping the vehicle and its procedure

To put the vehicle out of service, correctly follow the local rules and regulations of the country or territory where you scrap it. If you have questions, consult your local KUBOTA Dealer.

SERVICING OF VEHICLE2

[RTV-X900]

[RTV-X1120D]

(1) Engine serial number (2) Transmission assy serial number

SPECIFICATIONS

SPECIFICATION TABLE

Model

Make D902 D1105

Type 3 cylinders, 4-cycle, diesel, OHV

General

Purpose

RTV-X900 RTV-X1120D

Worksite

/Orange

Worksite

/Camo

Worksite

/Orange

Worksite

/Camo

3SPECIFICATIONS

Engine

Fuel Capacity L (U.S.gals) 30 (7.9)

Transmission Continuously variable hydro transmission (VHT)

Wheels, Drive system 4, Rear 2WD or 4WD

Differential lock Standard; foot operated with mechanical holder

Gear selection Hi-Low range forward, neutral, reverse

Brakes

Steering Hydrostatic power

Suspension

Displacement L (cu. in.) 0.898 (54.802) 1.123 (68.530)

Horsepower kW (HP) 16.1 (21.6) 18.5 (24.8)

Rated revolution rpm 3200 3000

Low idling revolution rpm 1300 to 1400 1350 to 1450

Front / Rear Wet disk brake

Parking brake Rear wheel, hand lever

Front

Independent, Dual A-Arm type

Rear

Length mm (in.) 3055 (120.3) 3110 (122.5)

Width mm (in.) 1605 (63.2)

Height, overall mm (in.) 2020 (79.5)

Front tread centers mm (in.)

Dimensions

Max. Rolling weight (Towing capacity)

Payload capacity kg (lbs.) 755 (1664) 725 (1598) 685 (1510)

Weight kg (lbs.) 865 (1907) 895 (1973) 935 (2061)

Gross Vehicle Weight Rating (GVWR)

Rear tread centers mm (in.)

Wheelbase mm (in.) 2045 (80.5)

Ground clearance

Turning diameter m (ft) 8.0 (26.2)

front axle mm (in.) 266 (10.5)

rear axle mm (in.) 263 (10.4)

kg (lbs.) Rear: 590 (1300), Front: 295 (650)

kg (lbs.) 1620 (3571)

1240 (48.8) HDWS, ATV

1290 (50.8) Turf

4 SPECIFICATIONS

Model

Width mm (in.) 1465 (57.7)

Length mm (in.) 1030 (40.5)

Depth mm (in.) 285 (11.2)

Cargo bed

Volume m (cu.ft.) 0.43 (15.2)

General

Purpose

RTV-X900 RTV-X1120D

Worksite

/Orange

Worksite

/Camo

Worksite

/Orange

Worksite

/Camo

Bed height (unloaded)

Cargo bed capacity kg (lbs.) 500 (1102)

Sound level, operator ear db (A) 85 84

Front

Tires

Rear

Tilt steering wheel - Std.

Seat belt 2 point type 3 point type

Front deluxe guard - Std. Std. - -

Front deluxe guard with light guard - - - Std. Std.

Body color Orange Orange Camo Orange Camo

Bed lift - Std. Std. Std. Std.

Speedometer Std. Std. Std. Std. Std.

Door - - - Std. Std.

Seat slide - Std. Std. Std. Std.

mm (in.) 887 (34.9)

25x10-12 ATV, 6PLY

25x10-12 HDWS, 6PLY

25x12-12 Turf, 4PLY

25x10-12 ATV, 6PLY

25x10-12 HDWS, 6PLY

25x12-12 Turf, 4PLY

25x10-12 HDWS, 6PLY

25x10-12 ATV, 6PLY

A The company reserves the right to change the specifications without notice. A The values in "Ground clearance" and "Weight" are those of the machine equipped with the tires in the table above.

TRAVELING SPEEDS

Traveling speeds

Range gear

shift lever

Gear position

RTV-X900 RTV-X1120D

Low km/h (mph) 24 (15) 25 (16)

High km/h (mph) 40 (25) 46 (29)

Reverse km/h (mph) 27 (17) 35 (22)

VEHICLE LIMITATIONS

The KUBOTA Vehicle has been thoroughly tested for proper performance with implements sold or approved by KUBOTA. Use with implements which are not sold or approved by KUBOTA and which exceed the maximum specifications listed below, or which are otherwise unfit for use with the KUBOTA Vehicle may result in malfunctions or failures of the vehicle, damage to other property and injury to the operator or others. [Any malfunctions or failures of the vehicle resulting from use with improper implements are not covered by the warranty]

Max. Cargo loading weight (W1) should not exceed "CBC" and "PCL". PCL (Permissible Cargo load) is determined by the following calculus equation.

PCL = PC - (operator + passenger + opt. + acc. + cabin) weight

5VEHICLE LIMITATIONS

Cargo bed

Rear trailer hitch

Front trailer hitch

[Payload Capacity (PC)]

Model

CBC (Cargo bed capacity): 500 kg (1100 lbs.) PC: Payload Capacity opt.: option acc.: accessory cabin: 125 kg (275 lbs.)

Max. rolling weight (W2): 590 kg (1300 lbs.) Max. tongue weight (W3): 50 kg (110 lbs.)

Max. rolling weight (W4): 295 kg (650 lbs.) Max. tongue weight (W5): 50 kg (110 lbs.)

RTV-X900 RTV-X1120D

General Purpose model Worksite model Worksite model

Payload capacity 755 kg (1664 lbs.) 725 kg (1598 lbs.) 685 kg (1510 lbs.)

Rolling weight: Trailer weight + Trailer load

A Above mentioned specifications are based on level ground condition.

6 INSTRUMENT PANEL AND CONTROLS

INSTRUMENT PANEL AND CONTROLS

LOCATION OF PARTS

ILLUSTRATED CONTENTS

(1) Front work light (if equipped).......................... 19

(2) ROPS............................................................. --

(3) Hazard / Turn signal light (if equipped)........... 18, 18

(4) Front hood...................................................... 49

(5) Headlights...................................................... 18

(6) Winch mount bracket...................................... 41

(7) Front trailer hitch bracket................................ 40

(8) Battery........................................................... 64

(9) Front guard.................................................... --

(10) Door (RTV-X1120D only)............................. 16

(11) Front trailer hitch (if equipped)...................... 40

7INSTRUMENT PANEL AND CONTROLS

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS

(1) Steering wheel................................................. -- (13) 12V accessory plug........................................ 25

(2) Cup holder........................................................ -- (14) Glove box cover (if equipped)......................... 26

(3) Horn button...................................................... 19 (15) Liquid crystal display...................................... 22

(4) Key switch........................................................ -- (16) Speedometer................................................. 24

(5) Turn signal light switch (if equipped)................. 18 (17) Hourmeter...................................................... 24

(6) Head light switch.............................................. 18 (18) Coolant temperature gauge............................ 23

(7) Hazard light switch (if equipped)....................... 18 (19) Fuel gauge..................................................... 23

(8) Brake pedal...................................................... 20 (20) Turn signal indicator (if equipped) /

(9) Speed control pedal......................................... 22 Hazard signal indicator (if equipped).............. 18, 18

(10) Range gear shift lever..................................... 20 (21) 4WD indicator................................................. 21

(11) Tilt lever (if equipped)..................................... 17 (22) Easy Checker(TM)......................................... 22

(12) Parking brake lever........................................ 21

8 INSTRUMENT PANEL AND CONTROLS

[RTV-X900] [RTV-X1120D]

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS

(1) Seat belts......................................................... 17 (6) Differential lock pedal....................................... 26

(2) Operator's seat................................................. 49 (7) Differential lock holder...................................... 26

(3) Passenger seat................................................ 49 (8) Hydraulic lift cylinder lever (if equipped) or

(4) Seat slide lever (if equipped)............................ 17 Hydraulic outlet lever (if equipped)................... 33, 36

(5) 4WD lever........................................................ 21 (9) Engine hand throttle (if equipped)..................... 30

9INSTRUMENT PANEL AND CONTROLS

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS

(1) Cargo bed........................................................ 31 (7) Fuel tank cap.................................................... 52

(2) Tailgate............................................................ 33 (8) Rear trailer hitch (if equipped)........................... 40

(3) Tail lamp (Combination lamp if equipped)......... 18 (9) Hydraulic outlet (if equipped)............................ 36

(4) Muffler.............................................................. 67 (10) Rear work light (if equipped)........................... 19

(5) Rear trailer hitch bracket................................... 40 (11) Backup beeper (if equipped)........................... 58

(6) Handgrip.......................................................... --

10 PRE-OPERATION CHECK

PRE-OPERATION CHECK

DAILY CHECK

To prevent trouble from occurring, it is important to know the condition of the vehicle well. Check it before starting.

To avoid serious injury: A Be sure to check and service the vehicle on a

level surface with the engine shut off and the parking brake "ON" and implement lowered to the ground if equipped.

Check item

- Walk around inspection

- Check engine oil level

- Check transmission fluid level

- Check brake fluid level

- Check hydraulic tank oil level

- Clean hydraulic oil cooler net

- Check coolant level

- Clean grill, radiator screen

(When used in a dusty place)

- Check brake pedal

- Check parking brake

- Check indicators, gauges and meters

- Check lights

- Check seat belt and ROPS

- Check joint boots

- Check tire inflation pressure

- Check backup beeper (if equipped)

- Refuel

(See "DAILY CHECK" in "PERIODIC SERVICE" section.)

- Care of danger, warning and caution labels

(See "DANGER, WARNING AND CAUTION LABELS" in "SAFE OPERATION" section.)

OPERATING THE ENGINE

STARTING THE ENGINE

11OPERATING THE ENGINE

To avoid serious injury: A Read and understand "Safe Operation" in front

of this manual.

A Read and understand the danger, warning and

caution labels located on the vehicle.

A To avoid the danger of exhaust fume

poisoning, do not operate the engine in a closed building without proper ventilation.

A Never start engine while standing on ground.

Start engine only from operator's seat.

A Make it a rule to set range gear shift lever to the

"NEUTRAL" position and to place the Hydraulic Outlet lever (if equipped) in "OFF" position and to place the hydraulic lift cylinder lever (if equipped) to the "NEUTRAL" position before starting the engine.

A Make sure the engine hand throttle (if

equipped) is in its idle engine speed position.

A Do not use starting fluid or ether. A To protect the battery and the starter, make sure that

the starter is not continuously turned for more than 10 seconds.

1. Make sure the parking brake is set.

(1) Parking brake lever (2) Release button

(A) Pull to "PARK"

2. Make sure the door is properly secured. (if equipped) See "Locking and Unlocking the Door" in "STARTING" in "OPERATING THE VEHICLE" section.

3. Set the range gear shift lever to the "NEUTRAL" position.

(1) Range gear shift lever (L) LOW Range

(H) HIGH Range (N) "NEUTRAL" POSITION (R) "REVERSE"

OPERATING THE ENGINE12

4. Lock the hydraulic lift cylinder lever or the hydraulic outlet lever to the "NEUTRAL" position with a restricting plate (if equipped).

(1) Hydraulic lift cylinder lever (if equipped) or Hydraulic outlet lever (if equipped) (2) Restricting plate (if equipped)

(A) "LOCK"

5. Push the speed control pedal down about 1/2 way.

(1) Speed control pedal (A) "INCREASE"

(B) "DECREASE"

6. Insert the key into the key switch and turn it "ON".

( ) "OFF" (Engine-Stop) ( ) "ON" (Engine-Run)

ON........ A All the accessories can be used while the

engine is stopped.

A Do not leave the key at "ON" position.

The battery will be quickly discharged. Turn it back to the "OFF" position after use.

( ) "GLOW" (Preheat) ( ) "START" (Engine-Start)

C Easy Checker(TM) Lamps:

1. When the key is turned "ON", lamps(3)(4) should come on. If trouble should occur at any location while the engine is running, the warning lamp corresponding to that location comes on.

2. The parking brake warning lamp(1) comes on while parking brake is applied and goes off when it is released. If the parking brake is released but the lamp stays on, it means that the brake system may be damaged.

(1) Parking brake (2) Brake fluid (3) Electrical charge (4) Engine oil pressure

(5) Glow plug (6) Hazard (if equipped) / Turn signal (if equipped)

13OPERATING THE ENGINE

8. Turn the key to "START" position and release when the engine starts.

A Because of safety devices, the engine will not start

except when the range gear shift lever is placed in the "NEUTRAL" position.

BCold Weather Starting

When the ambient temperature is below 0 (32 ) and the engine is very cold. If the engine fails to start after 10 seconds, turn off the key for 30 seconds. Then repeat steps 7 and 8. To protect the battery and the starter, make sure that the starter is not continuously turned for more than 10 seconds.

BEngine Hand Throttle

[if equipped]

When the ambient temperature is below -15 (-59 ) and the engine is very cold, pull the hand throttle to the "HIGH" position and turn the key switch to "START" position. After the engine starts, push the hand throttle back to the "LOW" position.

A Daily checks with the Easy Checker(TM) only, are not

sufficient. Never fail to conduct daily checks carefully by referring to "DAILY CHECK" in "PERIODIC SERVICE" section.

7. Turn the key to "PREHEAT" position and hold it for the preheating.

For the appropriate preheating time, refer to the table below:

Temperature Preheating Time

Over 0 (32 ) 2 to 3 sec.

-5 to 0 (23 to 32 ) 5 sec.

-15 to -5 (5 to 23 ) 10 sec.

Limit of continuous use 30 sec.

A Glow plug indicator(5) comes on while key switch is in

the "GLOW" position.

BBlock Heater

[if equipped]

A block heater is available as an option from your dealer. It will assist you in starting your vehicle when the ambient temperature is below -20 (-4 ).

9. Check to see that all the warning lamps on the Easy Checker(TM) are "OFF".

If any warning lamp stays on, immediately stop the engine and determine the cause.

OPERATING THE ENGINE14

STOPPING THE ENGINE

1. After slowing the engine to idle, turn the key to "OFF".

2. Return the engine hand throttle (if equipped) to its idle engine speed position.

3. Remove the key.

WARMING UP

To avoid serious injury: A Be sure to set the parking brake during warm-

up.

A Be sure to set the range shift lever to the

"NEUTRAL" position and lock both the hydraulic lift cylinder and the hydraulic outlet levers to the "OFF" position with restricting plate (if equipped) during warm-up.

For 5 minutes after engine start-up, allow engine to warm up without applying any load. This is to allow oil to reach every part of the engine. If load should be applied to the engine without this warm-up period, problems may develop such as seizure, breakage or premature wear may develop.

BWarm-Up Transmission Oil in the Low

Temperature Range

Hydraulic oil serves as transmission fluid. In cold weather, the oil may be cold with increased viscosity. This can cause delayed oil circulation or abnormally low hydraulic pressure for some time after engine start-up. This in turn can create problems with the hydraulic system. To prevent the above, observe the following instructions: Warm up the engine at about 50% of rated rpm according to the table below:

JUMP STARTING

To avoid serious injury: A Keep cigarettes, sparks, and flames away from

battery.

A If vehicle battery is frozen, do not jump start

engine.

A Do not connect other end of negative jumper

cable to negative terminal of vehicle battery.

A The parts such as the muffler may be hot. Be

careful not to get burned in connecting jumper cables.

When jump starting the engine, follow the instructions below to safely start the engine.

1. Bring helper vehicle with a battery of the same voltage as the disabled vehicle within easy cable reach. "THE VEHICLES MUST NOT TOUCH".

2. Engage the parking brake of both vehicles and put the shift lever in neutral. Shut the engine off.

3. Put on safety goggles and rubber gloves.

4. Ensure the vent caps are securely in place. (if equipped)

5. Attach the red clamp to the positive (red, (+) or pos.) terminal of the dead battery and clamp the other end of the same cable to the positive (red, (+) or pos.) terminal of the helper battery.

6. Clamp the other cable to the negative (black, (-) or neg.) terminal of the helper battery.

7. Clamp the other end to the engine block or frame of the disabled vehicle as far from the dead battery as possible.

8. Start the helper vehicle and let its engine run for a few moments. Start the disabled vehicle.

9. Disconnect the jumper cables in the exact reverse order of attachment. (Steps 7, 6 and 5).

Ambient temperature Warm-up time requirement

Above 0 (32 ) Approx. 5 minutes

-10 to 0 (14 to 32 ) 5 to 10 minutes

-20 to -10 (-4 to 14 ) 10 to 15 minutes

Below -20 (-4 ) More than 15 minutes

A Do not operate the vehicle under full load condition

until it is sufficiently warmed up.

15OPERATING THE ENGINE

(1) Dead battery (2) Jumper cables (3) Helper battery

A This vehicle has a 12 volt negative (-) ground starting

system.

A Use only same voltage for jump starting. A Use of a higher voltage source could result in severe

damage to vehicle's electrical system. Use only matching voltage source when "Jump starting" a low or dead battery.

16 OPERATING THE VEHICLE

OPERATING THE VEHICLE

OPERATING NEW VEHICLE

How a new vehicle is handled and maintained determines the life of the vehicle. A new vehicle just off the factory production line has been tested, but the various parts are not accustomed to each other, so care should be taken to operate the vehicle for the first 50 hours at a slower speed and avoid excessive work or operation until the various parts become "brokenin." The manner in which the vehicle is handled during the "breaking-in." period greatly affects the life of your vehicle. Therefore, to obtain the maximum performance and the longest life of the vehicle, it is very important to properly break-in your vehicle. In handling a new vehicle, the following precautions should be observed.

BDo not Operate the Vehicle at Full Speed

for the First 50 Hours

A Do not start quickly nor apply the brakes suddenly. A In winter, operate the vehicle after fully warming up the

engine.

A Do not run the engine at speeds faster than

necessary.

A On rough roads, slow down to suitable speeds.

Do not operate the vehicle at fast speed. The above precautions are not limited only to new vehicles, but to all vehicles. But it should be especially observed in the case of new vehicles.

BChanging Lubricating Oil for New

Vehicles

The lubricating oil is especially important in the case of a new vehicle. The various parts are not "broken-in" and are not accustomed to each other. Small pieces of metal grit may develop during the operation of the vehicle; and this may wear out or damage the parts. Therefore, care should be taken to change the lubricating oil a little earlier than would ordinarily be required. For further details of change interval hours, see "MAINTENANCE" section.

STARTING

1. Make sure the door is properly secured. (if equipped)

BLocking and Unlocking the Door

To avoid serious injury or death: A Secure the doors properly.

Secure the door properly to lock. Pull up the door handle to unlock.

(1) Door (2) Door handle

2. Fasten the seat belt.

(A) "UNLOCK"

17OPERATING THE VEHICLE

BSeat Belt

To avoid serious injury: A Seat belts reduce injury. Always wear your seat

belts. The lap-style seat belts may not provide adequate protection for small children. Special care is recommended when carrying a child passenger. Where appropriate, use a child safety seat.

To avoid serious injury: A Always use the seat belts when operating and

riding in the vehicle.

Adjust the seat belts for proper fit and connect the buckle. 2 point seat belt is an auto-locking retractable type. 3 point seat belt is an emergency locking retractable type.

[RTV-X900]

3. Adjust steering position.

BTilt Steering Wheel

[if equipped]

Adjust the steering wheel to proper position. The steering wheel can be adjusted while the tilt lever is pulled.

(1) Tilt lever (P) "PULL"

(1) Seat belt (2 point type)

[RTV-X1120D]

4. Adjust operator's seat.

BSeat Slide Lever

[if equipped]

Adjust the operator's seat to proper position. The operator's seat can be adjusted while the seat slide lever is pulled up.

(1) Seat slide lever (P) "PULL UP"

(1) Seat belt (3 point type)

OPERATING THE VEHICLE18

5. Selecting light switch position.

BHead Light Switch

The head light switch is operative when the key switch is in the "ON" position. Turn on the key switch and turn the head light switch clockwise to the "ON" position, the head lights light up. Turn the head light switch counterclockwise to the "OFF" position to turn off the head light.

(1) Head light switch (A) Head lights "OFF"

(B) Head lights "ON"

A Turning the head light switch to the "ON" position

causes the following lamps to light simultaneously. (1) Tail lights (lamps at the rear portions of the

vehicle)

BHazard Light Switch

[if equipped]

Press the hazard light switch, the hazard light flash along with the indicator on the instrument panel. Press the hazard light switch again to turn off the hazard light.

A The hazard light switch is operative when the key

switch is in either the "ON" or "OFF" position. Be careful that leaving the switch "ON" causes the battery to run out.

BTurn Signal Light Switch

[if equipped]

To indicate a right turn, turn the turn signal light switch clockwise. To indicate a left turn, turn the turn signal light switch counter-clockwise. When the left or right signal is activated, the indicated turning light will flash and the other will stay on. The indicator lamp at the instrument panel also flashes like the above.

A The turn signal light switch is only operative when the

key switch is in the "ON" position.

A If the hazard light switch is pressed to the "ON"

position while the turn signal is activated, the indicated turning light will flash and the other will stay on.

A Be sure to return switch to center position after turning.

(1) Turn signal light switch (A) "RIGHT TURN"

(B) "LEFT TURN"

19OPERATING THE VEHICLE

BWork Light (Front)

[if equipped]

When the key switch is turned to the "ON" position and the front work light switch is turned to the "ON" position, the work light comes on.

(1) Head light (2) Hazard / Turn signal light (if equipped) (3) Tail lamp (Combination lamp if equipped)

BHorn Button

The horn switch is operative when the key switch is in either the "ON" or "OFF" position. The horn will sound when the horn button is pressed.

(1) Front work light (if equipped) (2) Front work light switch (if equipped)

(A) "ON" (B) "OFF"

BWork Light (Rear)

[if equipped]

When the key switch is turned to the "ON" position and the slide switch at the rear of each work light is slid to the "ON" position, the work light comes on. When the slide switch is slid to the "OFF" position, the light goes off. After the slide switch for each work light is shifted to the "OFF" position, turn the key switch to the "OFF" position.

(1) Horn button

(1) Rear work light (if equipped) (2) Rear work light switch (if equipped)

(A) "ON" (B) "OFF"

OPERATING THE VEHICLE20

6. Checking the brake pedal.

BBrake Pedal

To avoid serious injury: A If the operator suddenly brakes, an accident

may occur due to loss of control or the shifting forward of heavy loads.

A When driving on icy, wet or loose surface,

operate at reduced speed to avoid skidding and loss of steering control.

The brake pedal is the left pedal on the foot board. Depress the pedal to slow or stop the vehicle.

8. Selecting the travel speed.

BRange Gear Shift Lever

To avoid serious injury: A Avoid changing range gear shift lever when

ascending or descending a slope.

A Before ascending or descending a slope, shift

to the "L" range to control the vehicle speed.

A If you shift gears while ascending or

descending a slope, be prepared to use the brake to maintain control.

A Operate in reverse at slow speeds to maintain

control.

1. The range gear shift lever can only be shifted when vehicle is completely stopped and the speed control pedal is in the "NEUTRAL" position.

2. To avoid transmission and shift linkage damage, completely stop the vehicle using the brake pedal before shifting gears.

3. Select proper gear and engine speed depending on the type of job.

4. Before dismounting vehicle, shift the range gear shift lever to the "NEUTRAL" position and set parking brake.

(1) Brake pedal

7. Start the engine. See "OPERATING THE ENGINE" section.

(1) Range gear shift lever (L) LOW Range

(H) HIGH Range (N) "NEUTRAL" POSITION (R) "REVERSE"

A When range gear shift lever is hard to engage, do not

force the lever. Set the parking brake, slightly depress the speed control pedal and release it to neutral position, then shift the lever. When the lever is hard to disengage, do not force the lever. Depress the brake pedal fully, then shift the lever.

A An accident may occur with erratic shifting operation.

21OPERATING THE VEHICLE

A Failure to completely engage the range gear can

cause the vehicle to coast on slopes.

B4WD Lever

To avoid serious injury: A Do not engage the front wheel drive when

traveling at road speed.

A When driving on icy, wet or loose surface,

operate at reduced speed to avoid skidding and loss of steering control.

A An accident may occur if the vehicle is

suddenly braked, such as by heavy towed loads shifting forward causing loss of control.

A The braking characteristics are different

between 2 and 4 wheel drive. Be aware of the difference and use carefully.

A Use the lever to engage the front wheels with the

vehicle stopped. Shift the lever to "4WD" to engage the front wheel drive. When the lever is in "4WD" position, the 4WD indicator comes on.

A Tires will wear quickly if front wheel drive is engaged

on paved roads.

C Front wheel drive is effective for the following

jobs:

1. When greater pulling force is needed, such as working in a wet field, when pulling a trailer, or when working with a front-end blade.

2. When working in sandy soil.

9. Unlock the parking brake and start slowly.

BParking Brake Lever

To release the parking brake, depress the brake pedal, push release button and push up parking brake lever. Depressing the brake pedal makes release force smaller. Make sure that indicator in the Easy Checker(TM) goes off.

(1) 4WD lever (A) "2WD"

(B) "4WD"

(1) 4WD indicator

(1) Parking brake lever (2) Release button

(A) "RELEASE" (B) "PUSH"

OPERATING THE VEHICLE22

BSpeed Control Pedal

Use the speed control pedal when traveling. Push down on it for higher speed.

(1) Speed control pedal (A) "INCREASE"

STOPPING

BStopping

1. Release the speed control pedal.

2. Step on the brake pedal.

3. After the vehicle has stopped, put the range gear shift lever in neutral, and set the parking brake.

CHECK DURING DRIVING

BImmediately Stop the Engine if:

A The engine suddenly slows down or accelerates. A Unusual noises suddenly occur. A Exhaust fumes suddenly become very dark.

While driving, check the following items to see that all the parts are functioning normally.

BEasy Checker(TM)

If the warning lamps in the Easy Checker(TM) come on during operation, immediately stop the engine, and find the cause as shown below. Never operate the vehicle with an Easy Checker(TM) lamp on.

Engine oil pressure

If the oil pressure in the engine goes below the prescribed level, the warning lamp in the Easy Checker(TM) will come on. If this should happen during operation, and it does not go off when the engine is accelerated, check level of engine oil. (See "Checking Engine Oil Level" in "DAILY CHECK" in "PERIODIC SERVICE" section.)

Electrical charge If the alternator is not charging the battery, the Easy Checker(TM) will come on.

If this should happen during operation, check the electrical charging system or consult your local KUBOTA Dealer.

Low brake fluid level If the brake fluid goes below the prescribed level, the

warning lamp in the Easy Checker(TM) will come on. If this should happen during operation, check to see that there is no oil leak in the brake system, and then add Dot3 brake fluid. (See "Checking Brake Fluid Level" in "DAILY CHECK" in "PERIODIC SERVICE" section.)

VHT oil temperature If the VHT oil is overheated, the warning lamp will come on and the buzzer will sound. Check the vehicle by referring to

"TROUBLESHOOTING" section.

(1) Easy Checker(TM) (2) Coolant temperature gauge (3) Fuel gauge

Parking brake If the parking brake indicator is on during operation, release the parking brake lever immediately.

The parking brake indicator in the Easy Checker(TM) comes on if the parking brake is applied.

Seat belt [RTV-X1120D only] With the key switch "ON", when the operator or passenger does not fasten the seat belt, seat belt

warning lamp comes on.

23OPERATING THE VEHICLE

BFuel Gauge

Park the vehicle on a flat place. When the key switch is "ON", the fuel gauge indicates the fuel level. Be careful not to empty the fuel tank. Otherwise air may enter the fuel system. Should this happen, the system should be bled. (See "Bleeding Fuel System" in "SERVICE AS REQUIRED" in "PERIODIC SERVICE" section.)

(1) Fuel gauge (2) Fuel level warning lamp

BCoolant Temperature Gauge

To avoid serious injury: A Do not remove radiator cap until coolant and

engine temperature has cooled. Then loosen cap slightly to the stop to relieve any pressure before removing cap completely.

1. With the key switch "ON" the coolant temperature gauge indicates the temperature of the coolant.

2. If the engine is overheated, the warning lamp will come on and the buzzer will sound. Check the vehicle by referring to "TROUBLESHOOTING" section.

(1) Coolant temperature gauge (2) Overheat warning lamp

A If the engine overheat and VHT overheat occur

together, do not stop the engine. When it is safe to do so, remove the engine load and keep the engine idling to allow cool down to occur. After the warning lamps go off, wait for 5 minutes, and stop the engine. See "TROUBLESHOOTING" section.

OPERATING THE VEHICLE24

BHourmeter and Odometer

When the key is turned to the "ON" position and the engine is not running, the hourmeter is displayed. When the key is the "ON" position and the engine is running, the odometer is displayed. The hourmeter indicates in 5 digits the hours the vehicle has been used; the last digit indicates 1/10 of an hour. The odometer indicates in 5 digits the distance the vehicle has been used; the last digit indicates 1/10 of a mile.

(1) Hourmeter

BSpeedometer

The speedometer indicates the traveling speed.

(1) Speedometer

(1) Odometer

25OPERATING THE VEHICLE

PARKING

BParking Brake Lever

To avoid serious injury: BEFORE DISMOUNTING VEHICLE A ALWAYS SET PARKING BRAKE AND LOWER

ALL IMPLEMENTS TO THE GROUND. Leaving transmission in gear with the engine stopped will not prevent vehicle from rolling.

A STOP THE ENGINE AND REMOVE THE KEY.

1. Stop the vehicle on a level surface.

2. To set the parking brake, depress the brake pedal and pull the parking brake lever to the rear engaged position.

3. To release the parking brake, depress the brake pedal, push release button and push up parking brake lever. Depressing the brake pedal makes release force smaller. Make sure that indicator in the Easy Checker(TM) goes off.

ACCESSORY

B12V Electric Outlet

The 12 volt power point is located on the front-panel. An auxiliary light or other devices may be connected to this outlet.

C This outlet is powered when the key switch is in

either the "ON" or "OFF" position.

Remove accessory when not in use to avoid battery drain down.

C Do not connect a light or other device that draws

more than 120 watts to this power point, or the battery may discharge very rapidly or the outlet may fail.

A Do not use as a cigarette lighter. A Do not use when wet. A Make sure that the cap is closed when the outlet is not

used.

(1) Parking brake lever (2) Release button

A If the vehicle is operated with the parking brake

applied, the brake will be damaged.

(A) "RELEASE" (B) "PUSH"

(1) 12V electric outlet

BUtility Box

(1) Utility Box

OPERATING THE VEHICLE26

OPERATING TECHNIQUES

BGlove Box (Std.) and Glove Box Cover (if

equipped)

Insert the key into the knob slot and turn it counterclockwise to lock. Insert the key into the knob slot and turn it clockwise to unlock.

(1) Glove box (2) Glove box cover (if equipped) (3) Knob (if equipped)

(A) "LOCK"

BDifferential Lock

To avoid serious injury due to loss of steering control: A Do not operate the vehicle at high speed with

differential lock engaged.

A Do not attempt to turn with the differential lock

engaged.

A Be sure to release the differential lock before

making a turn in field conditions.

If one of the rear wheels should slip, step on the differential lock pedal. Both wheels will then turn together, reducing slippage. Differential lock is maintained while the pedal is depressed or may be held by using differential lock holder.

(1) Differential lock pedal (2) Differential lock holder

C Handling the retaining device for differential lock

1. Pull the differential lock holder up while the differential lock pedal is depressed.

2. Release the pedal before your hand leaves the differential lock holder. The differential lock is then maintained even if your foot leaves the pedal.

3. The lock is released when the foot pedal is depressed again.

A When using the differential lock, always slow the

vehicle and engine down.

A To prevent damage to power train, do not engage

differential lock when one wheel is spinning and the other is completely stopped.

(A) Depress to "ENGAGE" (B) Release to "DISENGAGE"

27OPERATING THE VEHICLE

BDirections for Use of Power Steering

1. Power steering is activated only while the engine is running. While the engine is stopped, the vehicle functions in the same manner as vehicle without power steering.

2. When the steering wheel is turned all the way to the stop, the relief valve is activated. Do not hold the steering wheel in this position for a long period of time.

3. Avoid turning the steering wheel while the vehicle is stopped, otherwise tires may wear out sooner.

4. The power steering mechanism makes the steering easier. Be careful when driving at high speeds.

5. Do not operate the hydraulic lift cylinder lever (or hydraulic outlet lever) when driving. Otherwise loss of control or failure of the power steering could occur.

BUnfamiliar Terrain

To avoid serious injury: A Be sure to check for hidden obstacles or

hazards before driving in a new area.

A Keep your speed down until you know the area

well.

A Use existing trails and stay away from

hazardous areas such as steep, rocky slopes or swamps.

A Be cautious when visibility is limited, as you

may not be able to see obstacles in your path.

BDriving in Reverse

To avoid serious injury: A Turn around, look down and behind you before

backing up to be sure there are no obstacles or people in your way.

A Depress speed control pedal gradually and

back cautiously.

A To stop while driving in reverse take your foot

off the speed control pedal and gradually apply the brake.

A Do not suddenly engage the brake.

OPERATING THE VEHICLE28

BDriving in "4WD"

To avoid serious injury: A Do not drive in "4WD" on paved surfaces.

For the maximum traction, shift the range gear shift lever into low range and use "4WD" on steep slopes or when stuck in the mud, with differential locked if necessary.

BTurning the Vehicle

To avoid serious injury: A Reduce vehicle speed before entering the turn

and maintain an even speed through the turn.

A Do not make sharp turns in order to avoid loss

of control or tipping.

29OPERATING THE VEHICLE

BHills

To avoid serious injury: A Do not turn sideways on a hill, or the vehicle

may roll over.

A Always go straight up or down the hill. A Slow down until you can get a clean view of the

other side at the crest of a hill.

A If the engine stalls on a steep slope, roll slowly

straight down, using the brake.

A Stop and look for obstacles before descending

a hill.

BTraversing Hillsides

To avoid serious injury: A Reduce vehicles speed to prevent tipping or

loss of control.

A Do not traverse hillsides that are slippery or

covered with rocks or obstacles which may cause you to tip over.

BSliding and Skidding

To avoid serious injury: A Drive slowly and carefully when you are unsure

or unprepared for the surface.

A Do not apply heavy braking force or accelerate

when skidding to prevent loss of control.

A Use 4WD and maintain low speeds on areas

covered with clay, mud, ice or snow to prevent uncontrolled skidding.

OPERATING THE VEHICLE30

BDriving through Water

To avoid serious injury: A Do not drive through water whenever it is

possible.

A Drive slowly across shallow water and choose

a location to enter and exit the water where the banks are not too steep or slippery.

A Before entering water, check for rocks, holes or

other obstacles that may cause overturn, stuck or submerged.

A Never operate the vehicle in the fast flowing

water or in water deeper than the bottom edge of the axle caps.

OPERATING HAND THROTTLE

[if equipped]

A Pull the hand throttle while pushing the button, and the

engine speed increases.

A Push the hand throttle while pushing the button, and

the engine speed decreases.

A Fine-tune engine speed by turning the hand throttle.

(1) Hand throttle (if equipped) (2) Button

(A) "PUSH"

"HIGH"

(1) Axle cap

"LOW"

A Do not use the hand throttle while driving the vehicle,

always push the hand throttle back to the "LOW" position. Before driving the vehicle, confirm the hand throttle to be positioned to the "LOW" position.

STATIONARY HYDRAULIC OUTLET

[if equipped]

To use the hydraulic outlet system, start the hydraulic outlet system in the following steps.

1. Apply the parking brake and place chocks at the tires.

2. Make sure the shift levers are in "NEUTRAL", and start the engine.

3. Operate the hydraulic outlet lever. (See "HYDRAULIC OUTLET" in "HYDRAULIC OUTLET" section.)

4. Set the engine speed to provide recommended fluid rate. (Refer to the implement operator's manual.)

A Do not use a hydraulic implement which has a

hydraulic motor except those approved by Kubota.

CARGO BED

BGeneral Caution

To avoid serious injury: A Never carry passengers in the cargo bed. They can be tossed about or even thrown off causing serious

injury or death.

A Never raise the cargo bed when it is loaded. (There is an exception. Only the vehicle equipped with hydraulic

dump may do this operation at operator's seat after appropriate confirmation of safety.)

A Driving with the cargo bed tilted may be hazardous.

Always lower the bed and lock the hydraulic lift cylinder lever (if hydraulic dump is equipped) or latch the bed (if hydraulic dump is not equipped) before driving.

A Be careful not to put any part of your body, such as hands or arms, between the bed and vehicle. A Drive slowly when it is loaded.

31CARGO BED

BMax. Cargo Load

Never carry loads exceeding cargo bed capacity and the Permissible Cargo Load (PCL). PCL = PC - (operator + passenger + opt. + acc. + cabin) weight

CBC (Cargo bed capacity): 500 kg (1100 lbs.) PC: Payload Capacity OP: Operator PA: Passenger opt.: option acc.: accessory cabin: 125 kg (275 lbs.)

[Payload Capacity (PC)]

Model

General Purpose model Worksite model Worksite model

Payload capacity 755 kg (1664 lbs.) 725 kg (1598 lbs.) 685 kg (1510 lbs.)

RTV-X900 RTV-X1120D

32 CARGO BED

[Quick Reference Table for Cargo Load]

*1: The calculation was made provided that the operator and the passenger weigh 95 kg each.

A Cargo load should not exceed Cargo bed capacity and Permissible cargo load.

33CARGO BED

BCargo Bed Tailgate

To avoid serious injury: A Do not apply a load to the tailgate while the

tailgate is open, as the wire loop may break, resulting in injury or loss of load.

A Do not place fingers or hands between the

tailgate and the arm (latch) when closing, or fingers or hands may be pinched.

For loading and unloading, the tailgate of the cargo bed can be opened. The tailgate is held level to the cargo bed floor with wire loops. Do not move the vehicle with the tailgate fully lowered.

1. Raise the arms (latch) at each end of the tailgate and open the tailgate.

2. Close the tailgate by lifting it and pushing it firmly closed. Push the arms (latch) down to make sure the latches stay securely closed.

A TO AVOID TAILGATE DAMAGE:

Remove the rear trailer hitch when wire loop is removed and cargo bed is raised.

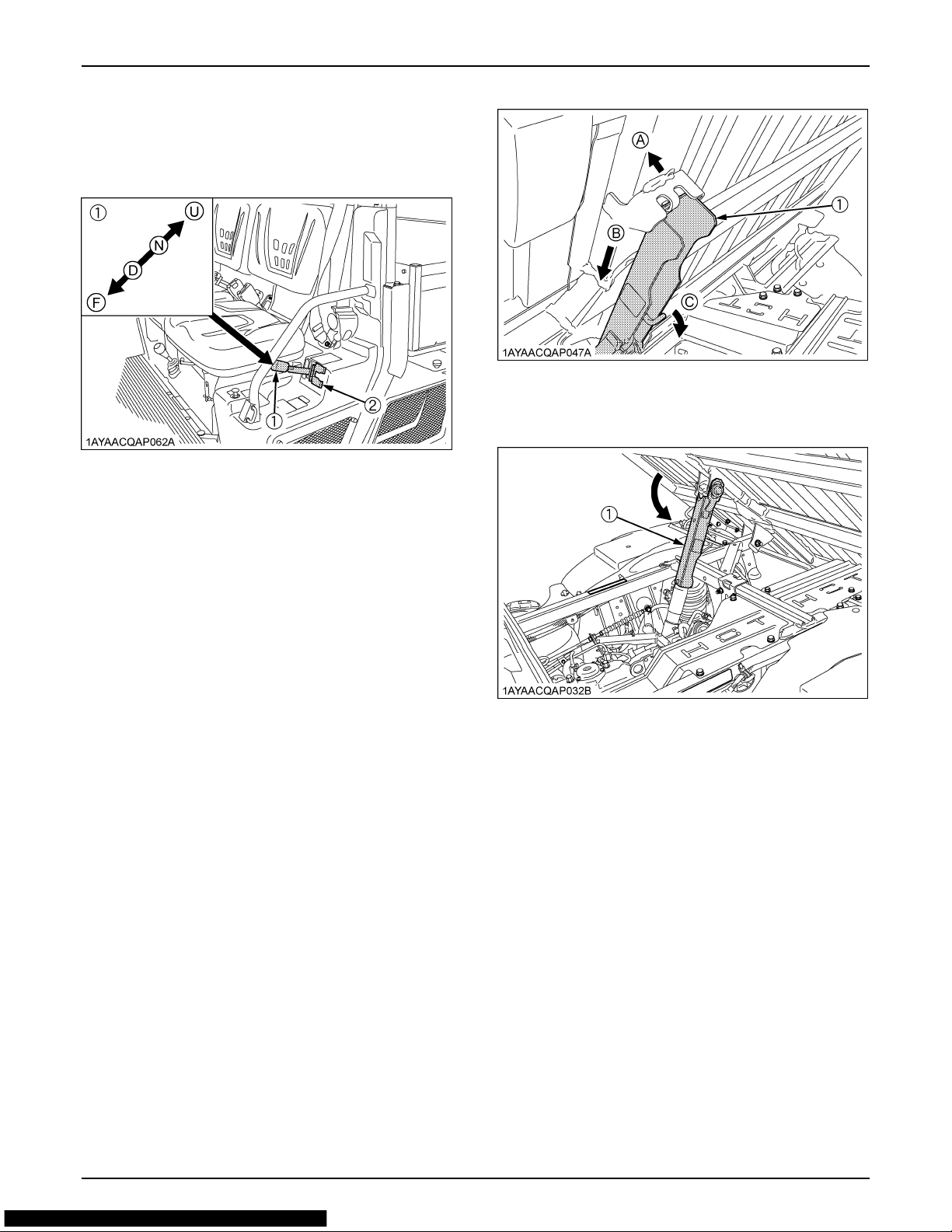

BRaising and Lowering the Cargo Bed

[if hydraulic dump is equipped]

To avoid serious injury: A Make sure the vehicle is on a firm, level surface

and the parking brake is applied before raising the cargo bed.

A If the vehicle is facing uphill with cargo bed

raised, the weight of the cargo bed may cause the vehicle tip.

A When servicing under raised bed with lift

cylinder, make sure safety support is properly mounted.

A Do not operate the hydraulic lift cylinder lever

(or hydraulic outlet lever) when driving. Otherwise loss of control or failure of the power steering could occur.

C To raise the cargo bed

1. Start engine.

2. Release the restricting plate.

3. Pull up the hydraulic lift cylinder lever to raise the cargo bed.

4. Return the hydraulic lift cylinder lever to the "NEUTRAL" position immediately after raising the cargo bed.

5. Mount the safety support.

(1) Tailgate (2) Arm (latch) (3) Wire loop

C To mount the safety support

1. Push the safety support and take off it from the hook.

2. Turn the safety support to set.

C To lower the cargo bed

1. Remove the safety support.

2. Shift the hydraulic lift cylinder lever to the "DOWN" position and then lower the cargo bed.

3. After making sure that the bed has been lowered to the lowest position, return the lever to the "NEUTRAL" position and then lock the lever with the restricting plate.

A Do not hold the lever in the "UP" or "DOWN" position

once the remote cylinder has reached the end of its stroke, as this will cause oil to flow through the relief valve. Forcing oil through the relief valve for extended periods will overheat the oil.

A Continuing to use the lever may cause oil temperature

to rise excessively. The use of oil at a high temperature causes the seals to become damaged and fail.

CARGO BED34

C Using the "FLOAT" position

1. If the cargo bed cannot be raised or lowered due to trouble with the engine or hydraulic system, shift the lever to the "FLOAT" position. The cargo bed can be raised or lowered manually.

(1) Safety support (A) "UNLOCK"

(B) "MOVE" (C) "TURN"

(1) Hydraulic lift cylinder lever (if equipped) (2) Restricting plate (if equipped)

(U) "UP" (N) "NEUTRAL" (D) "DOWN" (F) "FLOAT with Detent"

(1) Safety support

BRaising and Lowering the Cargo Bed

[without hydraulic dump]

To avoid serious injury:

A Always lower and latch the bed before driving. A Be careful not to catch any part of your body,

such as hands or arms, between the bed and vehicle frame when lifting and lowering the bed. To prevent injury, use only the handgrips provided.

The cargo bed may be tilted by releasing the latches on each side, and then lifting the bed with the handgrips. Support the bed in the raised position with the safety support.

35CARGO BED

(1) Latch (2) Handgrip

(1) Safety support

(A) "LOCK" (B) "RELEASE"

36 HYDRAULIC OUTLET

HYDRAULIC OUTLET

[if equipped]

BHydraulic Outlet Lever

To avoid serious injury: A Leaving the vehicle while the engine runs

requires shifting the range gear shift lever to the "NEUTRAL" position, and locking the parking brake lever firmly.

C Steps for operation

1. Remove the hydraulic hoses for hydraulic dump, and clamp the hoses so that they are not caught in rotary object.

2. Check the outlet and return directions of the hydraulic coupler and then connect the hydraulic hose.

3. Make sure that the hydraulic lever at the side of the working vehicle is in the "NEUTRAL" position.

4. Shift the hydraulic outlet lever to the "A" position or "B" position according to the implement of use.

5. Lock the hydraulic outlet lever at the "NEUTRAL" position with the restricting plate after use.

(1) Hydraulic outlet (if equipped) [yellow] (2) Hydraulic outlet (if equipped) [white]

Lever Pull ( ) Push ( )

Port

Outlet

Return

[yellow] OUT IN

[white] IN OUT

(1) Hydraulic outlet lever (if equipped) (2) Restricting plate (if equipped)

(A) "ON" (N) "OFF" (B) "ON" (F) "FLOAT with Detent"

A Do not hold the lever in the "PULL" or "PUSH" position

once the remote cylinder has reached the end of its stroke, as this will cause oil to flow through the relief valve. Forcing oil through the relief valve for extended periods will overheat the oil.

A Continuing to use the lever may cause oil temperature

to rise excessively. The use of oil at a high temperature causes the seals to become damaged and fail.

A Shift the hydraulic outlet lever to the "NEUTRAL"

position and then stop the engine.

A Because of the safety devices, the engine will not start

except when the hydraulic outlet lever is placed in the "OFF" position and range gear shift lever is placed in the "NEUTRAL" position.

A Do not operate the hydraulic outlet lever when driving.

Otherwise loss of control or failure of the power steering could occur.

A Do not use a hydraulic implement which has a

hydraulic motor except those approved by Kubota.

BHydraulic Outlet Valve Coupler

Connecting and Disconnecting

To avoid serious injury: A Stop the engine and relieve pressure before

connecting or disconnecting lines.

A Do not use your hand to check for leaks. A Make sure couplers are locked securely after

connecting them.

A Always wear protective gloves when handling

hydraulic tools, hoses and couplers.

C Connecting

1. Remove dust plugs.

2. Clean both couplers.

3. Insert the implement coupler to the vehicle hydraulic coupler.

4. Pull the implement coupler slightly to make sure couplers are firmly connected.

37HYDRAULIC OUTLET

C Disconnecting

1. Lower the implement first to the ground to relieve hydraulic pressure in the hoses.

2. Clean the couplers.

3. Relieve pressure by moving hydraulic control levers with engine shut off.

4. Pull the hose straight from the hydraulic coupler while pulling the ring to release it.

5. Clean oil and dust from the coupler, then replace the dust plugs.

(1) Ring of female coupler (2) Male coupler

A Your local KUBOTA Dealer can supply parts to adapt

couplers to hydraulic hoses.

38 TIRES AND WHEELS

TIRES AND WHEELS

TIRES

To avoid serious injury: A Do not attempt to mount a tire on a rim. This

should be done by a qualified person with the proper equipment.

A Always maintain the correct tire pressure.

Do not inflate tires above the recommended pressure shown in the operator's manual.

A Do not use tires other than those approved by

KUBOTA.

BInflation Pressure

Though the tire pressure is factory-set to the prescribed level, it naturally drops slowly in the course of time. Thus, check it everyday and inflate as necessary.

Tire sizes Inflation Pressure

25 x 10 - 12 HDWS,

Front & Rear

BTire Type and Use

C Heavy duty work site tire

C Turf tire

25 x 12 - 12 Turf,

Front & Rear

25 x 10 - 12 ATV,

Front & Rear

(1) Ground (A) "INSUFFICIENT"

(B) "NORMAL" (C) "EXCESSIVE"

140 kPa

(1.4 kgf/cm , 20 psi)

C All terrain vehicle tire

39TIRES AND WHEELS

WHEELS

To avoid serious injury: A Support vehicle securely on stands before

removing a wheel.

A Never operate vehicle with loose wheel bolts

and nuts.

A When re-fitting a wheel, tighten the bolts and nuts to

the following torques then recheck after driving the vehicle 200 m (220 yards) and thereafter according to service interval.

SHOCK ABSORBERS

BShock Absorber Spring Adjustment

To avoid serious injury: A For shock absorber spring adjustment, make

sure to consult your local KUBOTA dealer.

The front and rear shock absorber springs can be adjusted for different riding and loading condition.

[Shock absorber position]

Position Spring Load

1 Stronger Heavy

3 (default)

5 Weaker Light

(1) Tightening torque (bolts and nuts) Aluminum wheel: 90 to 110 N-m (9.2 to 11.2 kgf-m) (66.4 to 81.1 lbf-ft) Steel wheel: 108 to 130 N-m (11.1 to 13.2 kgf-m) (79.7 to 95.8 lbf-ft)

40 TOWING AND TRANSPORTING

TOWING AND TRANSPORTING

BRear Trailer Hitch

[if equipped]

To avoid serious injury: A Always tow a load slowly enough to maintain

control and avoid tipping.

A To provide adequate braking ability and

traction, do not tow a load unless vehicle cargo bed is loaded or attachment is installed.

A Attach a trailer to the trailer hitch only.

The rear trailer hitch load is referred to "VEHICLE LIMITATIONS" section. When towing other equipment, use a safety chain.

BFront Trailer Hitch

[if equipped]

To avoid serious injury: A Do not tow this vehicle unless all the functions

of the vehicle are properly working, since the malfunction of steering operation or braking may cause an accident.

Use the front trailer hitch for greater maneuverability in confined areas such as a barn. The front trailer hitch load is referred to "VEHICLE LIMITATIONS" section.

(1) Rear trailer hitch (if equipped) (2) Hitch pin (if equipped)

(1) Front trailer hitch (if equipped) (2) Hitch pin (if equipped)

BWinch Mount Bracket

Mounting the optional winch always requires reading the instruction manual attached to the winch thoroughly before using it.

41TOWING AND TRANSPORTING

(1) Winch mount bracket

BTransport the Vehicle Safely

Pay attention to the points below when transporting the vehicle.

1. Apply the parking brake and place chocks against the front and rear tires.

2. Secure the portions of the vehicle, which are shown in the figure below, by using adequate straps or chains.

3. When transporting vehicle on truck or trailer, always comply with Federal and/or Local regulations for securement.

(1) Lower arm (2) Heavy-duty strap

A Do not apply the straps and chains to the rear

stabilizer.

Follow below when towing the vehicle: Otherwise, the vehicle's powertrain may get damaged.

A Set the all shift levers to "NEUTRAL" position. A If possible, start engine and select 2WD, if creep

speed is fitted ensure that it is disengaged.

A Tow the vehicle using its front hitch or drawbar. A Never tow faster than "10 km/h (6.2 mph)".

(A) Rear stabilizer

(1) Front guard (2) Heavy-duty strap

42 MAINTENANCE

MAINTENANCE

To avoid serious injury and vehicle damage: A Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you

attempt any vehicle maintenance task.

A If you don't have the knowledge and equipment which are necessary to perform the maintenance task,

consult your local KUBOTA Dealer.

A Have your local KUBOTA Dealer perform inspection items which are marked *4 in the chart below.

SERVICE INTERVALS

A The jobs indicated by must be done after the first 50 hours of operation. *1 Air cleaner should be cleaned more often in dusty conditions than in normal conditions. *2 Every year or every 6 times of cleaning. *3 Replace only if necessary.

*4 Consult your local KUBOTA Dealer for this service. *5 When the battery is used for less than 100 hours per year, check the battery condition by reading the indicator annually. A The items listed below (@marked) are registered as emission related critical parts by KUBOTA in the U.S.EPA non road

emission regulation. As the engine owner, you are responsible for the performance of the required maintenance on the engine according to the below instruction. Please see Warranty Statement in detail.

No. Items

1 Engine start system Check

2 Greasing Apply

3 Engine oil Change

Muffler

[Spark arrester]

Wheel fastener

torque

6 Battery condition Check

7 Alternator belt Adjust

8 VHT neutral spring Check

VHT pressure

release

10 Toe-in Adjust

11 Fuel filter element

Clean

Check

Replace

Indication of Hour Meter

50 100 150 200 250 300 350 400 450 500 550 600 650 700

After

700 hrs

every

50 hrs

every

50 hrs

every

200 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

500 hrs

Ref.

Page

64 *5

61 *4

80 *4

43MAINTENANCE

No. Items

Check

12 Fuel line

Replace

Clean

13 Air cleaner element

Replace

14 Engine oil filter Replace

Transmission oil

filter (VHT) (Yellow color)

Transmission oil

filter (Suction) (Black color)

17 Brake pedal Check

18 Parking brake Adjust

19 Brake light switch Check

20 Front brake case Check

21 Hydraulic tank oil Change

Radiator hose, pipe

and clamp

23 Hydraulic oil line

24 Intake air line

Engine breather

hose

26 Brake hose & pipe

27 Tire wear Check

28 Transmission fluid Change

29 Front axle case oil Change

30 Knuckle case oil Change

Replace

Check

Replace

Check

Replace

Check

Replace

Check

Replace

Indication of Hour Meter

50 100 150 200 250 300 350 400 450 500 550 600 650 700

After

700 hrs

every

100 hrs

every

2 years

every

100 hrs

every

1 year

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

2 years

every

200 hrs

every

2 years

every

200 hrs

every

2 years

every

2 years

every

200 hrs

every

4 years

every

300 hrs

every

400 hrs

every

400 hrs

every

400 hrs

Ref.

Page

82 *3

62 *1

80 *2

72 *4

82 *4

82 *3

82 *4

83 *4

44 MAINTENANCE

No. Items

Engine valve

clearance

Fuel injection

nozzle Injection pressure

33 Injection pump Check

Brake master

cylinder [inner parts]

35 Brake fluid Change

Rear brake cylinder

seal

37 Front brake seal Replace

38 Cooling system Flush

39 Coolant Change

40 Fuel system Bleed

41 Fuse Replace 83

42 Light bulb Replace 85

43 Hydraulic tank Check 85

Adjust

Check

Replace

50 100 150 200 250 300 350 400 450 500 550 600 650 700

Indication of Hour Meter

After

700 hrs

every

800 hrs

every

1500 hrs

every

3000 hrs

every

2 years

every

2 years

every

2 years

every

2 years

every

2 years

every

2 years

Service

required

Page

Ref.

80 *4

80 *4 @

82 *4

80 *4

82 *4

LUBRICANTS, FUEL AND COOLANT

45MAINTENANCE

No. Locations

1 Fuel 30 L (7.9 U.S.gals.)

2 Coolant (with reserve tank) 6.1 L (6.4 U.S.qts.) Fresh clean water with anti-freeze

Filter

Engine

crankcase

4 Transmission case 7.0 L (1.8 U.S.gals.)

5 Front axle case 0.6 L (0.6 U.S.qts.)

6 Front knuckle case Ref. 0.25 L (0.26 U.S.qts.)

7 Hydraulic tank oil 18.0 L (19.0 U.S.qts.)

Brake fluid

(reservoir and lines)

exchanged

Filter nonexchanged

RTV-X900 RTV-X1120D

(3.3 U.S.qts.)

(2.9 U.S.qts.)

Capacity

3.1 L (4.3 U.S.qts.)

2.7 L (4.0 U.S.qts.)

0.4 L (0.4 U.S.qts.)

4.1 L

3.8 L

Lubricants, fuel and coolant

No. 2-D diesel fuel No. 1-D diesel fuel if temperature is below -10 (14 )

Engine oil: API Service Classification CF or higher

Above 25 (77 ) SAE30, SAE10W-30 or 15W-40

0 to 25 (32 to 77 ) SAE20, SAE10W-30 or 15W-40

Below 0 (32 ) SAE10W, SAE10W-30

For U.S.A. market: KUBOTA SUPER UDT2 fluid* For Canada market: Premium UDT fluid* For other than the above: KUBOTA UDT or SUPER UDT fluid*

KUBOTA DOT3 GENUINE BRAKE FLUID

Greasing No. of greasing points Capacity Type of grease

Parking brake lever 2

moderate amount

Battery terminal 2

Cargo lift cylinder pivot 1 Until grease overflows

Cargo bed pivot 2 moderate amount

VHT link

2 Until grease overflows

Valve lever link 1

4WD lever link 1

moderate amount

Range gear shift link 1

Unload link 1

Differential lock pedal 2

Front A-ARM 6

Until grease overflows

Rear A-ARM 8

Parking brake link 1

Hand throttle cable

[if equipped]

--- Antirust silicone grease

moderate amount

Multipurpose EP2 Grease

(NLGI Grade No. 2)

* The product name of KUBOTA genuine UDT fluid may be different from that in the Operator’s Manual depending on countries or territories. Consult your local KUBOTA Dealer for further detail.

46 MAINTENANCE

For North American market

C Engine Oil:

A Oil used in the engine should have an American Petroleum Institute (API) service classification and Proper SAE

Engine Oil according to the ambient temperatures as shown above:

A Refer to the following table for the suitable API classification engine oil according to the engine type (with internal

EGR, external EGR or non-EGR) and the fuel.

Fuel used

Ultra Low Sulfur Fuel [<0.0015% (15 ppm)]

EGR: Exhaust Gas Re-circulation A The CJ-4 engine oil is intended for DPF (Diesel Particulate Filter) type engines, and cannot be used on this vehicle.

Models RTV-X900, RTV-X1120D ---

C Fuel:

A Cetane number of 45 is minimum. Cetane number greater than 50 is preferred, especially for temperatures below

-20 (-4 ) or elevations above 1500 m (5000 ft).

A Diesel fuels specified to EN 590 or ASTM D975 are recommended. A No.2-D is a distillate fuel of lower volatility for engines in industrial and heavy mobile service. (SAE J313 JUN87)

C Transmission Oil:

To complete lubrication of the transmission, it is important that a multi-grade transmission fluid is used in this system. We recommend the use of KUBOTA genuine fluid for optimum protection and performance. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section. Consult your local KUBOTA Dealer for further detail.) Do not mix different brands together.

C Hydraulic tank oil:

To insure proper operation of the hydraulic and VHT system, it is important that a multi-grade transmission fluid is used in this system. We recommend the use of KUBOTA genuine fluid for optimum protection and performance. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section. Consult your local KUBOTA Dealer for further detail.) Do not mix different brands together.

C Brake fluid:

Always use KUBOTA DOT3 GENUINE BRAKE FLUID from a sealed container. If it is not available, you should use only DOT3 fluid as a temporary replacement from a sealed container. However, the use of any non-KUBOTA brake fluid can cause corrosion and decrease the life of the system. Have the brake system flushed and refilled with KUBOTA DOT3 GENUINE BRAKE FLUID as soon as possible.

A Indicated capacities of water and oil are manufacturer's estimate.

Oil class of engines except external EGR Oil class of engines with external EGR

CF, CF-4, CG-4, CH-4 or CI-4

except external EGR with external EGR

Engine oil classification (API classification)

CF or CI-4 (Class CF-4, CG-4 and CH-4 engine oils cannot be used on EGR type engines)

For other than North American market

C Engine Oil:

A Oil used in the engine should have an American Petroleum Institute (API) service classification and Proper SAE

Engine Oil according to the ambient temperatures as shown above:

A With the emission control now in effect, the CF-4 and CG-4 lubricating oils have been developed for use of a low-

sulfur fuel on on-road vehicle engines. When an off-road vehicle engine runs on a high-sulfur fuel, it is advisable to employ the "CF or better" lubricating oil with a high Total Base Number (TBN of 10 minimum).

A Refer to the following table for the suitable API classification engine oil according to the engine type (with internal

EGR, external EGR or non-EGR) and the fuel (low-sulfur or high-sulfur fuel).

47MAINTENANCE

Fuel used

High Sulfur Fuel [ 0.05% (500 ppm)]

Low Sulfur Fuel [<0.05% (500 ppm)] or Ultra Low Sulfur Fuel [<0.0015% (15 ppm)]

EGR: Exhaust Gas Re-circulation A The CJ-4 engine oil is intended for DPF (Diesel Particulate Filter) type engines, and cannot be used on this vehicle.

Models RTV-X900, RTV-X1120D ---

C Fuel:

A Cetane number of 45 minimum. Cetane number greater than 50 is preferred, especially for temperatures below

-20 or elevations above 1500 m.

A If diesel fuel with sulfur content greater than 0.5% (5000 ppm) sulfur content is used, reduce the service interval for

engine oil and filter by 50%.

A NEVER use diesel fuel with sulfur content greater than 0.05% (500 ppm) for EXTERNAL EGR type engine. A DO NOT use diesel fuel with sulfur content greater than 1.0% (10000 ppm). A Diesel fuels specified to EN 590 or ASTM D975 are recommended. A No.2-D is a distillate fuel of lower volatility for engines in industrial and heavy mobile service. (SAE J313 JUN87)

C Transmission Oil:

C Hydraulic tank oil:

Oil class of engines except external EGR Oil class of engines with external EGR

(If the "CF-4, CG-4, CH-4 or CI-4" lubricating oil is used with a high-sulfur fuel, change the lubricating oil at shorter intervals. (approximately half))

CF, CF-4, CG-4, CH-4 or CI-4

except external EGR with external EGR

Engine oil classification (API classification)

---

CF or CI-4 (Class CF-4, CG-4 and CH-4 engine oils cannot be used on EGR type engines)

48 MAINTENANCE

C Brake fluid:

A Indicated capacities of water and oil are manufacturer's estimate.

PERIODIC SERVICE

BSeat

To avoid serious injury: A Do not work under any hydraulically supported

devices. They can settle, suddenly leak down, or be accidentally lowered. If necessary to work under vehicle or any vehicle elements for servicing or adjustment, securely support them with stands or suitable blocking beforehand.

HOW TO OPEN THE HOOD AND TILT THE SEAT

To avoid serious injury from contact with moving parts; A Never open the cover under the seat while the

engine is running unless servicing requires such access.

To open the seats, raise the seats to the forward position. Then remove the utility box and maintenance cover.

49PERIODIC SERVICE

BHood

To open the hood, pull the latch lever toward left side of machine to release the latch and open the hood.

(1) Latch lever (2) Hood

A To close the hood, press-fit the hood into position with

both hands.

(A) "RELEASE"

(1) Operator's seat (2) Passenger seat (3) Utility box

(1) Maintenance cover

PERIODIC SERVICE50

HOW TO RAISE THE CARGO BED

To avoid serious injury: A When servicing under raised bed, make sure

safety support is properly mounted.

A Do not touch muffler or exhaust pipes while

they are hot; Severe burns could result.

BRaising and Lowering the Cargo Bed [if

equipped with hydraulic dump]

See "Raising and Lowering the Cargo Bed [if equipped with hydraulic dump]" in "CARGO BED" section.

BRaising and Lowering the Cargo Bed

[without hydraulic dump]

See "Raising and Lowering the Cargo Bed [without hydraulic dump]" in "CARGO BED" section.

JACK-UP POINT

To avoid serious injury, death or vehicle damage: A Do not work under the vehicle unless it is

secured by safe stands or suitable blocking.

BFront End

Jack up at the plate under the front axle case only.

(1) Plate under the front axle case (2) Jack (3) Wooden block

51PERIODIC SERVICE

BRear End

Jack up the rear end after placing a wooden block under the bottom plate of the transmission frame.

(1) Bottom plate of the transmission frame (2) Jack (3) Wooden block

A To avoid damage to frame, do not pick up on the rear

upper cross member when hoisting the vehicle.

DAILY CHECK

For your own safety and maximum service life of the vehicle, make a thorough daily inspection before operating the vehicle to start the engine.

To avoid serious injury: A Be sure to check and service the vehicle on a

flat surface with the engine shut off and the parking brake "ON".

BWalk Around Inspection

Look around and under the vehicle for such items as loose bolts, trash build-up, oil or coolant leaks, broken or worn parts.

BChecking around Engine

1. Park the vehicle on a level surface.

2. Stop the engine.

3. Raise the cargo bed.

4. Mount the safety support.

5. Check around the engine for mud or foreign materials.

6. Remove all foreign materials if they are found.

(1) Rear upper cross member

PERIODIC SERVICE52

BChecking and Refueling

To avoid serious injury:

A Do not smoke while refueling. A Be sure to stop the engine before refueling.

1. Turn the key switch to "ON", check the amount of fuel by fuel gauge.

2. Fill fuel tank when fuel gauge shows 1/4 or less fuel in tank.

3. Use grade No.2-Diesel fuel at temperatures above

-10 (14 ). Use grade No.1-Diesel fuel at temperatures below

-10 (14 ).

BChecking Engine Oil Level

To avoid serious injury: A Be sure to stop the engine before checking the

oil level.

1. Park the vehicle on a level surface.

2. Raise the cargo bed and mount the safety support.

3. Stop the engine.

4. Check engine oil before starting the engine or 5 minutes or more after the engine has stopped.

5. To check the oil level, draw out the dipstick, wipe it clean, replace it, and draw it out again. Check to see that the oil level lies between the 2 debossed lines. If the level is too low, add new prescribed oil to the prescribed level at the oil inlet. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

[RTV-X900]

(1) Fuel tank cap

Fuel tank capacity 30 L (7.9 U.S.gals.)

A Do not permit dirt or trash to get into the fuel system. A Be careful not to let the fuel tank become empty,

otherwise air will enter the fuel system, necessitating bleeding before next engine start.

A Be careful not to spill during refueling. If should spill,

wipe it off at once, or it may cause a fire.

A To prevent water condensation from accumulating in

the fuel tank, fill the tank before parking overnight.

(1) Oil inlet (2) Dipstick

[RTV-X1120D]

(1) Oil inlet (2) Dipstick

(A) Oil level is acceptable within this range.

53PERIODIC SERVICE

A When using an oil of different maker or viscosity from

the previous one, remove all of the old oil. Never mix 2 different types of oil.

A If oil level is low, do not run engine.

BChecking Transmission Fluid Level

1. Park the vehicle on a level surface.

2. Raise the cargo bed and mount the safety support.

3. Stop the engine.

4. To check the oil level, draw out the dipstick, wipe it clean, replace it, and draw it out again. Check to see that the oil level lies within the cross hatched area. If the level is too low, add new prescribed oil to the prescribed level at the oil inlet. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

BChecking Hydraulic Oil Tank Level

1. Park the vehicle on a level surface.

2. Stop the engine.

3. Open the seat and remove the utility box.

4. Remove the rubber cap.

5. To check the oil level, remove the dipstick, wipe it clean, screw it into filling hole and remove dipstick again. If the level is too low, add new prescribed oil to the prescribed level at the oil inlet. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

(1) Oil inlet (2) Dipstick

A If oil level is low, do not run engine.

(A) Oil level is acceptable within this range.

(1) Filling plug with dipstick (A) Oil level is acceptable within

this range

A If oil level is low, do not run engine.

PERIODIC SERVICE54

BChecking Coolant Level

To avoid serious injury: A Do not remove radiator cap while coolant is

hot. When cool, slowly rotate cap to the first stop and allow sufficient time for excess pressure to escape before removing the cap completely.

1. Park the vehicle on a level surface.

2. Stop the engine.

3. Open the hood.

4. Check to see that the coolant level is between the "FULL" and "LOW" marks of recovery tank.

5. When the coolant level drops due to evaporation, add water only up to the full level. In case of leakage, add anti-freeze and water in the specified mixing ratio up to the full level. (See "Flush Cooling System and Changing Coolant" in "EVERY 2 YEARS" in "PERIODIC SERVICE" section.)

BCleaning Radiator Screen

To avoid serious injury: A Be sure to stop the engine before removing the

screen.

1. Park the vehicle on a flat surface.

2. Stop the engine.

3. Open the hood.

4. Detach the screen and remove all foreign materials.

(1) Radiator cap (2) Recovery tank

A If the radiator cap has to be removed, follow the

caution above and securely retighten the cap.

A Use clean, fresh water and anti-freeze to fill the

recovery tank.

A If water should leak, consult your local KUBOTA

Dealer.

(A) "FULL" (B) "LOW"

(1) Radiator screen (A) "DETACH"

A Radiator screen must be clean from debris to prevent

engine from overheating.

55PERIODIC SERVICE

BCleaning Oil Cooler Net

To avoid serious injury: A Allow oil cooler or oil line parts to cool down

sufficiently, they can be hot and can cause injury.

1. Park the vehicle on a flat surface.

2. Stop the engine.

3. Open the seats and remove the utility box and maintenance cover.

4. Detach the oil cooler net and remove all trash.

BChecking Brake Fluid Level

To avoid serious injury: A Never operate the vehicle, if the brake fluid is

below the "MIN" mark.

A Use only KUBOTA DOT3 GENUINE BRAKE

FLUID from a sealed container. Using other type of oil ruins synthetic resin or rubber installed in brake system components, and may cause brake failure.

A Avoid contamination of the brake fluid.

Thoroughly clean area around the filler cap before removing. Do not open the brake fluid reservoir cap unless absolutely necessary.

A Use extreme care when filling the reservoir. If

brake fluid is spilled on the power steering hose, wash off with water immediately. Brake fluid quickly ruins synthetic resin or rubber hoses.

1. Park the vehicle on a level surface.

2. Open the hood.

3. Check to see that the brake fluid level is between the "MAX" and "MIN" marks.

4. If it is below the "MIN" mark, add brake fluid to the "MAX" mark.

(1) Oil cooler net (A) "DETACH"

(1) Oil tank (A) "MAX"

(B) "MIN"

PERIODIC SERVICE56

BChecking Brake Pedal

To avoid serious injury: A Stop the engine and chock the wheels before

checking brake pedal.

1. Inspect the brake pedals for free travel, and smooth operation.

2. Adjust if incorrect measurement is found: (See "Checking Brake Pedal" in "EVERY 200 HOURS" in "PERIODIC SERVICE" section.)

BChecking Parking Brake

Pull the parking brake lever to apply the brakes. With the key switch at "ON" position, the parking brake indicator on the instrument panel lights up. To release the brakes, push in the button at the side of the parking brake lever and tilt the lever forward.

A Make sure the parking brake warning lamp on the

Easy Checker(TM) goes off when parking brake lever is forward.

(1) Brake pedal (A) "FREE TRAVEL"

(B) "PEDAL STROKE"

(1) Parking brake lever (2) Release button

(A) "PULL" (B) "RELEASE"

BChecking Easy Checker(TM)

1. Inspect the instrument panel for broken Easy Checker(TM) lamps.

2. Consult your local KUBOTA Dealer if broken.

BChecking Head Light, Turn Signal Light (if

equipped) etc.

1. Inspect the lights for broken bulbs and lenses.

2. Replace if broken.

BChecking Seat Belt and ROPS

1. Always check condition of the seat belts before operating the vehicle.

2. Replace if damaged.

BChecking Joint Boot

1. Check to see if the joint boots are not damaged.

2. If the boots are cuts, cracked or shows signs of deterioration, consult your local KUBOTA Dealer.

(1) Joint boot (2) Front drive shaft (3) Tie rod

57PERIODIC SERVICE

(1) Joint boot (2) Rear drive shaft

(1) Joint boot (2) Front drive shaft

(1) Joint boot (A) Rear stabilizer

[Front]

(1) Joint boot (2) Drive shaft

PERIODIC SERVICE58

[Rear]

(1) Joint boot (2) Drive shaft

BChecking Tire Inflation Pressure

Though the tire pressure is factory-set to the prescribed level, it naturally drops slowly in the course of time. Thus, check it everyday and inflate as necessary.

BChecking Backup Beeper

[if equipped]

1. Sit on the operator's seat.

2. Set the parking brake and stop the engine.

3. Shift the range gear shift lever to the "NEUTRAL" position.

4. Turn the key to "ON" position.

5. Shift the range gear shift lever to the "REVERSE" position.

6. If the backup beeper does not beep, consult your local KUBOTA Dealer.

Tire sizes Inflation Pressure

25 x 10 - 12 HDWS,

Front & Rear

25 x 12 - 12 Turf,

Front & Rear

25 x 10 - 12 ATV,

Front & Rear

(1) Ground (A) "INSUFFICIENT"

(B) "NORMAL" (C) "EXCESSIVE"

140 kPa

(1.4 kgf/cm , 20 psi)

(1) Range gear shift lever (2) Backup beeper (if equipped)

(R) "REVERSE"

EVERY 50 HOURS

BGreasing

Apply a small amount of multi-purpose grease to the following points every 50 hours: If you operated the vehicle in extremely wet and muddy conditions, lubricate grease fittings more often.

59PERIODIC SERVICE

(1) VHT link (Grease fitting) (2) VHT link (spray type grease) (3) Valve lever link (spray type grease) (4) 4WD lever link (spray type grease)

(1) Parking brake lever (spray type grease)

(1) Battery terminals

(1) Range gear shift link (spray type grease) (A) Left rear tire

(1) Cargo lift cylinder pivot (Grease fitting) (2) Cargo bed pivot (spray type grease)

(1) Unload link (spray type grease)

PERIODIC SERVICE60

BChecking Engine Start System

To avoid serious injury: A Do not allow anyone near the vehicle while

testing.

A If the vehicle does not pass the test do not

operate the vehicle.

C Preparation before testing.

1. Place all control levers in the "NEUTRAL" position.

2. Set the parking brake and stop the engine.

(1) Differential lock pedal (spray type grease)

(1) Front A-ARM (Grease fitting)

C Test: Range gear shift lever safety switch

1. Sit on the operator's seat.

2. Shift the range gear shift lever to H position.

3. Return the Speed control pedal to the "NEUTRAL" position.

4. Shift the hydraulic lift cylinder lever to the "NEUTRAL" position.

5. Turn the key to "START" position.

6. The engine must not crank.

7. Repeat the step 2 to 6 with the range gear shift lever at "L" and "R" each position.

8. If it cranks, consult your local KUBOTA Dealer for service.

(1) Rear A-ARM (Grease fitting) (2) Parking brake link (spray type grease)

(1) Range gear shift lever (2) Speed control pedal

(A) Left rear tire

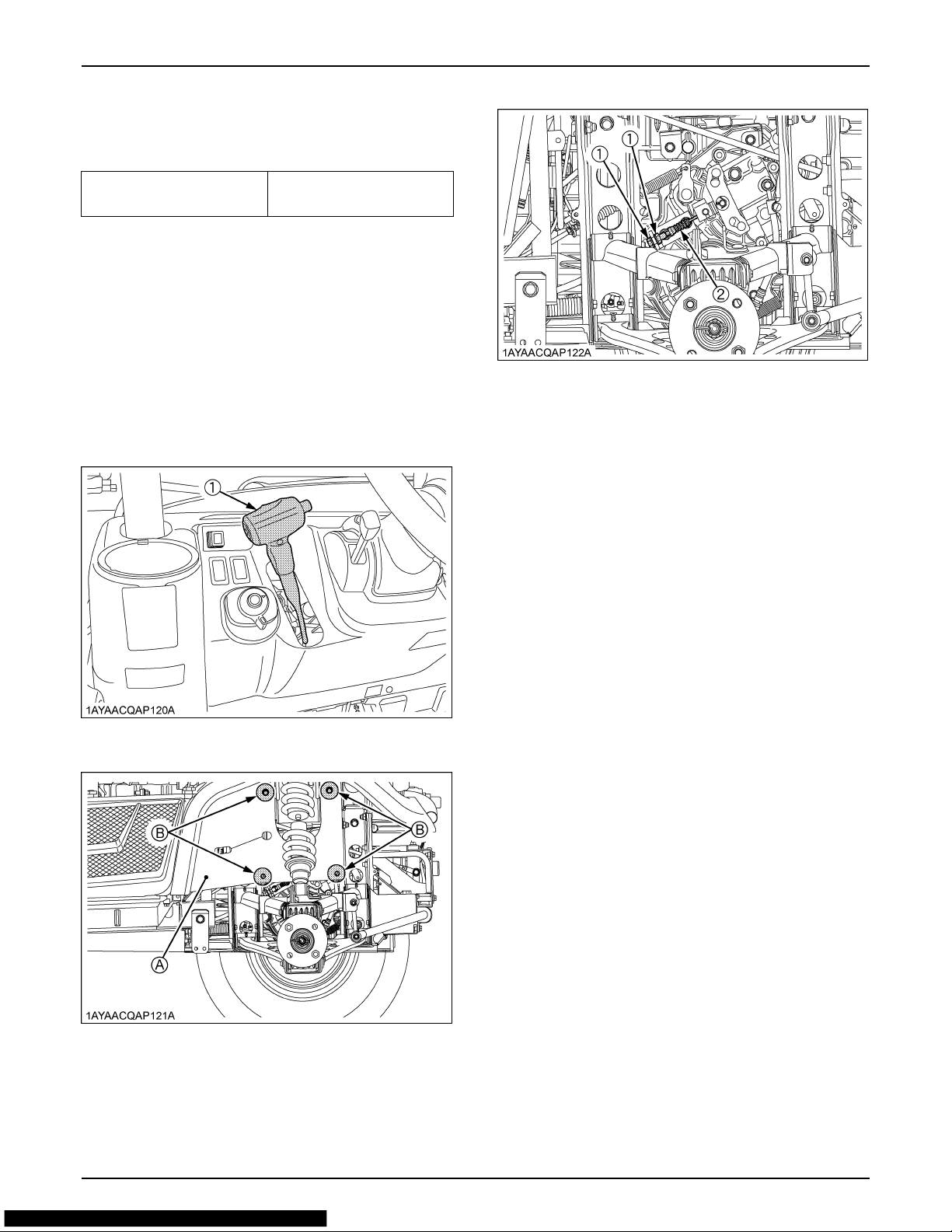

(1) Hydraulic lift cylinder lever

61PERIODIC SERVICE

EVERY 100 HOURS

BChecking VHT Neutral Spring

1. Park the vehicle on a flat place.

2. Set the parking brake.

3. Shift the range gear shift lever to the "NEUTRAL" position.

4. Lock the hydraulic lift cylinder lever to the "NEUTRAL" position with restricting plate.

5. Start the engine.

6. Make sure that the rotation speed of the engine returns to the idling rotation immediately when taking the foot off the pedal, after depressing the speed control pedal several times. If the above does not occur immediately, consult your local KUBOTA dealer for this service.

BChecking VHT Pressure Release

To avoid serious injury: A Do not touch muffler or exhaust pipes while

they are hot; severe burns could result.

1. Park the vehicle on a level surface and set the parking brake.

2. Start the engine and shut it off quickly.

3. Check the points as shown in the figures below.

4. If the result corresponds to either of the following (a) or (b), consult your local KUBOTA Dealer. (a) No clearance between rod and link. (b) The length of the rod is appeared 21.5 mm and over.

(1) Unload link (2) Unload valve rod

(L) 21.5 mm and over (P) The link is contact with the rod.

PERIODIC SERVICE62

BChecking Wheel Fastener Torque

To avoid serious injury:

A Never operate vehicle with a loose wheel bolts. A Any time bolts are loosened, retighten to the

specified torque.

A Check all bolts frequently and keep them tight.

Check wheel bolts regularly especially when new. If they are loose, tighten them as follows.

BCleaning Air Cleaner Primary Element

1. Remove the air cleaner cover and primary element.

2. Clean the primary element: (1) When dry dust adheres to the element, blow

compressed air from the inside, turning the element. Pressure of compressed air must be under 205 kPa (2.1 kgf/cm , 30 psi).

(2) When carbon or oil adheres to the element,

replace the element with new one even if it has not been used for 1 year. Do not blow material onto yourself. Wear appropriate protective gear when cleaning element.

3. Replace the primary element: Once yearly or after every sixth cleaning, whichever comes first.

A Check to see if the evacuator valve is blocked with

dust.

A Check the rubber seal. Replace if damaged.

(1) Tightening torque (bolts and nuts) Aluminum wheel: 90 to 110 N-m (9.2 to 11.2 kgf-m) (66.4 to 81.1 lbf-ft) Steel wheel: 108 to 130 N-m (11.1 to 13.2 kgf-m) (79.7 to 95.8 lbf-ft)

(1) Secondary (safety) element (2) Primary element (3) Rubber seal (4) Evacuator valve (5) Cover

A The air cleaner uses a dry element, never apply oil. A Do not run the engine with filter element removed. A Be sure to refit the cover with the arrow (on the rear of

cover) upright. If the cover is improperly fitted, evacuator valve will not function and dust will adhere to the element.

A Do not touch the secondary element except in cases

where replacing is required.

C Evacuator Valve

Open the evacuator valve once a week under ordinary conditions - or daily when used in a dusty place - to get rid of large particles of dust and dirt.

63PERIODIC SERVICE

BAdjusting Alternator Belt Tension

To avoid serious injury: A Be sure to stop the engine before checking belt

tension.

Proper

alternator belt

tension

1. Park the vehicle on a flat surface, open the seat, remove utility box and maintenance cover.

2. Stop the engine.

3. Apply moderate thumb pressure to belt between pulleys.

4. If tension is incorrect, loosen the alternator mounting bolts and, using a lever placed between the alternator and the engine block, pull the alternator out until the deflection of the belt falls within acceptable limits.

5. Replace alternator belt if it is damaged.

A deflection of between 7 to 9 mm

(0.28 to 0.34 in.) when the belt is

pressed in the middle of the span.

BChecking Fuel Line and Fuel Filter

To avoid serious injury: A Be sure to stop the engine and remove the key

when attempting to make the following checks and changes.

A Never fail to check the fuel lines periodically.

The fuel lines are subject to wear and aging. Fuel may leak out onto the running engine, causing a fire.

The fuel line connections should be checked annually or every 100 service hours, whichever comes first.

1. Park the vehicle on a flat surface, raise the cargo bed, mount the safety support and shut off the engine.

2. The fuel line is made of rubber and ages regardless of service period.

3. If the fuel line and clamps are found to be damaged or deteriorated, replace them.

4. Check fuel filter, if it is clogged by debris or contaminated with water, replace it.

A When the fuel line is disconnected for maintenance or

repair, close both ends of the fuel line with a piece of clean cloth or paper to prevent dust and dirt from entering. In addition, particular care must be taken not to admit dust and dirt into the fuel pump. Entrance of even a small amount of dust or dirt cause premature wear and malfunction of the fuel pump and injector components.

(1) Bolt (A) Check the belt tension

(B) To tighten

(1) Fuel filter (2) Fuel line (3) Pipe clamp

PERIODIC SERVICE64

[RTV-X900]

(1) Fuel line (2) Pipe clamp

BChecking Battery Condition

To avoid the possibility of battery explosion: For the refillable type battery, follow the instructions below. A Do not use or charge the refillable type battery

if the fluid level is below the LOWER (lower limit level) mark. Otherwise, the battery component parts may prematurely deteriorate, which may shorten the battery's service life or cause an explosion. Check the fluid level regularly and add distilled water as required so that the fluid level is between the UPPER and LOWER levels.

[RTV-X1120D]

(1) Fuel pump (2) Fuel line (3) Pipe clamp

To avoid serious injury or death: A When the battery is being activated, hydrogen

and oxygen gases in the battery are extremely explosive. Keep open sparks and flames away from the battery at all times, especially when charging the battery.

To avoid serious injury: A Batteries, battery posts, terminals and related

accessories contain lead and lead compounds, and other chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

A Never remove the battery cap while the engine

is running.

A Keep electrolyte away from eyes, hands and

clothes. If you are spattered with it, wash it away completely with water immediately and get medical attention.

A Keep open sparks and flames away from the

battery at all times. Hydrogen gas mixed with oxygen becomes very explosive.

A Wear eye protection and rubber gloves when

working around battery.

The factory-installed battery is non-refillable type. If the battery is weak, charge the battery or replace it with new one.

A Mishandling the battery shortens the service life and

adds to maintenance costs. The original battery is maintenance free, but needs some servicing. If the battery is weak, the engine will be difficult to start and the lights will be dim. It is important to check the battery periodically.

A When exchanging an old battery for new one, use

battery of equal specification in table below.

65PERIODIC SERVICE

Capacity

Model

RTV-X900 26R-560 12 - 560 86 8.6

RTV-X1120D 24R-670 12 140 670 115 11.5

Battery

Type

Volts

(V)

Reserve Capacity

(min)

Cold

Cranking

Amps

at 20 hrs

(A. H.)

Normal

Charging

Rate (A)

(For non-accessible maintenance-free type batteries.) Maintenance-free, non-accessible batteries are designed to eliminate the need to add water. Yet the volume of electrolyte above plates may eventually become depleted due to abnormal conditions such as high heat or improper regulator setting. Use a voltmeter to check the state of charge. (See reference chart below to determine if charging is necessary.)

Battery voltage Reference state of charge

12.6 100%(Full charge)

12.4 75%

12.2 50%

12.0 25%

11.8 0%

C Battery Charging

(1) Battery

1. Park the vehicle on a flat surface.

2. Stop the engine.

3. Remove the battery cover.

4. To slow charge the battery, connect the battery positive terminal to the charger positive terminal and the negative to the negative, then recharge in the standard fashion.

5. A boost charge is only for emergencies. It will partially charge the battery at a high rate and in a short time. When using a boost-charged battery, it is necessary to recharge the battery as early as possible. Failure to do this will shorten the battery's service life.

6. When exchanging an old battery for a new one, use battery of equal specification shown in table 1.

C Direction for Storage

1. When storing the vehicle for a long period, remove the battery from vehicle, adjust the electrolyte to the proper level (refillable type only) and store in a dry place out of direct sunlight.

2. The battery self-discharges while it is stored. Recharge it once every 3 months in hot seasons and once every 6 months in cold seasons.

To avoid serious injury or death: A When the battery is being activated, hydrogen

and oxygen gases in the battery are extremely explosive. Keep open sparks and flames away from the battery at all times, especially when charging the battery.

To avoid serious injury: A When disconnecting the cable from the battery,

start with the negative terminal first. When connecting the cable to the battery, start with the positive terminal first.

A Never check battery charge by placing a metal

object across the posts. Use a voltmeter or hydrometer.

PERIODIC SERVICE66

BAdjusting Toe-in

Proper toe-in 5 to 15 mm (0.2 to 0.59 in.)

1. Park vehicle on a flat place.

2. Turn steering wheel so front wheels are in the straight ahead position.

3. Lock the park brake and stop the engine.

4. Measure distance between tire beads at front of tire, at hub height.

5. Measure distance between tire beads at rear of tire, at hub height.

6. Front distance should be shorter than rear distance. If not, adjust tie rod length.

C Adjusting procedures

1. Loosen the lock nut and turn the tie rod to adjust the rod length until the proper toe-in measurement is obtained.

2. Retighten the lock nut.

(1) Lock nuts (2) Tie-rod

(A) Wheel - to - wheel distance at rear (B) Wheel - to - wheel distance at front (C) "FRONT"

A Keep the length of the left and right tie-rod equal.

A Tightening torque (LOCK NUT):

74 to 84 N-m (7.6 to 8.5 kgf-m) (55 to 61 lbf-ft)

BCleaning Muffler

[For Swirl Type Spark Arrester]

To avoid serious injury: A Before touching any part of an exhaust system,

be absolutely sure that it has sufficient time to cool !

A Always wear safety goggles and a (face) mask. A The particulate matter contained in the muffler

contains chemicals that are harmful to people, animals and marine life.

A If you are unable to do this work, have it done

by your KUBOTA Dealer.

C Cleaning spark arrester of muffler

This swirl type spark arrester was examined, tested, and qualified in accordance with the USDA Forest Service Standard 5100-1c, "Spark Arresters for Internal Combustion Engines".

67PERIODIC SERVICE

(1) Muffler (2) Drain plug

Maintenance & cleanout procedure:

The swirl type spark arrester should be cleaned and inspected after every 100 hours of use.

1. Set vehicle in an open area away from combustible materials and on flat surface.

2. Apply the parking brake and shift range gear shift lever into the "NEUTRAL" position.

3. Remove the drain plug located on the bottom of the muffler body.

4. Start engine and raise and lower engine revolution while tapping on the muffler with a rubber mallet until the carbon particles are purged from the muffler.

5. Stop the engine.

6. Reinstall the drain plug.

A Visually check the muffler for cracks or holes in the

body, weldment or pipes at regular intervals.

A Replace the entire muffler if it is damaged. A Do not operate the vehicle with a damaged muffler.

PERIODIC SERVICE68

EVERY 200 HOURS

BAdjusting Parking Brake

Proper parking brake lever free play range

C Adjusting procedure

1. Park the vehicle on a flat surface.

2. Stop the engine.

3. Jack up the rear wheels.

4. Remove the left rear tire.

5. Remove the mud guard of rubber.

6. Release the parking brake.

7. Loosen the lock nuts.

8. Adjust the cable wire length.

9. Tighten the lock nuts securely.

10.Install the mud guard.

11.Install the left rear tire.

1 notch

(1) Lock nut (2) Cable wire

(1) Parking brake lever

(A) Mud guard (B) Push rivet

69PERIODIC SERVICE

BReplacing Engine Oil Filter

To avoid serious injury: A Be sure to stop the engine before changing the

oil filter.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a flat surface.

2. Stop the engine.

3. Remove the rear skid plate.

4. Remove the oil filter.

5. Put a film of clean engine oil on the rubber seal of the new filter.

6. Tighten the filter quickly until it contacts the mounting surface. Tighten the filter by hand an additional 1/2 turn only.

7. After the new filter has been replaced, the engine oil normally decreases a little. Make sure that the engine oil does not leak through the seal and be sure to check the oil level on the dipstick. Then, replenish the engine oil up to the prescribed level.

8. Properly dispose of used filter.

BChanging Engine Oil

To avoid serious injury: A Be sure to stop the engine before changing the

oil.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a level surface.

2. Raise the cargo bed and mount the safety support.

3. Stop the engine.

4. Remove the rear skid plate.

5. To drain the used oil, remove the drain plug at the bottom of the engine and completely drain the oil into an oil pan. All the used oil can be drained out easily when the engine is still warm.

6. After draining, reinstall the drain plug.

7. Fill with the new prescribed oil up to the upper line on the dipstick. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

8. Properly dispose of used filter.

(1) Engine oil filter (A) Battery

A To prevent serious damage to the engine, use only a

KUBOTA genuine filter.

Oil capacity

[RTV-X900]

RTV-X900

RTV-X1120D

[Filter exchanged]

3.1 L (3.3 U.S.qts.)

[Filter non-exchanged]

2.7 L (2.9 U.S.qts.)

[Filter exchanged]

4.1 L (4.3 U.S.qts.)

[Filter non-exchanged]

3.8 L (4.0 U.S.qts.)

(1) Oil inlet (2) Dipstick

(A) Oil level is acceptable within this range.

PERIODIC SERVICE70

[RTV-X1120D]

(1) Oil inlet (2) Dipstick

(A) Oil level is acceptable within this range.

BReplacing Transmission Oil Filter [VHT]

To avoid serious injury: A Be sure to stop the engine before changing the

oil filter.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a flat surface.

2. Remove the rear guard.

3. Remove the oil filter.

4. Put a film of clean transmission oil on the rubber seal of the new filter.

5. Quickly tighten the filter by hand until it contacts the mounting surface, then, with a filter wrench, tighten it an additional 1/2 turn only.

6. After the new filter has been replaced, fill the transmission oil up to the upper notch on the dipstick.

7. After running the engine for a few minutes, stop the engine and check the oil level again, add oil to the prescribed level.

8. Make sure that the transmission fluid doesn't leak past the seal on the filters.

(1) Rear skid plate

(1) Drain plug

(1) Transmission oil filter (VHT) (Yellow color) (2) Rear guard

A To prevent serious damage to the transmission, use

only a KUBOTA genuine filter.

71PERIODIC SERVICE

BReplacing Transmission Oil Filter

[SUCTION]

To avoid serious injury: A Be sure to stop the engine before changing the

oil filter.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a flat surface.

2. Remove the rear guard.

3. Remove the oil filter and old seal.

4. Put a film of clean transmission oil on the rubber seal of the new filter.

5. Quickly tighten the filter by hand until it contacts the mounting surface, then, with a filter wrench, tighten it an additional 1/2 turn only.

6. After the new filter has been replaced, fill the transmission oil up to the upper notch on the dipstick.

7. After running the engine for a few minutes, stop the engine and check the oil level again, add oil to the prescribed level.

8. Make sure that the transmission fluid doesn't leak past the seal on the filters.

9. Install the rear guard, and the hose guard.

BChanging Hydraulic Tank Oil

To avoid serious injury: A Be sure to stop the engine before changing the

oil.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a level surface.

2. Open the seat and remove the utility box.

3. Remove the rubber cap.

4. To drain the used oil, remove the drain plug and filling plug and drain the oil completely into the oil pan.

5. After draining, reinstall the drain plug.

6. Fill with new prescribed oil up to the upper line on the dipstick. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.) How to check: Wipe dipstick clean with a rag and screw it into filling hole. Remove dipstick again to see if the oil level is between the upper and lower line.

7. After filling, reinstall the filling plug.

8. Properly dispose of used filter.

Oil Capacity 18.0 L (19.0 U.S.qts.)

(1) Transmission oil filter (Suction) (Black color) (2) Rear guard

A To prevent serious damage to the transmission, use

only a KUBOTA genuine filter.

(1) Drain plug

PERIODIC SERVICE72

BChecking Brake Pedal

To avoid serious injury: A Stop the engine and chock the wheels before

checking brake pedal.

A If movement is outside of the specifications,

contact your local KUBOTA Dealer for adjusting the brake.

C Checking the brake pedal free travel

(1) Filling plug with dipstick (A) Oil level is acceptable within

this range

Proper brake pedal

free travel

1. Release the parking brake.

2. Slightly depress the brake pedal and measure free travel at the top of the pedal stroke.

3. If brake pedal free travel is outside of the specifications, contact your local KUBOTA Dealer for adjusting the brake.

C Checking the brake pedal stroke

Pedal stroke

1. Release the parking brake.

2. Step on the pedal and measure the pedal stroke.

3. If brake pedal stroke is outside of the specifications, contact your local KUBOTA Dealer for adjusting the brake.

8 to 18 mm (0.3 to 0.7 in.)

on the pedal

Less than 150 mm (5.9 in.)

on the pedal

(1) Brake pedal (A) "FREE TRAVEL"

(B) "PEDAL STROKE"

BChecking Brake Hose and Pipe

1. Check to see that brake hose and pipe are not swollen, hardened or cracked.

2. Check the brake hose and pipe joints for oil leaks.

3. If there is any abnormality, consult your local KUBOTA Dealer for this service.

(1) Brake pipe

73PERIODIC SERVICE

(1) Brake pipe (A) Oil cooler

BChecking Front Brake Case

1. Remove the drain plugs and the air-bleeding hole plugs.

2. Check the brake case for brake fluid leak.

3. If there is brake fluid leak, consult your local KUBOTA Dealer for this service.

(1) Brake hose (2) Breather hose

(1) Brake hose

(1) Drain plug (2) Allen key (3) Air-bleeding hole plug

PERIODIC SERVICE74

BChecking Brake Light Switch

1. Park the vehicle on a flat surface.

2. Step on the brake pedal to check if the brake light comes on.

3. If it does not, check the bulb or brake light switch.

(1) Brake light switch

BChecking Radiator Hose, Pipe and Clamp

Park the vehicle on a flat surface. Raise the cargo bed and mount the safety support. Check to see if radiator hoses are properly fixed every 200 hours of operation or 6 months, whichever comes first.

1. If hose clamps are loose or water leaks, tighten bands securely.

2. Replace hoses and tighten hose clamps securely, if radiator hoses are swollen, hardened or cracked.

Replace hoses and hose clamps every 2 years or earlier if checked and found that hoses are swollen, hardened or cracked.

(1) Radiator hose (2) Clamp band

[RTV-X1120D]

(1) Radiator hose (2) Clamp band

(A) Battery

(1) Radiator hose (2) Clamp band

(A) Oil cooler

75PERIODIC SERVICE

C Precaution at Overheating

Take the following actions in the event the coolant temperature is close to or more than the boiling point, which is called "Overheating".

1. Stop the vehicle operation in a safe place, unload the engine and remain at idle.

2. Don't stop the engine suddenly, but stop it after about 5 minutes of unloaded idling.

3. Keep yourself well away from the vehicle for at least 10 minutes or while the steam is blowing out.

4. Check to confirm that there is no danger from the overheat condition, check the "TROUBLESHOOTING" section to determine the cause of the overheat and fix the cause. After the engine has cooled, re-start the engine.

[RTV-X900]

(1) Radiator hose (2) Clamp band

[RTV-X1120D]

BChecking Intake Air Line

1. Check to see if the hoses and hose clamps are tight and not damaged.

2. If hoses and clamps are found to be worn or damaged, replace or repair them at once.

(1) Hose (2) Hose clamp

(1) Radiator hose (2) Clamp band

(1) Hose (2) Hose clamp

PERIODIC SERVICE76

BChecking Hydraulic Oil Line

1. Check to see if the hoses and hose clamps are tight and not damaged.

2. If hoses and clamps are found to be worn or damaged, replace or repair them at once.

[Only with hydraulic dump]

(1) Hose (2) Hose clamp (3) Joint

(A) Hydraulic tank

(1) Hydraulic pump Control valve (2) HST Oil tank (3) Control valve Lift cylinder (4) Control valve Power steering unit (5) Oil tank HST

(1) Power steering unit Oil cooler (2) Oil cooler Oil tank

(A) Oil cooler

(1) Oil tank Hydraulic pump (A) Hydraulic pump

77PERIODIC SERVICE

EVERY 300 HOURS

BChecking Tire

1. Check to see if tires are not damaged.

2. If the tires are cracked, bulged, or cut, or they are worn out, replace or repair them at once.

C Tire Tread Depth

Always replace the tires when the tread depth is worn to minimum allowable.

(1) Power steering hose (Power steering unit Oil cooler) (2) Power steering hose (Power steering unit Power steering cylinder) (3) Power steering hose (with hydraulic dump: Power steering unit Control valve, without hydraulic dump: Power steering unit Hydraulic pump) (A) Power steering unit (B) Power steering cylinder

(A) 3 mm (0.12 in.)

PERIODIC SERVICE78

EVERY 400 HOURS

BChanging Front Knuckle Case Oil

1. Park the vehicle on a firm, flat and level surface.

2. Remove the tire.

3. To drain the used oil, remove the drain and filling plugs at the left hand knuckle case and drain the oil completely into the oil pan.

4. After draining, reinstall the drain plug.

5. Fill with the new prescribed oil up to the filling port level. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

6. After filling, reinstall the filling plug.

7. Use the same procedure to change the right hand knuckle case oil.

Oil capacity (one side) Ref. 0.25 L (0.26 U.S.qts.)

8. Properly dispose of used oil.

BChanging Transmission Fluid

To avoid serious injury: A Be sure to stop the engine before changing the

oil.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a level surface.

2. Raise the cargo bed and mount the safety support.

3. To drain the used oil, remove the drain plug at the bottom of the transmission case and drain the oil completely into the oil pan.

4. After draining, reinstall the drain plug.

5. Fill with the new prescribed oil up to the upper cross hatched area on the dipstick. (See the first table of "LUBRICANTS, FUEL AND COOLANT" in "MAINTENANCE" section.)

6. After running the engine for a few minutes, stop the engine and check the oil level again; add oil to prescribed level.

Oil Capacity 7.0 L (1.8 U.S.gals.)

(1) Drain plug (2) Filling plug

7. Properly dispose of used oil.

(1) Oil inlet (2) Dipstick

(A) Oil level is acceptable within this range.

Kubota RTV-X900 Operator's Manual
