OPERATOR'S MANUAL

UTILITY VEHICLE

PRINTED IN U.S.A.

English (U.S.A.)
Code No. K7311-7122-7

KUBOTA Corporation 2008

©

R
T
V

5
0
0

1AYAAAYAP0030

READ AND SAVE THIS MANUAL

ABBREVIATION LIST

Abbreviations Definitions

2WD

4WD

API

ASABE

ASTM

DIN

fpm

HST

Km/h

MPH

m/s

PTO

RH/LH

ROPS

rpm

r/s

SAE

VHT

Two Wheel Drive

Four Wheel Drive

American Petroleum Institute

American Society of Agricultural and Biological Engineers, USA

American Society for Testing and Materials, USA

Deutsches Institut für Normung, GERMANY

Feet Per Minute

Hydrostatic Transmission

Kilometers Per Hour

Miles Per Hour

Meters Per Second

Power Take Off

Right-hand and left-hand sides are determined by facing
in the direction of forward travel

Roll-Over Protective Structures

Revolutions Per Minute

Revolutions Per Second

Society of Automotive Engineers, USA

Variable Hydro Transmission

KUBOTA Corporation is ···

Since its inception in 1890, KUBOTA Corporation has grown to
rank as one of the major firms in Japan.

To achieve this status, the company has through the years
diversified the range of its products and services to a remarkable
extent, until today, 19 plants and 16,000 employees produce over
1,000 different items, large and small.

All these products and all the services which accompany them,
however, are unified by one central commitment. KUBOTA makes
products which, taken on a national scale, are basic necessities.
Products which are indispensable, products intended to help
individuals and nations fulfill the potential inherent in their
environment. For KUBOTA is the Basic Necessities Giant.

This potential includes water supply, food from the soil and from
the sea, industrial development, architecture and construction,
transportation.

California Proposition 65

WARNING

Engine exhaust, some of its constituents,
certain vehicle components and fluids,
contain or emit chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.

IMPORTANT

The engine in this machine is equipped by the manufacture with a
standard spark arrester.
It is a violation of California Public Resource Code Section 4442 to
use or operate this engine on or near any forest-covered, brush­covered land, or grass- covered land unless the exhaust system is
equipped with a working spark arrester meeting state laws. Other
states or federal areas may have similar laws.

This spark ignition system complies with Canadian ICES-002.

Thousands of people depend on KUBOTA's know-how, technology,
experience and customer service. You too can depend on
KUBOTA.

UNIVERSAL SYMBOLS

As a guide to the operation of your vehicle, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.

Safety Alert Symbol

Engine Coolant-Temperature

Brake

Brake & Parking Brake

Battery Charging Condition

Engine Oil-Pressure

Turn Signal

Engine-Stop

Engine-Run

Engine-Diagnostic

Starter Control

Differential Lock

Master Lighting Switch

Headlight

Audible Warning Device

Four-Wheel Drive-On

Four-Wheel Drive-Off

Lock

Unlock

FOREWORD

You are now the proud owner of a KUBOTA Vehicle. This vehicle is a product of
KUBOTA quality engineering and manufacturing. It is made of excellent materials
and under a rigid quality control system. It will give you long, satisfactory service.
To obtain the best use of your vehicle, please read this manual carefully. It will help
you become familiar with the operation of the vehicle and contains many helpful
hints about vehicle maintenance. This manual contains instructions for minor
maintenance, but information about major repairs is outlined in the KUBOTA Work
Shop Manual and should be performed only by a KUBOTA Dealer Technician. It is
KUBOTA's policy to utilize as quickly as possible every advance in our research.
The immediate use of new techniques in the manufacture of products may cause
some small parts of this manual to become outdated. KUBOTA distributors and
dealers will have the most up-to-date information. Please do not hesitate to consult
with them.

3

This symbol, the industry's ''Safety Alert Symbol'', is used throughout this manual
and on labels on the machine itself to warn of the possibility of personal injury.
Read these instructions carefully. It is essential that you read the instructions and
safety regulations before you attempt to assemble or use this unit.

3
3

3

IMPORTANT :

NOTE :

DANGER :

WARNING :

CAUTION :

Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not
avoided, could result in minor or moderate injury.

Indicates that equipment or property damage could result if
instructions are not followed.

Gives helpful information.

SAFETY FIRST

CONTENTS

SAFE OPERATION ............................................................................................ -1

SERVICING OF VEHICLE........................................................................................... 1

SPECIFICATIONS....................................................................................................... 2

SPECIFICATION TABLE ......................................................................................... 2

TRAVELING SPEEDS ............................................................................................. 3

VEHICLE LIMITATIONS.............................................................................................. 4

INSTRUMENT PANEL AND CONTROLS................................................................... 5

LOCATION OF PARTS............................................................................................ 5

PRE-OPERATION CHECK ......................................................................................... 9

DAILY CHECK ......................................................................................................... 9

OPERATING THE ENGINE....................................................................................... 10

STARTING THE ENGINE ...................................................................................... 10

Cold Weather Starting ....................................................................................................12

STOPPING THE ENGINE...................................................................................... 12

WARMING UP ....................................................................................................... 12

Warm-Up Transmission Oil in the Low Temperature Range.......................................... 12

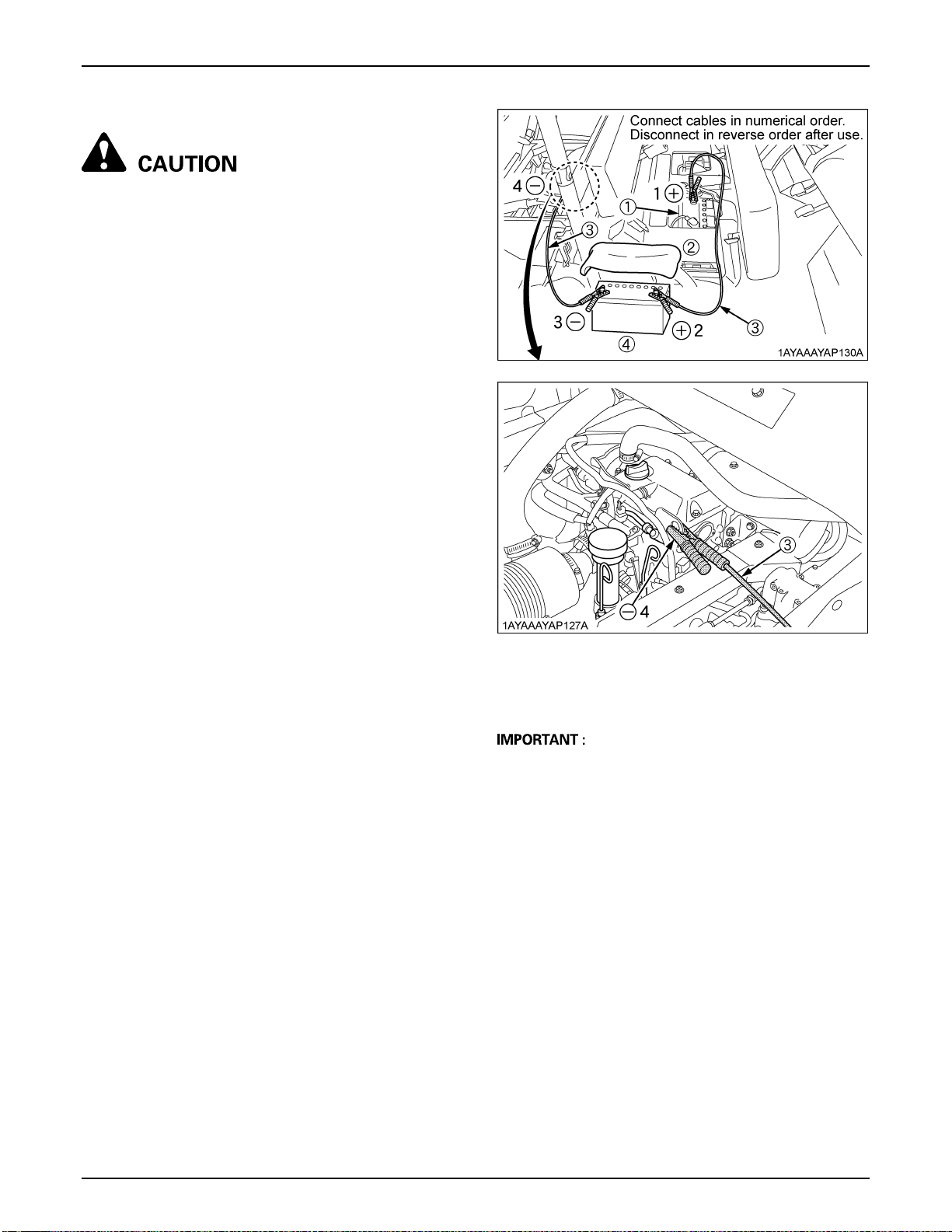

JUMP STARTING .................................................................................................. 13

OPERATING THE VEHICLE ..................................................................................... 14

OPERATING NEW VEHICLE ................................................................................ 14

Do not Operate the Vehicle at Full Speed for the First 50 Hours ...................................14

Changing Lubricating Oil for New Vehicles .................................................................... 14

STARTING ............................................................................................................. 14

Seat Belt ......................................................................................................................... 14

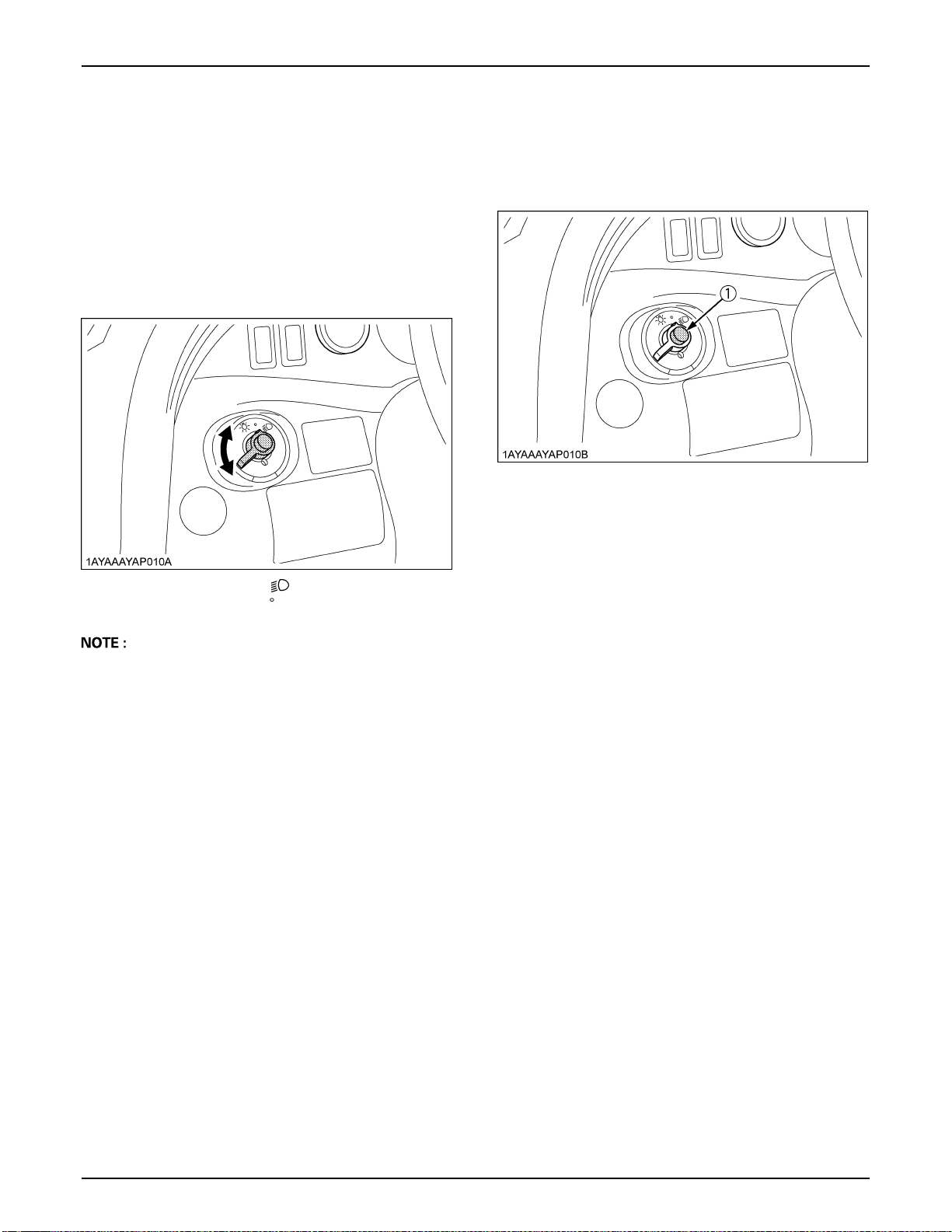

Head Light Switch........................................................................................................... 15

Horn Button.....................................................................................................................15

Brake Pedal ....................................................................................................................16

Range Gear Shift Lever..................................................................................................16

4WD Lever......................................................................................................................17

Parking Brake Lever ....................................................................................................... 17

Speed Control Pedal.......................................................................................................17

STOPPING............................................................................................................. 18

Stopping.......................................................................................................................... 18

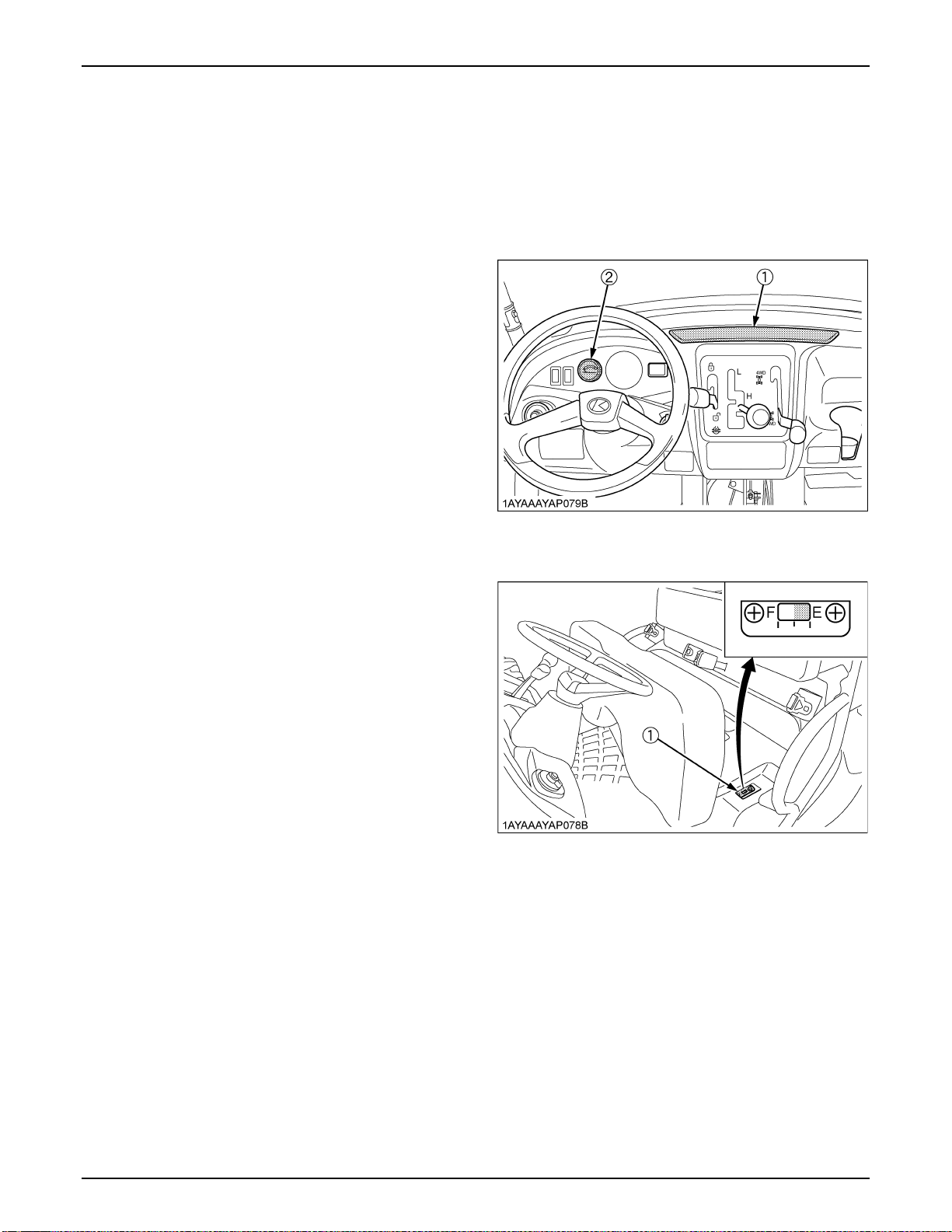

CHECK DURING DRIVING ................................................................................... 18

Immediately Stop the Engine if:......................................................................................18

Easy Checker(TM).......................................................................................................... 19

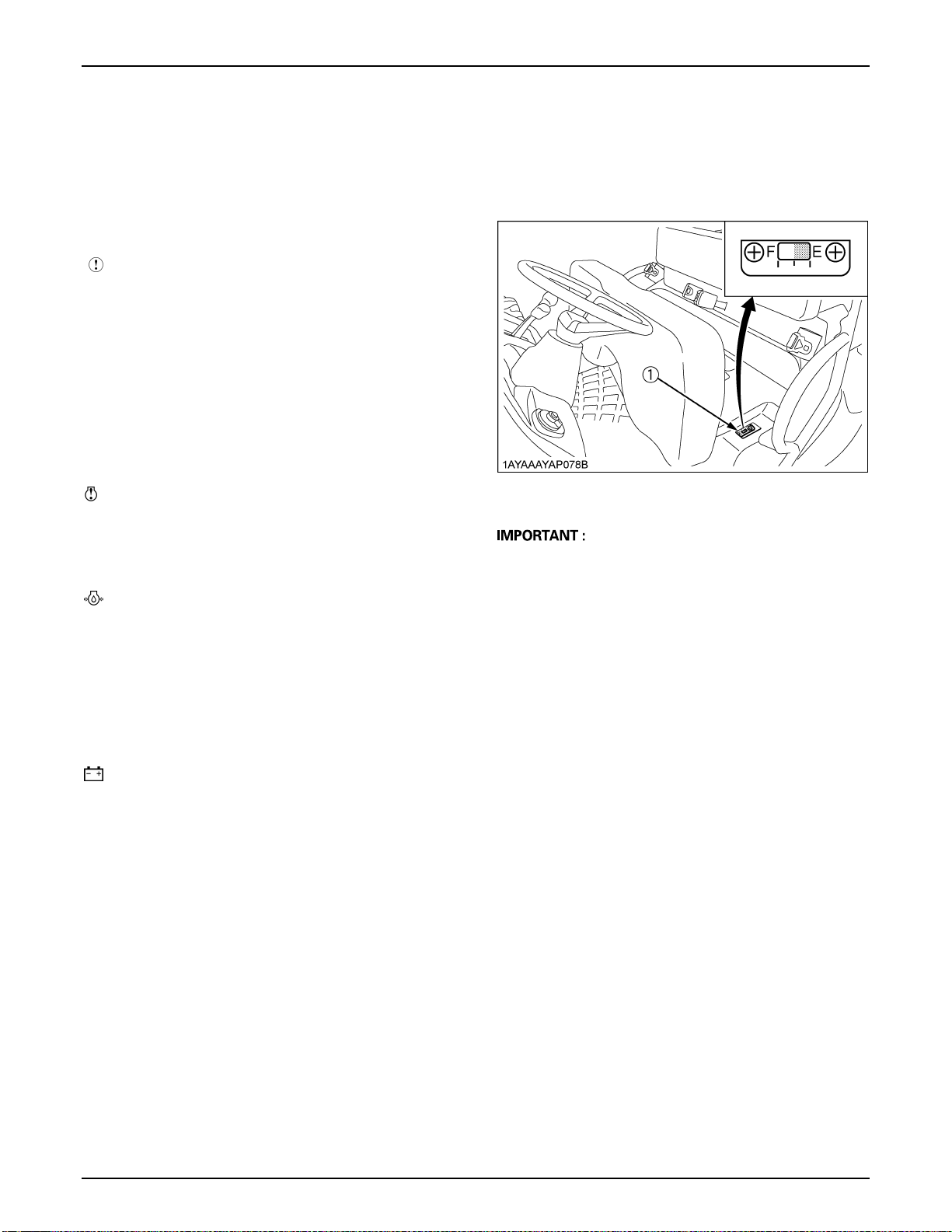

Fuel Gauge.....................................................................................................................19

Coolant Temperature Gauge..........................................................................................20

Hourmeter.......................................................................................................................20

PARKING ............................................................................................................... 20

Parking Brake Lever ....................................................................................................... 20

ACCESSORY......................................................................................................... 21

12V Electric Outlet..........................................................................................................21

OPERATING TECHNIQUES ................................................................................. 21

CONTENTS

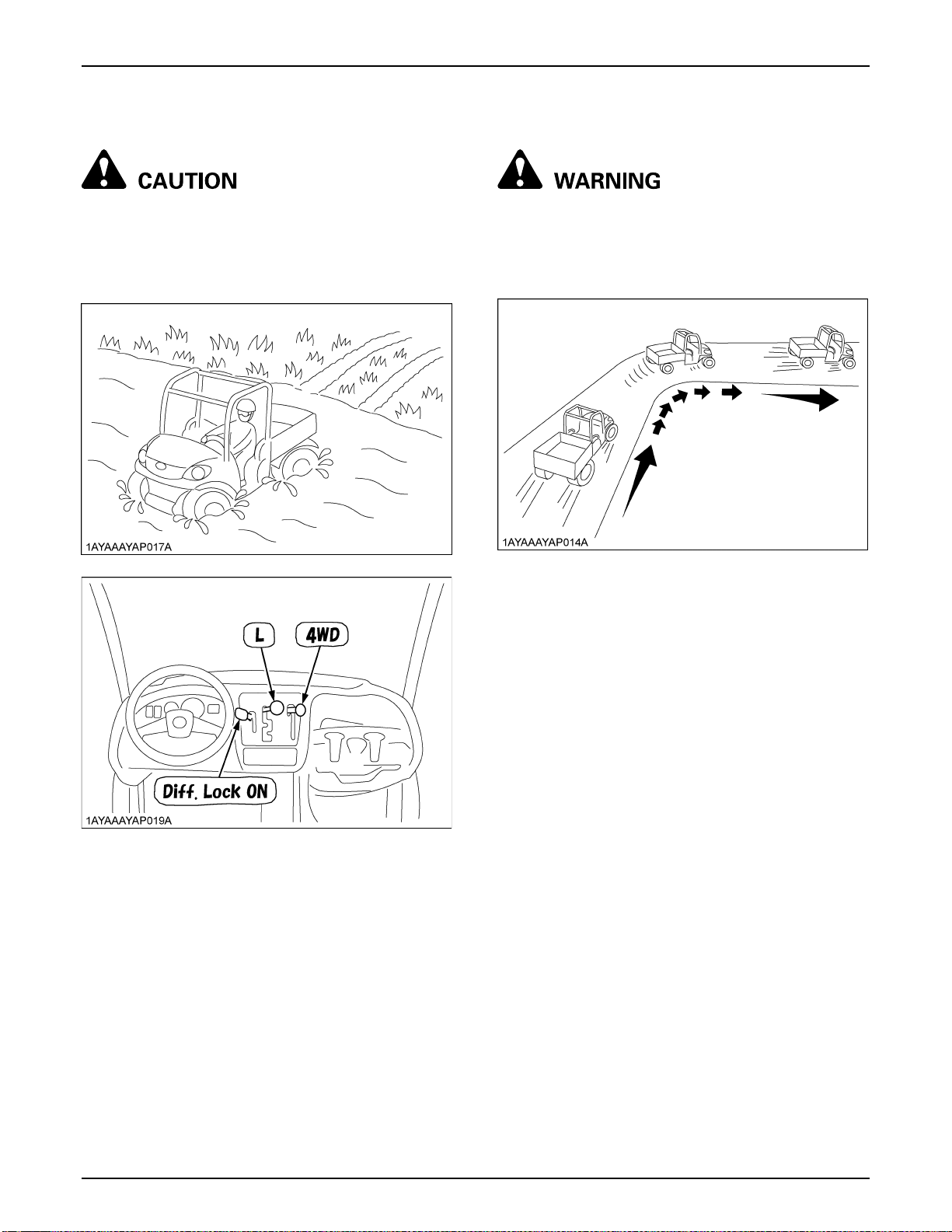

Differential Lock..............................................................................................................21

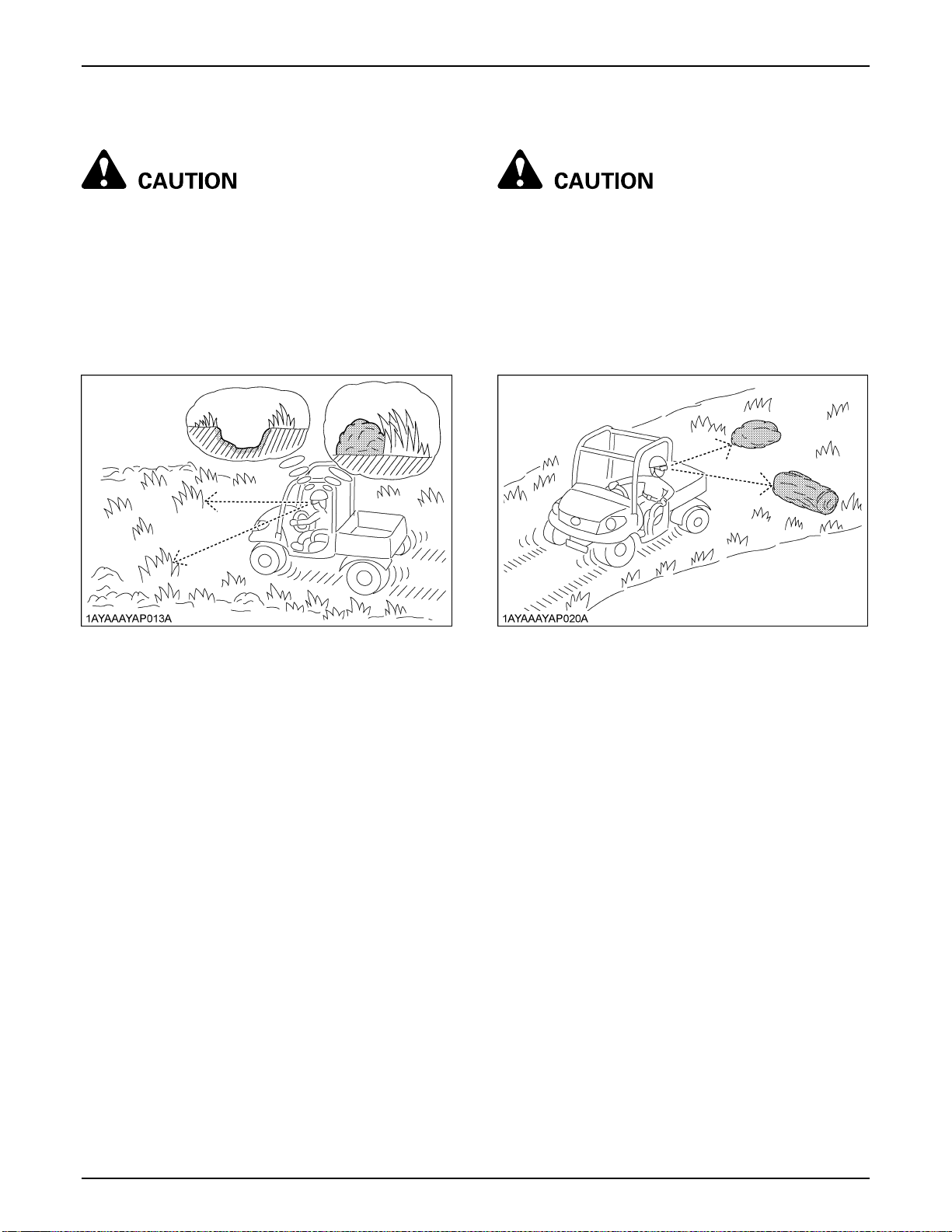

Unfamiliar Terrain ........................................................................................................... 22

Driving in Reverse ..........................................................................................................22

Driving in "4WD" .............................................................................................................23

Turning the Vehicle.........................................................................................................23

Hills.................................................................................................................................24

Traversing Hillsides ........................................................................................................24

Sliding and Skidding ....................................................................................................... 24

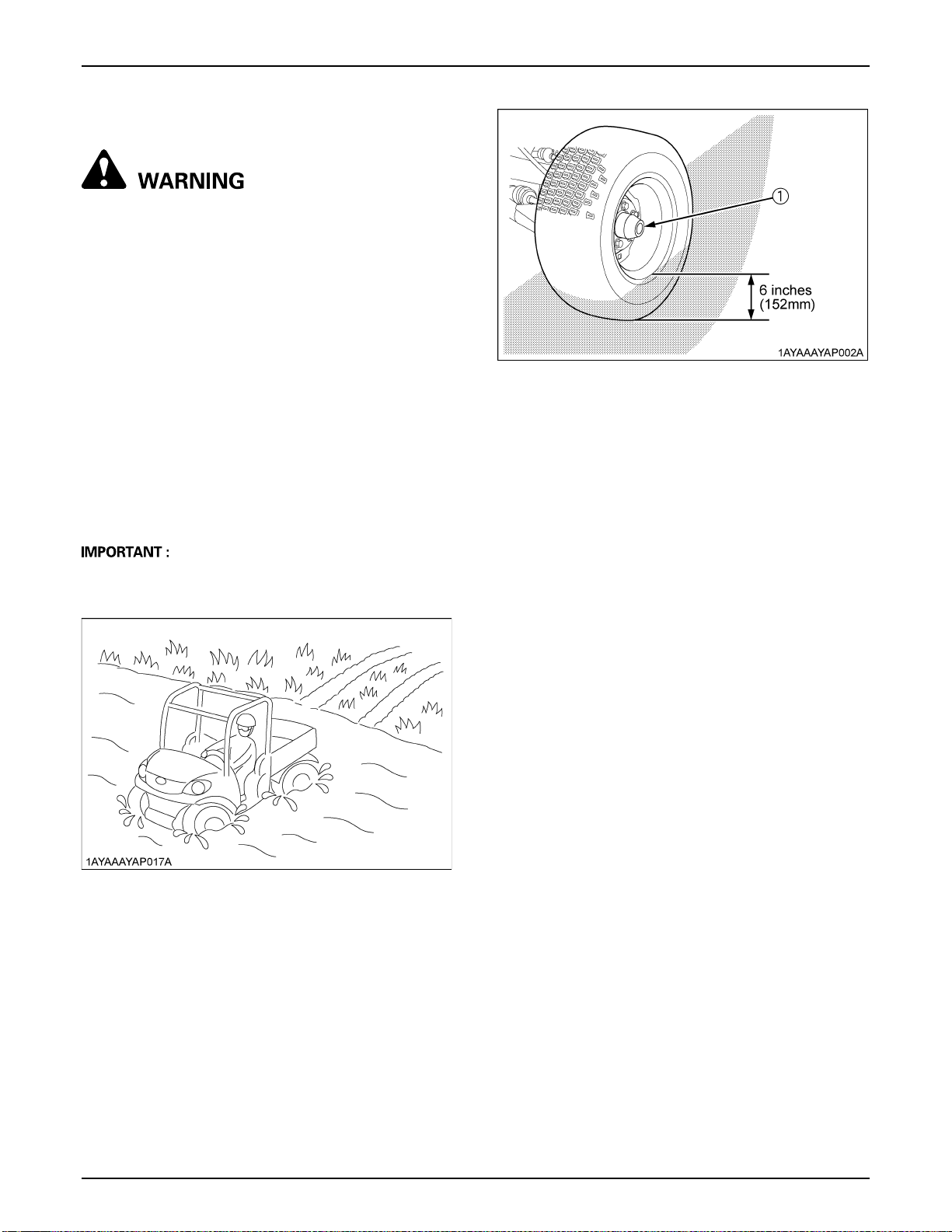

Driving through Water..................................................................................................... 25

CARGO BED ............................................................................................................. 26

CARGO BED.......................................................................................................... 26

General Caution.............................................................................................................. 26

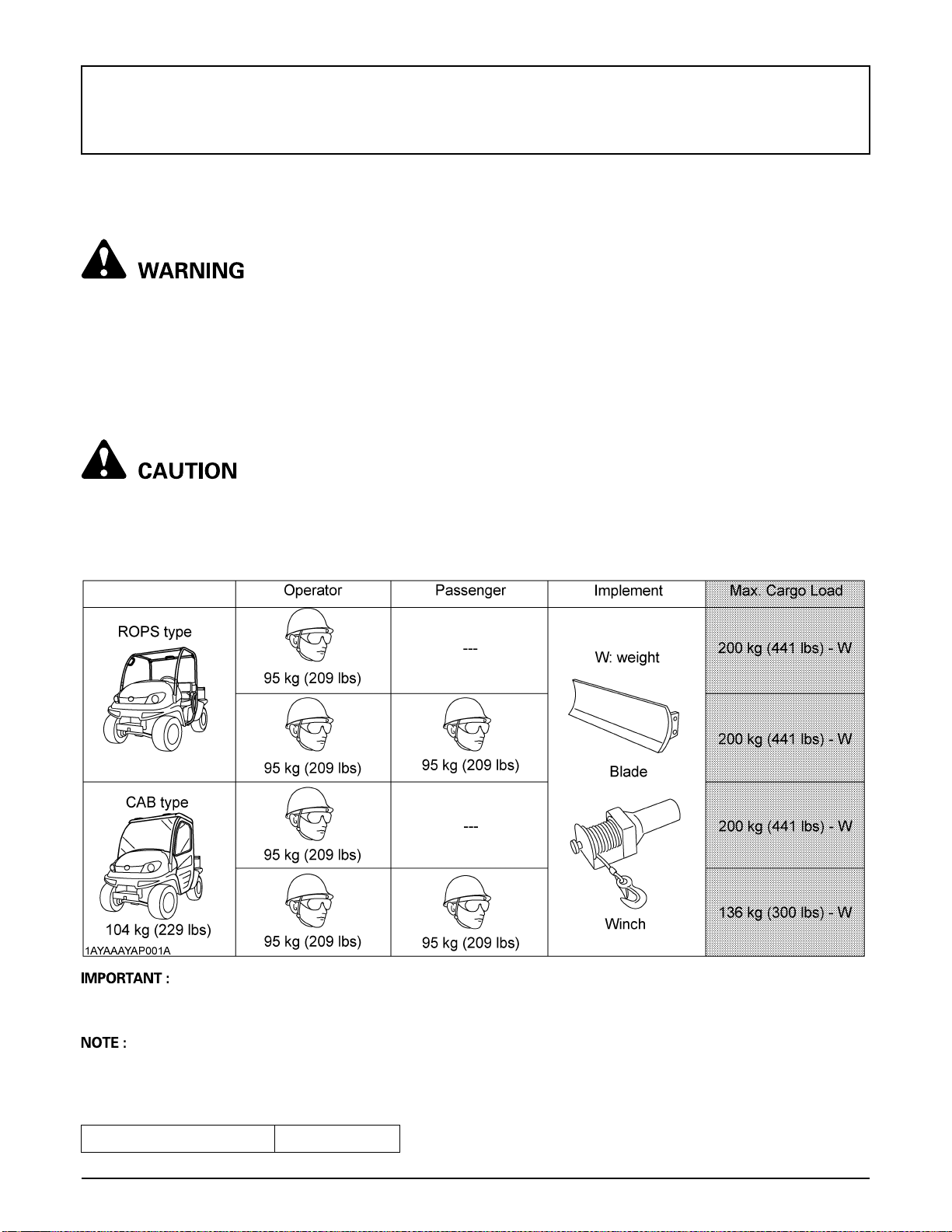

Max. Cargo Load ............................................................................................................ 26

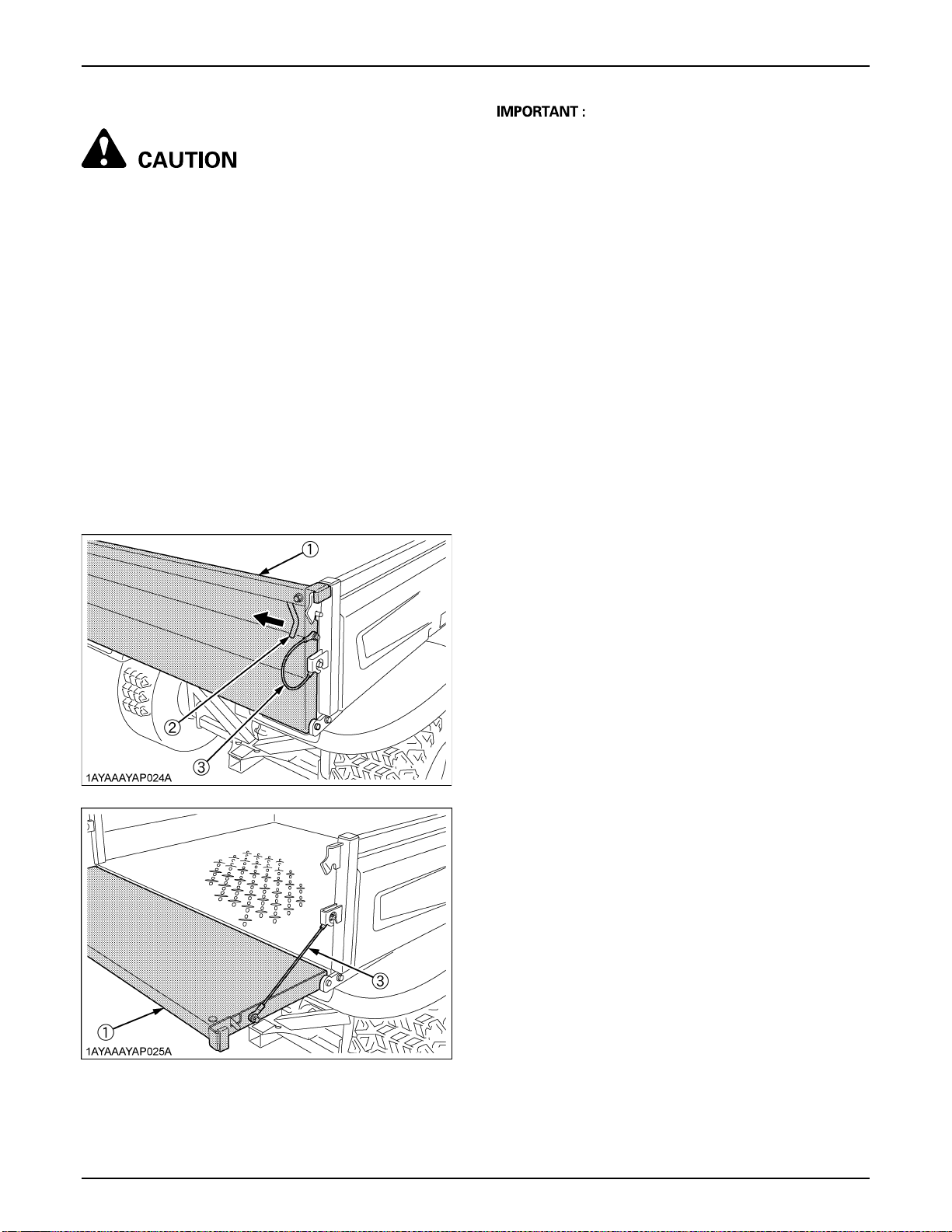

Cargo Bed Tailgate......................................................................................................... 27

Raising and Lowering the Cargo Bed.............................................................................28

TIRES AND WHEELS ............................................................................................... 29

TIRES..................................................................................................................... 29

Inflation Pressure............................................................................................................29

Tire Type and Use .......................................................................................................... 29

WHEELS ................................................................................................................ 30

SHOCK ABSORBERS ........................................................................................... 30

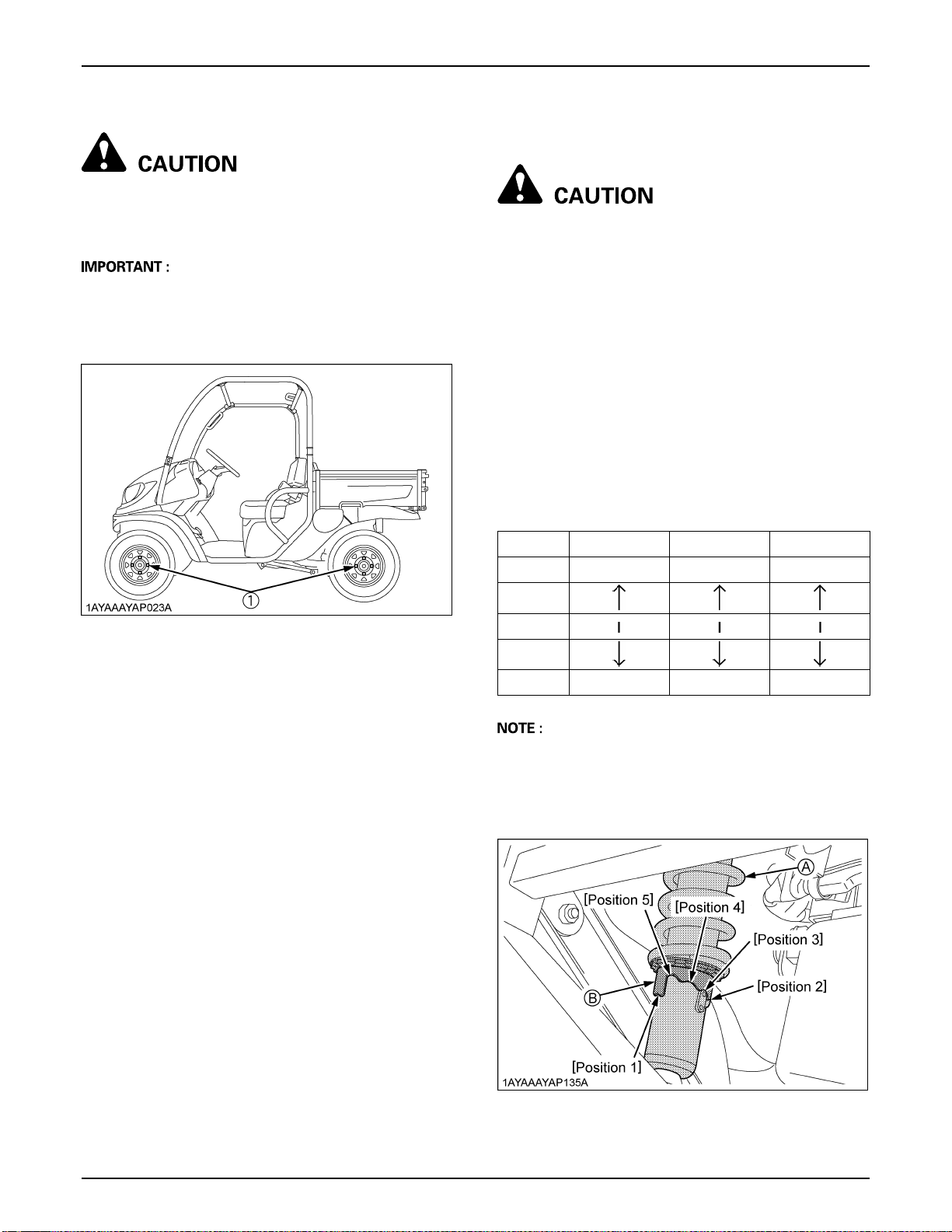

Rear Shock Absorber Spring Adjustment....................................................................... 30

TOWING AND TRANSPORTING.............................................................................. 31

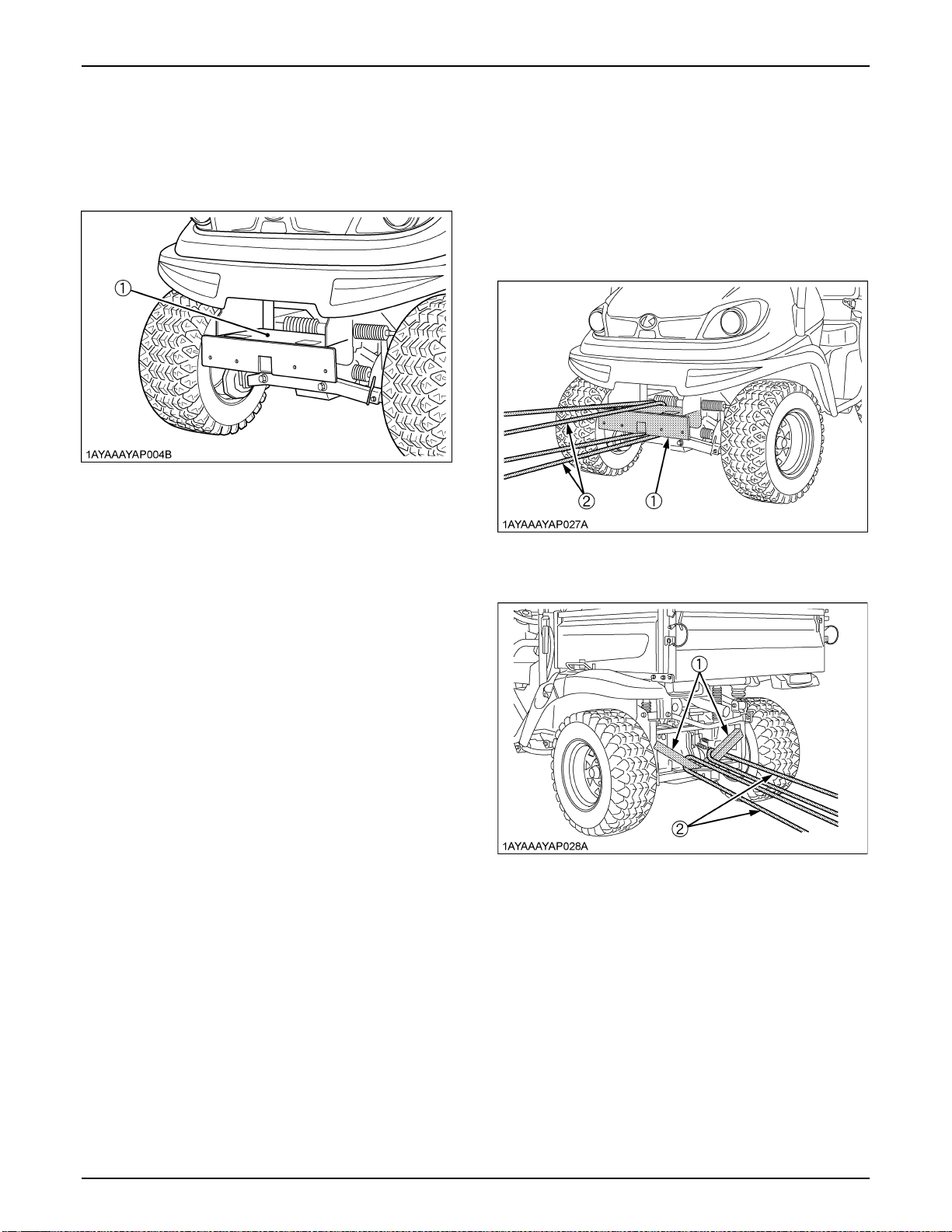

TOWING AND TRANSPORTING .......................................................................... 31

Rear Trailer Hitch............................................................................................................31

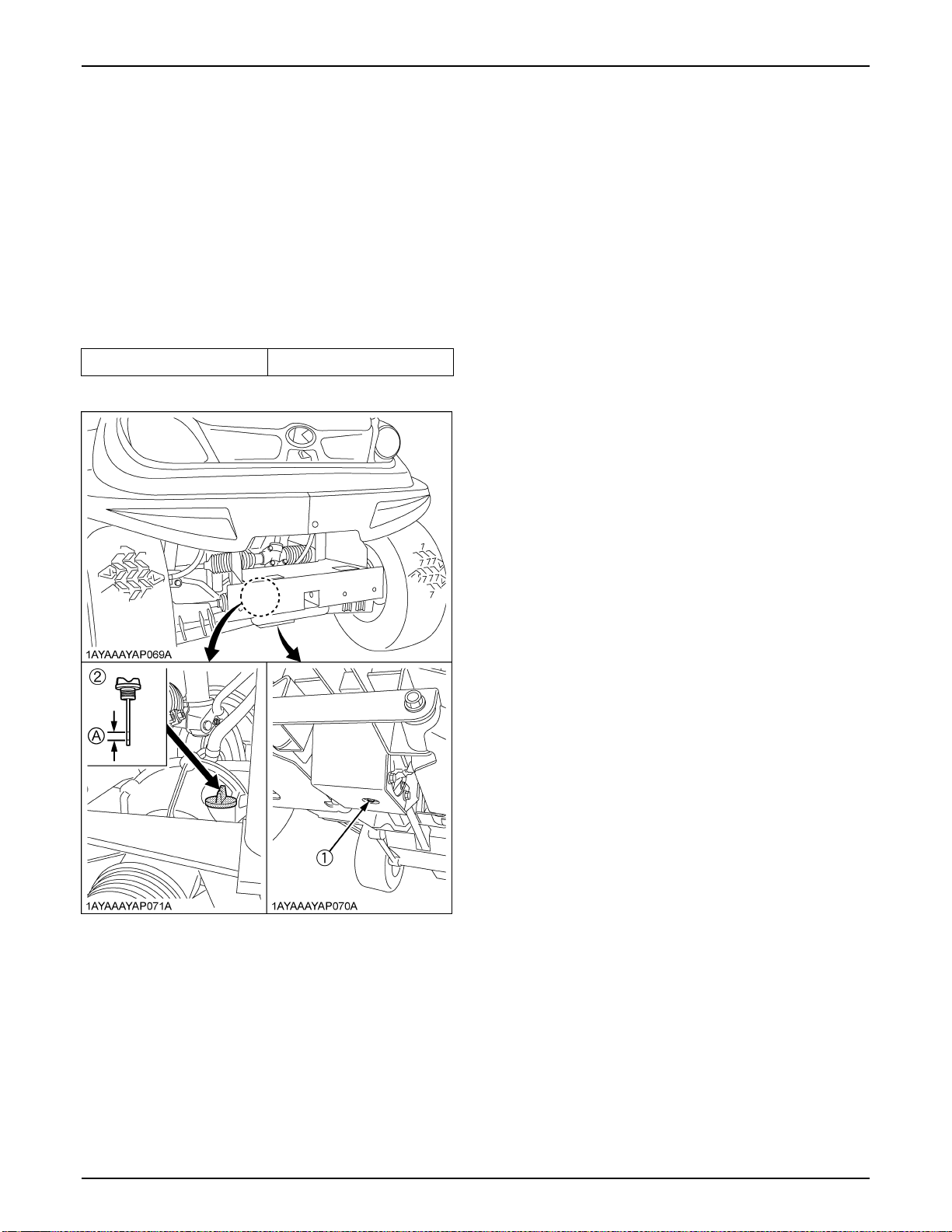

Front Trailer Hitch...........................................................................................................31

Winch Mount Bracket......................................................................................................32

Transport the Vehicle Safely...........................................................................................32

MAINTENANCE......................................................................................................... 33

SERVICE INTERVALS .......................................................................................... 33

LUBRICANTS, FUEL AND COOLANT .................................................................. 36

PERIODIC SERVICE................................................................................................. 38

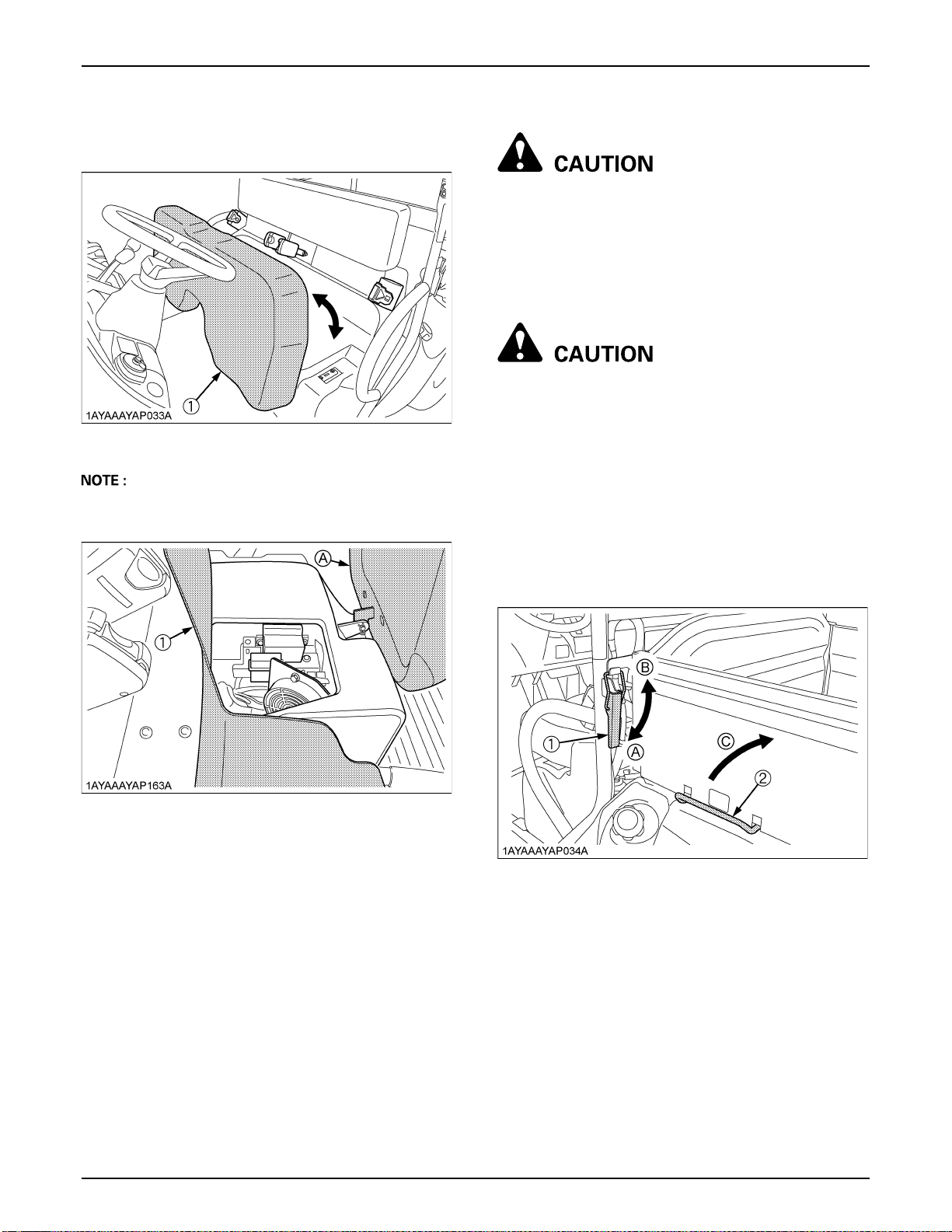

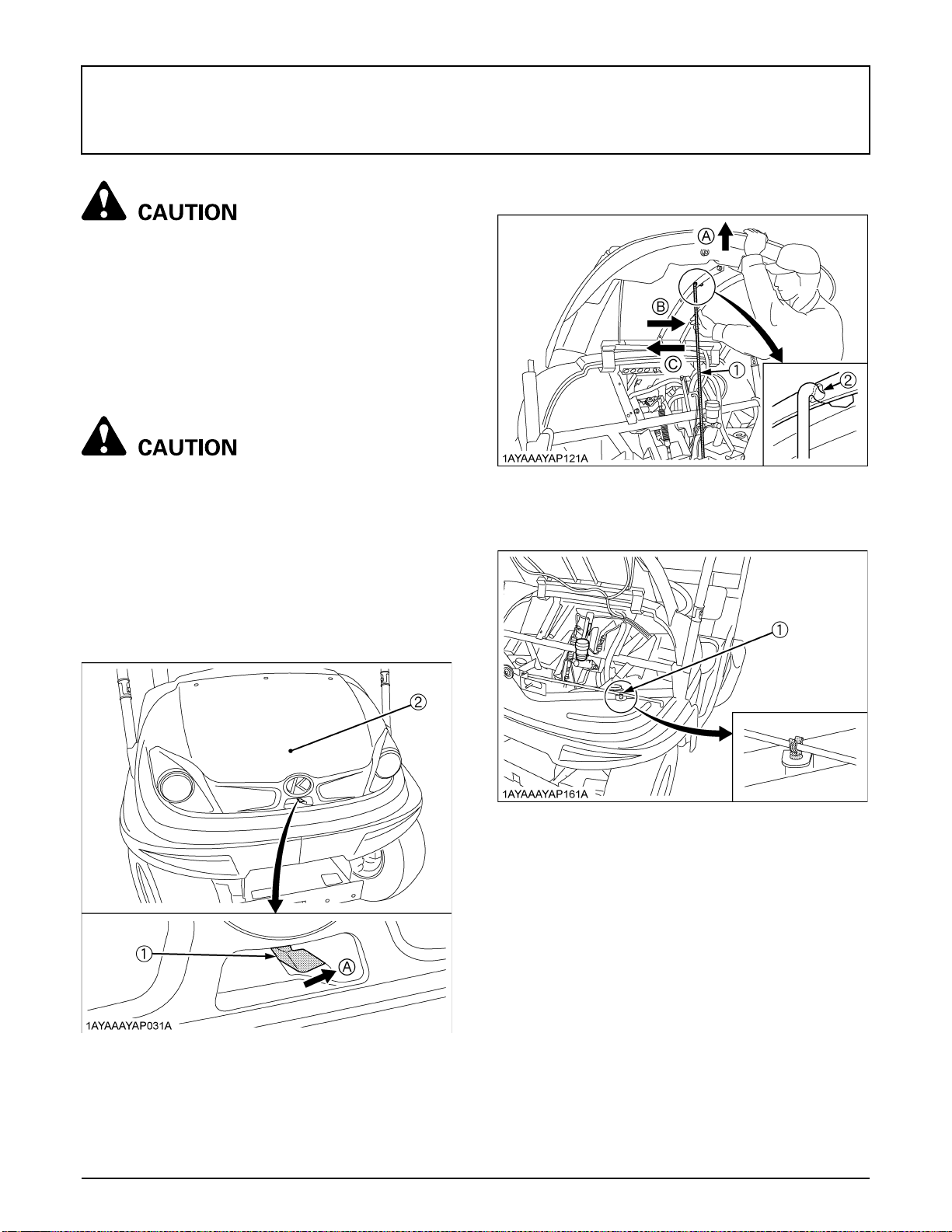

HOW TO OPEN THE HOOD AND TILT THE SEAT.............................................. 38

Hood ...............................................................................................................................38

Operator's Seat...............................................................................................................39

HOW TO RAISE THE CARGO BED...................................................................... 39

Raising and Lowering the Cargo Bed.............................................................................39

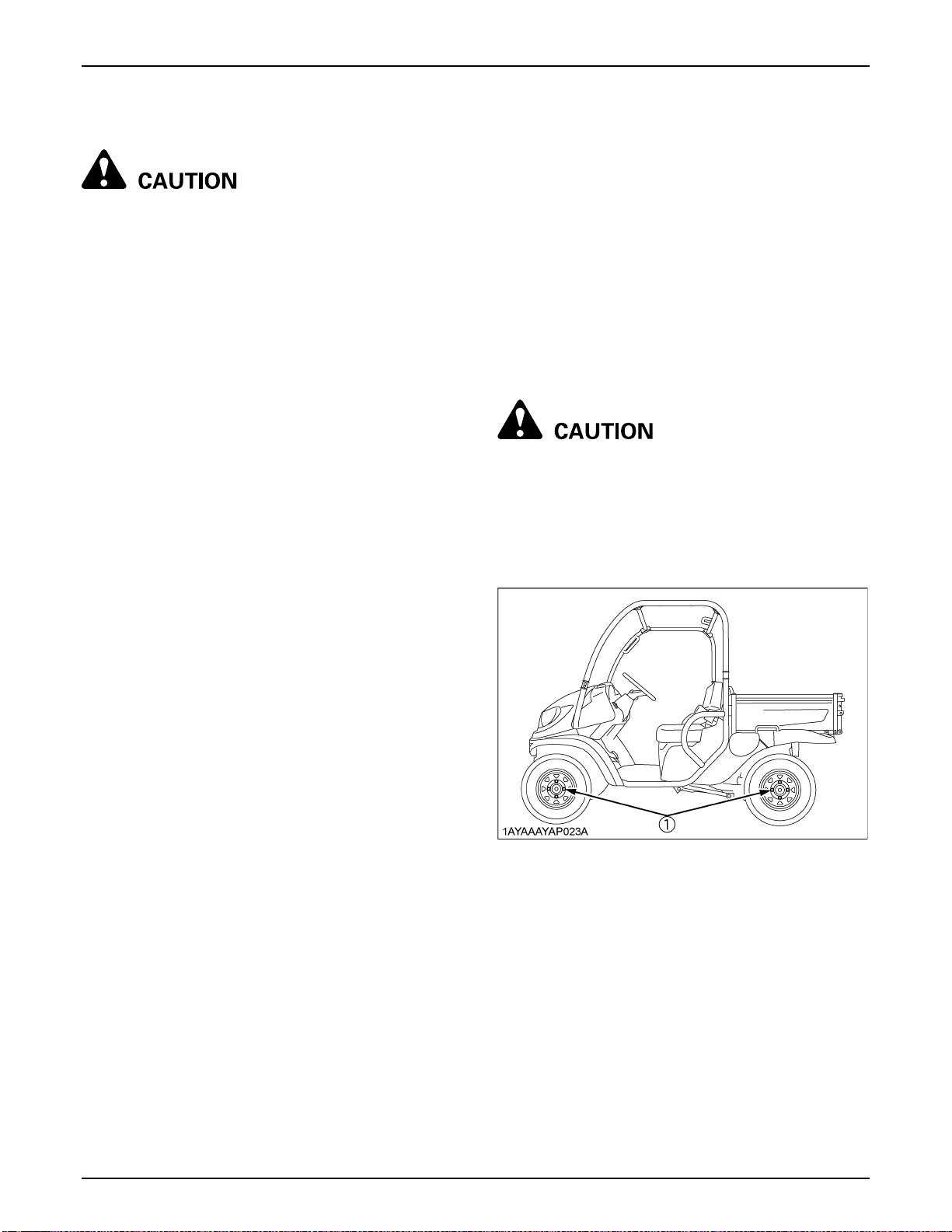

JACK-UP POINT.................................................................................................... 40

Front End........................................................................................................................40

Rear End......................................................................................................................... 40

DAILY CHECK ....................................................................................................... 41

Walk Around Inspection.................................................................................................. 41

Checking Amount of Fuel and Refueling ........................................................................ 41

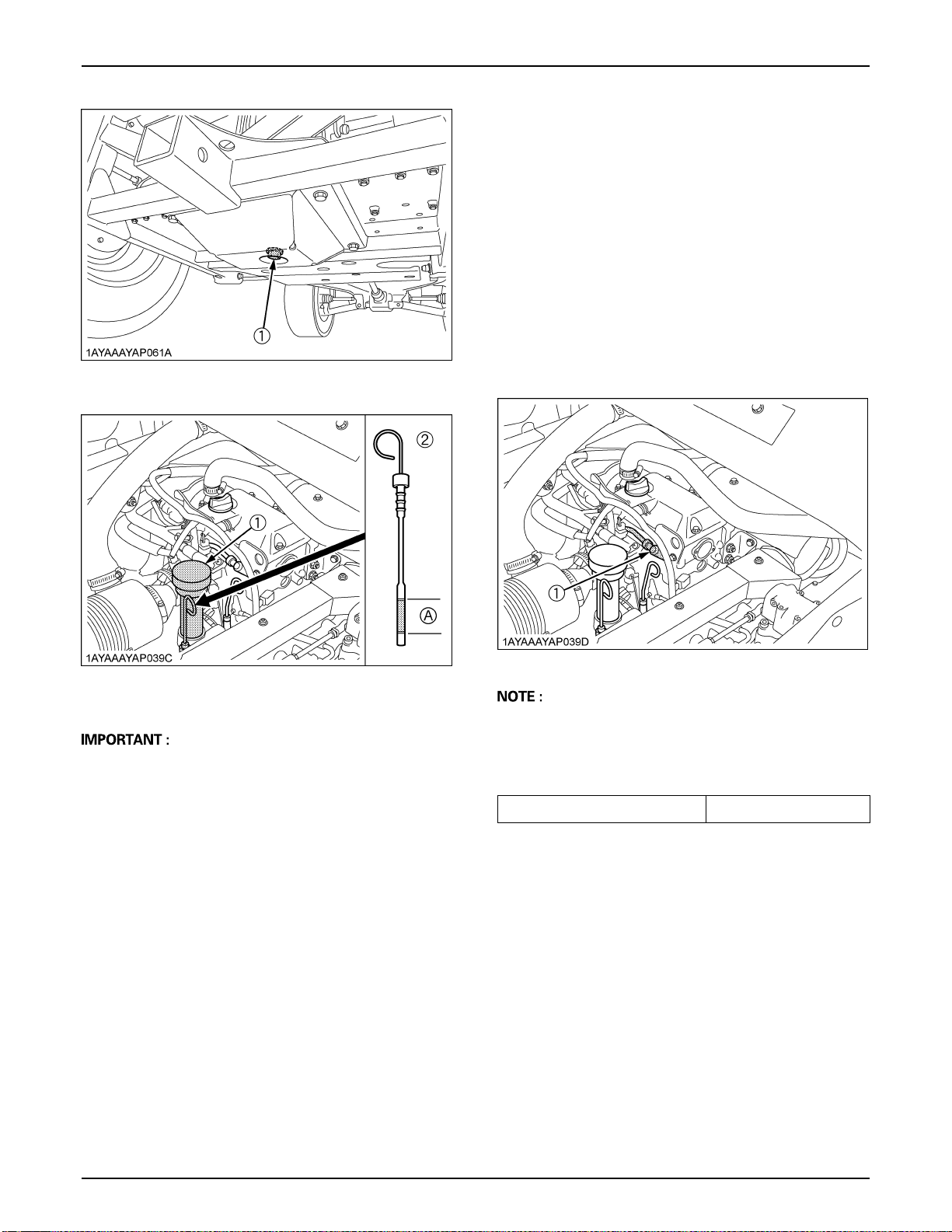

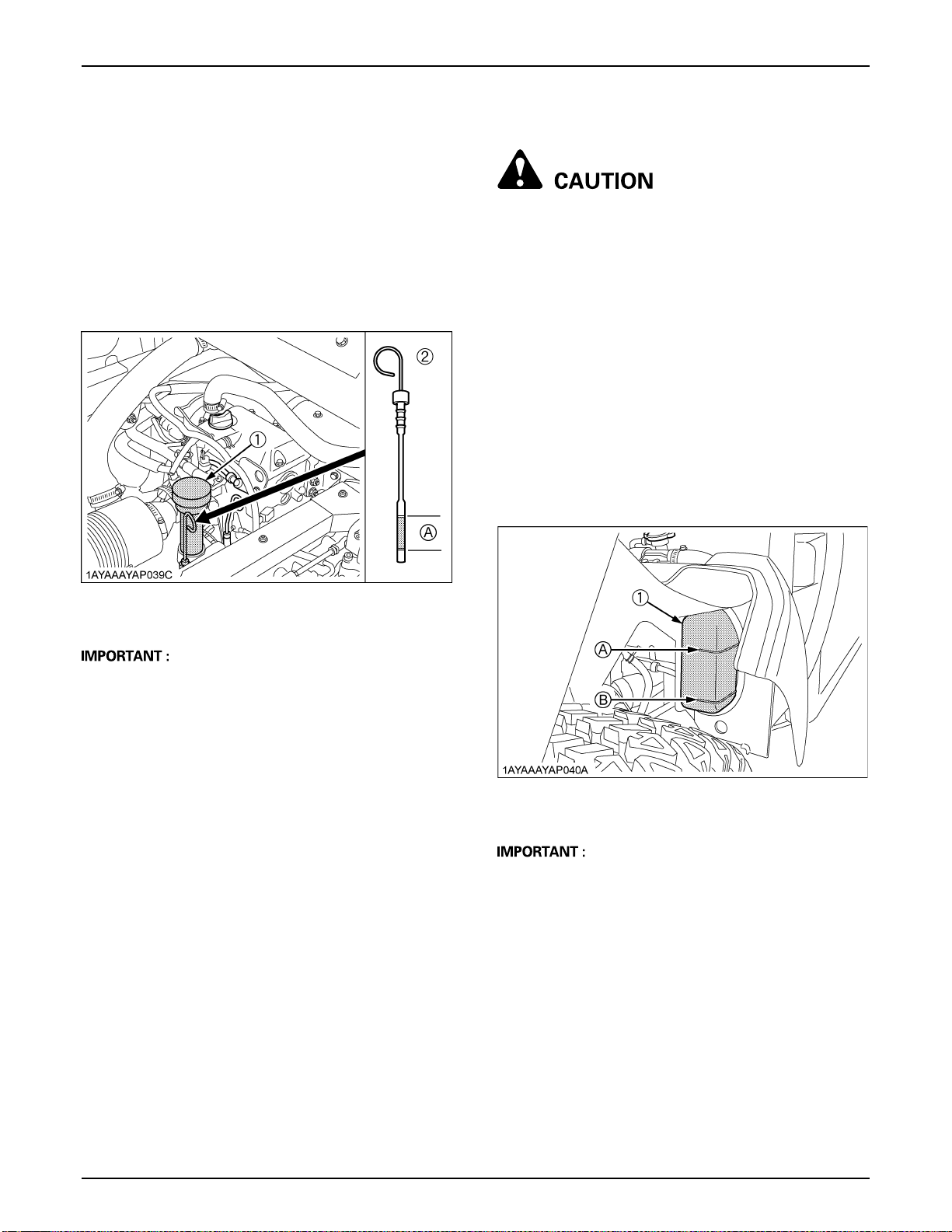

Checking Engine Oil Level..............................................................................................42

Checking Transmission Fluid Level................................................................................43

Checking Coolant Level.................................................................................................. 43

Cleaning Radiator Screen...............................................................................................44

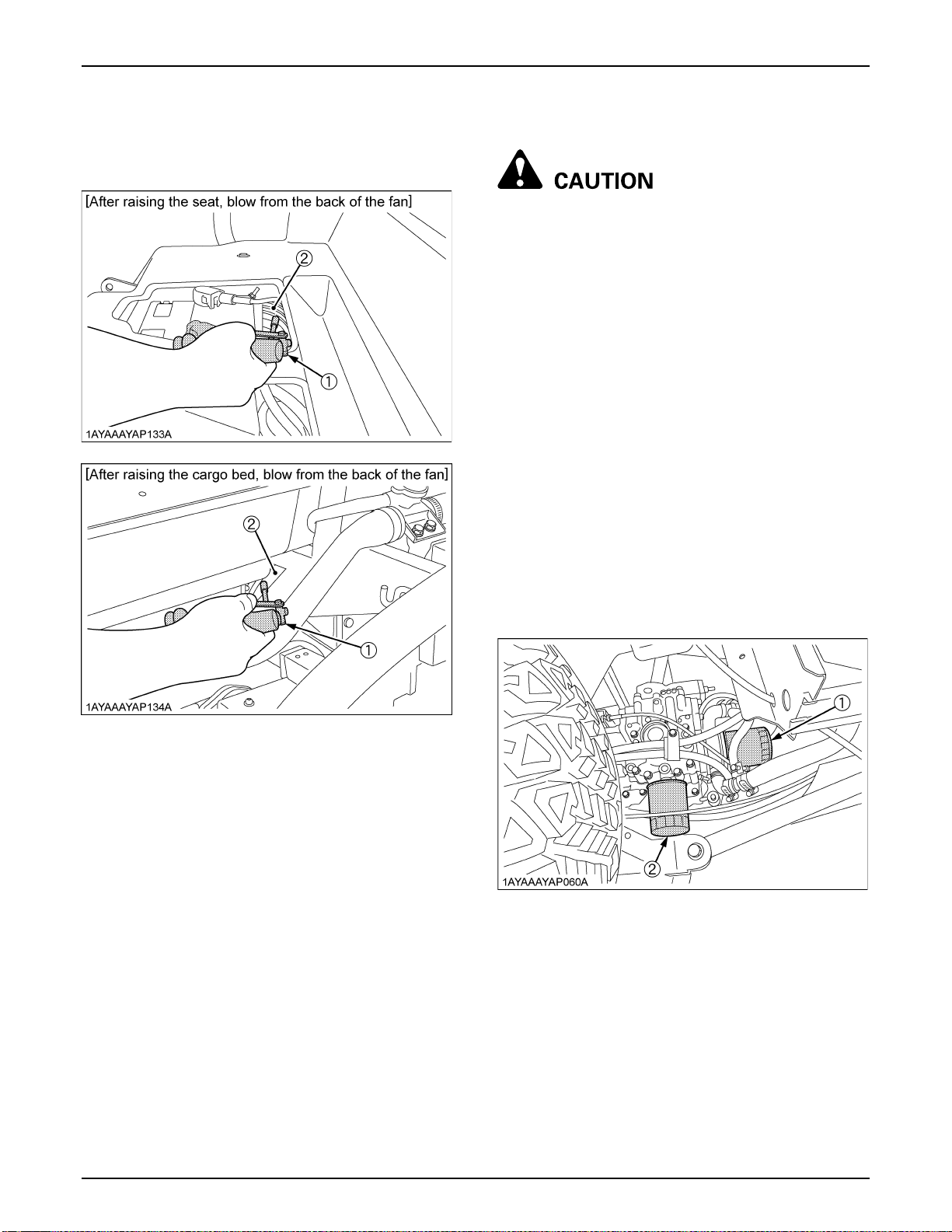

Checking Engine Cooling Fan ........................................................................................ 44

CONTENTS

Checking Brake Fluid Level............................................................................................45

Checking Brake Pedal .................................................................................................... 45

Checking Parking Brake ................................................................................................. 46

Checking Gauges, Meter and Easy Checker(TM) .......................................................... 46

Checking Head Light, etc................................................................................................ 46

Checking Seat Belt and ROPS.......................................................................................46

Checking Joint Boot........................................................................................................ 46

Checking Tire Inflation Pressure.....................................................................................47

EVERY 50 HOURS ................................................................................................ 47

Greasing .........................................................................................................................47

Checking Engine Start System.......................................................................................49

EVERY 100 HOURS .............................................................................................. 49

Checking VHT Neutral Spring.........................................................................................49

Checking Wheel Bolt Torque..........................................................................................49

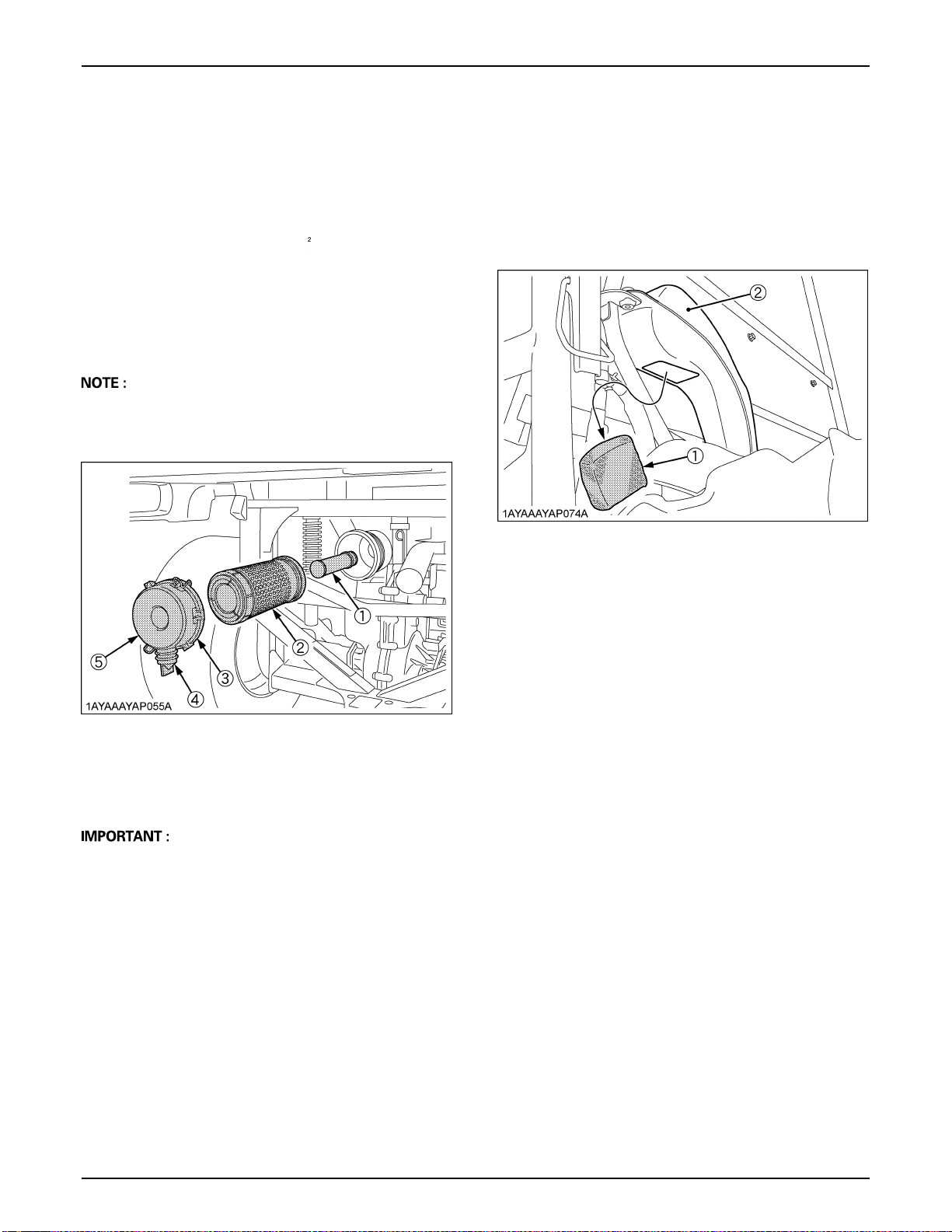

Cleaning Air Cleaner Primary Element ........................................................................... 50

Cleaning Pre Cleaner Element .......................................................................................50

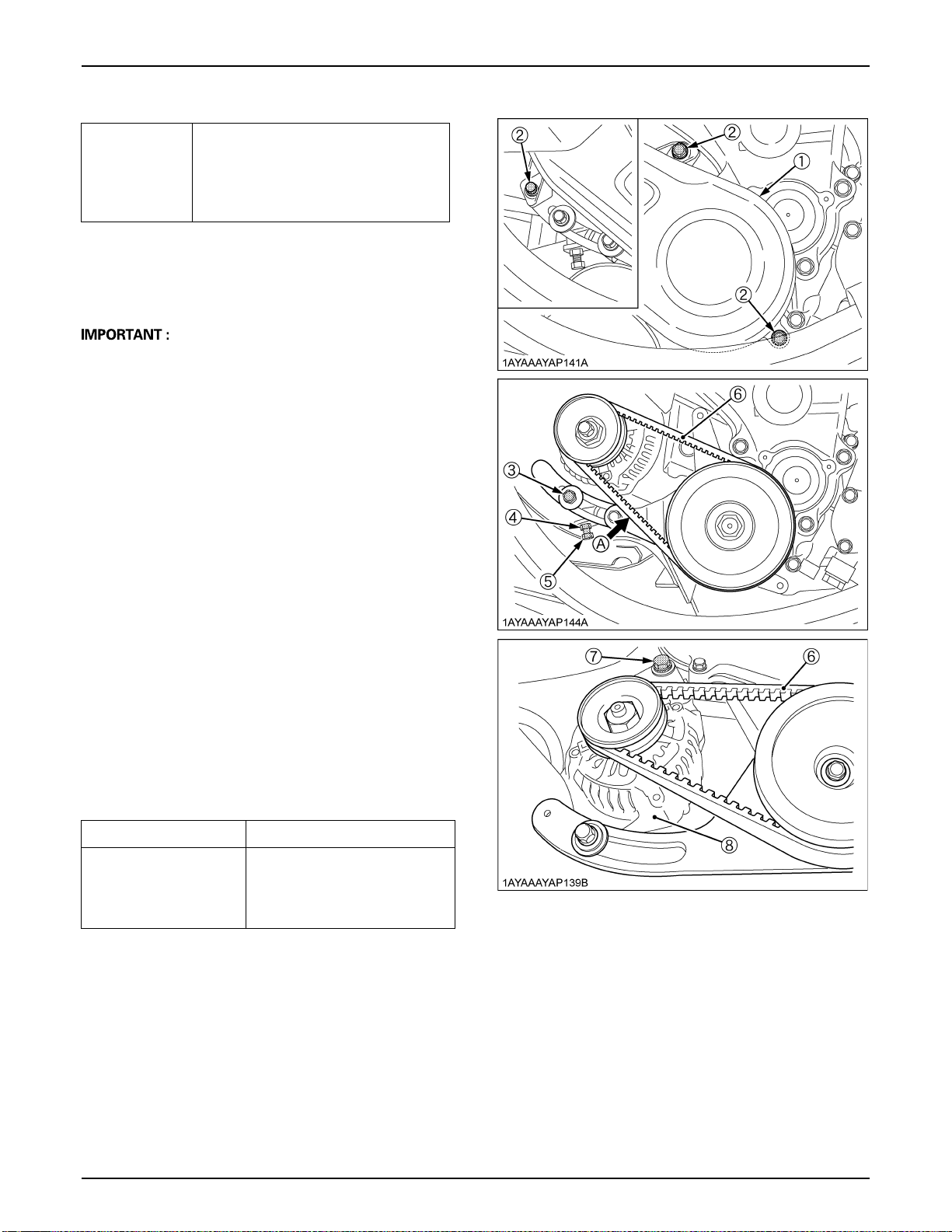

Adjusting Alternator Drive Belt Tension..........................................................................51

Checking Fuel Line.........................................................................................................53

Checking Carbon Canister Air Filter ............................................................................... 54

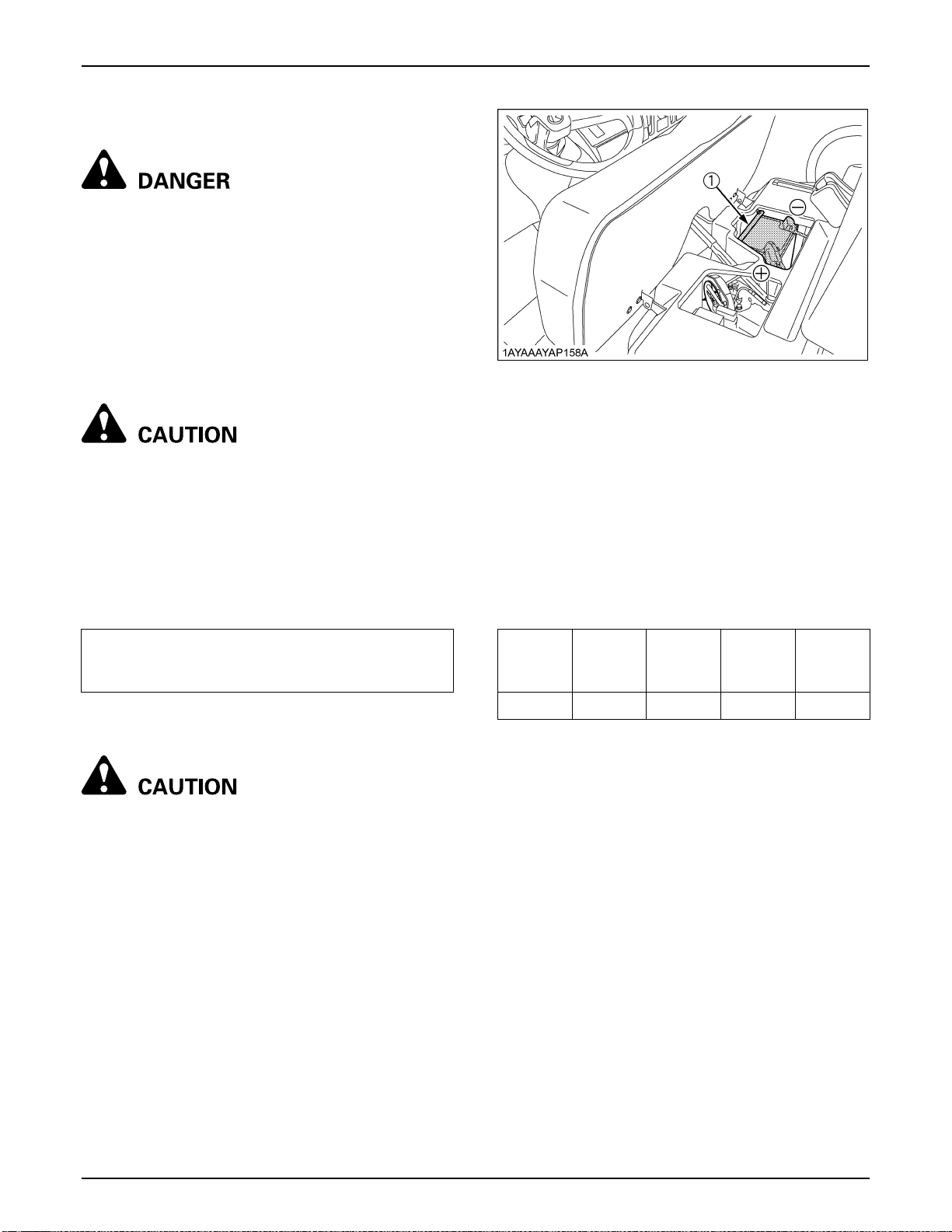

Checking Battery Condition ............................................................................................ 55

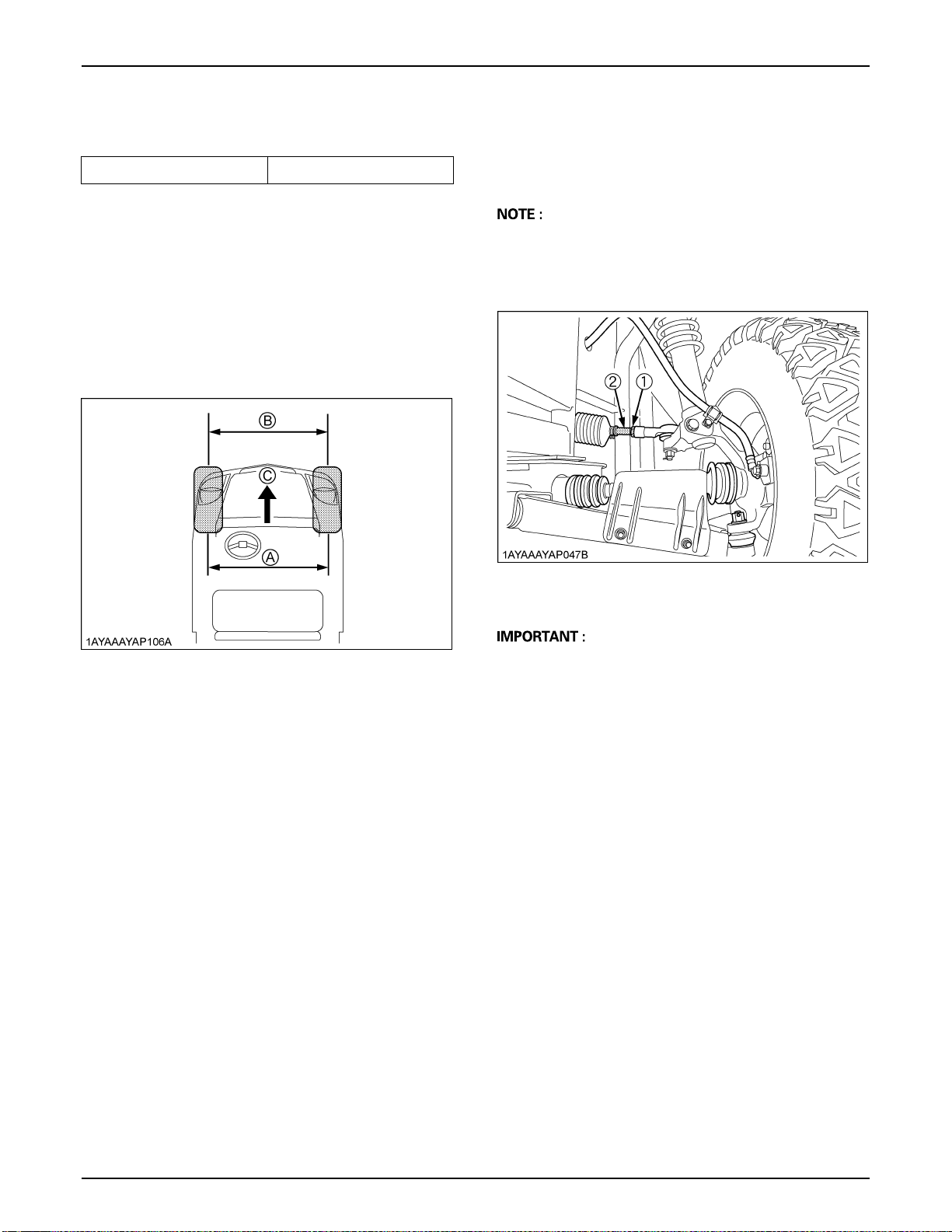

Adjusting Toe-in.............................................................................................................. 56

Cleaning Spark Arrester .................................................................................................57

EVERY 200 HOURS .............................................................................................. 57

Adjusting Parking Brake Lever .......................................................................................57

Replacing Engine Oil Filter ............................................................................................. 58

Changing Engine Oil....................................................................................................... 58

Cleaning Radiator Cooling Fins......................................................................................59

Replacing Transmission Oil Filter...................................................................................60

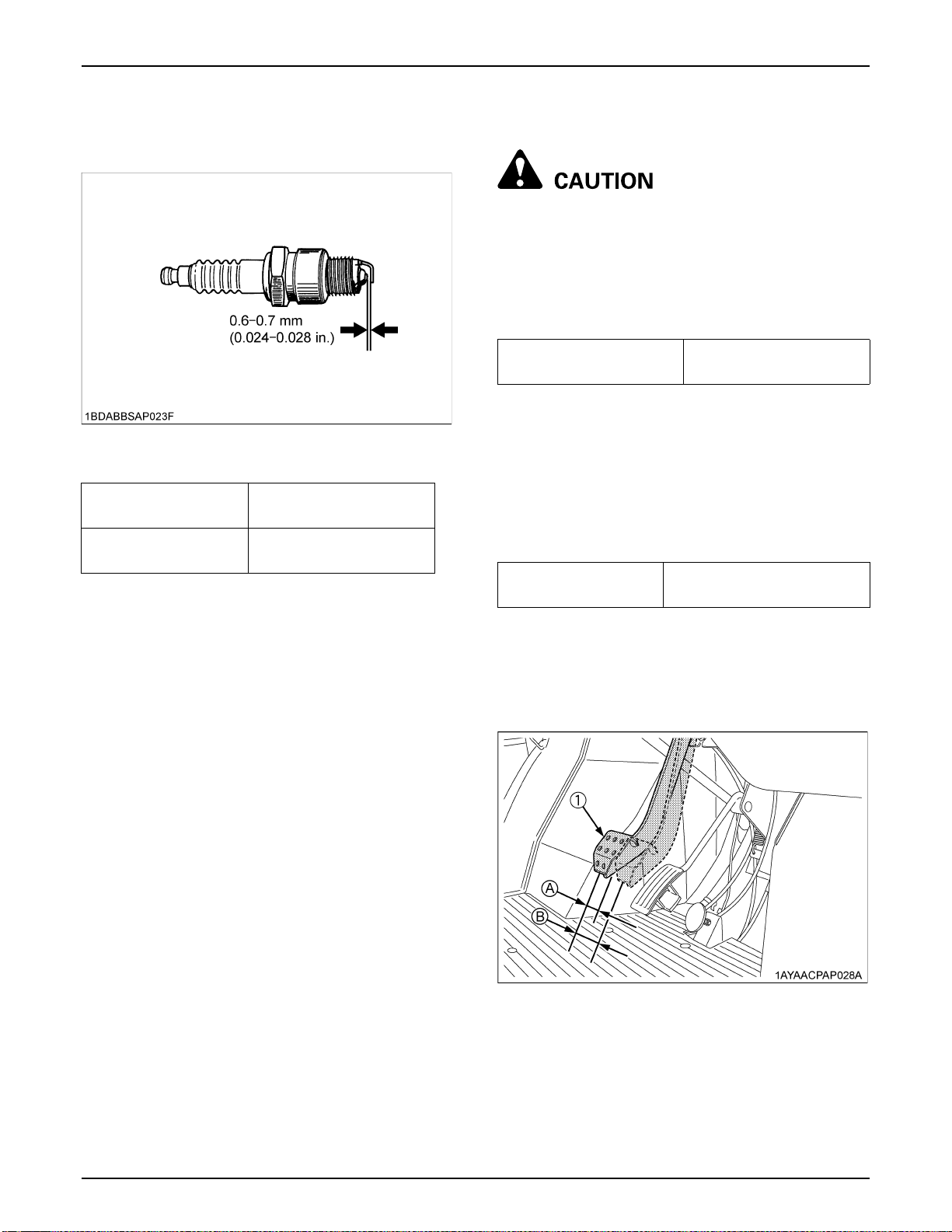

Checking Spark Plug Condition & Gap........................................................................... 61

Checking Brake Pedal .................................................................................................... 62

Checking Brake Light Switch..........................................................................................63

EVERY 300 HOURS .............................................................................................. 63

Checking Tire..................................................................................................................63

EVERY 400 HOURS .............................................................................................. 64

Changing Transmission Oil.............................................................................................64

Changing Front Axle Case Oil ........................................................................................ 65

EVERY 500 HOURS .............................................................................................. 65

Adjusting Engine Valve Clearance .................................................................................65

Checking Engine Timing Belt..........................................................................................65

EVERY 1000 HOURS ............................................................................................ 65

Replacing Engine Timing Belt.........................................................................................65

EVERY AFTER 1000 HOURS ............................................................................... 65

Cleaning Engine Combustion Chamber ......................................................................... 65

EVERY 1000 HOURS or EVERY 1 YEAR............................................................. 65

Replacing Air Cleaner Primary Element and Secondary Element.................................. 65

Replacing Pre Cleaner Element .....................................................................................65

EVERY 2000 HOURS or EVERY 2 YEARS .......................................................... 66

Flushing Cooling System and Changing Coolant ...........................................................66

Anti-Freeze .....................................................................................................................66

EVERY 1 YEAR ..................................................................................................... 67

Checking Radiator Hose and Clamp ..............................................................................67

Checking Intake Air Line................................................................................................. 68

CONTENTS

Checking Engine Breather Hose .................................................................................... 68

Checking Brake Hose and Pipe...................................................................................... 68

EVERY 2 YEARS................................................................................................... 69

Changing Brake Fluid ..................................................................................................... 69

Replacing Fuel Hose ......................................................................................................69

EVERY 4 YEARS................................................................................................... 69

Replacing Radiator Hose (Water pipes) ......................................................................... 69

Replacing Engine Breather Hose ...................................................................................69

Replacing Brake Master Cylinder (Inner Parts) ..............................................................69

Replacing Intake Air Line................................................................................................ 69

Replacing Brake Hose....................................................................................................69

SERVICE AS REQUIRED...................................................................................... 70

Checking Brake Pad.......................................................................................................70

Adjusting Parking Brake .................................................................................................70

Adjusting Alternator Drive Belt Tension..........................................................................70

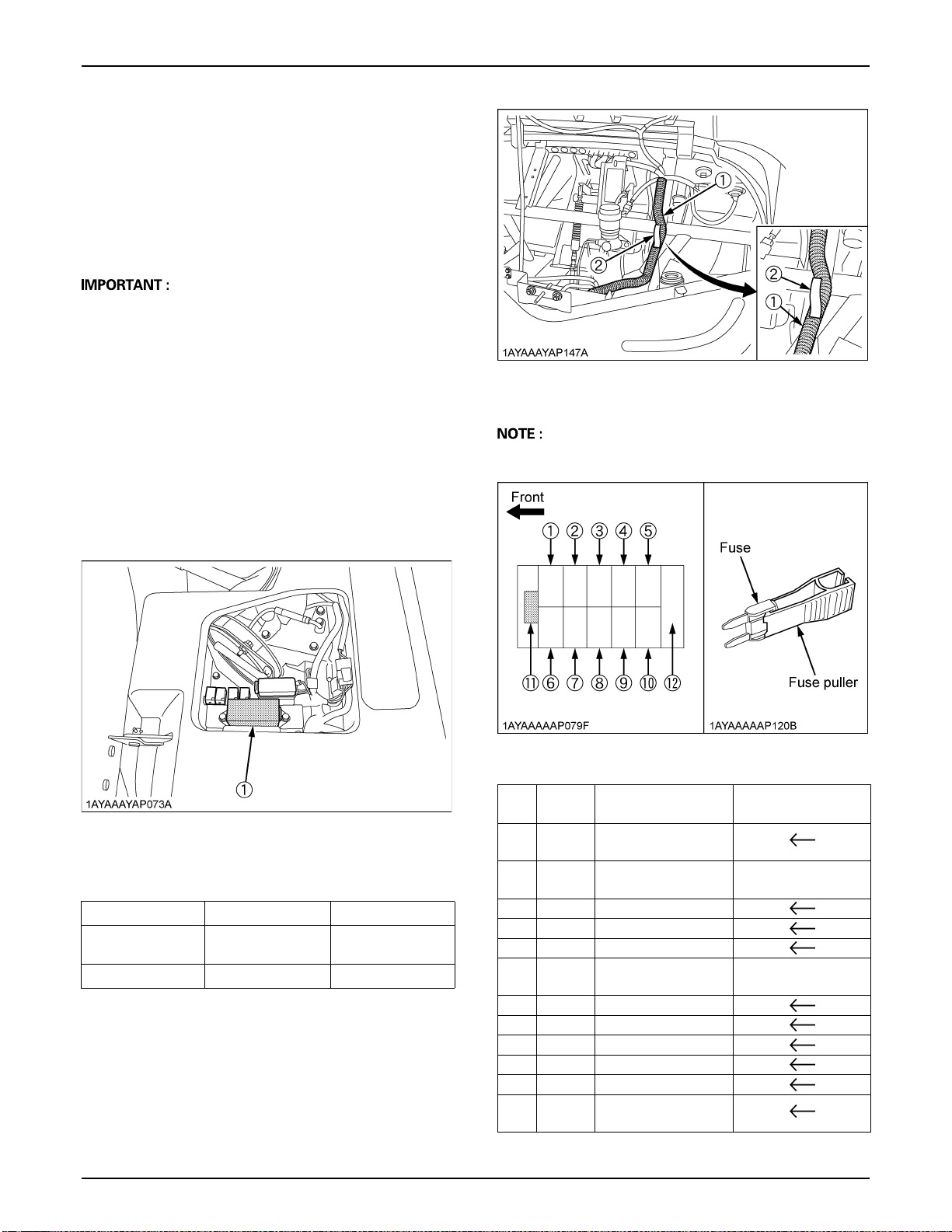

Replacing Fuse...............................................................................................................71

Replacing Slow-Blow Fuses ........................................................................................... 72

Replacing Light Bulb.......................................................................................................72

STORAGE ................................................................................................................. 73

VEHICLE STORAGE ............................................................................................. 73

REMOVING THE VEHICLE FROM STORAGE..................................................... 73

TROUBLESHOOTING............................................................................................... 74

ENGINE TROUBLESHOOTING ............................................................................ 74

BATTERY TROUBLESHOOTING ......................................................................... 76

MACHINE TROUBLESHOOTING ......................................................................... 77

OPTIONS................................................................................................................... 78

ENGINE EMISSION RELATED INFORMATION....................................................... 79

INDEX........................................................................................................................ 80

SAFE OPERATION

-1SAFE OPERATION

Careful operation is your best insurance against an
accident.
Read and understand this Operator's Manual carefully
before operating the vehicle.
All operators, no matter how much experience they may
have, should read this and other related manuals before
operating the vehicle or any implement attached to it. It is
the owner's obligation to instruct all operators in safe
operation.

1. BEFORE OPERATING THE VEHICLE

1. Know your equipment and its limitations. Read this
entire manual before attempting to start and operate
the vehicle.

2. Pay special attention to the Danger, Warning and
Caution labels on the vehicle.

3. Do not remove Roll-Over Protective Structures
(ROPS) for any application and fasten seat belts at all
times. This combination will reduce the risk of serious
injury or death, should the vehicle be upset.
If the ROPS is loosened or removed for any reason,
make sure that all parts are reinstalled correctly before
operating the vehicle.
Never modify or repair a ROPS because welding,
bending, drilling, grinding, or cutting may weaken the
structure.
A damaged ROPS structure must be replaced, not
repaired or revised.
If any structural member of the ROPS is damaged,
replace the entire structure at your local KUBOTA
Dealer.

5. Do not operate the vehicle or any implement attached
to it while under the influence of alcohol, medication,
controlled substances or while fatigued.

6. Carefully check the vicinity before operating the
vehicle or any implement attached to it. Check for
overhead clearance which may interfere with the CAB
or ROPS. Do not allow any bystanders around or near
the vehicle during operation.

7. Never allow anyone without a valid driver's license to
operate this vehicle.

8. Before allowing other people to use your vehicle,
explain how to operate and have them read this
manual before operation.

9. Never wear loose, torn, or bulky clothing around the
vehicle. It may catch on moving parts or controls,
leading to the risk of an accident. Use additional safety
items, e.g. helmet, safety boots or shoes, eye and
hearing protection, gloves, etc., as appropriate or
required.

10.This vehicle is for off road use only.
KUBOTA does not recommend operating on public
roads.

11.In addition to the driver, only 1 passenger should ride
in the vehicle.
Minimum age for passenger is 5 years old.

12.Keep all shields in place and stay away from all
moving parts.

13.Check brakes, speed control pedal, and other
mechanical parts for improper adjustment and wear.
Replace worn or damaged parts promptly. Check the
tightness of all nuts and bolts regularly. (For further
details, see "MAINTENANCE" section.)

14.Keep your vehicle clean. Dirt, grease, and trash build
up may contribute to fires and lead to personal injury.

15.Use only implements meeting the specifications listed
under "VEHICLE LIMITATIONS" in this manual or
implements approved by KUBOTA.

16.The maximum cargo capacity of this vehicle is 200kg.
Reduce cargo capacity to match operating conditions.
Do not carry anything which raises the center-of­gravity and sticks outside the cargo bed.

17.Do not modify the vehicle. Unauthorized modification
may affect the function of the vehicle, which may result
in personal injury.

(1) ROPS
(2) Seat belt

4. Always use the seat belts. Check the seat belts
regularly and replace if frayed or damaged.

SAFE OPERATION-2

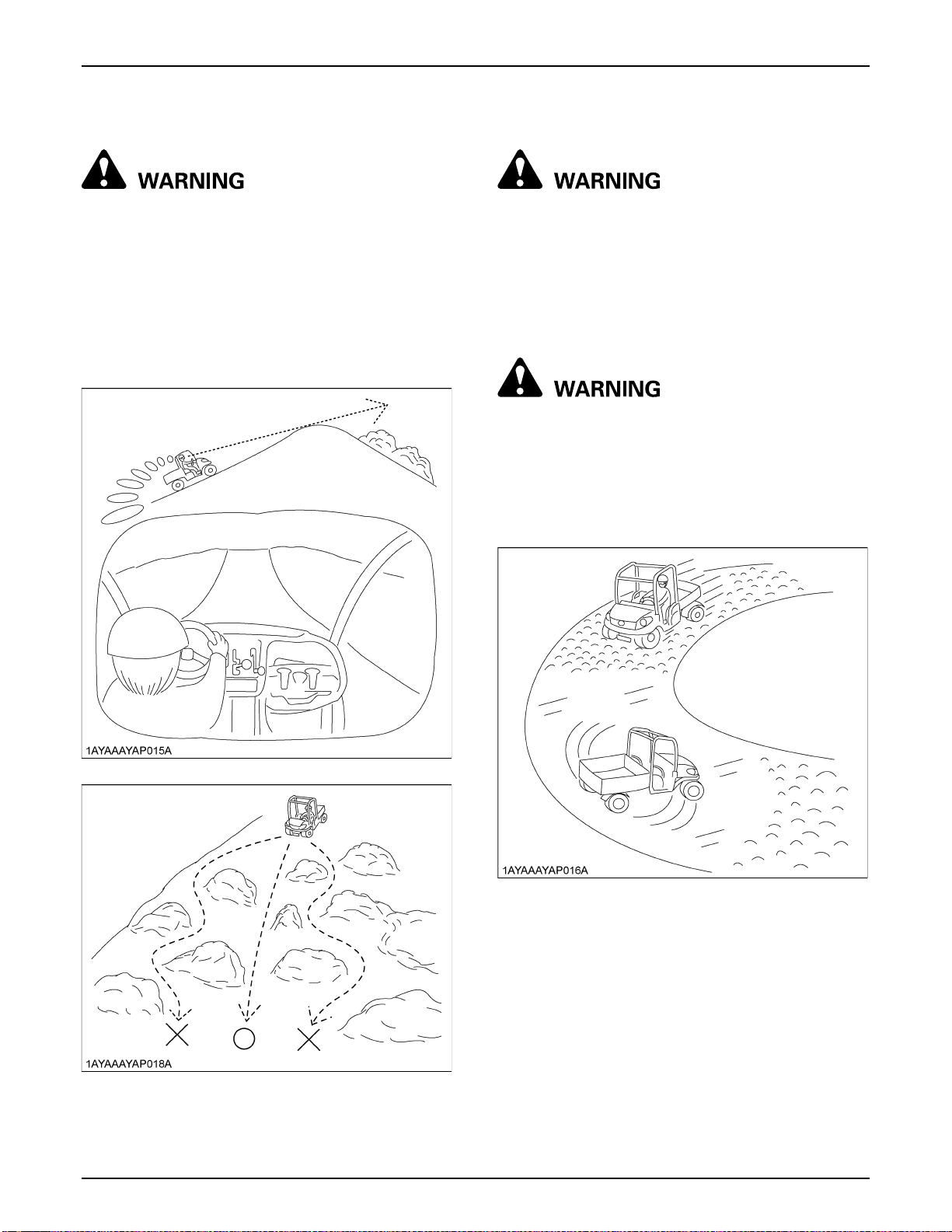

2. OPERATING THE VEHICLE

Operator safety is a priority. Safe operation, specifically
with respect to overturning hazards, entails understanding
the equipment and environmental conditions at the time of
use. Some prohibited uses which can affect overturning
hazards include traveling and turning with implements
and loads carried too high etc. This manual sets forth
some of the obvious risks, but the list is not, and cannot
be, exhaustive. It is the operator's responsibility to be alert
for any equipment or environmental condition that could
compromise safe operation.

5. The vehicle cannot turn with the differential locked and
attempting to do so could be dangerous.

6. Do not operate near ditches, holes, embankments, or
other ground surface features which may collapse
under the vehicle's weight. The risk of vehicle upset is
even higher when the ground is loose or wet.

7. Watch where you are going at all times. Watch for and
avoid obstacles. Be alert at row ends, near trees, and
other obstructions.

8. When working in groups, always let the others know
what you are going to do before you do it.

9. Never try to get on or off a moving vehicle.

10.Do not stand between vehicle and trailer unless
parking brake is applied.

C Starting

1. Always sit in the operator's seat when starting engine
or operating levers or controls.

2. Before starting the engine, make sure that all levers
are in their neutral positions, that the parking brake is
engaged.

3. Do not start engine by shorting across starter
terminals or bypassing the safety start switch. The
vehicle may start in gear and move if normal starting
circuitry is bypassed.

4. Be sure that the operator (and passenger) seat belts
are fastened.

5. Do not operate or idle engine in a non-ventilated area.
Carbon monoxide gas is colorless, odorless, and
deadly.

C Operating

1. Do not wear headphones while operating.

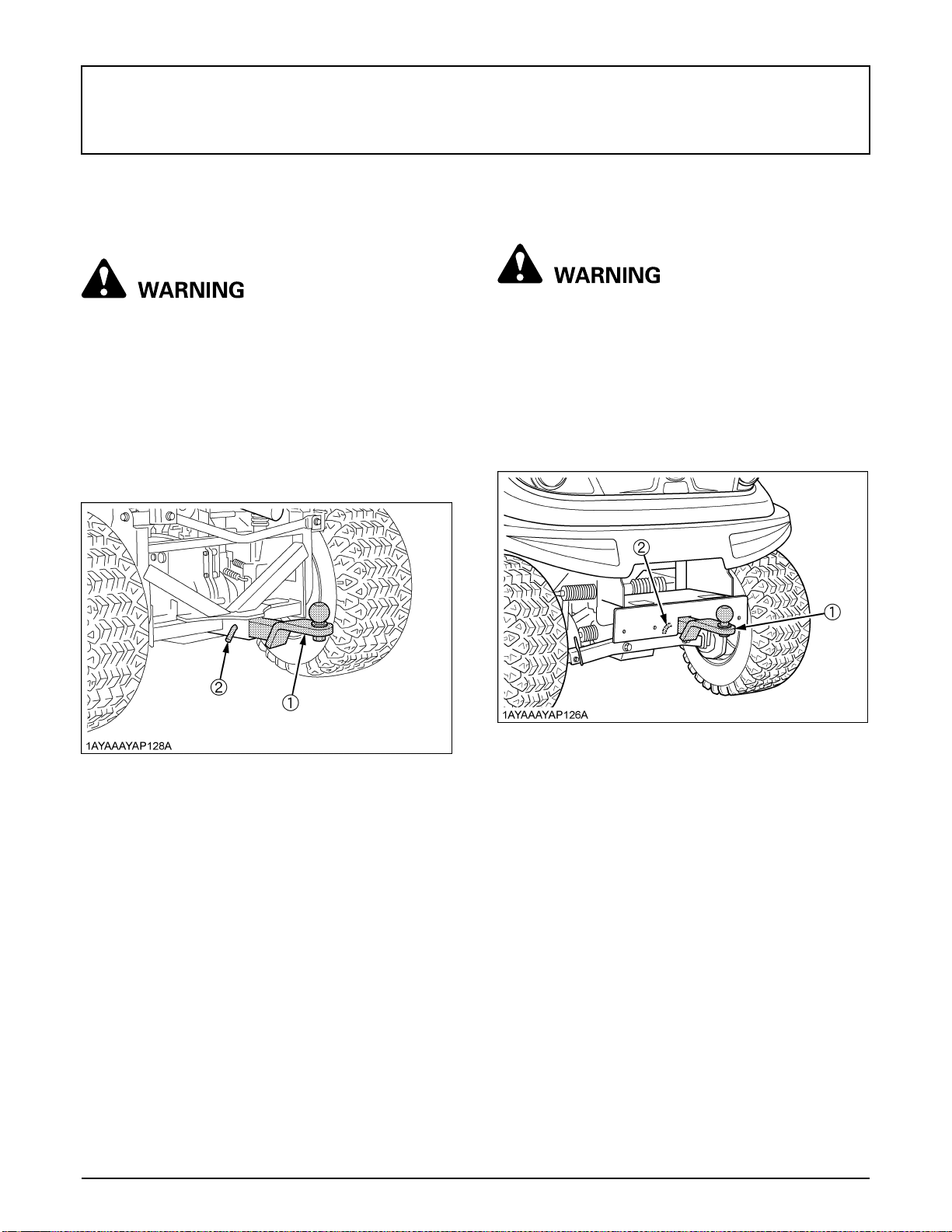

2. Pull only from the trailer hitch (if equipped). Never hitch
to axle housing or any other point except trailer hitch;
such arrangements will increase the risk of serious
personal injury or death due to a vehicle upset.

C Safety for children

Tragedy can occur if the operator is not alert to the
presence of children. Children generally are attracted to
vehicles and the work they do.

1. Never assume that children will remain where you last
saw them.

2. Keep children out of the work area and under the
watchful eye of another responsible adult.

3. Be alert and shut your vehicle down if children enter
the work area.

4. Never carry children in the cargo bed. There is no safe
place for them to ride. No person under the age of 5
may ride as a passenger in this vehicle. A passenger
under 5 years of age requires special restraints which
are not available with this vehicle.

5. Never allow children to operate the vehicle even under
adult supervision.

6. Never allow children to play on the vehicle or on the
implement.

7. Use extra caution when backing up. Look behind and
down to make sure area is clear before moving.

8. Whenever possible, park your vehicle on a firm, flat
and level surface. If this is not possible, park it across
the slope. Set the parking brake(s), lower the
implements to the ground, remove the key from the
ignition and chock the wheels.

(1) Trailer hitch (if equipped)

3. Keep all shields and guards in place. Replace any that
are missing or damaged.

4. Avoid sudden starts. To avoid upsets, slow down
when turning, on uneven ground, and before stopping.

C Operating on slopes

Slopes are a major factor related to loss-of-control and tip­over accidents, which can result in severe injury or death.
All slopes require extra caution.

1. Travel straight up or down hill.

2. Reduce load when operating on hilly or over rough
terrain.

3. Keep front wheels straight at crest of hill or going over
bumps.

4. Do not stop or start suddenly when going uphill or
downhill. Be especially cautious when changing
direction on slopes.

-3SAFE OPERATION

5. If vehicle stops or loses power going up a hill, lock
parking brake to hold vehicle on slope. Maintain
direction of travel and release brake slowly. Back
straight downhill while maintaining control. Do not turn
vehicle sideways. Vehicle is more stable in a straight
forward or rearward position.

6. When riding on soft terrain, turn front wheels slightly
uphill to keep vehicle on a straight line across the hill.

7. If the vehicle begins to tip, turn front wheels downhill to
gain control before proceeding.
(1) To avoid upsets, always back up steep slopes. If

you cannot back up the slope or if you feel uneasy
on it, do not operate on it. Stay off slopes too
steep for safe operation.

(2) Driving forward out of a ditch, mired condition or

up a steep slope increases the risk of a vehicle to
be upset backward. Always back out of these
situations. Extra caution is required with 4-wheel
drive mode because the increased traction can
give the operator false confidence in the vehicle's
ability to climb slopes.

(3) Keep all movement on slopes slow and gradual.

Do not make sudden changes in speed, direction
or apply brake and make sudden motions of the
steering wheel.

(4) Special attention should be made to the weight

and location of implements and loads as such will
affect the stability of the vehicle.

C Operation in inclement conditions

1. Only operate during daylight or with good artificial
light.

2. Operate vehicle in an open, unobstructed area.

3. Use helmet and/or protective gear for certain
operating conditions.

4. Reduce speed according to trail, terrain and visibility
conditions.

5. Never drive exceeding the limit of visibility. Slow down
near crest of hill until getting a clear view of the other
side.

6. Stay alert for holes, rocks and other hidden hazards in
the terrain.

7. Never cross any body of water where depth may be
unknown to the operator (Deep water is considered
anything above the bottom edge of the axle cap).
Choose a course within the waterway where both
banks have a gradual incline. Cross at a point known
to be safe.

5. Do not apply the differential lock while traveling at high
speeds. The vehicle may run out of control.

6. Avoid sudden motions of the steering wheel as they
can lead to a dangerous loss of stability. The risk is
especially great when the vehicle is traveling at high
speeds.

C Other miscellaneous

1. Clean platform if dirty and remove any debris from
around foot controls.

2. Always keep both hands on the steering wheel.

3. Always keep arms and legs inside the operating
compartment.

4. Never operate the vehicle while standing.

5. Do not tow a cart with any riders on it.

6. Never attempt wheelies, jumps or other stunts.

3. HAULING LOADS IN THE CARGO BED

1. No riders in cargo bed or anywhere else.

2. Do not overload vehicle. Securely anchor all loads.

3. Be sure load is evenly distributed.

4. Reduce cargo capacity when operating on rough or
hilly terrain.

5. Balance loads evenly and secure them. Braking could
shift the load and affect vehicle stability.

6. Never operate vehicle with the cargo bed raised.

7. Operate cargo bed dump with vehicle stationary and
parking brake locked. Do not dump while moving.

8. Operate the cargo bed dump on level ground only.

9. Do not place hands or body under the cargo bed when
lowering bed.

4. PARKING THE VEHICLE

1. Lower all implements to the ground, place all control
levers in their neutral positions, set the parking brake,
stop the engine, and remove the key.

2. Make sure that the vehicle has come to a complete
stop before dismounting.

3. Avoid parking on steep slopes, if at all possible park on
a firm and level surface; if not, park across a slope with
chock the wheels and always with attachment on the
ground.
Failure to comply with this warning may allow the
vehicle to move and could cause injury or death.

C Driving the vehicle at high speeds

1. Check the front wheel engagement. The braking
characteristics are different between 2 and 4 wheel
drive. Be aware of the difference and use carefully.

2. Always slow the vehicle down before turning. Turning
at high speed may tip the vehicle over.

3. Turn the headlights on.

4. Drive at speeds that allow you to maintain control at all
times.

SAFE OPERATION-4

(1) Parking brake lever

8. To avoid sparks from an accidental short circuit,
always disconnect the battery's ground cable (-) first
and reconnect it last.

5. TRANSPORTING

1. Disengage power to attachment(s) when transporting
or not in use.

2. Do not tow this vehicle. Use a suitable truck or trailer
when transporting on public roads.

3. Use extra care when loading or unloading the vehicle
into a trailer or truck.

6. SERVICING THE VEHICLE

Before servicing the vehicle, park it on a firm, flat and level
surface, set the parking brake, lower all implements to the
ground, place the range gear shift lever in neutral, stop the
engine and remove the key.

1. Allow the vehicle time to cool off before working on or
near the engine, muffler, radiator, etc.

2. Always stop the engine before refueling. Avoid spills
and overfilling.

3. Do not smoke when working around battery or when
refueling. Keep all sparks and flames away from
battery and fuel tank. The battery presents an
explosive hazard, because it gives off hydrogen and
oxygen especially when recharging.

4. Before "jump starting" a dead battery, read and follow
all of the instructions. (See "JUMP STARTING" in
"OPERATING THE ENGINE" section.)

5. Keep first aid kit and fire extinguisher handy at all
times.

6. Disconnect the battery's ground cable before working
on or near electric components.

7. To avoid the possibility of battery explosion, do not use
or charge the refillable type battery if the fluid level is
below the LOWER (lower limit level) mark. Check the
fluid level regularly and add distilled water as required
so that the fluid level is between the UPPER and
LOWER marks.

(1) Battery

9. Do not remove radiator cap while coolant is hot. When
cool, slowly rotate cap to the first stop and allow
sufficient time for excess pressure to escape before
removing the cap completely. If the vehicle has a
coolant recovery tank, add coolant or water to the tank,
not the radiator. (See "Checking Coolant Level" in
"DAILY CHECK" in "PERIODIC SERVICE" section.)

10.Do not attempt to mount a tire on a rim. This should be
done by a qualified person with the proper equipment.

11.Always maintain the correct tire pressure. Do not
inflate tires above the recommended pressure shown
in the operator's manual.

12.Securely support the vehicle when changing wheels.

13.Make sure that wheel bolts have been tightened to the
specified torque.

14.Do not work under any hydraulically supported
devices. They can settle, suddenly leak down, or be
accidentally lowered. If it is necessary to work under
the vehicle or any vehicle elements for servicing or
adjustment, securely support them with stands or
suitable blocking beforehand.

15.Escaping hydraulic fluid under pressure has sufficient
force to penetrate skin causing serious personal injury.
Before disconnecting hydraulic lines, be sure to
release all residual pressure. Before applying
pressure to the hydraulic system, make sure that all
connections are tight and that all lines, pipes, and
hoses are free of damage.
"High pressure fluid - Injection into body" hazard
warning.

-5SAFE OPERATION

16.Fluid escaping from pinholes may be invisible. Do not
use hands to search for suspected leaks; use a piece
of cardboard or wood. Use of safety goggles or other
eye protection is also highly recommended. If injured
by escaping fluid, see a medical doctor at once. This
fluid will produce gangrene or severe allergic reaction.

(1) Cardboard
(2) Hydraulic line
(3) Magnifying glass

17.Waste products such as used oil, fuel, hydraulic fluid,
and batteries, can harm the environment, people, pets
and wildlife. Please dispose properly.
See your local Recycling Center or KUBOTA Dealer to
learn how to recycle or get rid of waste products.

SAFE OPERATION-6

7. DANGER, WARNING AND CAUTION LABELS

-7SAFE OPERATION

SAFE OPERATION-8

-9SAFE OPERATION

8. CARE OF DANGER, WARNING AND CAUTION LABELS

1. Keep danger, warning and caution labels clean and free from obstructing material.

2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth.

3. Replace damaged or missing danger, warning and caution labels with new labels from your local KUBOTA Dealer.

4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s)
is(are) attached in the same location(s) as the replaced component.

5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside
edge.

SERVICING OF VEHICLE

Your dealer is interested in your new vehicle and has the
desire to help you get the most value from it. After reading
this manual thoroughly, you will find that you can do some
of the regular maintenance by yourself.
However, when in need of parts or major service, be sure
to see your KUBOTA Dealer.
For service, contact the KUBOTA Dealership from which
you purchased your vehicle or your local KUBOTA
Dealer.
When in need of parts, be prepared to give your dealer
vehicle, engine, transmission and ROPS serial numbers.
Locate the serial numbers now and record them in the
space provided.

1SERVICING OF VEHICLE

Type Serial No.

Vehicle

Engine

Transmission

ROPS

Product Identification
Number

Date of Purchase

Name of Dealer
(To be filled in by purchaser)

C Warranty

This vehicle is warranted under the Kubota Limited
Express warranty a copy of which may be obtained from
your selling dealer. No warranty shall, however, apply if
the vehicle has not been handled according to the
instruction given in the Operator's Manual even it is within
the warranty period.

C Scrapping the vehicle and its procedure

To put the vehicle out of service, correctly follow the local
rules and regulations of the country or territory where you
scrap it. If you have questions, consult your local
KUBOTA Dealer.

(1) Vehicle serial number
(2) Vehicle identification number
(3) ROPS serial number

(1) Engine serial number

(1) Transmission assy serial number

2 SPECIFICATIONS

SPECIFICATIONS

SPECIFICATION TABLE

Model RTV500

Make GZ460

Type 2 cylinders, 4-cycle, Gasoline, OHC

Engine

Displacement L (cu. in.) 0.456 (27.8)

Horsepower

Fuel Capacity L (U.S.gals) 20 (5.3)

Transmission Continuously variable hydro transmission (VHT)

Wheels, Drive system 4, Rear 2WD or 4WD

Differential lock Standard; hand operated with mechanical holder

Gear selection Hi-Lo range forward, neutral, reverse

Brakes

Steering Rack & Pinion

Suspension

Dimensions

Front / Rear Dry disk brake

Parking brake Rear wheel, hand lever

Front Independent, MacPherson strut-type

Rear Semi-independent, Multi-link

Length mm (in.) 2690 (105.9)

Width mm (in.) 1390 (54.7)

Height, overall mm (in.) 1829 (72)

Front tread centers mm (in.) 1016 (40)

Rear tread centers mm (in.) 1041 (41)

kW (HP) /

rpm

11.8 (15.8) / 3600

Wheelbase mm (in.) 1800 (70.9)

Ground
clearance

Turning diameter m (ft) 7 (22.9)

Max. rolling weight
(Towing Capacity)

Payload capacity kg (lbs.) 430 (949)

Weight kg (lbs.) 615 (1358) with ATV Tires / 620 (1369) with HDWS Tires

front axle

mm (in.)

rear axle 175 (6.9)

kg (lbs.) Rear: 500 (1102) / Front: 250 (551)

205 (8.1)

Cargo bed

3SPECIFICATIONS

Model RTV500

Width mm (in.) 1032 (40.6)

Length mm (in.) 856 (33.7)

Depth mm (in.) 290 (11.4)

Volume m (cu.ft.) 0.25 (9)

Bed height
(unloaded)

Max. cargo bed load kg (lbs.) 200 (441)

Sound level, operator ear dB (A) 83

Front

Tires

Rear

Front deluxe guard Opt.

Body color Orange / Camo

Speedometer Opt.

Rear net Opt.

A The company reserves the right to change the specifications without notice.
A The values in "Ground clearance" and "Weight" are those of the machine equipped with the tires in the table above.

mm (in.) 810 (31.9)

24x9-12

HDWS, 6PLY

24x11-12

HDWS, 6PLY

24x9-12

ATV, 6PLY

24x11-12

ATV, 6PLY

TRAVELING SPEEDS

Model RTV500

Range gear

shift lever

Low 16 (10)

High 40 (25)

Reverse 23 (14.3)

km/h (mph)

4 VEHICLE LIMITATIONS

VEHICLE LIMITATIONS

The KUBOTA Vehicle has been thoroughly tested for proper performance with implements sold or approved by KUBOTA.
Use with implements which are not sold or approved by KUBOTA and which exceed the maximum specifications listed
below, or which are otherwise unfit for use with the KUBOTA Vehicle may result in malfunctions or failures of the vehicle,
damage to other property and injury to the operator or others. [Any malfunctions or failures of the vehicle resulting from use
with improper implements are not covered by the warranty]

Max. Cargo loading weight (W1) Rear trailer hitch Front trailer hitch

Max. Cargo load should not exceed "200 kg
(441 lbs.)" or "CL".

CL = 453 kg (1000 lbs.) - (operator +
passenger + opt. + acc. + cabin) weight

Max. rolling weight (W2)

500 kg (1102 lbs.)

Max. rolling weight (W4)

250 kg (551 lbs.)

CL: Cargo Load
opt.: option
acc.: accessory

Rolling weight: Trailer weight + Cargo Load

A Above mentioned specifications are based on level ground condition.

Max. tongue weight (W3)

50 kg (110 lbs.)

Max. tongue weight (W5)

50 kg (110 lbs.)

5INSTRUMENT PANEL AND CONTROLS

INSTRUMENT PANEL AND CONTROLS

LOCATION OF PARTS

ILLUSTRATED CONTENTS

(1) ROPS............................................................. --

(2) Front hood...................................................... 38

(3) Headlights...................................................... 15

(4) Winch mount bracket...................................... 32

(5) Front trailer hitch bracket................................ 31

(6) Front trailer hitch (if equipped)........................ 31

6 INSTRUMENT PANEL AND CONTROLS

ILLUSTRATED CONTENTS

(1) Steering wheel................................................. --

(2) Hourmeter...................................................... 20

(3) Coolant temperature gauge............................ 20

(4) Horn button...................................................... 15

(5) Head light switch.............................................. 15

(6) Key switch........................................................ --

(7) Differential lock lever........................................ 21

(8) Easy Checker(TM)......................................... 19

(9) Range gear shift lever..................................... 16

(10) 4WD lever...................................................... 17

(11) Cup holder...................................................... --

(12) Glove box....................................................... --

(13) Operator's manual holder............................... --

(14) 12V accessory plug........................................ 21

(15) Speed control pedal....................................... 17

(16) Brake pedal.................................................... 16

7INSTRUMENT PANEL AND CONTROLS

ILLUSTRATED CONTENTS

(1) Seat belts....................................................... 14

(2) Seat............................................................... 39

(3) Parking brake lever........................................ 20

(4) Fuel gauge..................................................... 19

(5) Battery........................................................... --

8 INSTRUMENT PANEL AND CONTROLS

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS

(1) Handgrip.......................................................... -- (5) Tailgate............................................................ 27

(2) Cargo bed........................................................ 26 (6) Tail lamp........................................................... --

(3) Fuel tank cap.................................................... -- (7) Rear trailer hitch bracket................................... 31

(4) Muffler.............................................................. -- (8) Rear trailer hitch (if equipped)......................... 31

(9) Rear shock absorber........................................ 30

PRE-OPERATION CHECK

DAILY CHECK

To prevent trouble from occurring, it is important to know
the condition of the vehicle well. Check it before starting.

To avoid personal injury:
A Be sure to check and service the vehicle on a

level surface with the engine shut off and the
parking brake "ON" and implement lowered to
the ground if equipped.

Check item

- Walk around inspection

- Check engine oil level

- Check transmission fluid level

- Check brake fluid level

- Check engine cooling fan

[For those of the engine serial number 8U0086 or later,
check the fan operation.]

- Check coolant level

- Clean radiator screen

(When used in a dusty place)

- Check brake

- Check parking brake

- Check indicators, gauges and meters

- Check lights

- Check seat belt and ROPS

- Check front and drive joint boots

- Check tire inflation pressure

- Refuel

(See "DAILY CHECK" in "PERIODIC SERVICE" section.)

- Care of danger, warning and caution labels

(See "DANGER, WARNING AND CAUTION LABELS" in
"SAFE OPERATION" section.)

9PRE-OPERATION CHECK

10 OPERATING THE ENGINE

OPERATING THE ENGINE

STARTING THE ENGINE

To avoid personal injury:
A Read "SAFE OPERATION" in the front of this

manual.

A Read the danger, warning and caution labels

located on the vehicle.

A To avoid the danger of exhaust fume

poisoning, do not operate the engine in a
closed building without proper ventilation.

A Never start engine while standing on ground.

Start engine only at the operator's seat.

A Make it a rule to set the range gear shift lever to

the "NEUTRAL" position.

A Do not use starting fluid to aid engine starting.
A To protect the battery and the starter, make sure that

the starter is not continuously turned for more than 10
seconds.
If the engine dose not start, allow 60-second cool
down period between start attempts.

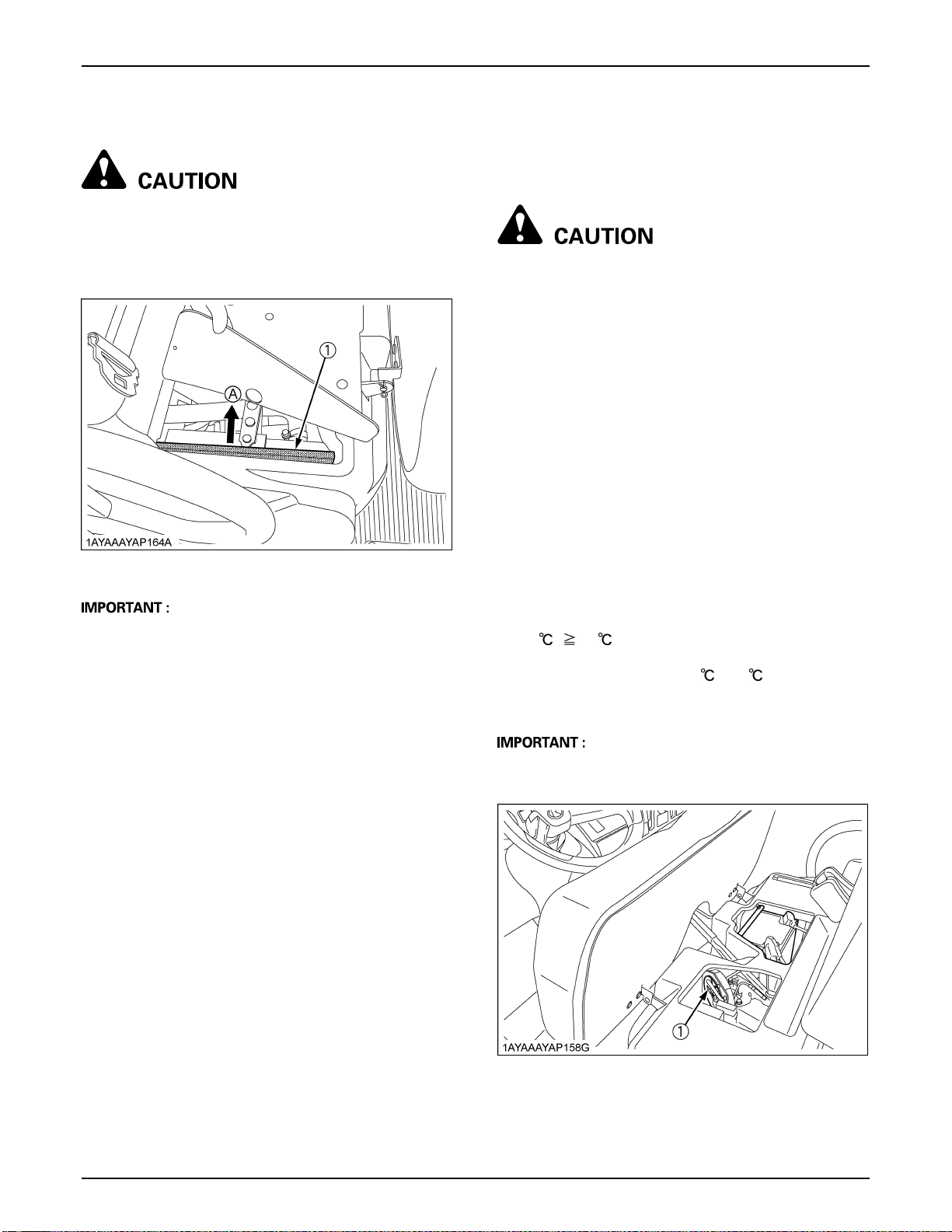

1. Make sure the parking brake is applied.

(1) Parking brake lever (A) Pull to "PARK"

A The brake indicator light comes on while parking brake

is applied and goes off when it is released.

(1) Brake indicator light

2. Set the range gear shift lever to the
"NEUTRAL" position.

(1) Range gear shift lever (L) LOW Range

(H) HIGH Range
(N) "NEUTRAL" POSITION
(R) "REVERSE"

11OPERATING THE ENGINE

C Check Easy Checker(TM) Lamps:

1. When the key is turned "ON", lamps(2)(3)(4) should
come on. If trouble should occur at any location while
the engine is running, the warning lamp corresponding
to that location comes on.

2. The brake indicator light(1) comes on.
(1) While brake is applied and goes off when it is

released.

(2) When the brake fluid is below the "MIN" mark.

(Add the brake fluid to the "MAX" mark.)
(See "Checking Brake Fluid Level" in "DAILY
CHECK" in "PERIODIC SERVICE" section.)

3. Insert the key into the key switch and
turn it "ON".

( ) "OFF" (Engine-Stop)
( ) "ON" (Engine-Run)

( ) "START" (Engine-Start)

(1) Brake indicator light
(2) Engine diagnostic light
(3) Engine oil pressure light
(4) Electrical charge light

A Daily checks with the Easy Checker(TM) only, are not

sufficient. Never fail to conduct daily checks carefully
by referring to "DAILY CHECK" in "PERIODIC
SERVICE" section.

A For further details of Easy Checker(TM), see "Easy

Checker(TM)" in "CHECK DURING DRIVING" in
"OPERATING THE VEHICLE" section.

4. Turn the key to the "START" position
and release when the engine starts.

A As safety function, the engine will not start unless the

range gear shift lever is in the "NEUTRAL" position.

OPERATING THE ENGINE12

BCold Weather Starting

When the ambient temperature is below 0 (32 ), the
engine is very cold. If the engine fails to start after 10
seconds, turn off the key for 30 seconds. Then repeat
steps 3 and 4. To protect the battery and the starter, make
sure that the starter is not continuously turned for more
than 10 seconds.

STOPPING THE ENGINE

1. After slowing the engine to idle, turn the key to "OFF".

2. Remove the key.

WARMING UP

To avoid personal injury:
A Be sure to set the parking brake during warm-

up.

A Be sure to set the range shift lever to the

"NEUTRAL" position.

For 5 minutes after engine start-up, allow the engine to
warm up without applying any load. This is to allow oil to
reach every engine part. If load should be applied to the
engine without this warm-up period, trouble such as
seizure, breakage or premature wear may develop.

BWarm-Up Transmission Oil in the Low

Temperature Range

Hydraulic oil serves as transmission fluid. In cold weather,
the oil may be cold with increased viscosity. This can
cause delayed oil circulation or abnormally low hydraulic
pressure for some time after engine start-up. This in turn
can result in trouble in the hydraulic system.
To prevent the above, observe the following instructions:
Warm up the engine at about 50% of rated rpm according
to the table below:

Ambient temperature Warm-up time requirement

Above 0 (32 ) Approx. 5 minutes

-10 to 0 (14 to 32 ) 5 to 10 minutes

-20 to -10 (-4 to 14 ) 10 to 15 minutes

Below -20 (-4 ) More than 15 minutes

A Do not operate the vehicle under full load condition

until it is sufficiently warmed up.

JUMP STARTING

To avoid personal injury:
A Battery gases can explode. Keep cigarettes,

sparks, and flames away from battery.

A If vehicle battery is frozen, do not jump start

engine.

A Do not connect other end of negative jumper

cable to negative terminal of vehicle battery.

A The parts such as the muffler may be hot. Be

careful not to get burned in connecting jumper
cables.

When jump starting the engine, follow the instructions
below to safely start the engine.

1. Bring helper vehicle with a battery of the same voltage
as disabled vehicle within easy cable reach. "THE
VEHICLES MUST NOT TOUCH".

2. Engage the parking brake of both vehicles and put the
shift lever in neutral. Shut the engine off.

3. Put on safety goggles and rubber gloves.

4. Ensure the vent caps are securely in place. (if
equipped)

5. Cover vent holes with damp rags. Do not allow the rag
to touch the battery terminals.

6. Attach the red clamp to the positive (red, (+) or pos.)
terminal of the dead battery and clamp the other end
of the same cable to the positive (red, (+) or pos.)
terminal of the helper battery.

7. Clamp the other cable to the negative (black, (-) or
neg.) terminal of the helper battery.

8. Clamp the other end to the engine block or frame of
the disabled vehicle as far from the dead battery as
possible.

9. Start the helper vehicle and let its engine run for a few
moments. Start the disabled vehicle.

10.Disconnect the jumper cables in the exact reverse
order of attachment. (Steps 8, 7 and 6).

11.Remove and discard the damp rags.

13OPERATING THE ENGINE

(1) Dead battery
(2) Lay a damp rag over the vent caps
(3) Jumper cables
(4) Helper battery

A This vehicle has a 12 volt negative (-) ground starting

system.

A Use only same voltage for jump starting.
A Use of a higher voltage source could result in severe

damage to vehicle's electrical system.
Use only matching voltage source when "Jump
starting" a low or dead battery.

14 OPERATING THE VEHICLE

OPERATING THE VEHICLE

OPERATING NEW VEHICLE

How a new vehicle is handled and maintained determines
the life of the vehicle.
A new vehicle just off the factory production line has been,
of course, tested, but the various parts are not
accustomed to each other, so care should be taken to
operate the vehicle for the first 50 hours at a slower speed
and avoid excessive work or operation until the various
parts become "broken-in." The manner in which the
vehicle is handled during the "breaking-in" period greatly
affects the life of your vehicle. Therefore, to obtain the
maximum performance and the longest life of the vehicle,
it is very important to properly break-in your vehicle. In
handling a new vehicle, the following precautions should
be observed.

BDo not Operate the Vehicle at Full Speed

for the First 50 Hours

A Do not start quickly nor apply the brakes suddenly.
A In winter, operate the vehicle after fully warming up the

engine.

A Do not run the engine at speeds faster than

necessary.

A On rough roads, slow down to suitable speeds.

Do not operate the vehicle at fast speed. The above
precautions are not limited only to new vehicles, but to
all vehicles. But it should be especially observed in the
case of new vehicles.

STARTING

1. Fasten the seat belt.

BSeat Belt

To avoid personal injury:
A Seat belts reduce injury. Always wear your seat

belts. The lap-style seat belts may not provide
adequate protection for small children. Special
care is recommended when carrying a child
passenger.

To avoid personal injury:
A Always use the seat belts when operating and

riding in the vehicle.

Adjust the seat belts for proper fit and connect the buckle.
This seat belt is an auto-locking retractable type.

BChanging Lubricating Oil for New

Vehicles

The lubricating oil is especially important in the case of a
new vehicle. The various parts are not "broken-in" and are
not accustomed to each other. Small pieces of metal grit
may develop during the operation of the vehicle; and this
may wear out or damage the parts. Therefore, care should
be taken to change the lubricating oil a little earlier than
would ordinarily be required. For further details of change
interval hours, see "MAINTENANCE" section.

(1) Seat belt

15OPERATING THE VEHICLE

2. Selecting light switch position.

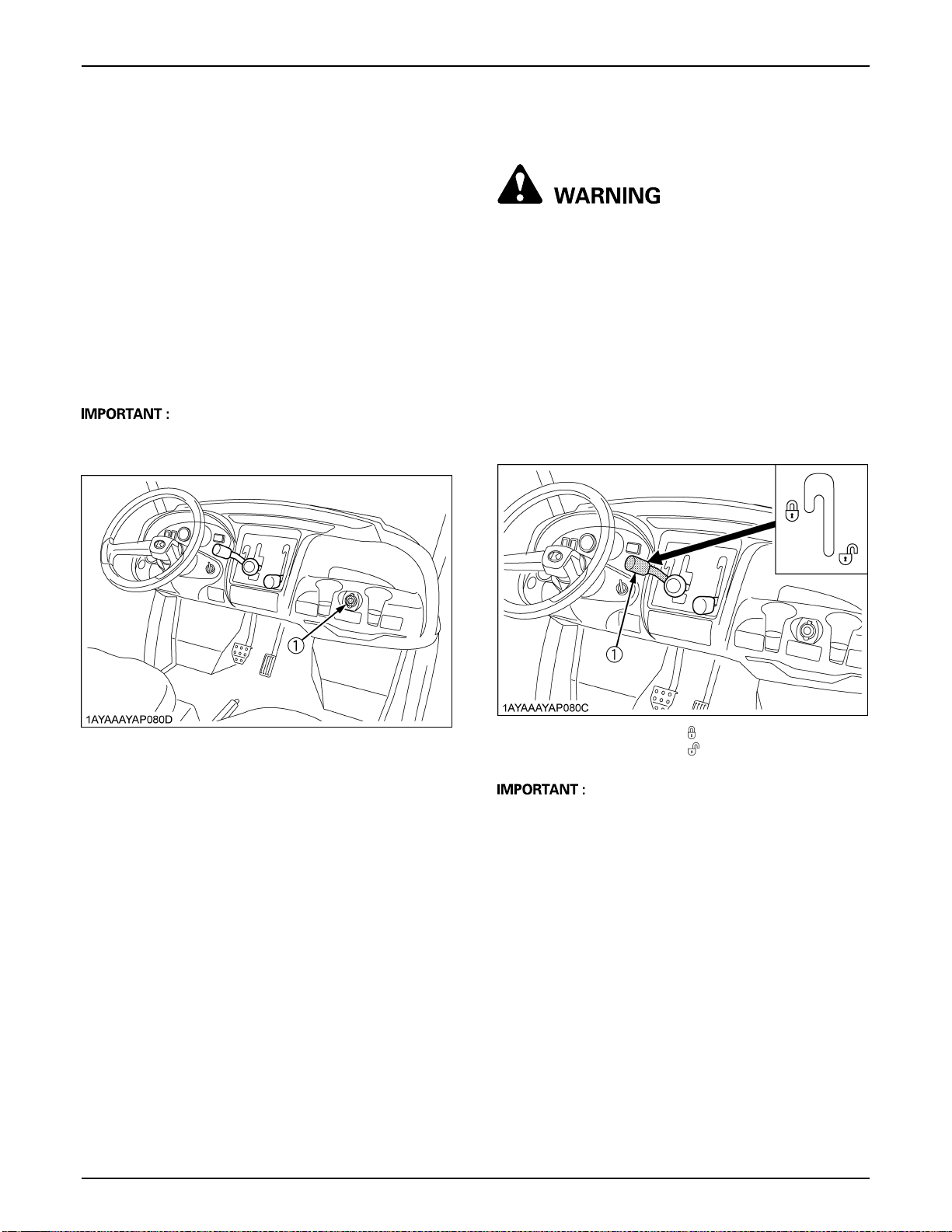

BHead Light Switch

The head light switch is operative when the key switch is
in the "ON" position.
Turn on the key switch and turn the head light switch to
the "ON" position.
Turn the head light switch to the "OFF" position to turn off
the head light.

BHorn Button

The horn switch is operative when the key switch is in
either the "ON" or "OFF" position.
The horn will sound when the horn button is pressed.

(1) Horn button

(1) Head light switch Head lights "ON"

Head lights "OFF"

A Turning the head light switch to the "ON" position

causes the following lamps to light simultaneously.
(1) Tail lights (lamps at the rear portions of the

vehicle)

(2) Lamp built in the coolant temperature gauge

OPERATING THE VEHICLE16

3. Checking the brake pedal.

BBrake Pedal

To avoid personal injury:
A If the operator suddenly brakes, an accident

may occur due to loss of control or the shifting
forward of heavy loads.

A When driving on icy, wet or loose surface,

make sure the vehicle is correctly ballasted to
avoid skidding and loss of steering control.
Operate at reduced speed.

The brake pedal is the left pedal on the foot board.
Depress the pedal to slow or stop the vehicle.

4. Selecting the travel speed.

BRange Gear Shift Lever

To avoid personal injury:
A Avoid changing range gear shift lever when

ascending or descending a slope.

A Before ascending or descending a slope, shift

to the "L" range to control the vehicle speed.

A If you shift gears while ascending or

descending a slope, be prepared to use the
brake to maintain control.

A Operate in reverse at slow speeds to maintain

control.

1. The range gear shift lever can only be shifted when
vehicle is completely stopped and the speed control
pedal is in the "NEUTRAL" position.

2. To avoid transmission and shift linkage damage,
completely stop the vehicle using the brake pedal
before shifting gears.

3. Select proper gear and engine speed depending on
the type of job.

4. Before dismounting vehicle, shift the range gear shift
lever to the "NEUTRAL" position and apply parking
brake.

(1) Brake pedal

(1) Range gear shift lever (L) LOW Range

(H) HIGH Range
(N) "NEUTRAL" POSITION
(R) "REVERSE"

17OPERATING THE VEHICLE

A Do not force the range gear shift lever. If it is difficult to

shift the lever into "L", or "H" on slopes, be sure to
apply the parking brake before starting the procedure.
(1) Slightly depress the speed control pedal to rotate

the gears inside of transmission.

(2) Release the speed control pedal to the

"NEUTRAL" position.

A An accident may occur with erratic shifting operation.
A Improper range gear shift lever position will cause the

vehicle to momentarily coast on slopes.

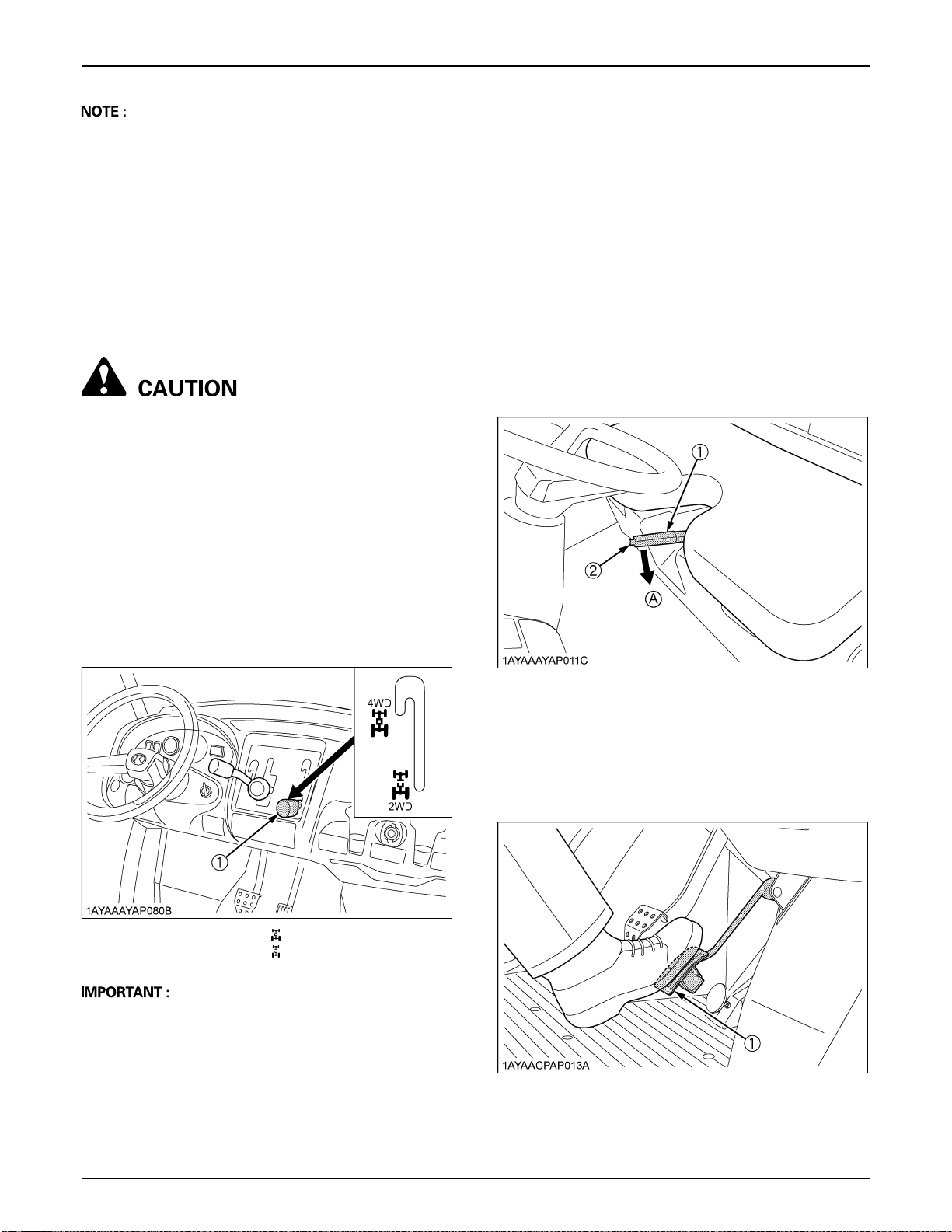

B4WD Lever

To avoid personal injury:
A Do not engage the front wheel drive when

traveling at road speed.

A When driving on icy, wet or loose surfaces,

make sure the vehicle is correctly ballasted to
avoid skidding and loss of steering control.
Operate at reduced speed and engage front
wheel drive.

A An accident may occur if the vehicle is

suddenly braked, such as by heavy towed
loads shifting forward causing loss of control.

A The braking characteristics are different

between 2 and 4 wheel drive. Be aware of the
difference and use carefully.

C Front wheel drive is effective for the following

jobs:

1. When greater pulling force is needed, such as working
in a wet field, when pulling a trailer, or when working
with a front-end blade.

2. When working in sandy soil.

5. Unlock the parking brake and start
slowly.

BParking Brake Lever

To release the parking brake, depress the brake pedal,
push release button and push down parking brake lever.
Make sure that indicator in the Easy Checker(TM) goes
off.

(1) 4WD lever "4WD"

"2WD"

A Use the lever to engage the front wheels with the

vehicle stopped. Shift the lever to "4WD" to engage the
front wheel drive.

A Tires will wear quickly if front wheel drive is engaged

on paved roads.

A If the 4WD lever is difficult to shift to "2WD", stop the

vehicle, turn the steering wheel in both directions and
then move the lever.

(1) Parking brake lever
(2) Release button

(A) "RELEASE"

BSpeed Control Pedal

Use the speed control pedal when traveling. Push down
on it for higher speed.

(1) Speed control pedal

OPERATING THE VEHICLE18

STOPPING

BStopping

1. Release the speed control pedal.

2. Step on the brake pedal.

3. After the vehicle has stopped, put the range gear shift
lever in neutral, and apply the parking brake.

CHECK DURING DRIVING

BImmediately Stop the Engine if:

A The engine suddenly slows down or accelerates,
A Unusual noises are suddenly heard,
A Exhaust fumes suddenly become very dark,

While driving, check the following items to see that all the
parts are functioning normally.

(1) Easy Checker(TM)
(2) Coolant temperature gauge

(1) Fuel gauge

19OPERATING THE VEHICLE

BEasy Checker(TM)

If the warning lamps in the Easy Checker(TM) come on
during operation, immediately stop the engine, and find
the cause as shown below.
Never operate the vehicle with an Easy Checker(TM)
lamp on.

( ) Brake indication light

The warning lamp in the Easy Checker(TM) comes on
if the parking brake is applied.
If the lamp is on during operation, release the parking
brake lever immediately.
If the brake fluid goes below the prescribed level, the
warning lamp in the Easy Checker(TM) will come on.
If this should happen during operation, check to see
that there is no oil leak in the brake system, and then
add oil.
(See "Checking Brake Fluid Level" in "DAILY CHECK"
in "PERIODIC SERVICE" section.)

Engine diagnostic light

If sensors malfunction, the Easy Checker(TM) will
come on. If the light is active, stop the vehicle and shut
off the engine. If the light is active after restart, consult
your local KUBOTA Dealer.

BFuel Gauge

The fuel gauge indicates the fuel level.
Be careful not to empty the fuel tank. Otherwise air may
enter the fuel system.

(1) Fuel gauge (F) "FULL"

(E) "EMPTY"

A Do not refuel over "F". Fill the tank only to the bottom

of the filler neck in the fuel tank.

Engine oil pressure light
If the oil pressure in the engine goes below the
prescribed level, the warning lamp in the Easy

Checker(TM) will come on.
If this should happen during operation, and it does not
go off when the engine is accelerated, check the level
of engine oil.
(See "Checking Engine Oil Level" in "DAILY CHECK"
in "PERIODIC SERVICE" section.)

Electrical charge light
If the alternator is not charging the battery, the Easy
Checker(TM) will come on.
If this should happen during operation, check the

electrical charging system or consult your local
KUBOTA Dealer.

OPERATING THE VEHICLE20

BCoolant Temperature Gauge

To avoid personal injury:
A Do not remove radiator cap until coolant

temperature is well below its boiling point.
Then loosen cap slightly to the stop to relieve
any pressure before removing cap completely.

1. With the key switch "ON" the temperature gauge
indicates the temperature of the coolant. White Zone
for "COLD" and Red zone for "HOT".

2. If the indicator reaches the Red zone, engine coolant
is overheated. Check the vehicle by referring to
"TROUBLESHOOTING" section.

PARKING

BParking Brake Lever

To avoid personal injury:
BEFORE DISMOUNTING VEHICLE
A ALWAYS APPLY THE PARKING BRAKE AND

LOWER ALL IMPLEMENTS TO THE GROUND.
Leaving transmission in gear with the engine
stopped will not prevent from rolling.

A STOP THE ENGINE AND REMOVE THE KEY.

1. Stop the vehicle on a level surface.

2. To apply the parking brake, depress the brake pedal
and pull the parking brake lever to park.

3. To release the parking brake, push the release button
and push down the parking brake lever. When the
parking brake is released, the brake indicator light in
the Easy Checker(TM) goes off.

(1) Coolant temperature gauge

BHourmeter

The hourmeter indicates in 5 digits the hours the vehicle
has been used; the last digit indicates 1/10 of an hour.

(1) Hourmeter

(1) Parking brake lever
(2) Release button

A If the vehicle is operated with the parking brake

applied, the parking brake will be damaged.

(A) "RELEASE"

21OPERATING THE VEHICLE

ACCESSORY

B12V Electric Outlet

The 12 volt receptacle is located on the front-panel. An
auxiliary light or other devices may be connected to this
connector.

C This outlet is activated when the key switch is in

either the "ON" or "OFF" position.

When the plug is not used, pull it out. Be careful that
leaving the plug inserted causes the battery to run out.

C Do not connect a light or other device that draws

more than 120 watts to this connector, or the
battery may discharge very rapidly or the outlet
may fail.

A Do not use as a cigarette lighter.
A Do not use when wet.

OPERATING TECHNIQUES

BDifferential Lock

To avoid personal injury due to loss of steering
control:
A Do not operate the vehicle at high speed with

differential lock engaged.

A Do not attempt to turn with the differential lock

engaged.

A Be sure to release the differential lock before

making a turn in field conditions.

If one of the rear wheels should slip, shift the differential
lock lever to the "ENGAGE" position. Both wheels will
then turn together, reducing slippage.
Differential lock is maintained while shifting the differential
lock lever to the "ENGAGE" position.

(1) 12V electric outlet

(1) Differential lock lever "ENGAGE"

"DISENGAGE"

A When using the differential lock, always slow the

engine down.

A To prevent damage to power train, do not engage

differential lock when one wheel is spinning and the
other is completely stopped.

A If the differential lock cannot be released, stop the

vehicle, turn the steering wheel alternately.

OPERATING THE VEHICLE22

BUnfamiliar Terrain

To avoid personal injury:
A Be sure to check for hidden obstacles or

hazards before driving in a new area.

A Keep your speed down until you know the area

well.

A Use existing trails and stay away from

hazardous areas such as steep, rocky slopes
or swamps.

A Be cautious when visibility is limited, as you

may not be able to see obstacles in your path.

BDriving in Reverse

To avoid personal injury:
A Turn around, look down and behind you before

backing up to be sure there are no obstacles or
people in your way.

A Depress speed control pedal gradually and

back up cautiously.

A To stop while driving in reverse take your foot

off the speed control pedal and gradually apply
the brake.

A Do not suddenly engage the brake.

23OPERATING THE VEHICLE

BDriving in "4WD"

To avoid personal injury:
A Do not drive in "4WD" on paved surfaces.

For the maximum traction, shift the range gear shift lever
into low range and use "4WD" on steep slopes or when
stuck in the mud, with differential locked if necessary.

BTurning the Vehicle

To avoid personal injury:
A Reduce vehicle speed before entering the turn

and maintain an even speed through the turn.

A Do not make sharp turns in order to avoid loss

of control or tipping.

OPERATING THE VEHICLE24

BHills

To avoid personal injury:
A Do not turn sideways on a hill, or the vehicle

may roll over.

A Always go straight up hill or down hill.
A Slow down until you can get a clean view of the

other side at the crest of a hill.

A If the engine stalls on a steep slope, roll slowly

straight down, using the brake.

A Stop and look for obstacles before descending

a hill.

BTraversing Hillsides

To avoid personal injury:
A Reduce vehicles speed to prevent tipping or

loss of control.

A Do not traverse hillsides that are slippery or

covered with rocks or obstacles which may
cause you to tip over.

BSliding and Skidding

To avoid personal injury:
A Drive slowly and carefully when you are unsure

or unprepared for the surface.

A Do not apply heavy braking force or accelerate

when skidding to prevent loss of control.

A Use 4WD and maintain low speeds on areas

covered with clay, mud, ice or snow to prevent
uncontrolled skidding.

BDriving through Water

To avoid personal injury:
A Do not drive through water whenever it is

possible.

A Drive slowly across shallow water and choose

a location to enter and exit the water where the
banks are not too steep or slippery.

A Check before entering for rocks, holes or other

obstacles that may cause overturn, get stuck or
submerged.

A Never operate the vehicle in fast flowing water

or in excess of 6 inches (152 mm) in depth.
Tires may float, making it difficult to maintain
control.

A Wet brakes may reduce the stopping ability of

the vehicle. After operating in water, always
apply the brakes to dry them out.

A The brake that gets wet may wear out faster.

Check for brake wear more frequently if
operating in water often.

25OPERATING THE VEHICLE

(1) Axle cap

A Do not drive through water whenever it is possible. If

the alternator drive belt becomes wet, slippage may
occur.

26 CARGO BED

CARGO BED

CARGO BED

BGeneral Caution

To avoid personal injury:
A Never carry passengers in the cargo bed. They can be tossed about or even thrown off causing serious

injury or death.

A Never raise the cargo bed when it is loaded.
A Driving with the cargo bed tilted may be hazardous.

Always lower the bed and latch the bed before driving.

A Be careful not to put any part of your body, such as hands or arms, between the bed and vehicle.
A Drive slowly when it is loaded.

To avoid personal injury:

A Do not raise the cargo bed while the engine is running above low idle.

BMax. Cargo Load

A Maximum Cargo Load (MCL) capacity is 200 kg (441 lbs).
A Never carry loads exceeding the Permissible Cargo Load (PCL).

A Max. Cargo load should not exceed "200 kg (441 lbs.)" or "CL".

CL = PC - (operator + passenger + opt. + acc. + cabin) weight
(CL: Cargo Load / PC: Payload Capacity / opt.: option / acc.: accessory)

[Payload capacity]

Payload capacity kg (lbs.) 430 (949)

27CARGO BED

BCargo Bed Tailgate

To avoid personal injury:
A Do not apply a load to the tailgate while the

tailgate is open, or the wire loop may break.

A Do not place fingers or hands between the

tailgate and the arm (latch) when closing, or
fingers or hands may be pinched.

For loading and unloading, the tailgate of the cargo bed
can be opened.
The tailgate is held level to the cargo bed floor with wire
loops.
Do not move the vehicle with the tailgate fully lowered.
In a fully lowered position, the tailgate may obstruct the
vehicle tail lamps and damage them by swinging motion.

1. Raise the arms (latch) at each end of the tailgate and
open the tailgate.

2. Close the tailgate by lifting it and pushing it firmly
closed. Push the arms (latch) down to make sure the
latches stay securely closed.

A TO AVOID TAILGATE DAMAGE:

Remove the rear trailer hitch when wire loop is
removed and cargo bed is raised.

(1) Tailgate
(2) Arm (latch)
(3) Wire loop

CARGO BED28

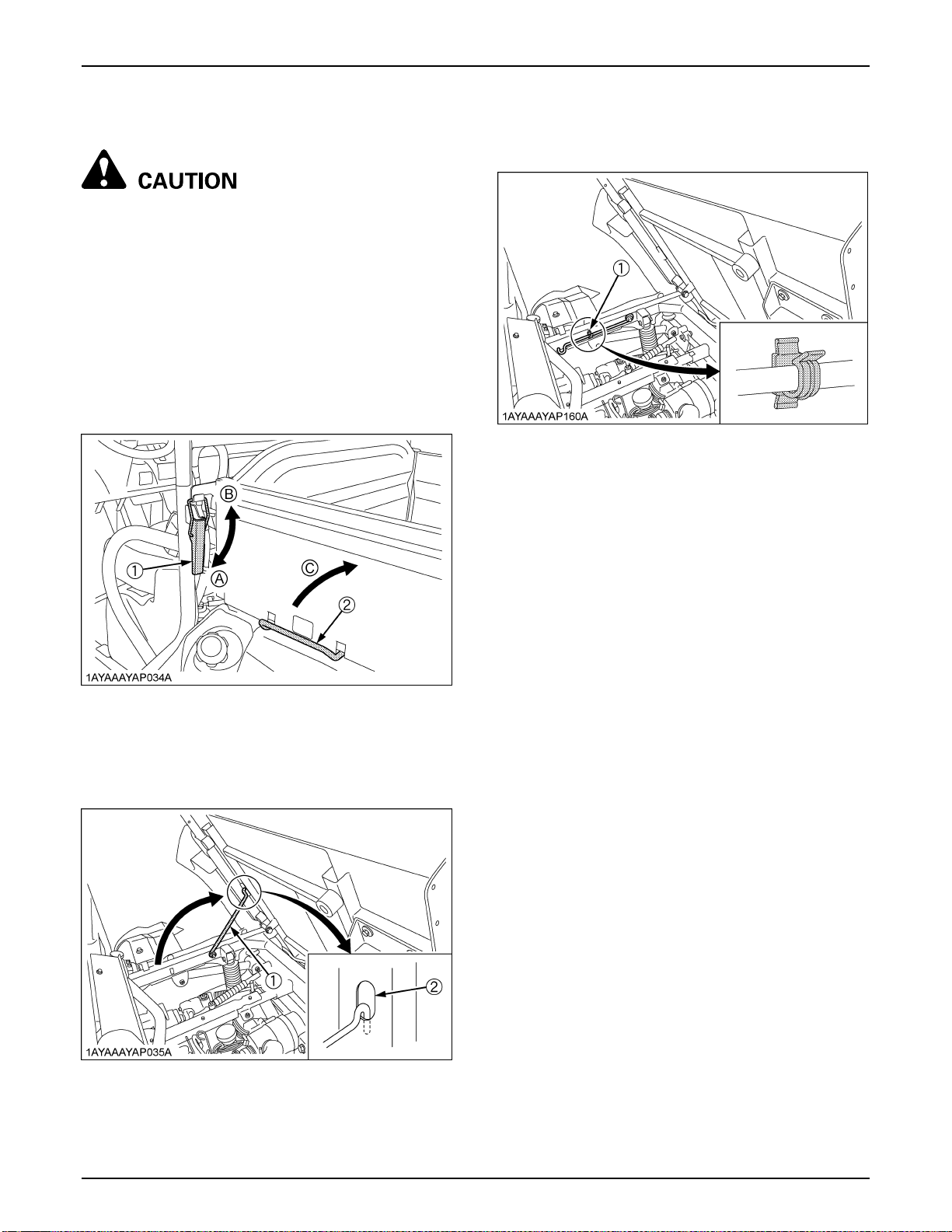

BRaising and Lowering the Cargo Bed

To avoid personal injury;
A Make sure the vehicle is on a firm, level surface

and the parking brake is applied before raising
the cargo bed and securing the cargo bed in the
raised position.

A A loaded cargo bed can be very heavy. Never

raise the cargo bed when it is loaded. Unload
the cargo bed before raising it by hand.

1. Park the vehicle on a flat surface.

2. Empty the cargo bed by hand.

3. Release the latches on both sides and then raise the
cargo bed with the hand grip.

6. Release the safety support from the latch slot by
pulling up on the middle of the support.

7. Put the safety support into the support holder.

(1) Support holder

8. Slowly lower the cargo bed onto the frame and set the
latches on both sides.

(1) Latch
(2) Hand grip

(A) "LOCK"
(B) "RELEASE"
(C) "RAISE"

4. Push the safety support into the latch slot to lock when
the cargo is fully raised.

(1) Safety support
(2) Latch slot

5. To lower the cargo bed, raise the cargo bed slightly
using the handgrip.

TIRES AND WHEELS

29TIRES AND WHEELS

TIRES

To avoid personal injury:
A Do not attempt to mount a tire on a rim. This

should be done by a qualified person with the
proper equipment.

A Always maintain the correct tire pressure.

Do not inflate tires above the recommended
pressure shown in the operator's manual.

A Do not use tires other than those approved by

KUBOTA.

BInflation Pressure

Though the tire pressure is factory-set to the prescribed
level, it naturally drops slowly in the course of time. Thus,
check it everyday and inflate as necessary.

Tire sizes Inflation Pressure

24 x 9 - 12 HDWS,

Front

24 x 11 - 12 HDWS,

Rear

24 x 9 - 12 ATV,

Front

24 x 11 - 12 ATV,

Rear

97 kPa

(0.97 kgf/cm , 14 psi)

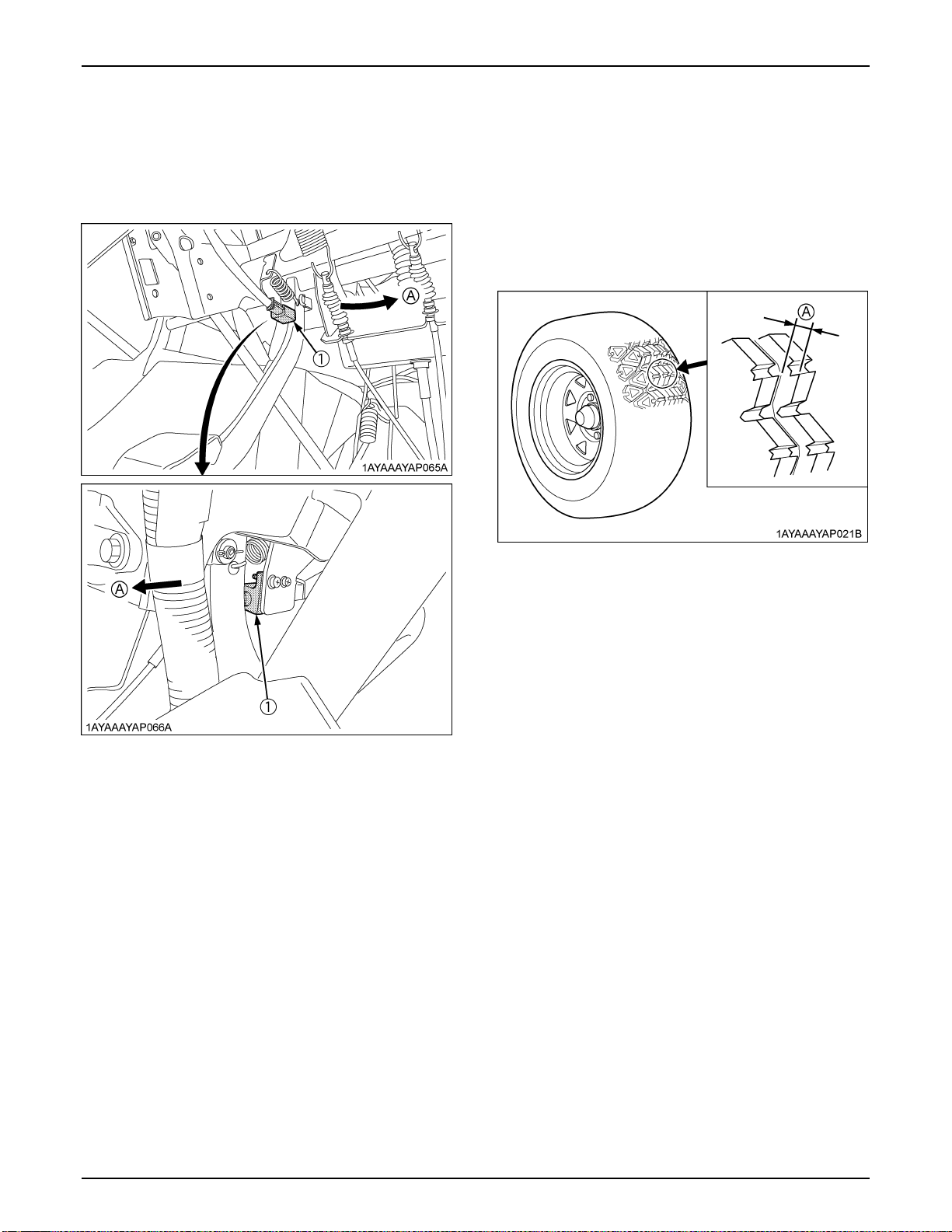

BTire Type and Use

C Heavy duty work site tire

C All terrain vehicle tire

(1) Ground (A) "INSUFFICIENT"

(B) "NORMAL"
(C) "EXCESSIVE"

TIRES AND WHEELS30

WHEELS

To avoid personal injury:
A Support vehicle securely on stands before

removing a wheel.

A Never operate vehicle with loose wheel bolts.

A When re-fitting a wheel, tighten the bolts to the

following torques then recheck after driving the vehicle
200 m (200 yards) and thereafter according to service
interval.

SHOCK ABSORBERS

BRear Shock Absorber Spring Adjustment

To avoid personal injury:
A Be sure to work on a firm, flat and level surface

with the engine shut off and parking brake
"ON".

A Keep the position of the left and right rear

shock absorber equal.
Uneven adjustment can cause poor handling
and loss of control, which could lead to an
accident.

The spring adjusting sleeves on the rear shock absorbers
have 5 positions so that the springs can be adjusted for
different riding and loading conditions.
For adjusting the rear shock absorber springs, turn the
adjusting sleeves on the shock absorbers to the desired
position with the hook wrench.

[Rear shock absorber position]

Position Spring Feeling Load

1 Stronger Hard Heavy

(1) Torque wheel bolts to 108.4 to 121.9 N-m
(11 to 12.4 kgf-m) (80 to 90 ft-lbs.)

2

3 (default)

4

5 Weaker Soft Light

A If you feel any difficulty in the adjustment, consult your

local KUBOTA dealer.

The rear shock absorber spring is adjusted to third
position (default) in the figure below.

(A) Rear shock absorber
(B) Adjusting sleeve (Turn here with a hook wrench.)

TOWING AND TRANSPORTING

31TOWING AND TRANSPORTING

TOWING AND TRANSPORTING

BRear Trailer Hitch

[if equipped]

To avoid personal injury:
A Always tow a load slowly enough to maintain

control and avoid tipping.

A To provide adequate braking ability and

traction, do not tow a load unless vehicle cargo
bed is loaded or attachment is installed.

A Attach a trailer to the trailer hitch only.

The rear trailer hitch load is listed in the "VEHICLE
LIMITATIONS" section. When towing other equipment,
use a safety chain.

BFront Trailer Hitch

[if equipped]

To avoid personal injury:
A Do not tow this vehicle unless all the functions

of the vehicle are properly working, since the
malfunction of steering operation or braking
may cause an accident.

Use the front trailer hitch for greater maneuverability in
confined areas such as a barn.
The front trailer hitch load is listed in the "VEHICLE
LIMITATIONS" section.

(1) Rear trailer hitch (if equipped)
(2) Hitch pin (if equipped)

(1) Front trailer hitch (if equipped)
(2) Hitch pin (if equipped)

TOWING AND TRANSPORTING32

BWinch Mount Bracket

Mounting the optional winch always requires reading the
instruction manual attached to the winch thoroughly
before using it.

(1) Winch mount bracket

BTransport the Vehicle Safely

Pay attention to the points below when transporting the
vehicle.

1. Use a suitable truck or trailer.

2. Apply the parking brake and place chocks against the
front and rear tires.

3. Secure the portions of the vehicle, which are shown in
the figure below, by using strong straps or chains.

(1) Front bumper
(2) Heavy-duty strap

(1) Frame
(2) Heavy-duty strap

33MAINTENANCE

MAINTENANCE

To avoid personal injury and vehicle damage:
A Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you

attempt any vehicle maintenance task.

A If you don't have the knowledge and equipment which are necessary to perform the maintenance task,

consult your local KUBOTA Dealer.

A Have your local KUBOTA Dealer perform inspection items which are marked *6 in the chart below.

SERVICE INTERVALS

A The jobs indicated by must be done after the first 50 hours of operation.
*1 The initial 50 hours should not be a replacement cycle.
*2 Air cleaner should be cleaned more often in dusty conditions than in normal conditions.
*3 Every 1000 hours or every 1 year whichever comes faster.

*4 Replace if any deterioration (crack, hardening, scar, or deformation) or damage occurred.
*5 Every 2000 hours or every 2 years whichever comes faster.
*6 Consult your local KUBOTA Dealer for this service.
*7 When the battery is used for less than 100 hours per year, check the battery condition by reading the indicator annually.
*8 Vehicles subjected to extreme operations and/or conditions must be inspected and serviced more frequently.
*9 Replace only if necessary.
*10 On every after 1000 Hr, clean it if necessary.

Extreme Conditions:

1. Frequent or prolonged operations in dusty environments

2. Prolonged low speed operations

3. Extended idle time

4. Frequent short trips which do not let the engine warm up (especially in cold weather)

A GASOLINE ENGINE EMISSION RELATED MAINTENANCE INSTRUCTIONS:

1. Non-warranty maintenance, repair, or replacement of the emission control devices and systems should be performed
by a qualified repair establishment or individual which has the experience and equipment to perform such work.
See the Emissions Warranty Statement.

2. To ensure the best quality and reliability, use new KUBOTA Genuine parts or their equivalents for repair and
replacement, whenever you have maintenance done.

No. Items

1 Greasing Apply

2 Engine start system Check

3 VHT neutral spring Check

4 Wheel bolt torque Check

Clean

5 Air cleaner element

Replace

Indication of Hour Meter

50 100 150 200 250 300 350 400 450 500 550 600 650 700

After

700 hrs

every
50 hrs

every
50 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every
1000 hrs
or 1 year

Ref.

Page

47

49

49

49 *1

50 *2

65 *3

34 MAINTENANCE

No. Items

Clean

6 Pre cleaner element

Replace

7 Alternator drive belt Adjust

Check

8 Fuel line

Replace

Carbon canister air

9

filter

10 Battery condition Check

11 Toe-in Adjust

12 Spark arrester Clean

13 Parking brake lever Adjust

14 Engine oil filter Replace

15 Engine oil Change

16 Radiator cooling fins Clean

Transmission oil filter

17

(HST)
(Yellow color)

Transmission oil filter

18

(Suction)
(Orange color)

19 Transmission oil Change

Spark plug condition

20

and gap

21 Brake pedal Check

22 Brake hose & pipe

23 Brake light switch Check

Radiator hose and

24

clamp

Check

Replace

Replace

Check

Check

Replace

Check

Replace

Indication of Hour Meter

50 100 150 200 250 300 350 400 450 500 550 600 650 700

After

700 hrs

every

100 hrs

every
1000 hrs
or 1 year

every

100 hrs

every

100 hrs

every

2 years

every

100 hrs

every

100 hrs

every

100 hrs

every

100 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

200 hrs

every

400 hrs

every

200 hrs

every

200 hrs

every

1 year

every

4 years

every

200 hrs

every

1 year

every

4 years

Ref.

Page

50 *2

65 *3

51 *6

53 *4

69 *6

54 *9

55 *7

56

57

57

58 *1

58

59

60 *1

60 *1

64

61

62

68 *4

69 *6

63 *1

67 *4

69

*1
*6

*1
*8

*1
*6

35MAINTENANCE

No. Items

Check

25 Intake air line

Replace

26 Tire wear Check

27 Front axle case oil Change

Engine valve

28

clearance

Engine combustion

29

chamber

30 Engine timing belt

31 Brake fluid Change

32 Cooling system Flush

33 Coolant Change

Brake master cylinder

34

(inner parts)

35 Engine breather hose

36 Brake pad wear Check

37 Parking brake Adjust 70 *6

38 Alternator drive belt Adjust 70 *6

39 Fuse Replace 71

40 Light bulb Replace 72

Adjust

Clean *10 65

Check

Replace

Replace

Check

Replace

50 100 150 200 250 300 350 400 450 500 550 600 650 700

Indication of Hour Meter

After

700 hrs

every

1 year

every

4 years

every

300 hrs

every

400 hrs

every

500 hrs

every

500 hrs

every
1000 hrs

every

2 years

every
2000 hrs

or

2 years

every
2000 hrs

or

2 years

every

4 years

every

1 year

every

4 years

Service

as

required

Ref.

Page

68 *4

69

63 *1

65

65

65

65

69 *6

66 *5

66 *5

69 *6

68 *4

69 *6

70 *6

36 MAINTENANCE

LUBRICANTS, FUEL AND COOLANT

No. Locations Capacities Lubricants

1 Fuel 20 L (5.3 U.S.gals.)

2 Coolant (with reserve tank) 1.8 L (1.9 U.S.qts.) Fresh clean water with anti-freeze

[Filter exchanged]

3 Engine crankcase

4 Transmission case 8.5 L (2.2 U.S.gals.) KUBOTA UDT or SUPER UDT-2 fluid*

5 Front axle case 0.21 L (0.22 U.S.qts.) KUBOTA UDT or SUPER UDT-2 fluid*

Brake fluid

6

(reservoir and lines)

1.35 L (1.43 U.S.qts.)**
[Filter non-exchanged]

1.2 L (1.27 U.S.qts.)**

0.2 L (0.21 U.S.qts.)

Greasing No. of greasing points Capacity Type of grease

VHT link 1 Until grease overflows

Battery terminal 2

Cargo bed pivot 2

Parking brake pivot 2

Range gear shift lever pivot 1

4WD lever pivot 1

Differential lock lever 1

Bypass link 1

Automobile unleaded or regular gasoline
Unleaded gasoline 87 octane or higher

Engine oil: API Service
Classification SG, SH, SJ or higher
Above -18 (0 )...SAE10W-30

Below 0 (32 )......SAE5W-20 or 5W-30

KUBOTA DOT3 GENUINE BRAKE FLUID

NLGI-2 OR NLGI-1(GC-LB)

Moderate amount Spray Type Grease

Multipurpose Grease

*KUBOTA UDT or SUPER UDT-2 fluid --- KUBOTA original transmission hydraulic fluid
**Oil amount when the oil level is at the upper level of the oil level gauge.

C Engine Oil:

Oil used in the engine should have an American Petroleum Institute (API) service classification and Proper SAE Engine
Oil according to the ambient temperatures as shown above:

C Fuel:

A Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is approved for the engine. Other gasoline/

alcohol blends are not approved.

C Transmission oil:

To complete lubrication of the transmission, it is important that a multi-grade transmission fluid be used in this system.
We recommend the use of KUBOTA UDT or SUPER UDT-2 fluid for optimum protection and performance. (Consult
your local KUBOTA Dealer for further detail.)
Do not mix different brands or grades.

C Brake fluid:

Always use KUBOTA DOT3 GENUINE BRAKE FLUID from a sealed container. If it is not available, you should use only
DOT3 fluid as a temporary replacement from a sealed container.
However, the use of any non-KUBOTA brake fluid can cause corrosion and decrease the life of the system.
Have the brake system flushed and refilled with KUBOTA DOT3 GENUINE BRAKE FLUID as soon as possible.

A Indicated capacity of water and oil are manufacturer's estimate.

37MAINTENANCE

38 PERIODIC SERVICE

PERIODIC SERVICE

5. Press-fit the hood into position with both hands.

To avoid personal injury:
A Do not work under any hydraulically supported

devices. They can settle, suddenly leak down,
or be accidentally lowered. If necessary to work
under vehicle or any vehicle elements for
servicing or adjustment, securely support them
with stands or suitable blocking beforehand.

HOW TO OPEN THE HOOD AND TILT THE
SEAT

To avoid personal injury from contact with moving
parts;
A Never open the operator's seat while the engine

is running.

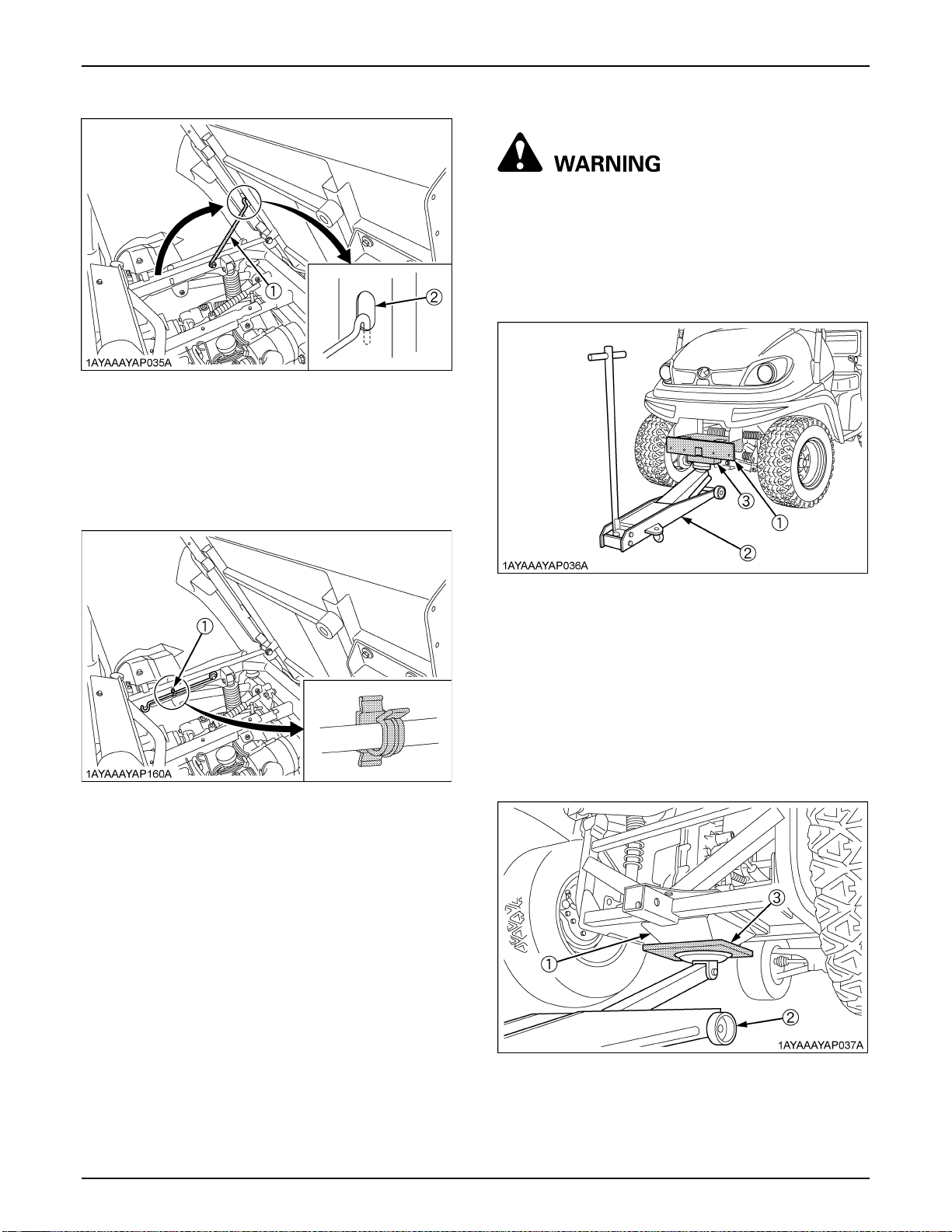

(1) Support link
(2) Hole

(A) "HOLD"
(B) "PUSH" (Lock)
(C) "PULL" (Unlock)

BHood

1. To open the hood, pull up the latch lever to release the
latch and open the hood.

2. Push the support link into the hole to lock when the
hood is fully raised.

(1) Support holder

(1) Latch lever
(2) Hood

3. To close the hood, hold the hood and lift up it slightly
and pull the support link to unlock.

4. Put the support link into the support holder.

(A) "RELEASE"

39PERIODIC SERVICE

BOperator's Seat

To open the seat, raise the seat to the forward position.

(1) Operator's seat

A For the component below the seat, turn over the

rubber sheet to work on it as shown in the figure below.

HOW TO RAISE THE CARGO BED

To avoid personal injury:
A When servicing under raised bed, make sure

safety support is properly mounted.

A Do not touch muffler or exhaust pipes while

they are hot; Severe burns could result.

BRaising and Lowering the Cargo Bed

To avoid personal injury;
A Make sure the vehicle is on a firm, level surface

and the parking brake is applied before raising
the cargo bed and securing the cargo bed in the
raised position.

A A loaded cargo bed can be very heavy. Never

raise the cargo bed when it is loaded. Unload
the cargo bed before raising it by hand.

1. Park the vehicle on a flat surface.

2. Empty the cargo bed by hand.

3. Release the latches on both sides and then raise the
cargo bed with the hand grip.

(1) Rubber sheet (A) Seat

(1) Latch
(2) Hand grip

4. Push the safety support into the latch slot to lock when
the cargo is fully raised.

(A) "LOCK"
(B) "RELEASE"
(C) "RAISE"

PERIODIC SERVICE40

(1) Safety support
(2) Latch slot

5. To lower the cargo bed, raise the cargo bed slightly
using the handgrip.

6. Release the safety support from the latch slot by
pulling up on the middle of the support.

7. Put the safety support into the support holder.

JACK-UP POINT

To avoid personal injury, death or vehicle damage:
A Do not work under the vehicle unless it is

secured by safe stands or suitable blocking.

BFront End

Jack up at the front bumper only.

(1) Support holder

8. Slowly lower the cargo bed onto the frame and set the
latches on both sides.

(1) Front bumper
(2) Jack
(3) Wooden block

BRear End

Jack up the rear side after placing a wooden block under
the transmission bottom cover for securing the engine and
then supporting it.
Do not jack it up supporting the steel plate portion under
the transmission bottom cover directly.

(1) Transmission bottom cover
(2) Jack
(3) Wooden block

41PERIODIC SERVICE

DAILY CHECK

For your own safety and maximum service life of the
vehicle, make a thorough daily inspection before
operating the vehicle to start the engine.

To avoid personal injury:
A Be sure to check and service the vehicle on a

flat surface with the engine shut off and the
parking brake "ON".

BWalk Around Inspection

Look around and under the vehicle for such items as loose
bolts, trash build-up, oil or coolant leaks, broken or worn
parts.

BChecking Amount of Fuel and Refueling

To avoid personal injury:
A Handle fuel carefully. If the engine is running,

do not fill the fuel tank. If engine is hot, let
engine cool several minutes before adding fuel.
Do not smoke while filling the fuel tank or
servicing the fuel system. Fill fuel tank only to
bottom of filler neck. Do not fill completely full.
The empty space in the tank allows gasoline to
expand, when it heats up. Never remove the
fuel tank cap or add fuel when the fuel tank is
hot.

Check the fuel level. Take care that the fuel tank does not
become empty.

Fuel tank capacity 20 L (5.3 U.S.gals.)

A Do not mix oil with gasoline.

Use only unleaded gasoline with an octane rating index of
87 or higher may be used.

A Use fuel within approximately 30 days after purchase

to avoid deterioration in fuel quality, or add fuel
stabilizer to keep fuel fresh and stabilized.

A Fuel blend differs from season to season for the best

seasonal engine performance. To prevent engine
performance troubles such as vapor lock or hard
starting, use fuel within the season in which the fuel is
purchased.

A Infrequent use of the engine during a season can

make fuel stale in the fuel tank of the machine. Stale
fuel condition can cause engine performance troubles
by varnish and plugged carburetor components.

A Seal the fuel storage container tightly and store it out

of sunlight and heat to prevent fuel degradation.

A Condensation in the fuel tank may occur because of

various operating or environmental conditions. To
reduce condensation and avoid affecting machine
operation, fill the fuel tank at the end of daily operation
and store fuel in the plastic container.

A Use only an approved fuel container. Use only non-

metal, portable fuel containers approved by the
Underwriter's Laboratory (U.L.) or the American
Society for Testing & Materials (ASTM). If using a
funnel, make sure it is plastic and has no screen or
filter.

A Never remove the fuel tank cap or add fuel with the

engine running. Allow the engine to cool before
refueling.

A Never add fuel to or drain fuel from the machine

indoors. Move the machine outdoors and provide
adequate ventilation.

A Clean up spilled fuel immediately. If fuel is spilled on

clothing, change clothing immediately. If fuel is spilled
near machine, do not attempt to start the engine but
move the machine away from the area of spillage.
Avoid creating any source of ignition until fuel vapors
have dissipated.

A Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a
water heater or other appliance.

A Prevent fire and explosion caused by static electric

discharge. Static electric discharge can ignite fuel
vapors in an ungrounded fuel container.

A Never fill containers inside a vehicle or on a truck or a

trailer bed with a plastic liner. Always place containers
on the ground away from your vehicle before fueling.

PERIODIC SERVICE42

A Remove fuel-powered equipment from the truck or the

trailer and refuel it on the ground. If this is not possible,
then refuel such equipment with a portable container,
rather than from a fuel dispenser nozzle.

A Keep the nozzle in contact with the rim of the fuel tank

or container opening at all times until the fueling is
complete. Do not use a nozzle lock-open device.

A Never overfill fuel tank. Replace the fuel tank cap and

tighten securely.

A Replace all fuel container caps securely after use.
A For gasoline engines, do not use gas with methanol.

Methanol is harmful to your health and to the
environment.

A Do not use stale fuel.
A Fill fuel tank at the end of daily operation to prevent

condensation in the fuel tank.

[Use of alcohol mixed gasoline (Gasohol)]

Use "gasohol" only when the ethanol additive is less than
10% of the fuel. The use of methanol additive is not
recommended. For the best results, use unleaded fuel
with a minimum of 87 octane.

BChecking Engine Oil Level

To avoid personal injury:
A Be sure to stop the engine before checking the

oil level.

1. Park the vehicle on a flat surface and raise the cargo
bed. Shut off the engine and remove the key.

2. Allow the engine to cool for 5 minutes or more.

3. To check the oil level, draw out the dipstick, wipe it
clean, replace it, and draw it out again. Check to see
that the oil level lies between the 2 notches.
If the level is too low, add new oil to the prescribed
level at the oil inlet.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)

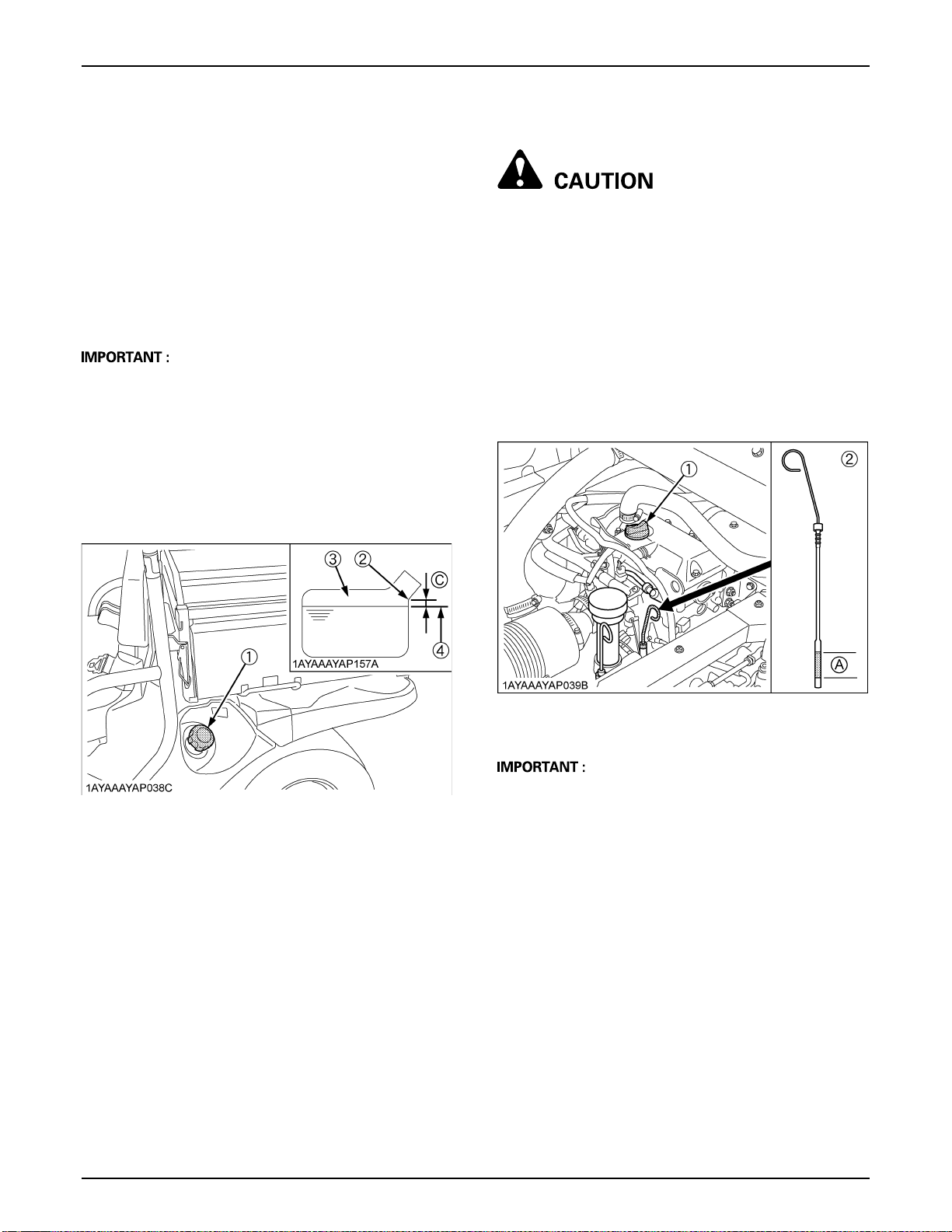

(1) Fuel tank cap
(2) Fuel tank filler neck
(3) Empty space
(4) Max. fuel level
(C) Clearance (Fuel level is under the filler neck lower side.)

(1) Oil inlet
(2) Dipstick

(A) Oil level is acceptable within this range.

A When using an oil of different maker or viscosity from

the previous one, remove all of the old oil.
Never mix 2 different types of oil.

A If oil level is low, do not run engine.

43PERIODIC SERVICE

BChecking Transmission Fluid Level

1. Park the vehicle on a flat surface and raise the cargo
bed. Shut off the engine and remove the key.

2. Allow the engine to cool for 5 minutes or more.

3. To check the oil level, draw out the dipstick, wipe it
clean, replace it, and draw it out again. Check to see
that the oil level lies between the 2 notches.
If the level is too low, add new oil to the prescribed
level at the oil inlet.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)

BChecking Coolant Level

To avoid personal injury:
A Do not remove radiator cap while coolant is

hot. When cool, slowly rotate cap to the first
stop and allow sufficient time for excess
pressure to escape before removing the cap
completely.

1. Park the vehicle on a flat surface and raise the cargo
bed.

2. Check to see that the coolant level is between the
"FULL" and "LOW" marks of recovery tank.

3. When the coolant level drops due to evaporation, add
water only up to the full level.
In case of leakage, add anti-freeze and water in the
specified mixing ratio up to the full level.
(See "Flush Cooling System and Changing Coolant" in
"EVERY 2 YEARS" in "PERIODIC SERVICE"
section.)

(1) Oil inlet
(2) Dipstick

A If oil level is low, do not run engine.

(A) Oil level is acceptable within this range.

(1) Recovery tank (A) "FULL"

(B) "LOW"

A If the radiator cap has to be removed, follow the

caution above and securely retighten the cap.

A Use clean, fresh water and anti-freeze to fill the

recovery tank.

A If water should leak, consult your local KUBOTA

Dealer.

PERIODIC SERVICE44

BCleaning Radiator Screen

To avoid personal injury:
A Be sure to stop the engine before removing the

screen.

1. Park the vehicle on a flat surface and raise the seat.

2. Detach the screen and remove all foreign materials.

(1) Radiator screen (A) "DETACH"

BChecking Engine Cooling Fan

[For those of the engine serial number
8U0086 or later, check the fan operation.]

To avoid personal injury:
A Do not stick your finger in the fan operating

section when performing visual check.

A Wear protective equipment when performing

visual check.

A Never start engine while standing on the

ground.
Start engine only from the operator's seat.

1. Park the vehicle on a flat surface and apply the parking
brake.

2. Start up the engine.

3. After starting up the engine, get off the operator's seat
and hold up the seat to visually check that the fan is
operating.

4. The fan should come on 5 sec. after starting engine
and operate for 10 sec.

5. If the fan will not operate, do not operate the vehicle
but consult with your dealer.

A Radiator screen must be clean from debris to prevent

engine from overheating.

[Exceptions in Operation]

A If the engine coolant temperature is higher than

87 ( 87 ) at startup, the fan will turn on
immediately and run until the engine coolant
temperature is less than 80 (<80 ).

A When the water temperature sensor is in trouble, the

fan start operating.

A If the engine startup is failed, return the key to the

"OFF" position (ENGINE STOP POSITION).

(1) Engine cooling fan

45PERIODIC SERVICE

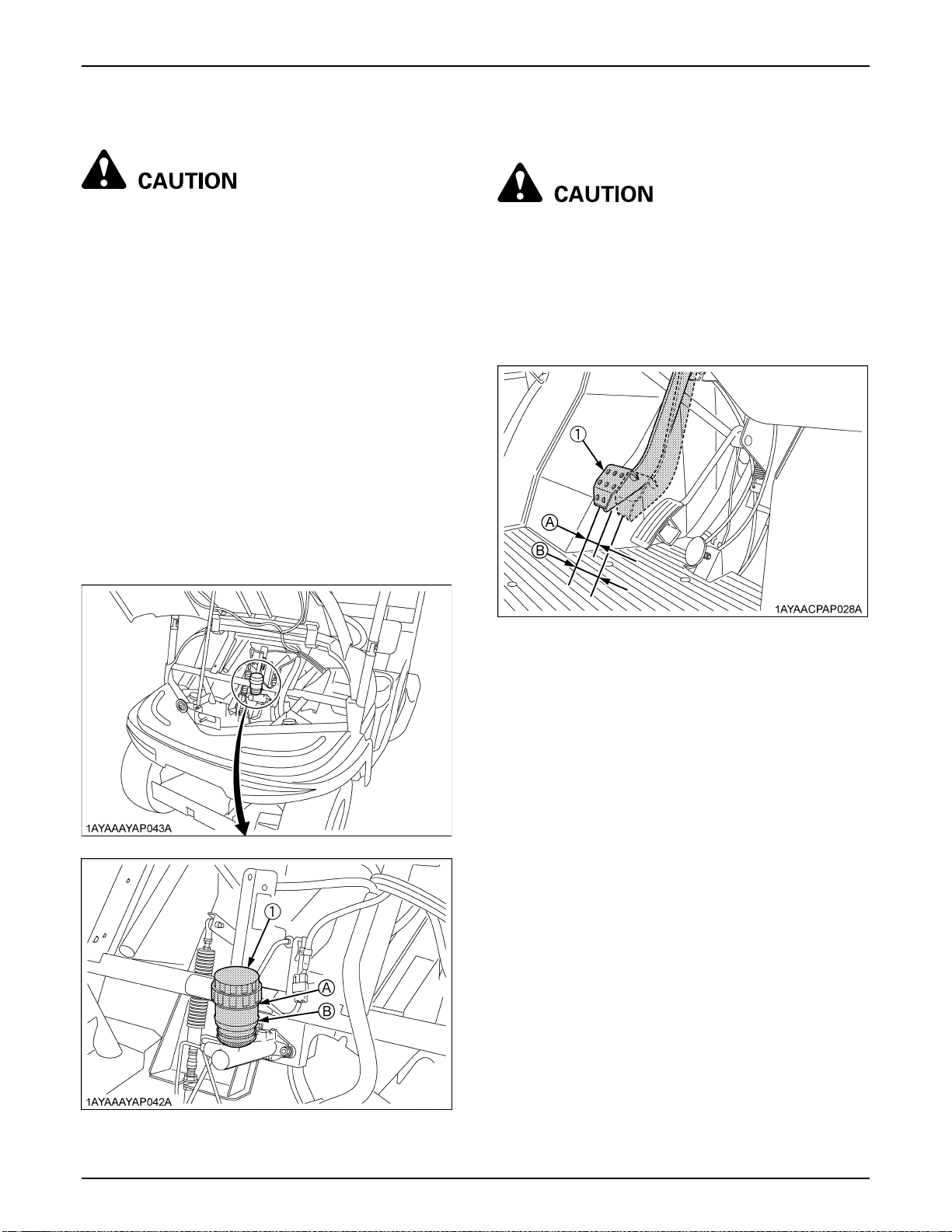

BChecking Brake Fluid Level

To avoid personal injury:
A Never operate the vehicle, if the brake fluid is

below the "MIN" mark.

A Use only KUBOTA DOT3 GENUINE BRAKE

FLUID from a sealed container. Using other
type of oil ruins synthetic resin or rubber
installed in brake system components, and
may cause brake failure.

A Avoid contamination of the brake fluid.

Thoroughly clean area around the filler cap
before removing. Do not open the brake fluid
reservoir cap unless absolutely necessary.

A Use extreme care when filling the reservoir. If

brake fluid is spilled on power steering hose,
wash off with water immediately. Brake fluid
quickly ruins synthetic resin or rubber hoses.

1. Park the vehicle on a level ground and open the hood.

2. Check to see that the brake fluid level is between the
"MAX" and "MIN" marks.

3. If it is below the "MIN" mark, add brake fluid to the
"MAX" mark.

BChecking Brake Pedal

To avoid personal injury:
A Stop the engine and chock the wheels before

checking brake pedal.

1. Inspect the brake pedals for free travel, and smooth
operation.

2. Adjust if incorrect measurement is found: (See
"Checking Brake Pedal" in "EVERY 200 HOURS" in
"PERIODIC SERVICE" section.)

(1) Brake pedal (A) "FREE TRAVEL"

(B) "PEDAL STROKE"

(1) Oil tank cap (A) "MAX"

(B) "MIN"

PERIODIC SERVICE46

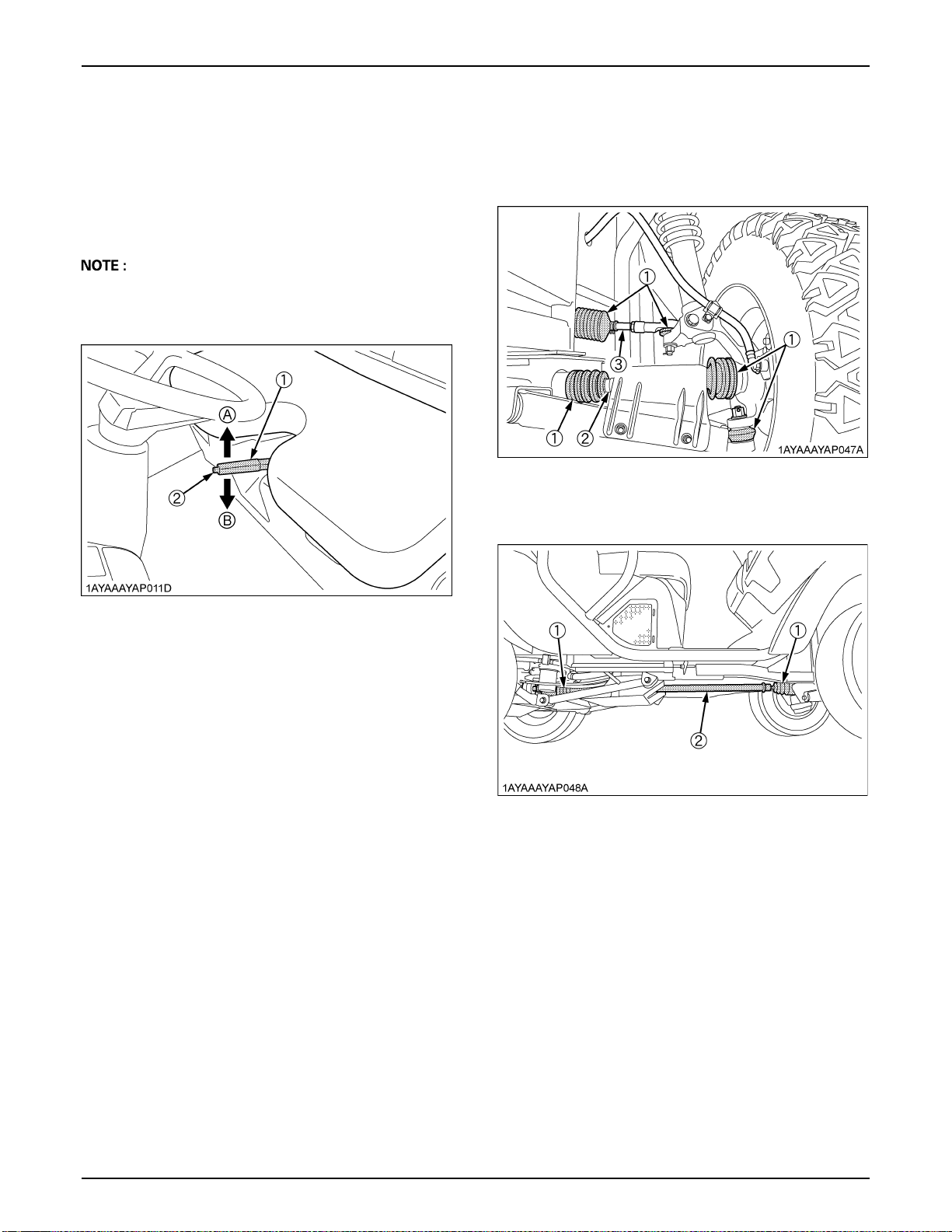

BChecking Parking Brake

Pull the parking brake lever to apply the brakes. With the
key switch at "ON" position, the brake indicator on the
instrument panel lights up. To release the brakes, push in
the button at the tip of the parking brake lever and tilt down
the lever.

A Make sure the brake indicator light on the Easy

Checker(TM) goes off when parking brake lever is
down.

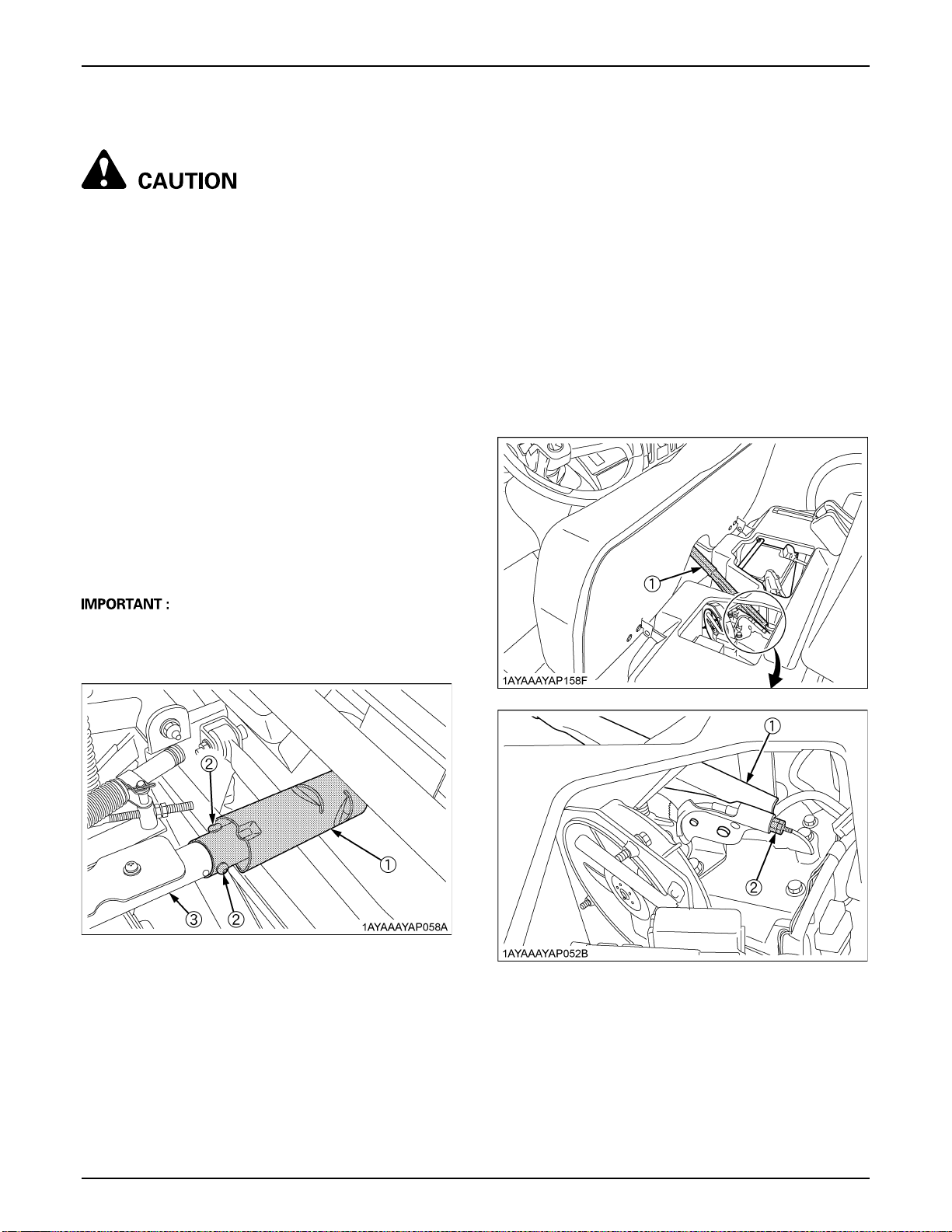

BChecking Joint Boot

1. Check to see if the joint boots are not damaged.

2. If the boots are cuts, cracked or shows signs of
deterioration, consult your local KUBOTA Dealer.

(1) Joint boot
(2) Front drive shaft
(3) Tie rod

(1) Parking brake lever
(2) Release button

(A) "PULL"
(B) "RELEASE"

BChecking Gauges, Meter and Easy

Checker(TM)

1. Inspect the instrument panel for broken gauge(s),
meter(s) and Easy Checker(TM) lamps.

2. Replace if broken.

BChecking Head Light, etc.

1. Inspect the lights for broken bulbs and lenses.

2. Replace if broken.

BChecking Seat Belt and ROPS

1. Always check condition of seat belt and ROPS
attaching hardware before operating vehicle.

2. Replace if damaged.

(1) Joint boot
(2) Drive shaft

47PERIODIC SERVICE

BChecking Tire Inflation Pressure

Though the tire pressure is factory-set to the prescribed
level, it naturally drops slowly in the course of time. Thus,
check it everyday and inflate as necessary.

Tire sizes Inflation Pressure

24 x 9 - 12 HDWS,

Front

24 x 11 - 12 HDWS,

Rear

24 x 9 - 12 ATV,

Front

24 x 11 - 12 ATV,

Rear

(0.97 kgf/cm , 14 psi)

97 kPa

EVERY 50 HOURS

BGreasing

Apply a small amount of multi-purpose grease to the
following points every 50 hours: If you operated the
vehicle in extremely wet and muddy conditions, lubricate
grease fittings more often.

(1) VHT link (Grease fitting)

(1) Ground (A) "INSUFFICIENT"

(B) "NORMAL"
(C) "EXCESSIVE"

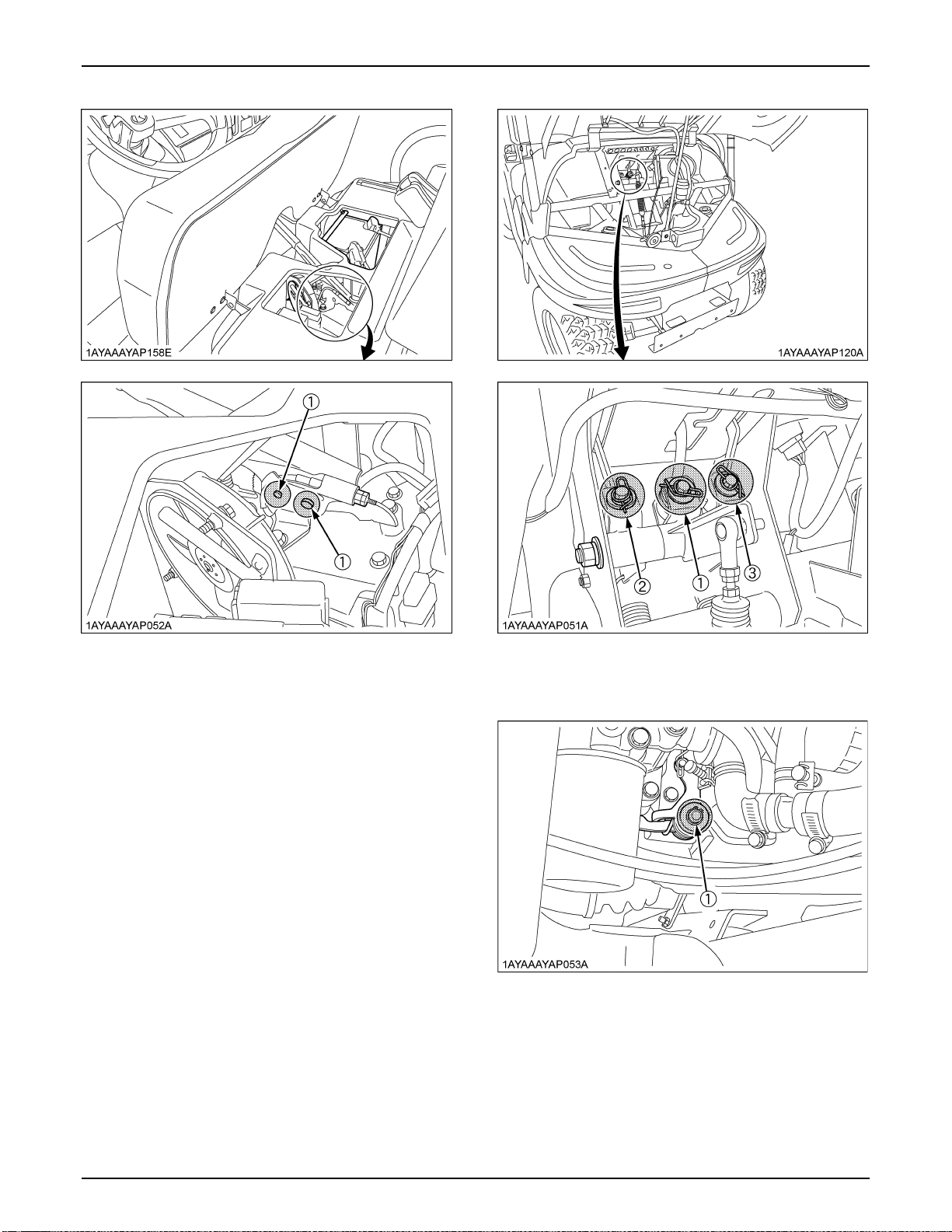

(1) Battery terminals (spray type grease)

(1) Cargo bed pivot (spray type grease)

PERIODIC SERVICE48

(1) Parking brake pivot (spray type grease) (1) Range gear shift lever pivot (spray type grease)

(2) 4WD lever pivot (spray type grease)
(3) Differential lock lever (spray type grease)

(1) Bypass link (spray type grease)

49PERIODIC SERVICE

BChecking Engine Start System

To avoid personal injury:
A Do not allow anyone near the vehicle while

testing.

A If the vehicle does not pass the test do not

operate the vehicle.

C Preparation before testing.

1. Place all control levers in the "NEUTRAL" position.

2. Set the parking brake and stop the engine.

C Test: Range gear shift lever safety switch

1. Sit on the operator's seat.

2. Shift the range gear shift lever to "H" position.

3. Return the Speed control pedal to the "N" position.

4. Turn the key to "START" position.

5. The engine must not crank.

6. Repeat the step 2 to 5 with the range gear shift lever
at "L" and "R" each position.

7. If it cranks, consult your local KUBOTA Dealer for this
service.

EVERY 100 HOURS

BChecking VHT Neutral Spring

1. Park the vehicle on a flat place.

2. Apply the parking brake.

3. Shift the range gear shift lever to the neutral position.

4. Start the engine.

5. Make sure that the rotation speed of the engine
returns to the idling rotation immediately when taking
the foot off the pedal, after depressing the speed
control pedal several times. If the above does not
occur immediately, consult your local KUBOTA dealer
for this service.

BChecking Wheel Bolt Torque

To avoid personal injury:

A Never operate vehicle with a loose wheel bolts.
A Any time bolts are loosened, retighten to the

specified torque.

A Check all bolts frequently and keep them tight.

Check wheel bolts regularly especially when new. If they
are loose, tighten them as follows.

(1) Torque wheel bolts to 108.4 to 121.9 N-m
(11 to 12.4 kgf-m) (80 to 90 ft-lbs.)

PERIODIC SERVICE50

BCleaning Air Cleaner Primary Element

1. Remove the air cleaner cover and primary element.

2. Clean the primary element:
(1) When dry dust adheres to the element, blow

compressed air from the inside, turning the
element. Pressure of compressed air must be
under 205 kPa (2.1 kgf/cm , 30 psi).

(2) When carbon or oil adheres to the element,

replace the element with new one even if it has
not been used for 1 year.

3. Replace the primary element:
Once yearly or after every sixth cleaning, whichever
comes first.

A Check to see if the evacuator valve is blocked with

dust.

A Check the rubber seal. Replace if damaged.

C Evacuator Valve

Open the evacuator valve once a week under ordinary
conditions - or daily when used in a dusty place - to get rid
of large particles of dust and dirt.

BCleaning Pre Cleaner Element

1. Remove the Pre cleaner element.

(1) Secondary (safety) element
(2) Primary element
(3) Rubber seal
(4) Evacuator valve
(5) Cover

A The air cleaner uses a dry element, never apply oil.
A Do not run the engine with filter element removed.
A Be sure to refit the cover with the arrow (on the rear of

cover) upright. If the cover is improperly fitted,
evacuator valve will not function and dust will adhere
to the element.

A Do not touch the secondary element except in cases

where replacing is required.
(See "Replacing Air Cleaner Secondary Element" in
"EVERY 1 YEAR" in "PERIODIC SERVICE" section.)

(1) Pre cleaner element
(2) Intake air line

2. Wash the pre cleaner in warm water with detergent.
Rinse the pre cleaner thoroughly until all traces of
detergent are eliminated.
Squeeze out excess water. Allow the pre cleaner to air
dry.

3. Reinstall the pre cleaner.

BAdjusting Alternator Drive Belt Tension

To avoid personal injury:
A Be sure to stop the engine before checking belt

tension.

A Allow the engine to cool down sufficiently

before adjustment.

[If equipped with the belt cover with rubber checking
belt cover; the first 2 digits of the engine serial
number are other than 8L, 8N, and 8Q.]

C Checking procedure

1. Park the vehicle on a flat surface.

2. Stop the engine and remove the key.

3. Move the checking belt cover to the direction of the
arrow in the figure (1).

4. First of all, apply finger pressure of 98N (10 kgf, 22
lbs.) to the belt at the center of the checking belt
window as shown in the figure (2).

5. Repeat step 4. to measure the belt tension.

6. If the deflection of the belt is over the prescribed value,
the alternator drive belt should be adjusted.

7. Replace the alternator drive belt if it is damaged.
Consult your local KUBOTA dealer.

8. Make sure to set the checking belt cover again in place
after checking.

51PERIODIC SERVICE

Belt type A type belt (22 in.)

Limited deflection of the
belt at the center of the

approx. 10.5 mm (0.41 in.)

checking belt window

(1) Belt cover
(2) Checking belt cover
(3) M8 bolt
(4) Lock nut
(A) Finger pressure of 98N
(10 kgf, 22 lbs.)

(5) Adjusting bolt
(6) Checking belt window
(7) Alternator drive belt
(8) M10 bolt

C Adjusting procedure

1. Loosen the lock nut.

2. Loosen the M8 bolt.

3. Loosen the M10 bolt slightly (approx. 5 degrees).

4. Adjust the alternator drive belt tension by fastening the
adjusting bolt until the deflection of the belt is set within
acceptable limits (approx. 7.5 mm).

PERIODIC SERVICE52

The belt should deflect approx. 7.5
Proper
alternator drive
belt tension

5. Fasten the M10 bolt.

6. Check that the deflection of the belt at the center of the
checking belt window is proper as the fourth step of the
checking procedure.

A Make sure to check the deflection of the belt after

fastening the M10 bolt.

7. If the deflection of the belt is incorrect, restart the work
from the third step of the adjusting procedure.

8. Fasten the M8 bolt.

9. Fix the lock nut.

[If equipped with the belt cover with no checking belt
cover; the first 2 digits of the engine serial number are
8L, 8N, or 8Q.]

mm (0.30 in.) when the belt (7) at the
center of the checking belt window is
depressed with finger pressure of 98
N (10 kgf, 22 lbs.).

C Checking procedure

1. Park the vehicle on a flat surface.

2. Stop the engine and remove the key.

3. Remove three M6 bolts, and then remove the belt
cover.

4. First of all, apply finger pressure of 98N (10 kgf, 22
lbs.) to the center of the belt between pulleys as shown
in the figure.

5. Repeat step 4. to measure the belt tension.

6. If the deflection of the belt is over the prescribed value,
the alternator drive belt should be adjusted.

7. Replace the alternator drive belt if it is damaged.

8. Make sure to set the belt cover again in place with the
M6 bolts after checking.

Belt type FM type belt (22.5 in.)

Limited deflection of
the belt (6) at the center
of the belt between

approx. 12 mm

(0.47 in.)

pulleys

(1) Belt cover
(2) M6 bolt
(3) M8 bolt
(4) Lock nut
(A) Finger pressure of 98N
(10 kgf, 22 lbs.)

(5) Adjusting bolt
(6) Alternator drive belt
(7) M10 bolt
(8) Alternator

C Adjusting procedure

1. Loosen the lock nut.

2. Loosen the M8 bolt.

3. Loosen the M10 bolt slightly (approx. 5 degrees).

4. Adjust the alternator drive belt tension by fastening the
adjusting bolt until the deflection of the belt is set within
acceptable limits (approx. 10 mm).

53PERIODIC SERVICE

The belt should deflect approx. 10 mm
Proper
alternator drive
belt tension

(0.39 in.) when the center of the belt

between pulleys is depressed with

finger pressure of 98 N (10 kgf, 22

lbs.).

5. Fasten the M10 bolt.

6. Check that the deflection of the center of the belt
between pulleys is proper as the fourth step of the
checking procedure.

A Make sure to check the deflection of the belt after

fastening the M10 bolt.

7. If the deflection of the belt is incorrect, restart the work
from the third step of the adjusting procedure.

8. Fasten the M8 bolt.

9. Fix the lock nut.

BChecking Fuel Line

To avoid personal injury:
A Be sure to stop the engine and remove the key

when attempting to make the following checks
and changes.

A Never fail to check the fuel lines periodically.

The fuel lines are subject to wear and aging.
Fuel may leak out onto the running engine,
causing a fire.

A When the fuel line is disconnected for maintenance or

repair, close both ends of the fuel line with a piece of
clean cloth or paper to prevent dust and dirt from
entering. In addition, particular care must be taken not
to admit dust and dirt into the fuel pump. Entrance of
even a small amount of dust or dirt cause premature
wear and malfunction of the fuel pump and injector
components.

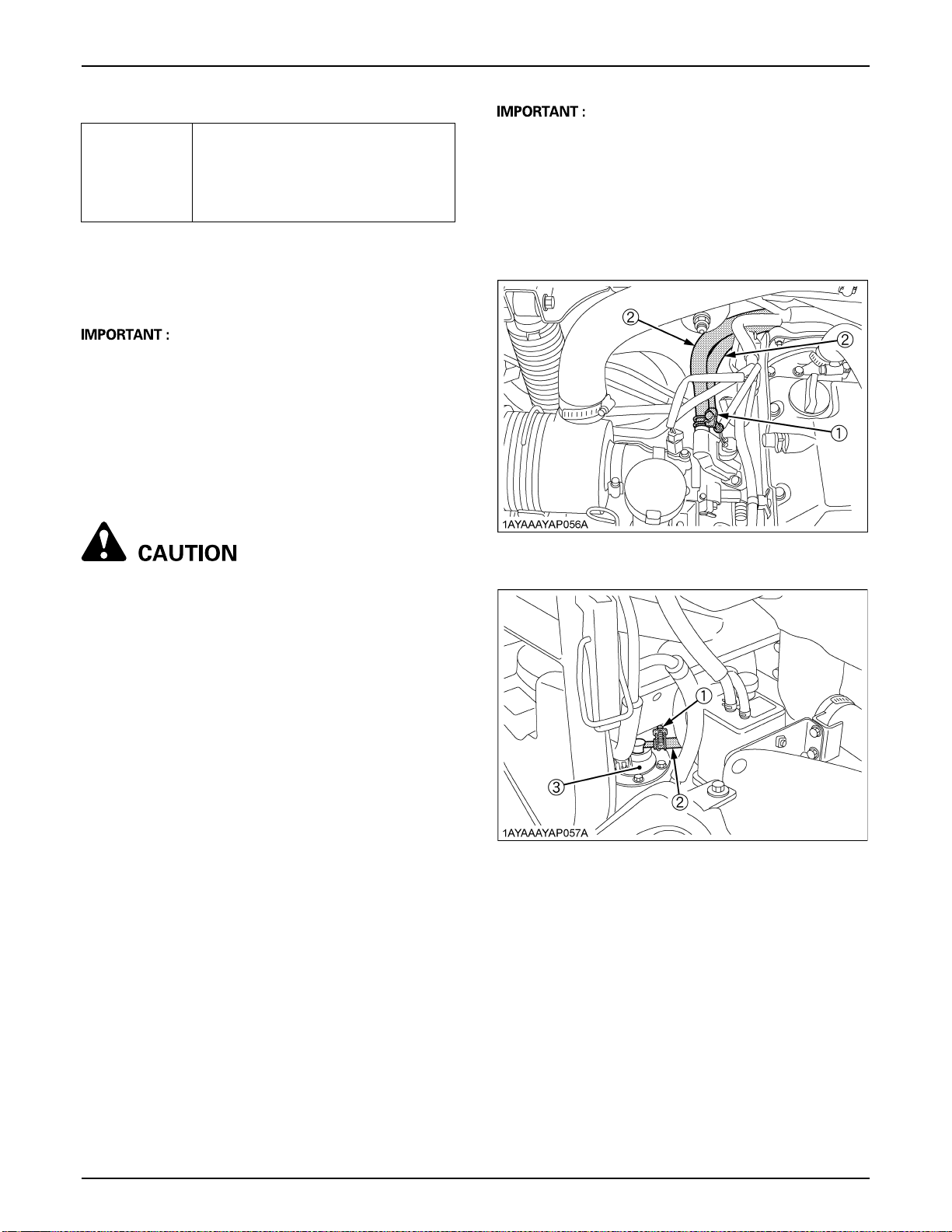

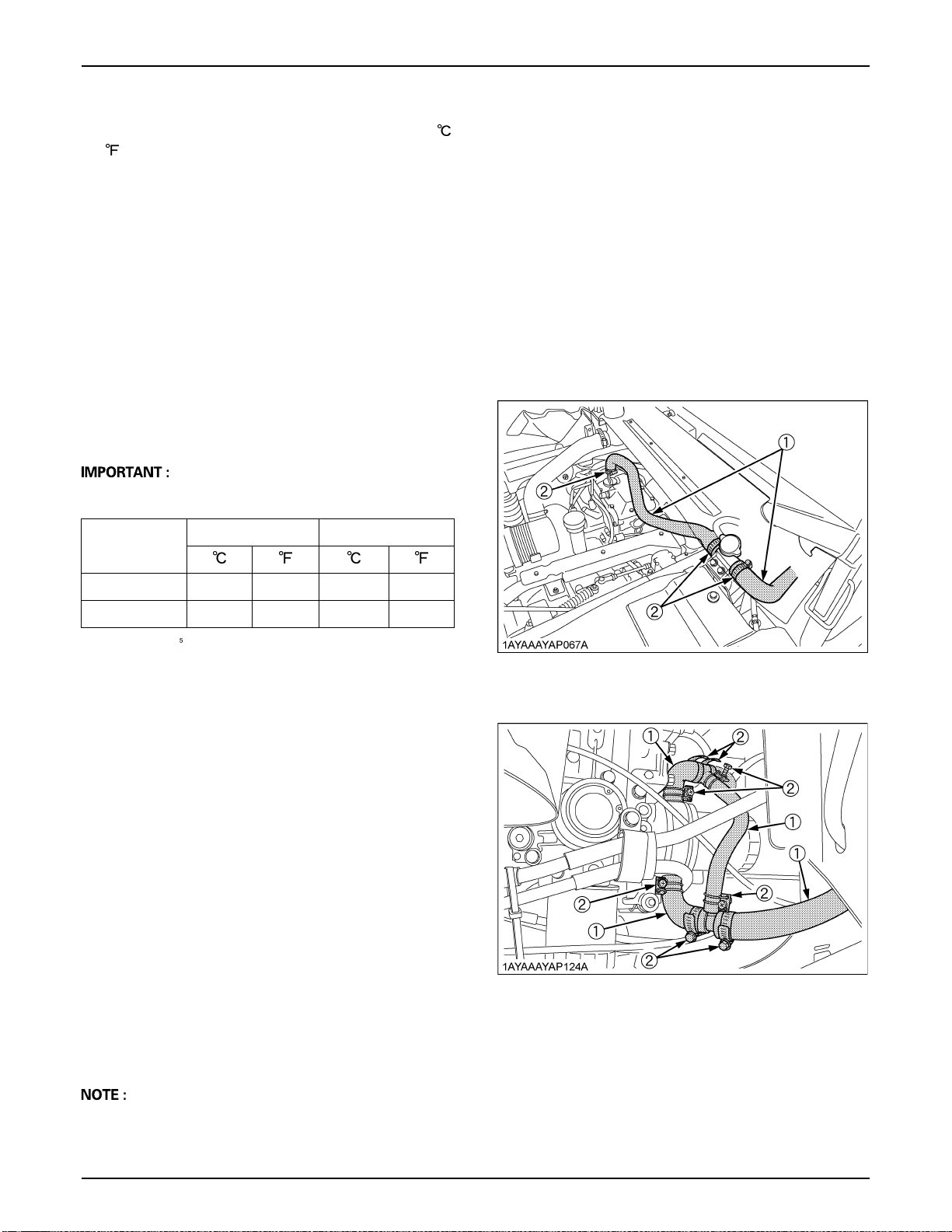

(1) Hose clamp
(2) Fuel line

The fuel line connections should be checked annually or
every 100 service hours, whichever comes first.

1. Park the vehicle on a flat surface and raise the cargo
bed.

2. The fuel line is made of rubber and ages regardless of
service period.

3. If the fuel line and clamps are found to be damaged or
deteriorated, replace them.

(1) Hose clamp
(2) Fuel line
(3) Fuel pump with filter

PERIODIC SERVICE54

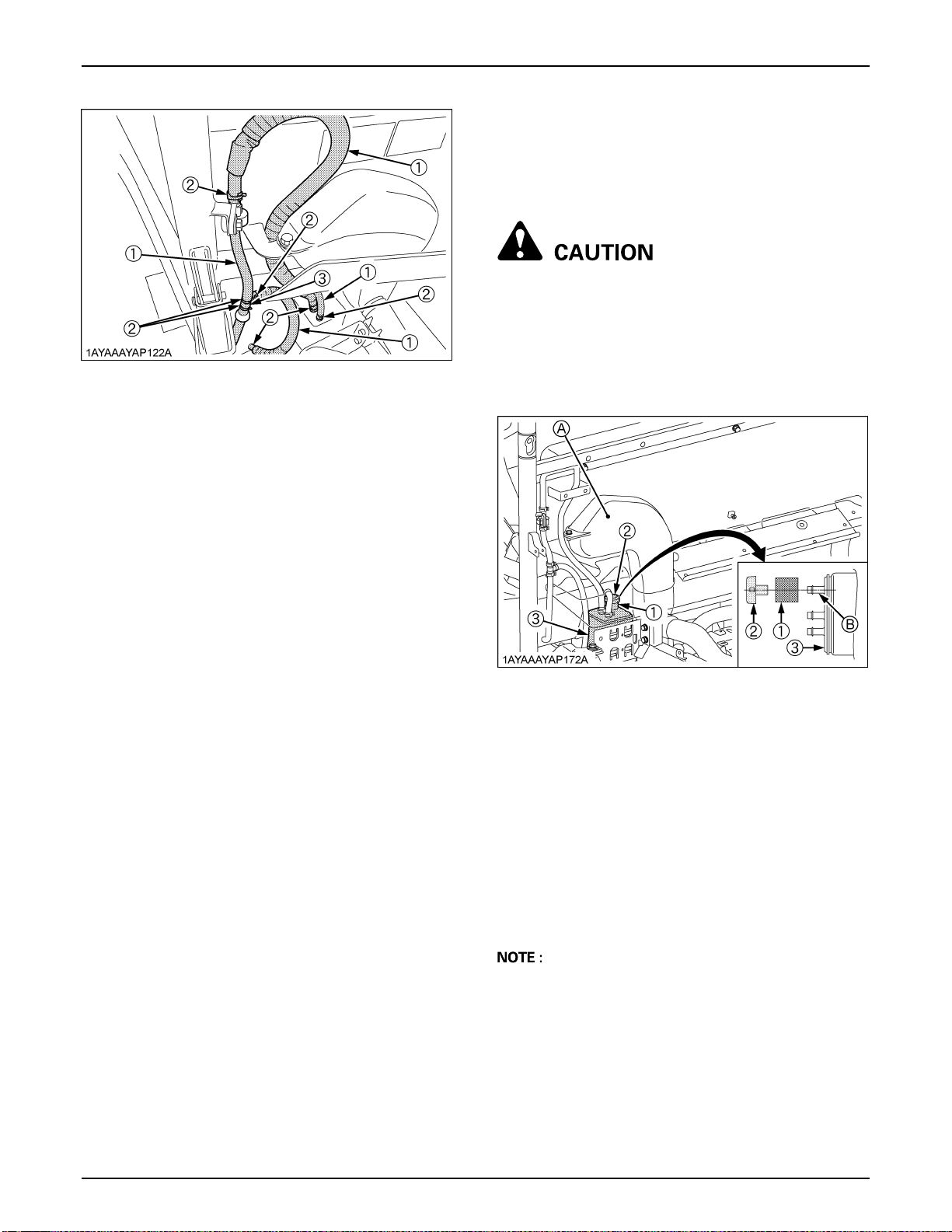

(1) Fuel line
(2) Hose clamp
(3) 3 way connector

BChecking Carbon Canister Air Filter

Check the carbon canister air filter every 100 hours of
operation. (more often under extremely dusty or dirty
conditions.)

To avoid personal injury:
A Stop the engine, set the parking brake and

remove the key.

1. Raise the cargo bed, and push the safety support into
the latch slot to lock.

2. Remove the cover and remove the carbon canister air
filter.

(1) Canister air filter
(2) Cover
(3) Carbon canister

(A) Intake air duct
(B) Air port

3. Check to see if the carbon canister air filter is worn out,
damaged or dirty.

4. If the air filter is dirty, wash the air filter in warm water
with detergent. Then rinse the air filter thoroughly until
all traces of detergent are eliminated. Squeeze out
excess water. (do not wring.) Allow the air filter to air
dry. Do not use high pressure air to clean filter.

5. If the air filter is worn out, damaged or too dirty to wash
clean, replace it with a new one.

6. Reinstall the carbon canister air filter and secure it with
the cover.

A Operating in dusty condition may require more

frequent maintenance than above.

BChecking Battery Condition

To avoid the possibility of battery explosion:
For the refillable type battery, follow the
instructions below.
A Do not use or charge the refillable type battery

if the fluid level is below the LOWER (lower limit
level) mark. Otherwise, the battery component
parts may prematurely deteriorate, which may
shorten the battery's service life or cause an
explosion. Check the fluid level regularly and
add distilled water as required so that the fluid
level is between the UPPER and LOWER levels.

To avoid personal injury:
A Never remove the vent caps while the engine is

running.

A Keep electrolyte away from eyes, hands and

clothes. If you are spattered with it, wash it
away completely with water immediately and
get medical attention.

A Wear eye protection and rubber gloves when

working around the battery.

55PERIODIC SERVICE

(1) Battery

1. To slow charge the battery, connect the battery
positive terminal to the charger positive terminal and
the negative to the negative, then recharge in the
standard fashion.

2. A boost charge is only for emergencies. It will partially
charge the battery at a high rate and in a short time.
When using a boost-charged battery, it is necessary to
recharge the battery as early as possible.
Failure to do this will shorten the battery's service life.

3. When exchanging an old battery for a new one, use
battery of equal specification shown in table below.

The factory-installed battery is non-refillable type.
If the battery is weak, charge the battery or replace it
with new one.

C Battery Charging

To avoid personal injury:
A When the battery is being activated, hydrogen

and oxygen gases in the battery are extremely
explosive. Keep open sparks and flames away
from the battery at all times, especially when
charging the battery.

A When disconnecting the cable from the battery,

start with the negative terminal first. When
connecting the cable to the battery, start with
the positive terminal first.

A Never check battery charge by placing a metal

object across the posts.
Use a voltmeter or hydrometer.

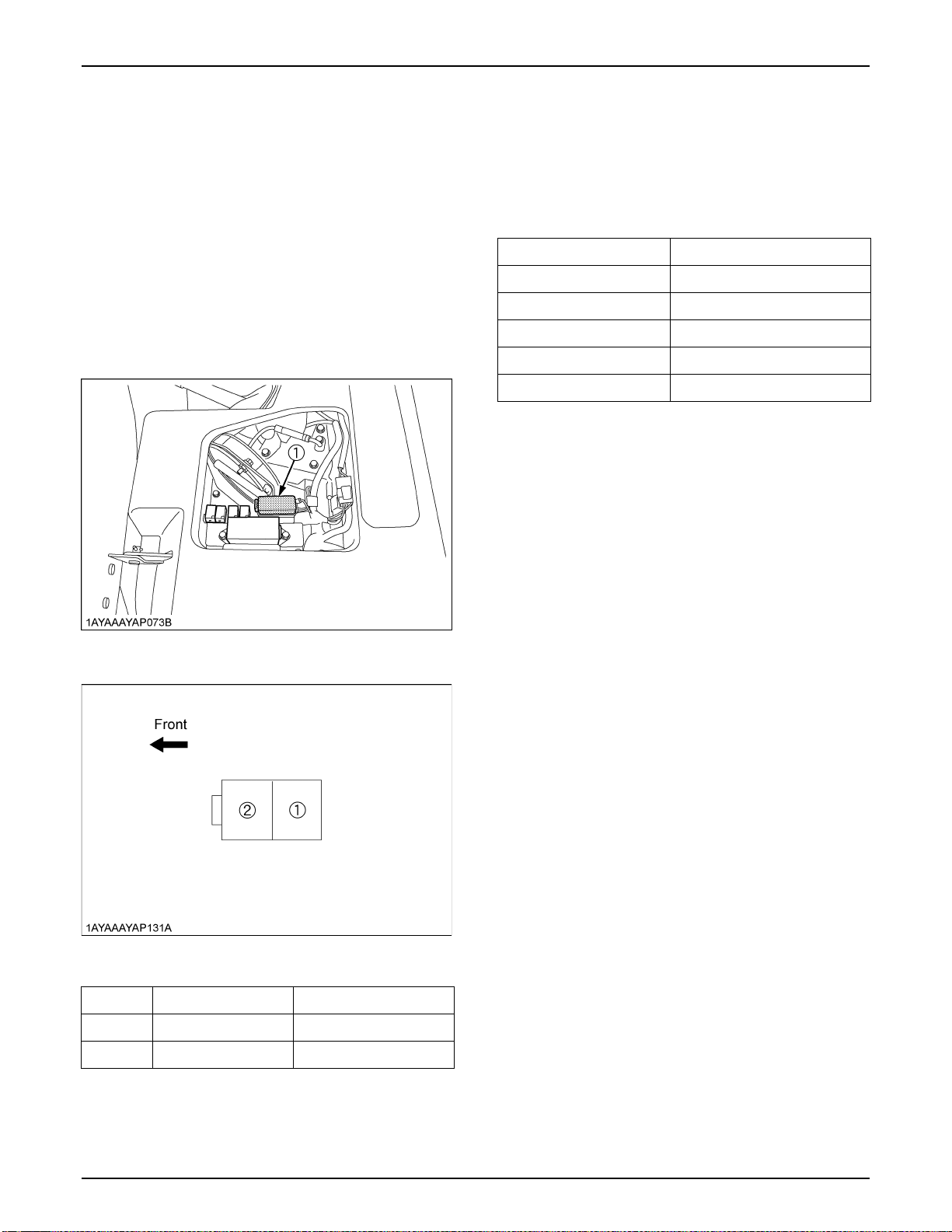

Battery

TYPE

426 MF 12 32 55 450

C Direction for Storage

1. When storing the vehicle for a long period, remove the
battery from vehicle, adjust the electrolyte to the
proper level (refillable type only) and store in a dry
place out of direct sunlight.

2. The battery self-discharges while it is stored.
Recharge it once every 3 months in hot seasons and
once every 6 months in cold seasons.

Volts (V)

Capacity
at 20 hrs

(A.H.)

Reserve

Capacity

(min)

Cold

Cranking

Amps

PERIODIC SERVICE56

BAdjusting Toe-in

Proper toe-in 0 to 20 mm (0 to 0.79 in.)

C Adjusting procedures

1. Loosen the lock nut and turn the tie rod to adjust the
rod length until the proper toe-in measurement is
obtained.

2. Retighten the lock nut.

1. Park vehicle on a flat place.

2. Turn steering wheel so front wheels are in the straight
ahead position.

3. Lock the park brake and stop the engine.

4. Measure distance between tire beads at front of tire, at
hub height.

5. Measure distance between tire beads at rear of tire, at
hub height.

6. Front distance should be shorter than rear distance. If
not, adjust tie rod length.

(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
(C) "FRONT"

A Tightening torque:

74.0 to 84.0 N-m
(7.6 to 8.5 kgf-m)
(55 to 61 lbf-ft)

(1) Lock nuts
(2) Tie-rod

A Keep the length of the left and right tie-rod equal.

57PERIODIC SERVICE

BCleaning Spark Arrester

To avoid personal injury:
A After operating the engine, do not touch the

muffler, exhaust pipe, or spark arrester until
they have had sufficient time to cool.

This screen type spark arrester was examined, tested,
and qualified in accordance with the USDA Forest Service
Standard 5100-1c.

C Maintenance and cleanout procedure

The screen type spark arrester should be removed,
cleaned, and inspected after every 100 hours of use.

1. The spark arrester is located inside the end of the
exhaust pipe, and is fastened with 2 bolts.

2. Unfasten the bolt and remove the spark arrester.

3. Shake loosened particles out of the screen assembly
and lightly clean the screen with a wire brush. Soak in
solvent and again clean with wire brush if necessary.

4. If any breaks in the screen or weldments are
discovered, the assembly must be replaced.

5. Return the spark arrester to the exhaust outlet, align
the bolt holes and refasten the bolt.

EVERY 200 HOURS

BAdjusting Parking Brake Lever

The parking brake should be adjusted when the parking
brake lever reaches 8 to 12 notches and will not hold the
vehicle in place.
Consult your local KUBOTA dealer.

C Adjusting procedure

1. Park the vehicle on a firm, flat and level surface, and
shut off the engine and remove the key.

2. Release the parking brake.

3. Loosen the lock nut, and adjust the cable wire length.

4. Pull the parking brake lever 1 notch, and make sure
the vehicle does not roll easily by hand.

5. Release the parking brake, and make sure the vehicle
rolls easily by hand.

6. Tighten the lock nut.

A USDA approval requires clearance between spark

arrester sleeve and exhaust pipe to be no larger than

0.023" (0.584 mm).

(1) Spark arrester
(2) Bolt
(3) Muffler

(1) Parking brake lever
(2) Lock nut

PERIODIC SERVICE58

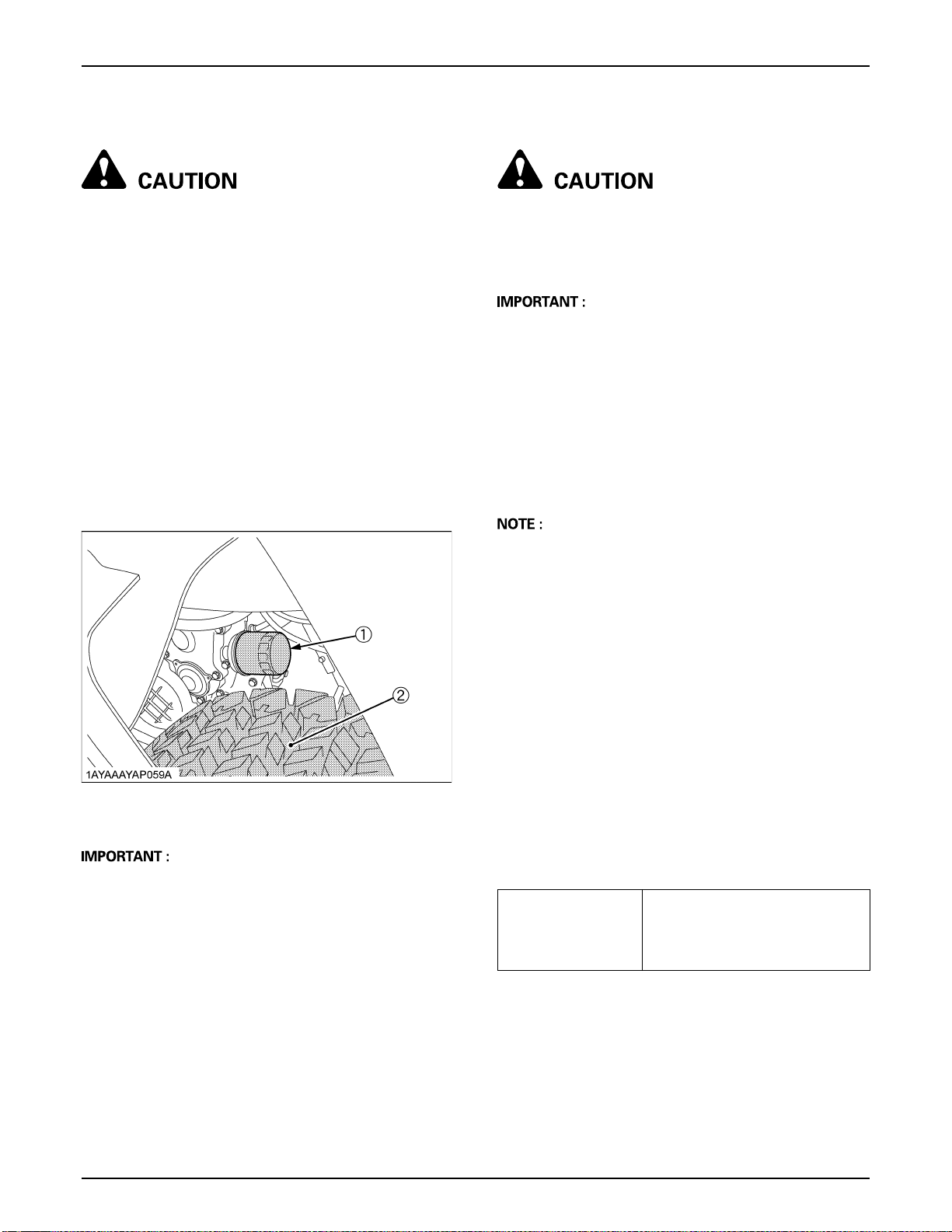

BReplacing Engine Oil Filter

To avoid personal injury:
A Be sure to stop the engine before changing the

oil filter cartridge.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a flat surface and raise the cargo
bed. Shut off the engine and remove the key.

2. Remove the oil filter.

3. Put a film of clean engine oil on the rubber seal of the
new filter.

4. Tighten the filter quickly until it contacts the mounting
surface.
Tighten filter by hand an additional 1/2 turn only.

5. After the new filter has been replaced, the engine oil
normally decreases a little. Make sure that the engine
oil does not leak through the seal and be sure to check
the oil level on the dipstick. Then, replenish the engine
oil up to the prescribed level.

BChanging Engine Oil

To avoid personal injury:
A Be sure to stop the engine before changing the

oil.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

A To Avoid Damage! Vehicles subjected to extreme

operations and/or conditions must be inspected and
serviced more frequently.

Extreme Conditions:

1. Frequent or prolonged operations in dusty
environments

2. Prolonged low speed operations

3. Extended idle time

4. Frequent short trips which do not let the engine warm
up (especially in cold weather)

A Pay special attention to the engine oil level. A rise in oil

level can be an indication of contaminates and/or
associated with frequent use where the engine does
not reach operating temperature. Monitor the oil level
during such operations. Change the oil immediately if
the oil level begins to rise.

(1) Engine oil filter
(2) Left rear tire

A To prevent serious damage to the engine, use only a

KUBOTA genuine filter.

1. Park the vehicle on a flat surface and raise the cargo
bed. Shut off the engine and remove the key.

2. To drain the used oil, remove the drain plug at the
bottom of the engine and completely drain the oil into
an oil pan.
All the used oil can be drained out easily when the
engine is still warm.

3. After draining, reinstall the drain plug.

4. Fill with the new oil up to the upper notch on the
dipstick.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)

[Filter exchanged]

Oil capacity

1.35 L (1.43 U.S.qts.)

[Filter non-exchanged]

1.2 L (1.27 U.S.qts.)

(1) Oil inlet
(2) Dipstick

(A) Oil level is acceptable within this range

59PERIODIC SERVICE

BCleaning Radiator Cooling Fins

To avoid personal injury:
A Compressed air can cause debris to fly a long

distance.

A Clear work area of bystanders.
A Wear eye protection when using compressed

air for cleaning purposes.

A Reduce compressed air pressure to 210 kPa

(2.1 kgf/cm , 30psi)

1. Park the vehicle on a flat surface and raise the seat.

2. Remove the radiator maintenance cover.

(1) Drain plug

(1) Radiator maintenance cover
(2) Knob bolt

3. Detach the radiator screen.

(1) Radiator screen (A) "DETACH"

PERIODIC SERVICE60

4. Remove all dirt and debris from radiator fins and fan
shroud using compressed air or water.
Flow of compressed air or water should be from the
back to the front as shown in the figures.

BReplacing Transmission Oil Filter

To avoid personal injury:
A Be sure to stop the engine before changing the

oil filter cartridge.

A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Remove the drain plug at the bottom of the
transmission case and drain the oil completely into the
oil pan.

2. Check the rubber washer on the drain plug. Replace it
if missing or in poor condition.

3. After draining, reinstall the drain plug.

4. Remove the oil filters.

5. Put a film of clean transmission oil on the rubber seal
of the new filter.

6. Quickly tighten the filter until it contacts the mounting
surface, then, with a filter wrench, tighten it an
additional 2/3 turn only.

7. After the new filter has been replaced, fill the
transmission oil up to the upper notch on the dipstick.

8. After running the engine for a few minutes, stop the
engine and check the oil level again, add oil to the
prescribed level.

9. Make sure that the transmission fluid doesn't leak past
the seal on the filters.

(1) Air blow
(2) Fan

5. Reinstall the radiator screen and the maintenance
cover.

(1) Transmission oil filter (HST) (Yellow color)
(2) Transmission oil filter (Suction) (Orange color)

(1) Drain plug

61PERIODIC SERVICE

BChecking Spark Plug Condition & Gap

Remove the spark plugs, check condition, and reset the
gap or replace with new plugs as necessary.

1. Raise the cargo bed.

2. Before removing spark plugs, clean the area around
the base of the plug to keep dirt and debris out of the
engine.

3. Remove the spark plug wires from spark plugs.

4. Use a spark plug wrench to remove the spark plugs.

5. Remove plugs and check its condition.
Replace the plug if worn or reuse is questionable.

6. Inspect spark plugs for cracked porcelain, pitted
electrodes, or other wear and damage. Replace the
spark plug if necessary.

(1) Oil inlet
(2) Dipstick

(A) Oil level is acceptable within this range

A To prevent serious damage to the transmission, use

only a KUBOTA genuine filter.

(1) Spark plug

A Do not clean the spark plug in a machine using

abrasive grit. Some grit could remain in the spark plug
and enter the engine causing extensive wear and
damage.

Recommended spark plug NGK BKR4E

PERIODIC SERVICE62

7. Check the gap using a wire feeler gauge. Adjust the
gap from 0.6 to 0.7 mm (0.024 to 0.028 in.) by carefully
bending the ground electrode.

BChecking Brake Pedal

To avoid personal injury:
A Stop the engine and chock the wheels before

checking brake pedal.

A If movement is outside of the specifications,

contact your local KUBOTA Dealer for
adjusting the brake.

C Checking the brake pedal free travel

8. Reinstall the spark plug into the cylinder head.

Tightening torque

(initial)

Retightening torque

12 to 15 N-m

(8.9 to 11 lbf-ft)

23 to 27 N-m

(17 to 19 lbf-ft)

Proper brake pedal

free travel

1. Release the parking brake.

2. Slightly depress the brake pedal and measure free
travel at the top of the pedal stroke.

3. If brake pedal free travel is outside of the
specifications, contact your local KUBOTA Dealer for
adjusting the brake.

C Checking the brake pedal stroke

Pedal stroke

1. Release the parking brake.

2. Step on the pedal and measure the pedal stroke.

3. If brake pedal stroke is outside of the specifications,
contact your local KUBOTA Dealer for adjusting the
brake.

7 to 14 mm (0.3 to 0.6 in.)

on the pedal

Less than 65 mm (2.56 in.)

on the pedal

(1) Brake pedal (A) "FREE TRAVEL"

(B) "PEDAL STROKE"

63PERIODIC SERVICE

BChecking Brake Light Switch

1. Park the vehicle on a flat surface.

2. Step on the brake pedal to check if the brake light
comes on.

3. If it does not, check the bulb or brake light switch.

EVERY 300 HOURS

BChecking Tire

1. Check to see if tires are not damaged.

2. If the tires are cracked, bulged, or cut, or they are worn
out, replace or repair them at once.

C Tire Tread Depth

Always replace the tires when the tread depth is worn to
minimum allowable.

(A) 3 mm (0.12 in.)

(1) Brake light switch (A) "FRONT"

PERIODIC SERVICE64

EVERY 400 HOURS

BChanging Transmission Oil

To avoid personal injury:
A Allow engine to cool down sufficiently, oil can

be hot and can burn.

1. Park the vehicle on a flat surface and raise the cargo
bed. Shut off the engine and remove the key.

2. To drain the used oil, remove the drain plug at the
bottom of the transmission case and drain the oil
completely into the oil pan.

3. Check the rubber washer on the drain plug. Replace it
if missing or in poor condition.

4. After draining, reinstall the drain plug.

5. Fill with the new KUBOTA SUPER UDT fluid up to the
upper notch on the dipstick.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)

6. After running the engine for a few minutes, stop the
engine and check the oil level again; add oil to
prescribed level.

(1) Drain plug

A Do not operate the vehicle immediately after changing

the transmission fluid.
Run the engine at medium speed for a few minutes to
prevent damage to the transmission.

Oil Capacity 8.5 L (2.2 U.S.gals.)

(1) Oil inlet
(2) Dipstick

(A) Oil level is acceptable within this range

65PERIODIC SERVICE

BChanging Front Axle Case Oil

1. Park the vehicle on a firm, flat and level surface.

2. To drain the used oil, remove the drain and filling plugs
at the front axle case and drain the oil completely into
the oil pan.

3. After draining, reinstall the drain plug.

4. Fill with the new oil up to the upper notch on the
dipstick.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)

5. After filling, reinstall the filling plug.

Oil capacity 0.21 L (0.22 U.S.qts.)

EVERY 500 HOURS

BAdjusting Engine Valve Clearance

If you do not have the proper tools and/or are not
mechanically proficient, consult your local KUBOTA
Dealer for this service.

BChecking Engine Timing Belt

If you do not have the proper tools and/or are not
mechanically proficient, consult your local KUBOTA
Dealer for this service.

EVERY 1000 HOURS

BReplacing Engine Timing Belt

If you do not have the proper tools and/or are not
mechanically proficient, consult your local KUBOTA
Dealer for this service.

EVERY AFTER 1000 HOURS

BCleaning Engine Combustion Chamber

If you do not have the proper tools and/or are not
mechanically proficient, consult your local KUBOTA
Dealer for this service.

(1) Drain plug
(2) Filling plug with dipstick

EVERY 1000 HOURS or EVERY 1 YEAR

BReplacing Air Cleaner Primary Element

and Secondary Element

(See "Cleaning Air Cleaner Primary Element" in "EVERY
100 HOURS" in "PERIODIC SERVICE" section.)

BReplacing Pre Cleaner Element

(See "Cleaning Pre Cleaner Element" in "EVERY 100
HOURS" in "PERIODIC SERVICE" section.)

(A) Oil level is acceptable
within this range

PERIODIC SERVICE66

EVERY 2000 HOURS or EVERY 2 YEARS

Be sure to do the following service once every 2000 hours
or every 2 years whichever comes faster.

BFlushing Cooling System and Changing

Coolant

To avoid personal injury:
A Do not remove the radiator cap while coolant is

hot. When cool, slowly rotate cap to the first
stop and allow sufficient time for excess
pressure to escape before removing the cap
completely.

1. Stop the engine and let cool down.

2. Remove the radiator maintenance cover.

3. To drain the coolant, open the radiator drain plug and
remove radiator cap. The radiator cap must be
removed to completely drain the coolant.

4. After all coolant is drained, close the drain plug.

5. Fill with clean water and cooling system cleaner.

6. Follow directions of the cleaner instruction.

7. After flushing, fill with clean water and anti-freeze until
the coolant level is just below the radiator cap.
Install the radiator cap securely.

8. Fill with fresh water up to the "FULL" mark on the
recovery tank.

9. Start and operate the engine for few minutes.

10.Stop the engine and let cool.

11.Check coolant level of recovery tank and add coolant
if necessary.

Coolant capacity 1.8 L (1.9 U.S.qts.)

(1) Drain plug

(1) Radiator cap
(2) Recovery tank

A Do not start engine without coolant.
A Use clean, fresh water and anti-freeze to fill the

radiator and recovery tank.

A When the anti-freeze is mixed with water, the

antifreeze mixing ratio must be less than 50%.

A Securely tighten radiator cap. If the cap is loose or

improperly fitted, water may leak out and the engine
could overheat.

BAnti-Freeze

To avoid personal injury:
A When using antifreeze, put on some protection

such as rubber gloves. (Antifreeze contains
poison.)

A If should drink antifreeze, throw up at once and

take medical attention.

A When antifreeze comes in contact with the skin

or clothing, wash it off immediately.

A Do not mix different types of Antifreeze.

The mixture can produce chemical reaction
causing harmful substances.

A Antifreeze is extremely flammable and

explosive under certain conditions. Keep fire
and children away from antifreeze.

A When draining fluids from the engine, place

some container underneath the engine body.

A Do not pour waste onto the grounds, down a

drain, or into any water source.

A Also, observe the relevant environmental

protection regulations when disposing of
antifreeze.

(A) "FULL"
(B) "LOW"

67PERIODIC SERVICE

If it freezes, coolant can damage the cylinders and
radiator. If the ambient temperature falls below 0
(32 ) or before a long-term storage, let out cooling water
completely, or mix fresh water with long-life coolant and fill
the radiator and recovery tank with the mixture.

1. Long-life coolant (hereafter LLC) comes in several
types. Use ethylene glycol (EG) type for this engine.

2. Before employing LLC-mixed cooling water, fill the
radiator with fresh water and empty it again.
Repeat this procedure 2 or 3 times to clean up the
inside.

3. Mixing the LLC
Put the LLC in cooling water in the percentage (%) for
a target temperature. When mixing, stir it up well, and
then fill into the radiator.

4. The procedure for the mixing of water and antifreeze
differs according to the make of the antifreeze and the
ambient temperature. Refer to SAE J1034 standard,
more specifically also to SAE J814c.

A When the antifreeze is mixed with water, the

antifreeze mixing ratio must be less than 50%.

Vol %

Anti-freeze

Freezing Point Boiling Point*

A When the coolant level drops due to evaporation, add

water only to keep the antifreeze mixing ratio less than
50%. In case of leakage, add antifreeze and water in
the specified mixing ratio before filling into the radiator.

EVERY 1 YEAR

BChecking Radiator Hose and Clamp

Park the vehicle on a flat surface and raise the cargo bed.
Check to see if radiator hoses are properly fixed.

1. If hose clamps are loose or water leaks, tighten bands
securely.

2. Replace hoses and tighten hose clamps securely, if
radiator hoses are swollen, hardened or cracked.

Replace hoses and hose clamps if you checked and found
that hoses are swollen, hardened or cracked.

40 -24 -12 106 222

50 -37 -34 108 226

* At 1.013 x 10 Pa (760 mmHg) pressure (atmospheric).

A higher boiling point is obtained by using a radiator
pressure cap which permits the development of pressure
within the cooling system.

5. Adding the LLC
(1) Add only water if the mixture reduces in amount

by evaporation.

(2) If there is a mixture leak, add the LLC of the same

manufacturer and type in the same mixture
percentage.

* Never add any long-life coolant of different

manufacturer. (Different brands may have
different additive components, and the engine
may fail to perform as specified.)

6. When the LLC is mixed, do not employ any radiator
cleaning agent. The LLC contains anticorrosive agent.
If mixed with the cleaning agent, sludge may build up,
adversely affecting the engine parts.

7. Kubota's genuine long-life coolant has a service life of
2 years. Be sure to change the coolant every 2000
hours or every 2 years whichever comes faster.

(1) Radiator hoses
(2) Clamp bands

(1) Radiator hoses
(2) Clamp bands

A The above data represents industry standards that

necessitate a minimum glycol content in the
concentrated antifreeze.

PERIODIC SERVICE68

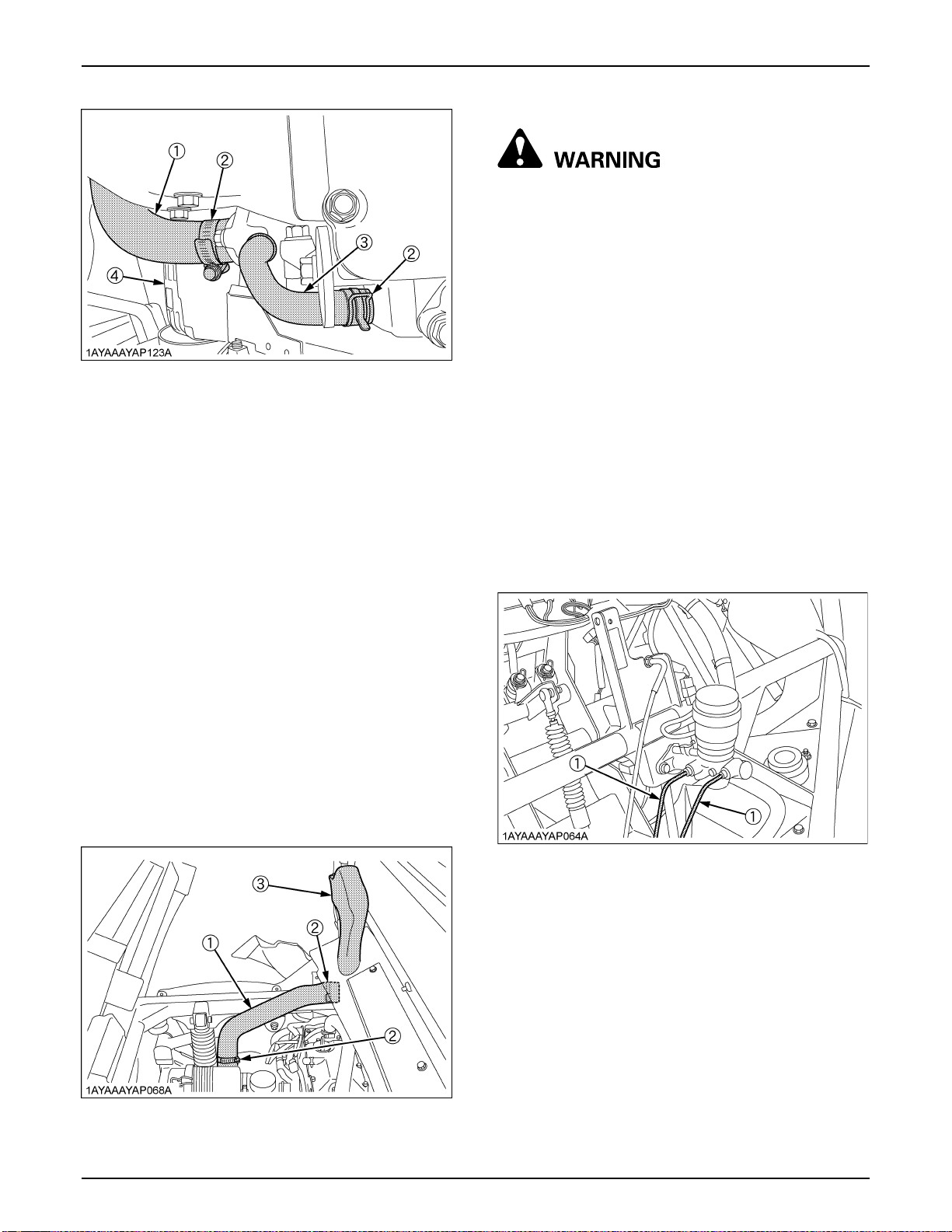

(1) Radiator hose
(2) Clamp bands
(3) Water return hose
(4) Alternator

C Precaution at Overheating

Take the following actions in the event the coolant
temperature is close to or more than the boiling point,
which is called "Overheating".

1. Stop the vehicle operation in a safe place and keep the
engine unloaded idling.

2. Don't stop the engine suddenly, but stop it after about
5 minutes of unloaded idling.

3. Keep yourself well away from the vehicle for at least 10
minutes or while the steam is blowing out.

4. Check to see if there is no danger such as burning, get
rid of the causes of overheating according to the
"TROUBLESHOOTING" section of this manual, and
then start the engine again.

BChecking Engine Breather Hose

To avoid serious injury:
A Be sure to stop the engine and remove the key

before checking engine breather hose.

Check to see if engine breather hoses are properly fixed
every 1 year.

1. Stop the engine and let cool down.

2. If hose clamps are loose or water leaks, tighten bands
securely.

3. Replace hoses and tighten hose clamps securely, if
engine breather hoses are swollen, hardened or
cracked.

Replace hoses and hose clamps every 4 years or earlier
if you checked and found that hoses are swollen,
hardened or cracked.

BChecking Brake Hose and Pipe

1. Check to see that brake hose and pipe are not swollen,
hardened or cracked.

2. Check the brake hose and pipe joints for oil leaks.

3. If there is any abnormality, consult your local KUBOTA
Dealer for this service.

BChecking Intake Air Line

1. Check to see if the hoses and hose clamps are tight
and not damaged.

2. If hoses and clamps are found to be worn or damaged,
replace or repair them at once.

(1) Hose
(2) Hose clamp
(3) Intake air line

(1) Brake pipe

(1) Brake hose (Front)

69PERIODIC SERVICE

EVERY 2 YEARS

BChanging Brake Fluid

Consult your local KUBOTA Dealer for this service.
(See "Checking Brake Fluid Level" in "DAILY CHECK" in
"PERIODIC SERVICE" section.)

BReplacing Fuel Hose

Consult your local KUBOTA Dealer for this service.

EVERY 4 YEARS

BReplacing Radiator Hose (Water pipes)

Replace the hoses and clamps.
(See "Checking Radiator Hose and Clamp" in "EVERY 1
YEAR" in "PERIODIC SERVICE" section.)

BReplacing Engine Breather Hose

Consult your local KUBOTA Dealer for this service.

(1) Brake hose
(2) Brake pipe

BReplacing Brake Master Cylinder (Inner

Parts)

Consult your local KUBOTA Dealer for this service.

BReplacing Intake Air Line

Consult your local KUBOTA Dealer for this service.

BReplacing Brake Hose

Consult your local KUBOTA Dealer for this service.

(1) Brake hose (Rear)

PERIODIC SERVICE70

SERVICE AS REQUIRED

BChecking Brake Pad

To avoid personal injury:
A The machine can fall or slip from an unsafe

device or supports.

A Use a safe lifting device rated for the load to be

lifted.

A Lower the vehicle onto jack stands and block

the wheels before servicing. (See "JACK-UP
POINT" in "PERIODIC SERVICE" section.)

1. Park the vehicle on a firm, flat and level surface.

2. Raise the vehicle with a safe devise and lower onto the
jack or other stable supports. Block the wheels
remaining on the ground to prevent the vehicle from
moving.

3. Remove the wheel bolts and the tires.

4. Check the brake pads for wear or damage.
Check the pad's thickness:
Minimum thickness should be 1mm (3/64 inch). If
below this or pad material is damaged, contact your
local Kubota Dealer.

(1) Brake pad

5. Reinstall the tires with the valve stem to the outside.

6. Tighten the wheel bolts evenly in alternating sequence
until snug.

7. Repeat the same procedure for remaining three tires.

8. Lower the vehicle completely to the ground.

9. Tighten the wheel bolts from 108.4 to 121.9 N-m (80 to
90 ft-lbs).

(1) Wheel bolts

BAdjusting Parking Brake

For proper adjusting of the parking brake, consult your
local KUBOTA Dealer.

BAdjusting Alternator Drive Belt Tension

For proper adjusting of the alternator drive belt, consult
your local KUBOTA Dealer.

BReplacing Fuse

The vehicle electrical system is protected from potential
damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one of
the same capacity.

A Before replacing a blown fuse, determine why the fuse

blew and make any necessary repairs. Failure to
follow this procedure may result in serious damage to
the vehicle electrical system. Consult your local
KUBOTA Dealer for specific information dealing with
electrical problems.

C Replacement procedure

1. Disconnect the negative cable of the battery.

2. Remove the cover and the fuse box cover.

3. Pull out the blown fuse using FUSE PULLER in the
fuse box.

4. Insert a new fuse into the fuse box.

5. Install the fuse box cover.

6. Connect the negative battery cable.

71PERIODIC SERVICE

(1) Main harness
(2) Harness part number label

A Use the correct fuse label when replacing the fuse

cover.

(1) Fuse box

C How to distinguish between the old and new type

of the protected circuit

Fuse Label PART No. K7311-6128-1 K7311-6121-1 or later

Harness PART No.

Protected circuit OLD NEW

K7311-6120-4 or

former

K7311-6120-5 or later

C Protected circuit

Fuse

Capacity

No.

10 15 (Work light)

11 --- Fuse puller

12

(A)

115

2 10 Eng. control, Fuel pump

3 10 Cooling fan motor

4 20 Radiator Fan motor

515 (Hazard)

610

75 Panel

8 10 12V DC output

915 Brake lamp, Horn

5, 10,

15, 20

Protected circuit (OLD) Protected circuit (NEW)

Head lamp, Tail lamp,

Panel

Alternator, Radiator fan
relay, Cooling fan relay

Spare

Eng. control, Fuel pump,

Fan motor relay

Alternator, (Work light

relay), (AUX (KEY ON))

PERIODIC SERVICE72

BReplacing Slow-Blow Fuses

The slow-blow fuses are intended to protect the electrical
cabling. If any of them have blown out, be sure to pinpoint
the cause. Never use any substitute, use only a KUBOTA
genuine part.

C Replacement procedure

1. Disconnect the negative cable of the battery.

2. Remove the cover and the slow-blow fuse box cover.

3. Pull out the slow-blow fuse.

4. Insert a new slow-blow fuse into the slow-blow fuse
box.

5. Install the slow-blow fuse box cover.

6. Connect the negative battery cable.

BReplacing Light Bulb

1. Head lights
Take the bulb out of the light body and replace it with
a new one.

2. Other lights
Detach the lens and replace the bulb.

Light Capacity

Head lights 27 W

Tail light 5 W

Brake light 21 W

Easy Checker(TM) 3.8 W (14V, 0.27A)

Instrument panel light 3.8 W (14V, 0.27A)

(1) Slow-blow fuse box

C Protected circuit

Fuse No. Capacity (A) Protected circuit

1 Slow-blow fuse (50) Key switch

2 Slow-blow fuse (60) Alternator

STORAGE

To avoid personal injury:

A Do not clean the vehicle with engine running.
A To avoid the danger of exhaust fume

poisoning, do not operate the engine in a
closed building without proper ventilation.

A When storing, remove the key from the key

switch to avoid unauthorized persons from
operating the vehicle and getting injured.

VEHICLE STORAGE

If you intend to store your vehicle for an extended period
of time, follow the procedures outlined below.
These procedures will insure that the vehicle is ready to
operate with minimum preparation when it is removed
from storage.

1. Check the bolts and nuts for looseness, and tighten if
necessary.

2. Apply grease to vehicle areas where bare metal will
rust also to pivot areas.

3. Unload from cargo bed.

4. Inflate the tires to a pressure a little higher than usual.

5. Change the engine oil and run the engine to circulate
oil throughout the engine block and internal moving
parts for about 5 minutes.

6. With all implements lowered to the ground, coat any
exposed hydraulic cylinder piston rods with grease (if
equipped).

7. Remove the battery from the vehicle. Store the battery
following the battery storage procedures.
(See "Checking Battery Condition" in "EVERY 100
HOURS" in "PERIODIC SERVICE" section.)

8. Keep the vehicle in a dry place where the vehicle is
sheltered from the elements. Cover the vehicle.

9. Store the vehicle indoors in a dry area that is protected
from sunlight and excessive heat. If the vehicle must
be stored outdoors, cover it with a waterproof
tarpaulin.
Put boards under the tires to keep dampness away
from tire.
Keep the tires out of direct sunlight and extreme heat.

73STORAGE

REMOVING THE VEHICLE FROM
STORAGE

1. Check the tire air pressure and inflate the tires if they
are low.

2. Install the battery. Before installing the battery, be sure
it is fully charged.

3. Check the fan belt tension.

4. Check all fluid levels (engine oil, transmission oil,
engine coolant and any attached implements).

5. Check the spark plug gap. Install and tighten plugs to
the specified torque.

6. Start the engine. Observe all gauges. If all gauges are
functioning properly and reading normal, move the
vehicle outside. Once outside, park the vehicle and let
the engine idle for at least 5 minutes. Shut the engine
off and walk around vehicle and make a visual
inspection looking for evidence of oil or water leaks.

7. With the engine fully warmed up, release the parking
brake and test the brakes for proper adjustment as you
move forward. Adjust the brakes as necessary.

A When washing the vehicle, be sure to stop the engine.

Allow sufficient time for the engine to cool before
washing.

A Do not wash with a high-pressure car-washing

machine.

A Cover the vehicle after the muffler and the engine have

cooled down.

74 TROUBLESHOOTING

TROUBLESHOOTING

ENGINE TROUBLESHOOTING

If something is wrong with the engine, refer to the table below for the cause and its corrective measure.

Trouble Cause Countermeasure

Engine is difficult to start or
will not start.

A The range shift lever not in the proper

position.

A Key switch is not in the proper position. A Make sure key switch is in "ON"

A No fuel. A Replenish fuel.

A Improper or stale fuel.

(Fuel quality is poor.)

A Water or dirt in the fuel system. A Replace fuel and consult your

A Fuel hose or fuel filter clogged or

damaged.

A Air cleaner is clogged. A Clean or replace the air cleaner

A Spark plug defective. A Adjust the spark plug gap or replace

A Fuse is blown. A Replace the fuse.

A Engine oil viscosity is wrong. A Use oils of different viscosities,

A Battery becomes weak and the engine

does not turn over quick enough.

A Make sure the range shift lever is in

"NEUTRAL" position.

position.

A Replace fuel and consult your

KUBOTA Dealer.

KUBOTA Dealer.

A Clean or replace fuel lines, and consult

your KUBOTA Dealer.

element.

the spark plug.

A Check the spark plug wire connection.

depending on ambient temperature.

A Clean battery cables and terminals.

A Charge the battery.

A In cold weather, always remove the

battery from the engine, charge and
store it indoors. Install it on the machine
only when the machine is going to be
used.

Insufficient engine power. A Insufficient or dirty fuel. A Check the fuel system.

A Air cleaner is clogged. A Clean or replace the air cleaner

element.

A Spark plug defective. A Adjust the spark plug gap or replace it.

Engine stops suddenly. A Insufficient fuel. A Refuel.

Trouble Cause Countermeasure

Rough engine running. A Spark plug defective. A Adjust the spark plug gap or replace it.

A High tension cord defective. A Consult your KUBOTA Dealer.

A Ignition coil defective. A Consult your KUBOTA Dealer.

75TROUBLESHOOTING

A Fuel hose or fuel filter clogged or

damaged.

A Improper or stale fuel.

(Fuel quality is poor.)

A Air cleaner is clogged. A Clean or replace the air cleaner

Exhaust fumes are colored.
(Black, Dark or Gray)

Exhaust fumes are colored.
(White or Blue)

Engine overheats. A Engine is overloaded. A Lower speed or reduce load.

A Overload. A Reduce load.

A Low grade fuel is used. A Use specified fuel.

A Air cleaner is clogged. A Clean or replace the air cleaner

A Excessive engine oil. A Reduce to the specified oil level.

A Piston ring is worn or stuck. A Consult your KUBOTA Dealer.

A Engine oil is insufficient. A Replenish engine oil.

A Low coolant level. A Fill cooling system to the correct level;

A The motor driven fan does not turn. A Check to see if the fuse is not blown.

A Clean or replace fuel lines, and consult

your KUBOTA Dealer.

A Replace fuel and consult your

KUBOTA Dealer.

element.

element.

check radiator and hoses for loose
connections or leaks.

A Check the electric system.

A Dirty radiator core or grille screens. A Remove all trash.

A Coolant flow route corroded. A Flush cooling system.

Engine diagnostic light
comes on.

Engine will not idle. A Spark plug defective. A Adjust the spark plug gap or replace it.

A Faulty spark plug. A Replace the spark plug.

If you have any questions, consult your local KUBOTA Dealer.

---

A Consult your KUBOTA Dealer.

76 TROUBLESHOOTING

BATTERY TROUBLESHOOTING

Trouble Cause Countermeasure Preventive measure

Starter does not function.

A Battery overused until

lights are dim.

A Battery has not been

recharged.

A Charge battery

sufficiently.

A Charge the battery properly.

From beginning starter
does not function, and
lights soon become dim.

When viewed from top,
the top of plates look
whitish.

Recharging is impossible.

Terminals are severely
corroded and heat up.

Battery electrolyte level
drops rapidly.

A Poor terminal

connection.

A Clean the terminal

and tighten securely.

A Battery life expired. A Renew battery.

A Insufficient charging. A Charge battery

sufficiently.

A Battery was used with

an insufficient amount
of electrolyte.

A Battery was used too

much without

A Add distilled water

and charge the
battery.

A Charge battery

sufficiently.

recharging.

A Battery life expired. A Replace battery.

A Poor terminal

connection.

A There is a crack or pin

A Clean the terminal

and tighten securely.

A Replace battery.

holes in the electrolytic
cells.

A Keep the terminal clean and

tight.
Apply grease and treat with
anti-corrosives.

A Battery must be serviced

properly before initial use.

A Regularly check the

electrolyte level.

A Charge the battery properly.

A Keep the terminal clean and

tight.
Apply grease and treat with
anti-corrosives.

A Charging system

A Consult your local

trouble.

If you have any questions, consult your local KUBOTA Dealer.

KUBOTA Dealer.

MACHINE TROUBLESHOOTING

Trouble Cause Countermeasure

Machine operation is not
smooth.

Machine does not move while
engine is running.

Brakes not working correctly

Brake noise --- A Consult your KUBOTA Dealer.

If you have any questions, consult your local KUBOTA Dealer.

A Hydrostatic transmission fluid is

insufficient.

A Filter is clogged. A Replace the filter.

A Parking brake is on. A Release the parking brake.

A Transmission fluid level is

insufficient.

A Brake fluid level is low. A Check fluid level.

A Air is in brake system. A Consult your KUBOTA Dealer.

A Brake pads are worn. A Consult your KUBOTA Dealer.

A Replenish oil.

A Replenish oil.

77TROUBLESHOOTING

78 OPTIONS

OPTIONS

Consult your local KUBOTA Dealer for further details.

A Backup Beeper
A Bed Liner
A Cab Heater (cab only)
A Camo Steel Cab
A Fabric Cover
A Front Accessory Box
A Front Guard (Silver)
A Front Heavy Load Strut
A Front Trailer Hitch & Pin (2")
A Front Work Light

(for plastic canopy or no canopy, 1 or 2)

A Modular Cab

(W/ steel doors)

A Plastic Canopy (Black)
A Rear Net
A Rear Trailer Hitch & Pin (2")
A Rear Work Light

(for plastic canopy or no canopy)

A Safety Windshield
A Snow Blade (62") require Heavy Duty Spring Kit
A Speedometer
A Strobe Light
A Turn Signal / Hazard Light Kit
A Warn 2.5CI
A Work Lights Kit

(for metal canopy or cab, include 2 lights for front or
rear)

79ENGINE EMISSION RELATED INFORMATION

ENGINE EMISSION RELATED INFORMATION

C The GZ460 engine conforms to U.S. EPA and California emission regulations for off-road small SI engines.

A Emission compliance period: 1000 HOURS
A CARB emissions durability period: EXTENDED

C Exhaust Emission Control System
A Throttle Body Injection, Electronic Control Module, 3 Way Catalyst

80 INDEX

INDEX

12V Electric Outlet..........................................21

4WD Lever .....................................................17

Air Cleaner Primary Element..........................50

Air Cleaner Primary Element and Secondary

Element ..........................................................65

Alternator Drive Belt Tension .........................51

Alternator Drive Belt Tension .........................70

Amount of Fuel and Refueling........................41

Anti-Freeze.....................................................66

Battery Condition............................................55

Brake Fluid .....................................................69

Brake Fluid Level............................................45

Brake Hose.....................................................69

Brake Hose and Pipe .....................................68

Brake Light Switch..........................................63

Brake Master Cylinder (Inner Parts)............... 69

Brake Pad.......................................................70

Brake Pedal....................................................16

Brake Pedal....................................................45

Brake Pedal....................................................62

Carbon Canister Air Filter...............................54

Cargo Bed Tailgate ........................................27

Cold Weather Starting ....................................12

Coolant Level .................................................43

Coolant Temperature Gauge..........................20

Differential Lock..............................................21

Do not Operate the Vehicle at Full Speed for

the First 50 Hours...........................................14

Driving in "4WD".............................................23

Driving in Reverse..........................................22

Driving through Water ....................................25

Easy Checker(TM) .........................................19

Engine Breather Hose ....................................68

Engine Breather Hose ....................................69

Engine Combustion Chamber ........................65

Engine Cooling Fan........................................44

Engine Oil.......................................................58

Engine Oil Filter..............................................58

Engine Oil Level .............................................42

Engine Start System.......................................49

Engine Timing Belt .........................................65

Engine Timing Belt .........................................65

Engine Valve Clearance.................................65

Flushing Cooling System and Changing

Coolant ...........................................................66

Front Axle Case Oil ........................................65

Front End........................................................40

Front Trailer Hitch...........................................31

Fuel Gauge.................................................... 19

Fuel Hose ...................................................... 69

Fuel Line........................................................ 53

Fuse............................................................... 71

Gauges, Meter and Easy Checker(TM)......... 46

General Caution ............................................ 26

Greasing ........................................................ 47

Head Light Switch.......................................... 15

Head Light, etc. ............................................. 46

Hills................................................................ 24

Hood .............................................................. 38

Horn Button ................................................... 15

Hourmeter...................................................... 20

Immediately Stop the Engine if:..................... 18

Inflation Pressure........................................... 29

Intake Air Line................................................ 68

Intake Air Line................................................ 69

Joint Boot....................................................... 46

Light Bulb....................................................... 72

Lubricating Oil for New Vehicles.................... 14

Max. Cargo Load ........................................... 26

Operator's Seat.............................................. 39

Parking Brake ................................................ 46

Parking Brake ................................................ 70

Parking Brake Lever ...................................... 17
