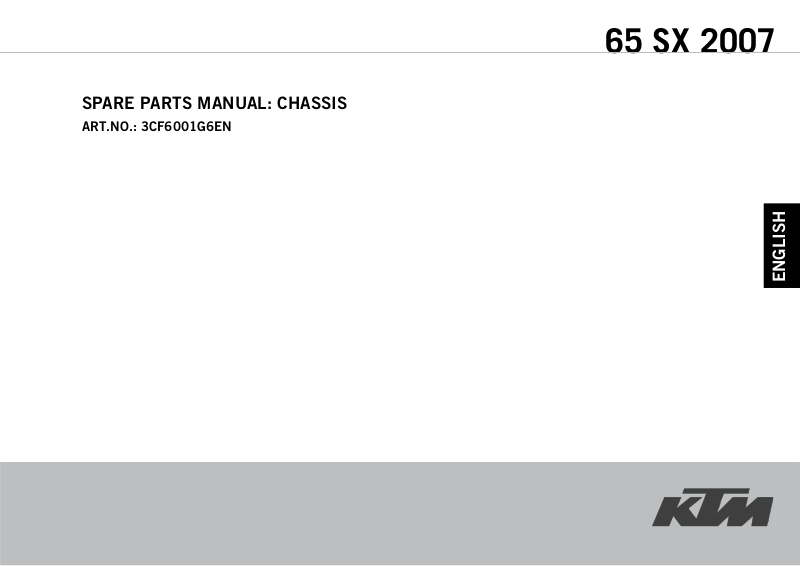

KTM 65 SX 2007, 3CF6001G6EN User Manual
65 SX 2007
SPARE PARTS MANUAL: CHASSIS
ART.NO.: 3CF6001G6EN
ENGLISH
FRONT WORK
FORK LEGS
HANDLEBAR, CONTROLS
65 SX 2007
FRAME, SUB FRAME
SWINGARM, MONOSHOCK
MASK, FENDERS
3x
EXHAUST SYSTEM
8x
DECAL
4x
AIR FILTER BOX
9x
FRONT WHEEL
6x
10x
7x
TANK, SEAT, COVER
11x
REAR WHEEL
1
12x
13x
14x
15x
HAND BRAKE CYLINDER
REAR BRAKE CONTROL
BRAKE CALIPER FRONT
65 SX 2007
BRAKE CALIPER REAR
ACCESSORIES
16x
20x
17x
x
All information contained is without obligation. KTM-Sportmotorcycle AG particularly reserves the right to modify any equipment, technical
specifications, prices, colors, shapes, materials, services, service work, constructions, equipment and the like so as to adapt them to local
conditions or to cancel any of the above items, all without previous announcement and without giving reasons. KTM may stop manufacturing
certain models without previous notice. KTM shall not be held liable for any deviations of availability and/or ability to deliver, illustrations,
descriptions, printing and/or other errors. The illustrated models partly contain extra equipment, which is not applied to standard models.
© 2004 by KTM-SPORTMOTORCYCLE AG, Mattighofen AUSTRIA; All rights reserved; Reprint, also in extracts, with written allowance of
KTM-SPORTMOTORCYCLE AG, Mattighofen only.
18x
x
19x
x
2
x
FRONT WORK
65 SX 2007
FIG PART NUMBER DESCRIPTION QTY
1 7631210/F FORK LEG L/S USD 35 1
2 7631209/F FORK LEG R/S USD 35 1
5 0015080303 HH COLLAR SCREW M 8X30 WS=10 9
6 0912100250 AH SCREW DIN6912-M10X25,10.9,L 2
31 77051116 BOT.TRIPLE CLAMP + FORK TUBE 1
34 7501478 TOP TRIPLE CLAMP 1
38 50301038000 HANDLEBAR CLAMP D=22MM 2001 2
39 59001039000 HANDLEBAR SUPPORT 22MM 2T 2000 1
42 59030029000 HH NUT M20X1,5 WS=27 RIGHT 1
43 49001086000 COVERING CAP 1
44 0770021300 O-RING 40,94X2,62 NBR70 1
45 49001081000 TAPERED ROLLER BEARING 32004X 2
46 46001086000 PROTECTION RING 20,1X39X5 1
47 0770360030 O-RING 36,00X3,00 NBR 1
91 59001092050 SPECIAL SCREW M6X12,5 WS=8 6
92 46101092000 FORK PROTECTION L/S 65SX 2002 1
93 46101093000 FORK PROTECTION R/S 65SX 2002 1
94 54601085000 BRAKE HOSE CLAMP MARZOCCHI'95 1
95 0015050163 HH COLLAR SCREW M 5X16 WS=8 2
96 0985050003 SELF LOCKING NUT DIN0985-M 5 2
3
05461010 / C064610100
* NEW PART
X AS REQUIRED
FORK LEGS
65 SX 2007
FIG PART NUMBER DESCRIPTION QTY
1 0015060303 HH COLLAR SCREW M 6X30 WS=8 2
2 7819139/C SLIDER + AXLE CLAMP CPL. R/S 1
3 7538029 GUIDE RING D=35 2
4 7717065/R FOOT VALVE 2
5 7528005 O-RING D=20,3 2
6 7521092/D SPECIAL NUT M6X1 WITH STEP 1
7 7517217 REED VALVE 22X8,1X0,1 4
8 7530097/B PISTON REBOUND D=26 1
9 7524163 PISTON RING D=26 1
11 75141087 LOWER REBOUND SPRING 2
13 75321033 PIN 8X30 2
14 75181140/R TUBE BODY R/S 1
15 7523224 STOP RING 10X1 2
16 75181153 GUIDE BUSH 6,4X12X12 2
17 7521005 SPECIAL NUT 2
18 78031082 REBOUND CPL. 1
19 7701196 PLUG CPL. 2
20 7850208AR LENTIL HEAD SCREW M4X6 2
21 7528180 O-RING D=3,69, S=1,78 2
22 7528008 O-RING D=34,6, S=1,78 2
24 7850728 SPRINGS + PRELOAD SLEEVES KIT 1
25 7533167 DUST CAP 2
26 7523236 LOCK WASHER D=51,5 2
27 7528034 OIL SEAL 35X47X10 2
28 7539032AA WASHER 36X47X3 2
29 7538038/A GUIDE RING 35X15 2
30 7760069FN/C OUTER TUBE CPL. 2
33 7514077 TOP REBOUND SPRING 2
35 78031083 COMPRESSION CPL. 1
36 75181139/R TUBE BODY L/S 1
38 7535099 COMPRESSION DAMPING SHIM 1
39 7517028 SHIM 8,1X23X0,2 1
39 7517039 SHIM 8,1X22X0,2 1
39 7517060 SHIM 8,1X22X0,3 1
40 7530090/B PISTON COMPRESSION D=26 1
42 7521147/A SPECIAL NUT M6X1 WITH STEP 1
4
05461011 / C064610101
* NEW PART
X AS REQUIRED
FORK LEGS
65 SX 2007
FIG PART NUMBER DESCRIPTION QTY
43 7819140/C SLIDER + AXLE CLAMP CPL. L/S 1
44 7309651/R COMPRESSION CARTRIDGE CPL. 1
45 7309652/R REBOUND CARTRIDGE CPL. 1
46 7522061 SHIM 8X12X1,5 2
47 0912080253 AH SCREW DIN0912-M 8X25 2
48 7517044 SHIM 8,1X23X0,3 2
90 7550013 FORKOIL EBH16 SAE 7.5 1
99 7850731/C REPAIR-KIT USD 35 1
5
05461011 / C064610101
* NEW PART
X AS REQUIRED
HANDLEBAR,CONTROLS
65 SX 2007
FIG PART NUMBER DESCRIPTION QTY
1 46102001200 HANDLEBAR 65 SX 2005 1
2 46102010000 THROTTLE GRIP W.COVER 65 SX 02 1
3 46102091000 THROTTLE CABLE DOMINO 65 SX 02 1
4* 50202021000 RUBBER GRIP SET 1
6 46002012000 SPACER BUSHING 21,5X28X7,5 1
7 50302020000 PROTECTION COVER '97 1
9 50311089200 SHORT CIRCUIT BUTTON 02 1
30 46102030100 MASTER CYLINDER CPL. D=9MM 05 1
31 54602031000 CLUTCH LEVER SHORT CPL. 2003 1
31 59002031000 CLUTCH LEVER LONG CPL. 2003 x
32 59002032100 REP.KIT PISTON 9,0MM RAC. 2004 1
33 50302033100 COVER HYD.CLUTCH 2T 2000 1
34 50302034000 RUBBER FOR RESERVOIR '98 1
35 59002035000 SPRING FOR CLUTCH LEVER 03 1
36 50302036200 OIL FOR HYD. CLUTCH 75ML 1
37 50302037000 PROTECT.CAP FOR LEVER PERCH'98 1
38 50302038000 LEVER SCREW CPL. 125-200 '98 1
39 50302030150 CLAMP WITH PIN 2000 1
41 0015060203 HH COLLAR SCREW M 6X20 WS=8 1
44 0965040123 FLAT HEAD SCREW DIN0965-M 4X12 2
62 50332063050 SELF CUTTING RING HYDR.PIPE x
63 46132063000 PIPE KIT FOR HYDR.CLUTCH 65 SX 1
64 54002016000 PROTECTION CAP 1
6
074610200 / C074610200
* NEW PART
X AS REQUIRED
