Krups ESPRESSERIA AUTOMATIC XP7230, XP7230 User Manual

Household use only

Check warranty card for details of warranty in your country with a maximum of 3,000 cycles per year. This product is for

domestic use only and is not suitable for trade or professional purposes. Any non-household use is not covered by the manu-

facturers warranty. The warranty does not cover breakdown or poor functioning of the machine resulting from failure to carry

out descaling or machine damaged by foreign objects in grinding mill (e.g. wood, stones, plastic parts, etc.).

Actual model may vary slightly from photo

ESPRESSERIA AUTOMATIC



CONSUMER SERVICE USA : 1-866-668-0325 www.krupsusa.com

Canada : 1-800-418-3325 www.krups.ca Mexico : 018001128325 www.krups.com.mx

ENGLISHFRANÇAISESPAÑOL

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page a1

PAGE

IMPORTANT SAFEGUARDS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

MACHINE DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

WELCOME

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

USING OILY BEANS RECIPES LIMITS TO USE

BEFORE FIRST USE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

MEASURING WATER HARDNESS CLARIS - AQUA FILTER SYSTEM CARTRIDGE INSTALLING THE WATER FILTER

PREPARING THE MACHINE FOR FIRST USE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PROGRAMMING YOUR MACHINE

RINSING OF THE CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

ADJUSTING THE GRINDER

PREPARING ESPRESSO AND PRESSURE BREWED COFFEE

Preparing an espresso (from 0.7 to 2.3 oz / 20 to 70 ml) Preparing ordinary coffee (from 2.7 to 4.0 oz / 80 to 120 ml) Preparing a long coffee (from 4.0 oz to 8.0 oz / 120 ml to 240 ml)

TWO-CUP FUNCTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

USING STEAM

FROTHING MILK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

AUTO-CAPPUCCINO SET

PREPARING HOT WATER

MAINTAINING YOUR MACHINE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

EMPTYING THE COFFEE GROUNDS COLLECTOR, THE CLEANING TRAY AND THE DRIP TRAY RINSING THE COFFEE CIRCUIT CLEANING PROGRAM

DESCALING PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

GENERAL MAINTENANCE

OTHER FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SERVICES SETTINGS

PRODUCT INFORMATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

DEMONSTRATION MODE

MOVING THE MACHINE ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

TROUBLESHOOTING GUIDE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

LIMITED WARRANTY

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CONTENTS

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 1

ENGLISHFRANÇAISESPAÑOL

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following :

1. Read all instructions prior to first use.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid and keeps hands and utensils out of th bean container while grinding and when the machine is plugged in.

4. Do not put water into the coffee bean container and/or under the servicing flap.

5. Not intented for use by children.

6. Close supervision is necessary when any machine is used near children. Keep machine out of reach of children.

This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge orexperience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance.

9. Burns can occur from touching hot surfaces, hot water or steam. Exercise caution.

10. Exercise caution when using the steam nozzle as steam can cause scalding.

11. Unplug machine from outlet as soon as you stop using it and when you clean it. Allow to cool before putting on or taking off parts, before cleaning the machine, and before storing.

12. All appliances are subjet to stringent quality control. Practical tests using appliances taken at random are conducted and this may explain any slight marks or coffee residue showing prior use.

13. Do not operate any machine with a damaged cord or plug after the machine malfunctions, or has been damaged in any manner. Return machine to the nearest Krups Service Center for examination, repair or adjustment.

14. To reduce the risk of injury do not drape cord over the counter top or table top where it can be pulled on by children or tripped over accidentally.

15. Do not let cord hang over edge of table or counter, or touch hot surfaces.

16. The use of accessory attachments not recommended by Krups may result in fire, electric shock or injury to persons.

17. Do not use outdoors.

18. Do not place on or near a hot gas or electric burner, or in a heated oven.

19. To disconnect the machine, turn the control to “off” then remove plug from wall outlet. Do not yank cord, instead grasp plug and pull to disconnect.

20. Do not use the machine for other than intended use.

21. Do not pour liquids other than water and descaling solutions specified in this manual into the water tank.

22. Protect the machine against humidity and freezing.

23. This machine is intended for household use only.

SAVE THESE INSTRUCTIONS

CAUTION

This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized Krups Service Center. Visit our website at www

.krupsusa.com in the USA or www.krups.ca in Canada or contact

your respective countries Consumer Service department for the service center nearest to you.

To reduce the risk of fire or electric shock, do not dismantle the machine. Repair should be done by an authorized Krups Service Center only.

IMPORTANT SAFEGUARDS

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 2

SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with this device. B. If an extension cord is absolutely necessary,

1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the machine,

2) the longer cord should be arranged so that it will not drape over the counter

top or table top where it can be pulled on by children or tripped over.

C. This machine has a polarized plug (one blade is wider than the other). To reduce

the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

In the interest of improving products, Krups reserves the right to change specifications without prior notice.

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 3

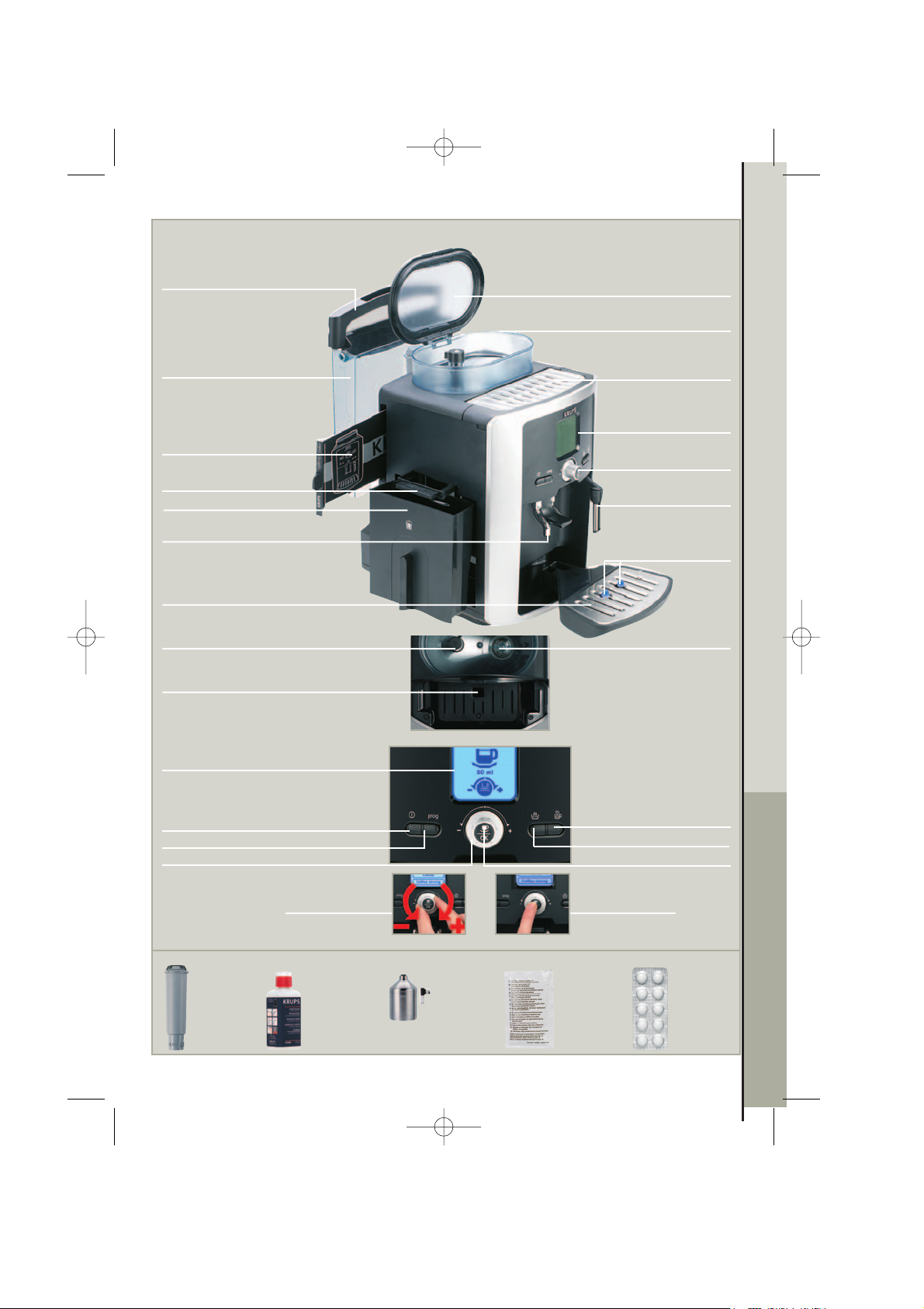

ENGLISHFRANÇAISESPAÑOL

Hot water button

OK validation button

Steam button

Rotating selection knob

Program settings button

“On/Off” button

Coffee grounds collector

Top view

Grinding fineness selector knob

Cleaning tablet pipe

MACHINE DESCRIPTION

Cleaning tray

Water tank

Select (Rotate)

Confirm (Push)

Metal grinding wheel

Quick reference guide

Coffee outlets with height adjusting handles

Water level floats

Steam nozzle

Knob

Cup tray

Coffee bean container

Coffee bean container lid

Drip tray grid

Digital display

Display screen

Water tank handle/lid

F088 Claris Aqua filter system (Included)

XS3000 10 cleaning tablets (2 tablets included)

F054 Descaling powder (1 bag included)

XS6000 Auto cappuccino set (not included)

XS4000 KRUPS Cleaning liquid for auto cappuccino system (not included)

ACCESSORIES SOLD SEPARATELY

Actual model may vary slightly from photos

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 4

Congratulations and thank you for purchasing this Krups Espresseria Automatic espresso machine. We are confident you will enjoy the versatility of this machine as well as the convenience. Should you have any questions, please contact one of our specially trained consumer service managers. They are available Monday through Friday from 8:00 am to 6:30 pm (EST) at 1-866-668-0325 for the US, and Monday through Friday from 8:30 am to 4:30 pm (EST) at 1-800-418-3325 for Canada.

We strongly recommend that you register this product as quickly as possible to ensure that the warranty program is validated. Please complete your respective countries enclosed registration card or for the USA register online at www.krupsusa.com.

Enclosed in this box is the Krups VIP Exclusive Service Kit. Within this kit, we have included everything you need to get started. Each kit contains 1 packet of descaling powder, 2 cleaning tablets, water hardness testing strip, a full color instruction manual, and 1 Claris water filter.

• Cappuccino

For a cappuccino, the ideal proportions are as follows: 1/3 steamed milk, 1/3 espresso, 1/3 milk froth.

• Caffe Latte

To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 steamed milk, 1/5 espresso, 1/5 milk froth.

For these milk-based preparations, it is best to use cold skimmed 1 or 2% milk straight from the refrigerator (ideally between 42.8° F/6° C and 46.4° F/8° C).

WELCOME

RECIPES

USING OILY BEANS

LIMITS TO USE

This Espresseria Automatic machine must only be used to prepare espressos or coffee, froth milk and heat liquids. This product has been designed for domestic use only. Any commercial or professional use, inappropriate use or failure to comply with the instructions will void the warranty.

Here are some recipes you can make using your Espresseria Automatic:

There are a variety of coffee and espresso beans available in the market today. Some beans have a very dry roast while others can be quite oily. Oily beans may clump together, which could disrupt the flow of coffee into the grinder. The lack of a continuous flow of beans into the grinder can cause a weak or even no coffee at all. To ensure optimal results when using oily beans, simply stir the beans in the coffee hopper just prior to using your machine. If you freeze your beans (we do not recommend this type of storage, but rather keeping your beans in an airtight container in a cool dark place), please ensure you allow at least 4 hours for them to thaw before adding to the coffee bean hopper. Allowing frozen beans to properly thaw will prevent unnecessary moisture from entering into the grinder. Also, never use flavoured or other sugar-coated beans as they will stick to the burrs and clog your machine.

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 5

ENGLISHFRANÇAISESPAÑOL

Before using the machine for the first time, you will need to complete an initial set up procedure to ensure that the machine will operate properly. You will be asked to set the water hardness level, language, clock, date, and a few other options. The digital display will walk you through each step and the initial set up takes just a few minutes. Please note, if you disconnect the machine from the power source, you will need to complete parts of this process again.

BEFORE FIRST USE

After 1 minute the hardness measurement will appear. This is the number you will be asked to program into the machine.

Fill a glass with the water you normally use and immerse the test strip.

Degree of

hardness

very soft

soft

moderately hard

hard

extremely hard

°f

< 5.4° > 7.2° > 12.6° > 25.2° > 37.8°

°dH

< 3° > 4° > 7° > 14° > 21°

°e

< 3.75° > 5° > 8.75° > 17.5° > 26.25°

1 sec.

012

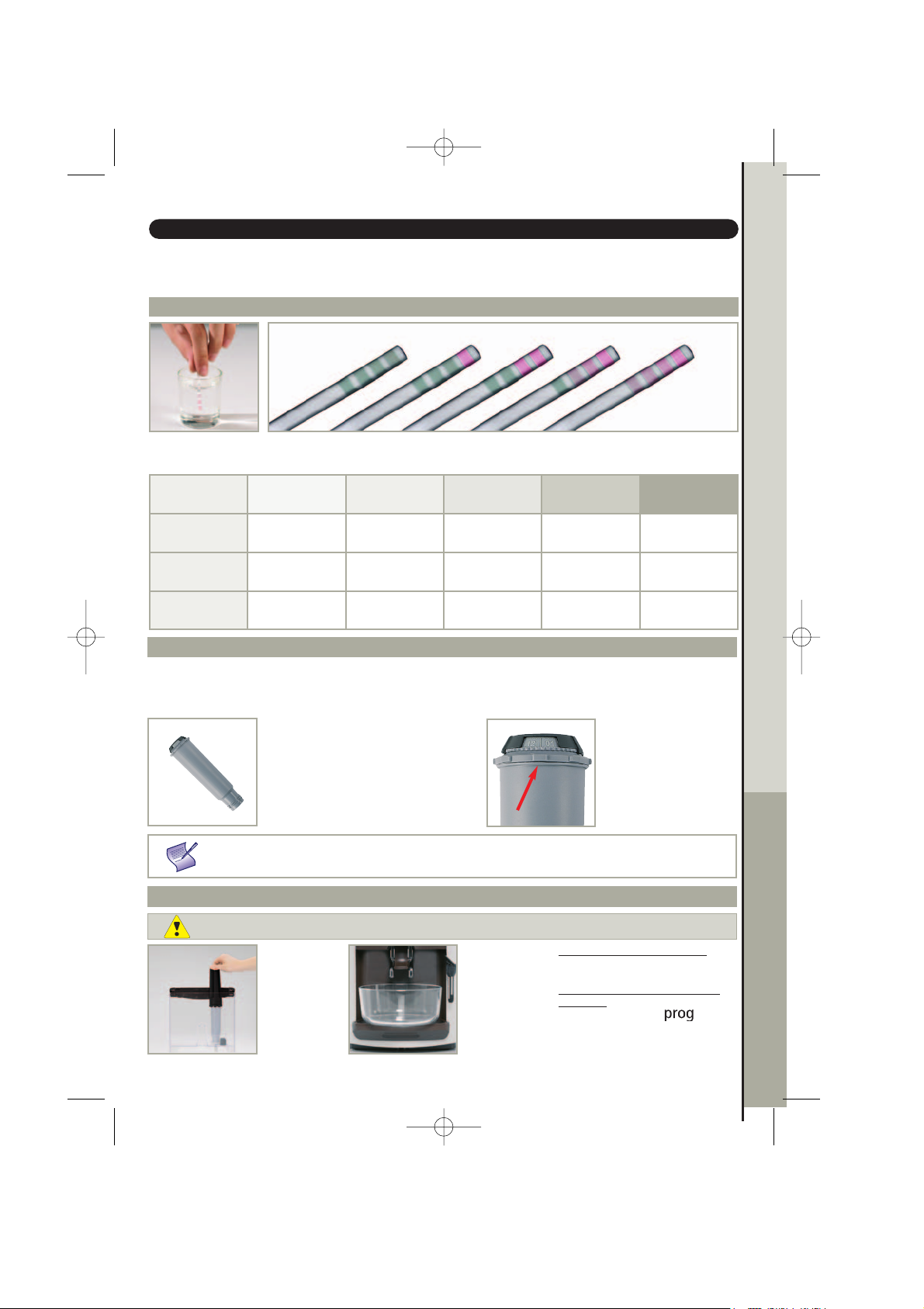

MEASURING WATER HARDNESS

To optimise the taste of your coffees and the lifetime of your appliance, we recommend that you use the Claris – Aqua Filter System cartridge sold as an accessory. It consists of an anti-scale substance and active carbon which reduces the chlorine, impurities, lead, copper and pesticides in the water. The minerals and trace elements in the water, however, are preserved.

By filtering the water with the Claris – Aqua Filter System cartridge, you can reduce: Carbonate hardness – up to 75%* Chlorine – up to 85%* Lead – up to 90%* Copper – up to 95%* Aluminium – up to 67%*

CLARIS – AQUA FILTER SYSTEM CARTRIDGE F088

* indications supplied by the manufacturer

F 088

Installing the cartridge in the machine: Screw the filtering cartridge into the bottom of the water tank using the spanner provided.

Mechanism which memorises the month in which the cartridge was installed and changed (after a maximum of two months).

Your appliance will indicate when the Claris – Aqua Filter System cartridge needs changing by displaying a message. The Claris cartridge needs to be replaced approximately every 13 gallons/50 litres of water or at least every two months. Set the hardness of the water to 0 if you use a Claris cartridge.

INSTALLING THE FILTER (CLARIS – AQUA FILTER SYSTEM CARTRIDGE)

To install the cartridge, refer to the "Using for the first time" section. (photo: Setting up a new filter)

Put a 17 oz/0.5 l container under the steam nozzle.

Using for the first time

: Choose "YES" option in the "Water filter" menu and follow the instructions on the screen. T

o install later or make a replacement: select the "Water filter" menu using the button: "Services"-OK"Water filter"-OK-"Install" (or "Change")-OK- and follow the instructions on the screen.

FALC DISP USA - 7220.qxp 4/12/07 18:48 Page 6

Pull out and fill the water tank with fresh water.

Select (rotate)

Confirm (push)

Replace the tank, press firmly to insure it’s fitted properly. Close the lid.

Open the coffee bean container lid. Add fresh coffee or espresso beans.

Close the coffee bean container lid again.

Check that the coffee beans do not contain any foreign particles, as any damage caused by the presence of foreign particles will void the warranty. Do not put water into the coffee bean container. Remember to fit the drip tray to avoid waste water flowing onto the work surface and staining it or scalding you. Be sure that the drip tray is properly installed to avoid overflow. Be sure your water tank is clean.

Do not fill the water tank with hot water, mineral water, milk or any other liquid. If you turn on the machine when the water tank is not in place or not correctly filled (under the “min.” level,), the “fill water tank” light will come on. This machine will not operate when the tank is empty.

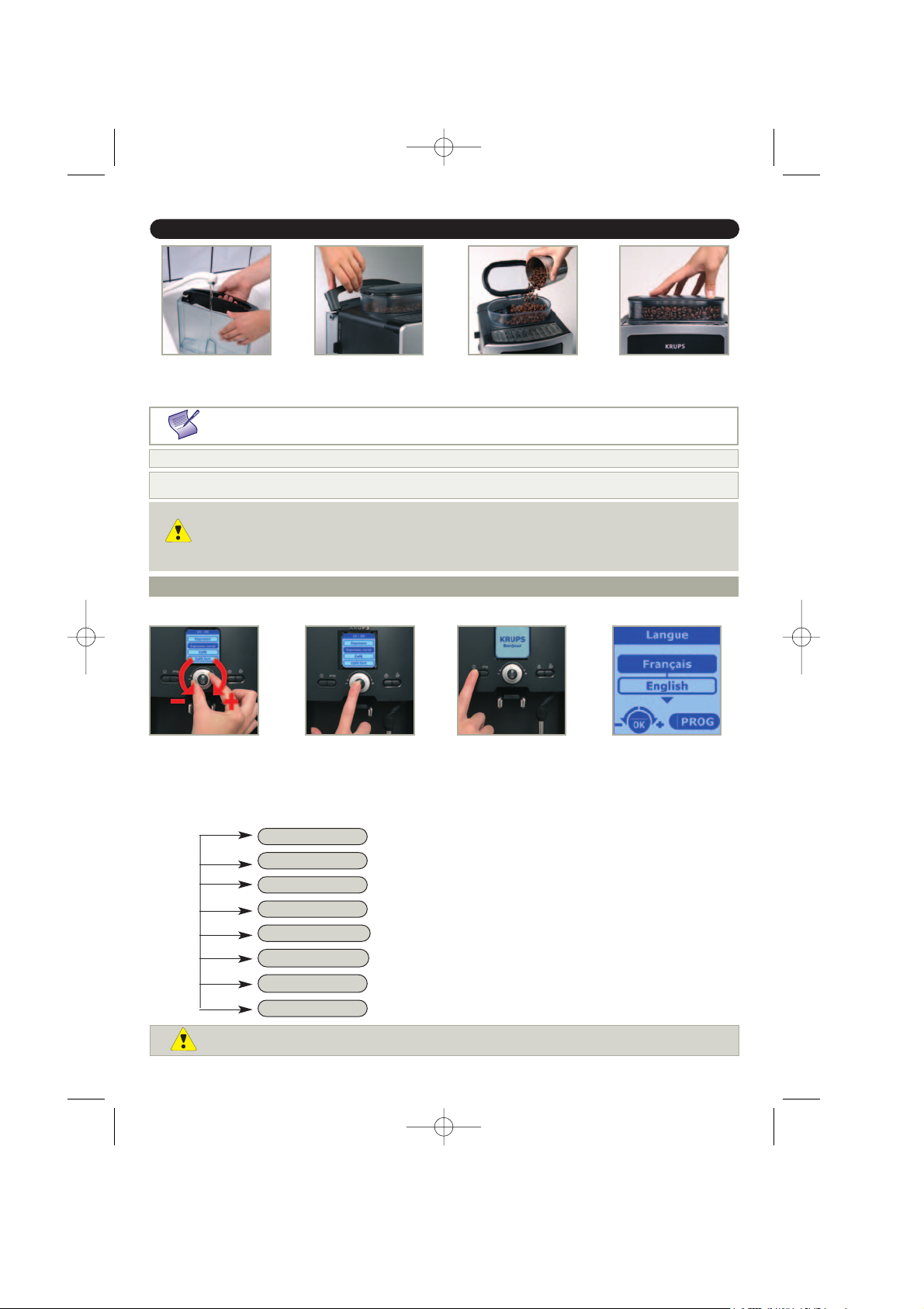

When you first use your machine, it will ask you to set several parameters. If you disconnect your machine, you will again be asked for some of these parameters.

Use the selector knob to choose a language (highlighted). Press the OK key to validate.

Press “On / Off” to turn your machine on. Follow the instructions that appear on the “choice of language” screen.

Use the selector knob to choose a function and increase or reduce values. Confirm your choice using the OK key.

PREPARING THE MACHINE FOR FIRST USE

PROGRAMMING YOUR MACHINE

The machine will ask you to set:

Language

Volume unit

Date

Time

Auto-off

Auto-on

Water hardness

Water filter

You can select your chosen language from those offered.

Choose either ml or oz as your measurement unit.

You can set the date (mandatory if you use the Claris - Aqua Filter System cartridge).

You can choose between 12 hour or 24 hour time display.

You can choose the period after which your machine will stop automatically, from 30 minutes to 4 hours (by 30 minute increments).

You can automatically start pre-heating of your machine at your chosen time.

You must set your water hardness between 0 and 4. See “Water Hardness Measurement” section.

You must indicate whether a filter has been installed or not (Claris - Aqua Filter System cartridge).

We do not recommend the use of oily or sugar coated or flavoured espresso/coffee beans. These types of beans may damage the machine.

NEVER PUT GROUND COFFEE IN THE COFFEE CONTAINER.

When using for the first time, the appliance may request "filling the machine". Follow the displayed instructions.

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 7

ENGLISHFRANÇAISESPAÑOL

Press button at any time to display menus to perform rinse menu and then select SERVICES => OK => RINSING => OK.

You should periodically rinse the machine. We recommend rinsing the machine if it has not been used for several days. Use a large cup, choose the “Yes” option in the rinsing function and follow the instructions on the screen.

There are three fineness settings on this grinder. You can adjust the fineness to select your own personal preferences. The finer the grind, the stronger the flavor. To change the grind, turn the knob during the grinding process.

CHANGE THE SETTING DURING GRINDING. NEVER FORCE THE GRINDING FINENESS SETTING BUTTON. SUGAR COATED, FLAVORED OR OILY COFFEE/ESPRESSO BEANS CAN CLOG THE GRINDER.

Turn counterclockwise for a finer grind.

Turn clockwise for a coarser grind.

ADJUSTING THE GRINDER

PREPARING ESPRESSO AND PRESSURE BREWED COFFEE

YOUR MACHINE IS DESIGNED TO MAKE COFFEE AND ESPRESSO FROM COFFEE BEANS ONLY. DO NOT USE OILY, FLAVORED OR SUGAR COATED ESPRESSO / COFFEE BEANS. When you first make coffee with the machine or after a prolonged period of non-use or a cleaning or descaling procedures, a little steam and hot water will come out of the steam nozzle (priming). Splashing or scalding may occur if the coffee outlets are set too high in relation to the size of the cups.

With a simple touch of a button, you can prepare 4 types of beverages: espresso, strong espresso, coffee and long coffee.

Amount of water

Espresso 0.7 - 2.3 oz / 20 - 70 ml

Strong Espresso 0.7 - 2.3 oz / 20 - 70 ml

Coffee 2.7 - 4.0 oz / 80 - 120 ml

Long Coffee 4.0 - 8.0 oz / 120 - 240 ml

Once the machine has been turned on and pre-heating has been completed, you can rinse the coffee circuit.

Rinsing the cof

fee circuit: Place a 17 oz/0.5 l. container under the coffee outlets and steam nozzle then select "YES" from the menu proposed. The rinsing cycle will stop automatically after about 1.3 oz/40 ml.

Rinsing the steam circuit: Press the key to rinse the steam circuit. The rinsing cycle will stop automatically after the volume of water displayed has flown.

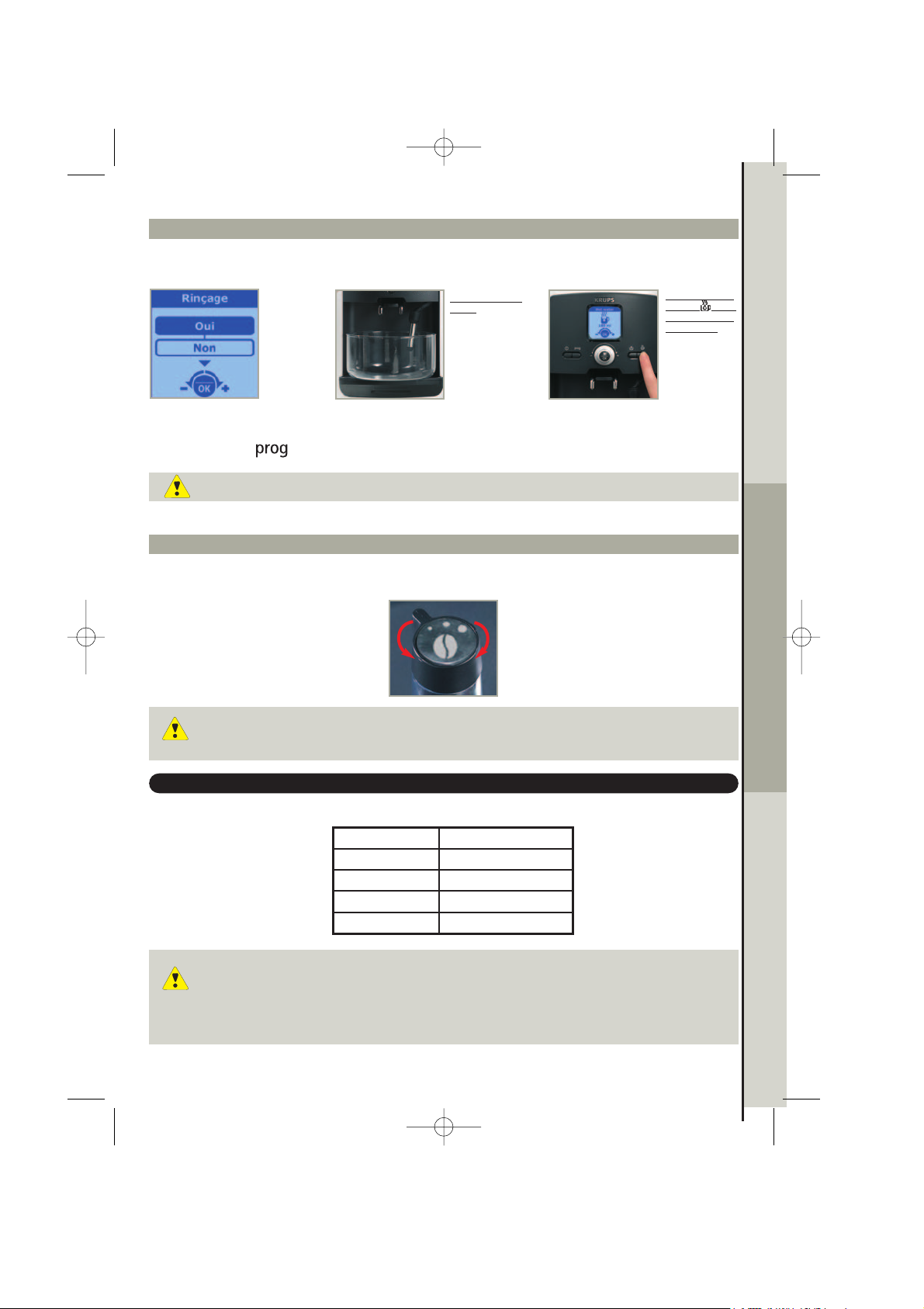

RINSING OF THE CIRCUITS

DO NOT PUT YOUR HANDS UNDER THE OUTLETS WHEN RINSING PROCESS IS IN PROGRESS. HOT WATER COMES OUT THROUGH THEM AND MAY CAUSE SCALDING.

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 8

When the machine is plugged in, an inintializing cycle is processed. Press the on/off button , wait for the end of pre-heating and perform a rinsing operation if you wish.

You can change the volume of water at any time using the rotating knob.

Use the rotating button to select your choice and confirm by pressing the OK button.

The selection menu will be displayed.

Please note : The ground coffee is first moistened with a little hot water after the grinding stage. This is called “pre-brewing” and it optimizes the brewing process by ensuring that the grounds are evenly wet. A few moments later, the full brewing cycle begins.

You can use your machine to make 2 cups of coffee or espresso for the 3 following recipes: espresso / strong espresso / coffee by cycling the machine twice. Remember not to remove the cups after the first cycle.

Put two cups under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups.

Put a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups.

Select your drink and confirm by pressing the OK button twice. A message will appear to tell you that you have chosen two cups.

The machine will

automatically

sequence through

two complete cycles.

To stop coffee from flowing into the cup, you can either press “OK” again or turn the rotating button to reduce volume.

x 2

TWO-CUP FUNCTION

There is a temperature setting function to control how hot your coffee is (see Settings).

USING STEAM

Steam is used to froth milk (for cappuccino/latte) but can also be used to reheat other liquids. As you need a higher temperature to produce steam than to make an espresso, the machine runs an additional pre-heating phase for steam.

When the screen displays the selection menu, press the “steam” key . The screen will inform you that the machine is being pre-heated. Once the pre-heating phase has been completed, a message will ask you to place a container under the steam nozzle. Press the “steam” key again to start generating steam. A little water will be produced first and then steam will start. Use the same key to stop steam generation.

CAUTION, STEAM CYCLE DOES NOT STOP IMMEDIATELY

DO NOT REMOVE THE WATER TANK BEFORE THE END OF THE CYCLE (i.e. 15 sec. after coffee stops flowing).

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 9

ENGLISHFRANÇAISESPAÑOL

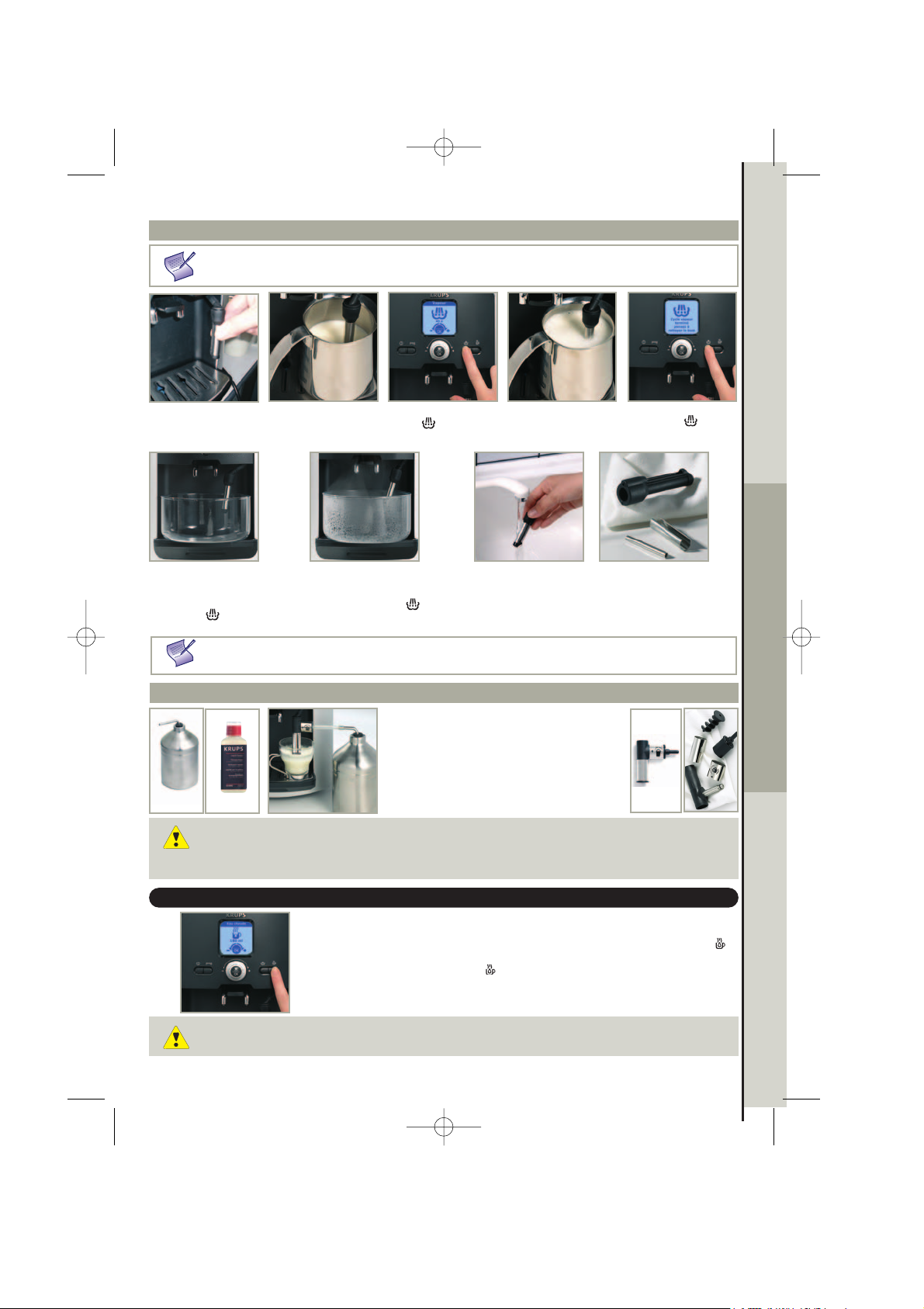

FROTHING MILK

We recommend that you use pasteurised 1 or 2% milk. The milk should be quite cold, ideally between 42° F and 50° F (6 and 10° C). After having used the steam or hot water functions, the nozzle may be hot, and we recommend that you wait for a few moments before handling it.

Check that the steam nozzle is correctly fitted.

Fill a frothing pitcher one-third and immerse the nozzle in the milk.

Press the “steam” button

and follow the

instructions on the screen.

Once your milk is frothed to your liking…,

press the “steam” button to stop the cycle. Cycle does not stop immediately.

To remove any remaining milk from the steam nozzle, place a cup under the nozzle and press the “ steam ” button .

Run for at least 10 seconds, then again press the button to stop steam generation.

To interrupt the steam function, just press any button. If the nozzle is blocked, clean it out with the included needle. The maximum duration for production of steam per cycle is limited to 2 minutes.

AUTO-CAPPUCCINO SET XS 6000 (SOLD SEPARATELY)

The auto-cappuccino accessory makes it easy to prepare a cappuccino or a caffe latte. It is comprised of a special nozzle with two-positions/markings and a brushed stainless steel milk jug and tubes. Just join the various components to each other (photo on left) and put your cup or glass under the autocappuccino nozzle. Don’t forget to clean all parts of this accessory thoroughly (photo right).

XS 6000

XS 4000

You can remove the steam nozzle for thorough cleaning. Wash it using a brush with water and a little non-abrasive dish soap. Rinse and dry. Before re-fitting, make certain that the air inlet holes are not clogged by milk residue. If necessary clean out the holes with the needle included with the machine.

PREPARING HOT WATER

While the screen displays the drink selection menu, press the “hot water” button . A message will invite you to place a cup under the steam nozzle. Again press the

“hot water” button to produce hot water.

To interrupt the hot water function, just press any button. If the nozzle is blocked, clean it out with the needle included. The maximum amount of hot water per cycle is limited to 10 oz/300 ml.

To prevent the milk drying on and in the auto-cappuccino accessory we strongly recommend that you immediately:

- put clear water inside the jug and reinstall the different components

- launch a “steam” cycle

- clean all parts with a moist cloth.

You can also use our special XS 4000 liquid cleaner for milk systems.

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 10

If the above message appears, remove, empty and clean the drip tray.

The drip tray receives residual water and the coffee grounds collector receives used coffee grounds. The coffee cleaning tray allows you to eliminate any deposits of coffee grounds above the percolation chamber.

Remove, empty and clean the coffee grounds collector.

The drip tray is equipped with floats to tell you when to empty it.

The warning message will remain displayed if the coffee grounds collector is not inserted correctly. If the coffee grounds collector is inserted within less than 6 seconds, the machine will ask you to confirm that you have correctly emptied it. You cannot make espresso or coffee while the warning message is displayed. The coffee grounds collector has a maximum capacity of 12 coffee cakes.

MAINTAINING YOUR MACHINE

As soon as you remove the coffee grounds collector, you will have to empty it completely to avoid any overflow.

Remove the coffee cleaning tray.

Clean it under water and dry thoroughly before re-inserting.

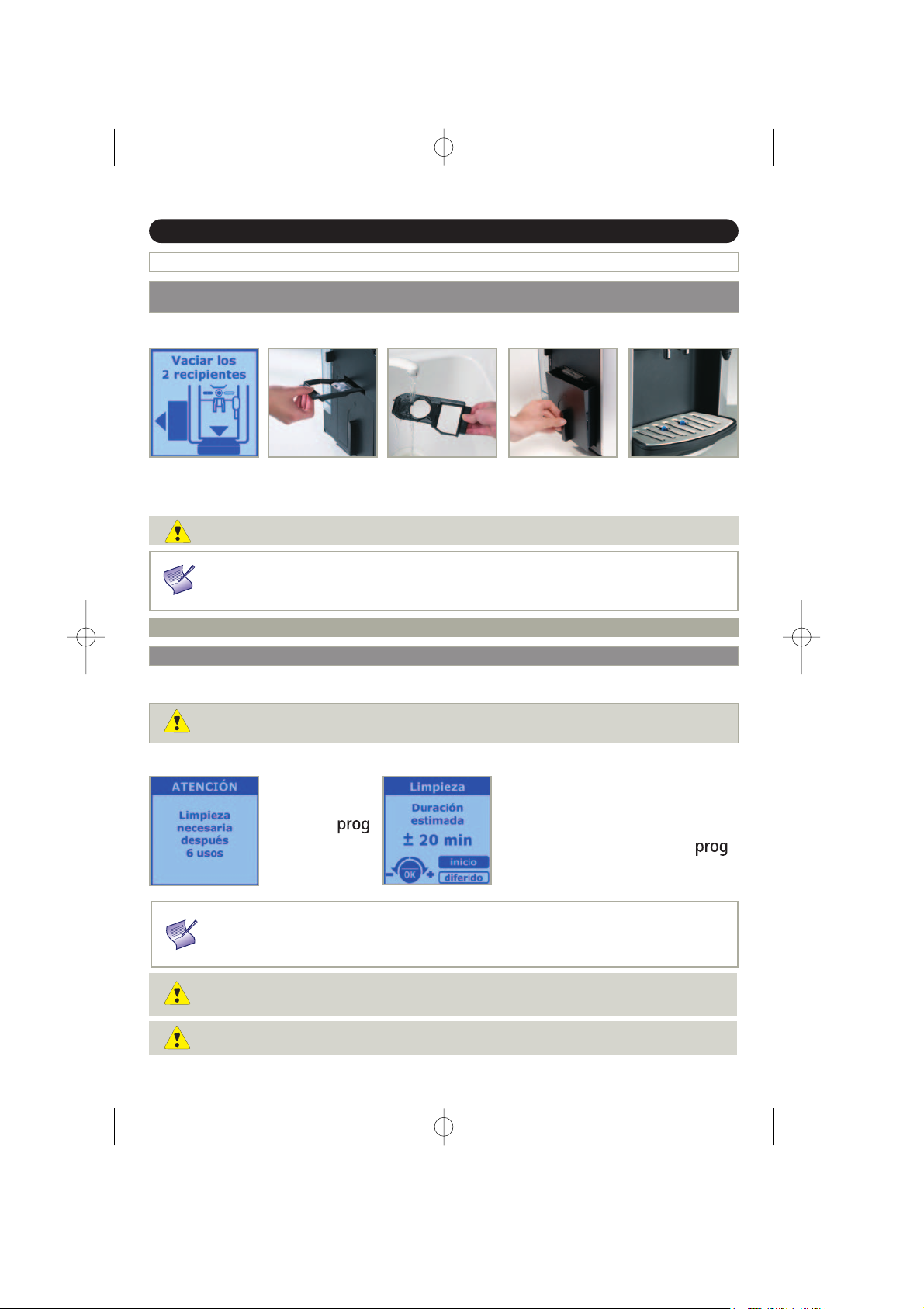

EMPTYING THE COFFEE GROUNDS COLLECTOR, THE COFFEE CLEANING TRAY AND THE DRIP TRAY

RINSING THE SYSTEM - SEE “PREPARING THE MACHINE FOR FIRST USE” SECTION (PAGE 8)

CLEANING PROGRAM – TOTAL DURATION: ABOUT 20 MINUTES

RINSING THE COFFEE CIRCUIT: SEE PAGE 8

You should perform the cleaning program after every 360 preparations of espresso or coffee. The machine will let you know automatically on the display screen.

Caution! To benefit from the warranty conditions, it is essential to perform the machine cleaning cycle when informed to do so. Be sure to follow the order of operations.

You can continue to use the machine, but you are advised to perform the program as soon as possible.

To perform the cleaning program, you will need a container with a minimum capacity of 21 oz/0.6 l and a Krups XS 3000 cleaning tablet.

The automatic cleaning program is in three parts – a cleaning cycle, then 2 rinsing cycles. This program lasts about 20 minutes. Press button to perform cleaning at any time and then choose MAINTENANCE => OK => CLEANING from the menus displayed.

Press the button to start the automatic cleaning program when the “Cleaning needed” message is displayed.

Just follow the instructions shown on the screen.

If you press the ‘On/Off’ key during cleaning or in the event of power failure, the cleaning program will start again right from the beginning. You will not be able to postpone this operation. This is essential to avoid any ingestion of the cleaning solution. In this case, you will need to use another cleaning tablet. Be sure to complete the entire cleaning cycle to avoid any risk of irritation (seek medical advice if cleaning solutions are accidently swallowed). The cleaning cycle is a discontinuous cycle. Do not put your hands under the coffee outlets during the cycle.

Only use Krups XS 3000 cleaning tablets. We cannot be held responsible for any damage that may result from the use of tablets from other brands. You can obtain cleaning tablets from Krups Service Centers.

Make certain to protect your work surface during cleaning cycles, especially if they are made of

marble, stone or wood.

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 11

ENGLISHFRANÇAISESPAÑOL

DESCALING PROGRAM – TOTAL DURATION: ABOUT 22 MINUTES

The quantity of scale deposited depends on the hardness of the water used. The machine will automatically warn you with a message when you need to proceed with descaling.

To perform the descaling program, you will need a container with minimum capacity of 21 oz/0.6 l and a Krups F 054 (40 g) descaling powder.

The descaling program is in three parts – a descaling cycle, then 2 rinsing cycles. Press button to perform descaling at any time and then choose MAINTENANCE => OK => DESCALING from the menus displayed.

Caution! To benefit from the warranty conditions, it is essential to perform the machine descaling cycle when the machine tells you to do so. Be sure to follow the order of operations.

You can continue to use the machine but you are advised to perform the operation as soon as possible.

Press the button to start the automatic descaling program when this message is displayed.

Clean the cleaning tray, the drip tray and its grid, and the coffee grounds collector with hot water and a mild liquid detergent.

Rinse the water tank with fresh water.

Only use Krups descaling products. You can obtain descaling products from Krups Service Centers. Do not use conventional amidosulphonic acid or other products containing acid. The manufacturer may not be held responsible for damage to the machine through use of cleaners or descalers not specifically recommended.

Be sure to complete the entire descaling cycle to avoid any risk of ingestion of the cleaning solution. Do not put your hands under the coffee outlets during the cycle.

Make certain to protect your work surface during descaling cycles, especially if they are made

of marble, stone or wood.

These parts cannot be placed in the dishwasher.

Follow the instructions shown on the screen, making sure the powder dissolves fully.

If the coffee grounds collector is not properly positioned you will be warned by a message. Reposition the collector again for the cycle to continue automatically. If a power failure occurs during the cycle, you will have to start it again right from the beginning. You will not be able to postpone this operation.

GENERAL MAINTENANCE

Always remove the power supply cord from the socket and let your machine cool down before cleaning it. Do not use utensils or cleaning products likely to scratch or corrode the machine. Wipe the body of the machine on the outside using a moist cloth.

If your product is equipped with our Claris - Aqua Filter System cartridge F088, please remove this cartridge before the descaling operation.

FALC DISP USA - 7220.qxp 4/12/07 18:49 Page 12

You can use all the following options to start selected programs. Then follow the instructions on screen

Services

Settings

Machine info

Demo mode

Exit

PROG

SERVICES

Rinsing

Cleaning

Descaling

Water filter

Exit

SERVICES

Press the knob from the beverage selection screen to access the machine’s other menu functions. Use the rotating button to browse through menus and options for all settings and validate your choice using the OK button. Press the button to cancel a choice and go back to the beverage selection menu.

To access maintenance

To access settings

To access product information

To access demonstration mode

To quit / exit

To access rinsing

To access cleaning

To access descaling

To access filter mode: install, change or remove your Claris - Aqua Filter System cartridge

To return to the previous menu

OTHER FUNCTIONS: KNOB

SETTINGS

Language

Display contrast

Date

Time

Auto-off

Auto-on

Volume unit

Water hardness

Coffee temperature

Exit

SETTINGS

You can select your chosen language from those offered.

You can set screen contrast for comfort.

You need to set the date, required if using Claris aqua filter.

You can choose between 12 hour or 24 hour time display.

You can choose the period after which your machine will turn off automatically, from 30 minutes to 4 hours in 30 minute increments.

You can automatically start pre-heating of your machine at your chosen time.

Choose either oz or ml as your measurement unit.

You must set your water hardness between 0 and 4. See “Water hardness measurement” section.

You can set the temperature of your espresso or coffee to one of three levels.

To return to the previous menu.

FALC DISP USA - 7220.qxp 4/12/07 18:50 Page 13

ENGLISHFRANÇAISESPAÑOL

Coffee cycles

Water cycles

Steam cycles

Rinsing

Cleaning

Last

Clean

Descaling

Water filter

Exit

Fit

MACHINE INFO

Exit

PRODUCT INFORMATION

* You must have correctly installed a filter through the program accessible via MAINTENANCE => FILTER => INSTALL before being able to access the first two options of the filter information sub-menu.

Exit

Displays the total number of coffees the machine has made.

Displays the total number of hot water cycles the machine has performed.

Displays the total number of steam cycles the machine has performed.

Displays the total number of rinsing cycles the machine has performed.

Displays the total number of coffees made since last cleaning.

Displays the number of coffees that can be made before next cleaning.

Starts the cleaning program.

To return to the previous menu

Displays the total number of coffees made since last scale removal.

Displays the number of coffees that can be made before next scale removal.

Starts the scale removal program.

To return to the previous menu

Displays the date of the last filter change* and the quantity of water that has run through.

Displays the date for the next filter change* and the quantity of water to run through.

Starts the filter change procedure.

To return to the previous menu

DEMONSTRATION MODE

When this mode is activated and the screen displays the drink selection menu, the machine will scroll through the various functions available at regular intervals, so you can access them.

Use this sub-menu to disable or activate this function.

MOVING THE MACHINE

Keep the original packaging and reuse it when moving.

If the unpacked machine is dropped, it is advisable to take it to an authorized Krups service center to avoid any risk of fire or electrical problems.

Let’s all help protect the environment!

Your machine contains many recyclable materials that can be re-used.

Please recycle.

ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

FALC DISP USA - 7220.qxp 4/12/07 18:50 Page 14

TROUBLESHOOTING GUIDE

The machine fails to come on when you press the On/Off key.

Water or steam comes out unusually from the steam nozzle

The espresso or coffee is not hot enough.

The coffee is too weak or not strong enough.

The coffee flows too slowly.

The coffee is not creamy enough.

You used ground coffee instead of coffee beans.

The coffee does not come out of the outlet holes.

The grinder makes a strange noise

The grind setting button of the mill is hard to turn

Steam does not come out of the nozzle.

Not enough froth on the milk.

The milk froth is too bubbly

The Auto-Cappuccino accessory does not suck in the milk (accessory sold separately).

You have filled the water tank, but the warning message remains displayed.

The cleaning program refuses to start. The scale removal program refuses to start. You have emptied the coffee grounds

collector, but the warning message remains displayed.

You have washed the cleaning tray, but the warning message remains displayed.

A power failure occurred during a cycle.

There is water or coffee under the machine.

A “Fault No. XX” message appears.

Check that the power supply cord plug is correctly inserted in the socket.

In case of repeated runnings, some drops may flow out from the steam nozzle.

Change the coffee temperature setting. Pre-heat the cups by rinsing them in hot water or under the steam nozzle.

Check that the coffee bean container contains sufficient coffee and that beans fall correctly into the grinder. Do not use oily or sugar coated or flavored coffee / espresso beans. Reduce the volume of coffee selected using the rotating knob. Turn the grinding fineness button to the left to obtain a finer grind. Prepare your beverage by dividing it in 2 cycles by choosing the 2 cup function.

Turn the grinding fineness button to the right to obtain a coarser grind (may depend on the type of coffee used). Make one or several rinsing cycles.

Turn the grinding fineness button to the left to obtain a finer grind (may depend on the type of coffee used). Change the Claris Aqua filter (follow instructions page 6) Make one or several rinsing clycles

Use your vacuum cleaner to remove the ground coffee in the coffee bean container.

An incident has been detected by the machine during the cycle. The machine automatically runs an initializing cycle and is ready for a new cycle.

There may be foreign bodies in the grinder or not enough beans. Check that the container is full and free of foreign bodies. Contact your Krups Service Center.

Change the mill setting only when the grinder is in operation.

First turn off your machine and let it cool down:

- Clean out and unclog the outlet hole with the needle included.

- Clean out the steam nozzle support pipe with the needle included. Take off the water filter.

Check that the steam is able to come out of the nozzle unclog the little air outlet upper lever of the steam nozzle if needed. Use a cold container and freshly opened milk bottle. Change the type (use 1 or 2% milk) or brand of milk as appropriate.

Check that the two ends of the small stainless steel tube fit correctly into the steam nozzle flexible part.

Check that the tube immersed in the milk is not blocked. Check for correct joining of the flexible tube with the accessory to avoid any air leakage. First turn off your machine and let it cool before clearing the Auto-Cappuccino accessory outlet hole.

Check for correct positioning of the tank in the coffee maker. Check that the float at the bottom of the tank moves freely. Rinse the accessory and if necessary remove scale.

Disconnect the machine for 20 seconds then turn on again. Disconnect the machine for 20 seconds then turn on again. Remove the collector, make certain that it is empty, wait for 6 seconds and

then fit it again. Check that the collector is correctly positioned.

Remove the tray, wait 6 seconds and then fit it again. Check that the cleaning tray is correctly positioned.

The machine will re-initialise automatically when power is turned on and be ready for a new cycle.

The drip tray is overflowing. Empty and clean the cleaning tray. Check for correct positioning of the drip tray.

Disconnect the machine for 20 seconds then bring it back into service. If the failure persists, note the fault number and contact the Krups Service Center.

PROBLEM

RECOMMENDATION

FALC DISP USA - 7220.qxp 4/12/07 18:50 Page 15

ENGLISHFRANÇAISESPAÑOL

This Krups’ product is warranted for 1 year with a maximum of 3,000 cycles (to check the nb of cycles, see page 14, “Machine info” menu) from the date of purchase against defects in material and workmanship. During this period, Krups will, at its option, either repair or replace a defective product or any component found to be defective, at no cost. If a replacement product is sent, it will carry the remaining warranty of the original product. This warranty does not apply to any defect arising from misuse of the product, negligence, failure to follow Krups’ instructions on use and maintenance, use on current of voltage other than that stamped on the product, or alterations or repairs not authorized by Krups. This warranty does not cover products that have been used for commercial purposes or normal wear and tear such as valves and seals that need to be replaced in the ordinary course, or if objects other than coffee beans are put through the grinder.

THE DURATION OF ANY IMPLIED WARRANTY WHATSOEVER, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. KRUPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. If you believe your product is defective, take the product (or send it postage prepaid) along with proof of purchase to the nearest authorized Krups Service Center. (To find the nearest authorized Krups Service Center visit the Krups website or contact Consumer Service in your country indicated below) Krups Service Center locations can be found by visiting the website www.krupsUSA.com in the USA or www.krups.ca in Canada. When shipping the product to the service center please include a note explaining the issue, a copy of the sales receipt and provide a valid return address on the outside of the shipping box (no PO Boxes). If the product is out of warranty or warranty can’t be validated, the service center will send an estimate of repair for your approval.

LIMITED WARRANTY

CONSUMER SERVICE

If you have additional questions, please call our Consumer Service Department. It is helpful to have the product available at the time of your call and to know the model number that can generally be found on the base of the product.

USA

Phone 1 866 668 0325 Hours* Monday - Friday from 8:00 a.m. - 6:30 p.m. (EST)

Letters should be addressed to: Krups 196 Boston Avenue Medford, MA 02155

Only letters can be accepted at this address. Packages without a return authorization number will be refused or forwarded to a Service Center.

*Please note hours are subject to change.

CANADA

Phone 1 800 418 3325 Hours* Monday - Friday 8:30 a.m. - 4:30 p.m. (EST)

Letters should be addressed to: Groupe SEB Canada Inc. 455 Finchdene Square Scarborough, Ontario M1X 1B7

FALC DISP USA - 7220.qxp 4/12/07 18:50 Page 16

+ 39 hidden pages
