Krups ESPREMIO AUTO CAPPUCINO, Espremio FNP1, Espremio Auto cappuccino FNP2, ESPREMIO Instructions For Use Manual

Download

KRUPS

lock

e -

..:- "-

-; :. _:::-

t-_:; ~\""':-;'.-

l.:P

:. .. '-""

. -

FNP1/FNP2

KRUPS

d e

h. h1

a e>e>~'"'e~ ~ ~~e>

e>e>e>e>e::¥e>:J:::;e

e e> e>.§'ee~e> e> e

e ee>it!" e>eeee

KRUPS

Espremio

Espremio Auto cappuccino

FNP1 FNP2

Instructions for Use Warranty

Guarantee of Performance

Fran~ais

Mode d'emploi

Garantle

Garantiede rendement

Espanol

Instrucciones de uso

Garantfa Garantia de rendimiento

Instructions for Use of steam and Autocappuccino functions of FNP2

Fran~ais

Mode d'emploi pour les fonctions vapeur et Autocappuccino FNP2

Espanol

Instrucciones de uso per funcion vapor

y Autocappuccino FNP2

KRUPS5

- - --- - - - -

u----

I!m

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should

always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

-Read all instructions.

-Do not touch hot surfaces. Use handles or knobs.

-To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.

-Close supervision is necessary when any appliance is used by or near children.

-Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

-Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to your nearest authorized KRUPS Service Center for examination, repair or adjustment (see

Guarantee of Performance).

-The use of accessory attachments not recommended by KRUPS

may result in fire, electric shock or injury to persons.

-Do not use outdoors.

-Do not let cord hang over edge of table or counter, or touch hot surfaces.

-Do not place on or near a hot gas or electric burner, or in a heated oven.

-To disconnect, turn switch to "OFF",then remove plug from wall outlet.

-Do not use appliance for other than intended use.

-Use extreme caution when dispensing hot steam.

SAVE THESE INSTRUCTIONS

6 KRUPS

u_-- ------

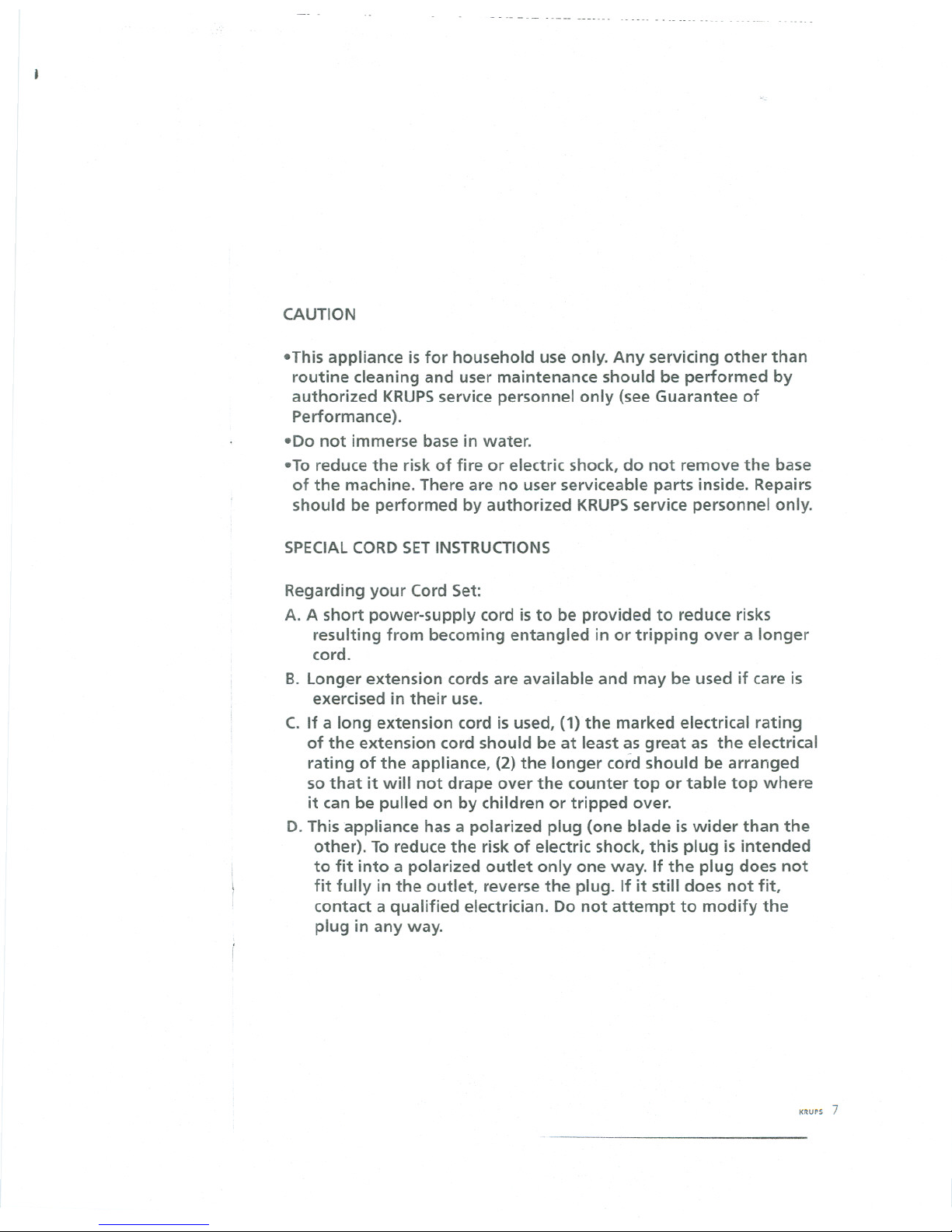

CAUTION

-This appliance is for household use only. Any servicing other than routine cleaning and user maintenance should be performed by authorized KRUPSservice personnel only (see Guarantee of

Performance).

-Do not immerse base in water.

-To reduce the risk of fire or electric shock, do not remove the base of the machine. There are no user serviceable parts inside. Repairs should be performed by authorized KRUPSservice personnel only.

SPECIAL CORD SET INSTRUCTIONS

Regarding your Cord Set: A. A short power-supply cord is to be provided to reduce risks

resulting from becoming entangled in or tripping over a longer cord.

B. Longer extension cords are available and may be used if care is

exercised in their use.

e. Ifa long extension cord is used, (1) the marked electrical rating

of the extension cord should be at least as great as the electrical rating of the appliance, (2) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

D.This appliance has a polarized plug (one blade is wider than the

other). Toreduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

KRUPS7

Description

Lid+ water tank Functionselector

Temperature control indicator light

Percolationhead Levelindicator of water Filterholder

filterfor one cup (ground coffee) Steam nozzle for heating liquids tip slidingpart

On/Off switchwithincludedlamp

operating indicator light Grid

Driptray

Measuring spoon

b c d e f f1

g gl g2

h h1

Safety recommendations..

.Read the instructions for use carefully

before using your appliance for the first

time: any use which does not conform

to these instructions will absolve KRUPS

from any liability.

.Never leave the appliance within the

reach of small children. The use of this appliance by young children or disabled

persons must always be under close supervision.

.Check that the voltage rating of your

appliance matches that of your household electrical wiring system.

Any connection error will render the

guarantee null and void.

. Do not allow the power cord to hang down

within reach of children.

. Do not remove the filter holder containing

the coffee grounds while water is running through, as the appliance ISthen under pressure,

. Do not use the appliance when the drip tray

and the grid arenot in place.

. Neverunplug the appliance by pulling on

the cord.

. Make surethe filter holder ISwell tightened

before starting to make coffee. Resetthe

8 KRUPS

selector to 0 before loosening the filter

holder.

. All the appliances made by KRUPSare

subjected to strict 100 % inspection. Practicalusertests are performed with a

number of appliances taken at random,

which

explains any traces of utilization.

Espresso~'(pffee'

Espresso coffee is richer In flavor and stronger than ordinary coffee. It is traditionally drunk from small espresso cups which have been pre-heated, Hot water and pressure combine to passed through ground coffee in order to obtain this delicious black, foamy coffee, which has an invigorating effect

You can always recognize genuine espresso because of its characteristic flavor and rich, delicious foam (crema). This

however requires

both high pressure and your favorite espresso

coffee (which has been well roasted and correctly ground). If you are unable to

purchase ground

espresso coffee, use a coffee

grinder to grind the beans. The coffee must

not be ground «too fine». It should be slightly grainy. If it is too fine, you run the

risk of

blocking the grids of the percolation head and the filter.

To guarantee

complete success In making a

good espresso, it is necessary to use fresh, clean,

cold water-free of chlorine or other

impurities that can ruin the taste of your coffee.

. Clean the water heating system with one or

two tanks of clean water, asfollows:

. Open the lid, lift out the tank and fill it with

water (1)

. Replace the tank, positioning it firmly in such

a way that the connecting valve situated

beneath the tank opens, and close the lid.

. Plug in the appliance. . Set the «on/off» switch (h) . The Indicator

light (h1) will come on.

. Placethe filter in the filter holder without

any coffee. Then fit the assemblyonto the percolation head. To position the filter

holder correctly, point the handle to the left, pressthe filter holder onto the percolation head, then turn the handle to the right until the lock position (2).

.Placeaslarge an empty container aspossible

under the filter holder.

.As soon asthe appliance reachesthe right

temperature, the temperature control indicator light (c) will come on. Turnthe function selector (b) to the position «.!:B» and allow all the water contained in the tank

to run through the machine.

.If necessary,interrupt this operation by

turning the function selector (b) to the position 0 to empty the container then resumethe operation.

Using the various;.fui;1ctionsof

c'1!'8J

your espresso~i.

1. ESPRESSOFUNCTION

.Forbest results, preheat the accessories

(filter holder, filter and cups)by running water directly into the cups (see«Before first

use»).

.When the cup are full of hot water, reset

the function selector (b) to the position O.

. Preparing an espresso with ground coffee:

.Fillthe water container with fresh, cold

water (1).

.Setthe «on/off» switch (h). The indicator

light (hl) will come on.

.Put the filter for one cup in the filter holder.

.Put some ground coffee in the filter, firmly

pressing down the ground coffee with the back of the spoon (1 measuring spoon = 1

cup) (3).

. Cleantheedgesofthefilterholder.

.Put the filter holder in place (2).

.Placeone espressocup under the filter

holder.

As soon asthe appliance reachesthe correct temperature, the indicator light (c)comes on.

.Then turn the function selector (b) to the

position «.!:B».

. Whenthecupsarefull,resetthefunction

selector (b) to the position O.

.Takethe filter holder out of the appliance,

and remove the ground coffee, holding the filter in placewith the gripper clamp (4).

The filter can now be refilled to prepare more espressos.

2. STEAM FUNCTION

The thumping noise which occurs while steam is being produced comesfrom the intermit- tent regulation of the pump and has no effect on the proper working of the appliance.

Caution: during and after use of the

machine, the metallic parts of the steam nozzle can become extremely hot.

. Preparing frothed and steamed milk for

a cappuccino. a latte or hot chocolate:

If you are making a cappuccino or latte, you

will need at least a 5oz. cup (150 ml).

. Cappuccino ISmade using 1/3 espresso,1/3

hot steamed milk and 1/3 frothed milk.

. Cafe latte is made using 1/2 espresso,1/2

steamed milk, and topped with a bit of

frothy milk.

. Hot chocolate: heat the milk if you are

using powdered chocolate. Then simply mix

the powder in the heated milk.

Please note: the sliding part (g2) of the

nozzle must be in the down position (5).

.Fillthe water container with fresh, cold

water (1)

.Set the «on/off» switch (h).The operating

light (h1) will come on.

.Move the nozzle towards the outside of the

appliance.

As soon as the appliance reachesthe

appropriate temperature, the temperature control indicator light (c)will come on.

.Placean empty container under the nozzle.

Return the nozzle to the inside and hold the container by its handle or place it on the grid

(i) (6)

. Then turn the function selector (b) to the

position «I!!.\J»until to obtain some steam

then reset it to the position 0 and remove the container.

.Immerse the tip of the nozzle in the milk to

be heated. Returnthe nozzle to the inside and hold the container by its handle or place it on the grid (i) (6)

KRUPS9

As soon as the appliance reaches the appropriate temperature, the temperature control indicator light (c) will come on.

0 Then turn the function selector (b)to the

position «6» until the milk isfrothed enough, then reset it to the position 0 and

remove the container.

0 Do the cleaningoperation Inorder to

prevent the nozzle from becoming blocked: place an empty container under the nozzle. then turn the function selector (b) to .the

position «6» again dUring few seconds.

. turn the function selector (b) to the position

clean the nozzlewith a damp cloth.

0 Forthoroughcleaningof the nozzle,please

refer to the paragraph «Maintenance».

. Heating water (for tea, for example) or

thick liquids (soup, for example)

Please note: the slidingpart (g2) of the

nozzle must be inthe raised position (5).

0 Fillthe water container with fresh, cold

water (1).

0 Set the «on/off» switch (h).The indicator

light (hl) comes on.

0 Movethe nozzletowardsthe outsideofthe

appliance.

Assoon as the appliance reaches the appropriate temperature, the temperature control indicator light (c)willcome on.

0 Placean empty container under the nozzle.

Return the nozzleto the insideand hold the container by its handle or placeit on the grid

(I)(6)

0 Thenturn the function selector (b)to the

position «6» until to obtain some steam

then reset itto the position 0 and remove the container.

0 Immersethe tip of the nozzle in the liquidto

be heated. Return the nozzle to the inside and hold the container by ItShandle or place

It on the grid (I)(6)

Assoon as the appliance reaches the

appropriate temperature, the temperature control Indicatorlight (c)willcome on.

0 Thenturn the function selector (b)to the

position «6» until the liquidis hot enough, then reset it to the position0 and remove the container.

10 KRUPS

0 Forliquidsother than water, do the cleaning

operation in order to prevent the nozzle from becoming blocked:

place an empty container under the nozzle.

. then turn the function selector (b)to the

position «6» again during few seconds.

. turn the function selector (b)to the position

. clean the nozzle with a damp cloth.

0 Forthorough cleaning of the nozzle, please

refer to the paragraph «Maintenance»

Notes Ifyou wish to make an espresso

immediately after steam, the appliance

must first cool down until it reaches the right temperature for extraction.

0 To do this, insert an empty filter holder (no

coffee) in the machine and position a

suitable container beneath it Then turn the

function selector (b) to the position «~».

0 Letthe water run through until the Indicator

light (c)goes out Then, turn the function selector (b) to the position 0

After this, the machine isnow readyonce more to make an espresso (see paragraph «espresso function)}).

Please note: when the appliance isrunning, and also afterwards, the nozzlewill be very

hot Allowtime for the appliance to cool

down to prevent scalding or burning.

Maintenance

0 Unplugthe appliance and allow It to cool.

0 Never wash the accessories for your espresso

in the dishwasher.

0 Clean the body of the appliance with a

damp cloth.

After use, the water tank must be emptied.

. The drip tray (j)

0 Each time an espresso ISprepared, the drip

tray fills with water. This ISperfectly normal. To prevent any overflow, remove the grid (7)

and empty the drip tray regularly.

0 Ifnecessary,clean the drip tray and the grid

with water and a littlenon-abrasive washing-up liquid, rinse and dry.When

replacing, return the plastic blocksituated at

the back of the tray (8)

. The percolation head, the filter holder

and the filters These must be cleaned after every use. Simply

run a damp cloth over the percolation head and clean the other accessorieswith water

and a smallquantityofnon-abrasiveliquid

cleanser. Rinseand dry.

0 Ifthe percolationhead becomesheavily

encrusted, unscrew its grid using a coin, clean it and replace, tightening itfirmly(9).

0 The seal for the percolation head

When you are not using your espresso, do not

leave the filter holder in the appliance in order to prevent wear on the seal.

0 Cleanthe sealregularlyusinga dampcloth.

0 The steam nozzle (g)

0 Itmustbe cleanedwitha dampclothafter

everyuse.

Please note: it may still be very hot! Formore thorough cleaning, the nozzlemay

be taken off (10):

0 Unscrewthe tip (g1), if necessary using a

coin.

0 Separate the variouscomponents and clean

them with hot water and a small quantity of non-abrasive liquid cleanser. Rinse and dry.

olf need be, unblock the tip (gl) using a fine

needle.

Descaling

It is vital that you descale your espresso

machine in order to guarantee its continued

operation

0 Descaleyour espresso at regular intervals

uSing citric or tartaric acid.

We do, however, advise you to use the Krups descaling accessory, reference 054, which is available from approved Krups service centers. This accessory includes, in addition to two doses of descaler, a water hardness test strip to evaluate the frequency of descaling for your appliance in normal use The amount of scaling depends on the hardness of the

water, but also on how often it is used. The frequency of descaling indicated by accessory

054 is thus given by way of Indication only. You must never, under any circumstances, use

classic sulfuric acid or other products

containing this acid as there is a riskof damaging the appliance. Carefullycheck the composition of the descaling products you intend to use.

- Then use the following method:

0 Unscrewthe grid of the percolation head

and clean it (9).

0 Dissolve2 tablespoons of descaler or one

packet of accessory 054 in half a liter (16 oz) of lukewarm water and pour the mixture into the empty water tank.

0 Set the «on/off» switch (h).The indicator

light (h1) comes on.

Once the appliance reaches the appropriate temperature, the temperature control indicator light (c) comes on.

0 Placea container under the percolation

head. Run through about 1/3 of the mixture, setting the function selector (b) to the position <dE».

0 Set the «on/off» switch (h).The indicator

light (h1) comes off and wait 10 to 15

minutes to allow the descaler to take effect.

.Then set the «on/off» switch (h). The

indicator light (h1) comes on.

0 With the function selector (b) in the position

<dE», allow the remainder of the mixture to run into the container placed under the percolation head.

0 Then reset the function selector (b)to O. 0 Runtwo tanks offresh water through to

rinse the percolation head. To do this:

. fillthe tank

. place a container under the percolation

head, set the function selector (b) to <dE»

and allow the content of the tank to run

through.

. then set the function selector (b) to O.

0 Set the «on/off» switch (h).The indicator

light (h1) comes off

. replacethe gridon the head of the appliance

(see paragraph «Maintenance») (9).

Notes:

In the case of serious scaling, soak the grid of the percolation head for 5 minutes in 1/3 of the mixture obtained during the first run- through.

If necessary, this operation can also be

performed with the steam nozzle:

KRUPS11

.Todo this, dismantle the nozzle as instructed

inthe paragraph «Maintenance» and soak the scaled parts for 5 minutes in 1/3of the mixture obtained during the first run- through. Rinsethe variousparts thoroughly before replacing them

Problems,likely causes and corrective actions

12KRUPS

Problems Probable Corrective

causes actions

Espressonot

Theaccessories

Pre-heatthe

hotenough

arecold accessories (cups.filter Seetheparagraph

andfilterholder).

«Preparingan espresso».

Theapplianceis

Waitforthe

nothotenough. indicatorlight

(c)tocomeon.

Leakingcoffee

Thefilterholder

Seeparagraph

aroundthefilter isnotfitted

«Preparingan

holder

correctly.

espresso». ThereISresidual Cleanaround coffeeontheedge

thefilterandthe

ofthefilter

seal.

Thesealofthe

Cleantheseal

percolationhead withadamp isdirty.

cloth

Thesealofthe Contactan percolationheadIS

approvedKRUPS

defective servicecenter

Veryloudnoise

Nowaterinthe Fillthetank.

pump. comingfromthe

tank. Tankincorrectly Pressfirmlyon

fitted. thetank

Groundcoffeetoo

Usefreshly

oldordry. groundcoffee Waterdoesnot Nowaterinthe Fillthe flowproperly.

tank. tank

Tankbadly Pressfirmlyon

fitted. thetank

Waterdoesnot Thefilteris Cleanthefilter flowproperly.

blocked-the

andthegridof

groundcoffeeis thepercolation toofineor head.Seethe

compacted

paragraph

tootightly.

«Maintenance)}

andtryuSinga coarserground coffee.

Gridofthe

Putthegildto

percolationhead

soakinthe

isclogged descaling

solution.Seethe paragraph

«Descaling»

Appliancescaled SeetheParagraph

«Descaling».

Waterpasses

Groundcoffeetoo

Tryafiner

tooqUickly.

coarse.

groundcoffee

Insufficientquan-

Usethespoon

tyofground

suppliedto

coffee. measureoutthe

coffee

Groundcoffeenot

Compactthe

compacted. groundcoffee

more.

Theespressohas

Groundcoffee

Tryusingafiner

nohead(crema

toocoarse.

groundcoffee.

on thecoffee)

Groundcoffeenot

Compactthe compacted groundcoffee enough.

more Groundcoffeeold Useafresh ortoodry. groundcoffee.

Insufficient

Steam!cappuccino

Seeparagraph

foamonmilk.

nozzleblocked

«Maintenance» Milktooold. Usefreshmilk Milkislukewarm. CoolmilkIn

therefrigerator

Residualwater

Groundcoffeenot

Compactthe

intheground

sufficientlycompac- groundcoffee

coffee. ted.

Insufficient

Increasethe

quantity quantityof ofgroundcoffee. groundcoffee

Thereiswater

Thedriptray Emptyit regularly

aroundthe

isoverflowing

appliance

Limited.,ODeYear;Warr:anty

Your KRUPS# FNP1IScovered by the following warranty:

If within one yearfrom date of purchase this

KRUPSproduct fails to function becauseof

defects in materials or workmanship, KRUPS

North America will, at its option, repair or replace the unit without charge, provided the

owner has a proof of date of purchase. Thiswarranty will be void if malfunction was

caused by damage to the product by accident,

misuse, use on frequency or voltage other

than marked on the product and/or described

in the instructions, abuse including tampering, damage in transit, or usefor commercial purposes. This warranty gives you specific legal rights, and you may also haveother rights which may varyfrom state to state.

KRUPS13

-n ------

GUARANTEE OF PERFORMANCE

Thisfine KRUPSproduct is manufactured accordingto a rigid code

of quality standards, and, with minimum care, should give years of service. However, should the need arise for repairs or for replacement parts within or after the warranty period, please call

our CONSUMER SERVICE DEPARTMENT:

USA: (800) 526-5377

24-hours a day, 7 days a week

Canada: (905) 669-0114

Monday-Friday 8:00 a.m - 4:30 p.m

You will be provided with specific instruction on how to get your

product repaired.

The department will also be able to answer any general product

questions you may have.

Beforecallingthe ConsumerServiceDepartment, please havethe

type number of your KRUPSappliance available. You must have this information before calling our Consumer

Service Department so that we may better answer your questions.

The type number can be located by looking at the bottom of your

appliance.

This product is Type #FNP1

Any general correspondence can be addressed to:

USA:

KRUPSNorth America, Inc. P.O.Box 3900

Peoria, IL61612

Canada: KRUPSService

20 Caldari Rd Concord, Ontario

L4K4N8

14KRUPS

ESPREMIOAUTO-CAPUCCINO

c a

d e-

T I~I \\~

Description

Instructionsfor steam function and Auto cappuccino use and

maintenance

1. STEAM FUNCTION

The thumping noise which occurs while steam is being produced comes from the intermit- tent regulation of the pump and has no effect on the proper working of the appliance,

Caution: during and after use of the machine, the metallicparts of the steam nozzle can become extremelyhot

.Preparing frothed and steamed milk for

a cappuccino. a latte or hot chocolate: The steam function together with the Krups

auto cappuccino accessory makes it easy to obtain milkwith varyingamounts of froth for

making a cappuccino, a latte or hot chocolate.

These liquidsare drawn in through the flexible tube (g3) and heated with the aid of steam

before coming out viathe outlet nozzle (g4) of the auto cappuccino accessory(g).

KRUPS

Ifthe flexibletube (g3) isimmersed directlyin a carton of milk,a single cup isenough to prepare a cappuccino or a latte. Youcan adjust the amount of froth of the milkby using the dial(g2) of the auto cappuccino accessory(g),

It ISbest to use fresh, skim or low-fat milk,not boiled, and wellchilled(kept in the

refrigerator),Thecontainermustalsobecold

for optimal results (do not run the container under hot water before frothing the milk)

We recommend that youclean the auto cappuccino accessory immediatelyafter use,

Ifyou are making a cappuccino or latte, you willneed at least a 5 oz, cup (150 ml),

. Cappuccino is made using 1/3 espresso, 1/3 hot steamed milkand 1/3 frothed milk,

. Cafe latte ismade using 1/2 espresso, 1/2 steamed milk,and topped with a bit of frothy

milk. . Hot chocolate: immerse the flexibletube directlyinto the carton if the chocolate milkis

ready-made, or heat the milkifyou are using powdered chocolate. Then simplymixthe powder inthe heated milk.

2. AUTOCAPPUCCINO

- Using the auto cappuccino accessory (g):

.Fill the water container with fresh, cold

water (1)

.If the unit is not already turned on, set the

on/off switch (h). The operating light (h 1) will come on.

.Turnthe selector (b)to the setting « IVU».

.Open the dial (g2) to obtain a fine smooth

froth (5a).

.Slightlyclosethe dial (g2)to obtain a less

frothy milk(5b).

.the qualityof the froth depends on the

opening or the closingof the dial (g2) (5c).

.Immersethe flexibletube (g3) in the milkto

be heated. The tube must touch the bottom of the container (6a).

.Placea cup one third filledwith freshly-

made espresso (6b) under the outlet nozzle

(g4).

Once the appliance reaches the correct temperature, the temperature control indicator light (c)comes on.

a Lid+ water tank b Function selector c

Temperature control indicator light

Percolationhead

Levelindicator of water

Filterholder

filter for one cup (ground coffee)

Auto cappuccino accessory

steam tube

dial

flexibletube

outlet nozzle

On /Off switch

operating indicator light

Grid

j Driptray

Measuring spoon

.Turn the selector (b) to the setting « \!!lJ».Hot

frothy milk will come out of the outlet nozzle.

.Once you have obtained the desired

quantity of frothy milk,turn the selector (b)

to the 0 setting.

.After use, remove the flexible tube (g3)

from the container and clean the auto cappuccino accessory.

- Cleaning the auto cappuccino accessory (g) :

After each use, we recommend that you rinse the auto cappuccino accessoryin the

following manner:

.Turn the selector (b) to the position « MI».

. Open the dial (g2). . Immerse the flexible tube (g3) into a glass of

water. (The minimum quantity necessary is 3,5 ounces/1 00 ml)

.Place an empty container below the outlet

nozzle (g4).

Once the appliance reachesthe correct temperature, the temperature control light(c)

willcome on.

.Then turn the selector (b) to the setting

«I!"J».

.When all the water has run through the auto

cappuccino accessory (g), turn the selector (b)to the 0 position.

.After use, remove the flexible tube (g3) from

the glass.

.Once this operation is completed, clean the

outlet nozzle (g4) with a damp cloth.

We recommend that you regularly dismantle the auto cappuccino accessory (g) and clean it

with water, a little non-abrasive dishwashing

liquid and a small brush. Rinse and dry before

reassembling it (11).

Be careful to mount the flexible tube (g3)

the right way: engage the straight cut end

into the auto cappuccino accessory (g).

Following these maintenance gUidelines will keep your appliance in optimal working condition and help you to produce great

tasting beverages time after time.

KOUPS35

Krups ESPREMIO AUTO CAPPUCINO, Espremio FNP1, Espremio Auto cappuccino FNP2, ESPREMIO Instructions For Use Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
