Page 1

UFM 3030

Technical Datasheet

The universal 3-beam in-line ultrasonic flowmeter for liquids

• Independant of conductivity, viscosity, temperature, density and pressure

• No moving or intruding parts, therefore no pressure loss or wear

• Minimal operational and maintenance costs

Page 2

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

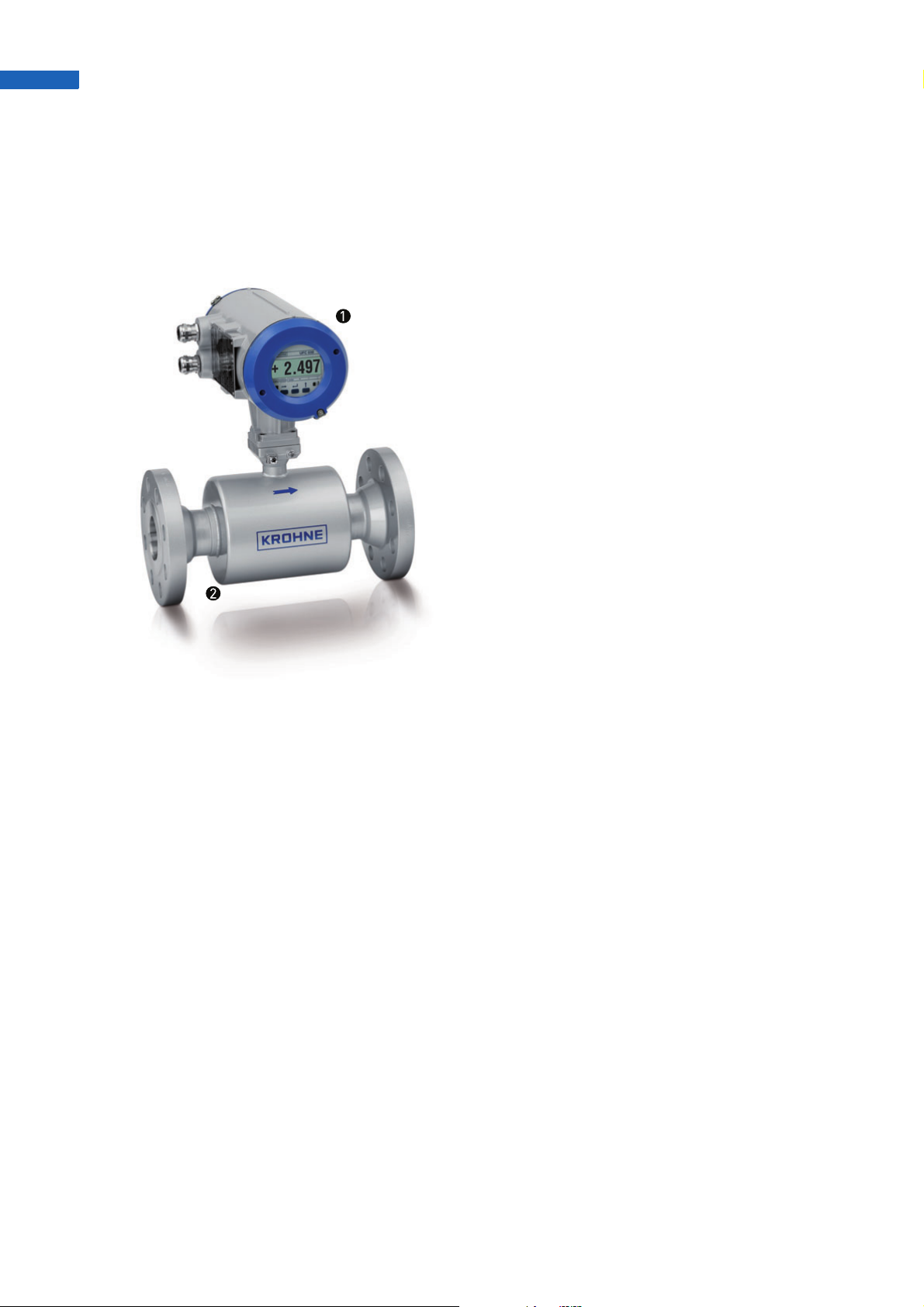

Standard solution in the process industry

UFM 3030 is a 3-beam ultrasonic flowmeter for liquids. UFM 3030 measures independent of conductivity, viscosity, temperature, density and pressure.

Highlights

Three beams generate a measurement effectively

•

independent of flow profile

• Major performance improvement by applying

innovative electronics and digital signal processing (DSP)

• Optional pressure and temperature inputs for

calculation of standardised volumetric flow or mass flow according to API 2540 or customer specifics

• Over 20.000 ultrasonic flowmeters installed

worldwide

• Easy to install and operate

• No moving or intruding parts, no wear, no drift,

therefore no additional pressure loss

• No material build-up as unobstructed flow sensor

with smooth surface finish

• No periodic re-calibration or maintenance

• Insensitive to corrosive or abrasive products

1 Intelligent DSP software

2 No moving parts

• Excellent long-term stability and reliability

Industries

• Chemicals

• Petrochemicals

• Oil & Gas

• Heating, Ventilation & Air Conditioning (HVAC)

• Power Plants

• Water

Applications

• Metering of cooling water and demineralised

water

• Control of batching and blending operations

• Mass flow measurement

• Allocation measurement

• District heating

• Irrigation

• Energy measurement

www.krohne.com 2

Page 3

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

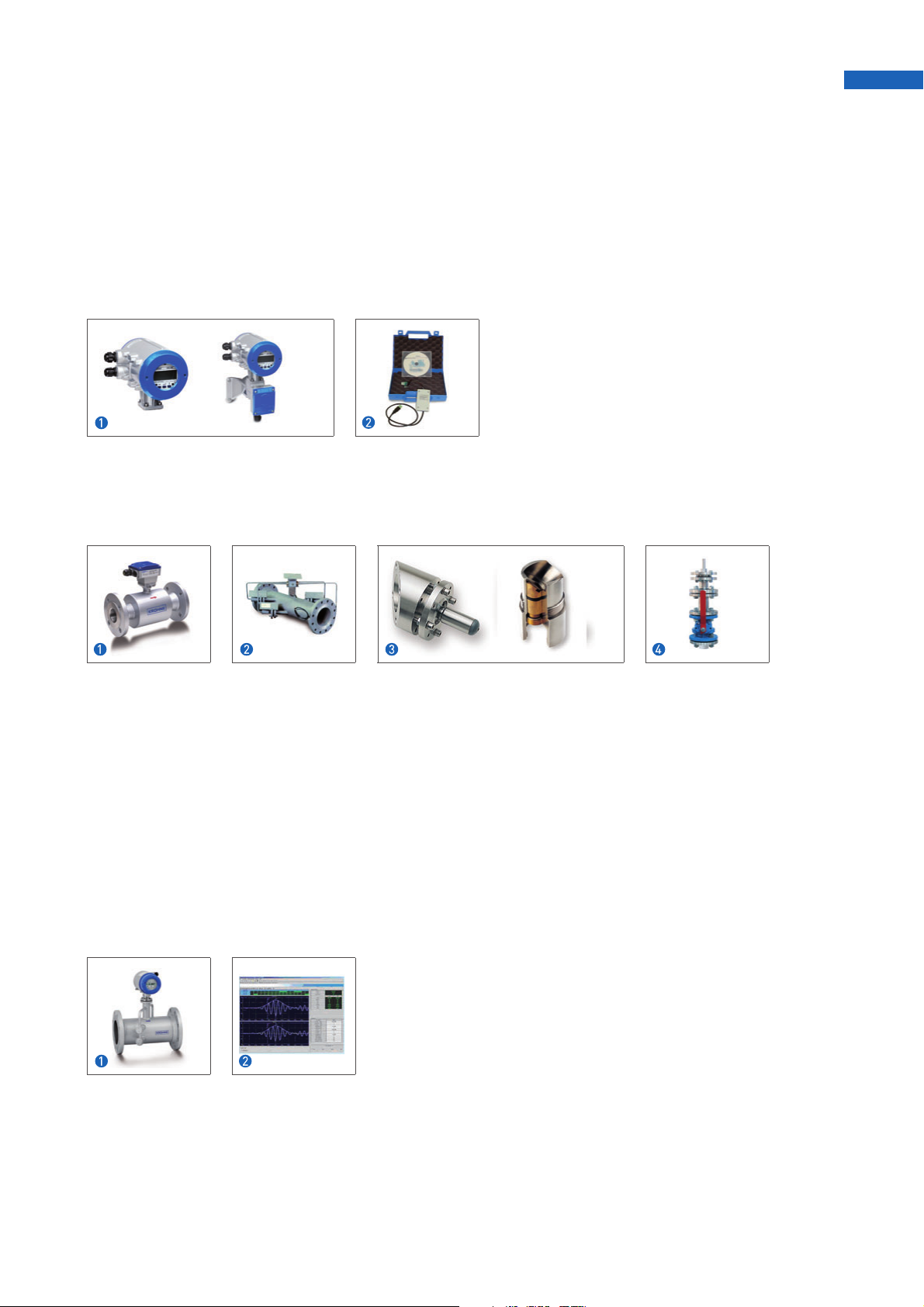

In-line Ultrasonic process flowmeter family

The UFM 3030 liquid process flowmeter consists of a UFS 3000 flow sensor and a flow converter, UFC 030. A UFS 3000 flow sensor can be build together with a UFC 030 flow converter as a compact flowmeter or can be installed separate as a field version.

UFC 030 flow converter

1 The flowconverter is fully digital and fitted with a digital signal processor and advanced software for optimal performance

2 For in-depth analysis of application and evaluation of flowmeter performance, the soundcheck interface and software is available

Ultrasonic liquid flow sensor family

1 The UFS 3000, the universal ultrasonic flowsensor for liquids

2 For extreme high or low temperature applications from -170 up to 500 deg. C, the UFS 500 HT/LT flowsensor is available

3 For open channels or onsite welding in of sensors the UFS 800 C (for open channels) or OPTISONIC 800 W (weld in) are available. De-

pending on the pipe size the UFS 800 W can be fitted with 1, 2 or even 3 sensor pairs for optimal measurement performance

4 For piping that can not be drained, the UFM 800 HT (hot tap) is available. The UFM 800 HT can be fitted in 1, 2 or 3 path configuration

depending on the pipe size, while the pipe remains filled and pressurized

The OPTISONIC 7060 C is a process gasflowmeter with a wide application range that can be used under harsh conditions. The OPTISONIC 7060 C consists of a flow sensor, OPTISONIC 7000 and a flow converter UFC 060. Standard the OPTISONIC 7000 is build together with a UFC 060 as a compact flowmeter

OPTISONIC 7060 C process gas flowmeter

1 The OPTISONIC 7060 C: a robust flow sensor combined with the UFC 060 flow converter, with a digital signal processor for optimal

performance

2 The converter provides a range of diagnostics parameters. A software package is available for configuration, visualisation and analysis

of diagnostics information

www.krohne.com 3

Page 4

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Technical data

Versions

UFM 3030 K (Compact version) UFC 030 K ultrasonic flow converter directly mounted on the UFS 3000 ultrasonic flow sensor

UFM 3030 F (Separate version) UFC 030 F ultrasonic flow converter is remotely mounted from the UFS 3000 ultrasonic flow sensor

Performance

Measurement functionality Actual volume with simple single stage batching function (standard)

Corrected or standardized volume flow rate to API 2540 or customer specified (optional)

Customer specified mass flow (requires customer data) (optional)

Thermal energy measurement (optional)

Measuring range v = 0 to 20 m/s (0 ft/s to 66 ft/s)

Measuring error (under reference conditions)

Repeatability (under reference conditions)

Process conditions Maximum solid particle content < 5% (by volume)

v = 0,5 to 20 m/s (1.5 to 60 ft/s): < ± 0.5% of measured value

v < 0,5 m/s (1,5 ft/s): < ± 2.5 mm/s (± 0,1 inch/s) of measured value

± 0,2% of measured value

Maximum gas content < 2% (by volume)

Communication

HART® Standard

Profibus PA Optional

Approvals

EEx zone 1 (ATEX)

- UFS F 3000/F-EEx II 2 G EEx ib IIC T6 …T3

- UFC 030/F-EEx II 2 G EEx d [ib] IIC T6 or II 2 G EEx de [ib] II C T6

- UFC 030/F/i-EEx II 2 G EEx d [ia/ib] IIC T6 or II 2 G EEx de [ia/ib] II C T6

- UFM 3030 K-EEx II 2 G EEx d [ib] IIC T6 …T3 or II 2 G EEx de [ib] II C T6 … T3

- UFM 3030 K/i-EEx II 2 G EEx d [ia/ib] IIC T6 …T3 or II 2 G EEx de [ia/ib] II C T6 … T3

FM FM Class I, Div. 1 & 2, Groups A, B, C & D

FM Class II, Div. 1, Groups E, F & G and Div. 2, Groups F & G

FM Class III, Div. 1 & 2

CSA CSA Class I, Div. 1 & 2, Groups A, B, C & D

CSA Class II, Div. 1 & 2, Groups E, F & G

CSA Class III, Div. 1

EN 1434 Germany: DIN EN1434:1997 + A1:2002, PTB-7.6-4016306

Switzerland: SN EN1434:1997, METAS ordungs nummer 216, class 2/3

Protection category

IP 67 eq. NEMA 6 / 6P Standard for separate and compact versions

IP 65 eq. NEMA 4 / 4X Optional for separate versions

IP 68 eq. NEMA 6P Optional for separate versions

According to IEC 529 (EN 60 529).

Temperature range Process temp. [ºC] Ambient temp. [ºC]

min. max. min. max.

Compact -25 140 -40 65

Separate -25 180 -40 65

www.krohne.com 4

Page 5

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

Temperature range Process temp. [ºC] Ambient temp. [ºC]

min. max. min. max.

XT version* -25 220 -40 65

HT version ** -170 500 -40 65

* Up to DN 150/6" only.

** special version on request only

Temperature range Process temp. [ºF] Ambient temp. [ºF]

min. max. min. max.

Compact -13 284 -40 149

Separate -13 356 -40 149

XT version* -13 428 -40 149

HT version** -274 932 -40 149

* Up to DN 150/6" only.

** Special version on request only

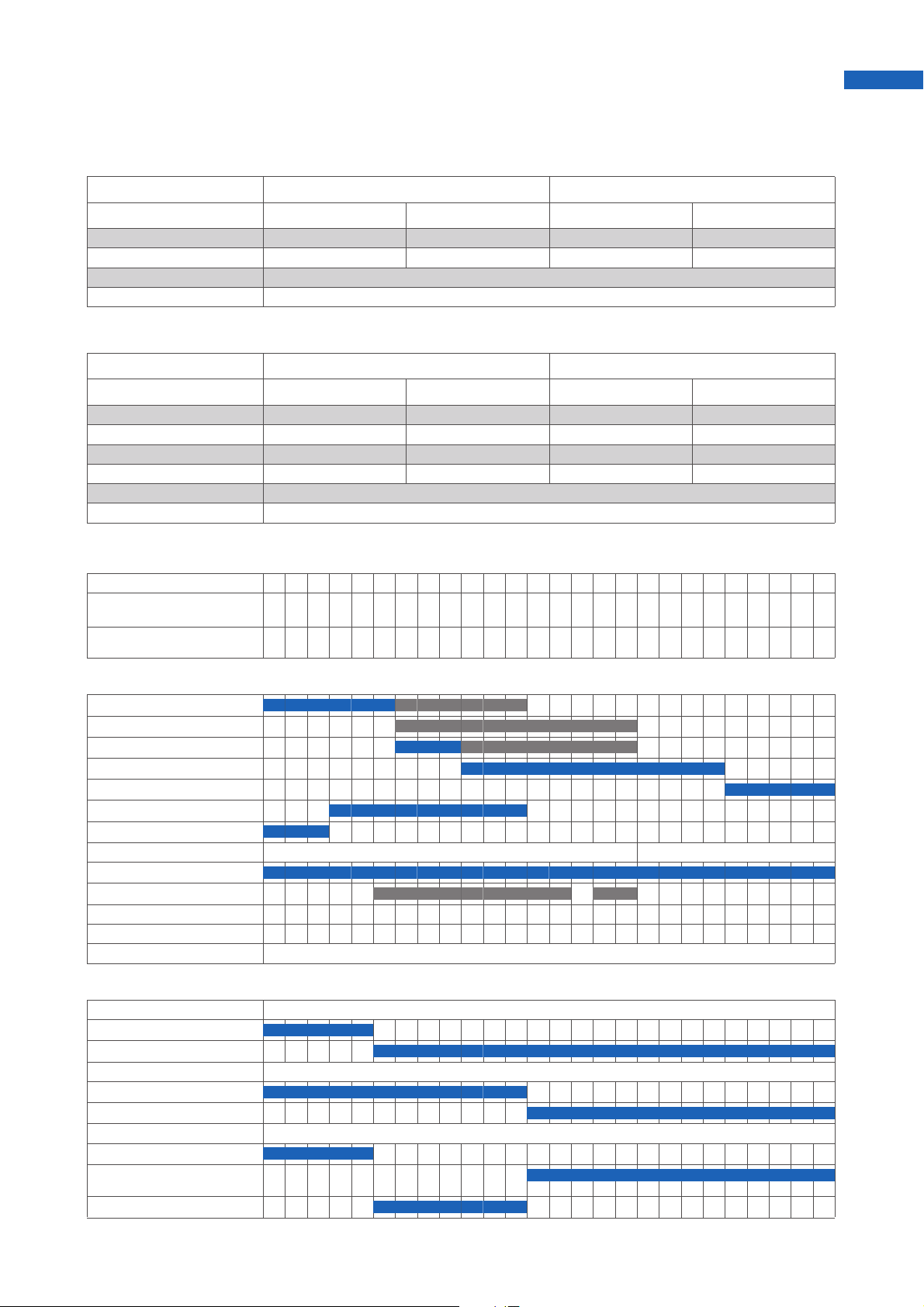

Nominal diameter

ASME [inch]

11/4"

DN [mm]

1,5"2"2,5"3"4"

10"

12"

14"

100

125

150

200

250

300

350

Nominal flange pressure

DIN 2635 - PN 40

DIN 2634 - PN 25

DIN 2633 - PN 16

DIN 2632 - PN 10

DIN 2631 - PN 6

JIS 10 K

JIS 20 K

ASME B16.5 ASME B16.47, A

150 lbs RF

300 lbs RF -

600 lbs RF/RTJ

900 lbs RF/RTJ

Other combinations of diameter/pressure class on request.

Materials

Flanges

- Stainless steel 1.4404 (AISI 316 L)

- Carbon steel

Measuring tube

- Stainless steel 1.4404 (AISI 316 L)

- Carbon steel

Housing

- Stainless steel 1.4404 (AISI 316 L)

- Stainless steel 1.4404 (AISI 316 L)*

- Carbon steel

16"

400

18"

450

20"

500

24"

600

28"

700

32"

800

36"

900

40"

1000

48"

1200

56"

1400

64"

1600

72"

1800

80"

2000

www.krohne.com 5

Page 6

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Nominal diameter

ASME [inch]

11/4"

DN [mm]

Connection box

- Aluminum, polyurethane coated

- Stainless steel

Transducer window

- Stainless steel 1.4408 (AISI 316 L)

Finish

Standard paint, silver

Offshore paint system, silver

Calibration

On 2 points, with water

According to RvA

1,5"2"2,5"3"4"

* Individual external transducer housing.

Other paint systems on request.

10"

12"

14"

16"

18"

20"

24"

28"

32"

36"

40"

48"

56"

64"

72"

80"

100

125

150

200

250

300

350

400

450

500

600

700

800

900

1000

1200

1400

1600

1800

2000

Protection category

IP 67 eq. NEMA 6

IP 68 eq. NEMA 6P (UFS 3000 F)

Sensor cable

Connection

- M20 x 1,5

- 1/2" NPT

- PF 1/2

Cable length

- 5 m / 15 ft

- 10 m / 30 ft

- 15 m / 45 ft

- 20 m / 60 ft

- 25 m / 75 ft

- 30 m / 90 ft

According to IEC 529.

For separate versions only.

J standard J optional U on request

www.krohne.com 6

Page 7

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

UFC 030 converter

General The converter has a backlit local display with three push buttons. All operation can be done by push button or using a

hand-held bar magnet, without opening the converter housing.

Applied materials

Converter housing

- Die-cast aluminum Standard

- Stainless steel 316 L (1.4404) Option

Finish

Standard paint, silver Standard

Offshore paint system, silver Option

Other paints on request

Protection category

IP 67 eq. NEMA 6 Standard

to IEC 529

Functionality

Continuous measurement of actual volume flow rate and actual volume total

HART® communication Standard

Flow direction (forward or reverse) Standard

Velocity of Sound (VOS) Standard

Signal strength Standard

Self diagnostics Standard

Simple single stage batching Standard

Corrected or standardized volume flow rate to API 2540 or customer specified

Customer specified mass flow (requires customer data)

Profibus PA Option

Thermal energy measurement Option

Standard

Option

Local display

Operation With cover removed, all display operations incl. changing

3-field LCD The converter has a backlit local display with 3 push

Parameters Standard Actual volume flow rate in m3, barrels, liters, US gallons

Standard Actual volume total in m3, barrels, liters, US gallons or

Option Velocity of sound in m/s or ft/s

Option Errors (flashing display and error code)

Option Signal strength (in dB)

Standard Corrected standard volume flow rate in m3, barrels, liters,

Option Calculated mass flow rate in user defined mass unit

settings and parameters can be done using the push buttons. With cover in place the measured values and (error) messages can be viewed. Error resetting is still possible; in this case only with the help of an hand-held bar magnet.

buttons. 1st line 8 character 7 segment alphanumeric display and symbols for key acknowledgement 2nd line 10 character, 14 segment text display 3rd line 5 markers to identify display in measuring mode

or user defined volume unit per hour, minute, second, or user defined time unit

user defined volume unit (positive, negative, and sum totals), minimum 1 year overflow time

US Gallons or user defined volume unit per hour, minute, second or user-defined time unit

www.krohne.com 7

Page 8

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Option Corrected standard volume total in m3, barrels, liters, US

Option Calculated mass total in user defined unit, minimum 1

Option Analog input in °C, °F, bar or psig

Option Thermal power

Option Thermal energy totalized

Languages

- English Standard

- German Standard

- French Standard

Gallons or user defined corrected volume unit, minimum 1 year overflow time

year overflow time

Galvanic isolation

Standard All inputs and outputs are galvanically isolated from the power supply, but not from each other

Optional Namur NE 43, pulse/status outputs and analog 4-20 mA output fully galvanicallty separated

Time-constant

0.025...99 seconds (programmable in increments of 0.01; 0.1 and 1.0 seconds)

Low-flow cut-off

cut-off active value 1...19%, programmable in increments of 1%

cut-off deactive value 2...20%

Power supply

Mains supply 100…240 V AC (48...63 Hz) +10% / -15%

Low voltage supply 24 V (AC or DC), AC: -10% / +15%, DC: 18...35 V

Power consumption 10 VA / 10 W

Standard

Option

Cable connection

M20 x 1,5 Standard

1/2" NPT Option

PF 1/2 Option

(for power supply and signal cables)

Current output

Function Standard Continuous measurement of actual volume flow rate

Standard Flow direction indication (forward or reverse)

Standard Velocity of Sound (VOS)

Standard Transducer signal gain (dB)

Option Corrected or standardized volume flow rate to API 2540 or customer specified

Settings for Q = 0% 0...16 mA programmable in increments of 1 mA

for Q=100% 4...20 mA

Connection Active mode using internal power supply 24 V DC, load ≤ 680

Passive mode external voltage 18 ... 24 V DC, load ≤ 680 Ohm

(Limit 20...22 mA)

Ohm

Pulse output

Function Pulse output

Pulse per volumetric unit (m3, barrels, liters, US gallons or user defined volume unit per hour, minute, second or user defined time unit)

www.krohne.com 8

Page 9

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

Standard Actual volume

Option Corrected or standardized volume to API 2540 or customer specified

Option Customer specified mass (requires customer specific density input)

Option Thermal energy measurement

Frequency output

Pulse rate

Standard Continuous measurement of actual volume flow rate

Standard Velocity Of Sound (VOS)

Standard Transducer signal gain (dB)

Standard Pressure or temperature indication based on analog input (1) or (2)

Option Corrected or standardized volume flow rate to API 2540 or customer specified

Option Customer specified mass flow (requires customer specific density input)

Status output

Standard Diagnostics alarm path errors, totalizer overrun, all errors, analog input

Standard Flow direction indication (forward or reverse)

Standard Batch volume reached

Standard Alarm trip point (high and low) based on actual volume flow rate

Settings Pulse output Pulse/unit (max. 2000 Hz) (example 1000

Frequency output 0...2000 Hz (example Q0% - 0 Hz, Q100% - 1000

Status output On or Off

Connection Pulse, frequency and status output

Active Connection to electronic counters using internal

Passive Connection to electronic (EC) or

pulses/barrel) pulse duty cycle 25, 50, 100, 200, or 500 ms for frequency < 10 Hz

Hz) at 100% of scale value, max. frequency = 2 kHz

power supply 24 V DC / I ≤ 50 mA

electromechanical counters (EMC) external voltage 19...32 VDC / I ≤ 150 mA

Analog input

Function Option Corrected volume version: inputs to connect temperature and pressure signals for the corrected

Setting Standard Input A1 For volume correction, unit °Celsius or

Option Input A2 For volume correction (pressure), unit bar or psi

Connection Input A1 4…20 mA for temperature sensor

Option Thermal energy measurement: inputs to connect two temperature sensors for measurement of

Setting Standard Input A1 For heat measurement (temperature), unit °C or

Standard Input A2 For heat measurement (temperature), unit °C or

Connection Input A1 4...20 mA for temperature sensor

standard volume, acc. to API 2540, user defined volume or mass flow

°Fahrenheit

Temperature for 4...20 mA, max. temperature range -50...150°C (-58...302°F)

Pressure for 4...20 mA, max. pressure range 100 Bar (1450 psi)

Active (using UFC 030 24 V DC power) or passive, Load 58 Ohm

Input A2 4...20 mA for pressure

Active (using UFC 030 24 V DC power) or passive, Load 58 Ohm

temperature difference to calculate thermal energy

°F

Temperature for 4...20 mA, max. temperature range -50...150°C (-58...302°F)

°F

Temperature for 4...20 mA, max. temperature range -50...150°C (-58...302°F)

Active (using UFC 030 24 V DC power) or passive, Load 58 Ohm

www.krohne.com 9

Page 10

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Input A2 4...20 mA for temperature

Active (using UFC 030 24 V DC power) or passive, Load 58 Ohm

Control input

Function Option Reset totalizer

Option Acknowledge errors

Option Force outputs to zero

Option Initiate batch (see operating instructions for description of this function)

Setting On or Off

Connection Input voltage (Uin) Low: Uin < 5 V (off)

High: Uin > 15 V (on)

Max.: Uin = 32 V

www.krohne.com 10

Page 11

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

Dimensions and weights

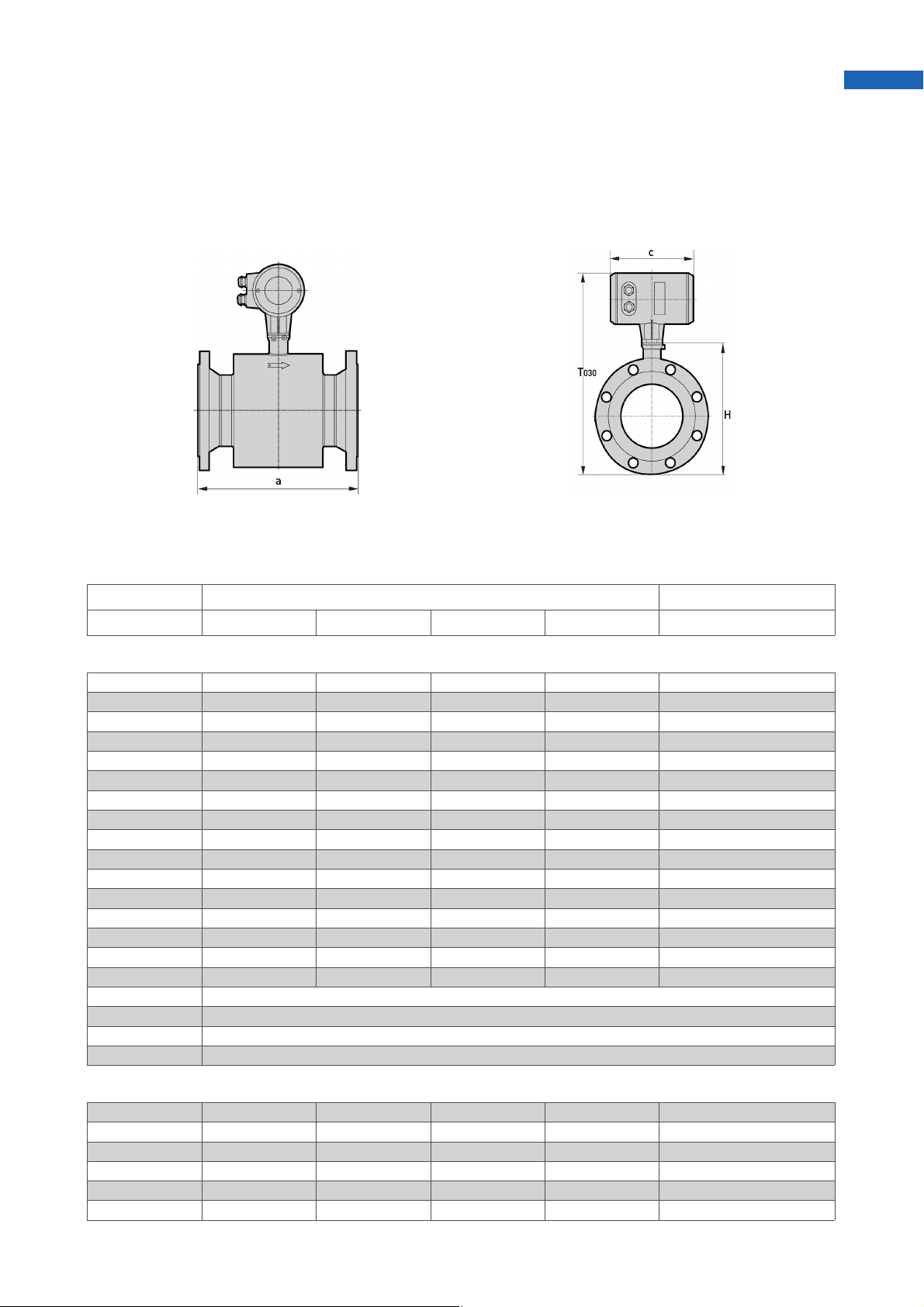

UFM3030 Frontview UFM3030 Sideview

Nominal size Dimensions [mm] Approx. weight

DN a c H T 030 [kg]*

ASME 150 lbs

1" 250 206 146 331 6,5

1 1/4" 260 206 152 337 7,5

1 1/2" 270 206 157 342 8,5

2" 300 206 183 368 12,5

2 1/2" 300 206 196 381 16,5

3" 350 206 234 419 17,5

4" 350 206 266 451 23,5

5" 350 206 290 475 27,5

6" 400 206 317 502 35,5

8" 400 206 395 580 66,5

10" 500 206 451 636 74,5

12" 500 206 514 699 104,5

14" 700 206 554 739 119,5

16" 800 206 612 797 158,5

18" 800 206 656 841 175,5

20" 800 206 713 898 210,5

Inner diameters based on schedule standard.

*Approx. weight of flow sensor in separate (F) version.

For compact (K) version: add 1,8 kg (4,0 lbs).

Weight of converter in separate (F) version: 3,5 kg (7,7 lbs).

ASME 300 lbs

1" 250 206 155 340 7,5

1 1/4" 260 206 160 345 8,5

1 1/2" 270 206 170 355 10,5

2" 300 206 189 374 14,5

2 1/2" 350 206 202 387 18,5

3" 350 206 244 429 21,5

www.krohne.com 11

Page 12

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Nominal size Dimensions [mm] Approx. weight

DN a c H T 030 [kg]*

4" 400 206 279 464 32,5

5" 400 206 303 488 41,5

6" 450 206 336 521 53,5

Inner diameters based on schedule standard.

*Approx. weight of flow sensor in separate (F) version.

For compact (K) version: add 1,8 kg (4,0 lbs).

Weight of converter in separate (F) version: 3,5 kg (7,7 lbs).

DIN

25 250 206 150 335 6,5

32 260 206 162 347 8,5

40 270 206 167 352 9,5

50 300 206 190 375 12,5

65 300 206 200 385 15,5

80 300 206 239 424 16,5

100 350 206 262 447 18,5

125 350 206 288 473 22,5

150 350 206 320 505 27,5

200 400 206 394 579 50,5

250 400 206 445 630 60,5

300 500 206 495 680 75,5

350 500 206 540 725 68,5

400 600 206 595 780 89,5

500 600 206 697 882 117,5

Inner diameters based on schedule standard.

*Approx. weight of flow sensor in separate (F) version.

For compact (K) version: add 1,8 kg (4,0 lbs).

Weight of converter in separate (F) version: 3,5 kg (7,7 lbs).

Calculations are based on using spiral wound gaskets

Nominal diameter

[inch] [lbs] Tube Flange 20°C 140°C 180°C 220°C

Nominal

pressure

Standard material Design pressure (bar)

Design pressure ASME 150 lbs

1" 150 SS 316 L SS 316 L 19,7 16,2 14,7 13,2

1 1/4" 150 SS 316 L SS 316 L 19,7 16,2 14,7 13,2

1 1/2" 150 SS 316 L SS 316 L 19,7 16,2 14,7 13,2

2" 150 SS 316 L SS 316 L 19,7 16,2 14,7 13,2

2 1/2" 150 SS 316 L SS 316 L 19,7 16,2 14,7 13,2

3" 150 SS 316 L Carbon steel* 19,7 16,2 14,7 13,2

4" 150 SS 316 L Carbon steel* 19,7 16,2 14,7 13,2

5" 150 SS 316 L Carbon steel* 19,7 16,2 14,7 13,2

6" 150 SS 316 L Carbon steel* 19,7 16,2 14,7 13,2

8" 150 SS 316 L Carbon steel* 19,7 16,2 14,7

10" 150 SS 316 L Carbon steel* 19,7 16,2 14,7

12" 150 SS 316 L Carbon steel* 19,7 16,2 14,7

14" 150 Carbon steel Carbon steel* 19,7 16,2 14,7

16" 150 Carbon steel Carbon steel* 19,7 16,2 14,7

www.krohne.com 12

Page 13

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

Calculations are based on using spiral wound gaskets

Nominal diameter

[inch] [lbs] Tube Flange 20°C 140°C 180°C 220°C

18" 150 Carbon steel Carbon steel* 19,7 16,2 14,7

20" 150 Carbon steel Carbon steel* 19,7 16,2 14,7

Design pressure ASME 300 lbs

1 1/4" 300 SS 316 L 316 L 51 45,4 44,4 43,1

1 1/2" 300 SS 316 L 316 L 51 45,4 44,4 43,1

2 1/2" 300 SS 316 L 316 L 51 45,4 44,4 43,1

Nominal

pressure

1" 300 SS 316 L 316 L 51 45,4 44,4 43,1

2" 300 SS 316 L 316 L 51 45,4 44,4 43,1

3" 300 SS 316 L Carbon steel* 51 45,4 44,4 43,1

4" 300 SS 316 L Carbon steel* 51 45,4 44,4 43,1

5" 300 SS 316 L Carbon steel* 51 45,4 44,4 43,1

6" 300 SS 316 L Carbon steel* 51 45,4 44,4 43,1

Standard material Design pressure (bar)

* With carbon steel ASME flanges please note that minimum temperature is limited to -20°C (-4°F).

For temperatures down to -25°C (-13°F) other materials are available on request.

* With carbon steel ASME flanges please note that minimum temperature is limited to -20°C (-4°F).

For temperatures down to -25°C (-13°F) other materials are available on request.

Design pressure DIN

25 40 SS 316 L SS 316 40 33,7 31,6 29,5

32 40 SS 316 L SS 316 40 33,7 31,6 29,5

40 40 SS 316 L SS 316 40 33,7 31,6 29,5

50 40 SS 316 L SS 316 40 33,7 31,6 29,5

65 40 SS 316 L SS 316 40 33,7 31,6 29,5

80 40 SS 316 L Carbon steel* 40 33,7 31,6 29,5

100 16 SS 316 L Carbon steel* 16 12,7 11,6 10,5

125 16 SS 316 L Carbon steel* 16 12,7 11,6 10,5

150 16 SS 316 L Carbon steel* 16 12,7 11,6 10,5

200 10 SS 316 L Carbon steel* 10 7,8 7,1

250 10 SS 316 L Carbon steel* 10 7,8 7,1

300 10 SS 316 L Carbon steel* 10 7,8 7,1

350 10 Carbon Steel Carbon steel* 10 7,8 7,1

400 10 Carbon Steel Carbon steel* 10 7,8 7,1

500 10 Carbon Steel Carbon steel* 10 7,8 7,1

* With carbon steel DIN flanges please note that minimum temperature is limited to -10°C.

For temperatures down to -25°C other materials are available on request.

www.krohne.com 13

Page 14

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

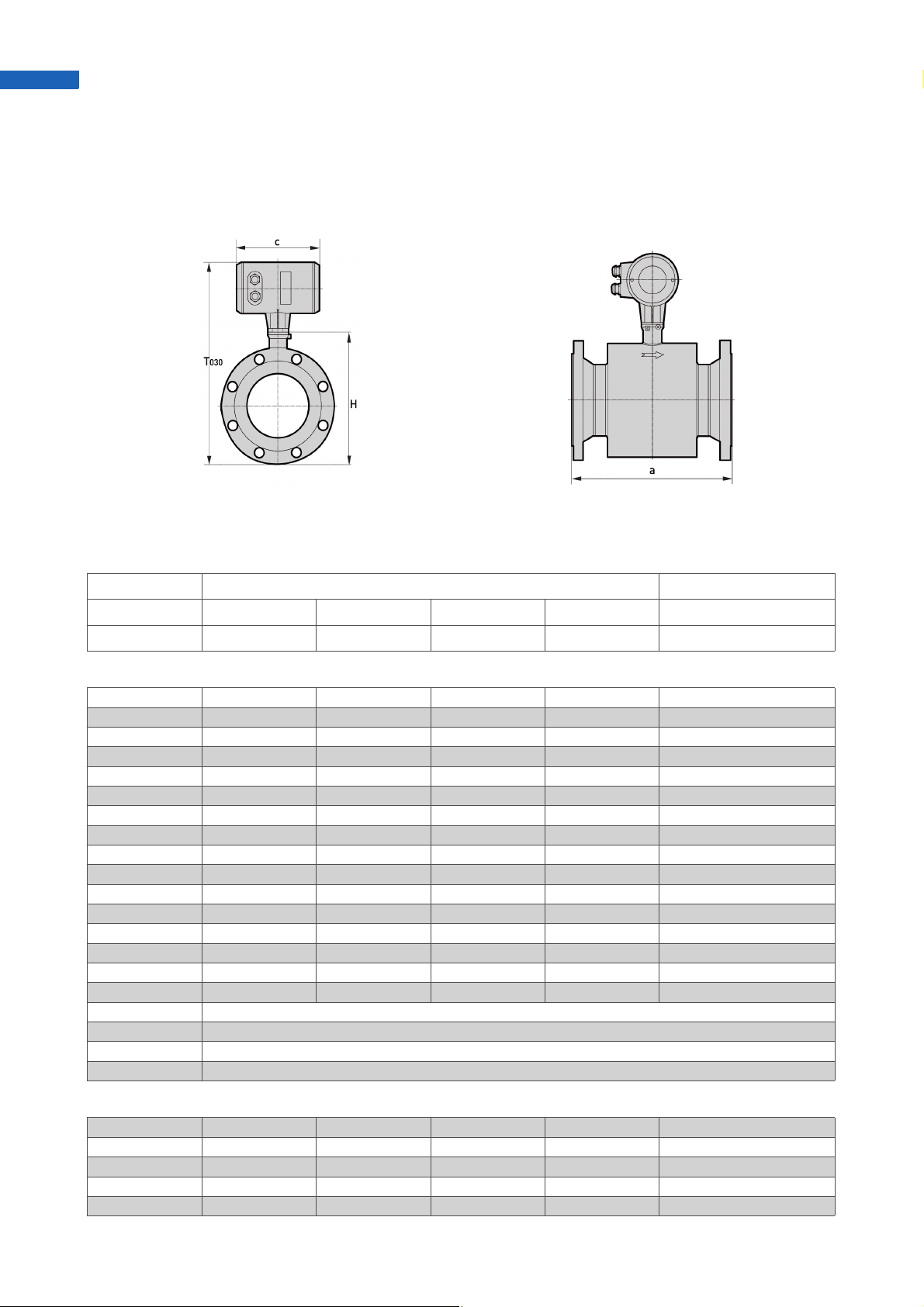

UFM3030 Frontview UFM3030 Sideview

Nominal size Dimensions [inches] Approx. weight [lbs]*

DN a c H T 030

[inch]

ASME 150 lbs

1" 9,84 8,12 5,75 13,03 14,3

1 1/4" 10,24 8,12 5,98 13,26 16,5

1 1/2" 10,63 8,12 6,18 13,46 18,7

2" 11,81 8,12 7,2 14,48 27,6

2 1/2" 11,81 8,12 7,71 14,99 36,4

3" 13,78 8,12 9,21 16,49 38,6

4" 13,78 8,12 10,47 17,75 51,8

5" 13,78 8,12 11,42 18,7 60,6

6" 15,75 8,12 12,48 19,76 78,3

8" 15,75 8,12 15,55 22,83 146,6

10" 19,69 8,12 17,76 25,04 164,2

12" 19,69 8,12 20,24 27,52 230,4

14" 27,56 8,12 21,81 29,09 263,5

16" 31,5 8,12 24,09 31,37 349,4

18" 31,5 8,12 25,83 33,11 386,9

20" 31,5 8,12 28,07 35,35 464,1

Inner diameters based on schedule standard.

*Approx. weight of flow sensor in separate (F) version.

For compact (K) version: add 1,8 kg (4,0 lbs).

Weight of converter in separate (F) version: 3,5 kg (7,7 lbs).

ASME 300 lbs

www.krohne.com 14

1" 9,84 8,12 6,1 13,38 16,5

1 1/4" 10,24 8,12 6,3 13,58 18,7

1 1/2" 10,63 8,12 6,69 13,97 23,1

2" 11,81 8,12 7,44 14,72 32

2 1/2" 13,78 8,12 7,95 15,23 40,8

Page 15

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn UFM 3030

Nominal size Dimensions [inches] Approx. weight [lbs]*

DN a c H T 030

[inch]

3" 13,78 8,12 9,61 16,89 47,4

4" 15,75 8,12 10,98 18,26 71,7

5" 15,75 8,12 11,93 19,21 91,5

6" 17,72 8,12 13,23 20,51 117,9

Inner diameters based on schedule standard.

*Approx. weight of flow sensor in separate (F) version.

For compact (K) version: add 1,8 kg (4,0 lbs).

Weight of converter in separate (F) version: 3,5 kg (7,7 lbs).

Calculations are based on using spiral wound gaskets

Nominal diameter

[inch] [lbs] Tube Flange 70°F 285°F 355°F 430°F

Nominal

pressure

Standard material Design pressure (psi)

Design pressure ASME 150 lbs

1" 150 SS 316 L SS 316 L 286 235 213 191

1 1/4" 150 SS 316 L SS 316 L 286 235 213 191

1 1/2" 150 SS 316 L SS 316 L 286 235 213 191

2" 150 SS 316 L SS 316 L 286 235 213 191

2 1/2" 150 SS 316 L SS 316 L 286 235 213 191

3" 150 SS 316 L Carbon steel* 286 235 213 191

4" 150 SS 316 L Carbon steel* 286 235 213 191

5" 150 SS 316 L Carbon steel* 286 235 213 191

6" 150 SS 316 L Carbon steel* 286 235 213 191

8" 150 SS 316 L Carbon steel* 286 235 213

10" 150 SS 316 L Carbon steel* 286 235 213

12" 150 SS 316 L Carbon steel* 286 235 213

14" 150 Carbon steel Carbon steel* 286 235 213

16" 150 Carbon steel Carbon steel* 286 235 213

18" 150 Carbon steel Carbon steel* 286 235 213

20" 150 Carbon steel Carbon steel* 286 235 213

Design pressure ASME 300 lbs

1" 300 SS 316 L 316 L 740 658 644 625

1 1/4" 300 SS 316 L 316 L 740 658 644 625

1 1/2" 300 SS 316 L 316 L 740 658 644 625

2" 300 SS 316 L 316 L 740 658 644 625

2 1/2" 300 SS 316 L 316 L 740 658 644 625

3" 300 SS 316 L Carbon steel* 740 658 644 625

4" 300 SS 316 L Carbon steel* 740 658 644 625

5" 300 SS 316 L Carbon steel* 740 658 644 625

6" 300 SS 316 L Carbon steel* 740 658 644 625

* With carbon steel ASME flanges please note that minimum temperature is limited to -20°C (-4°F).

For temperatures down to -25°C (-13°F) other materials are available on request.

* With carbon steel ASME flanges please note that minimum temperature is limited to -20°C (-4°F).

For temperatures down to -25°C (-13°F) other materials are available on request.

www.krohne.com 15

Page 16

UFM 3030 nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

KROHNE Overview

• Electromagnetic flowmeters • Level measuring instruments

• Variable area flowmeters • Pressure gauges

• Mass flowmeters • Temperature measuring instruments

• Ultrasonic flowmeters • Water solutions & analysis

• Vortex flowmeters • Oil and gas turnkey solutions

• Flow controllers

Addresses:

Germany

Northern sales office

KROHNE Messtechnik GmbH & Co. KG Bremer Str. 133 D-21073 Hamburg Phone:+49 (0)40 767 3340 Fax:+49 (0)40 767 33412 [email protected] ZIP code: 10000 - 29999, 49000 - 49999

Western and middle sales office

KROHNE Messtechnik GmbH & Co. KG Ludwig-Krohne-Straße D-47058 Duisburg Phone:+49 (0)203 301 416 Fax:+49 (0)203 301 10416 [email protected] ZIP code: 30000 - 34999, 37000 48000, 50000 - 53999, 57000 - 59999, 98000 - 99999

Southern sales office

KROHNE Messtechnik GmbH & Co. KG Landsberger Str. 392 D-81241 Munich Phone:+49 (0)89 121 5620 Fax:+49 (0)89 129 6190 [email protected] ZIP code: 0 - 9999, 80000 - 89999, 90000 - 97999

Southwestern sales office

KROHNE Messtechnik GmbH & Co. KG Rüdesheimer Str. 40 D-65239 Hochheim/Main Phone: +49(0)6146) 827 30 Fax:+49 (0)6146 827 312 [email protected] ZIP code: 35000 - 36999, 54000 56999, 60000 - 79999

Instrumentation and control equipment catalog

TABLAR Messtechnik GmbH Ludwig-Krohne-Straße 5 D-47058 Duisburg Phone:+49 (0)2 03 305 880 Fax:+49 (0)2 03 305 8888 [email protected] www.tablar.de

KROHNE sales companies

International

Australia

KROHNE Australia Pty Ltd Quantum Business Park 10/287 Victoria Rd Rydalmere NSW 2116 Phone: +61 2 8846 1700 Fax: +61 2 8846 1755 [email protected]

Austria

KROHNE Austria Ges.m.b.H. Modecenterstraße 14 A-1030 Vienna Phone:+43 (0)1/203 45 32 Fax:+43 (0)1/203 47 78 [email protected]

Belgium

KROHNE Belgium N.V. Brusselstraat 320 B-1702 Groot Bijgaarden Phone:+32 (0)2 4 66 00 10 Fax:+32 (0)2 4 66 08 00 [email protected]

Brazil

KROHNE Conaut Controles Automaticos Ltda. Estrada Das Águas Espraiadas, 230 C.P. 56 06835 - 080 EMBU - SP Phone:+55 (0)11-4785-2700 Fax:+55 (0)11 4785-2768 [email protected]

China

KROHNE Measurement Instruments (Shanghai) Co. Ltd., (KMIC) Room 1501 1033 Zhaojiabang Road Shanghai 200030 Phone: +86 21 6487 9611 Fax:+86 21 6438 7110 [email protected]

Czech Republic

Sobíšická 156 63800 Brno Phone: +420 (0)545.242 627 Fax: +420 (0)545 220 093 [email protected]

France

KROHNE S.A.S. Les Ors BP 98 F-26103 ROMANS Cedex Phone:+33 (0)4 75 05 44 00 Fax:+33 (0)4 75 05 00 48 [email protected]

Great Britain

KROHNE Ltd. Rutherford Drive Park Farm Industrial Estate Wellingborough Northants NN8 6AE Phone:+44 (0)19 33 408 500 Fax:+44 (0)19 33 408 501 [email protected]

CIS

Kanex KROHNE Engineering AG Business-Centre Planeta Office 404 ul. Marxistskaja 3 109147 Moscow/Russia Phone:+7 (0)095 911 7165 Fax:+7 (0)095 742 8873 [email protected]

India

Krohne Marshall Ltd. A-34/35, M.I.D.C. Industrial Area, H-Block Pimpri Poona 411018 Phone:+91 (0)202 744 2020 Fax:+91 (0)202 744 2020 [email protected]

Iran

KROHNE Liaison Office North Sohrevardi Ave. 26, Sarmad St., Apt. #9 Tehran 15539 Phone: +9821 8874 5973 Fax: +9821 8850 1268 [email protected]

Italy

KROHNE Italia Srl. Via V. Monti 75 I-20145 Milan Phone:+39 (0)2 43 30 06 61 Fax:+39 (0)2 43 00 66 66 [email protected]

Korea

KROHNE Korea Room 508 Miwon Bldg 43 Yoido-Dong Youngdeungpo-Ku Seoul, Korea Phone: 00-82-2-780-1743 Fax: 00-82-2-780-1749 [email protected]

Netherlands

KROHNE Nederland B.V. Kerkeplaat 14 NL-3313 LC Dordrecht Phone:+31 (0)78 630 6200 Fax:+31 (0)78 630 6405 Service Direct: +31 (0)78 630 6222 [email protected]

Norway

KROHNE Norway A.S. Ekholtveien 114 NO-1521 Moss Phone:+47 (0)69 264 860 Fax:+47 (0)69 267 333 [email protected]

Poland

KROHNE Endra Sp.z.o.o. ul. Stary Rynek Oliwsiki 8a 80-324 Gdansk Phone: +48 (0)58 520 9211 Fax.:+48 (0)58 520 9212 [email protected]

Switzerland

KROHNE AG Uferstr. 90 CH-4019 Basel Phone:+41 (0)61 638 30 30 Fax:+41 (0)61 638 30 40 [email protected]

Singapore

Tokyo Keiso - KROHNE (Singapore) Pte. Ltd. 14, International Business Park, Jurong East Chiyoda Building, #01-01/02 Singapore 609922 Phone: (65) 6567 4548 Fax : (65) 6567 9874 [email protected]

Republic of South Africa

KROHNE Pty. Ltd. 163 New Road Halfway House Ext 13 Midrand Phone: +27 (0)11 315 2685 Fax: +27 (0)11 805 0531 [email protected]

Spain

I.I. KROHNE IBERIA, S.r.l. Poligono Industrial Nilo Calle Brasil, nº. 5 28806 Alcalá de Henares Madrid Phone: +34 (0)91 883 2152 Fax: +34 (0)91 883 4854 [email protected]

USA

KROHNE, Inc. 7 Dearborn Road Peabody, MA 01960 Phone: +1 (800) FLOWING Phone: +1 (978) 535 6060 (in MA) [email protected]

Representatives

Algeria Argentina Cameroon Canada Chile Columbia Croatia Denmark Ecuador Egypt Finland Gabon Ghana Greece Hong Kong Hungary Indonesia Iran Ireland Israel Ivory Coast Japan Jordan Kuwait Libya Lithuania Malaysia Mauritius Mexico Morocco New Zealand Peru Portugal Romania Saudi Arabia Senegal Slovakia Slovenia Sweden Taiwan Thailand Tunisia Turkey Venezuela Yugoslavia

Other countries

KROHNE Messtechnik GmbH & Co. KG Ludwig-Krohne-Str. 5 D-47058 Duisburg Phone:+49 (0)203 301 0 Fax:+49 (0)203 301 389 [email protected]

www.krohne.com 16
