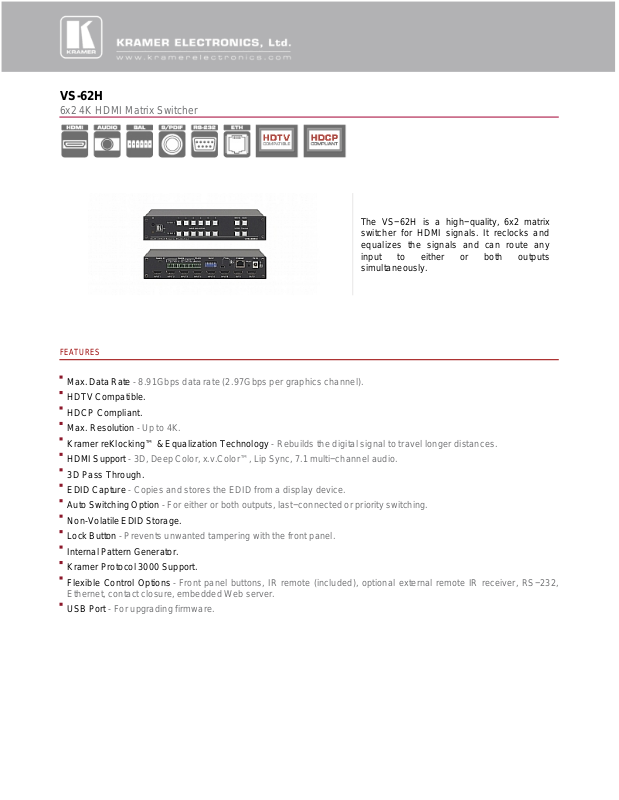

Kramer VS-62H Datasheet

VS-62H

6x2 4K HDMI Matrix Switcher

The VS−62H is a high−quality, 6x2 matrix
switcher for HDMI signals. It reclocks and
equalizes the signals and can route any
input to either or both outputs
simultaneously.

Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel).
HDTV Compatible.
HDCP Compliant.
Max. Resolution - Up to 4K.
Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, 7.1 multi−channel audio.
3D Pass Through.
EDID Capture - Copies and stores the EDID from a display device.
Auto Switching Option - For either or both outputs, last−connected or priority switching.
Non-Volatile EDID Storage.
Lock Button - Prevents unwanted tampering with the front panel.
Internal Pattern Generator.
Kramer Protocol 3000 Support.
Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS−232,

Ethernet, contact closure, embedded Web server.

USB Port - For upgrading firmware.

FEATURES

VS-62H

TECHNICAL SPECIFICATIONS

INPUTS:

6 HDMI connectors.

OUTPUTS:

2 HDMI connectors.

PORTS:

1 Ethernet on an RJ−45 connector, 1 IR on a 3.5mm mini jack, 12 remote selection
contact−closure switches on 13 terminal block pins, 1 serial port on a 3−pin terminal block, 1
program port on a mini USB connector.

COMPLIANCE WITH
HDMI STANDARD:

HDMI and HDCP.

RESOLUTION:

Up to UXGA; 1080p.

POWER CONSUMPTION:

100−

240V AC, 50/60Hz, 21VA.

CONTROLS:

Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.

OPERATING
TEMPERATURE:

0° to +40°C (32° to 104°F).

STORAGE
TEMPERATURE:

−40° to +70°C (−40° to 158°F).

HUMIDITY:

10% to 90%, RHL non−condensing.

DIMENSIONS:

19” x 7.24” x 1U (W, D, H).

WEIGHT:

1.6kg (3.53lbs) approx.

INCLUDED
ACCESSORIES:

Power cord, IR transmitter, rack ”ears”

.

OPTIONS:

External remote IR receiver cable.
