Kramer VS-211HA User Manual
KRAMER ELECTRONIC S LTD.
USER MANUAL
MODEL:
VS-2 11 HA
Automatic HDMI Standby
Switcher
P/N: 2900-300378 Rev 2
VS-211HA – Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the VS-211HA Automatic HDMI Standby Switcher 5
4 Connecting the VS-211HA 6
4.1 Connecting the REMOTE Terminal Block Connector 7
5 Operating the VS-211HA 8
5.1 Using the Manual Mode 8
5.2 Using the Automatic Mode 8
5.3 Using the Override Mode 9
6 Technical Specifications 10
Figures
Figure 1: VS-211HA Automatic HDMI Standby Switcher 5

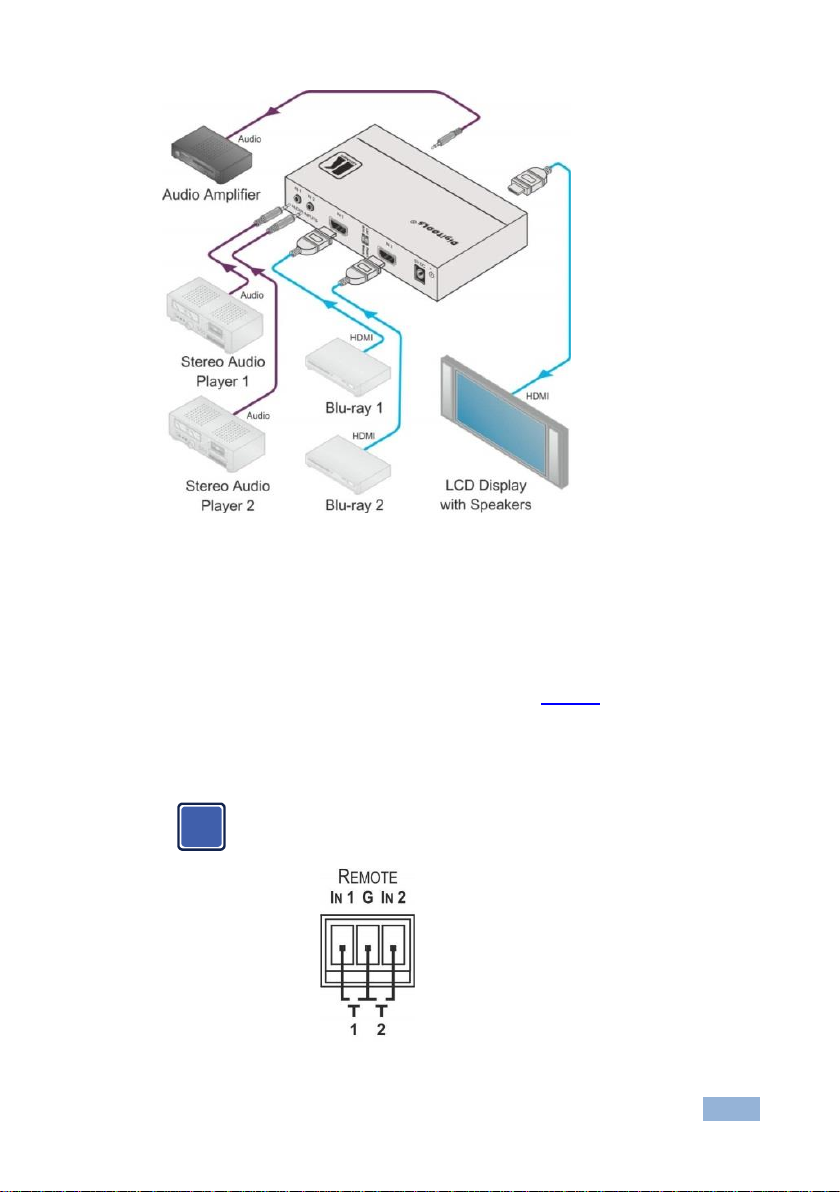

Figure 2: VS-211HA Connections 7
Figure 3: REMOTE Terminal Block Connector 7
VS-211HA - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer VS-211HA Automatic HDMI Standby
Switcher, which is ideal for the following typical applications:
Providing backup switching
Boardrooms and meeting rooms
Restaurant and entertainment venues
2
VS-211HA - Getting Started
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VS-211HA away from moisture, excessive sunlight and
dust
2.2 Safety Instructions
