Page 1
VP-771
9−Input ProScale™ Presentation Switcher/Scaler

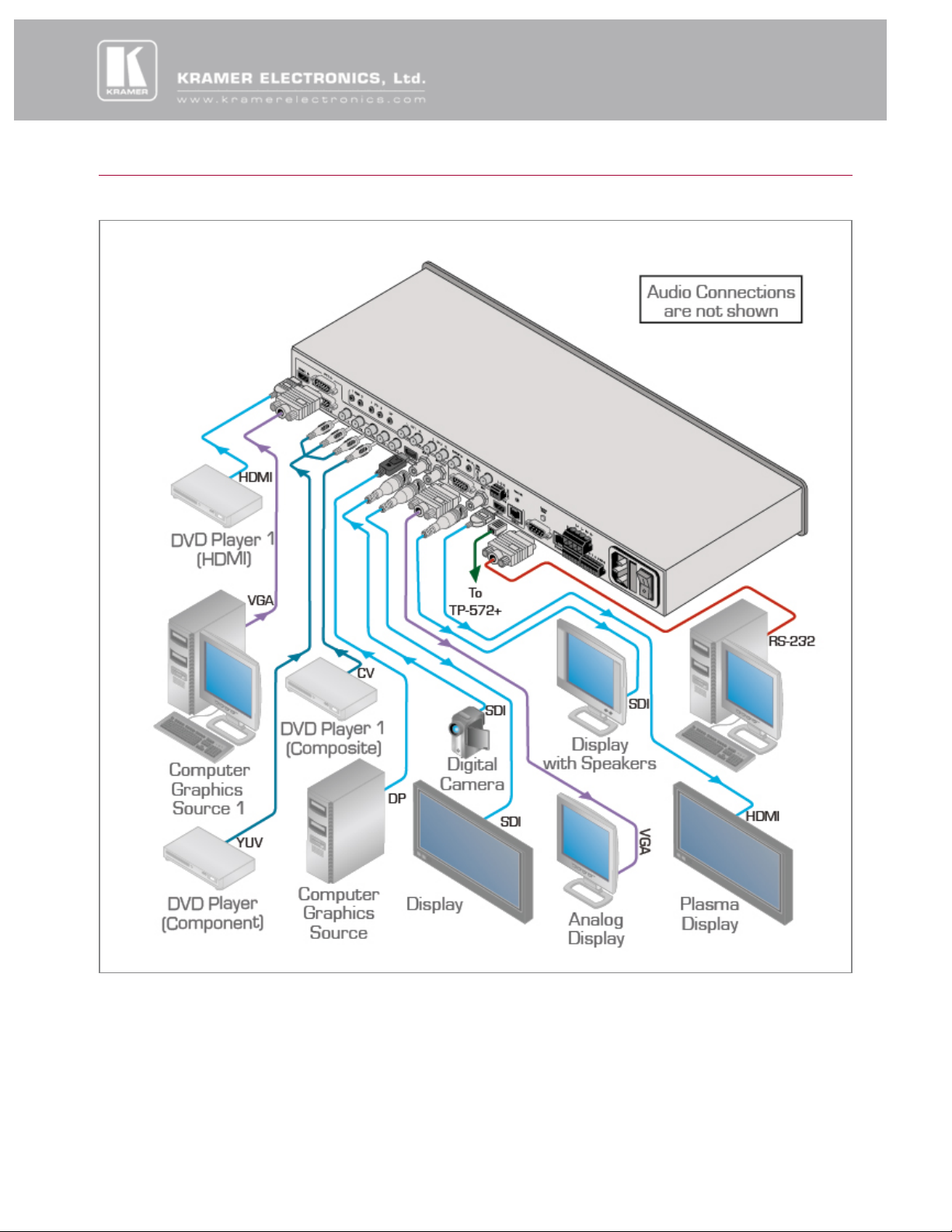

The VP−771 is a high−quality presentation
switcher and scaler for a variety of signals. It
accepts one of nine inputs: component
video, DisplayPort (DP), 3G HD−SDI, two
computer graphics, two composite video
and two HDMI signals. It scales the video,
embeds the audio, and outputs the signal to
one HDMI, one computer graphics, one 3G
HD−SDI and one DGKat TP, together with
digital audio, unbalanced stereo and a
10−watt amplified balanced stereo speaker
output.
Page 2
VP-771
K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra−stable picture−in−picture, picture−and−picture, and
split screen capability. Any video source can be inserted into or positioned next to a computer graphics video
source or vice versa with window positioning and sizing controls.
K-Storm™ Scaling Technology - Kramer’s extremely high performance scaling technology for converting the
incoming video signal to a scaled output resolution with a minimum of motion artifacts. Up−and down−scaling of
computer graphics video signals is possible.
Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra−fast. The video
fades to black and the new input fades from black for smooth, glitch−free switching. The output signal provides
constant sync so the display never glitches.
Advanced Deinterlacing Functions - Method, sync, selectable film modes, diagonal correction and motion detection
sensitivity, 3:2 and 2:2 pull−down; 24sf handling.
HDTV Compatible.
HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy−protected data
on the HDMI input to pass only to the HDMI output.
Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−
SDI (SMPTE
424M).
Video Inputs - Component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), SD/HD/3G HD−SDI (including
SDI loop) on BNC connectors, 2 computer graphics on 15−pin HD connectors, 2 composite video on RCA
connectors and 2 HDMI.
Scaled Outputs - HDMI, computer graphics on a 15−pin HD connector, SD/HD/3G HD −SDI on a BNC connector
and DGKat twisted pair on an RJ−45 connector.
SDI Channeling - Select one active signal and three bypassed signals from eight embedded stereo audio
channels.
40 Output Resolutions - Up to 2K and 1080p.
HDMI Deep Color Support.
Luma Keying - Via PIP window.
Vertical Keystoning.
Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input.
3D Comb Filtering - Provides the best quality color separation for composite video inputs.
Built-in Time Base Corrector - Stabilizes unstable video sources.
Powerful Noise Reduction Filters - Temporal, block, mosquito and combing.
Picture Zooming - Both on main and PIP window from 100% to 1600%, including separate V and H sharpness
control.
Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan.
Dual Window Display - Preset picture−in−picture, picture−and−picture and split screens, as well as customized
window layouts.
Audio Inputs - 2 HDMI, 2 computer graphics and 1 DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV
and 1 S/PDIF on RCA connectors.
Audio Outputs - 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 3−pin terminal block connector
and 2x10W power amplifier for balanced speakers on terminal block connectors.
Audio Delay - 0−90msec for lip−sync correction.
Microphone Input - Supports mix and talk−over features, as well as 0−90msec delay to prevent feedback.
Non-Volatile Memory - Saves final settings.
Firmware Upgrades - Via Ethernet and RS−232.
Flexible Control Options - Front panel buttons, contact closure, OSD (on−screen display) via front panel buttons or
IR remote (remote control included), Control Application software for use via Ethernet and RS−232.
Worldwide Power Supply - 100−
240V AC.
FEATURES
Page 3
VP-771
TECHNICAL SPECIFICATIONS
INPUTS:
2 HDMI connectors,
2 VGA on 15−pin HD connectors,
1 component video on 3 RCA connectors,
2 composite video on RCA connectors,
1 DisplayPort connector,
1 SD/HD/3G HD−SDI plus loop a BNC connector,
2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
1 S/PDIF (for component video input) digital audio on an RCA connector,
1 mic on a 3.5mm mini jack connector.
OUTPUTS:
1 VGA on a 15−pin HD connector,
1 SD/HD/3G HD−SDI on a BNC connector,
1 HDMI connector,
1 DGKat on an RJ−45 connector,
1 S/PDIF digital audio on an RCA connector,
1 unbalanced stereo audio on a 3−pin terminal block connector,
2x10W speaker amplifier balanced stereo audio on terminal block connectors.
COMPLIANCE
WITH
STANDARDS:
Supports HDMI and HDCP; DisplayPort 1.1a.
OUTPUT
RESOLUTIONS:
640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50,
1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50,
1280x1024@60, 1280x1024@75, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60,
1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60,
480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25,
1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080@60Hz, 2048x1080@50Hz.
CONTROLS:
Front panel buttons, OSD, IR remote control, RS−232 on a 9−pin D−sub connector, Ethernet,
contact closure.
POWER
CONSUMPTION:
100−
240V AC, 56VA max.
DIMENSIONS:
19" x 9.3" x 1U (W, D, H) rack mountable.
WEIGHT:
3kg (6.6lbs) approx.
ACCESSORIES:
Power cord, rack “ears”, IR remote control, control application program via RS−232 (PC) or the
Ethernet.
Standard 19” Rack Mount Size - 1U. Rack "ears" included.
