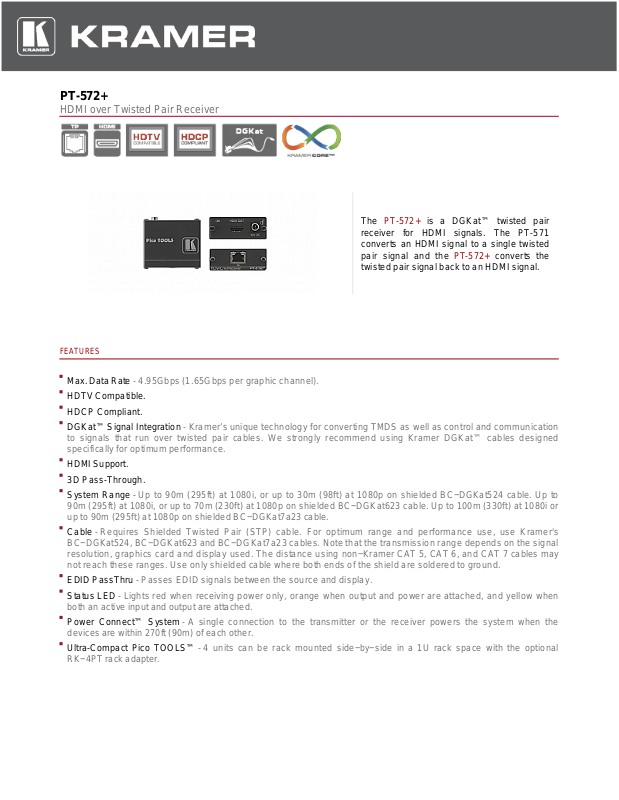

Kramer PT-572+ Datasheet

PT-572+

HDMI over Twisted Pair Receiver

The PT-572+ is a DGKat™ twisted pair
receiver for HDMI signals. The PT-571
converts an HDMI signal to a single twisted
pair signal and the PT-572+ converts the
twisted pair signal back to an HDMI signal.

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication

to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed
specifically for optimum performance.

HDMI Support.
3D Pass-Through.
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to

90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or
up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.

Cable - Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer's

BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal
resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may
not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

EDID PassThru - Passes EDID signals between the source and display.
Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when

both an active input and output are attached.

Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the

devices are within 270ft (90m) of each other.

Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional

RK−4PT rack adapter.

FEATURES

PT-572+

TECHNICAL SPECIFICATIONS

INPUTS:

1 RJ−45 connector.

OUTPUTS:

1 HDMI connector.

BANDWIDTH:

4.95Gbps (1.65Gbps per graphic channel).

COMPLIANCE WITH HDMI STANDARD:

Supports HDMI and HDCP.

POWER CONSUMPTION:

12V DC, 250mA.

DIMENSIONS:

6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.

WEIGHT:

0.14kg (0.3lbs).

INCLUDED ACCESSORIES:

Power supply.

OPTIONS:

RK−4PT 19” rack adapter.
